CMA CGM JULES VERNE
9454450 | 9HA5460 | CMA by *********************** Last update: Thu Jan 30 2025

General Info

Ship Name:CMA CGM JULES VERNE
IMO Code:9454450
Call Sign:9HA5460
Line Operator:CMA
Class Name for Sister Ships:CGJV
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:20
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:16,646

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

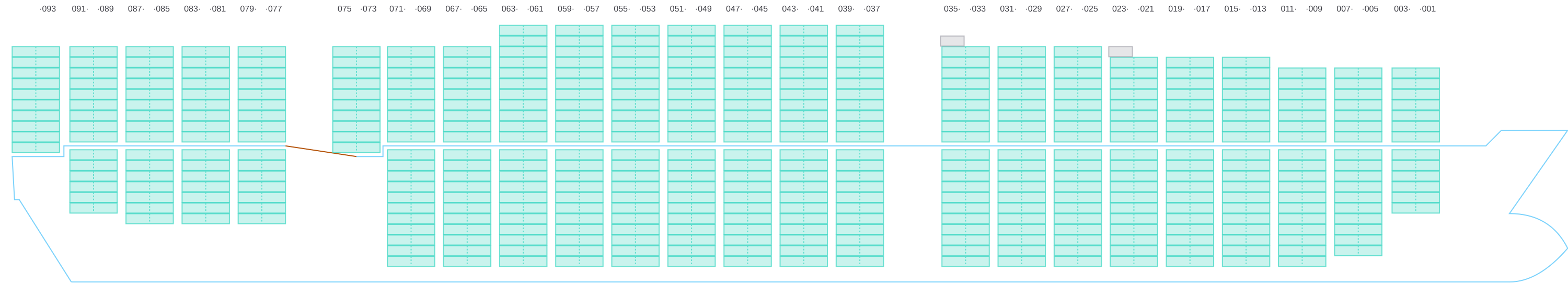

Side View

Side view of CMA CGM JULES VERNE

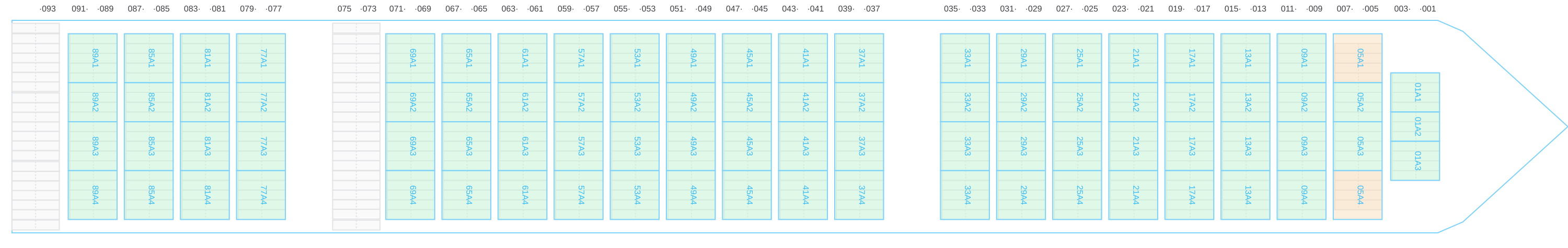

Hatch-Covers View

Deck view of CMA CGM JULES VERNE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

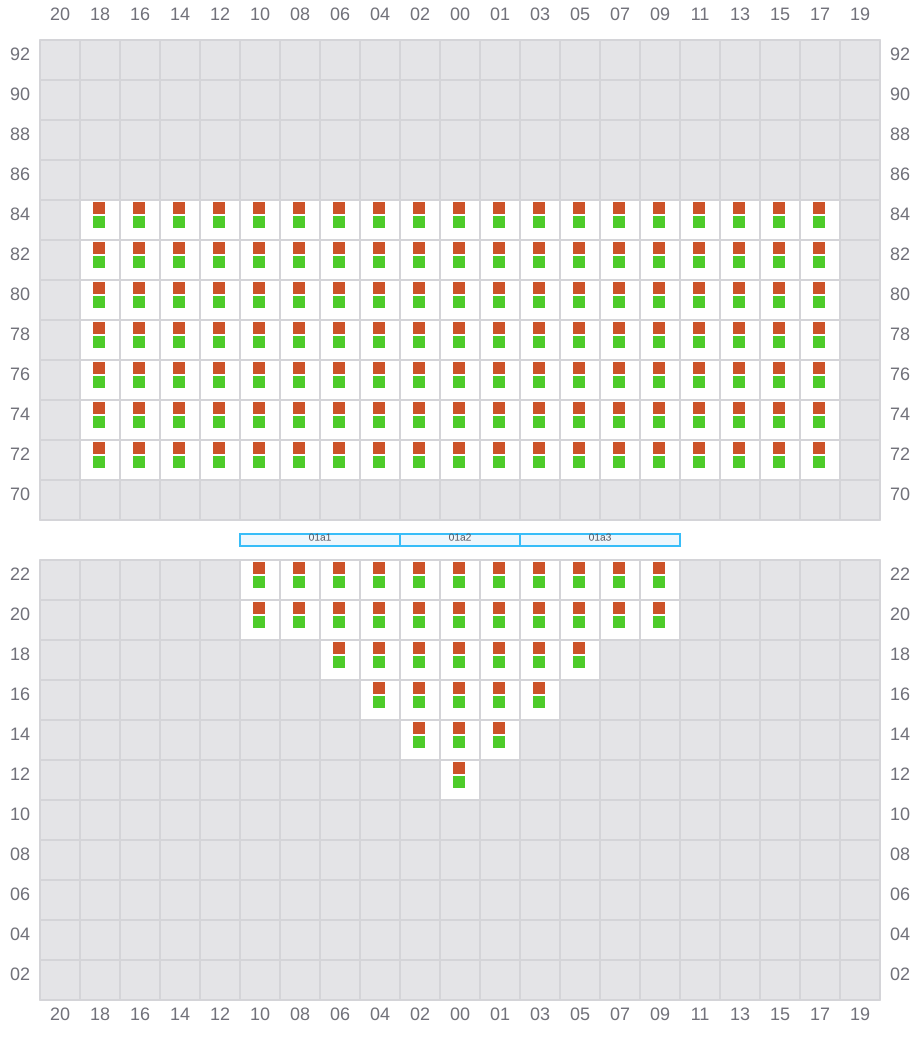

001 (002)

Bay 001 view and slots of CMA CGM JULES VERNE

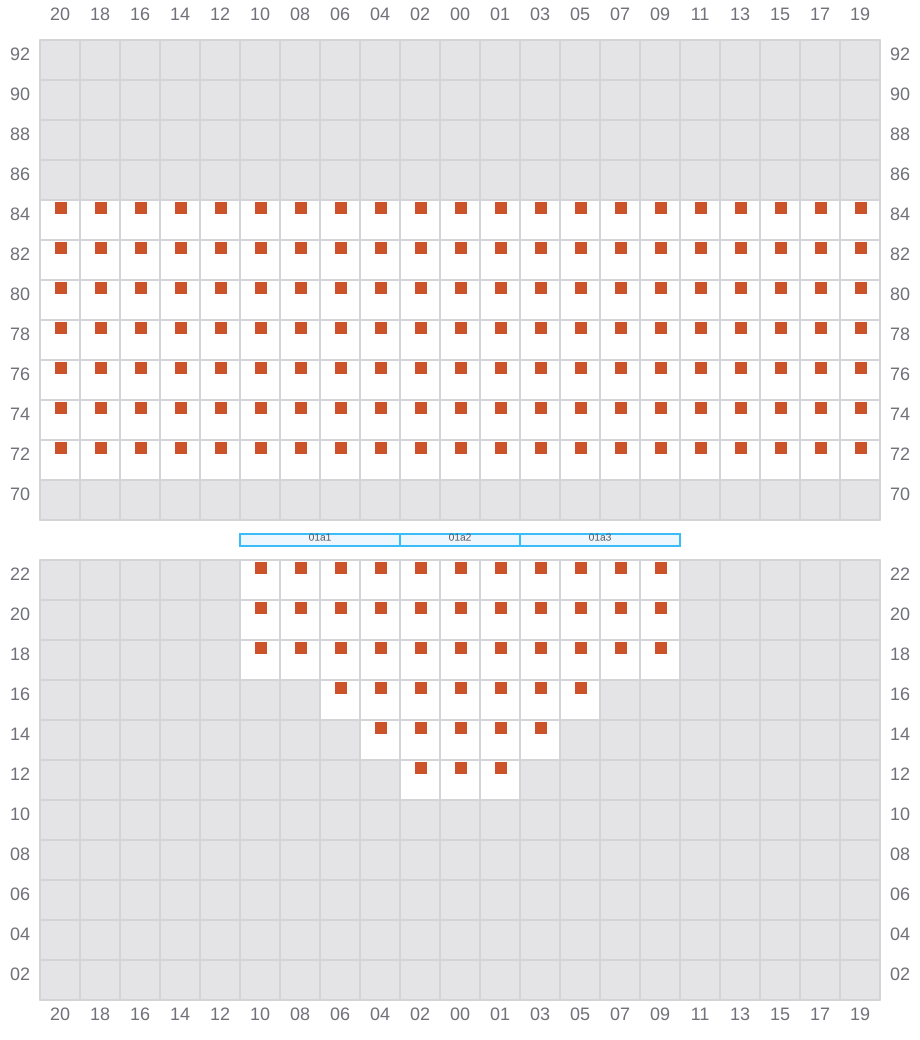

003

Bay 003 view and slots of CMA CGM JULES VERNE

005 (006)

  • / ?

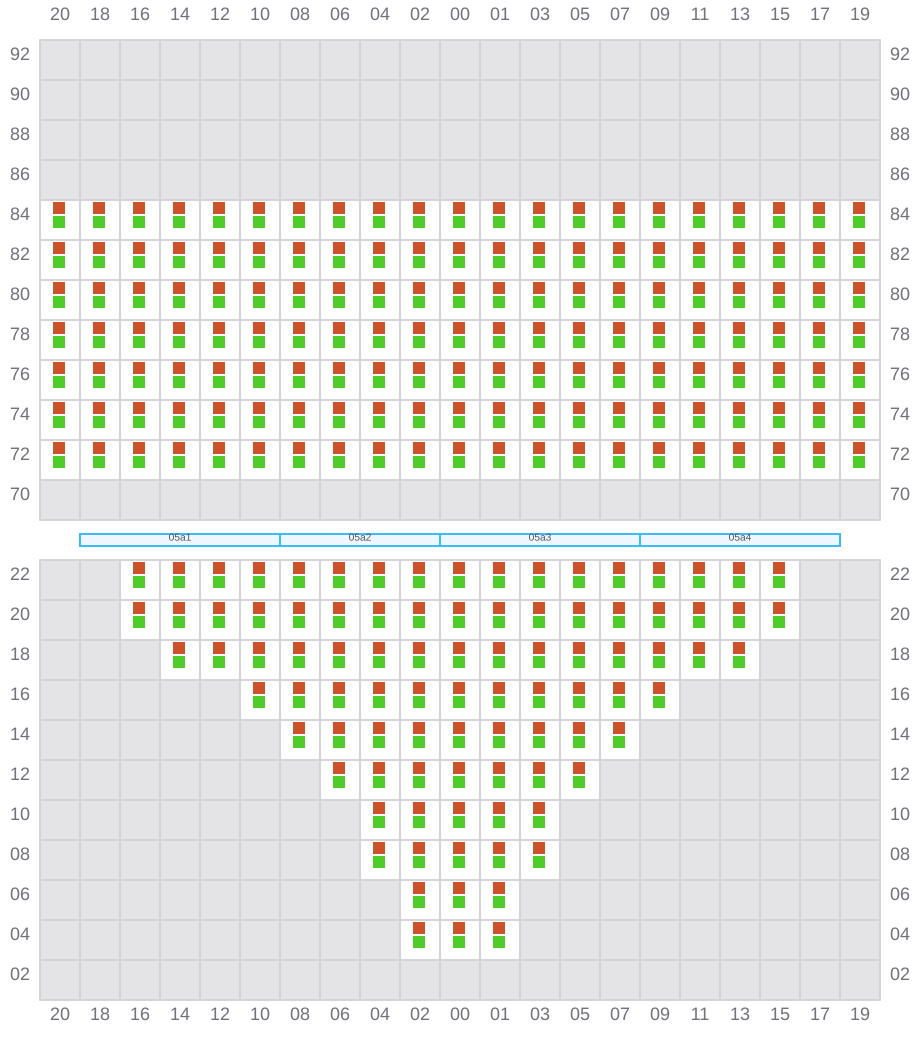

Bay 005 view and slots of CMA CGM JULES VERNE

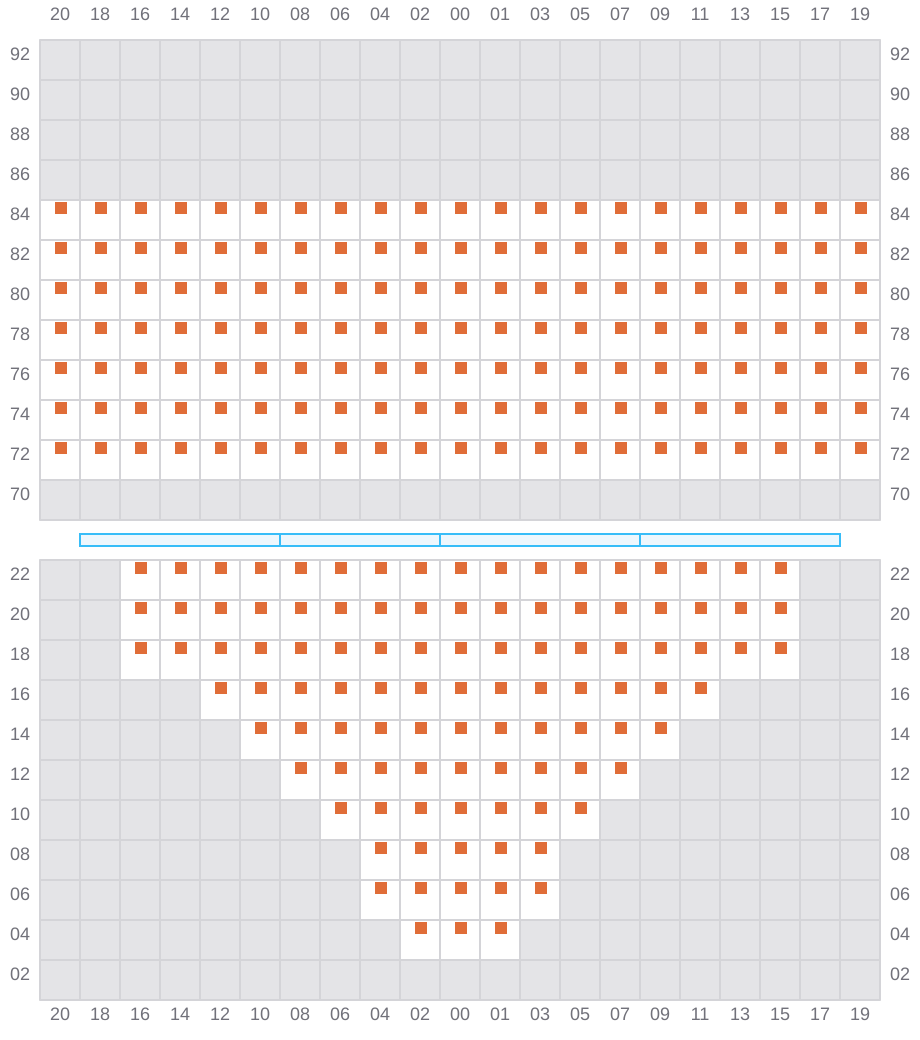

007

  • / ?
Bay 007 view and slots of CMA CGM JULES VERNE

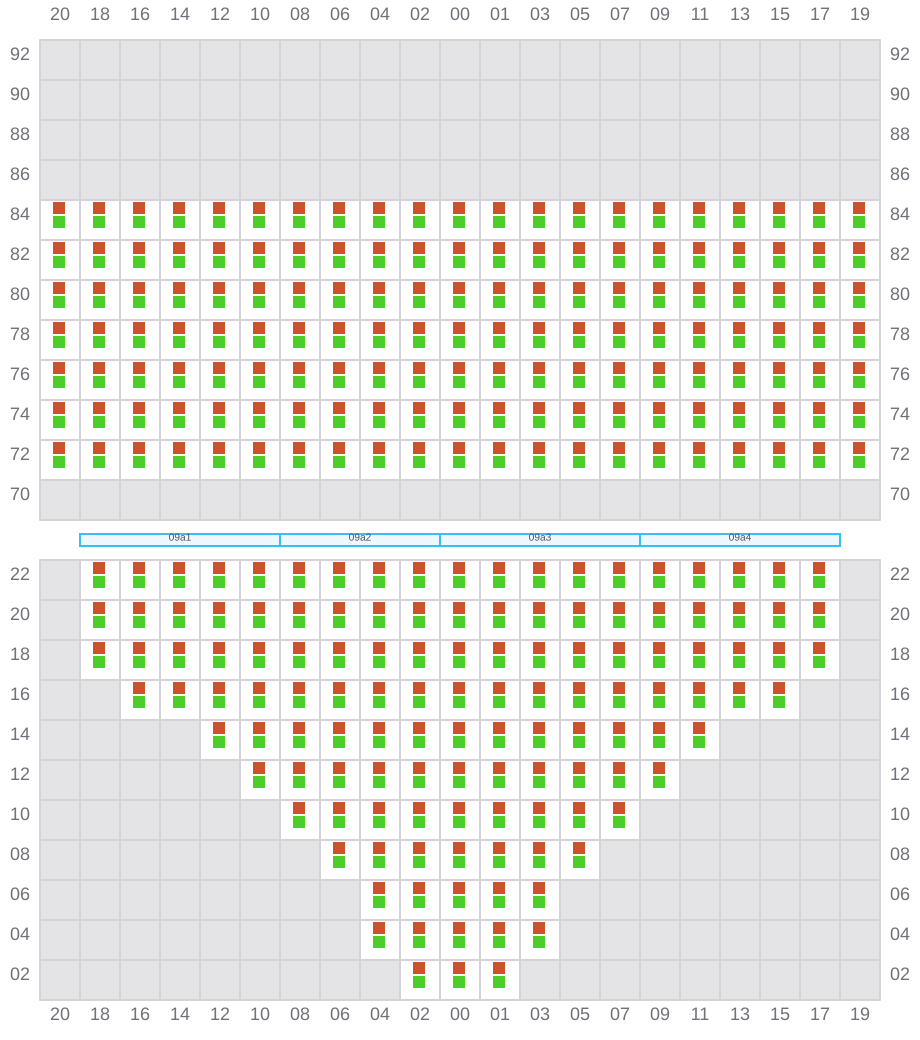

009 (010)

  • / ?
Bay 009 view and slots of CMA CGM JULES VERNE

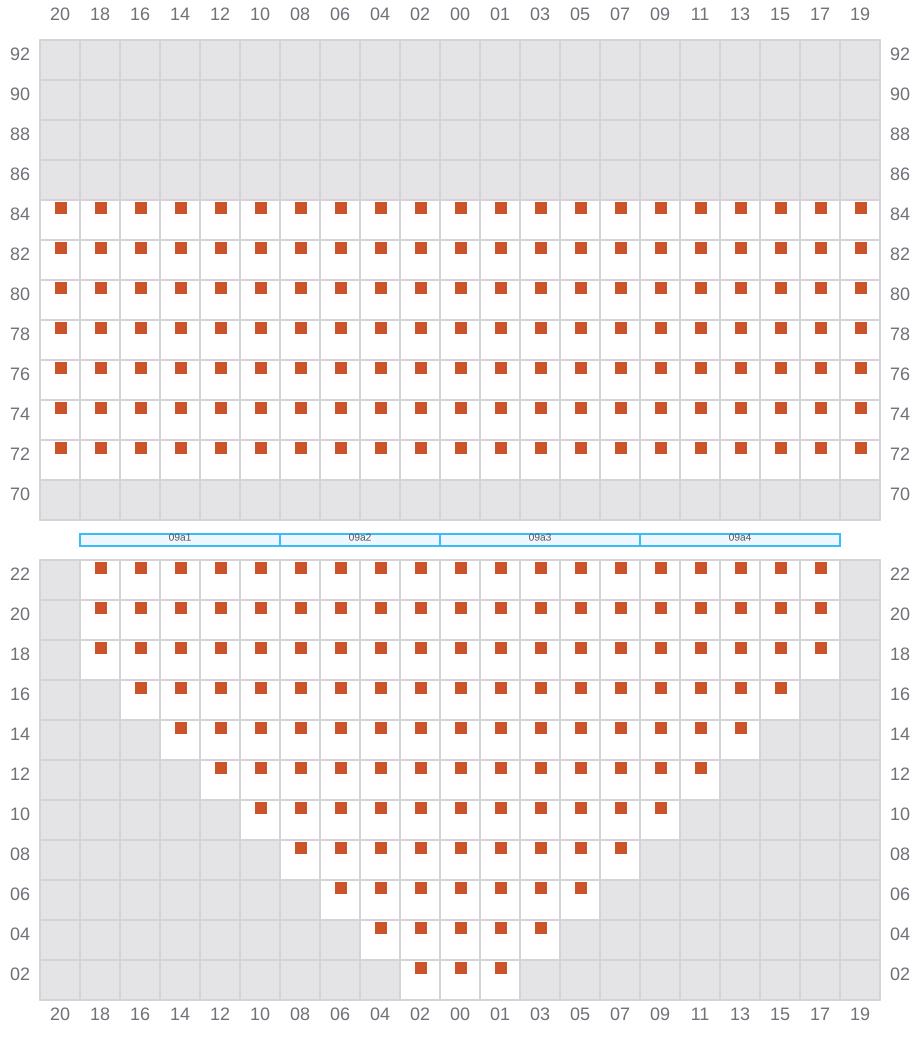

011

  • / ?
Bay 011 view and slots of CMA CGM JULES VERNE

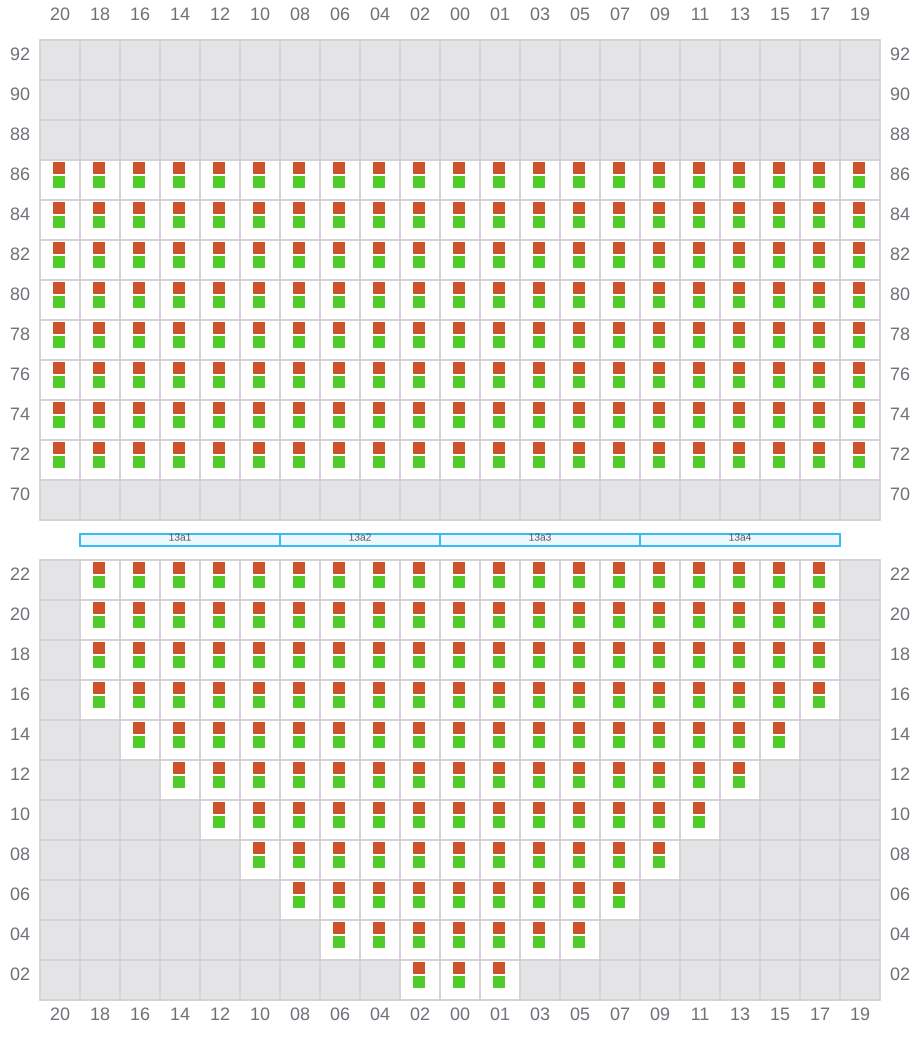

013 (014)

  • / ?
Bay 013 view and slots of CMA CGM JULES VERNE

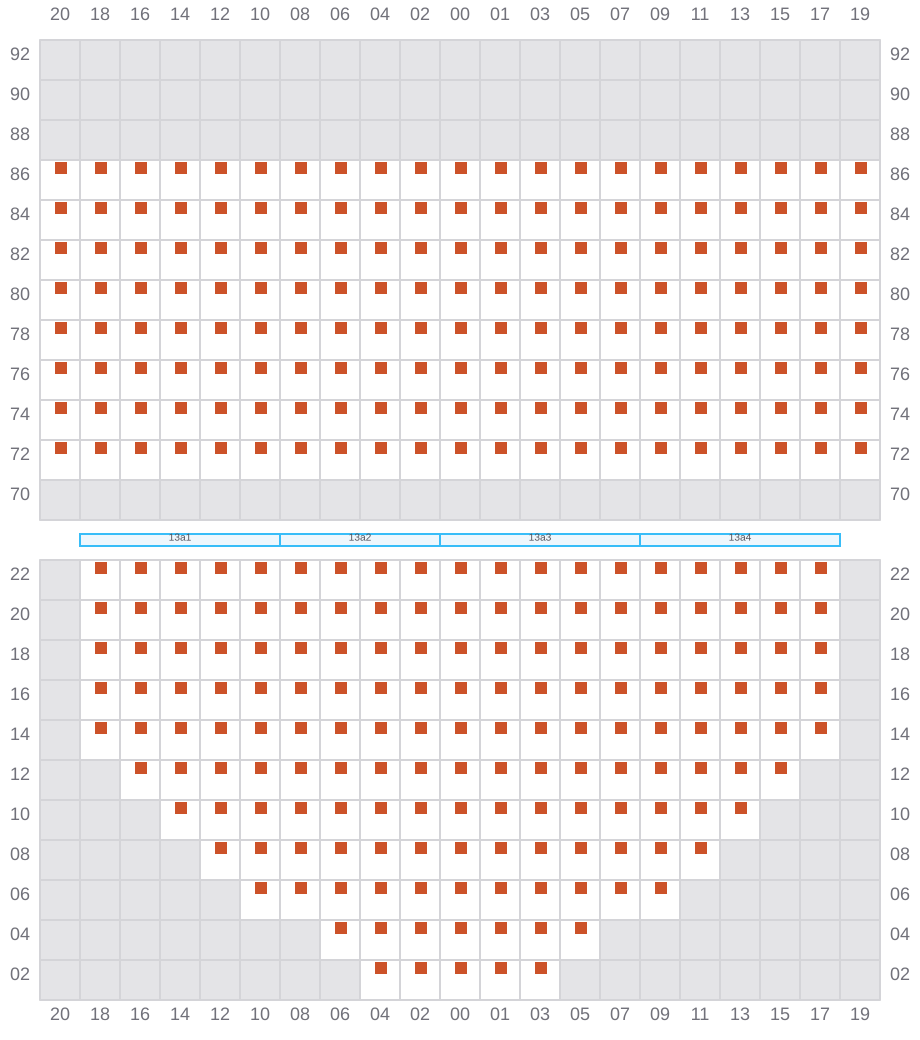

015

  • / ?
Bay 015 view and slots of CMA CGM JULES VERNE

017 (018)

  • / ?

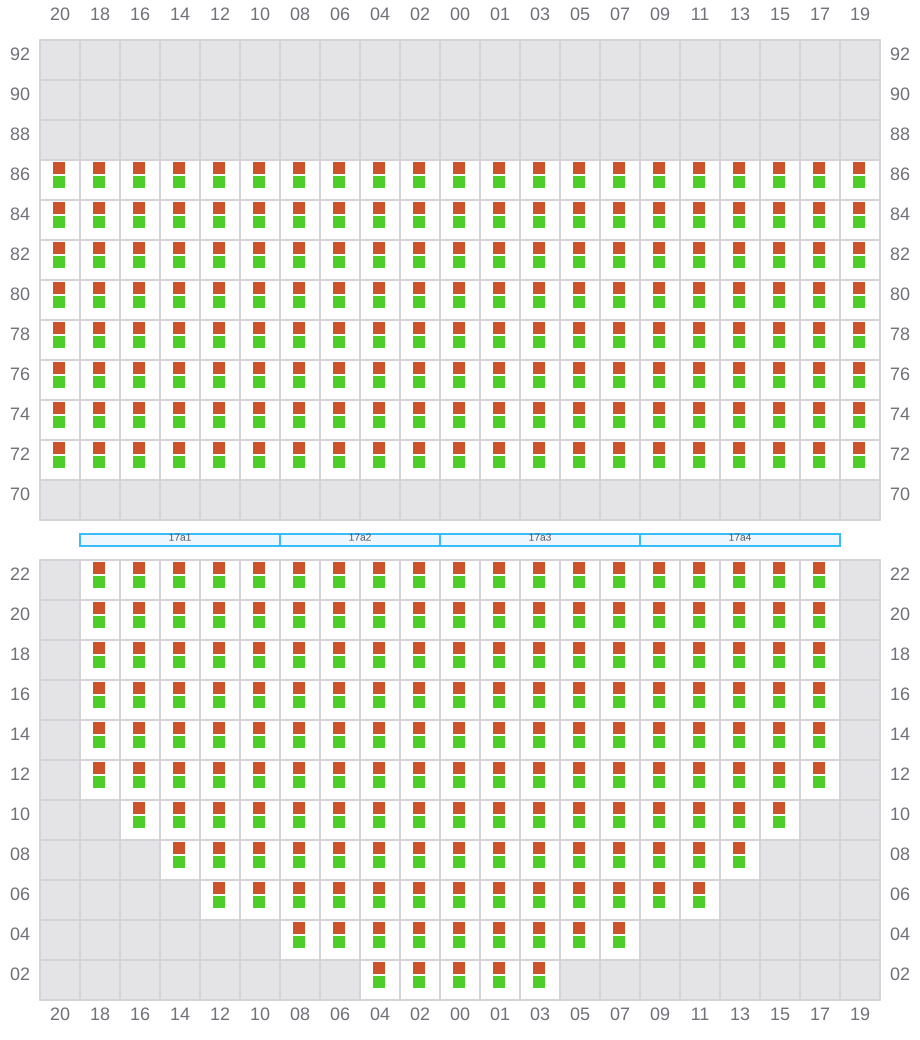

Bay 017 view and slots of CMA CGM JULES VERNE

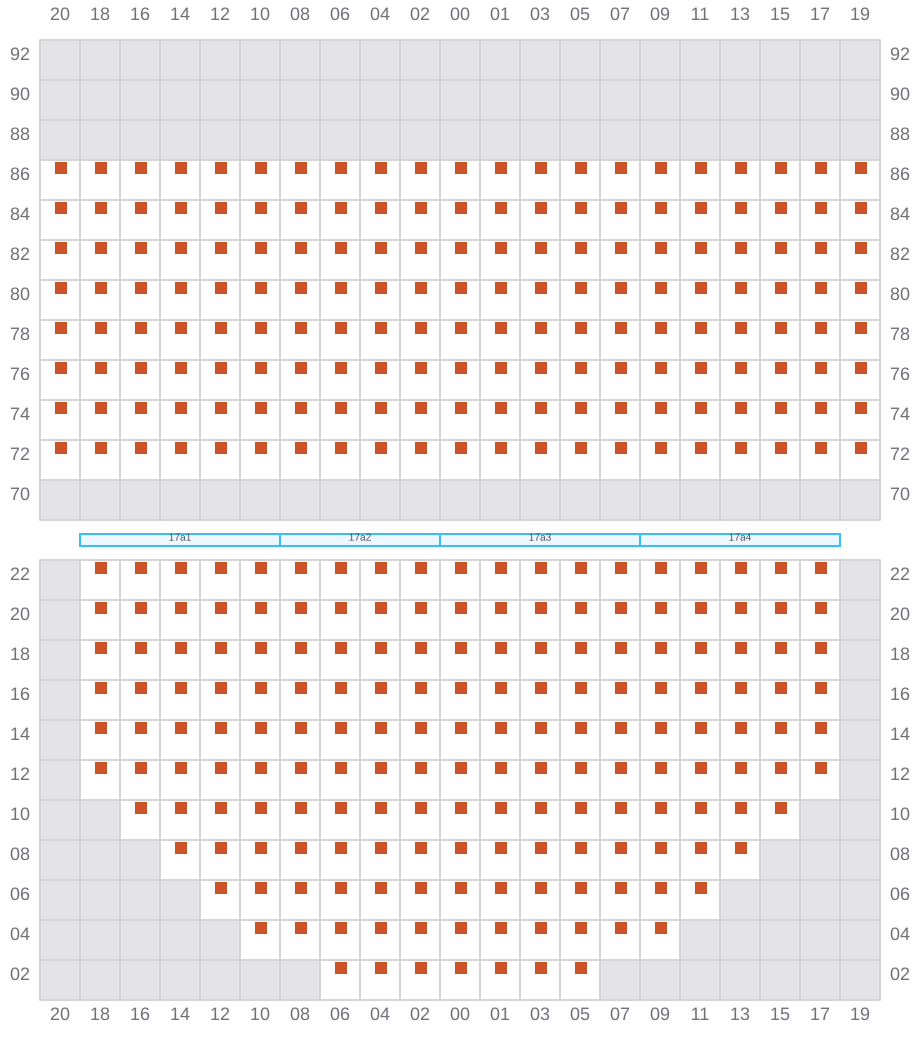

019

  • / ?
Bay 019 view and slots of CMA CGM JULES VERNE

021 (022)

  • / ?
Bay 021 view and slots of CMA CGM JULES VERNE

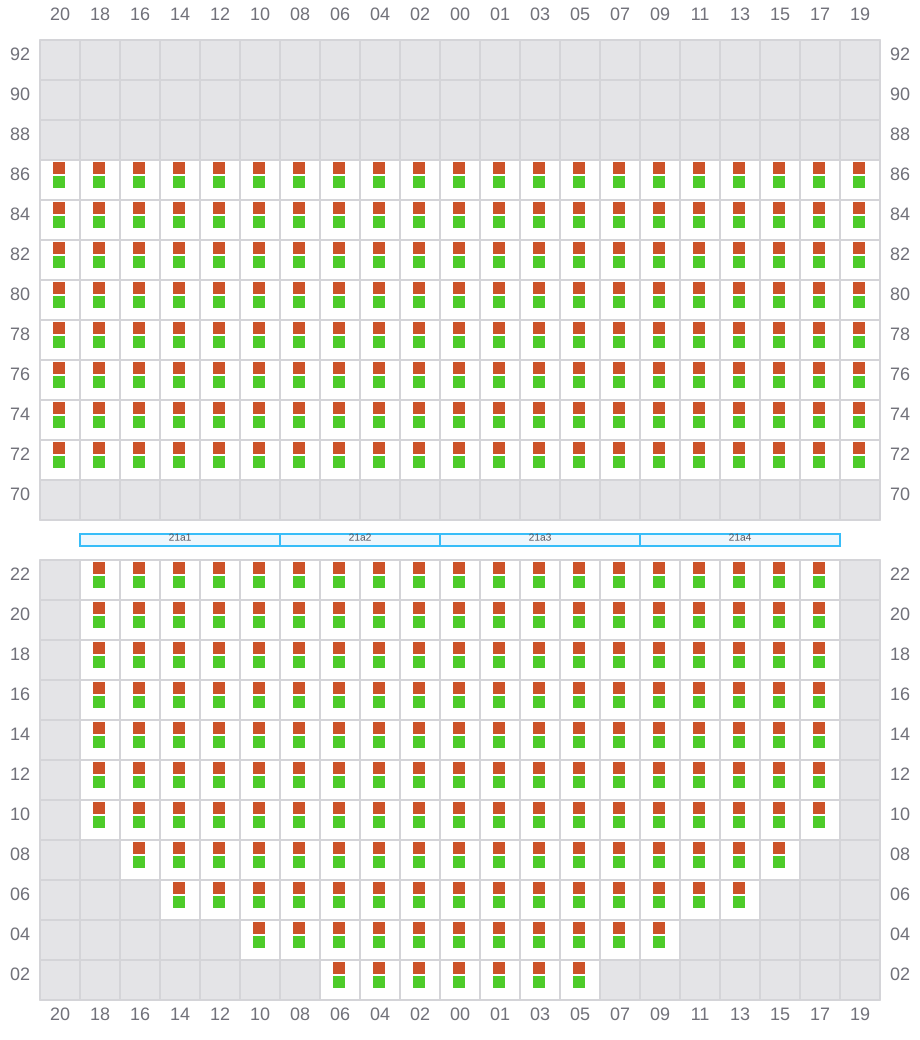

023

  • / ?

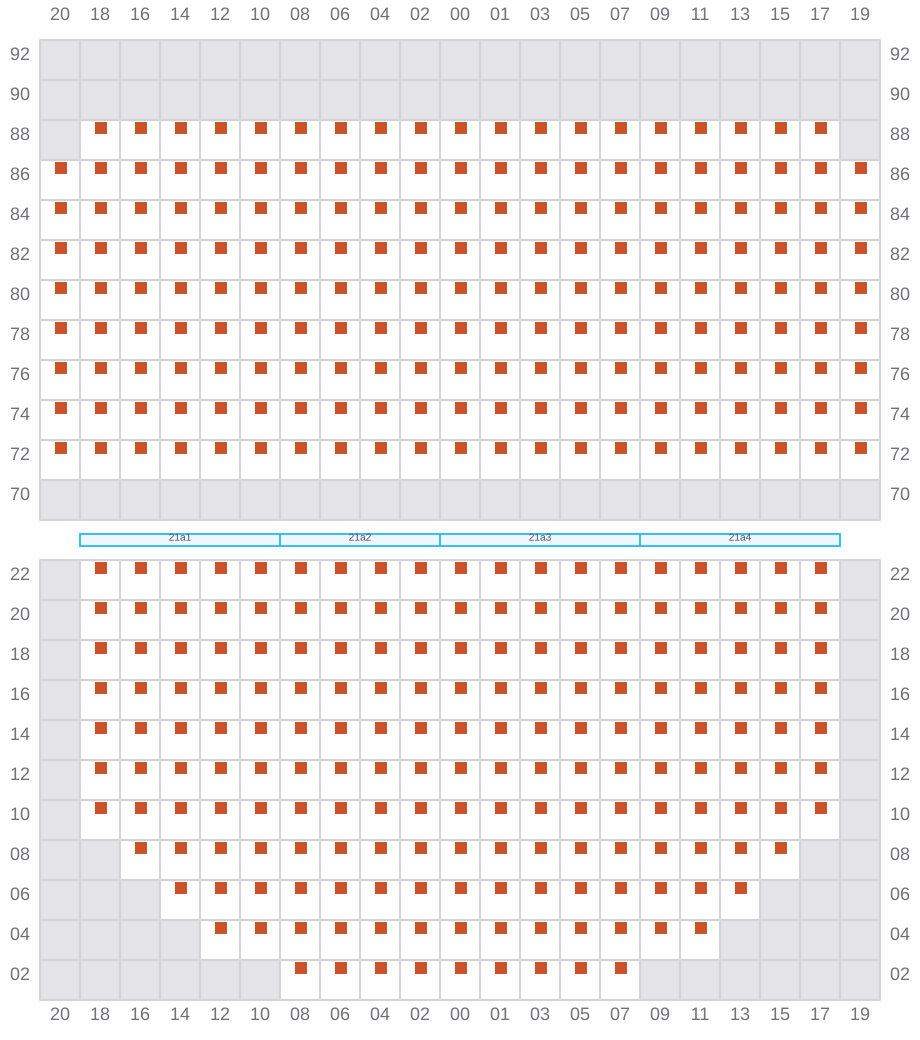

Bay 023 view and slots of CMA CGM JULES VERNE

025 (026)

  • / ?
Bay 025 view and slots of CMA CGM JULES VERNE

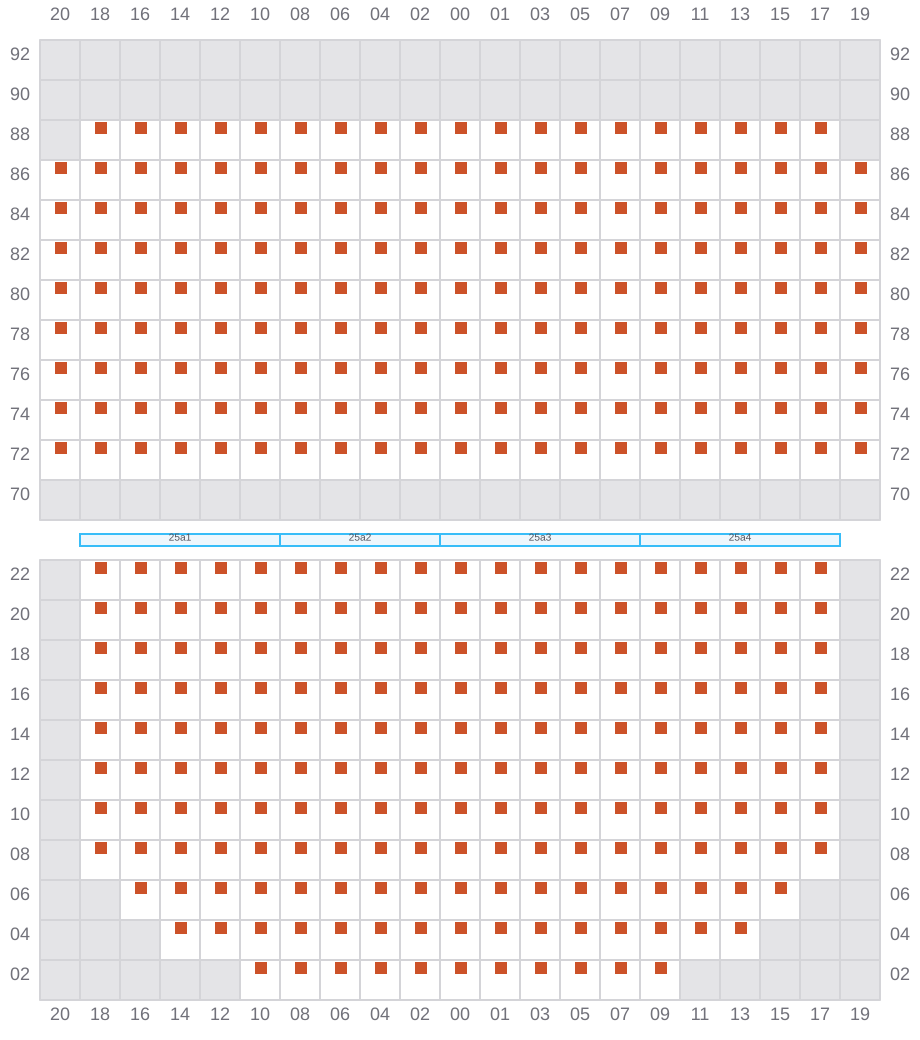

027

  • / ?
Bay 027 view and slots of CMA CGM JULES VERNE

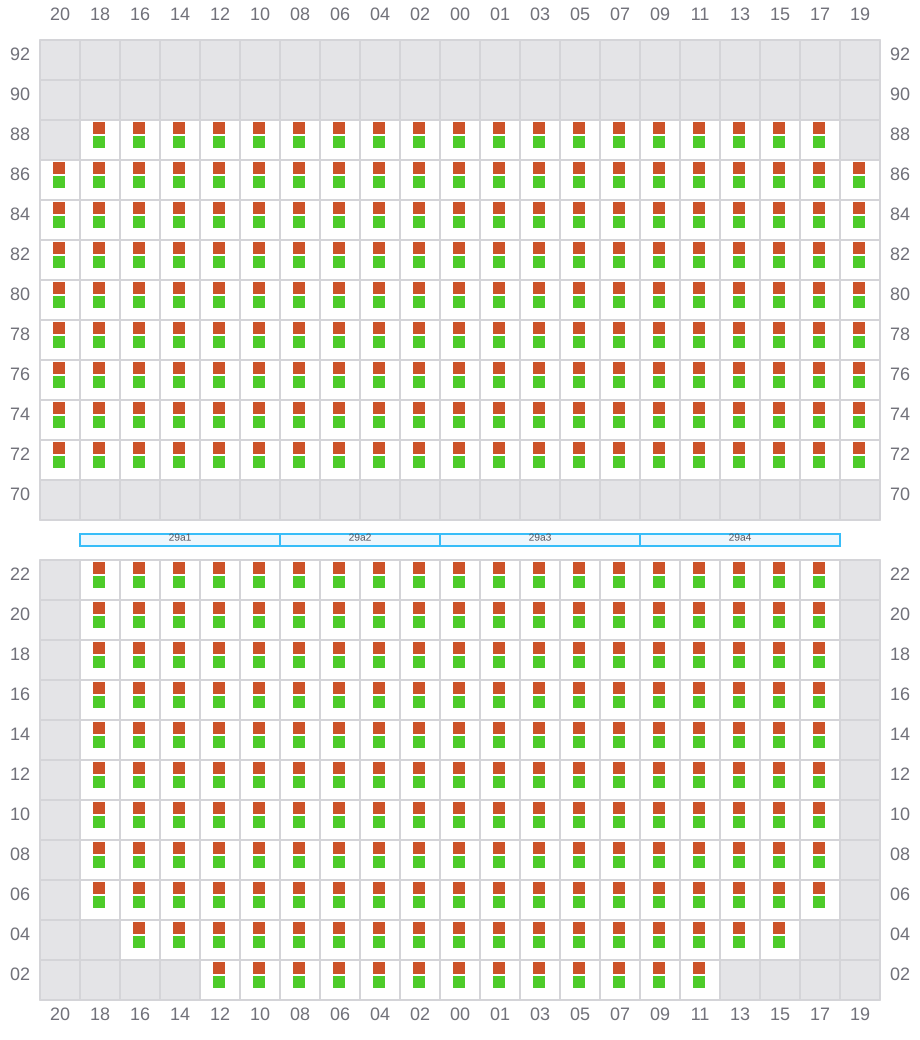

029 (030)

  • / ?
Bay 029 view and slots of CMA CGM JULES VERNE

031

  • / ?
Bay 031 view and slots of CMA CGM JULES VERNE

033 (034)

  • / ?
Bay 033 view and slots of CMA CGM JULES VERNE

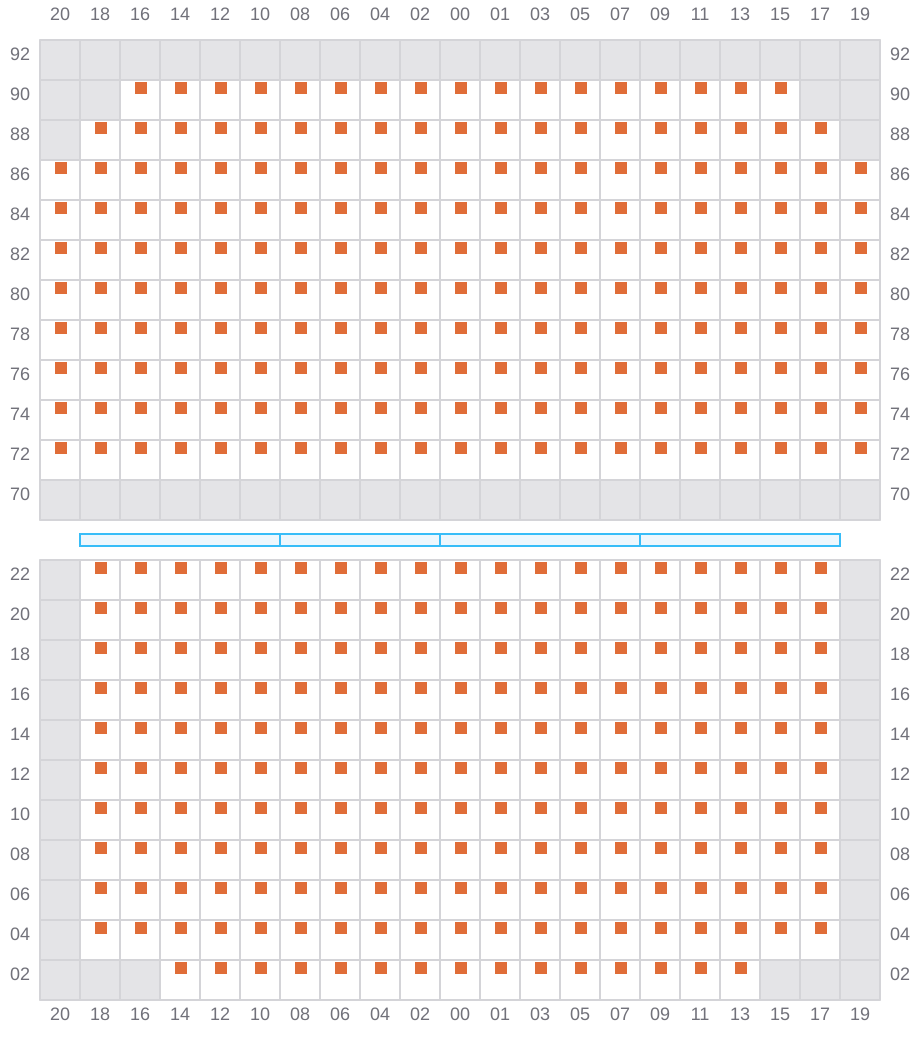

035

  • / ?
Bay 035 view and slots of CMA CGM JULES VERNE

037 (038)

  • / ?
Bay 037 view and slots of CMA CGM JULES VERNE

039

  • / ?

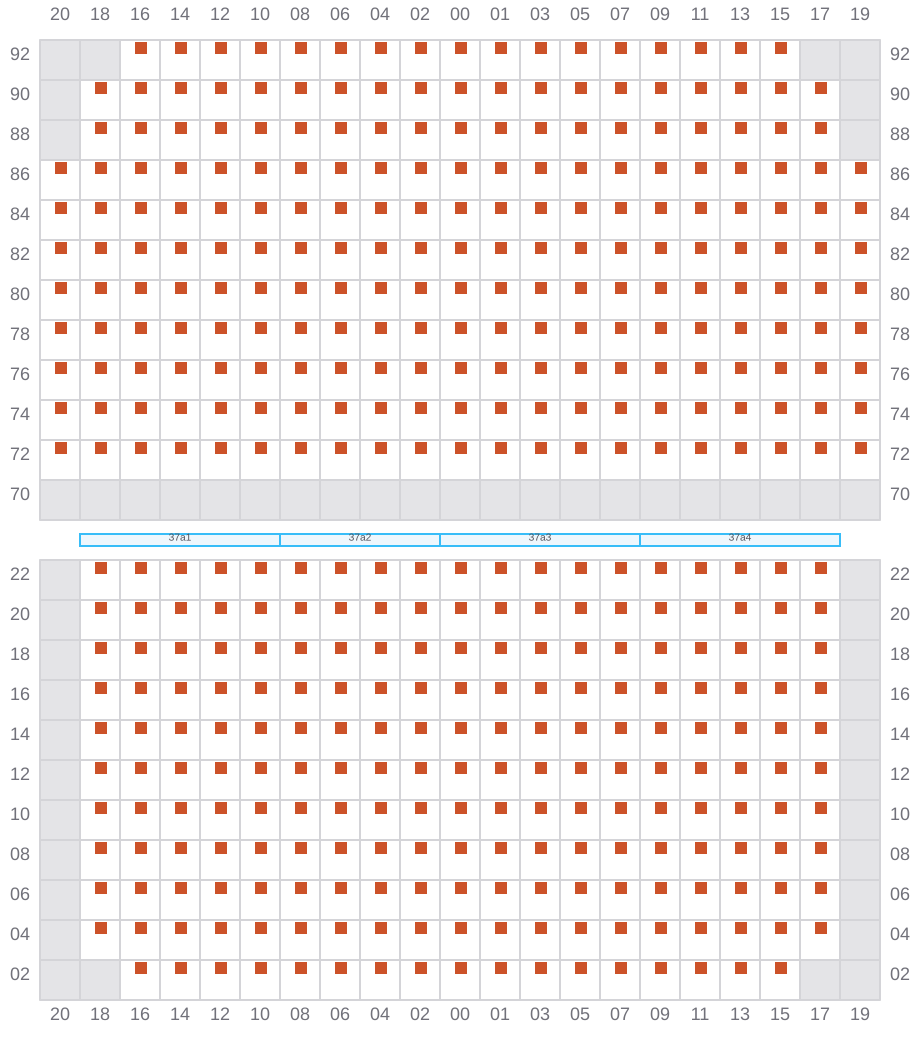

Bay 039 view and slots of CMA CGM JULES VERNE

041 (042)

  • / ?
Bay 041 view and slots of CMA CGM JULES VERNE

043

  • / ?
Bay 043 view and slots of CMA CGM JULES VERNE

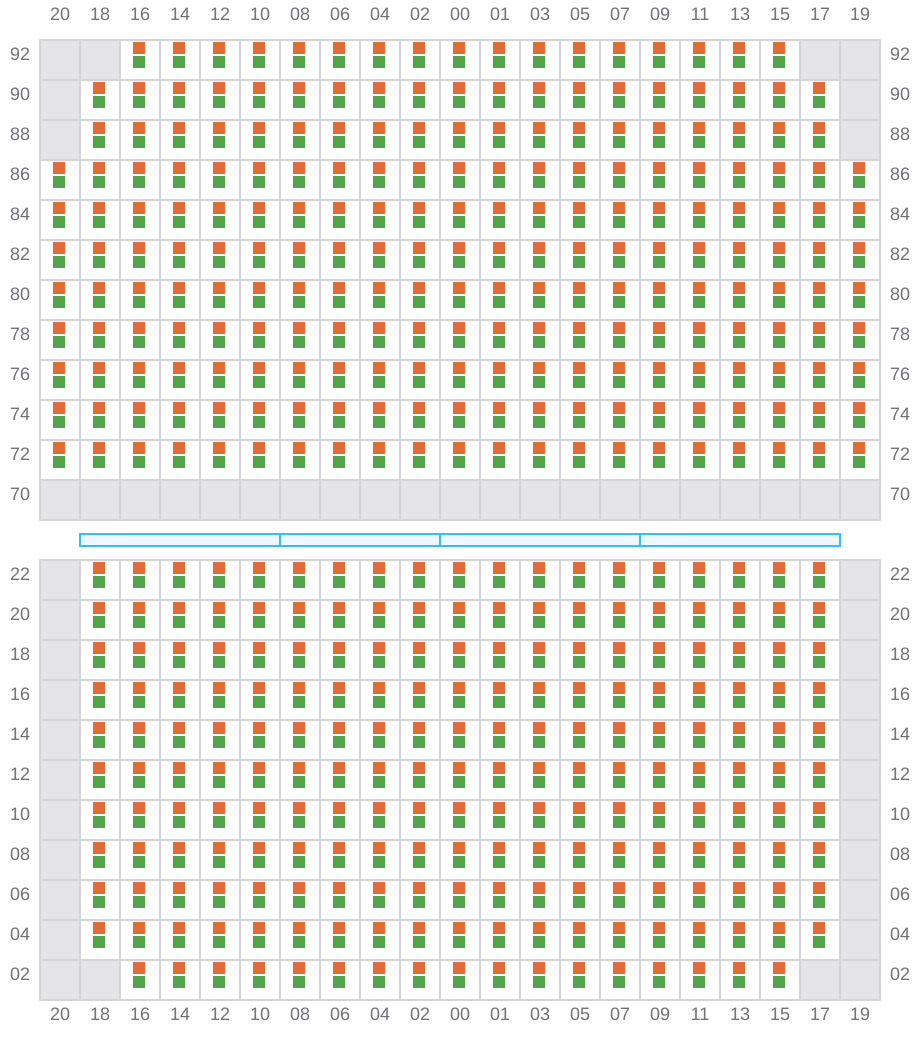

045 (046)

  • / ?
Bay 045 view and slots of CMA CGM JULES VERNE

047

  • / ?
Bay 047 view and slots of CMA CGM JULES VERNE

049 (050)

  • / ?
Bay 049 view and slots of CMA CGM JULES VERNE

051

  • / ?

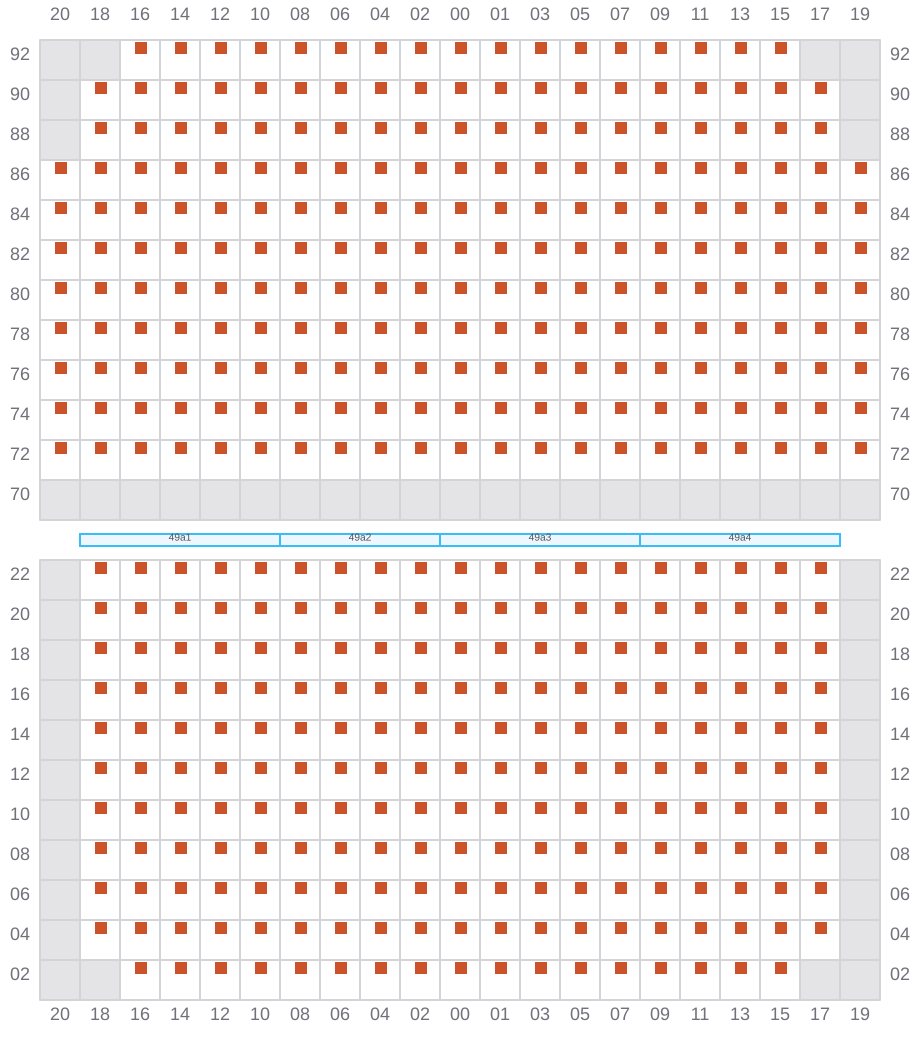

Bay 051 view and slots of CMA CGM JULES VERNE

053 (054)

  • / ?
Bay 053 view and slots of CMA CGM JULES VERNE

055

  • / ?

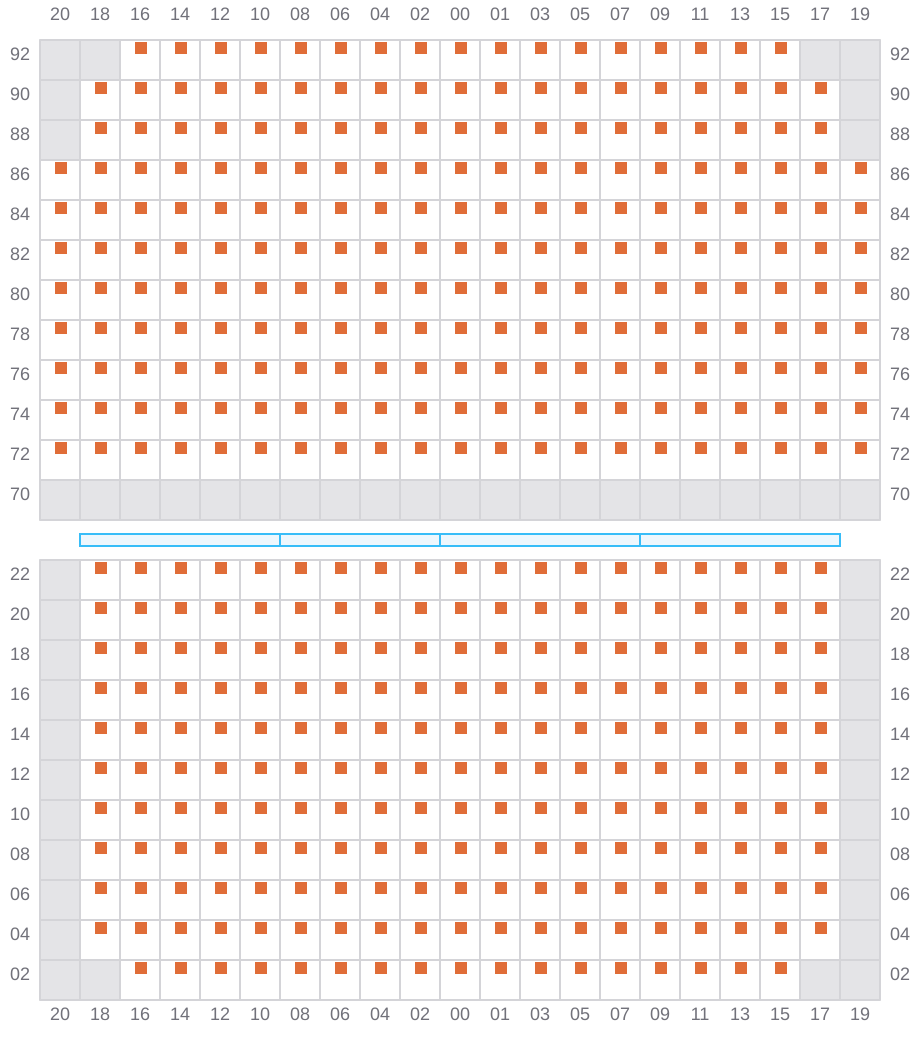

Bay 055 view and slots of CMA CGM JULES VERNE

057 (058)

  • / ?
Bay 057 view and slots of CMA CGM JULES VERNE

059

  • / ?
Bay 059 view and slots of CMA CGM JULES VERNE

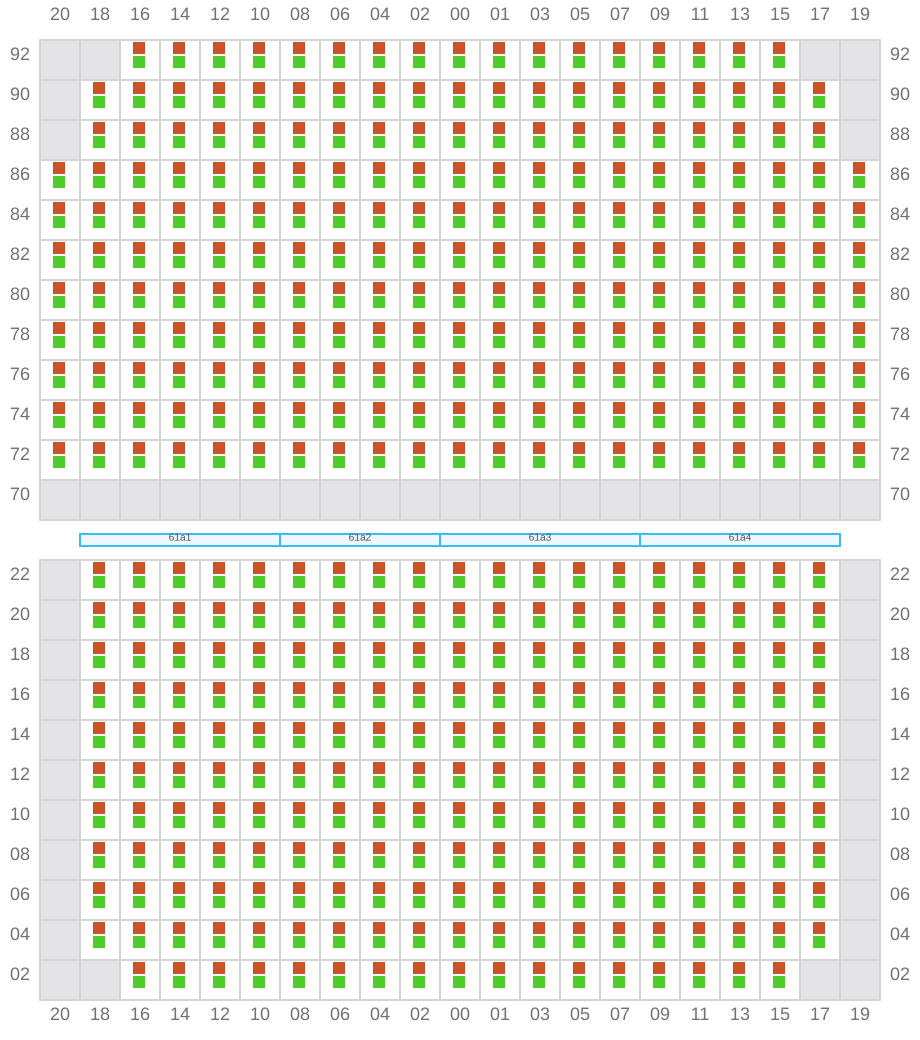

061 (062)

  • / ?
Bay 061 view and slots of CMA CGM JULES VERNE

063

  • / ?
Bay 063 view and slots of CMA CGM JULES VERNE

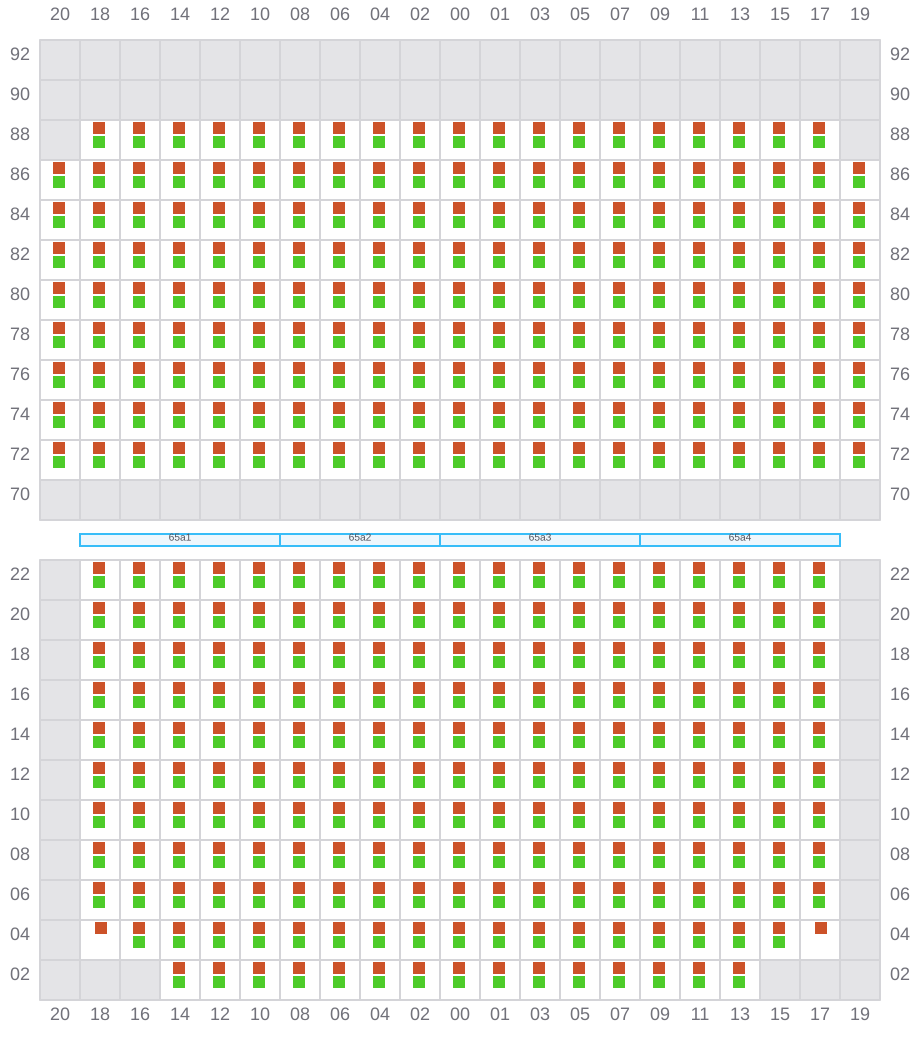

065 (066)

  • / ?
Bay 065 view and slots of CMA CGM JULES VERNE

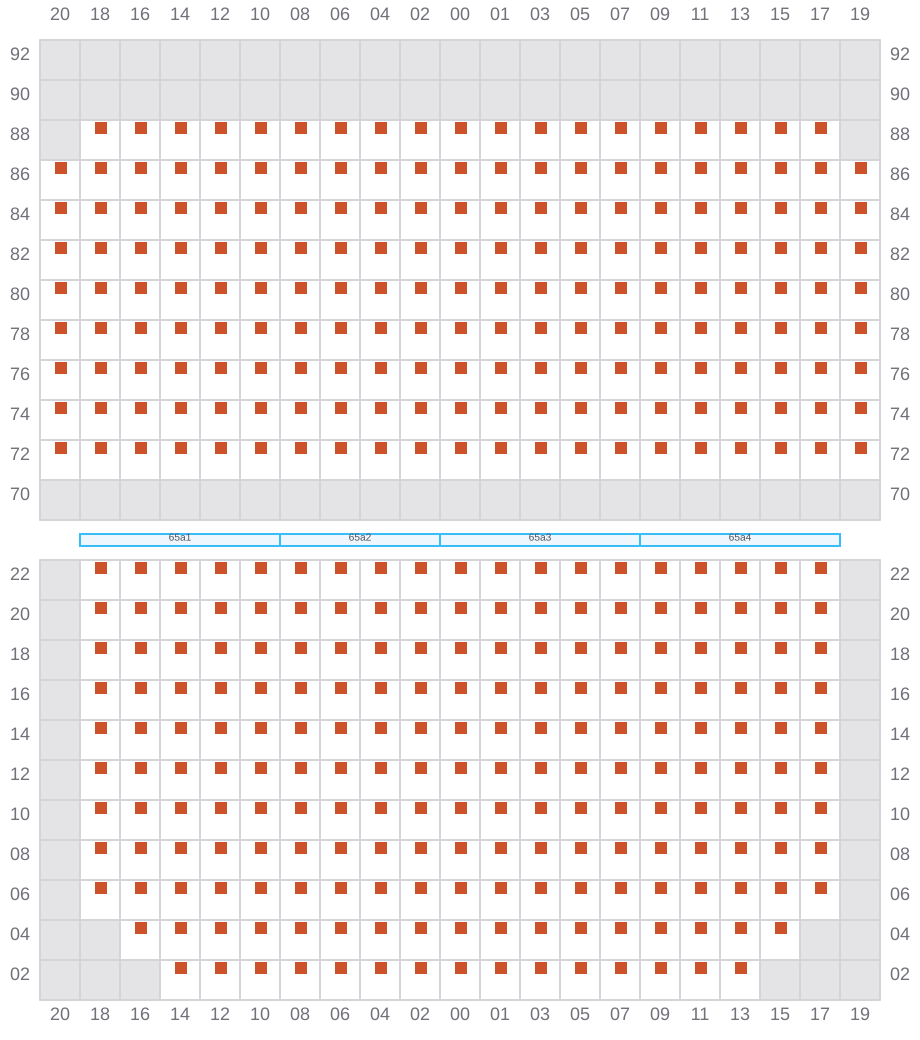

067

  • / ?
Bay 067 view and slots of CMA CGM JULES VERNE

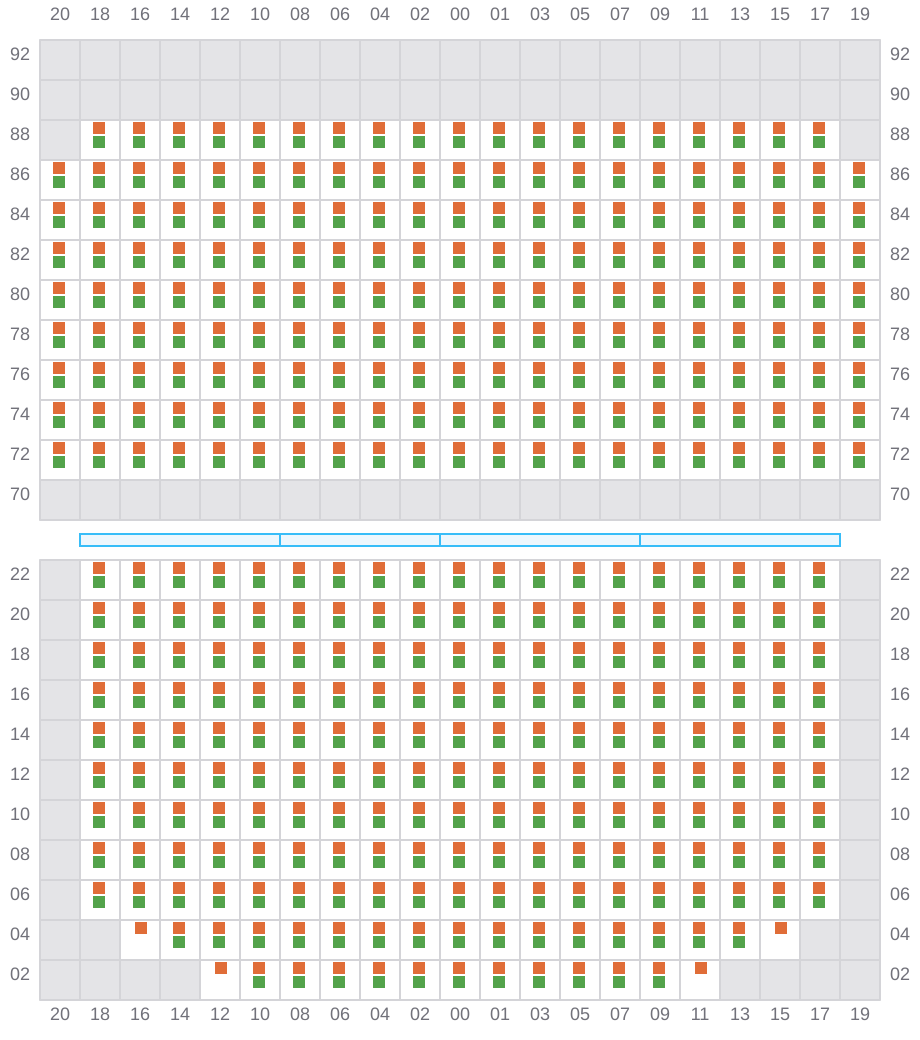

069 (070)

  • / ?
Bay 069 view and slots of CMA CGM JULES VERNE

071

  • / ?

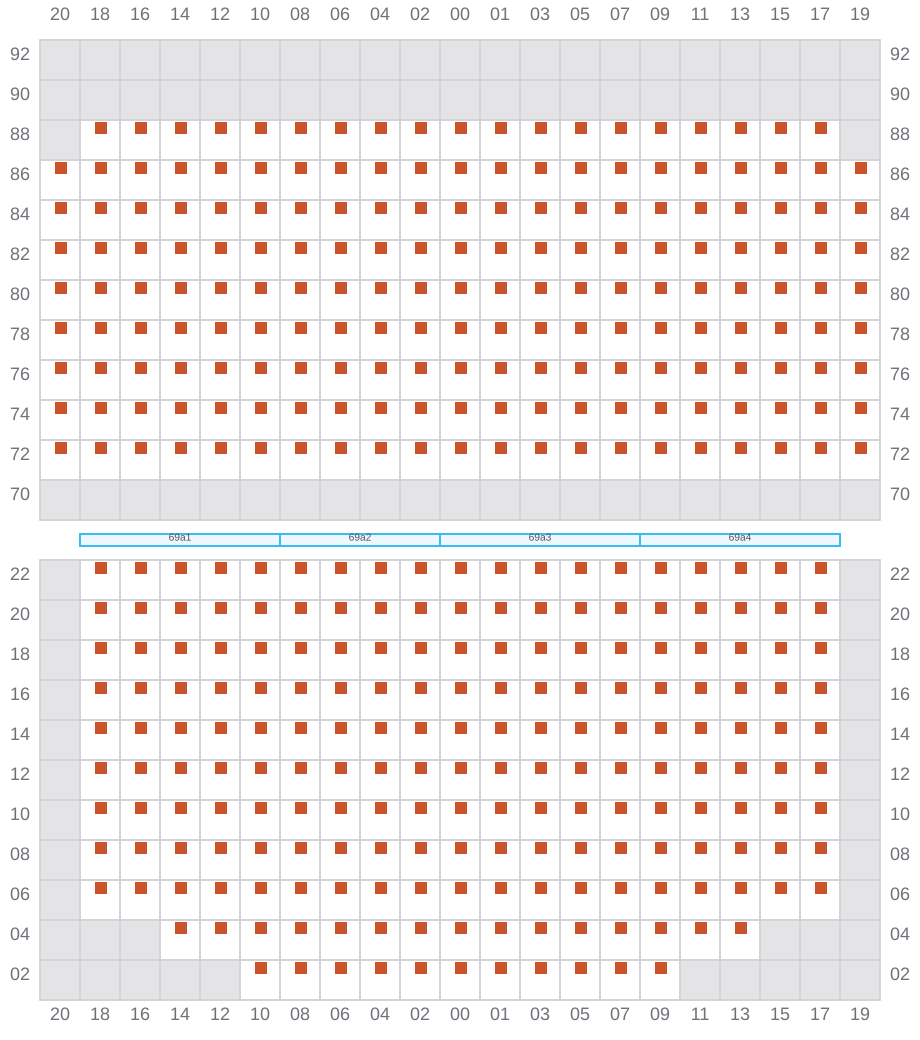

Bay 071 view and slots of CMA CGM JULES VERNE

073 (074)

  • / ?
  • / ?
Bay 073 view and slots of CMA CGM JULES VERNE

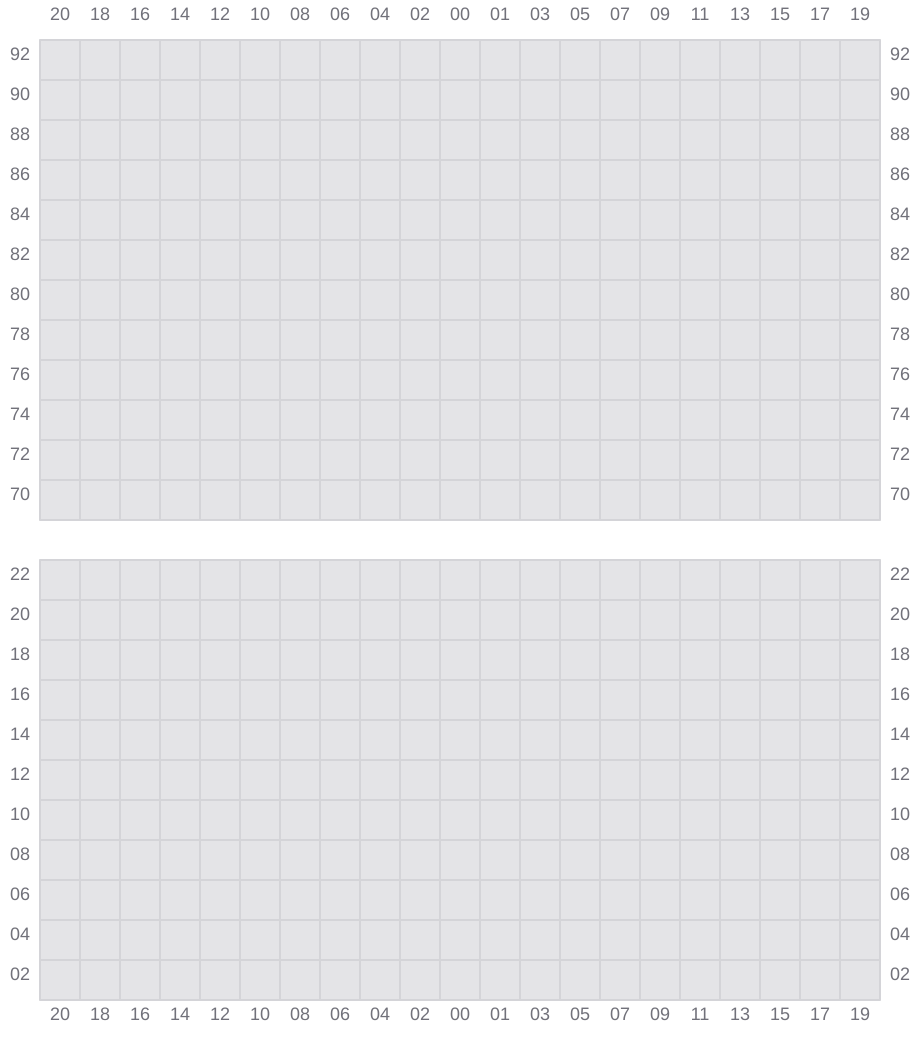

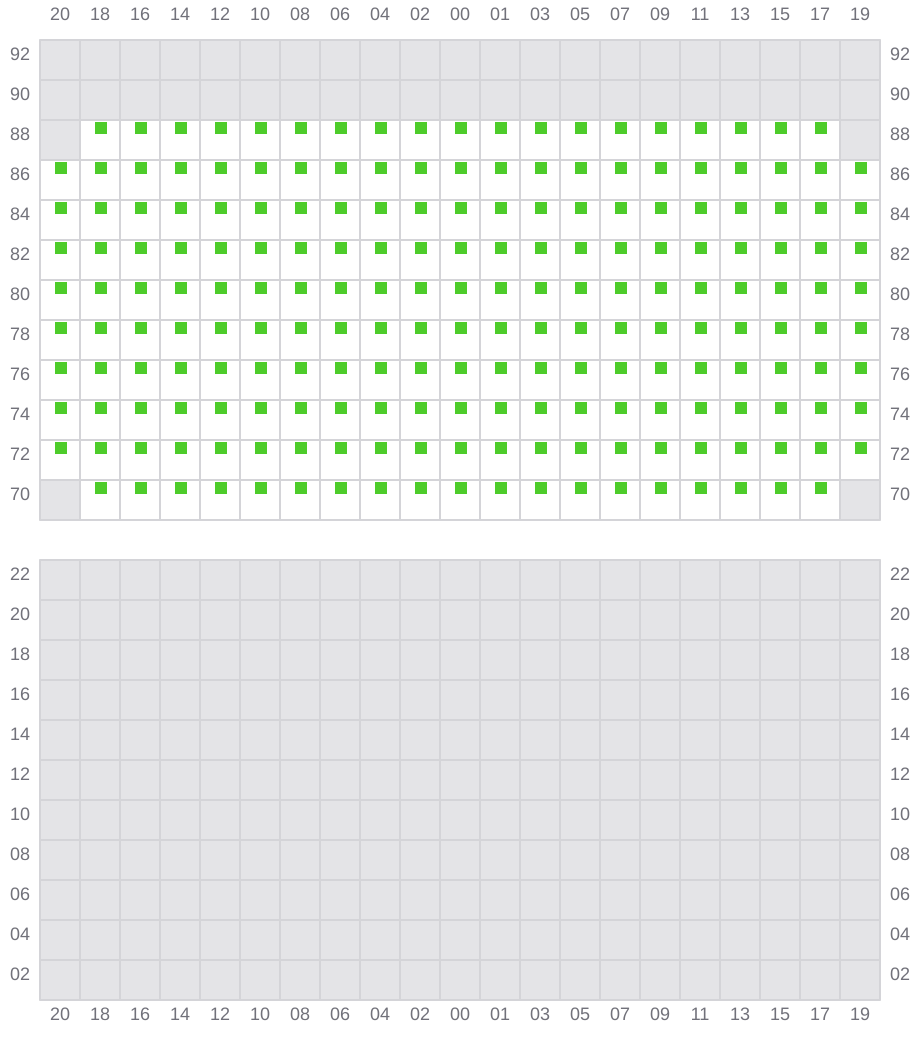

075

Bay 075 view and slots of CMA CGM JULES VERNE

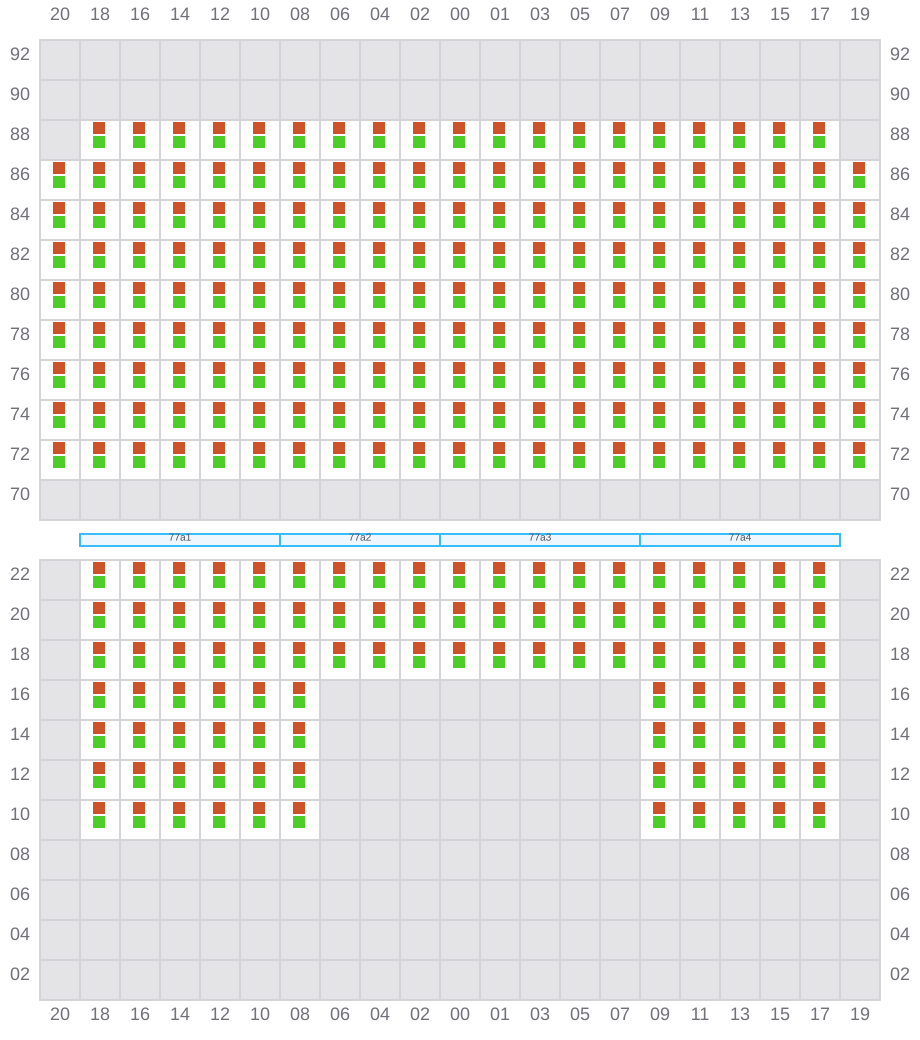

077 (078)

  • / ?
Bay 077 view and slots of CMA CGM JULES VERNE

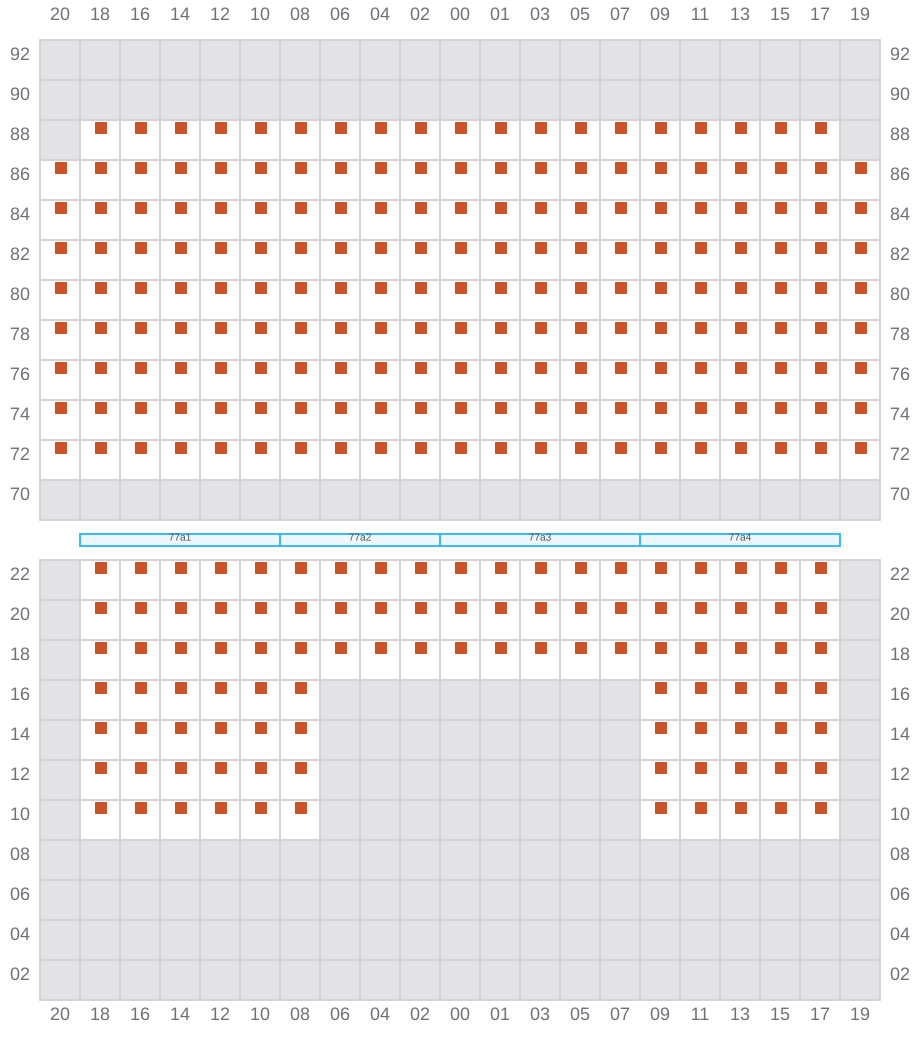

079

  • / ?
Bay 079 view and slots of CMA CGM JULES VERNE

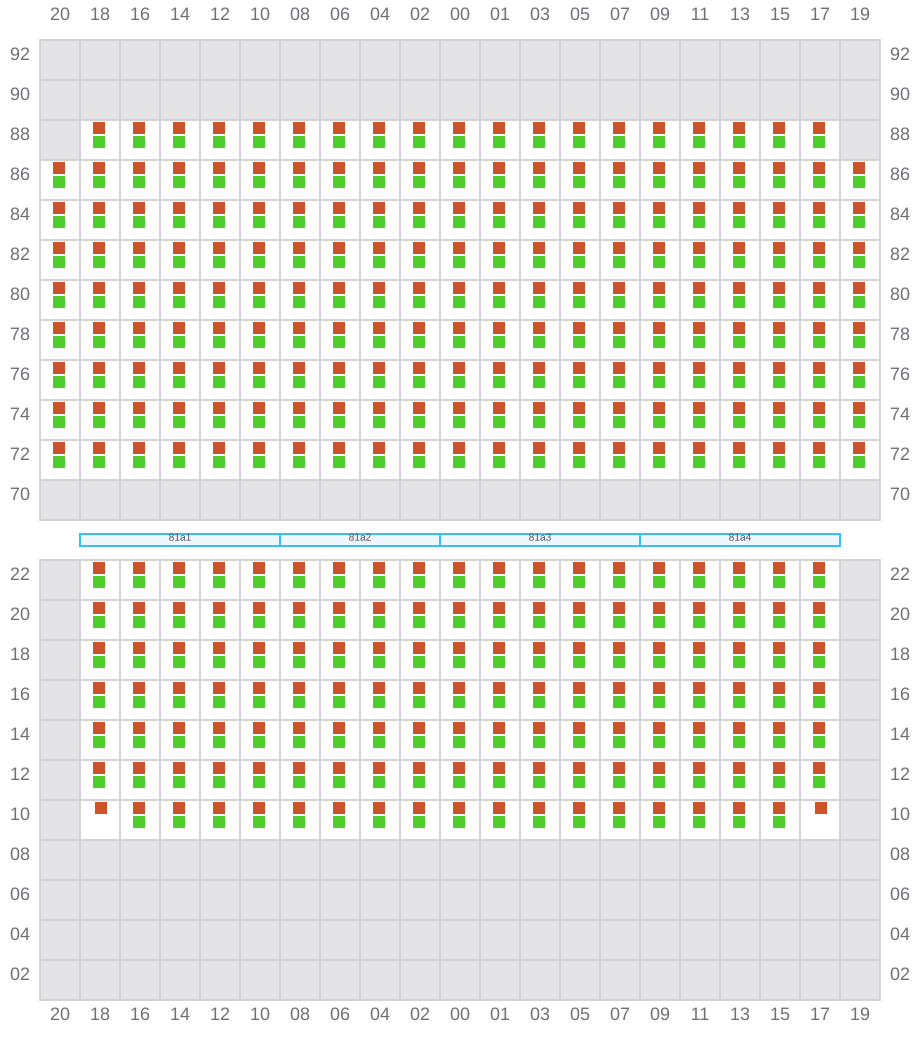

081 (082)

  • / ?
Bay 081 view and slots of CMA CGM JULES VERNE

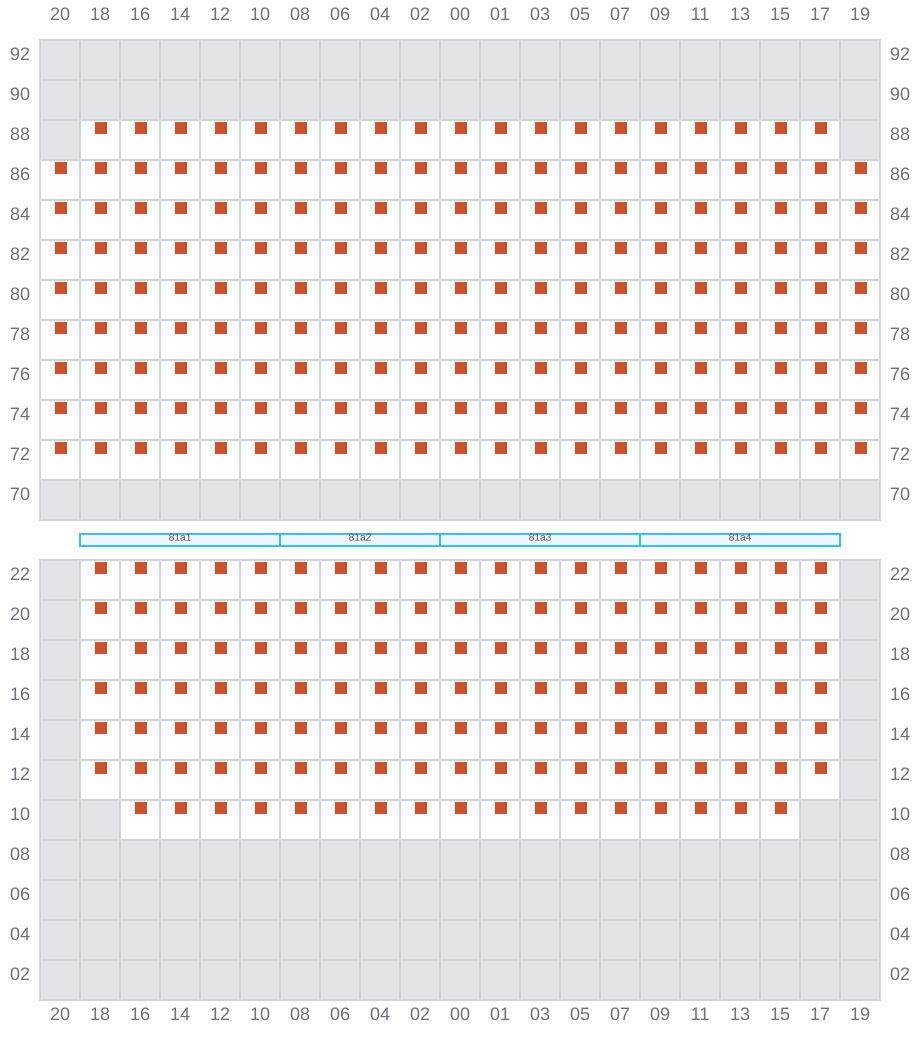

083

  • / ?
Bay 083 view and slots of CMA CGM JULES VERNE

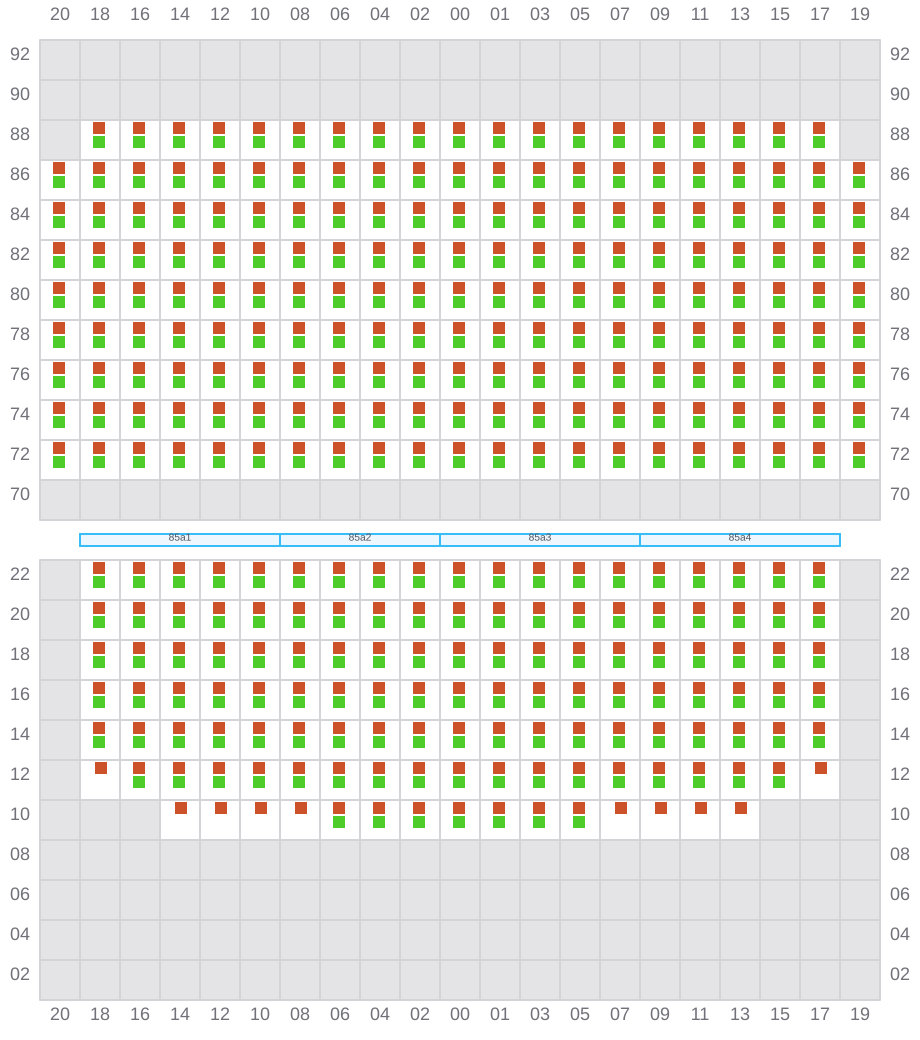

085 (086)

  • / ?
Bay 085 view and slots of CMA CGM JULES VERNE

087

  • / ?

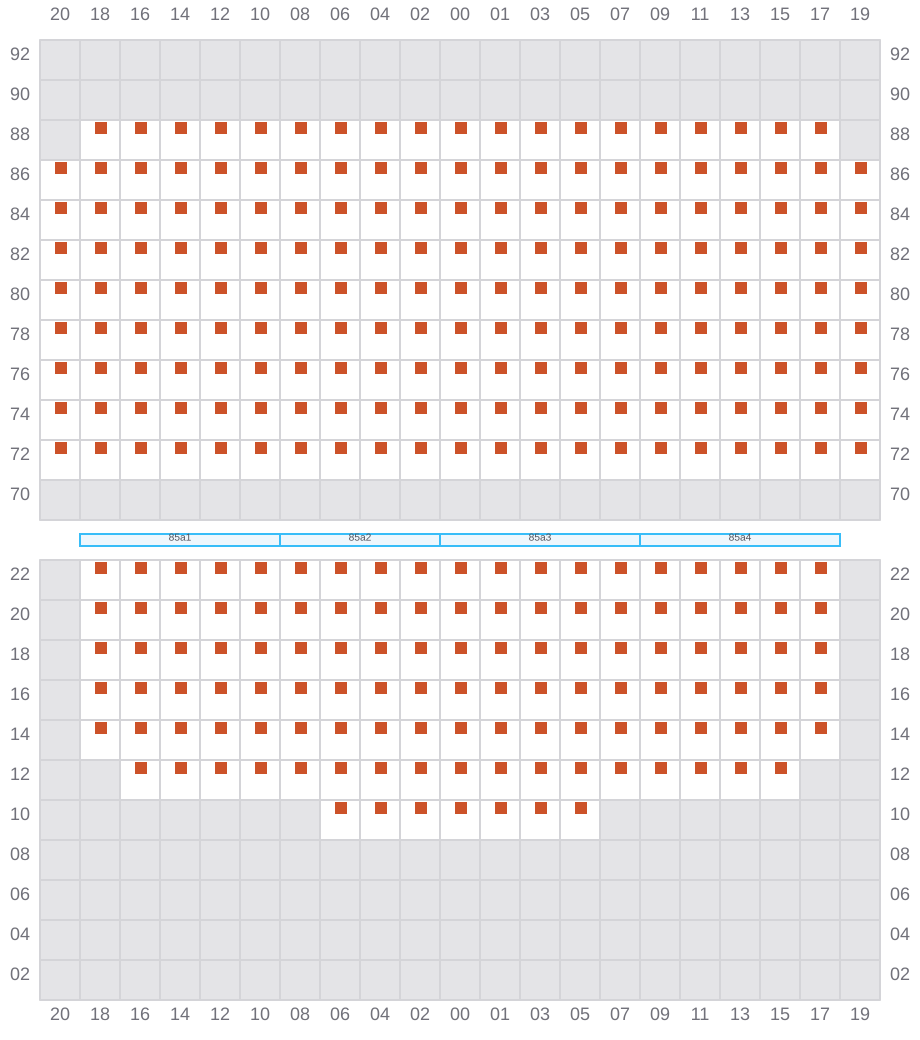

Bay 087 view and slots of CMA CGM JULES VERNE

089 (090)

  • / ?
Bay 089 view and slots of CMA CGM JULES VERNE

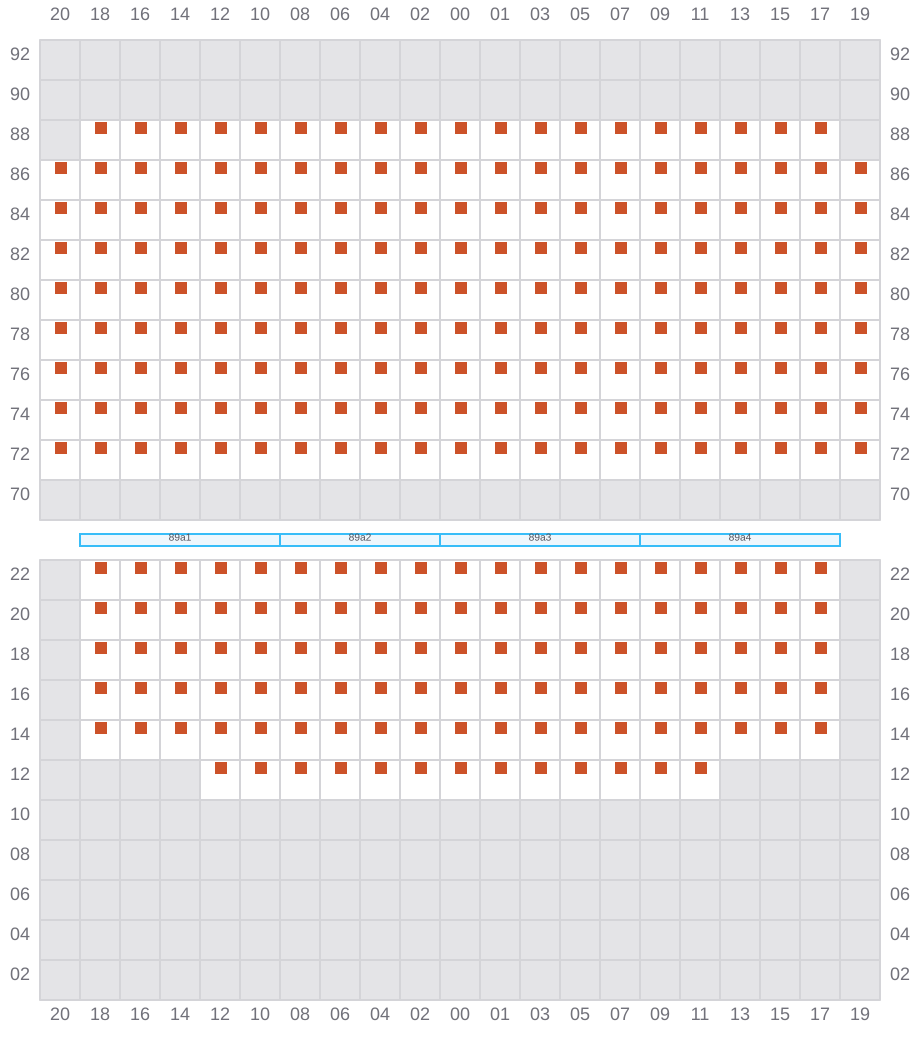

091

  • / ?
Bay 091 view and slots of CMA CGM JULES VERNE

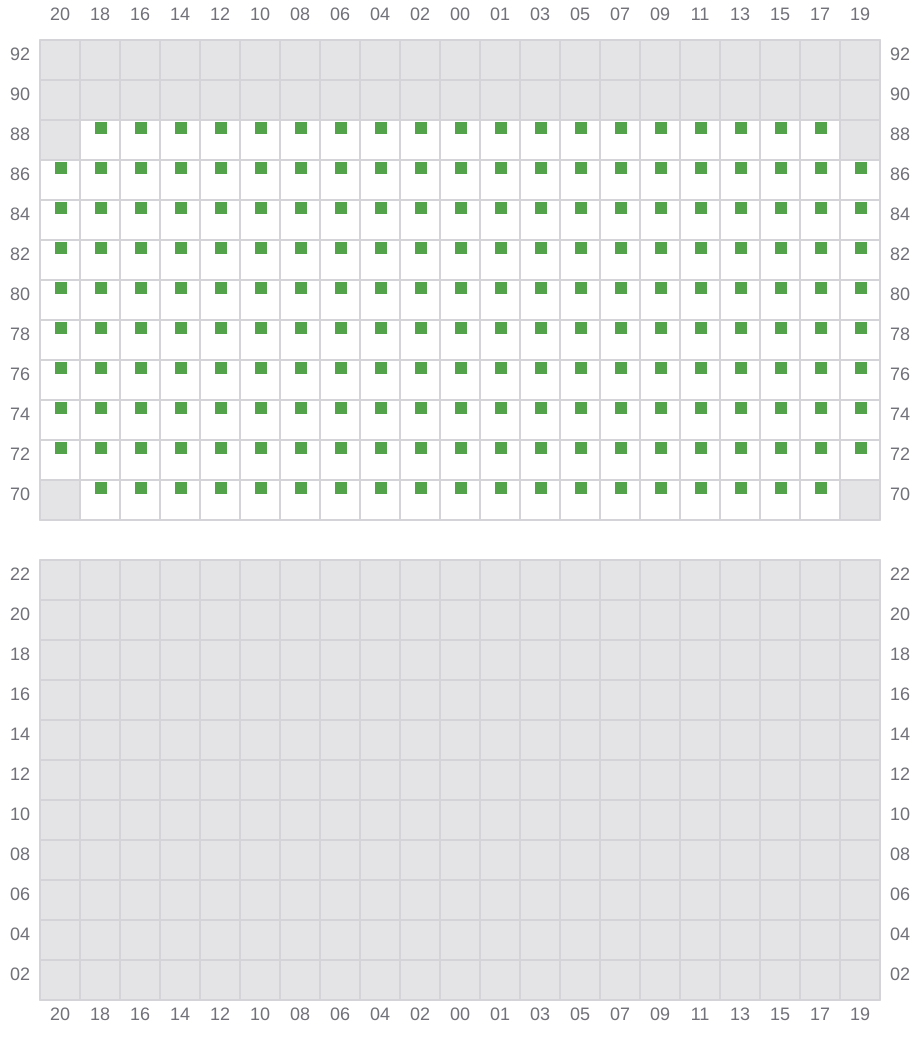

093 (094)

  • / ?
Bay 093 view and slots of CMA CGM JULES VERNE
