CMA CGM JULES VERNE
9454450 | 9HA5460 | 9454450 by ********* Last update: Wed May 08 2024

General Info

Ship Name:CMA CGM JULES VERNE
IMO Code:9454450
Call Sign:9HA5460
Line Operator:9454450
Class Name for Sister Ships:JULES VERNE
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,484

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

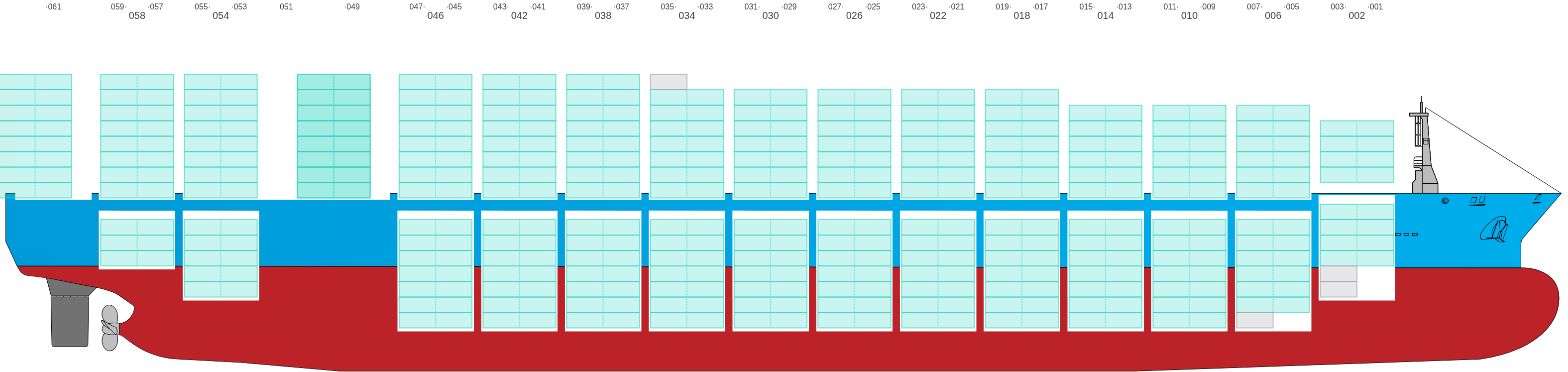

Side view of CMA CGM JULES VERNE

Hatch-Covers View

Deck view of CMA CGM JULES VERNE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

Bay 001 view and slots of CMA CGM JULES VERNE

003

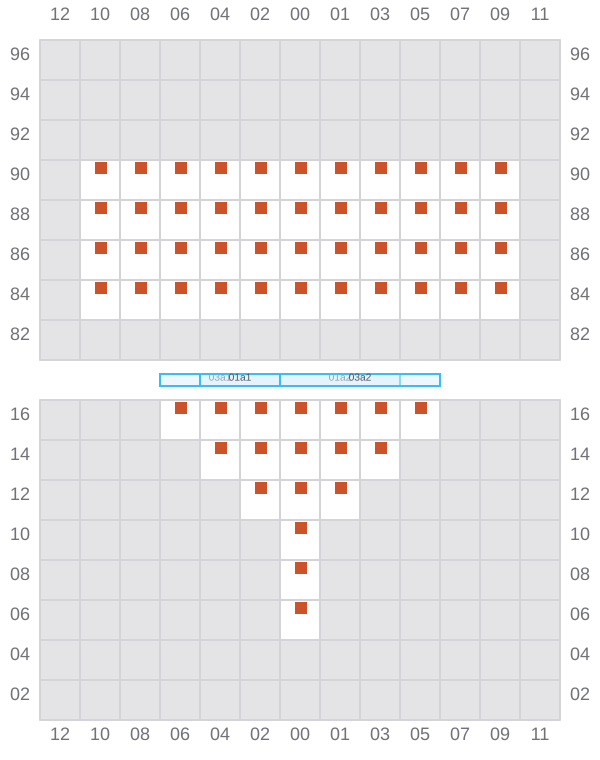

Bay 003 view and slots of CMA CGM JULES VERNE

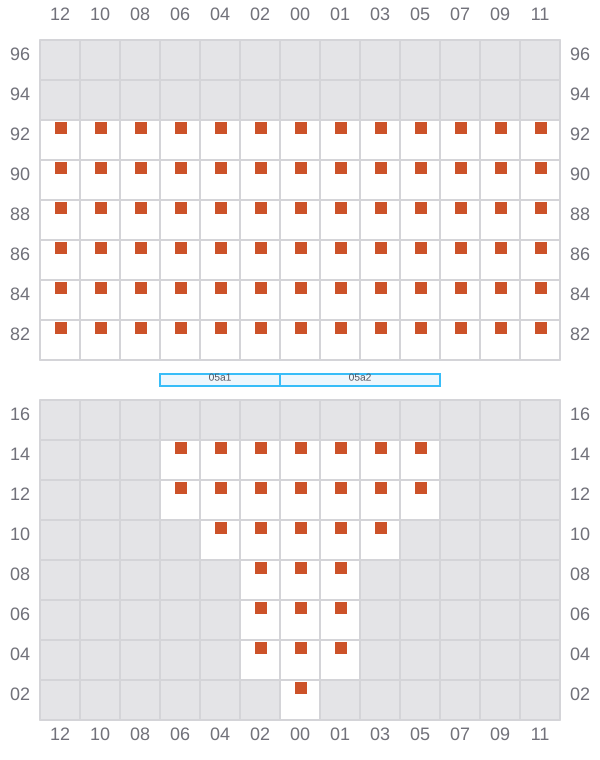

005 (006)

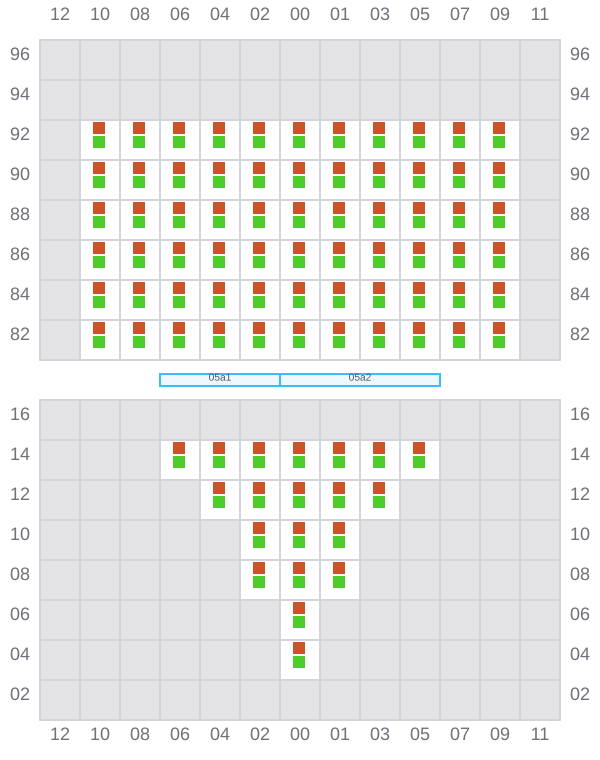

Bay 005 view and slots of CMA CGM JULES VERNE

007

Bay 007 view and slots of CMA CGM JULES VERNE

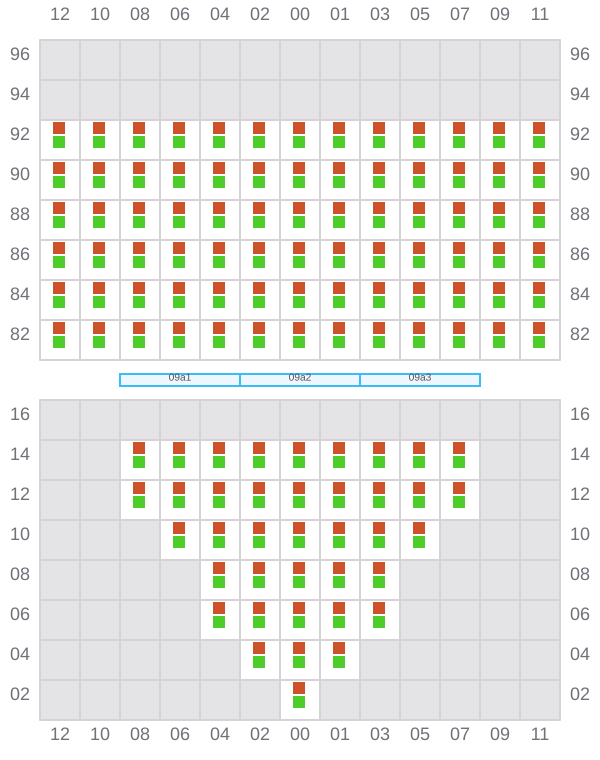

009 (010)

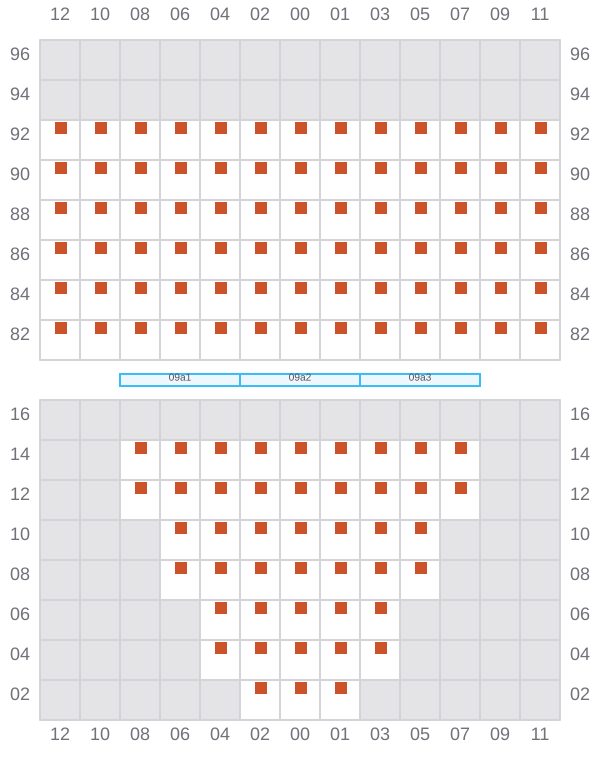

Bay 009 view and slots of CMA CGM JULES VERNE

011

Bay 011 view and slots of CMA CGM JULES VERNE

013 (014)

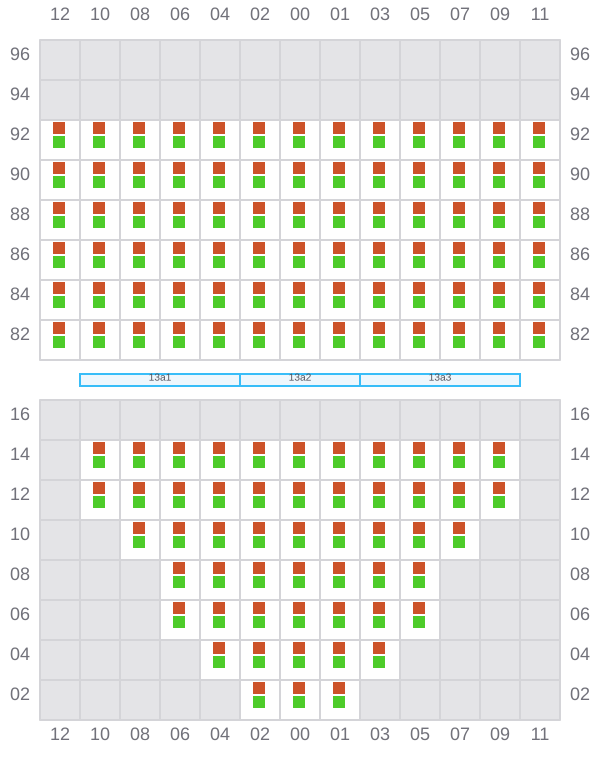

Bay 013 view and slots of CMA CGM JULES VERNE

015

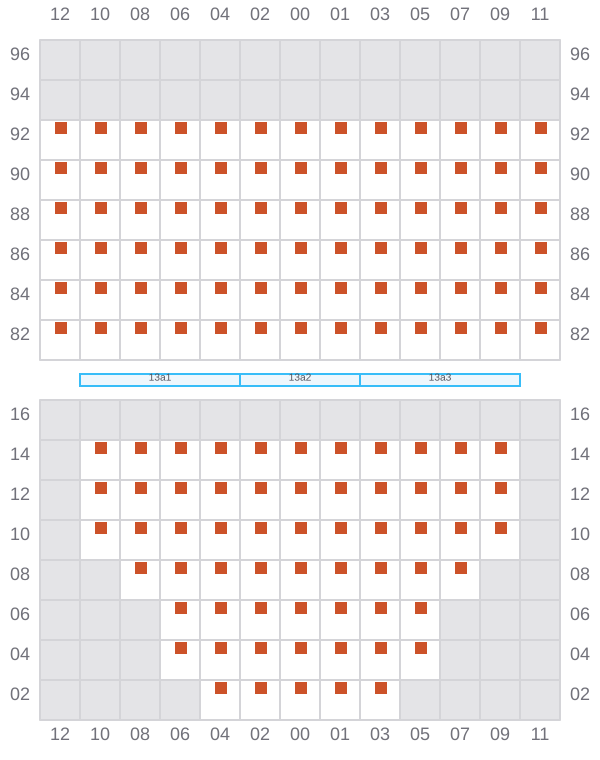

Bay 015 view and slots of CMA CGM JULES VERNE

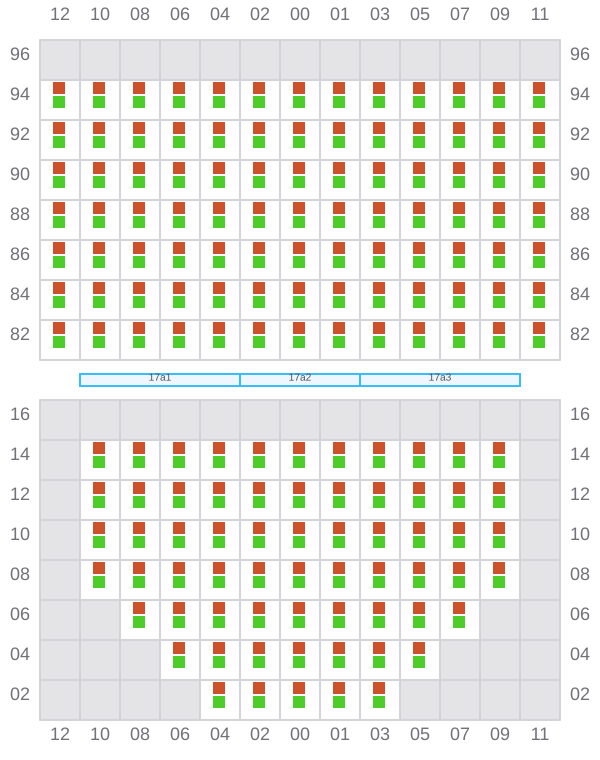

017 (018)

Bay 017 view and slots of CMA CGM JULES VERNE

019

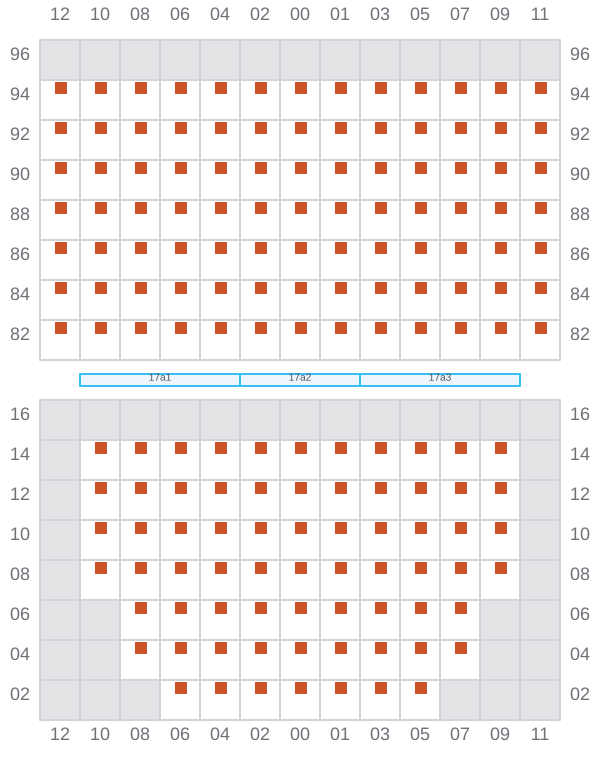

Bay 019 view and slots of CMA CGM JULES VERNE

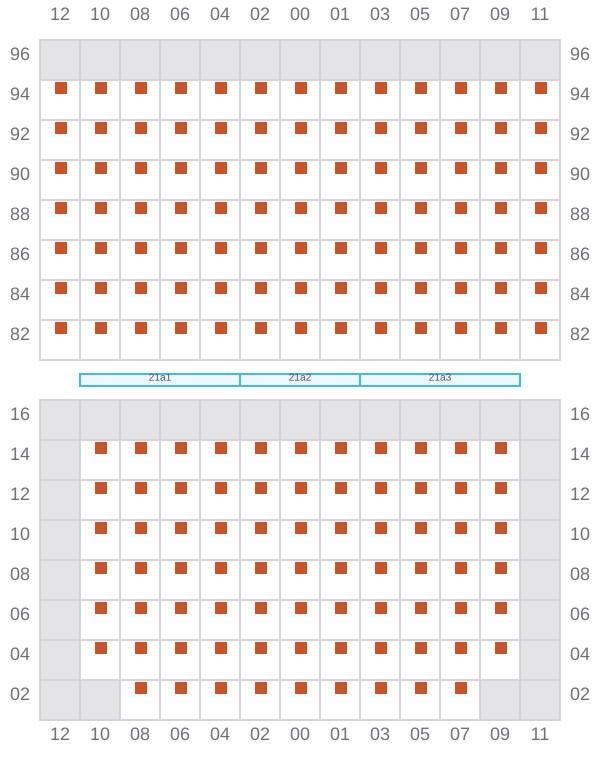

021 (022)

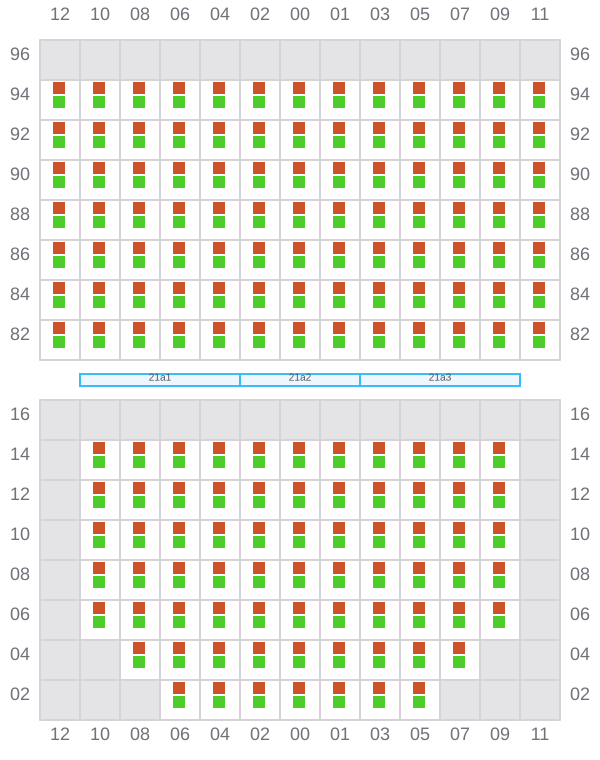

Bay 021 view and slots of CMA CGM JULES VERNE

023

Bay 023 view and slots of CMA CGM JULES VERNE

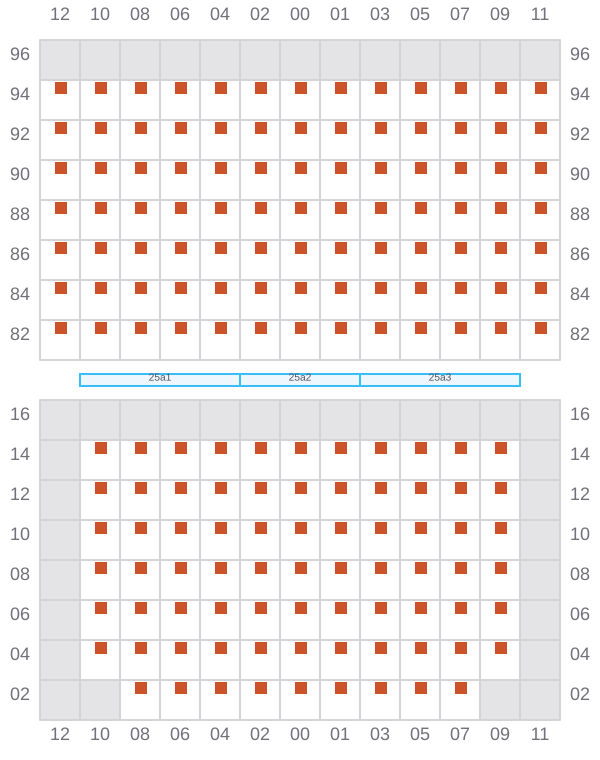

025 (026)

Bay 025 view and slots of CMA CGM JULES VERNE

027

Bay 027 view and slots of CMA CGM JULES VERNE

029 (030)

Bay 029 view and slots of CMA CGM JULES VERNE

031

Bay 031 view and slots of CMA CGM JULES VERNE

033 (034)

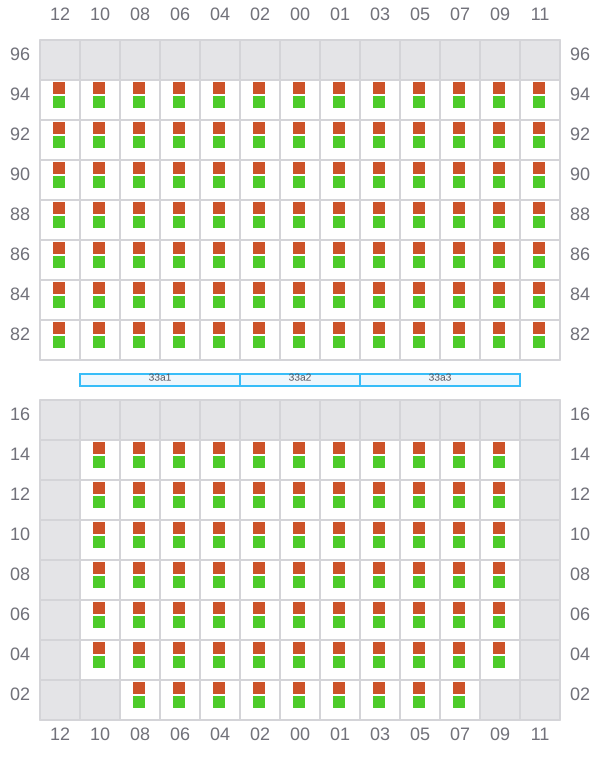

Bay 033 view and slots of CMA CGM JULES VERNE

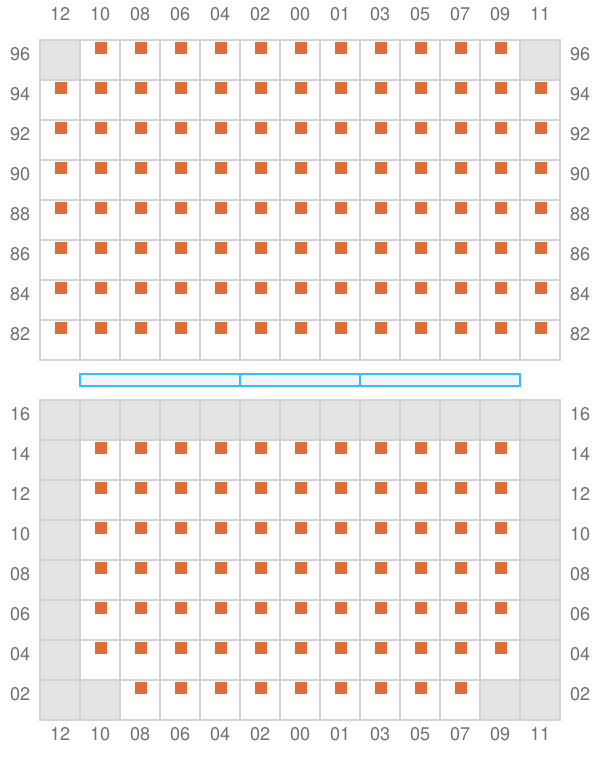

035

Bay 035 view and slots of CMA CGM JULES VERNE

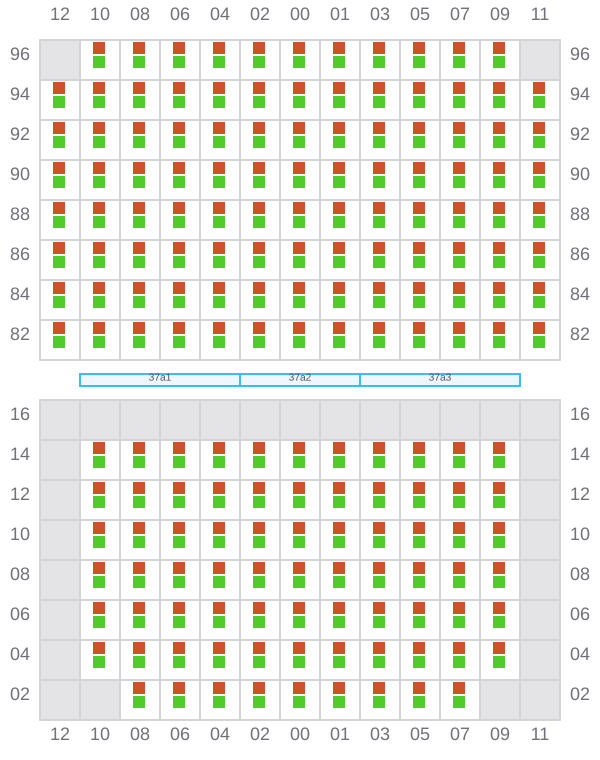

037 (038)

Bay 037 view and slots of CMA CGM JULES VERNE

039

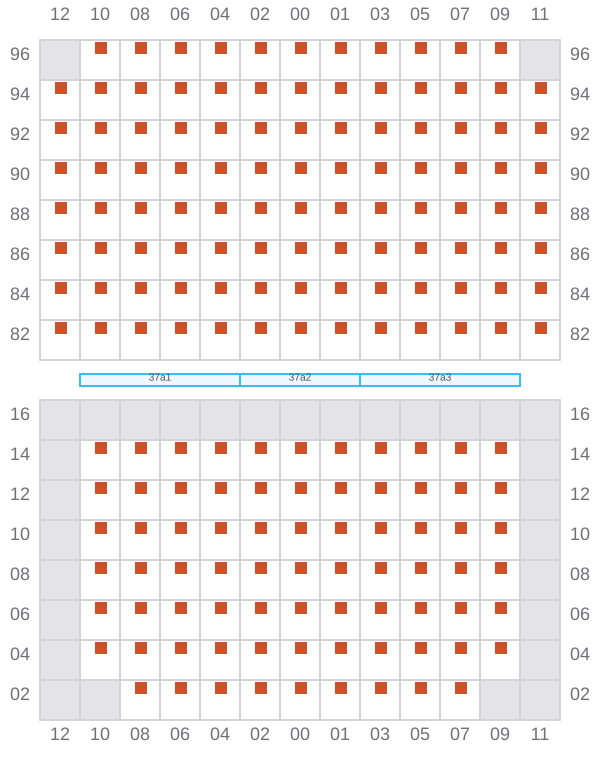

Bay 039 view and slots of CMA CGM JULES VERNE

041 (042)

Bay 041 view and slots of CMA CGM JULES VERNE

043

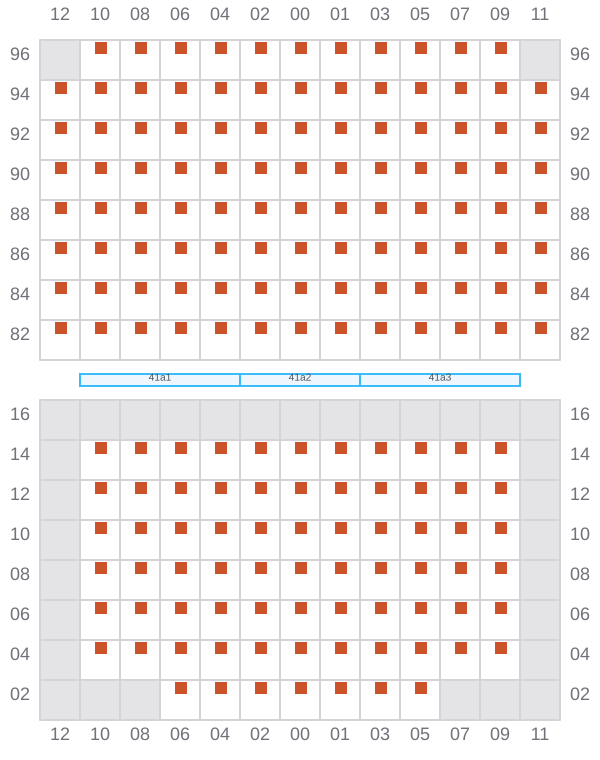

Bay 043 view and slots of CMA CGM JULES VERNE

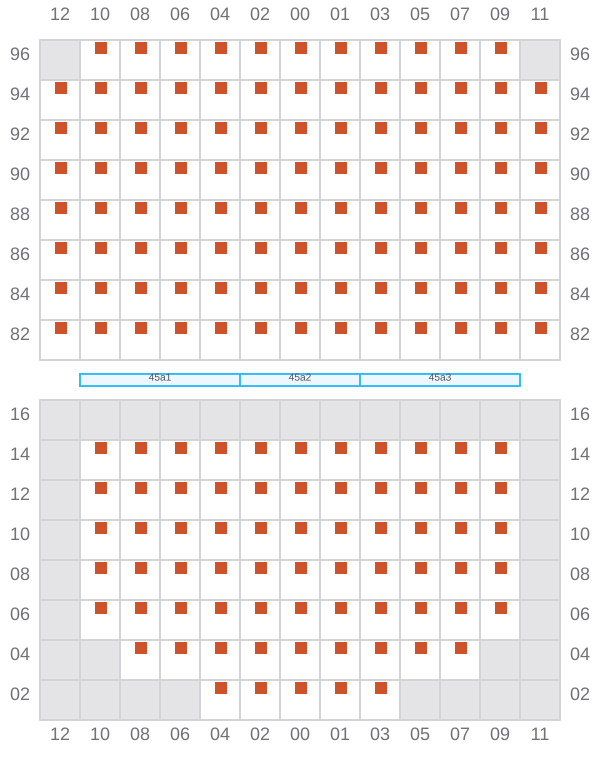

045 (046)

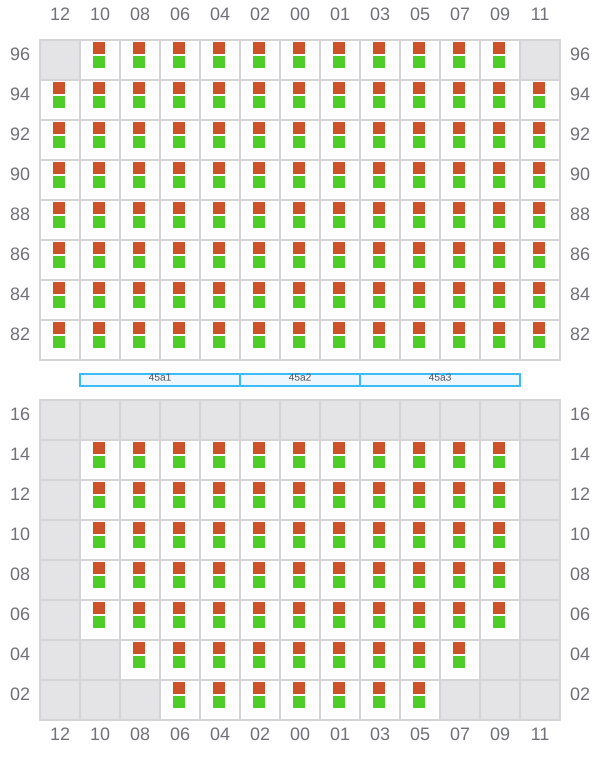

Bay 045 view and slots of CMA CGM JULES VERNE

047

Bay 047 view and slots of CMA CGM JULES VERNE

049 (050)

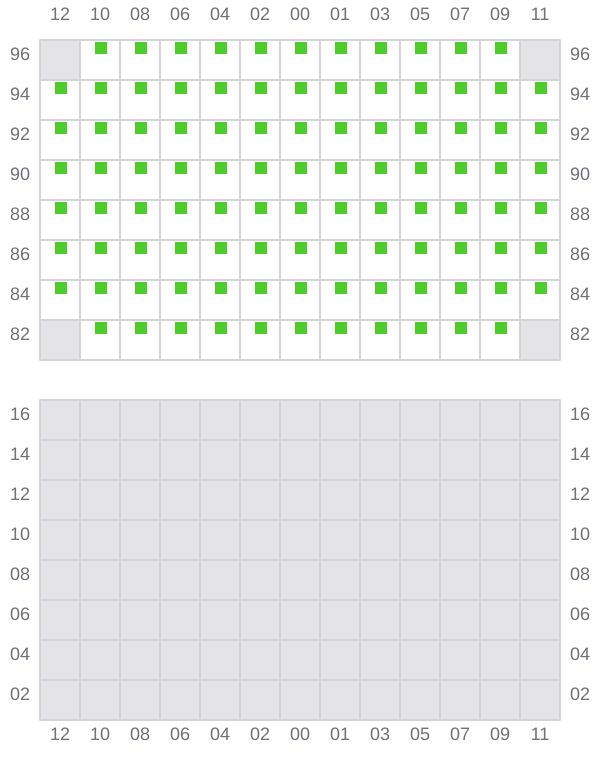

Bay 049 view and slots of CMA CGM JULES VERNE

051

Bay 051 view and slots of CMA CGM JULES VERNE

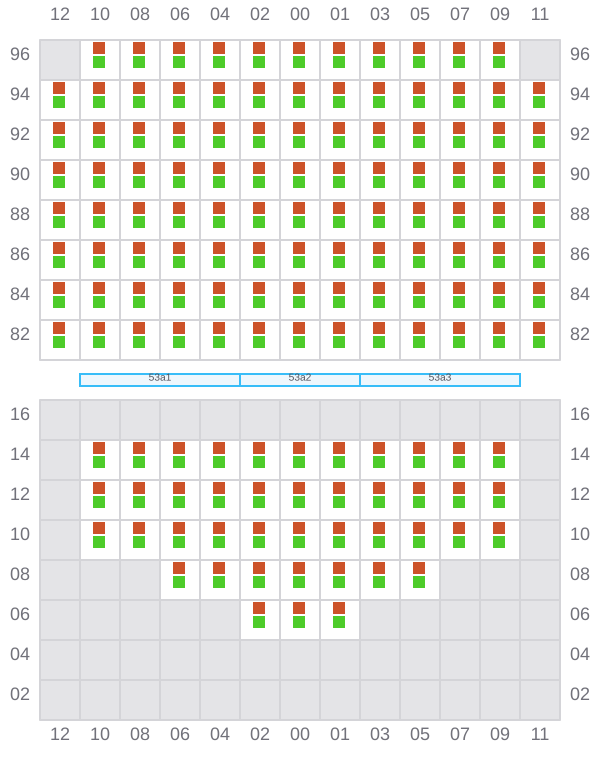

053 (054)

Bay 053 view and slots of CMA CGM JULES VERNE

055

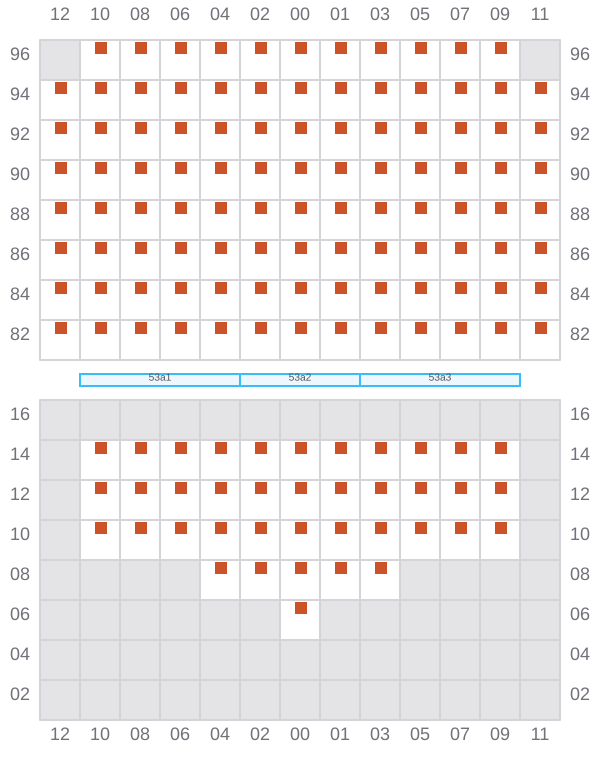

Bay 055 view and slots of CMA CGM JULES VERNE

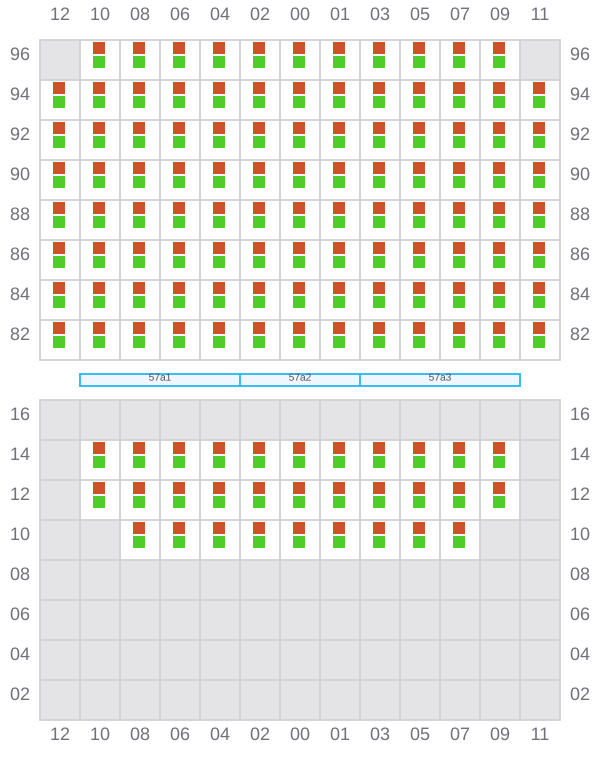

057 (058)

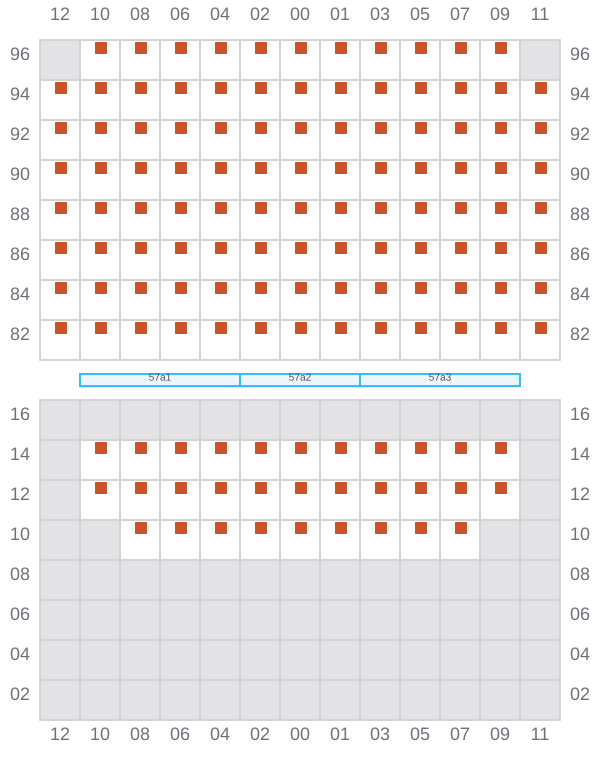

Bay 057 view and slots of CMA CGM JULES VERNE

059

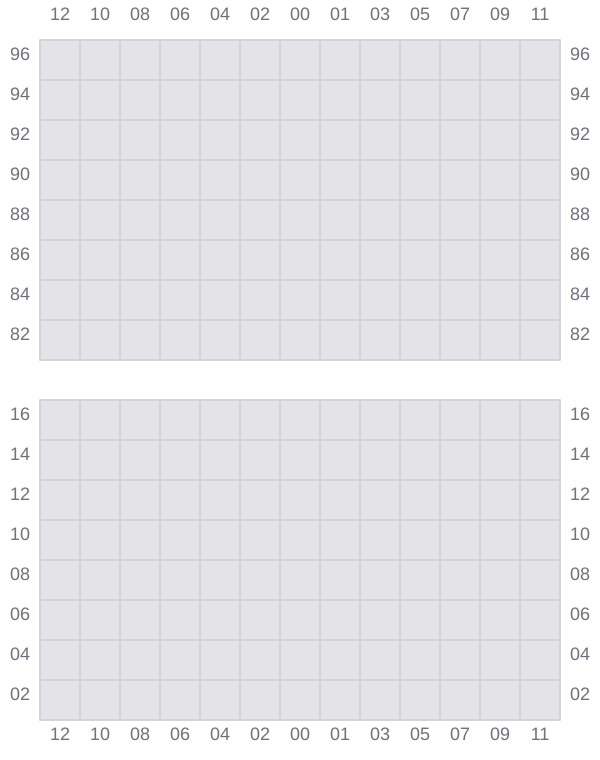

Bay 059 view and slots of CMA CGM JULES VERNE

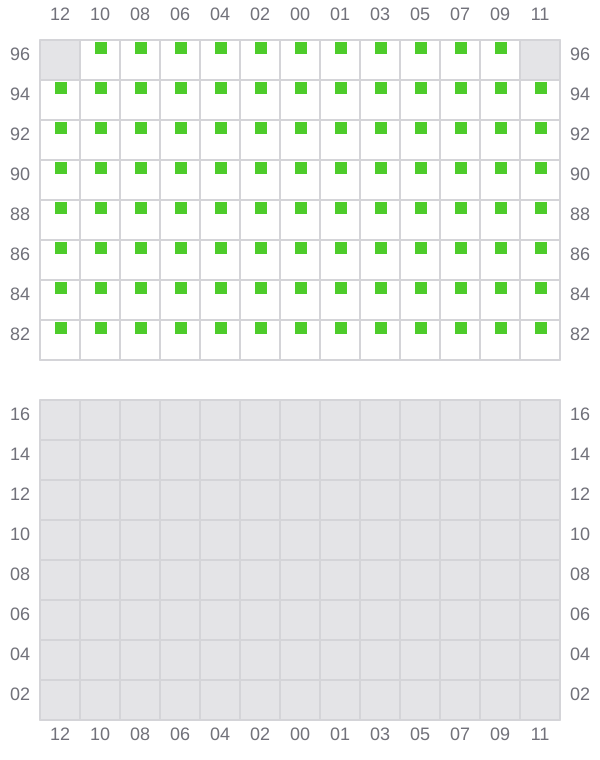

061 (062)

Bay 061 view and slots of CMA CGM JULES VERNE
