CMA CGM KERGUELEN
9702132 | 9HA5014 | CMA by *********************** Last update: Wed Feb 05 2025

General Info

Ship Name:CMA CGM KERGUELEN
IMO Code:9702132
Call Sign:9HA5014
Line Operator:CMA
Class Name for Sister Ships:CGKE
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:20
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:66
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:17,726

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

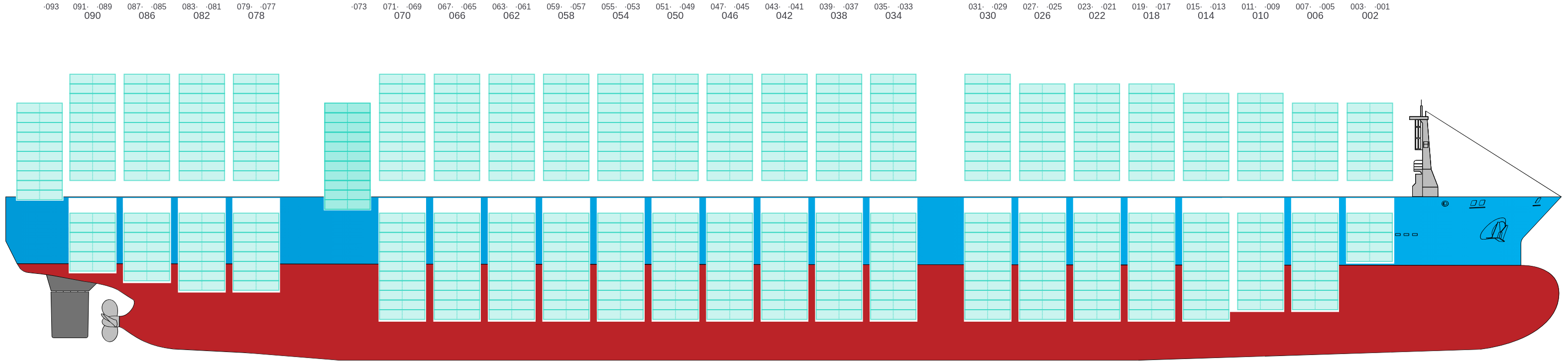

Side View

Side view of CMA CGM KERGUELEN

Hatch-Covers View

Deck view of CMA CGM KERGUELEN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →
Bay 001 view and slots of CMA CGM KERGUELEN

003

  • ←
  • →
Bay 003 view and slots of CMA CGM KERGUELEN

005 (006)

  • →
  • →
Bay 005 view and slots of CMA CGM KERGUELEN

007

  • ←
  • →
Bay 007 view and slots of CMA CGM KERGUELEN

009 (010)

  • →
  • → / ?
  • →
Bay 009 view and slots of CMA CGM KERGUELEN

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of CMA CGM KERGUELEN

013 (014)

  • →
  • → / ?
  • →
Bay 013 view and slots of CMA CGM KERGUELEN

015

  • ←
  • →

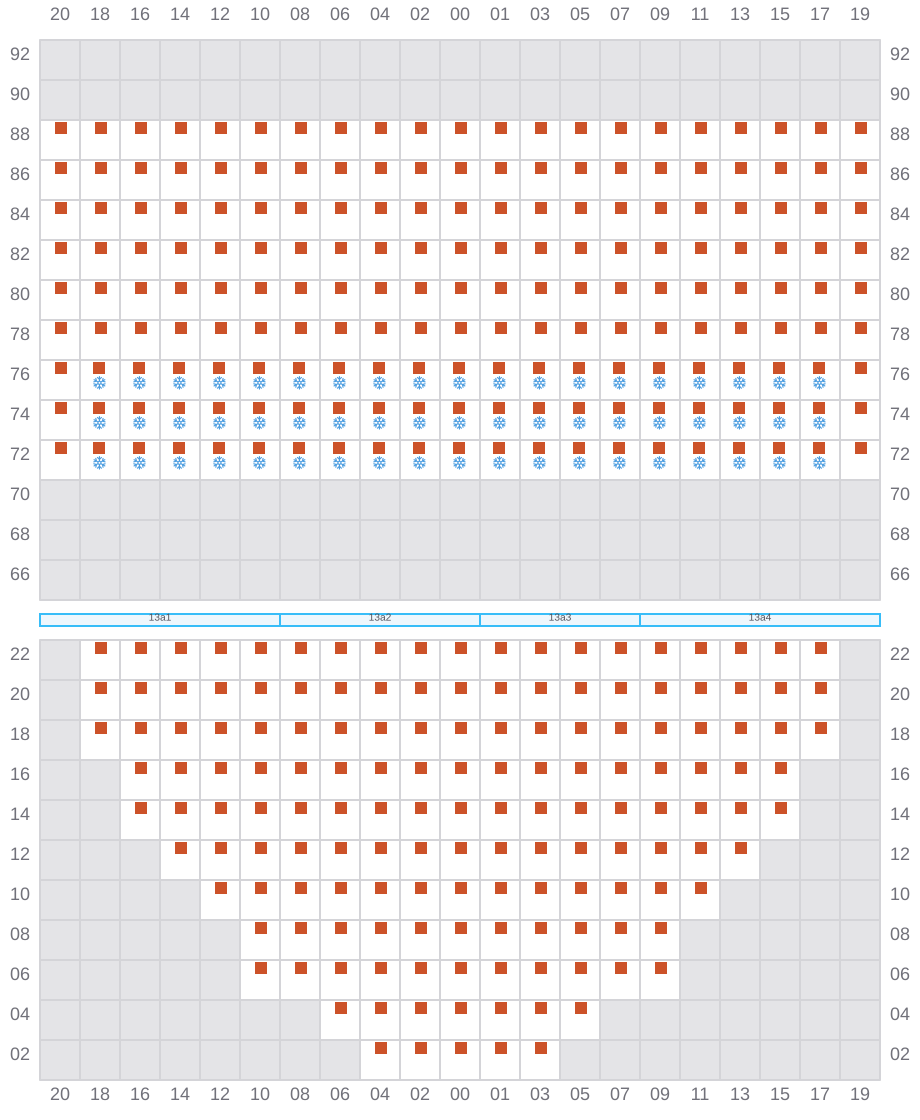

Bay 015 view and slots of CMA CGM KERGUELEN

017 (018)

  • →
  • → / ?
  • →
Bay 017 view and slots of CMA CGM KERGUELEN

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of CMA CGM KERGUELEN

021 (022)

  • →
  • → / ?
  • →
Bay 021 view and slots of CMA CGM KERGUELEN

023

  • ←
  • → / ?
  • →

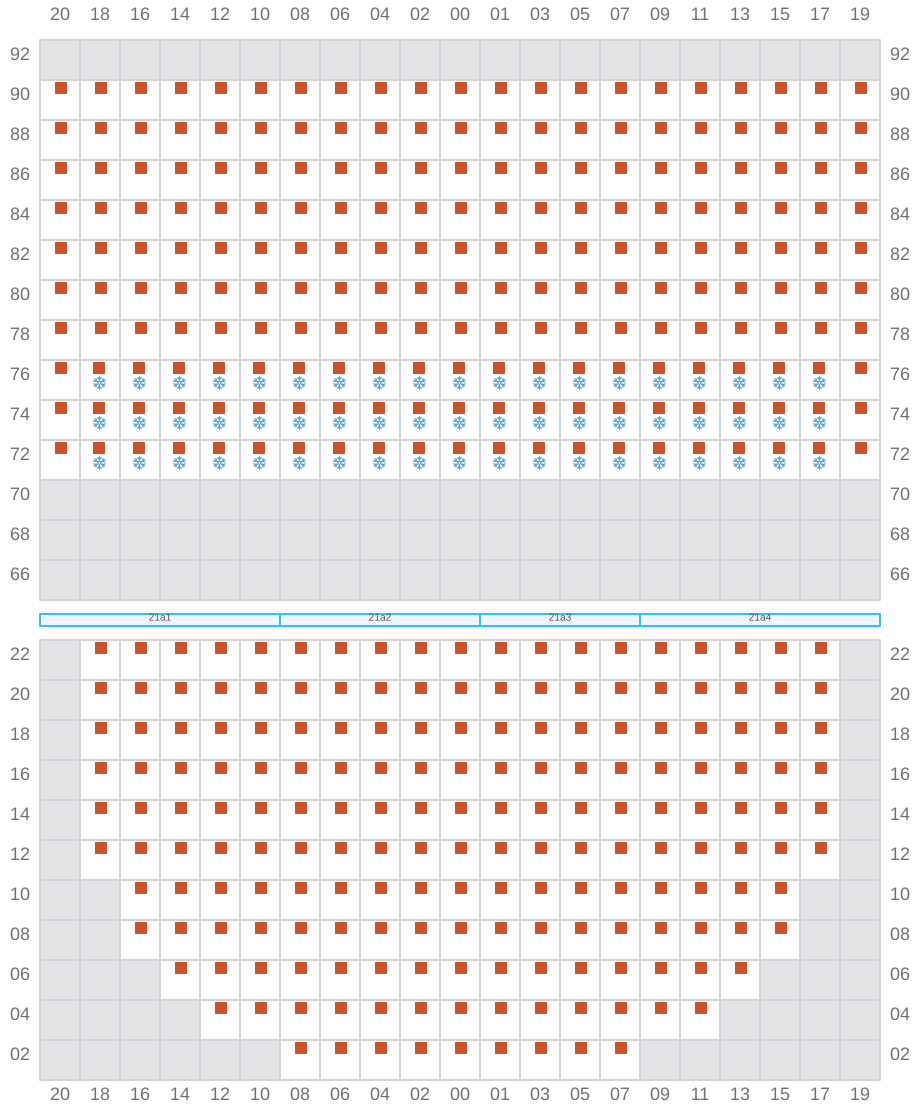

Bay 023 view and slots of CMA CGM KERGUELEN

025 (026)

  • →
  • → / ?
  • →

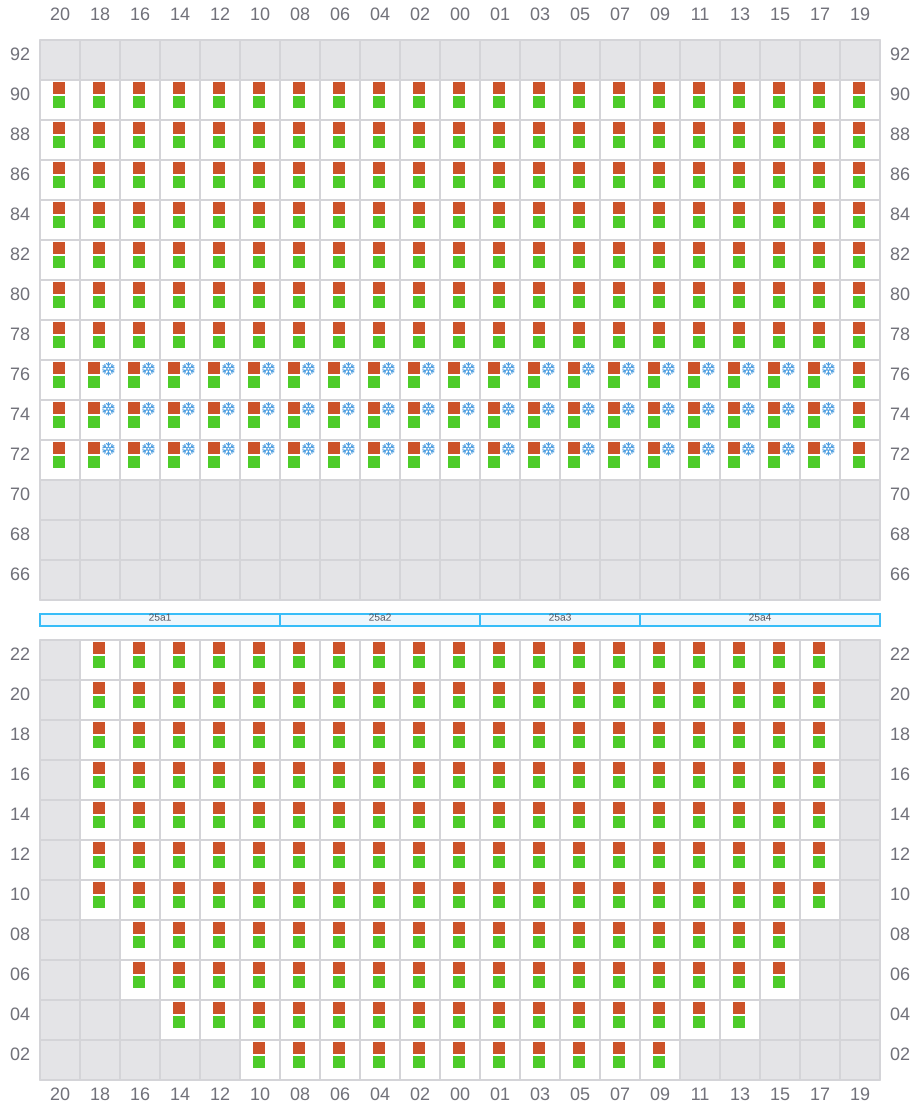

Bay 025 view and slots of CMA CGM KERGUELEN

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of CMA CGM KERGUELEN

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of CMA CGM KERGUELEN

031

  • ←
  • → / ?
  • →
Bay 031 view and slots of CMA CGM KERGUELEN

033 (034)

  • →
  • → / ?
  • →

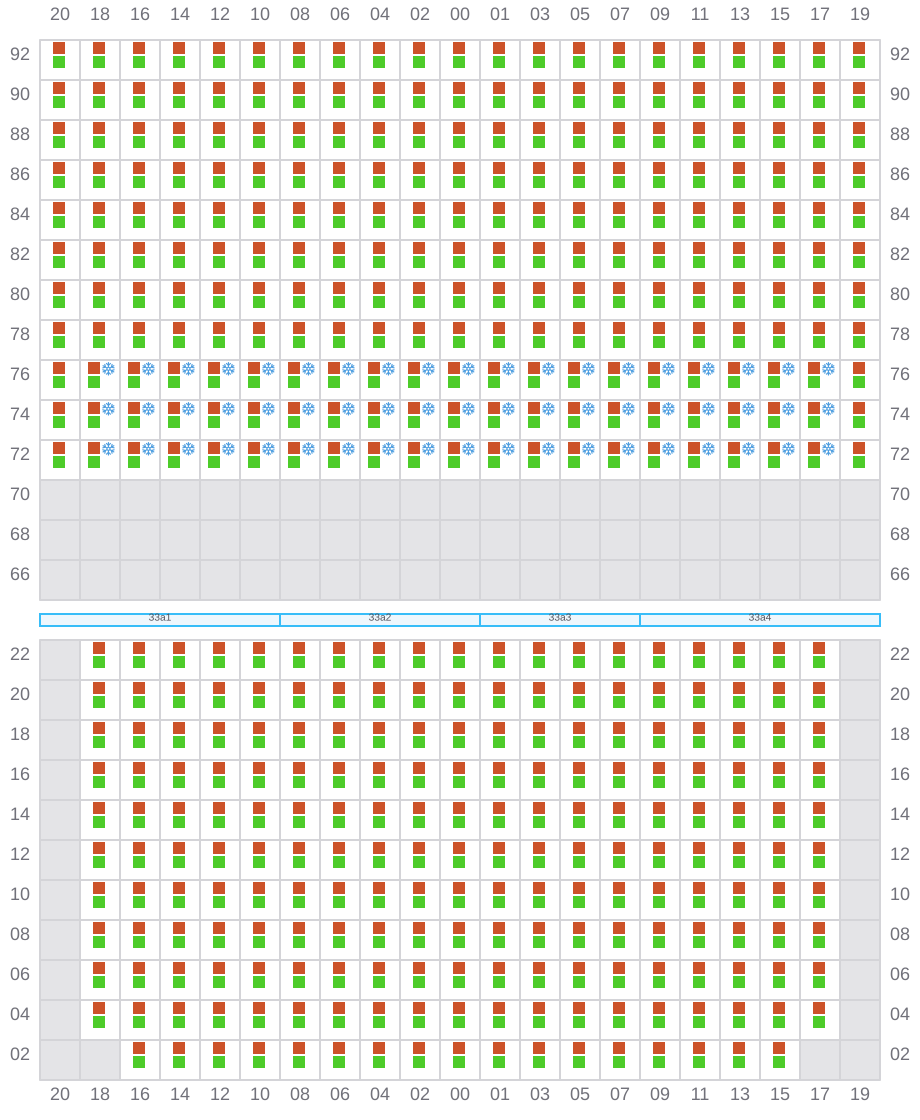

Bay 033 view and slots of CMA CGM KERGUELEN

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of CMA CGM KERGUELEN

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of CMA CGM KERGUELEN

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of CMA CGM KERGUELEN

041 (042)

  • →
  • → / ?
  • →

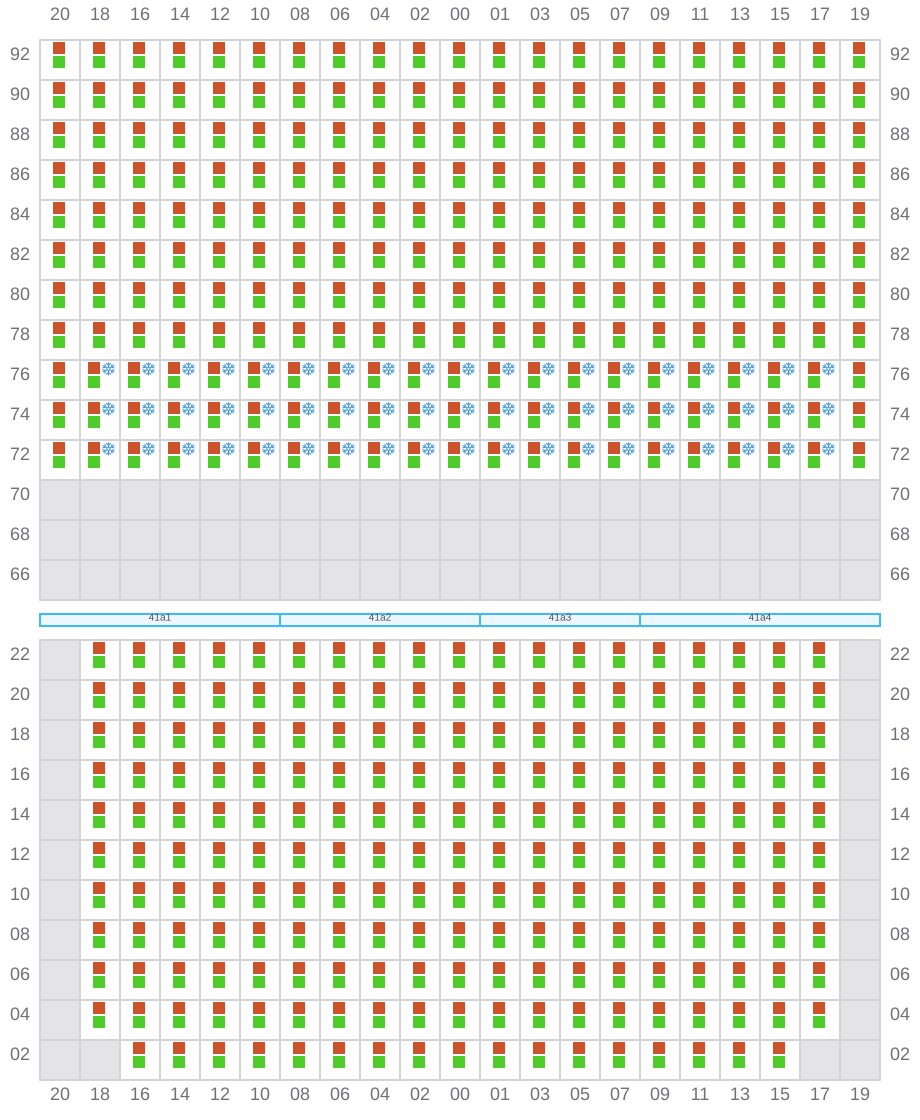

Bay 041 view and slots of CMA CGM KERGUELEN

043

  • ←
  • → / ?
  • →

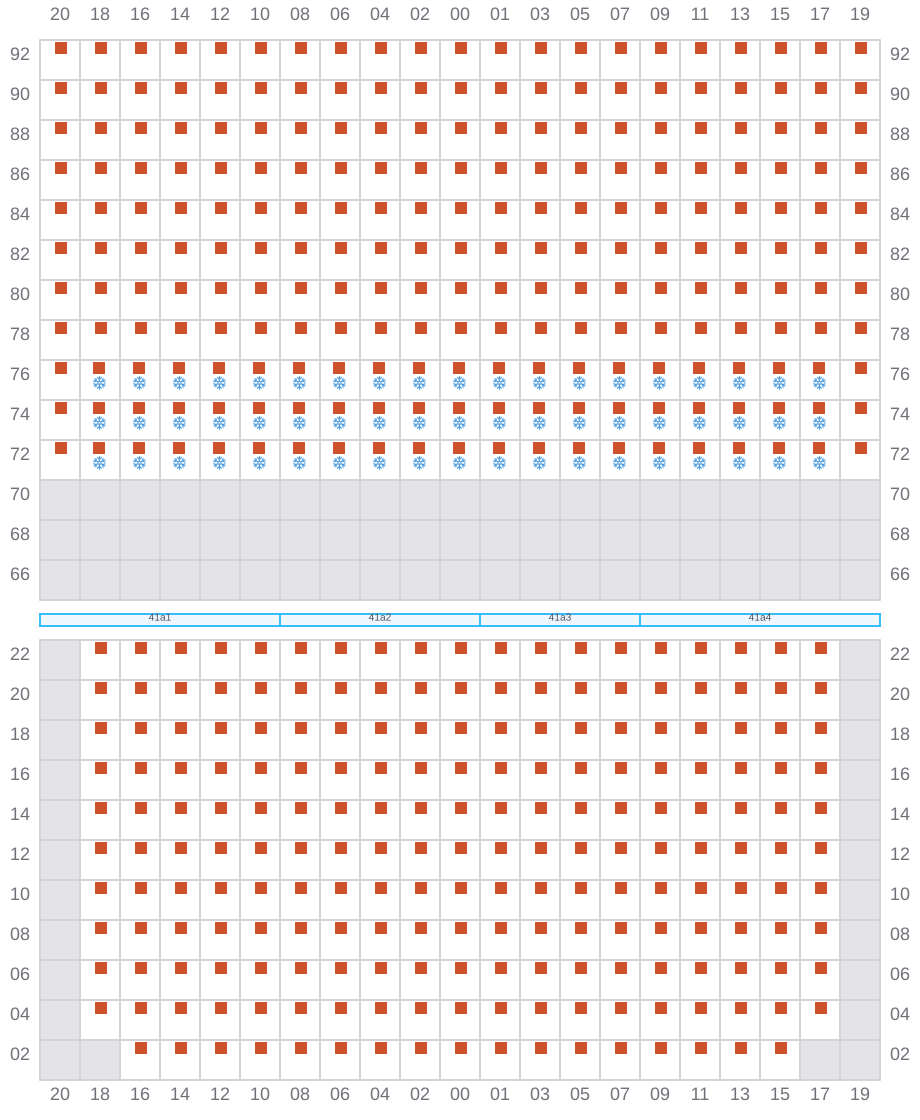

Bay 043 view and slots of CMA CGM KERGUELEN

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of CMA CGM KERGUELEN

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of CMA CGM KERGUELEN

049 (050)

  • →
  • → / ?
  • →
Bay 049 view and slots of CMA CGM KERGUELEN

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of CMA CGM KERGUELEN

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of CMA CGM KERGUELEN

055

  • ←
  • → / ?
  • →

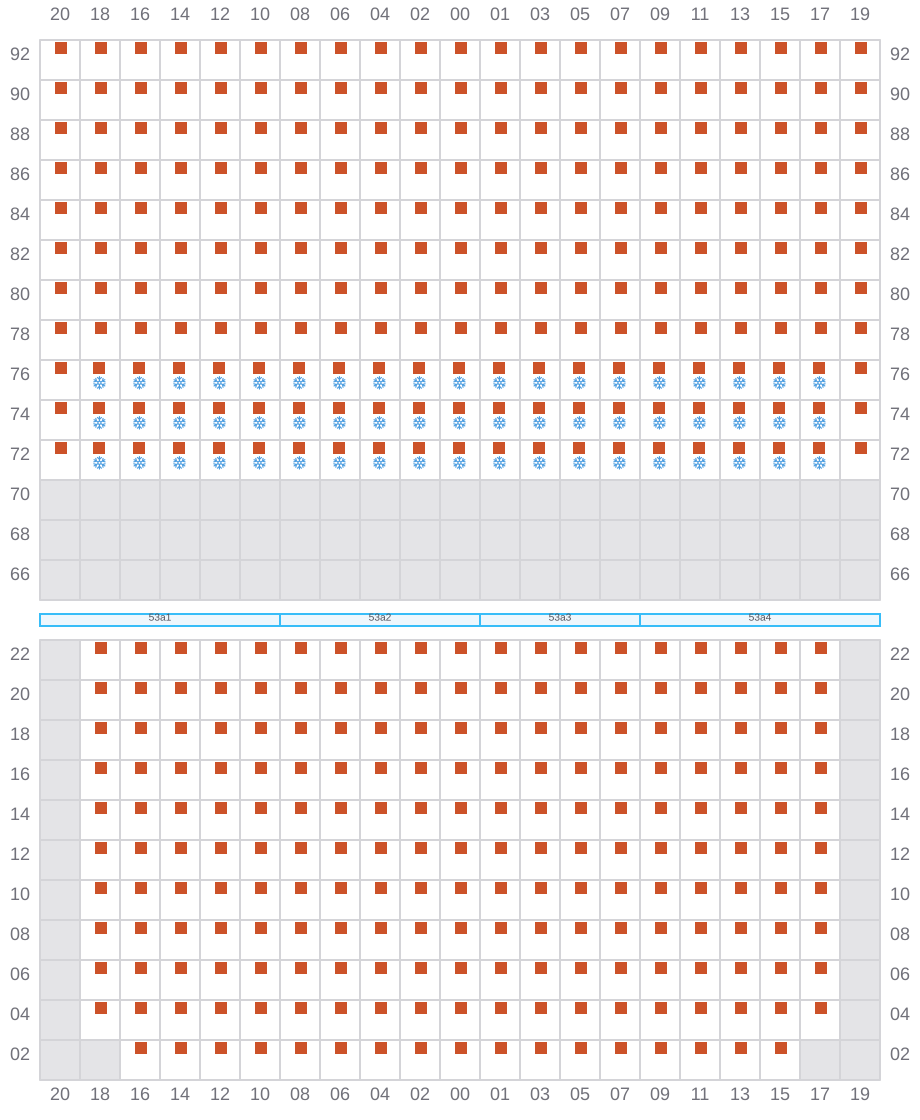

Bay 055 view and slots of CMA CGM KERGUELEN

057 (058)

  • →
  • → / ?
  • →
Bay 057 view and slots of CMA CGM KERGUELEN

059

  • ←
  • → / ?
  • →

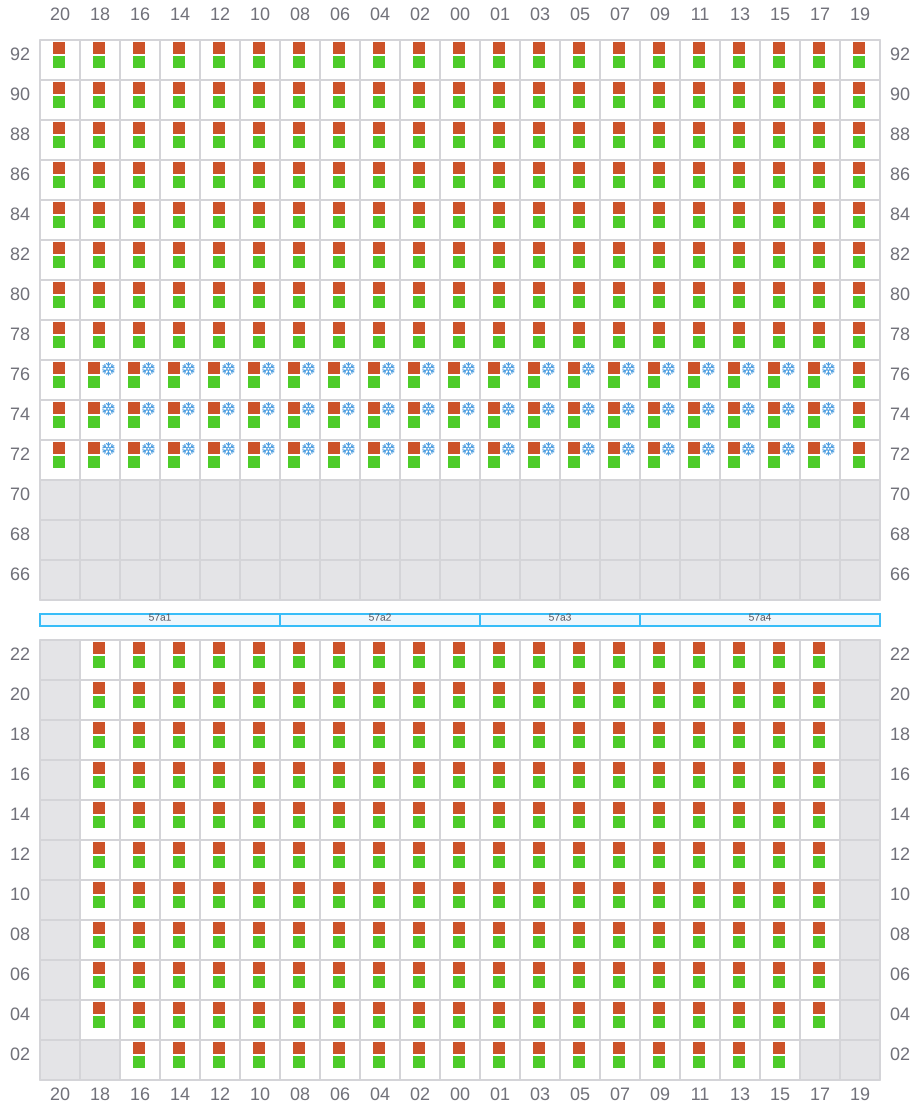

Bay 059 view and slots of CMA CGM KERGUELEN

061 (062)

  • →
  • → / ?
  • →
Bay 061 view and slots of CMA CGM KERGUELEN

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of CMA CGM KERGUELEN

065 (066)

  • →
  • → / ?
  • →
Bay 065 view and slots of CMA CGM KERGUELEN

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of CMA CGM KERGUELEN

069 (070)

  • →
  • → / ?
  • →
Bay 069 view and slots of CMA CGM KERGUELEN

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of CMA CGM KERGUELEN

073 (074)

  • → / ?
  • → / ?
  • → / ?
Bay 073 view and slots of CMA CGM KERGUELEN

075

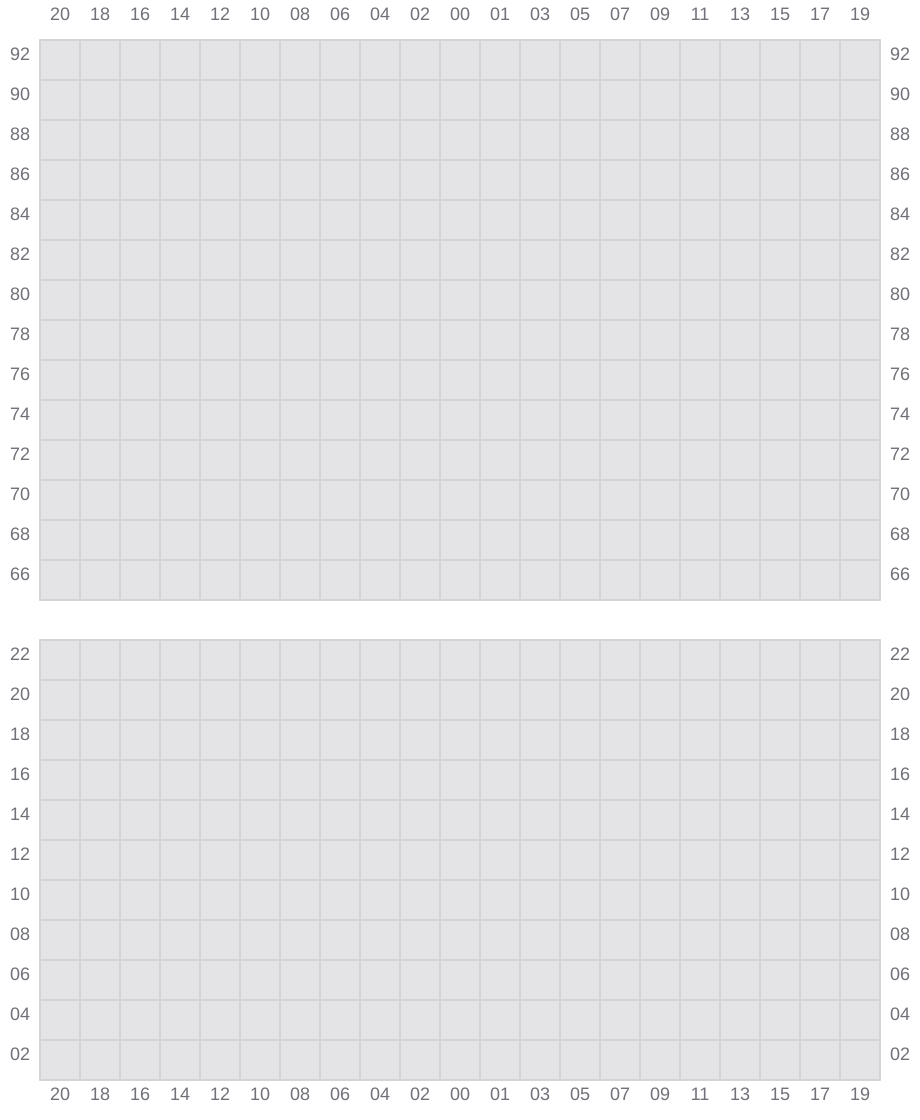

Bay 075 view and slots of CMA CGM KERGUELEN

077 (078)

  • →
  • ← / ?
  • →
Bay 077 view and slots of CMA CGM KERGUELEN

079

  • ←
  • ← / ?
  • →
Bay 079 view and slots of CMA CGM KERGUELEN

081 (082)

  • →
  • ← / ?
  • →

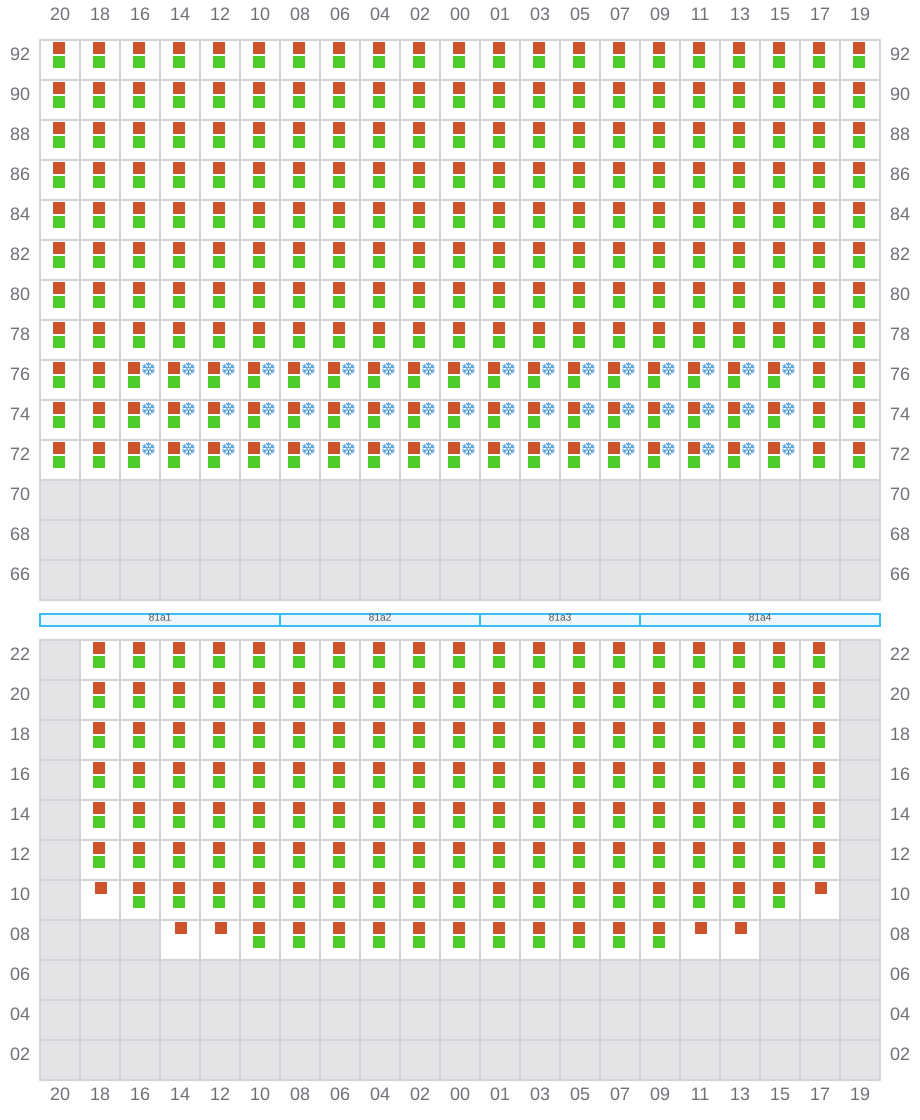

Bay 081 view and slots of CMA CGM KERGUELEN

083

  • ←
  • ← / ?
  • →
Bay 083 view and slots of CMA CGM KERGUELEN

085 (086)

  • →
  • ← / ?
  • →
Bay 085 view and slots of CMA CGM KERGUELEN

087

  • ←
  • ← / ?
  • →
Bay 087 view and slots of CMA CGM KERGUELEN

089 (090)

  • →
  • ← / ?
  • →
Bay 089 view and slots of CMA CGM KERGUELEN

091

  • ←
  • ← / ?
  • →
Bay 091 view and slots of CMA CGM KERGUELEN

093 (094)

  • → / ?
  • ← / ?
  • → / ?

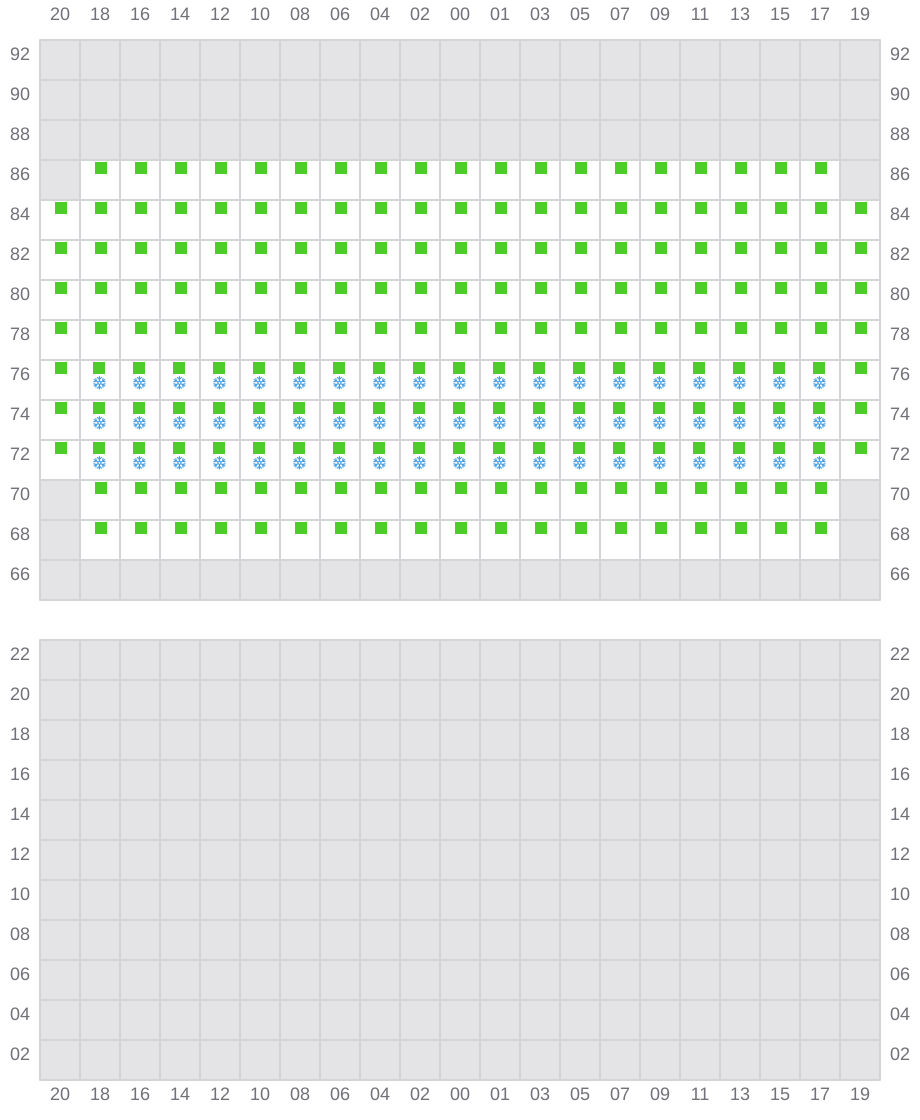

Bay 093 view and slots of CMA CGM KERGUELEN
