CMA CGM LA TRAVIATA
9299795 | FMFT | CMA by ************************** Last update: Thu Jun 15 2023
General Info
Ship Name:CMA CGM LA TRAVIATA
IMO Code:9299795
Call Sign:FMFT
Line Operator:CMA
Class Name for Sister Ships:TVA
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,506
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

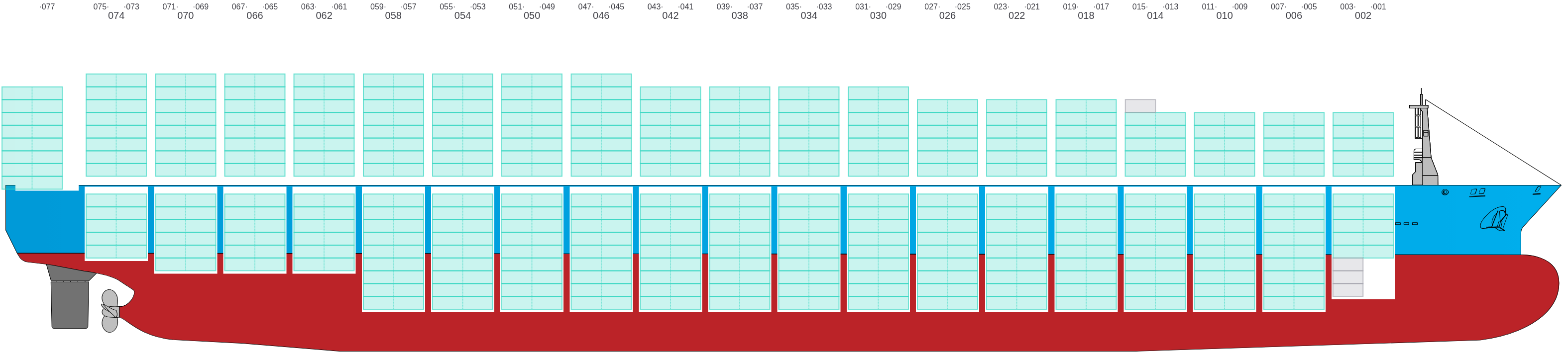

Side View
![Side view of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-sideView.png?v=1686849317989)
Hatch-Covers View
![Deck view of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-deckView.png?v=1686849317989)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

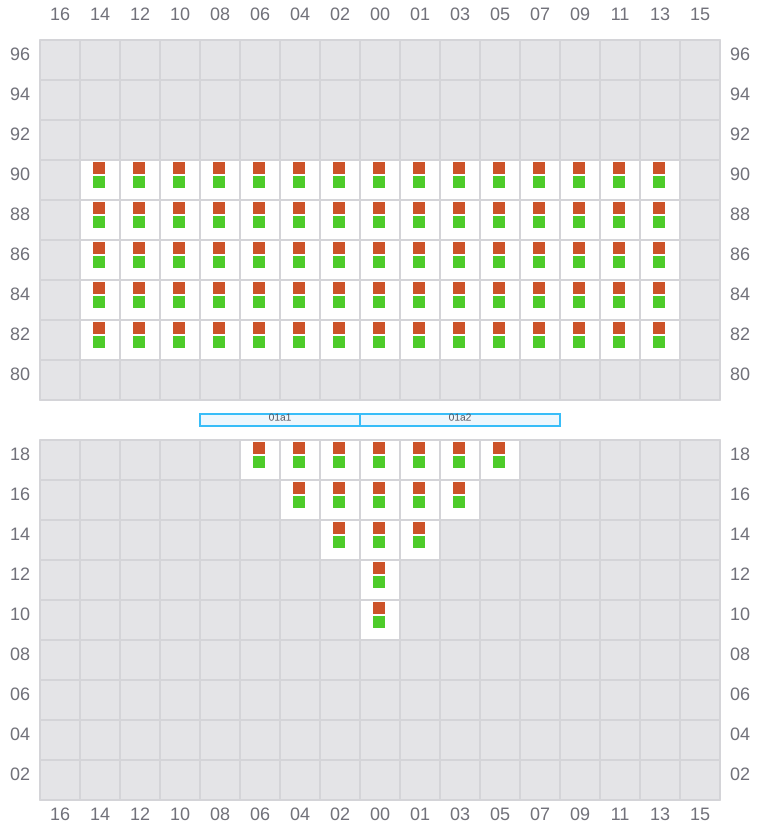

001 (002)
- →
- → / ?
![Bay 001 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b001.png?v=1686849317989)

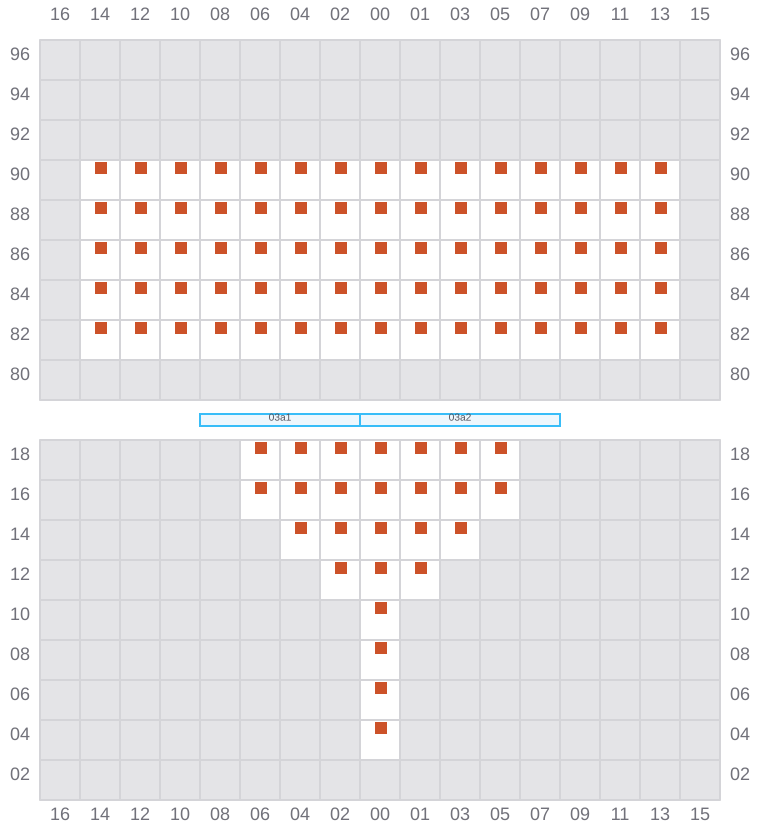

003
- ←
- → / ?
![Bay 003 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b003.png?v=1686849317989)

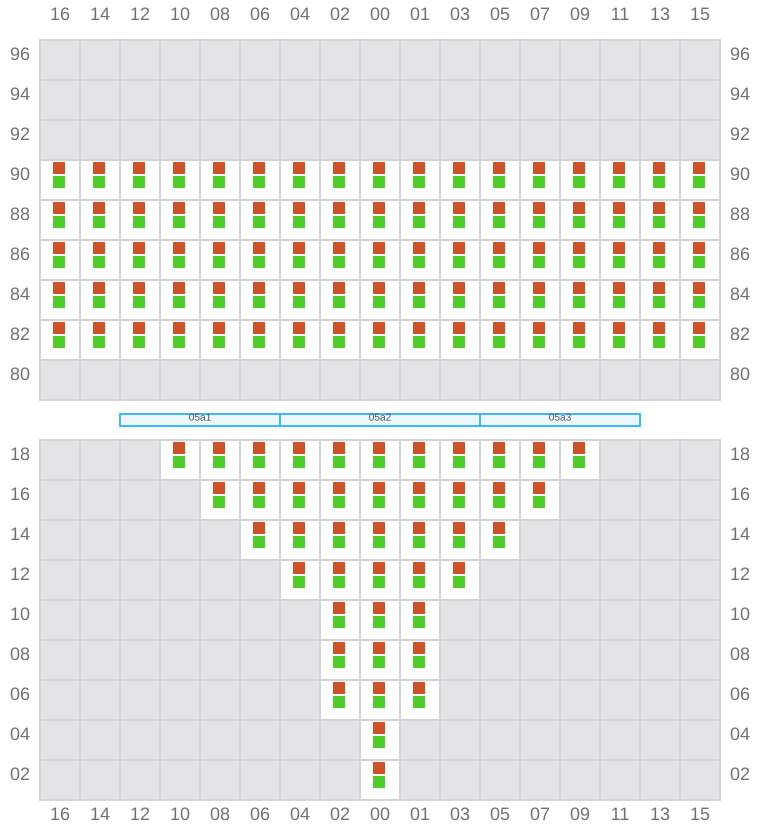

005 (006)
- →
- → / ?
![Bay 005 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b005.png?v=1686849317989)

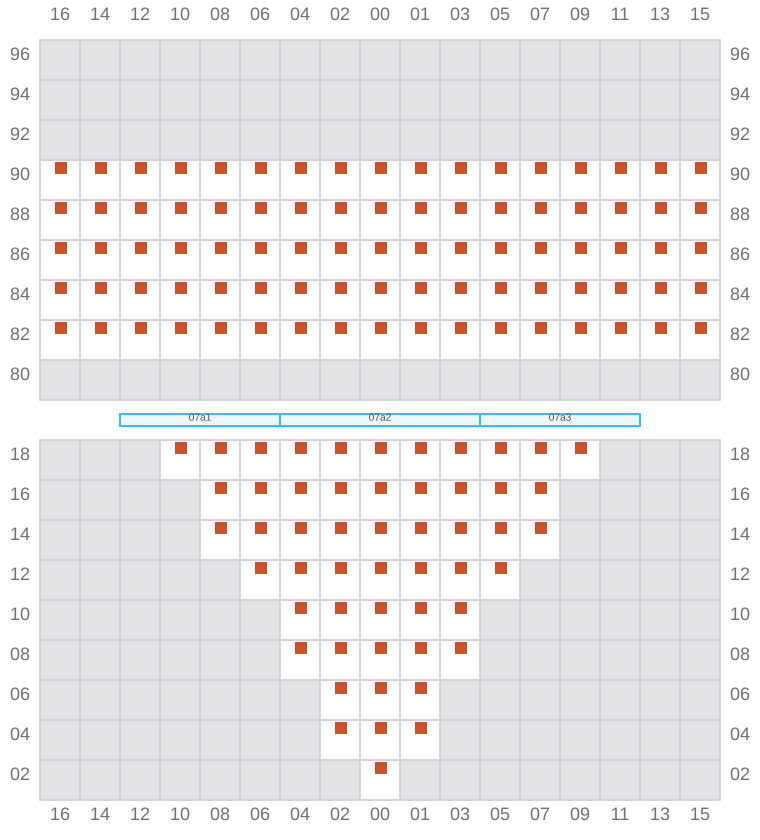

007
- ←
- → / ?
![Bay 007 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b007.png?v=1686849317989)

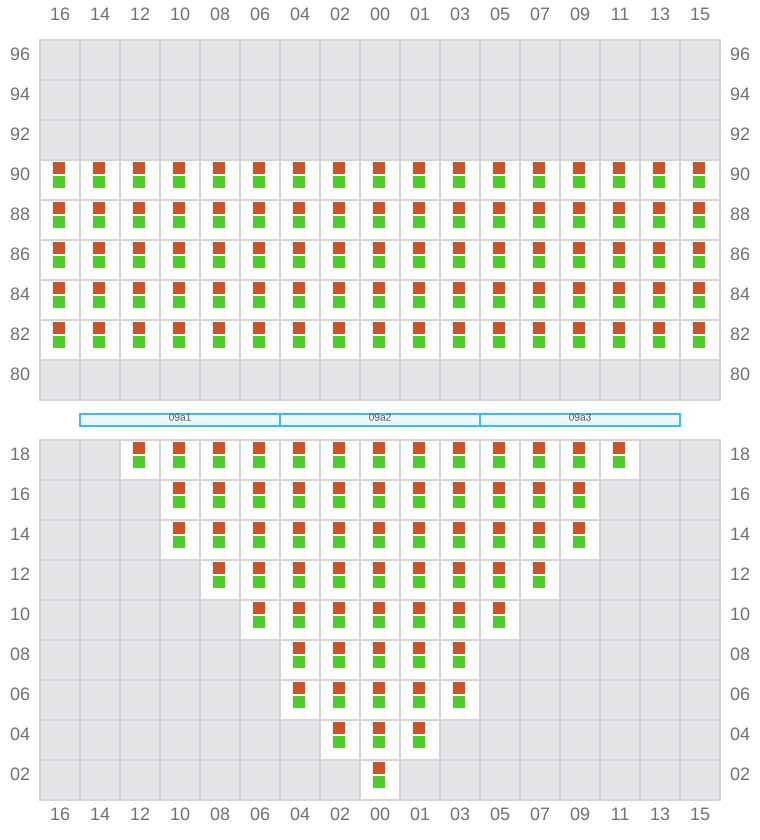

009 (010)
- →
- → / ?
![Bay 009 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b009.png?v=1686849317989)

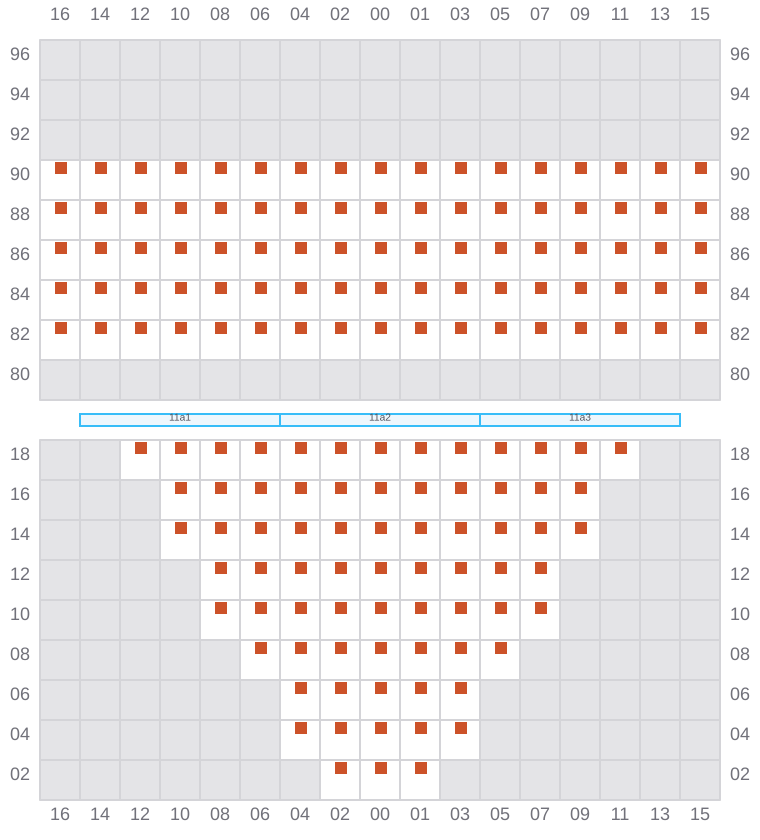

011
- ←
- → / ?
![Bay 011 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b011.png?v=1686849317989)

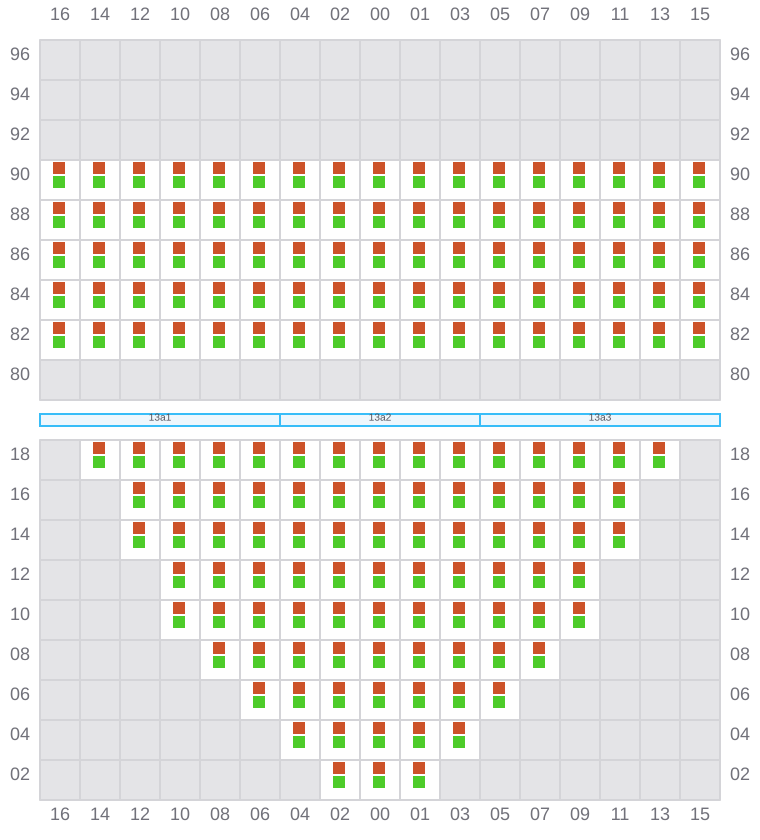

013 (014)
- →
- → / ?
![Bay 013 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b013.png?v=1686849317989)
015
- ←
- → / ?
![Bay 015 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b015.png?v=1686849317989)

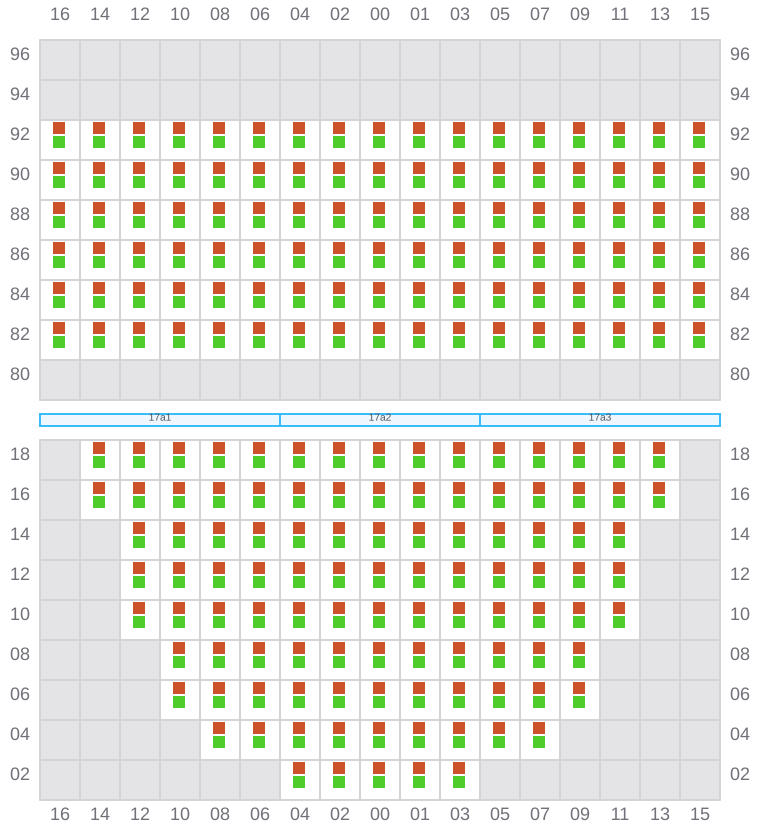

017 (018)
- →
- → / ?
![Bay 017 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b017.png?v=1686849317989)

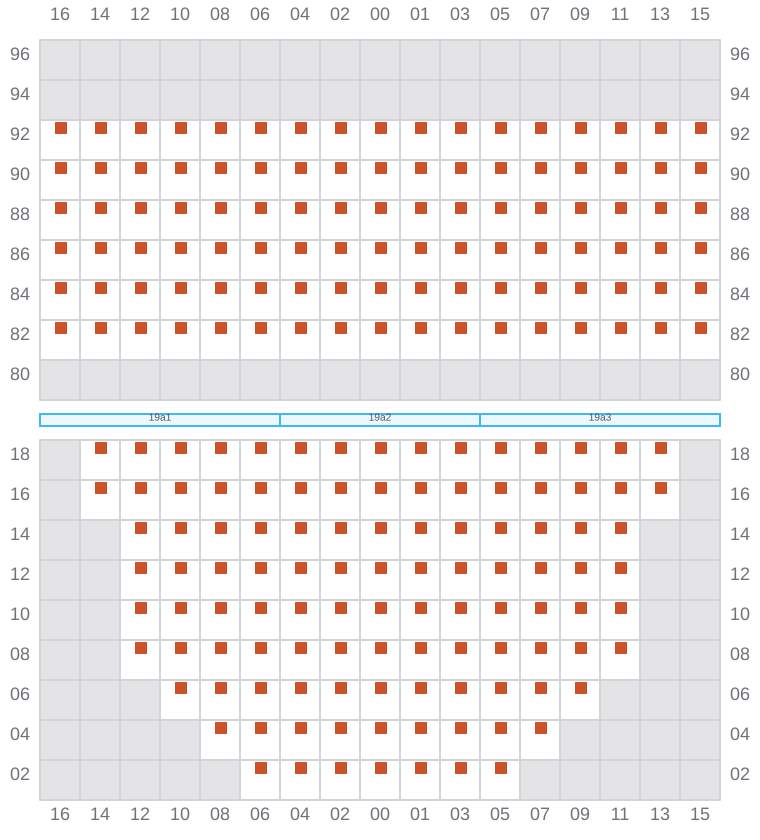

019
- ←
- → / ?
![Bay 019 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b019.png?v=1686849317989)

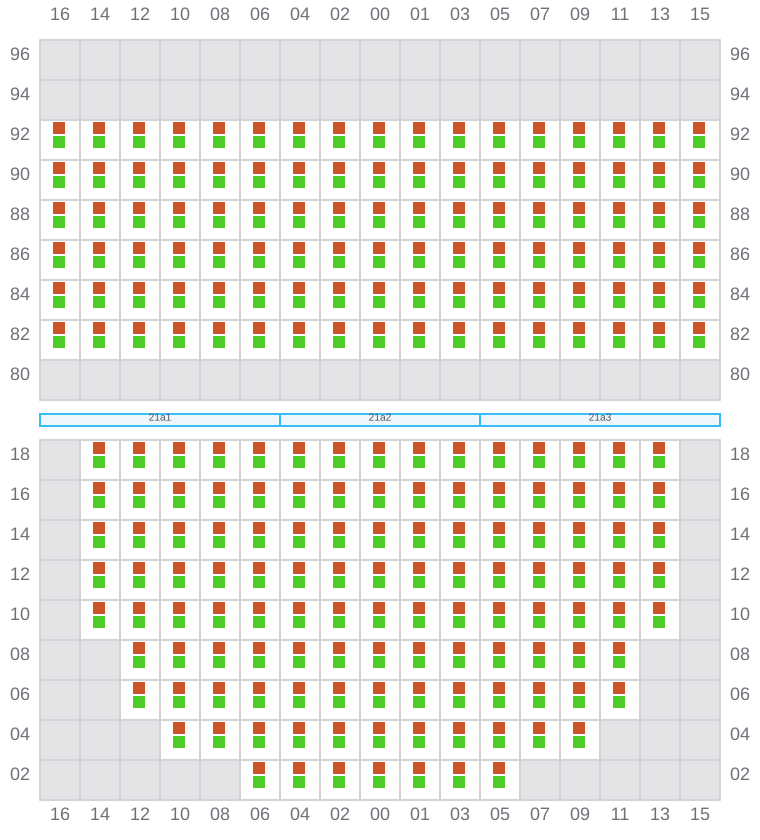

021 (022)
- →
- → / ?
![Bay 021 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b021.png?v=1686849317989)

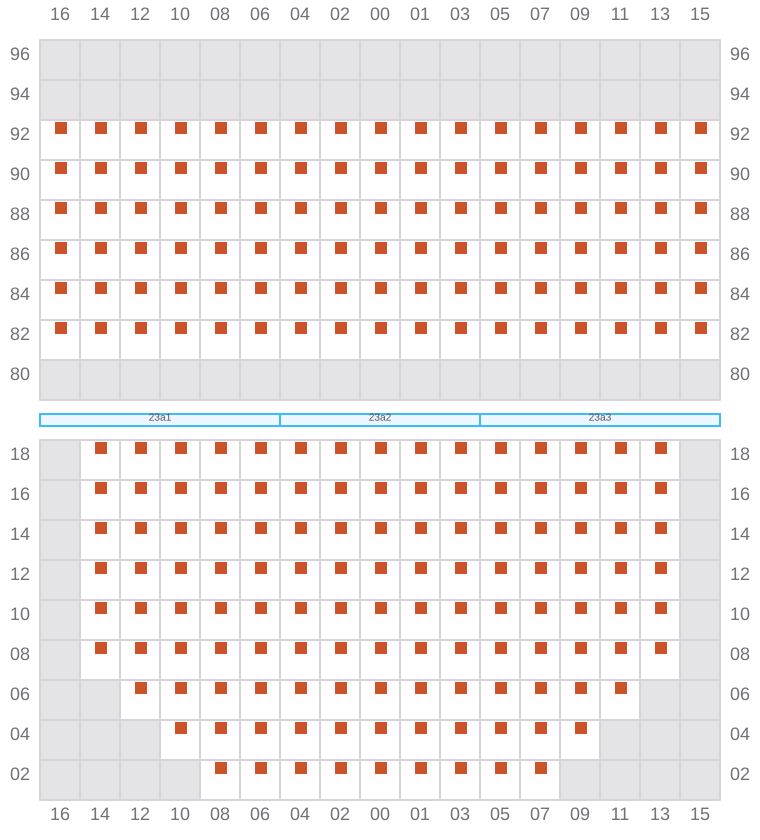

023
- ←
- → / ?
![Bay 023 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b023.png?v=1686849317989)

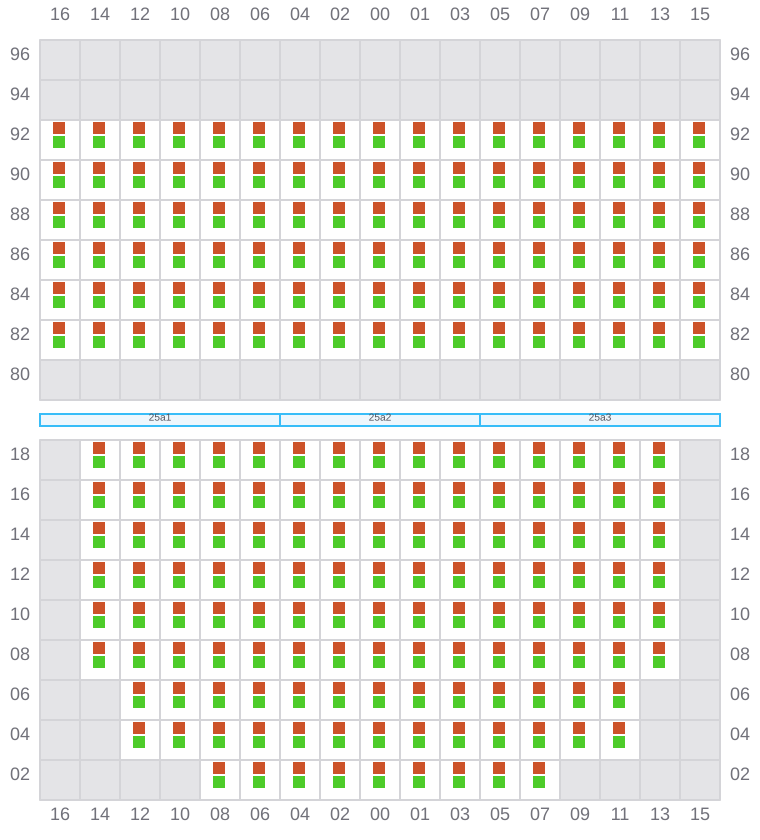

025 (026)
- →
- → / ?
![Bay 025 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b025.png?v=1686849317989)

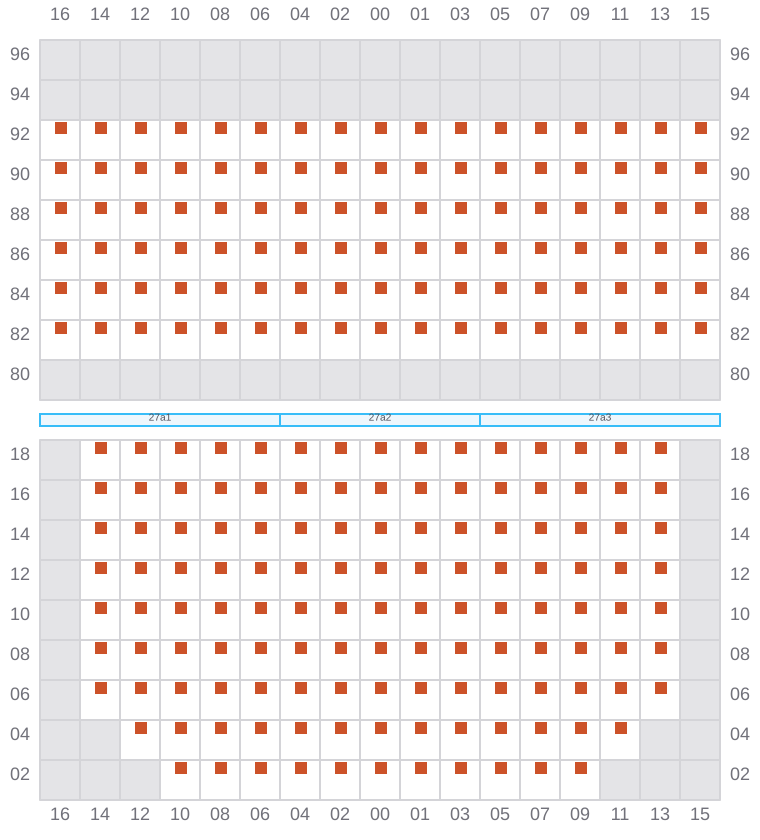

027
- ←
- → / ?
![Bay 027 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b027.png?v=1686849317989)

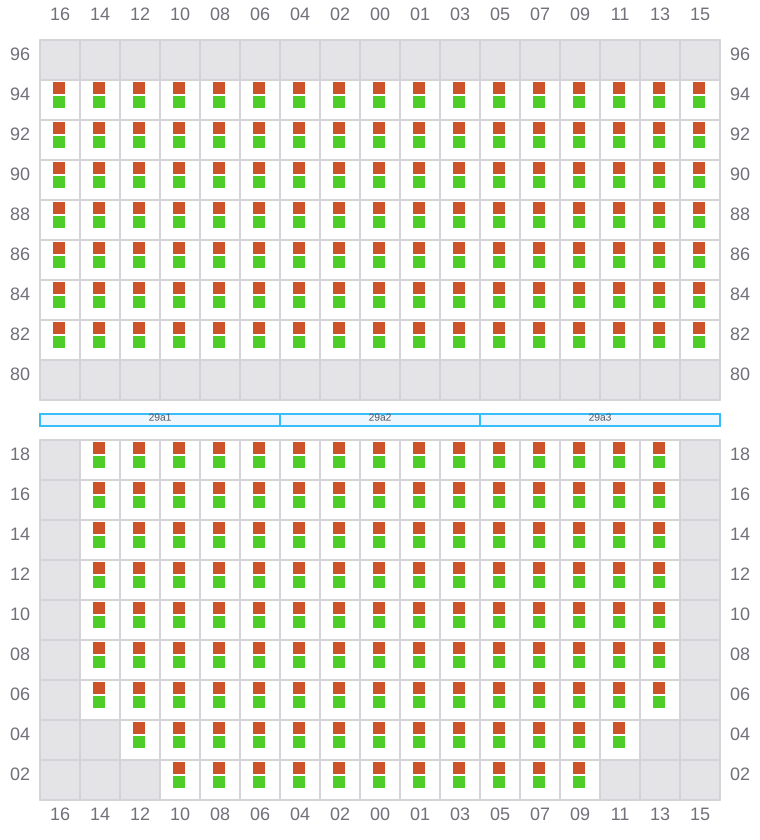

029 (030)
- →
- → / ?
![Bay 029 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b029.png?v=1686849317989)

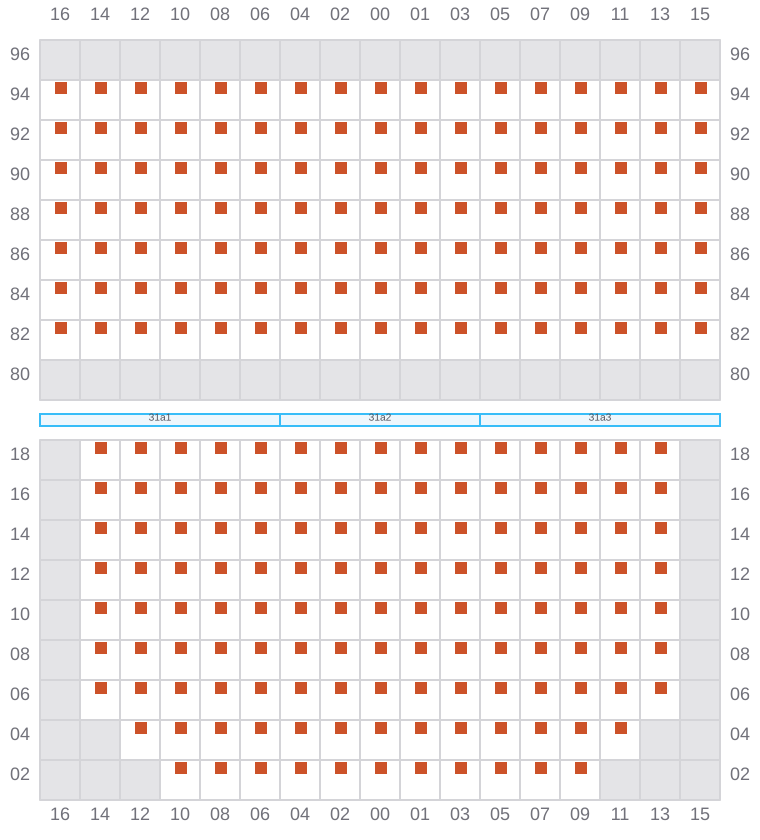

031
- ←
- → / ?
![Bay 031 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b031.png?v=1686849317989)

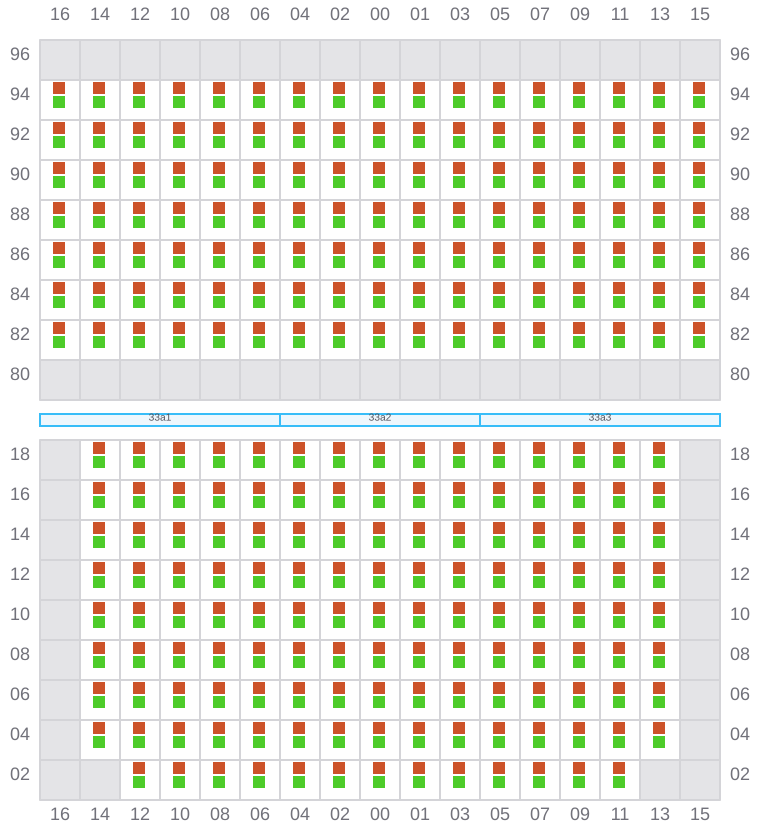

033 (034)
- →
- → / ?
![Bay 033 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b033.png?v=1686849317989)

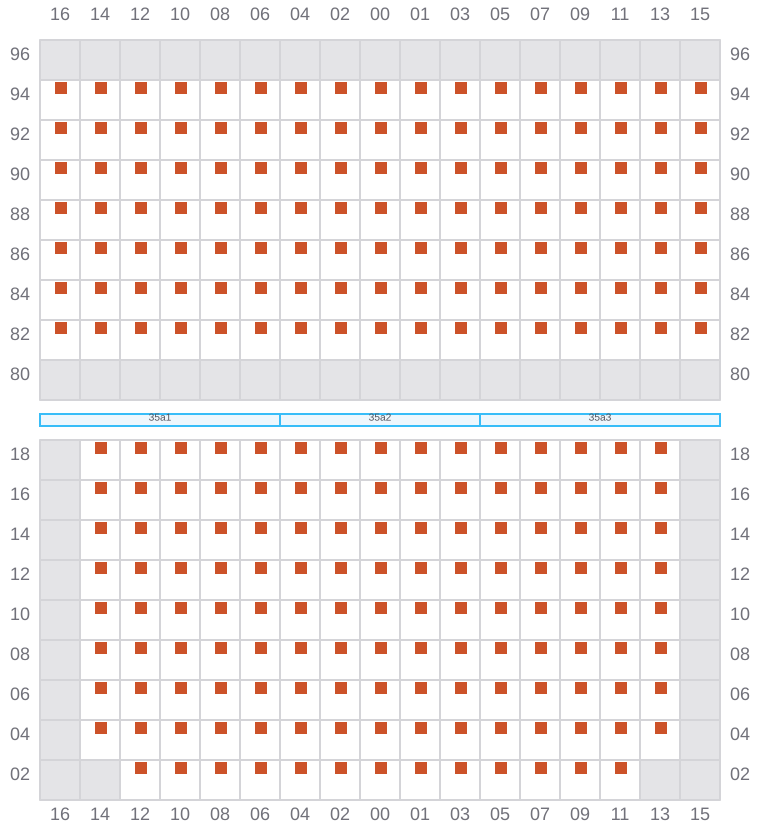

035
- ←
- → / ?
![Bay 035 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b035.png?v=1686849317989)

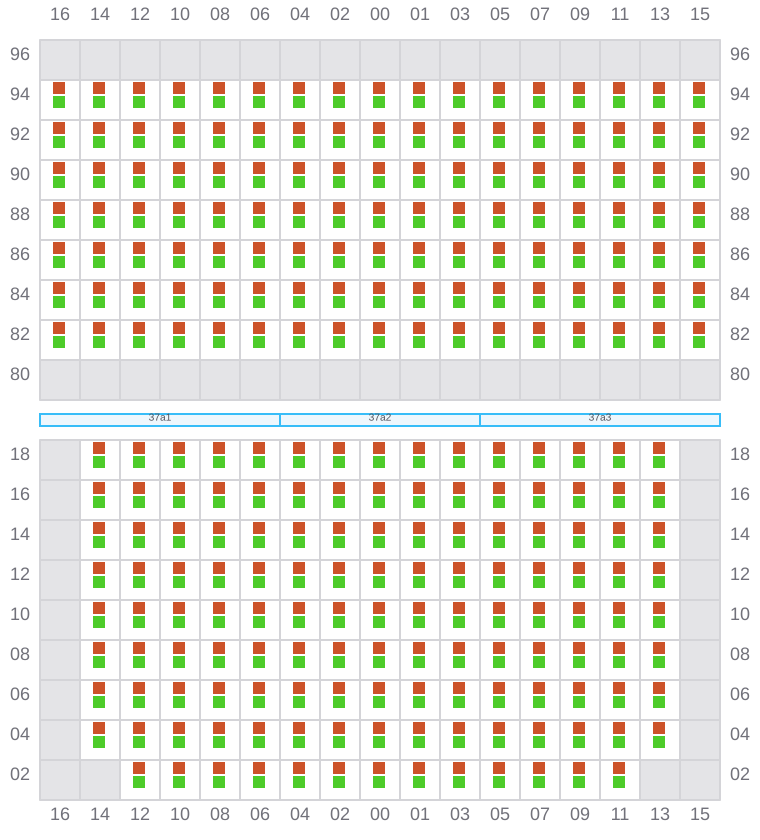

037 (038)
- →
- → / ?
![Bay 037 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b037.png?v=1686849317989)
039
- ←
- → / ?
![Bay 039 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b039.png?v=1686849317989)
041 (042)
- →
- → / ?
![Bay 041 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b041.png?v=1686849317989)

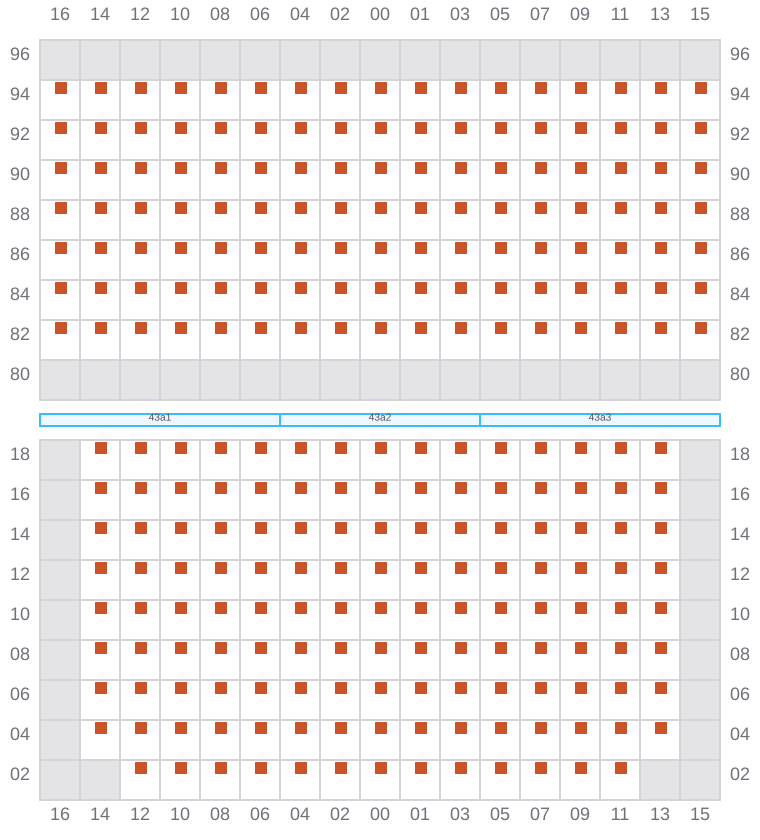

043
- ←
- → / ?
![Bay 043 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b043.png?v=1686849317989)
045 (046)
- →
- → / ?
![Bay 045 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b045.png?v=1686849317989)
047
- ←
- → / ?
![Bay 047 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b047.png?v=1686849317989)
049 (050)
- →
- → / ?
![Bay 049 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b049.png?v=1686849317989)

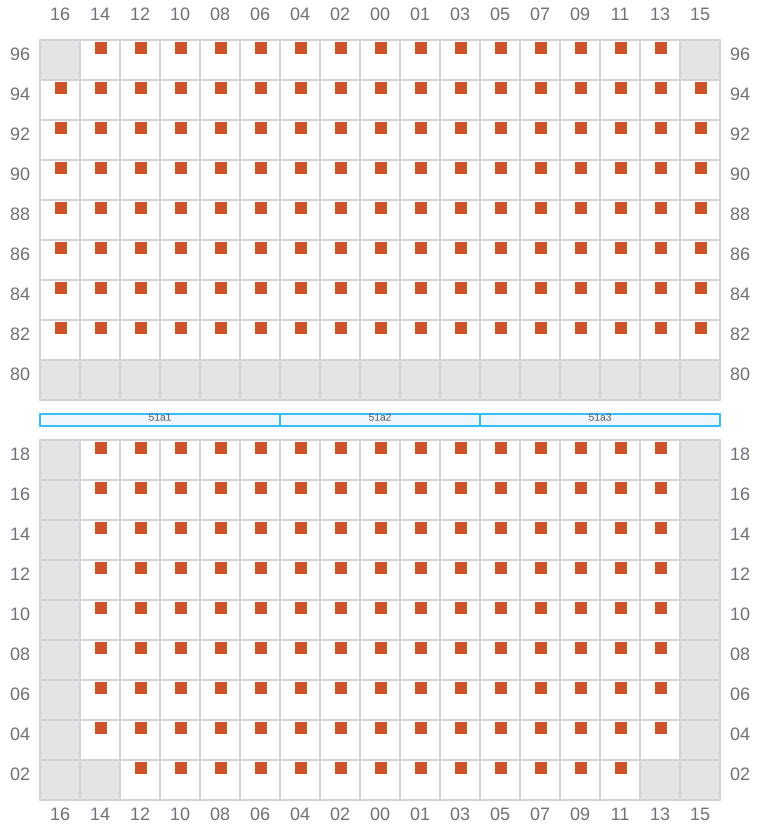

051
- ←
- → / ?
![Bay 051 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b051.png?v=1686849317989)

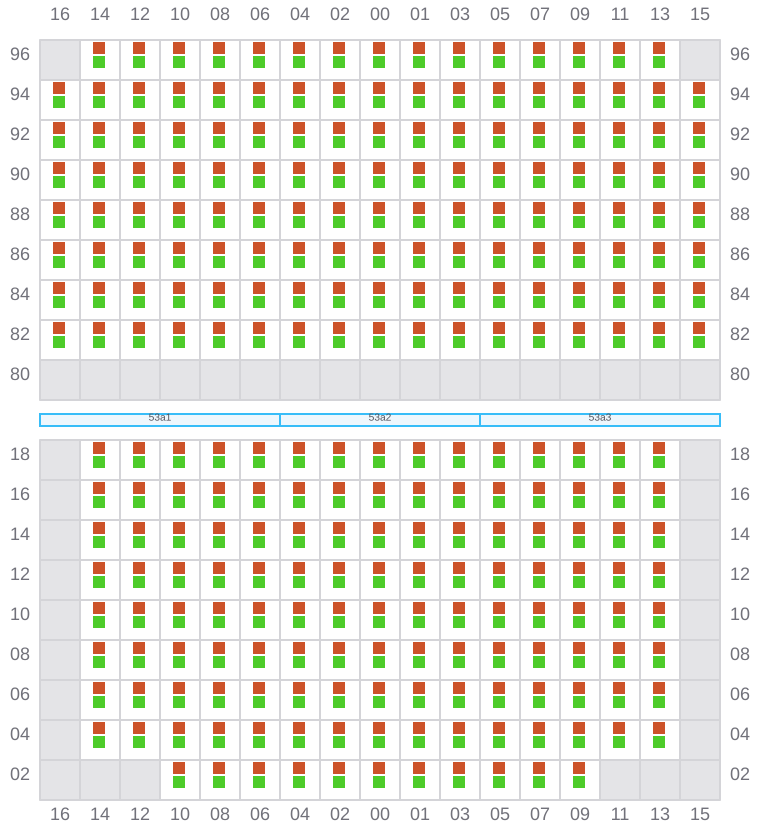

053 (054)
- →
- → / ?
![Bay 053 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b053.png?v=1686849317989)

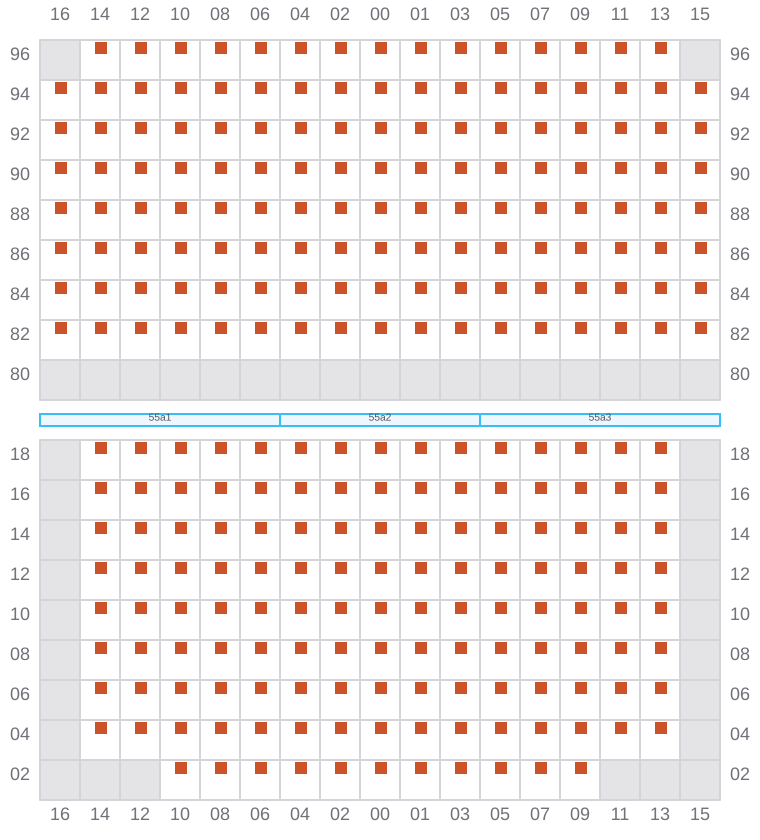

055
- ←
- → / ?
![Bay 055 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b055.png?v=1686849317989)

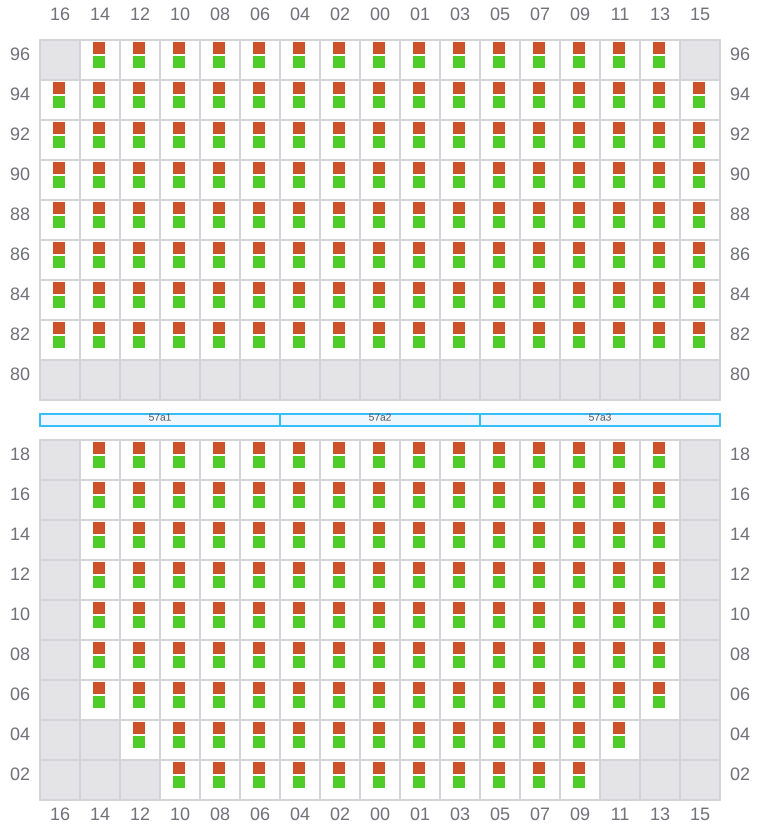

057 (058)
- →
- → / ?
![Bay 057 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b057.png?v=1686849317989)

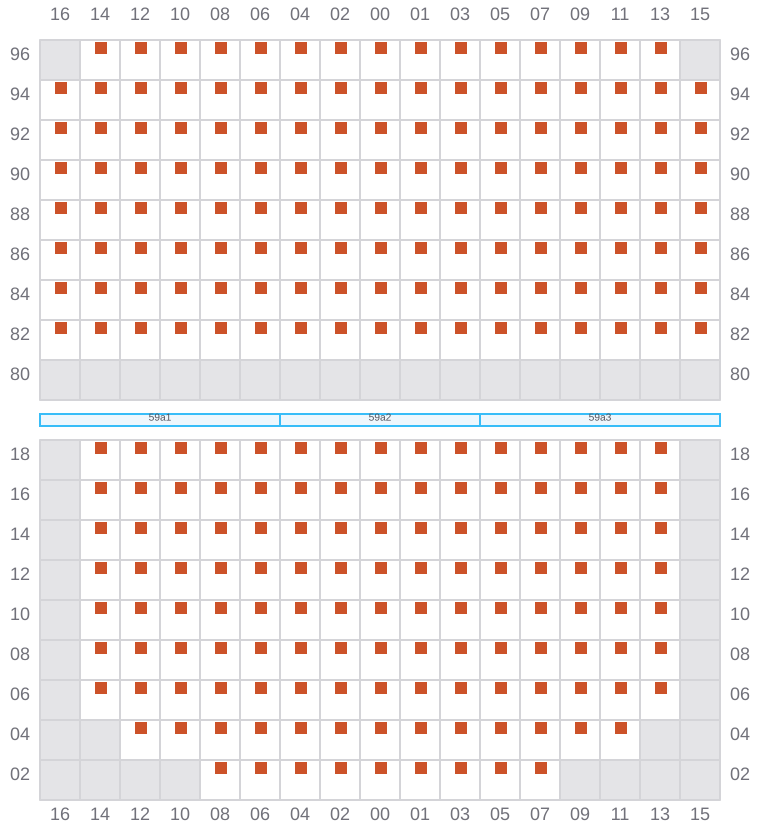

059
- ←
- → / ?
![Bay 059 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b059.png?v=1686849317989)

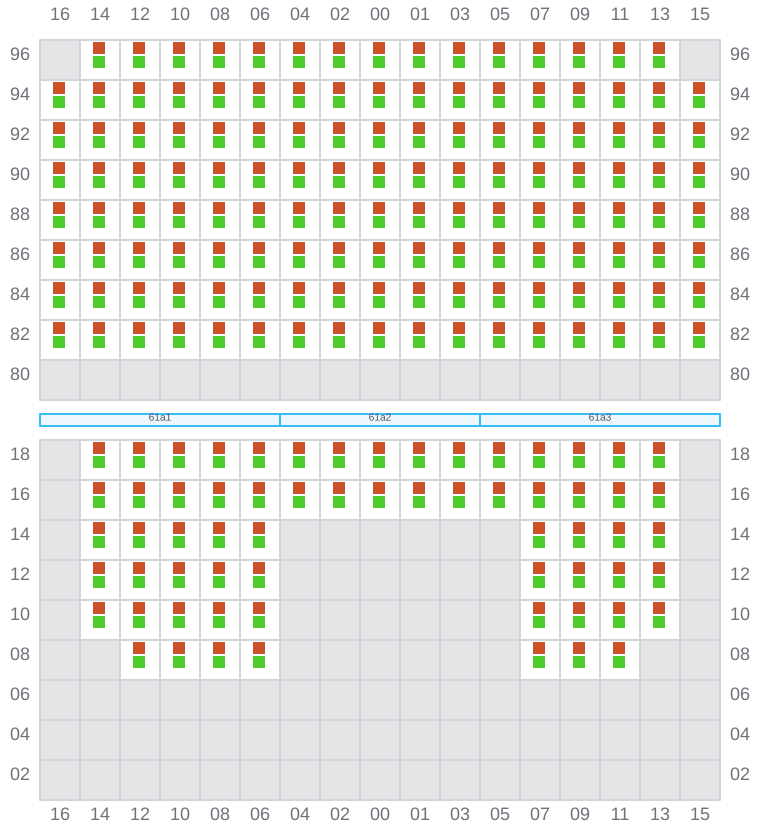

061 (062)
- →
- → / ?
![Bay 061 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b061.png?v=1686849317989)

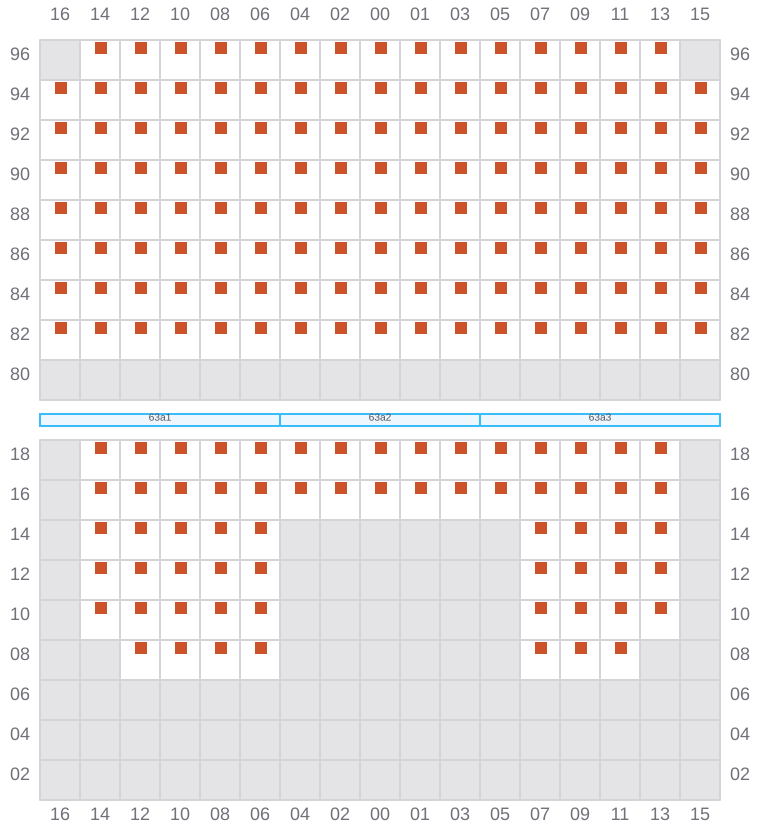

063
- ←
- → / ?
![Bay 063 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b063.png?v=1686849317989)

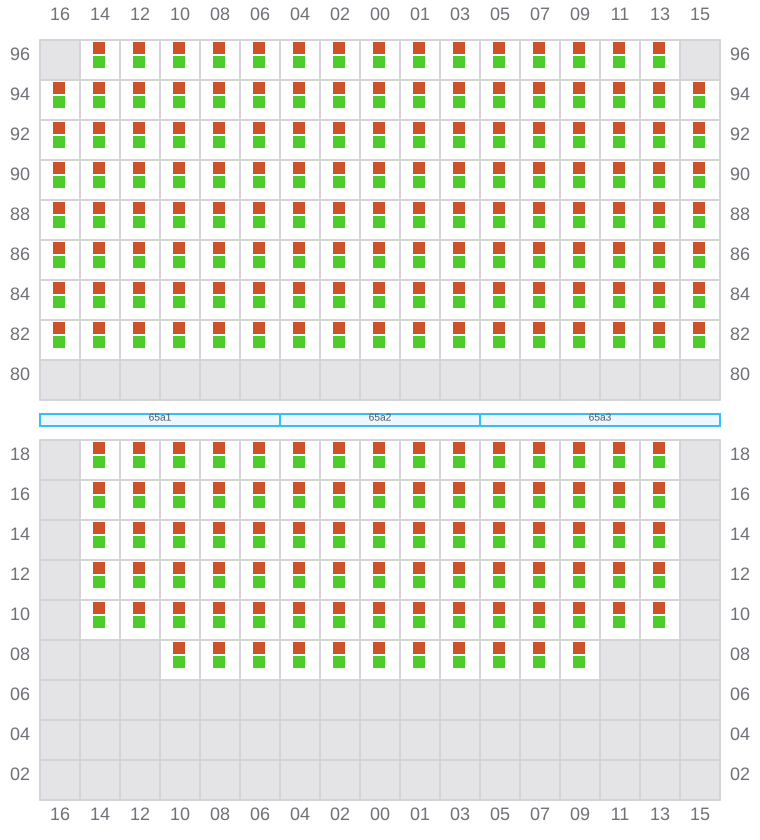

065 (066)
- →
- → / ?
![Bay 065 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b065.png?v=1686849317989)

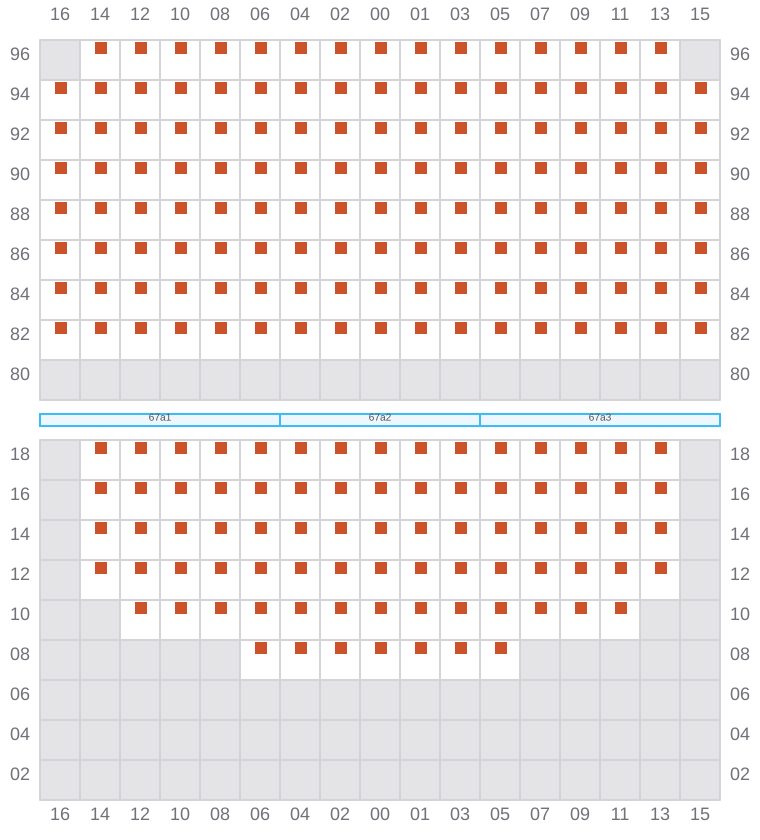

067
- ←
- → / ?
![Bay 067 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b067.png?v=1686849317989)

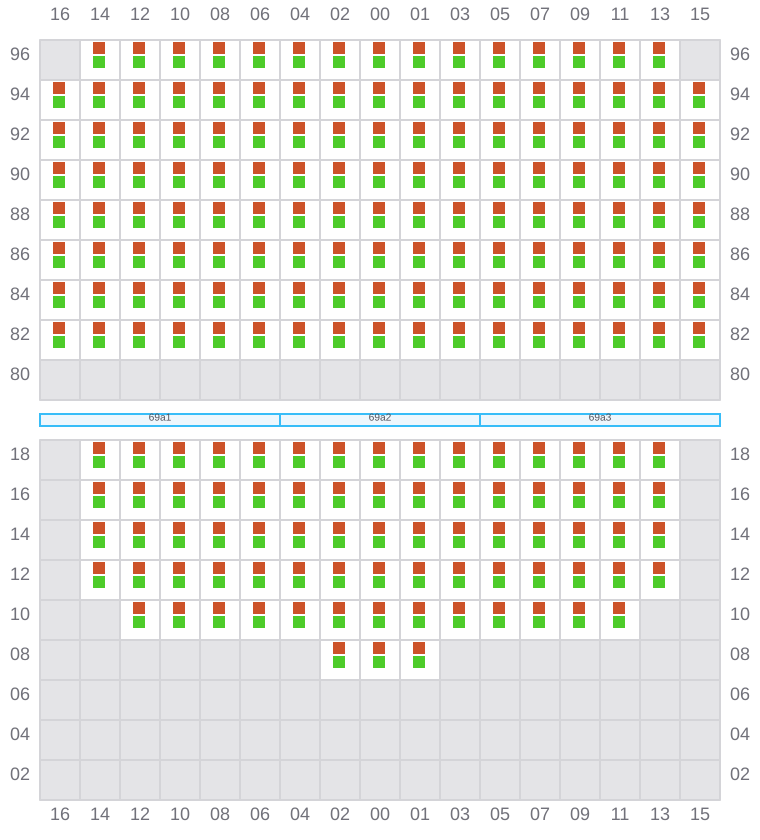

069 (070)
- →
- → / ?
![Bay 069 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b069.png?v=1686849317989)

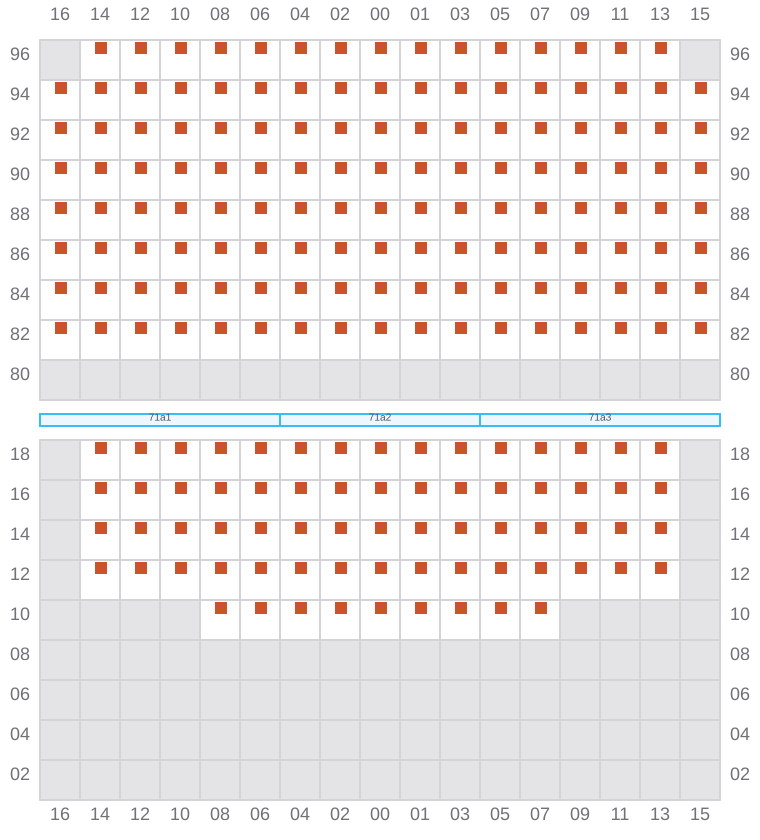

071
- ←
- → / ?
![Bay 071 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b071.png?v=1686849317989)

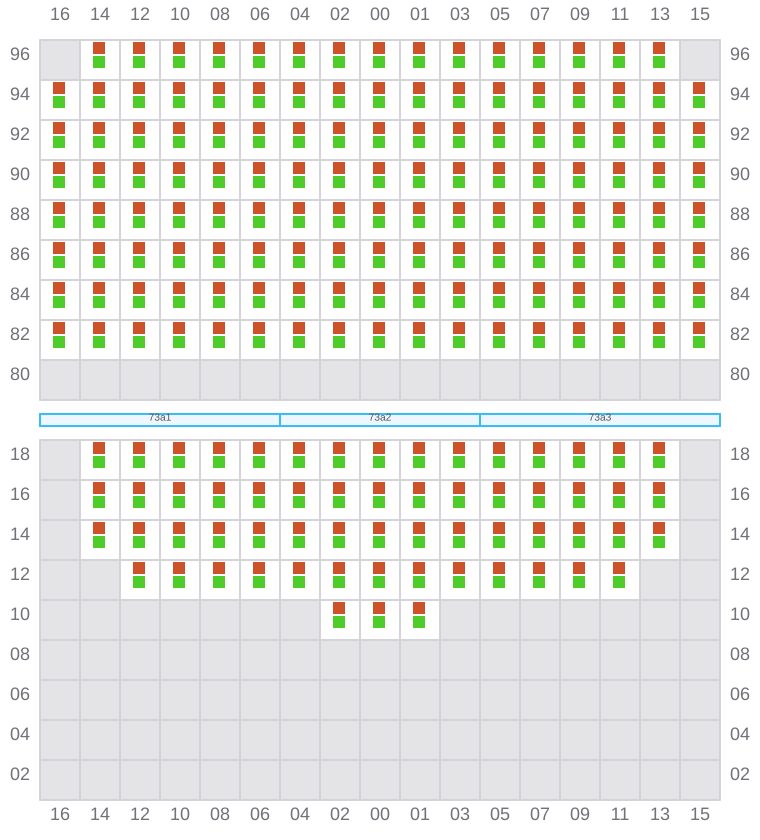

073 (074)
- →
- → / ?
![Bay 073 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b073.png?v=1686849317989)

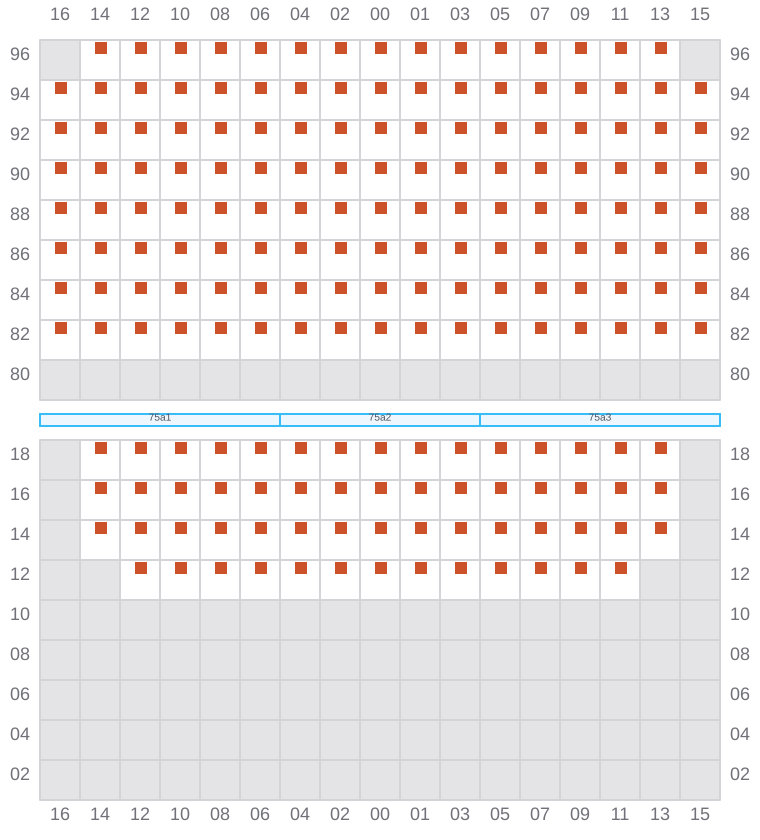

075
- ←
- → / ?
![Bay 075 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b075.png?v=1686849317989)

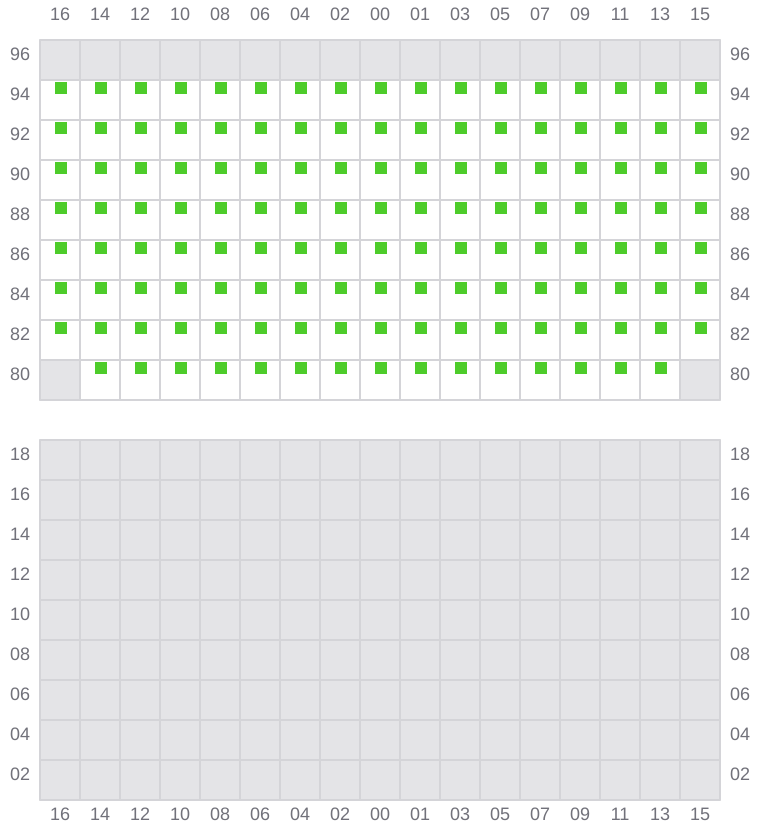

077 (078)
- → / ?
![Bay 077 view and slots of CMA CGM LA TRAVIATA](/vessel-images/1192974d-463f-43d8-81ce-f0ee0743274a-b077.png?v=1686849317989)
