CMA CGM LA TRAVIATA
9299795 | FMFT | CMA by *********************** Last update: Tue Jan 21 2025

General Info

Ship Name:CMA CGM LA TRAVIATA

IMO Code:9299795

Call Sign:FMFT

Line Operator:CMA

Class Name for Sister Ships:CGTA

Year Built:2006

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):314.00

LOA (Length Overall):334.07

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:077

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,506

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Known

TCG Data:100%

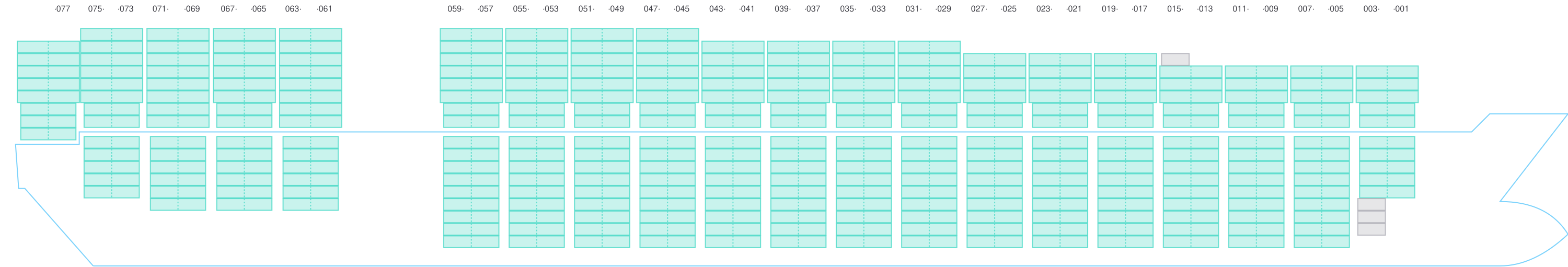

Side View

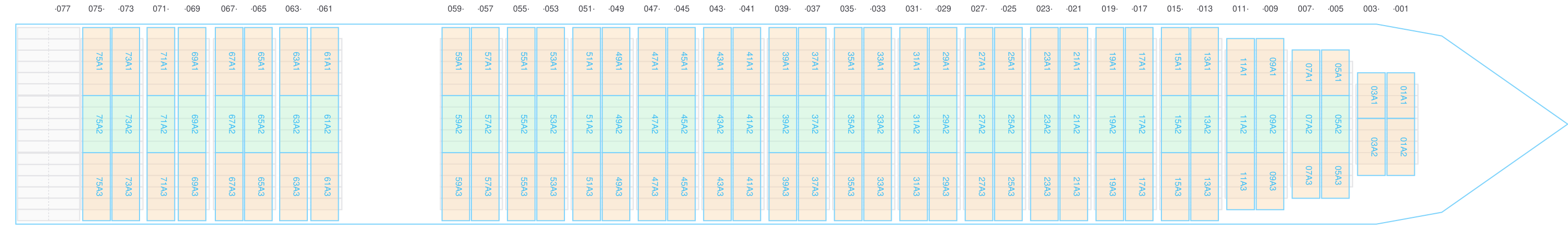

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

Bay 001 view and slots of CMA CGM LA TRAVIATA

003

Bay 003 view and slots of CMA CGM LA TRAVIATA

005 (006)

→
^→ / _?
→

Bay 005 view and slots of CMA CGM LA TRAVIATA

007

←
^→ / _?
→

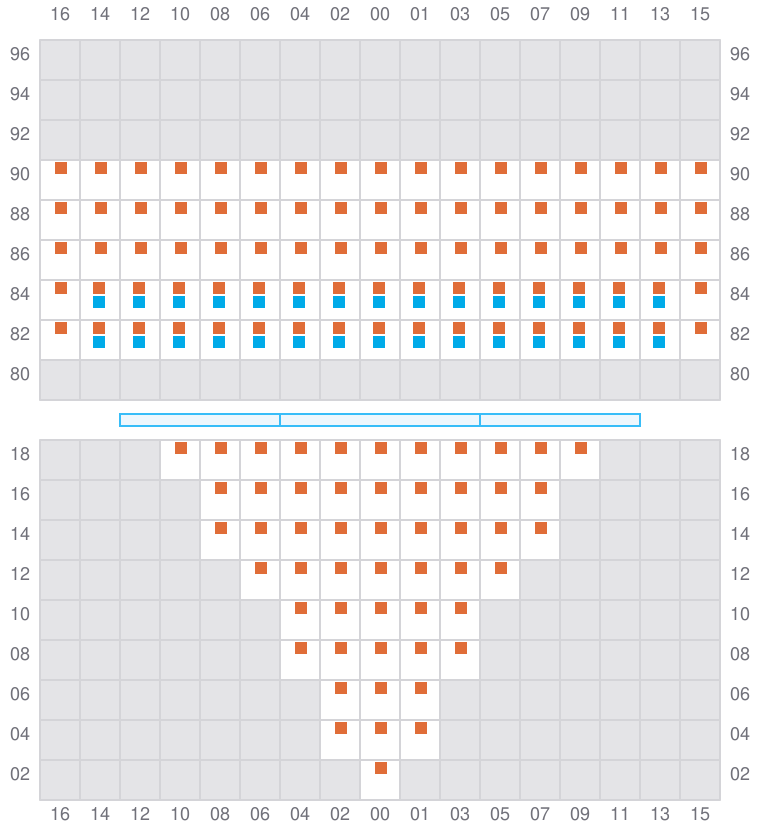

Bay 007 view and slots of CMA CGM LA TRAVIATA

009 (010)

→
^→ / _?
→

Bay 009 view and slots of CMA CGM LA TRAVIATA

011

←
^→ / _?
→

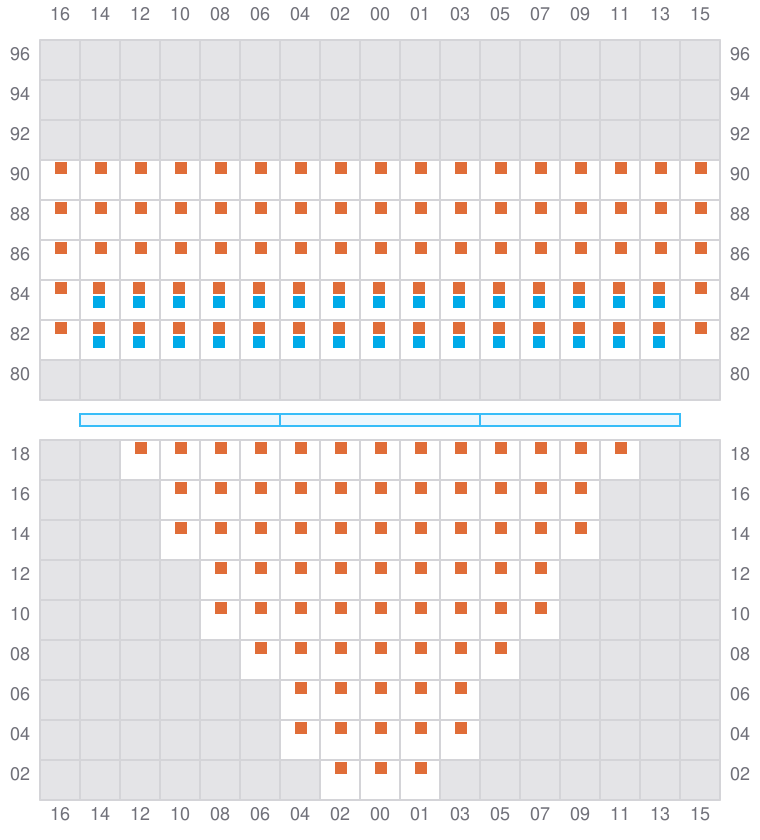

Bay 011 view and slots of CMA CGM LA TRAVIATA

013 (014)

→
^→ / _?
→

Bay 013 view and slots of CMA CGM LA TRAVIATA

015

←
^→ / _?
→

Bay 015 view and slots of CMA CGM LA TRAVIATA

017 (018)

→
^→ / _?
→

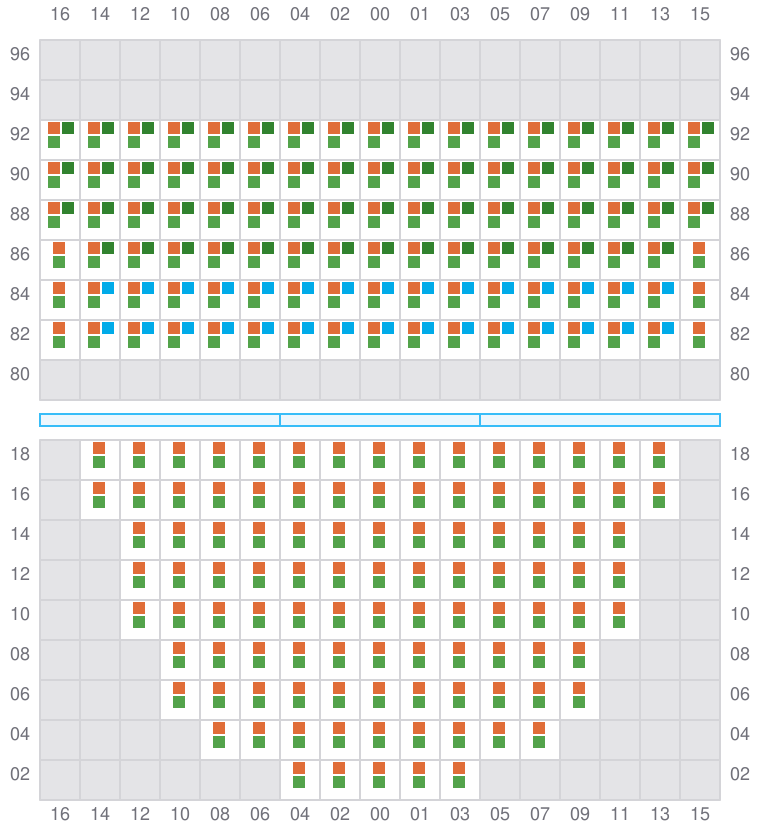

Bay 017 view and slots of CMA CGM LA TRAVIATA

019

←
^→ / _?
→

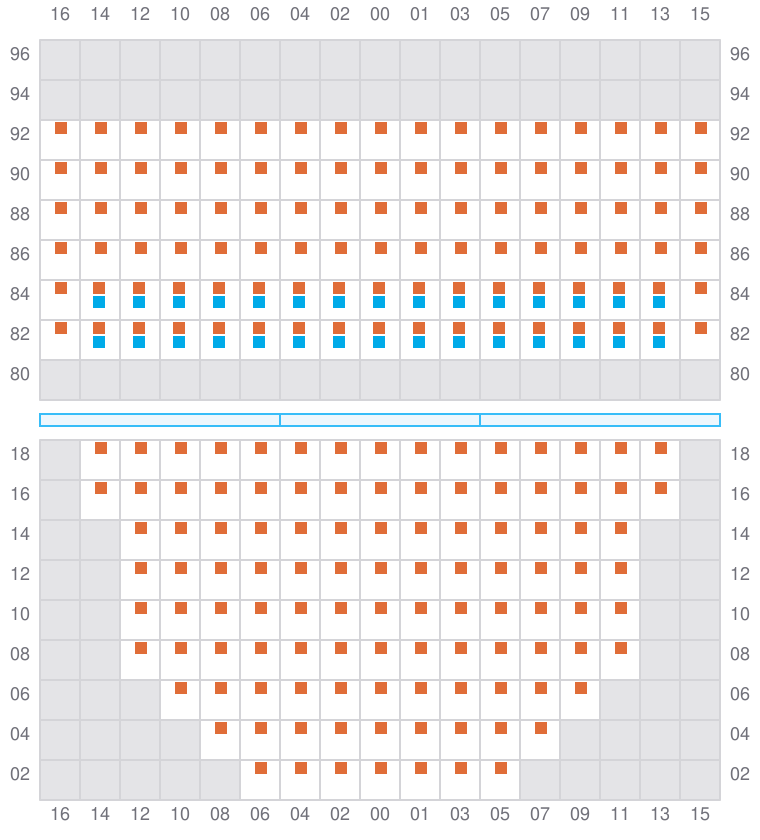

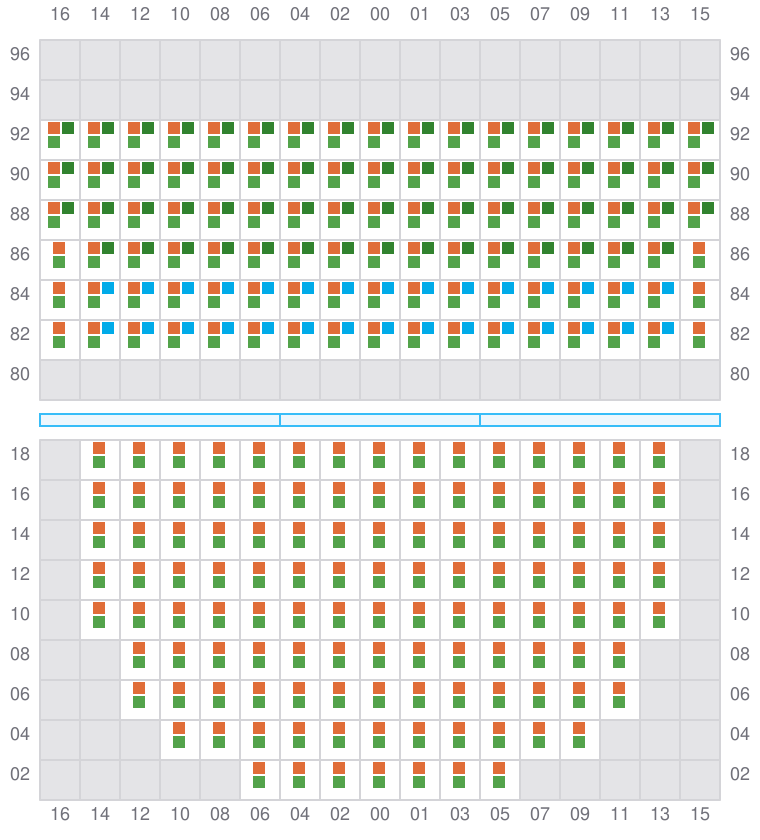

Bay 019 view and slots of CMA CGM LA TRAVIATA

021 (022)

→
^→ / _?
→

Bay 021 view and slots of CMA CGM LA TRAVIATA

023

←
^→ / _?
→

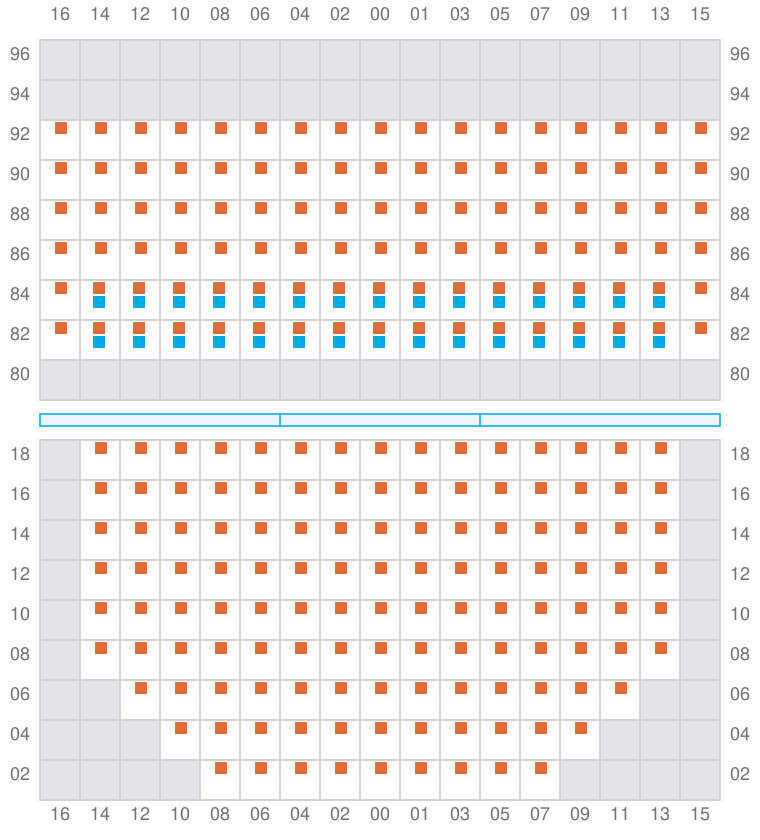

Bay 023 view and slots of CMA CGM LA TRAVIATA

025 (026)

→
^→ / _?
→

Bay 025 view and slots of CMA CGM LA TRAVIATA

027

←
^→ / _?
→

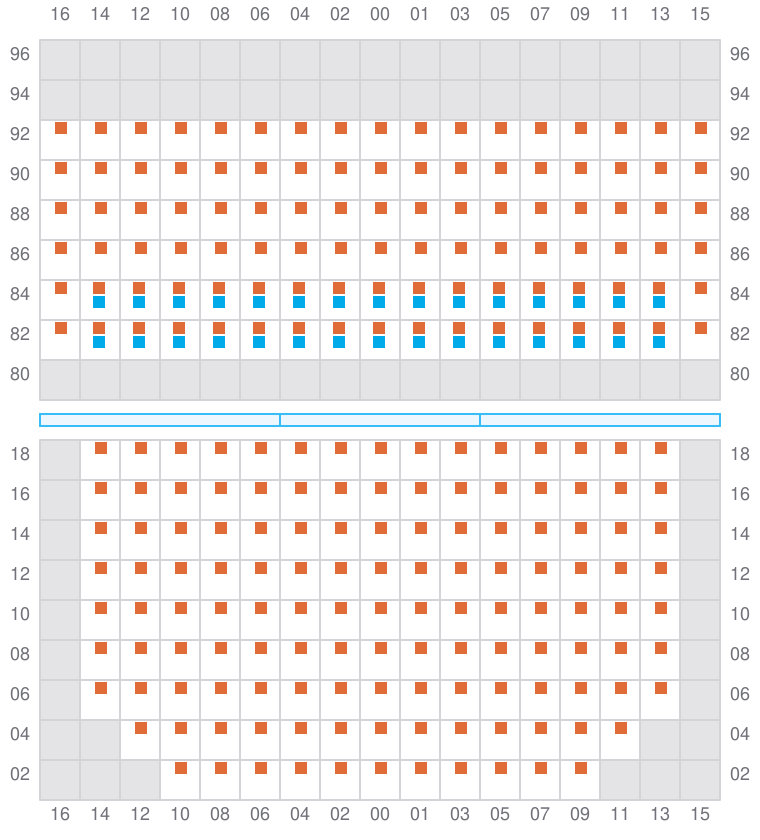

Bay 027 view and slots of CMA CGM LA TRAVIATA

029 (030)

→
^→ / _?
→

Bay 029 view and slots of CMA CGM LA TRAVIATA

031

←
^→ / _?
→

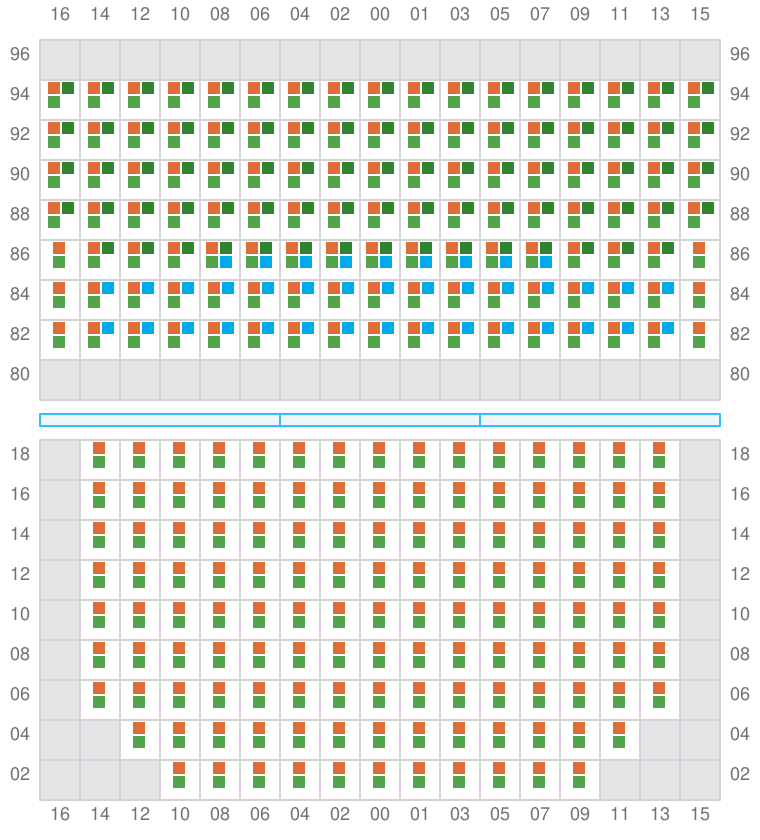

Bay 031 view and slots of CMA CGM LA TRAVIATA

033 (034)

→
^→ / _?
→

Bay 033 view and slots of CMA CGM LA TRAVIATA

035

←
^→ / _?
→

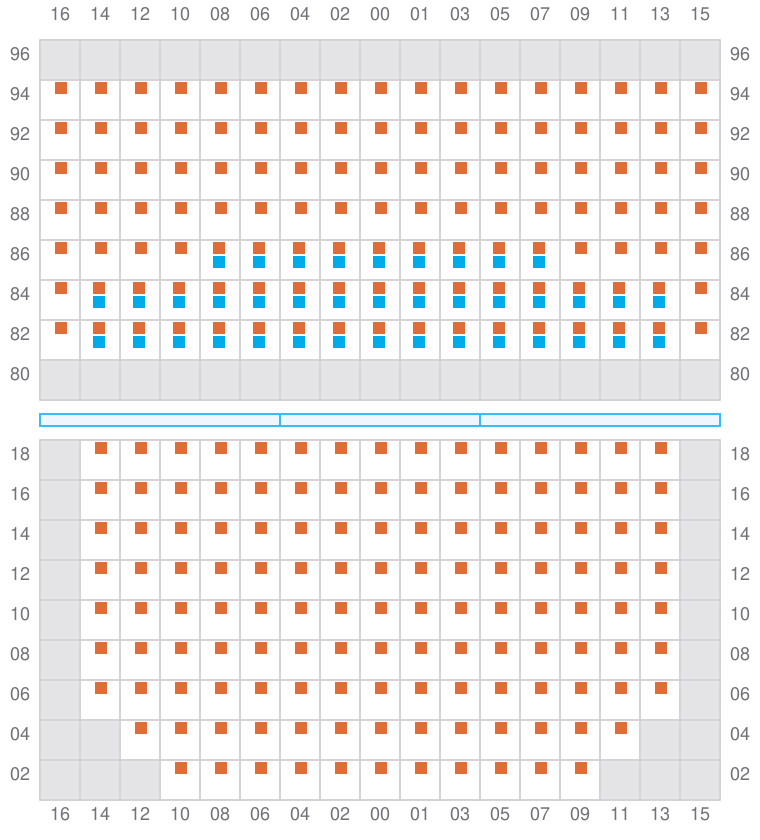

Bay 035 view and slots of CMA CGM LA TRAVIATA

037 (038)

→
^→ / _?
→

Bay 037 view and slots of CMA CGM LA TRAVIATA

039

←
^→ / _?
→

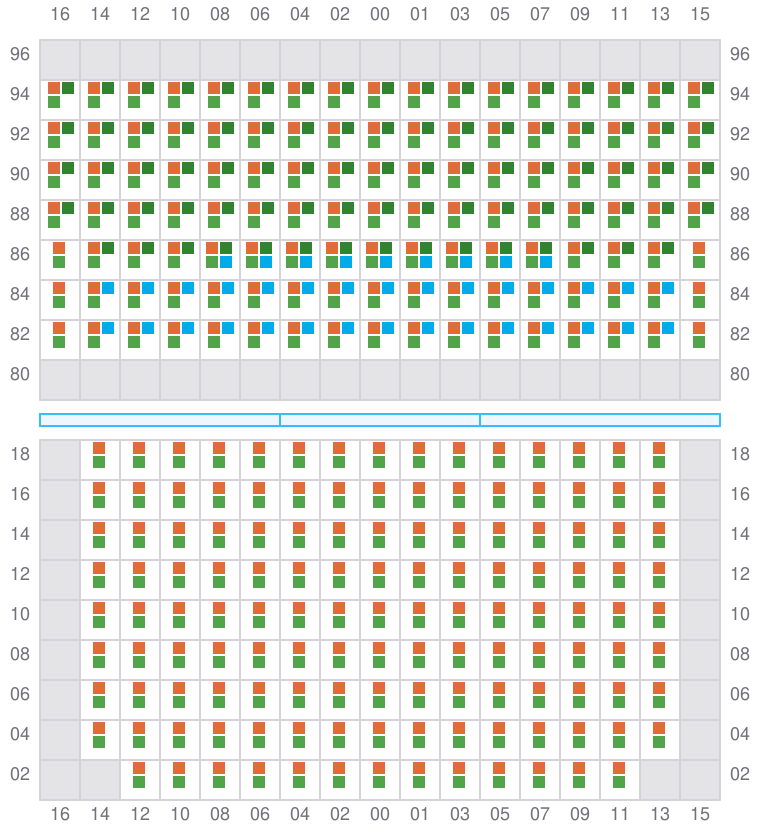

Bay 039 view and slots of CMA CGM LA TRAVIATA

041 (042)

→
^→ / _?
→

Bay 041 view and slots of CMA CGM LA TRAVIATA

043

←
^→ / _?
→

Bay 043 view and slots of CMA CGM LA TRAVIATA

045 (046)

→
^→ / _?
→

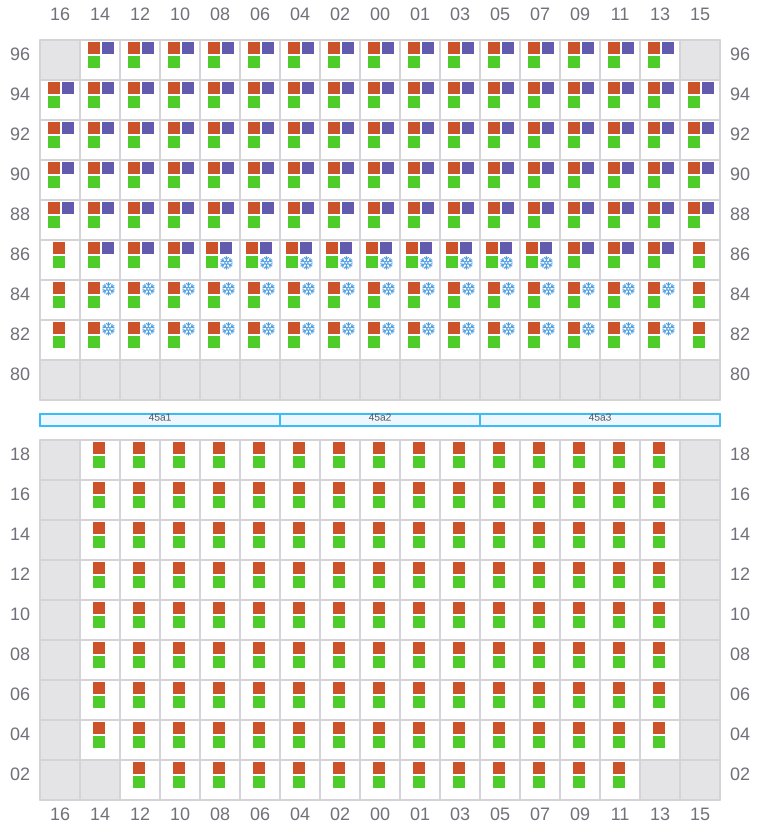

Bay 045 view and slots of CMA CGM LA TRAVIATA

047

←
^→ / _?
→

Bay 047 view and slots of CMA CGM LA TRAVIATA

049 (050)

→
^→ / _?
→

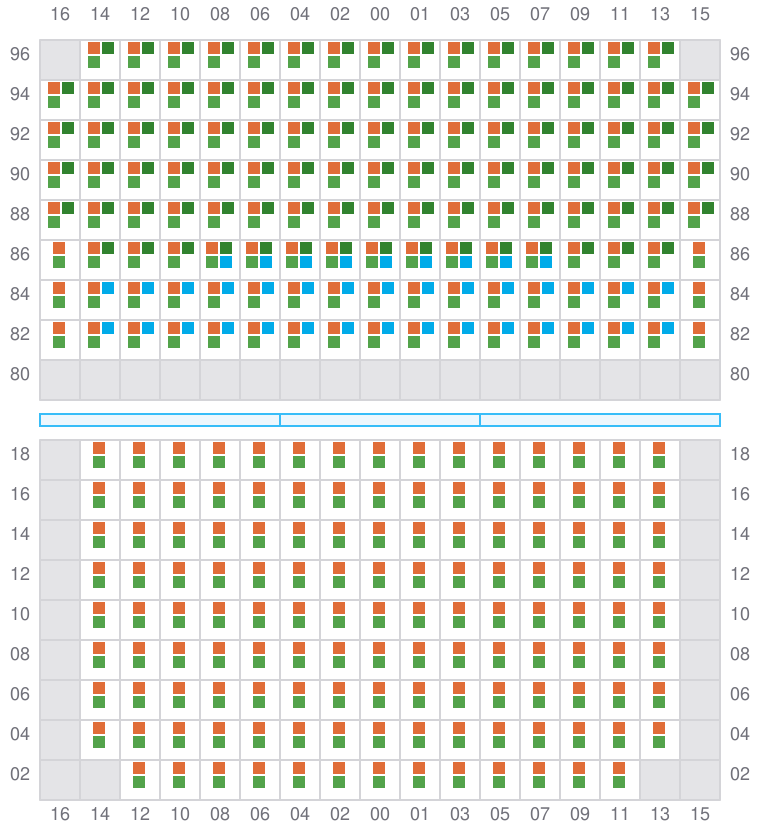

Bay 049 view and slots of CMA CGM LA TRAVIATA

051

←
^→ / _?
→

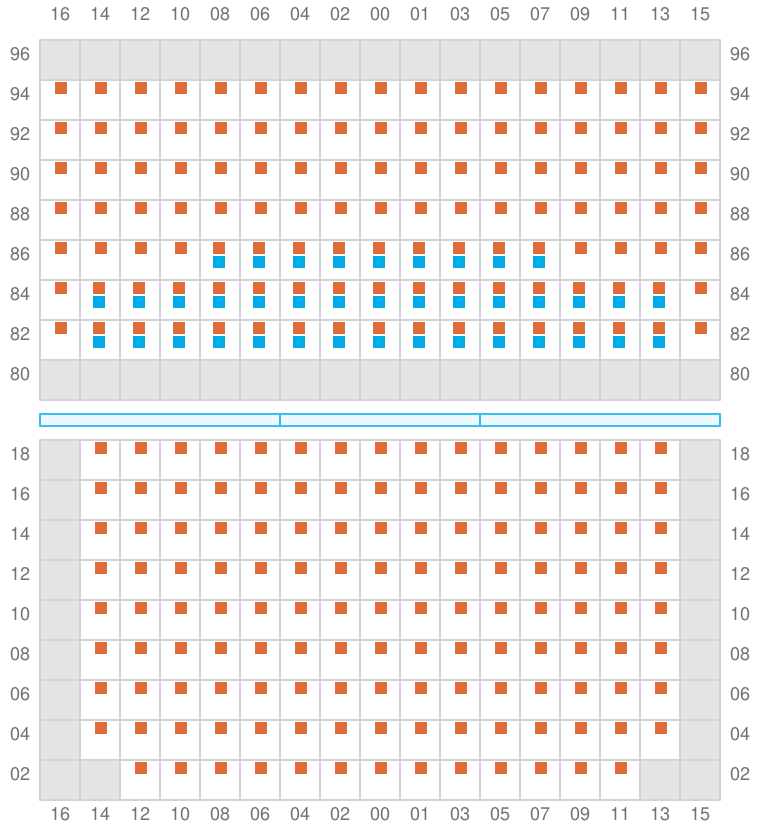

Bay 051 view and slots of CMA CGM LA TRAVIATA

053 (054)

→
^→ / _?
→

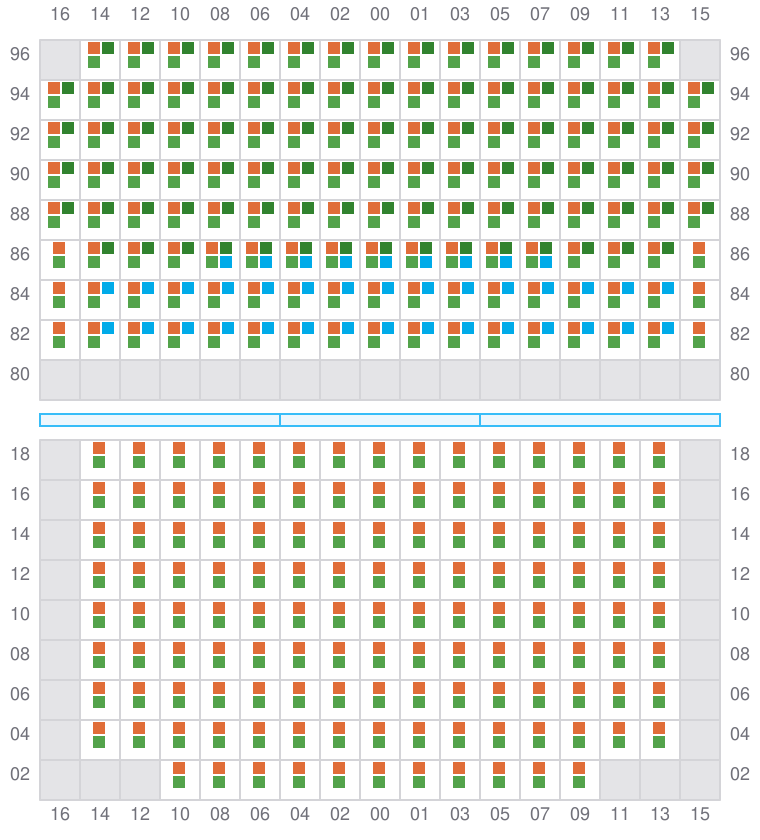

Bay 053 view and slots of CMA CGM LA TRAVIATA

055

←
^→ / _?
→

Bay 055 view and slots of CMA CGM LA TRAVIATA

057 (058)

→
^→ / _?
→

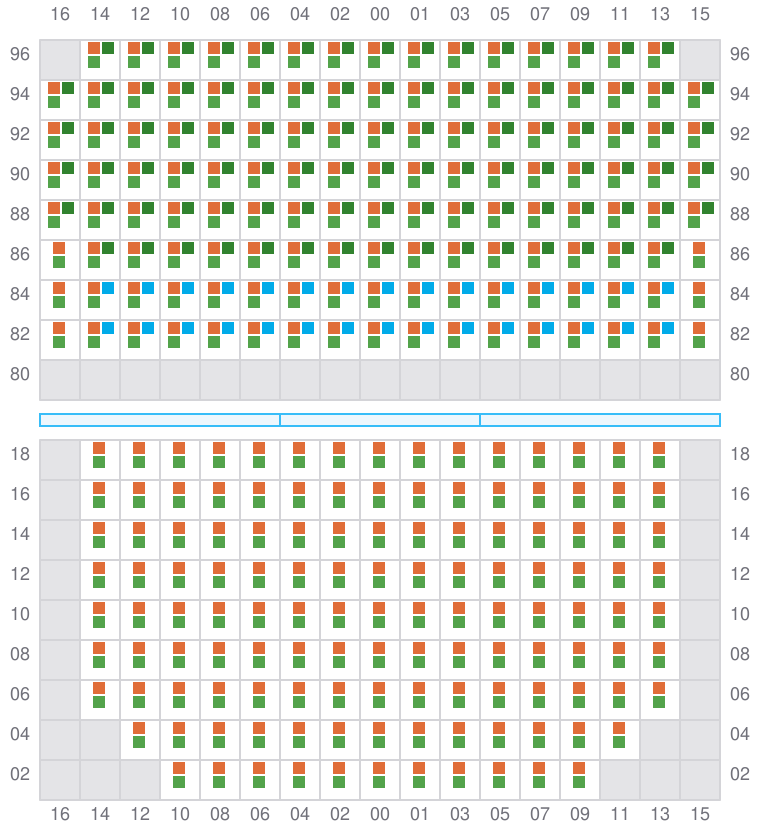

Bay 057 view and slots of CMA CGM LA TRAVIATA

059

←
^→ / _?
→

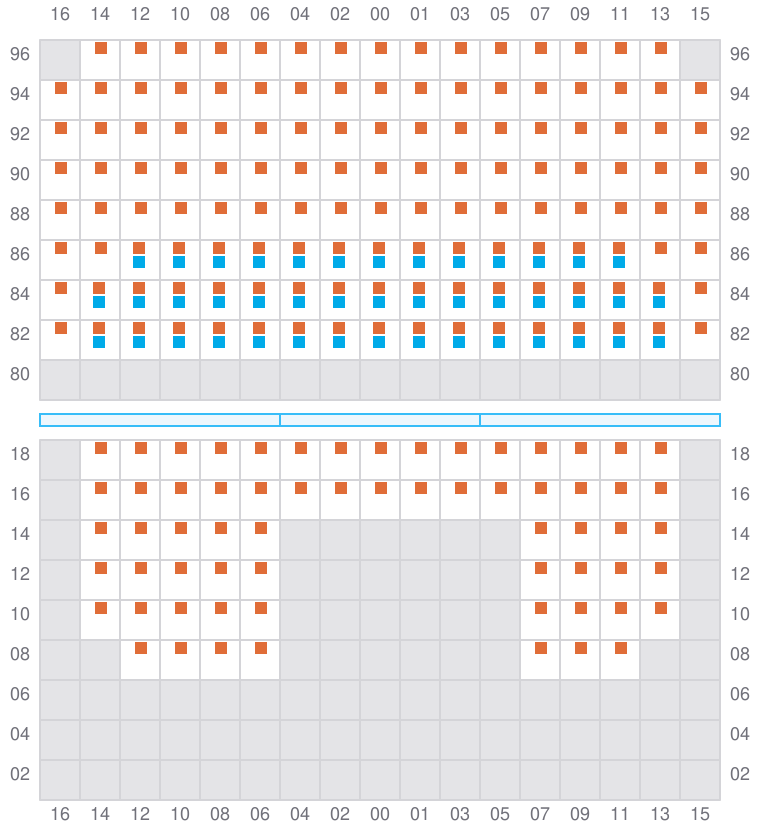

Bay 059 view and slots of CMA CGM LA TRAVIATA

061 (062)

→
^→ / _?
→

Bay 061 view and slots of CMA CGM LA TRAVIATA

063

←
^→ / _?
→

Bay 063 view and slots of CMA CGM LA TRAVIATA

065 (066)

→
^→ / _?
→

Bay 065 view and slots of CMA CGM LA TRAVIATA

067

←
^→ / _?
→

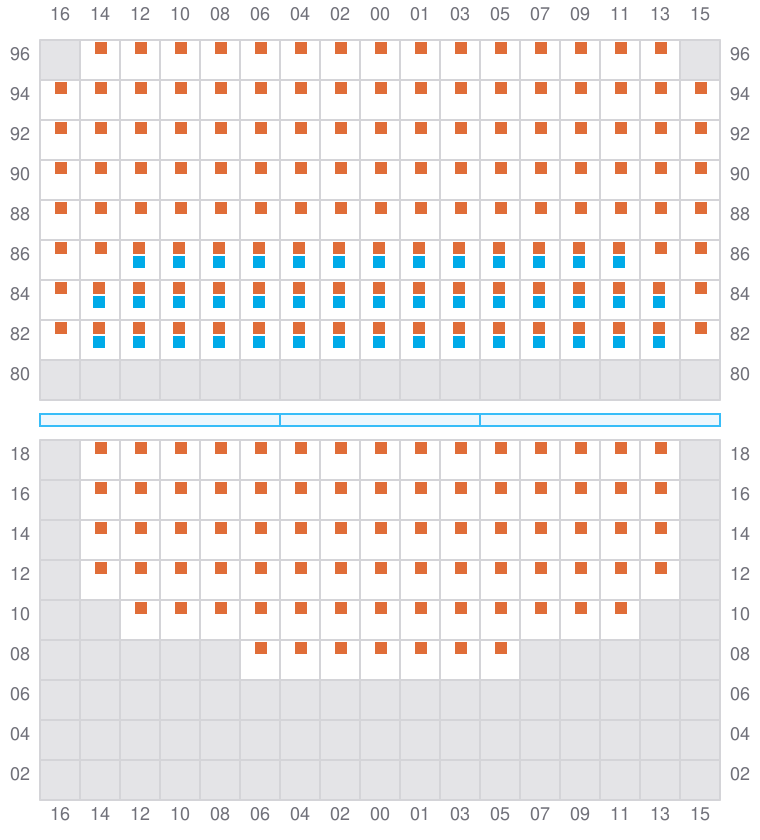

Bay 067 view and slots of CMA CGM LA TRAVIATA

069 (070)

→
^→ / _?
→

Bay 069 view and slots of CMA CGM LA TRAVIATA

071

←
^→ / _?
→

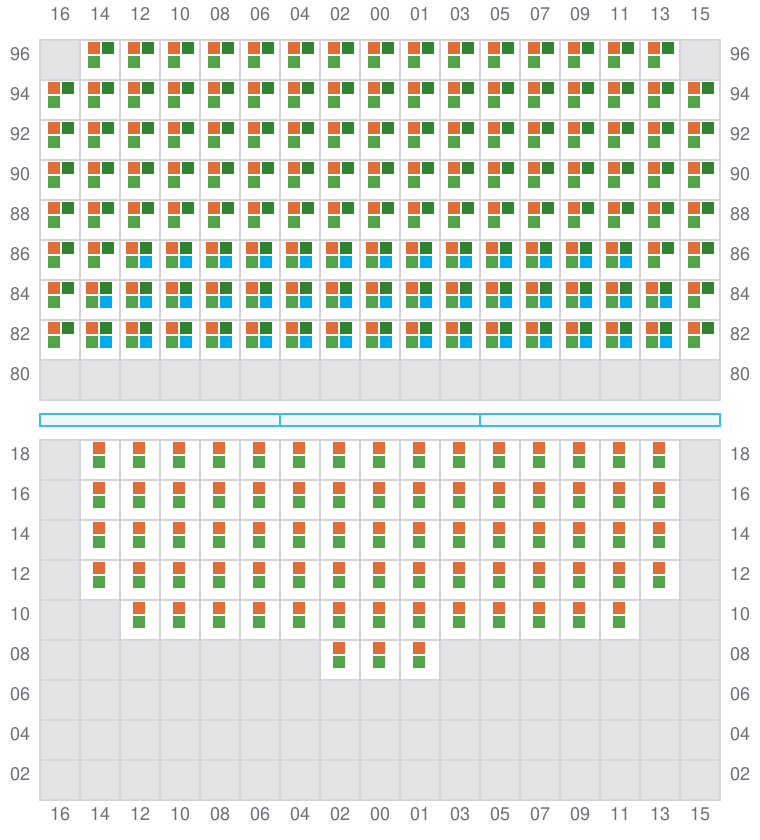

Bay 071 view and slots of CMA CGM LA TRAVIATA

073 (074)

→
^→ / _?
→

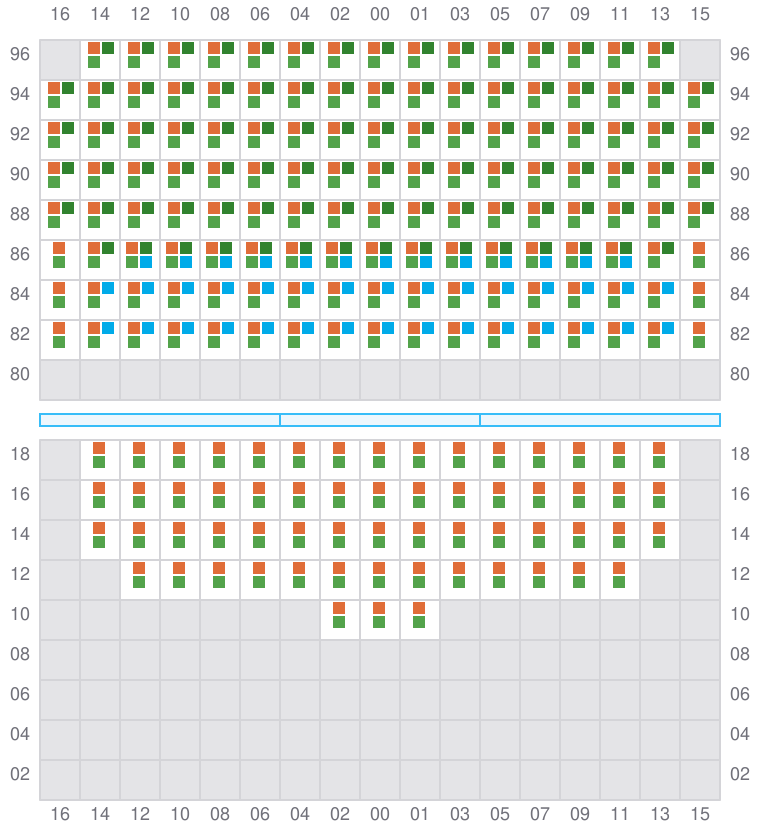

Bay 073 view and slots of CMA CGM LA TRAVIATA

075

←
^→ / _?
→

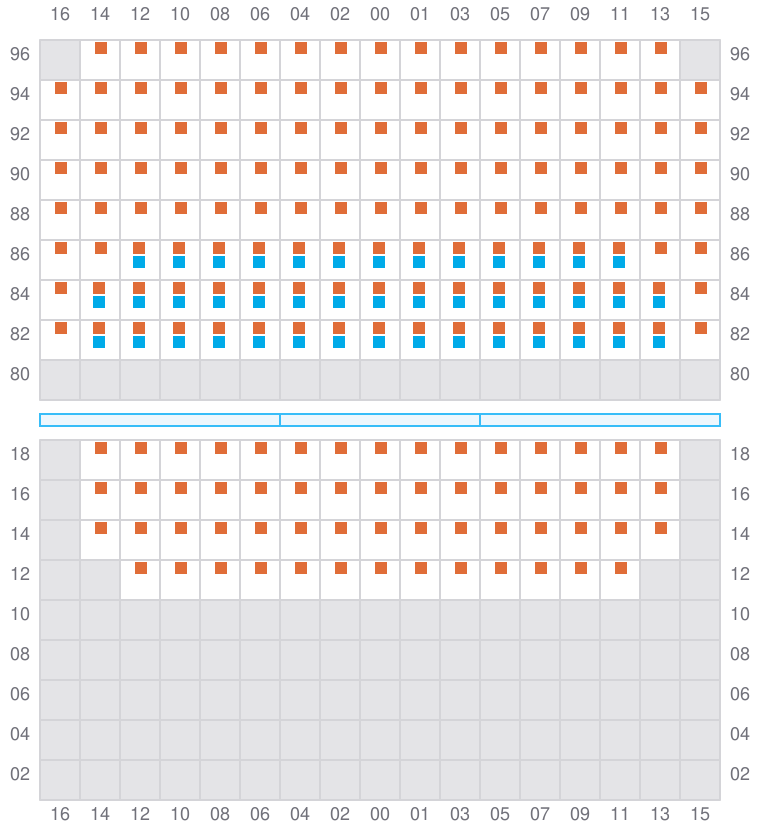

Bay 075 view and slots of CMA CGM LA TRAVIATA

077 (078)

^→ / _?
^← / _?

Bay 077 view and slots of CMA CGM LA TRAVIATA
