CMA CGM LAMARTINE
9409194 | 9HA5001 | 9409194 by ********* Last update: Thu Apr 11 2024

General Info

Ship Name:CMA CGM LAMARTINE
IMO Code:9409194
Call Sign:9HA5001
Line Operator:9409194
Class Name for Sister Ships:CMA CGM LAMARTINE
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,590

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

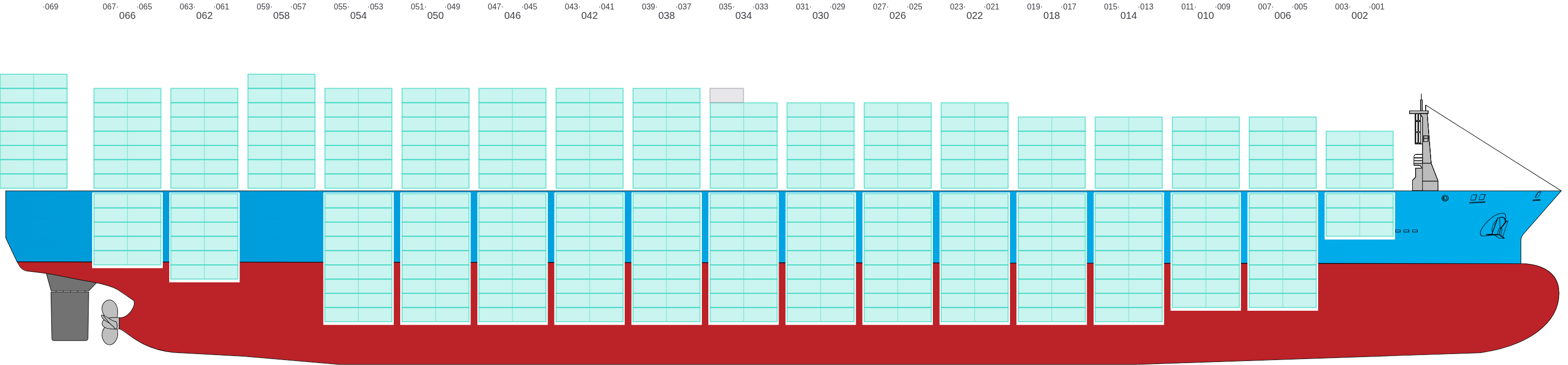

Side view of CMA CGM LAMARTINE

Hatch-Covers View

Deck view of CMA CGM LAMARTINE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

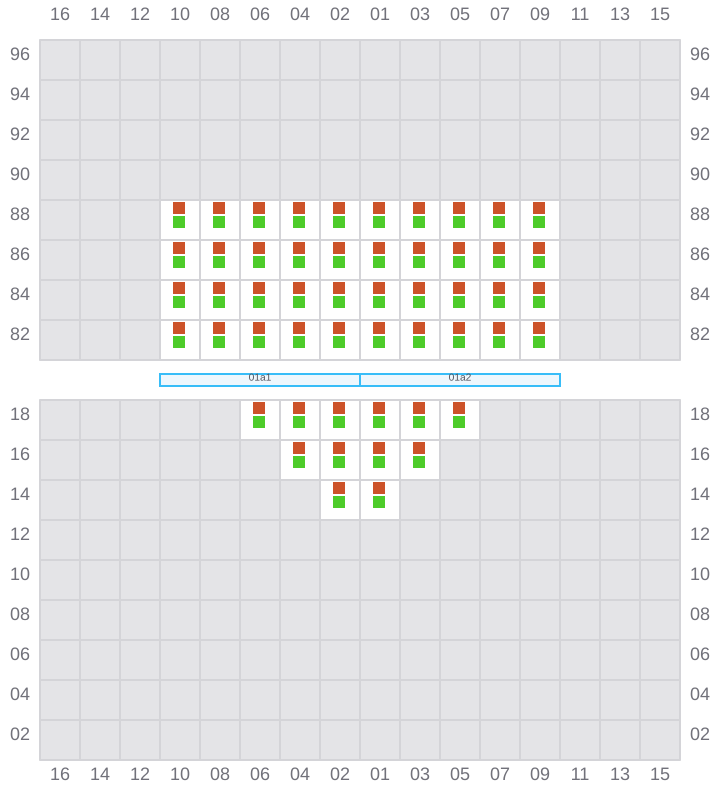

Bay 001 view and slots of CMA CGM LAMARTINE

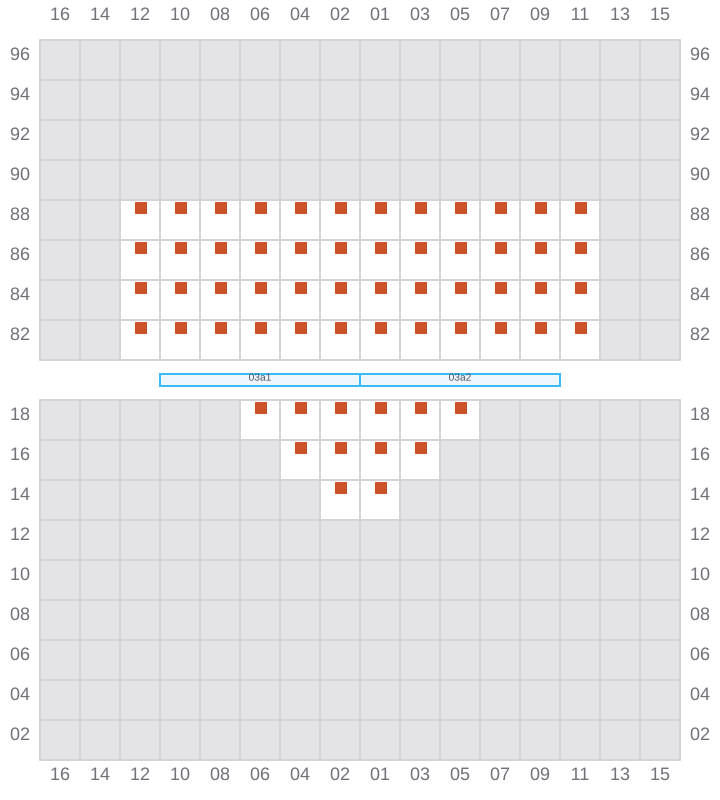

003

  • ←
Bay 003 view and slots of CMA CGM LAMARTINE

005 (006)

  • →

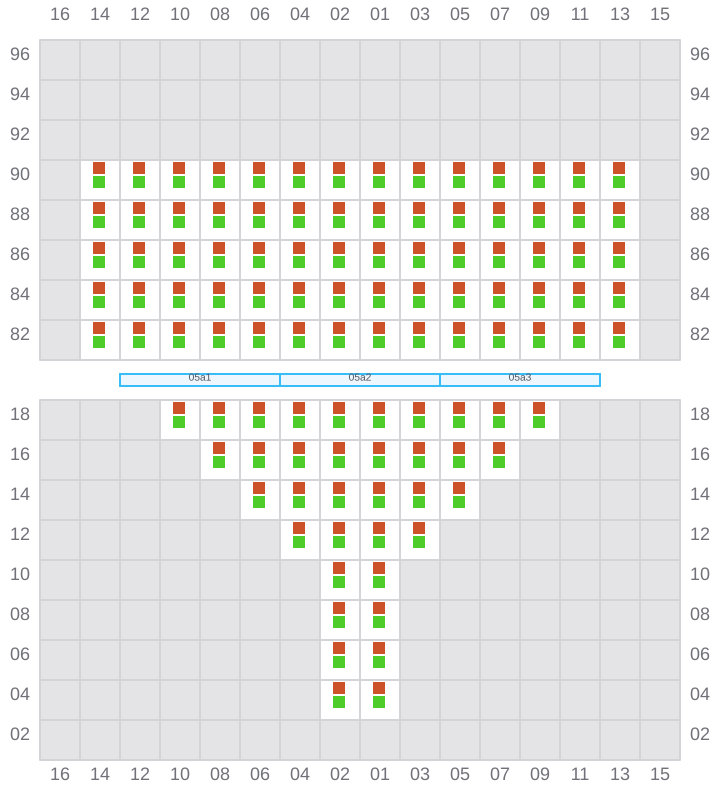

Bay 005 view and slots of CMA CGM LAMARTINE

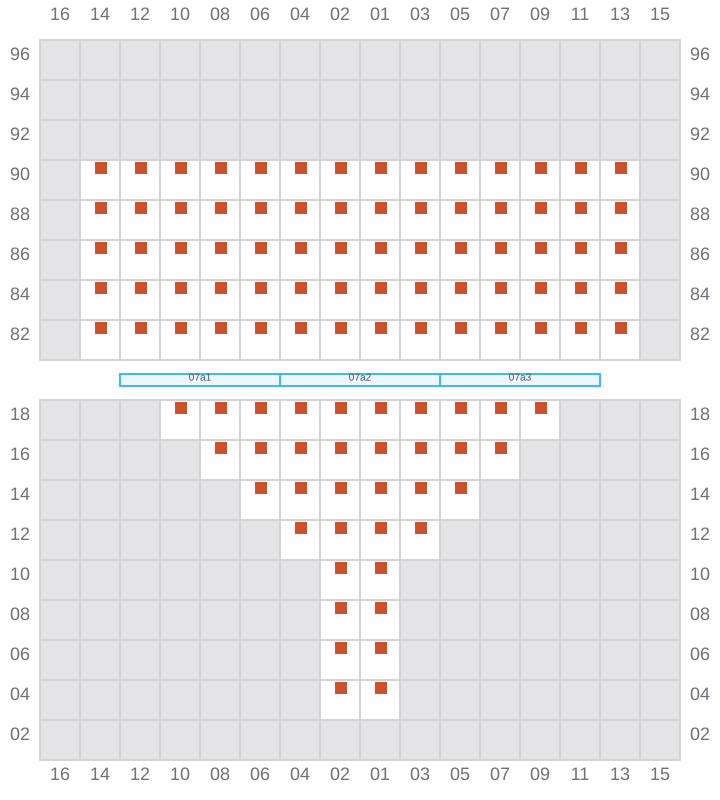

007

  • ←
Bay 007 view and slots of CMA CGM LAMARTINE

009 (010)

  • →

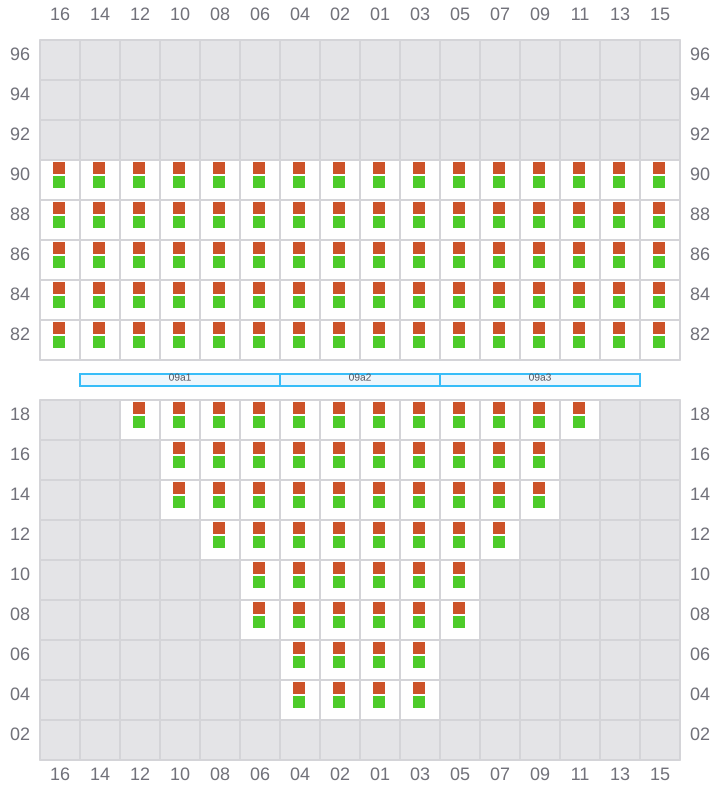

Bay 009 view and slots of CMA CGM LAMARTINE

011

  • ←

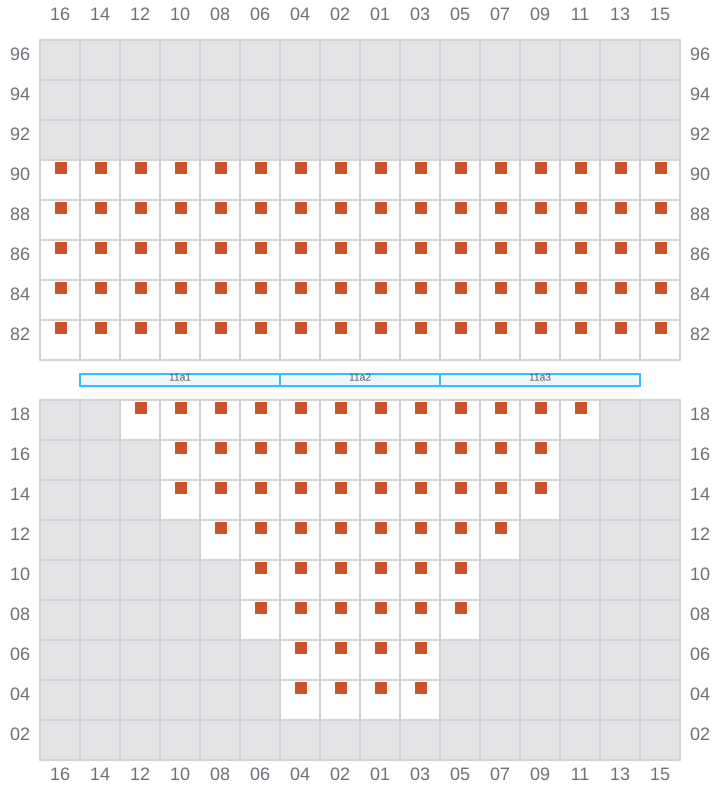

Bay 011 view and slots of CMA CGM LAMARTINE

013 (014)

  • →
Bay 013 view and slots of CMA CGM LAMARTINE

015

  • ←

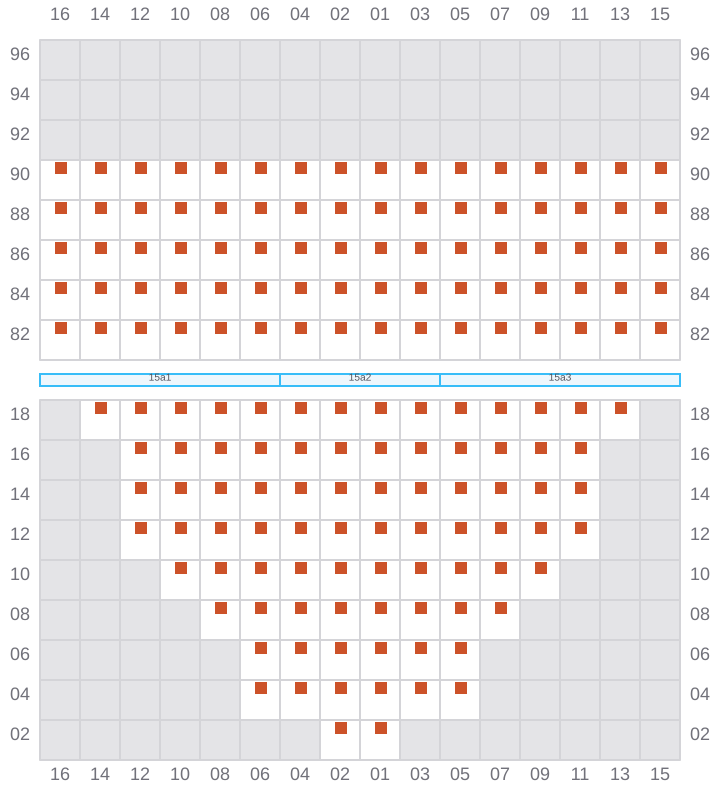

Bay 015 view and slots of CMA CGM LAMARTINE

017 (018)

  • →

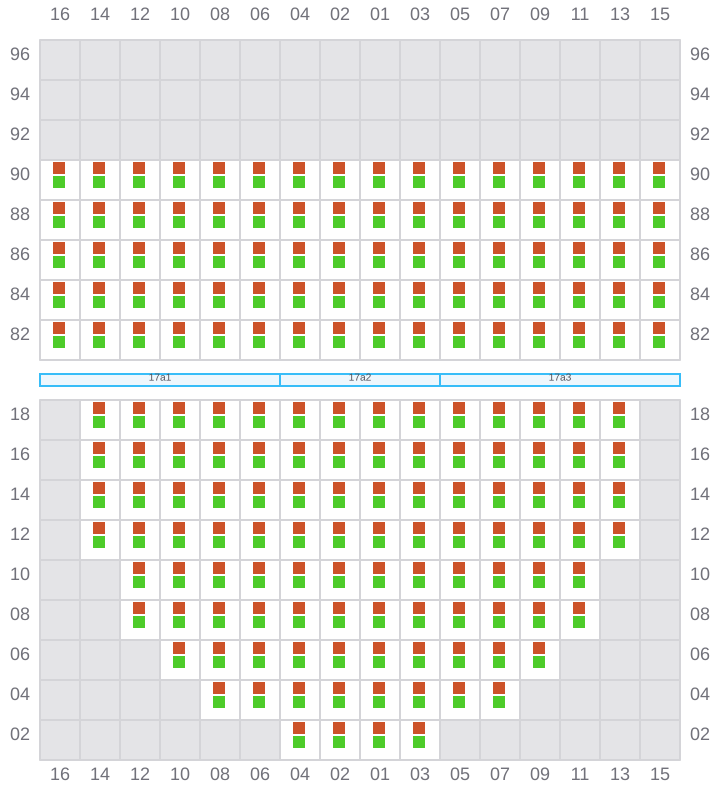

Bay 017 view and slots of CMA CGM LAMARTINE

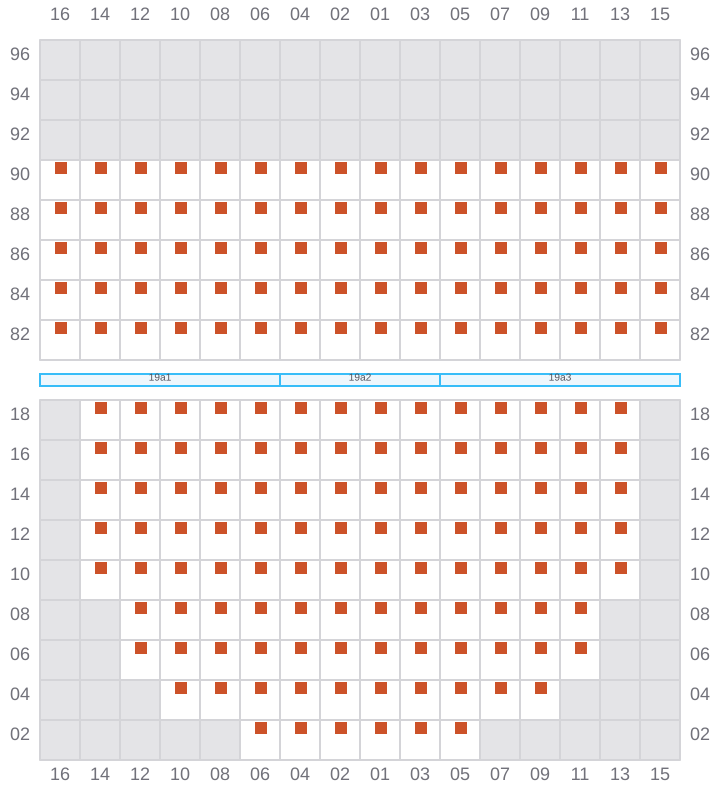

019

  • ←
Bay 019 view and slots of CMA CGM LAMARTINE

021 (022)

  • →

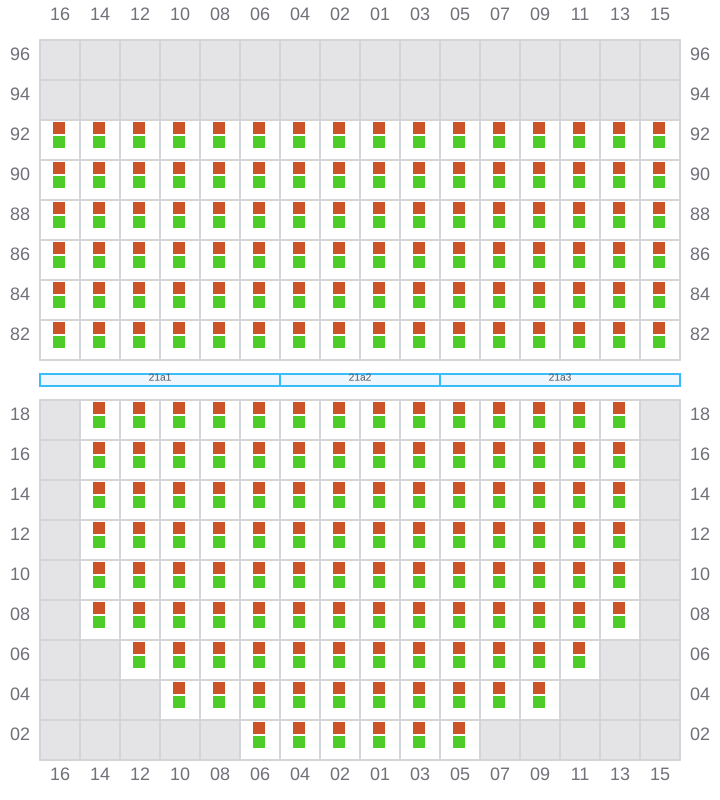

Bay 021 view and slots of CMA CGM LAMARTINE

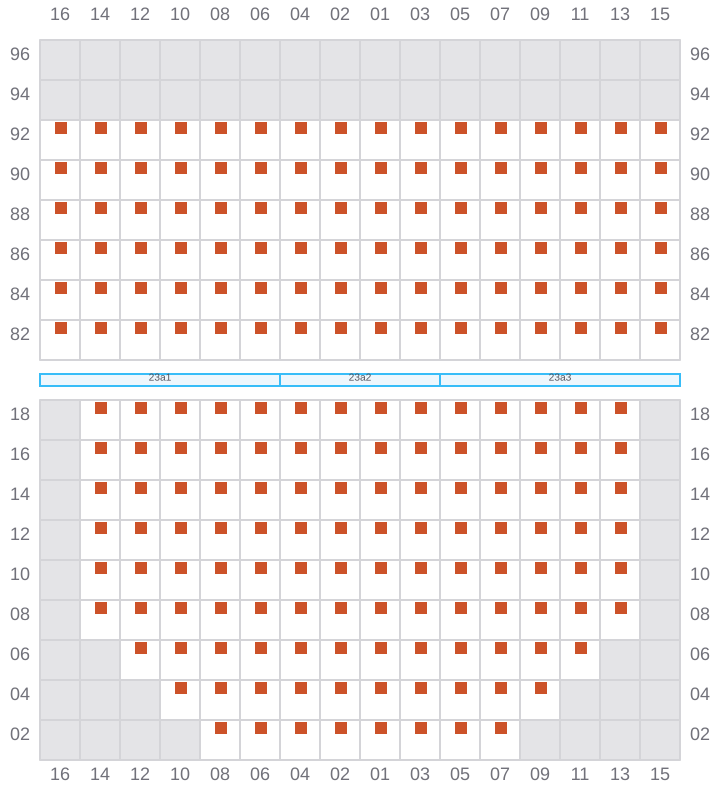

023

  • ←
Bay 023 view and slots of CMA CGM LAMARTINE

025 (026)

  • →

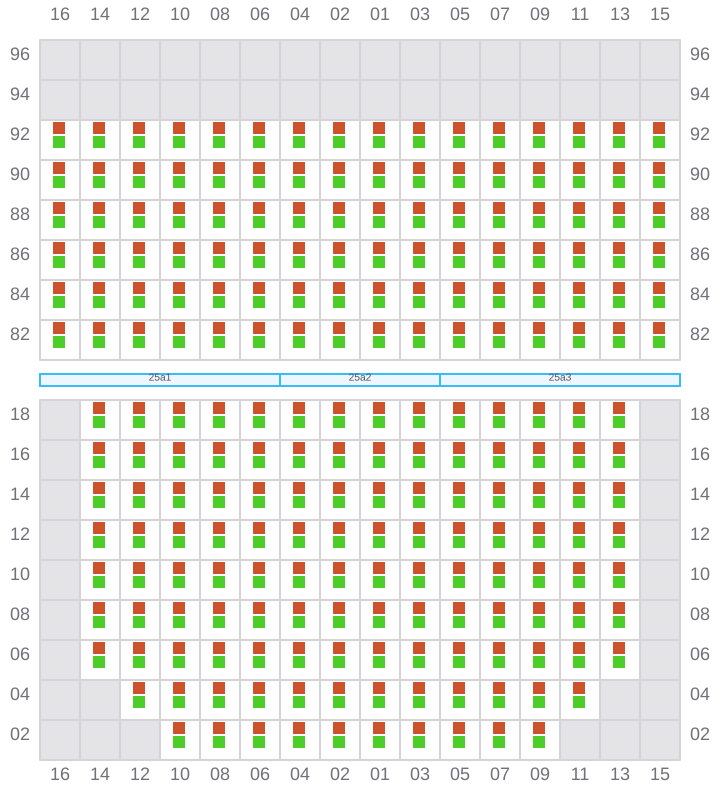

Bay 025 view and slots of CMA CGM LAMARTINE

027

  • ←

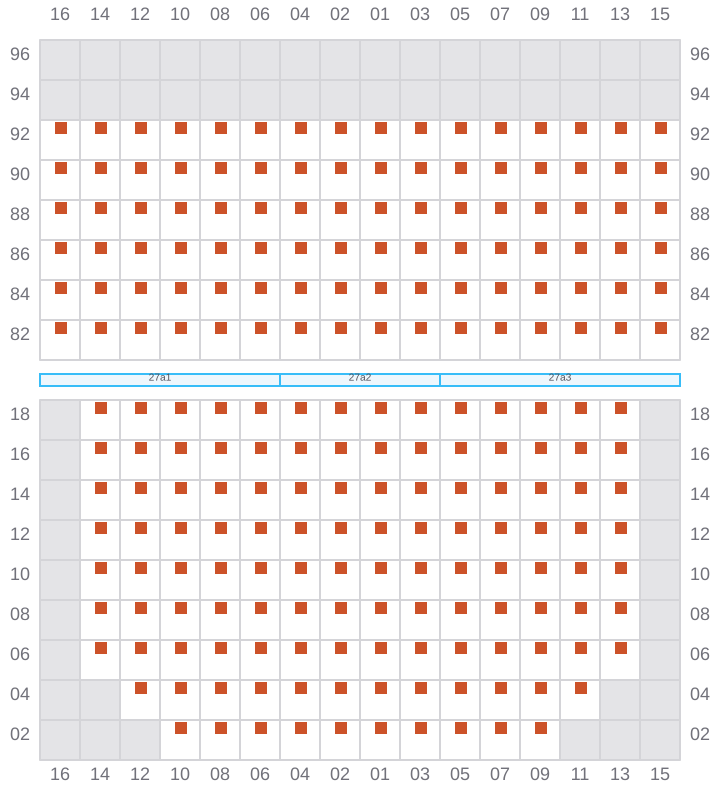

Bay 027 view and slots of CMA CGM LAMARTINE

029 (030)

  • →
Bay 029 view and slots of CMA CGM LAMARTINE

031

  • ←
Bay 031 view and slots of CMA CGM LAMARTINE

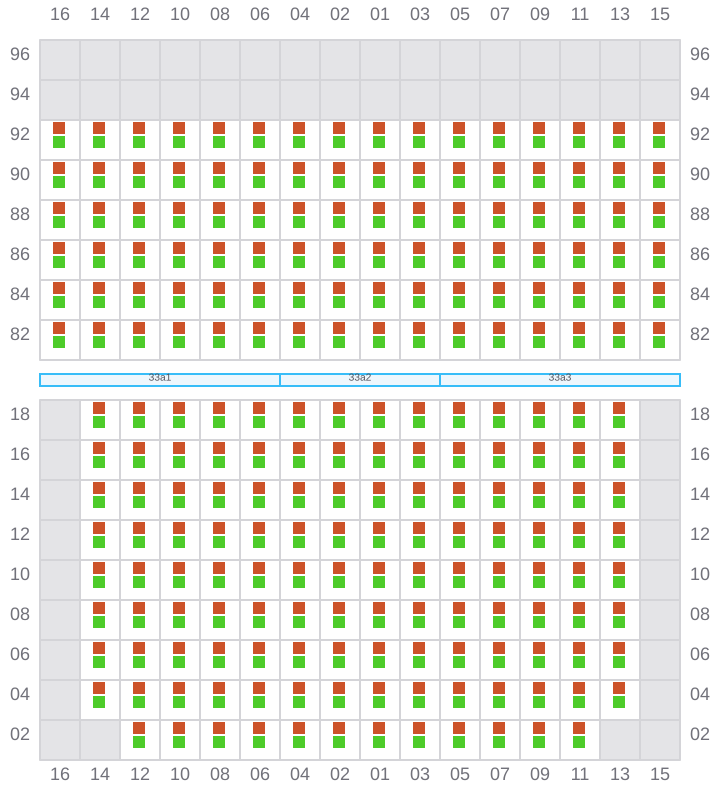

033 (034)

  • →
Bay 033 view and slots of CMA CGM LAMARTINE

035

  • ←
Bay 035 view and slots of CMA CGM LAMARTINE

037 (038)

  • →
Bay 037 view and slots of CMA CGM LAMARTINE

039

  • ←

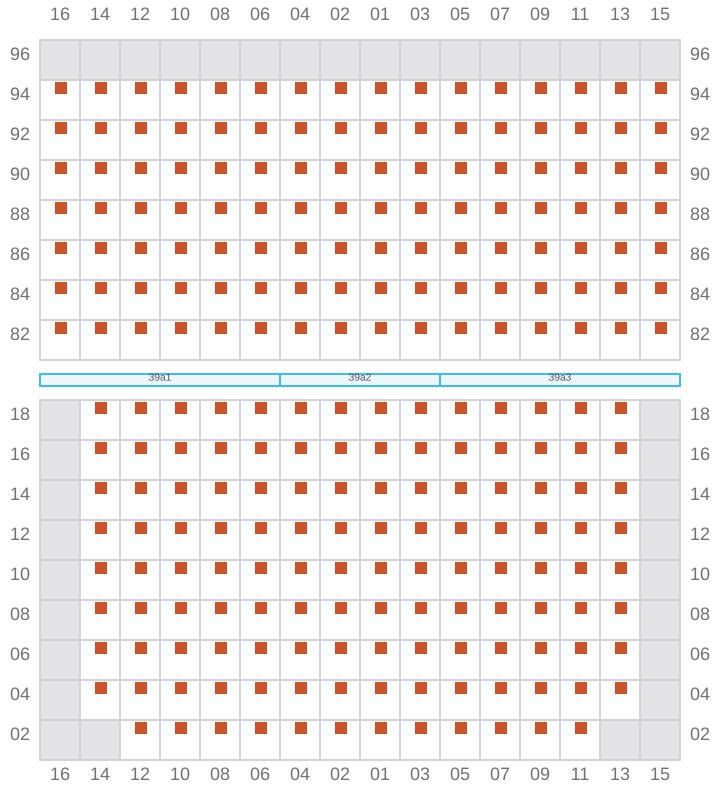

Bay 039 view and slots of CMA CGM LAMARTINE

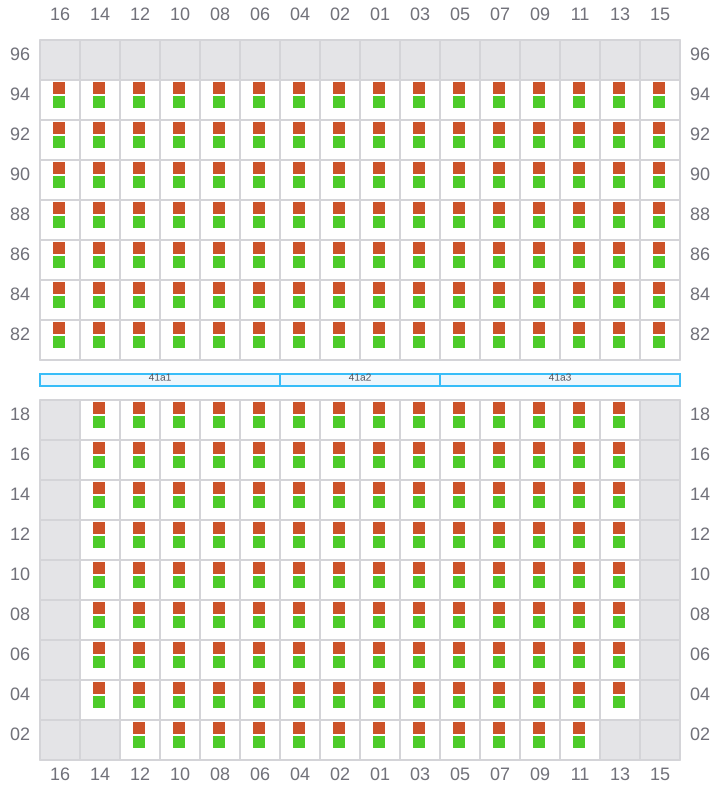

041 (042)

  • →
Bay 041 view and slots of CMA CGM LAMARTINE

043

  • ←
Bay 043 view and slots of CMA CGM LAMARTINE

045 (046)

  • →
Bay 045 view and slots of CMA CGM LAMARTINE

047

  • ←

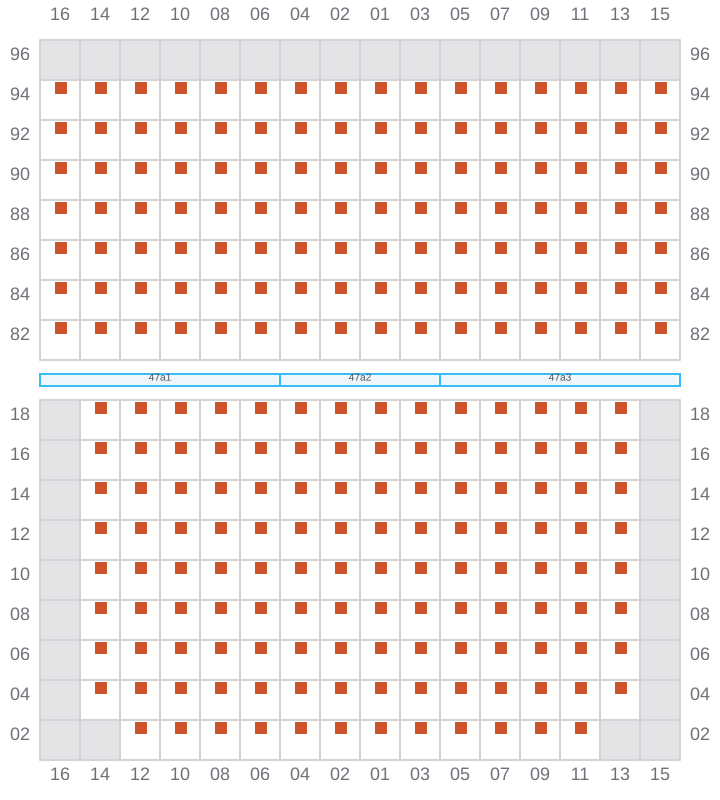

Bay 047 view and slots of CMA CGM LAMARTINE

049 (050)

  • →

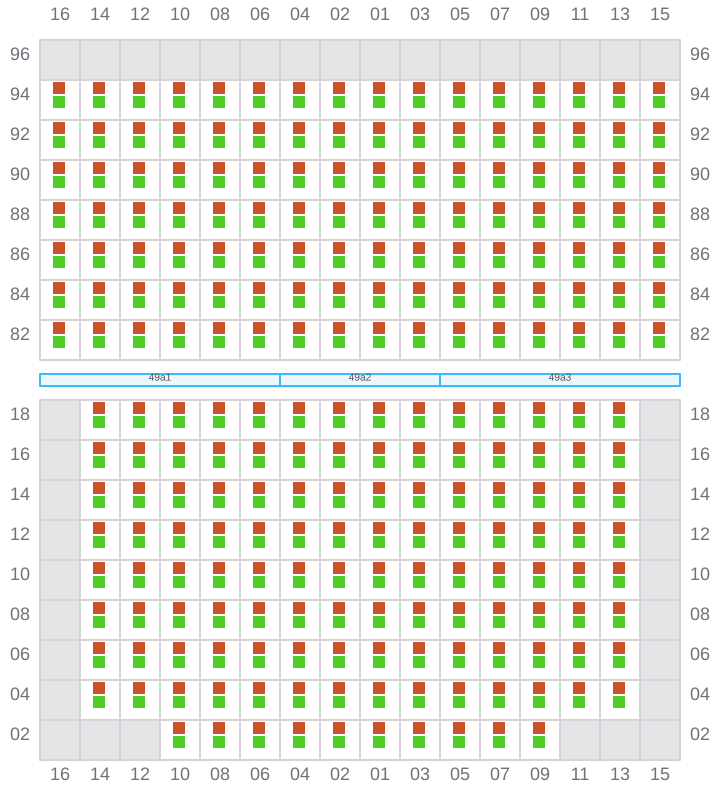

Bay 049 view and slots of CMA CGM LAMARTINE

051

  • ←
Bay 051 view and slots of CMA CGM LAMARTINE

053 (054)

  • →

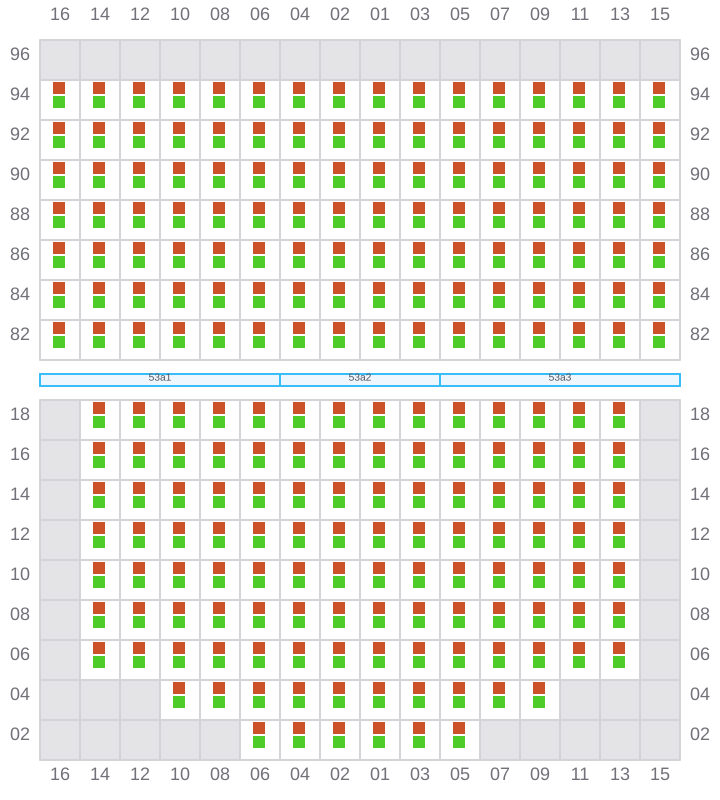

Bay 053 view and slots of CMA CGM LAMARTINE

055

  • ←

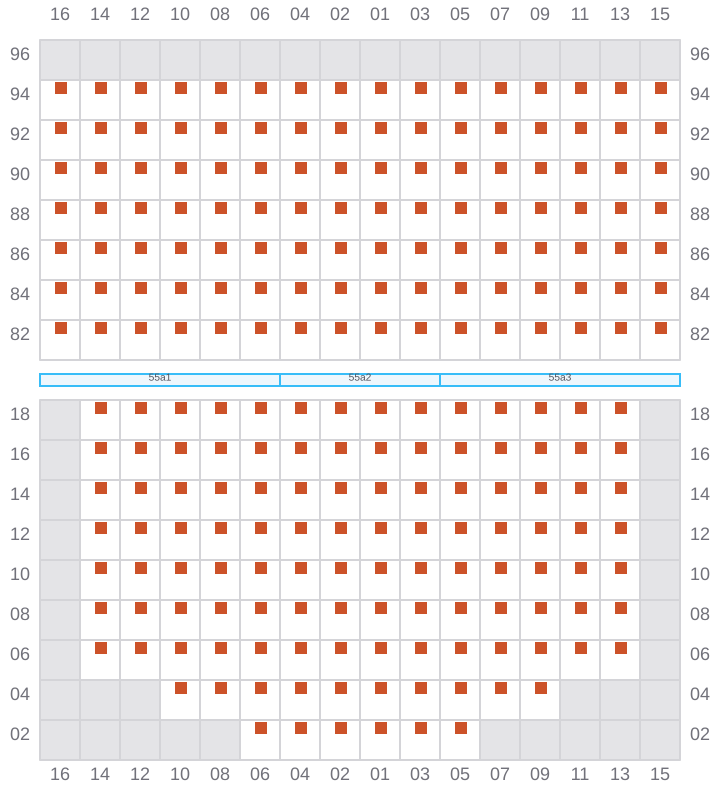

Bay 055 view and slots of CMA CGM LAMARTINE

057 (058)

  • → / ?
Bay 057 view and slots of CMA CGM LAMARTINE

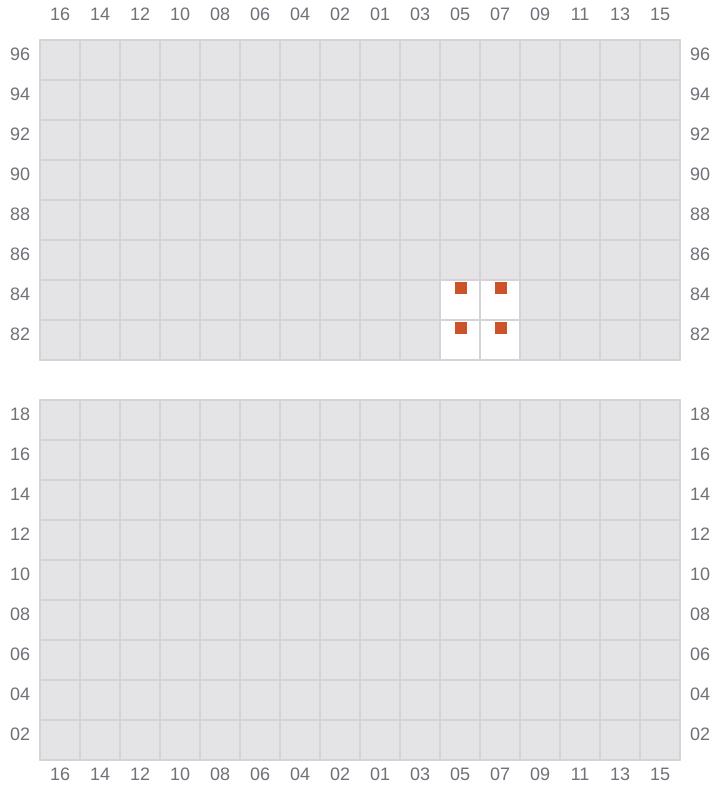

059

  • ← / ?
Bay 059 view and slots of CMA CGM LAMARTINE

061 (062)

  • →

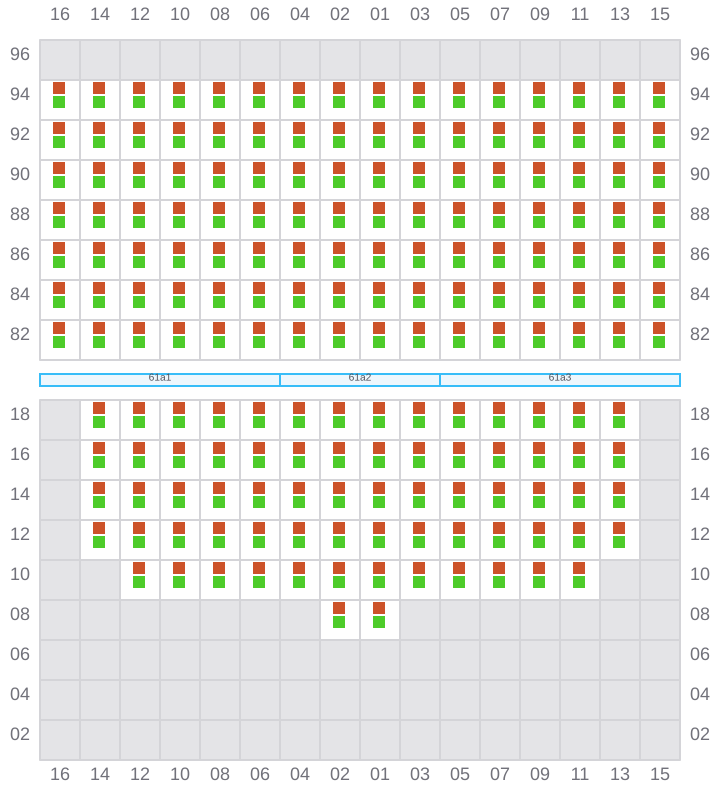

Bay 061 view and slots of CMA CGM LAMARTINE

063

  • ←

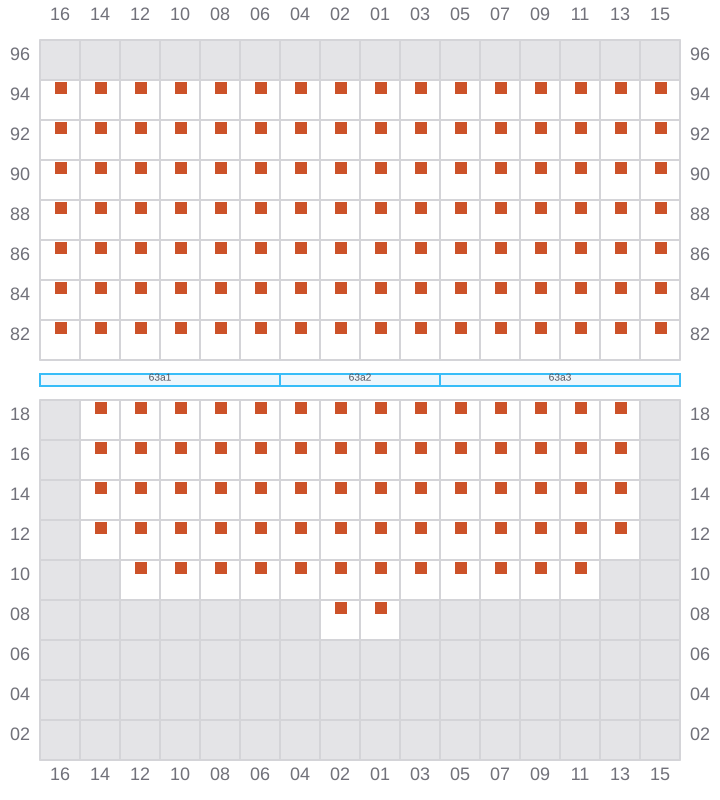

Bay 063 view and slots of CMA CGM LAMARTINE

065 (066)

  • →

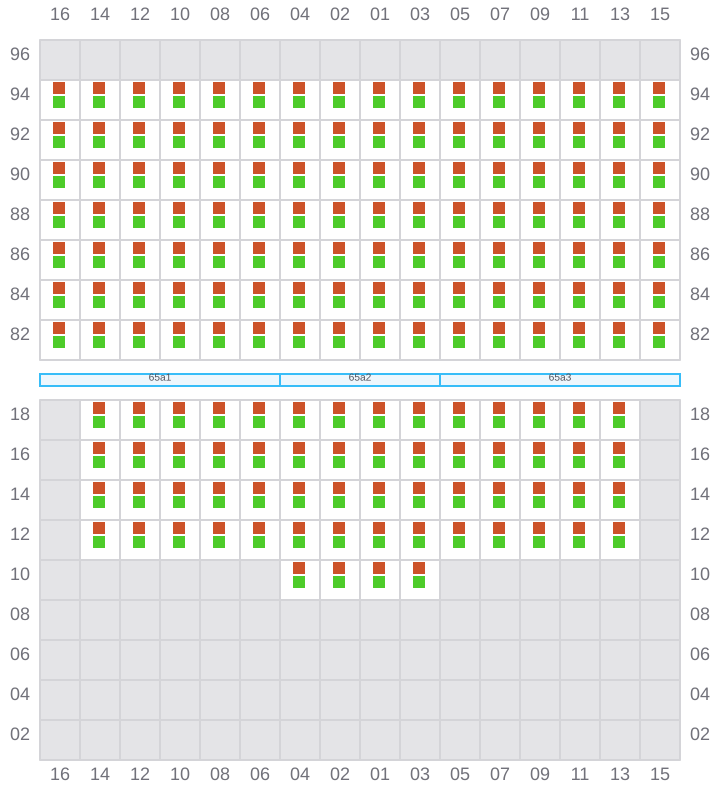

Bay 065 view and slots of CMA CGM LAMARTINE

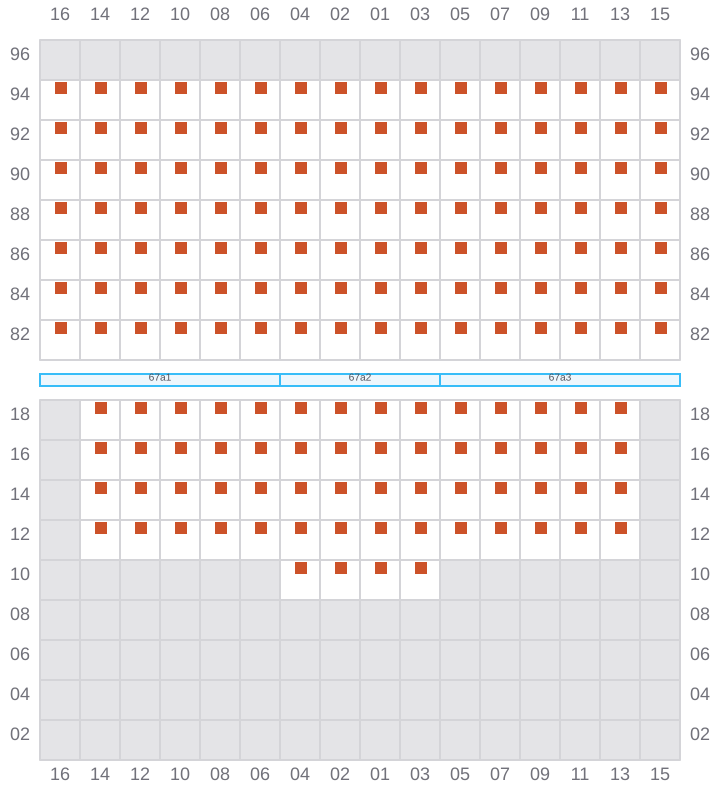

067

  • ←
Bay 067 view and slots of CMA CGM LAMARTINE

069 (070)

  • → / ?

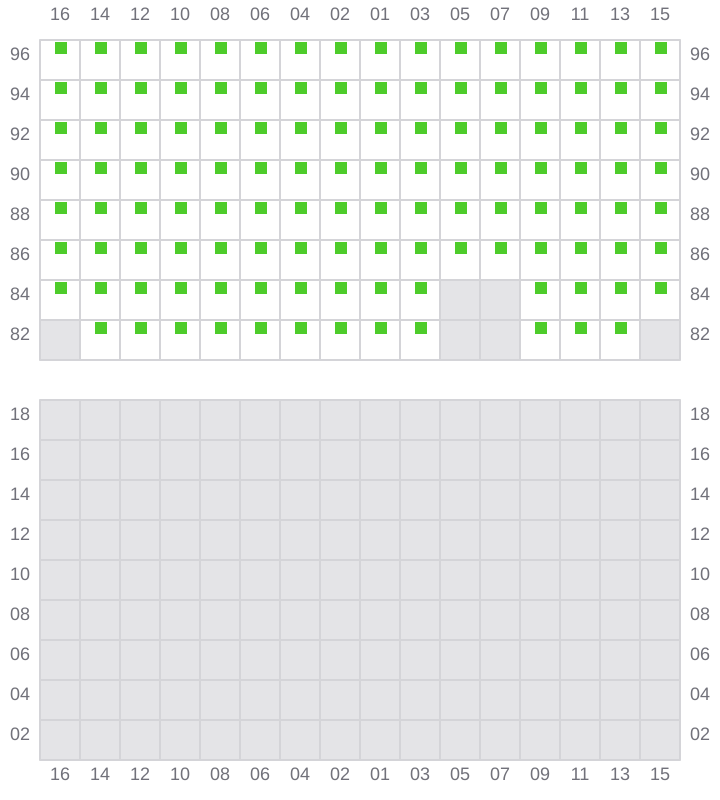

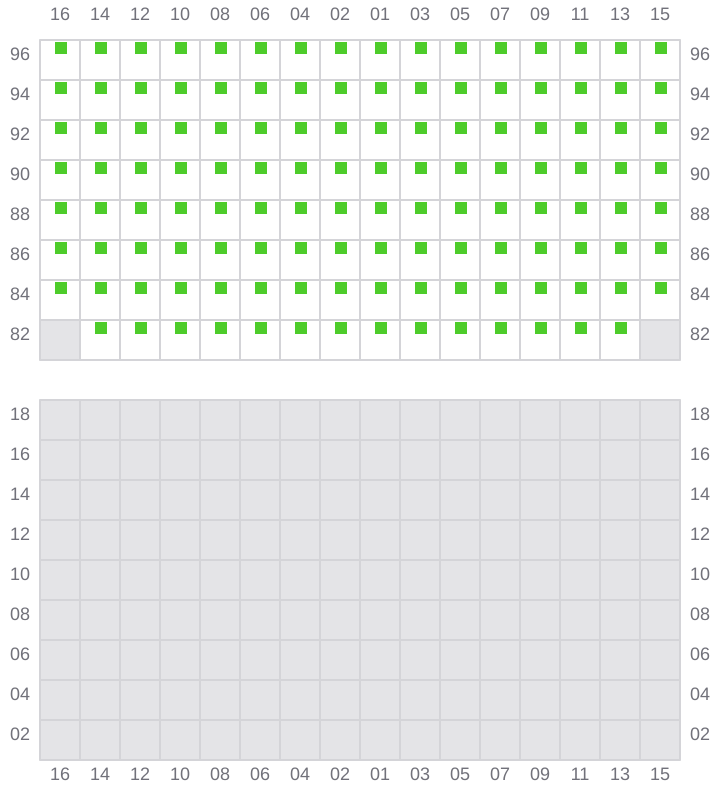

Bay 069 view and slots of CMA CGM LAMARTINE
