CMA CGM LAMARTINE
9409194 | 9HA5001 | CMA by *********************** Last update: Tue Jan 28 2025

General Info

Ship Name:CMA CGM LAMARTINE
IMO Code:9409194
Call Sign:9HA5001
Line Operator:CMA
Class Name for Sister Ships:CGLM
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):286.70
LOA (Length Overall):299.20
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,574

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

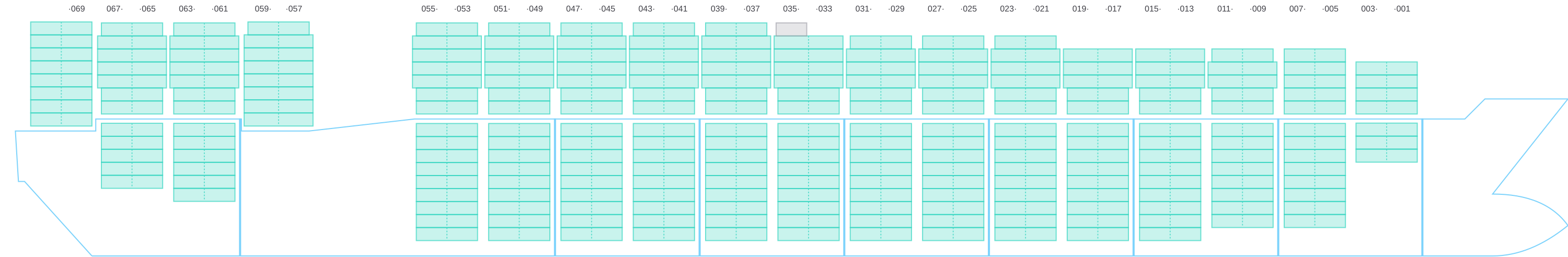

Side View

Side view of CMA CGM LAMARTINE

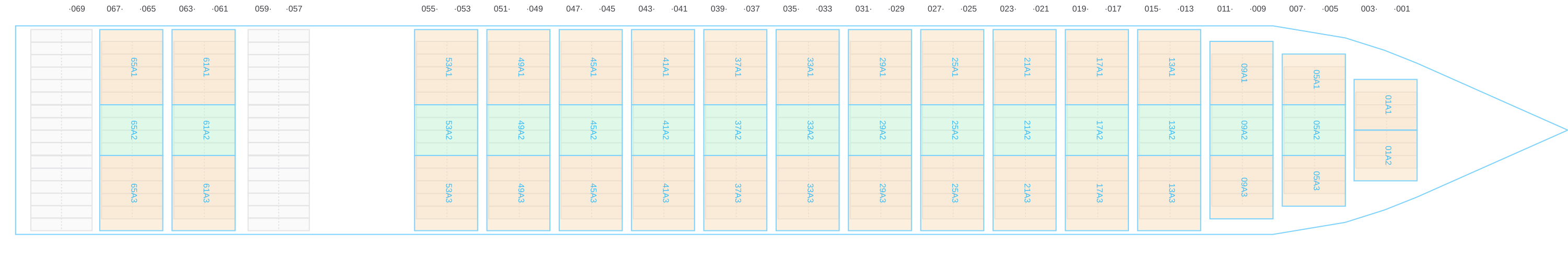

Hatch-Covers View

Deck view of CMA CGM LAMARTINE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

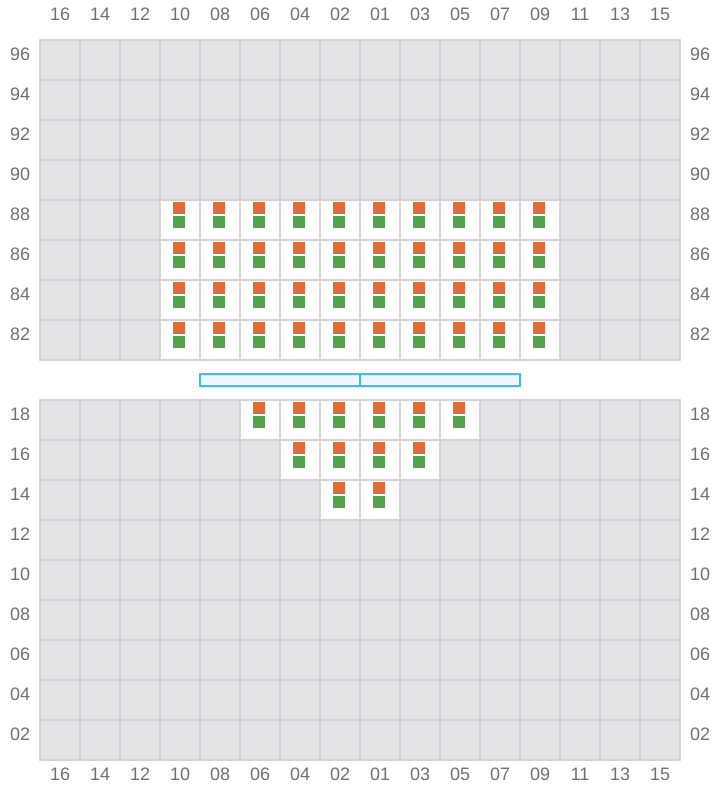

001 (002)

  • →
  • →
Bay 001 view and slots of CMA CGM LAMARTINE

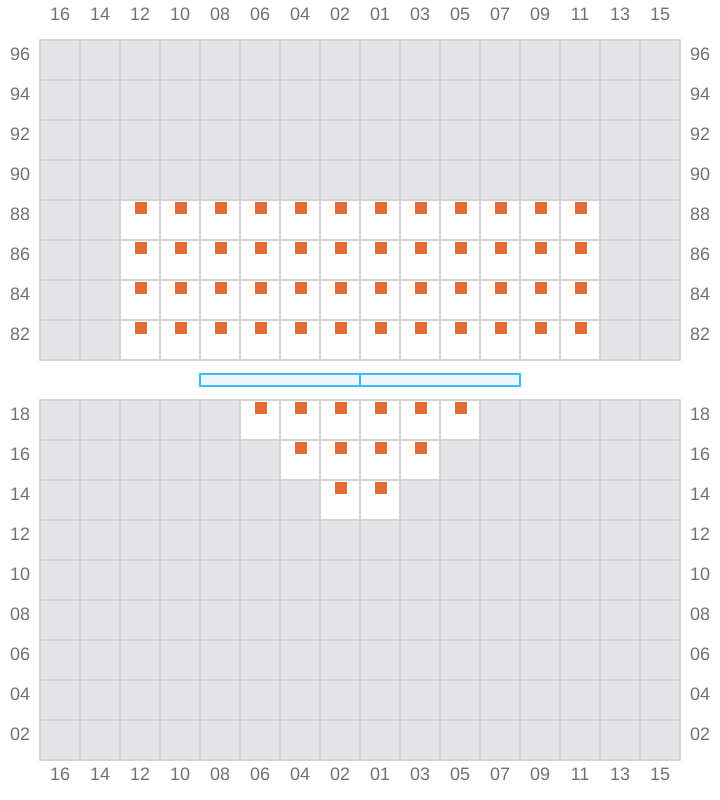

003

  • ←
  • →
Bay 003 view and slots of CMA CGM LAMARTINE

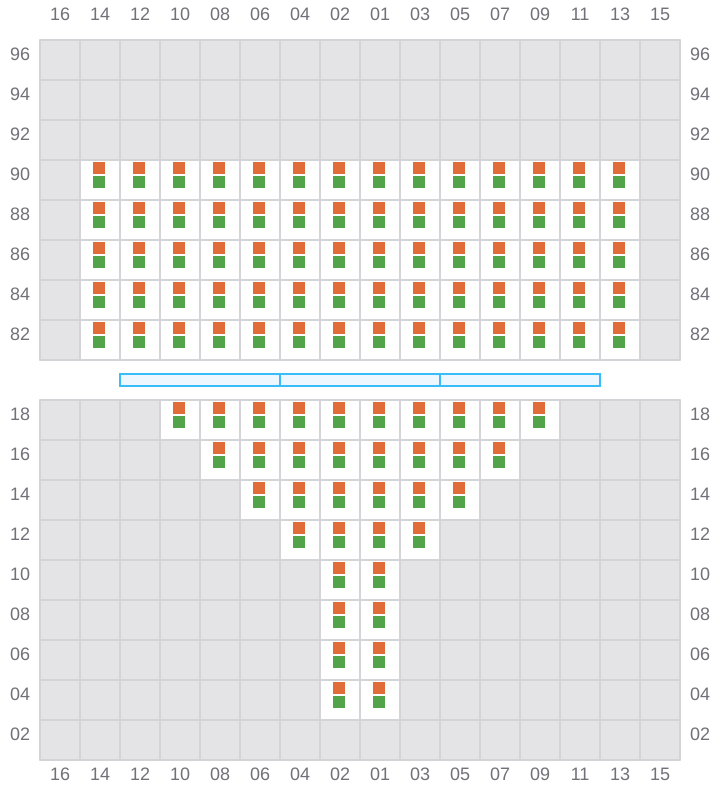

005 (006)

  • →
  • →
Bay 005 view and slots of CMA CGM LAMARTINE

007

  • ←
  • →

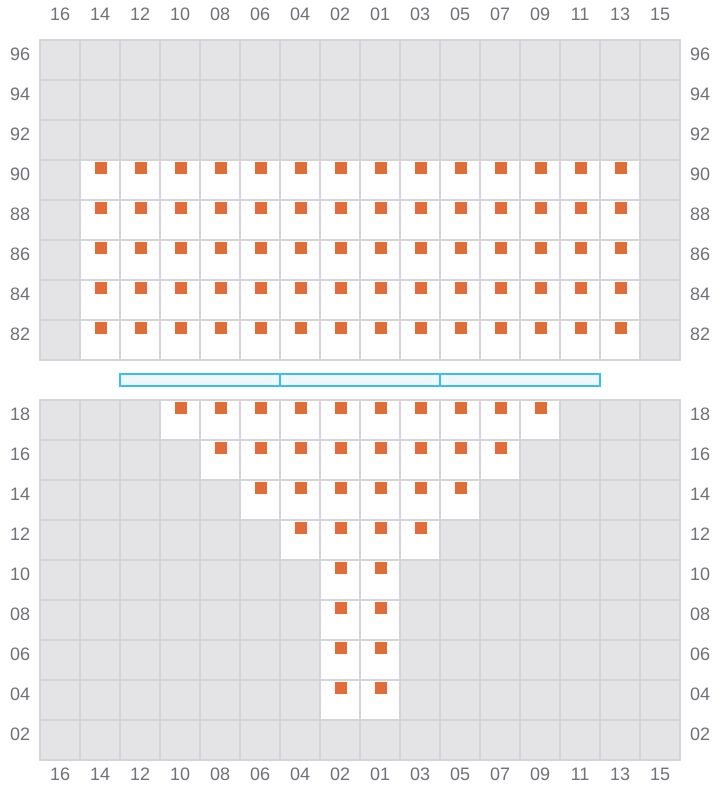

Bay 007 view and slots of CMA CGM LAMARTINE

009 (010)

  • →
  • →

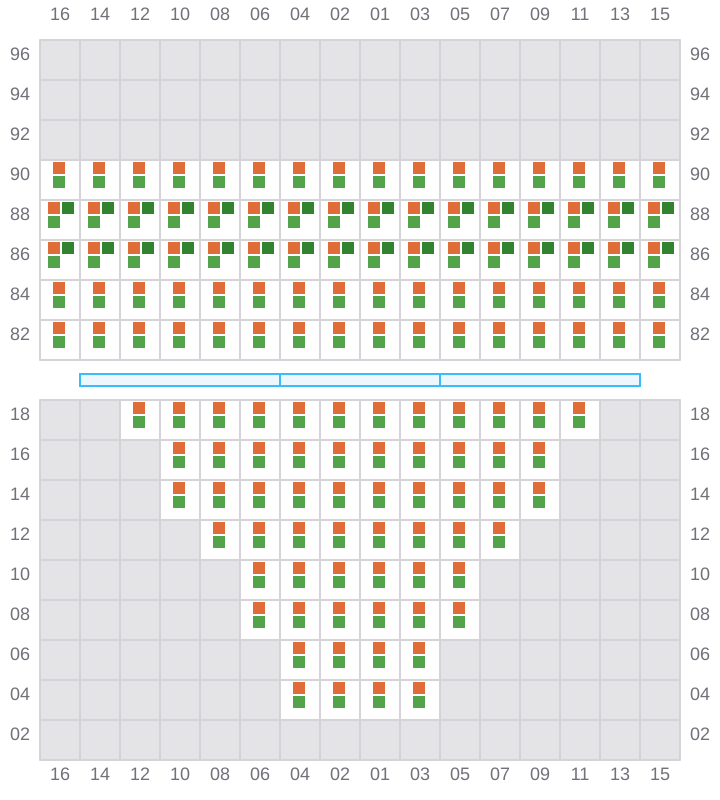

Bay 009 view and slots of CMA CGM LAMARTINE

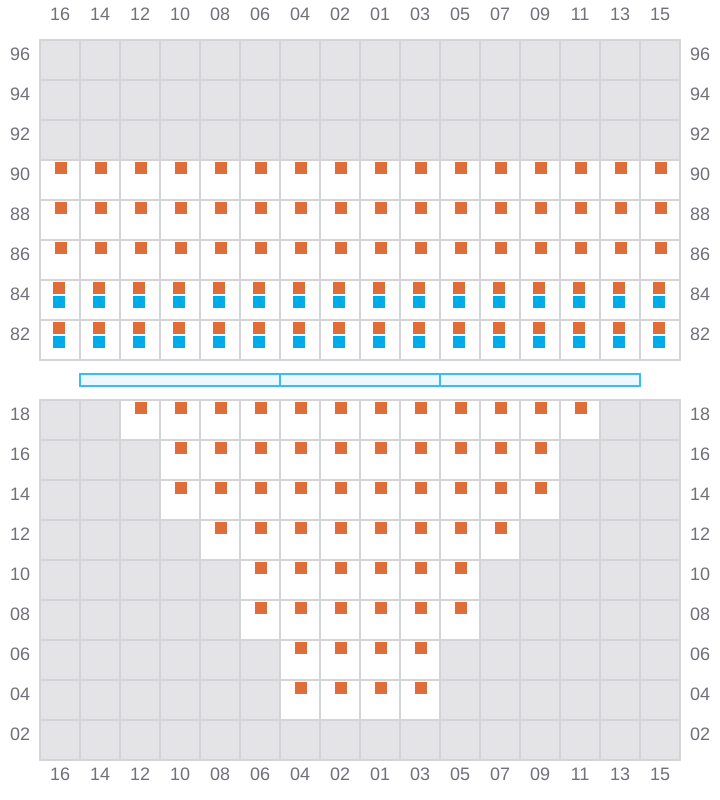

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of CMA CGM LAMARTINE

013 (014)

  • →
  • →

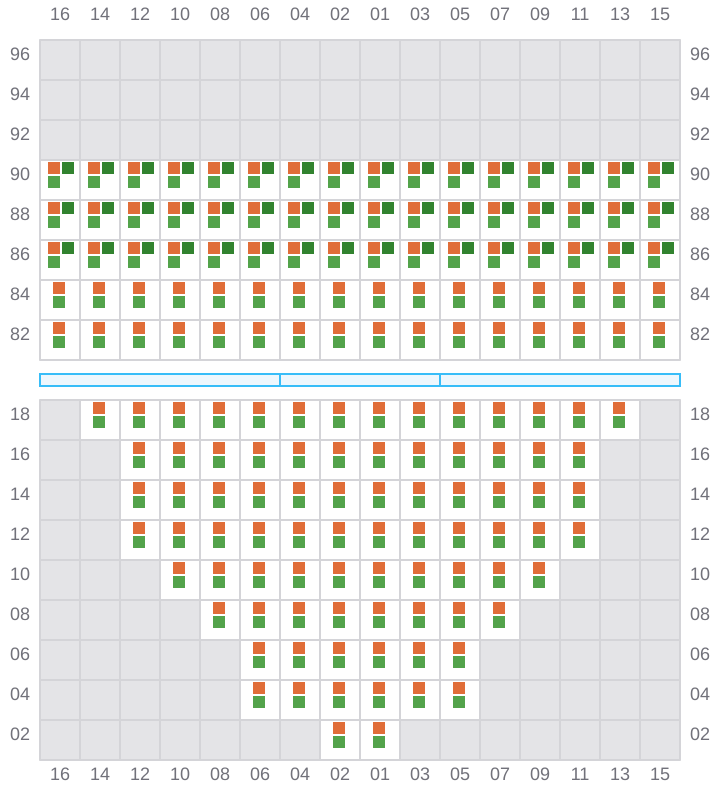

Bay 013 view and slots of CMA CGM LAMARTINE

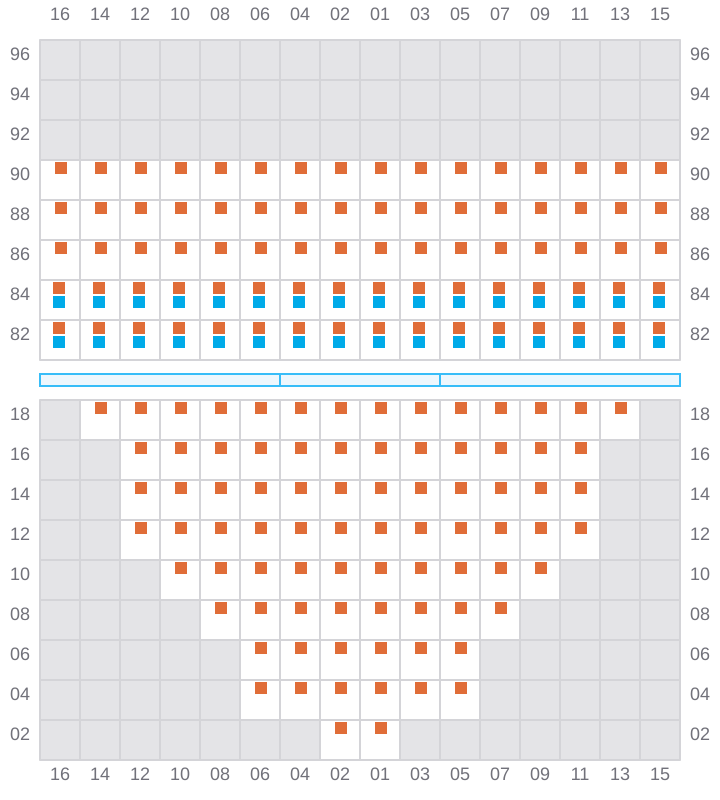

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of CMA CGM LAMARTINE

017 (018)

  • →
  • →

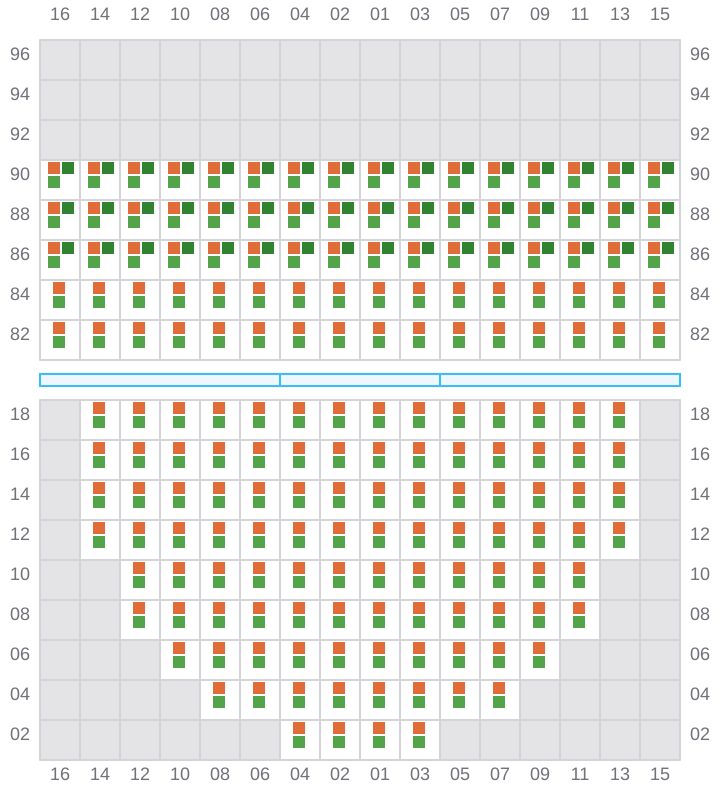

Bay 017 view and slots of CMA CGM LAMARTINE

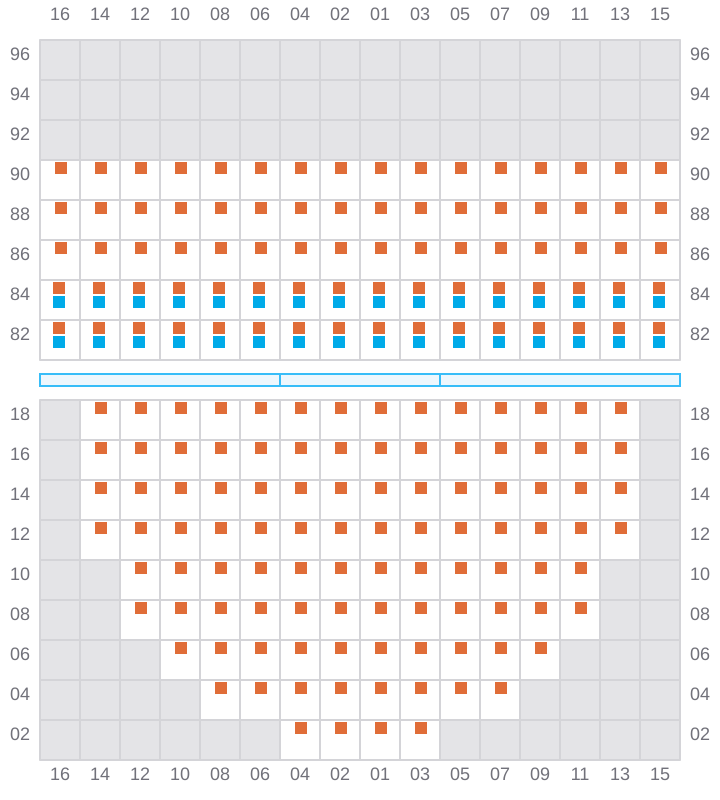

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of CMA CGM LAMARTINE

021 (022)

  • →
  • →
Bay 021 view and slots of CMA CGM LAMARTINE

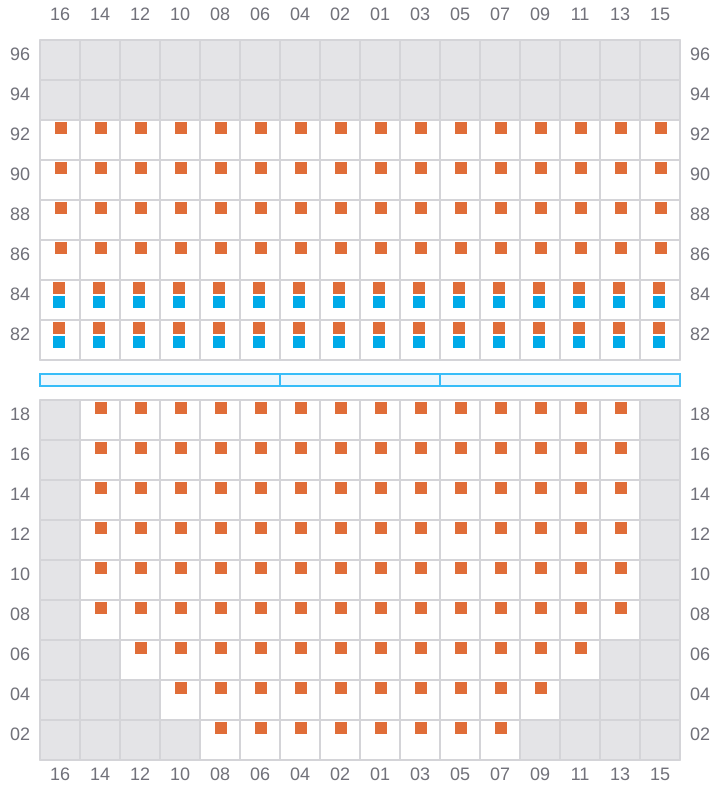

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of CMA CGM LAMARTINE

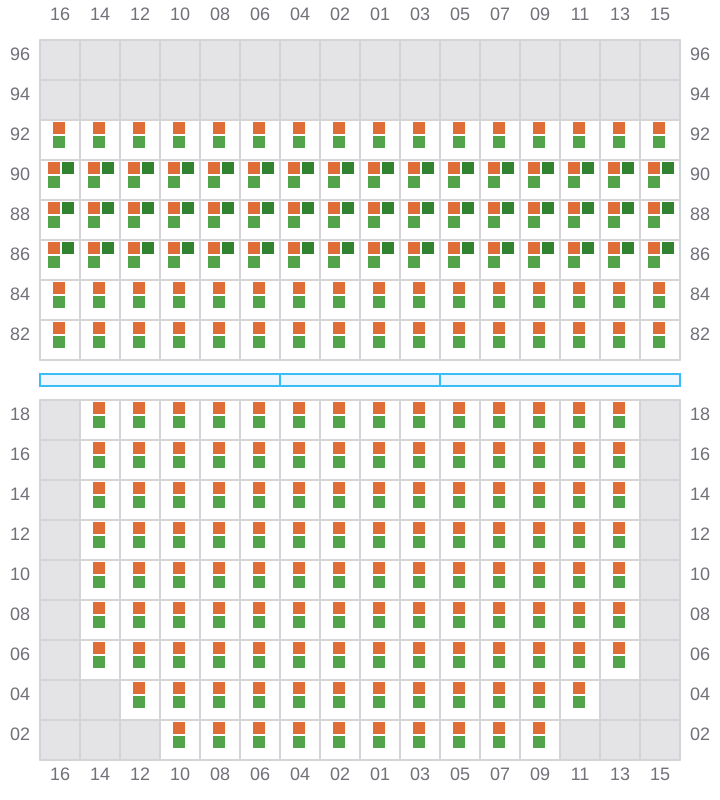

025 (026)

  • →
  • →
Bay 025 view and slots of CMA CGM LAMARTINE

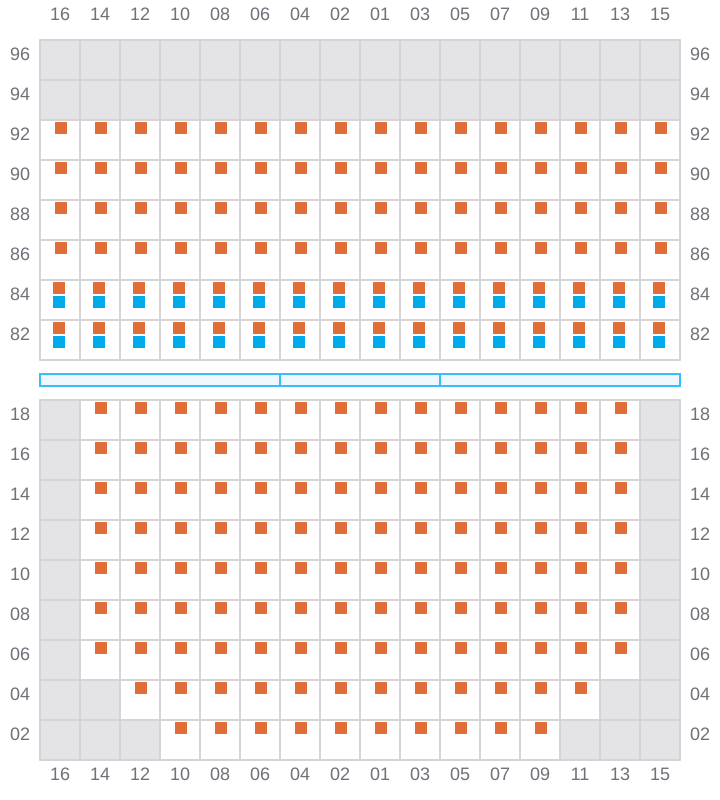

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of CMA CGM LAMARTINE

029 (030)

  • →
  • →

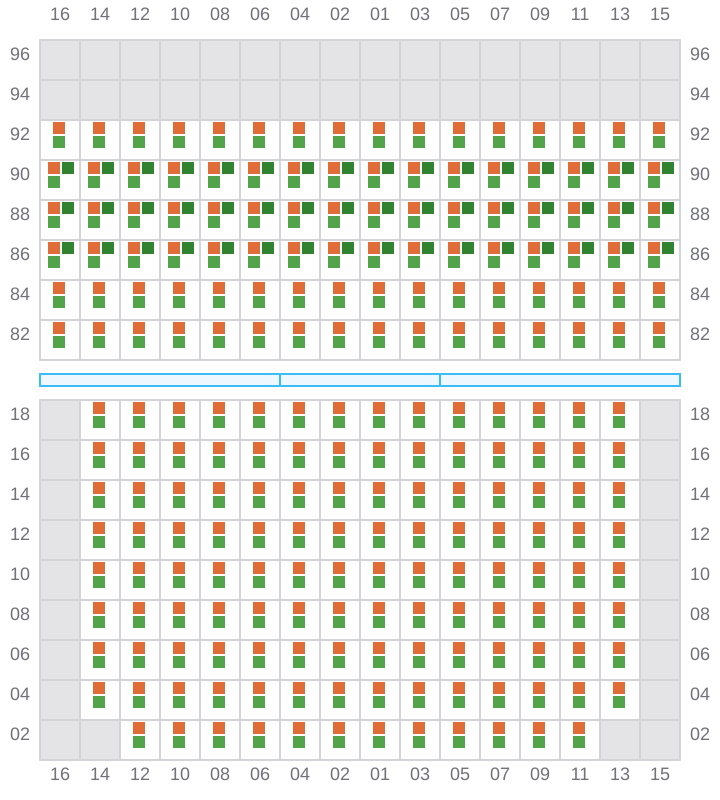

Bay 029 view and slots of CMA CGM LAMARTINE

031

  • ←
  • → / ?
  • →
Bay 031 view and slots of CMA CGM LAMARTINE

033 (034)

  • →
  • →

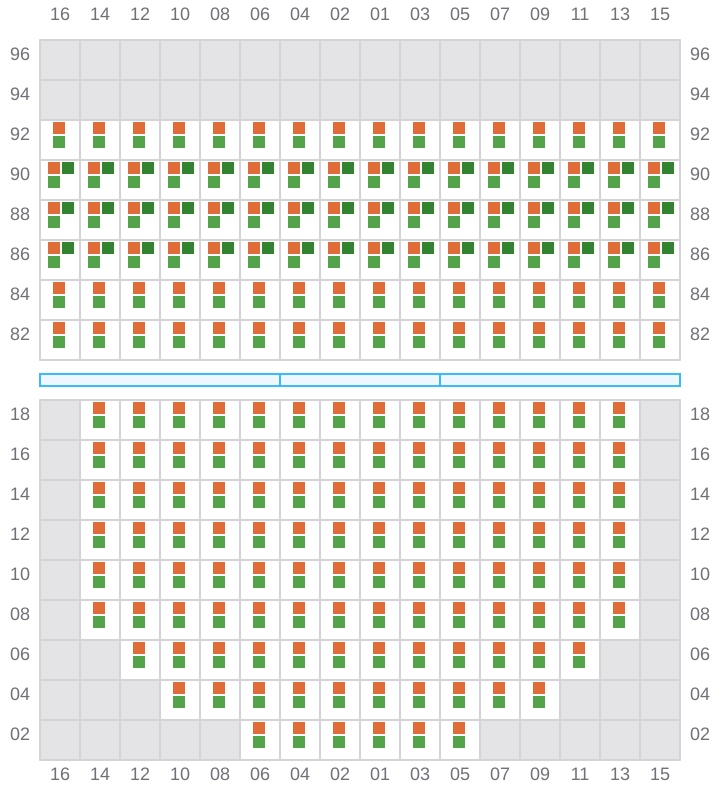

Bay 033 view and slots of CMA CGM LAMARTINE

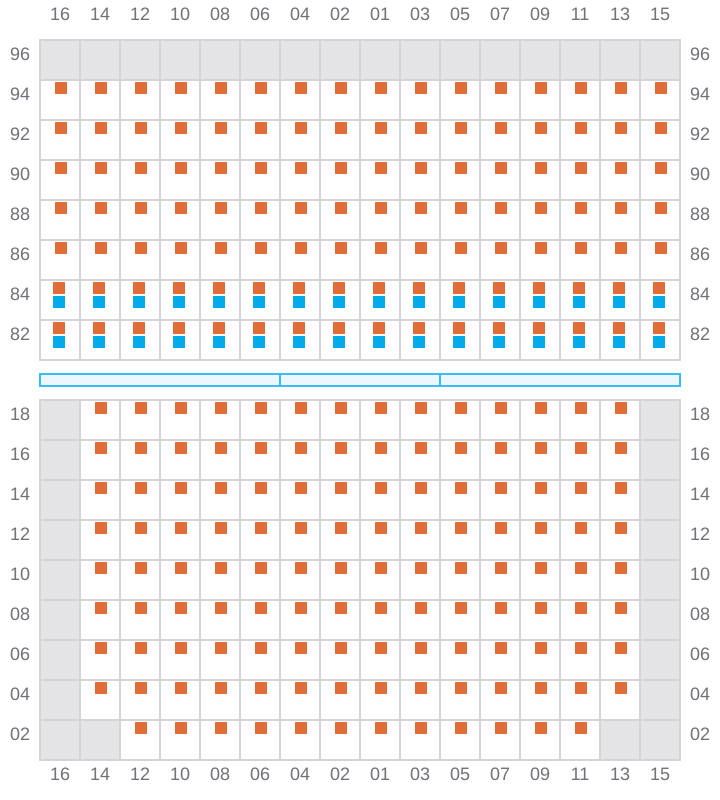

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of CMA CGM LAMARTINE

037 (038)

  • →
  • →
Bay 037 view and slots of CMA CGM LAMARTINE

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of CMA CGM LAMARTINE

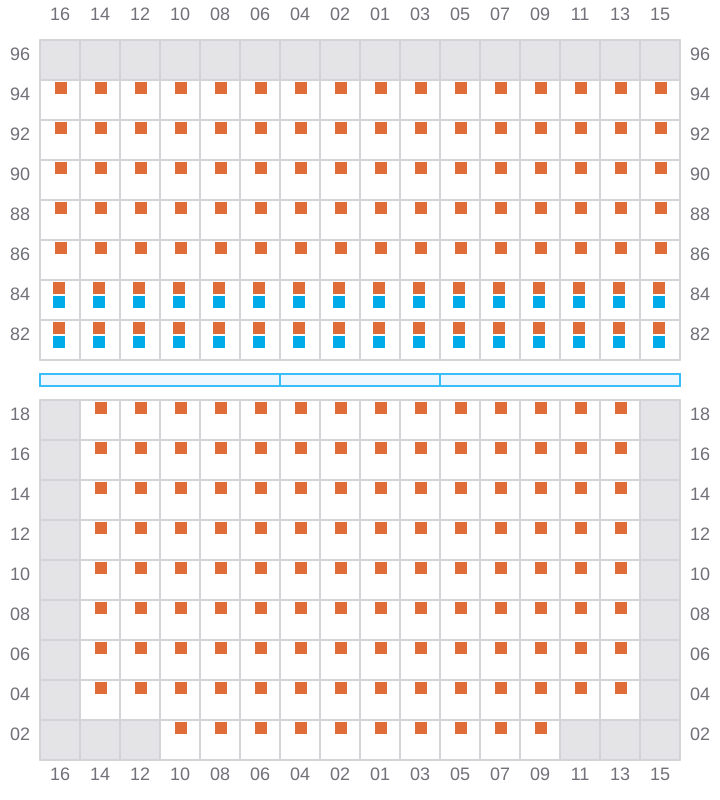

041 (042)

  • →
  • →
Bay 041 view and slots of CMA CGM LAMARTINE

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of CMA CGM LAMARTINE

045 (046)

  • →
  • →
Bay 045 view and slots of CMA CGM LAMARTINE

047

  • ←
  • → / ?
  • →

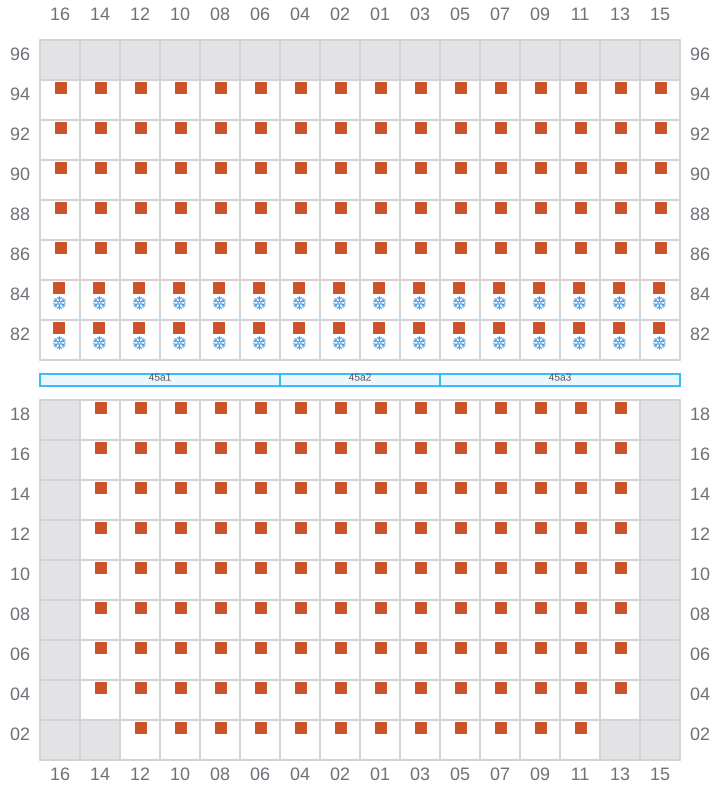

Bay 047 view and slots of CMA CGM LAMARTINE

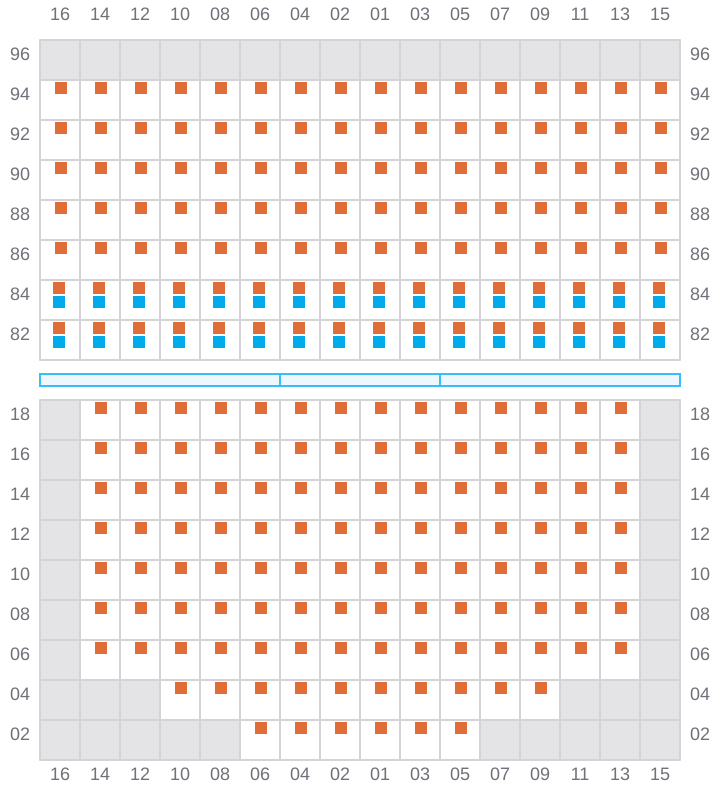

049 (050)

  • →
  • →

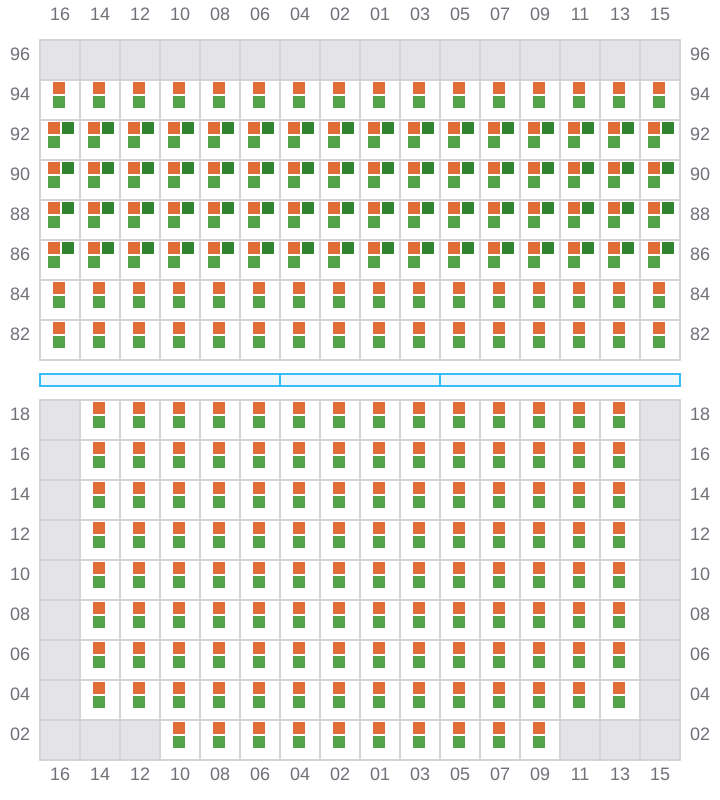

Bay 049 view and slots of CMA CGM LAMARTINE

051

  • ←
  • → / ?
  • →

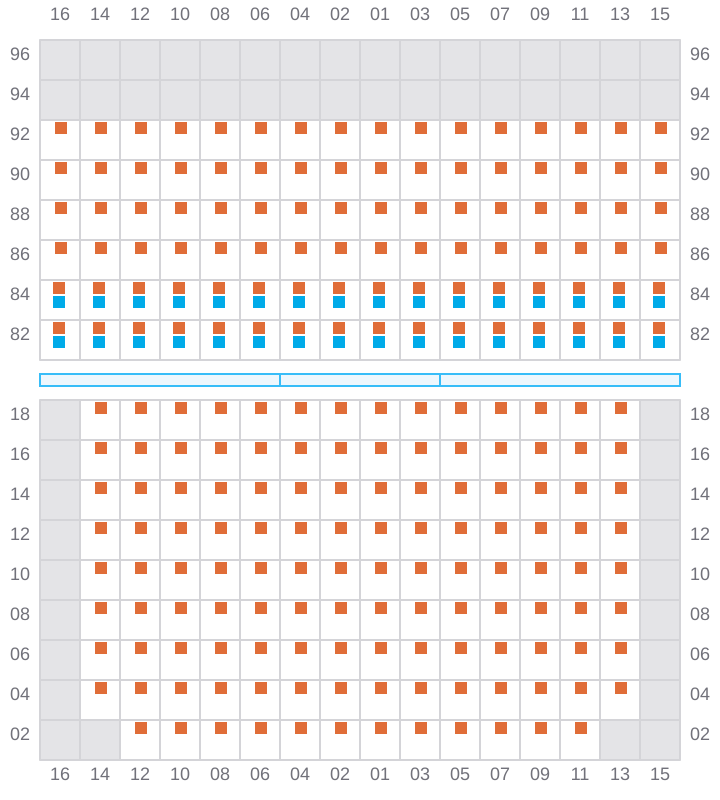

Bay 051 view and slots of CMA CGM LAMARTINE

053 (054)

  • →
  • →

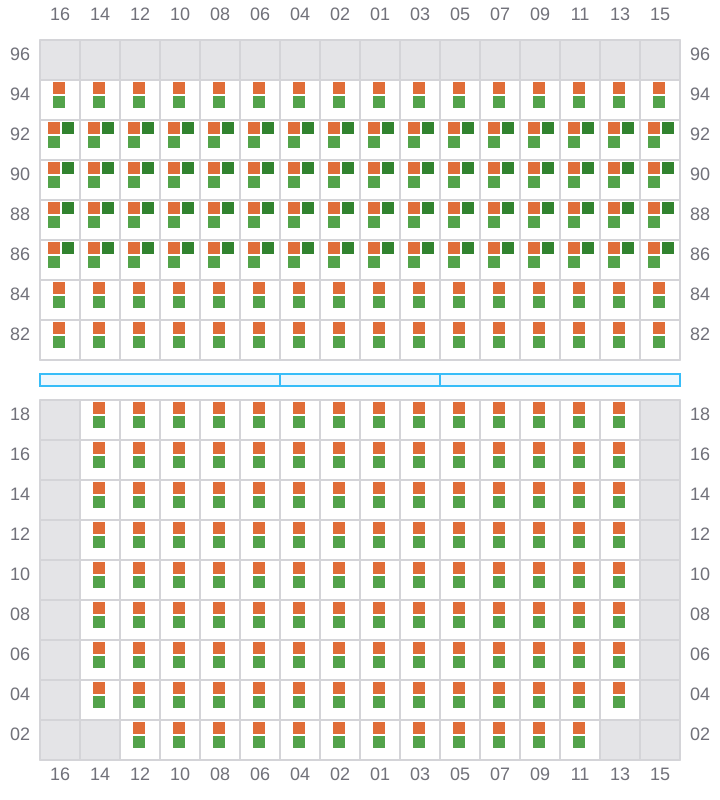

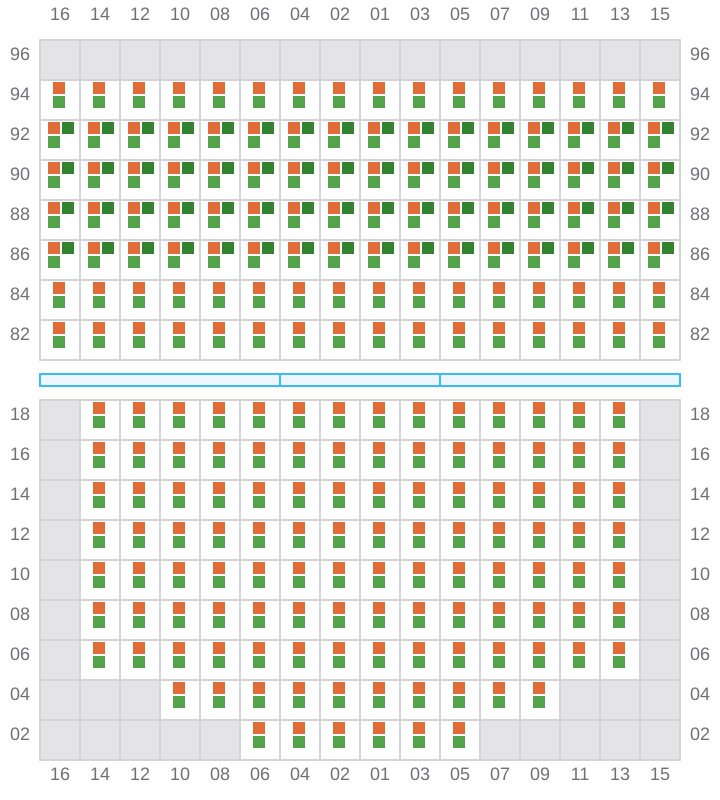

Bay 053 view and slots of CMA CGM LAMARTINE

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of CMA CGM LAMARTINE

057 (058)

  • → / ?
  • → / ?
  • → / ?

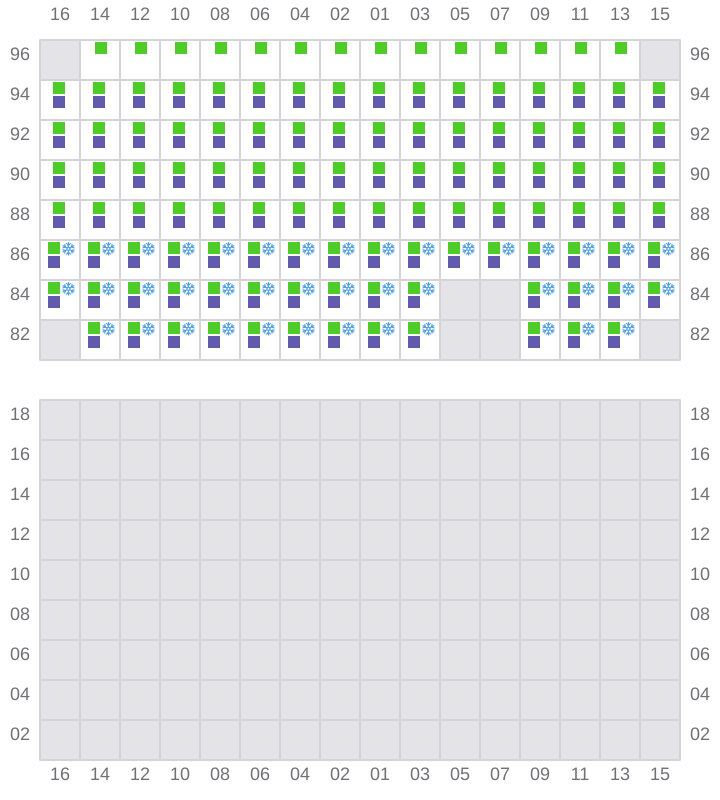

Bay 057 view and slots of CMA CGM LAMARTINE

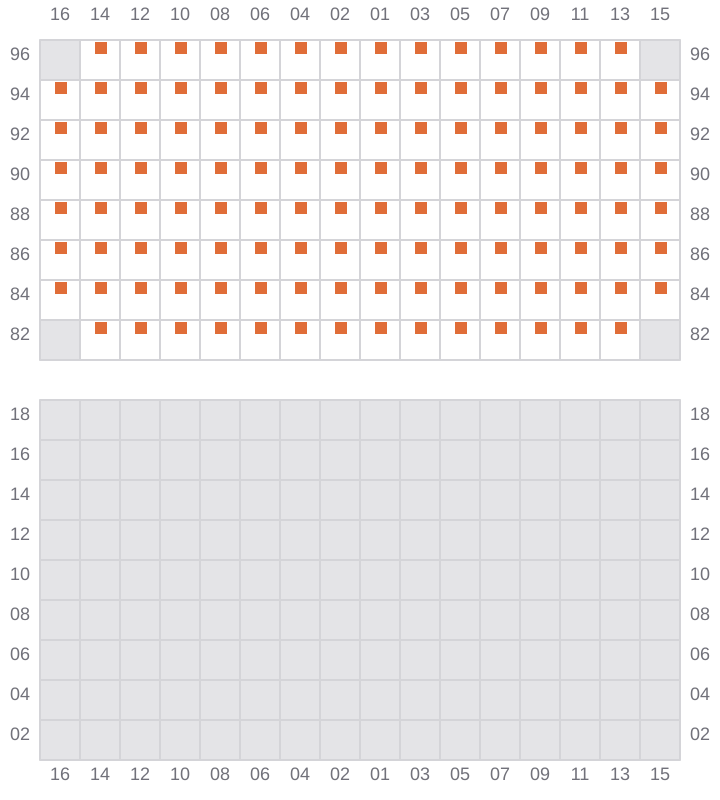

059

  • ← / ?
  • → / ?
Bay 059 view and slots of CMA CGM LAMARTINE

061 (062)

  • →
  • →

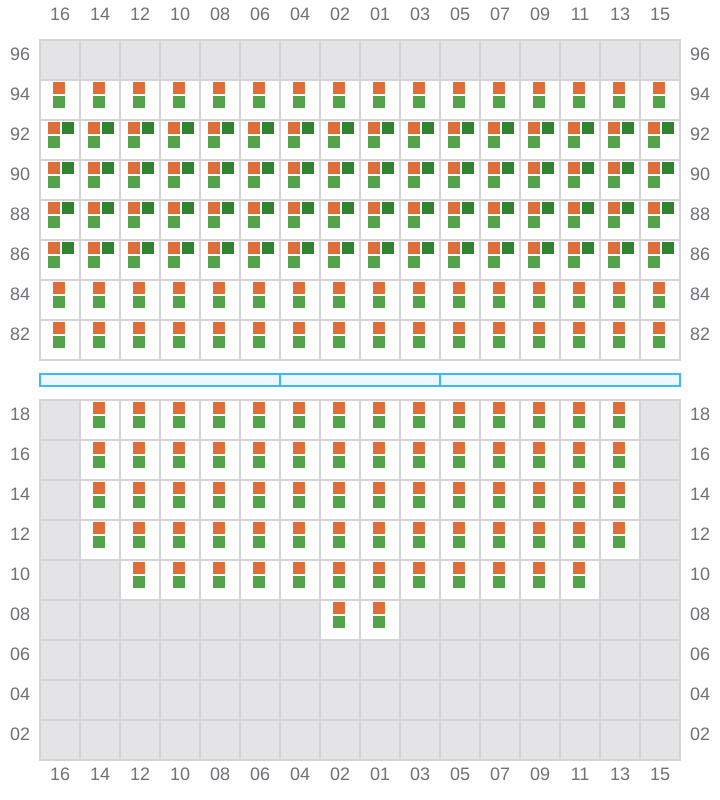

Bay 061 view and slots of CMA CGM LAMARTINE

063

  • ←
  • → / ?
  • →

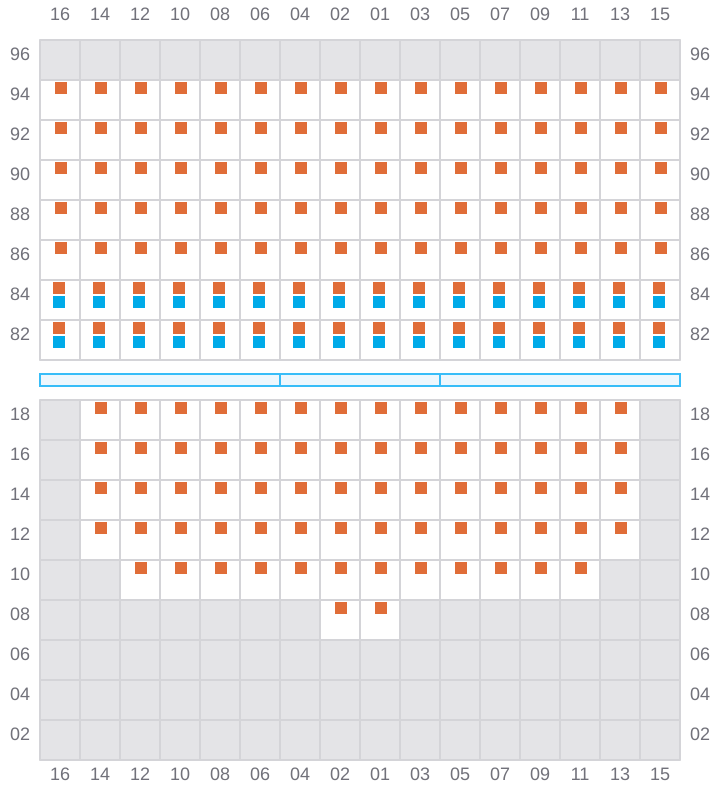

Bay 063 view and slots of CMA CGM LAMARTINE

065 (066)

  • →
  • →
Bay 065 view and slots of CMA CGM LAMARTINE

067

  • ←
  • → / ?
  • →

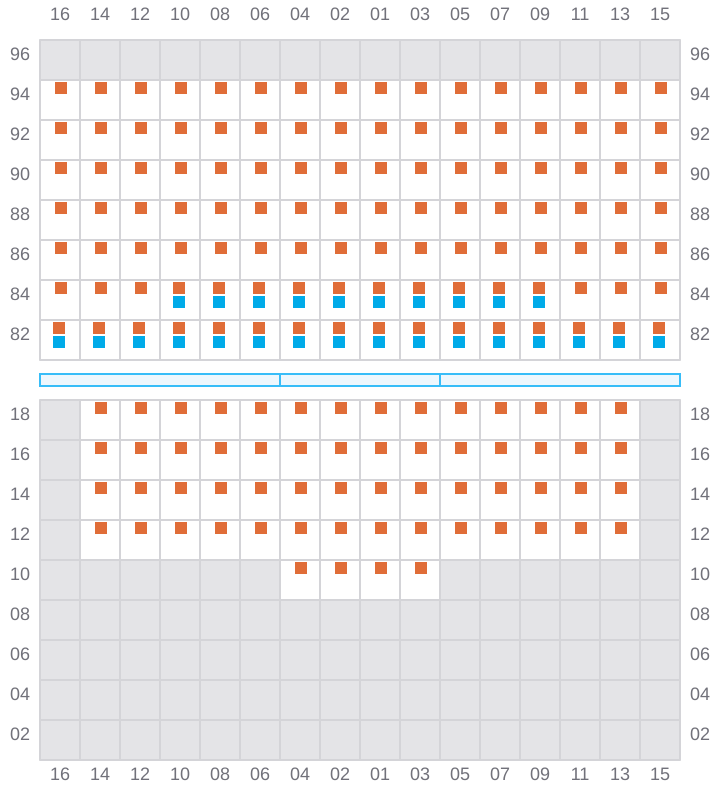

Bay 067 view and slots of CMA CGM LAMARTINE

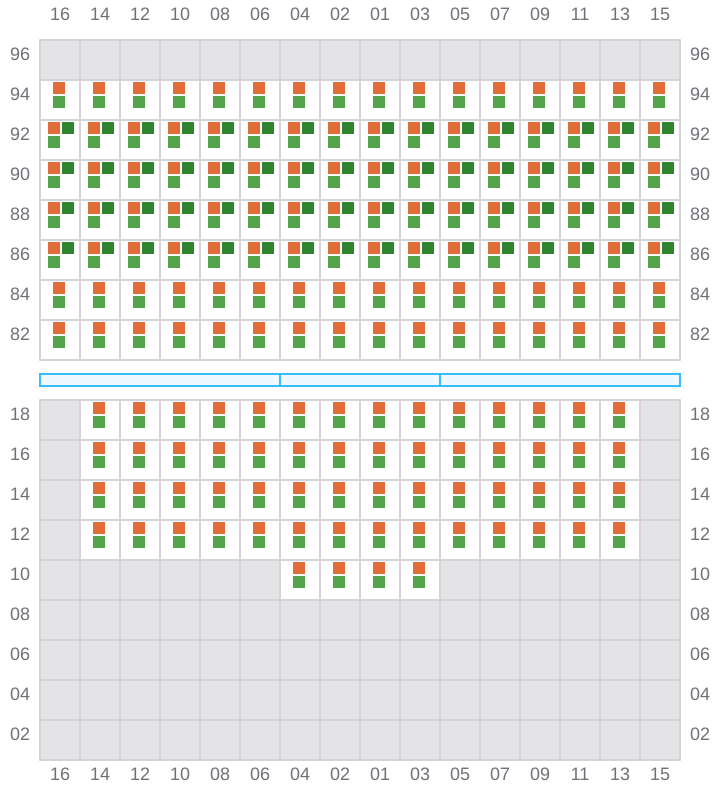

069 (070)

  • → / ?
  • ← / ?
  • → / ?

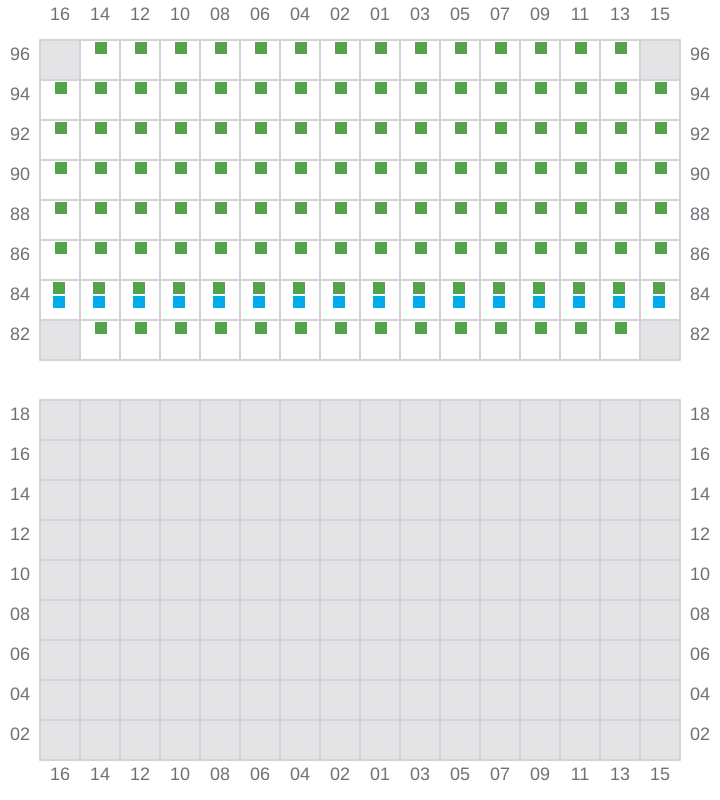

Bay 069 view and slots of CMA CGM LAMARTINE
