CMA CGM LAPEROUSE
9454412 | 9HA5377 | CMA by ********* Last update: Thu Jun 27 2024

General Info

Ship Name:CMA CGM LAPEROUSE
IMO Code:9454412
Call Sign:9HA5377
Line Operator:CMA
Class Name for Sister Ships:CMA
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,864

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

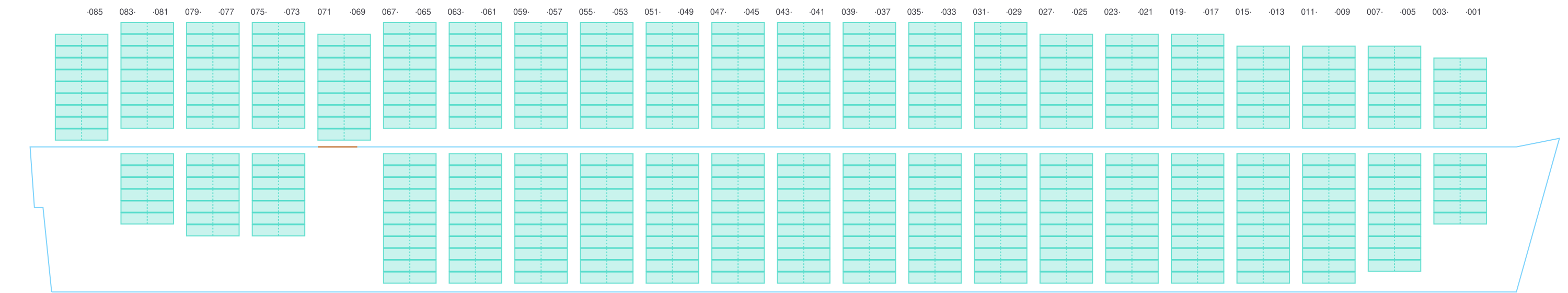

Side view of CMA CGM LAPEROUSE

Hatch-Covers View

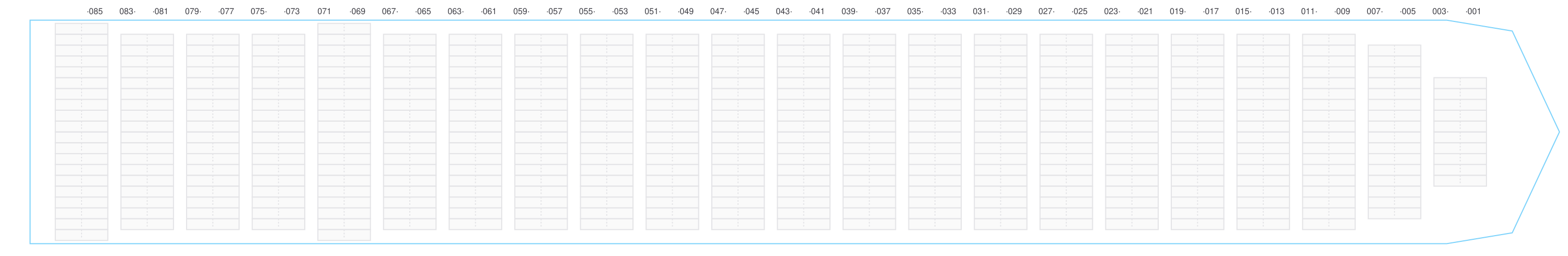

Deck view of CMA CGM LAPEROUSE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

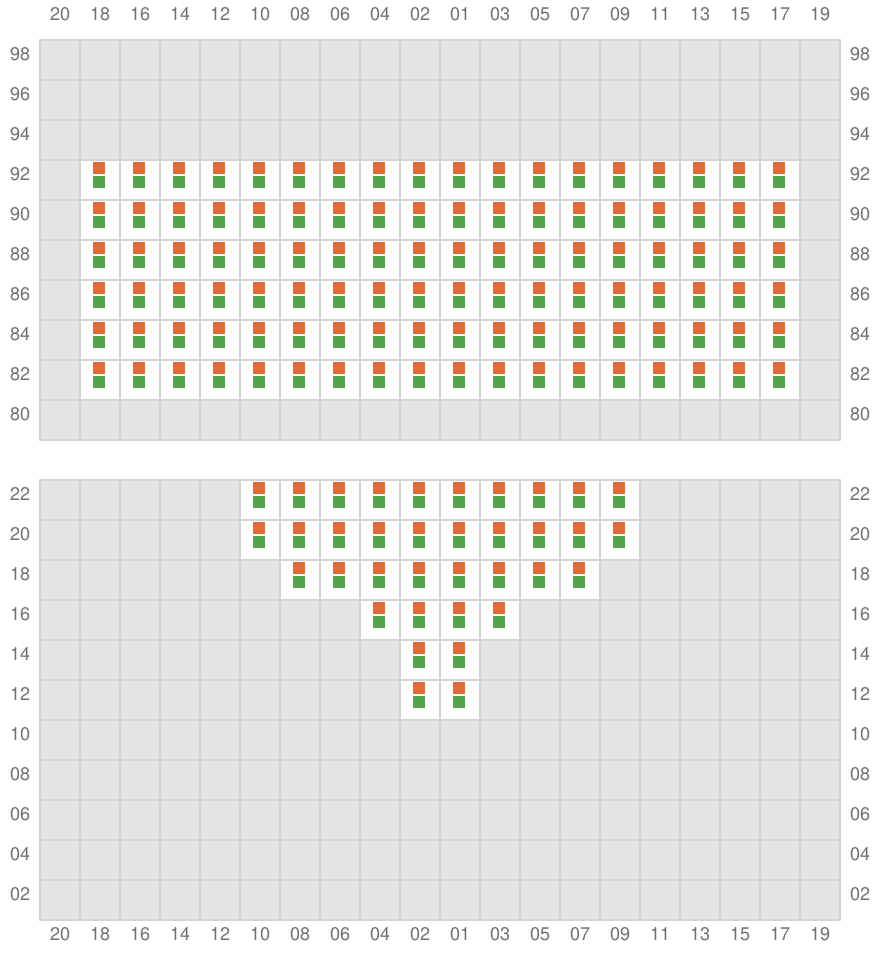

Bay 001 view and slots of CMA CGM LAPEROUSE

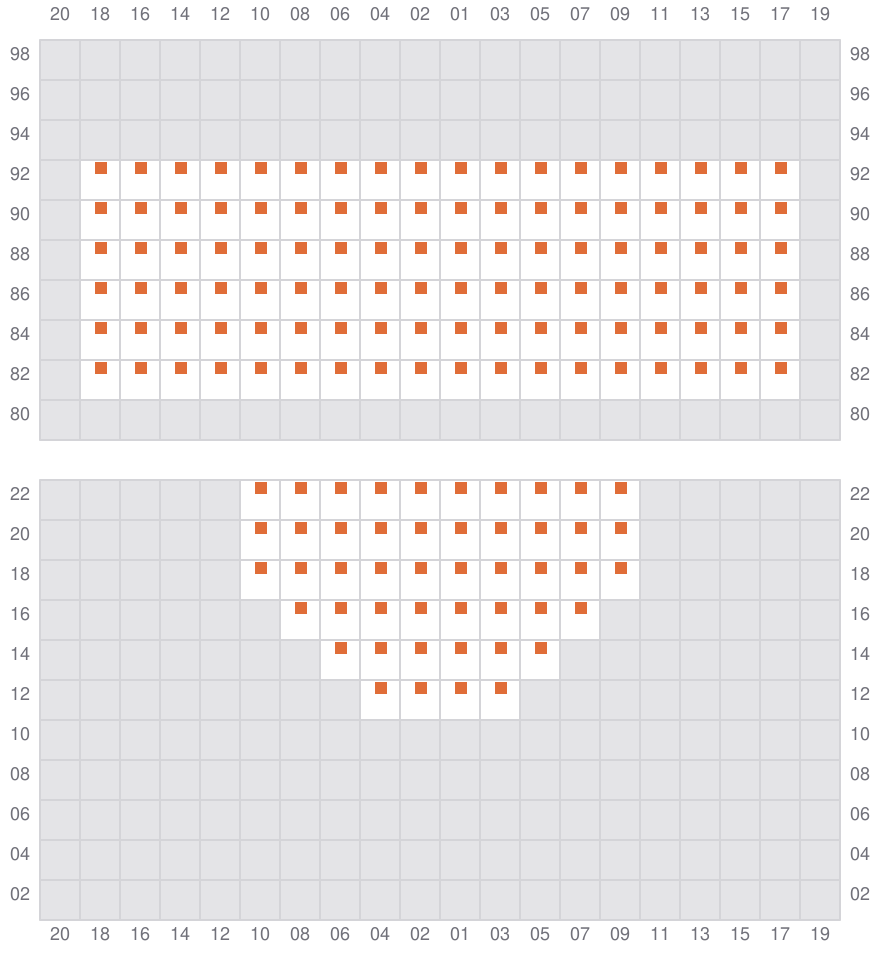

003

  • ←
Bay 003 view and slots of CMA CGM LAPEROUSE

005 (006)

  • →

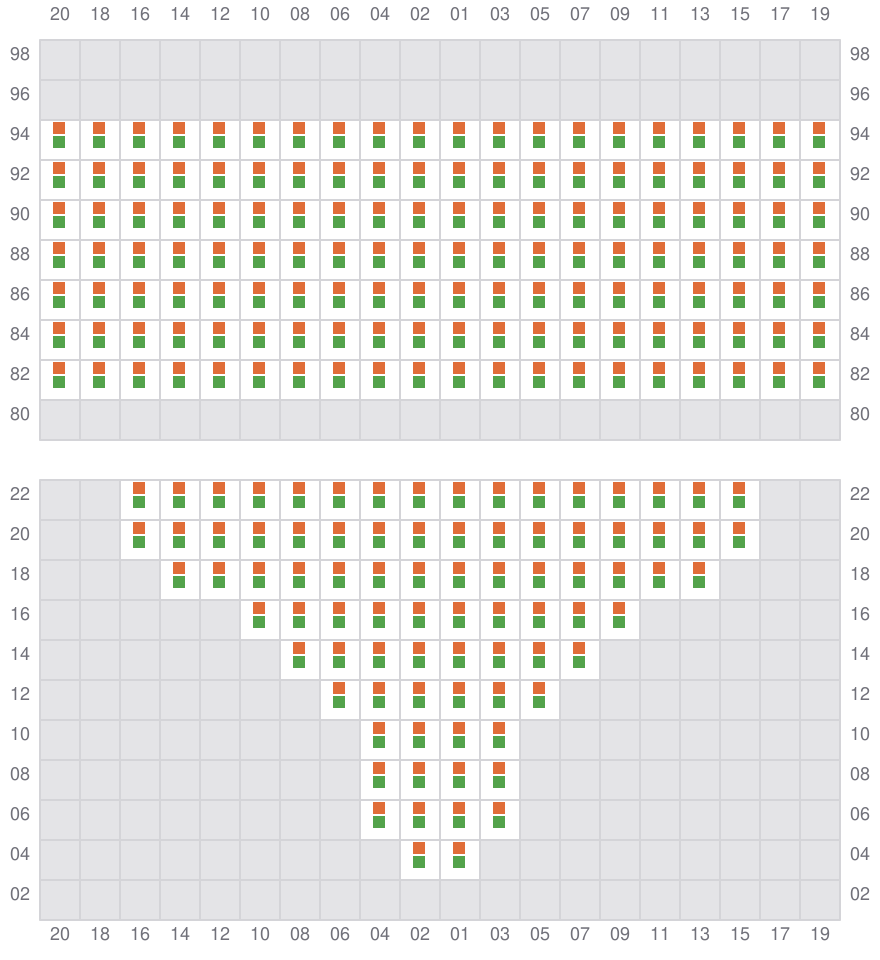

Bay 005 view and slots of CMA CGM LAPEROUSE

007

  • ←

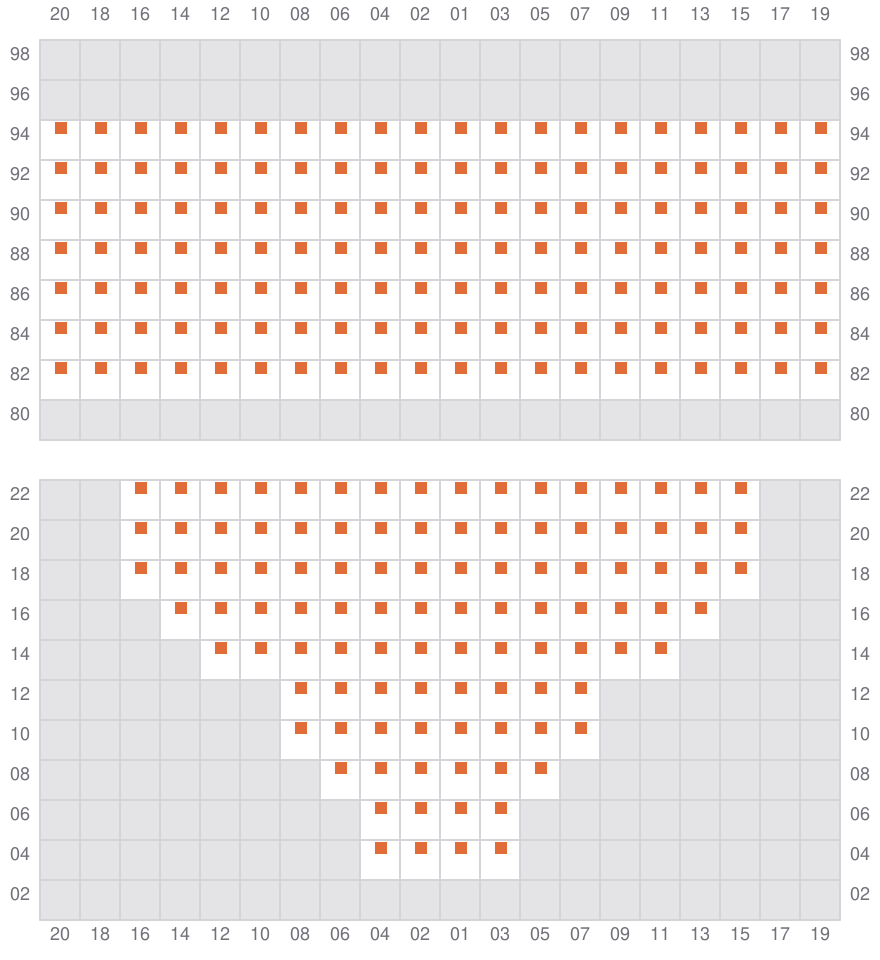

Bay 007 view and slots of CMA CGM LAPEROUSE

009 (010)

  • →

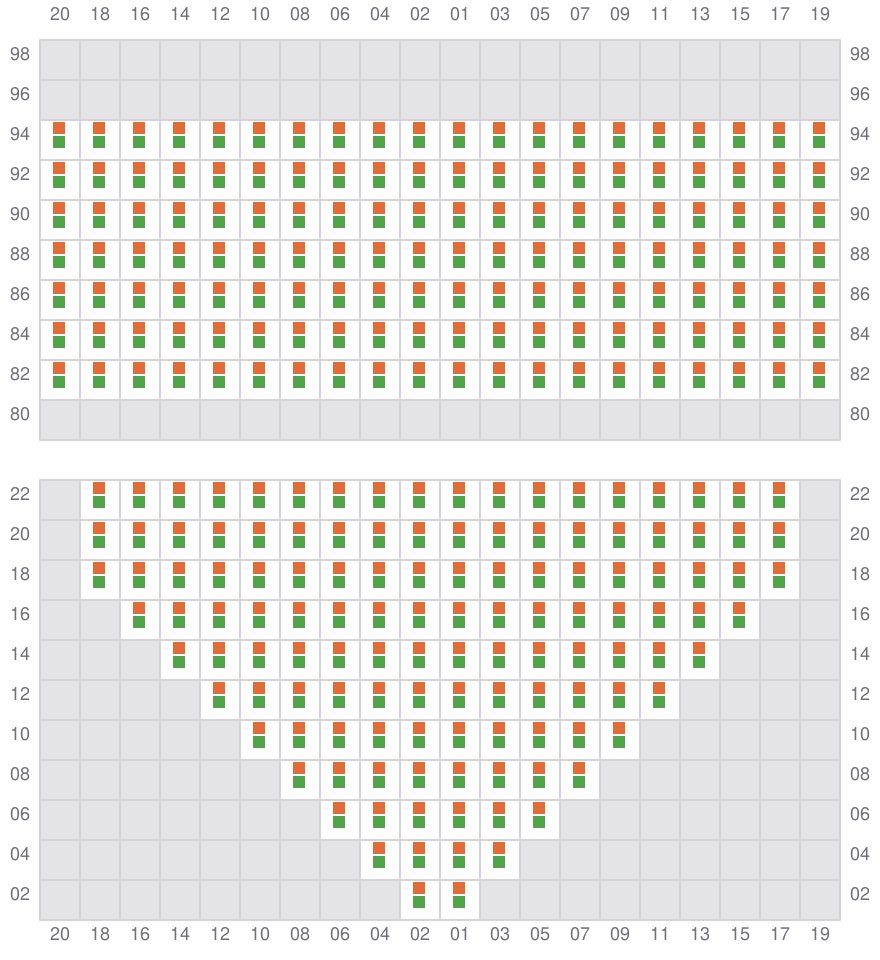

Bay 009 view and slots of CMA CGM LAPEROUSE

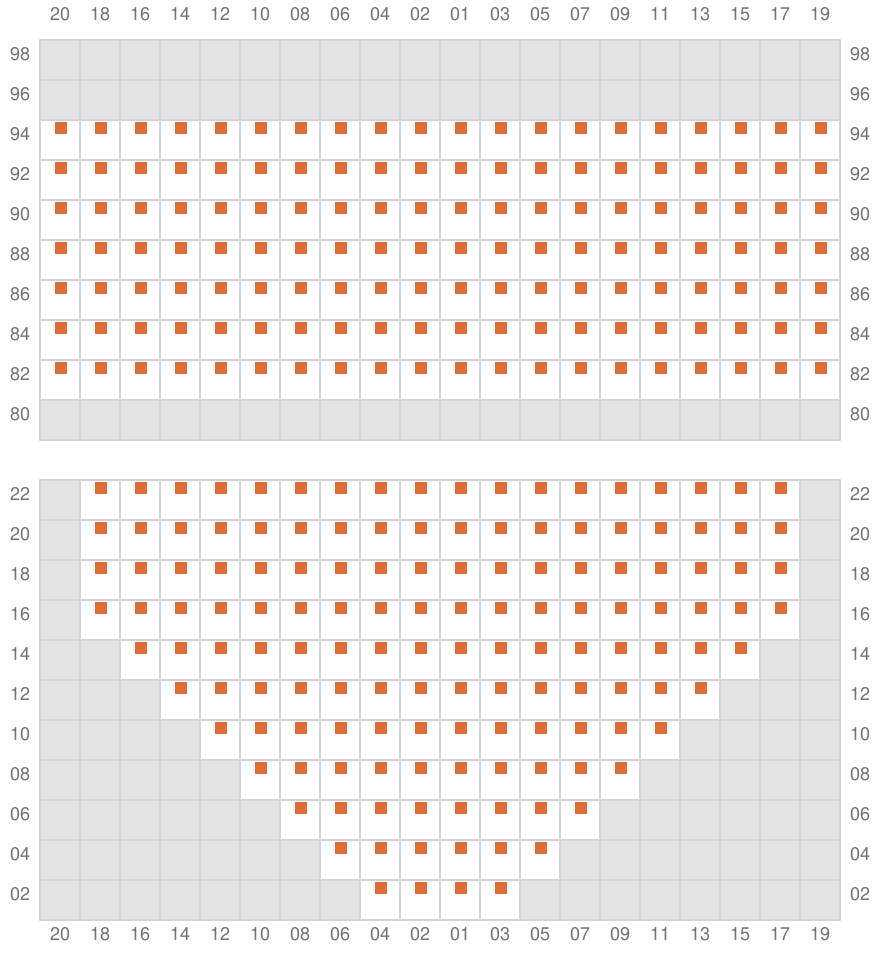

011

  • ←
Bay 011 view and slots of CMA CGM LAPEROUSE

013 (014)

  • →

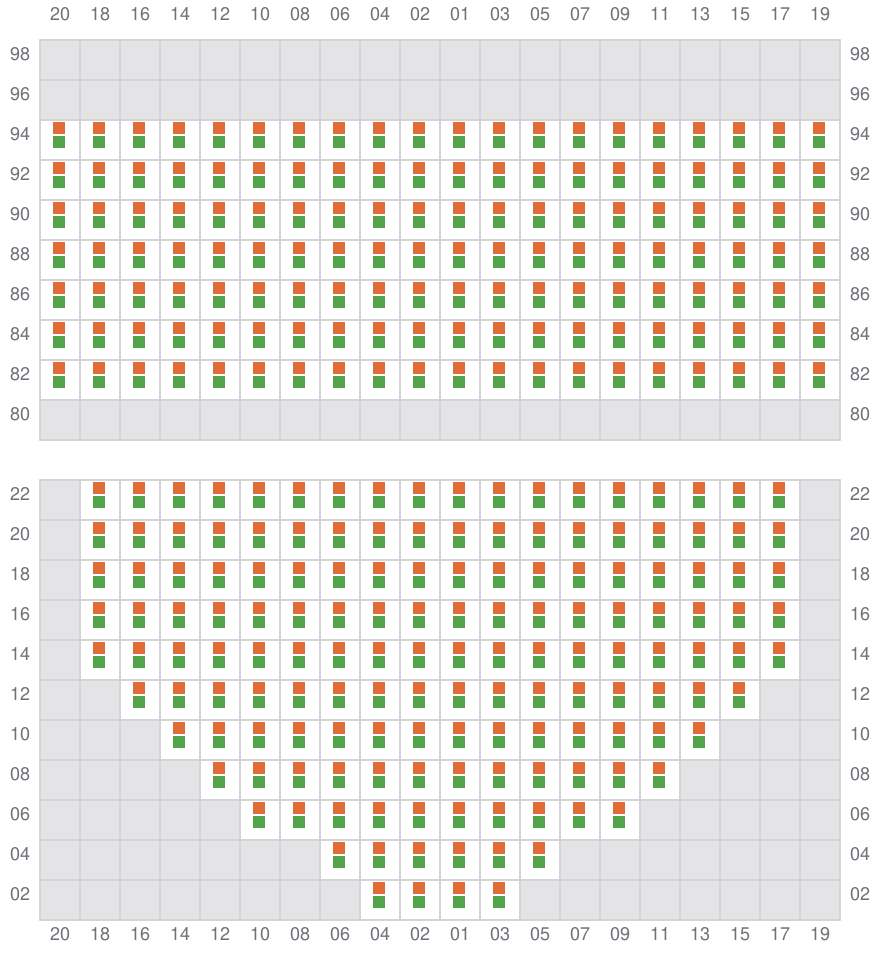

Bay 013 view and slots of CMA CGM LAPEROUSE

015

  • ←

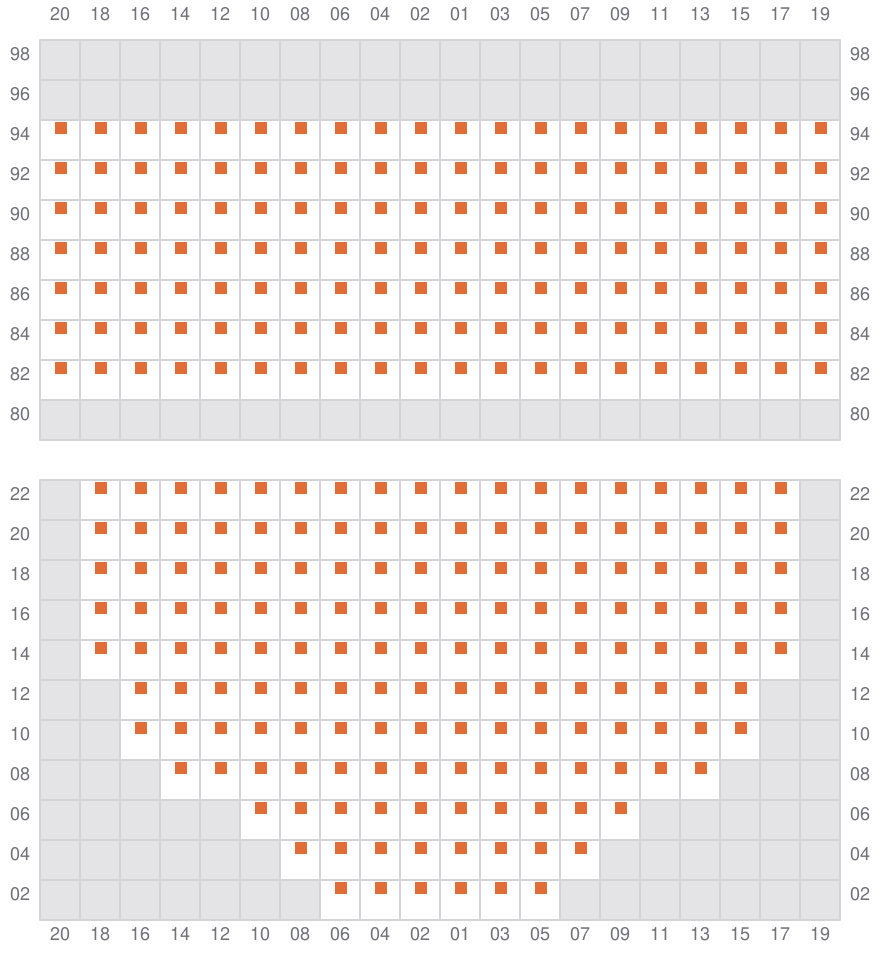

Bay 015 view and slots of CMA CGM LAPEROUSE

017 (018)

  • →
Bay 017 view and slots of CMA CGM LAPEROUSE

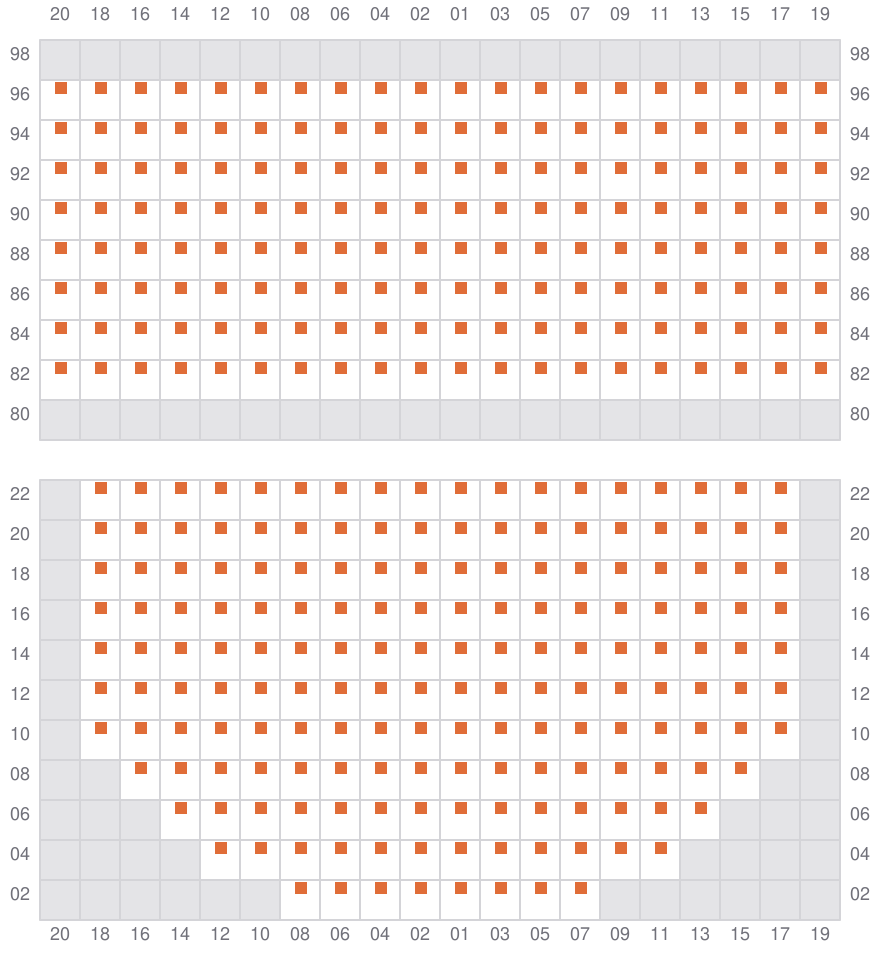

019

  • ←
Bay 019 view and slots of CMA CGM LAPEROUSE

021 (022)

  • →

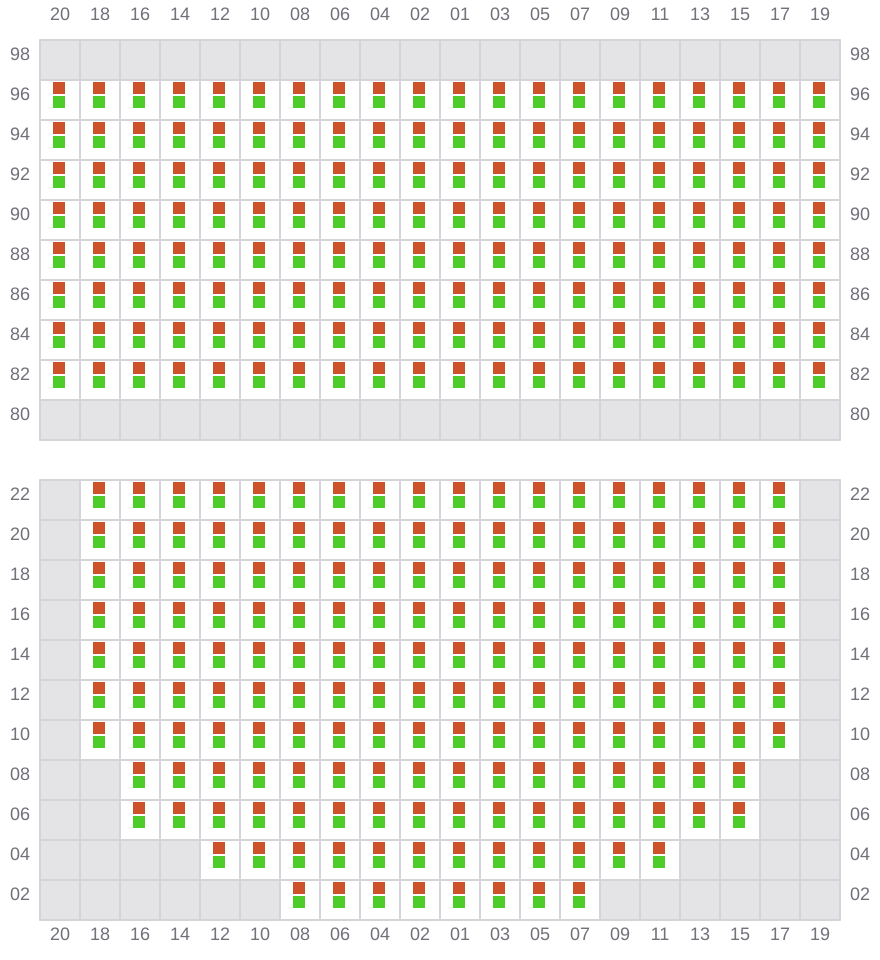

Bay 021 view and slots of CMA CGM LAPEROUSE

023

  • ←
Bay 023 view and slots of CMA CGM LAPEROUSE

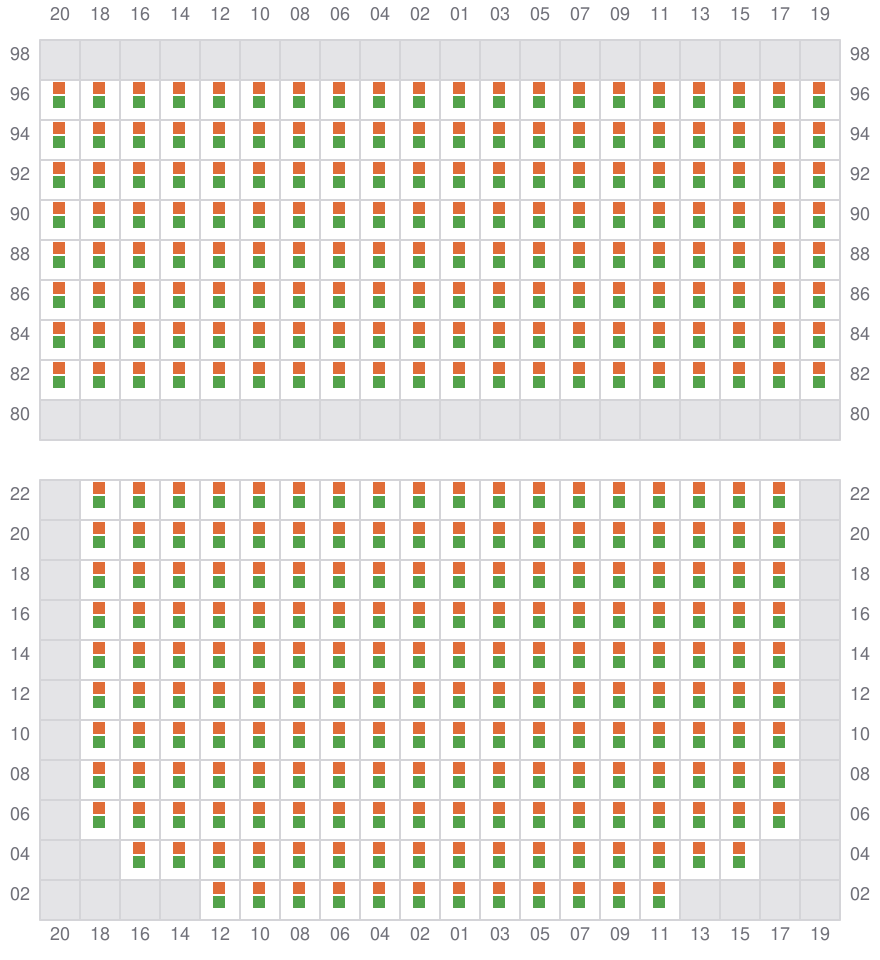

025 (026)

  • →
Bay 025 view and slots of CMA CGM LAPEROUSE

027

  • ←
Bay 027 view and slots of CMA CGM LAPEROUSE

029 (030)

  • →
Bay 029 view and slots of CMA CGM LAPEROUSE

031

  • ←
Bay 031 view and slots of CMA CGM LAPEROUSE

033 (034)

  • →
Bay 033 view and slots of CMA CGM LAPEROUSE

035

  • ←
Bay 035 view and slots of CMA CGM LAPEROUSE

037 (038)

  • →
Bay 037 view and slots of CMA CGM LAPEROUSE

039

  • ←
Bay 039 view and slots of CMA CGM LAPEROUSE

041 (042)

  • →
Bay 041 view and slots of CMA CGM LAPEROUSE

043

  • ←
Bay 043 view and slots of CMA CGM LAPEROUSE

045 (046)

  • →
Bay 045 view and slots of CMA CGM LAPEROUSE

047

  • ←
Bay 047 view and slots of CMA CGM LAPEROUSE

049 (050)

  • →

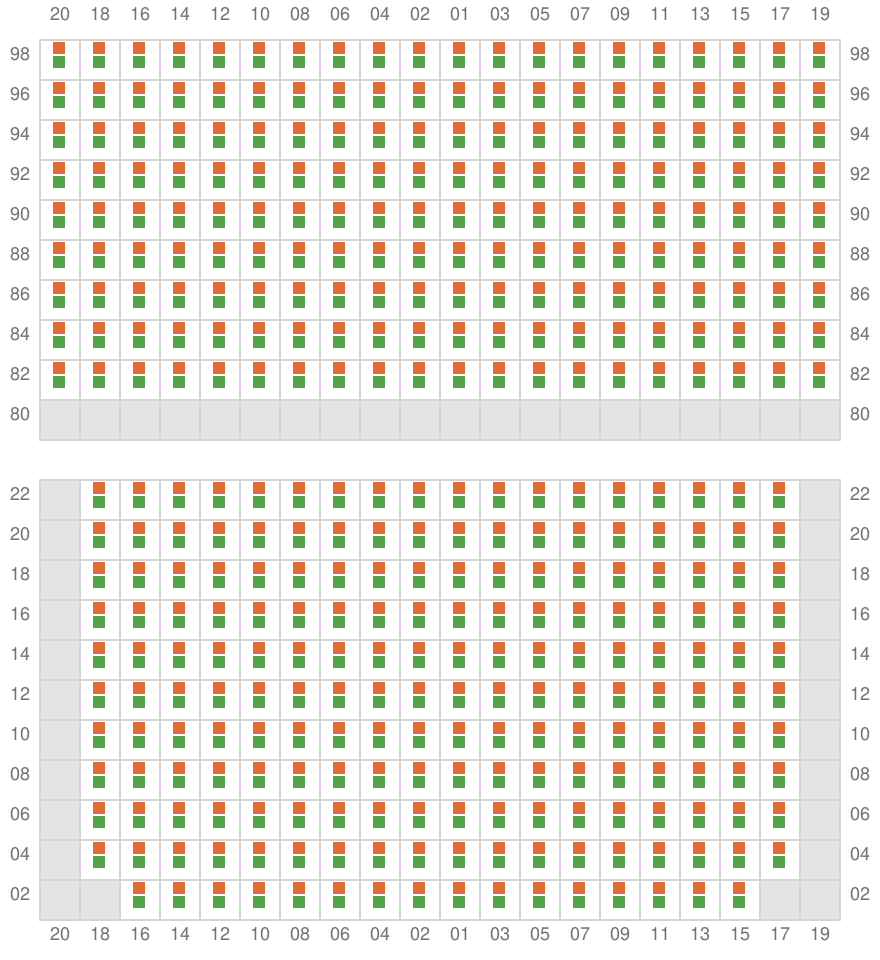

Bay 049 view and slots of CMA CGM LAPEROUSE

051

  • ←
Bay 051 view and slots of CMA CGM LAPEROUSE

053 (054)

  • →
Bay 053 view and slots of CMA CGM LAPEROUSE

055

  • ←
Bay 055 view and slots of CMA CGM LAPEROUSE

057 (058)

  • →
Bay 057 view and slots of CMA CGM LAPEROUSE

059

  • ←
Bay 059 view and slots of CMA CGM LAPEROUSE

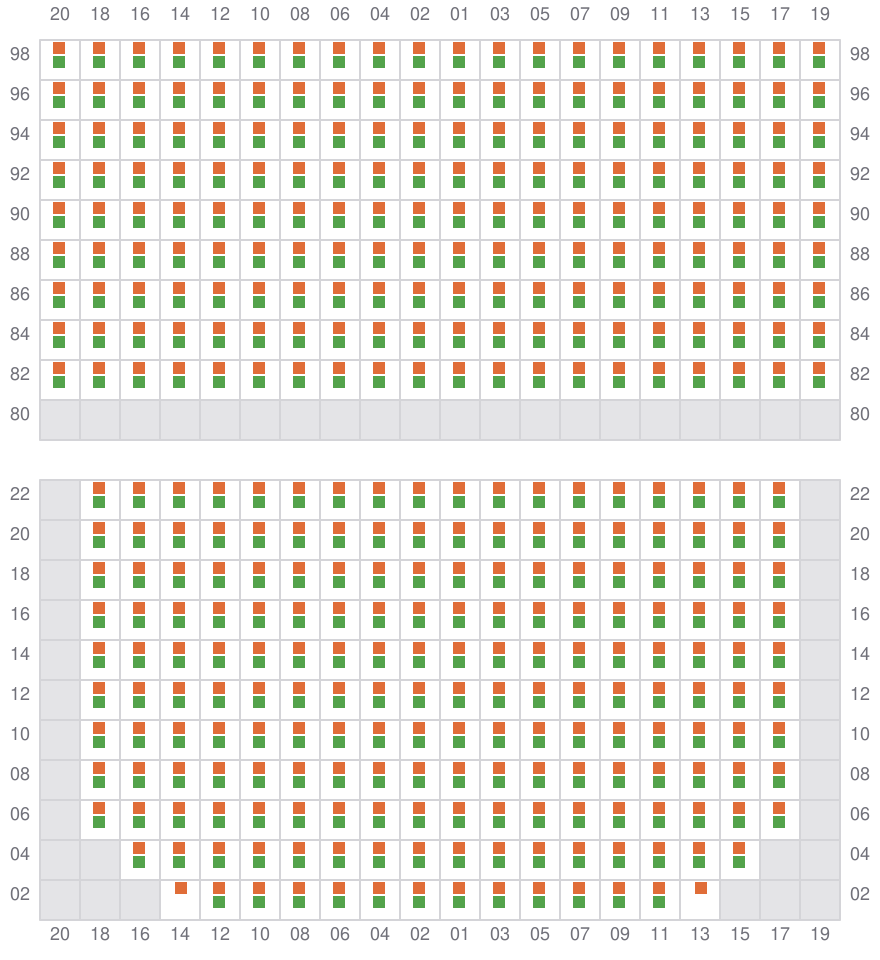

061 (062)

  • →
Bay 061 view and slots of CMA CGM LAPEROUSE

063

  • ←
Bay 063 view and slots of CMA CGM LAPEROUSE

065 (066)

  • →
Bay 065 view and slots of CMA CGM LAPEROUSE

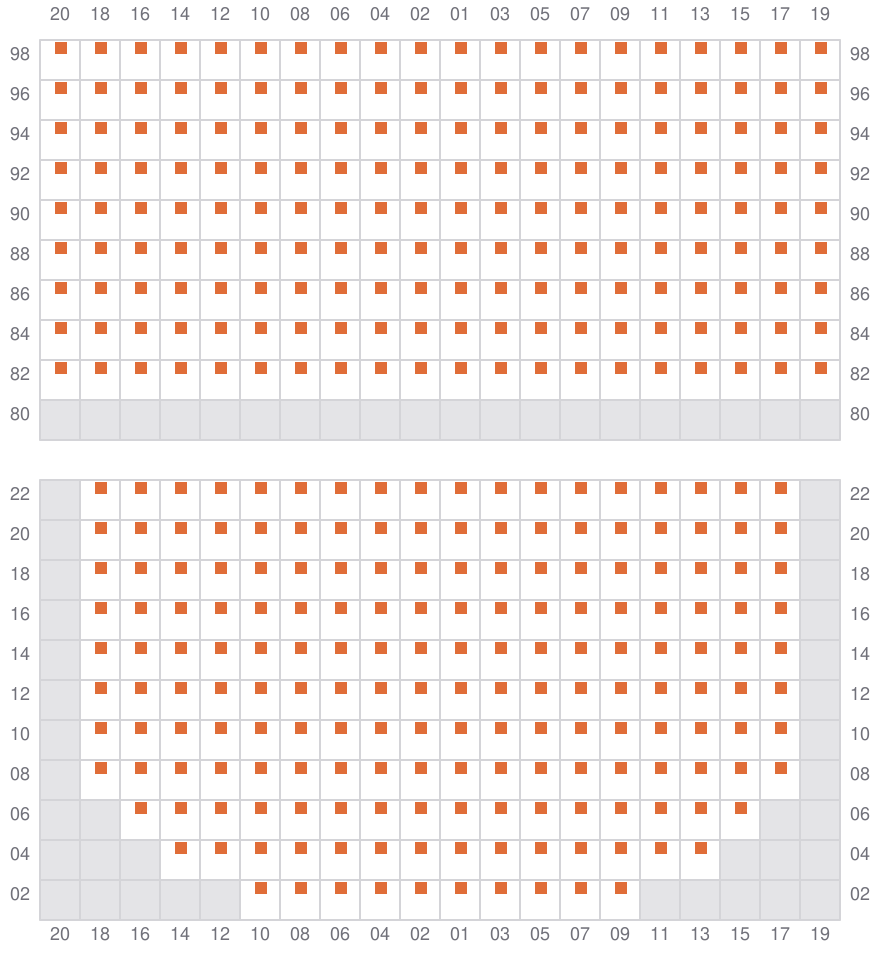

067

  • ←
Bay 067 view and slots of CMA CGM LAPEROUSE

069 (070)

  • → / ?
Bay 069 view and slots of CMA CGM LAPEROUSE

071

Bay 071 view and slots of CMA CGM LAPEROUSE

073 (074)

  • →
Bay 073 view and slots of CMA CGM LAPEROUSE

075

  • ←
Bay 075 view and slots of CMA CGM LAPEROUSE

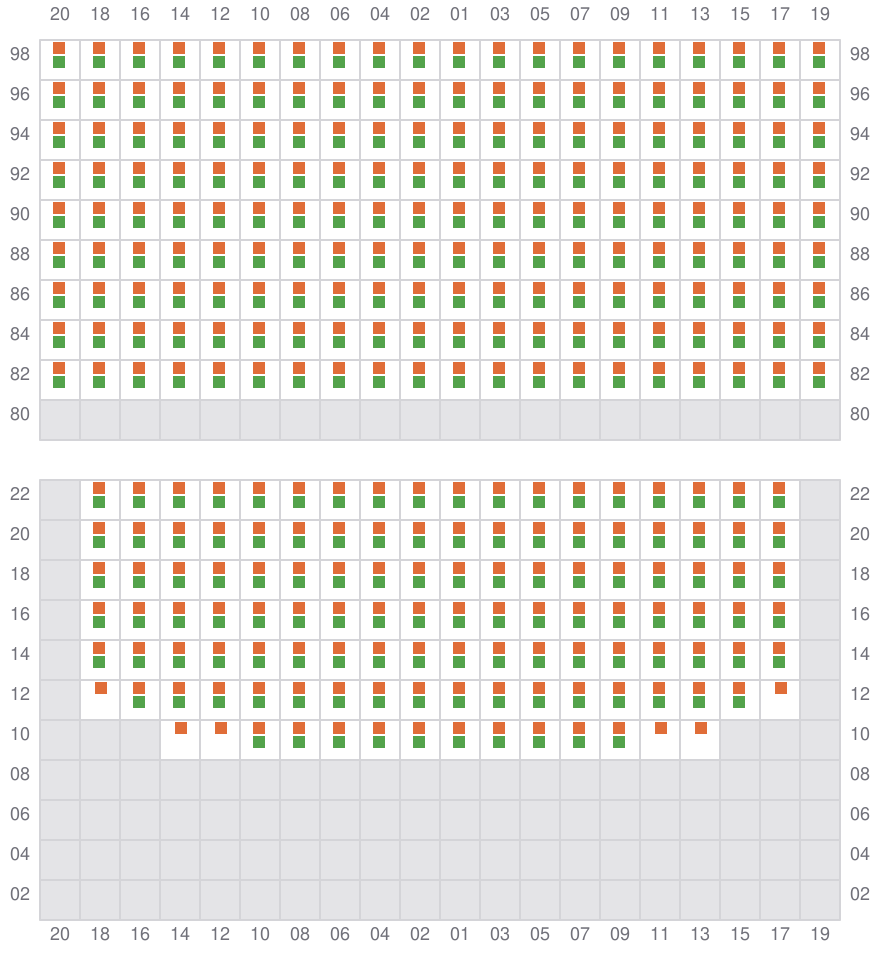

077 (078)

  • →
Bay 077 view and slots of CMA CGM LAPEROUSE

079

  • ←

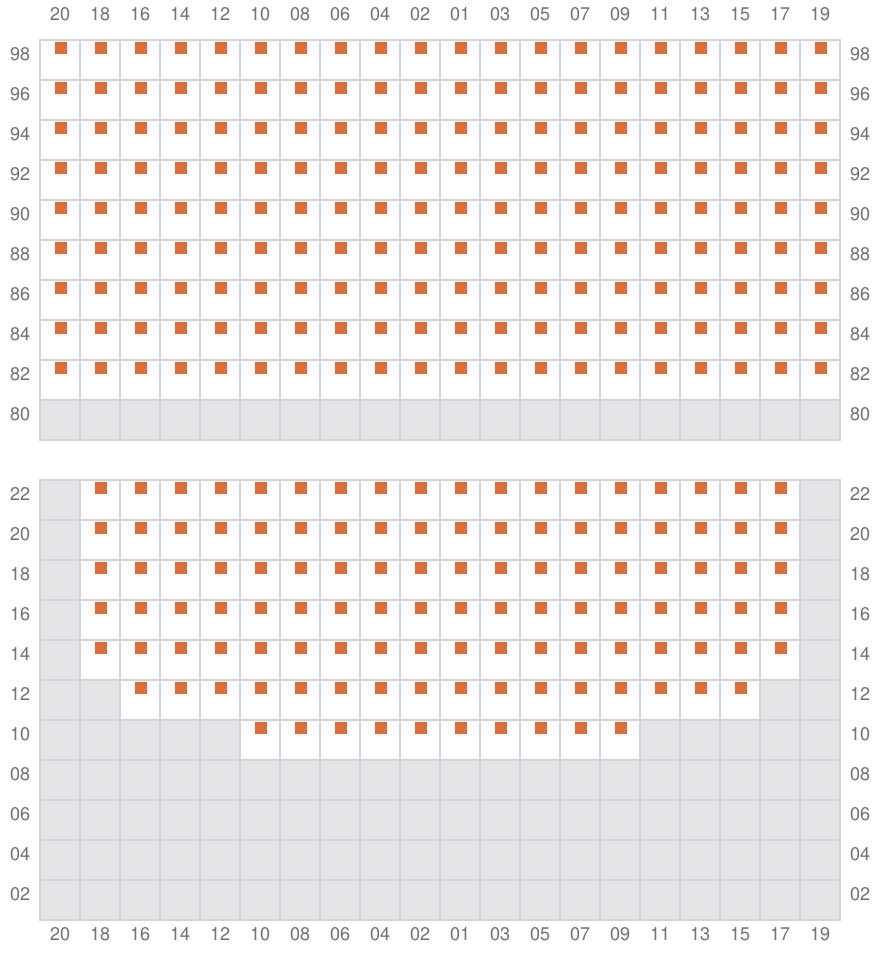

Bay 079 view and slots of CMA CGM LAPEROUSE

081 (082)

  • →
Bay 081 view and slots of CMA CGM LAPEROUSE

083

  • ←

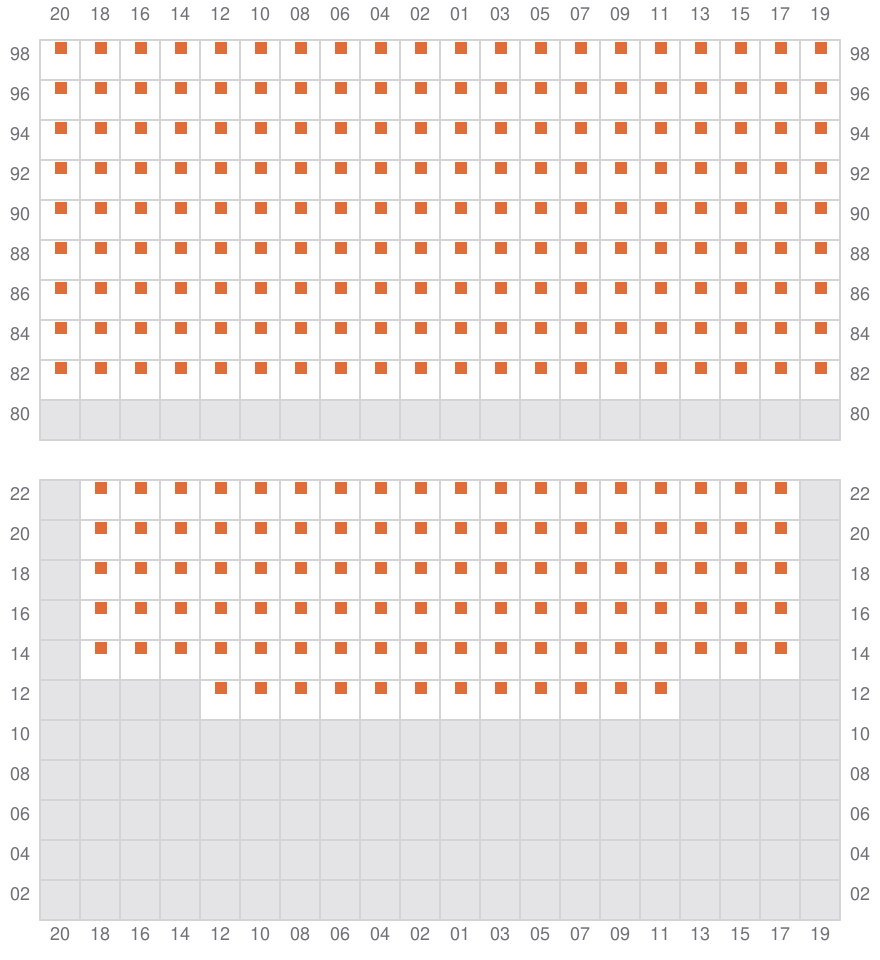

Bay 083 view and slots of CMA CGM LAPEROUSE

085 (086)

  • → / ?

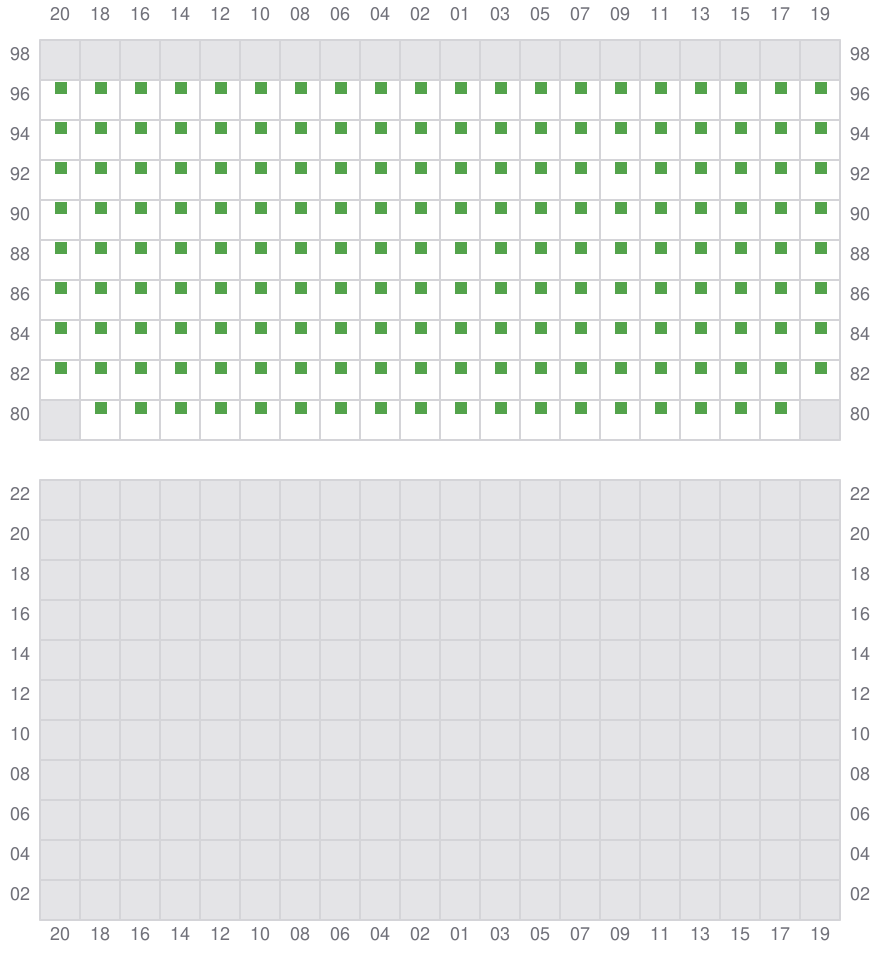

Bay 085 view and slots of CMA CGM LAPEROUSE
