CMA CGM LIBRA
9399193 | 9HA2021 | CMA by *********************** Last update: Tue Jan 28 2025

General Info

Ship Name:CMA CGM LIBRA
IMO Code:9399193
Call Sign:9HA2021
Line Operator:CMA
Class Name for Sister Ships:CGLI
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):348.00
LOA (Length Overall):363.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:11,388

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

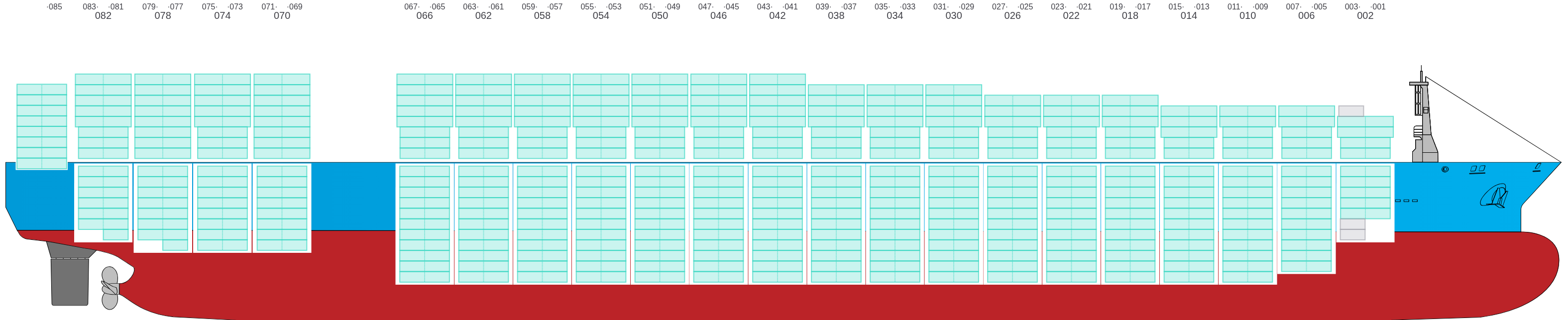

Side View

Side view of CMA CGM LIBRA

Hatch-Covers View

Deck view of CMA CGM LIBRA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →
Bay 001 view and slots of CMA CGM LIBRA

003

  • ←
  • →
Bay 003 view and slots of CMA CGM LIBRA

005 (006)

  • →
  • →
Bay 005 view and slots of CMA CGM LIBRA

007

  • ←
  • →

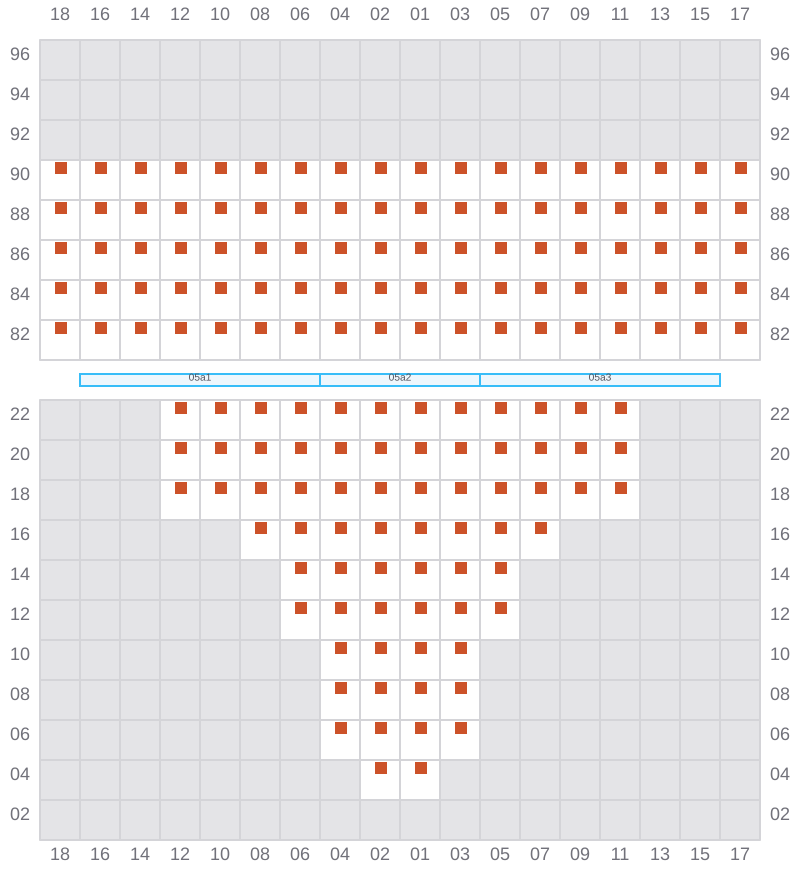

Bay 007 view and slots of CMA CGM LIBRA

009 (010)

  • →
  • → / ?
  • →
Bay 009 view and slots of CMA CGM LIBRA

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of CMA CGM LIBRA

013 (014)

  • →
  • → / ?
  • →
Bay 013 view and slots of CMA CGM LIBRA

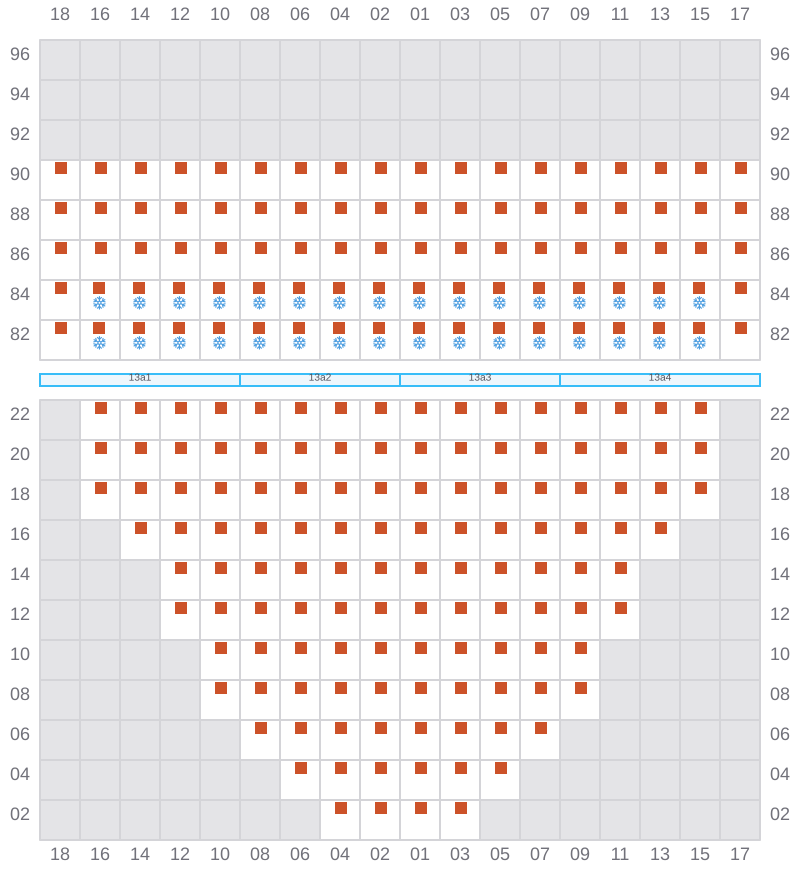

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of CMA CGM LIBRA

017 (018)

  • →
  • → / ?
  • →
Bay 017 view and slots of CMA CGM LIBRA

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of CMA CGM LIBRA

021 (022)

  • →
  • → / ?
  • →
Bay 021 view and slots of CMA CGM LIBRA

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of CMA CGM LIBRA

025 (026)

  • →
  • → / ?
  • →
Bay 025 view and slots of CMA CGM LIBRA

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of CMA CGM LIBRA

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of CMA CGM LIBRA

031

  • ←
  • → / ?
  • →
Bay 031 view and slots of CMA CGM LIBRA

033 (034)

  • →
  • → / ?
  • →
Bay 033 view and slots of CMA CGM LIBRA

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of CMA CGM LIBRA

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of CMA CGM LIBRA

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of CMA CGM LIBRA

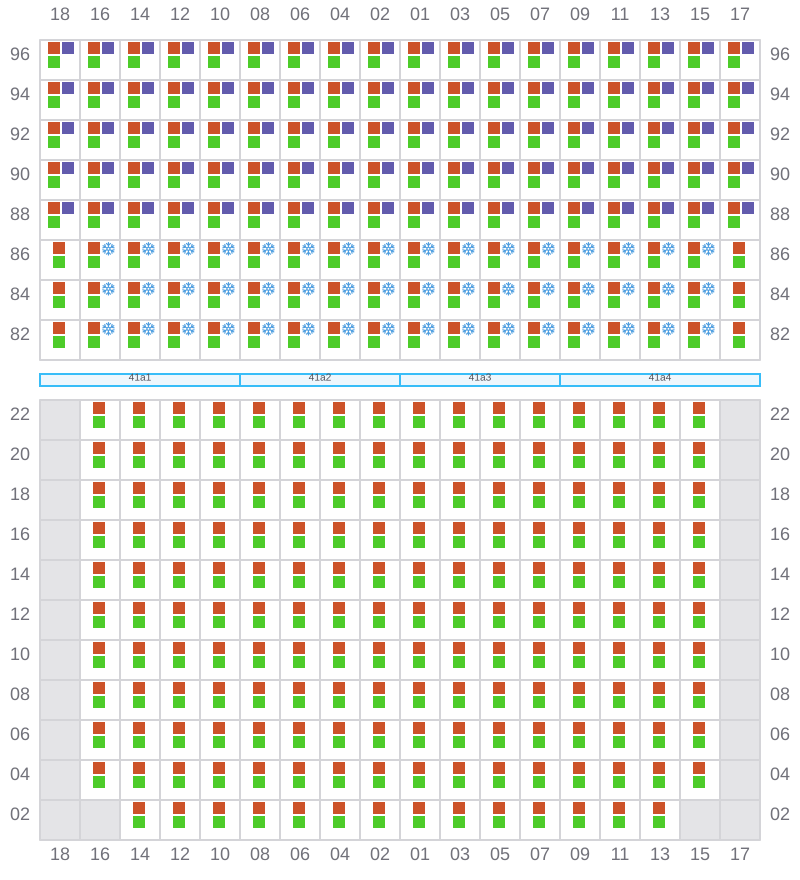

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of CMA CGM LIBRA

043

  • ←
  • → / ?
  • →

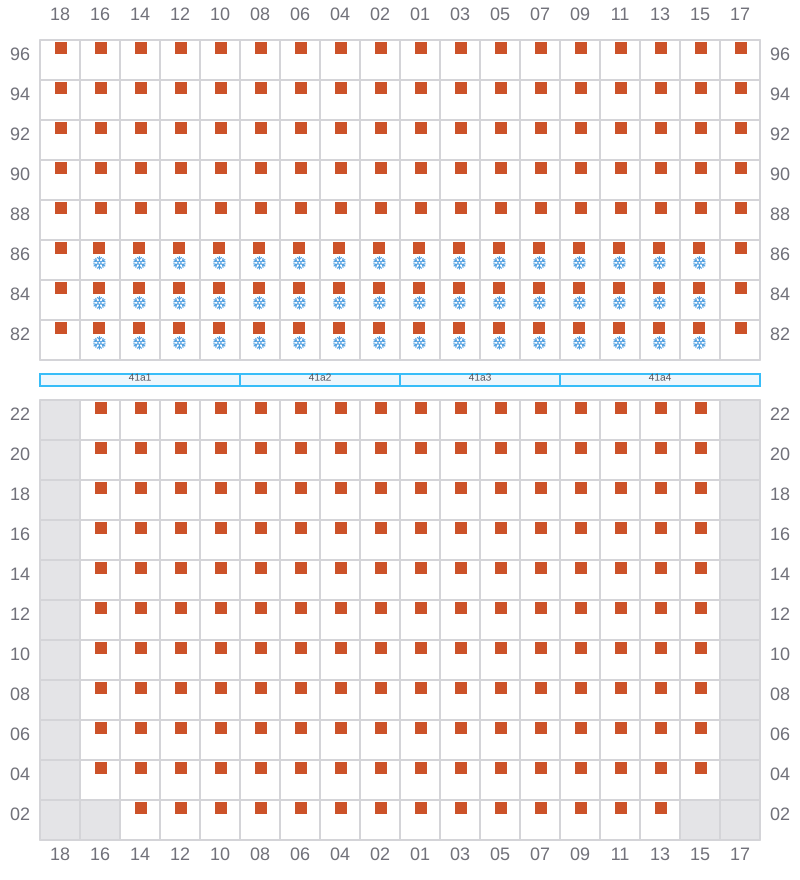

Bay 043 view and slots of CMA CGM LIBRA

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of CMA CGM LIBRA

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of CMA CGM LIBRA

049 (050)

  • →
  • → / ?
  • →
Bay 049 view and slots of CMA CGM LIBRA

051

  • ←
  • → / ?
  • →

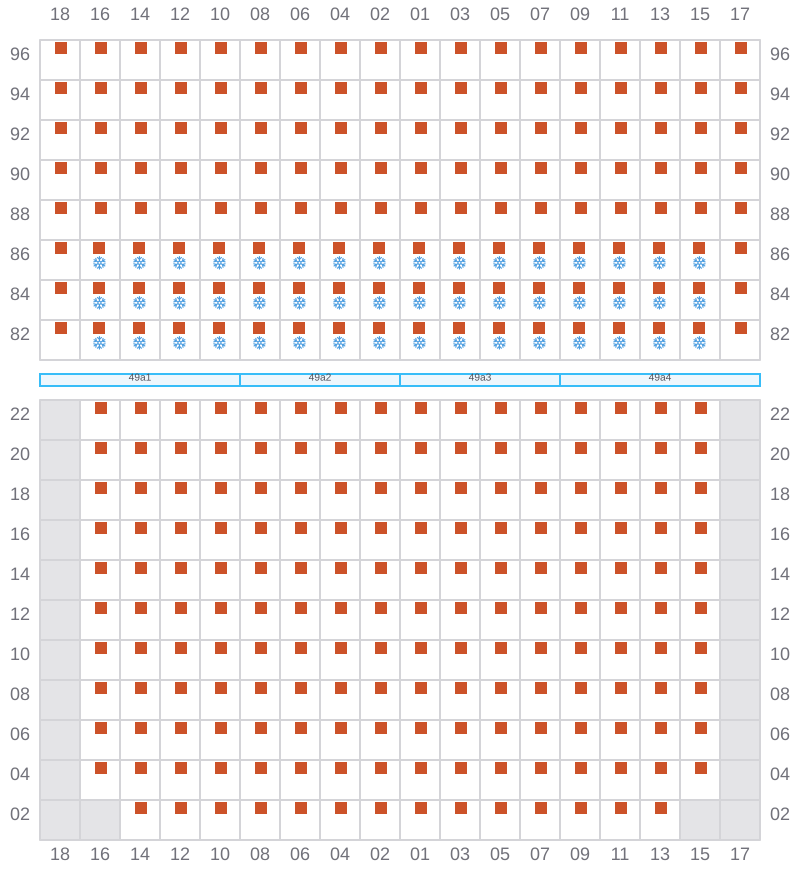

Bay 051 view and slots of CMA CGM LIBRA

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of CMA CGM LIBRA

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of CMA CGM LIBRA

057 (058)

  • →
  • → / ?
  • →
Bay 057 view and slots of CMA CGM LIBRA

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of CMA CGM LIBRA

061 (062)

  • →
  • → / ?
  • →
Bay 061 view and slots of CMA CGM LIBRA

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of CMA CGM LIBRA

065 (066)

  • →
  • → / ?
  • →
Bay 065 view and slots of CMA CGM LIBRA

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of CMA CGM LIBRA

069 (070)

  • →
  • → / ?
  • →
Bay 069 view and slots of CMA CGM LIBRA

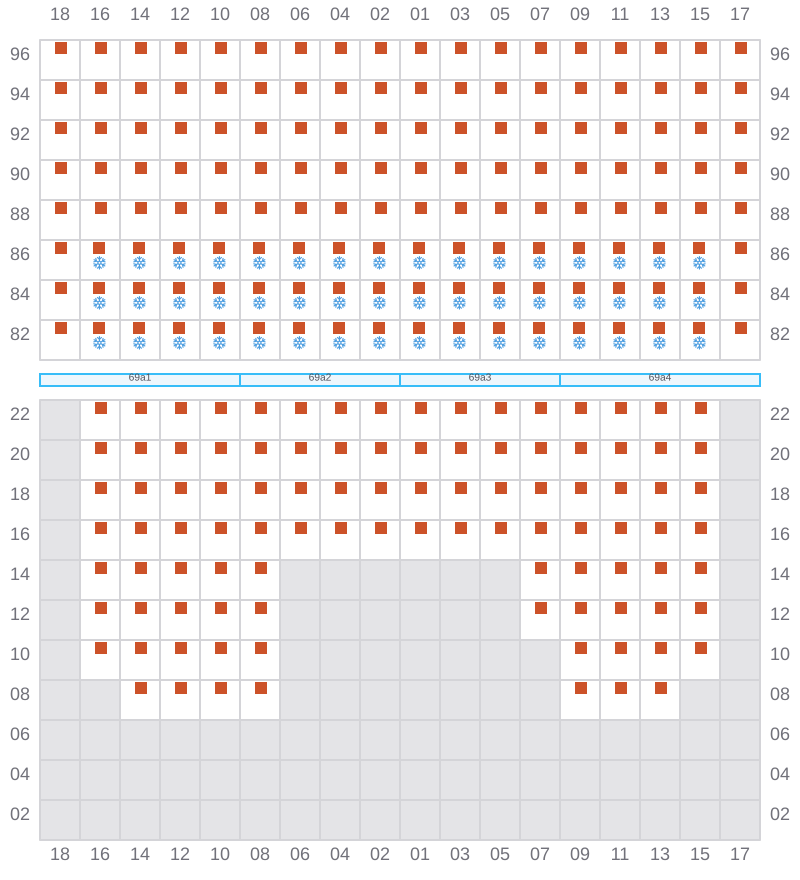

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of CMA CGM LIBRA

073 (074)

  • →
  • → / ?
  • →
Bay 073 view and slots of CMA CGM LIBRA

075

  • ←
  • → / ?
  • →
Bay 075 view and slots of CMA CGM LIBRA

077 (078)

  • →
  • → / ?
  • →
Bay 077 view and slots of CMA CGM LIBRA

079

  • ←
  • → / ?
  • →
Bay 079 view and slots of CMA CGM LIBRA

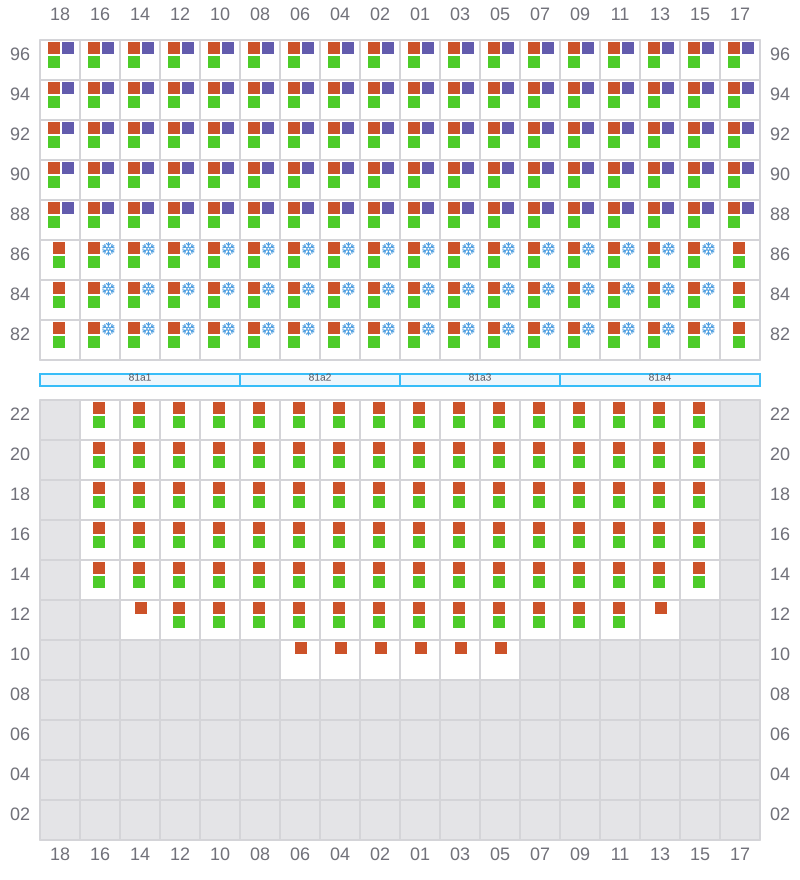

081 (082)

  • →
  • → / ?
  • →
Bay 081 view and slots of CMA CGM LIBRA

083

  • ←
  • → / ?
  • →
Bay 083 view and slots of CMA CGM LIBRA

085 (086)

  • → / ?
  • ← / ?
  • → / ?
Bay 085 view and slots of CMA CGM LIBRA
