CMA CGM LIBRA
9399193 | 9HA2021 | 9399193 by ********* Last update: Tue Apr 09 2024
General Info
Ship Name:CMA CGM LIBRA
IMO Code:9399193
Call Sign:9HA2021
Line Operator:9399193
Class Name for Sister Ships:CMA
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:11,426
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

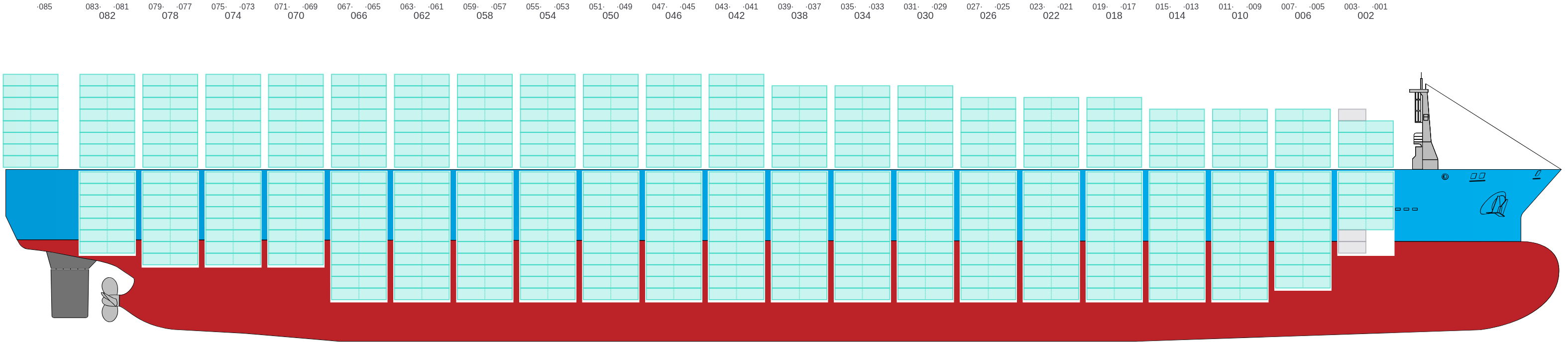

Side View
![Side view of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-sideView.png?v=1712690229675)

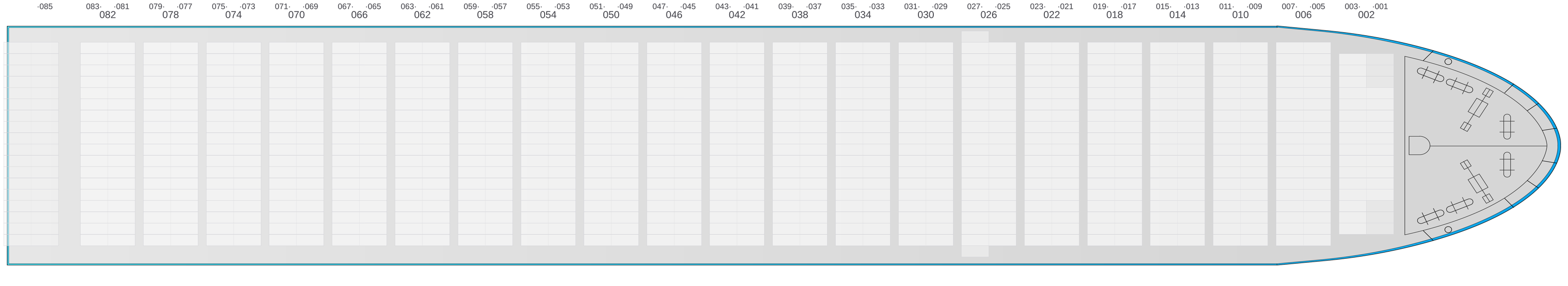

Hatch-Covers View
![Deck view of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-deckView.png?v=1712690229675)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

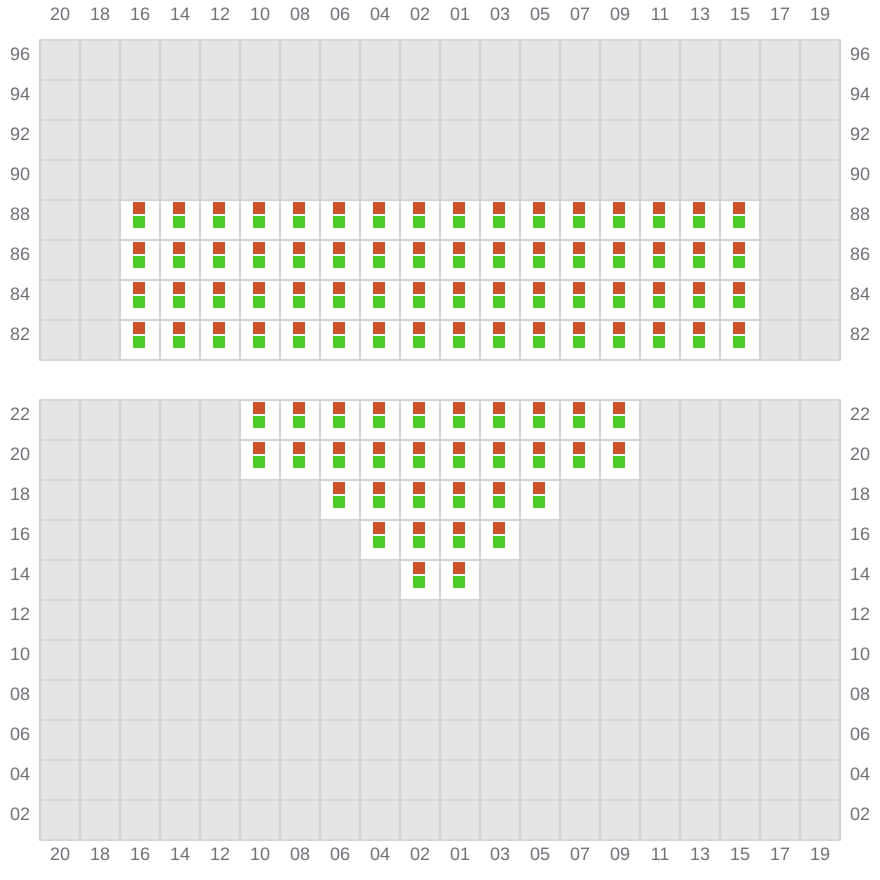

001 (002)
- →
![Bay 001 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b001.png?v=1712690229675)

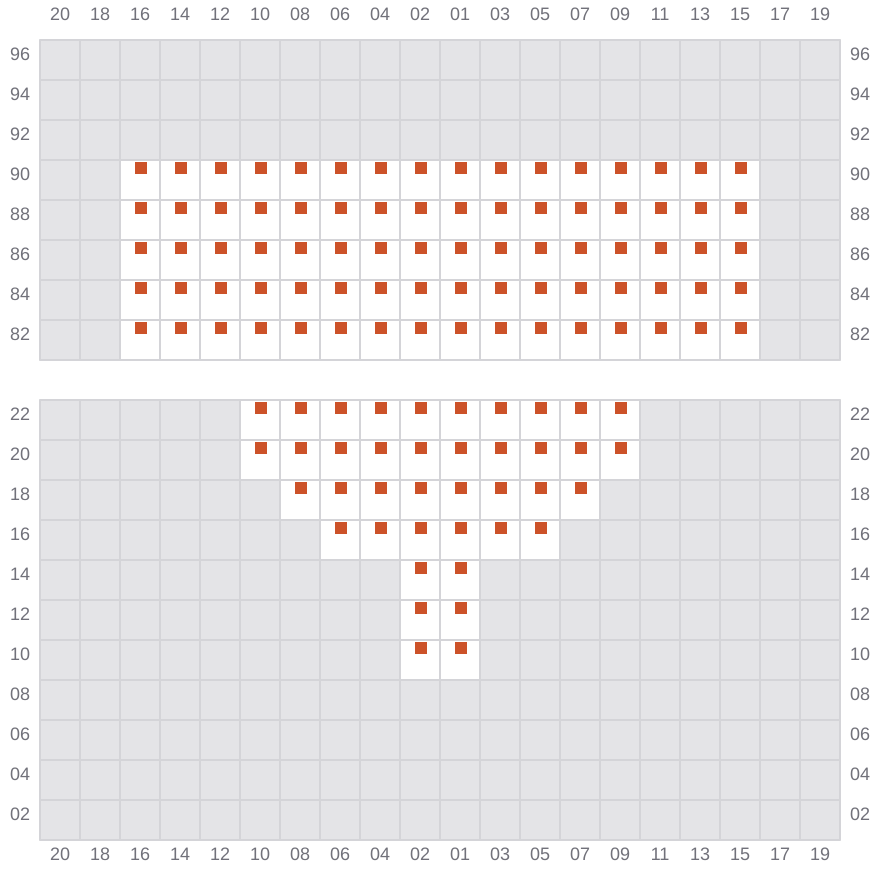

003
- ←
![Bay 003 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b003.png?v=1712690229675)

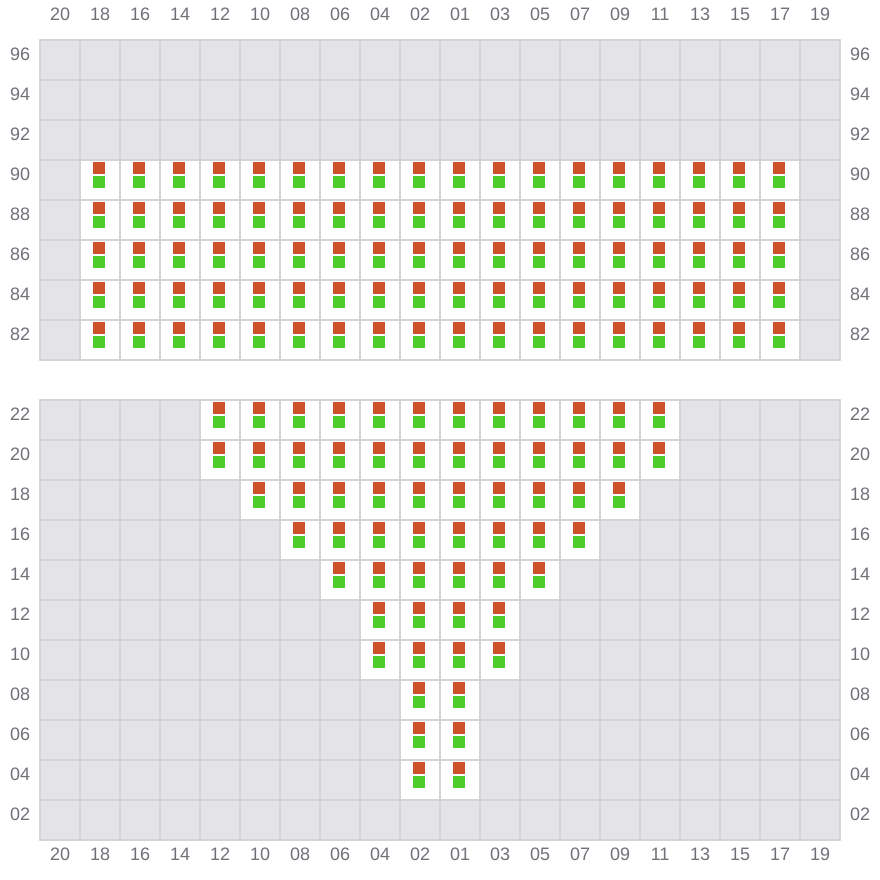

005 (006)
- →
![Bay 005 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b005.png?v=1712690229675)

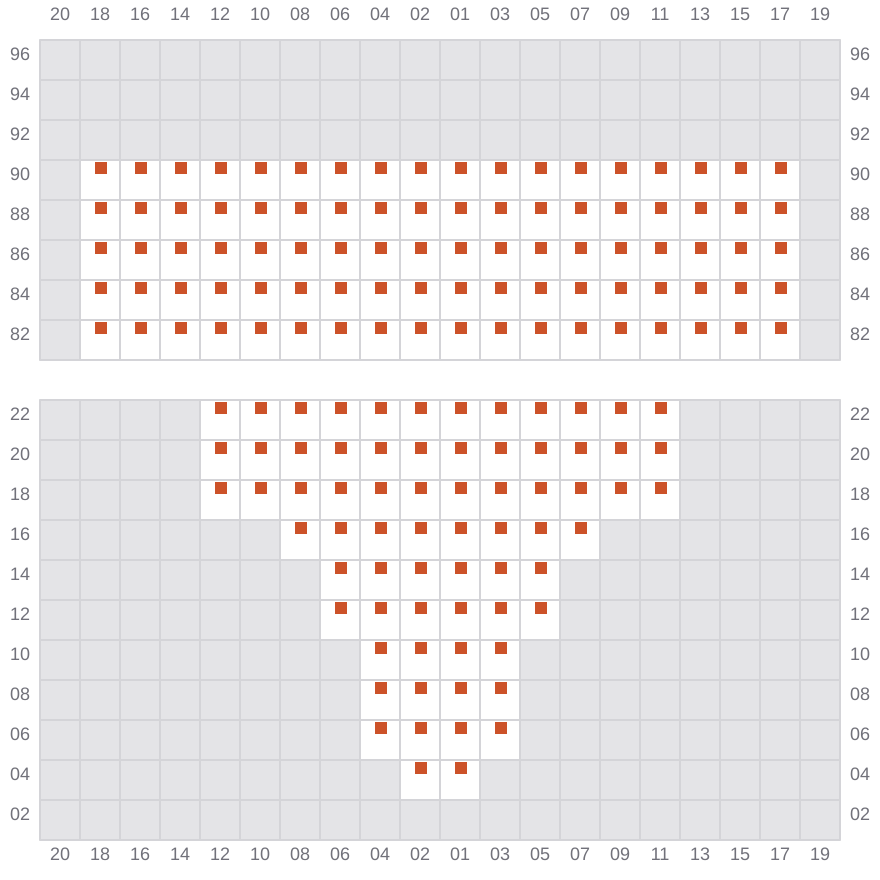

007
- ←
![Bay 007 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b007.png?v=1712690229675)

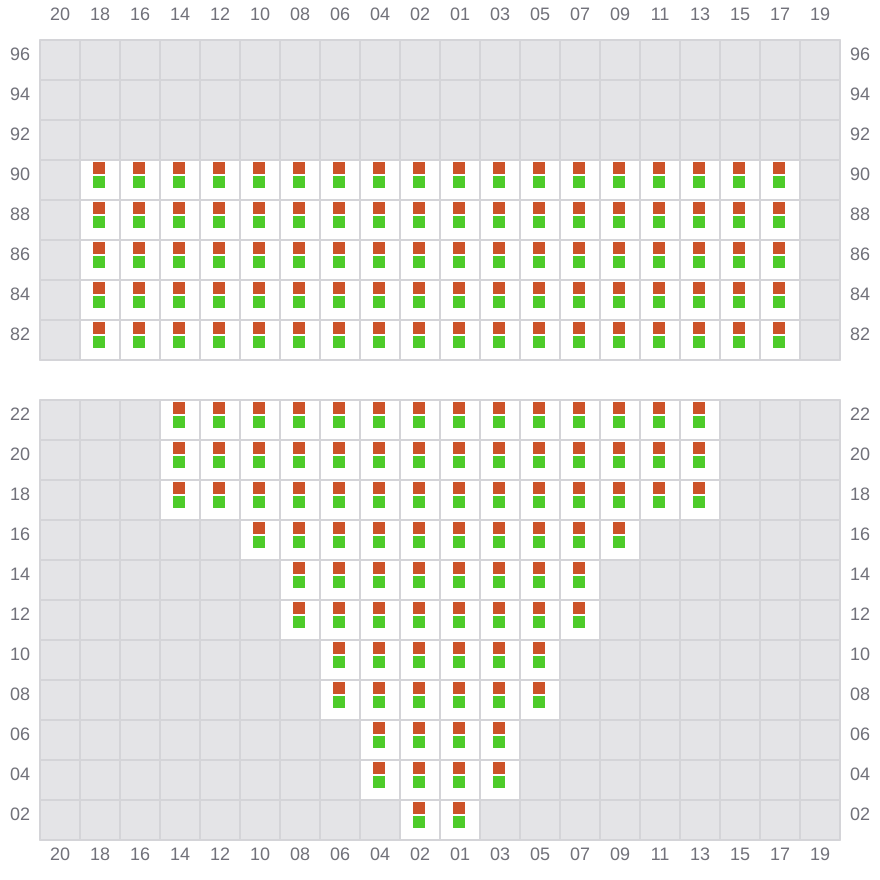

009 (010)
- →
![Bay 009 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b009.png?v=1712690229675)

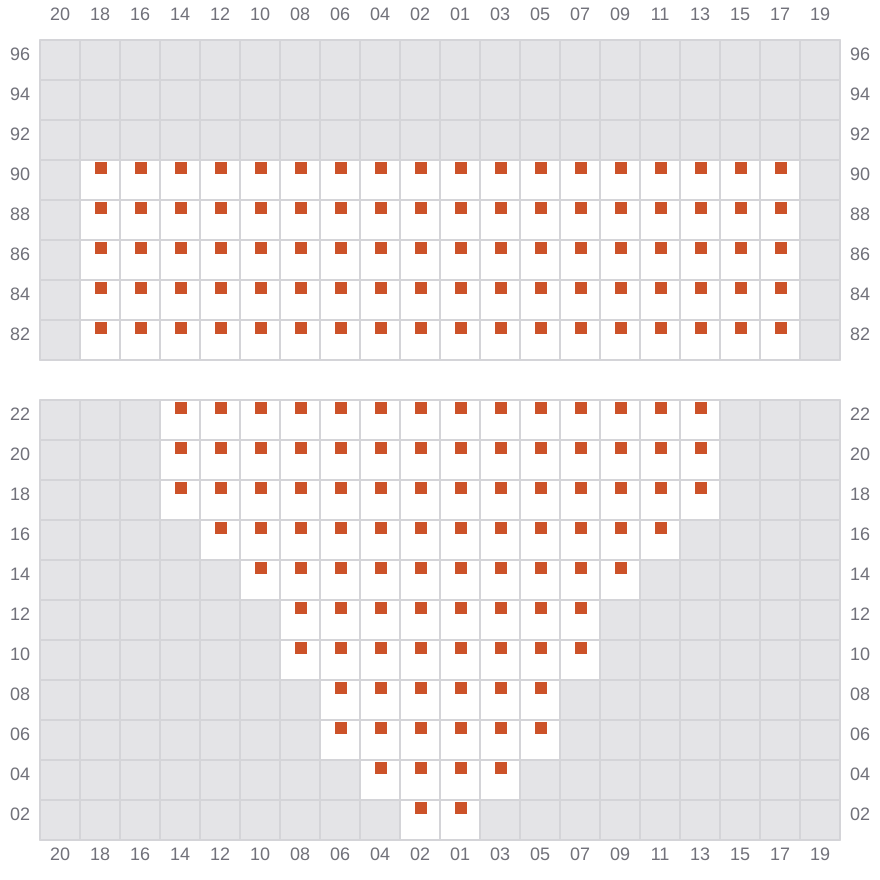

011
- ←
![Bay 011 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b011.png?v=1712690229675)

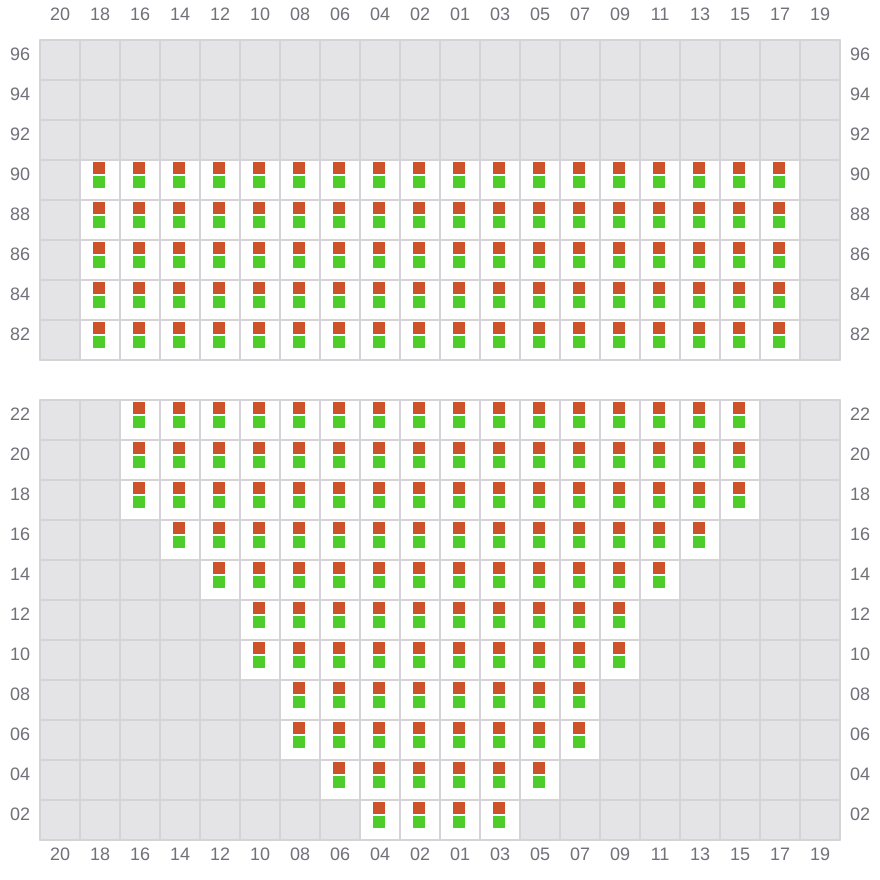

013 (014)
- →
![Bay 013 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b013.png?v=1712690229675)

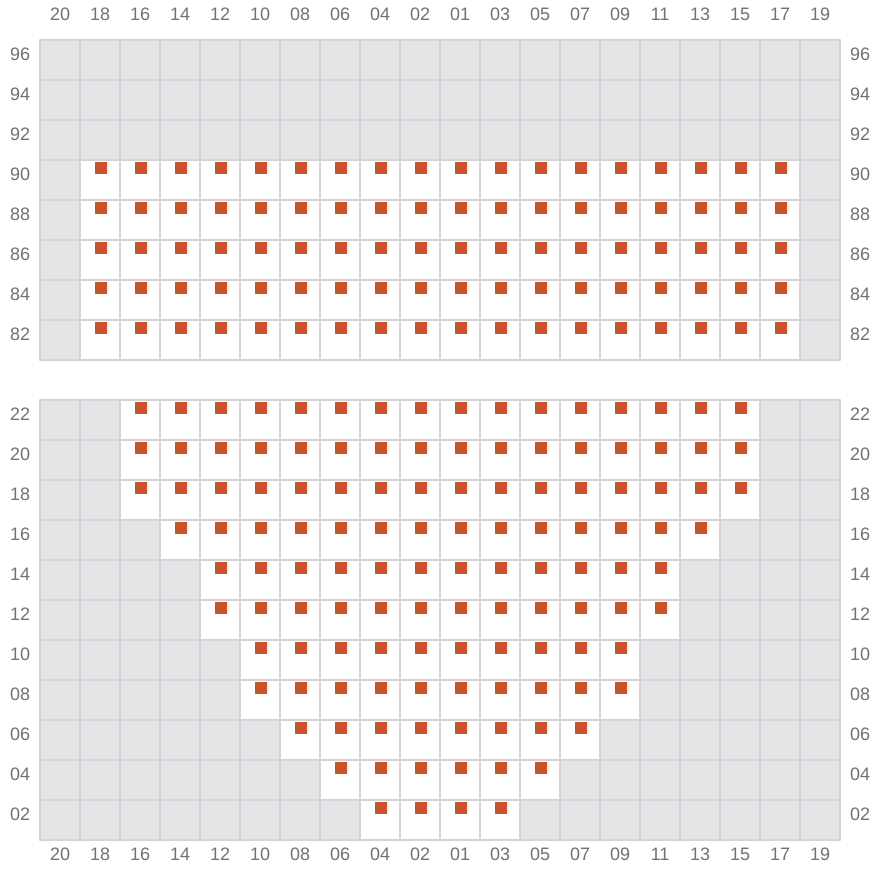

015
- ←
![Bay 015 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b015.png?v=1712690229675)

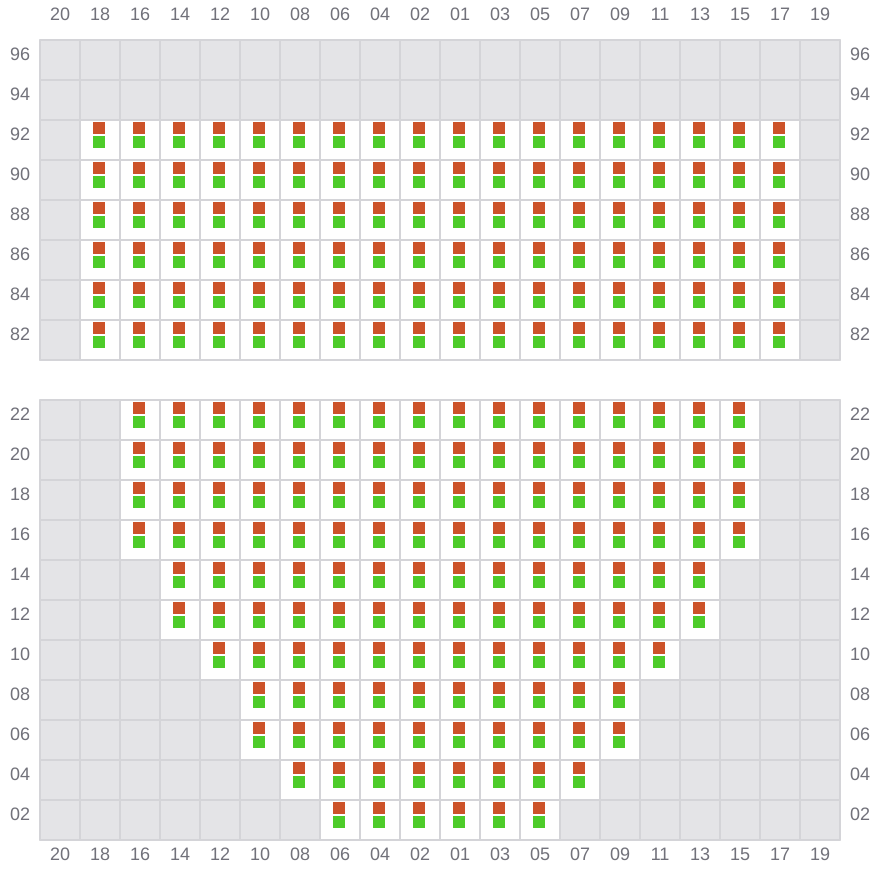

017 (018)
- →
![Bay 017 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b017.png?v=1712690229675)

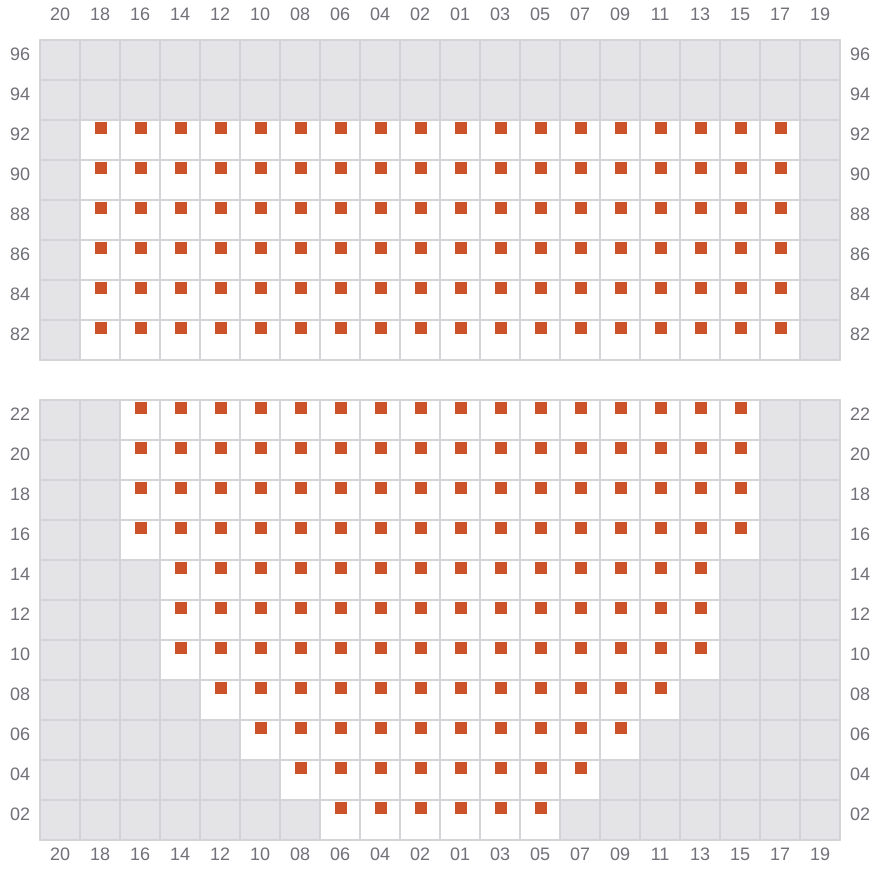

019
- ←
![Bay 019 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b019.png?v=1712690229675)

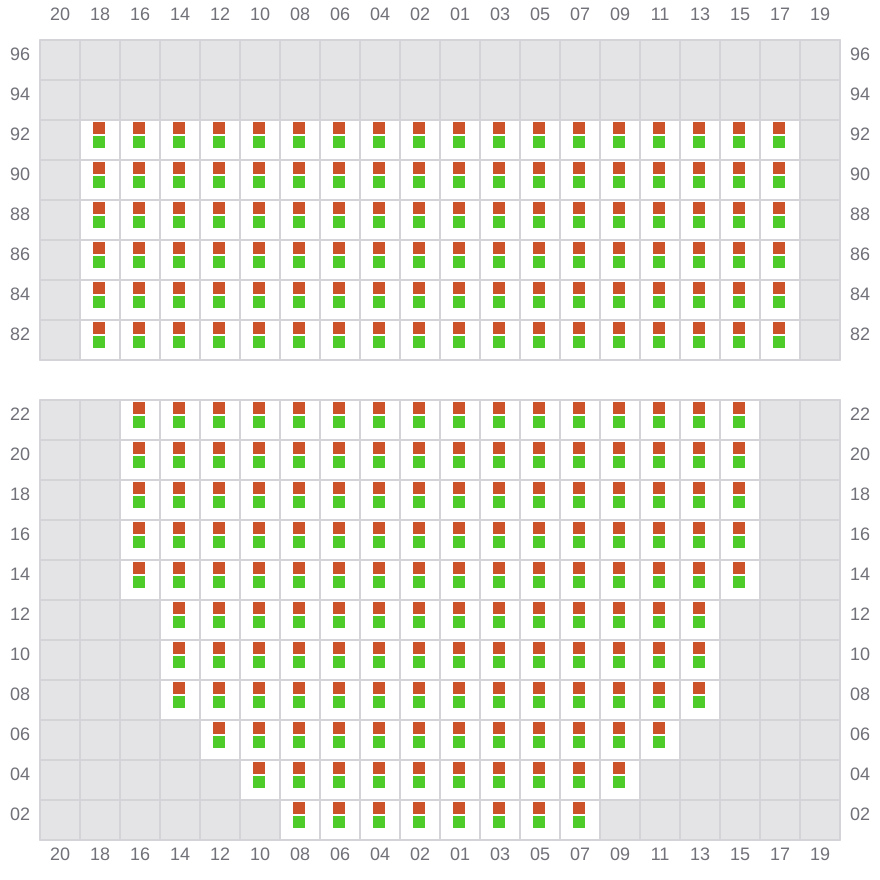

021 (022)
- →
![Bay 021 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b021.png?v=1712690229675)

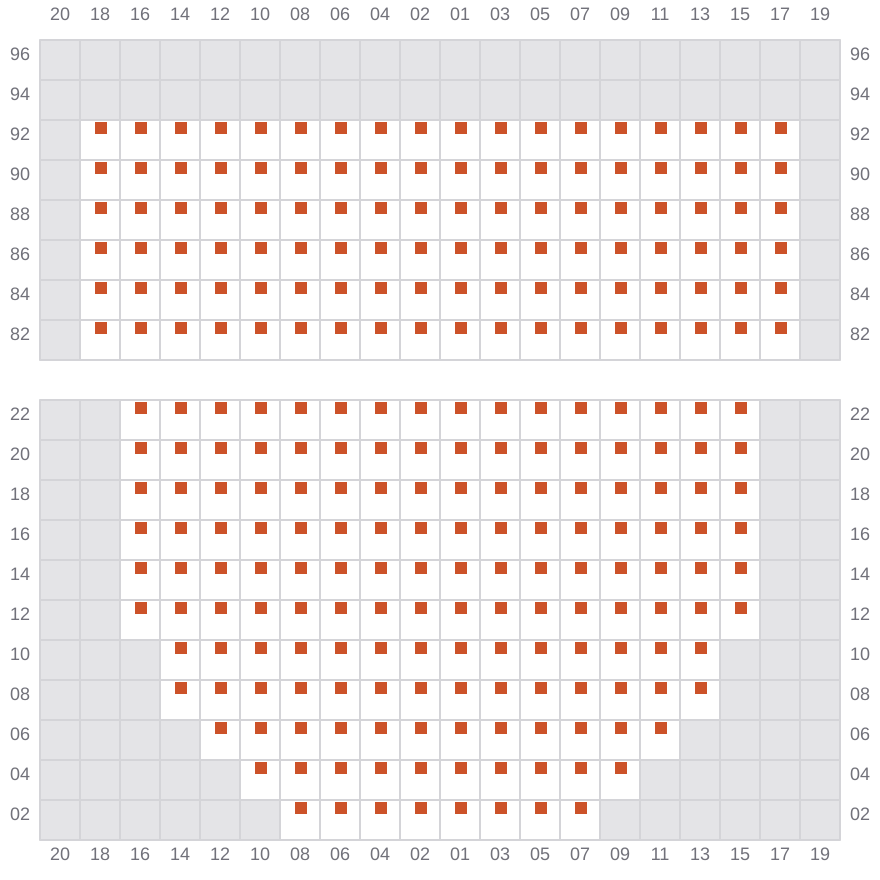

023
- ←
![Bay 023 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b023.png?v=1712690229675)
025 (026)
- →
![Bay 025 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b025.png?v=1712690229675)

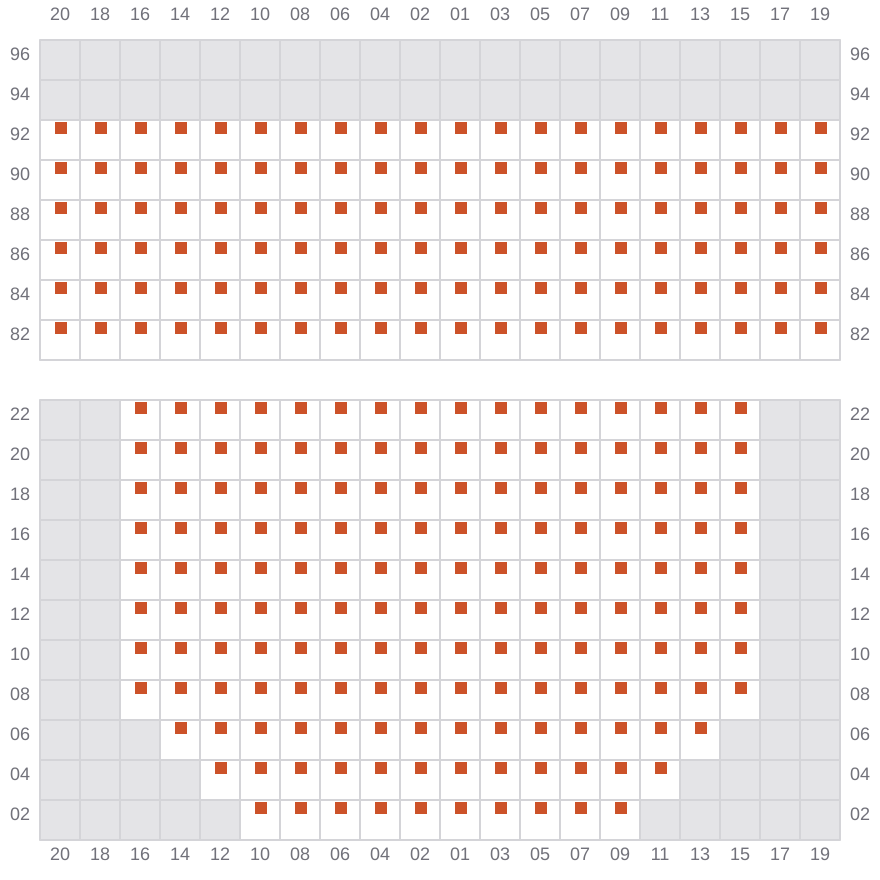

027
- ←
![Bay 027 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b027.png?v=1712690229675)

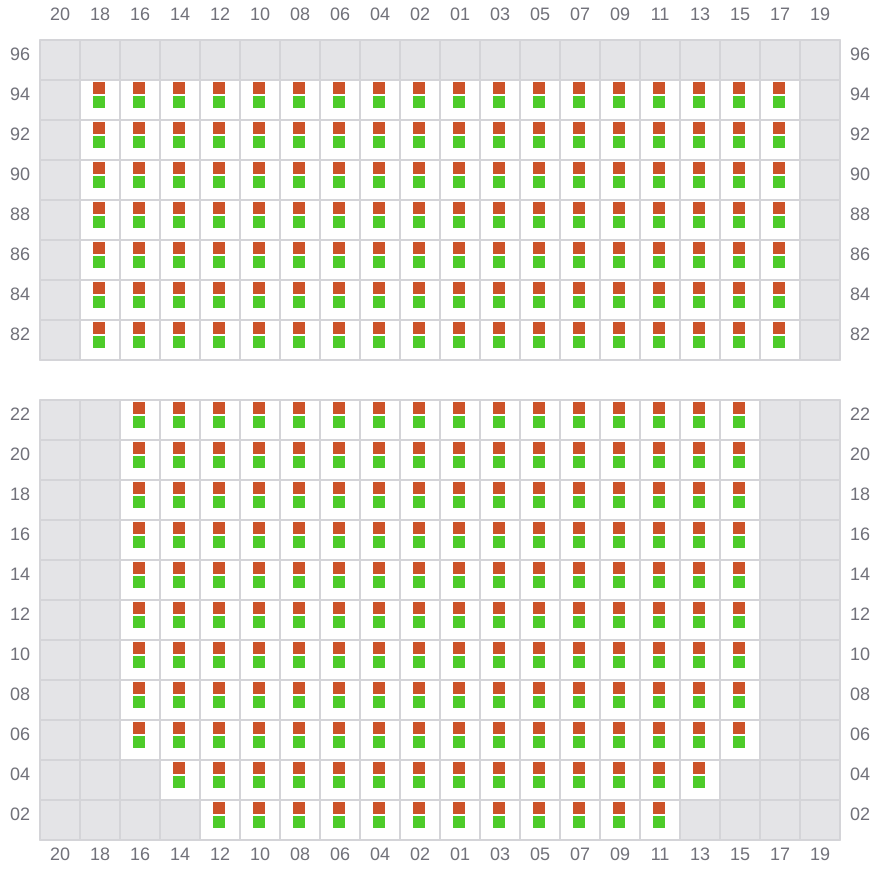

029 (030)
- →
![Bay 029 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b029.png?v=1712690229675)
031
- ←
![Bay 031 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b031.png?v=1712690229675)

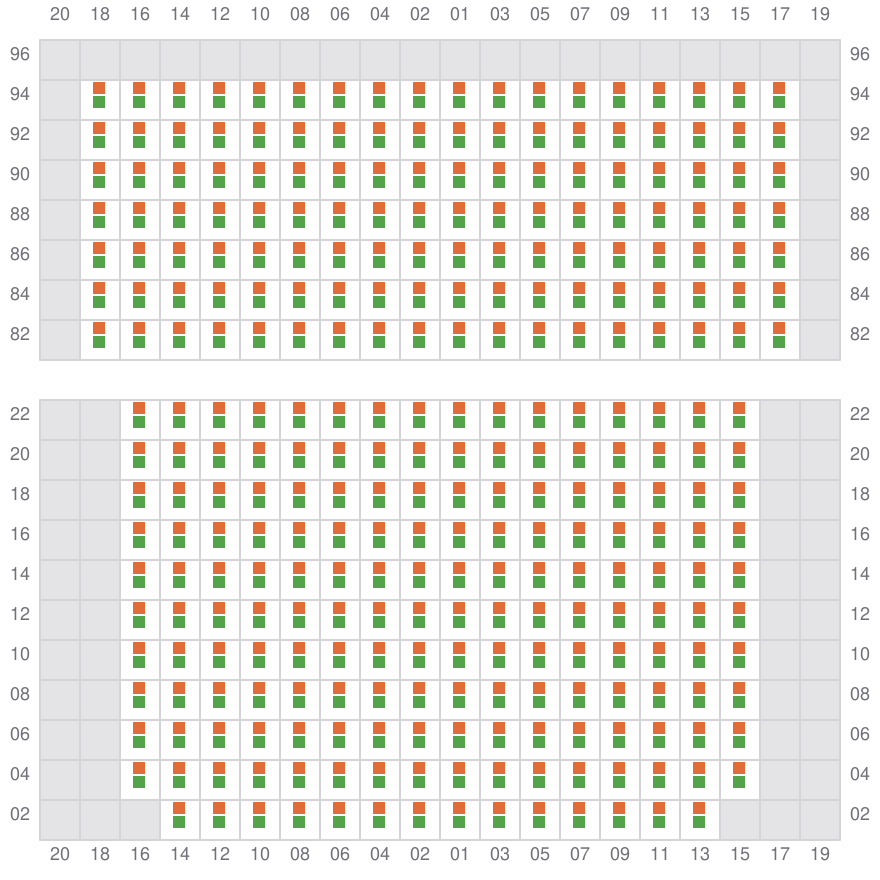

033 (034)
- →
![Bay 033 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b033.png?v=1712690229675)

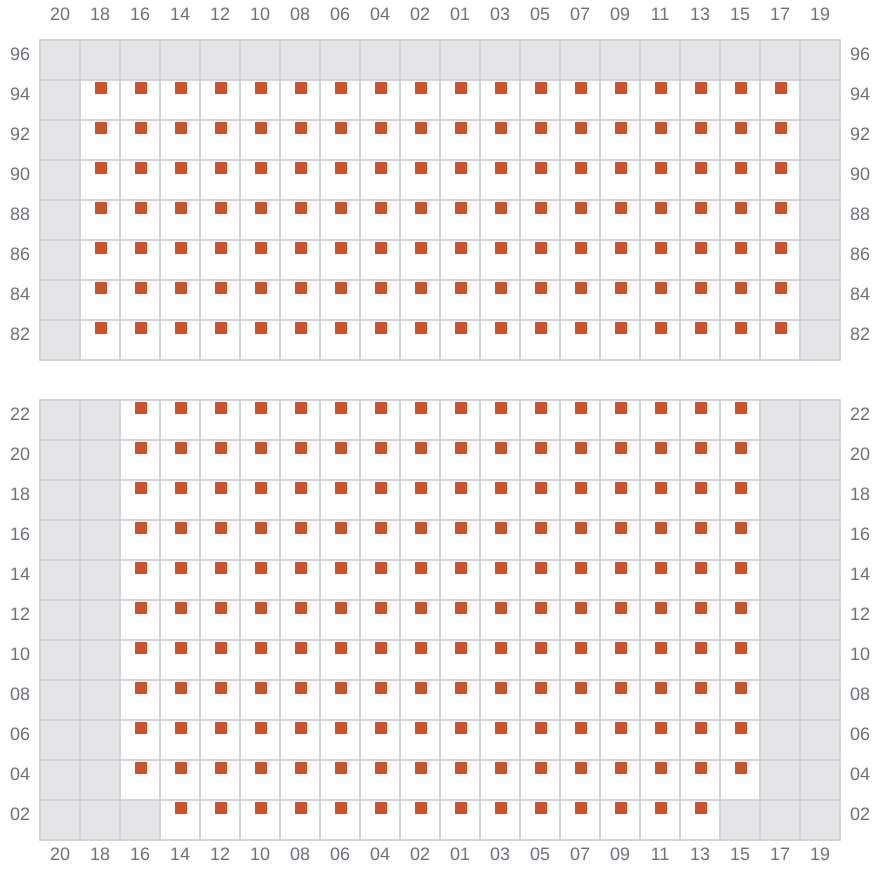

035
- ←
![Bay 035 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b035.png?v=1712690229675)

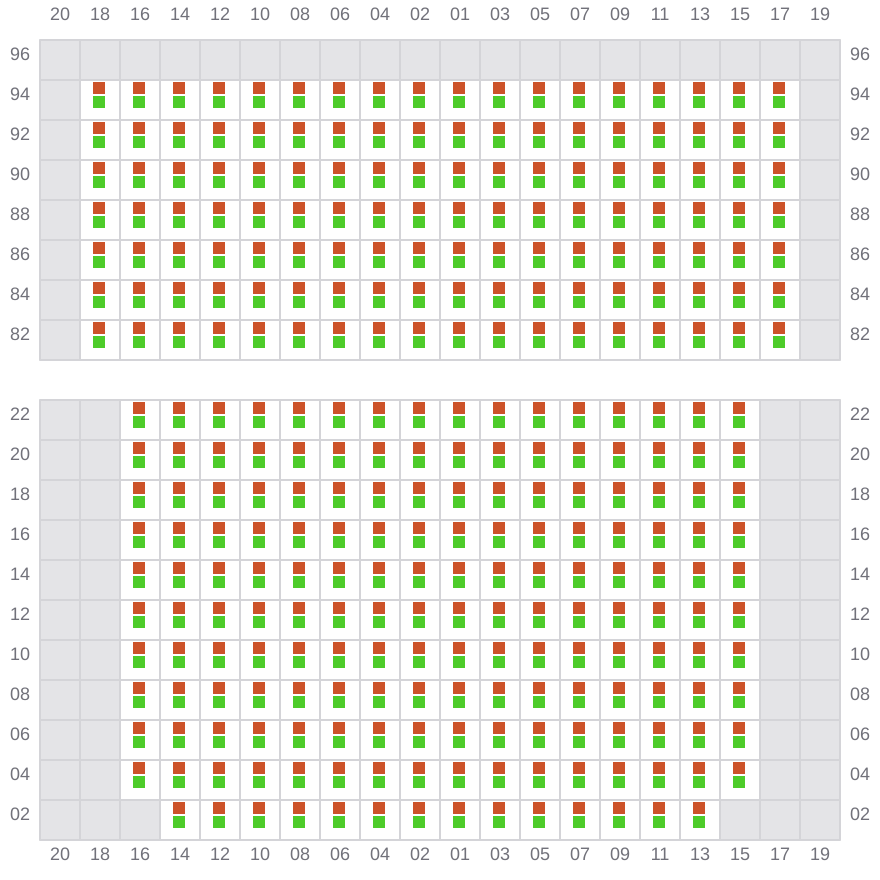

037 (038)
- →
![Bay 037 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b037.png?v=1712690229675)
039
- ←
![Bay 039 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b039.png?v=1712690229675)

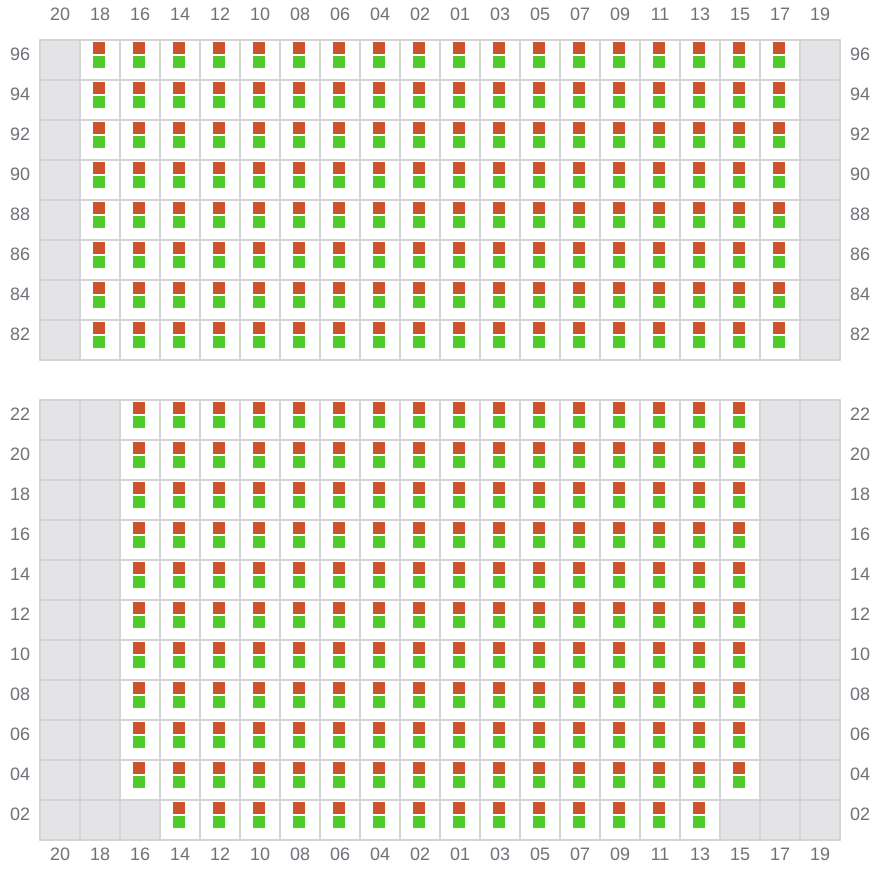

041 (042)
- →
![Bay 041 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b041.png?v=1712690229675)
043
- ←
![Bay 043 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b043.png?v=1712690229675)
045 (046)
- →
![Bay 045 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b045.png?v=1712690229675)

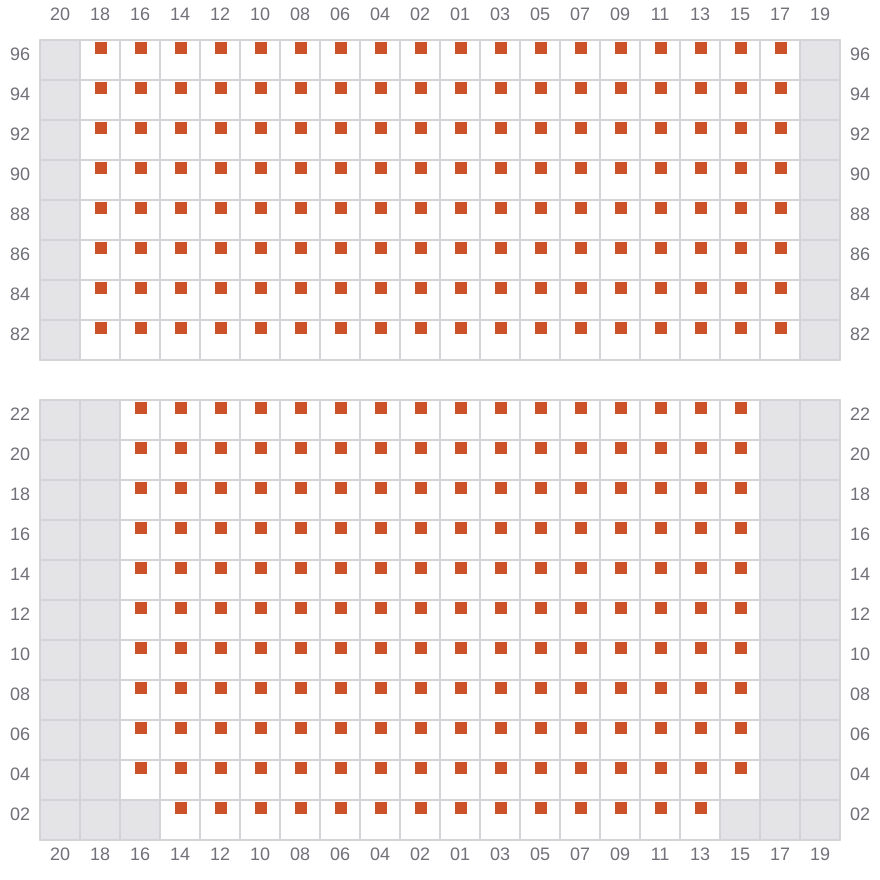

047
- ←
![Bay 047 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b047.png?v=1712690229675)
049 (050)
- →
![Bay 049 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b049.png?v=1712690229675)
051
- ←
![Bay 051 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b051.png?v=1712690229675)
053 (054)
- →
![Bay 053 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b053.png?v=1712690229675)

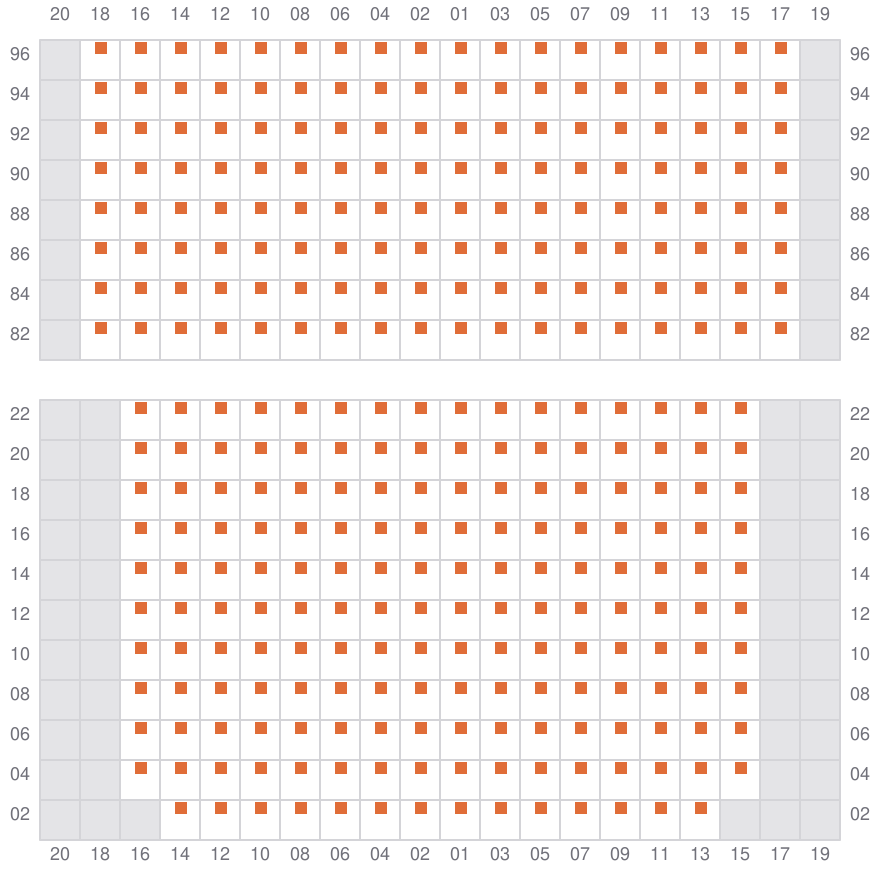

055
- ←
![Bay 055 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b055.png?v=1712690229675)
057 (058)
- →
![Bay 057 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b057.png?v=1712690229675)
059
- ←
![Bay 059 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b059.png?v=1712690229675)

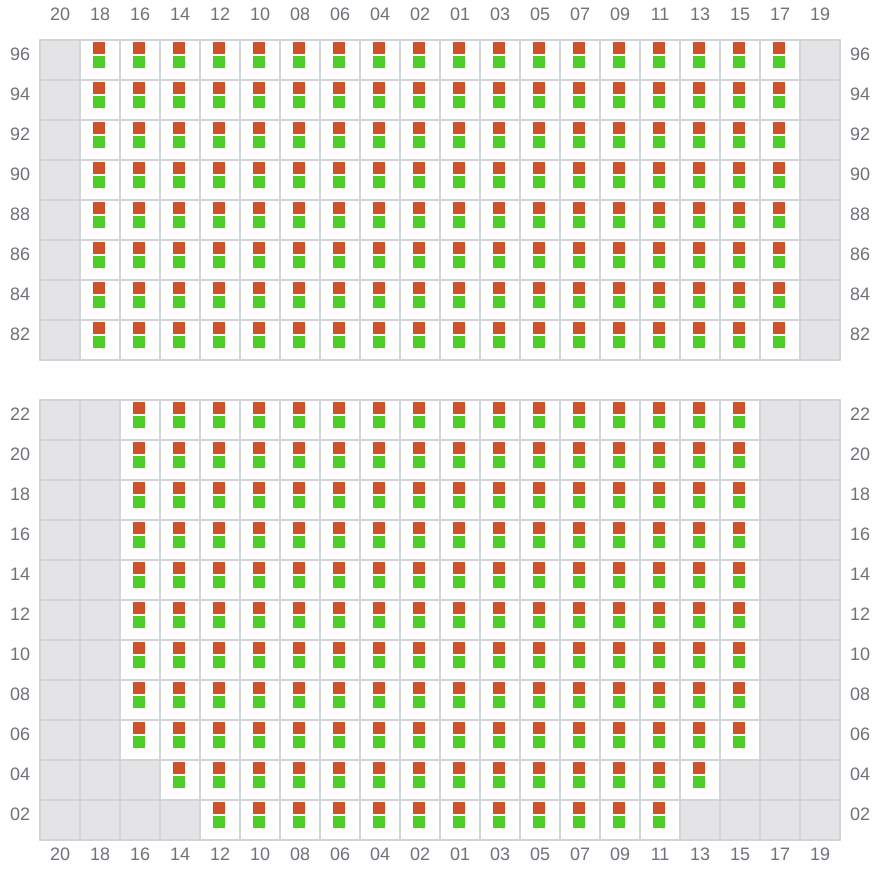

061 (062)
- →
![Bay 061 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b061.png?v=1712690229675)
063
- ←
![Bay 063 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b063.png?v=1712690229675)

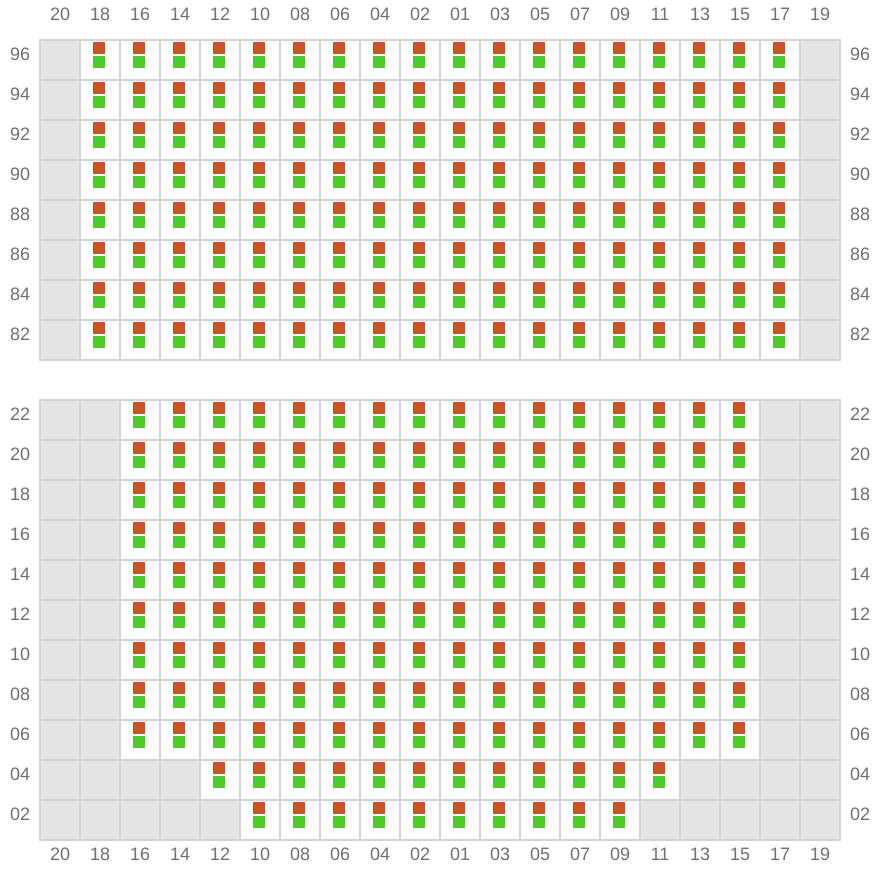

065 (066)
- →
![Bay 065 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b065.png?v=1712690229675)

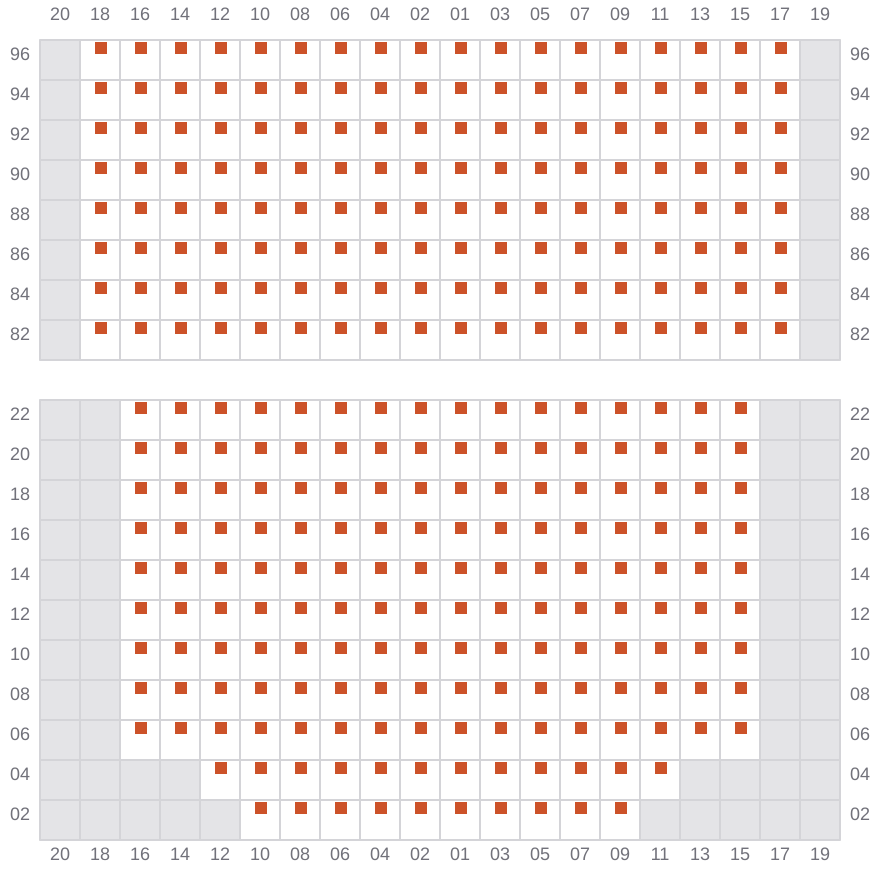

067
- ←
![Bay 067 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b067.png?v=1712690229675)

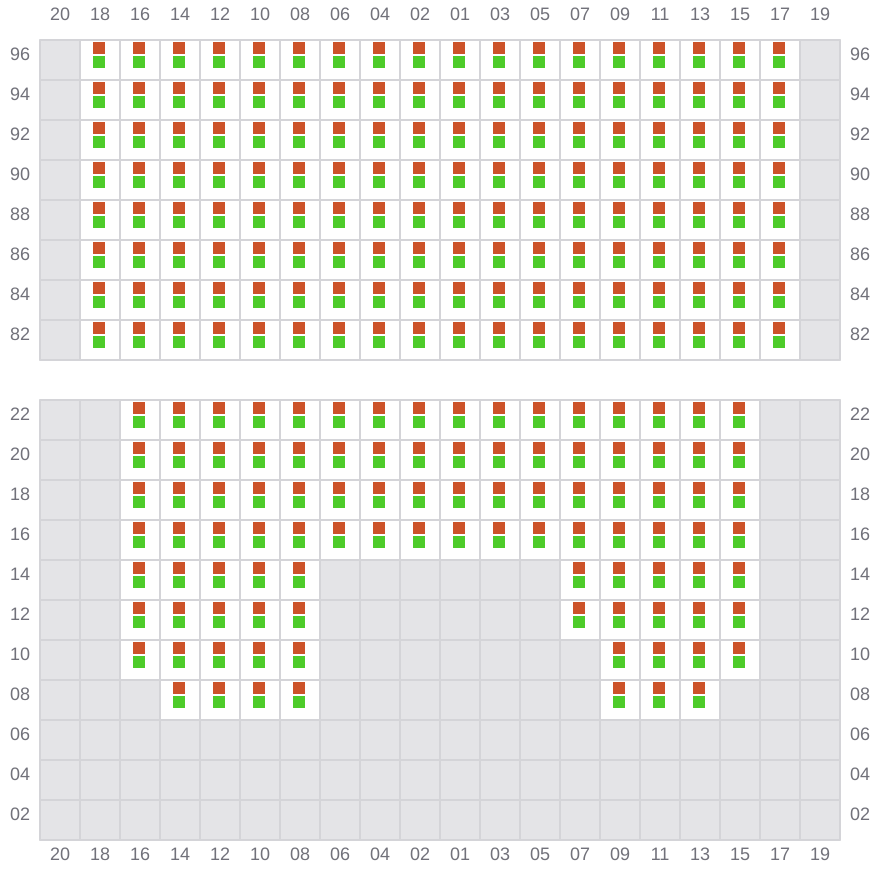

069 (070)
- →
![Bay 069 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b069.png?v=1712690229675)

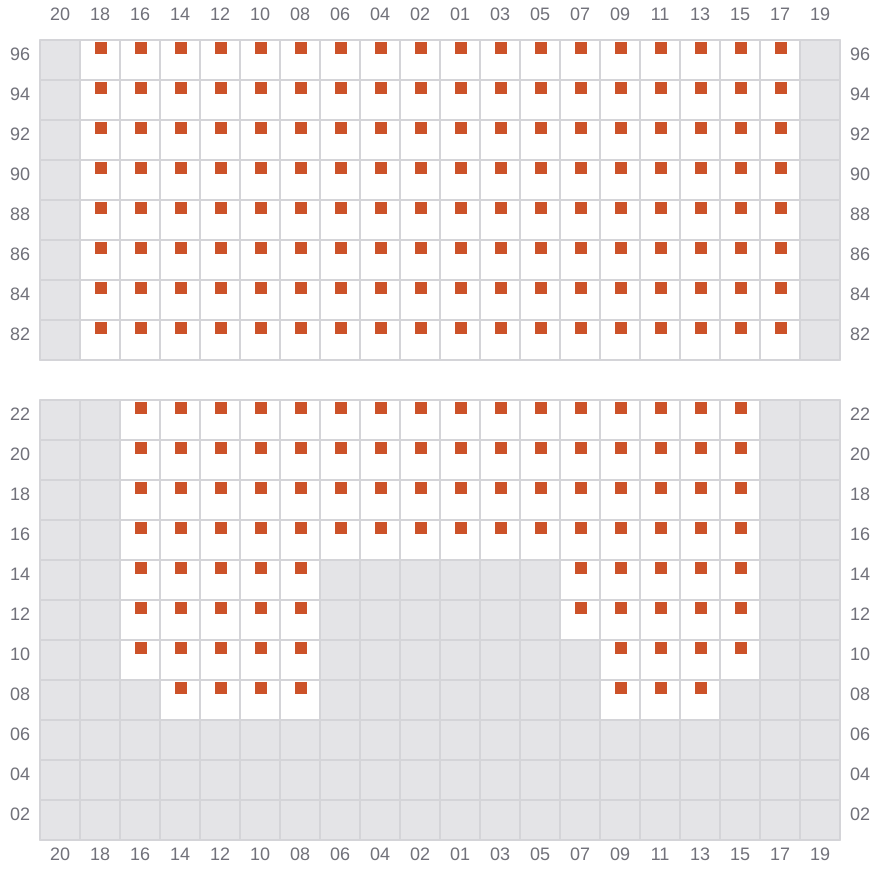

071
- ←
![Bay 071 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b071.png?v=1712690229675)

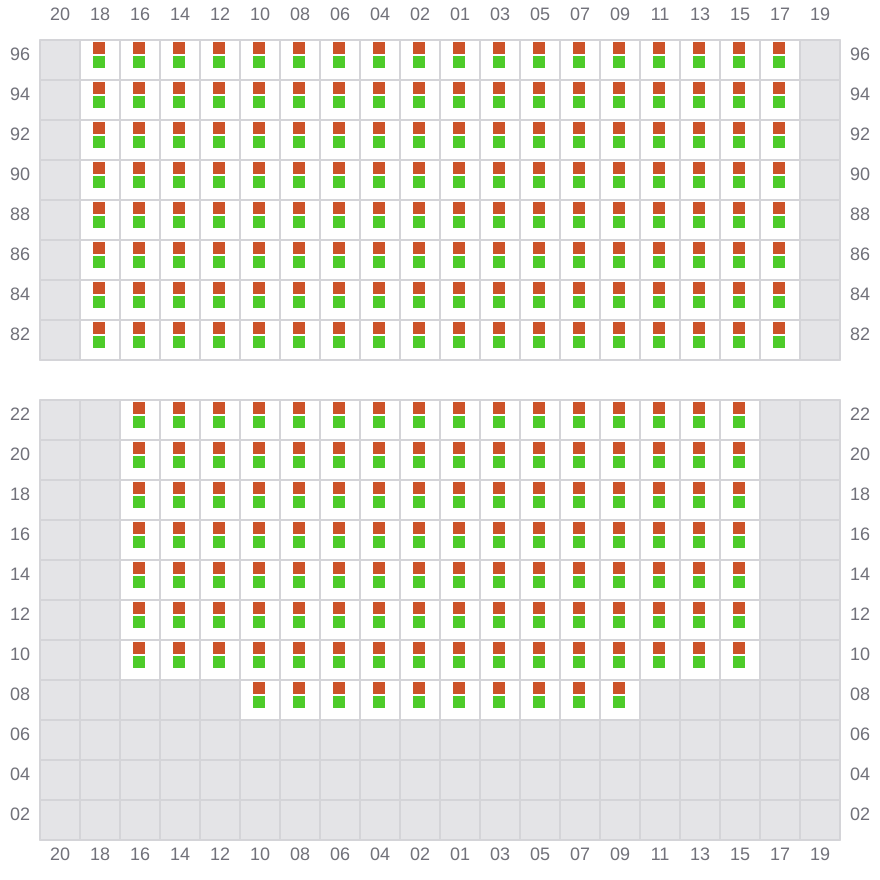

073 (074)
- →
![Bay 073 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b073.png?v=1712690229675)

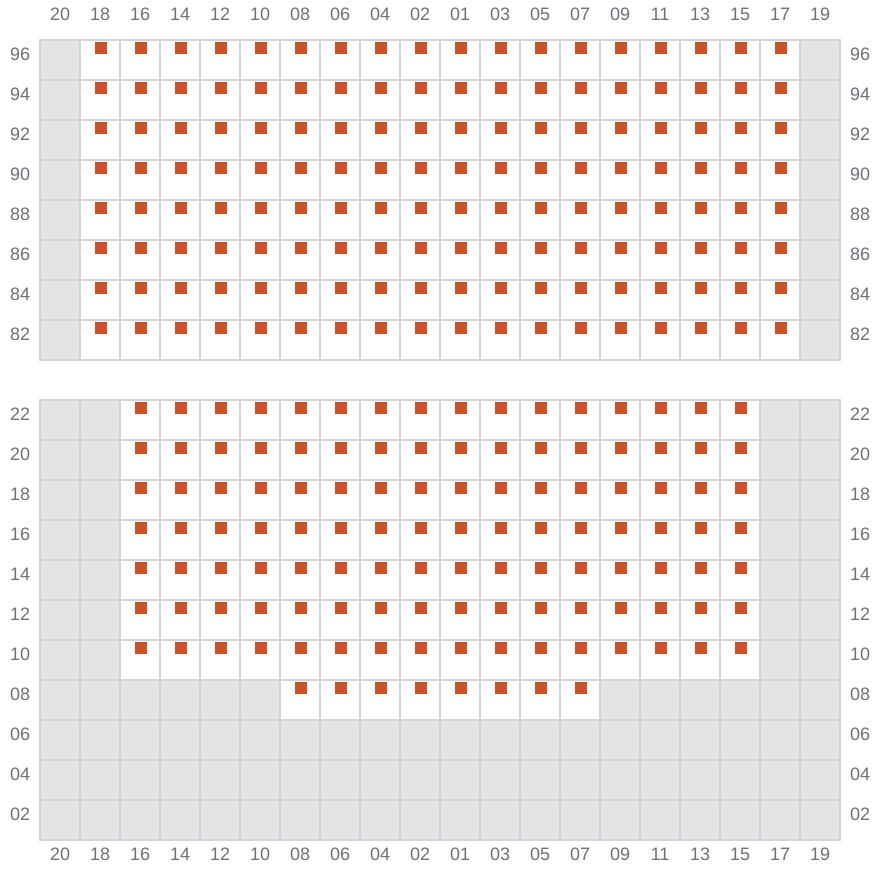

075
- ←
![Bay 075 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b075.png?v=1712690229675)

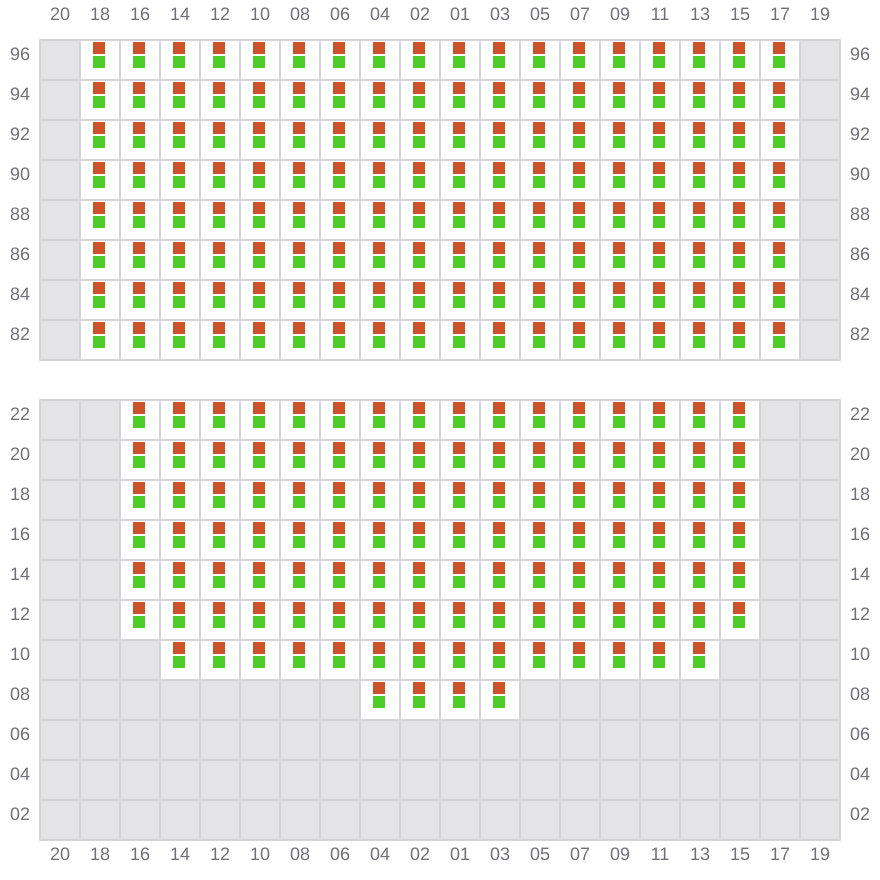

077 (078)
- →
![Bay 077 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b077.png?v=1712690229675)

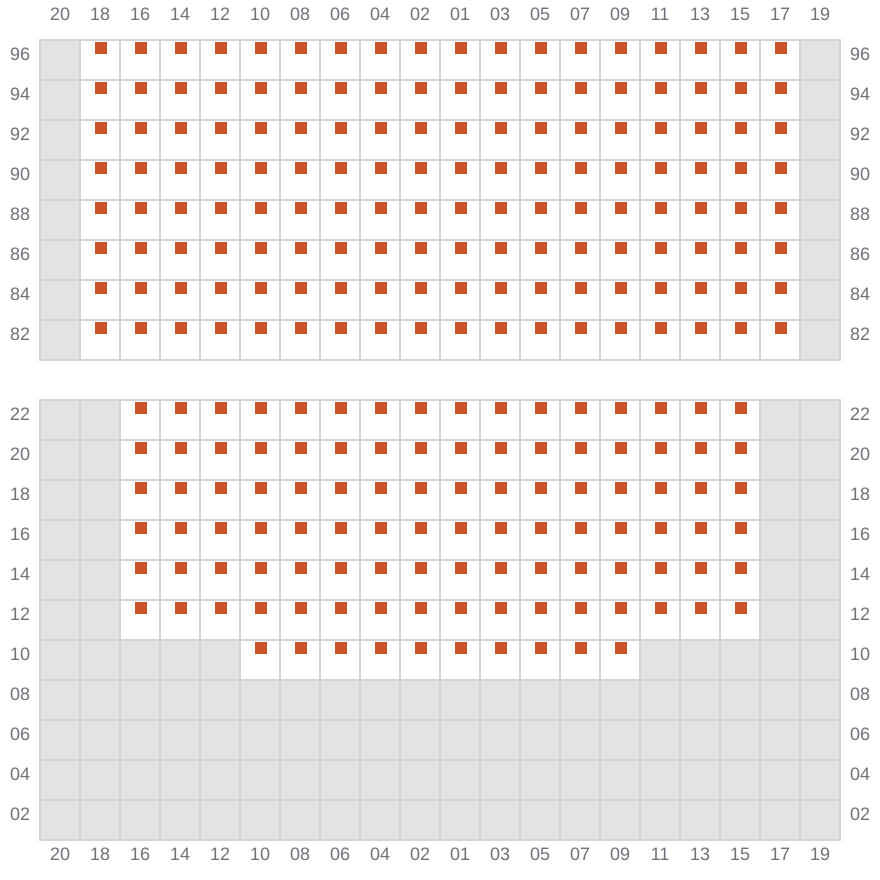

079
- ←
![Bay 079 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b079.png?v=1712690229675)

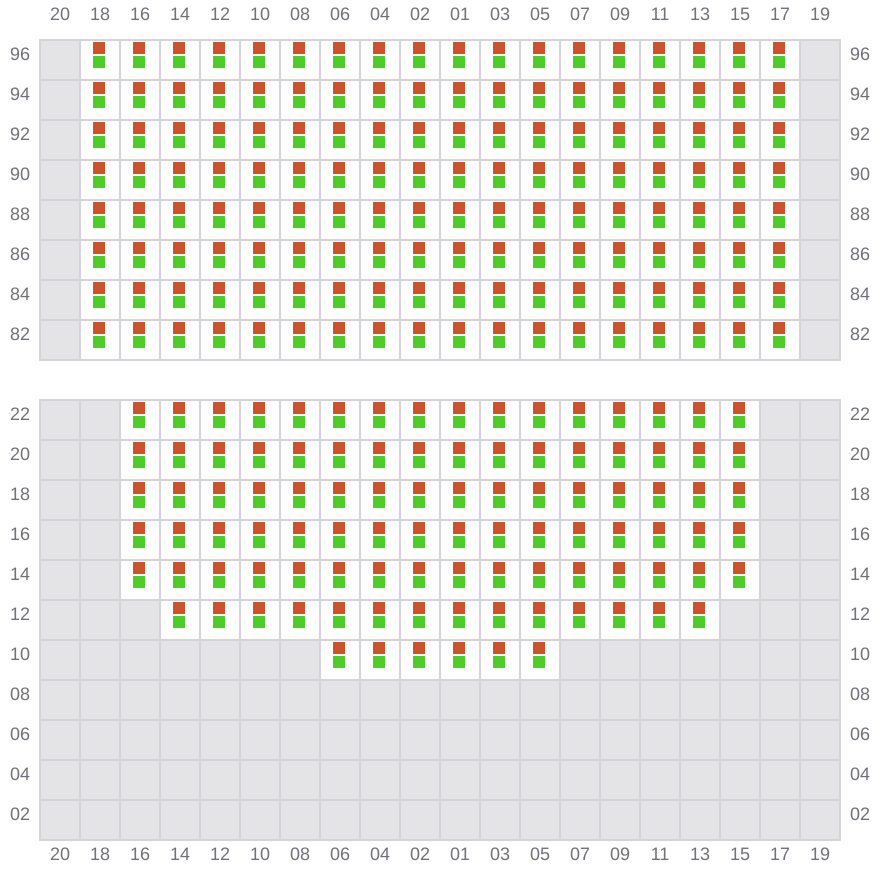

081 (082)
- →
![Bay 081 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b081.png?v=1712690229675)

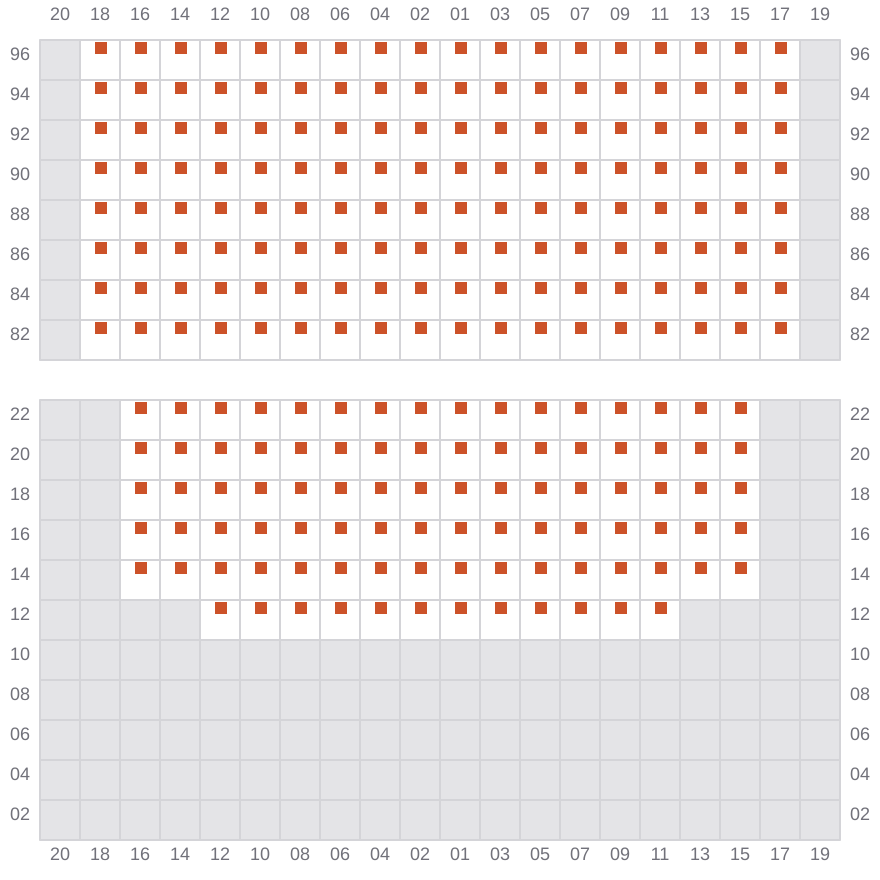

083
- ←
![Bay 083 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b083.png?v=1712690229675)

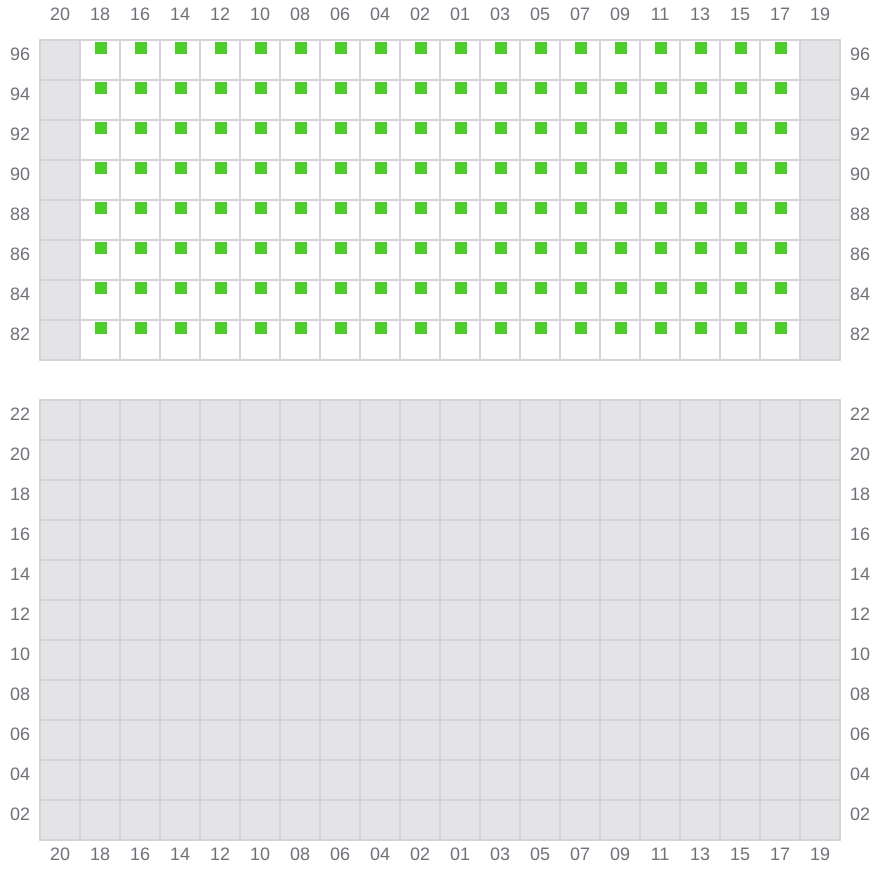

085 (086)
- → / ?
![Bay 085 view and slots of CMA CGM LIBRA](/vessel-images/bcc6550e-bcbb-415e-bca3-fffd1050198d-b085.png?v=1712690229675)
