CMA CGM LOME
9539494 | 9HA5761 | CMA by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:CMA CGM LOME
IMO Code:9539494
Call Sign:9HA5761
Line Operator:CMA
Class Name for Sister Ships:CCLM
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,462

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

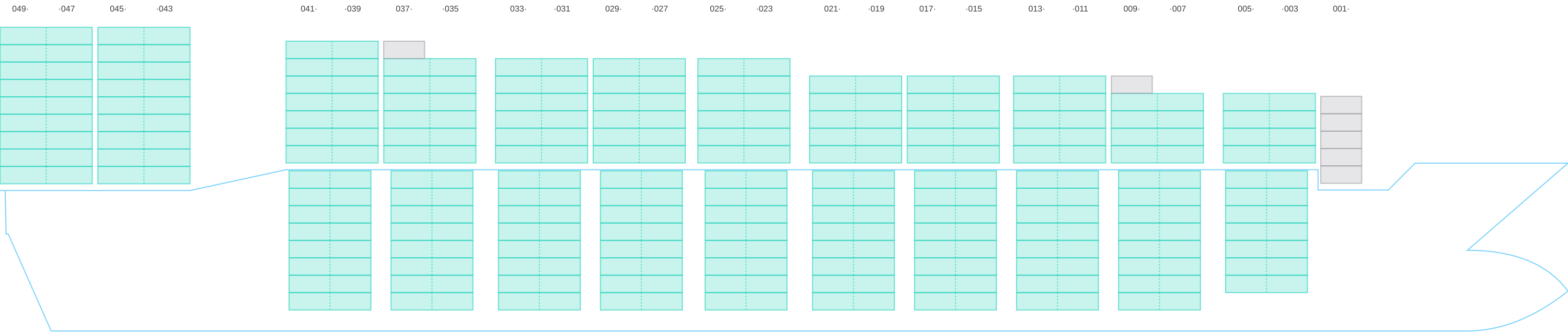

Side View

Side view of CMA CGM LOME

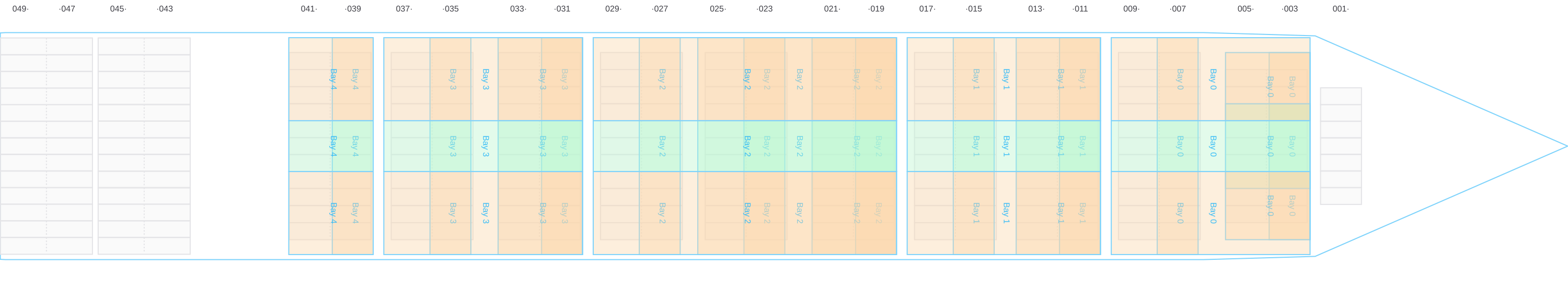

Hatch-Covers View

Deck view of CMA CGM LOME

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • / ?

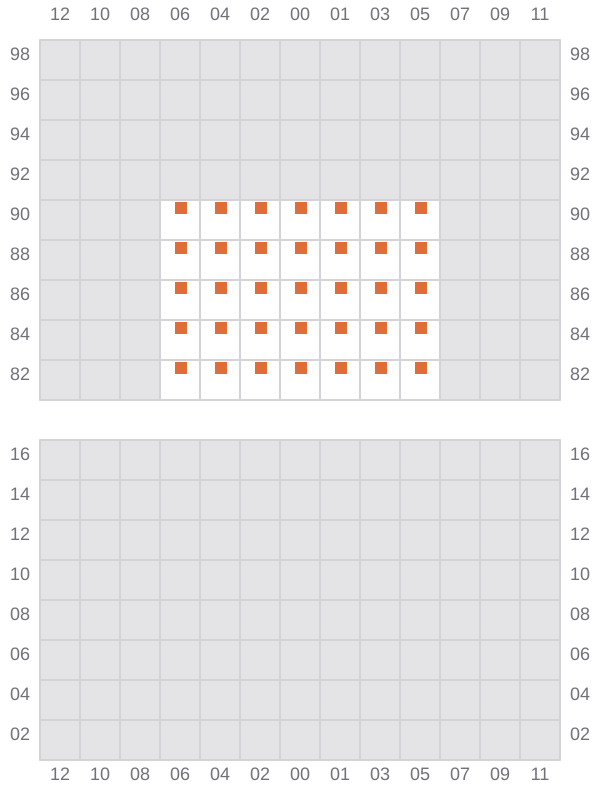

Bay 001 view and slots of CMA CGM LOME

003 (004)

  • / ?

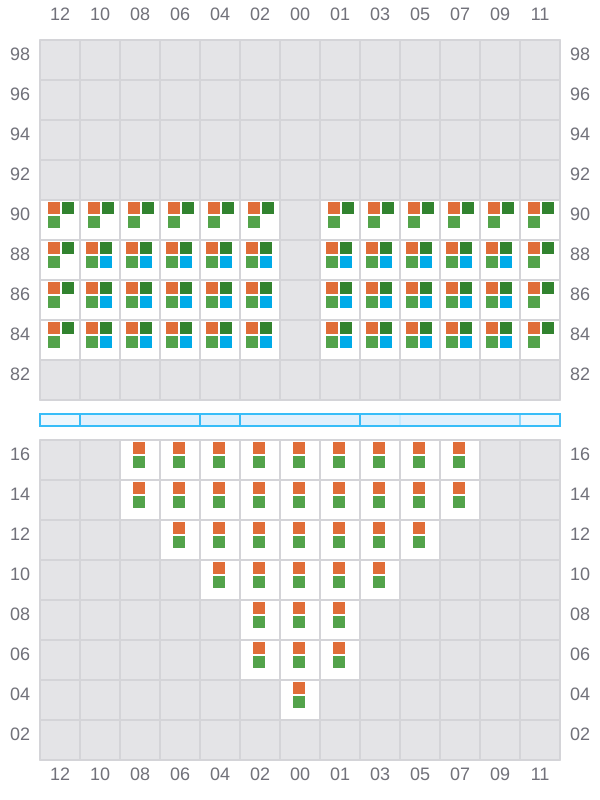

Bay 003 view and slots of CMA CGM LOME

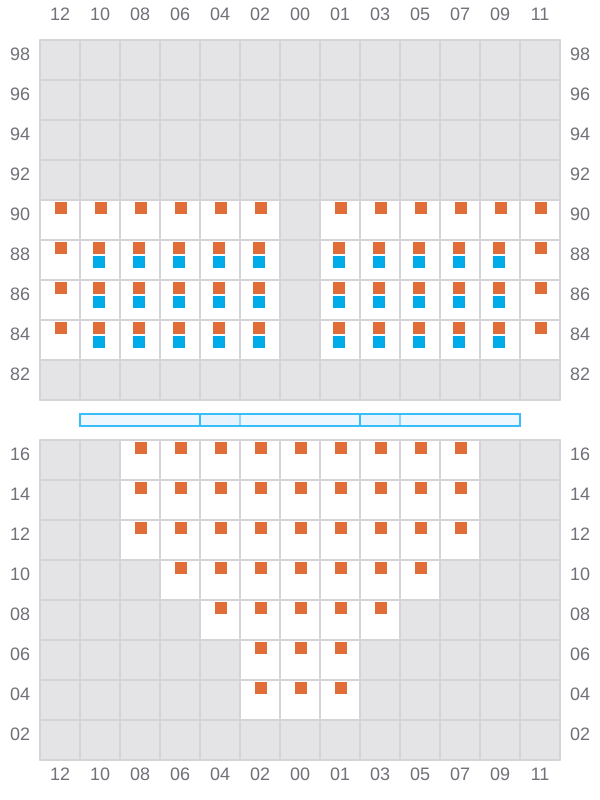

005

  • / ?
Bay 005 view and slots of CMA CGM LOME

007 (008)

  • / ?

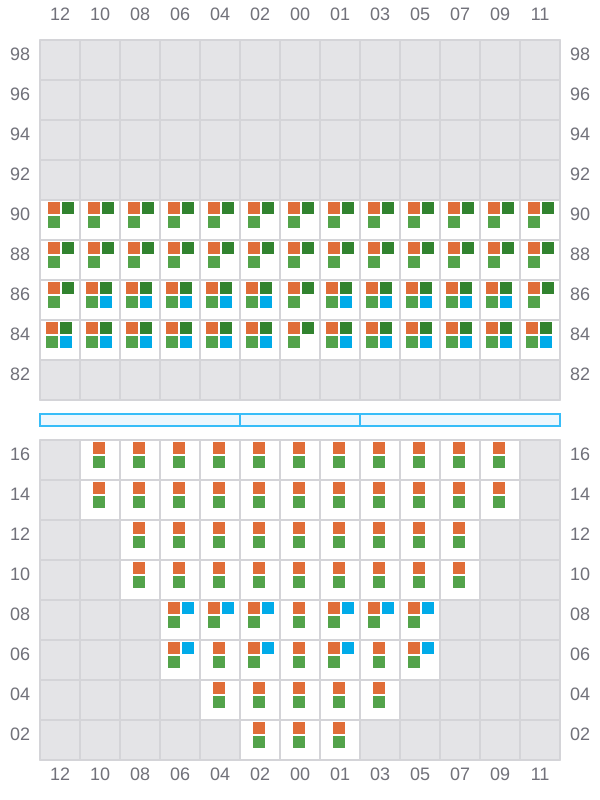

Bay 007 view and slots of CMA CGM LOME

009

  • ? /

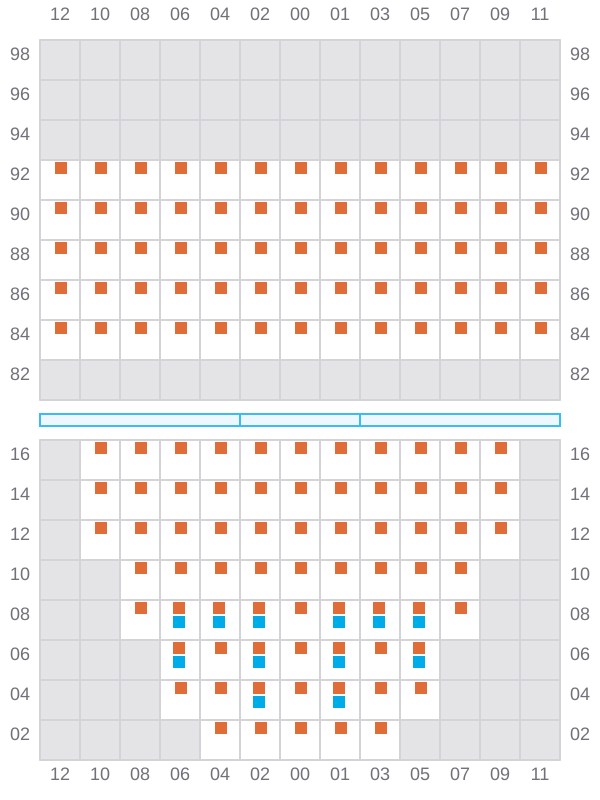

Bay 009 view and slots of CMA CGM LOME

011 (012)

  • /

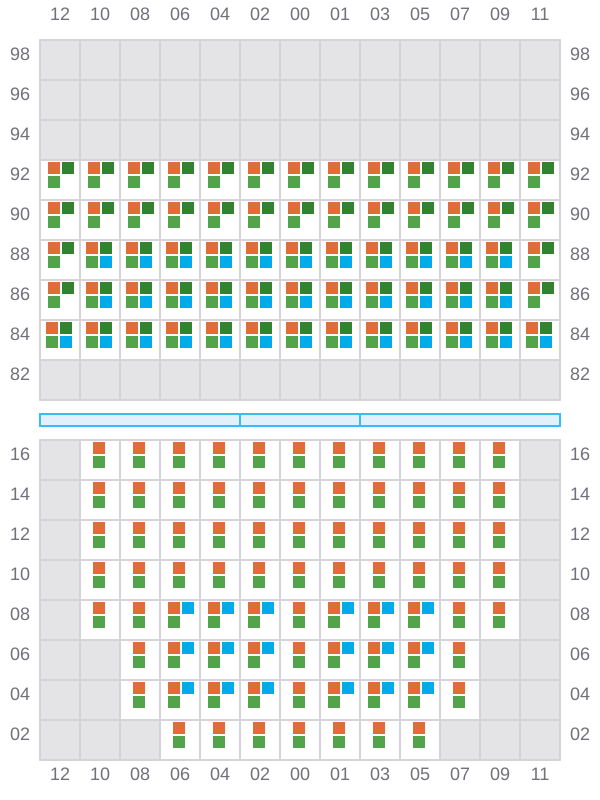

Bay 011 view and slots of CMA CGM LOME

013

  • / ?

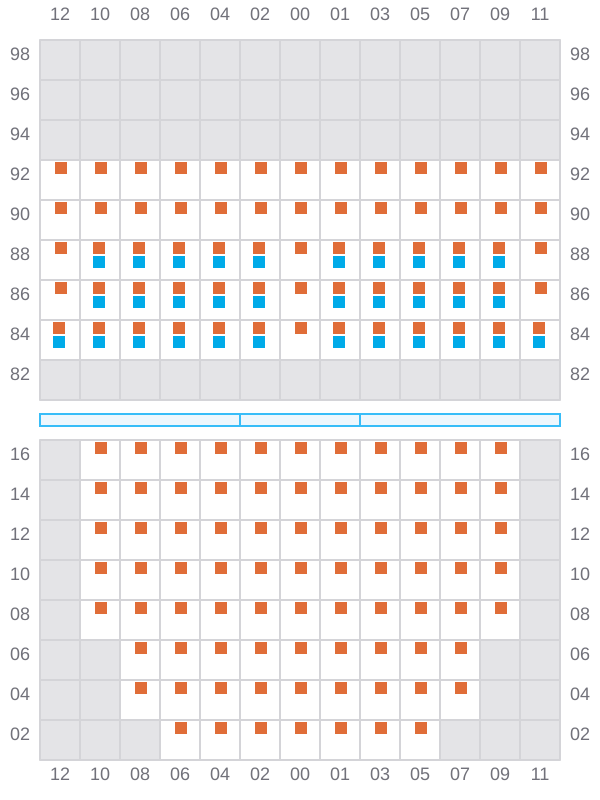

Bay 013 view and slots of CMA CGM LOME

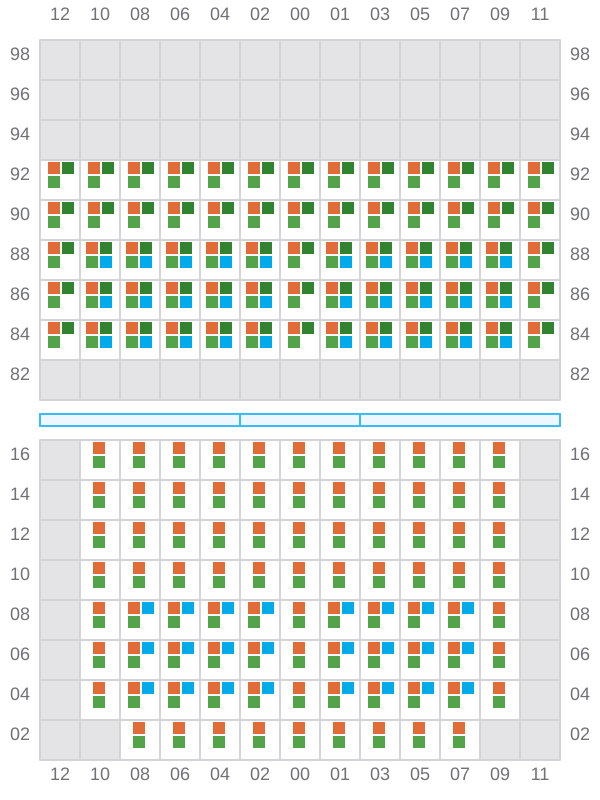

015 (016)

  • /
Bay 015 view and slots of CMA CGM LOME

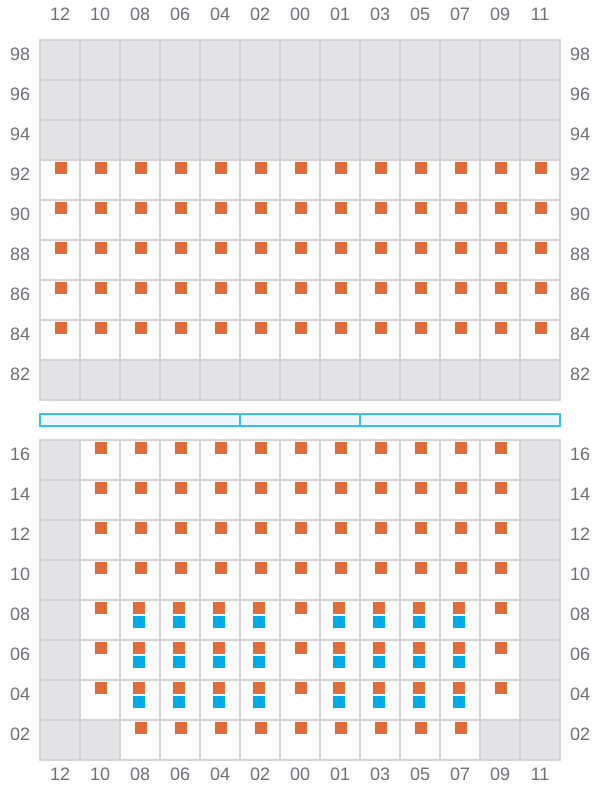

017

  • ? /
Bay 017 view and slots of CMA CGM LOME

019 (020)

  • /

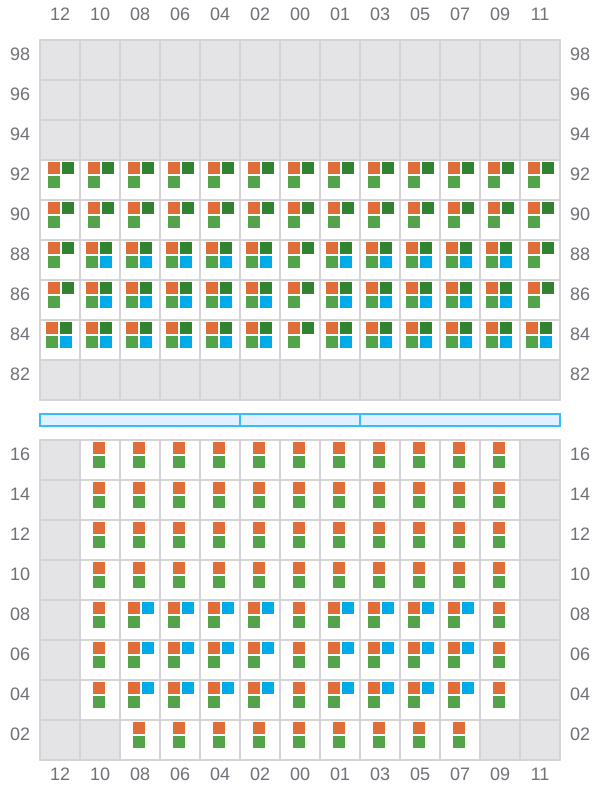

Bay 019 view and slots of CMA CGM LOME

021

  • / ?
Bay 021 view and slots of CMA CGM LOME

023 (024)

  • / ?

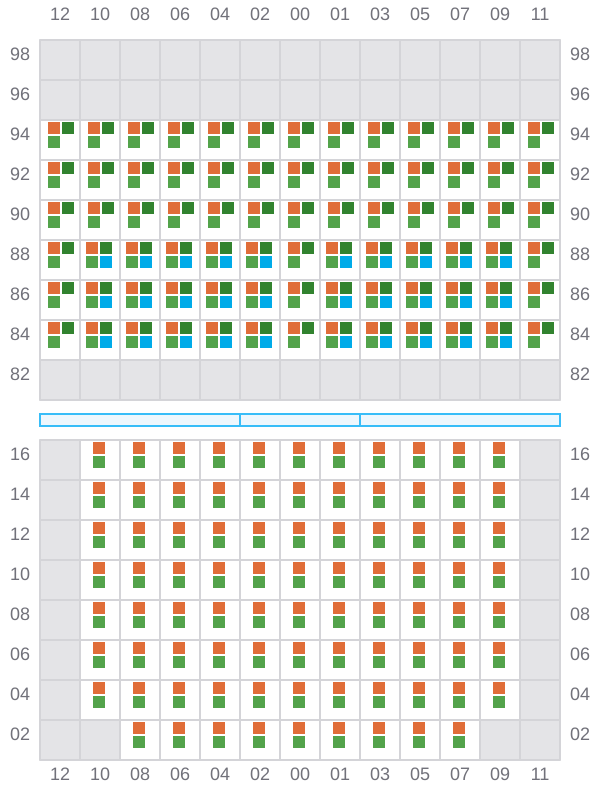

Bay 023 view and slots of CMA CGM LOME

025

Bay 025 view and slots of CMA CGM LOME

027 (028)

  • /
Bay 027 view and slots of CMA CGM LOME

029

  • ? /

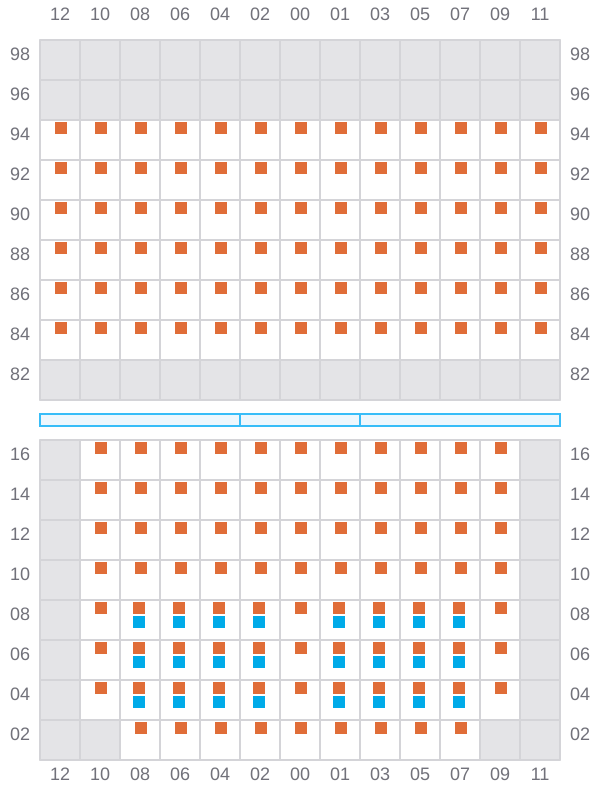

Bay 029 view and slots of CMA CGM LOME

031 (032)

  • /

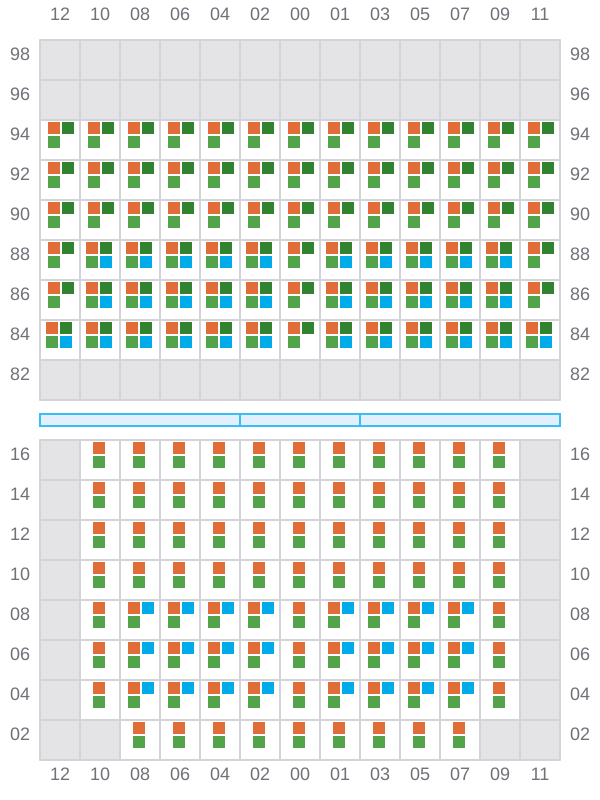

Bay 031 view and slots of CMA CGM LOME

033

  • / ?

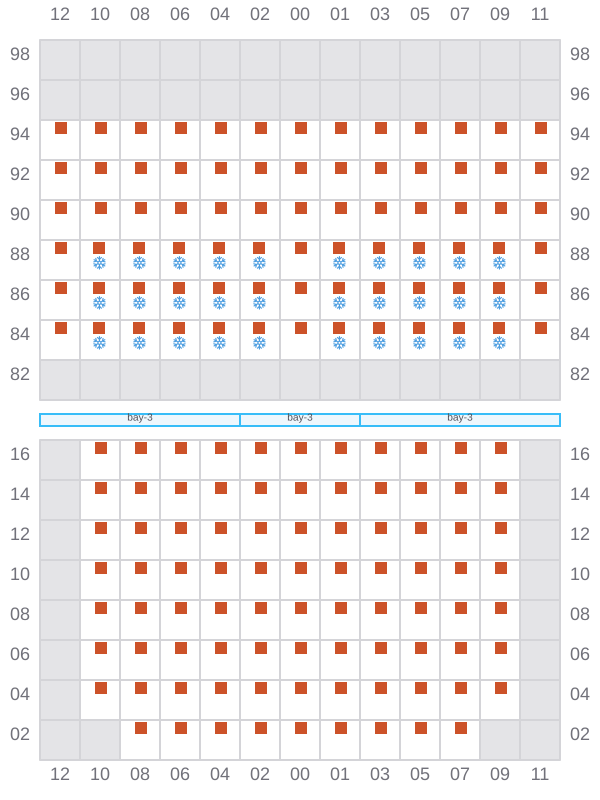

Bay 033 view and slots of CMA CGM LOME

035 (036)

  • / ?

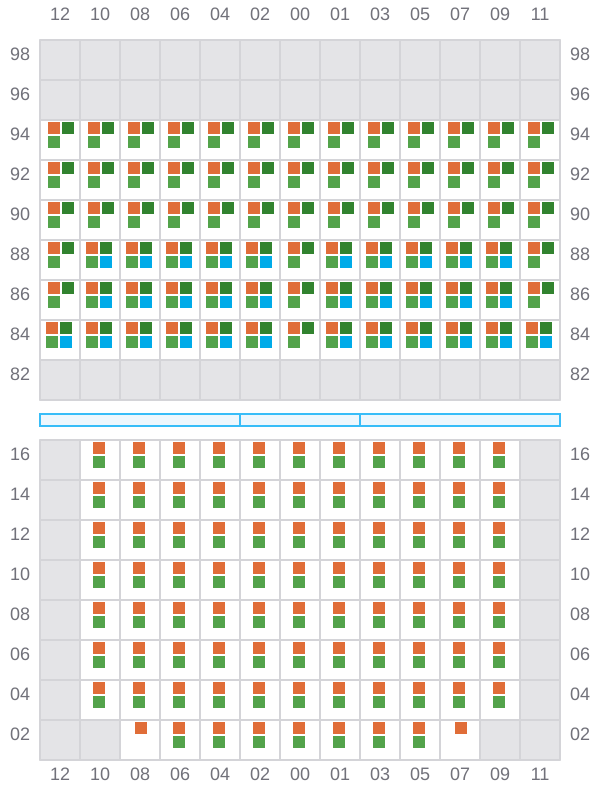

Bay 035 view and slots of CMA CGM LOME

037

  • ? /

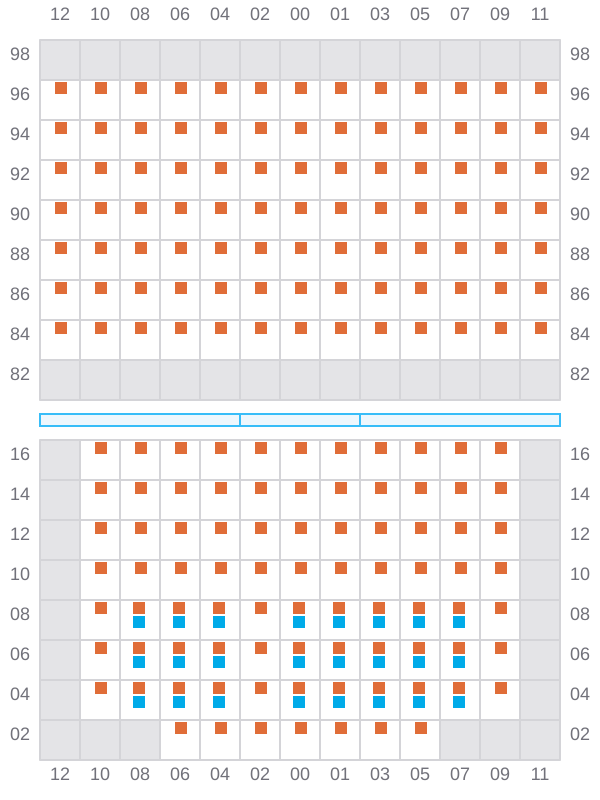

Bay 037 view and slots of CMA CGM LOME

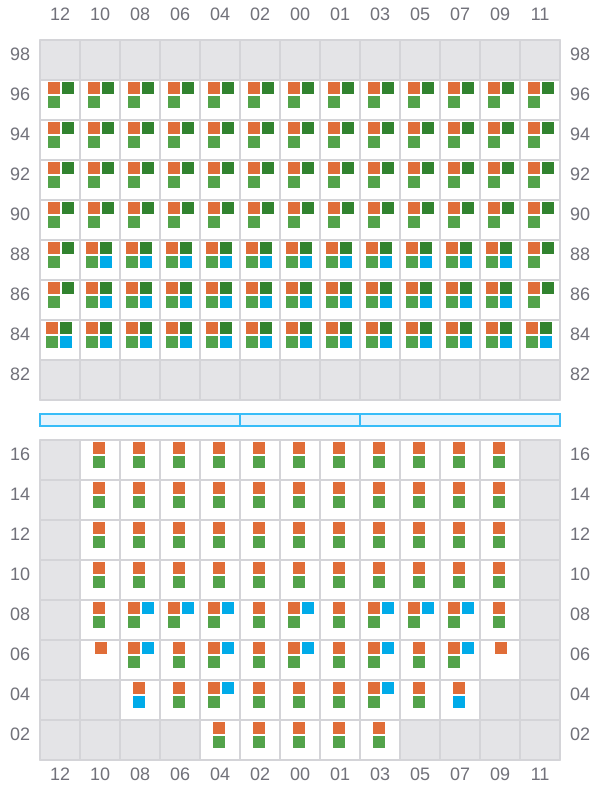

039 (040)

Bay 039 view and slots of CMA CGM LOME

041

  • / ?

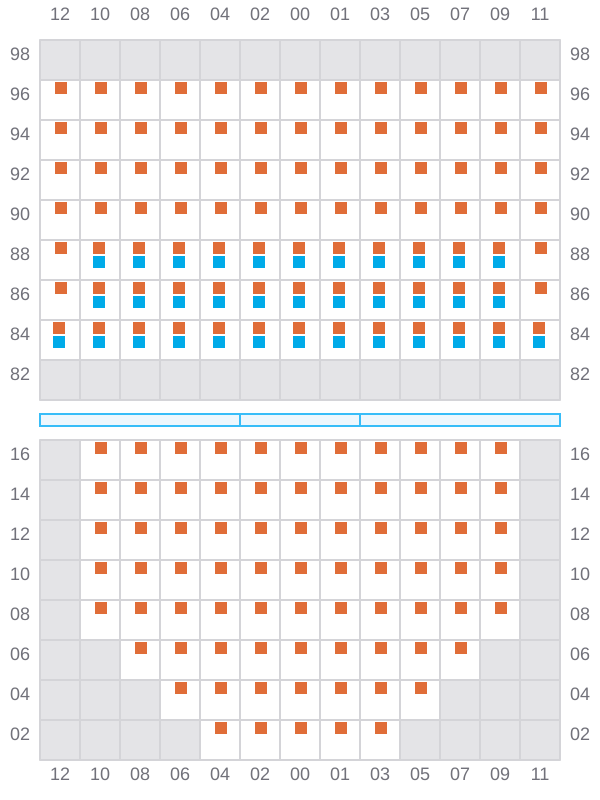

Bay 041 view and slots of CMA CGM LOME

043 (044)

  • / ?
  • / ?

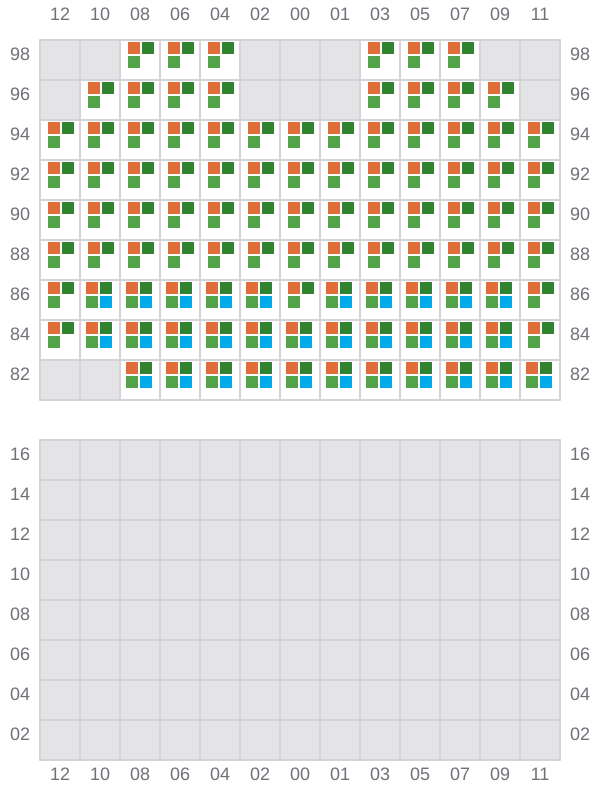

Bay 043 view and slots of CMA CGM LOME

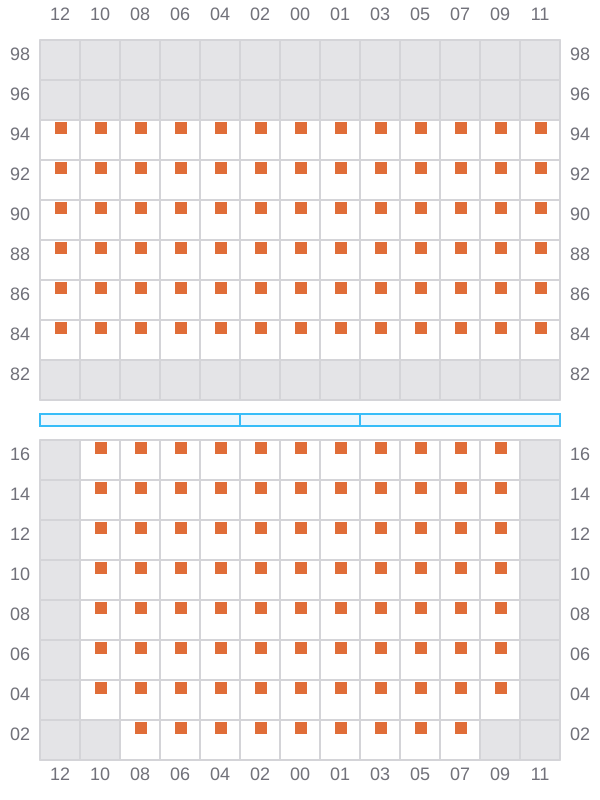

045

  • / ?

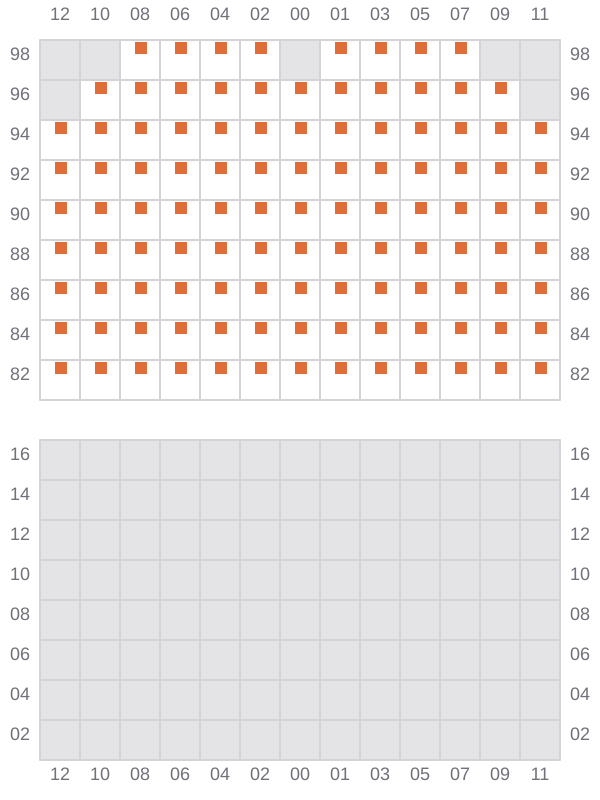

Bay 045 view and slots of CMA CGM LOME

047 (048)

  • / ?
Bay 047 view and slots of CMA CGM LOME

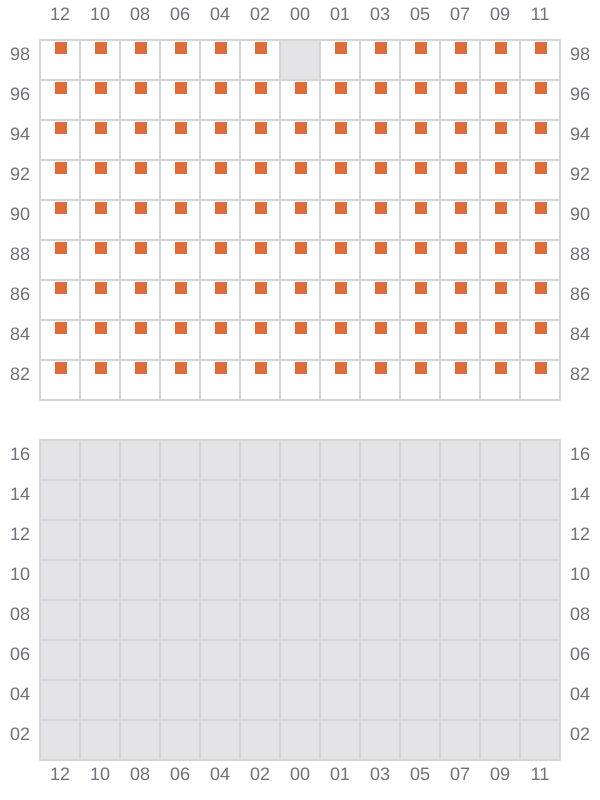

049

  • / ?
Bay 049 view and slots of CMA CGM LOME
