CMA CGM LOME
9539494 | 9HA5761 | 9539494 by ********* Last update: Tue May 07 2024
General Info
Ship Name:CMA CGM LOME
IMO Code:9539494
Call Sign:9HA5761
Line Operator:9539494
Class Name for Sister Ships:HEDDA SCHULTE
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,561
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

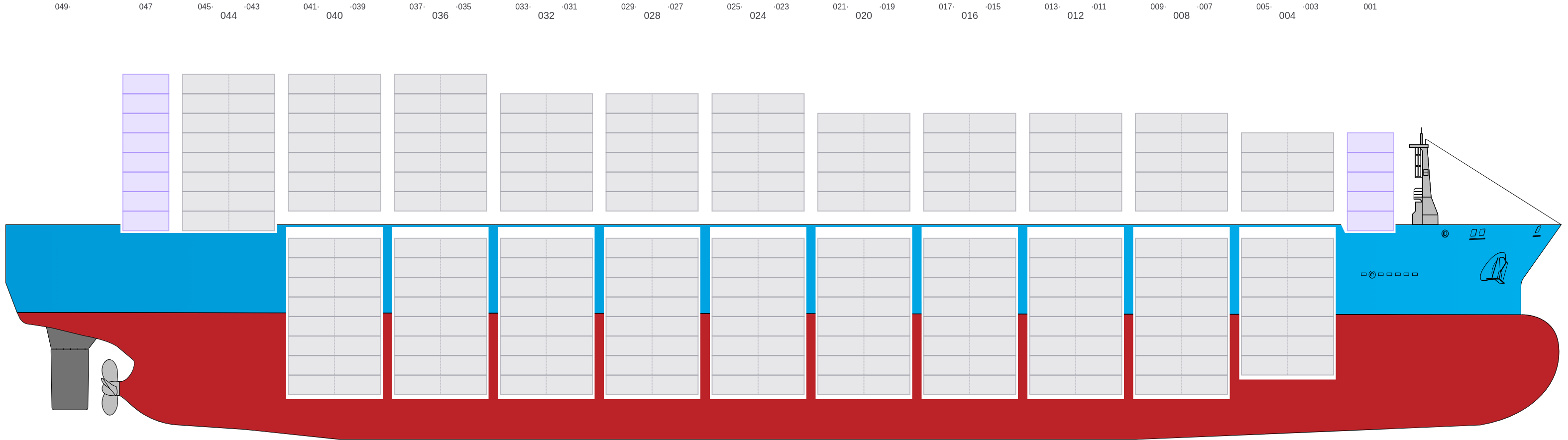

Side View
![Side view of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-sideView.png?v=1715111238980)
Hatch-Covers View
![Deck view of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-deckView.png?v=1715111238980)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

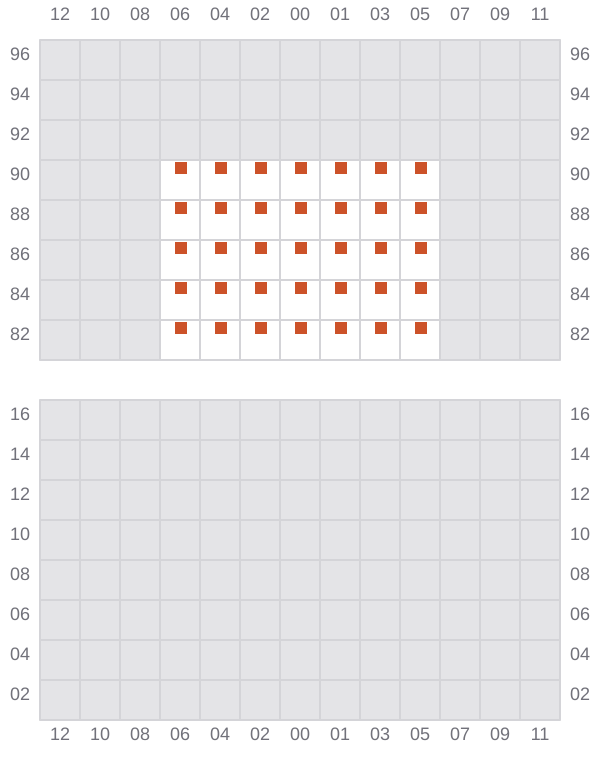

001
![Bay 001 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b001.png?v=1715111238980)

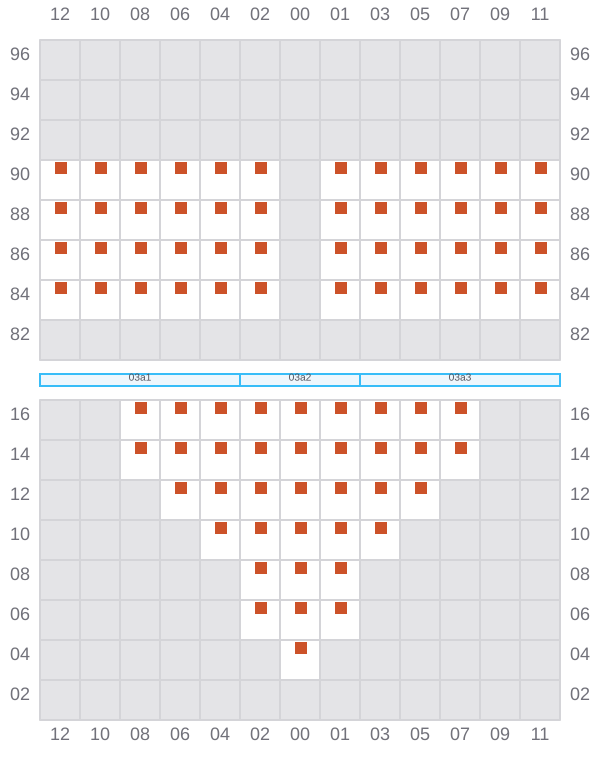

003
- →
![Bay 003 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b003.png?v=1715111238980)

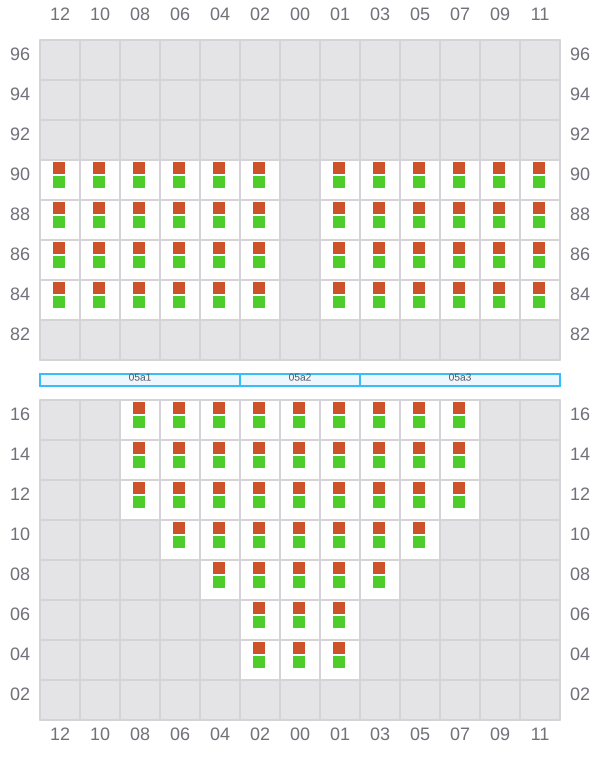

005 (004)
- ←
![Bay 005 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b005.png?v=1715111238980)

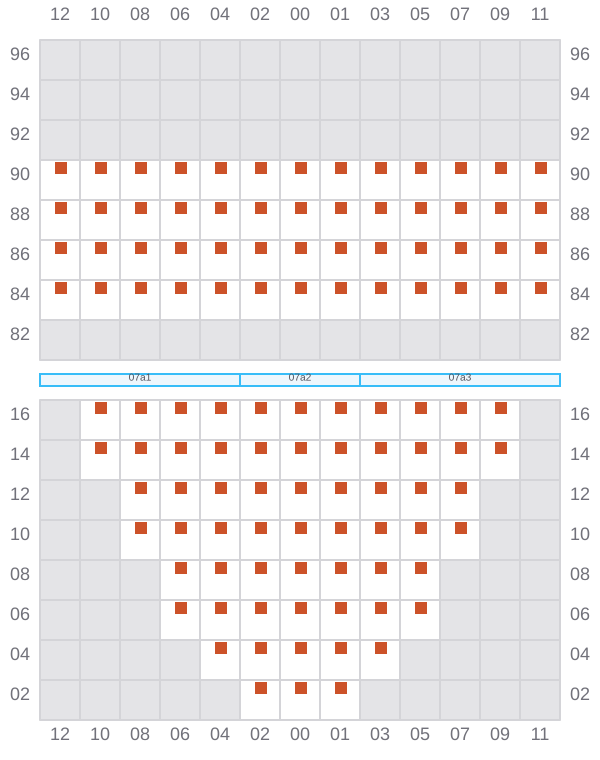

007
- →
![Bay 007 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b007.png?v=1715111238980)

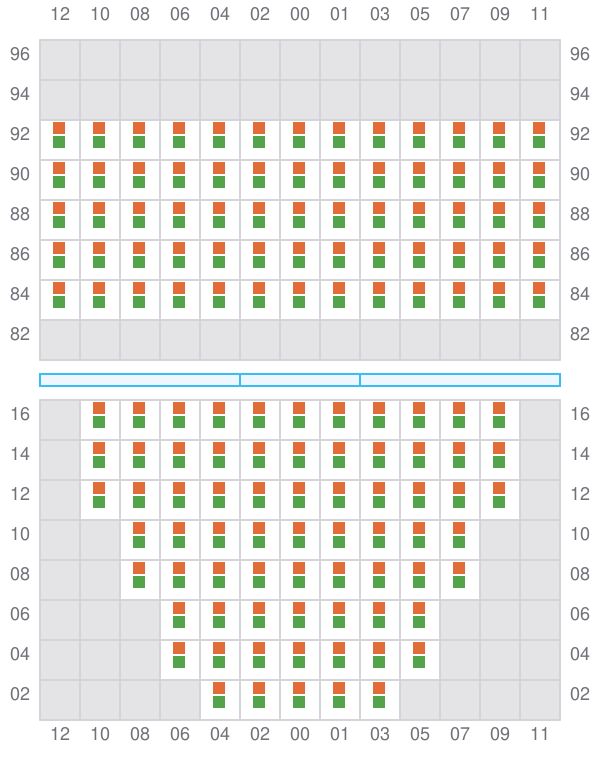

009 (008)
- ←
![Bay 009 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b009.png?v=1715111238980)

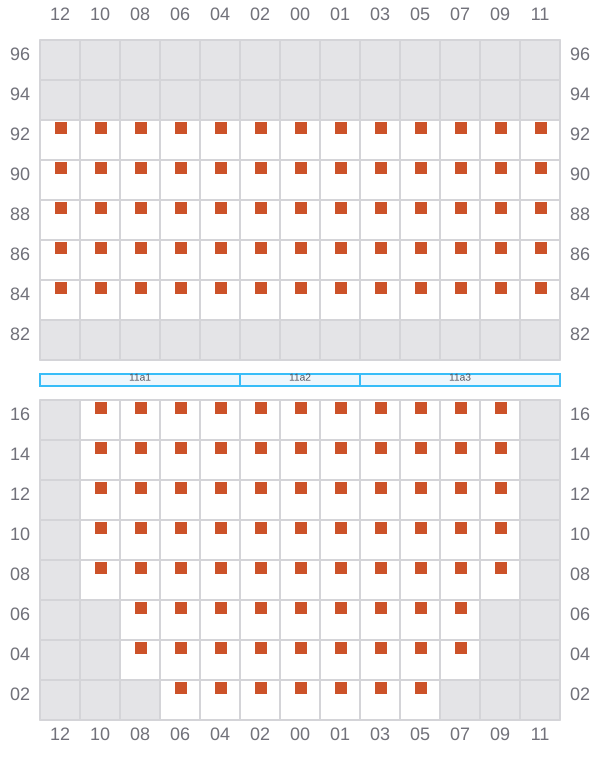

011
- →
![Bay 011 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b011.png?v=1715111238980)

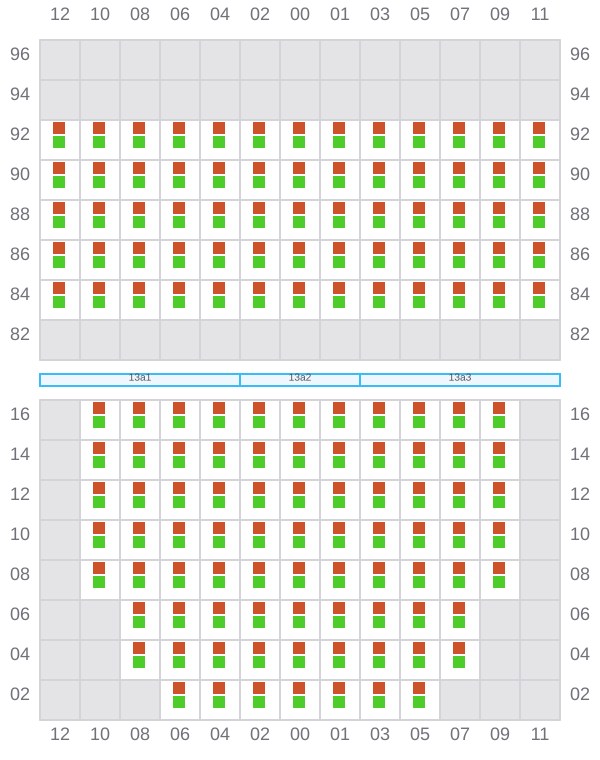

013 (012)
- ←
![Bay 013 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b013.png?v=1715111238980)

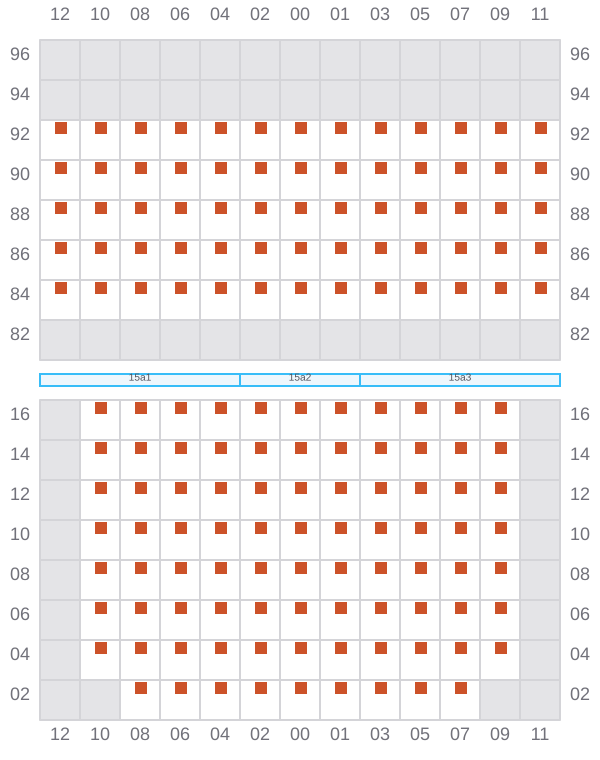

015
- →
![Bay 015 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b015.png?v=1715111238980)

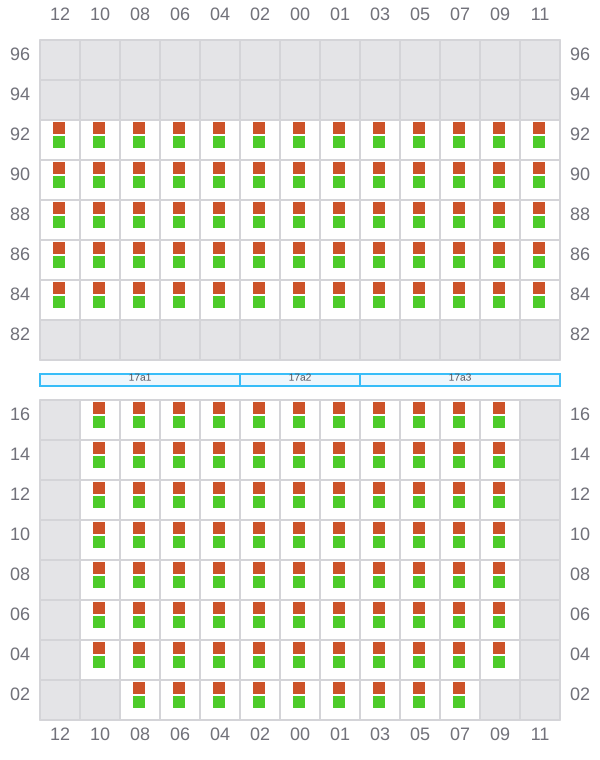

017 (016)
- ←
![Bay 017 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b017.png?v=1715111238980)

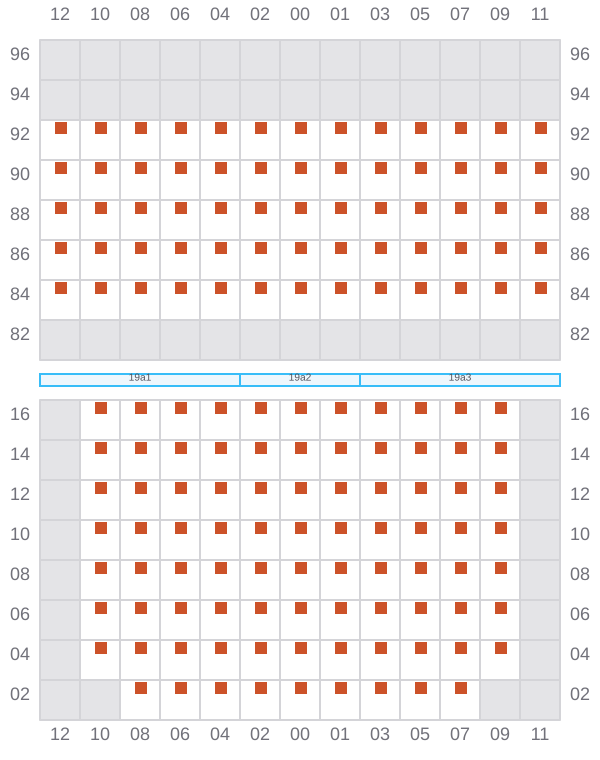

019
- →
![Bay 019 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b019.png?v=1715111238980)

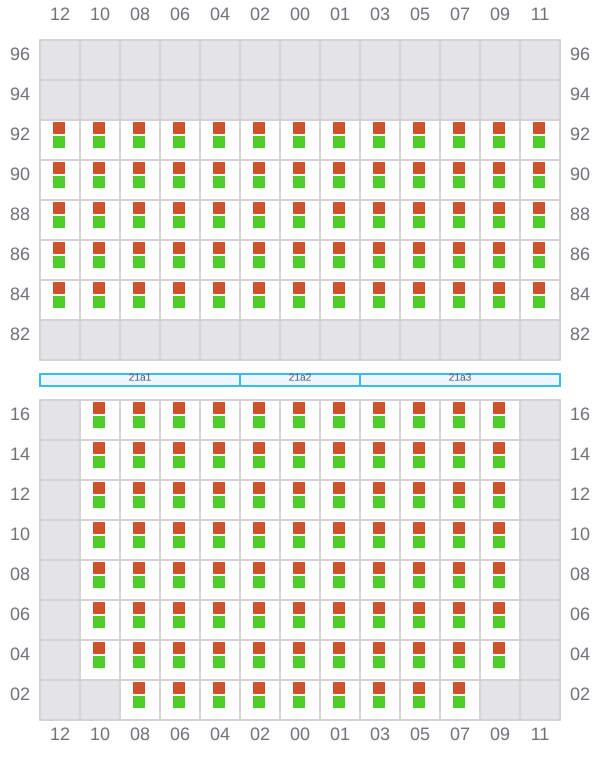

021 (020)
- ←
![Bay 021 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b021.png?v=1715111238980)
023
- →
![Bay 023 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b023.png?v=1715111238980)
025 (024)
- ←
![Bay 025 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b025.png?v=1715111238980)
027
- →
![Bay 027 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b027.png?v=1715111238980)
029 (028)
- ←
![Bay 029 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b029.png?v=1715111238980)
031
- →
![Bay 031 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b031.png?v=1715111238980)

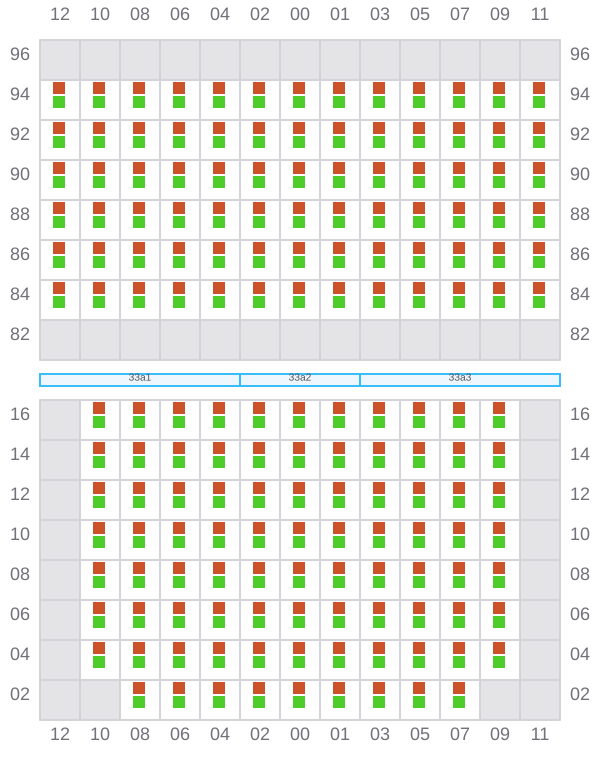

033 (032)
- ←
![Bay 033 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b033.png?v=1715111238980)

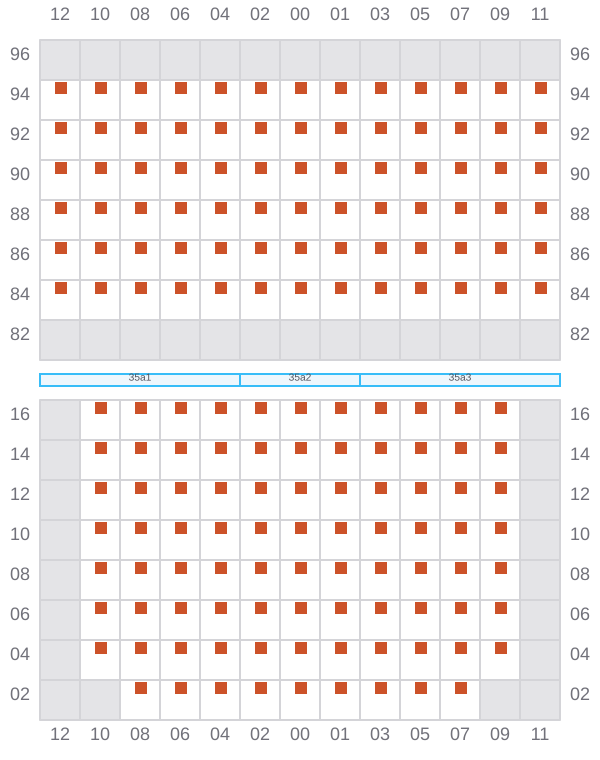

035
- →
![Bay 035 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b035.png?v=1715111238980)

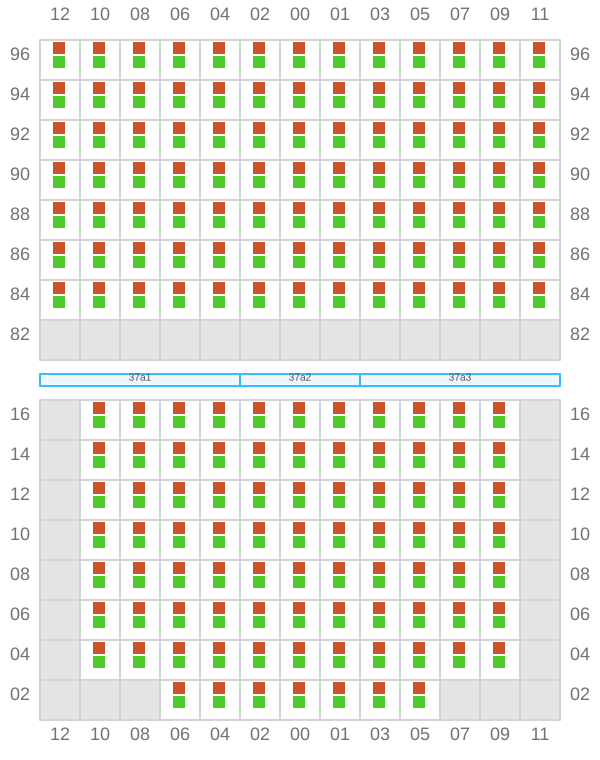

037 (036)
- ←
![Bay 037 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b037.png?v=1715111238980)

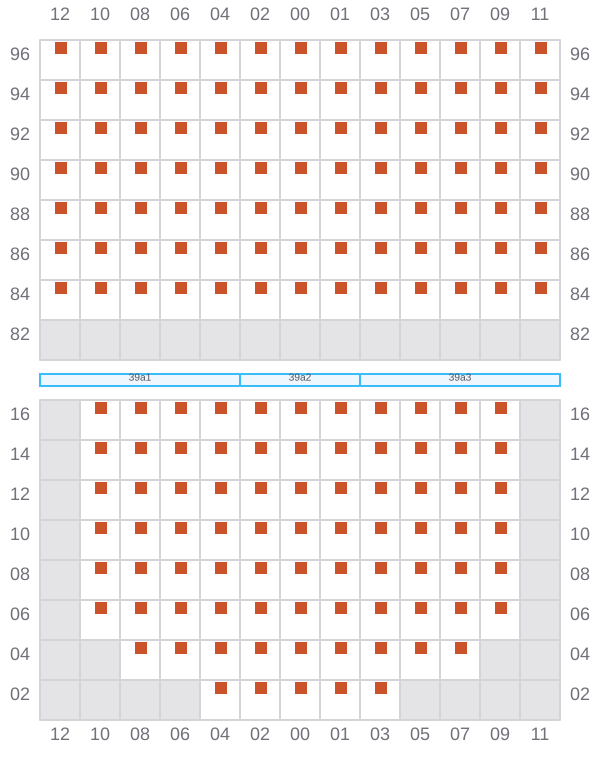

039
- →
![Bay 039 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b039.png?v=1715111238980)

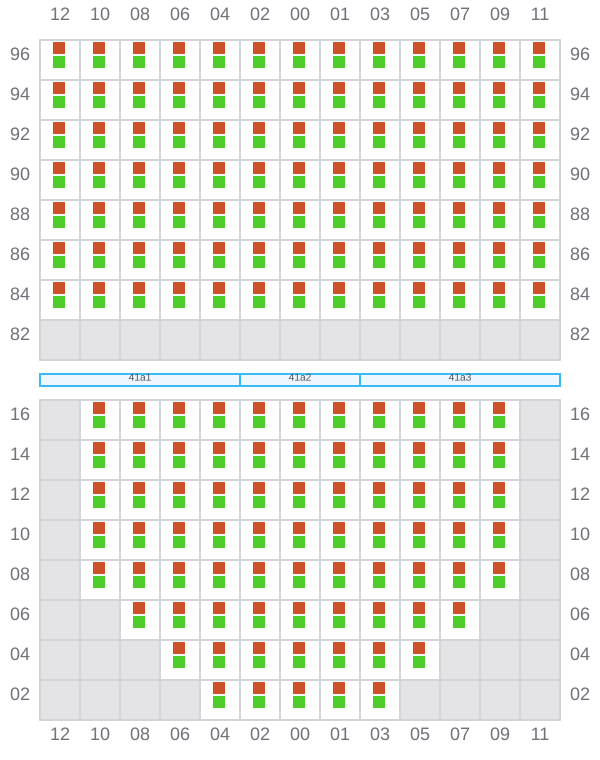

041 (040)
- ←
![Bay 041 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b041.png?v=1715111238980)

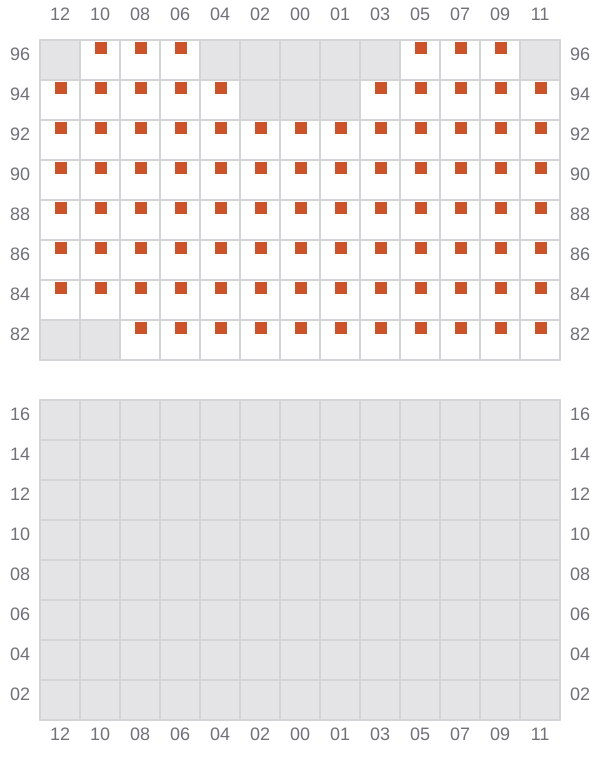

043
- → / ?
![Bay 043 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b043.png?v=1715111238980)

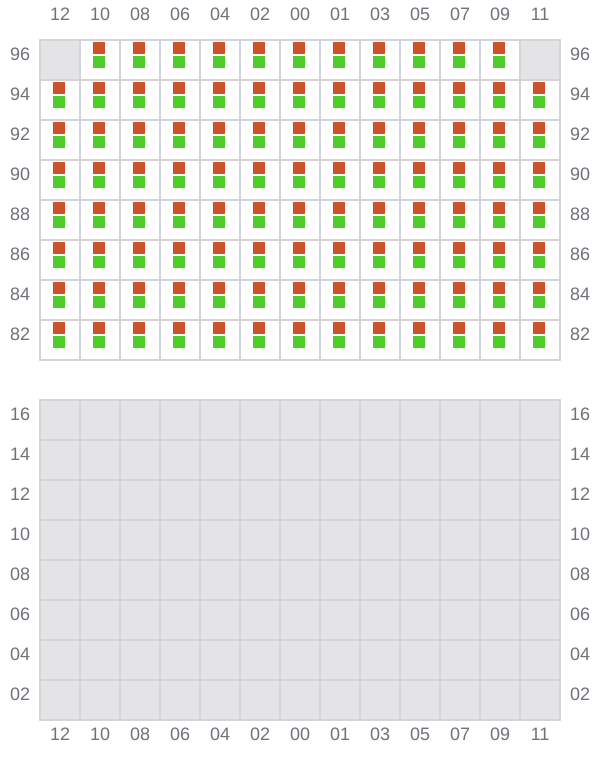

045 (044)
- ← / ?
![Bay 045 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b045.png?v=1715111238980)

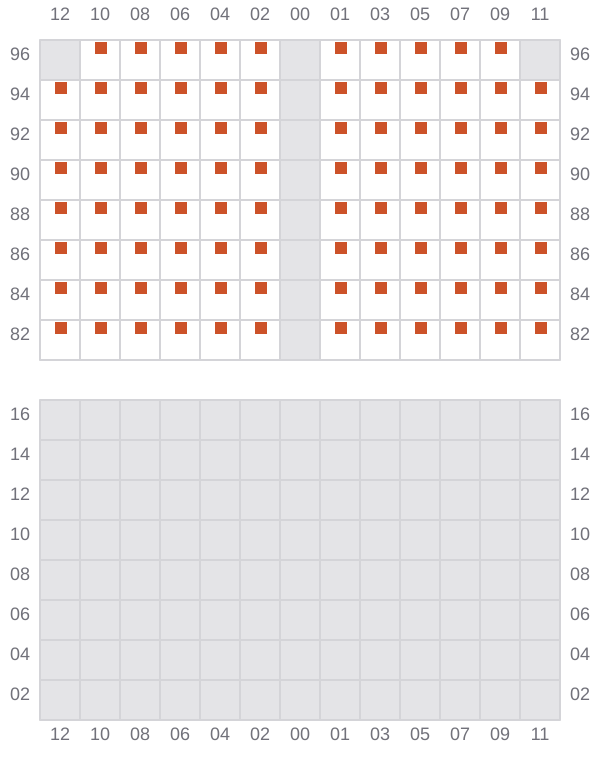

047
![Bay 047 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b047.png?v=1715111238980)
049 (048)
- ← / ?
![Bay 049 view and slots of CMA CGM LOME](/vessel-images/38304b6d-4328-4d89-9fbc-0d44198397b8-b049.png?v=1715111238980)
