CMA CGM MALTA
9301433 | 9HA5471 | 9301433 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:CMA CGM MALTA
IMO Code:9301433
Call Sign:9HA5471
Line Operator:9301433
Class Name for Sister Ships:31C
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,556
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

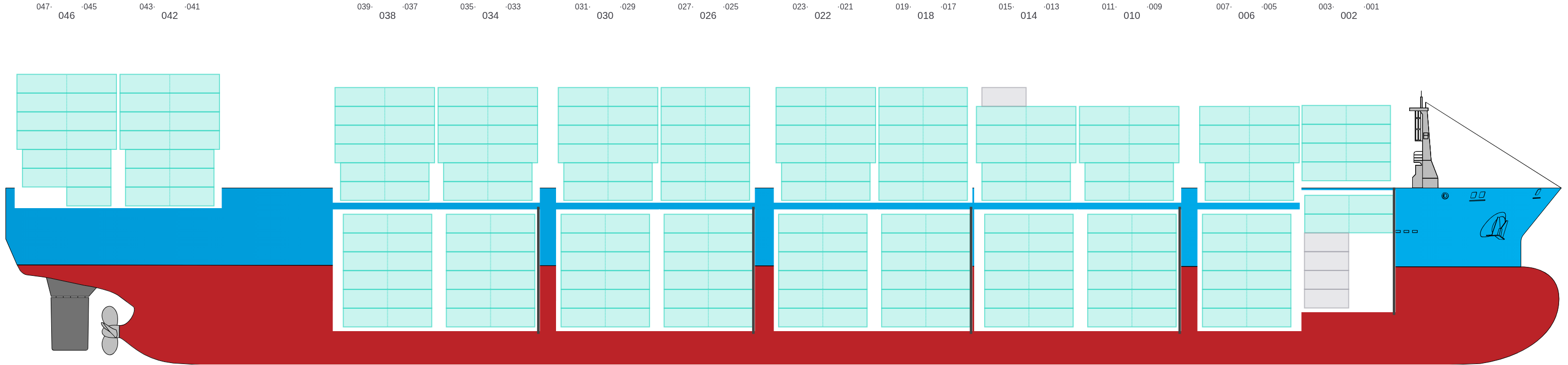

Side View
![Side view of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-sideView.png?v=1710700639104)

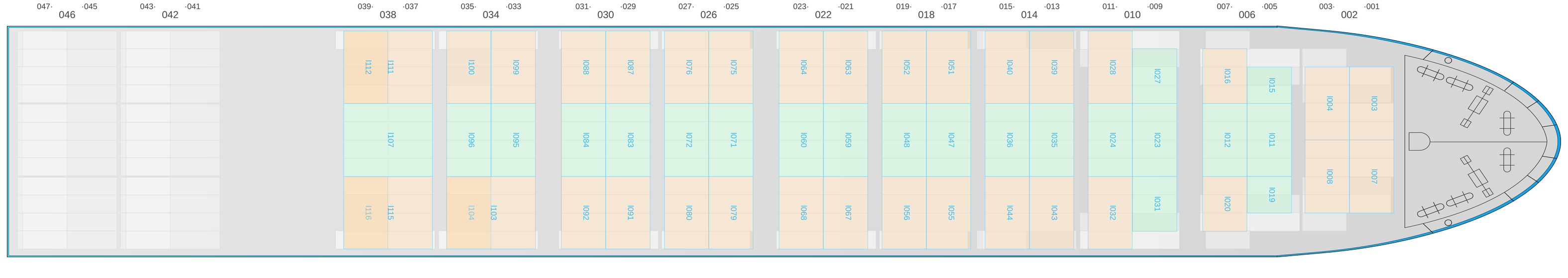

Hatch-Covers View
![Deck view of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-deckView.png?v=1710700639104)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

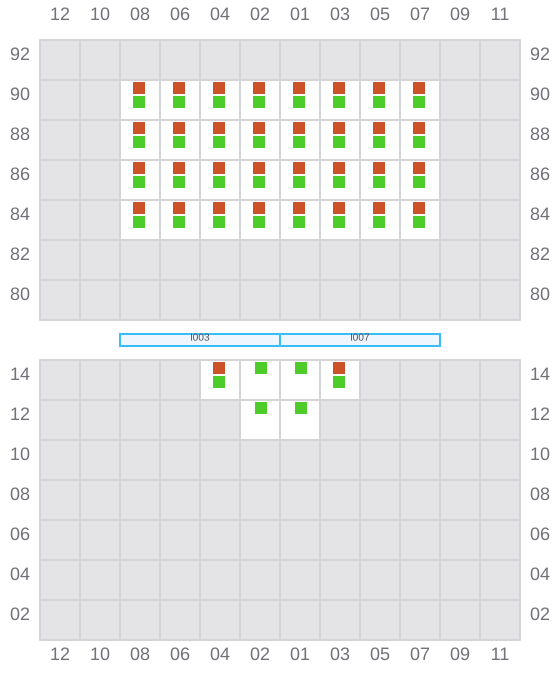

001 (002)
- →
![Bay 001 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b001.png?v=1710700639104)

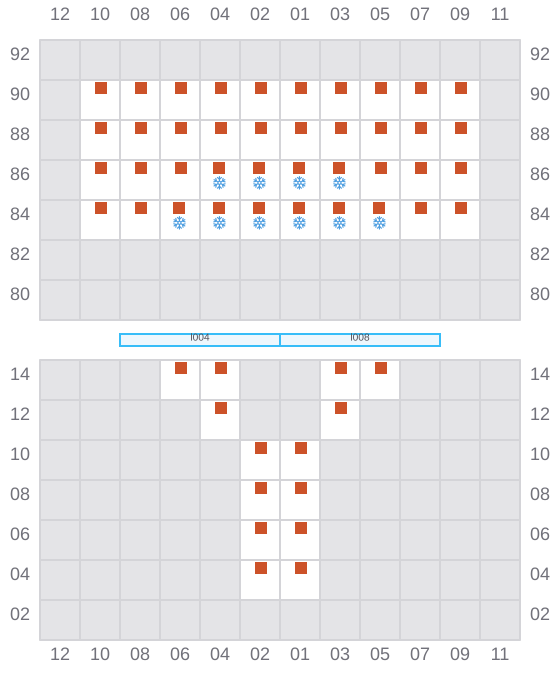

003
- ←
- → / ?
![Bay 003 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b003.png?v=1710700639104)

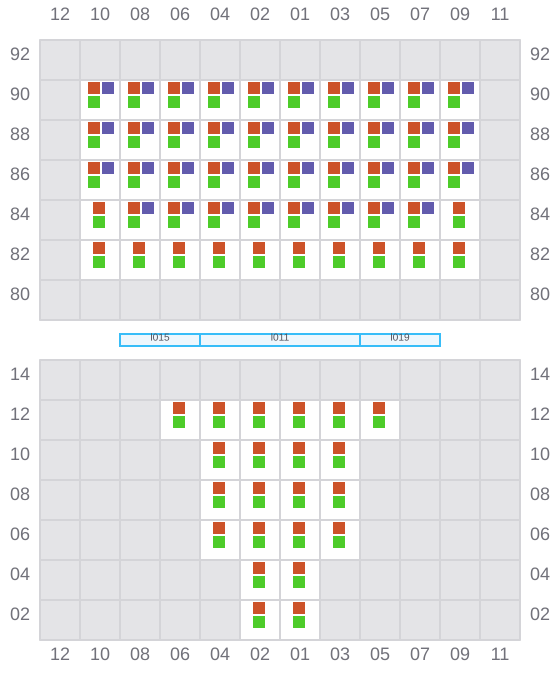

005 (006)
- →
![Bay 005 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b005.png?v=1710700639104)

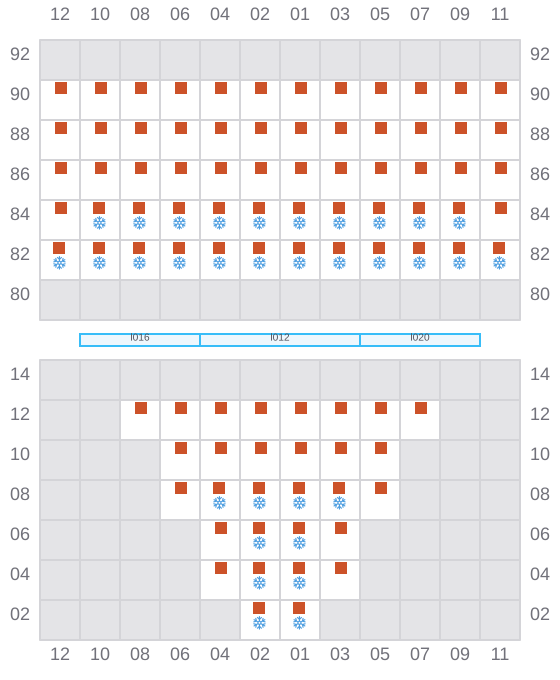

007
- ←
- →
![Bay 007 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b007.png?v=1710700639104)

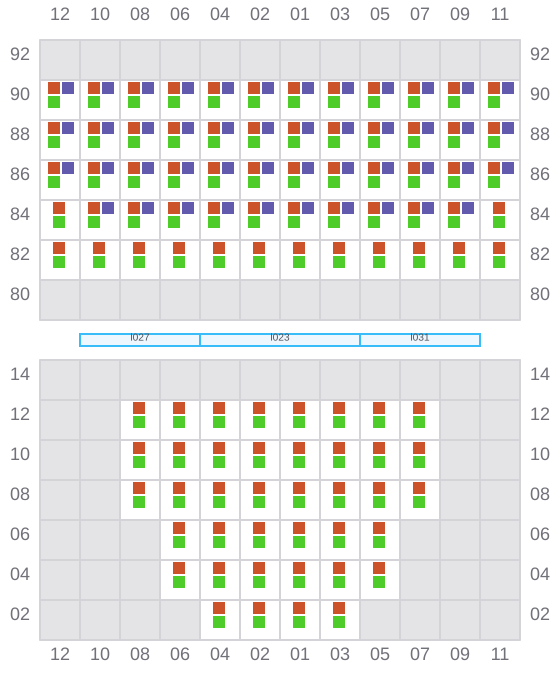

009 (010)
- →
![Bay 009 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b009.png?v=1710700639104)

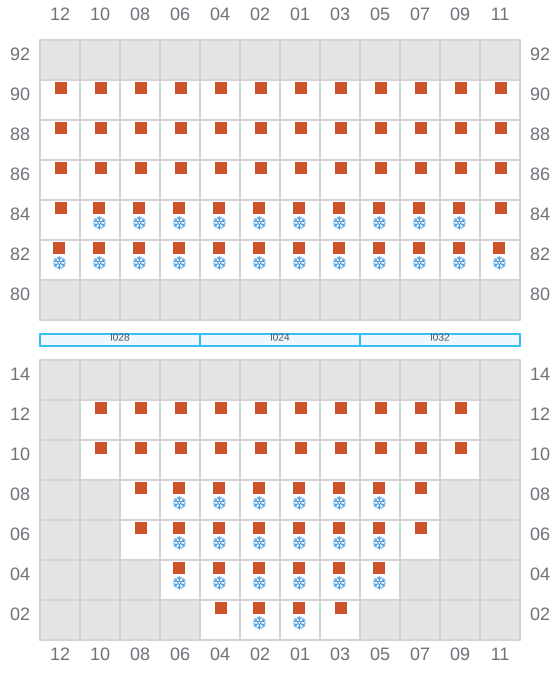

011
- ←
- →
![Bay 011 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b011.png?v=1710700639104)

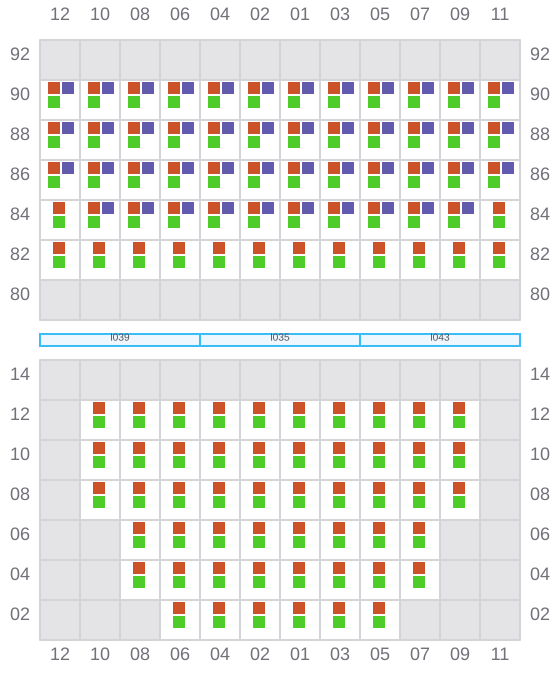

013 (014)
- →
![Bay 013 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b013.png?v=1710700639104)

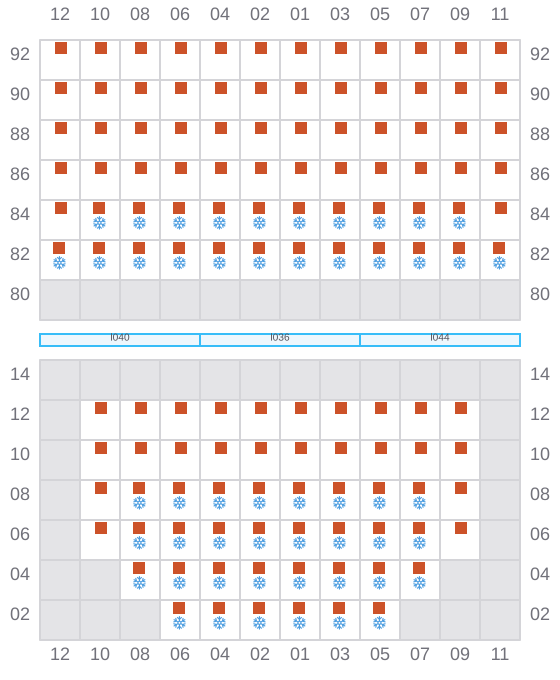

015
- ←
- →
![Bay 015 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b015.png?v=1710700639104)

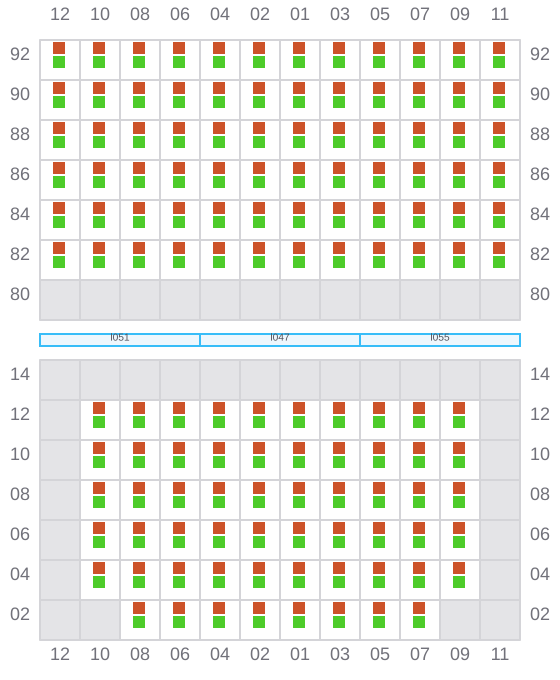

017 (018)
- →
![Bay 017 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b017.png?v=1710700639104)

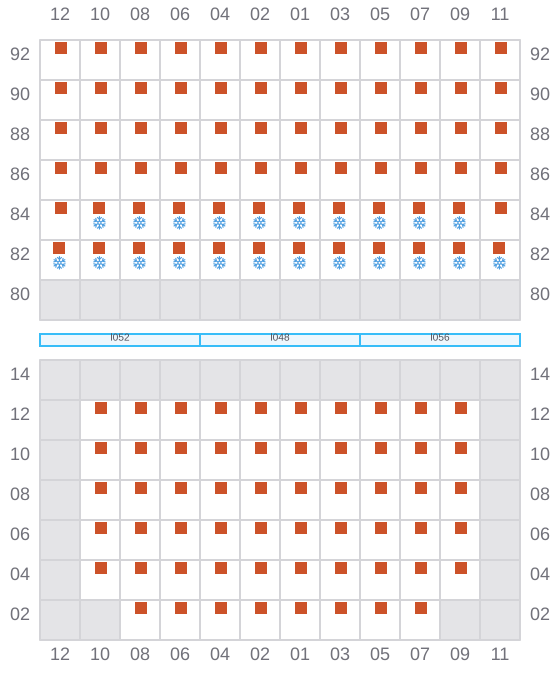

019
- ←
- →
![Bay 019 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b019.png?v=1710700639104)
021 (022)
- →
- ← / ?
![Bay 021 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b021.png?v=1710700639104)

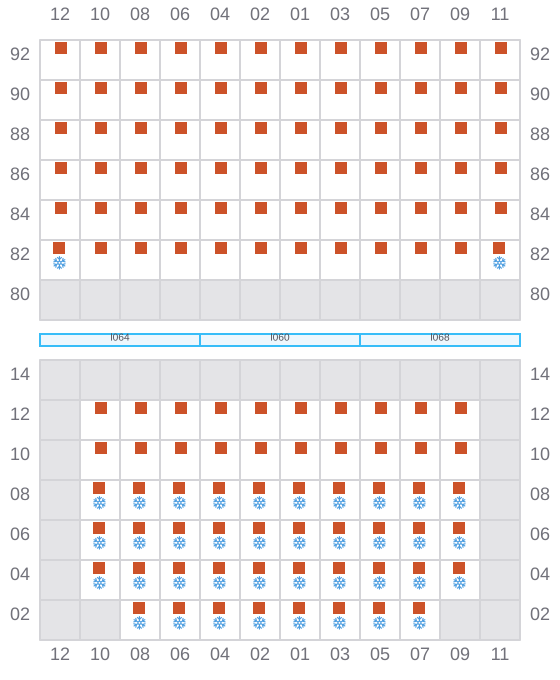

023
- ←
- →
![Bay 023 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b023.png?v=1710700639104)

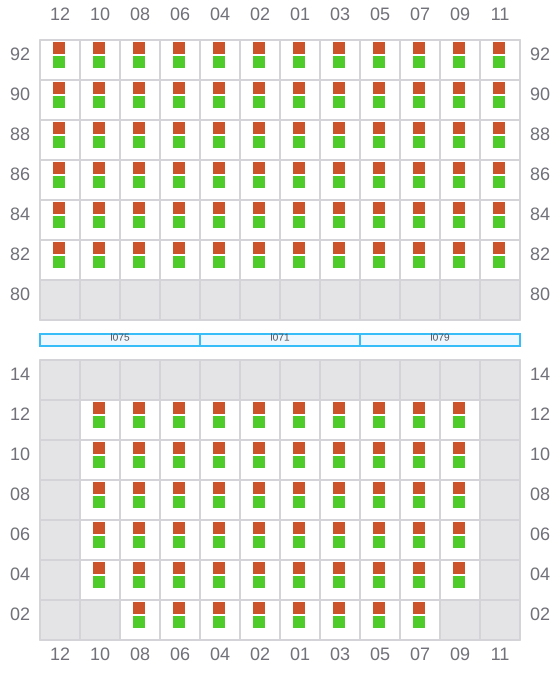

025 (026)
- →
![Bay 025 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b025.png?v=1710700639104)

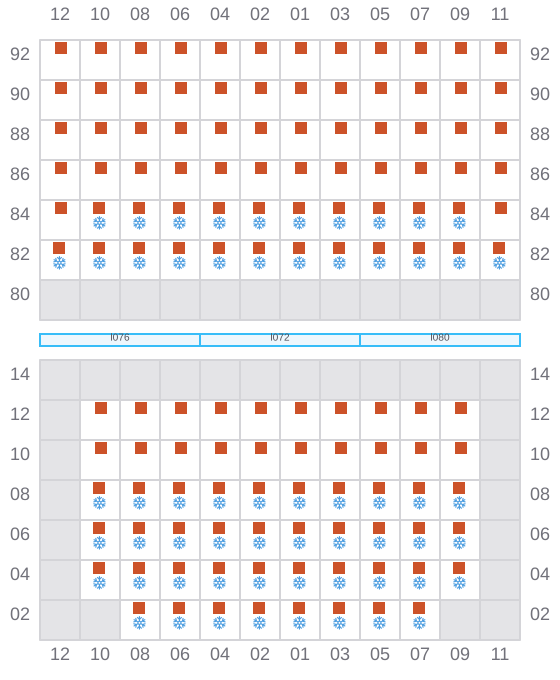

027
- ←
- →
![Bay 027 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b027.png?v=1710700639104)

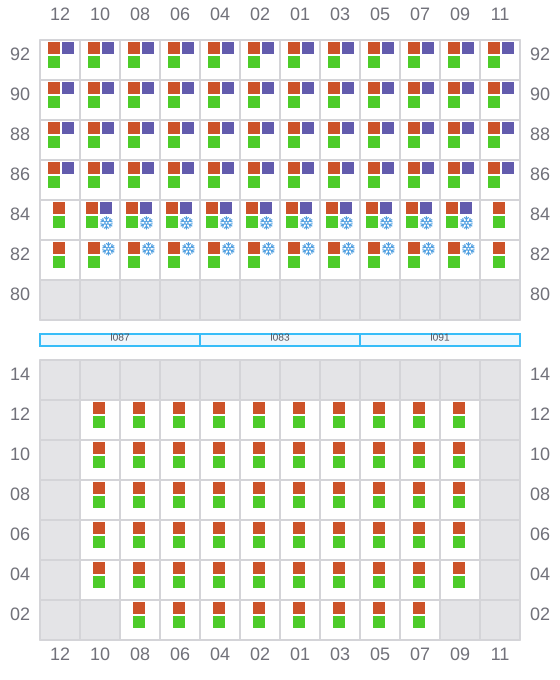

029 (030)
- →
- ← / ?
![Bay 029 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b029.png?v=1710700639104)

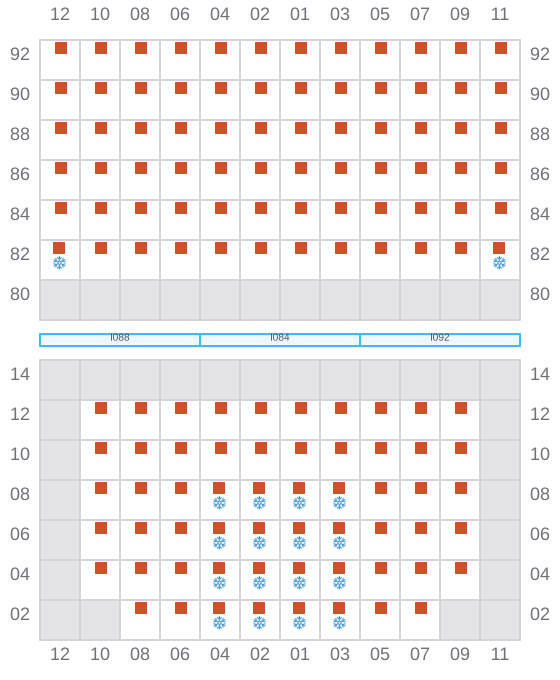

031
- ←
- →
![Bay 031 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b031.png?v=1710700639104)

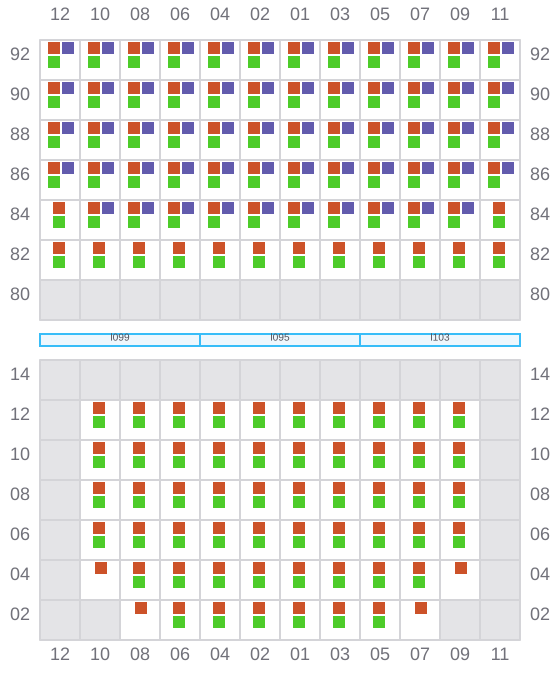

033 (034)
- →
![Bay 033 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b033.png?v=1710700639104)

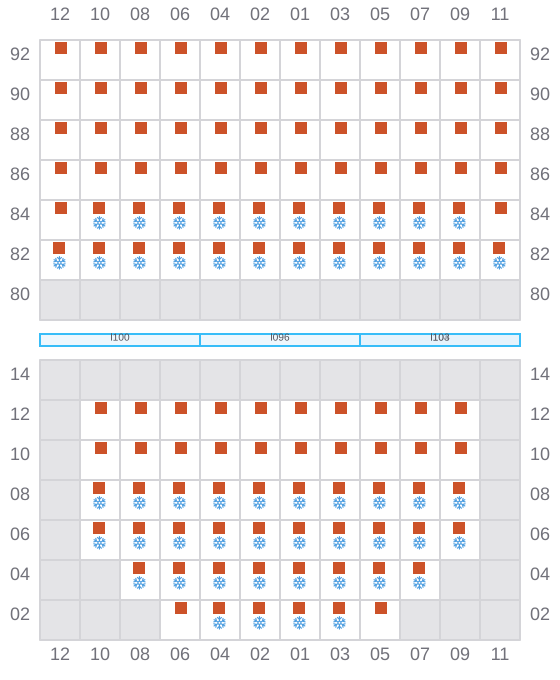

035
- ←
- →
![Bay 035 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b035.png?v=1710700639104)

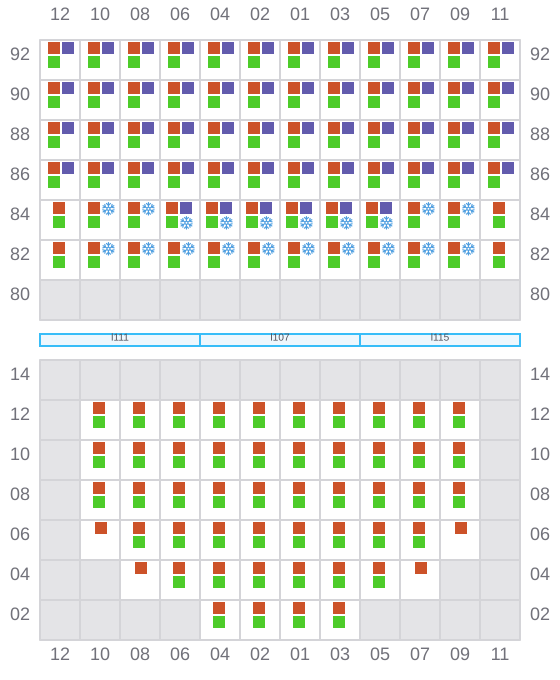

037 (038)
- →
- ← / ?
![Bay 037 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b037.png?v=1710700639104)

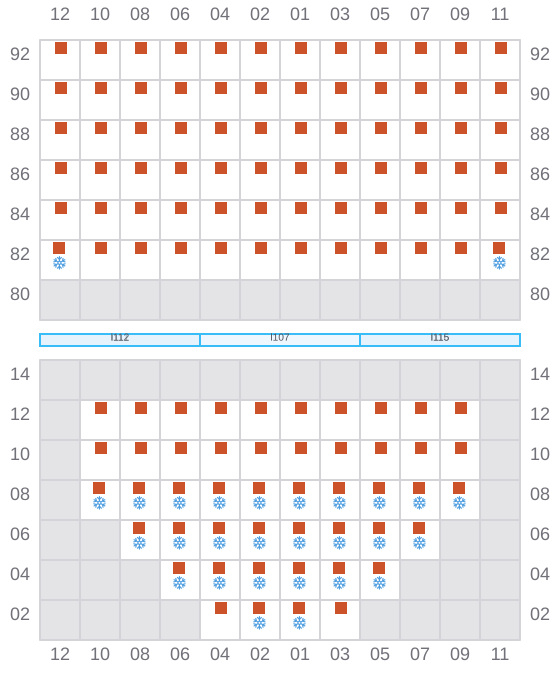

039
- ←
- →
![Bay 039 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b039.png?v=1710700639104)

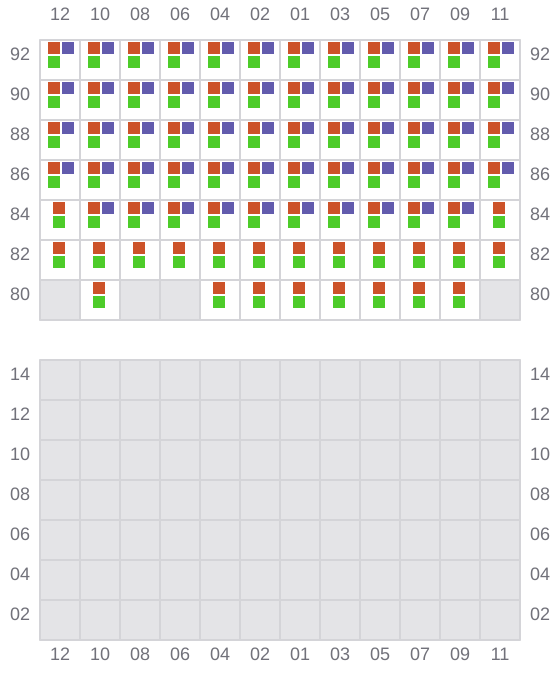

041 (042)
- → / ?
![Bay 041 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b041.png?v=1710700639104)

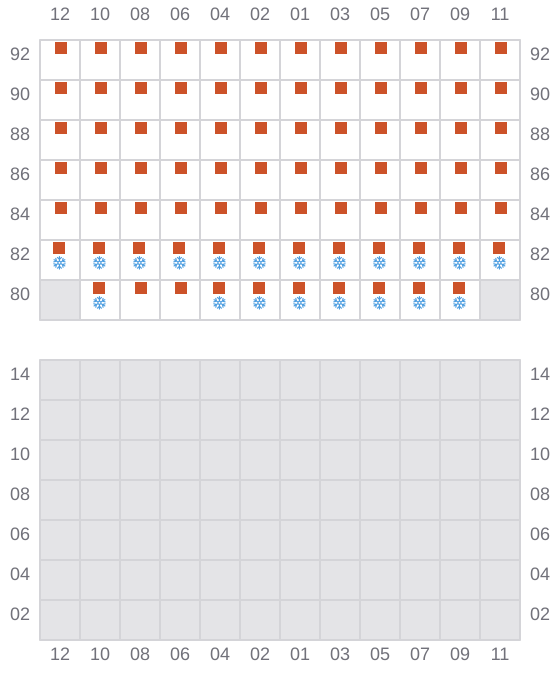

043
- ← / ?
- → / ?
![Bay 043 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b043.png?v=1710700639104)

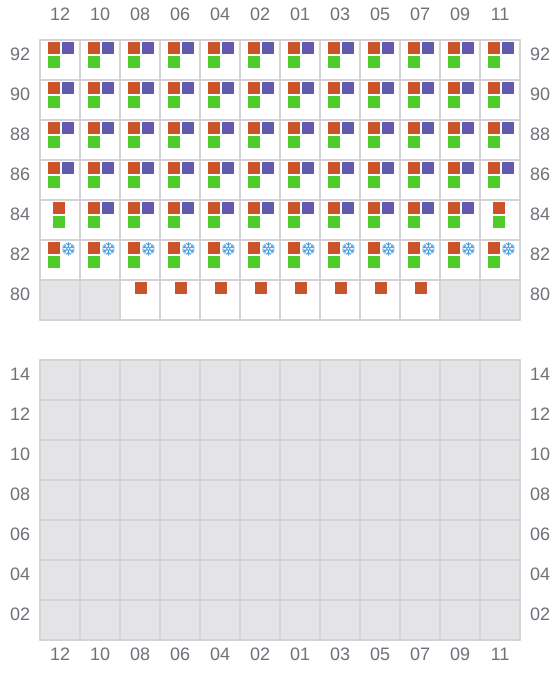

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b045.png?v=1710700639104)

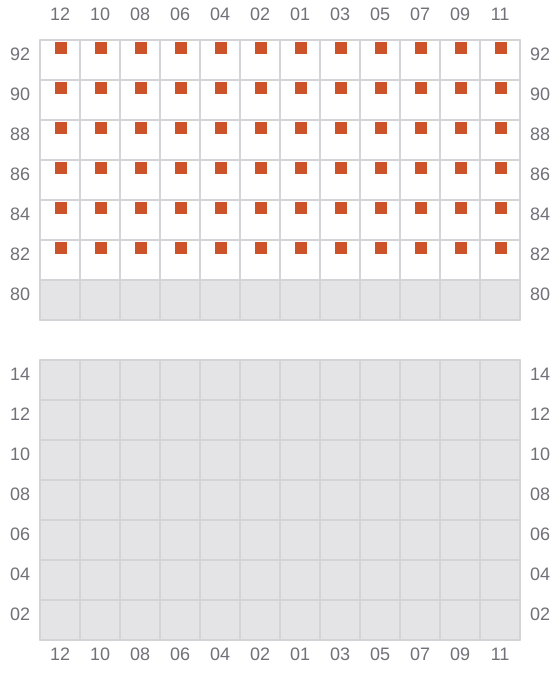

047
- ← / ?
![Bay 047 view and slots of CMA CGM MALTA](/vessel-images/c848c638-c73b-491d-b9d0-5b0a302af770-b047.png?v=1710700639104)
