CMA CGM MANAUS
9434917 | 9HA5774 | 9434917 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:CMA CGM MANAUS
IMO Code:9434917
Call Sign:9HA5774
Line Operator:9434917
Class Name for Sister Ships:26B
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,592
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

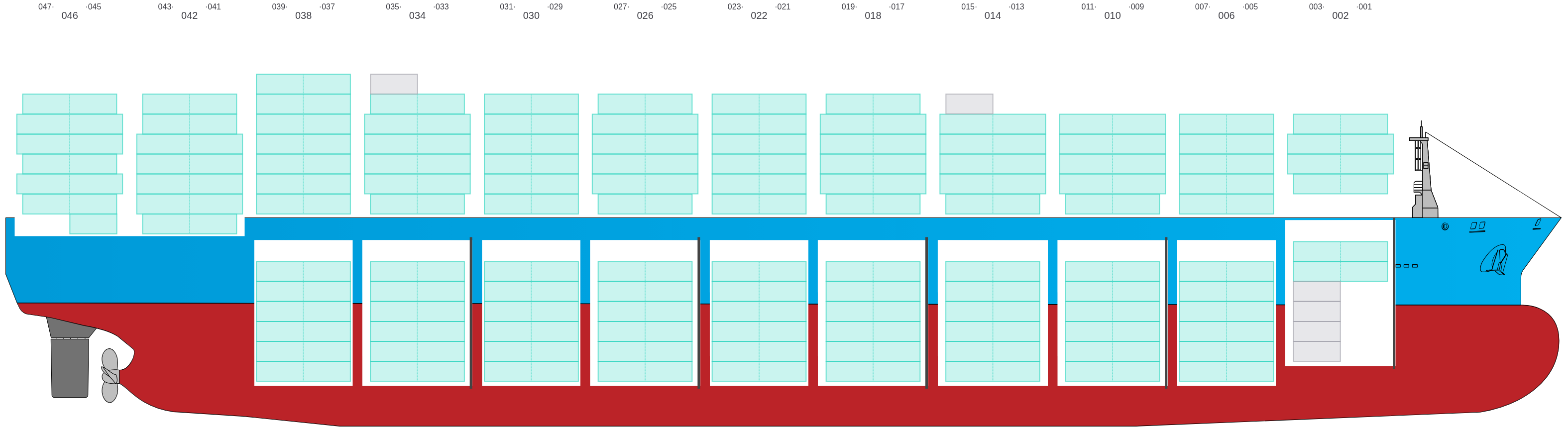

Side View
![Side view of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-sideView.png?v=1711392570739)
Hatch-Covers View
![Deck view of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-deckView.png?v=1711392570739)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

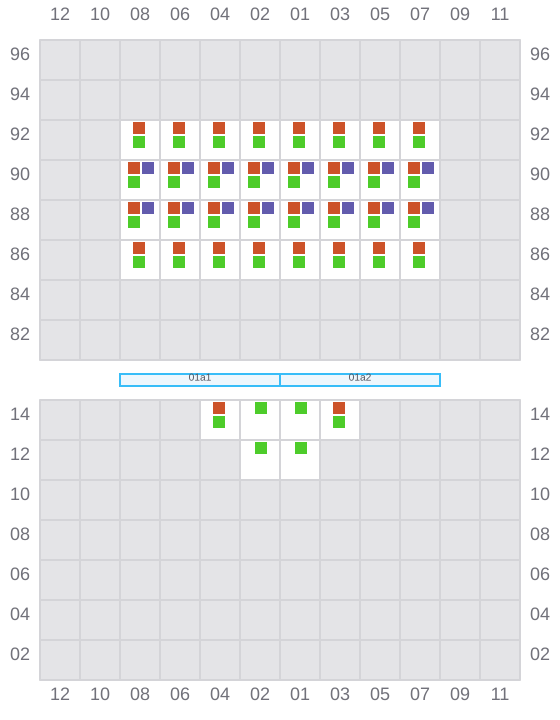

001 (002)
- →
![Bay 001 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b001.png?v=1711392570739)

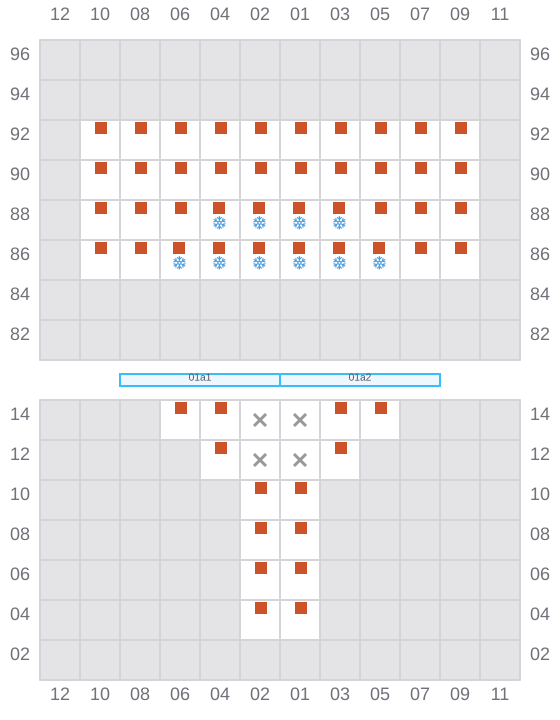

003
- ←
- → / ?
![Bay 003 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b003.png?v=1711392570739)

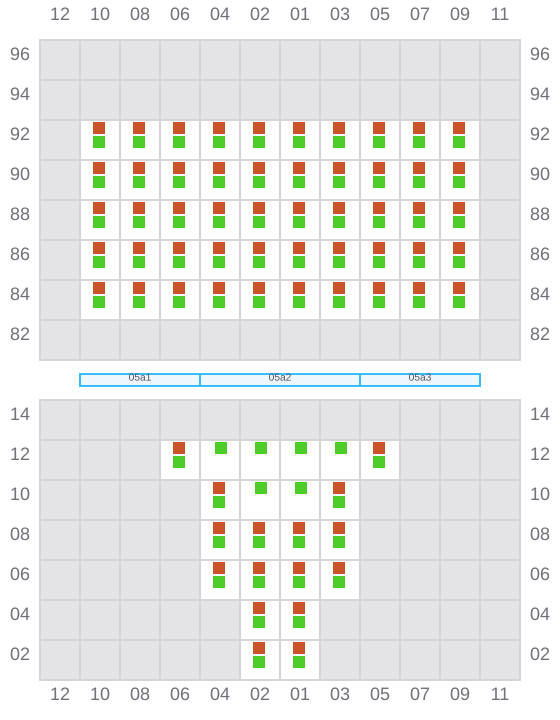

005 (006)
- →
![Bay 005 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b005.png?v=1711392570739)

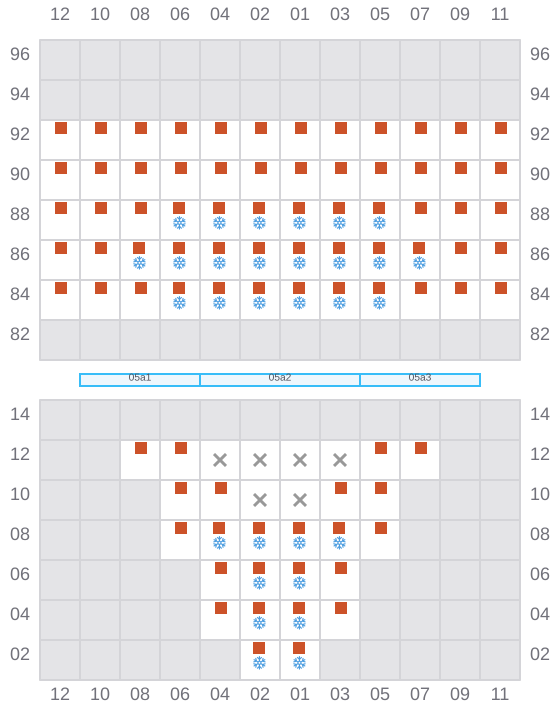

007
- ←
- →
![Bay 007 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b007.png?v=1711392570739)

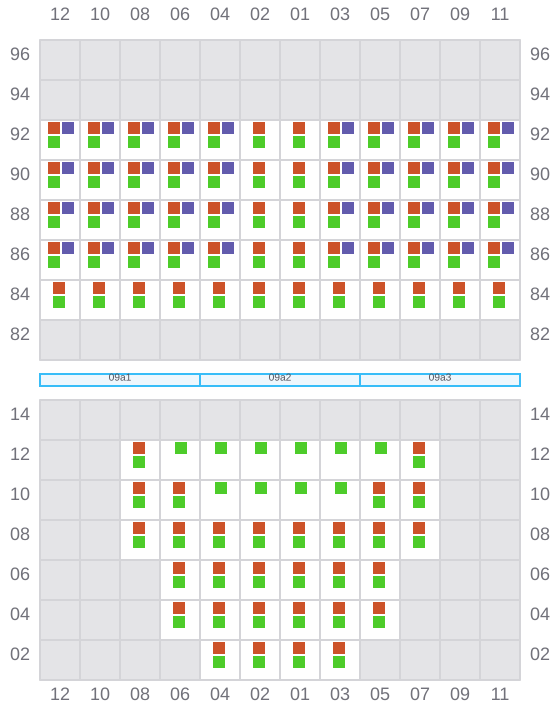

009 (010)
- →
![Bay 009 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b009.png?v=1711392570739)

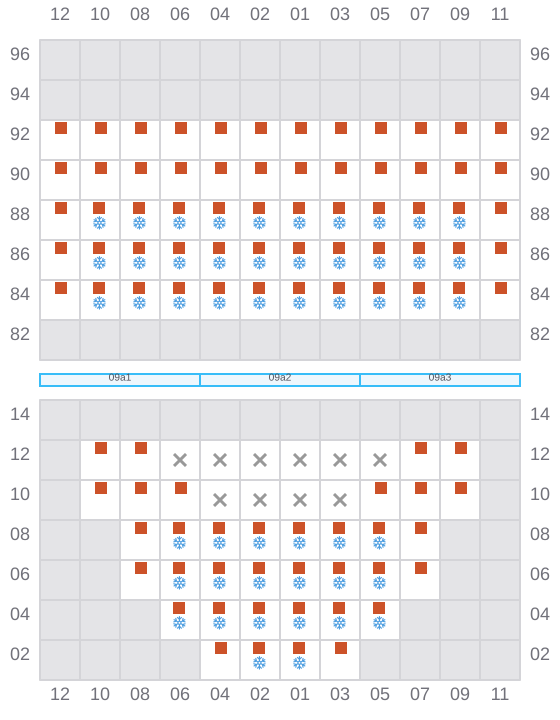

011
- ←
- →
![Bay 011 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b011.png?v=1711392570739)

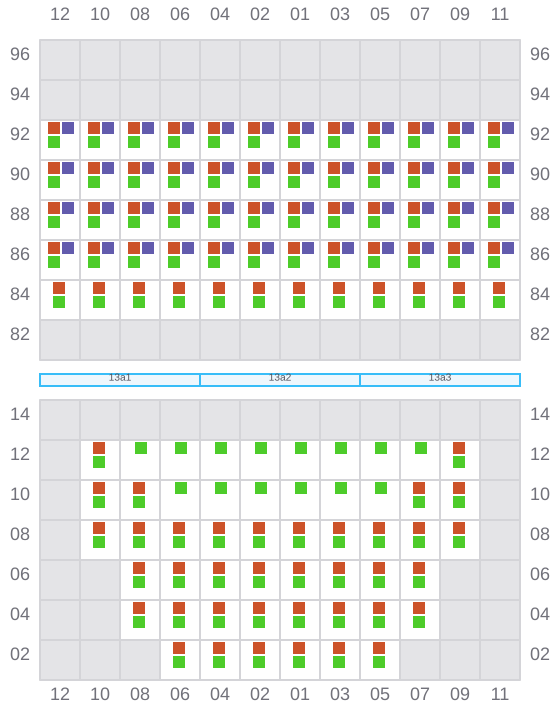

013 (014)
- →
![Bay 013 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b013.png?v=1711392570739)

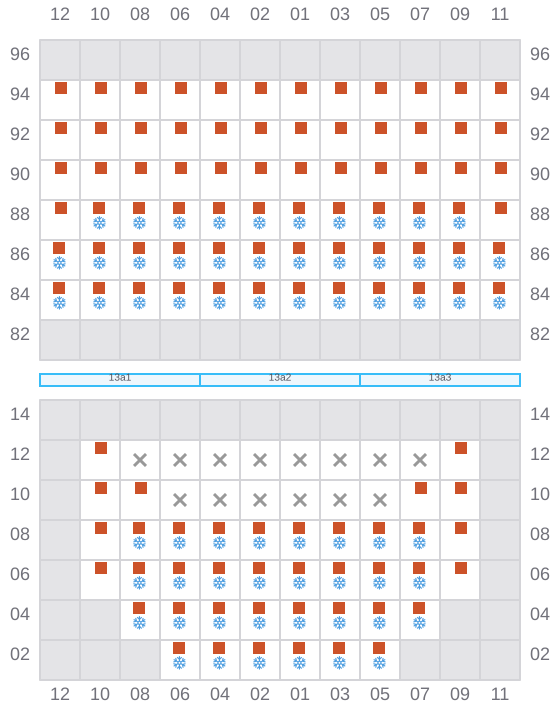

015
- ←
- →
![Bay 015 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b015.png?v=1711392570739)

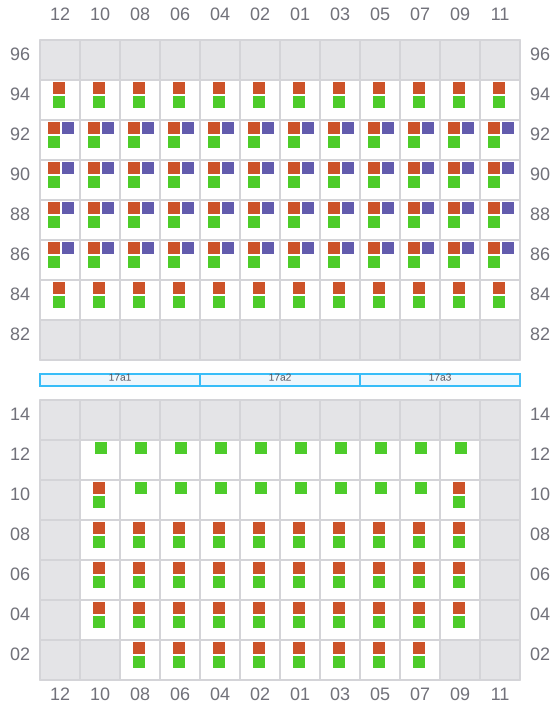

017 (018)
- →
![Bay 017 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b017.png?v=1711392570739)

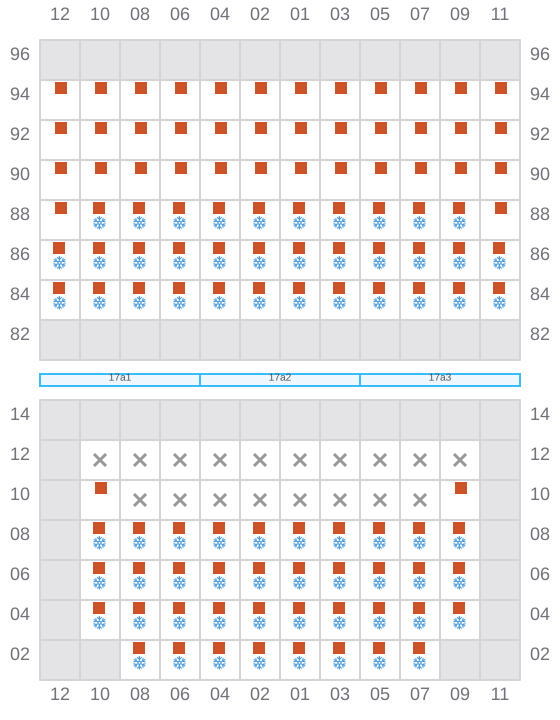

019
- ←
- →
![Bay 019 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b019.png?v=1711392570739)

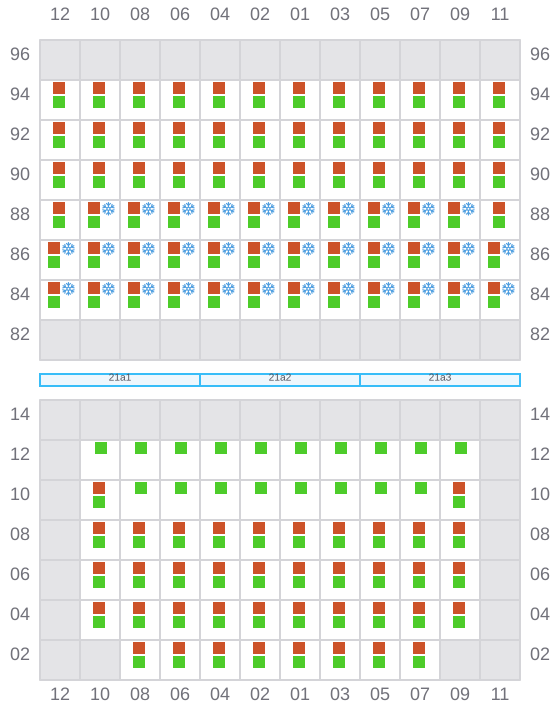

021 (022)
- →
- ← / ?
![Bay 021 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b021.png?v=1711392570739)

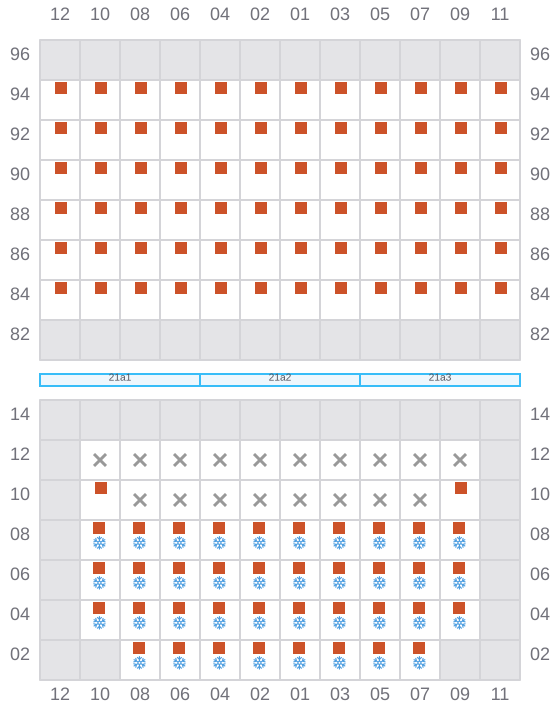

023
- ←
- ? / →
![Bay 023 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b023.png?v=1711392570739)

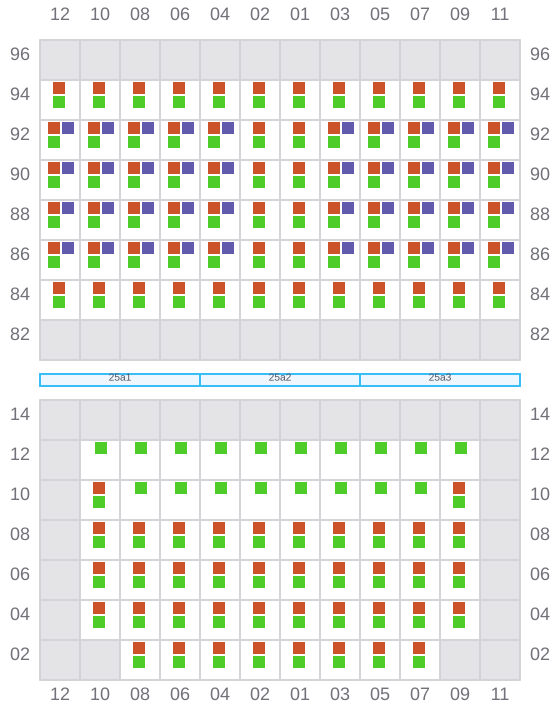

025 (026)
- →
![Bay 025 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b025.png?v=1711392570739)

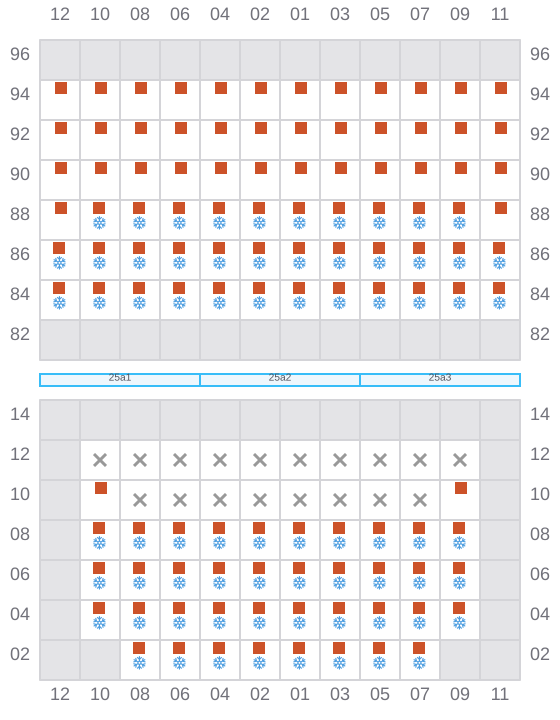

027
- ←
- →
![Bay 027 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b027.png?v=1711392570739)

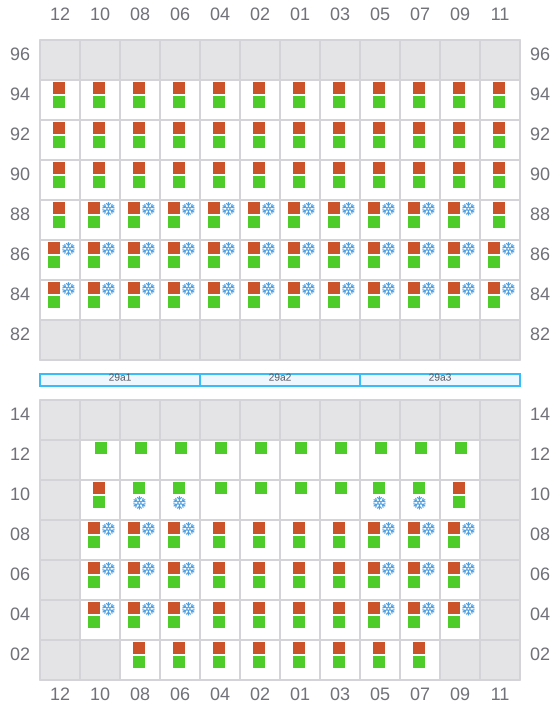

029 (030)
- →
- ←
![Bay 029 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b029.png?v=1711392570739)

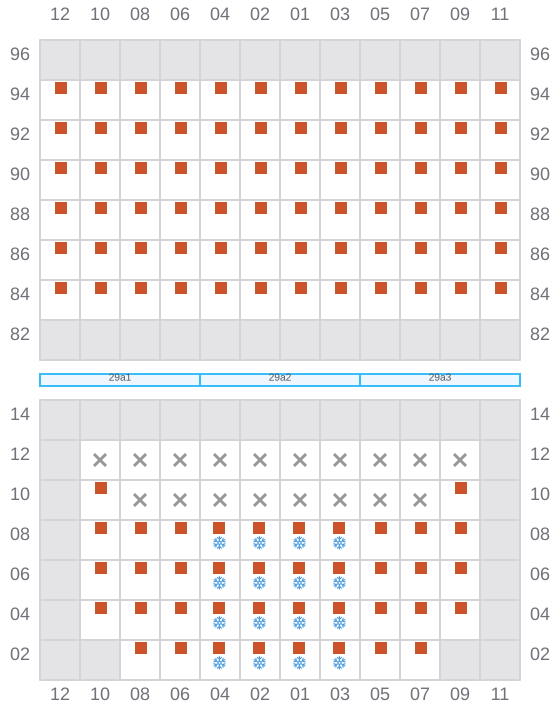

031
- ←
![Bay 031 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b031.png?v=1711392570739)

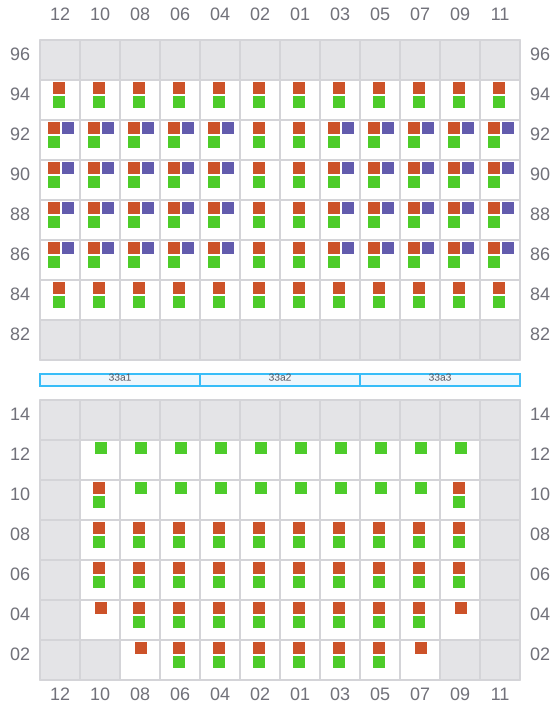

033 (034)
- →
![Bay 033 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b033.png?v=1711392570739)

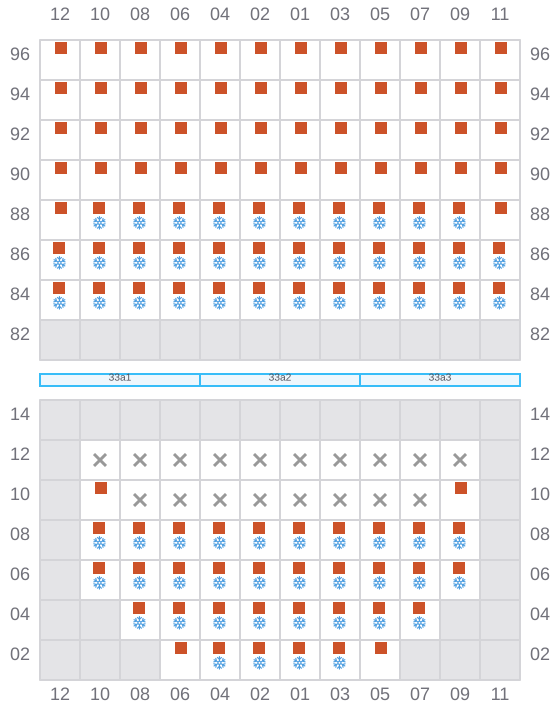

035
- ←
- → / ?
![Bay 035 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b035.png?v=1711392570739)

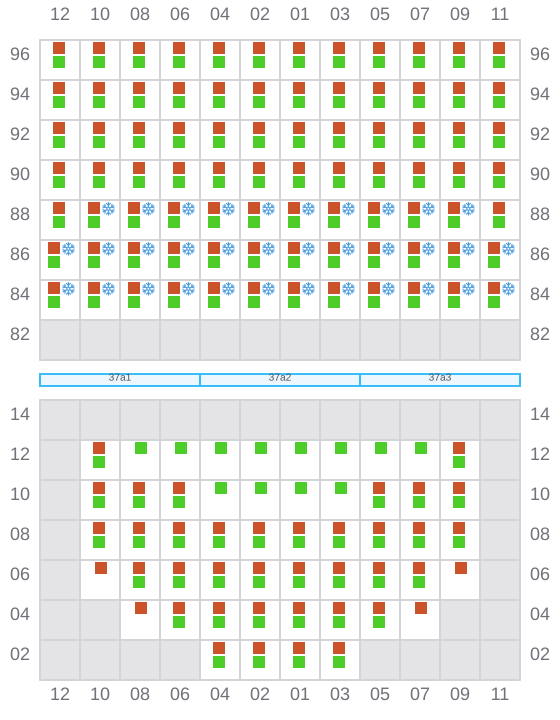

037 (038)
- →
- ← / ?
![Bay 037 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b037.png?v=1711392570739)

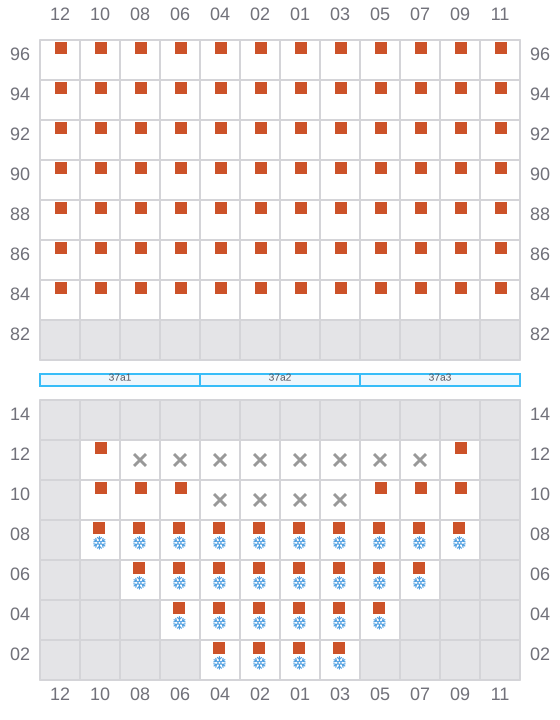

039
- ←
![Bay 039 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b039.png?v=1711392570739)

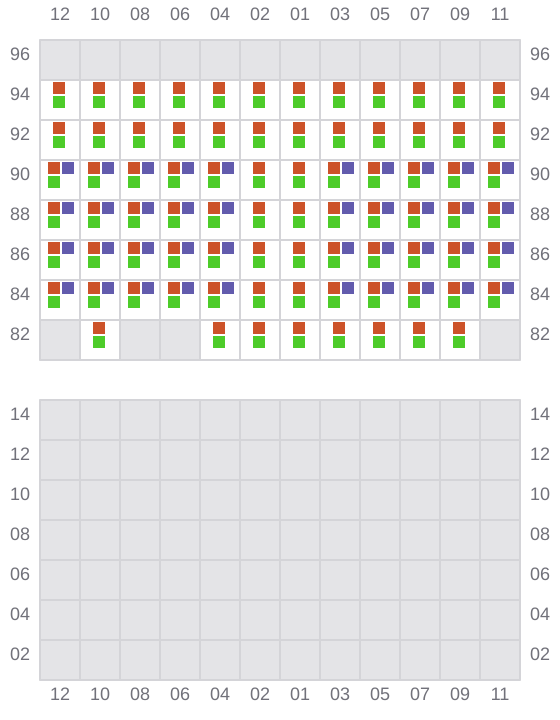

041 (042)
- → / ?
![Bay 041 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b041.png?v=1711392570739)

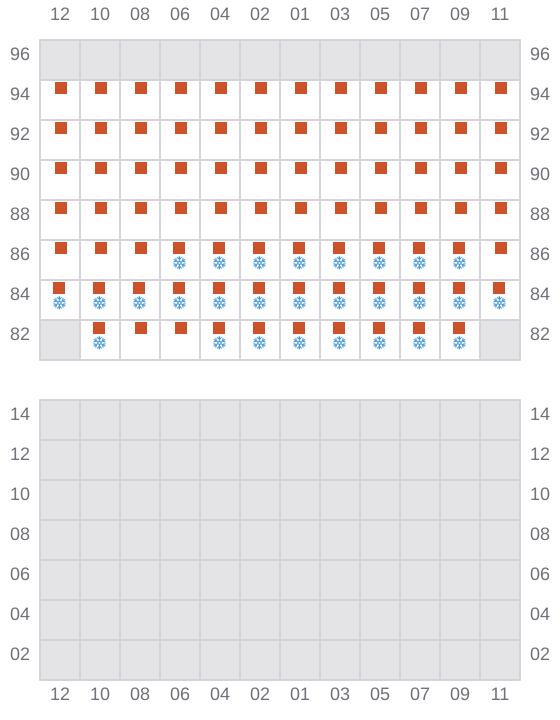

043
- ← / ?
![Bay 043 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b043.png?v=1711392570739)

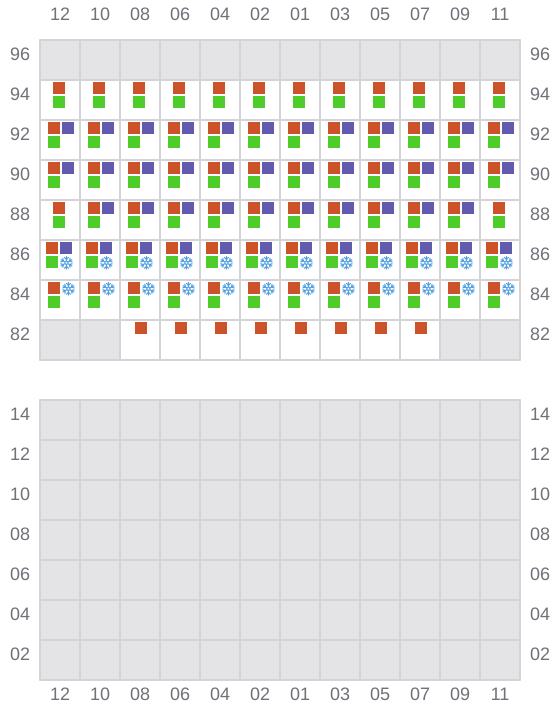

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b045.png?v=1711392570739)

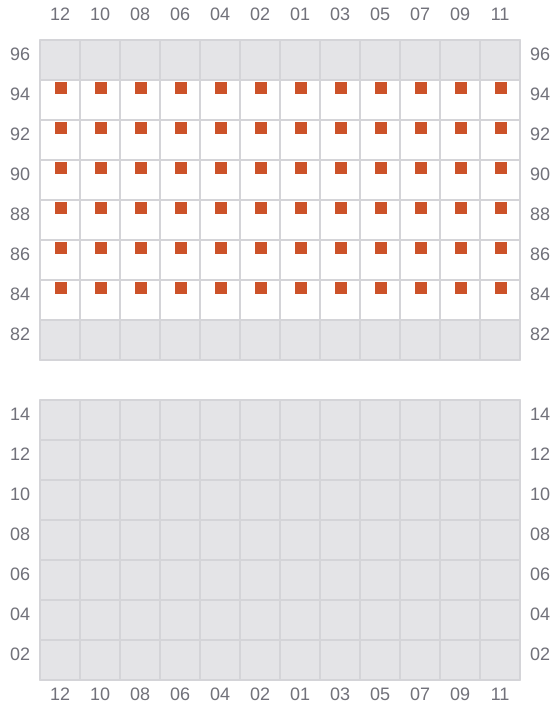

047
- ← / ?
![Bay 047 view and slots of CMA CGM MANAUS](/vessel-images/70ef74c4-b2a2-415d-8dce-dcf4e1df497d-b047.png?v=1711392570739)
