CMA CGM MARLIN
9322463 | 9HA5569 | 9322463 by ********* Last update: Thu Jun 06 2024
General Info
Ship Name:CMA CGM MARLIN
IMO Code:9322463
Call Sign:9HA5569
Line Operator:9322463
Class Name for Sister Ships:ITAL LAGUNA
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):294.07
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,928
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-sideView.png?v=1717699876877)

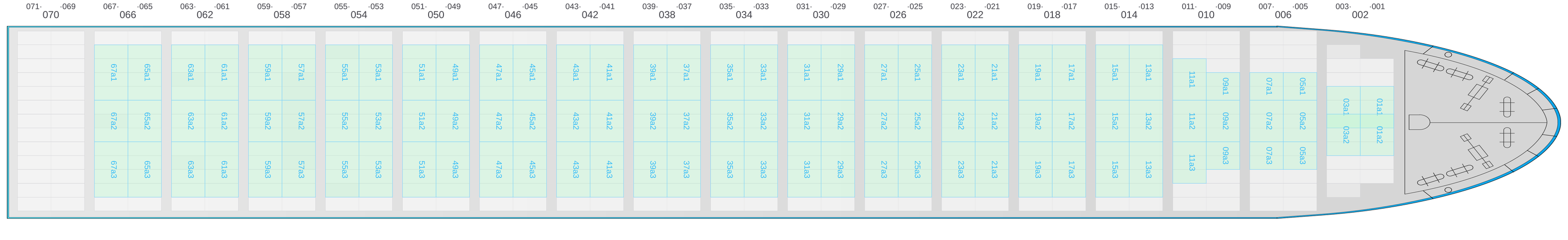

Hatch-Covers View
![Deck view of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-deckView.png?v=1717699876877)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

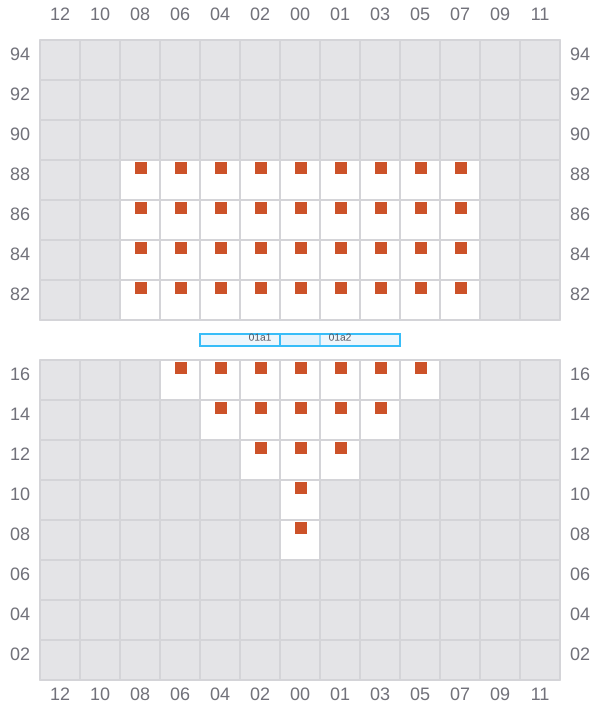

001
- →
![Bay 001 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b001.png?v=1717699876877)

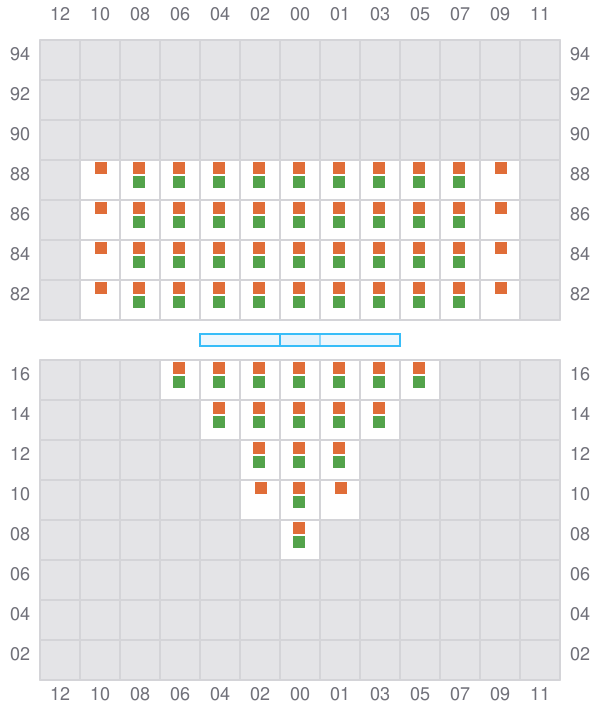

003 (002)
- ←
![Bay 003 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b003.png?v=1717699876877)

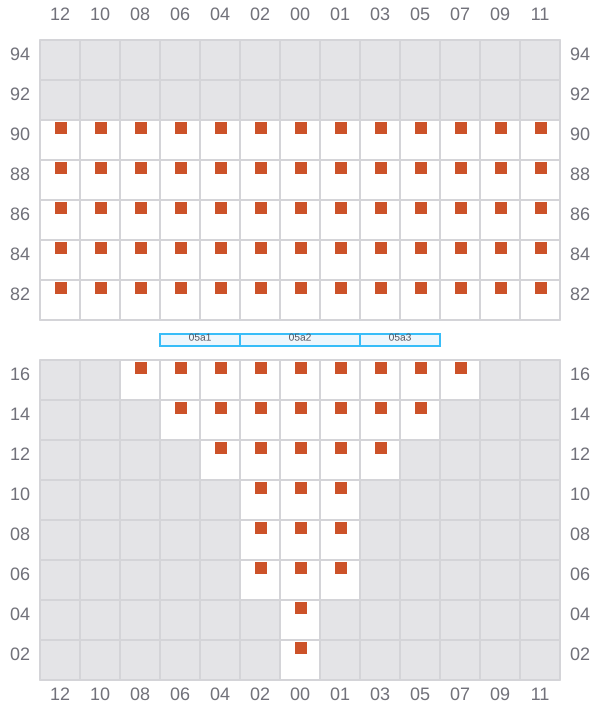

005
- →
![Bay 005 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b005.png?v=1717699876877)

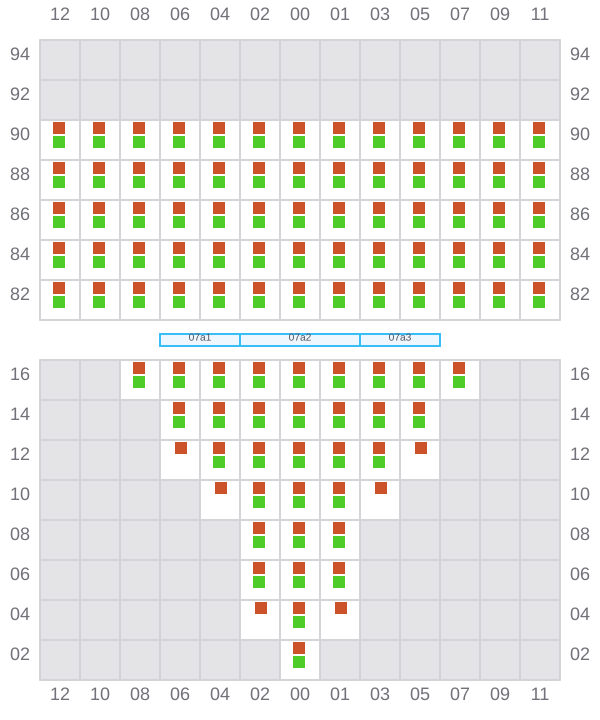

007 (006)
- ←
![Bay 007 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b007.png?v=1717699876877)

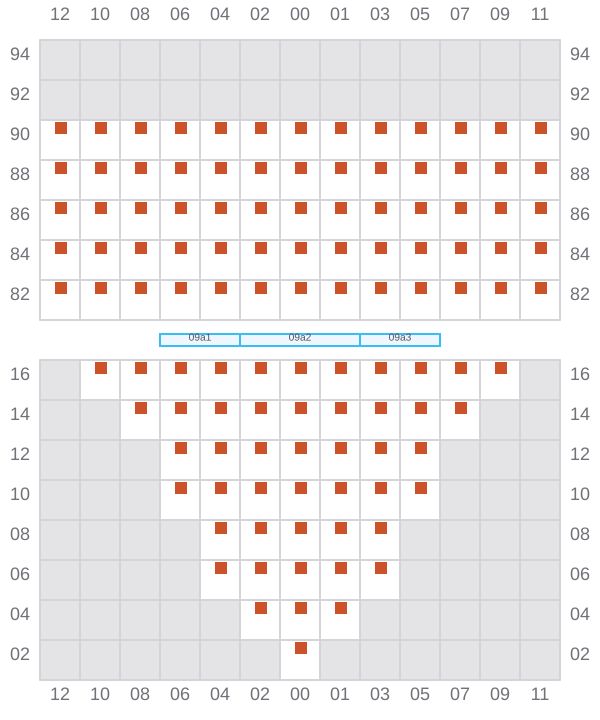

009
- →
![Bay 009 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b009.png?v=1717699876877)

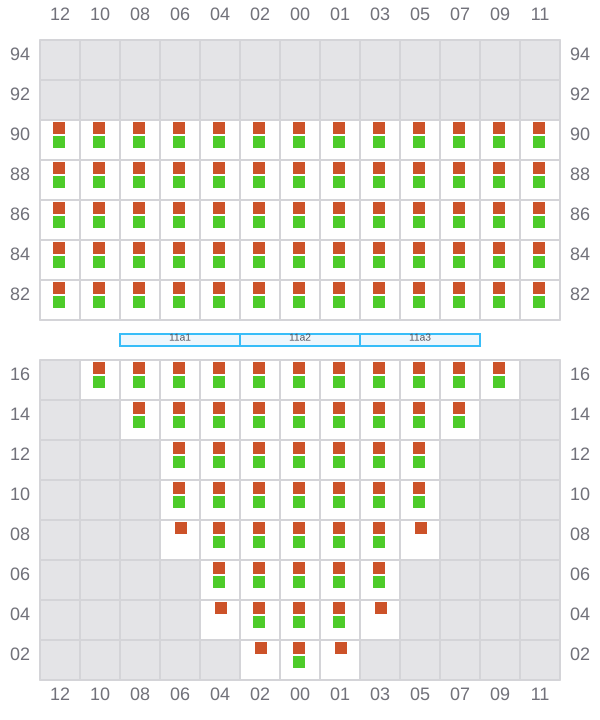

011 (010)
- ←
![Bay 011 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b011.png?v=1717699876877)

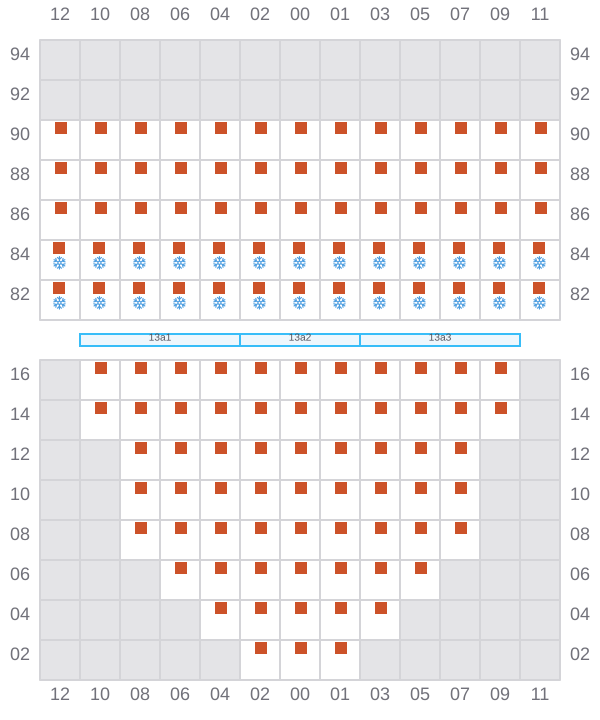

013
- →
![Bay 013 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b013.png?v=1717699876877)

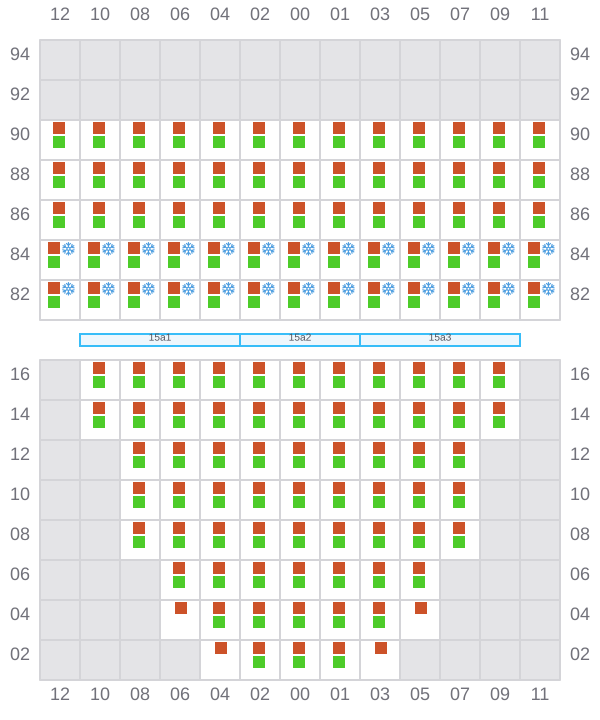

015 (014)
- ←
![Bay 015 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b015.png?v=1717699876877)

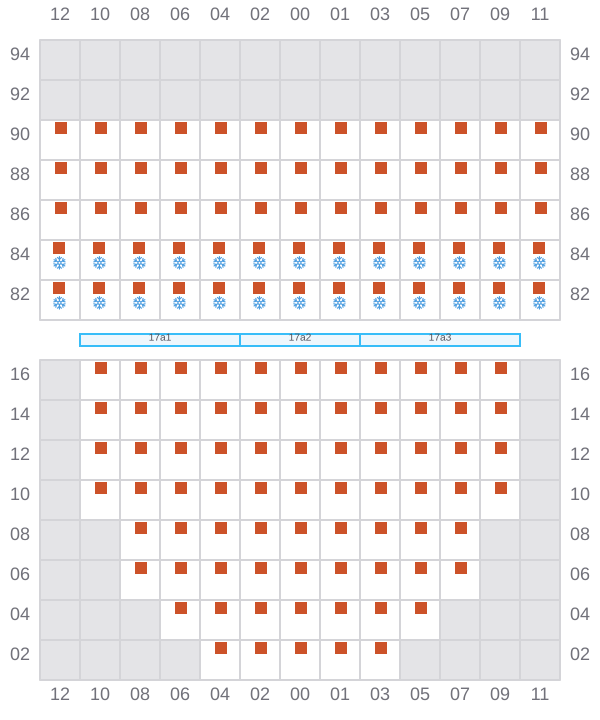

017
- →
![Bay 017 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b017.png?v=1717699876877)

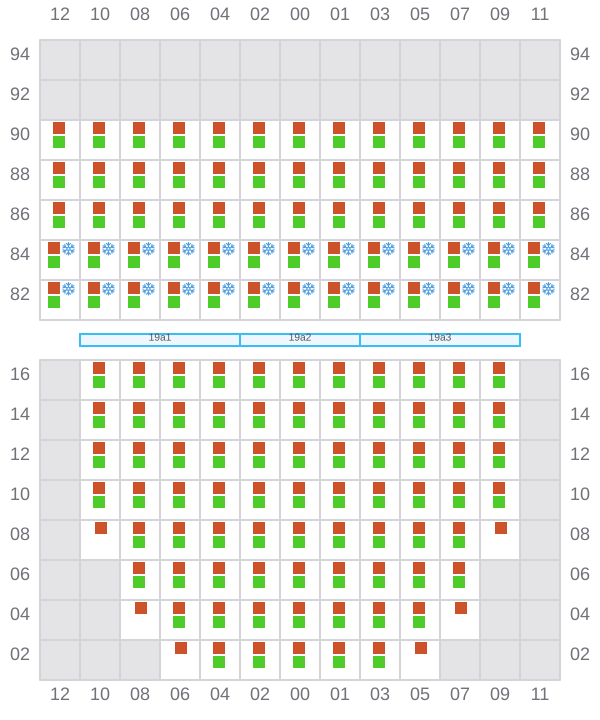

019 (018)
- ←
![Bay 019 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b019.png?v=1717699876877)
021
- →
![Bay 021 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b021.png?v=1717699876877)
023 (022)
- ←
![Bay 023 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b023.png?v=1717699876877)
025
- →
![Bay 025 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b025.png?v=1717699876877)

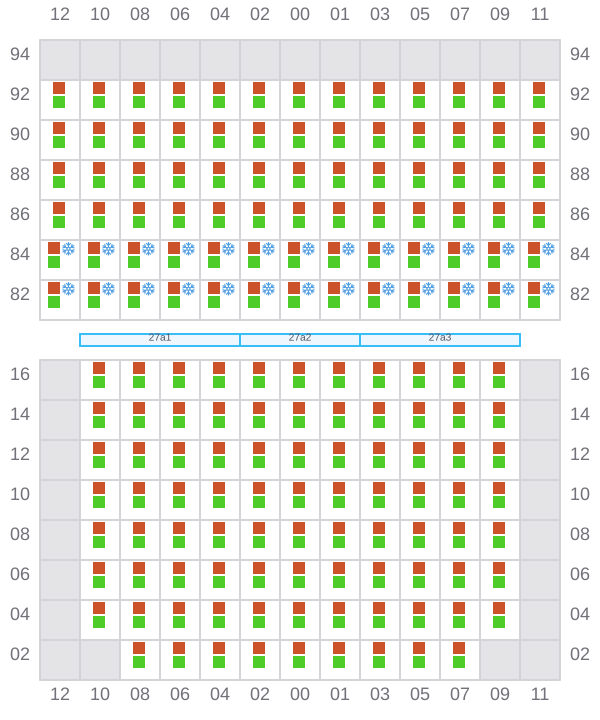

027 (026)
- ←
![Bay 027 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b027.png?v=1717699876877)

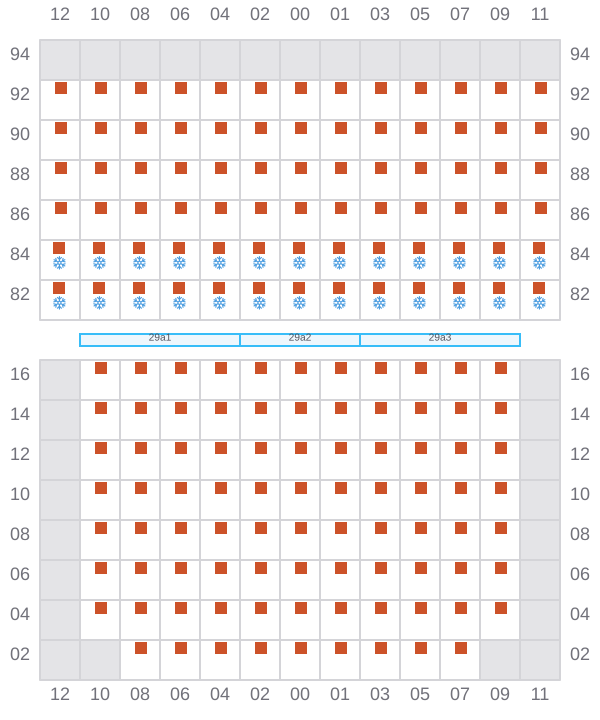

029
- →
![Bay 029 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b029.png?v=1717699876877)

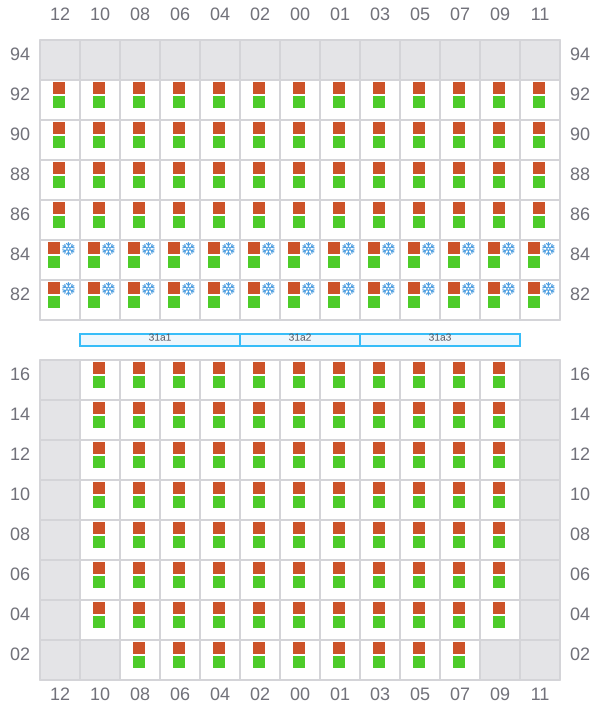

031 (030)
- ←
![Bay 031 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b031.png?v=1717699876877)
033
- →
![Bay 033 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b033.png?v=1717699876877)
035 (034)
- ←
![Bay 035 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b035.png?v=1717699876877)

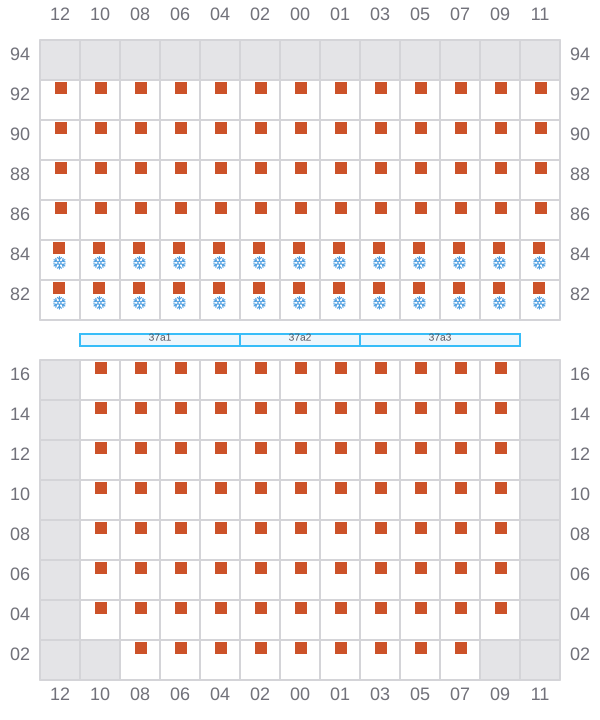

037
- →
![Bay 037 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b037.png?v=1717699876877)
039 (038)
- ←
![Bay 039 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b039.png?v=1717699876877)
041
- →
![Bay 041 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b041.png?v=1717699876877)
043 (042)
- ←
![Bay 043 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b043.png?v=1717699876877)
045
- →
![Bay 045 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b045.png?v=1717699876877)
047 (046)
- ←
![Bay 047 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b047.png?v=1717699876877)
049
- →
![Bay 049 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b049.png?v=1717699876877)
051 (050)
- ←
![Bay 051 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b051.png?v=1717699876877)

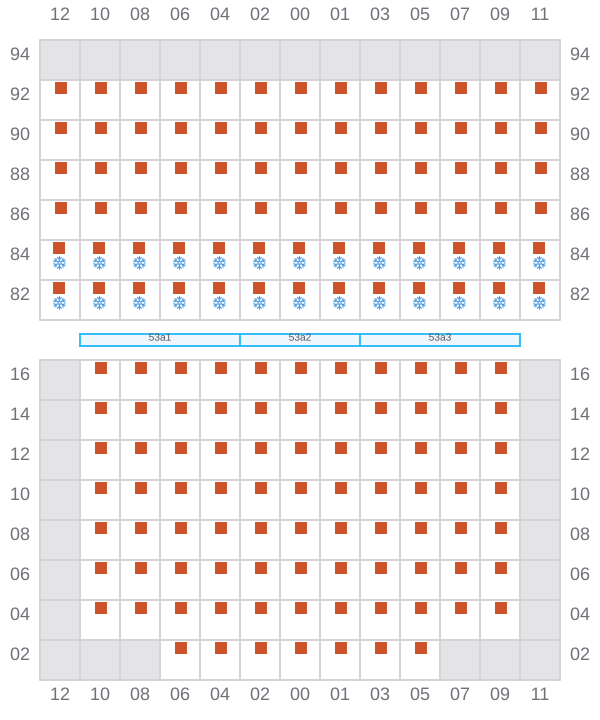

053
- →
![Bay 053 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b053.png?v=1717699876877)

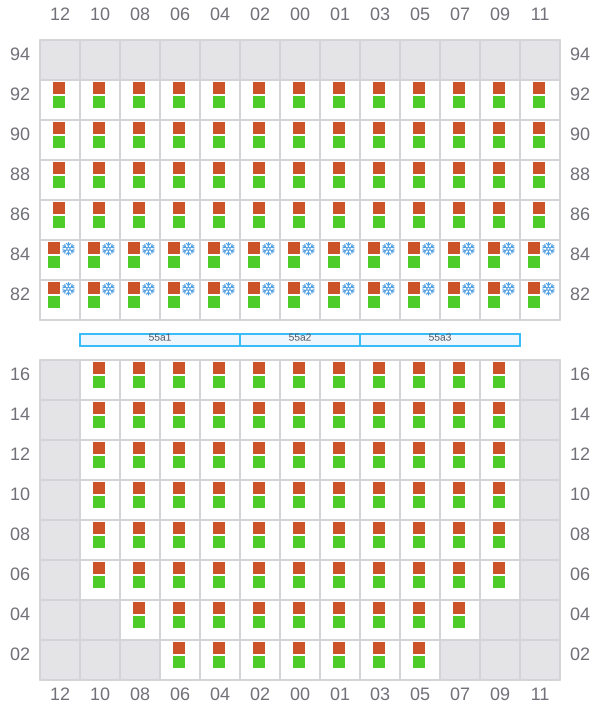

055 (054)
- ←
![Bay 055 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b055.png?v=1717699876877)

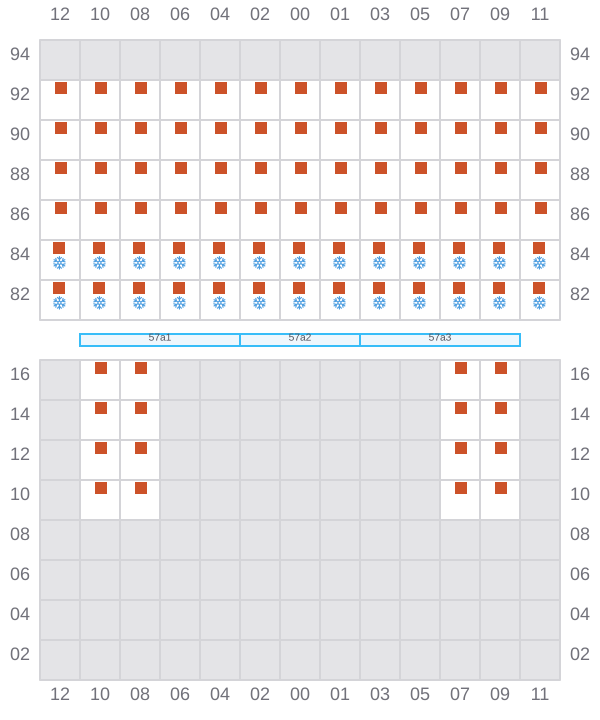

057
- →
![Bay 057 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b057.png?v=1717699876877)
059 (058)
- ←
![Bay 059 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b059.png?v=1717699876877)

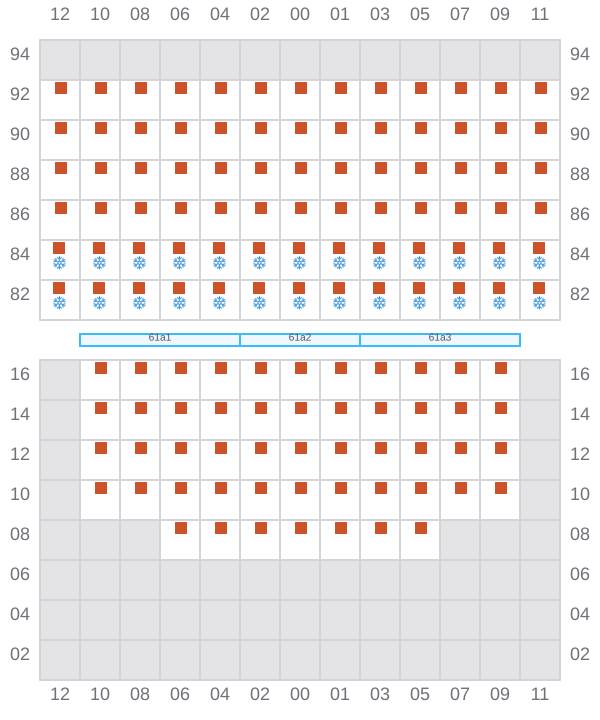

061
- →
![Bay 061 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b061.png?v=1717699876877)

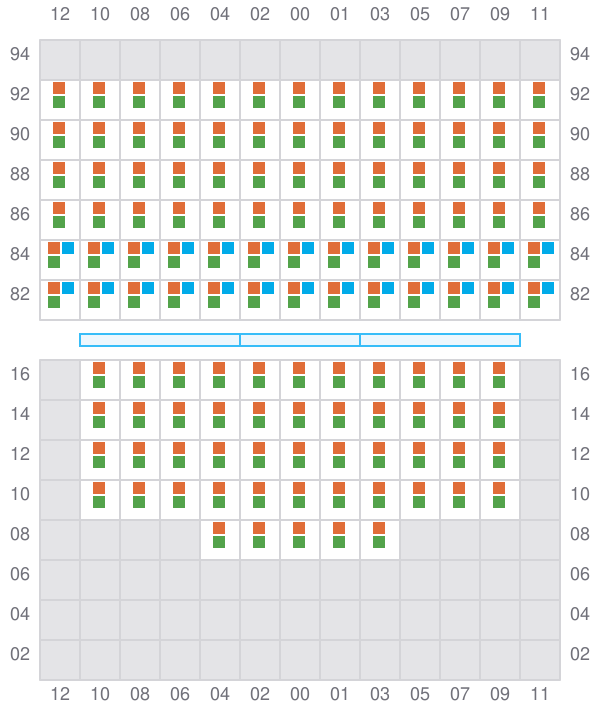

063 (062)
- ←
![Bay 063 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b063.png?v=1717699876877)
065
- →
![Bay 065 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b065.png?v=1717699876877)

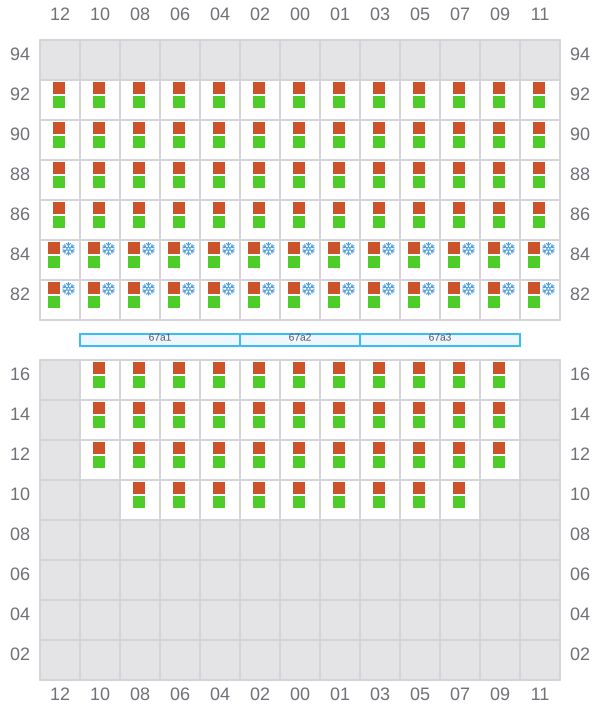

067 (066)
- ←
![Bay 067 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b067.png?v=1717699876877)

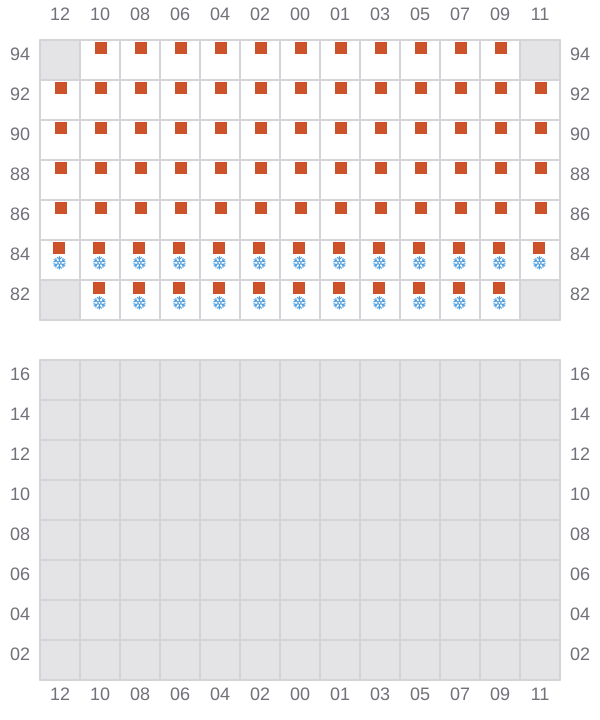

069
- → / ?
![Bay 069 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b069.png?v=1717699876877)

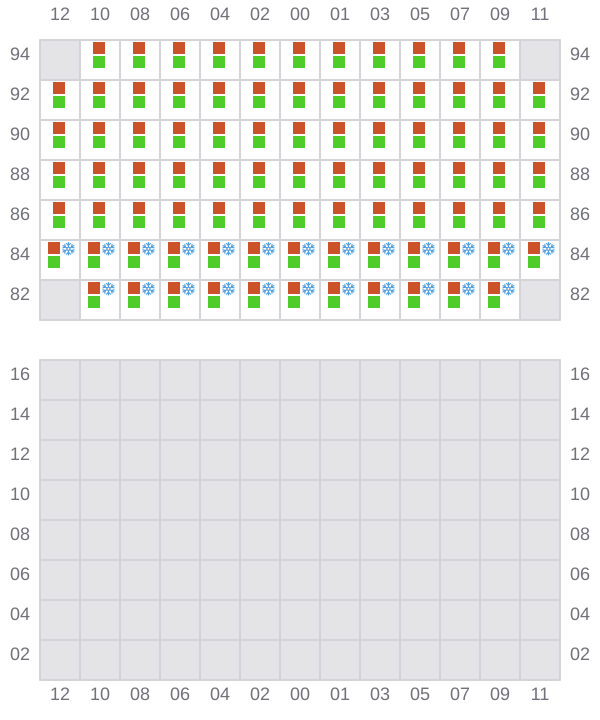

071 (070)
- ← / ?
![Bay 071 view and slots of CMA CGM MARLIN](/vessel-images/568a58d4-29c5-407b-b84f-7dcaf588230d-b071.png?v=1717699876877)
