CMA CGM MAUPASSANT
9409209 | 9HA5016 | 9409209 by ********* Last update: Thu May 02 2024

General Info

Ship Name:CMA CGM MAUPASSANT
IMO Code:9409209
Call Sign:9HA5016
Line Operator:9409209
Class Name for Sister Ships:CMA CGM MAUPASSANT
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,534

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

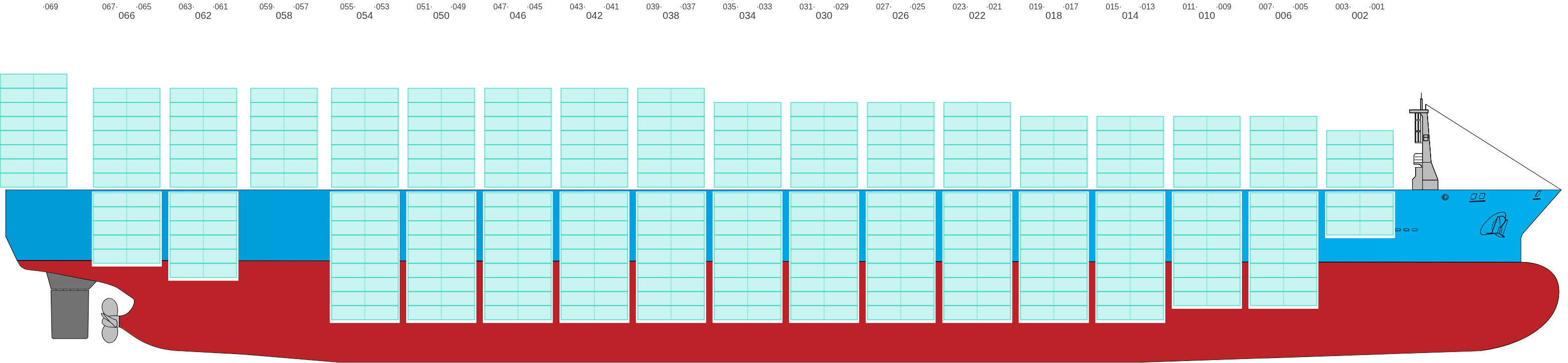

Side View

Side view of CMA CGM MAUPASSANT

Hatch-Covers View

Deck view of CMA CGM MAUPASSANT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

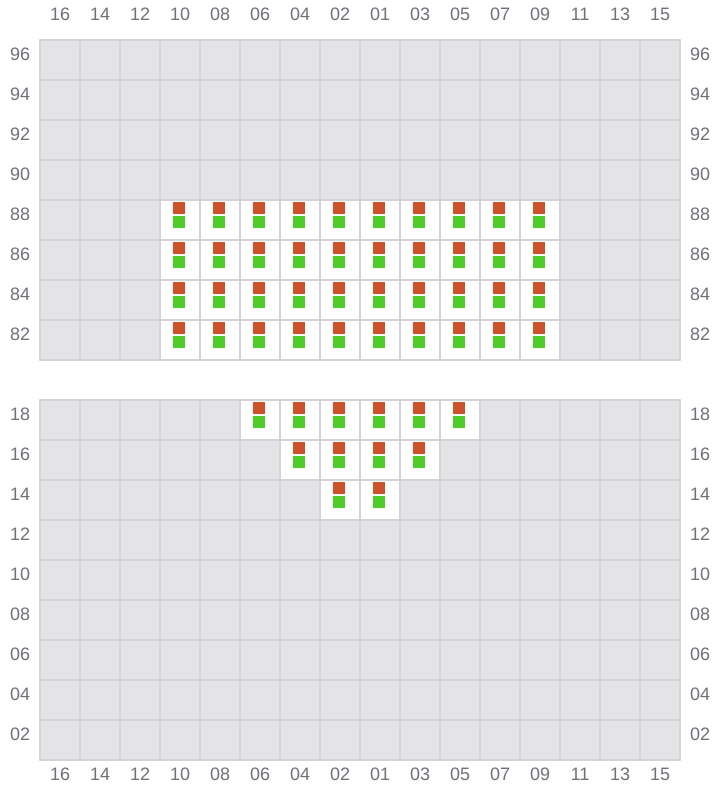

001 (002)

  • →
Bay 001 view and slots of CMA CGM MAUPASSANT

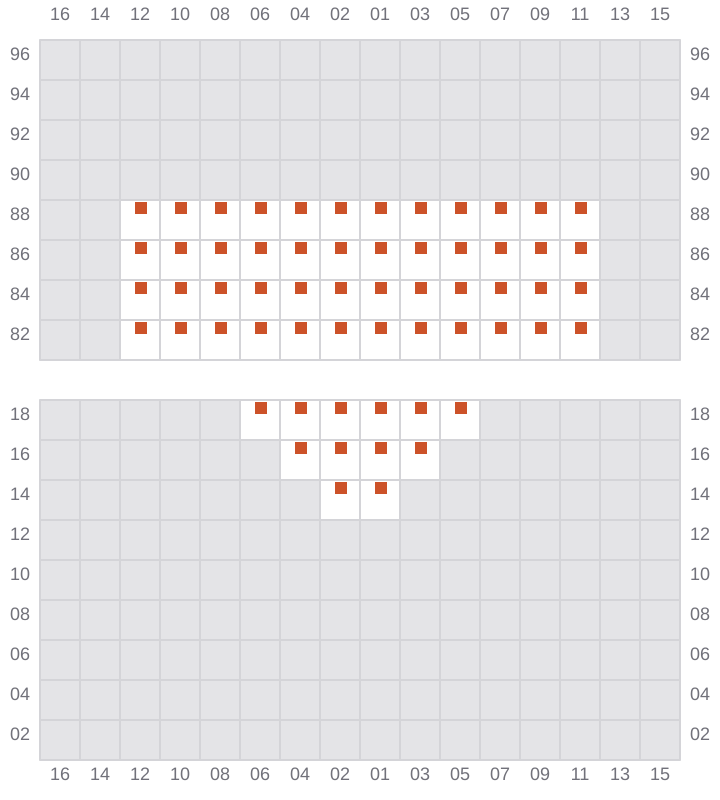

003

  • ←
Bay 003 view and slots of CMA CGM MAUPASSANT

005 (006)

  • →

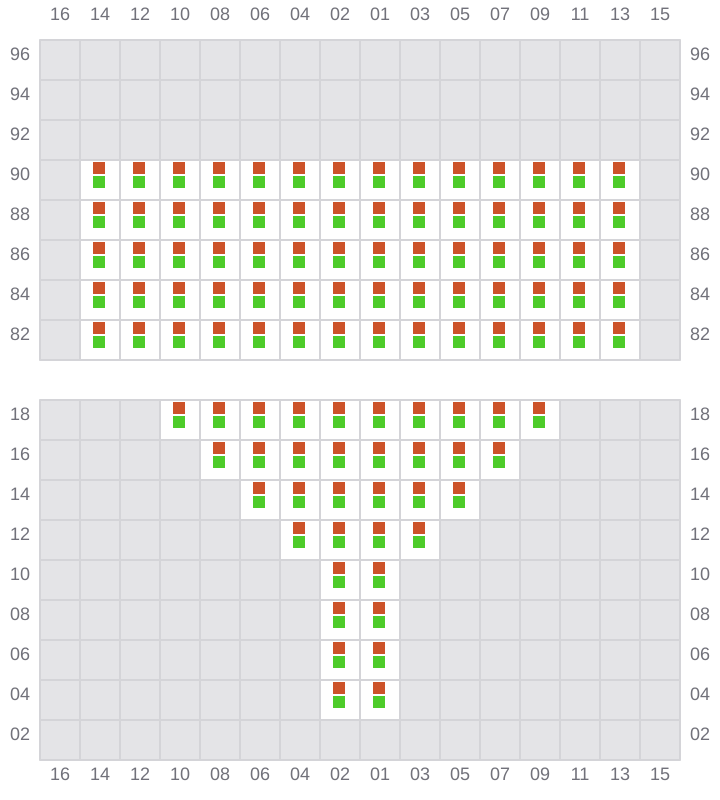

Bay 005 view and slots of CMA CGM MAUPASSANT

007

  • ←

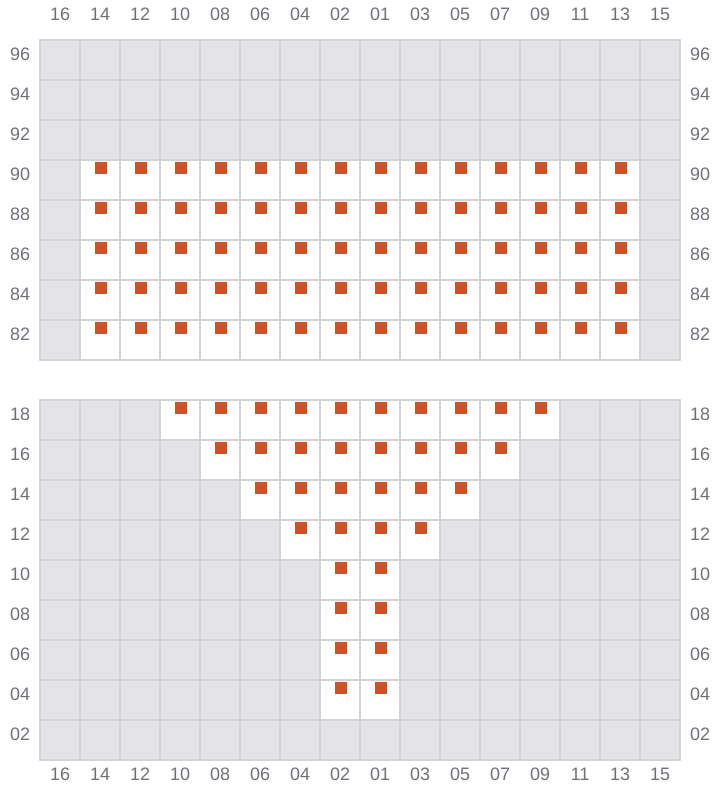

Bay 007 view and slots of CMA CGM MAUPASSANT

009 (010)

  • →

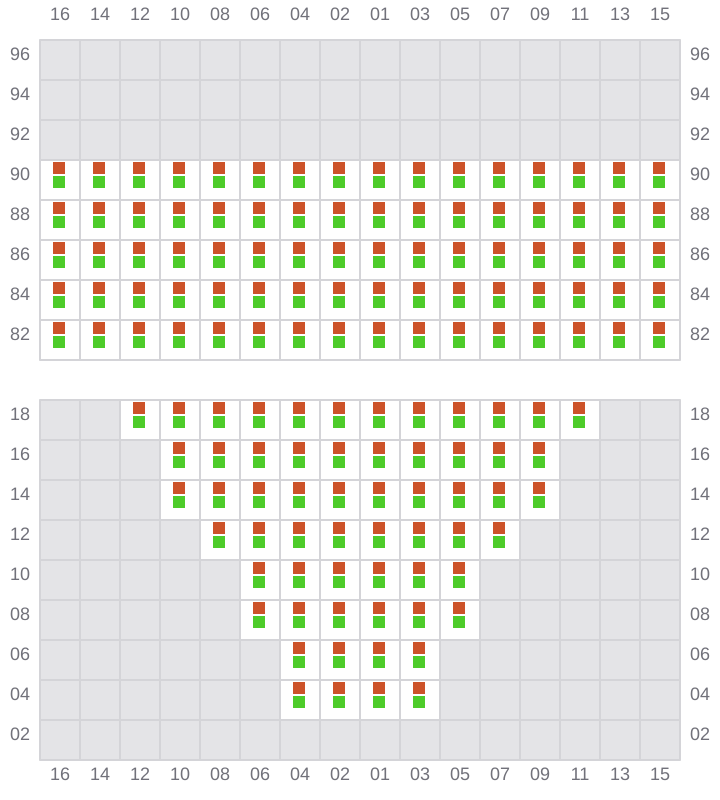

Bay 009 view and slots of CMA CGM MAUPASSANT

011

  • ←

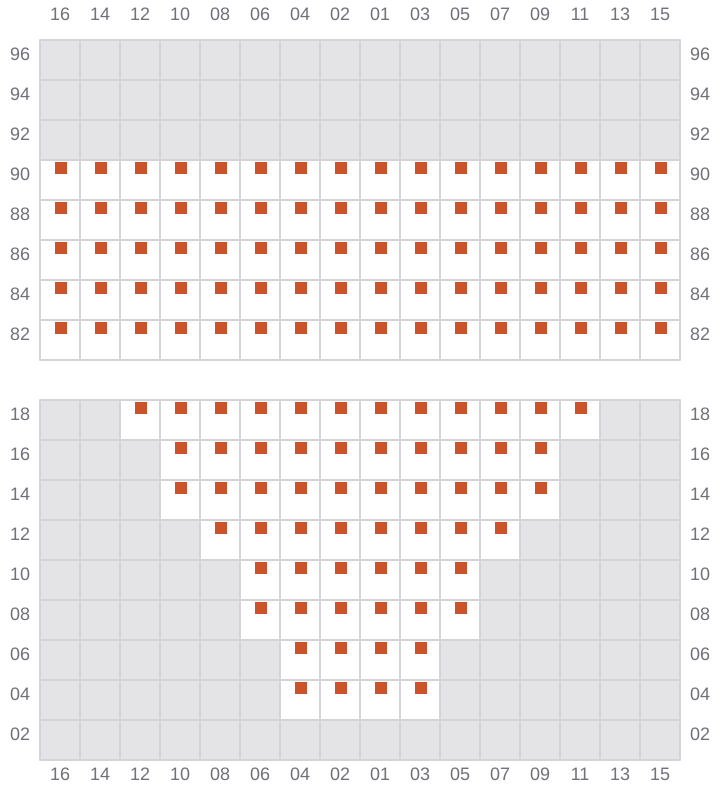

Bay 011 view and slots of CMA CGM MAUPASSANT

013 (014)

  • →
Bay 013 view and slots of CMA CGM MAUPASSANT

015

  • ←

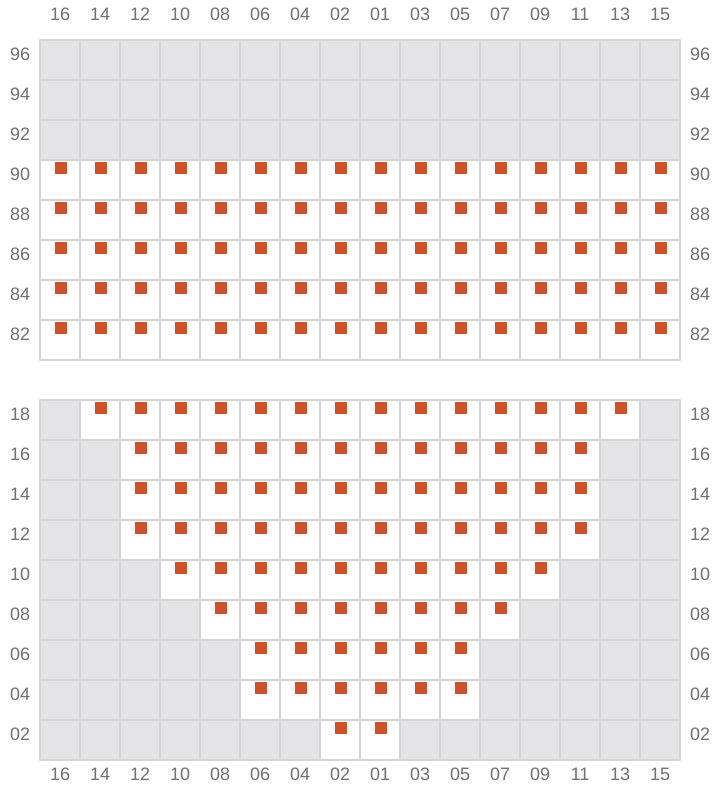

Bay 015 view and slots of CMA CGM MAUPASSANT

017 (018)

  • →

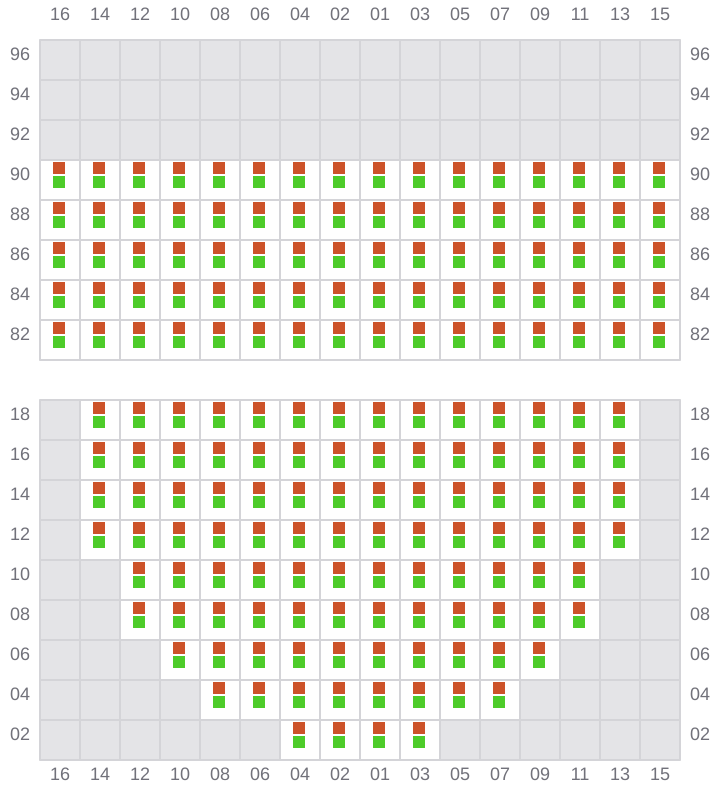

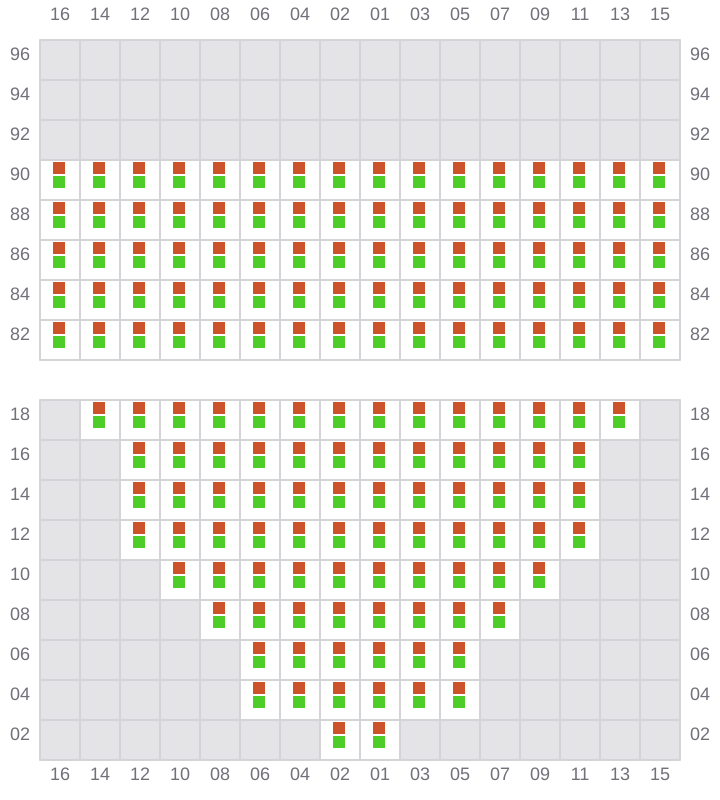

Bay 017 view and slots of CMA CGM MAUPASSANT

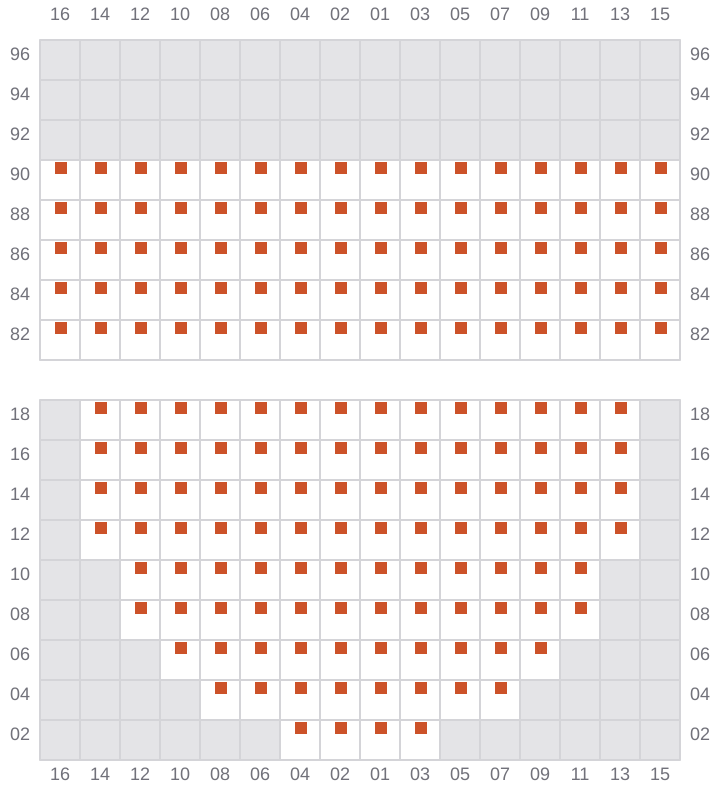

019

  • ←
Bay 019 view and slots of CMA CGM MAUPASSANT

021 (022)

  • →
Bay 021 view and slots of CMA CGM MAUPASSANT

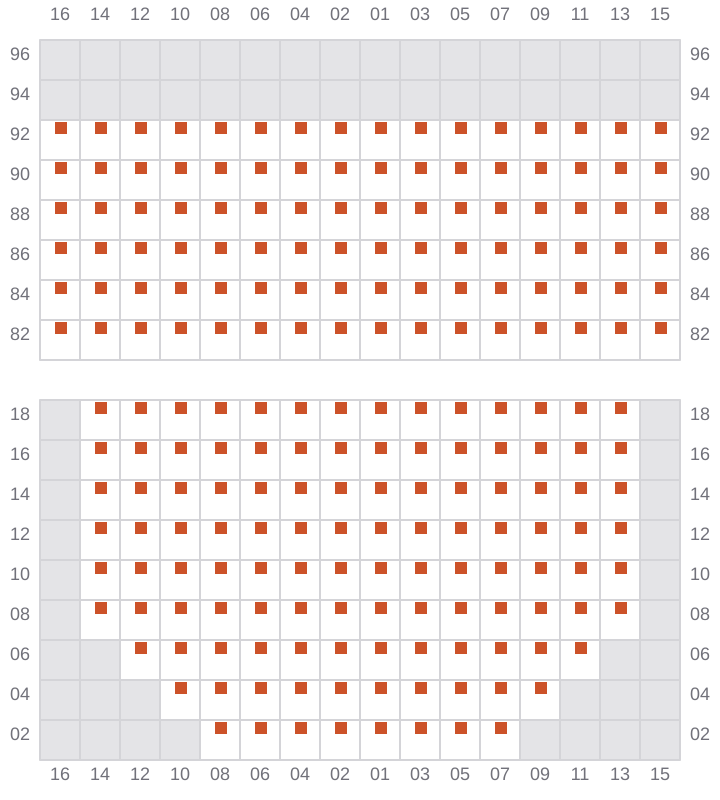

023

  • ←
Bay 023 view and slots of CMA CGM MAUPASSANT

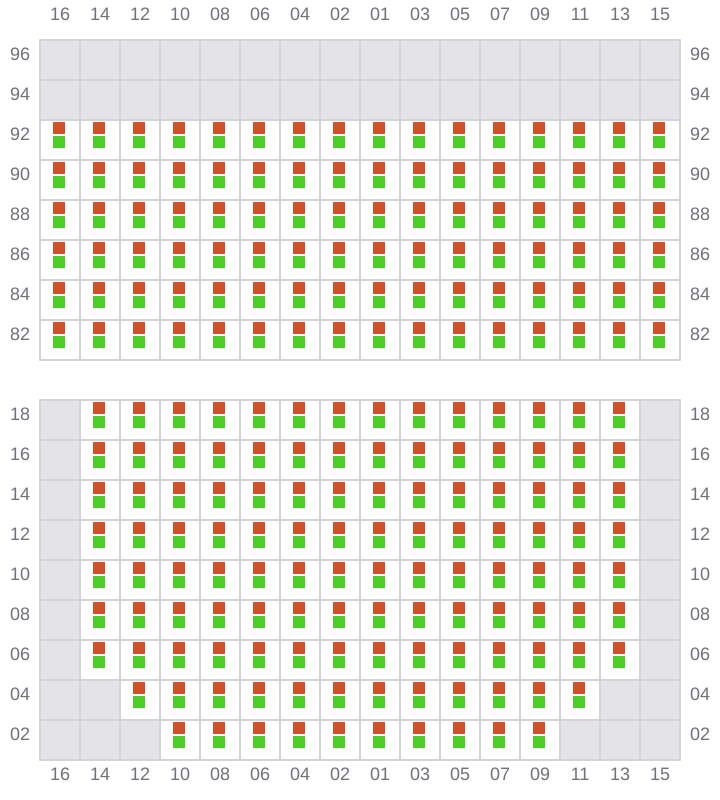

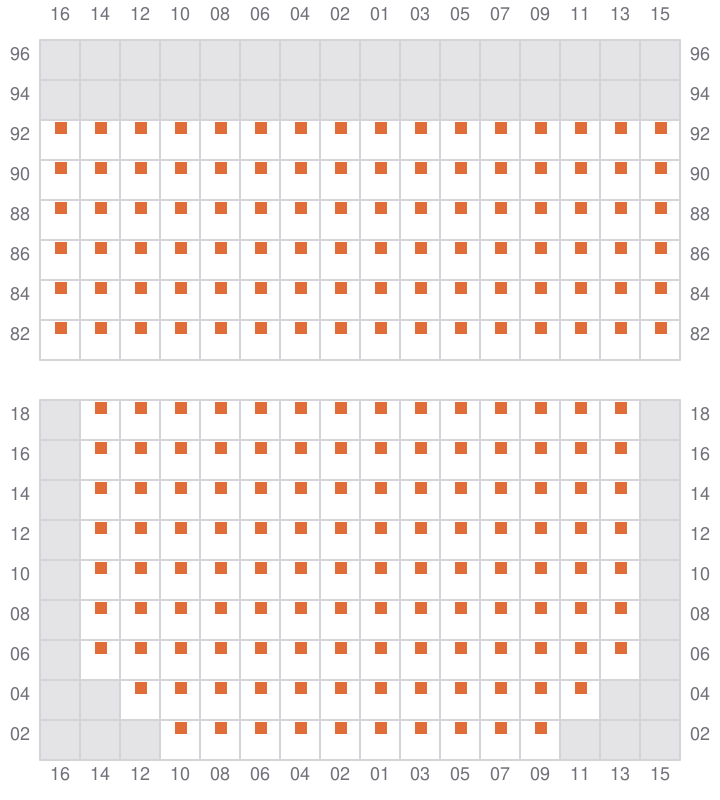

025 (026)

  • →
Bay 025 view and slots of CMA CGM MAUPASSANT

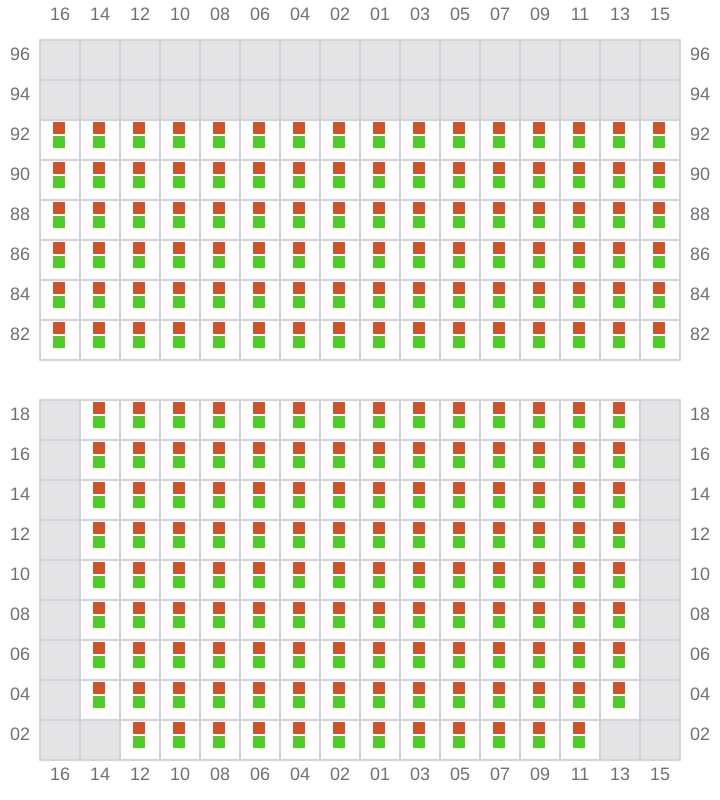

027

  • ←
Bay 027 view and slots of CMA CGM MAUPASSANT

029 (030)

  • →
Bay 029 view and slots of CMA CGM MAUPASSANT

031

  • ←

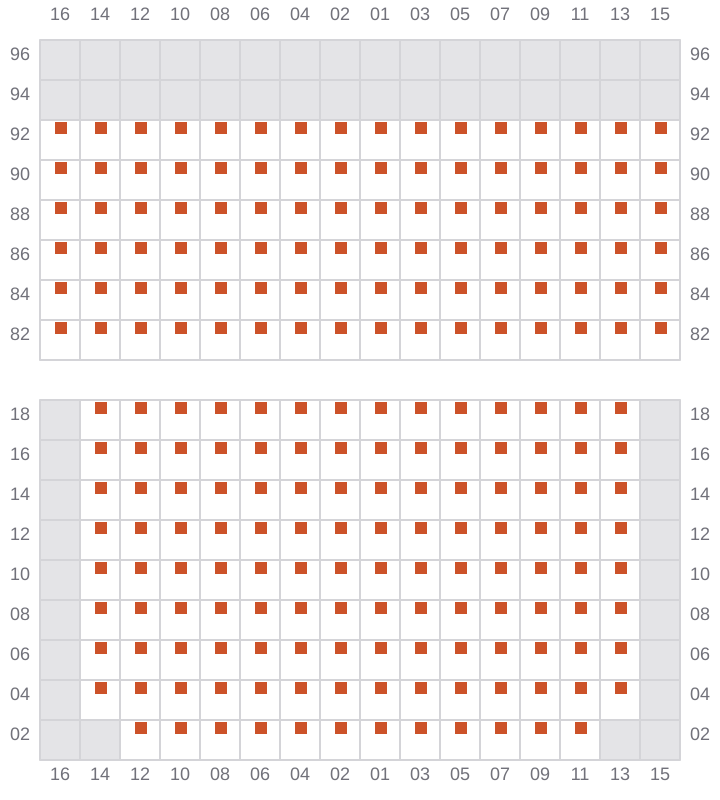

Bay 031 view and slots of CMA CGM MAUPASSANT

033 (034)

  • →
Bay 033 view and slots of CMA CGM MAUPASSANT

035

  • ←
Bay 035 view and slots of CMA CGM MAUPASSANT

037 (038)

  • →
Bay 037 view and slots of CMA CGM MAUPASSANT

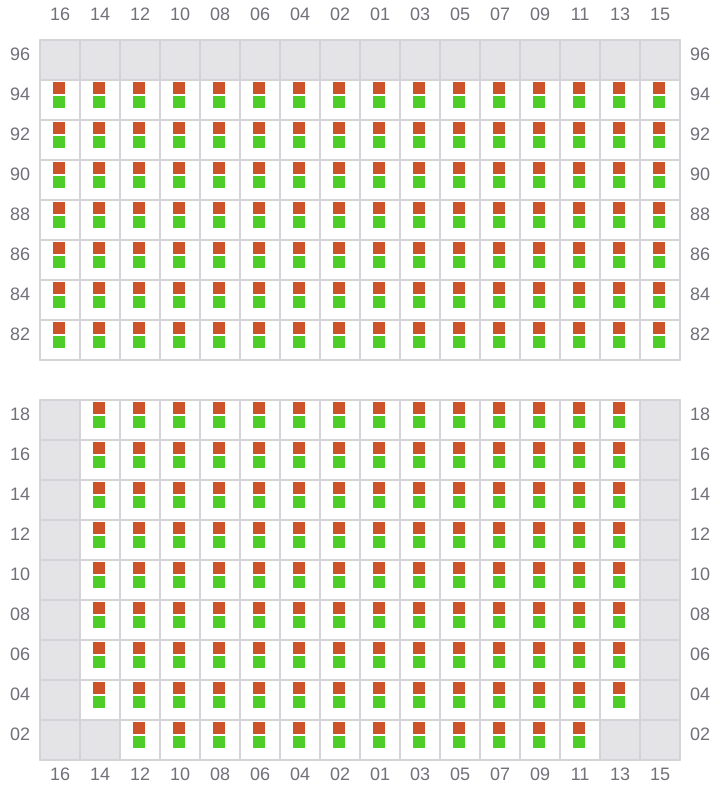

039

  • ←
Bay 039 view and slots of CMA CGM MAUPASSANT

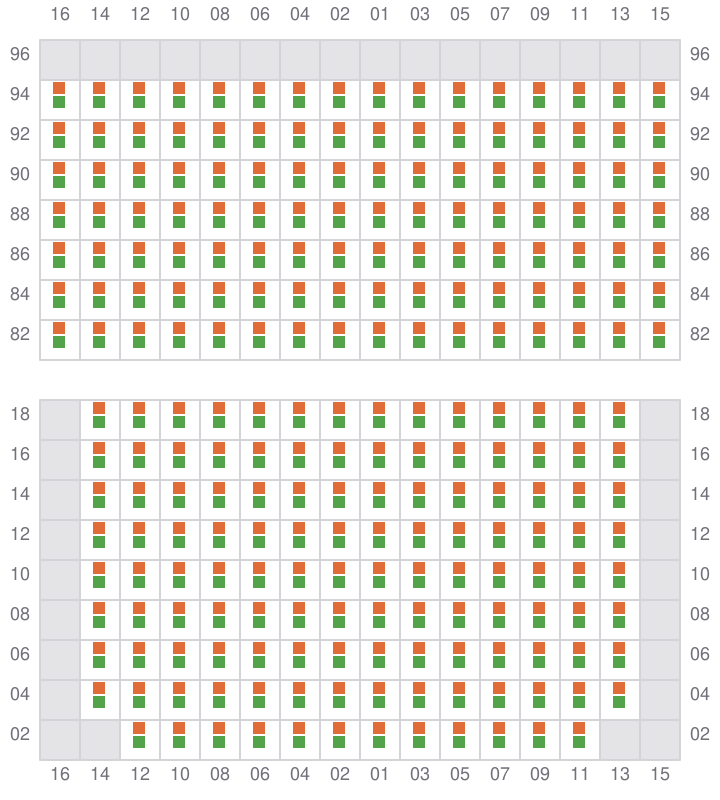

041 (042)

  • →
Bay 041 view and slots of CMA CGM MAUPASSANT

043

  • ←

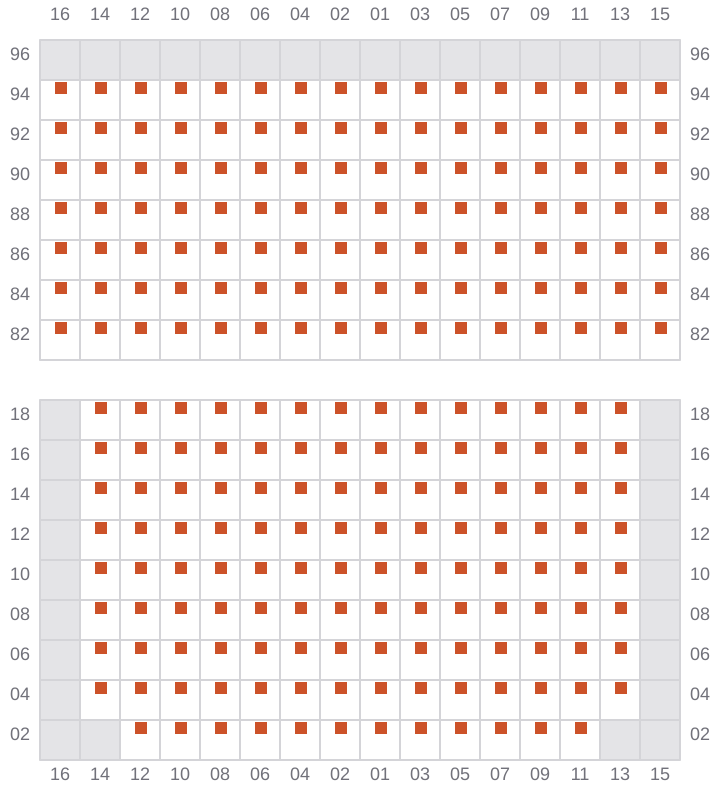

Bay 043 view and slots of CMA CGM MAUPASSANT

045 (046)

  • →
Bay 045 view and slots of CMA CGM MAUPASSANT

047

  • ←
Bay 047 view and slots of CMA CGM MAUPASSANT

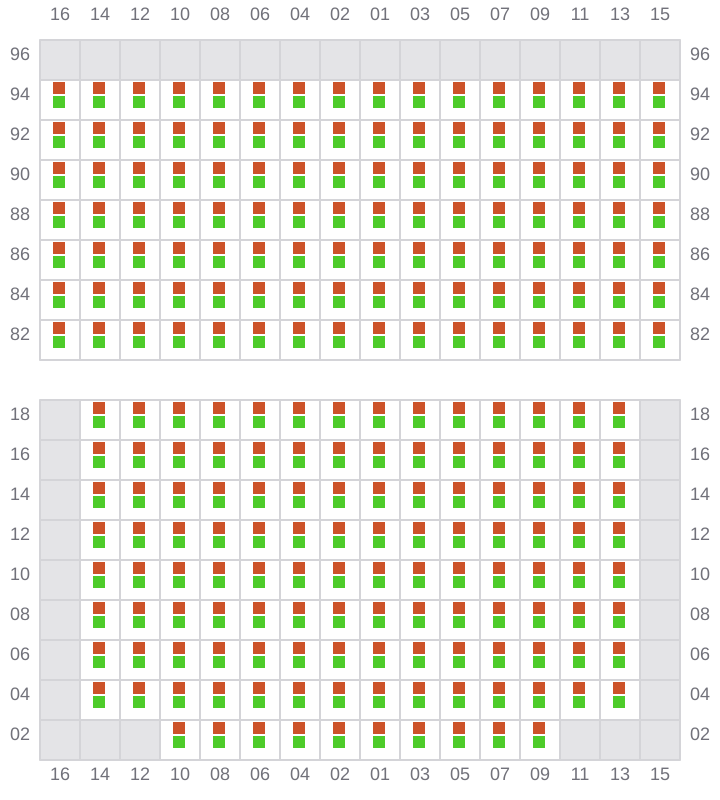

049 (050)

  • →
Bay 049 view and slots of CMA CGM MAUPASSANT

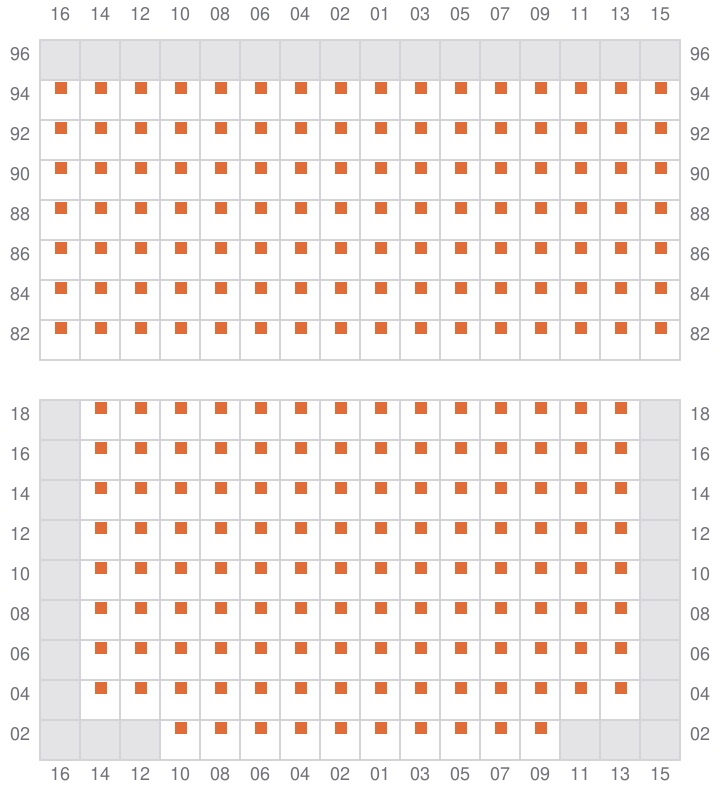

051

  • ←
Bay 051 view and slots of CMA CGM MAUPASSANT

053 (054)

  • →

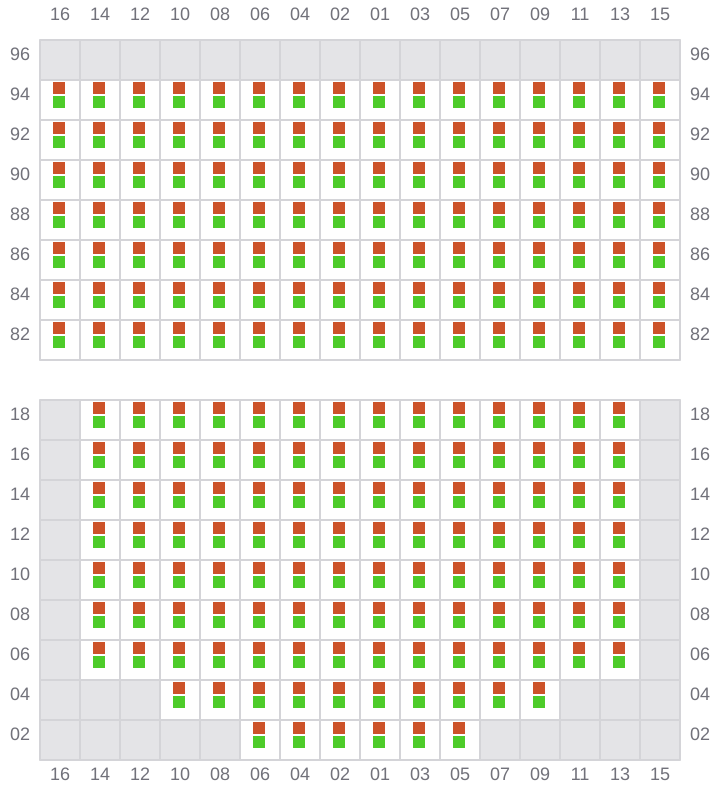

Bay 053 view and slots of CMA CGM MAUPASSANT

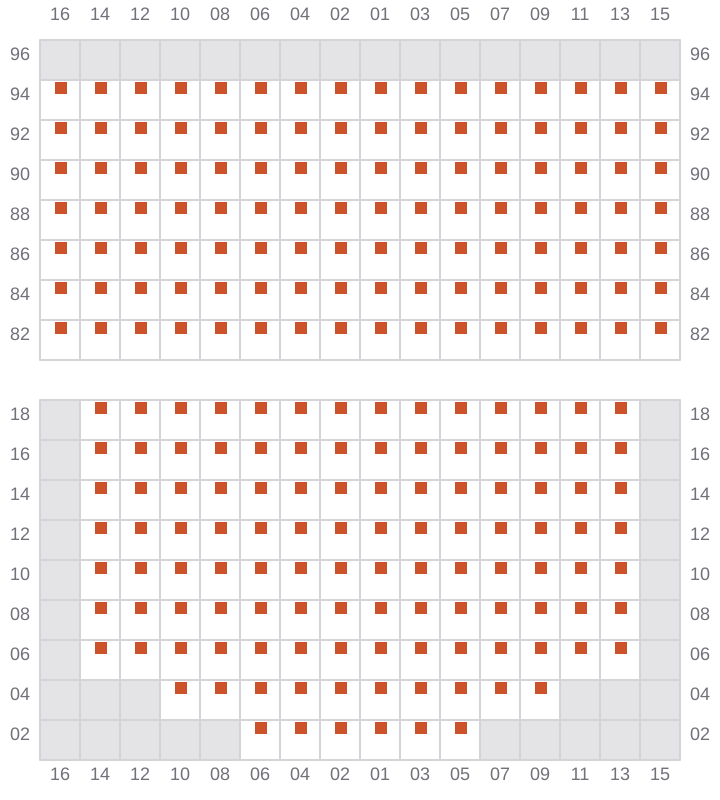

055

  • ←
Bay 055 view and slots of CMA CGM MAUPASSANT

057 (058)

  • → / ?
Bay 057 view and slots of CMA CGM MAUPASSANT

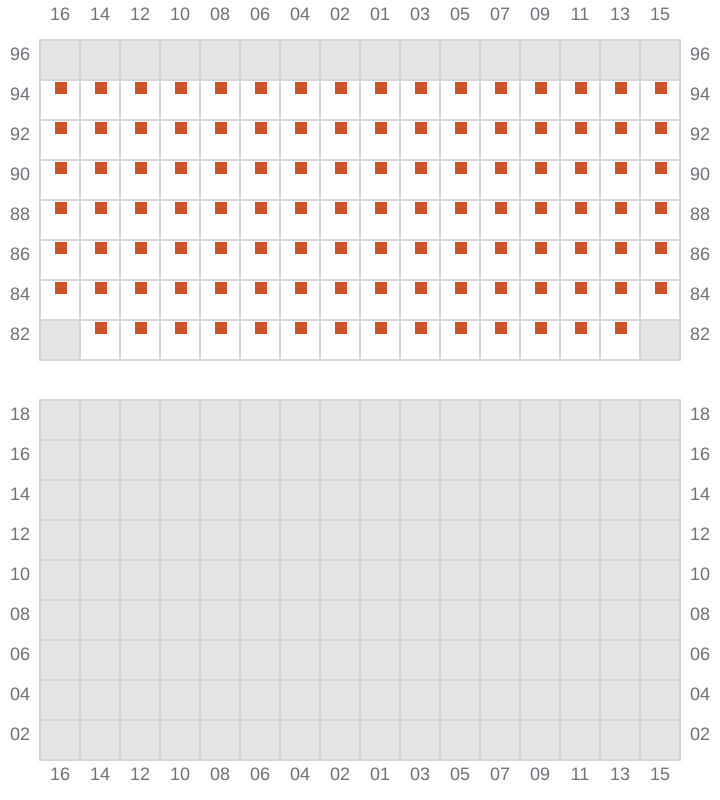

059

  • ← / ?

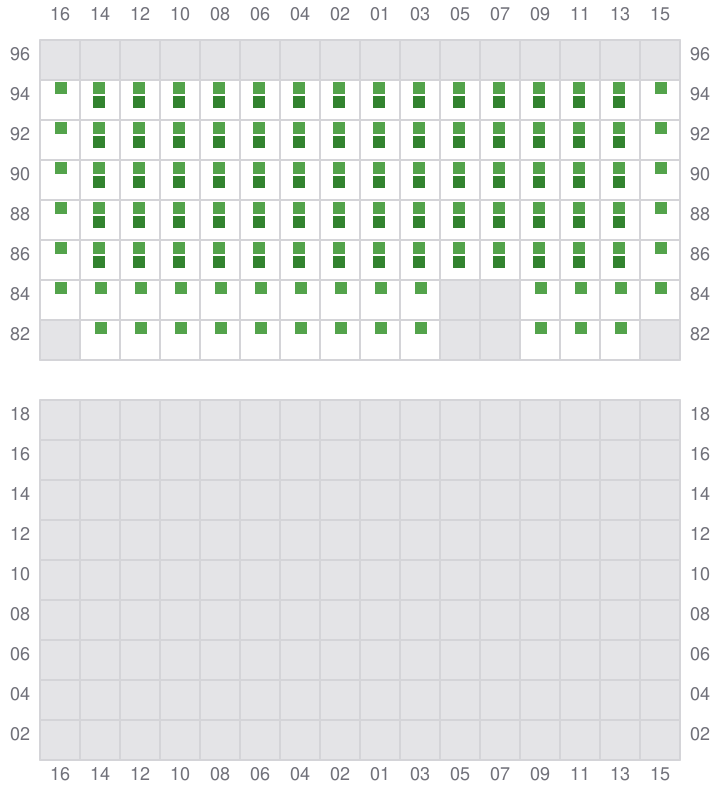

Bay 059 view and slots of CMA CGM MAUPASSANT

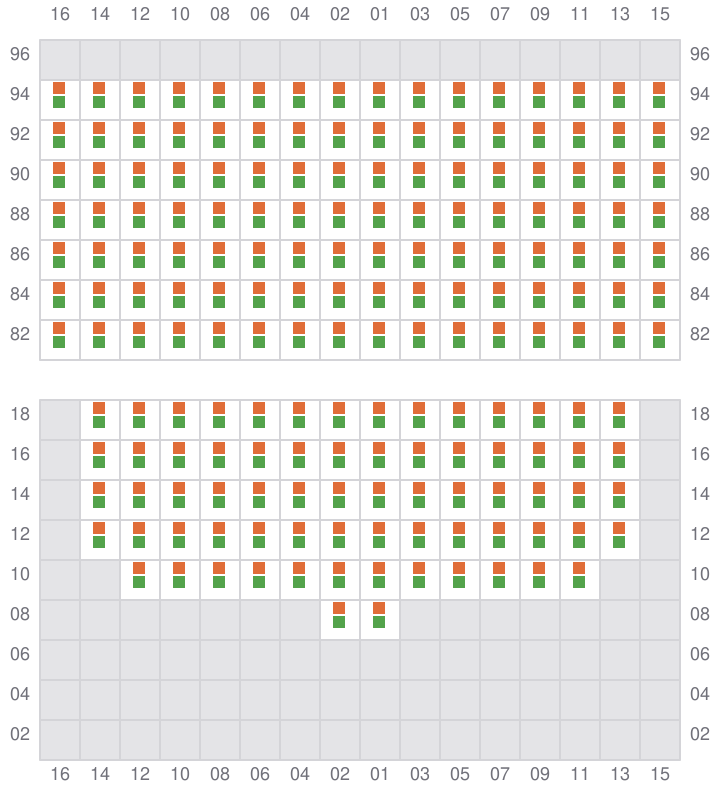

061 (062)

  • →
Bay 061 view and slots of CMA CGM MAUPASSANT

063

  • ←

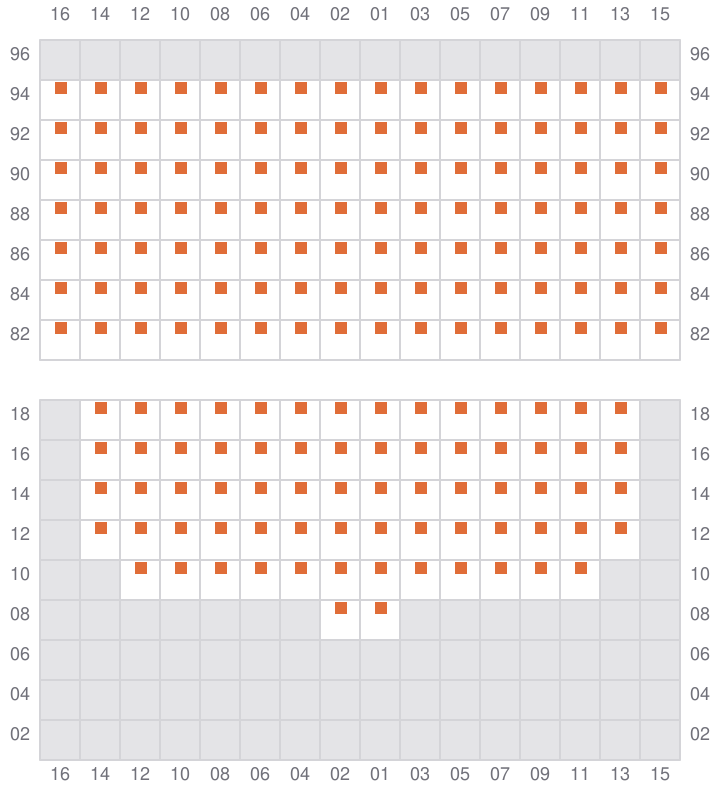

Bay 063 view and slots of CMA CGM MAUPASSANT

065 (066)

  • →

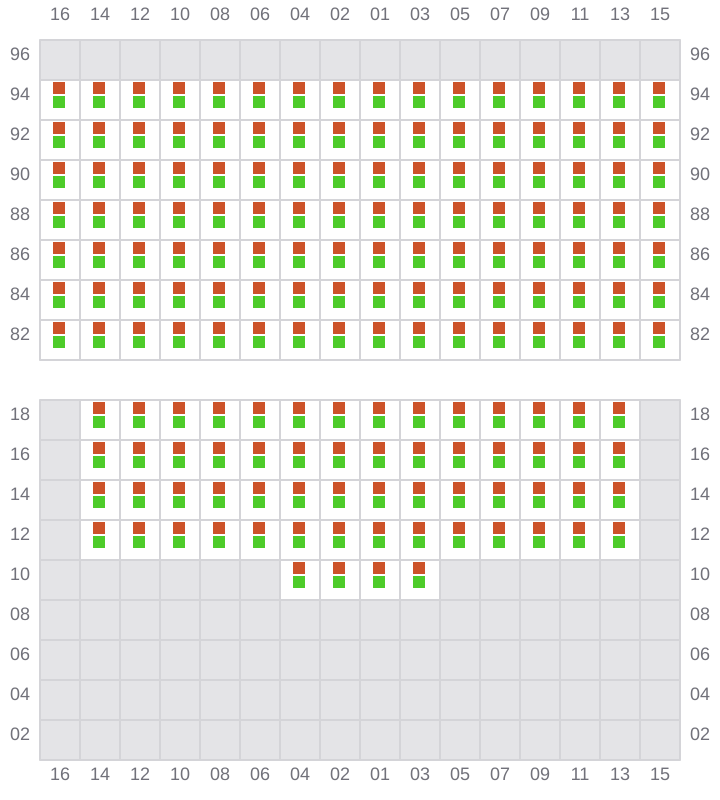

Bay 065 view and slots of CMA CGM MAUPASSANT

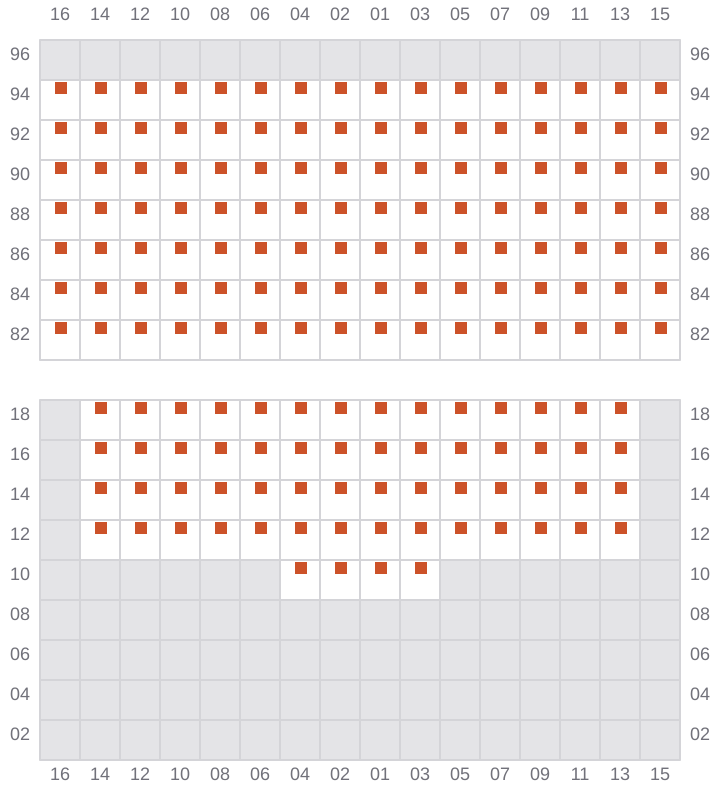

067

  • ←
Bay 067 view and slots of CMA CGM MAUPASSANT

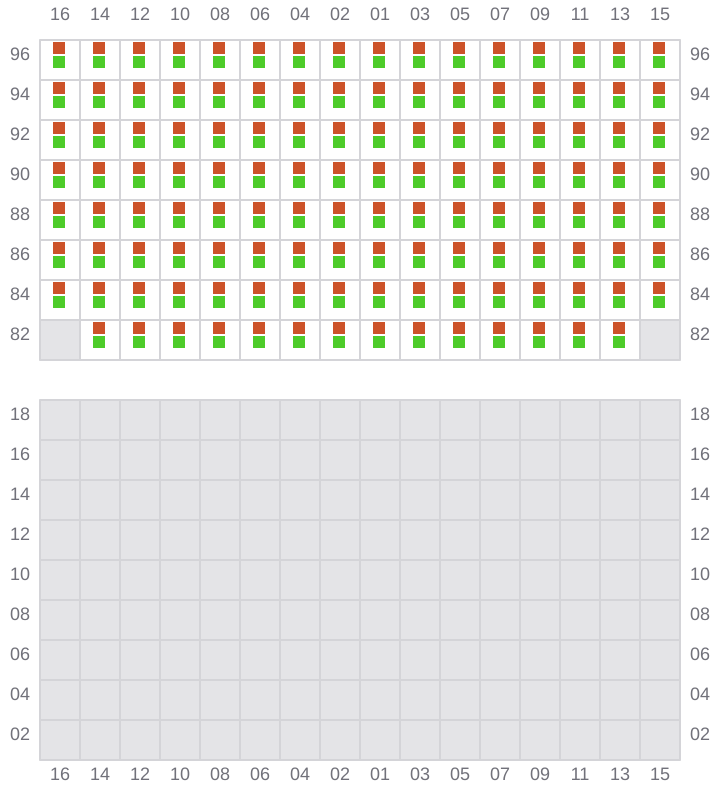

069 (070)

  • → / ?
Bay 069 view and slots of CMA CGM MAUPASSANT
