CMA CGM MAUPASSANT
9409209 | 9HA5016 | CMA by *********************** Last update: Tue Jan 28 2025

General Info

Ship Name:CMA CGM MAUPASSANT
IMO Code:9409209
Call Sign:9HA5016
Line Operator:CMA
Class Name for Sister Ships:CGMS
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):286.70
LOA (Length Overall):299.20
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,582

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

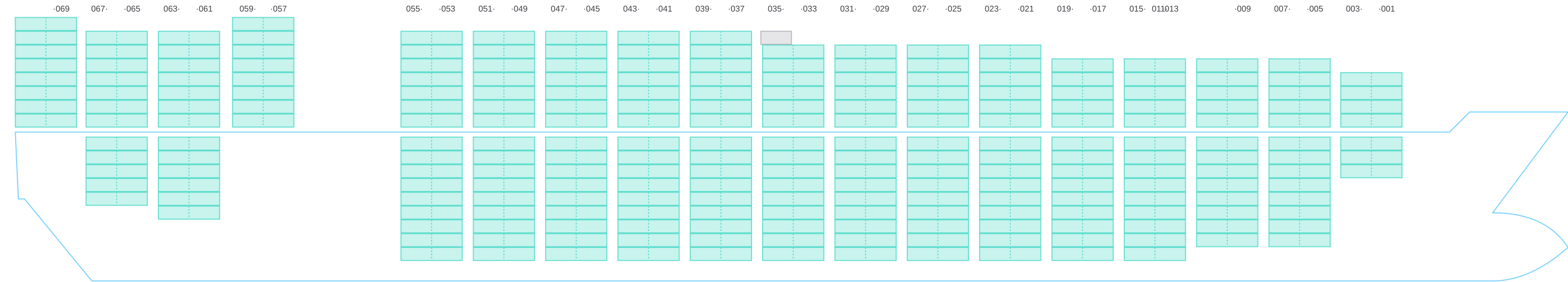

Side view of CMA CGM MAUPASSANT

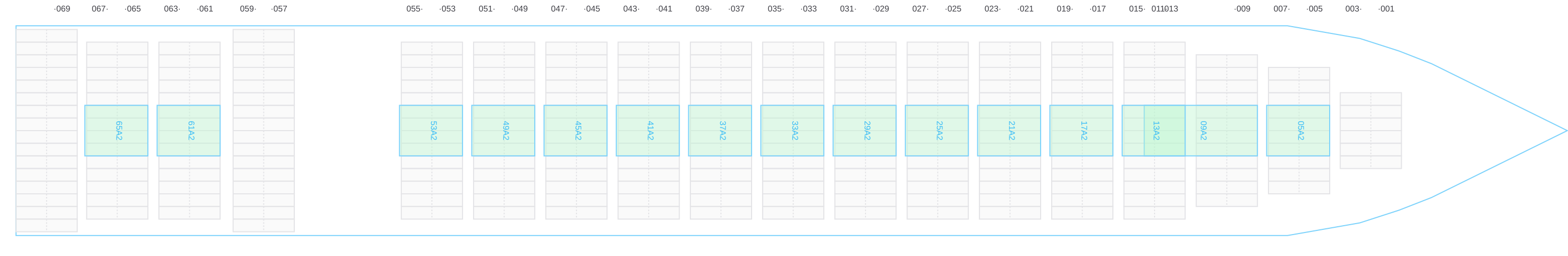

Hatch-Covers View

Deck view of CMA CGM MAUPASSANT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

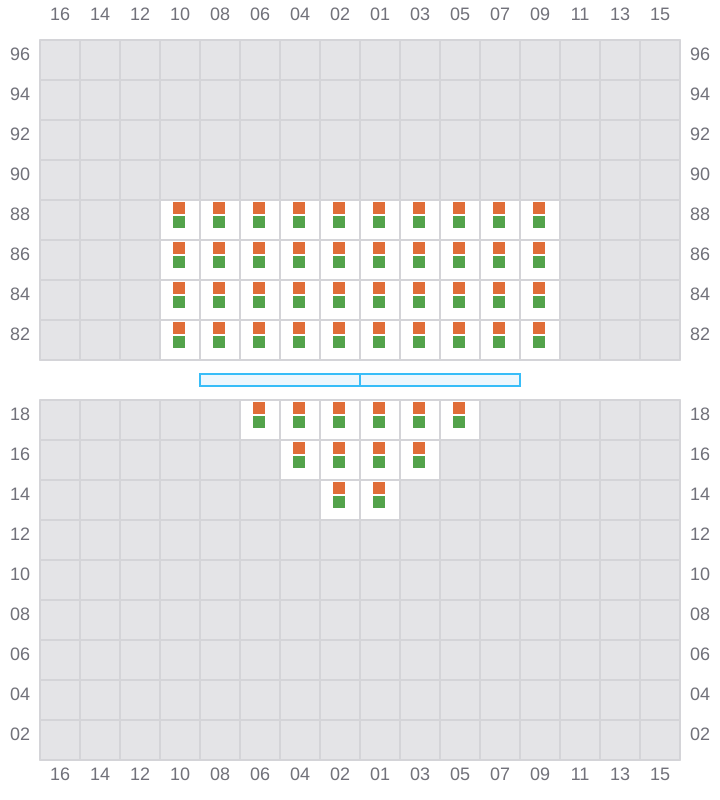

001 (002)

Bay 001 view and slots of CMA CGM MAUPASSANT

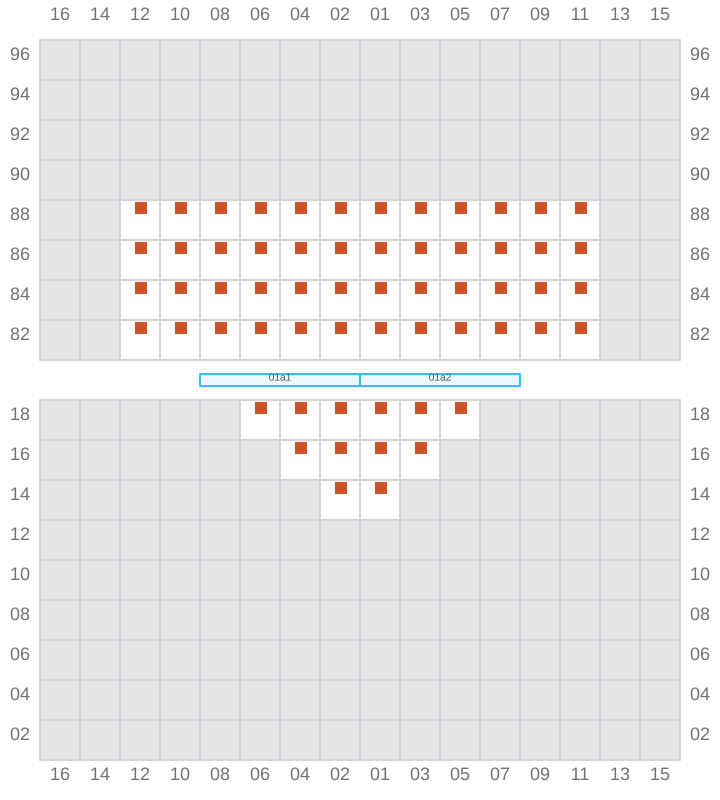

003

Bay 003 view and slots of CMA CGM MAUPASSANT

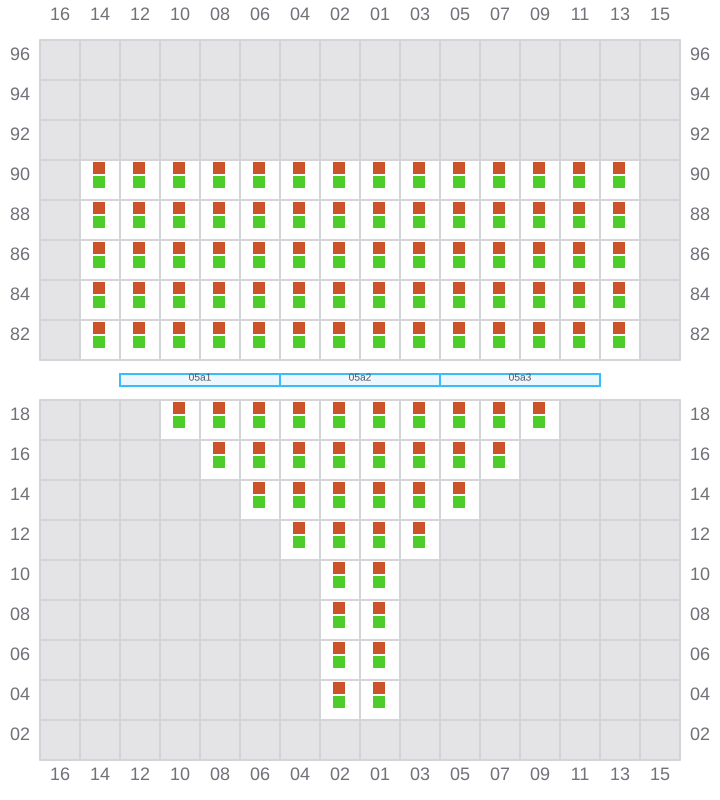

005 (006)

Bay 005 view and slots of CMA CGM MAUPASSANT

007

Bay 007 view and slots of CMA CGM MAUPASSANT

009 (010)

  • / ?

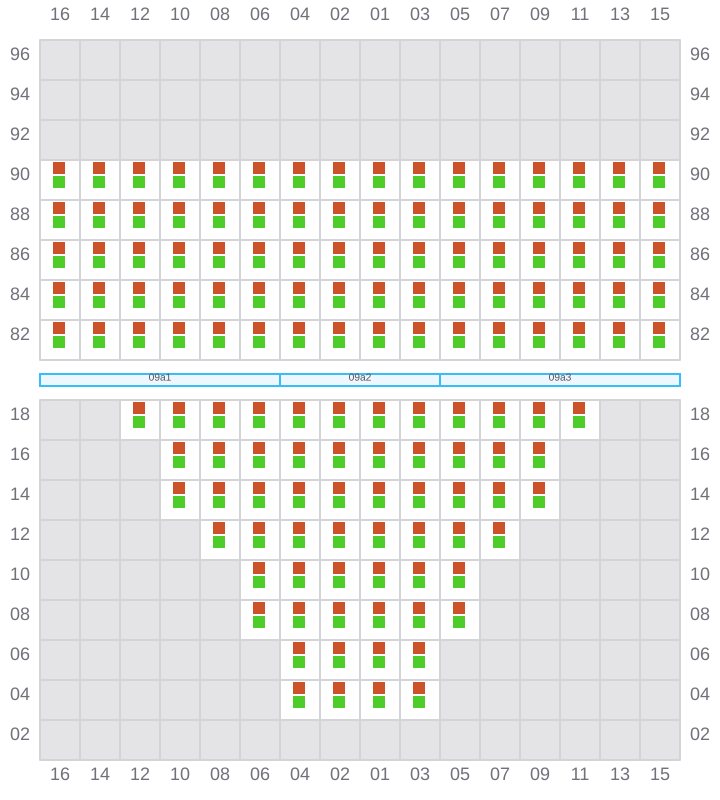

Bay 009 view and slots of CMA CGM MAUPASSANT

011

  • / ?

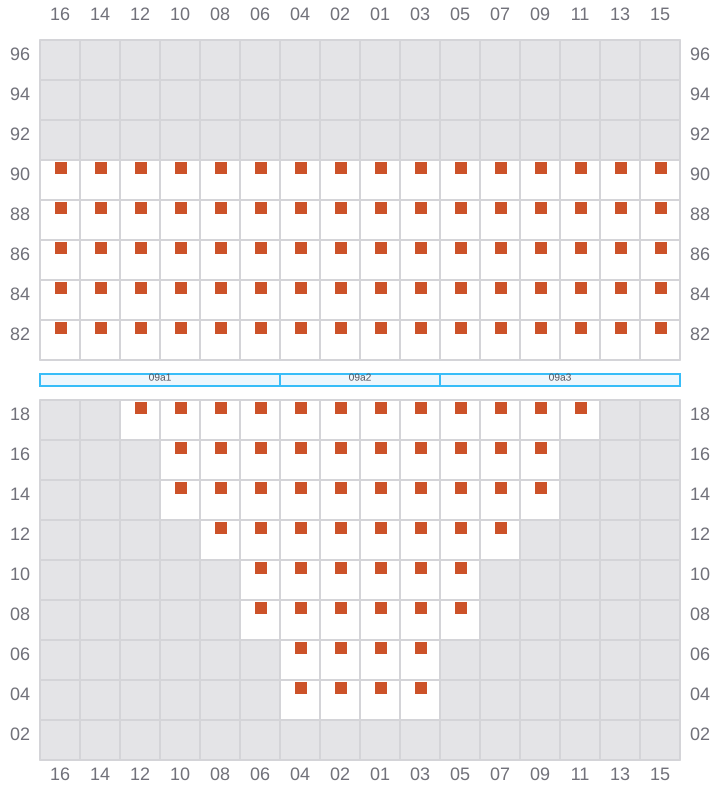

Bay 011 view and slots of CMA CGM MAUPASSANT

013 (014)

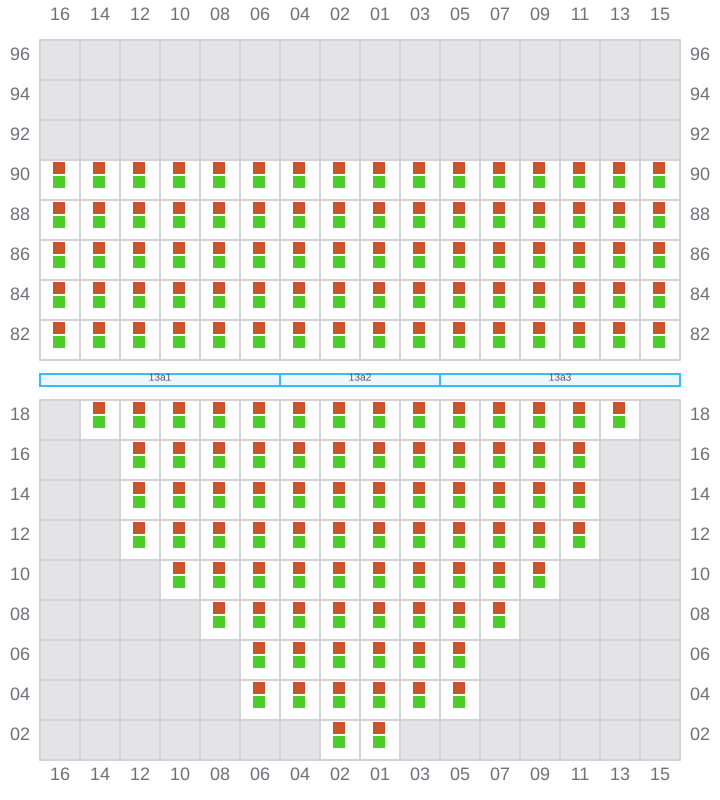

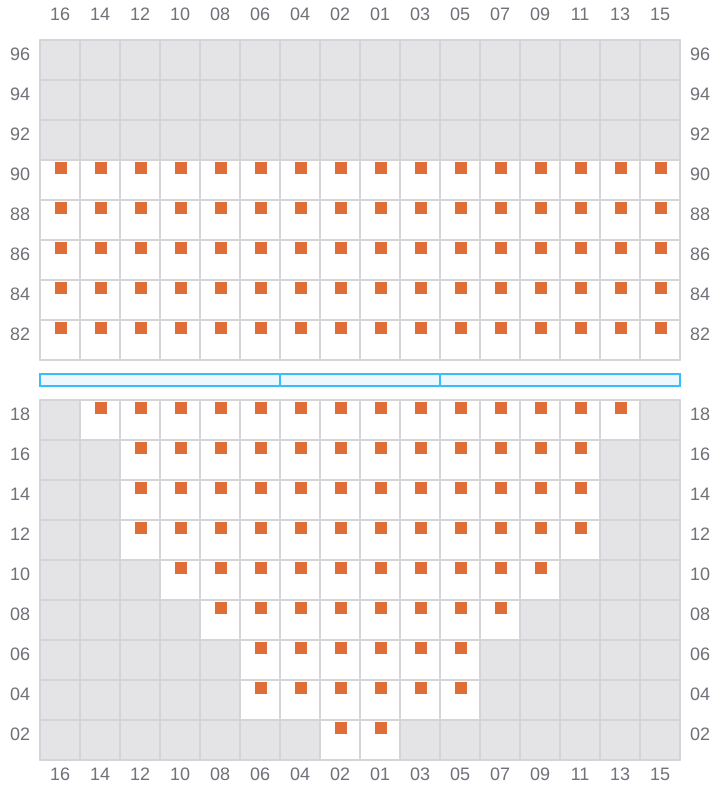

Bay 013 view and slots of CMA CGM MAUPASSANT

015

  • / ?
Bay 015 view and slots of CMA CGM MAUPASSANT

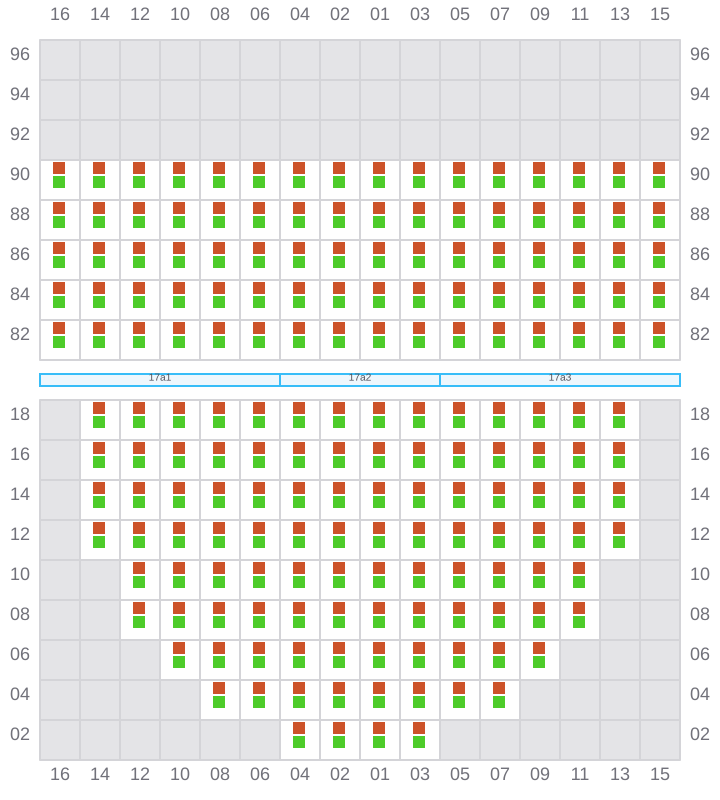

017 (018)

Bay 017 view and slots of CMA CGM MAUPASSANT

019

  • / ?

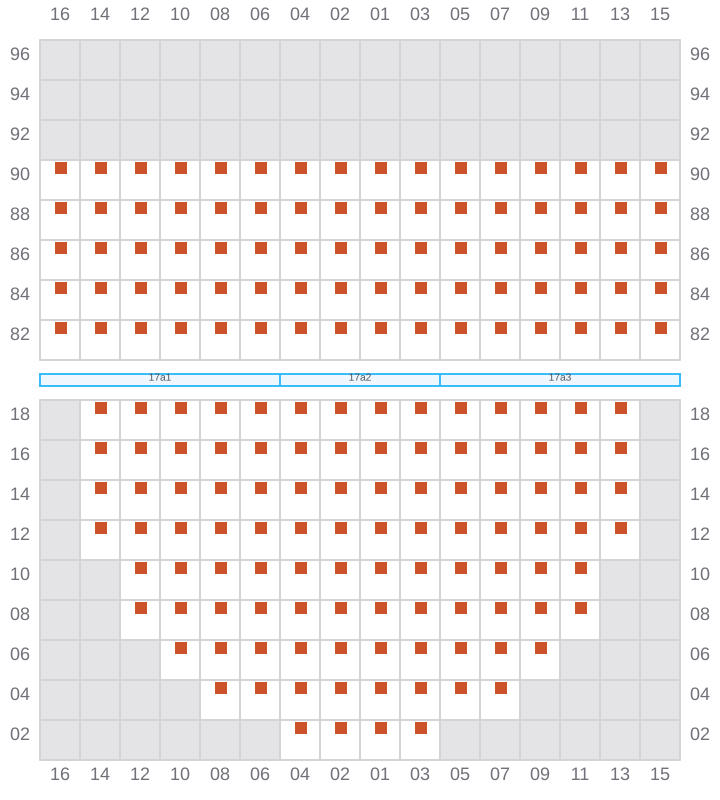

Bay 019 view and slots of CMA CGM MAUPASSANT

021 (022)

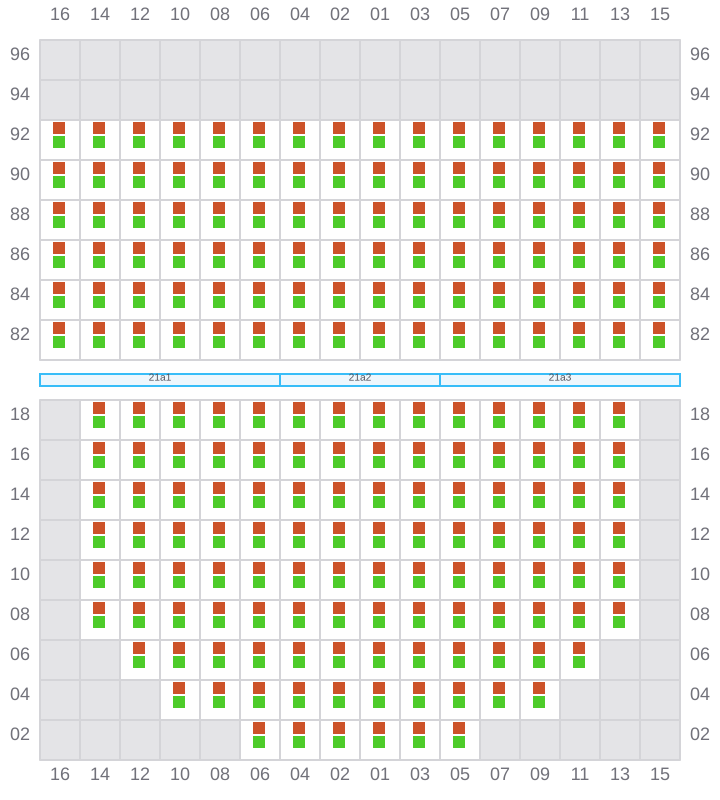

Bay 021 view and slots of CMA CGM MAUPASSANT

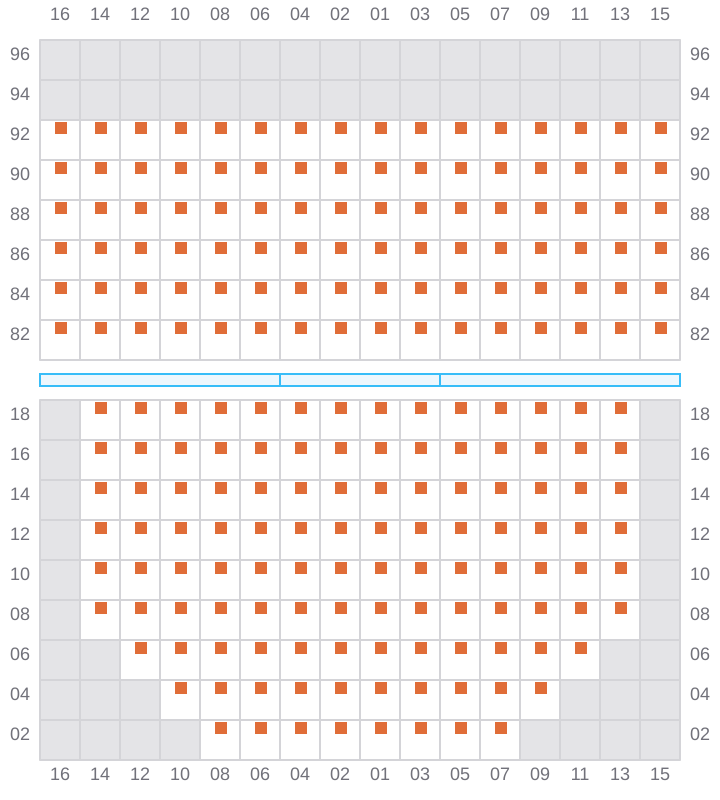

023

  • / ?
Bay 023 view and slots of CMA CGM MAUPASSANT

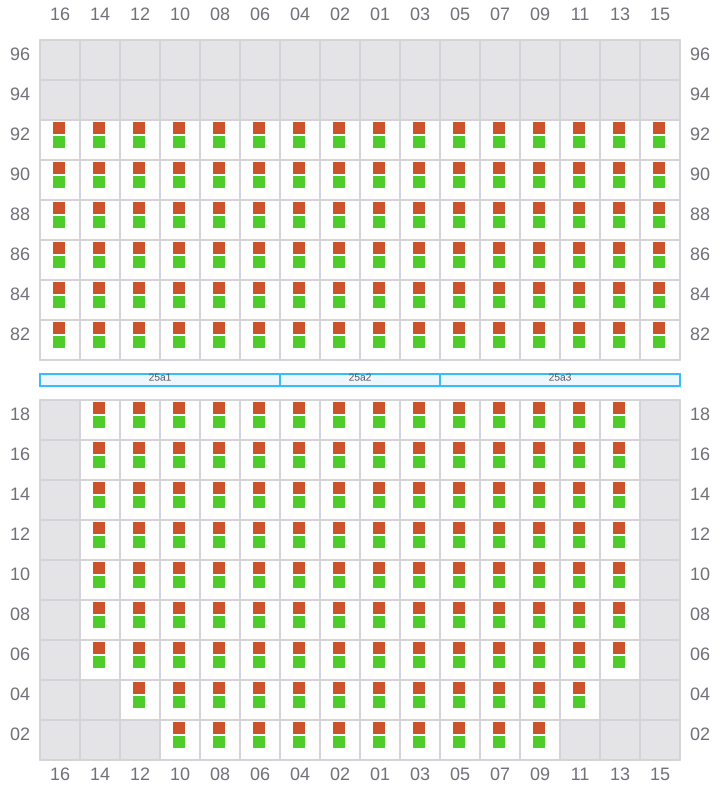

025 (026)

Bay 025 view and slots of CMA CGM MAUPASSANT

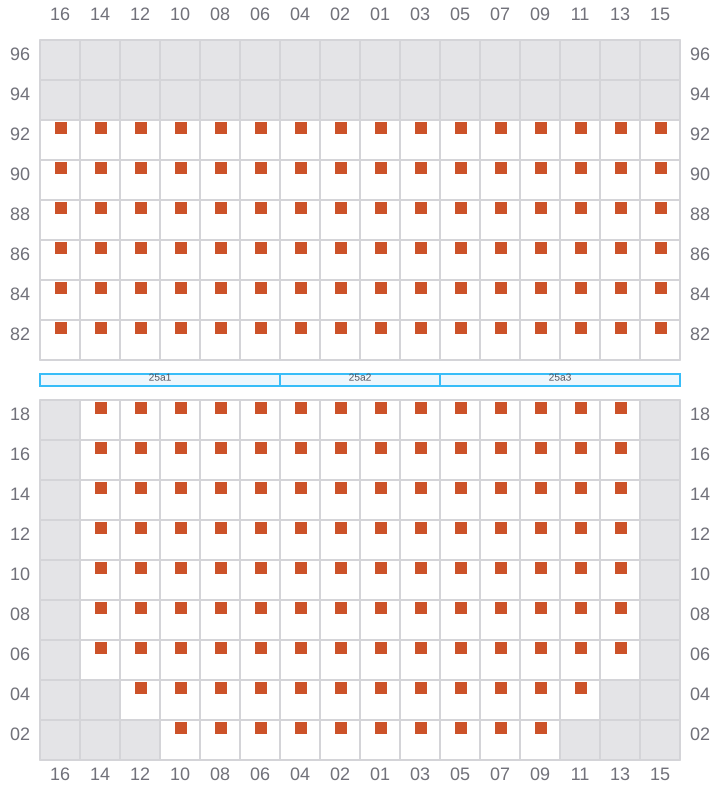

027

  • / ?
Bay 027 view and slots of CMA CGM MAUPASSANT

029 (030)

Bay 029 view and slots of CMA CGM MAUPASSANT

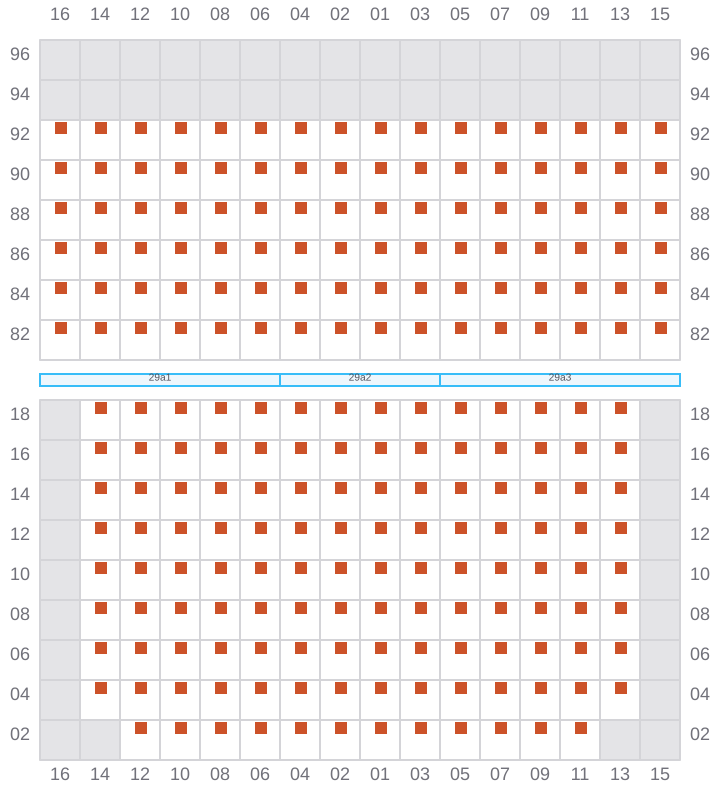

031

  • / ?
Bay 031 view and slots of CMA CGM MAUPASSANT

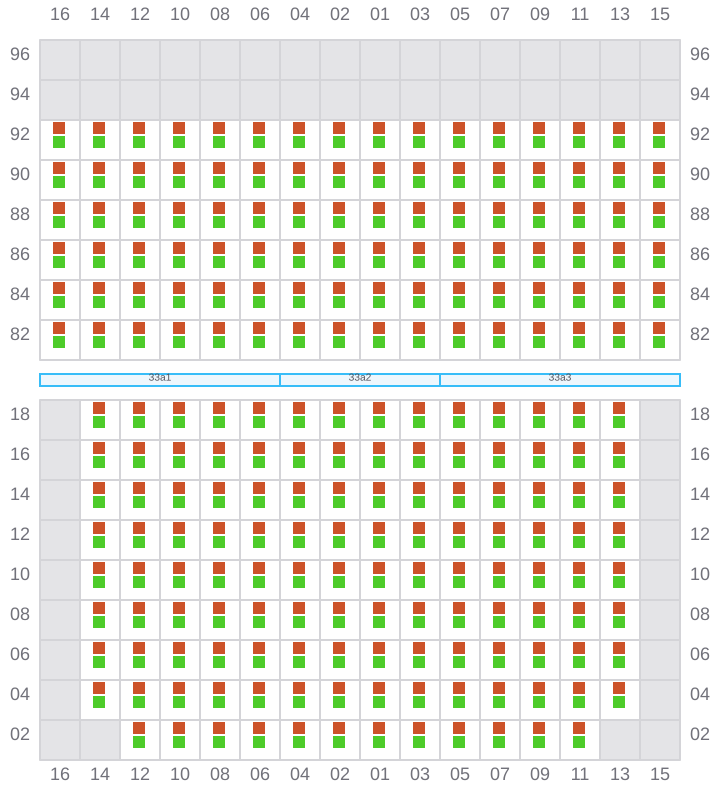

033 (034)

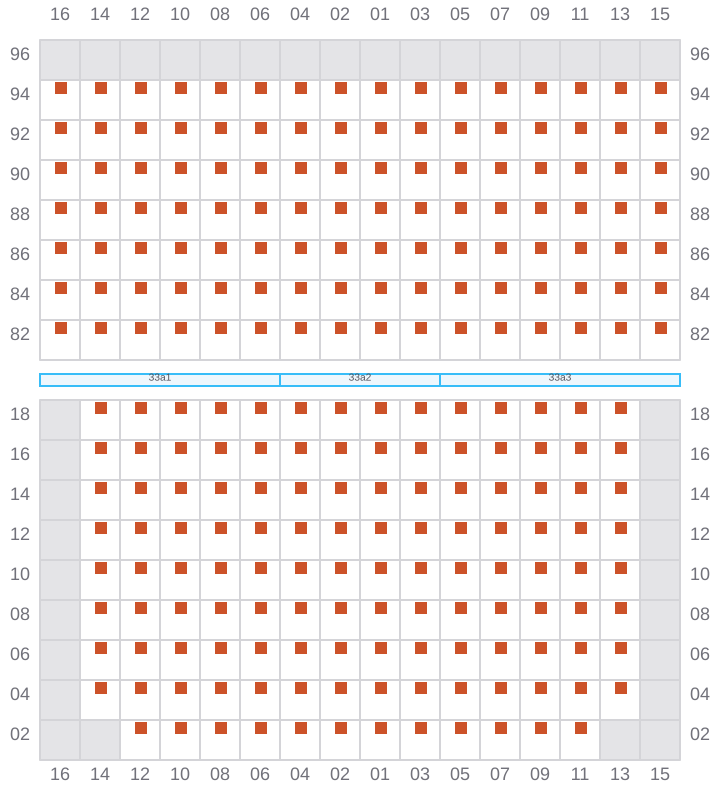

Bay 033 view and slots of CMA CGM MAUPASSANT

035

  • / ?
Bay 035 view and slots of CMA CGM MAUPASSANT

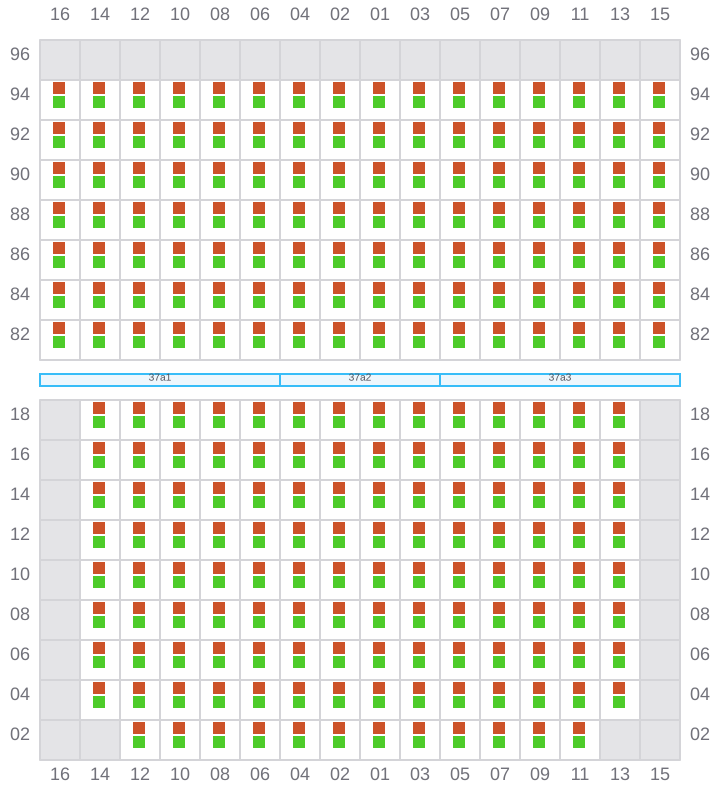

037 (038)

Bay 037 view and slots of CMA CGM MAUPASSANT

039

  • / ?

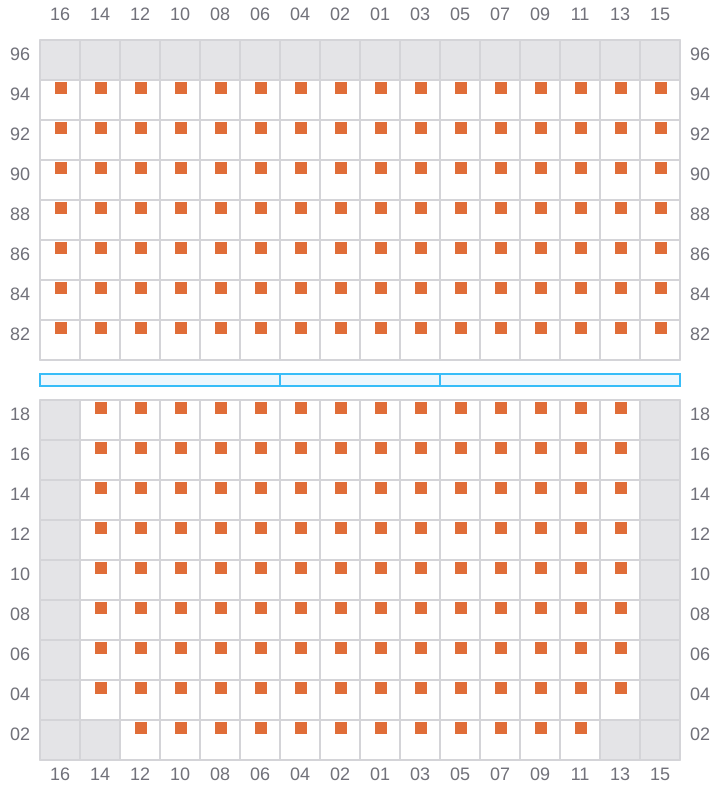

Bay 039 view and slots of CMA CGM MAUPASSANT

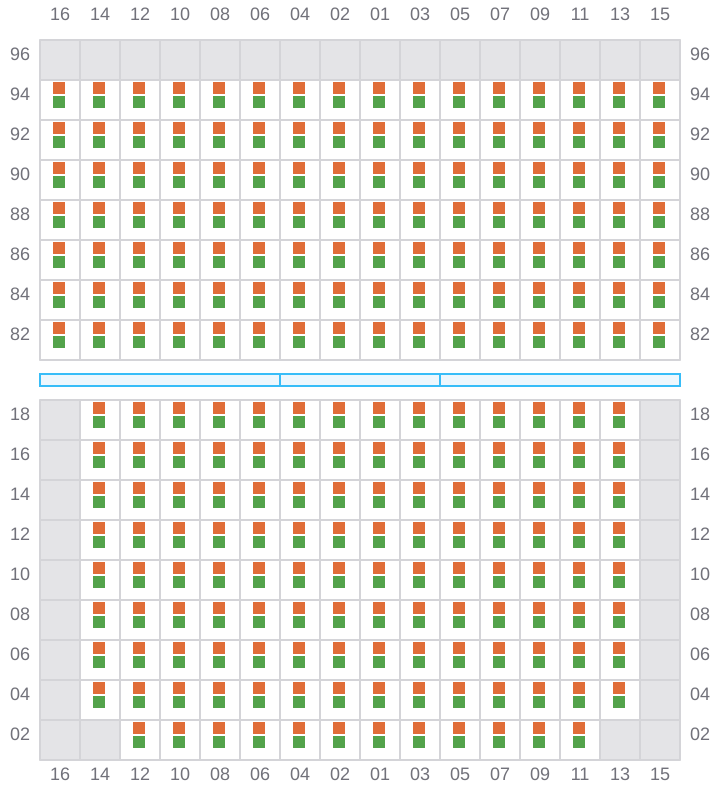

041 (042)

Bay 041 view and slots of CMA CGM MAUPASSANT

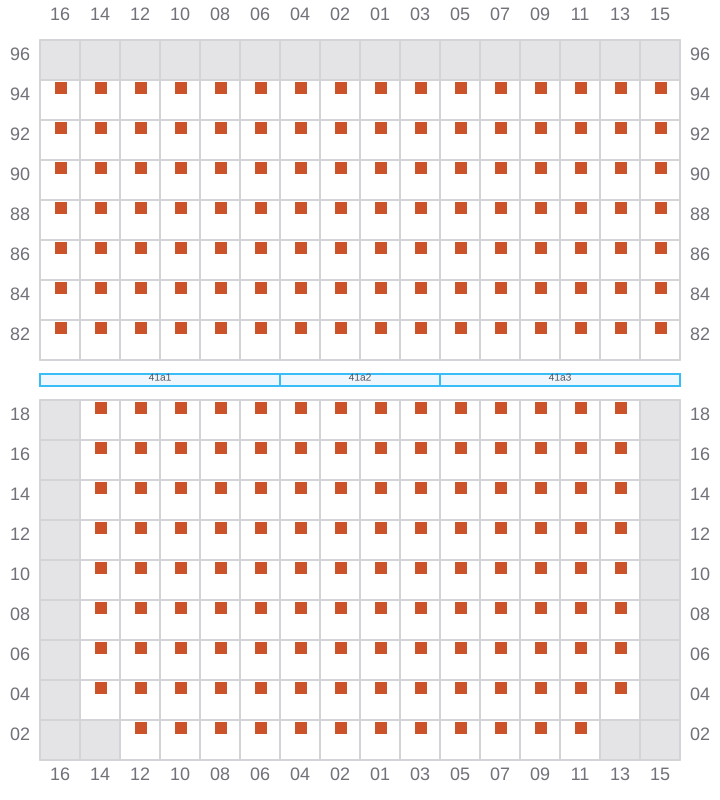

043

  • / ?
Bay 043 view and slots of CMA CGM MAUPASSANT

045 (046)

Bay 045 view and slots of CMA CGM MAUPASSANT

047

  • / ?
Bay 047 view and slots of CMA CGM MAUPASSANT

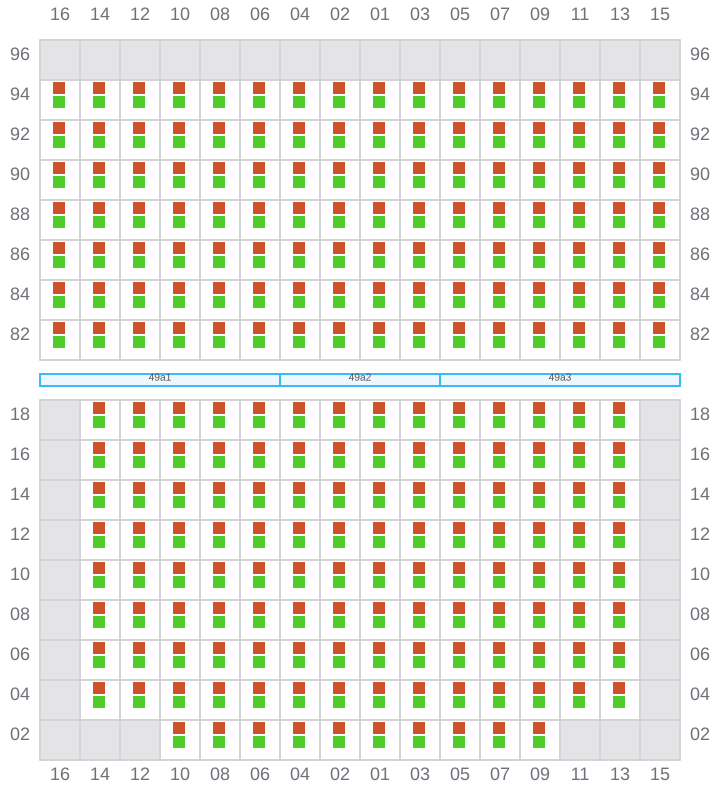

049 (050)

Bay 049 view and slots of CMA CGM MAUPASSANT

051

  • / ?

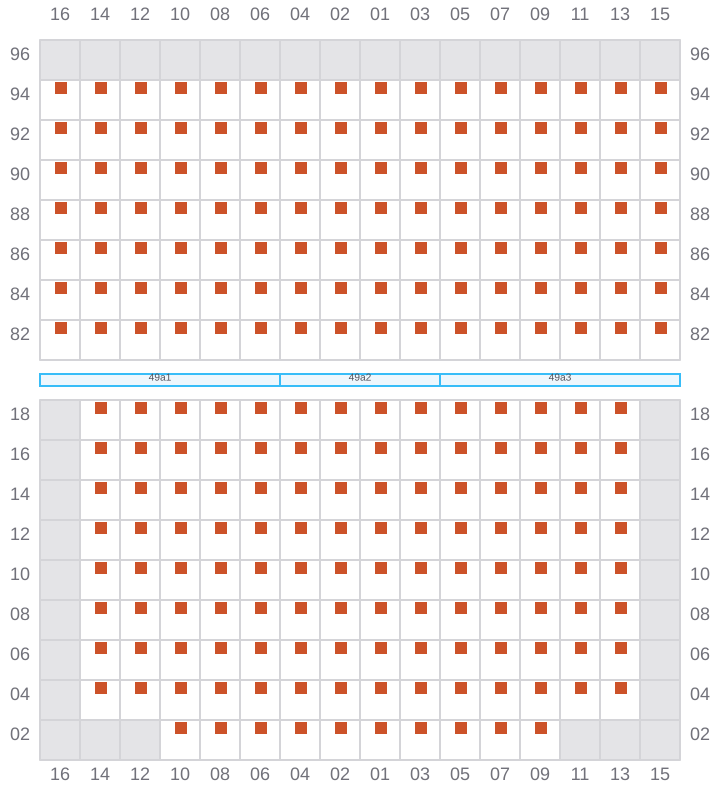

Bay 051 view and slots of CMA CGM MAUPASSANT

053 (054)

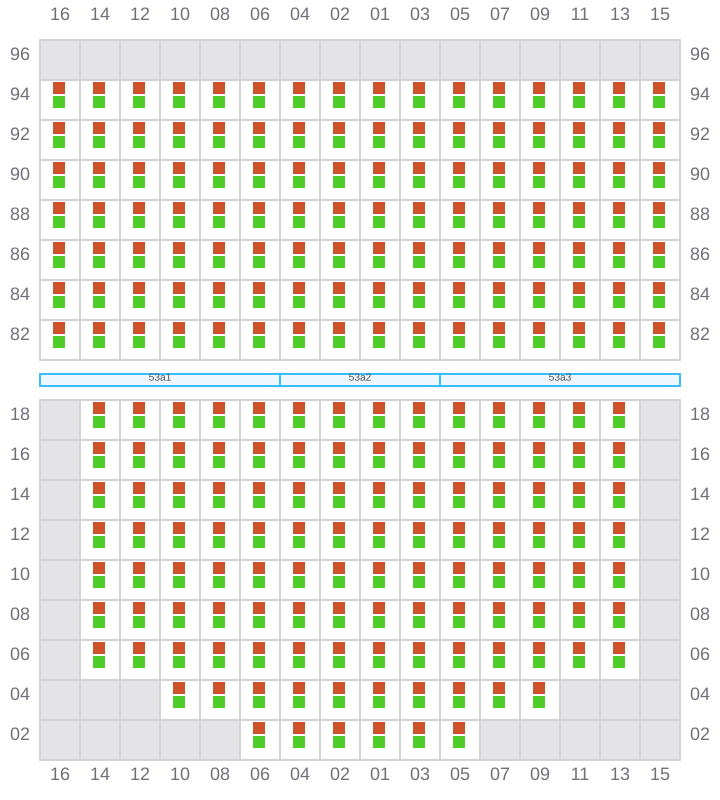

Bay 053 view and slots of CMA CGM MAUPASSANT

055

  • / ?

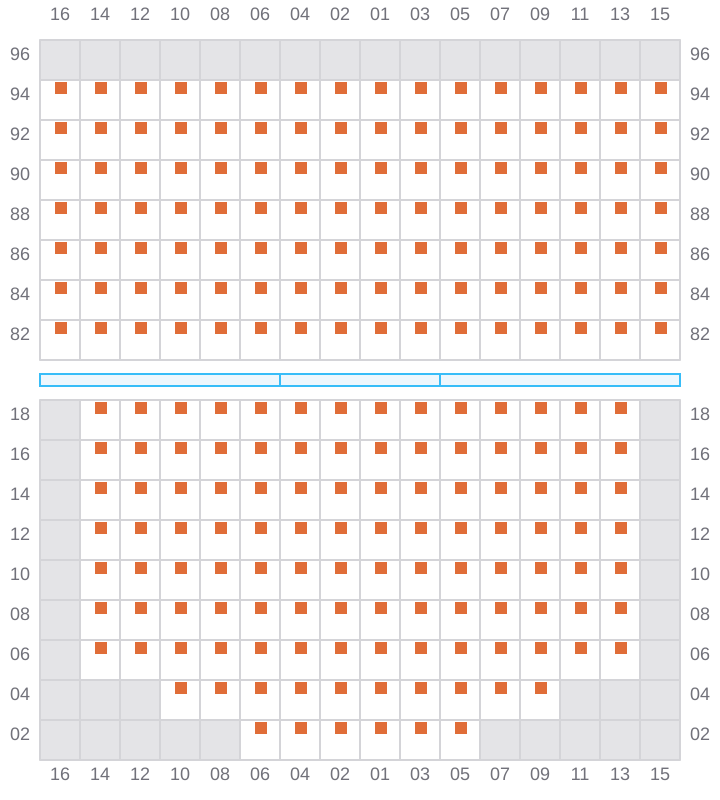

Bay 055 view and slots of CMA CGM MAUPASSANT

057 (058)

  • / ?
  • / ?
Bay 057 view and slots of CMA CGM MAUPASSANT

059

  • / ?
  • / ?

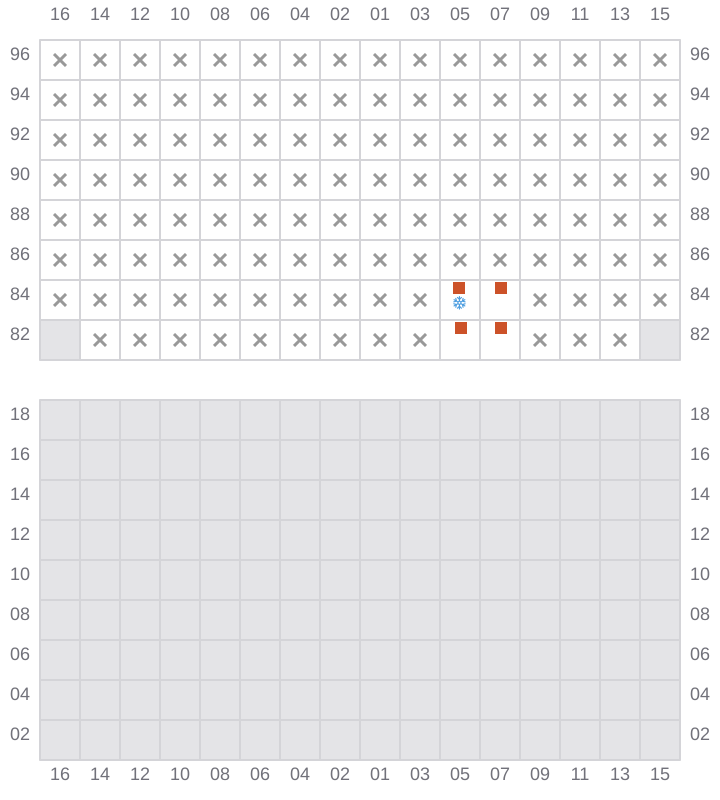

Bay 059 view and slots of CMA CGM MAUPASSANT

061 (062)

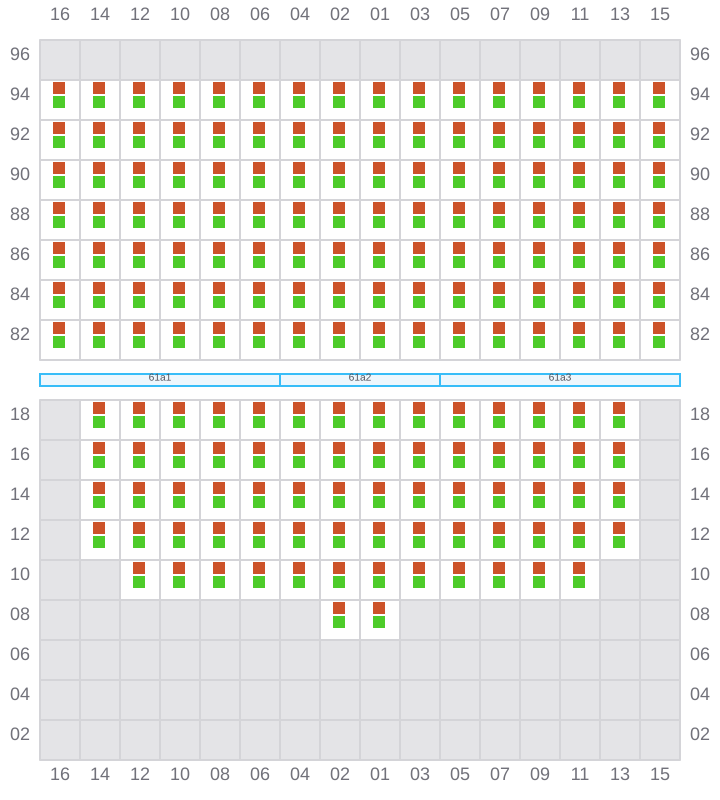

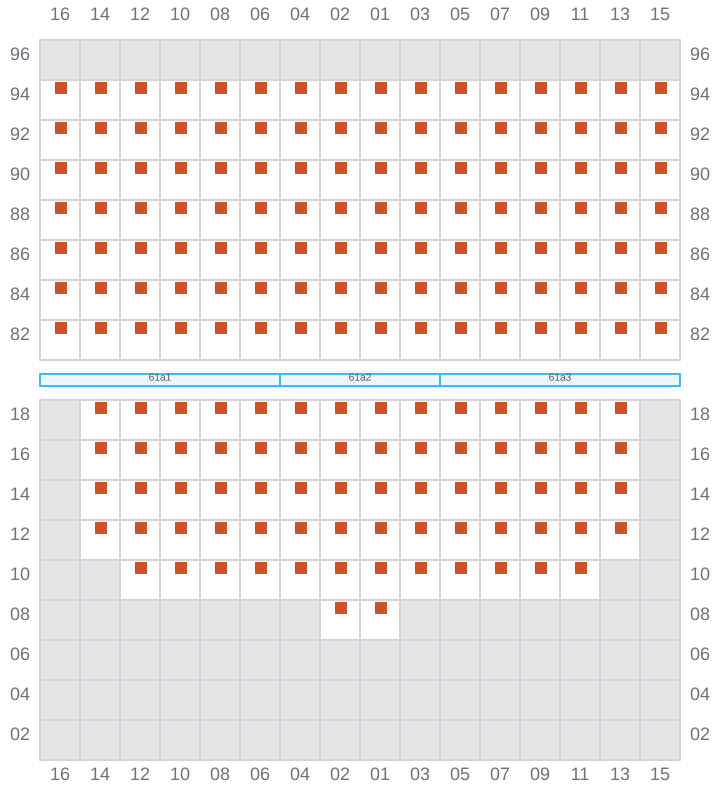

Bay 061 view and slots of CMA CGM MAUPASSANT

063

  • / ?
Bay 063 view and slots of CMA CGM MAUPASSANT

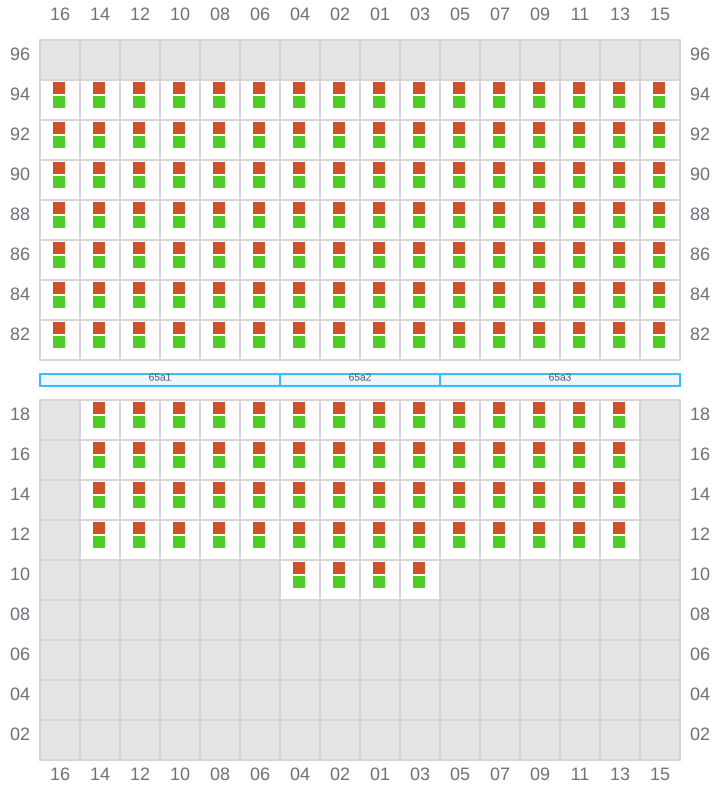

065 (066)

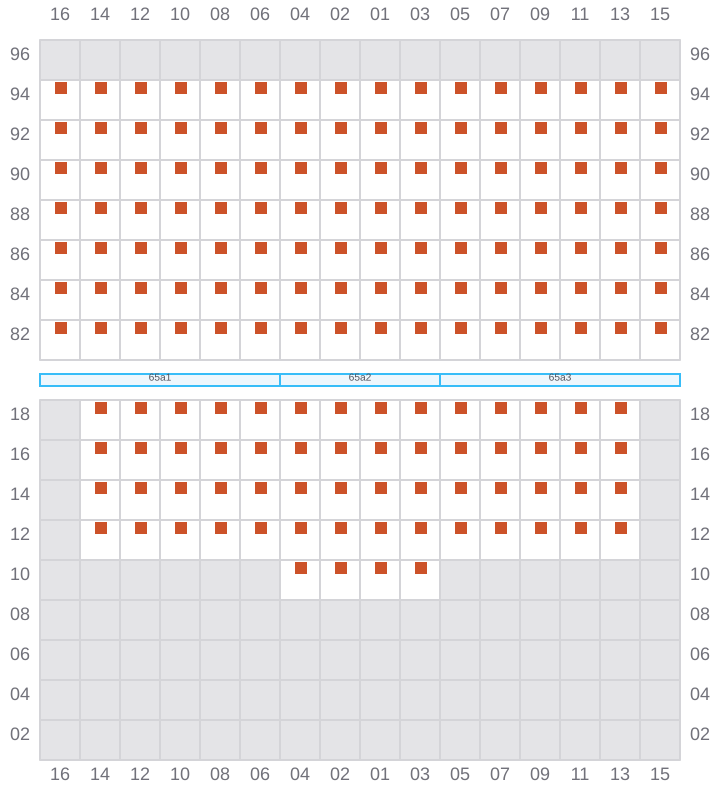

Bay 065 view and slots of CMA CGM MAUPASSANT

067

  • / ?
Bay 067 view and slots of CMA CGM MAUPASSANT

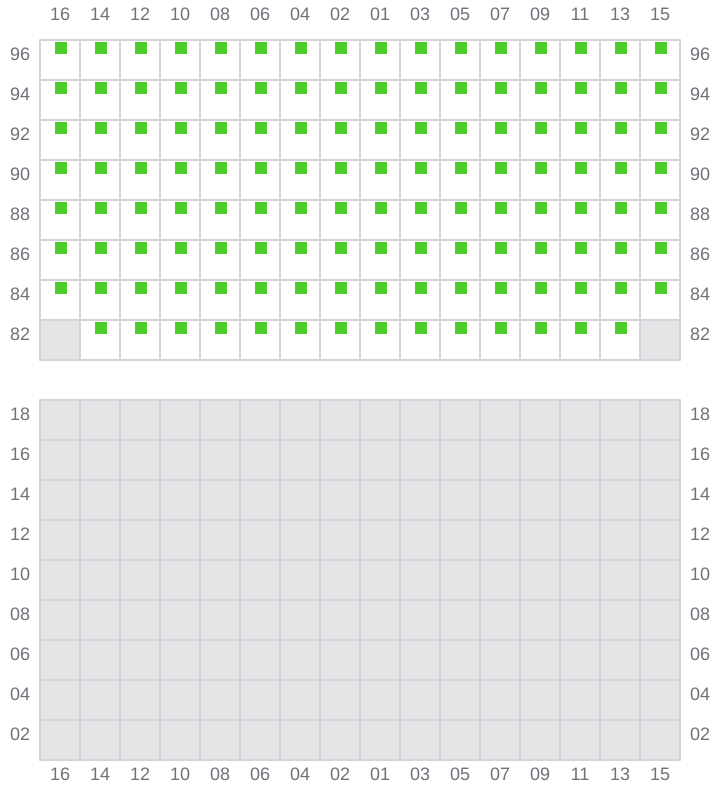

069 (070)

  • / ?
  • / ?
Bay 069 view and slots of CMA CGM MAUPASSANT
