CMA CGM MEDEA
9299800 | FMFR | 9299800 by ********* Last update: Tue Apr 09 2024
General Info
Ship Name:CMA CGM MEDEA
IMO Code:9299800
Call Sign:FMFR
Line Operator:9299800
Class Name for Sister Ships:CMA CGM MEDEA
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,455
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

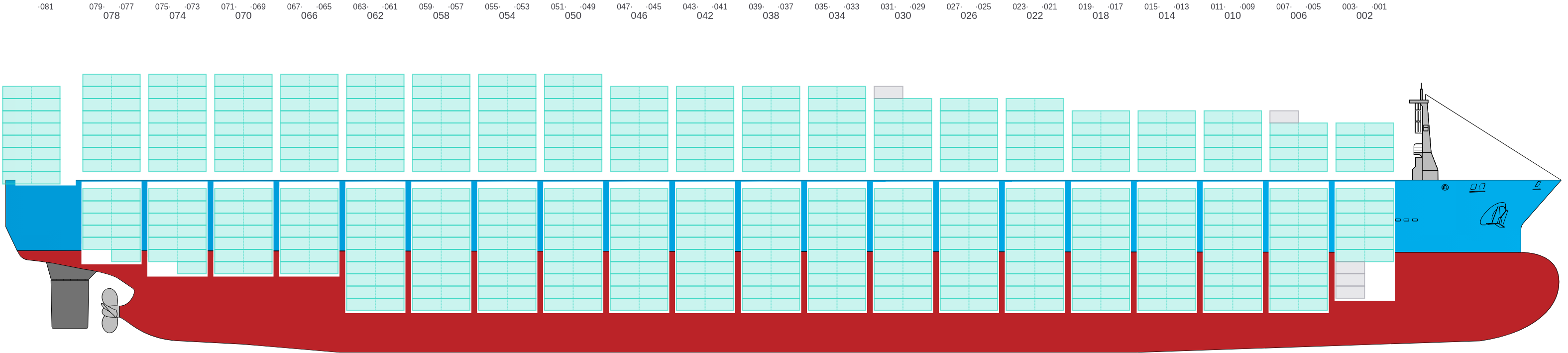

Side View
![Side view of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-sideView.png?v=1712684738680)
Hatch-Covers View
![Deck view of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-deckView.png?v=1712684738680)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b001.png?v=1712684738680)

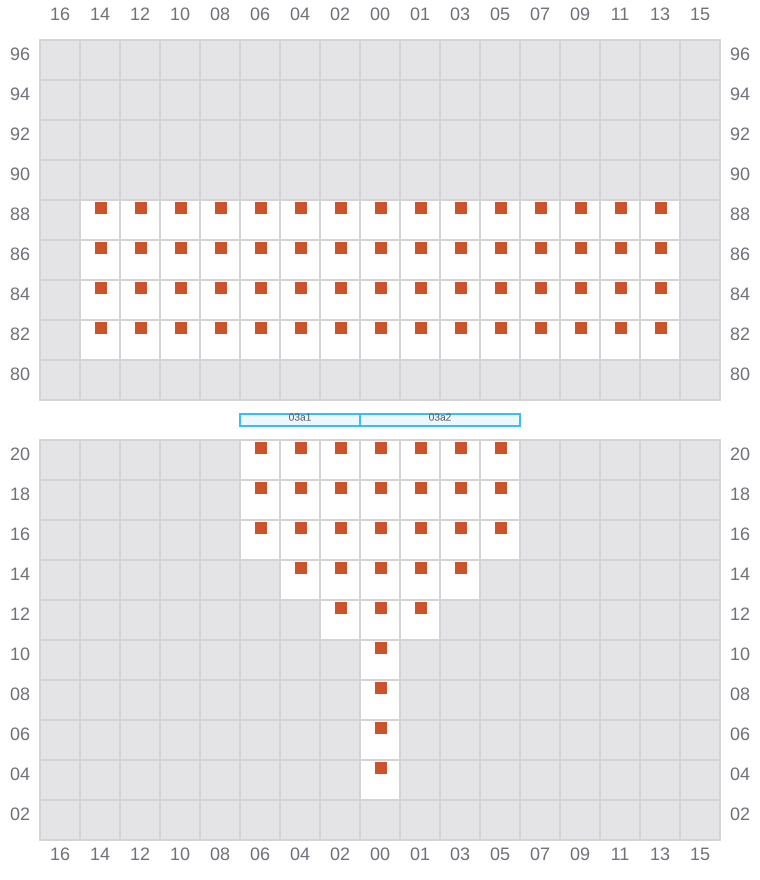

003
- ←
![Bay 003 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b003.png?v=1712684738680)

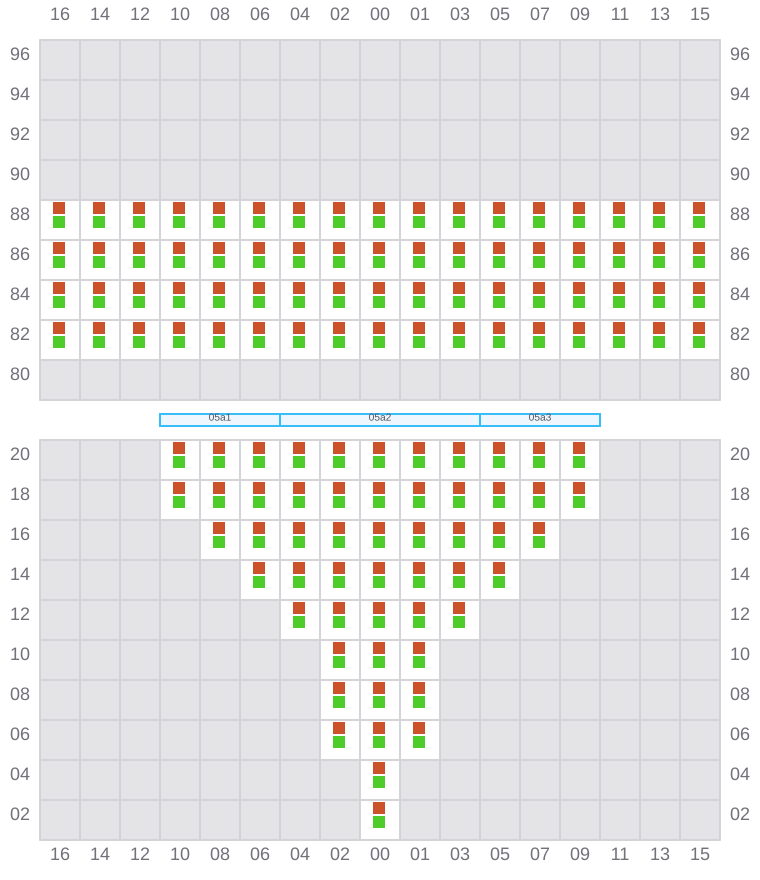

005 (006)
- →
![Bay 005 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b005.png?v=1712684738680)

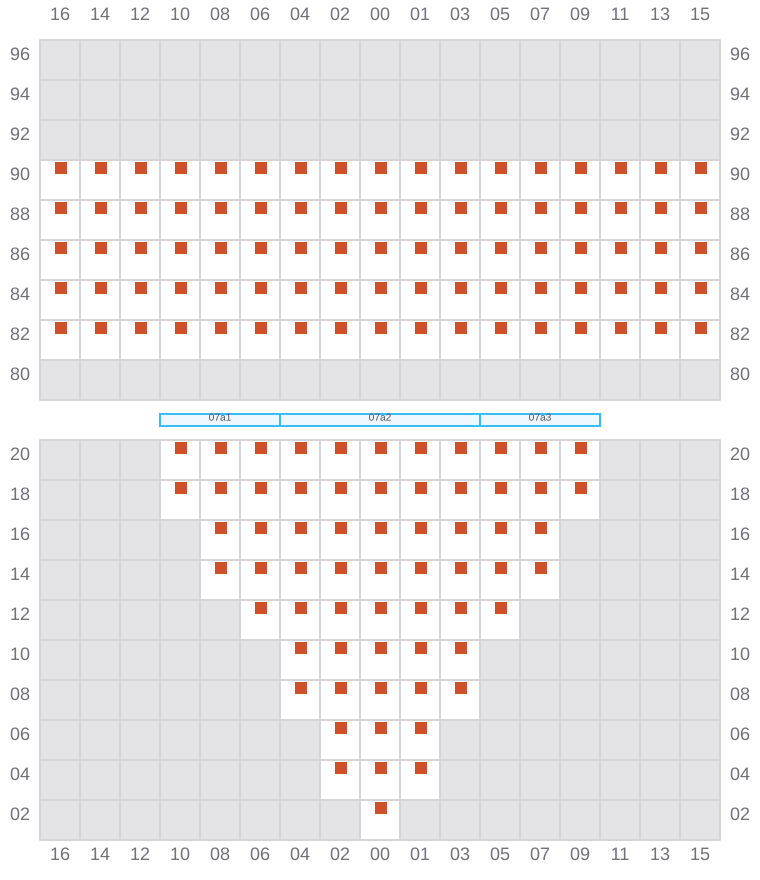

007
- ←
![Bay 007 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b007.png?v=1712684738680)

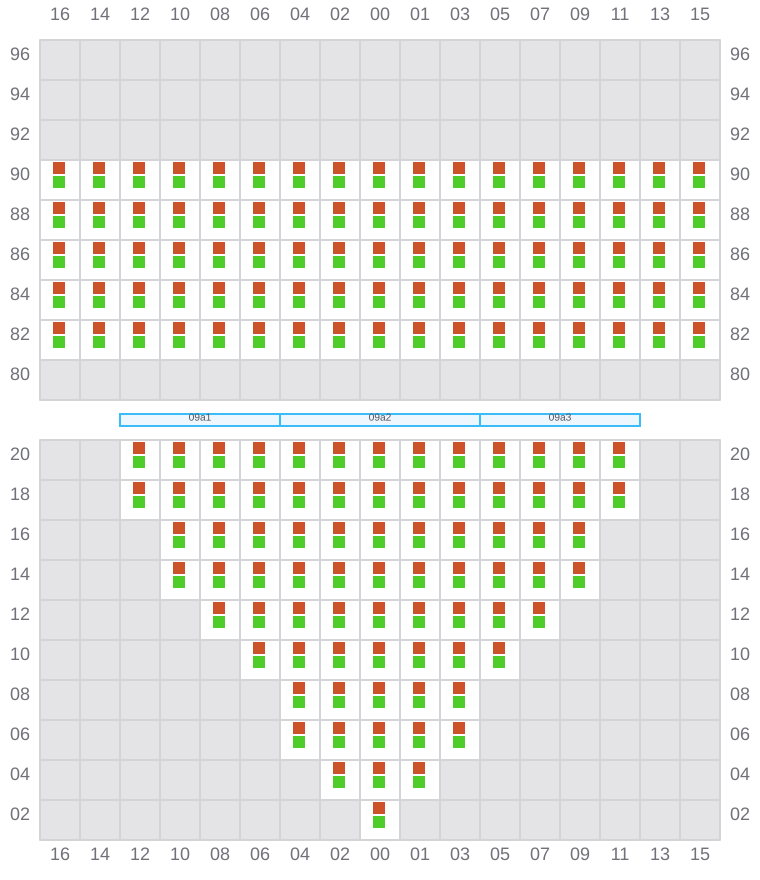

009 (010)
- →
![Bay 009 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b009.png?v=1712684738680)

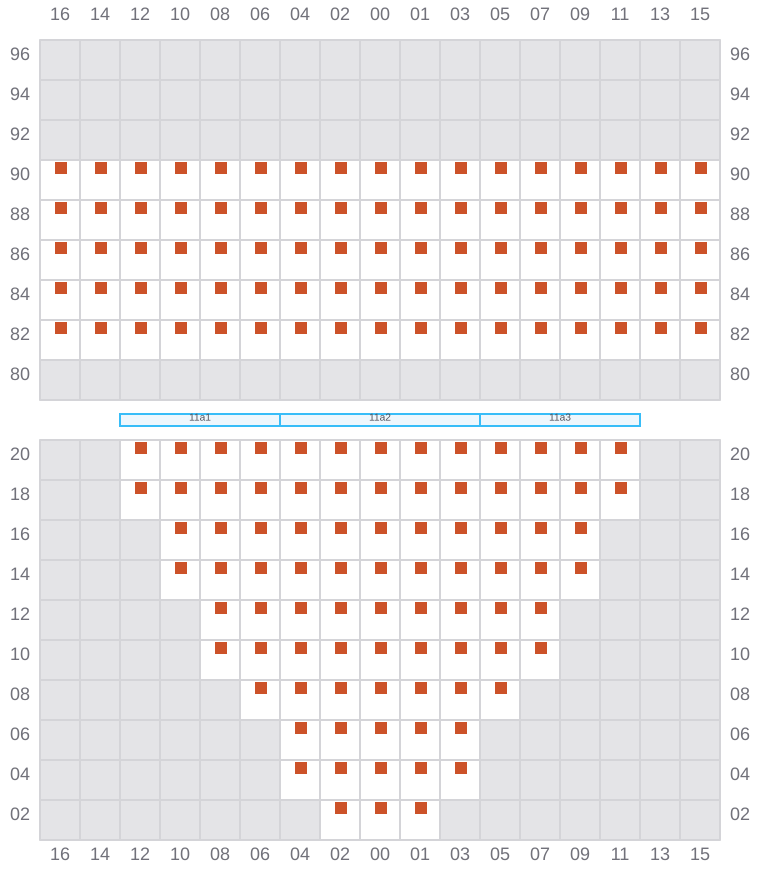

011
- ←
![Bay 011 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b011.png?v=1712684738680)

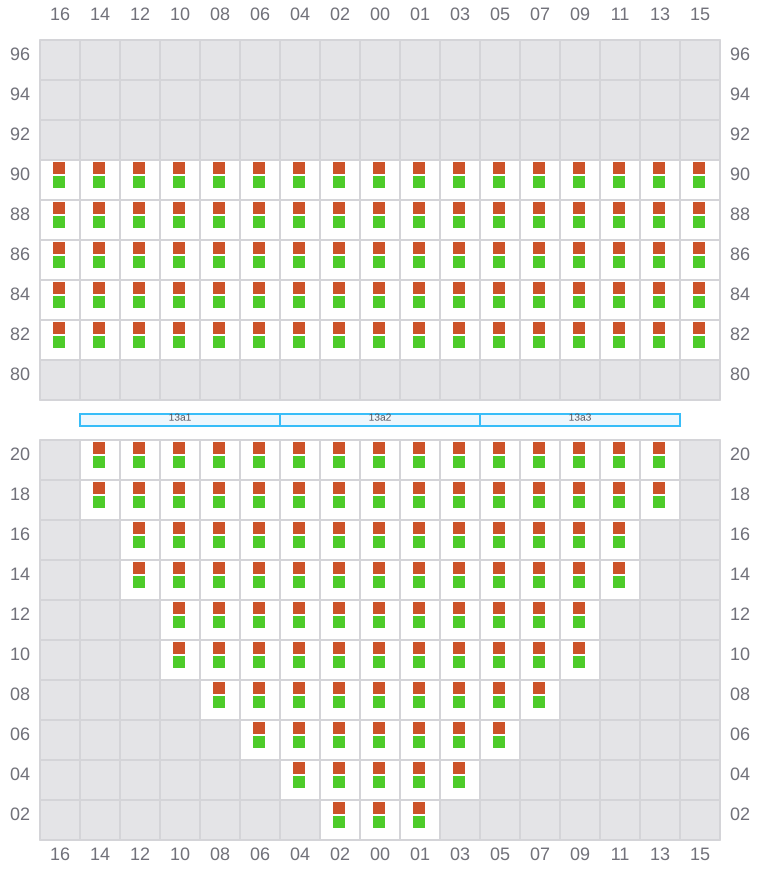

013 (014)
- →
![Bay 013 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b013.png?v=1712684738680)

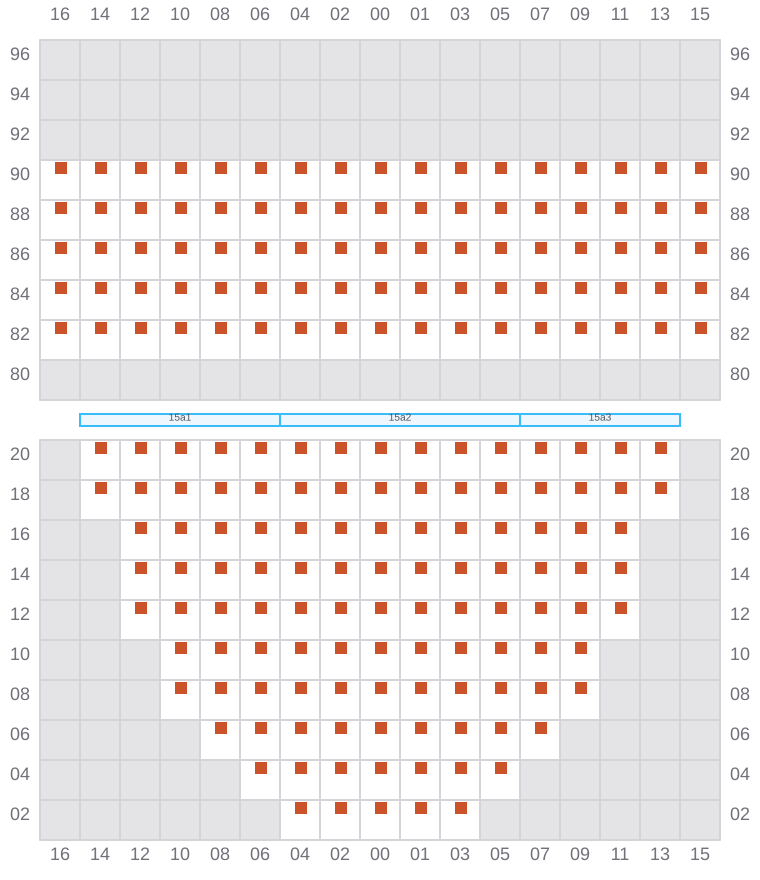

015
- ←
![Bay 015 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b015.png?v=1712684738680)

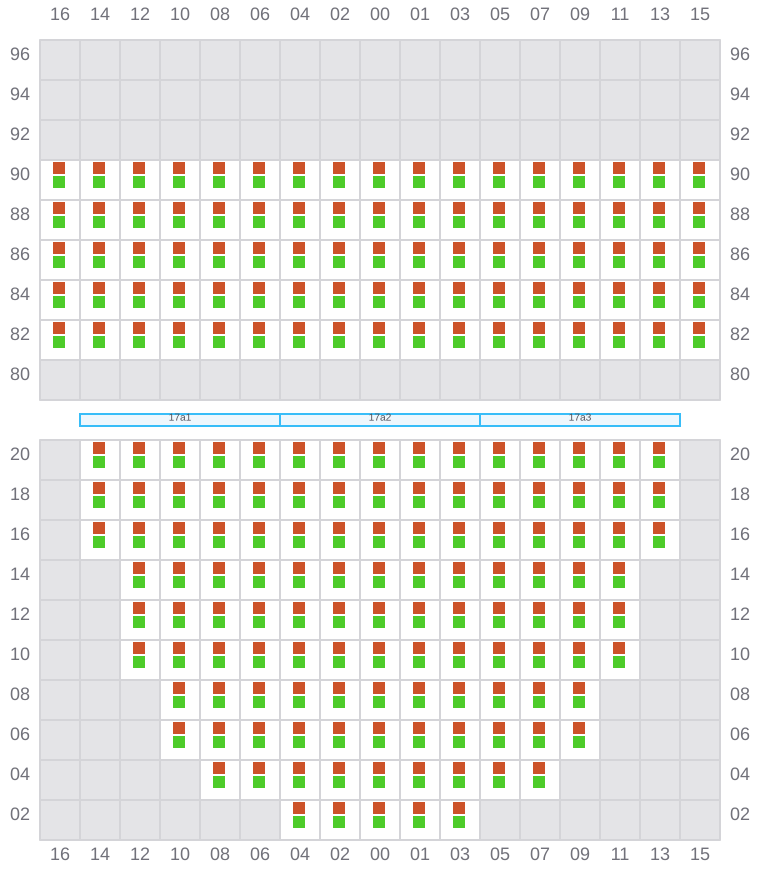

017 (018)
- →
![Bay 017 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b017.png?v=1712684738680)

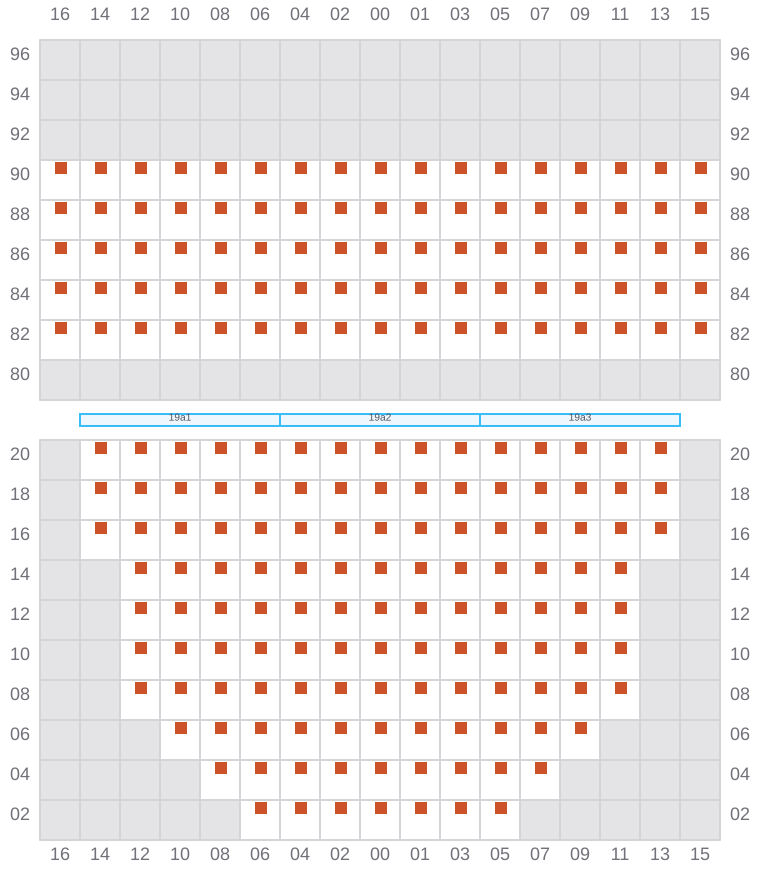

019
- ←
![Bay 019 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b019.png?v=1712684738680)

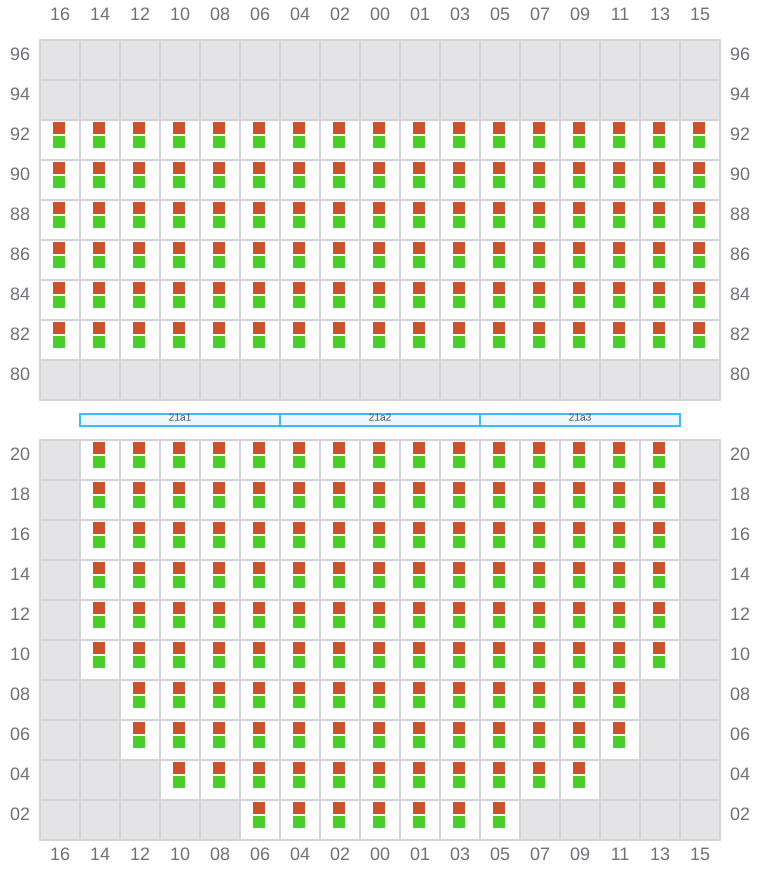

021 (022)
- →
![Bay 021 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b021.png?v=1712684738680)
023
- ←
![Bay 023 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b023.png?v=1712684738680)

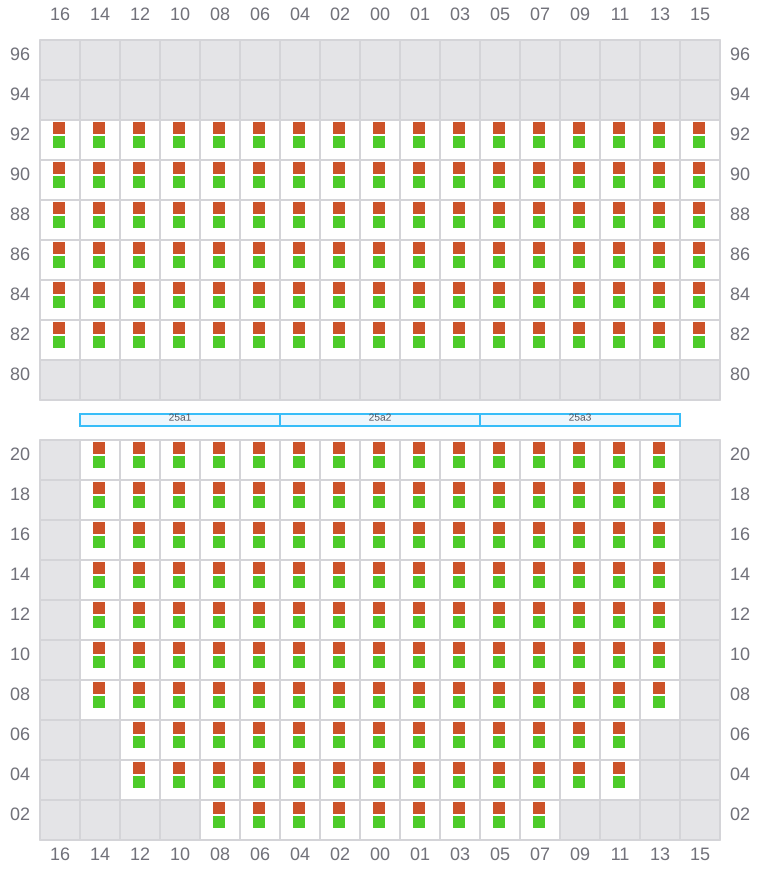

025 (026)
- →
![Bay 025 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b025.png?v=1712684738680)

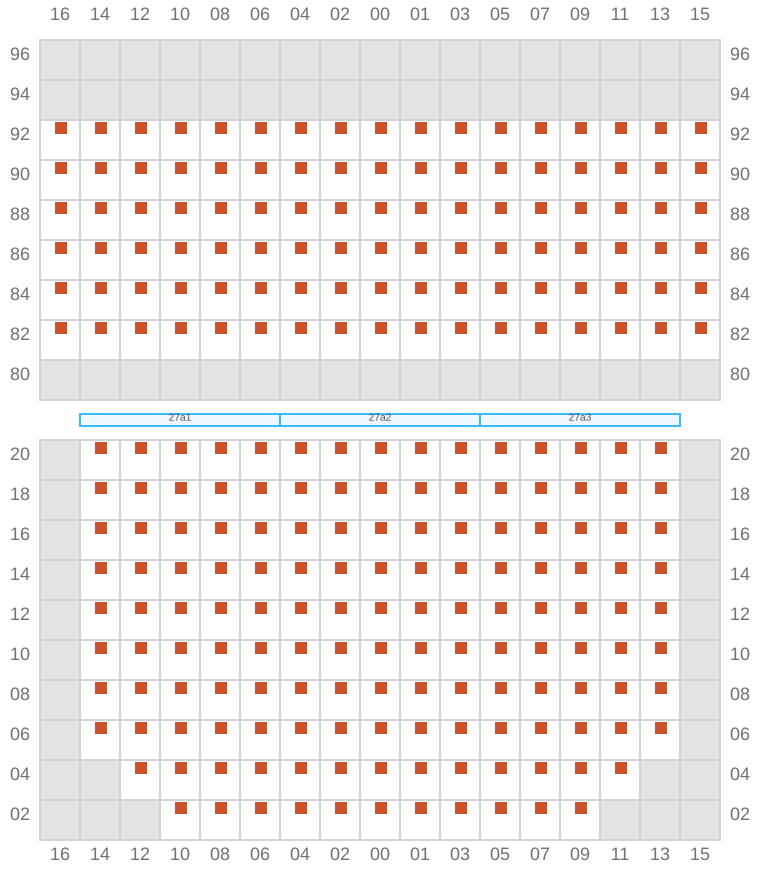

027
- ←
![Bay 027 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b027.png?v=1712684738680)

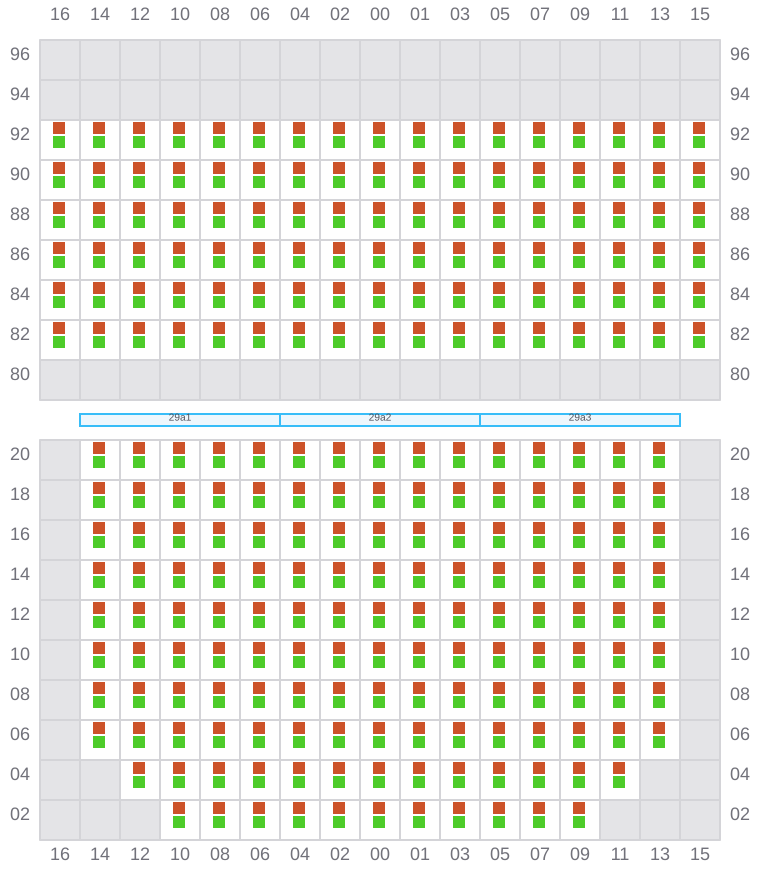

029 (030)
- →
![Bay 029 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b029.png?v=1712684738680)

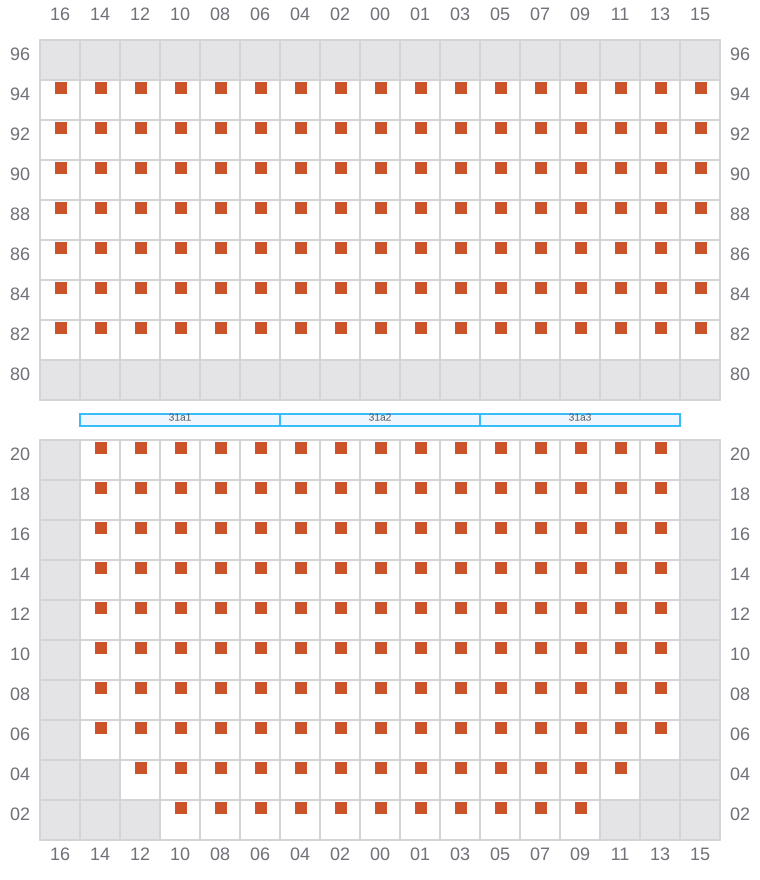

031
- ←
![Bay 031 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b031.png?v=1712684738680)
033 (034)
- →
![Bay 033 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b033.png?v=1712684738680)
035
- ←
![Bay 035 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b035.png?v=1712684738680)

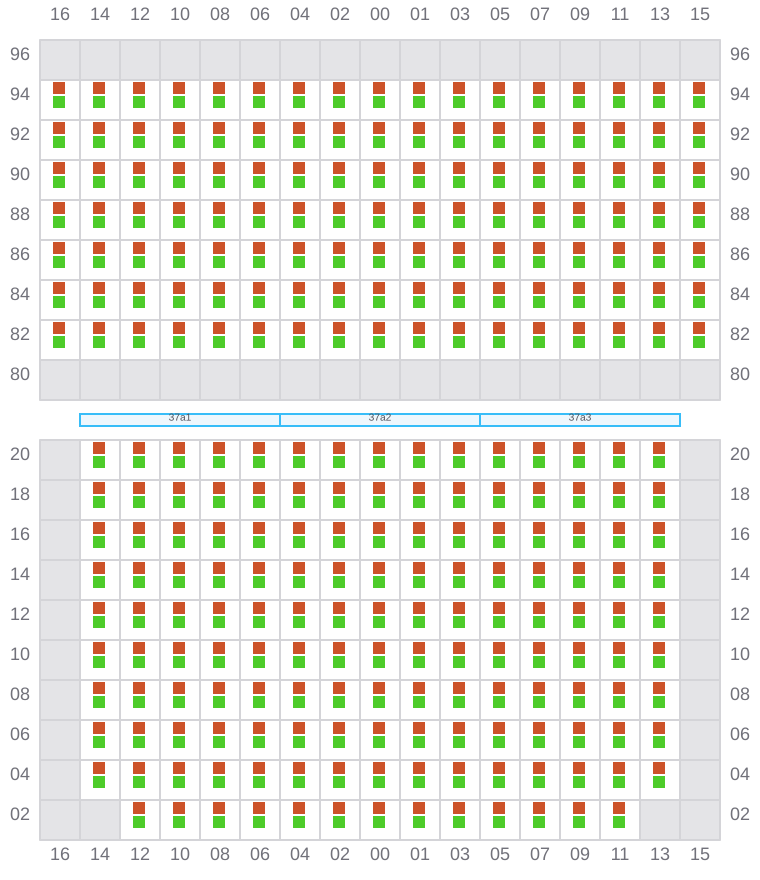

037 (038)
- →
![Bay 037 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b037.png?v=1712684738680)
039
- ←
![Bay 039 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b039.png?v=1712684738680)
041 (042)
- →
![Bay 041 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b041.png?v=1712684738680)

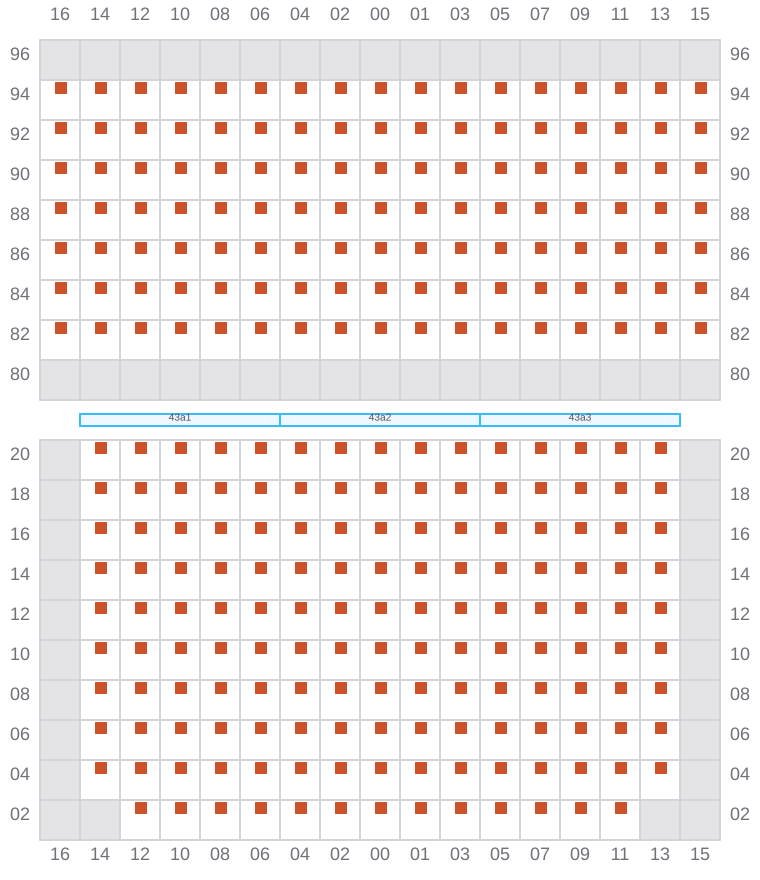

043
- ←
![Bay 043 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b043.png?v=1712684738680)
045 (046)
- →
![Bay 045 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b045.png?v=1712684738680)
047
- ←
![Bay 047 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b047.png?v=1712684738680)
049 (050)
- →
![Bay 049 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b049.png?v=1712684738680)
051
- ←
![Bay 051 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b051.png?v=1712684738680)
053 (054)
- →
![Bay 053 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b053.png?v=1712684738680)

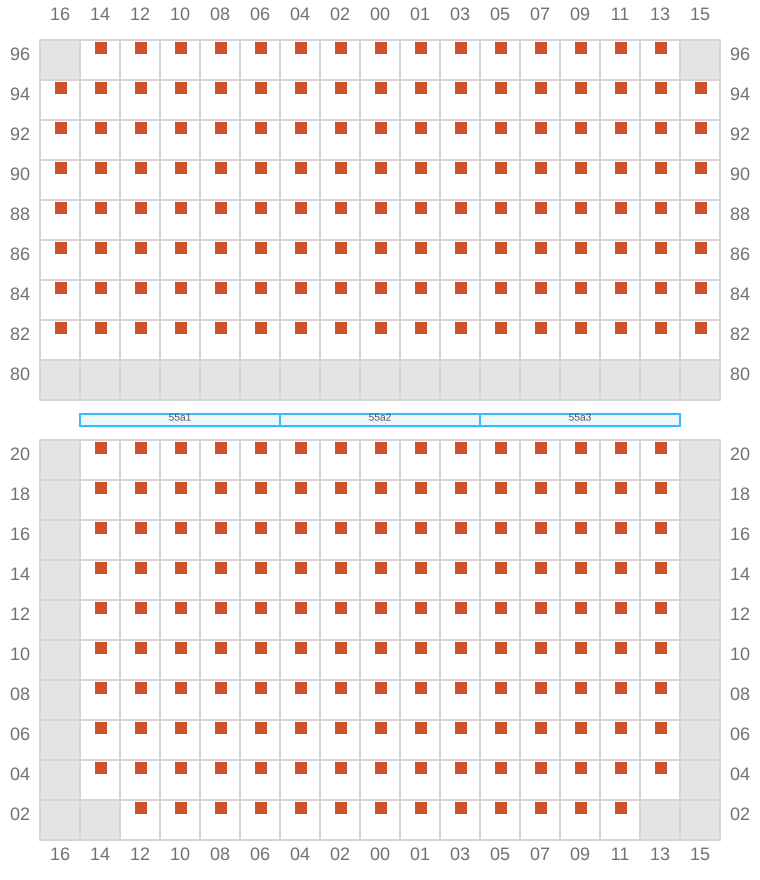

055
- ←
![Bay 055 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b055.png?v=1712684738680)

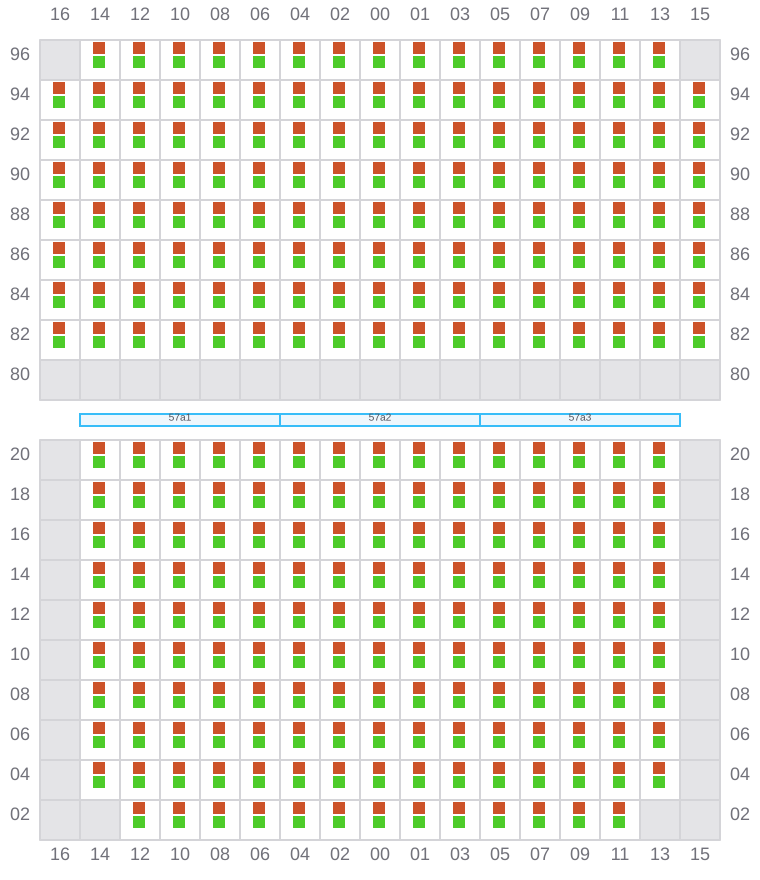

057 (058)
- →
![Bay 057 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b057.png?v=1712684738680)

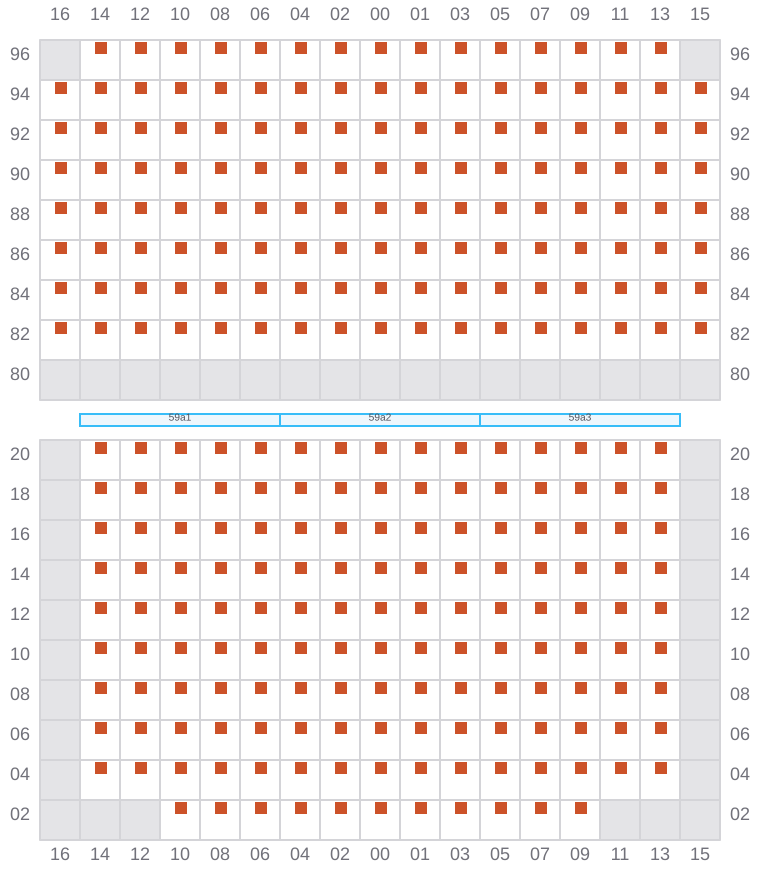

059
- ←
![Bay 059 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b059.png?v=1712684738680)
061 (062)
- →
![Bay 061 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b061.png?v=1712684738680)

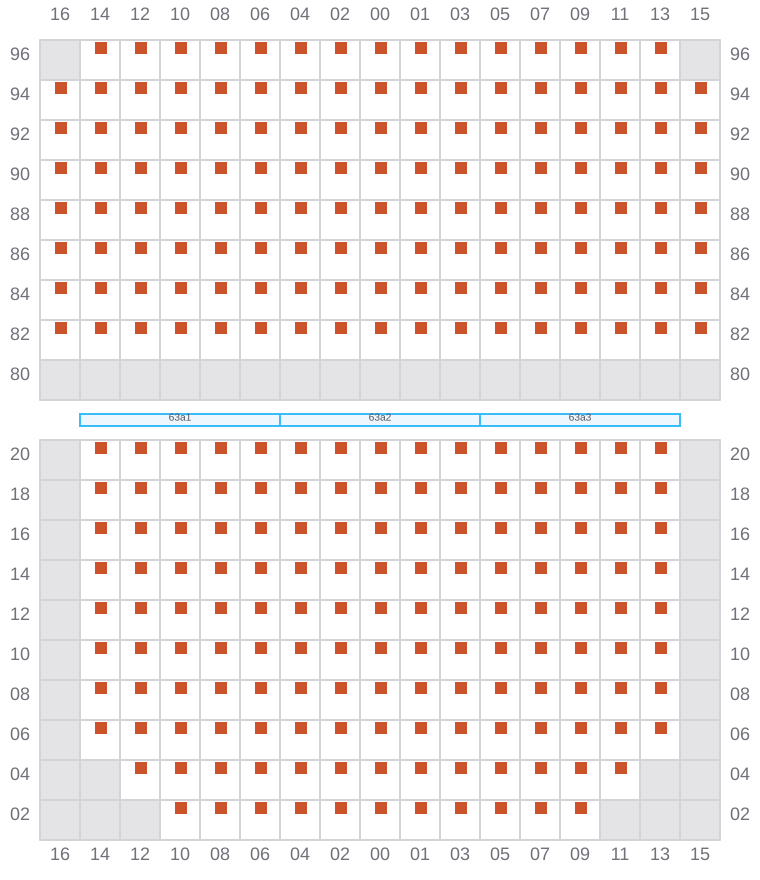

063
- ←
![Bay 063 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b063.png?v=1712684738680)
065 (066)
- →
![Bay 065 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b065.png?v=1712684738680)

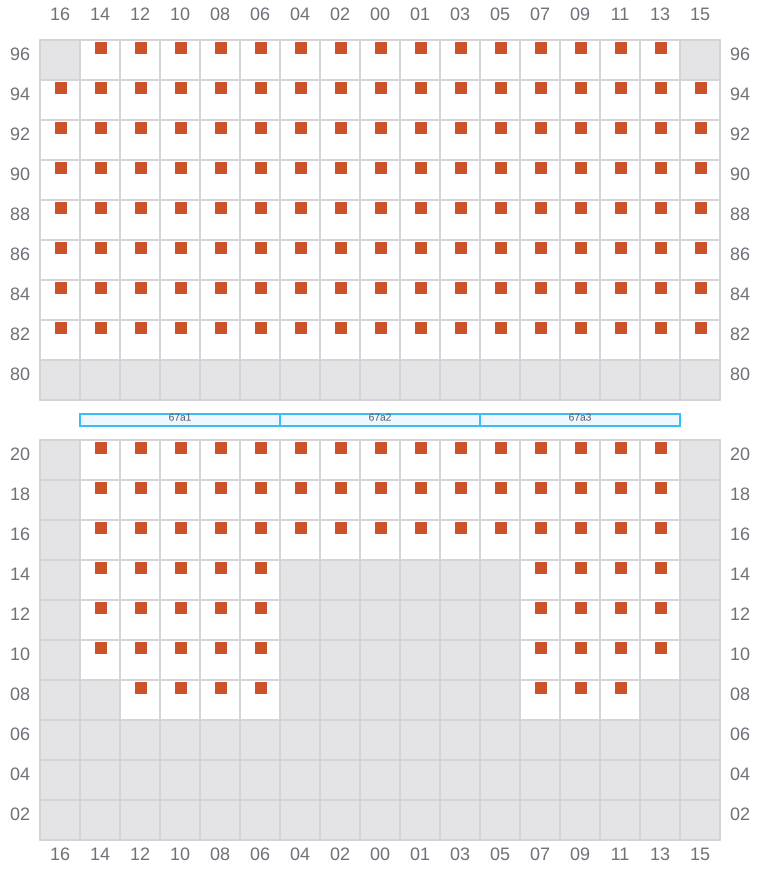

067
- ←
![Bay 067 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b067.png?v=1712684738680)

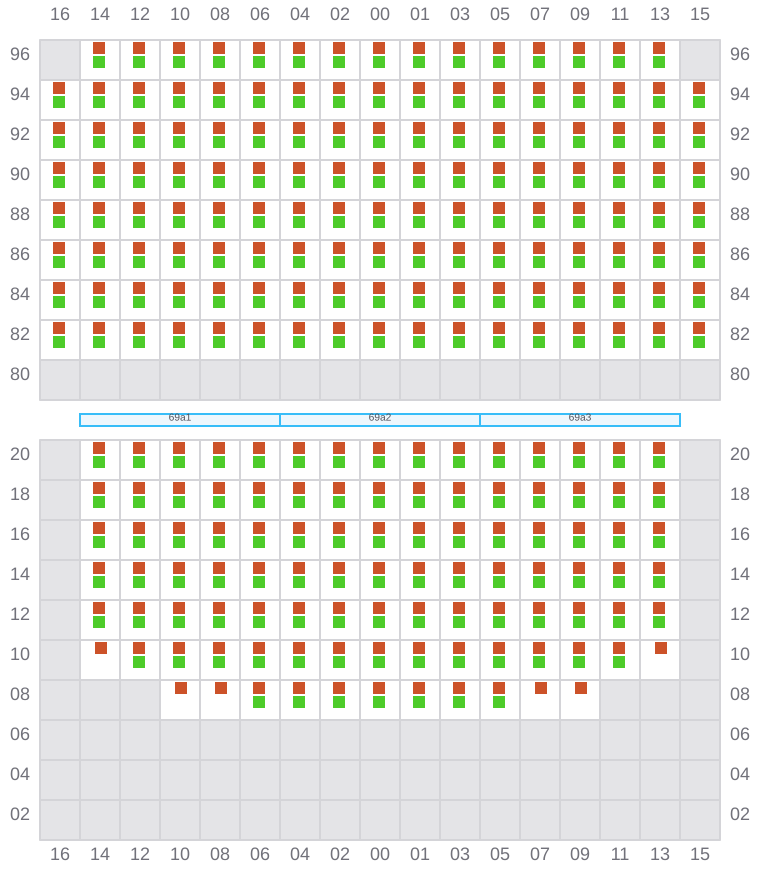

069 (070)
- →
![Bay 069 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b069.png?v=1712684738680)

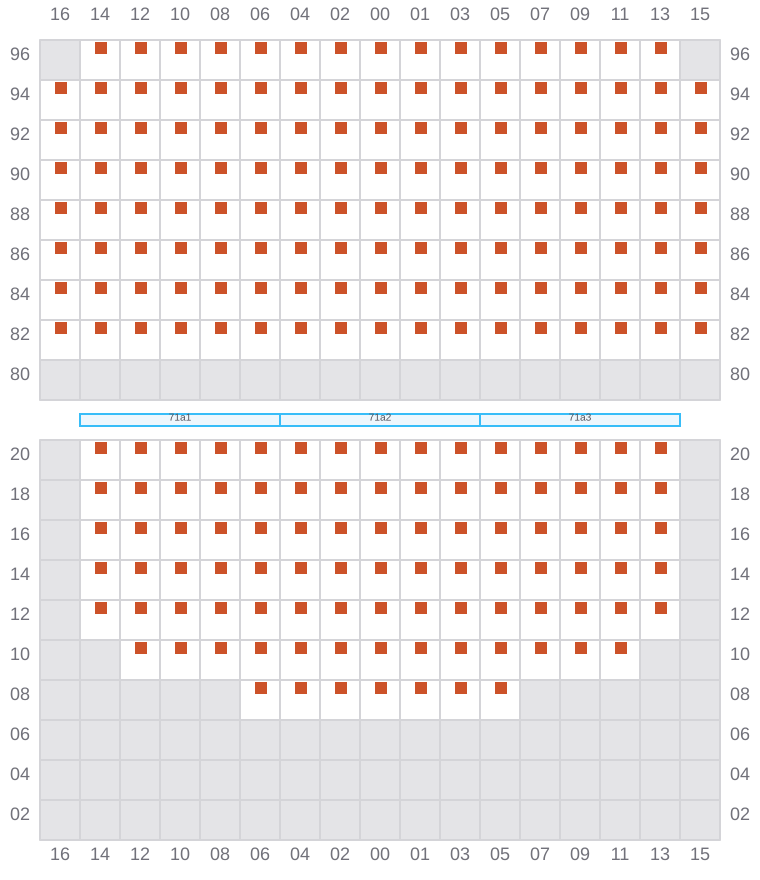

071
- ←
![Bay 071 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b071.png?v=1712684738680)
073 (074)
- →
![Bay 073 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b073.png?v=1712684738680)

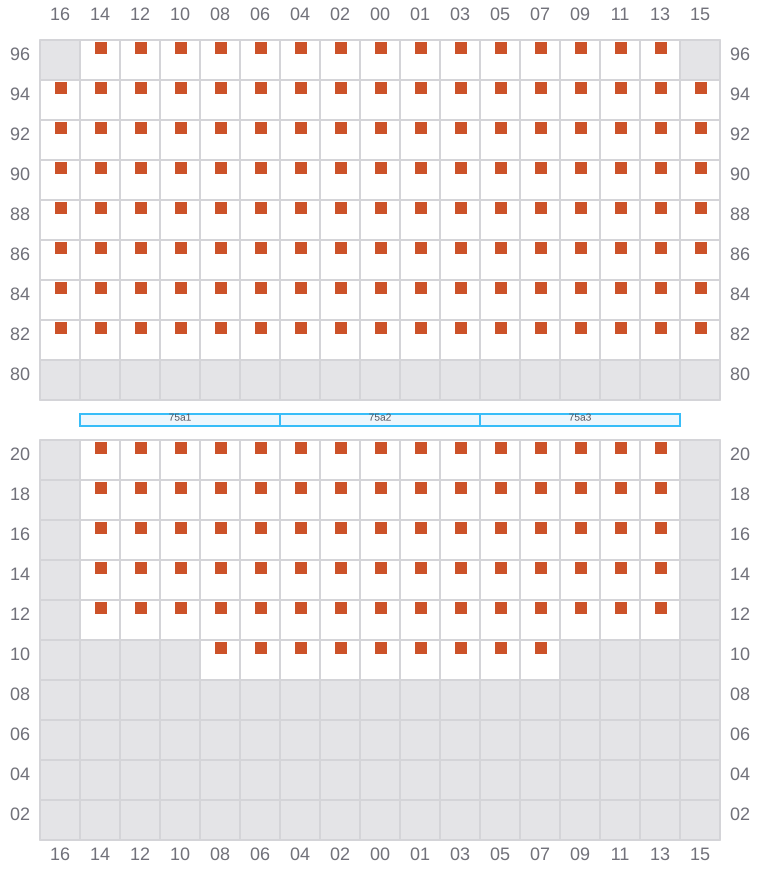

075
- ←
![Bay 075 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b075.png?v=1712684738680)

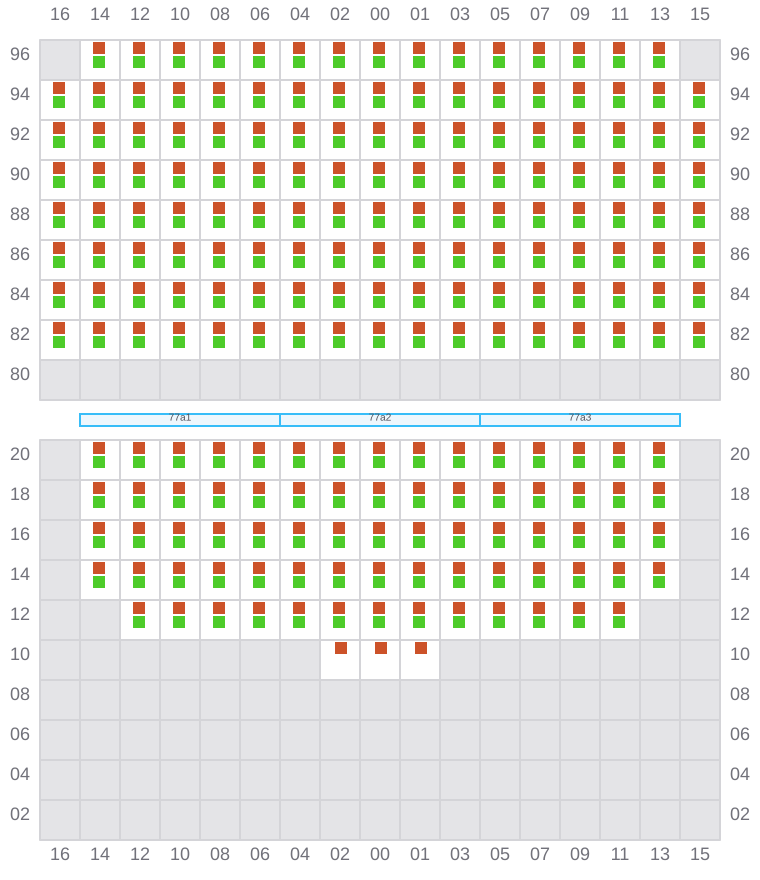

077 (078)
- →
![Bay 077 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b077.png?v=1712684738680)

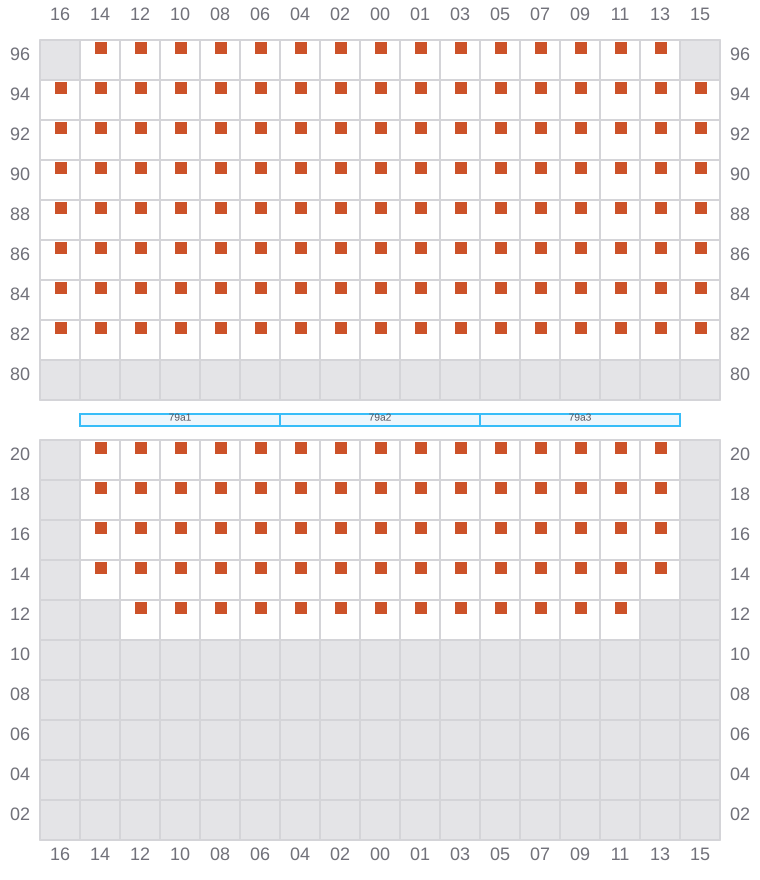

079
- ←
![Bay 079 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b079.png?v=1712684738680)

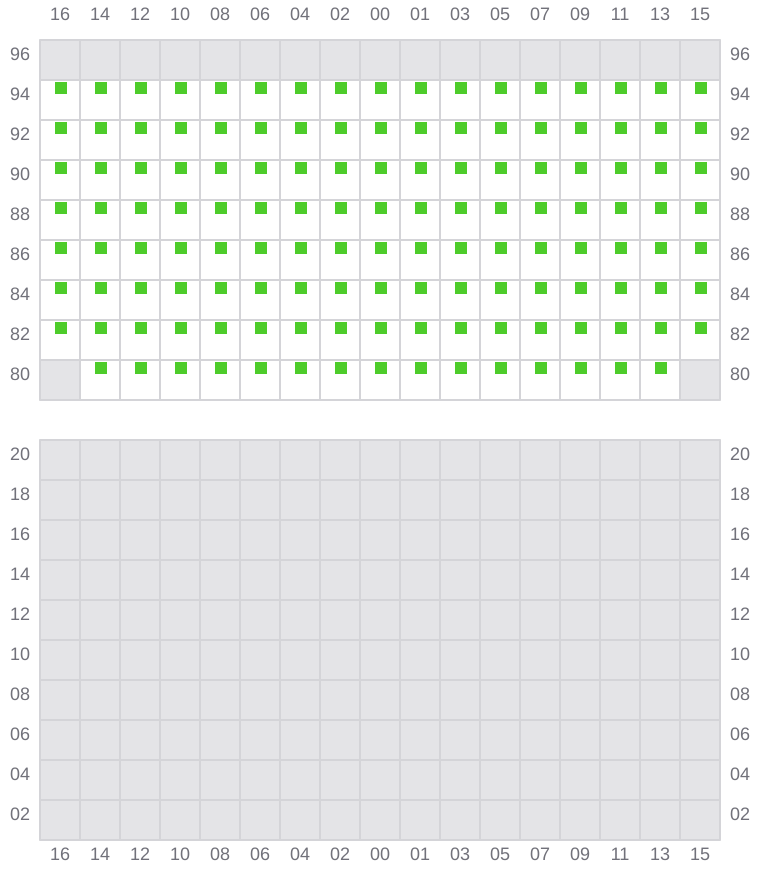

081 (082)
- → / ?
![Bay 081 view and slots of CMA CGM MEDEA](/vessel-images/9f5a1bd5-6470-4737-aa1d-5a9c65c52692-b081.png?v=1712684738680)
