CMA CGM MELISANDE
9473028 | 9HA2954 | 9473028 by ********* Last update: Fri Apr 12 2024

General Info

Ship Name:CMA CGM MELISANDE
IMO Code:9473028
Call Sign:9HA2954
Line Operator:9473028
Class Name for Sister Ships:CMA CGM MELISANDE
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,727

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

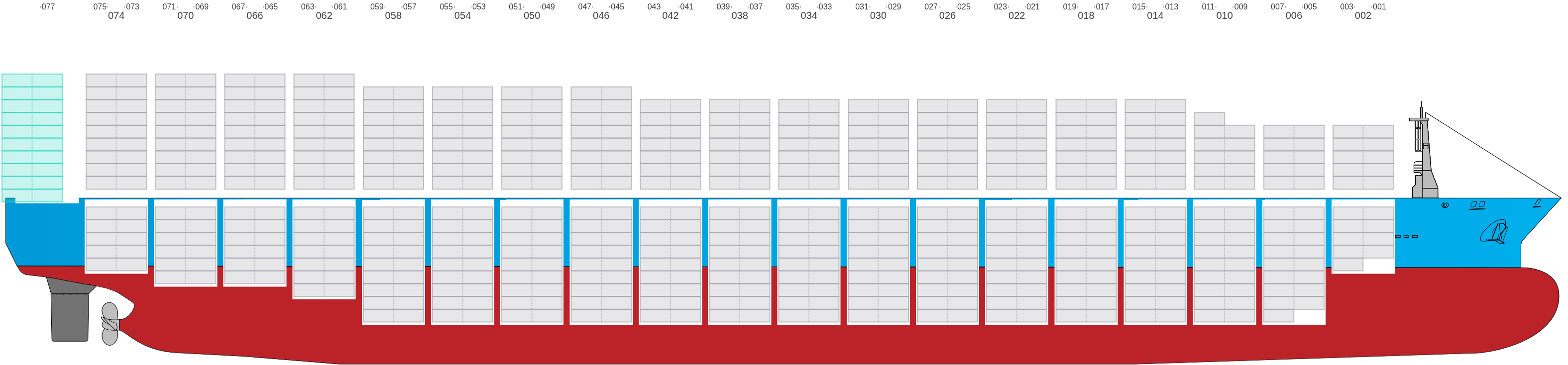

Side View

Side view of CMA CGM MELISANDE

Hatch-Covers View

Deck view of CMA CGM MELISANDE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

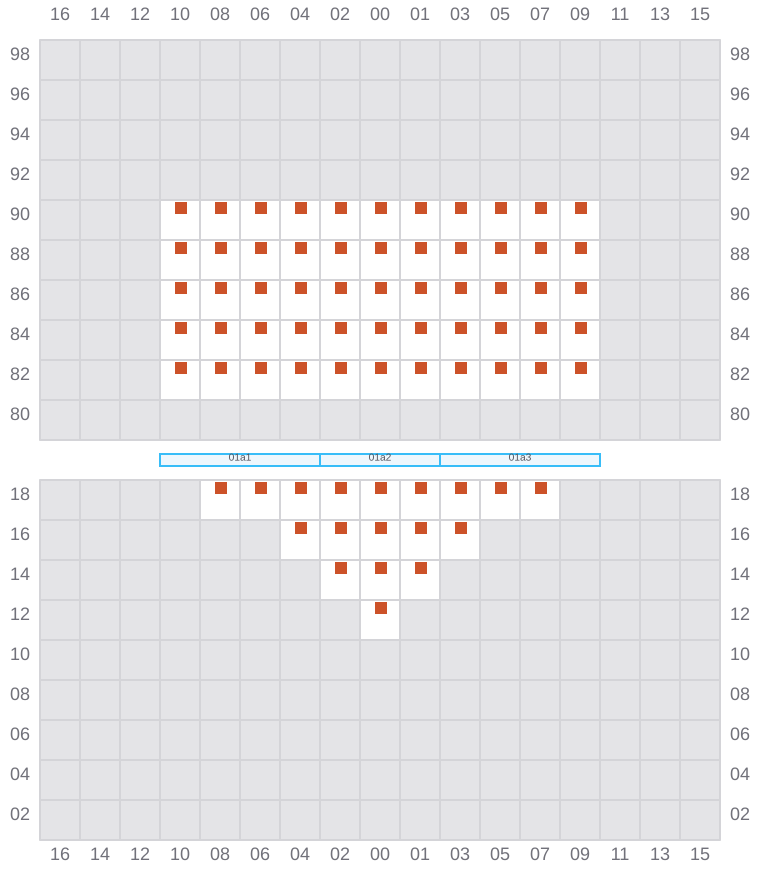

Bay 001 view and slots of CMA CGM MELISANDE

003 (002)

  • ←

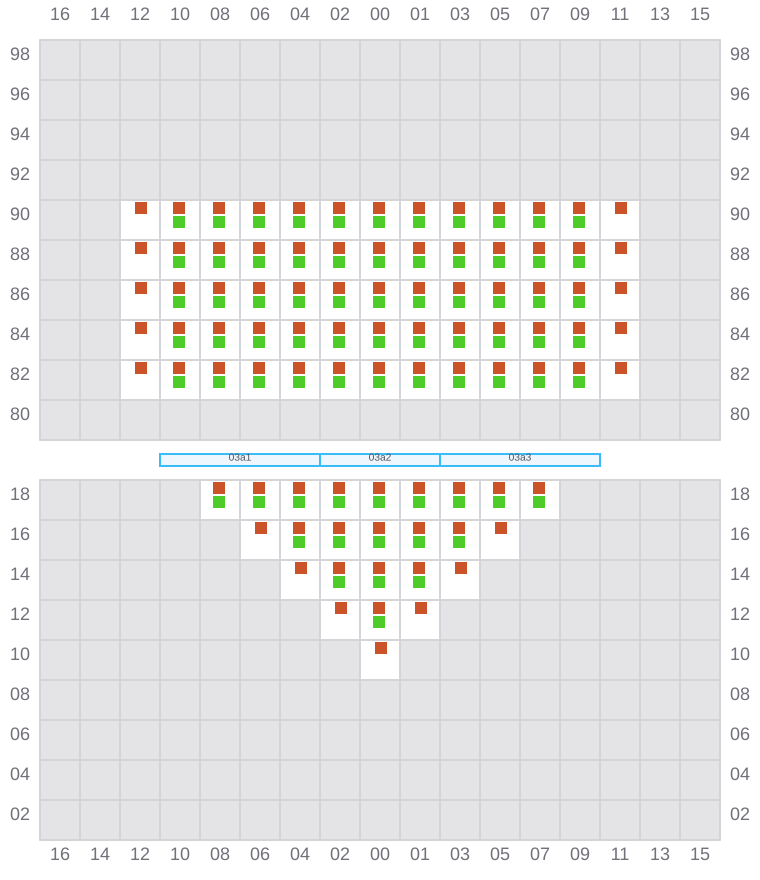

Bay 003 view and slots of CMA CGM MELISANDE

005

  • →

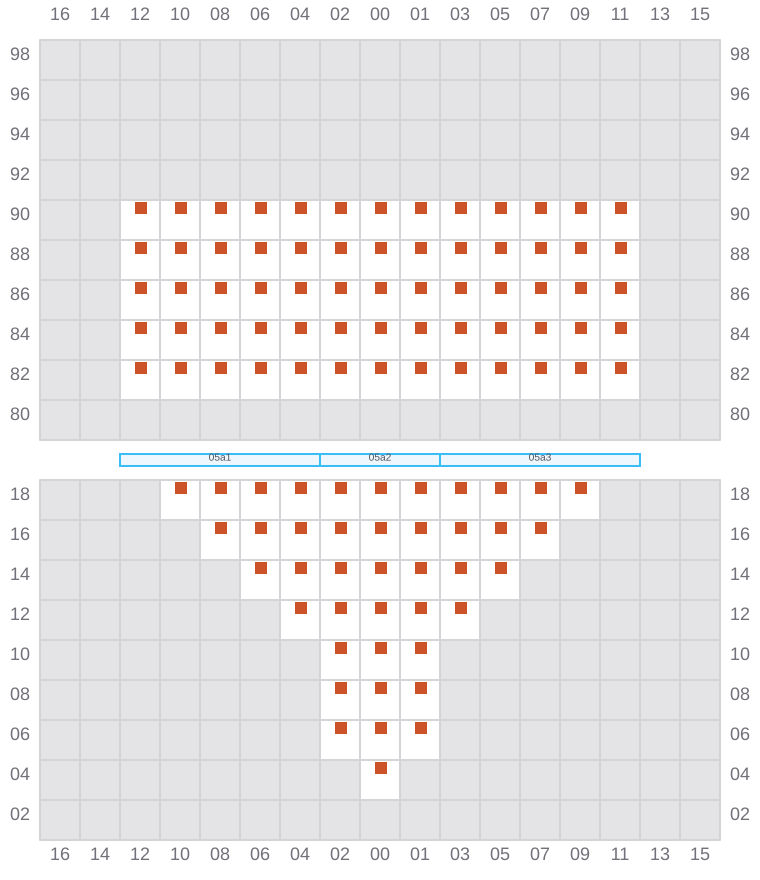

Bay 005 view and slots of CMA CGM MELISANDE

007 (006)

  • ←

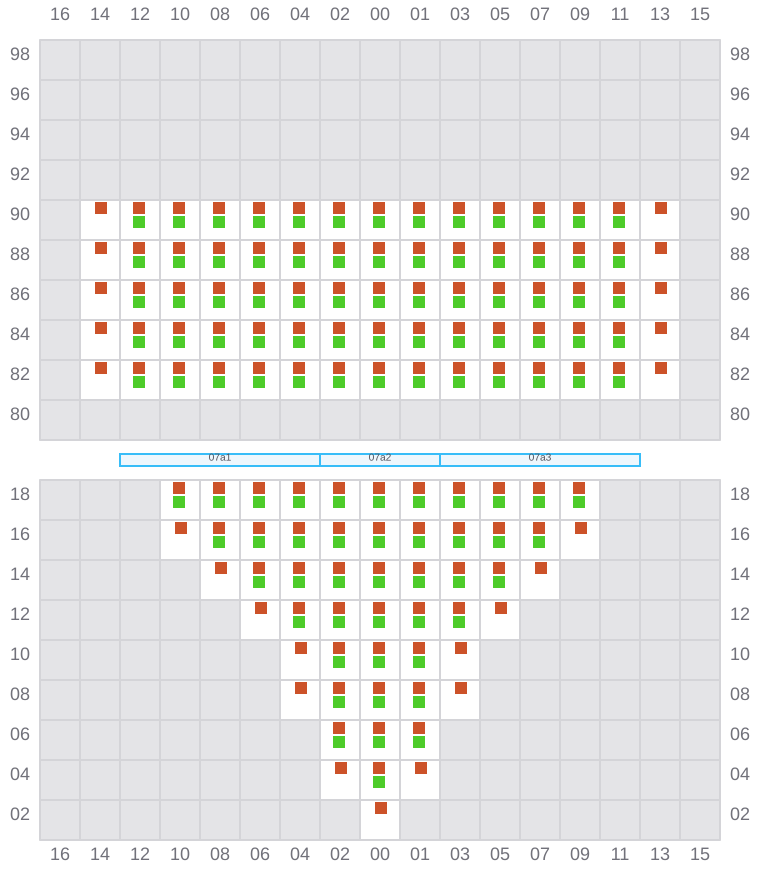

Bay 007 view and slots of CMA CGM MELISANDE

009

  • →

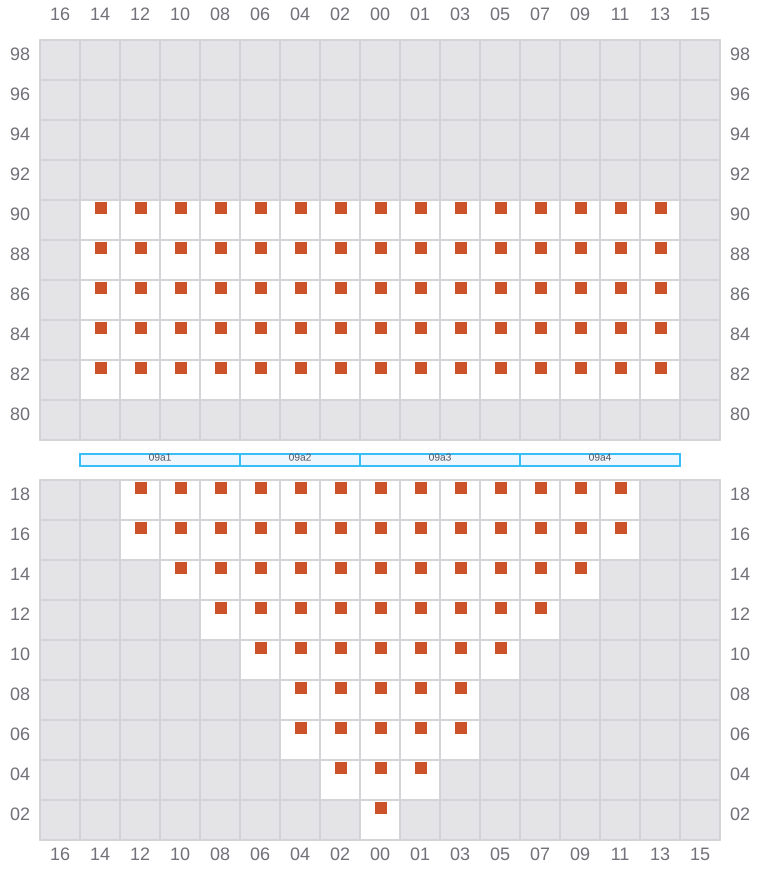

Bay 009 view and slots of CMA CGM MELISANDE

011 (010)

  • ←

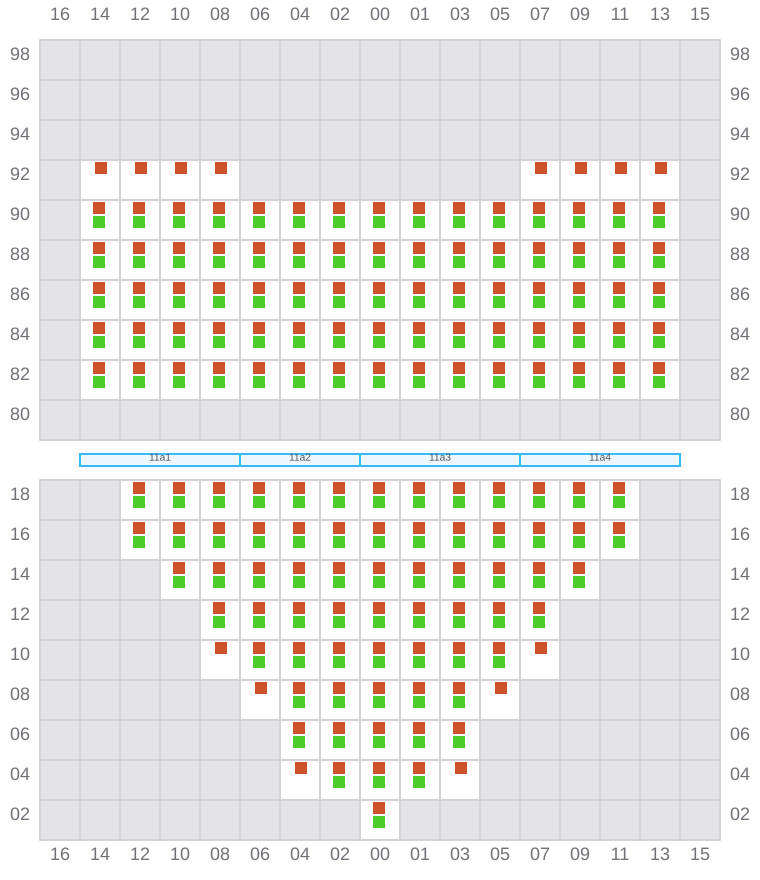

Bay 011 view and slots of CMA CGM MELISANDE

013

  • →

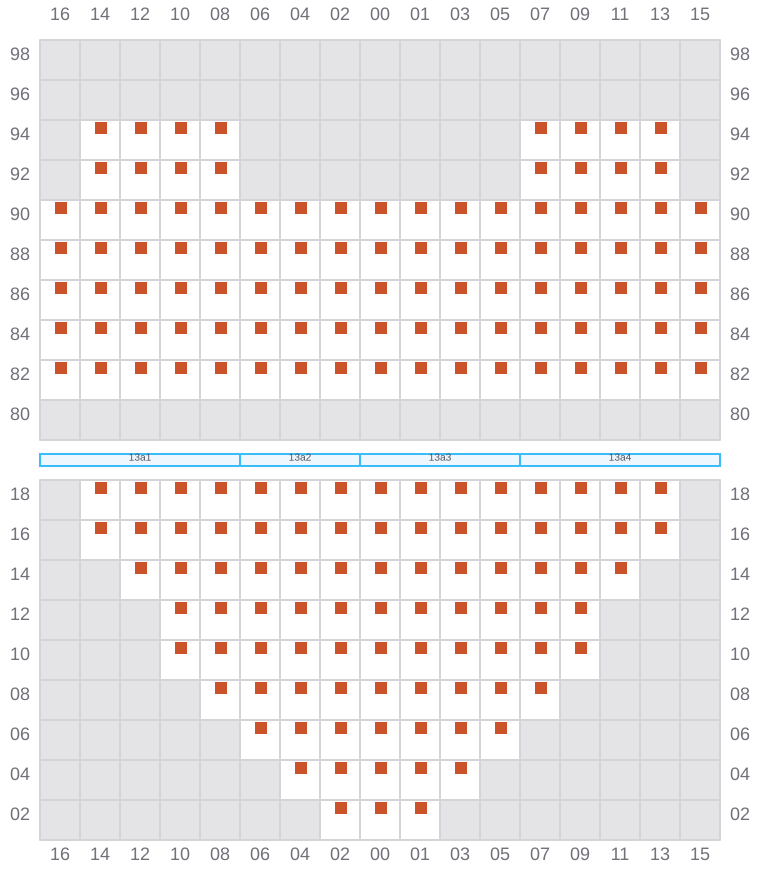

Bay 013 view and slots of CMA CGM MELISANDE

015 (014)

  • ←

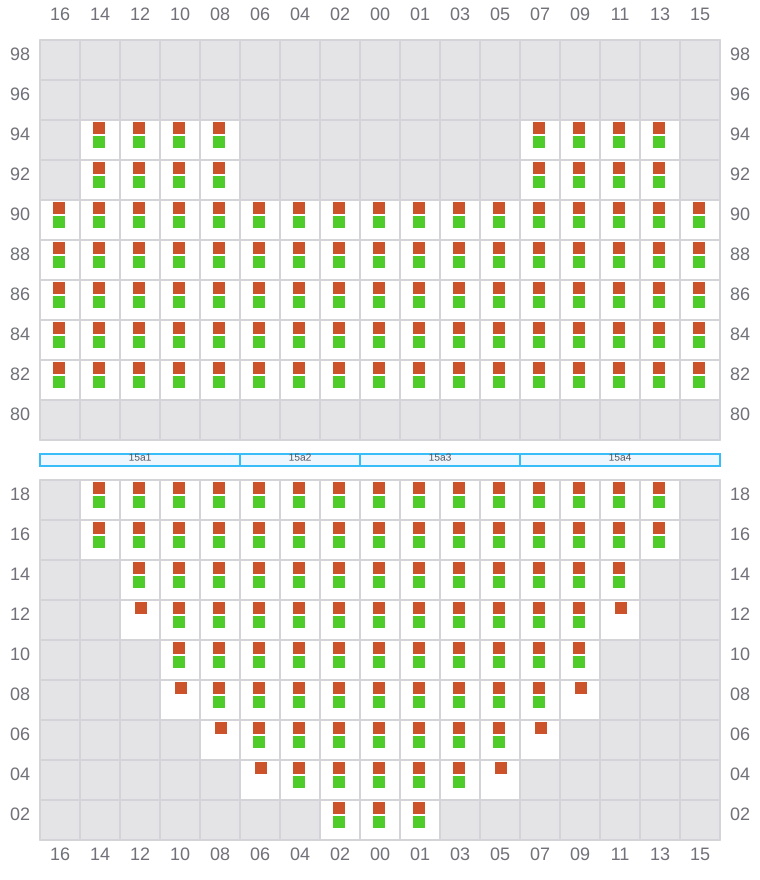

Bay 015 view and slots of CMA CGM MELISANDE

017

  • →

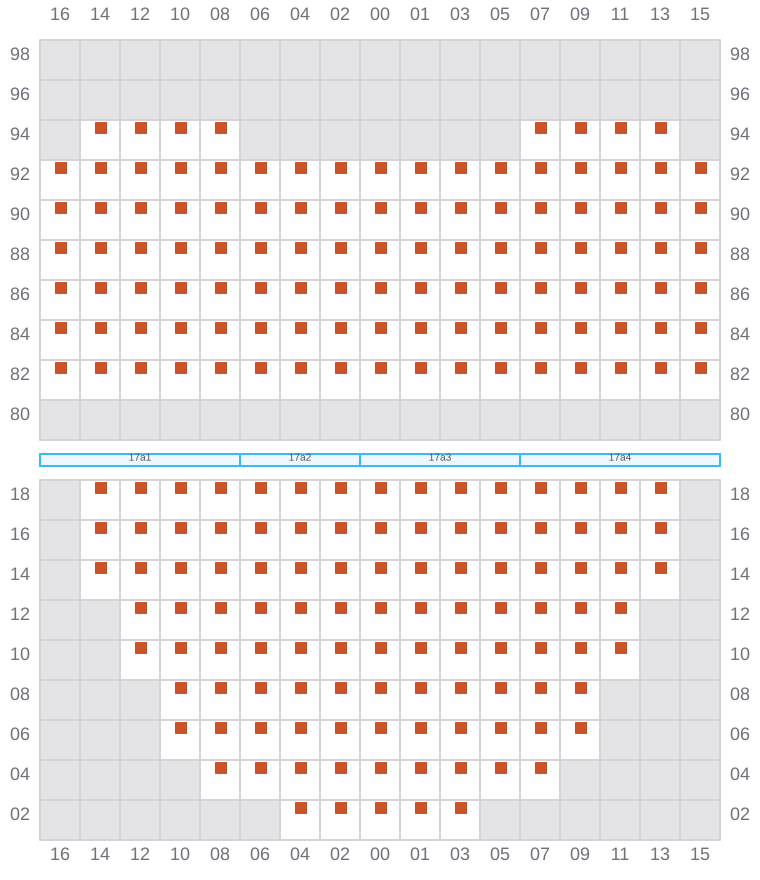

Bay 017 view and slots of CMA CGM MELISANDE

019 (018)

  • ←

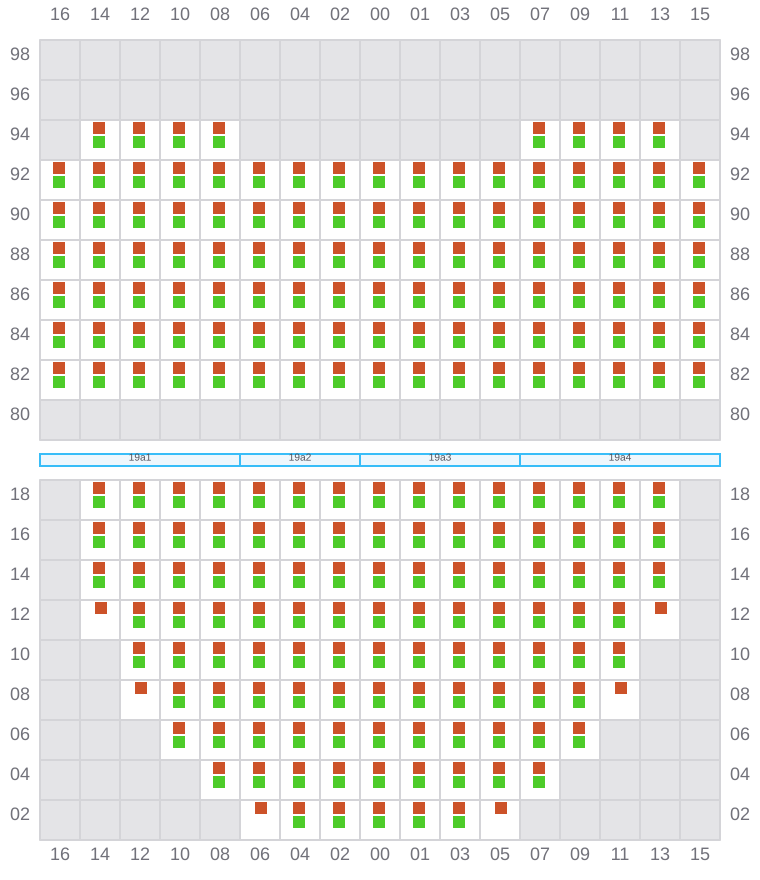

Bay 019 view and slots of CMA CGM MELISANDE

021

  • →

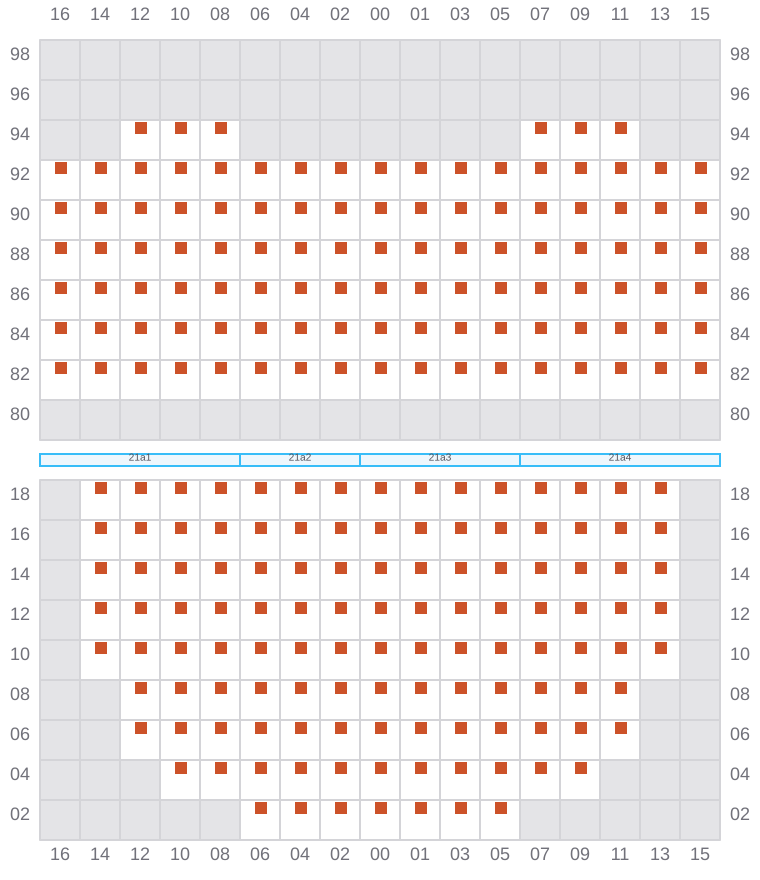

Bay 021 view and slots of CMA CGM MELISANDE

023 (022)

  • ←

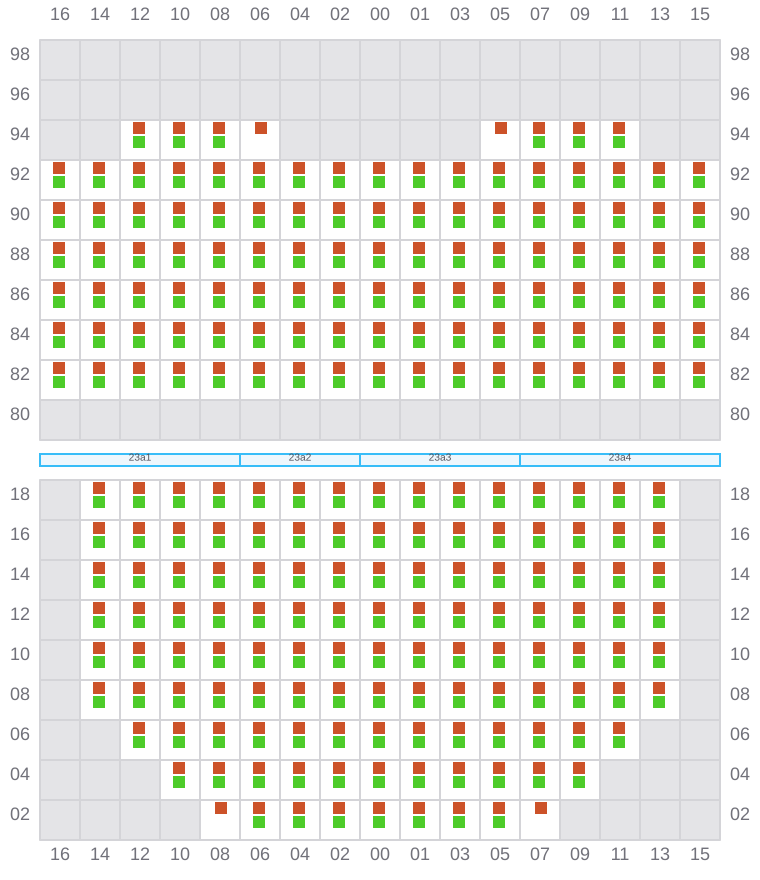

Bay 023 view and slots of CMA CGM MELISANDE

025

  • →

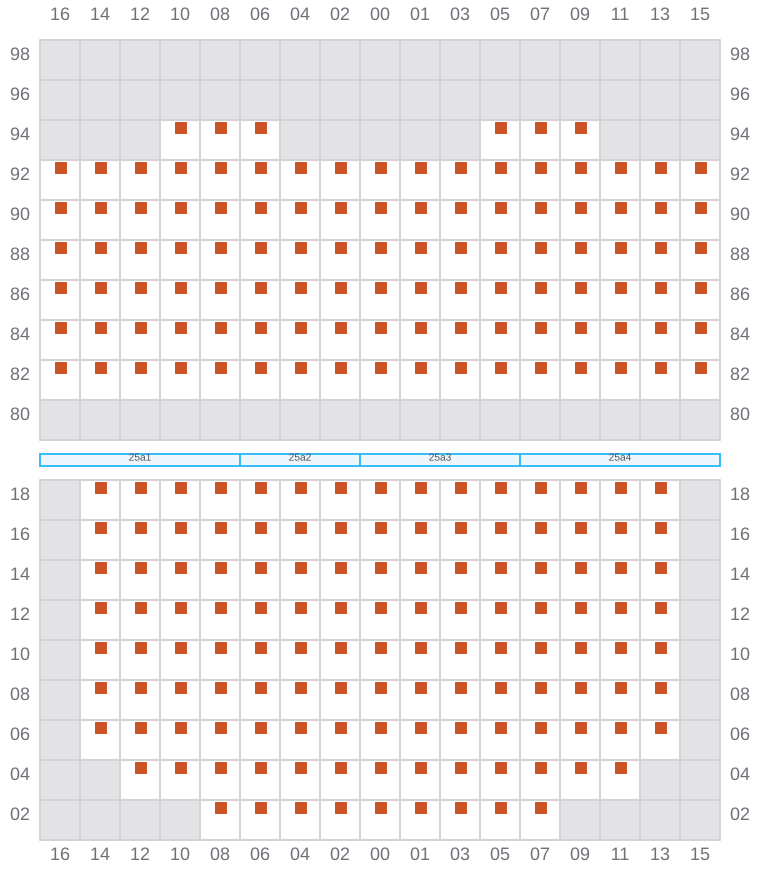

Bay 025 view and slots of CMA CGM MELISANDE

027 (026)

  • ←

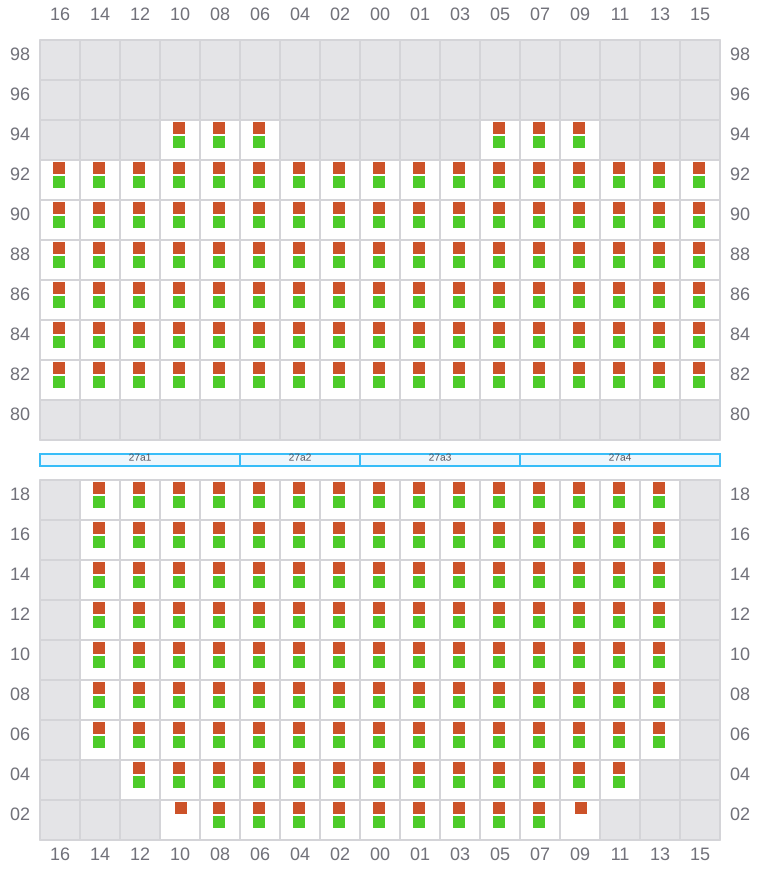

Bay 027 view and slots of CMA CGM MELISANDE

029

  • →

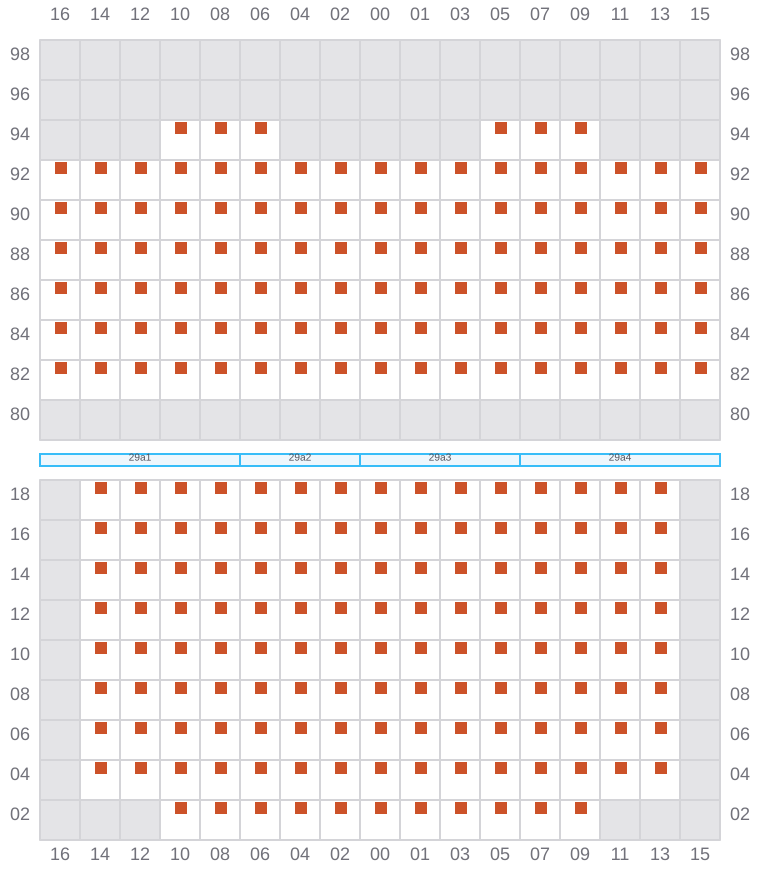

Bay 029 view and slots of CMA CGM MELISANDE

031 (030)

  • ←

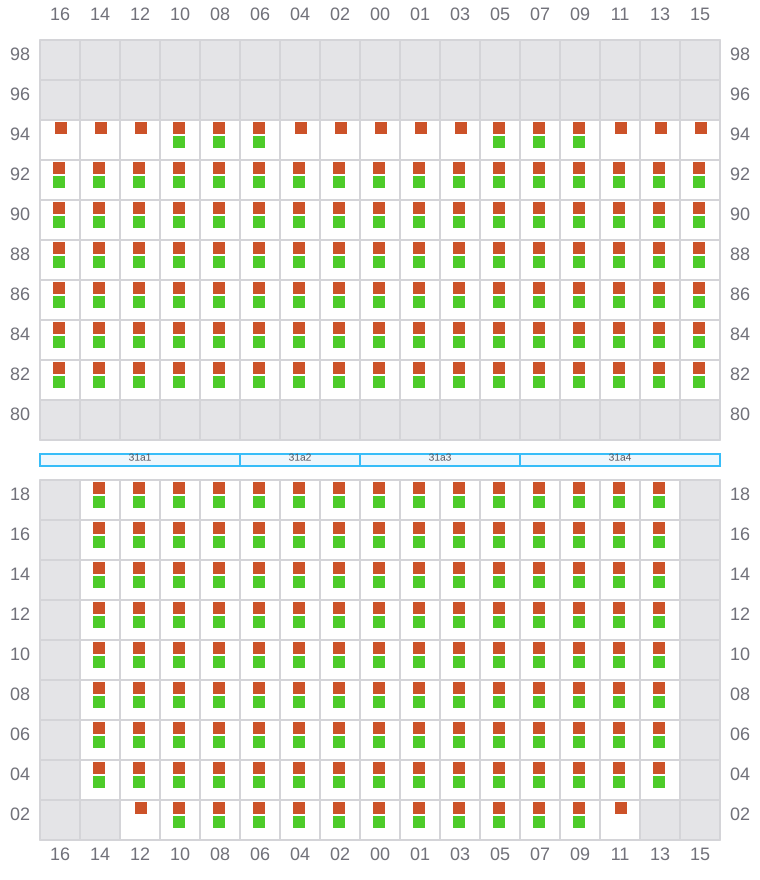

Bay 031 view and slots of CMA CGM MELISANDE

033

  • →

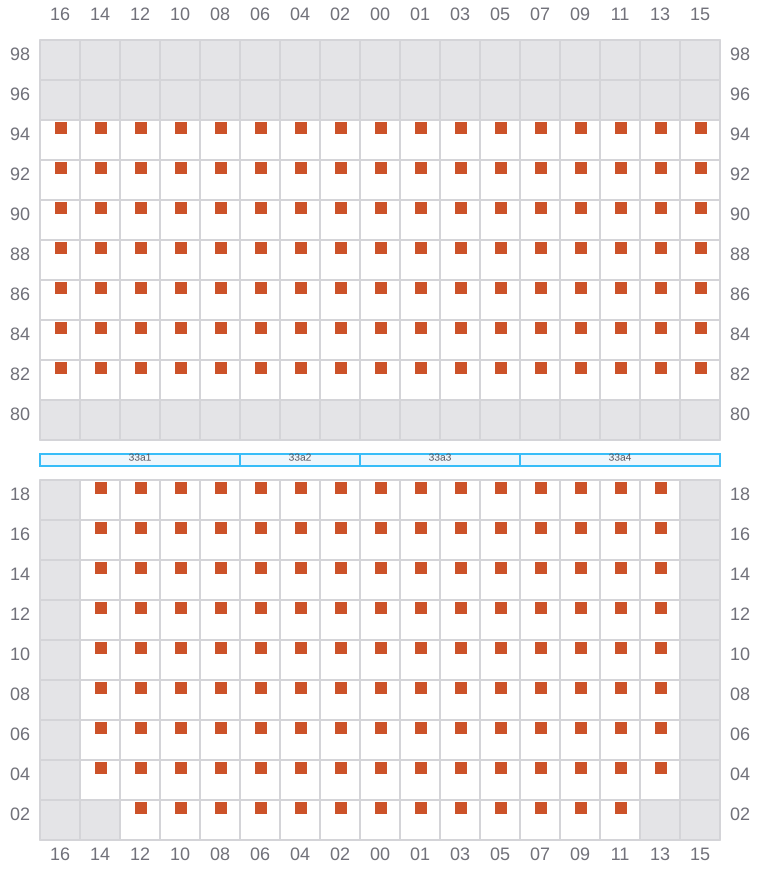

Bay 033 view and slots of CMA CGM MELISANDE

035 (034)

  • ←
Bay 035 view and slots of CMA CGM MELISANDE

037

  • →
Bay 037 view and slots of CMA CGM MELISANDE

039 (038)

  • ←
Bay 039 view and slots of CMA CGM MELISANDE

041

  • →
Bay 041 view and slots of CMA CGM MELISANDE

043 (042)

  • ←
Bay 043 view and slots of CMA CGM MELISANDE

045

  • →

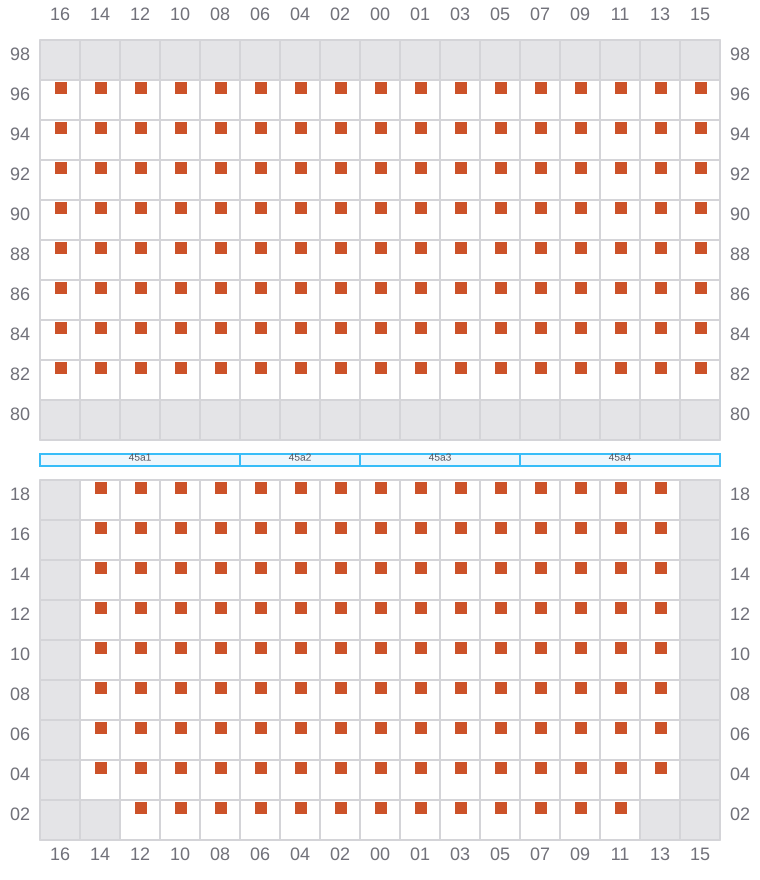

Bay 045 view and slots of CMA CGM MELISANDE

047 (046)

  • ←

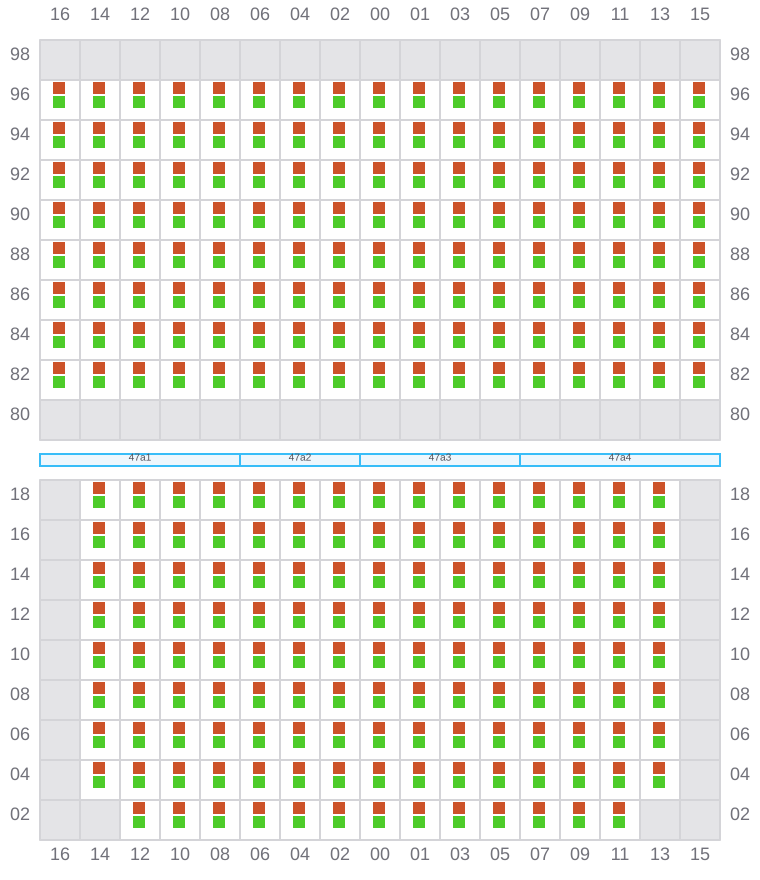

Bay 047 view and slots of CMA CGM MELISANDE

049

  • →

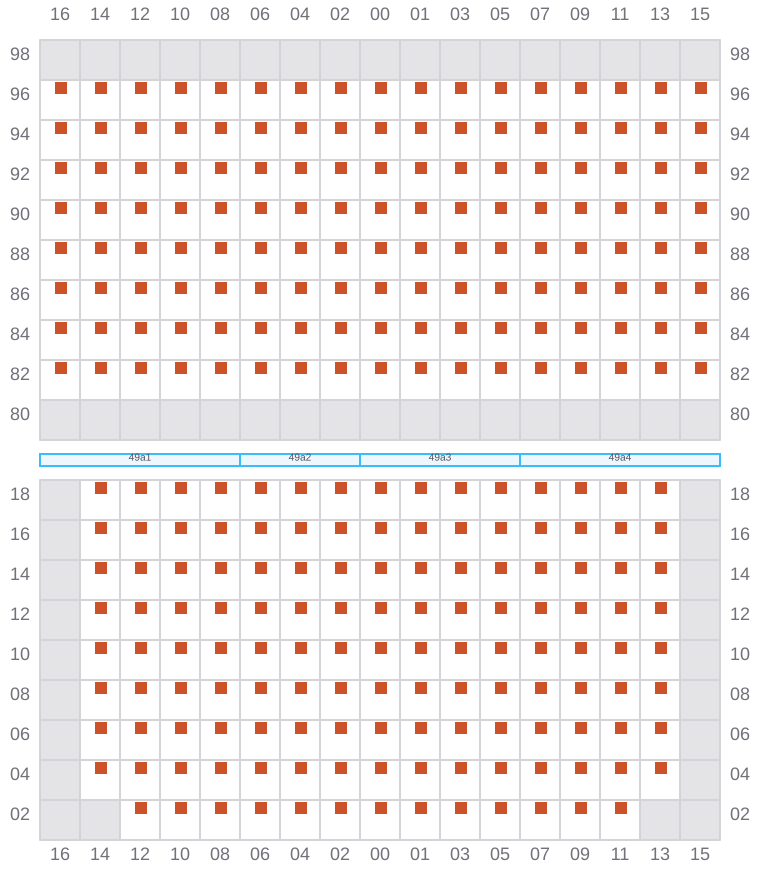

Bay 049 view and slots of CMA CGM MELISANDE

051 (050)

  • ←

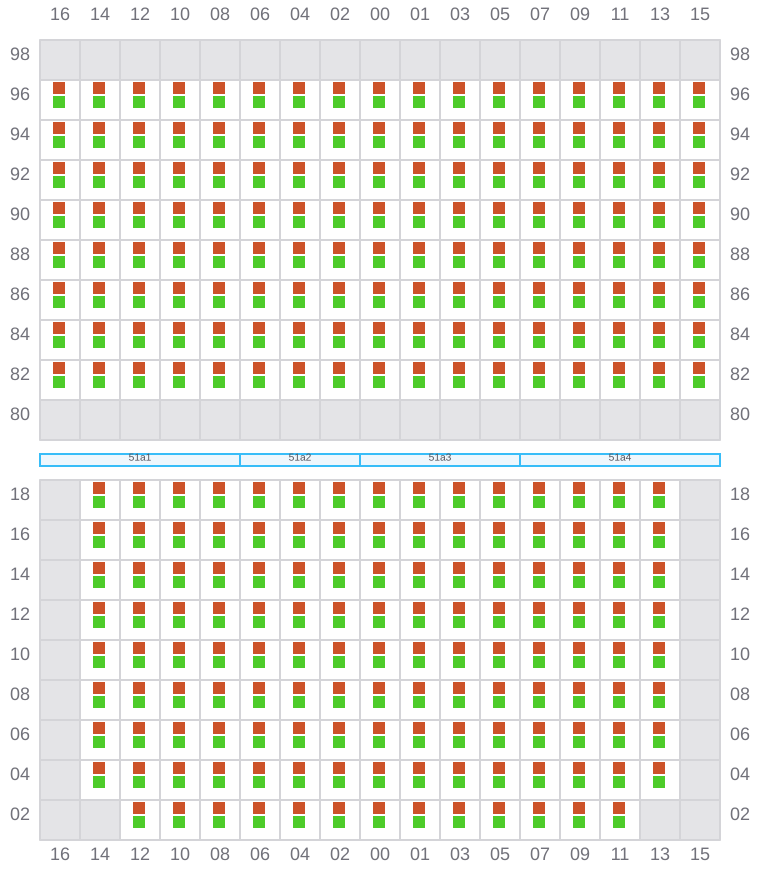

Bay 051 view and slots of CMA CGM MELISANDE

053

  • →
Bay 053 view and slots of CMA CGM MELISANDE

055 (054)

  • ←

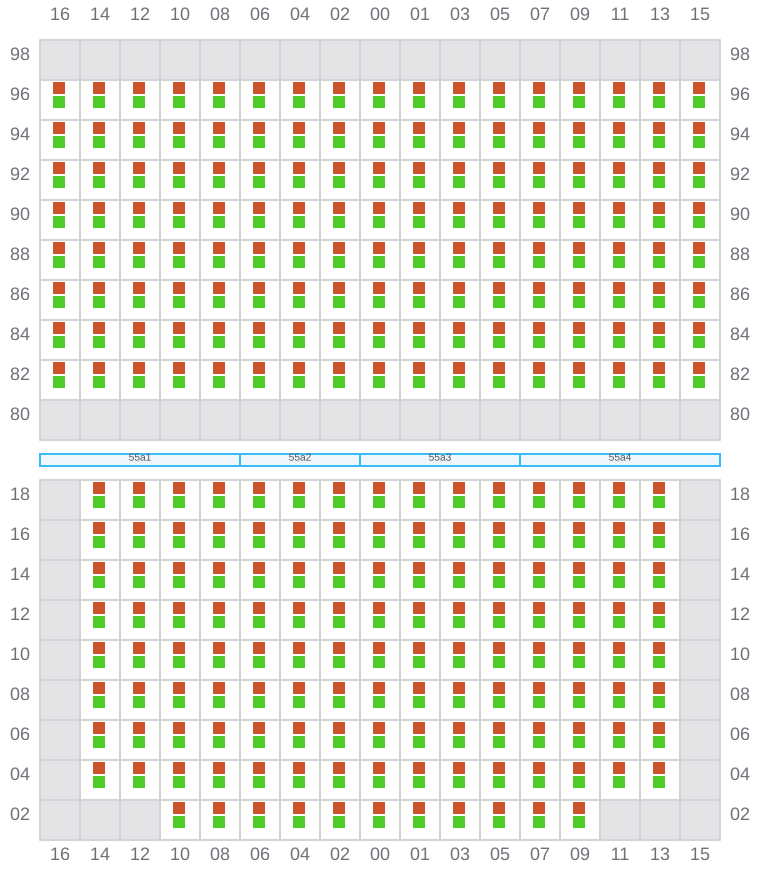

Bay 055 view and slots of CMA CGM MELISANDE

057

  • →

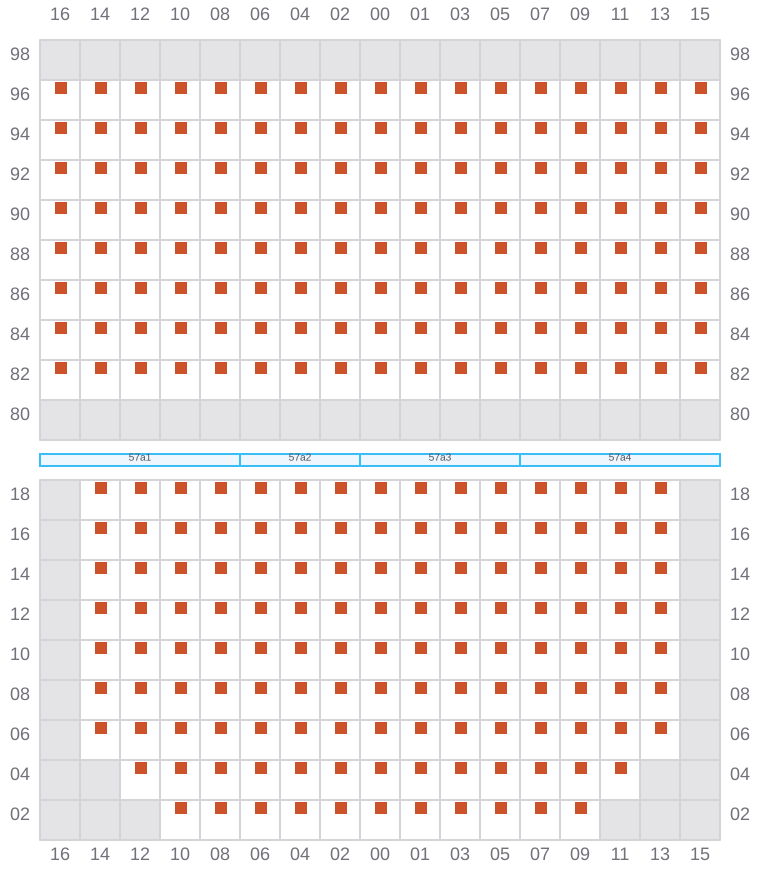

Bay 057 view and slots of CMA CGM MELISANDE

059 (058)

  • ←

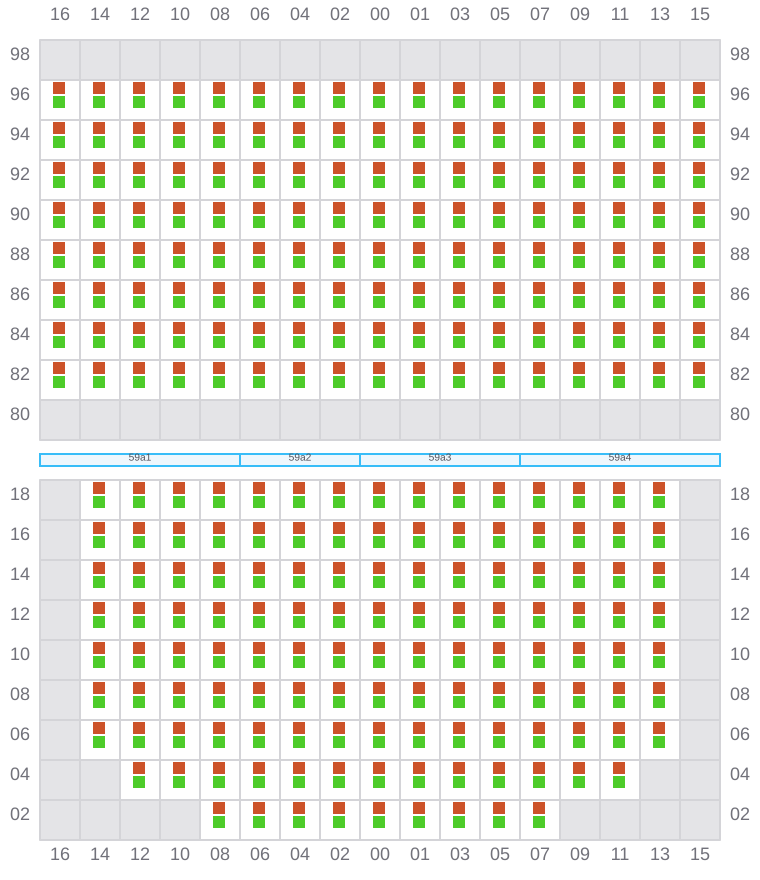

Bay 059 view and slots of CMA CGM MELISANDE

061

  • →

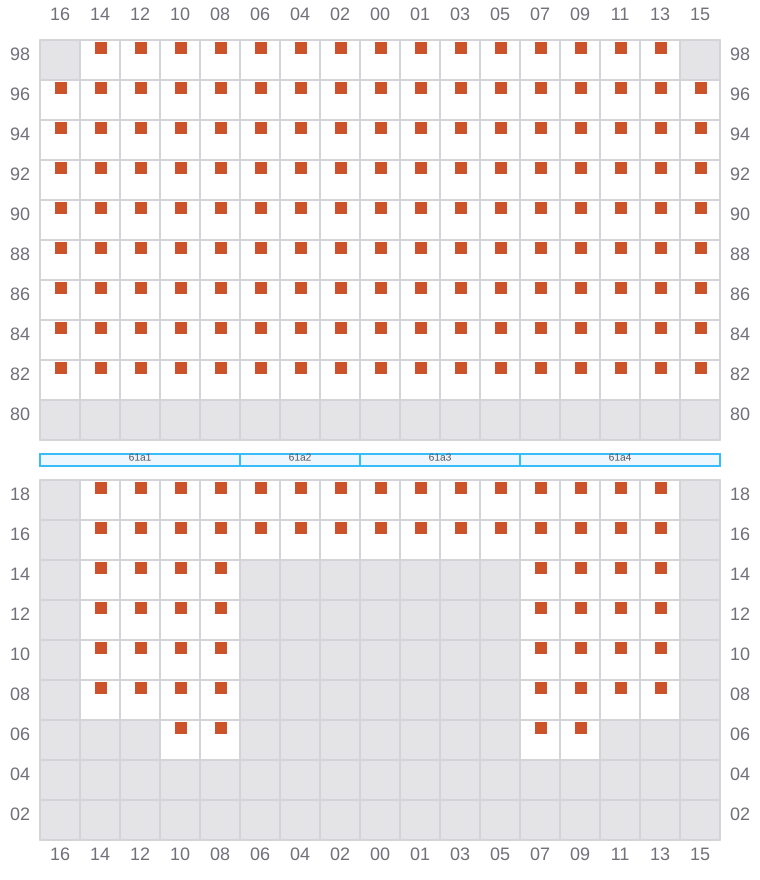

Bay 061 view and slots of CMA CGM MELISANDE

063 (062)

  • ←

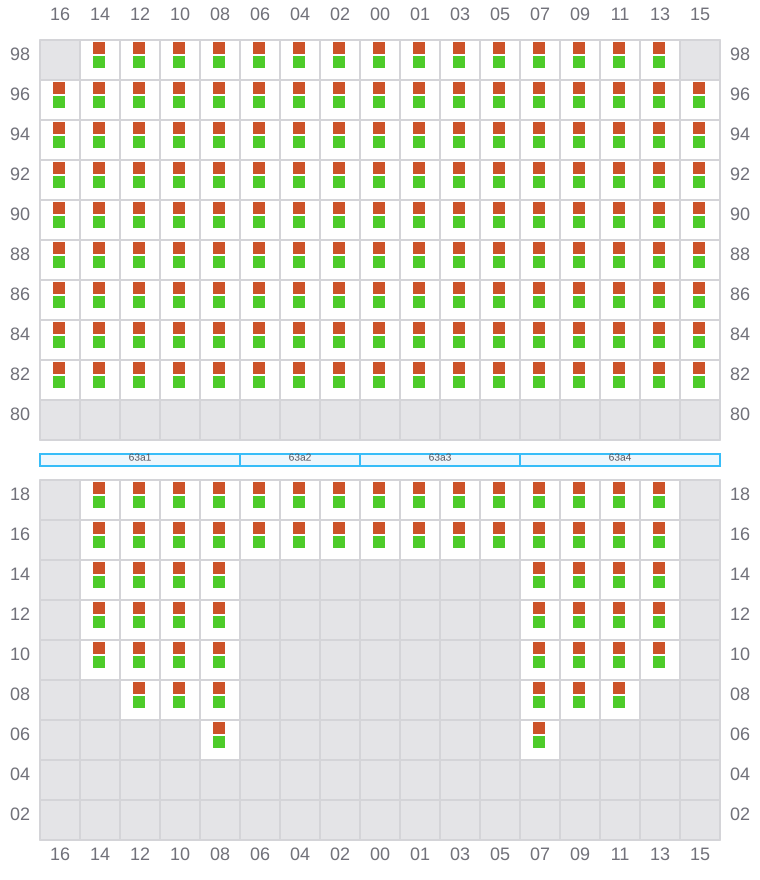

Bay 063 view and slots of CMA CGM MELISANDE

065

  • →

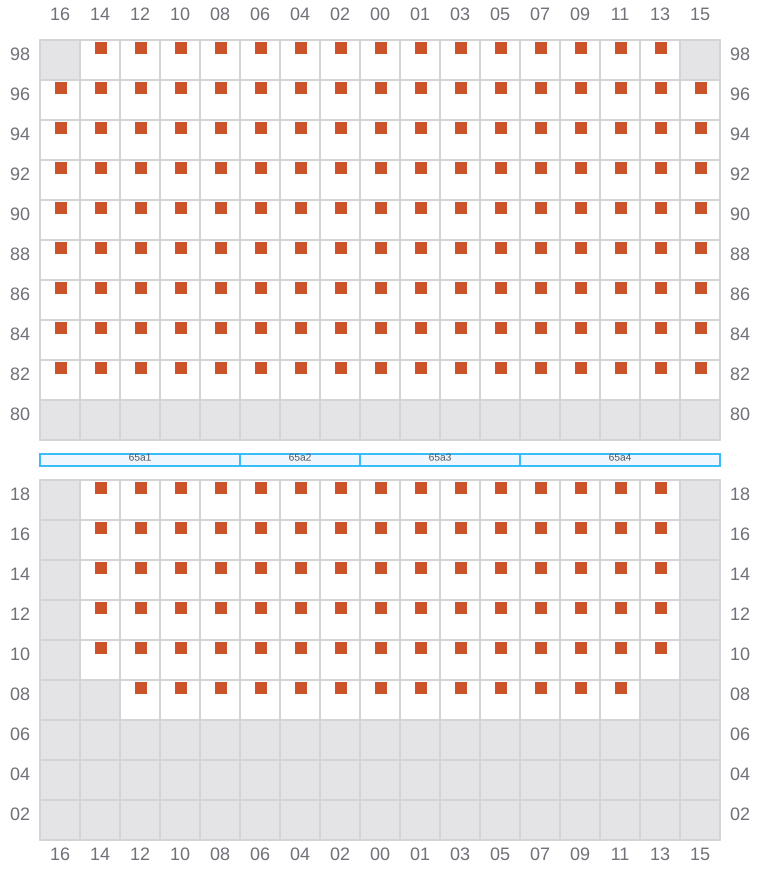

Bay 065 view and slots of CMA CGM MELISANDE

067 (066)

  • ←

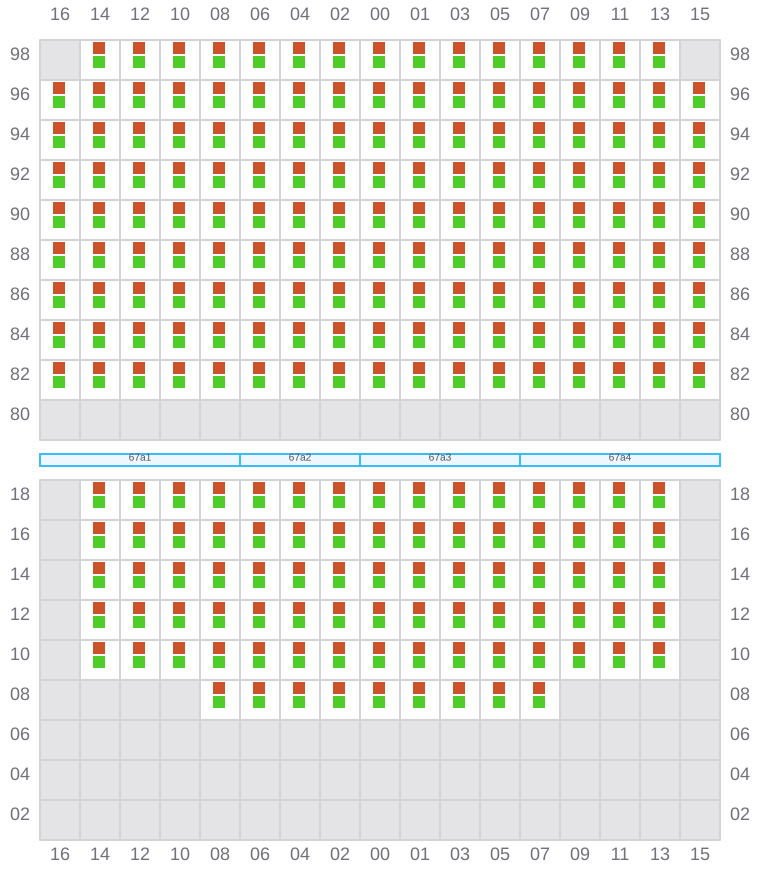

Bay 067 view and slots of CMA CGM MELISANDE

069

  • →

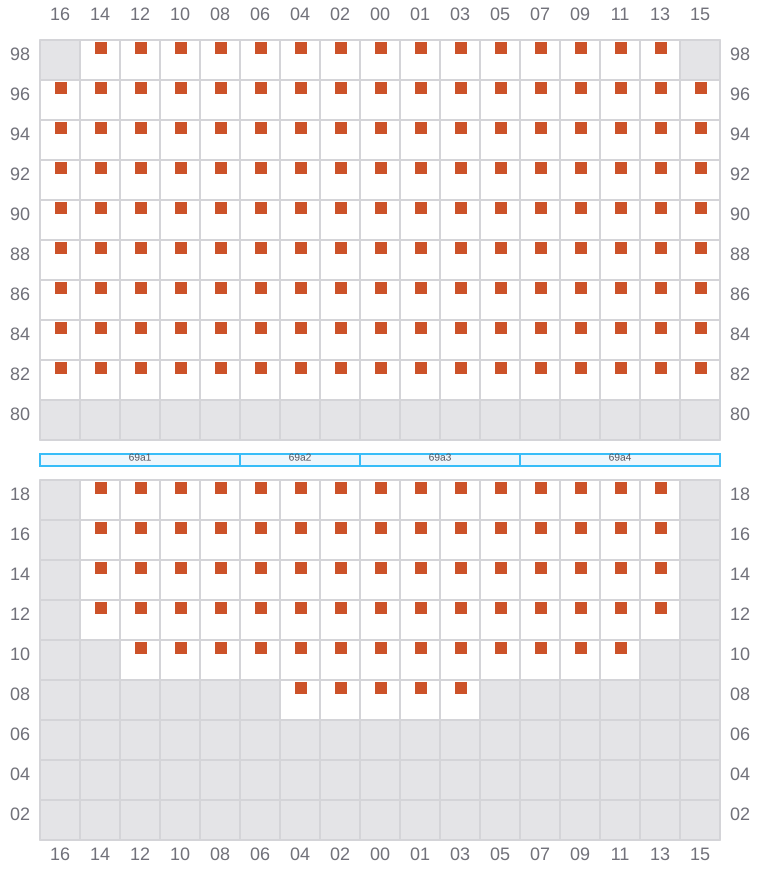

Bay 069 view and slots of CMA CGM MELISANDE

071 (070)

  • ←

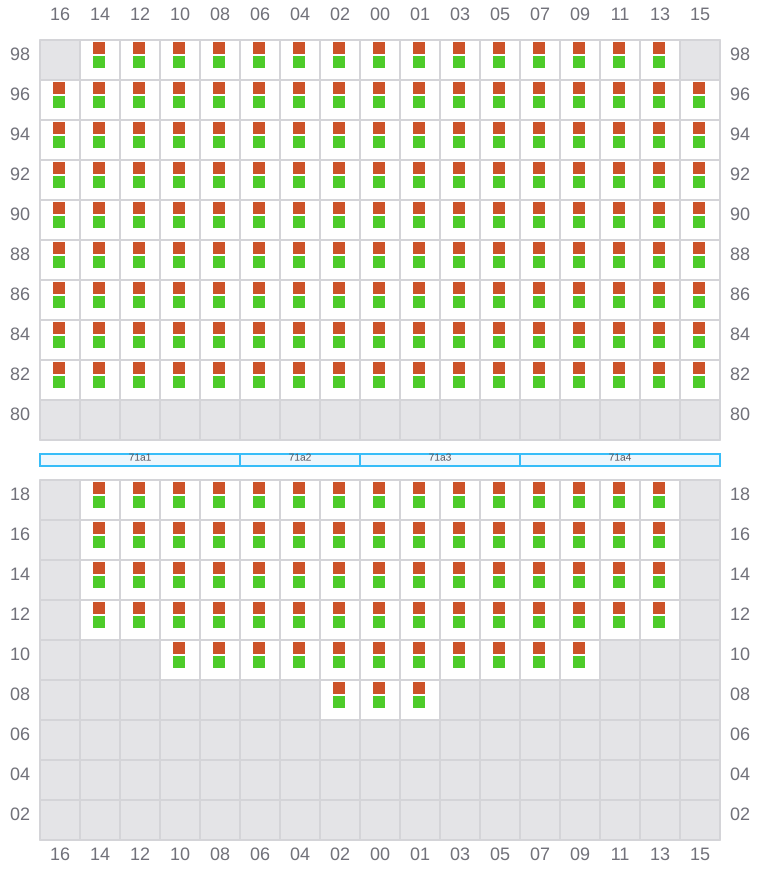

Bay 071 view and slots of CMA CGM MELISANDE

073

  • →

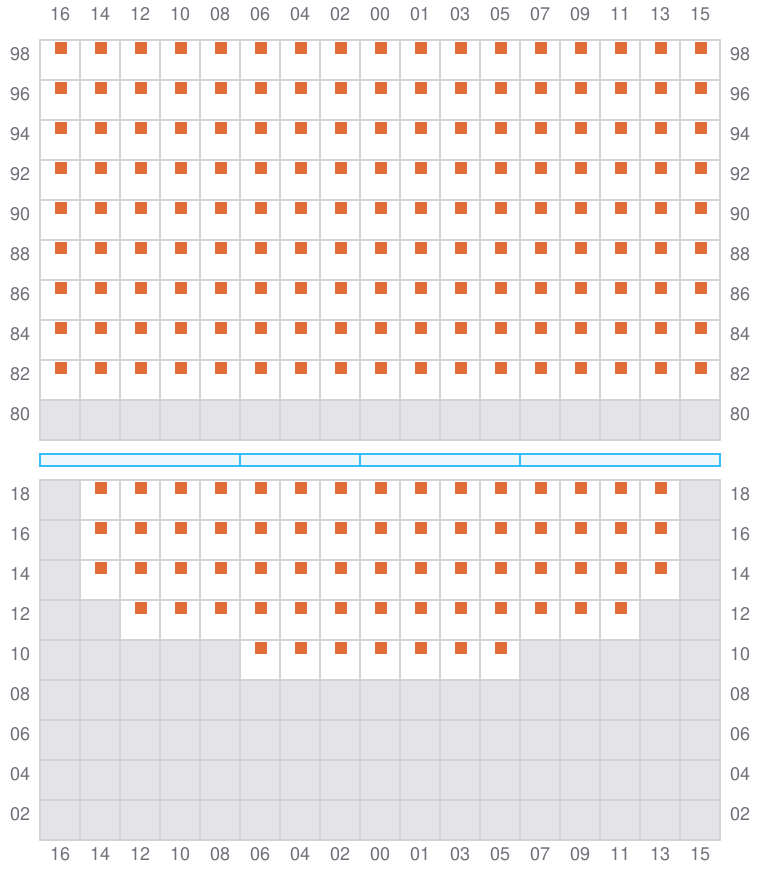

Bay 073 view and slots of CMA CGM MELISANDE

075 (074)

  • ←

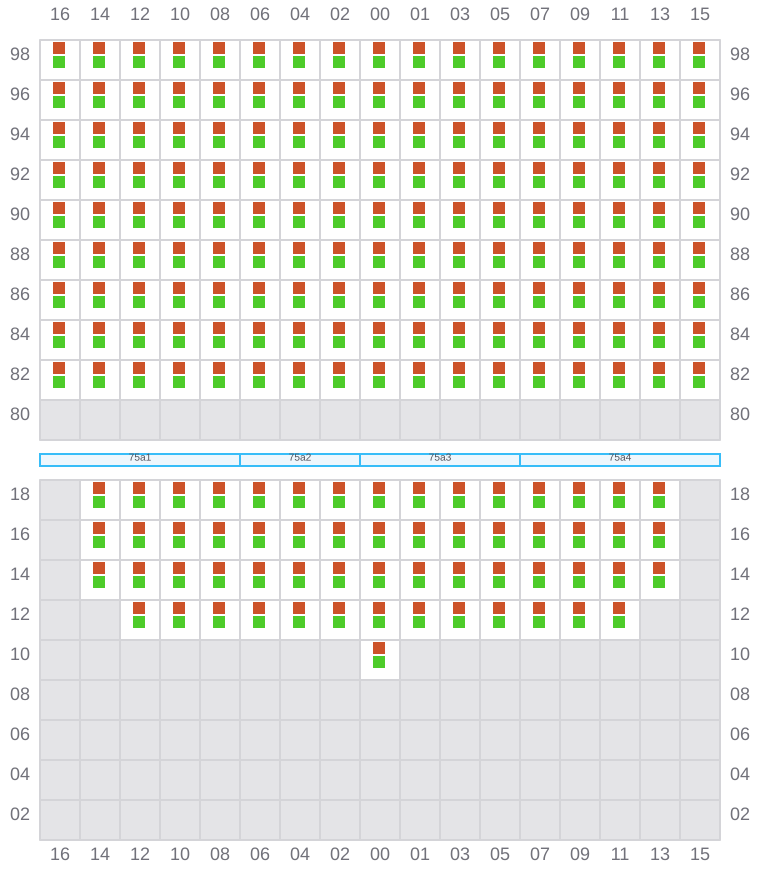

Bay 075 view and slots of CMA CGM MELISANDE

077 (078)

  • → / ?

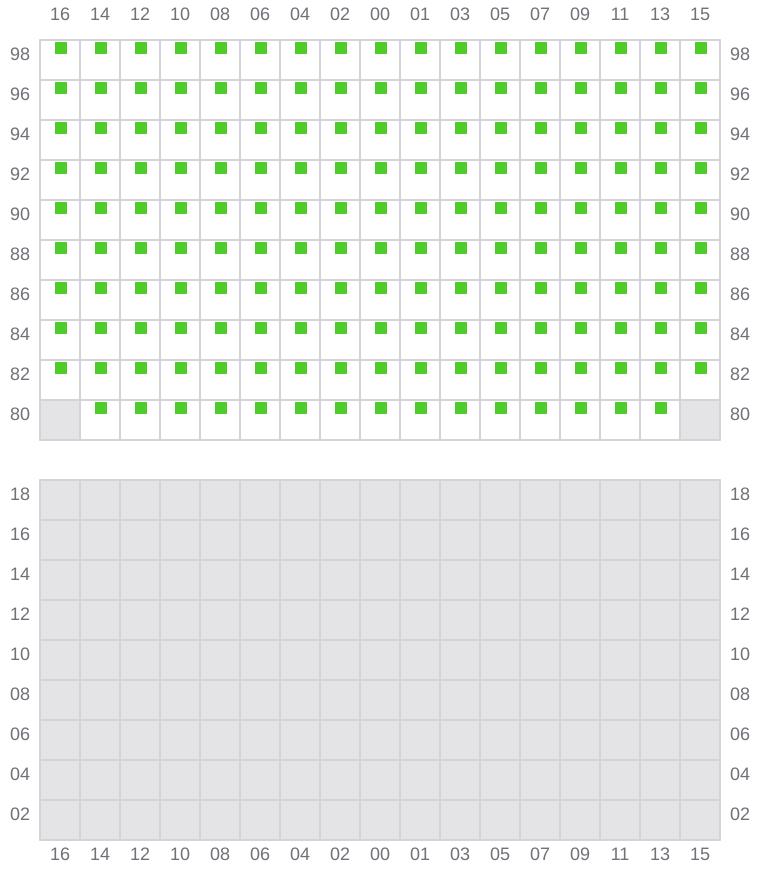

Bay 077 view and slots of CMA CGM MELISANDE
