CMA CGM MERMAID
9961283 | 9HA5943 | CMA by *********************** Last update: Thu Feb 13 2025

General Info

Ship Name:CMA CGM MERMAID
IMO Code:9961283
Call Sign:9HA5943
Line Operator:CMA
Class Name for Sister Ships:FCMM
Year Built:2024
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.33
LOA (Length Overall):204.20
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,122

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

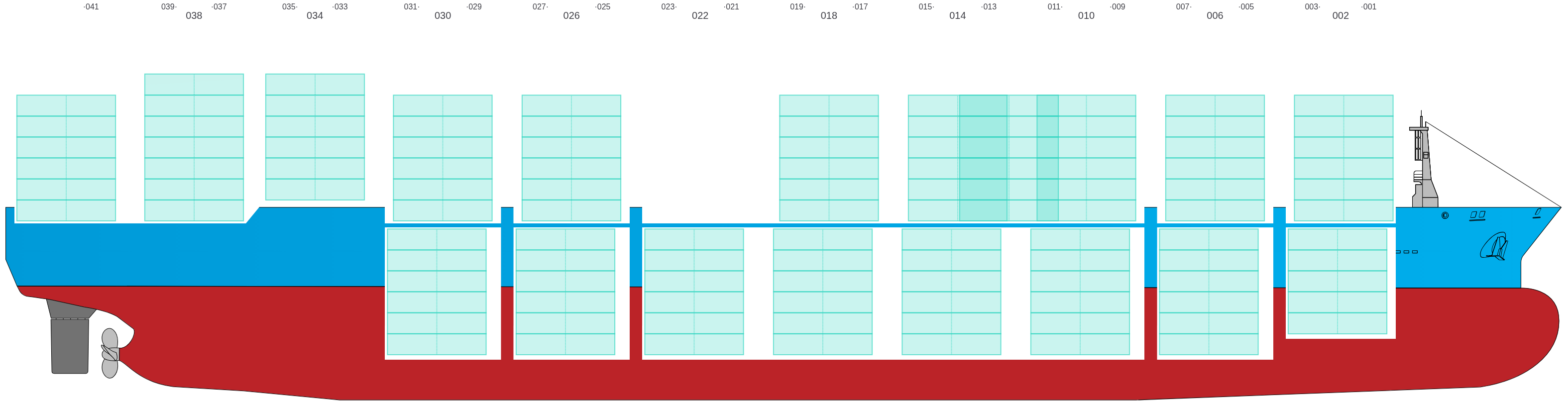

Side View

Side view of CMA CGM MERMAID

Hatch-Covers View

Deck view of CMA CGM MERMAID

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →
  • →

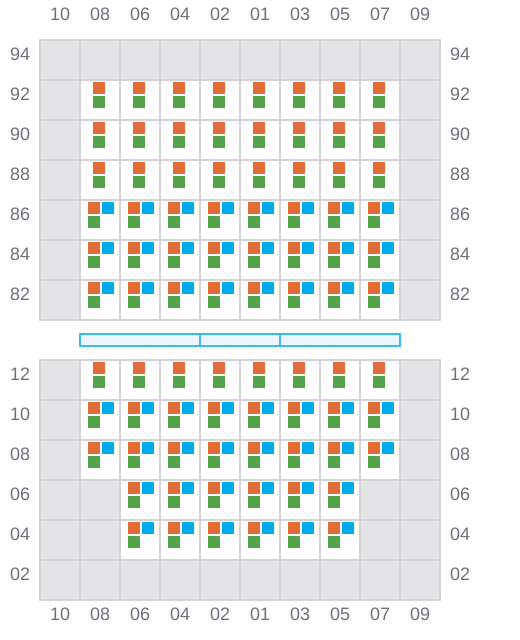

Bay 001 view and slots of CMA CGM MERMAID

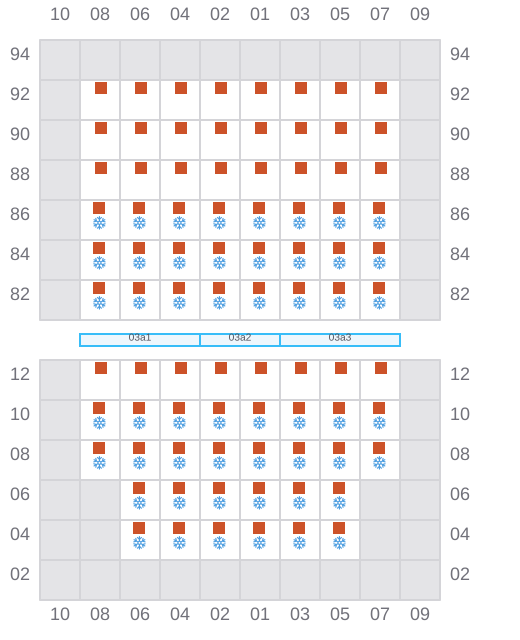

003

  • ←
  • →
  • →
Bay 003 view and slots of CMA CGM MERMAID

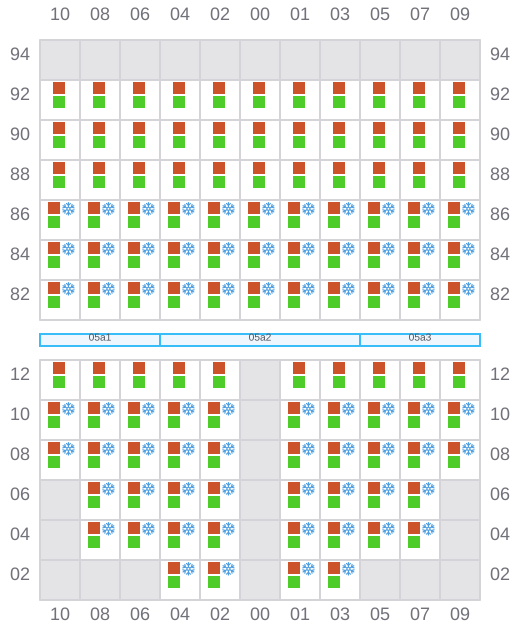

005 (006)

  • →
  • →
  • →
Bay 005 view and slots of CMA CGM MERMAID

007

  • ←
  • →
  • →

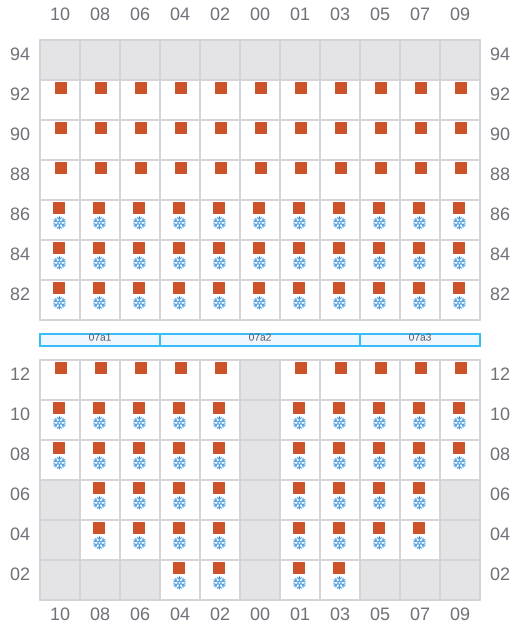

Bay 007 view and slots of CMA CGM MERMAID

009 (010)

  • →
  • →
  • →

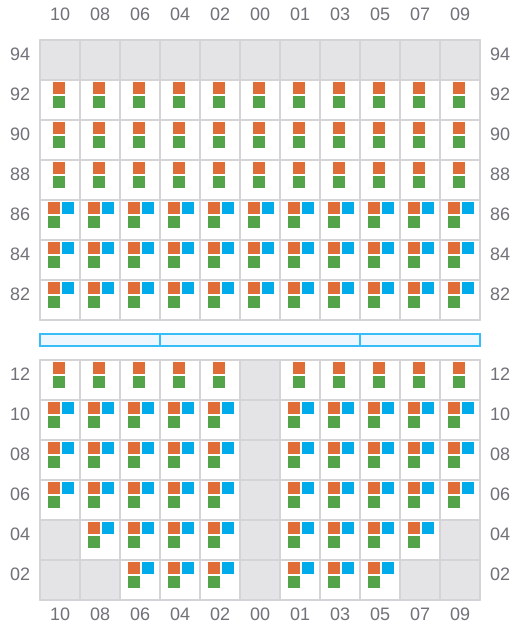

Bay 009 view and slots of CMA CGM MERMAID

011

  • ←
  • →
  • →

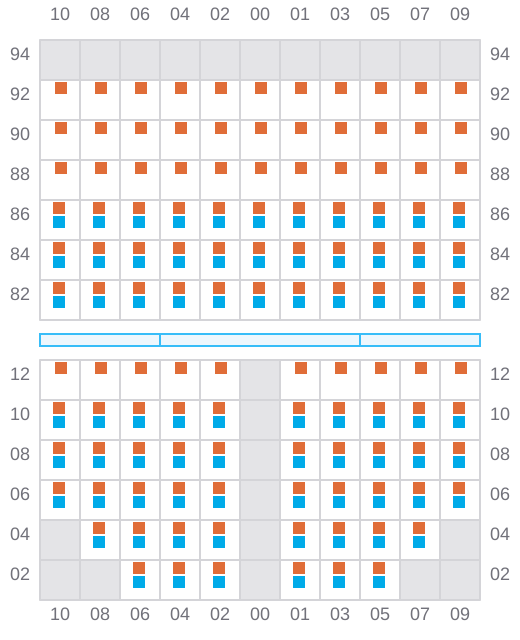

Bay 011 view and slots of CMA CGM MERMAID

013 (014)

  • →
  • →
  • →
Bay 013 view and slots of CMA CGM MERMAID

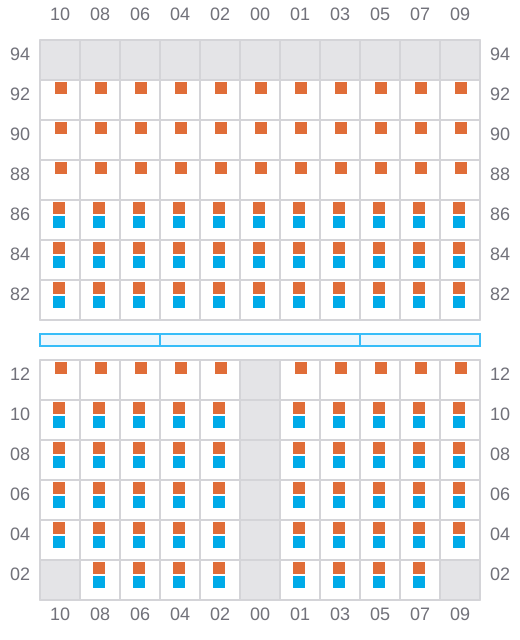

015

  • ←
  • →
  • →
Bay 015 view and slots of CMA CGM MERMAID

017 (018)

  • →
  • →
  • → / ?
Bay 017 view and slots of CMA CGM MERMAID

019

  • ←
  • →
  • →

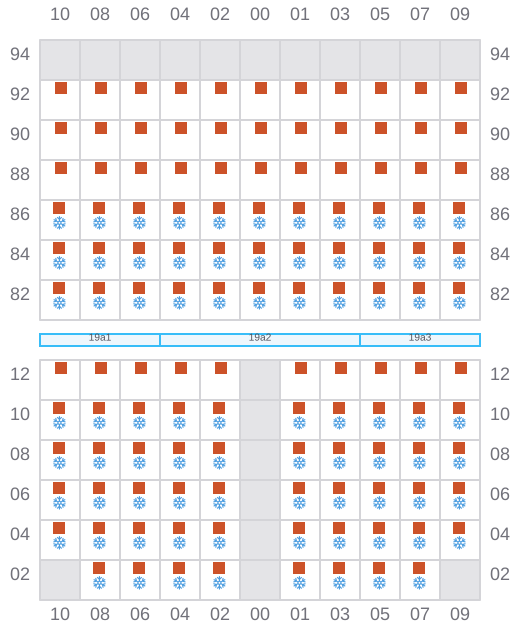

Bay 019 view and slots of CMA CGM MERMAID

021 (022)

  • →
  • →
  • → / ?

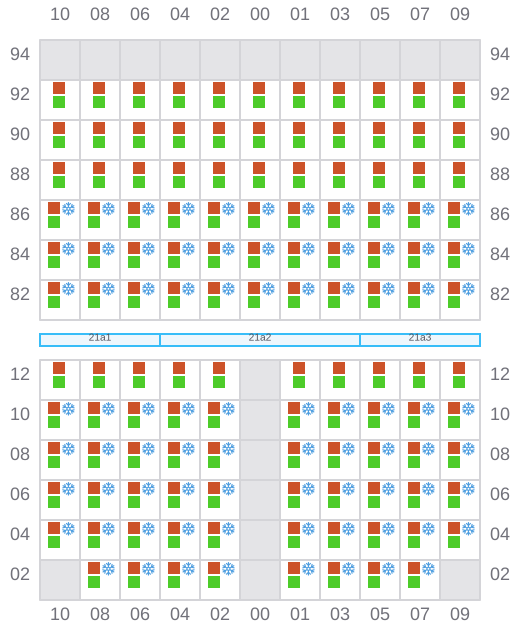

Bay 021 view and slots of CMA CGM MERMAID

023

  • ←
  • →
  • →

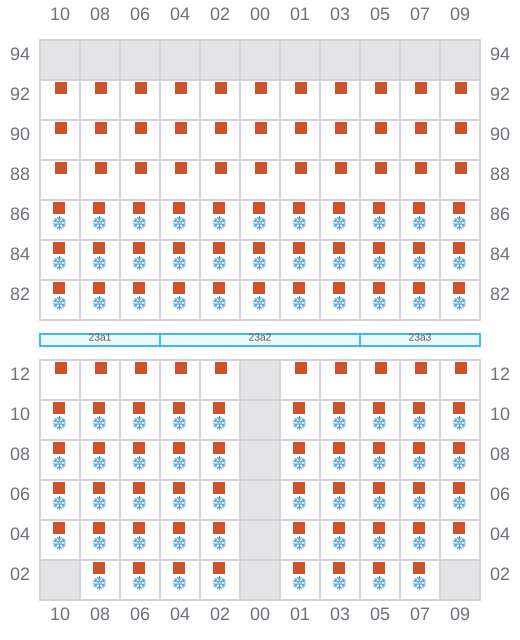

Bay 023 view and slots of CMA CGM MERMAID

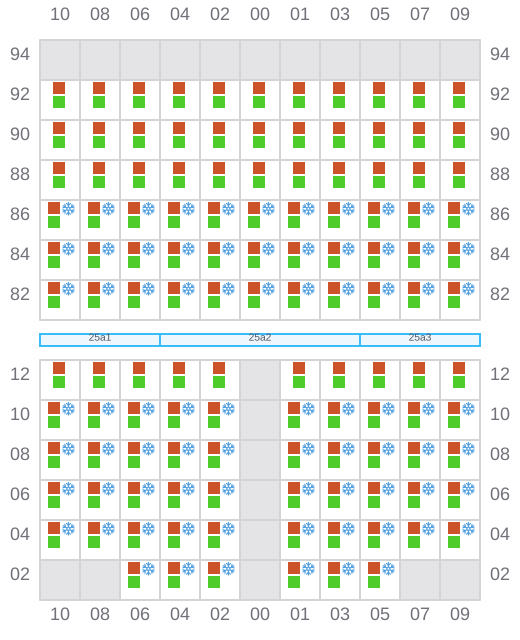

025 (026)

  • →
  • →
  • → / ?
Bay 025 view and slots of CMA CGM MERMAID

027

  • ←
  • →
  • →

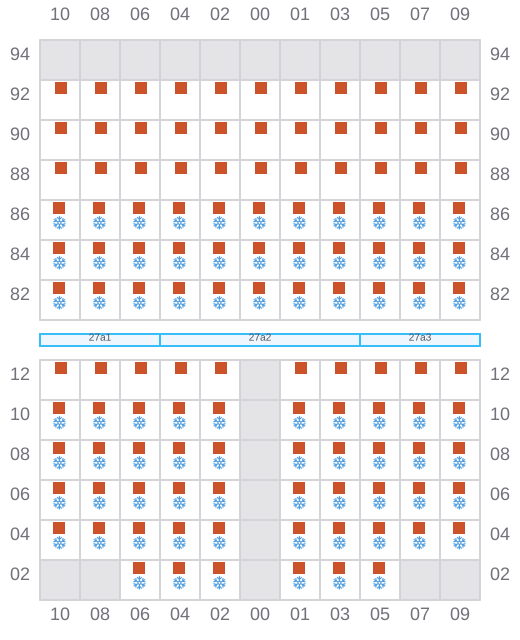

Bay 027 view and slots of CMA CGM MERMAID

029 (030)

  • →
  • →
  • → / ?

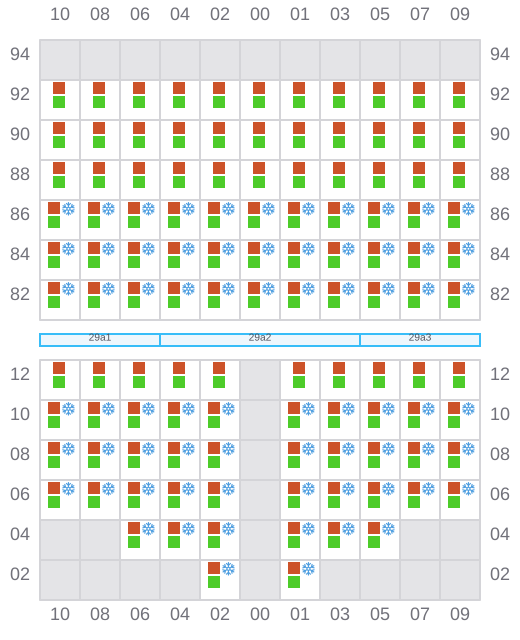

Bay 029 view and slots of CMA CGM MERMAID

031

  • ←
  • →
  • →
Bay 031 view and slots of CMA CGM MERMAID

033 (034)

  • → / ?
  • → / ?
  • → / ?

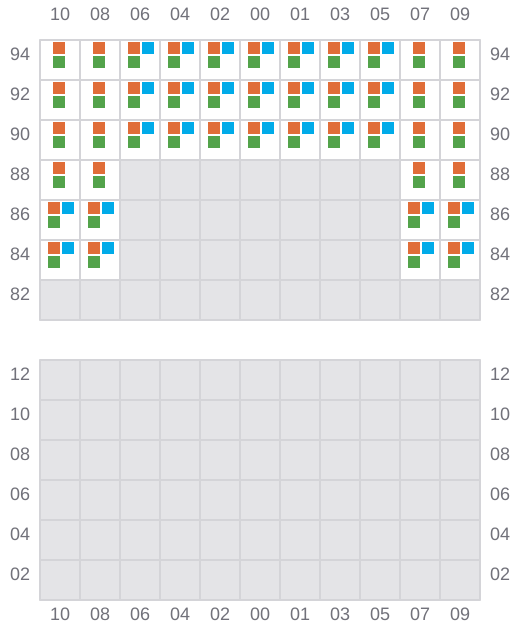

Bay 033 view and slots of CMA CGM MERMAID

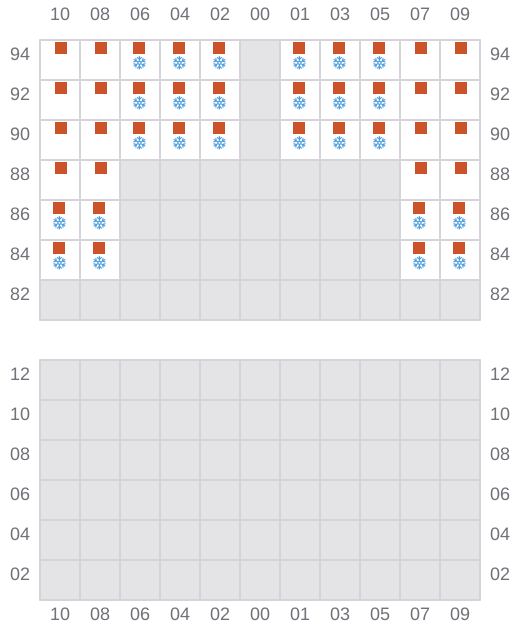

035

  • ← / ?
  • → / ?
  • → / ?
Bay 035 view and slots of CMA CGM MERMAID

037 (038)

  • → / ?
  • ← / ?
  • → / ?

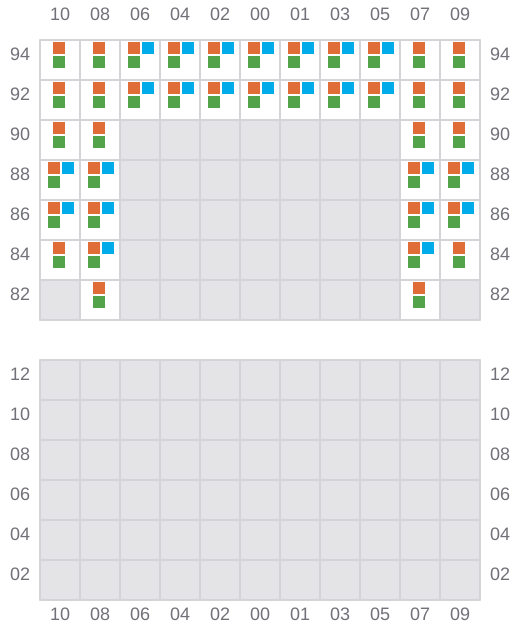

Bay 037 view and slots of CMA CGM MERMAID

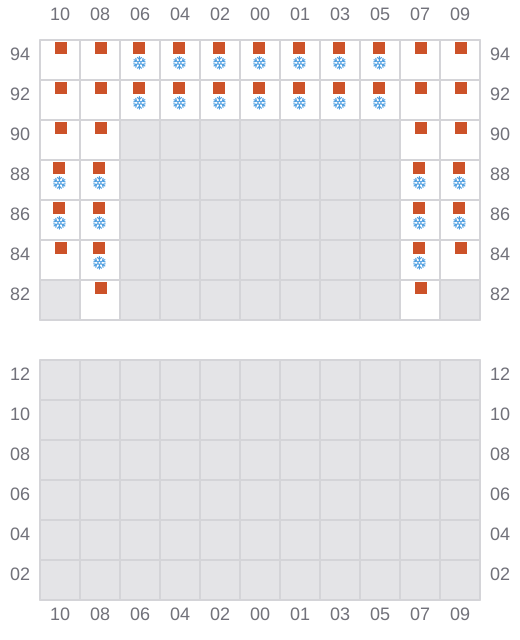

039

  • ← / ?
  • ← / ?
  • → / ?
Bay 039 view and slots of CMA CGM MERMAID

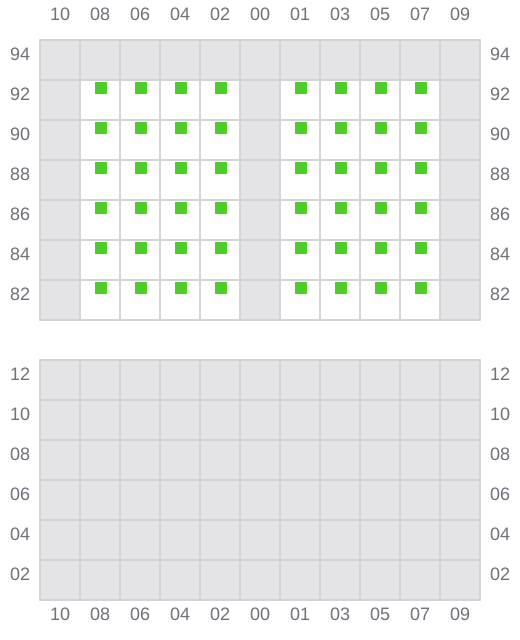

041 (042)

  • → / ?
  • → / ?
Bay 041 view and slots of CMA CGM MERMAID
