CMA CGM MEXICO
9839911 | 9HA5077 | CMA by *********************** Last update: Wed Feb 12 2025

General Info

Ship Name:CMA CGM MEXICO
IMO Code:9839911
Call Sign:9HA5077
Line Operator:CMA
Class Name for Sister Ships:CGMX
Year Built:2019
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):366.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:15,064

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

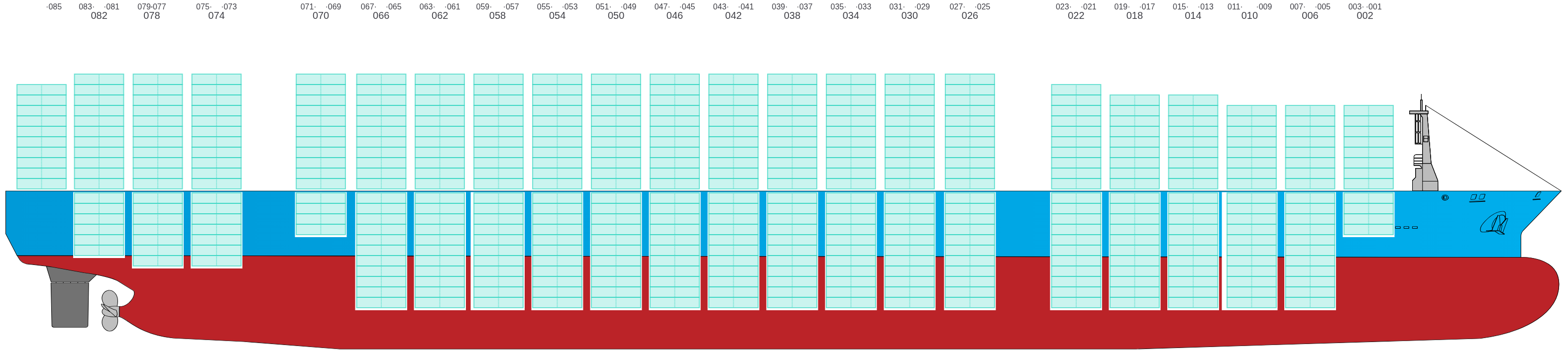

Side View

Side view of CMA CGM MEXICO

Hatch-Covers View

Deck view of CMA CGM MEXICO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →

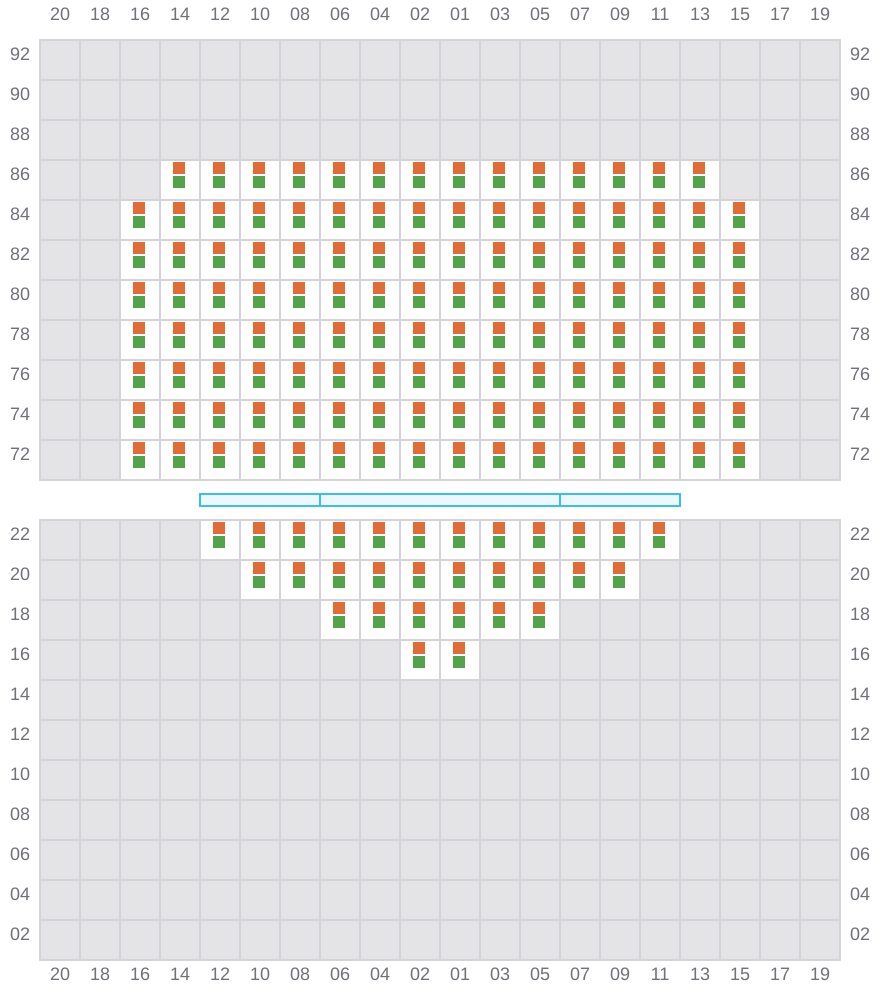

Bay 001 view and slots of CMA CGM MEXICO

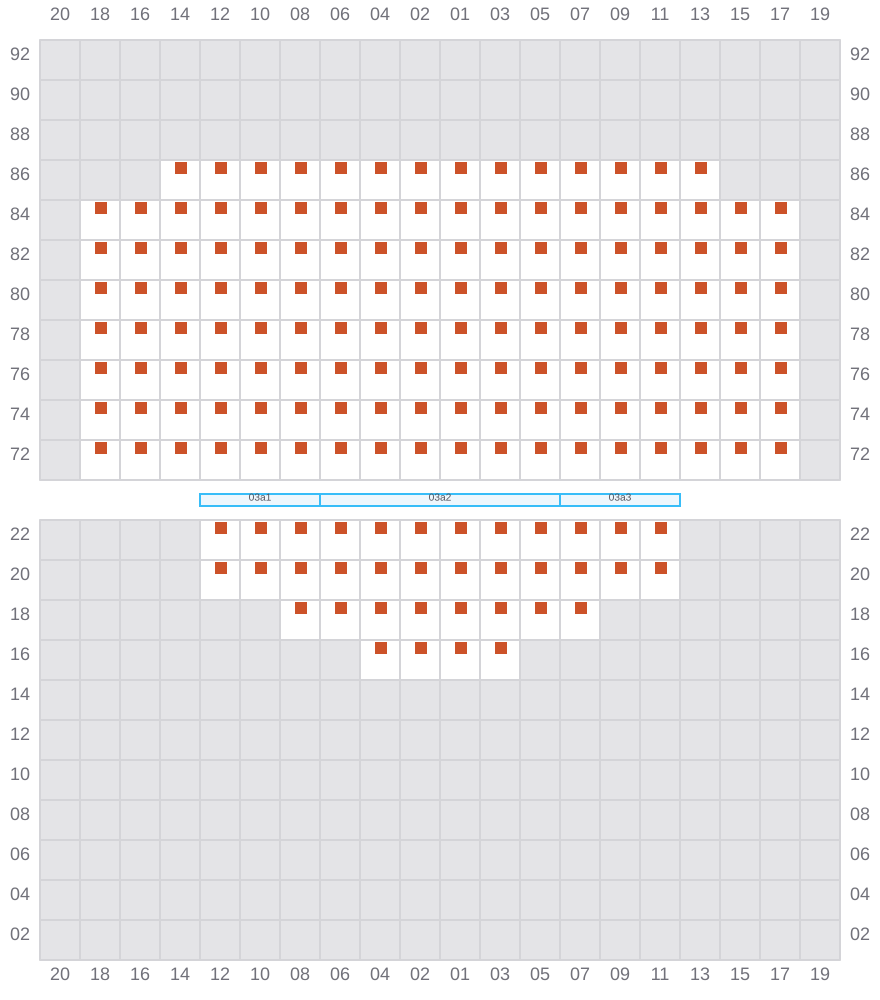

003

  • ←
  • →
Bay 003 view and slots of CMA CGM MEXICO

005 (006)

  • →
  • →

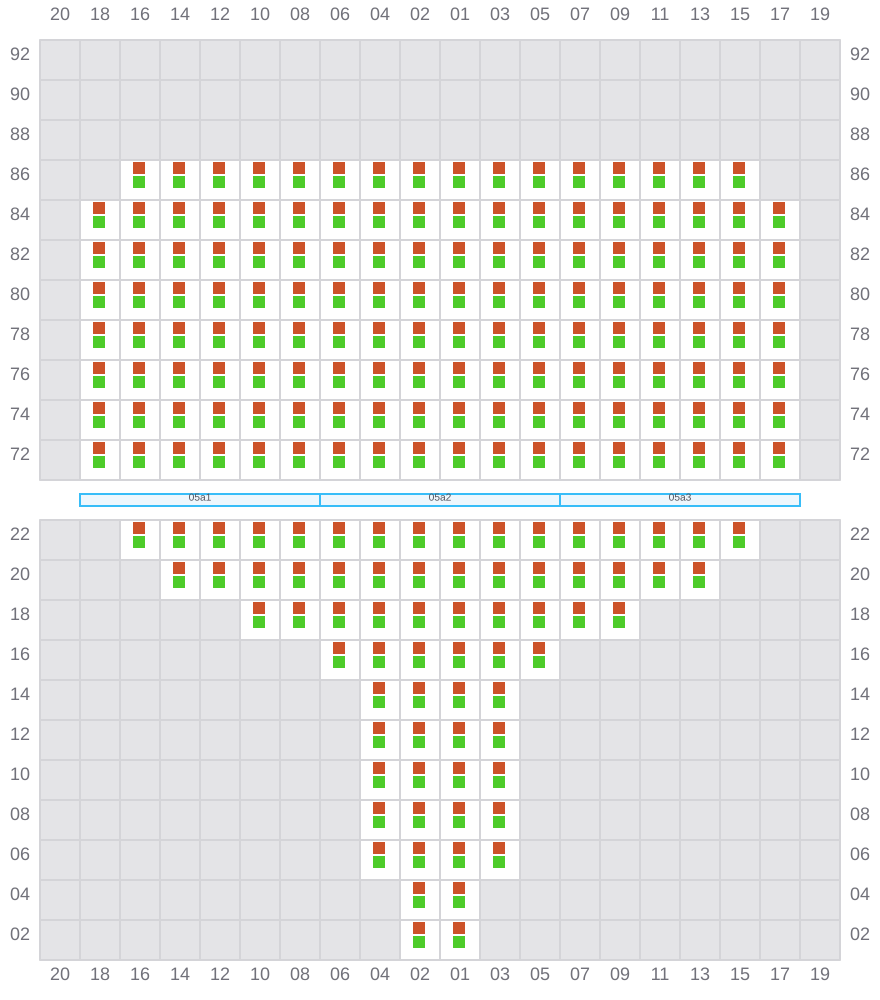

Bay 005 view and slots of CMA CGM MEXICO

007

  • ←
  • →

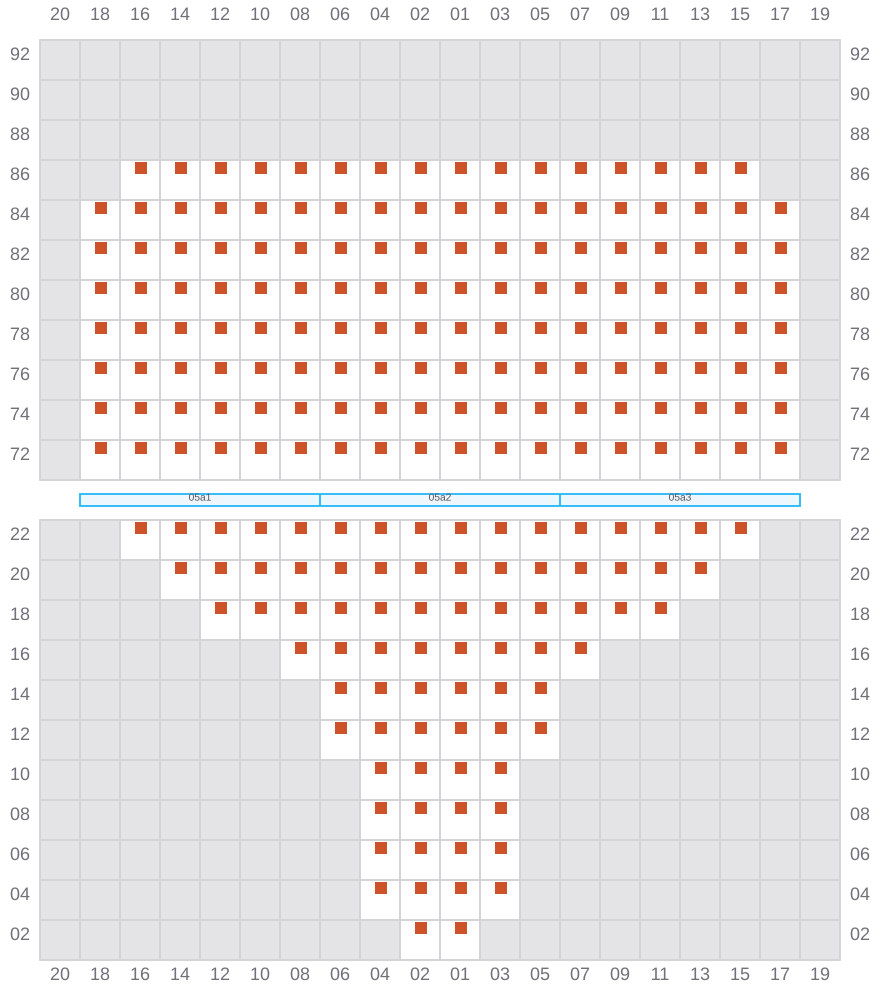

Bay 007 view and slots of CMA CGM MEXICO

009 (010)

  • →
  • → / ?
  • →

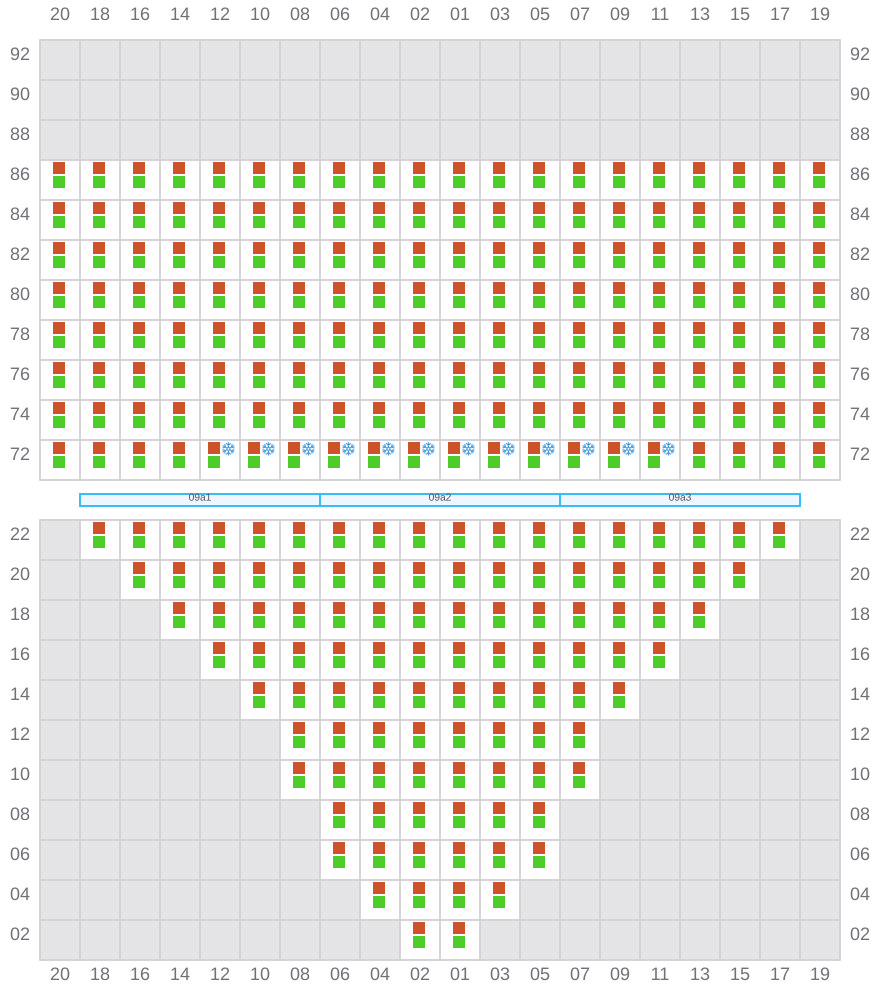

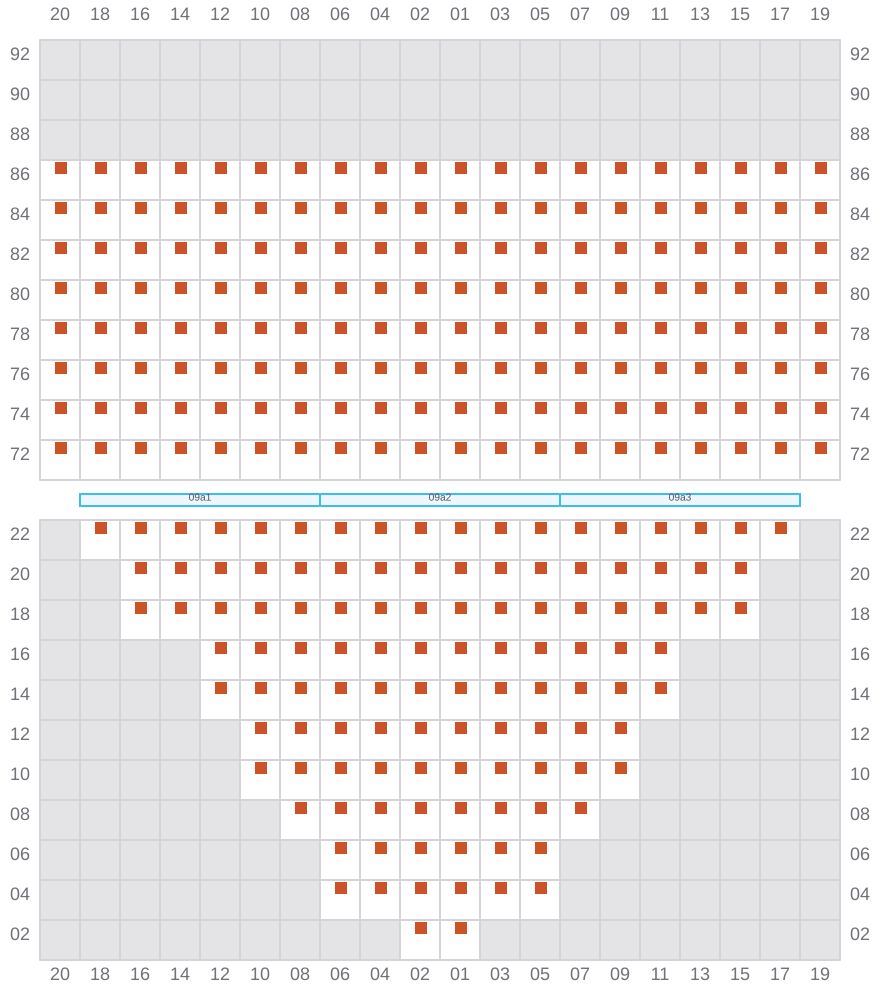

Bay 009 view and slots of CMA CGM MEXICO

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of CMA CGM MEXICO

013 (014)

  • →
  • → / ?
  • →

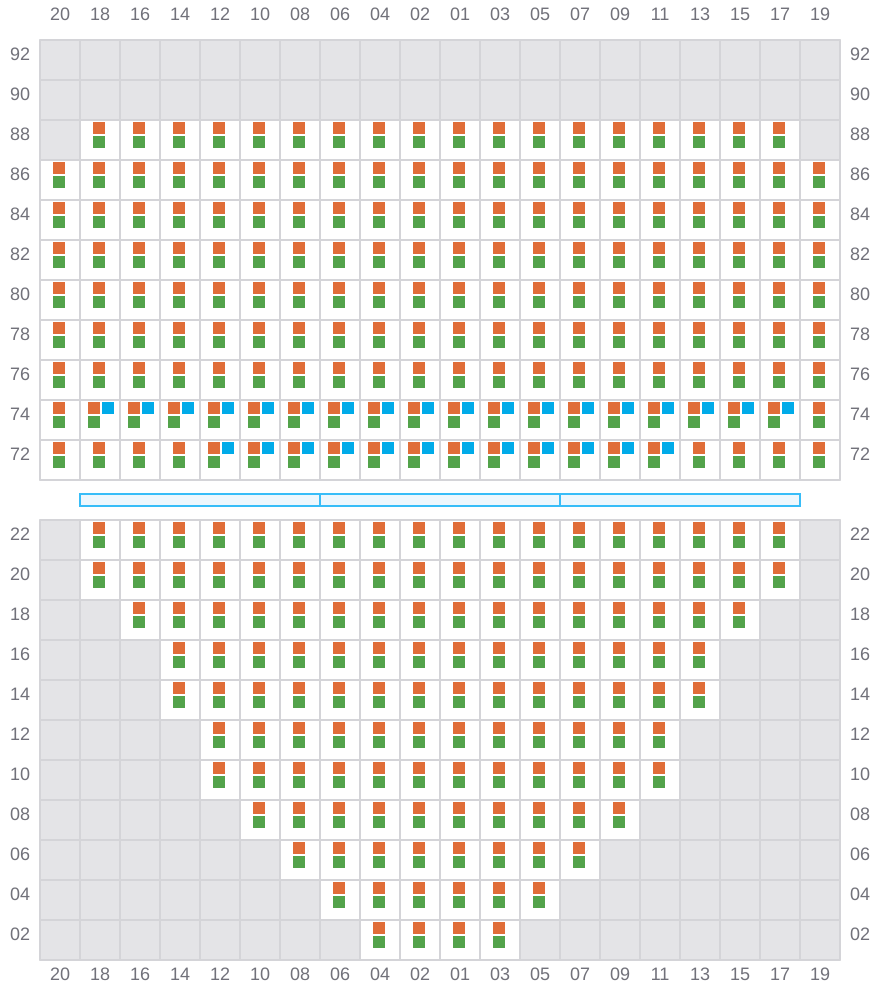

Bay 013 view and slots of CMA CGM MEXICO

015

  • ←
  • → / ?
  • →

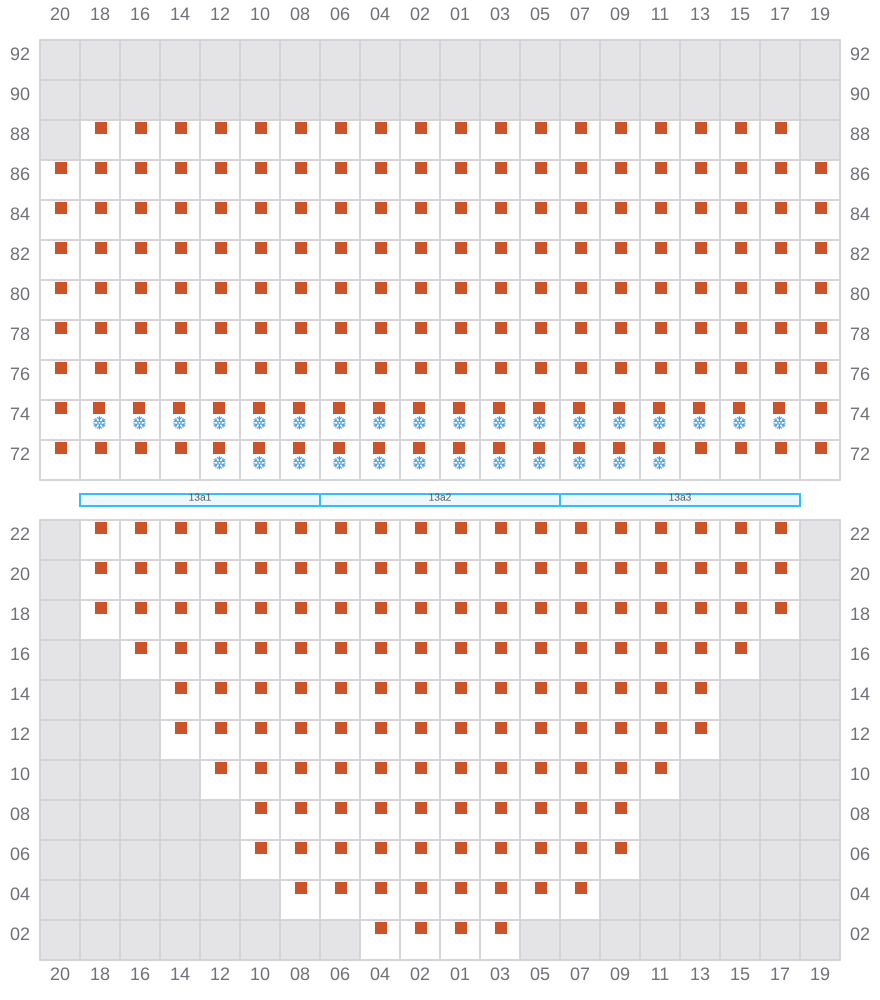

Bay 015 view and slots of CMA CGM MEXICO

017 (018)

  • →
  • → / ?
  • →

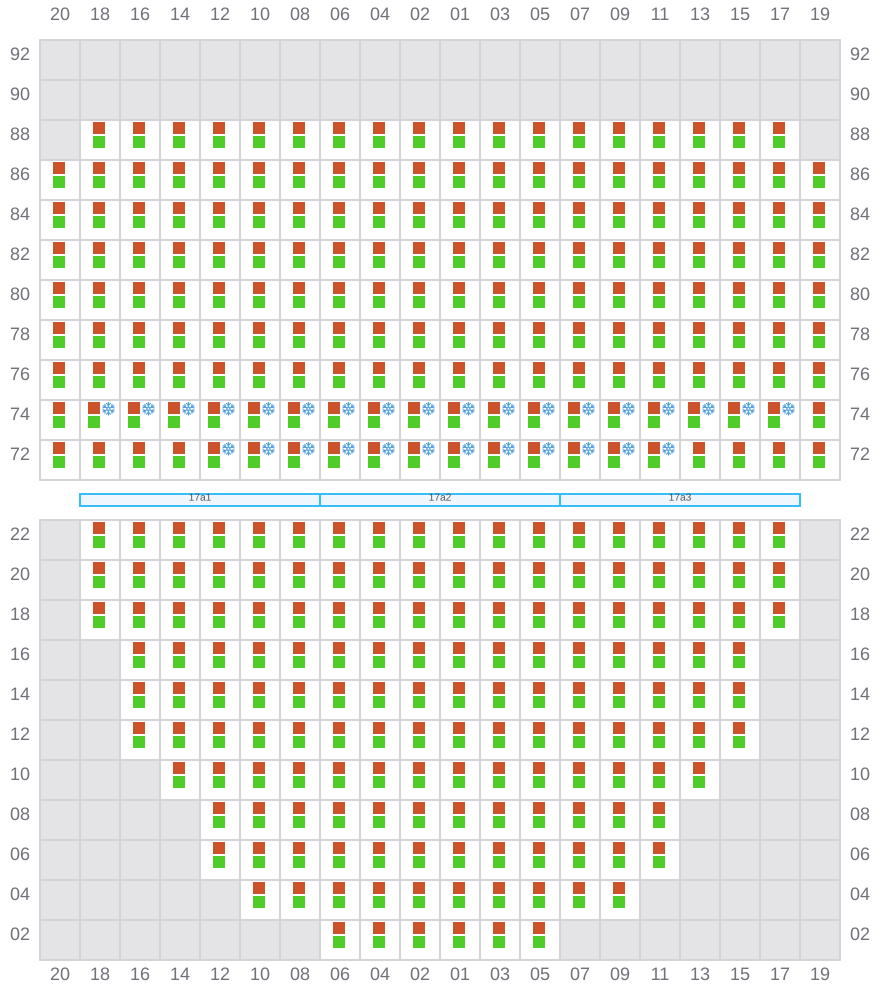

Bay 017 view and slots of CMA CGM MEXICO

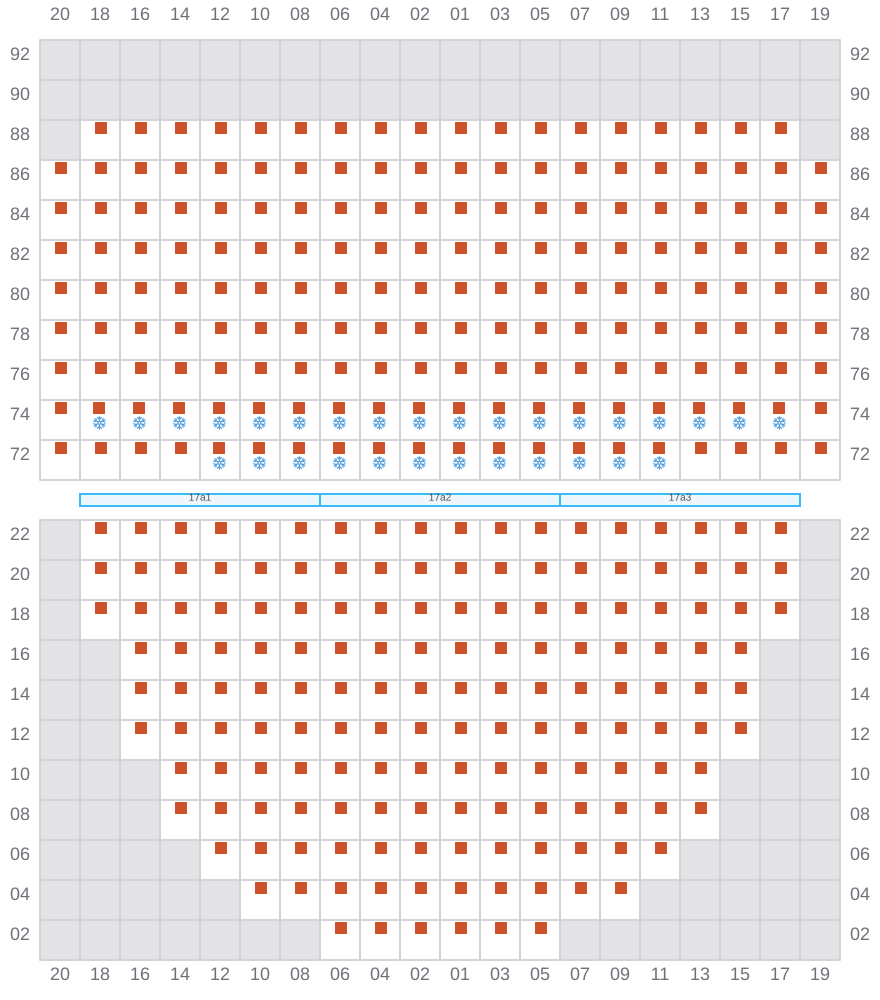

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of CMA CGM MEXICO

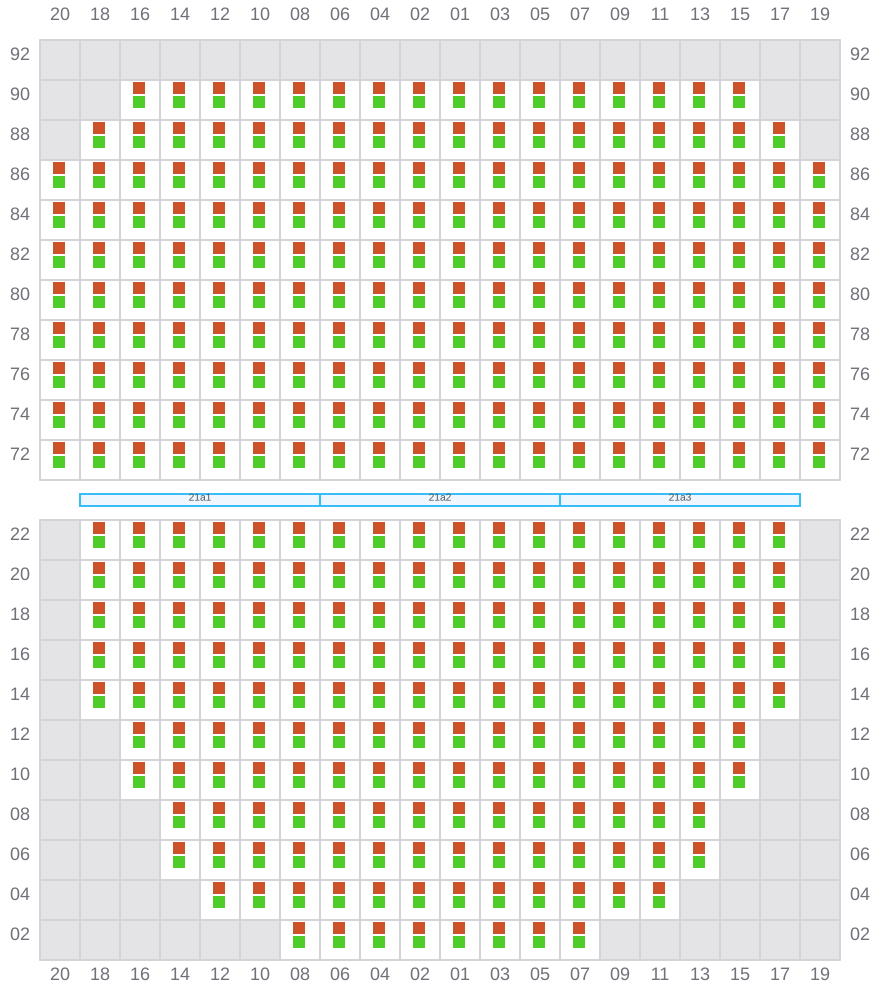

021 (022)

  • →
  • →
Bay 021 view and slots of CMA CGM MEXICO

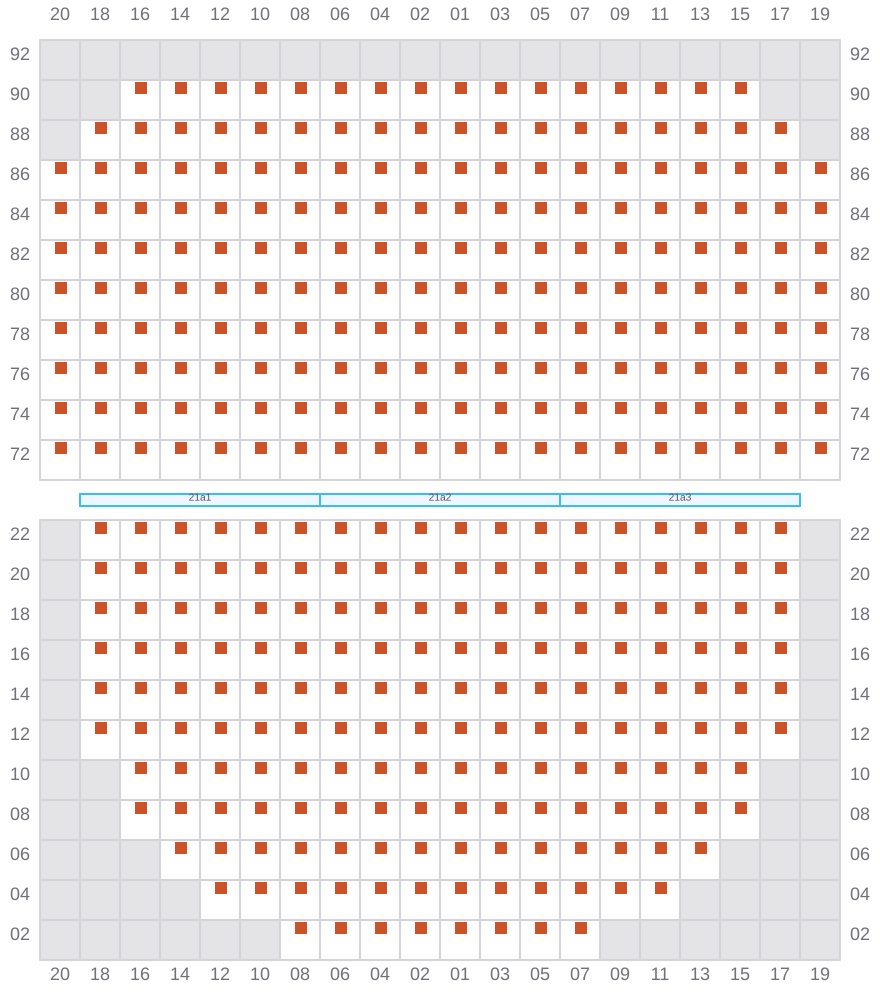

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of CMA CGM MEXICO

025 (026)

  • →
  • → / ?
  • →

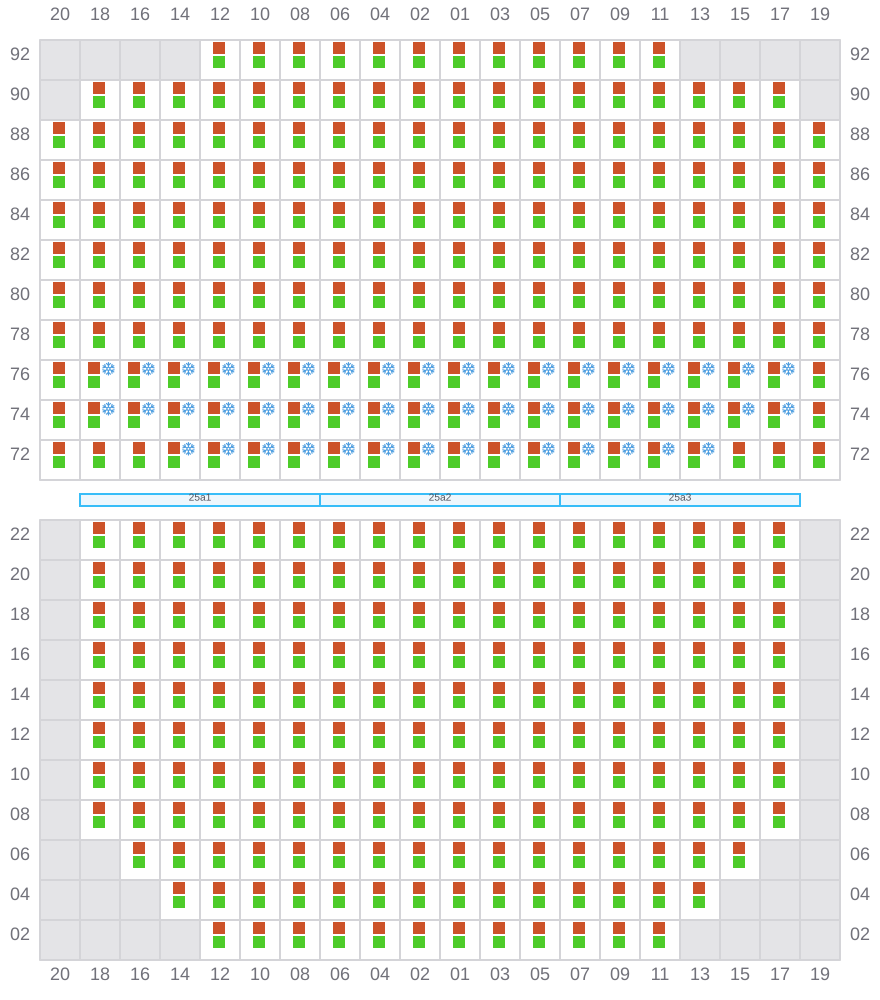

Bay 025 view and slots of CMA CGM MEXICO

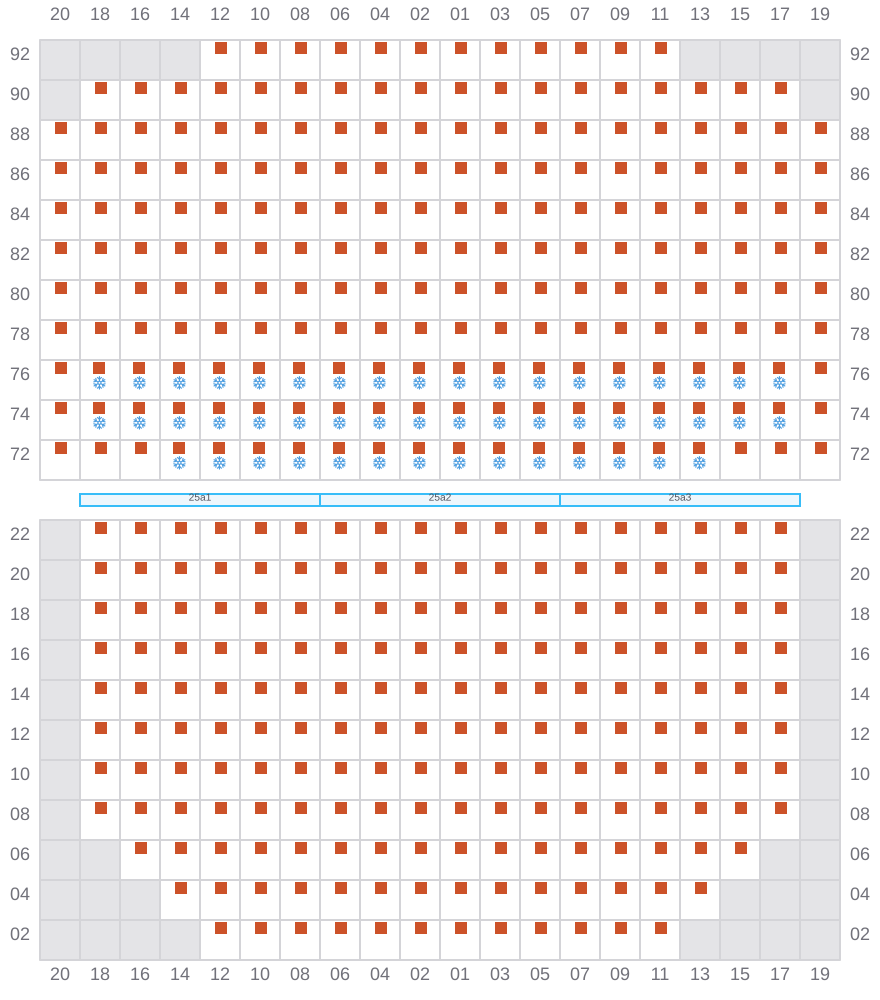

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of CMA CGM MEXICO

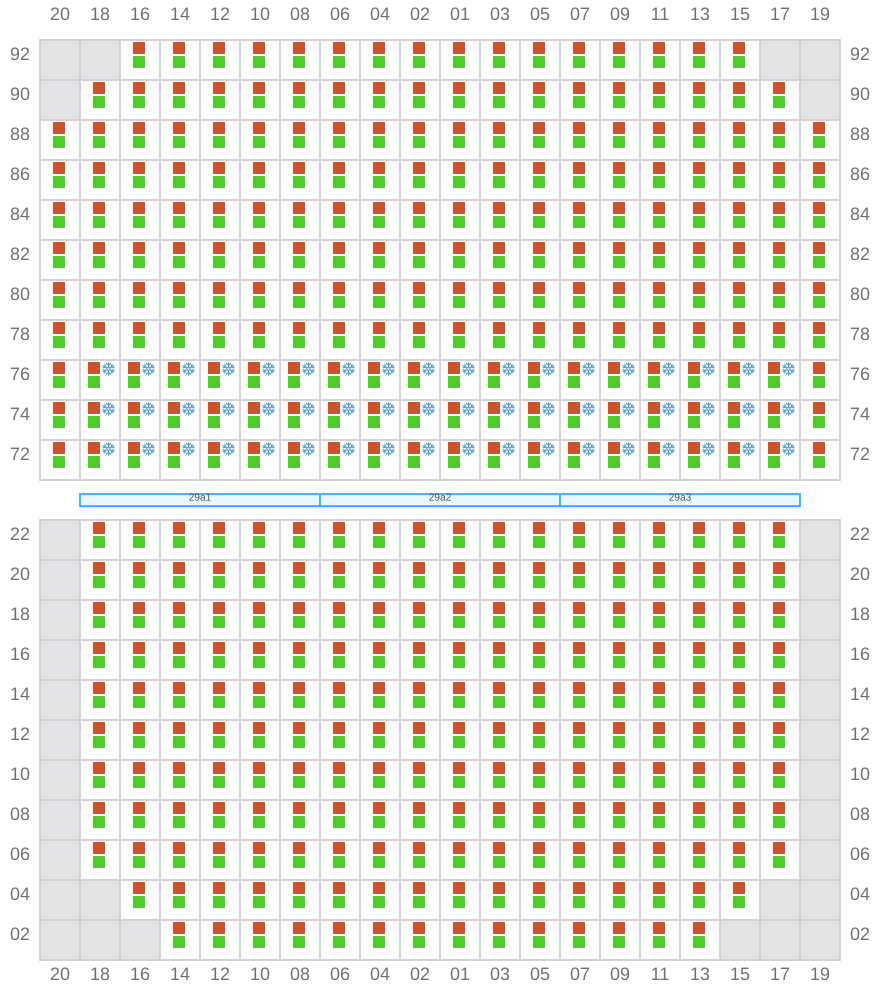

029 (030)

  • →
  • → / ?
  • →

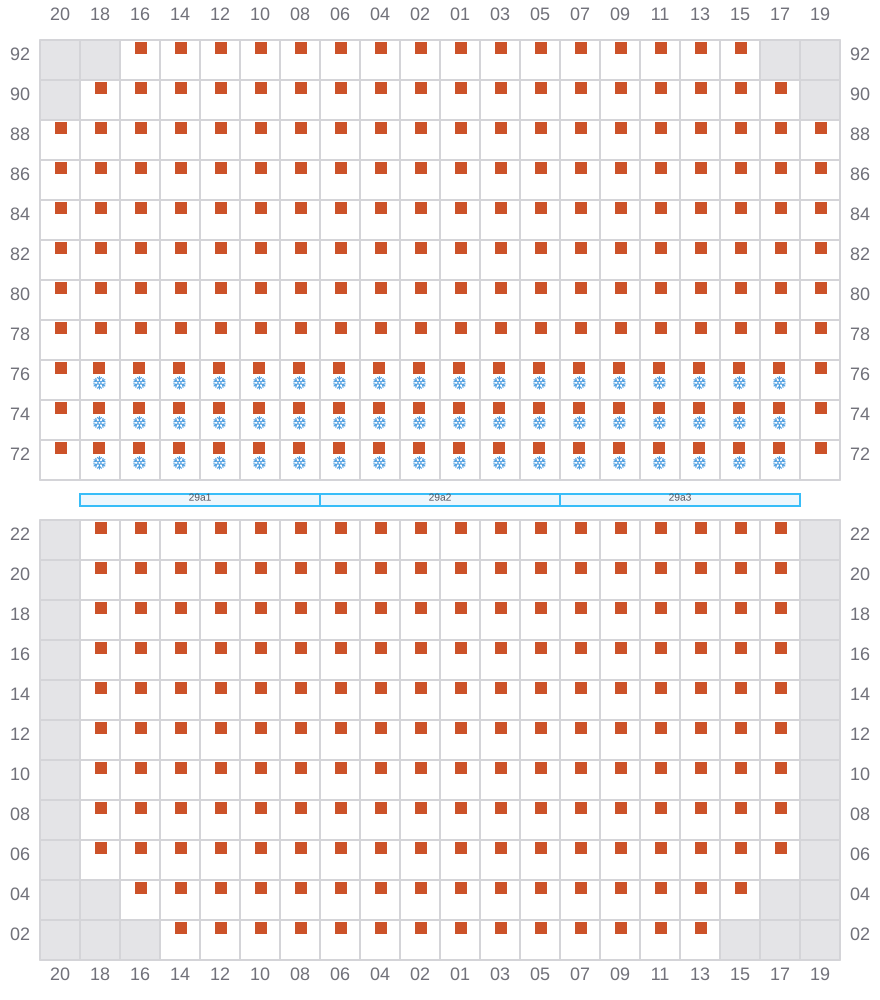

Bay 029 view and slots of CMA CGM MEXICO

031

  • ←
  • → / ?
  • →
Bay 031 view and slots of CMA CGM MEXICO

033 (034)

  • →
  • → / ?
  • →
Bay 033 view and slots of CMA CGM MEXICO

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of CMA CGM MEXICO

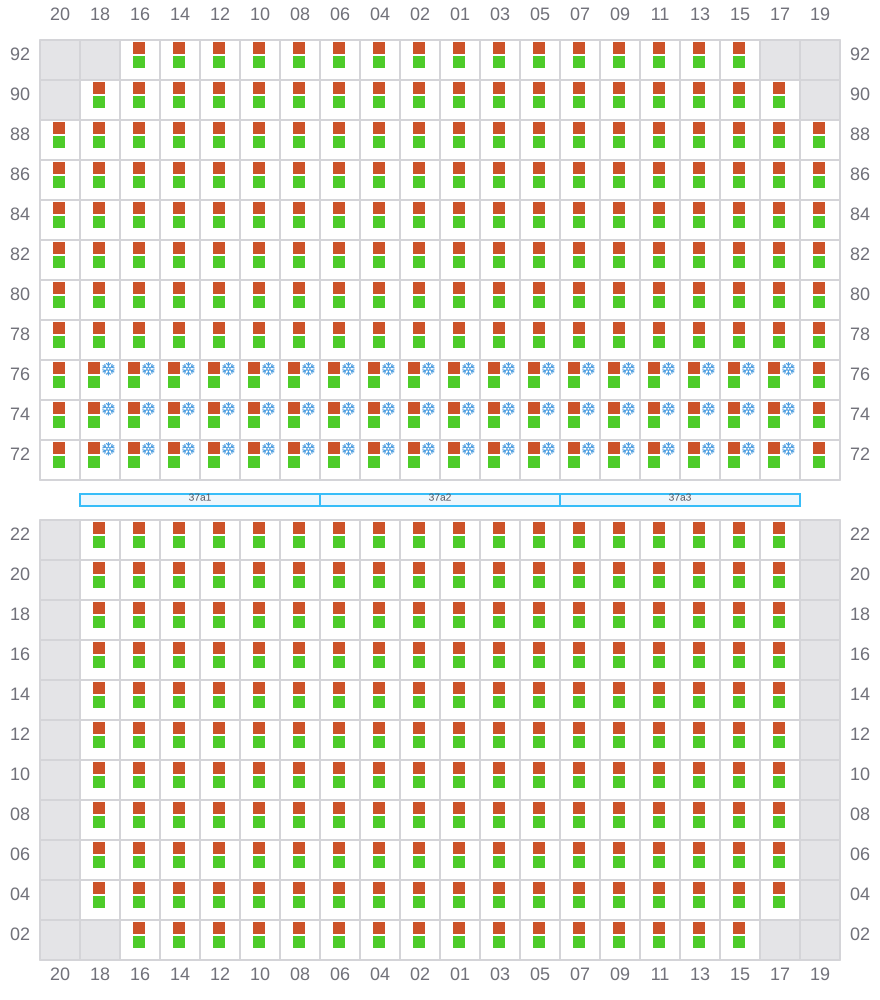

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of CMA CGM MEXICO

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of CMA CGM MEXICO

041 (042)

  • →
  • → / ?
  • →

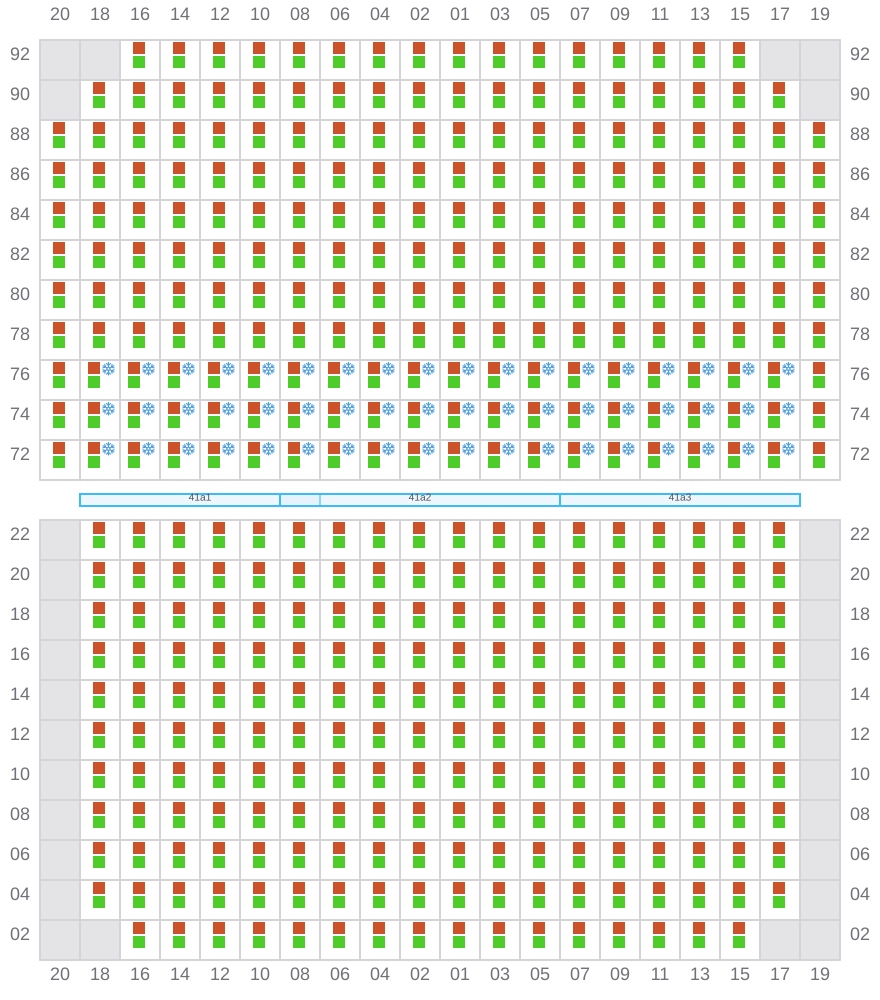

Bay 041 view and slots of CMA CGM MEXICO

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of CMA CGM MEXICO

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of CMA CGM MEXICO

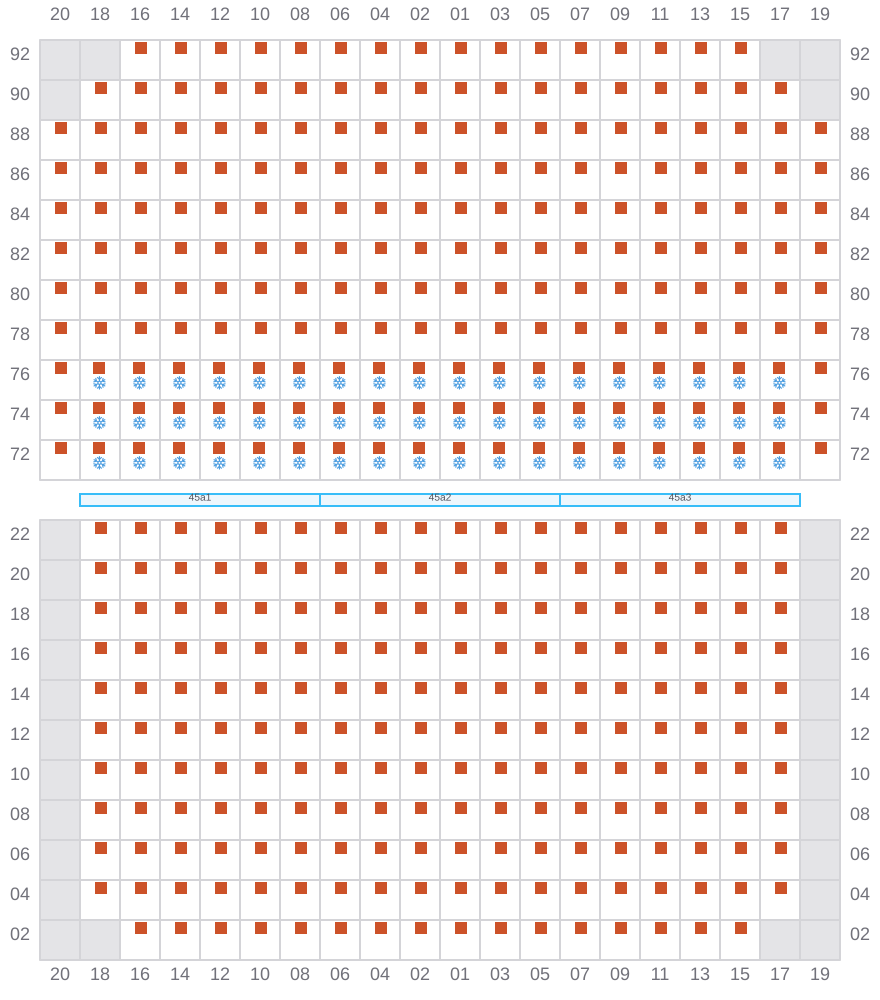

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of CMA CGM MEXICO

049 (050)

  • →
  • → / ?
  • →

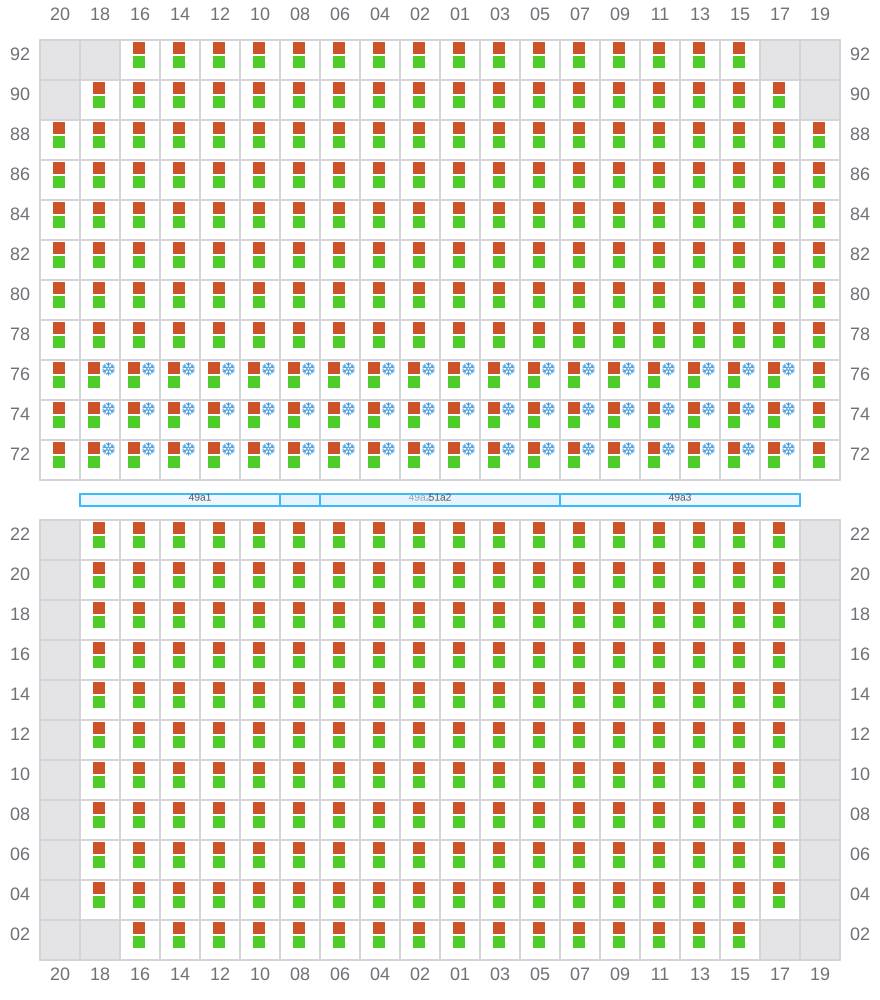

Bay 049 view and slots of CMA CGM MEXICO

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of CMA CGM MEXICO

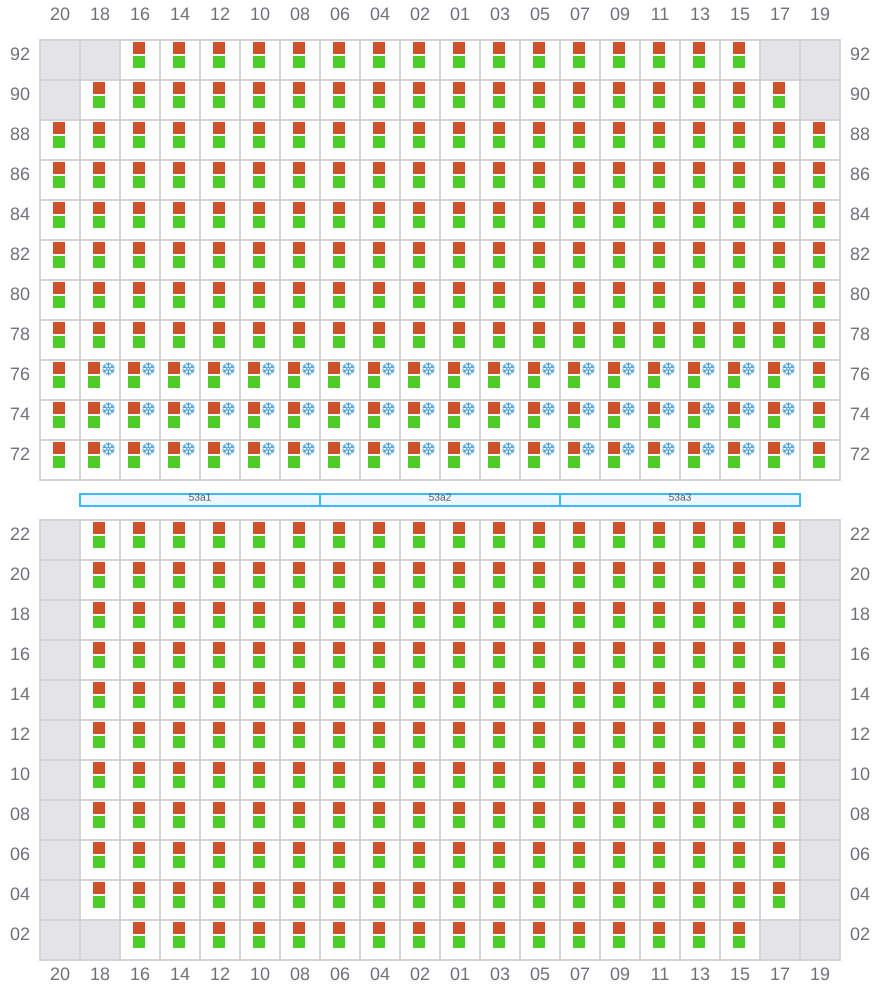

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of CMA CGM MEXICO

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of CMA CGM MEXICO

057 (058)

  • →
  • → / ?
  • →

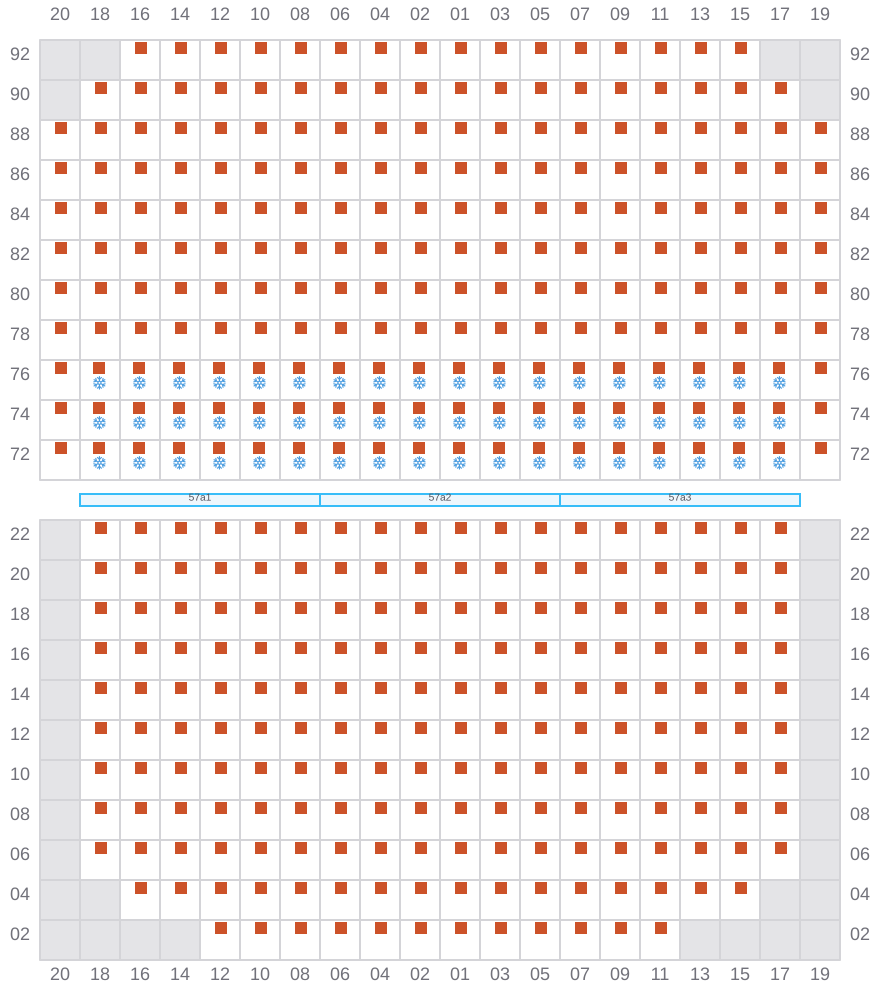

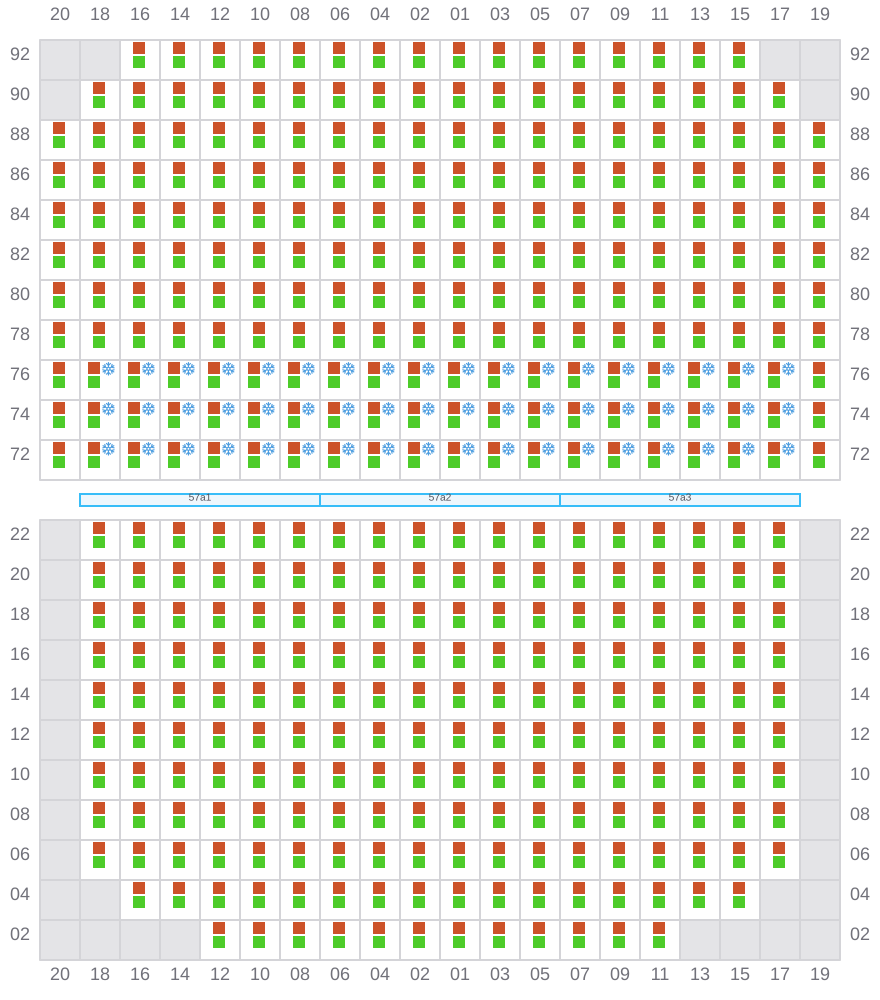

Bay 057 view and slots of CMA CGM MEXICO

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of CMA CGM MEXICO

061 (062)

  • →
  • → / ?
  • →

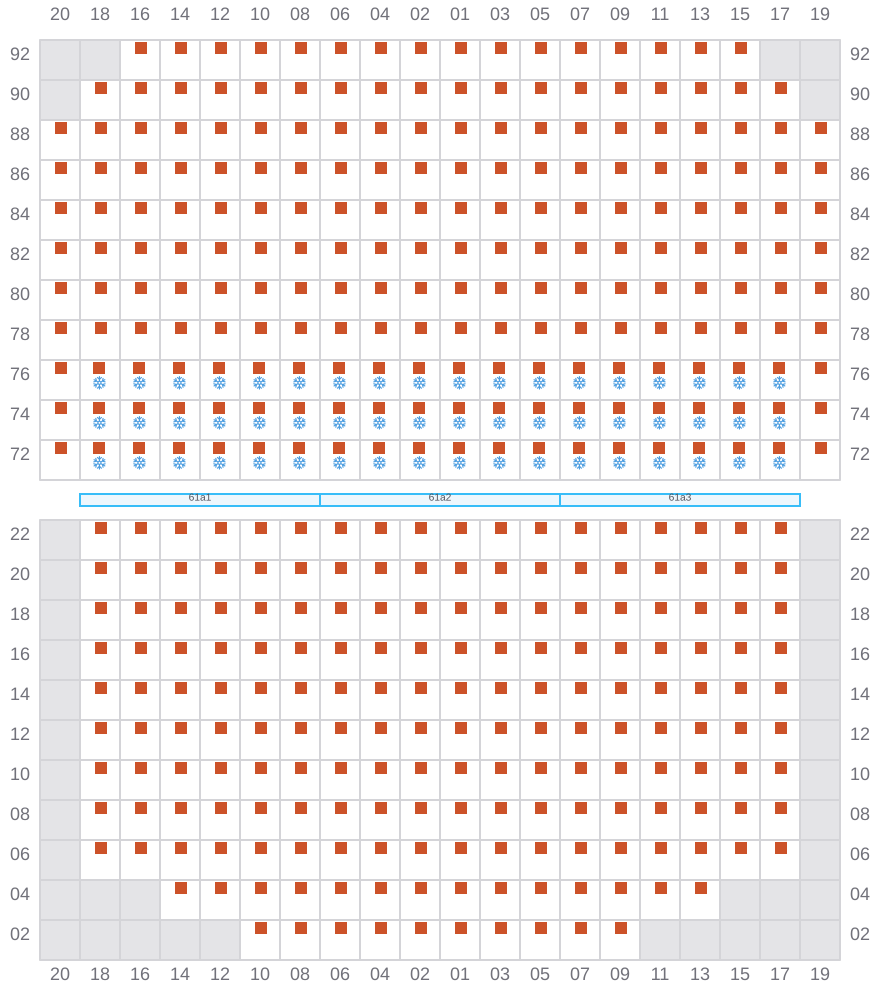

Bay 061 view and slots of CMA CGM MEXICO

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of CMA CGM MEXICO

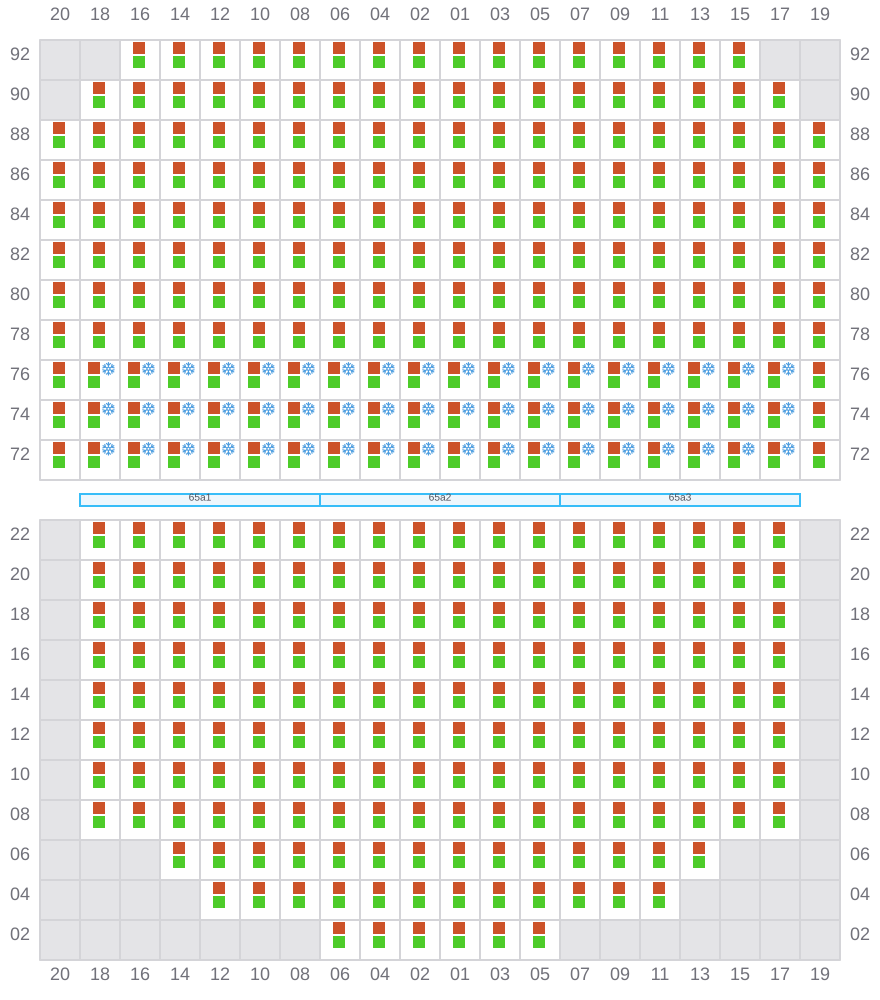

065 (066)

  • →
  • → / ?
  • →
Bay 065 view and slots of CMA CGM MEXICO

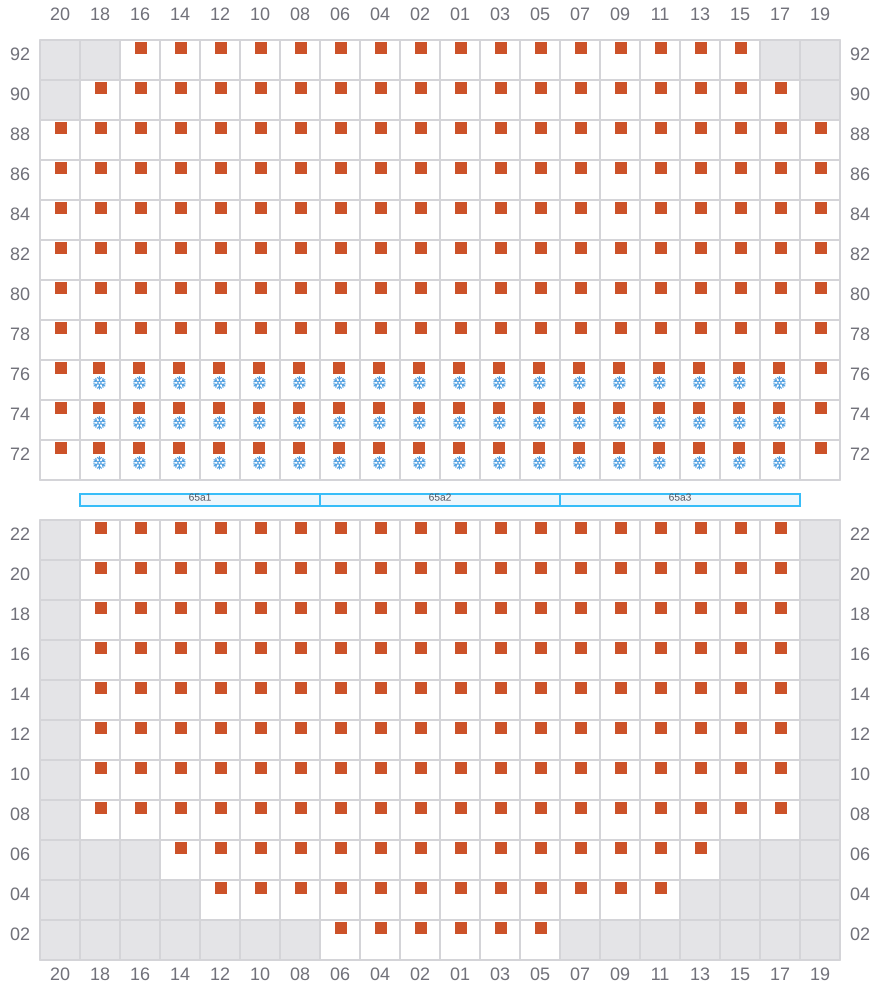

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of CMA CGM MEXICO

069 (070)

  • →
  • → / ?
  • →

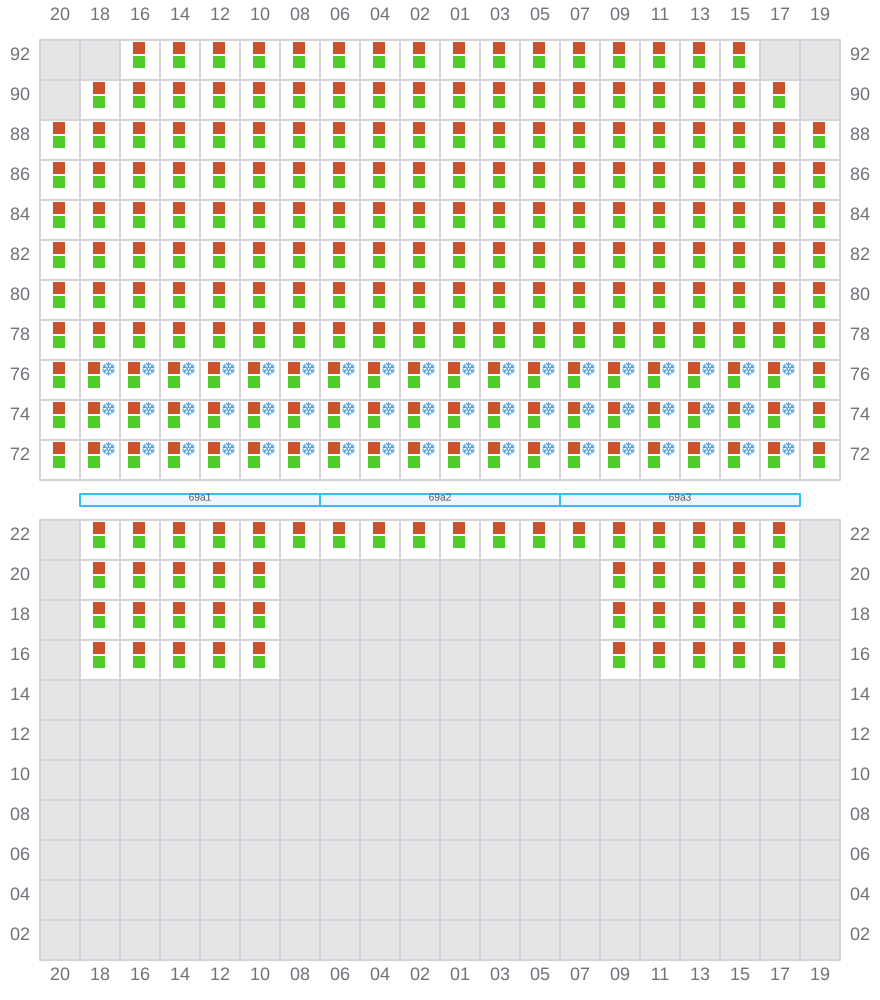

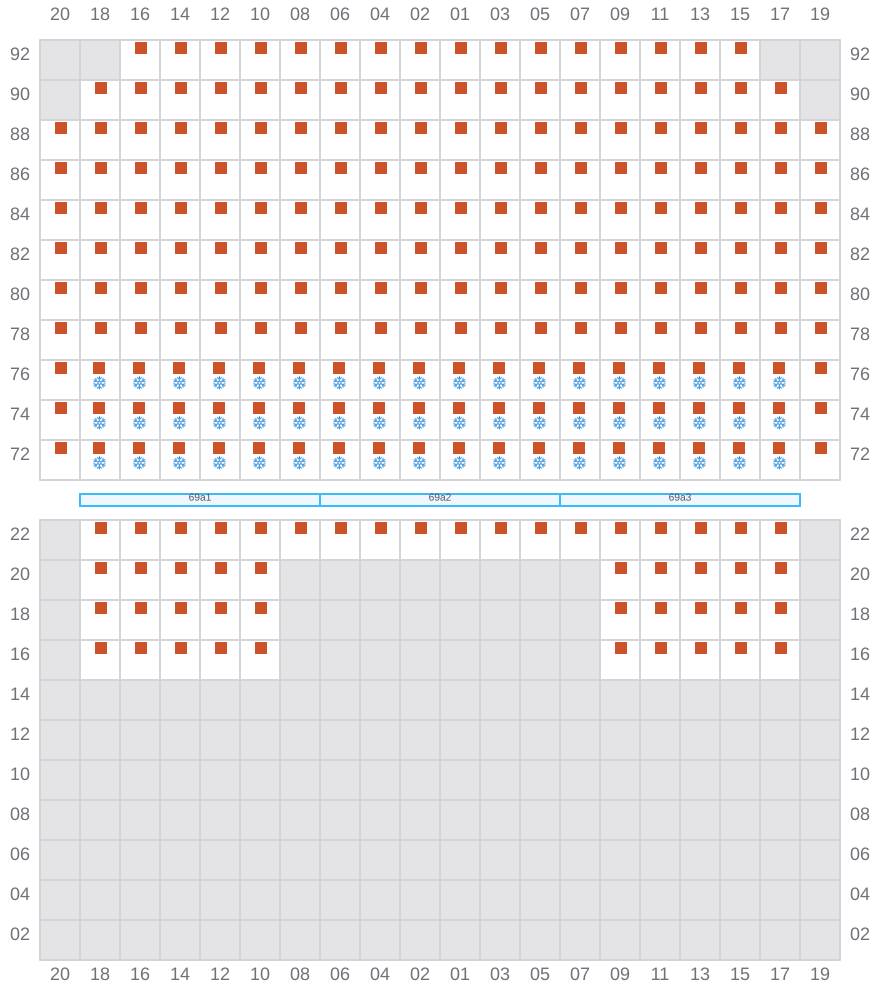

Bay 069 view and slots of CMA CGM MEXICO

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of CMA CGM MEXICO

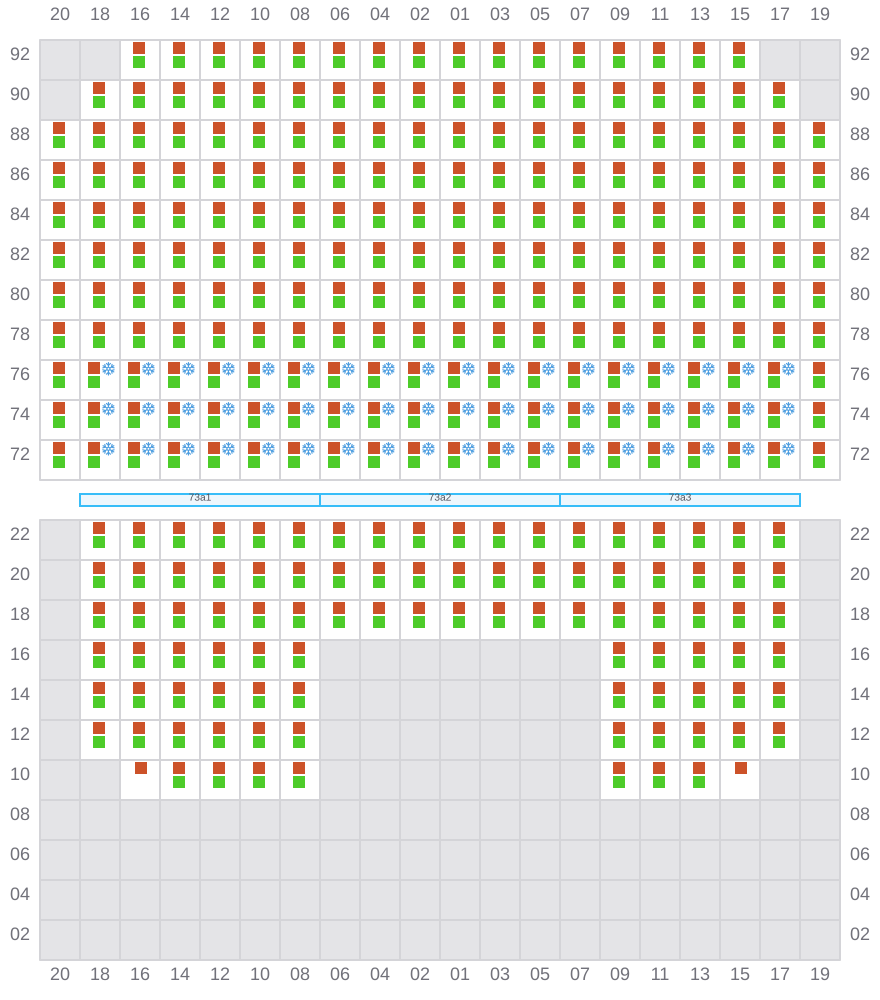

073 (074)

  • →
  • →

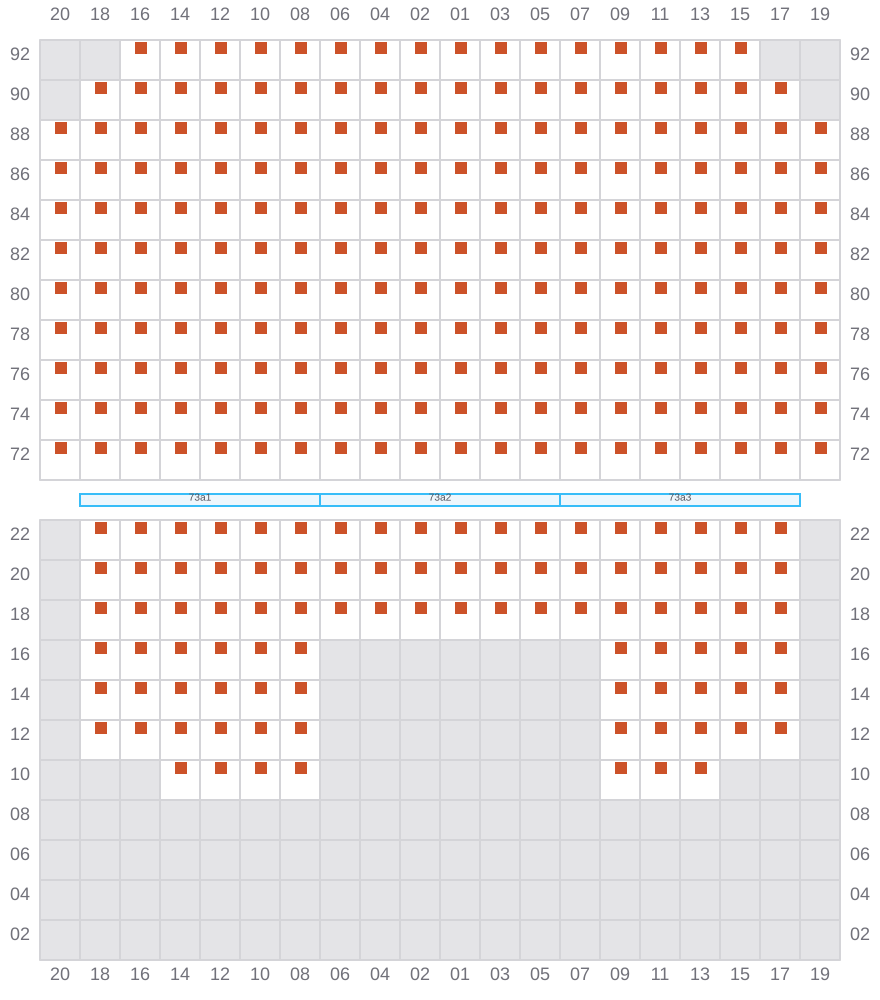

Bay 073 view and slots of CMA CGM MEXICO

075

  • ←
  • ← / ?
  • →
Bay 075 view and slots of CMA CGM MEXICO

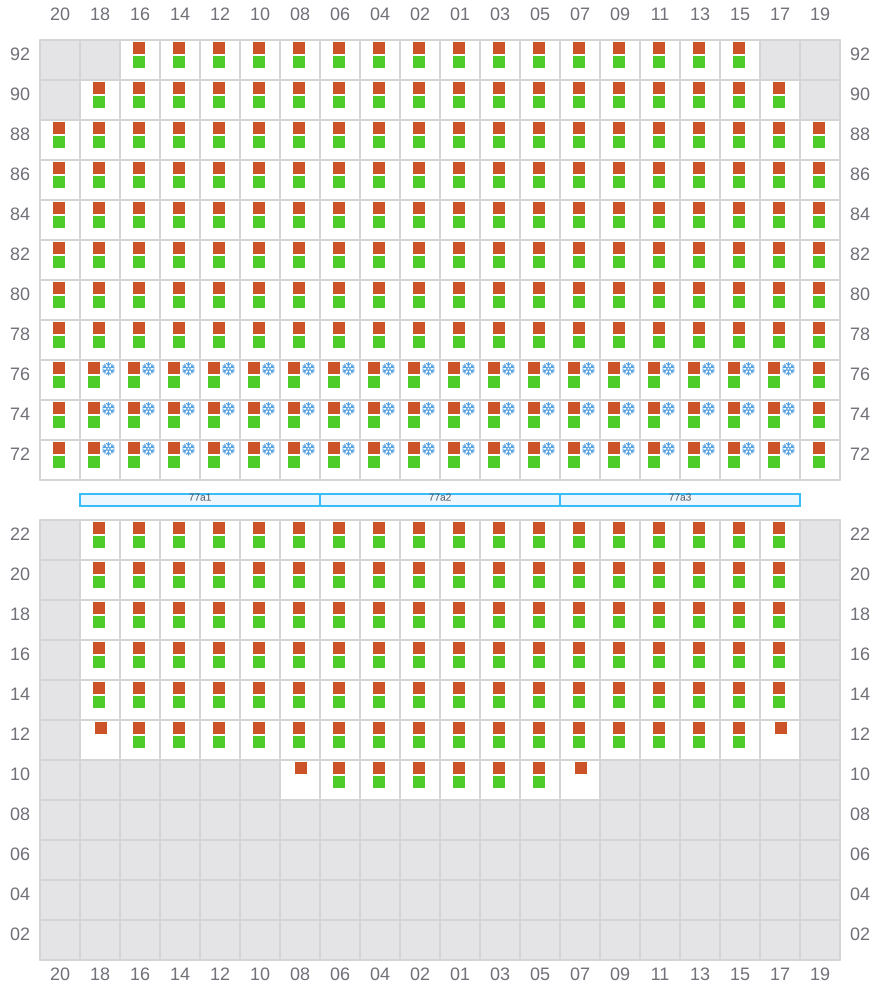

077 (078)

  • →
  • ← / ?
  • →

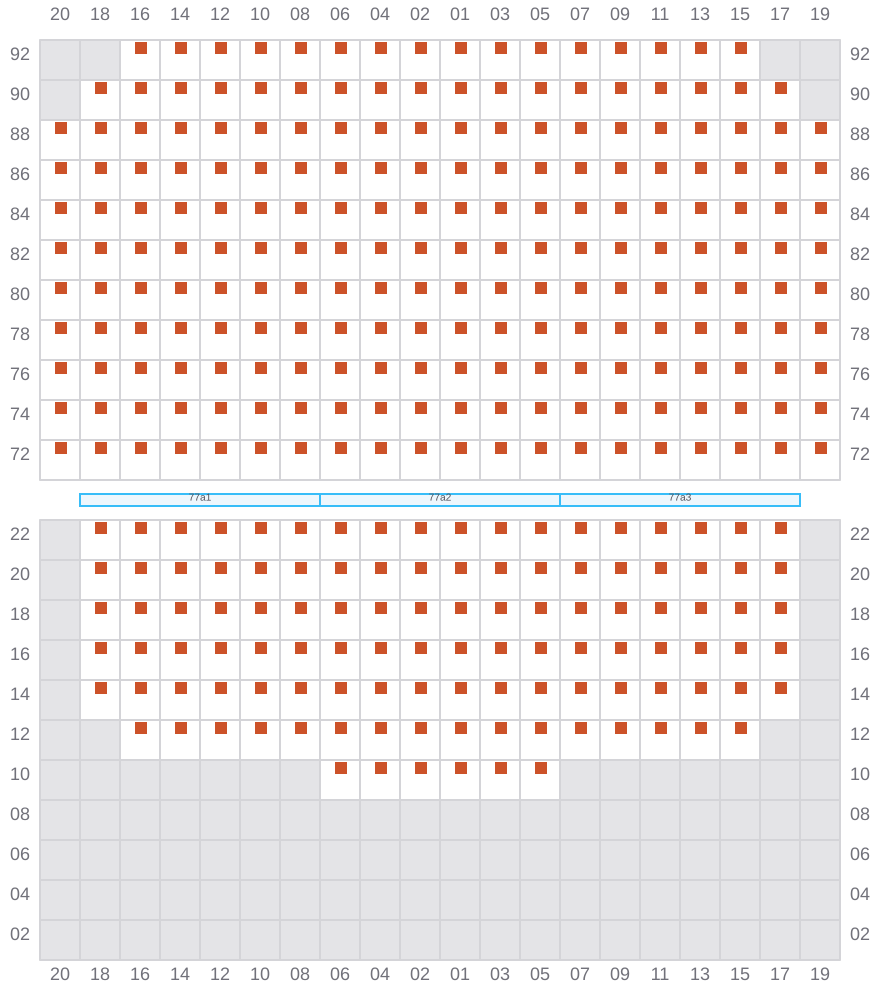

Bay 077 view and slots of CMA CGM MEXICO

079

  • ←
  • ← / ?
  • →
Bay 079 view and slots of CMA CGM MEXICO

081 (082)

  • →
  • ← / ?
  • →
Bay 081 view and slots of CMA CGM MEXICO

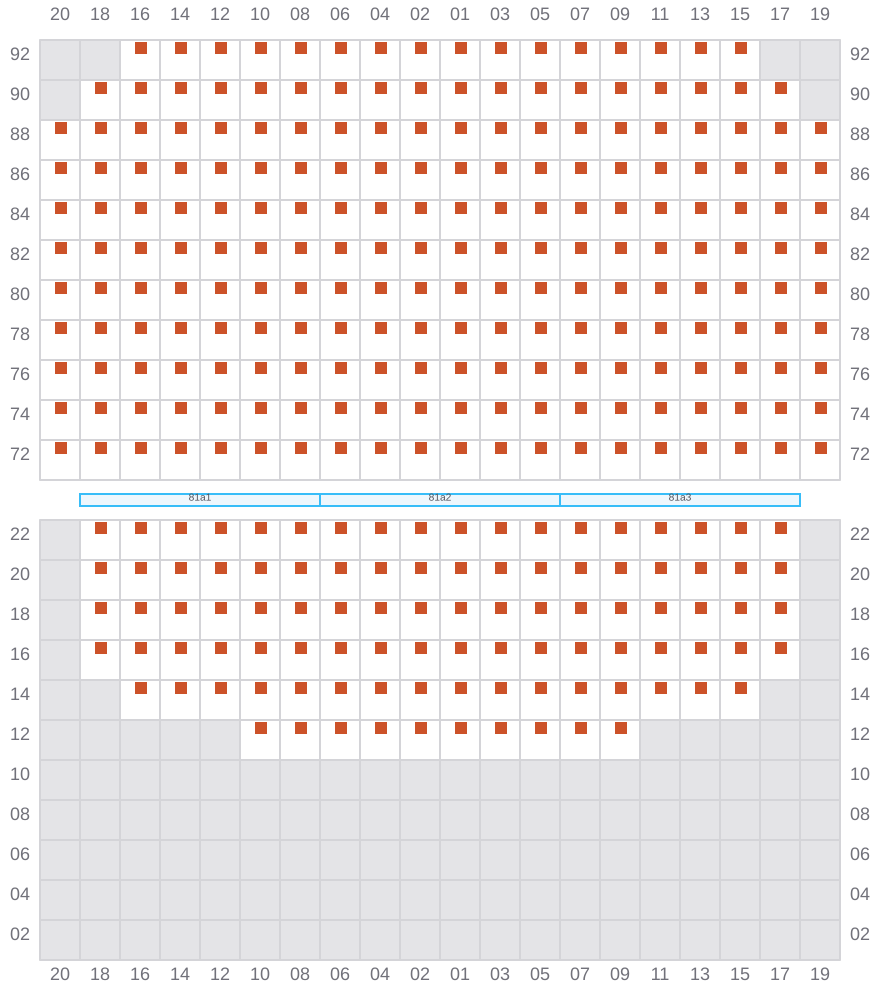

083

  • ←
  • ← / ?
  • →
Bay 083 view and slots of CMA CGM MEXICO

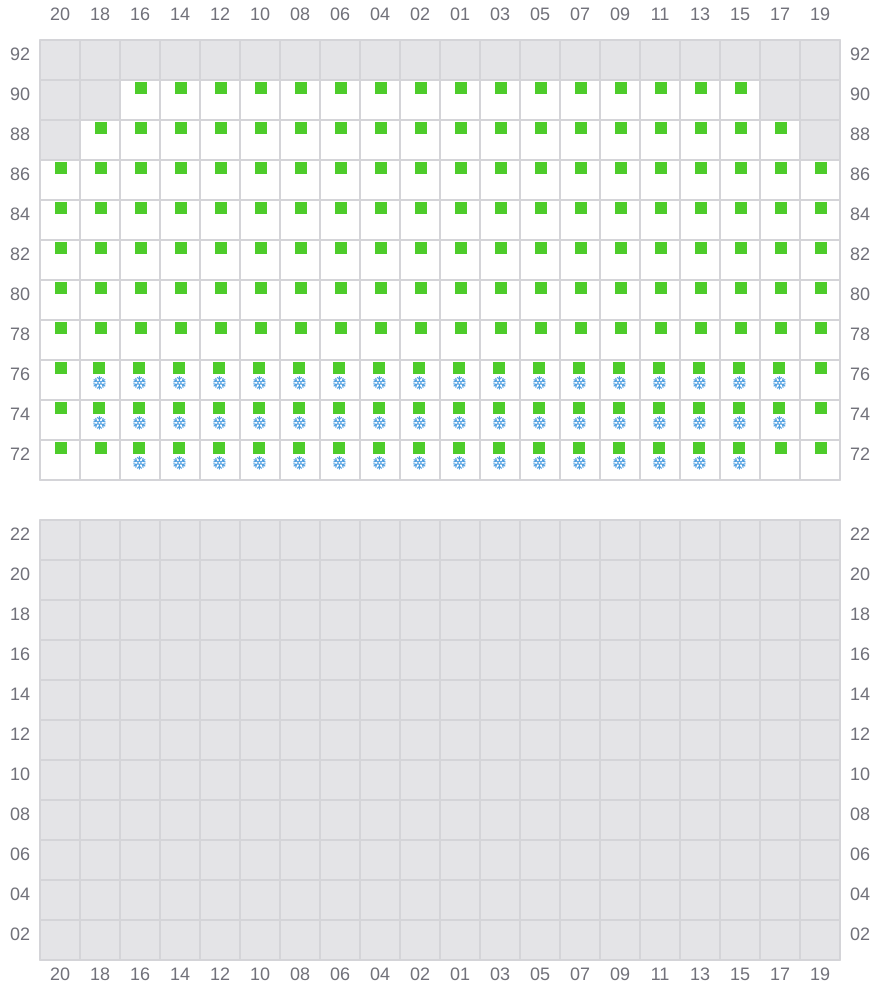

085 (086)

  • → / ?
  • ← / ?
  • → / ?
Bay 085 view and slots of CMA CGM MEXICO
