CMA CGM MISSOURI
9679919 | D5QE4 | 9679919 by ********* Last update: Tue May 07 2024
General Info
Ship Name:CMA CGM MISSOURI
IMO Code:9679919
Call Sign:D5QE4
Line Operator:9679919
Class Name for Sister Ships:CMA CGM MISSOURI
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:72
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,468
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-sideView.png?v=1715112095208)

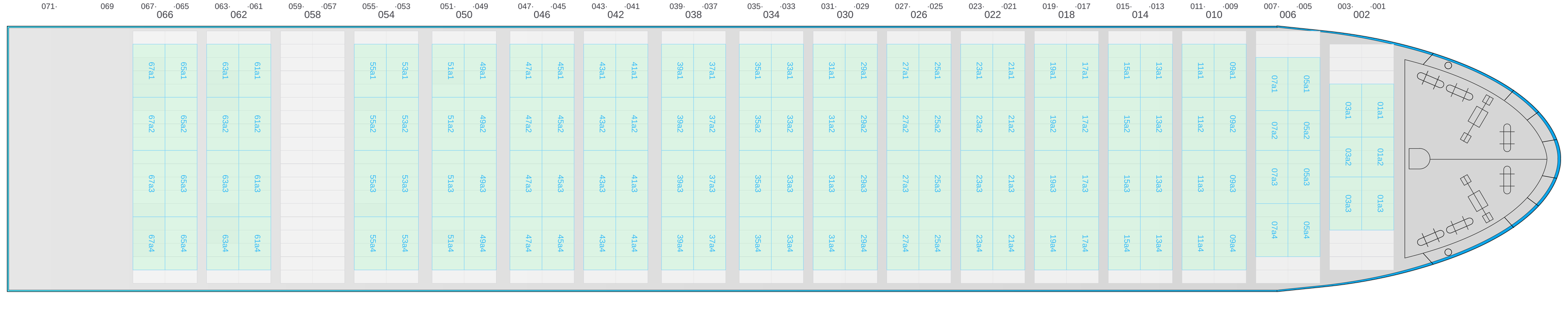

Hatch-Covers View
![Deck view of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-deckView.png?v=1715112095208)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

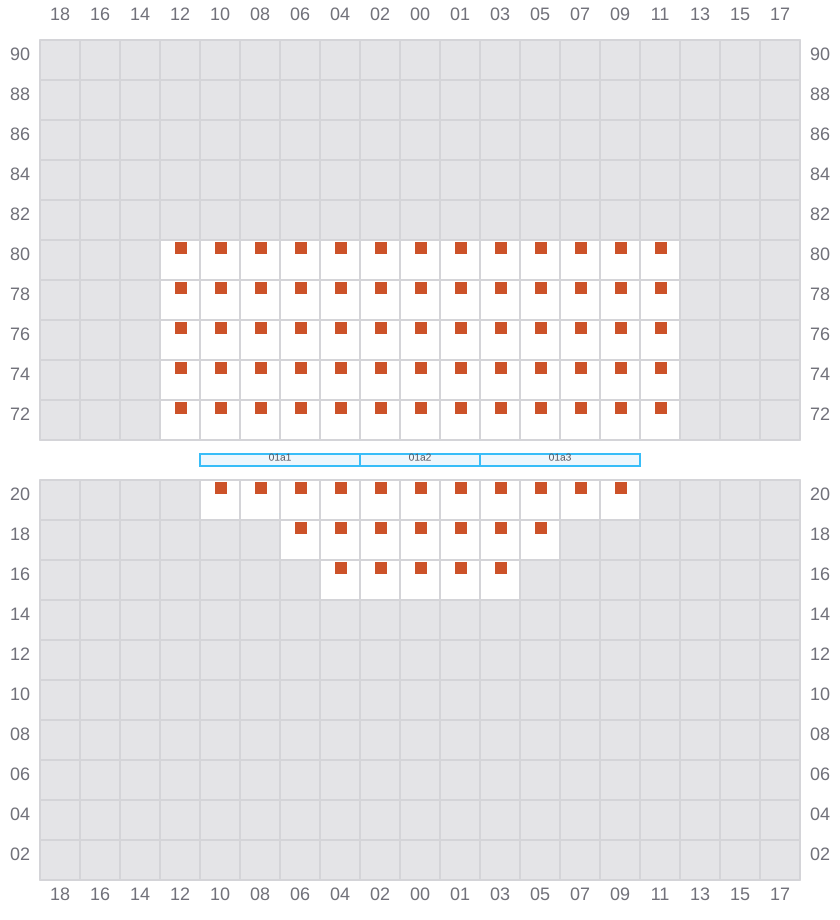

001
- →
![Bay 001 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b001.png?v=1715112095208)

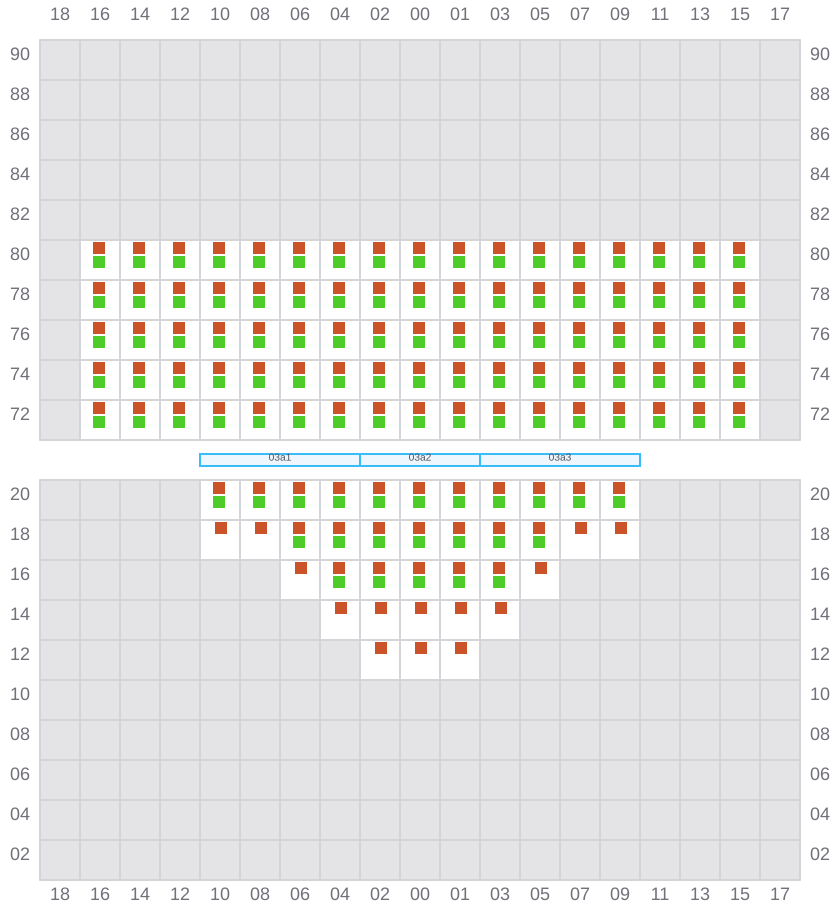

003 (002)
- ←
![Bay 003 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b003.png?v=1715112095208)

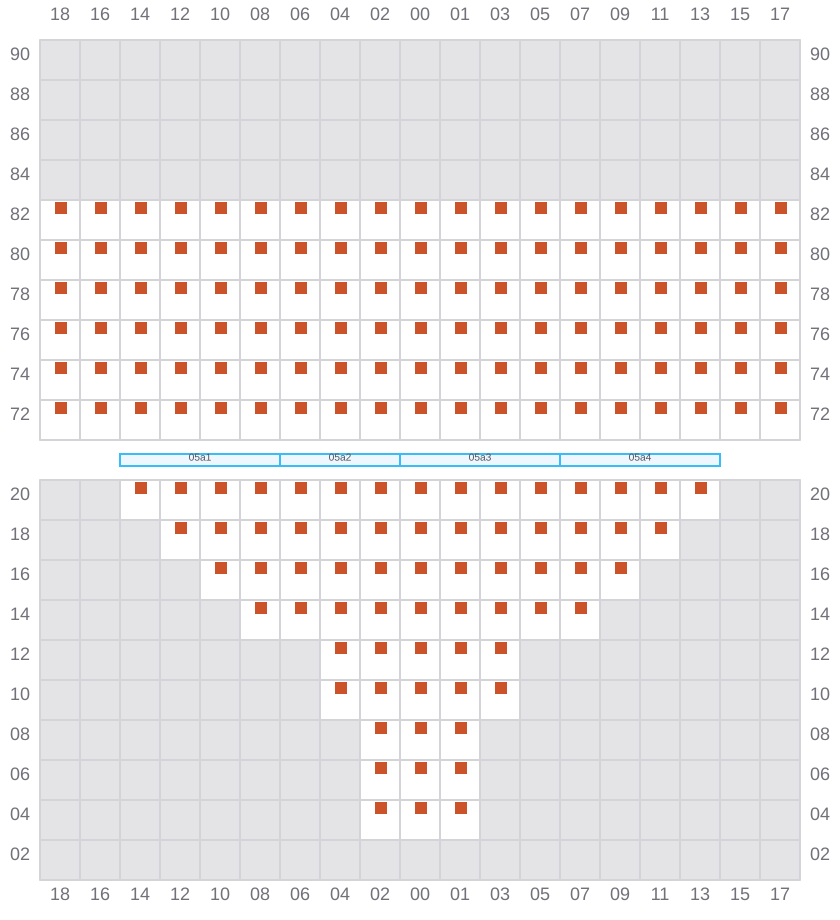

005
- →
![Bay 005 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b005.png?v=1715112095208)

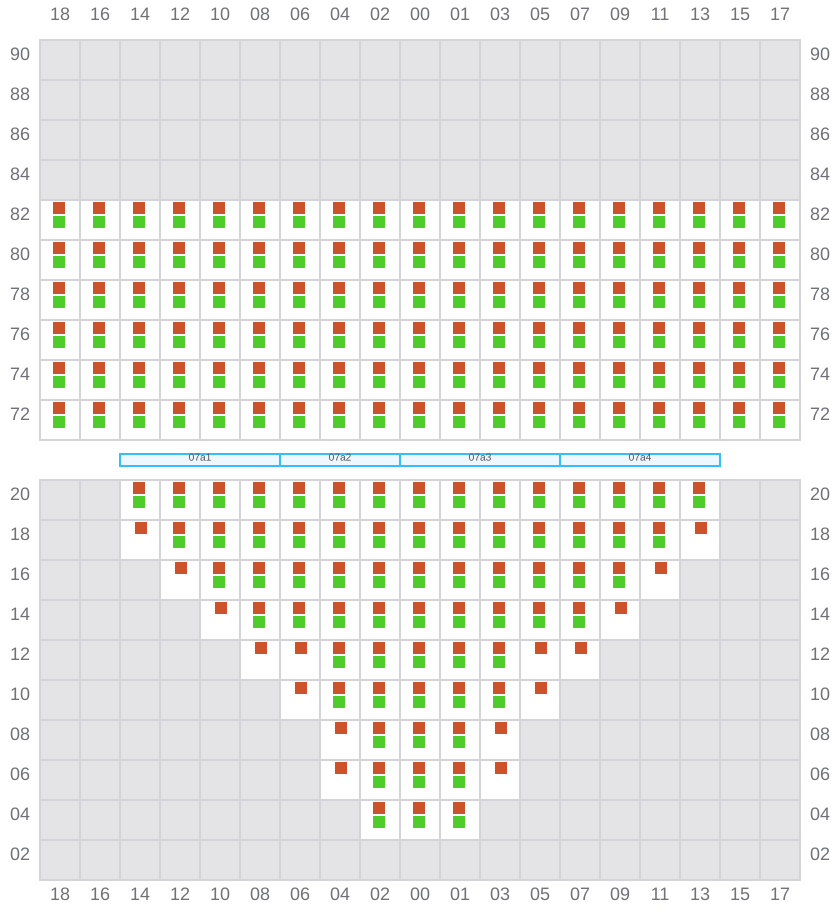

007 (006)
- ←
![Bay 007 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b007.png?v=1715112095208)

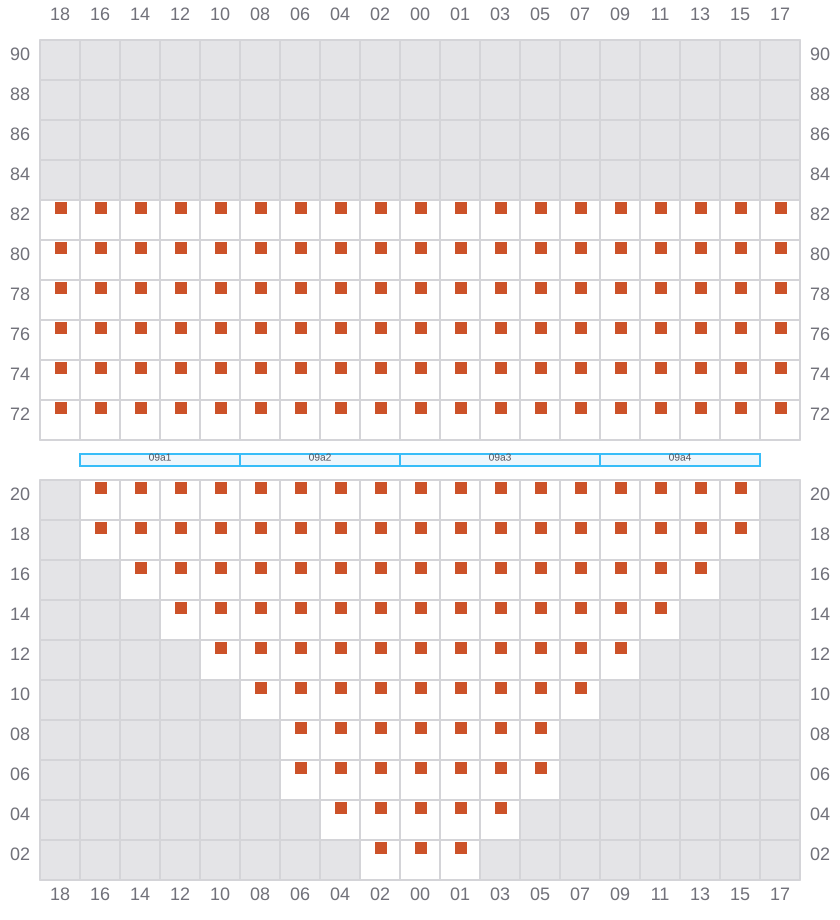

009
- →
![Bay 009 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b009.png?v=1715112095208)

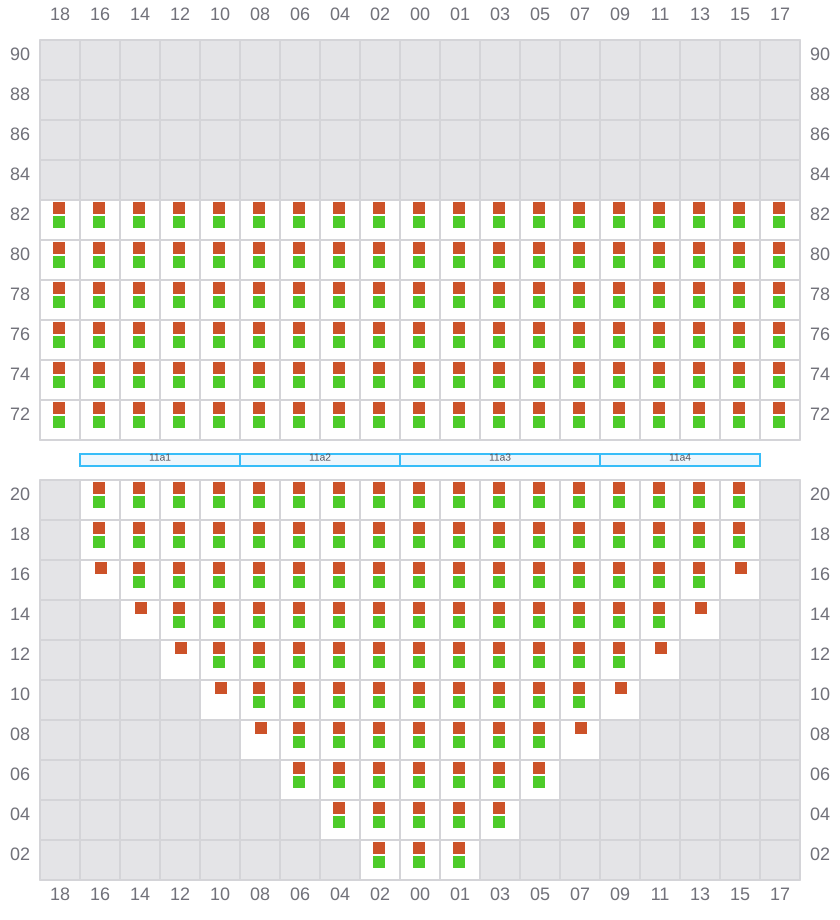

011 (010)
- ←
![Bay 011 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b011.png?v=1715112095208)

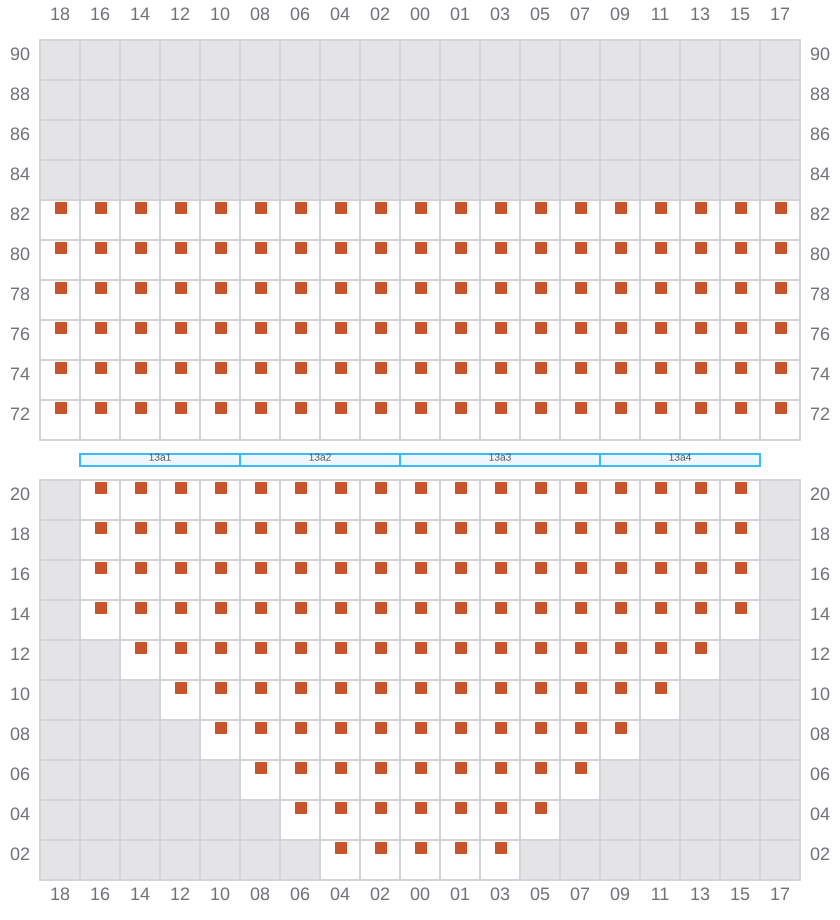

013
- →
![Bay 013 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b013.png?v=1715112095208)
015 (014)
- ←
![Bay 015 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b015.png?v=1715112095208)

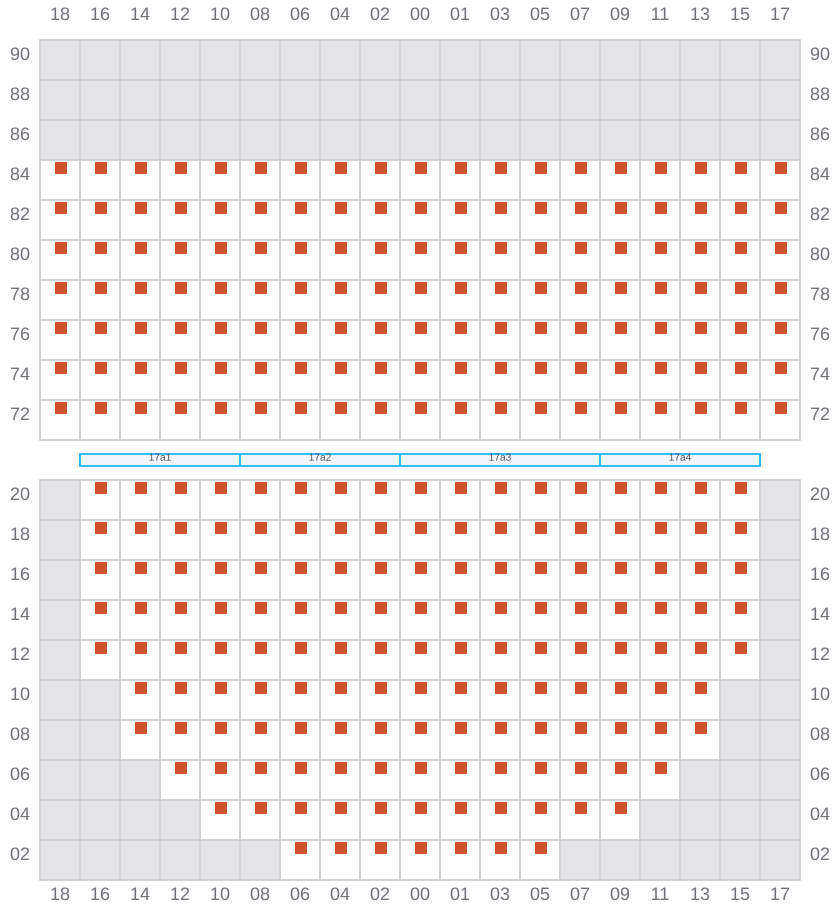

017
- →
![Bay 017 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b017.png?v=1715112095208)

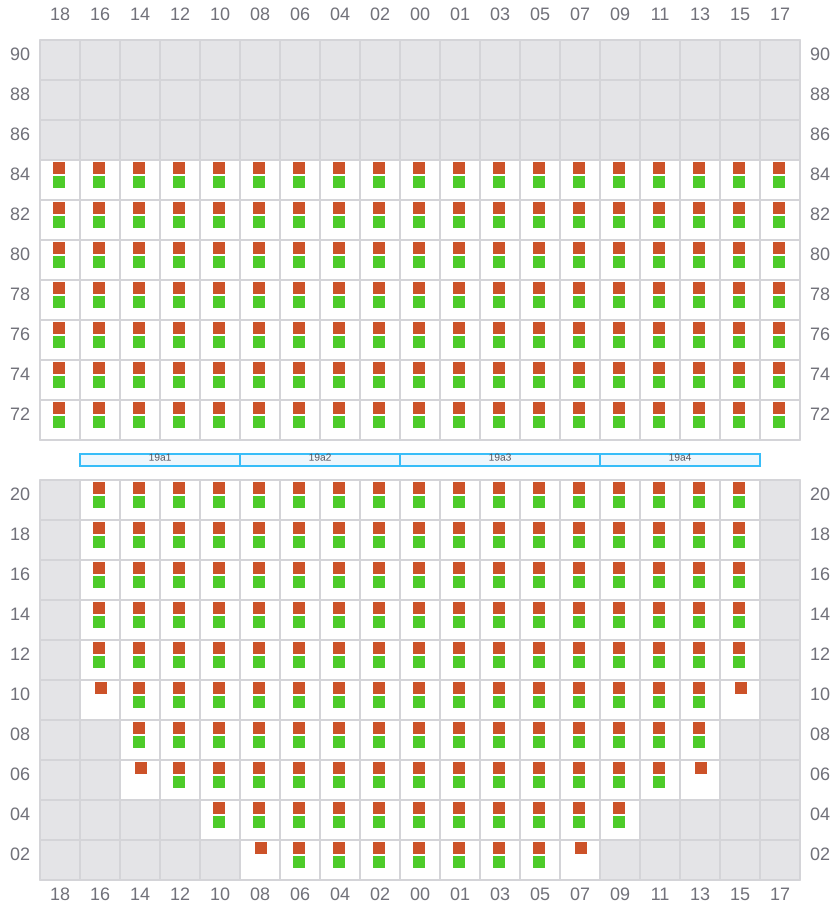

019 (018)
- ←
![Bay 019 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b019.png?v=1715112095208)

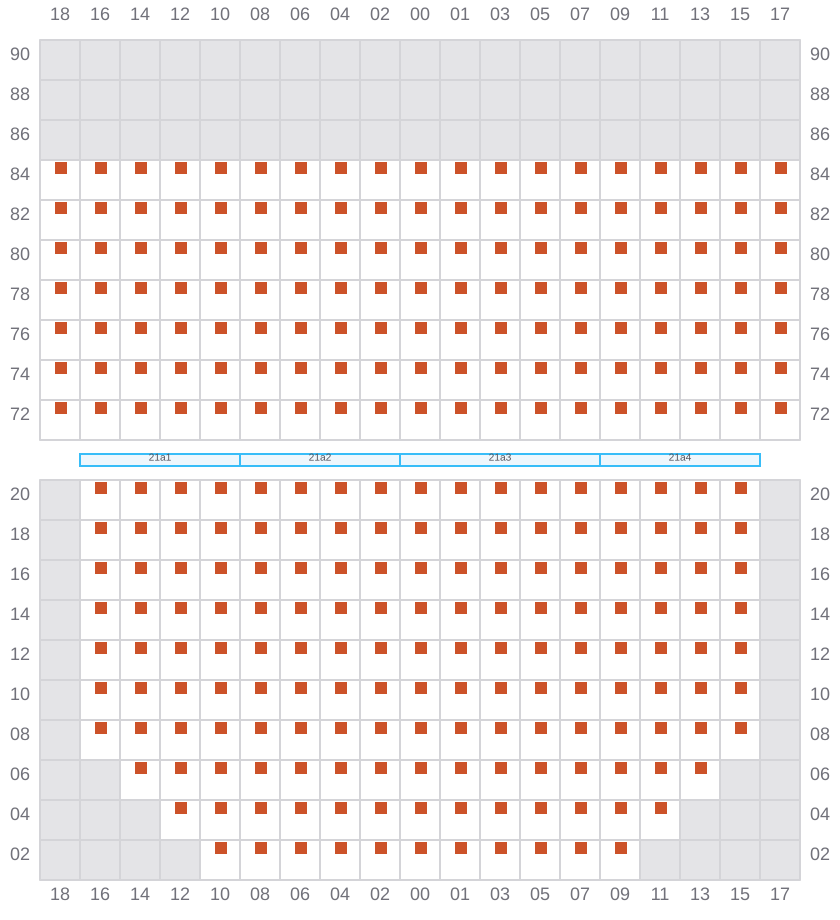

021
- →
![Bay 021 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b021.png?v=1715112095208)

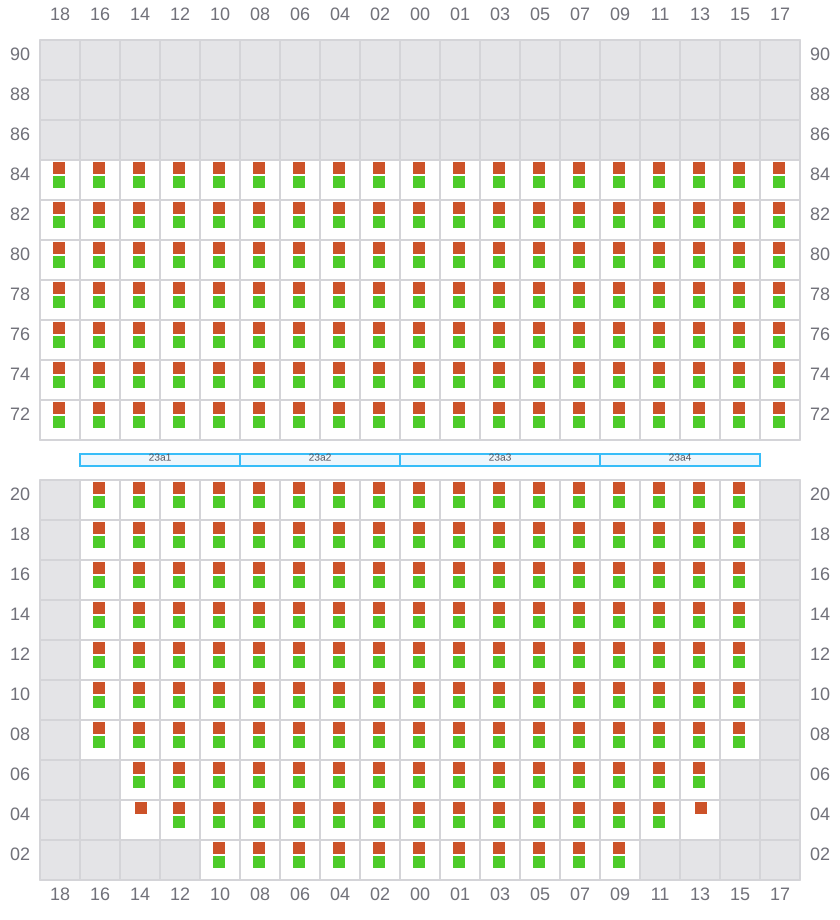

023 (022)
- ←
![Bay 023 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b023.png?v=1715112095208)

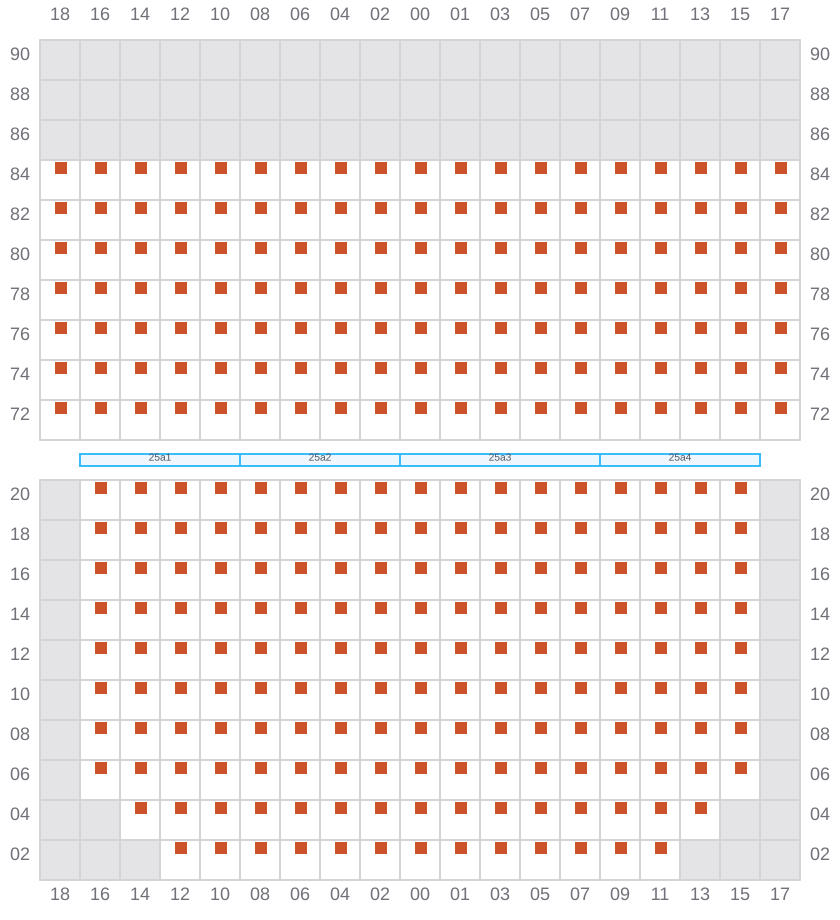

025
- →
![Bay 025 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b025.png?v=1715112095208)
027 (026)
- ←
![Bay 027 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b027.png?v=1715112095208)

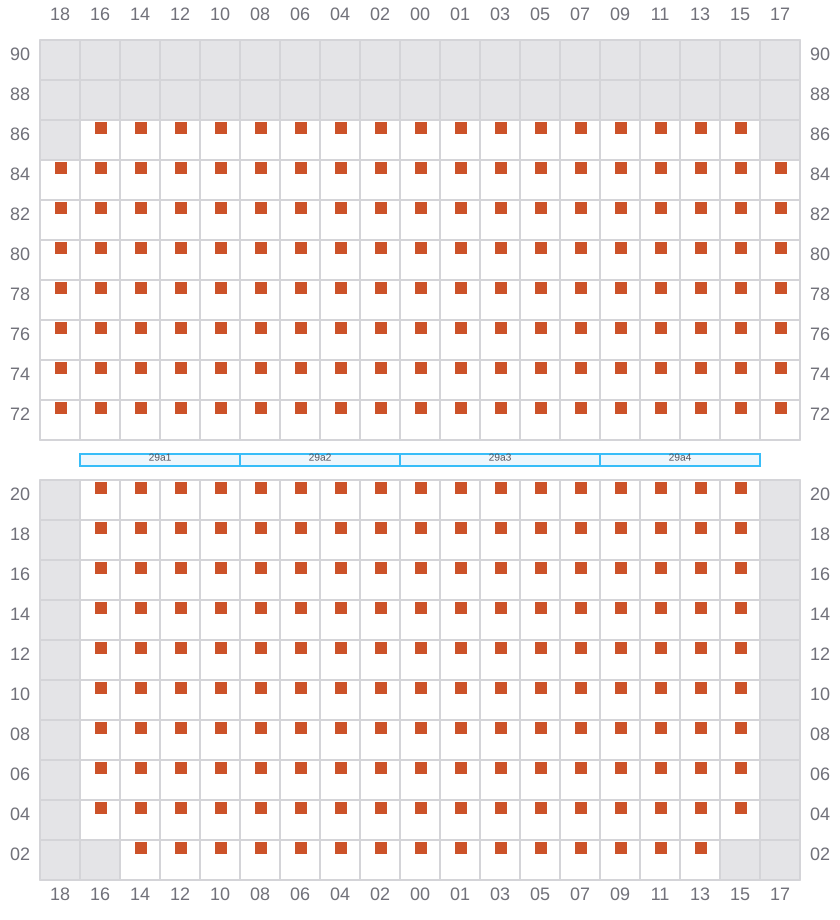

029
- →
![Bay 029 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b029.png?v=1715112095208)
031 (030)
- ←
![Bay 031 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b031.png?v=1715112095208)

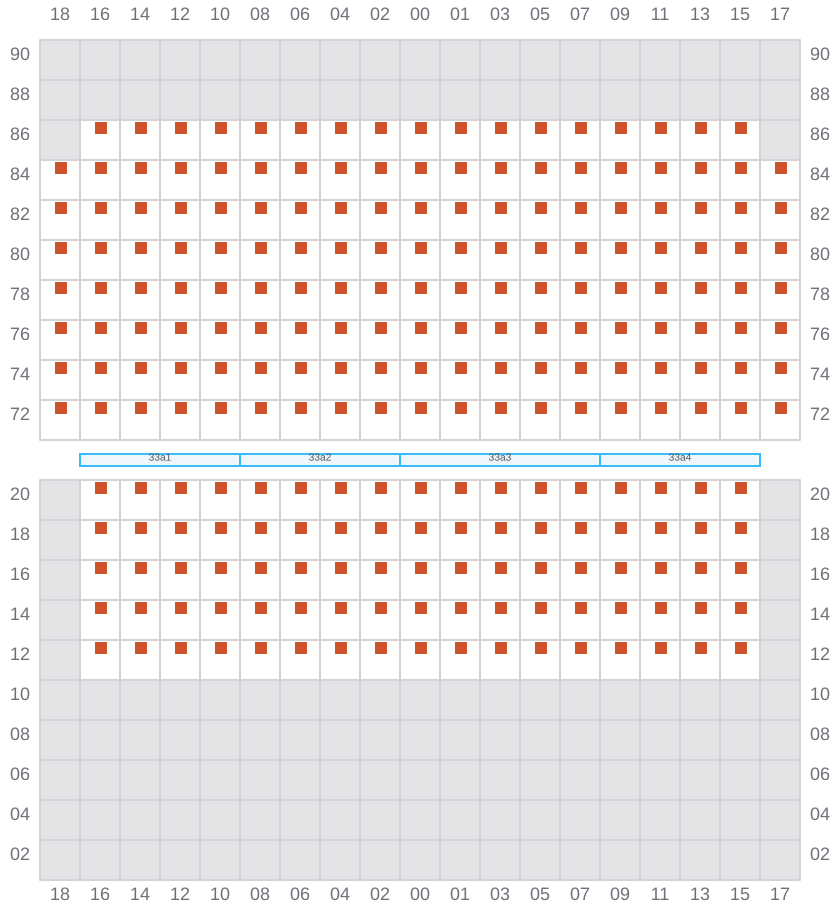

033
- →
![Bay 033 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b033.png?v=1715112095208)
035 (034)
- ←
![Bay 035 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b035.png?v=1715112095208)
037
- →
![Bay 037 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b037.png?v=1715112095208)

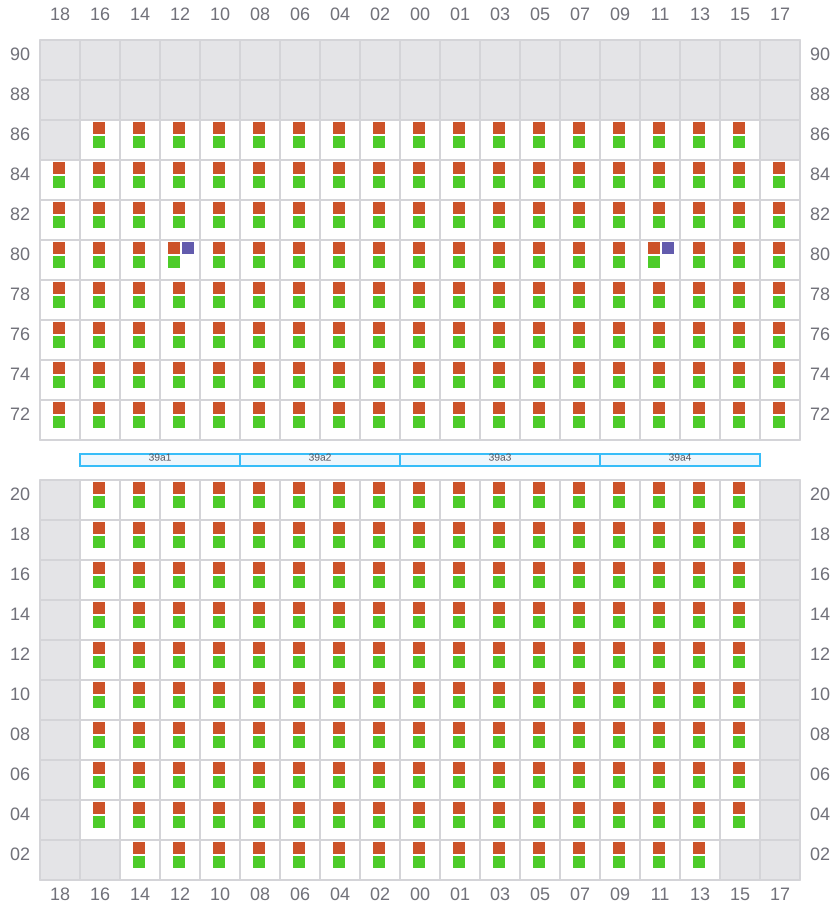

039 (038)
- ←
![Bay 039 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b039.png?v=1715112095208)

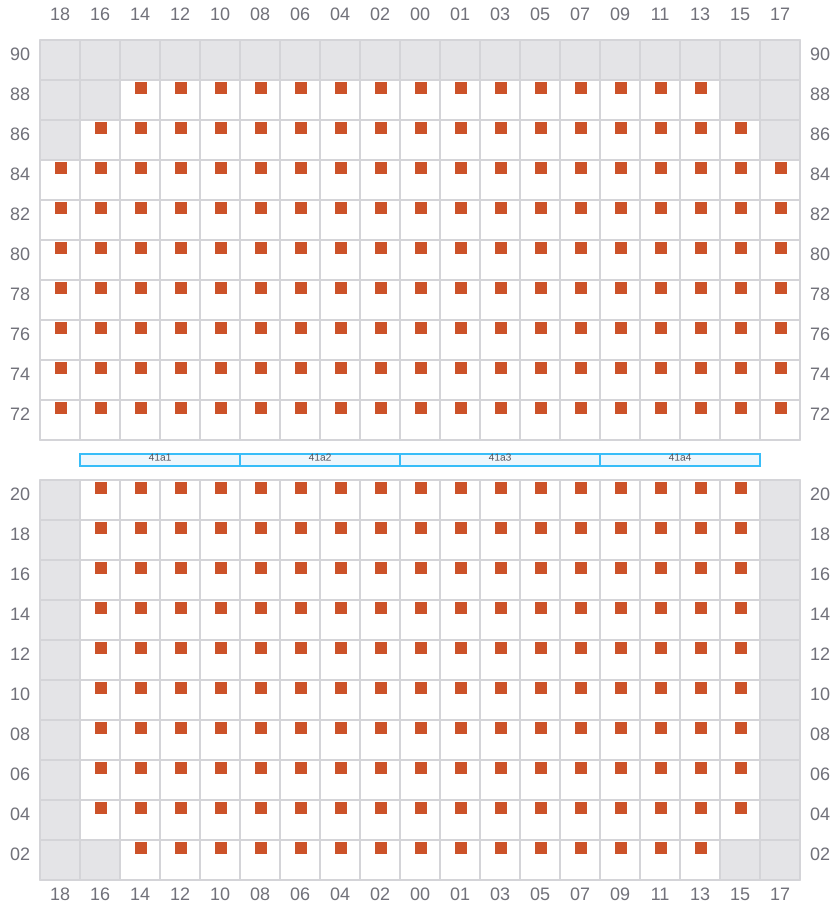

041
- →
![Bay 041 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b041.png?v=1715112095208)
043 (042)
- ←
![Bay 043 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b043.png?v=1715112095208)
045
- →
![Bay 045 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b045.png?v=1715112095208)

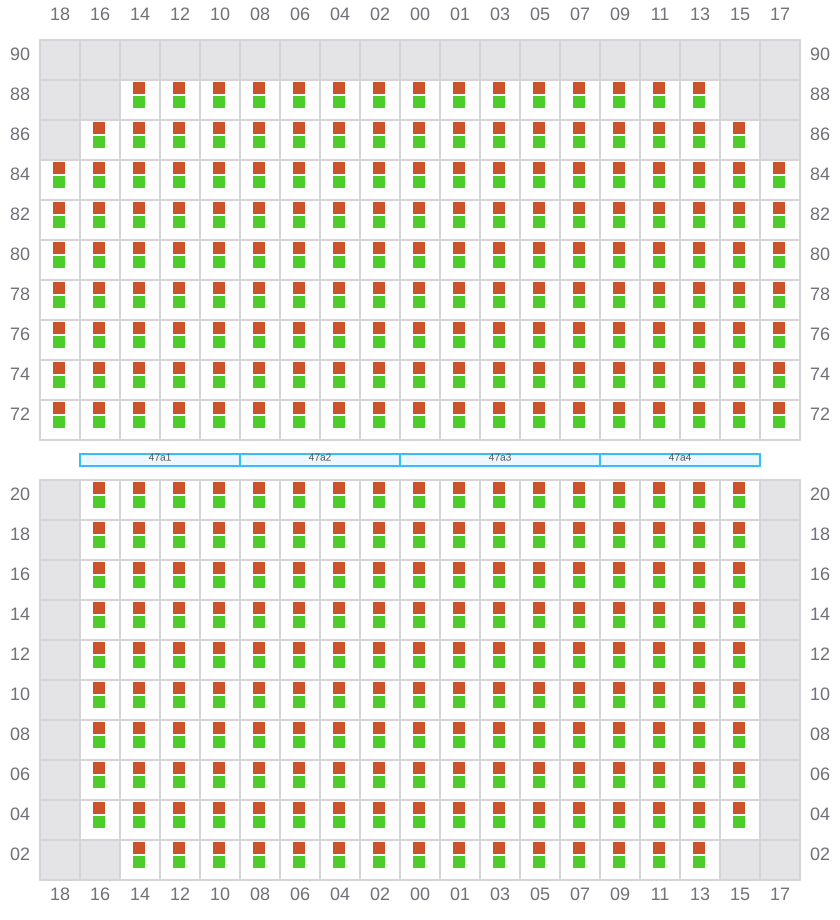

047 (046)
- ←
![Bay 047 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b047.png?v=1715112095208)

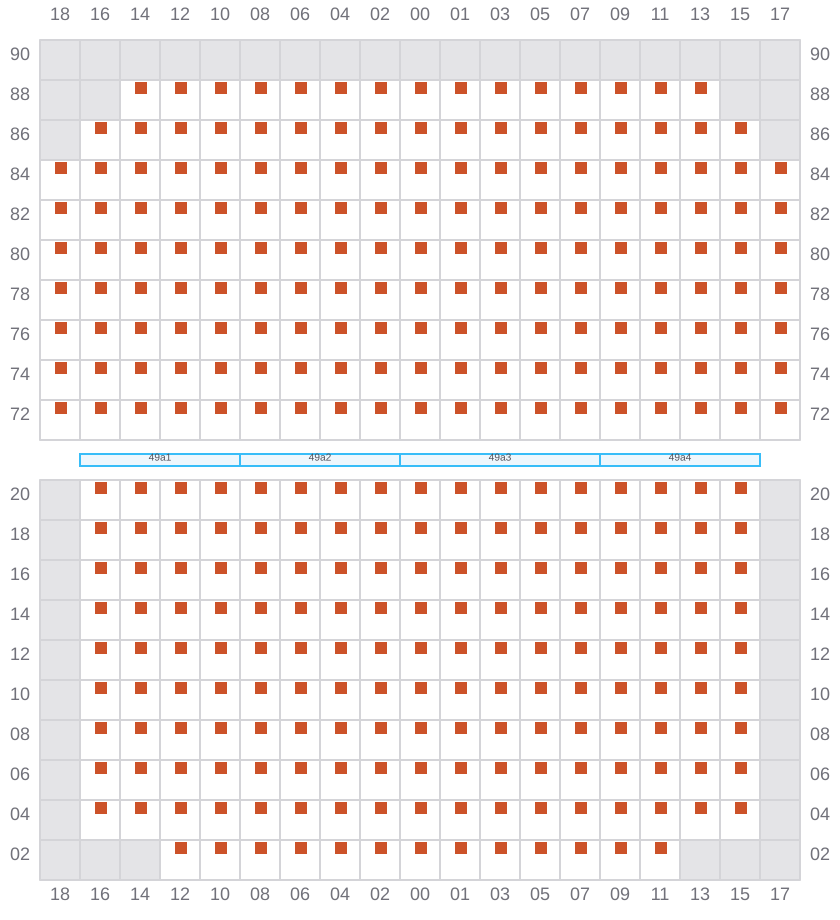

049
- →
![Bay 049 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b049.png?v=1715112095208)

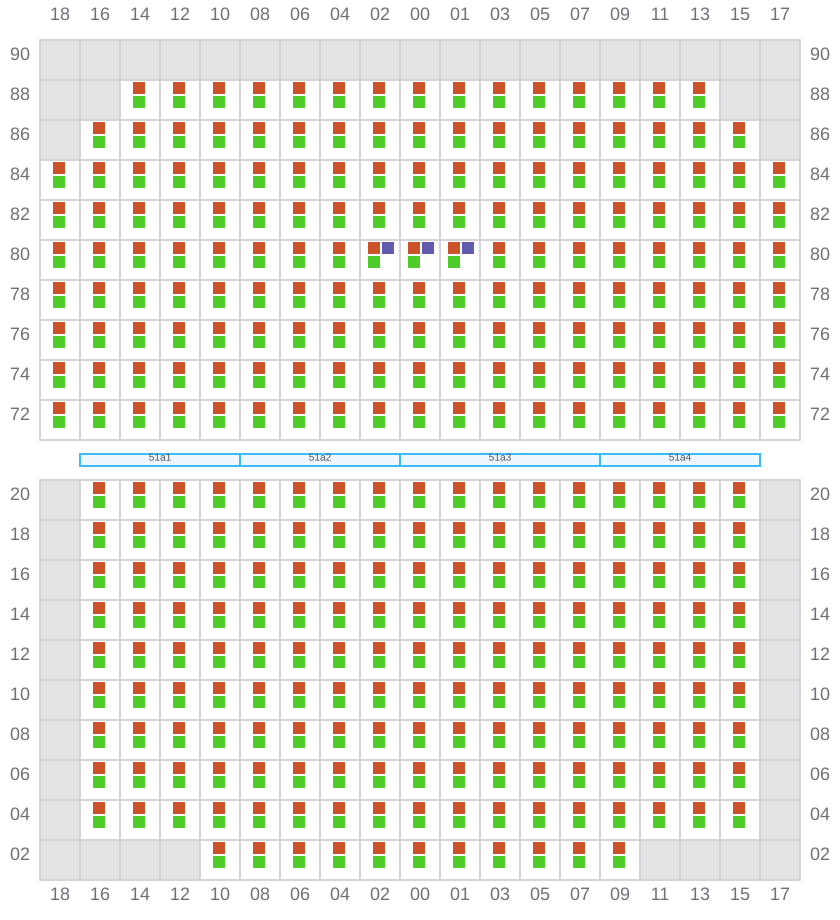

051 (050)
- ←
![Bay 051 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b051.png?v=1715112095208)

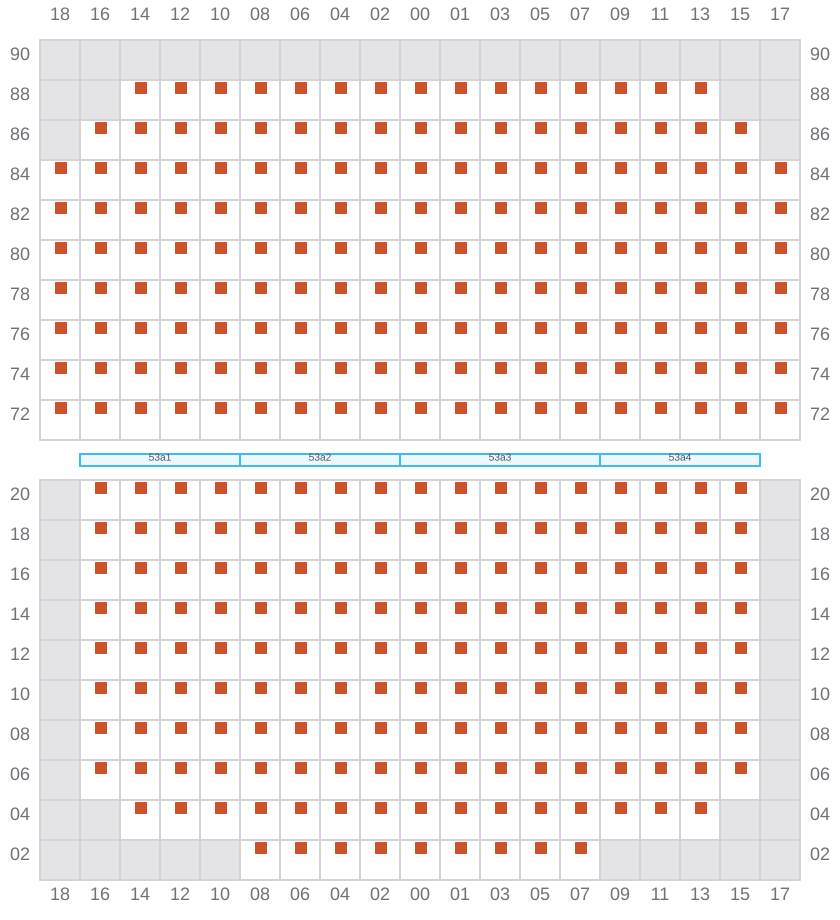

053
- →
![Bay 053 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b053.png?v=1715112095208)

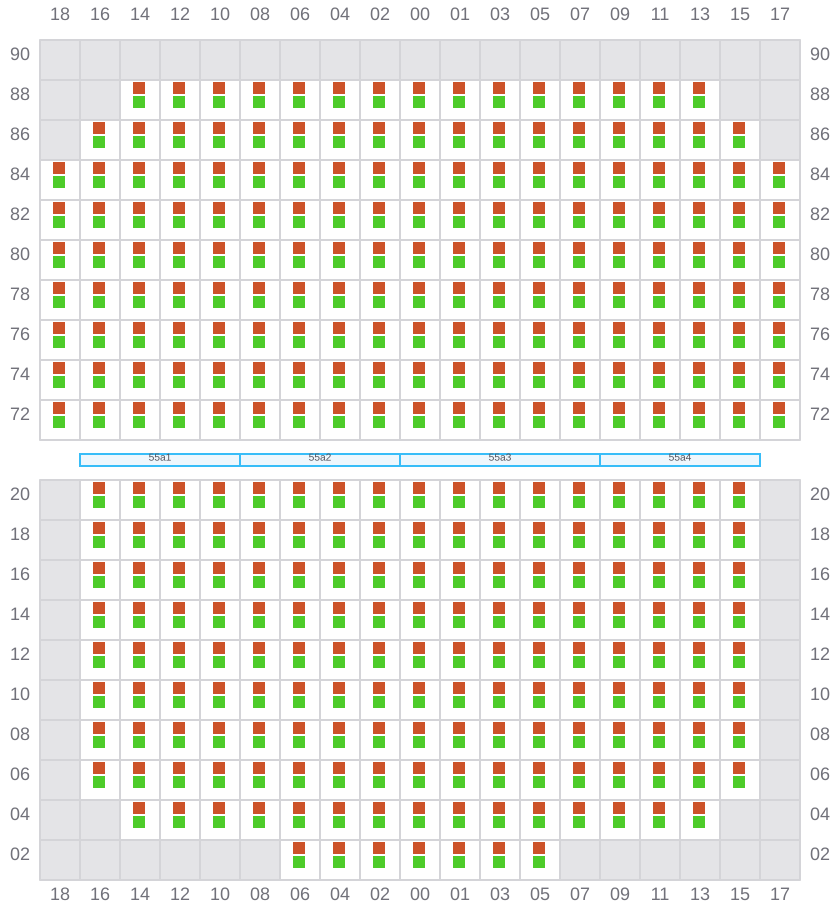

055 (054)
- ←
![Bay 055 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b055.png?v=1715112095208)

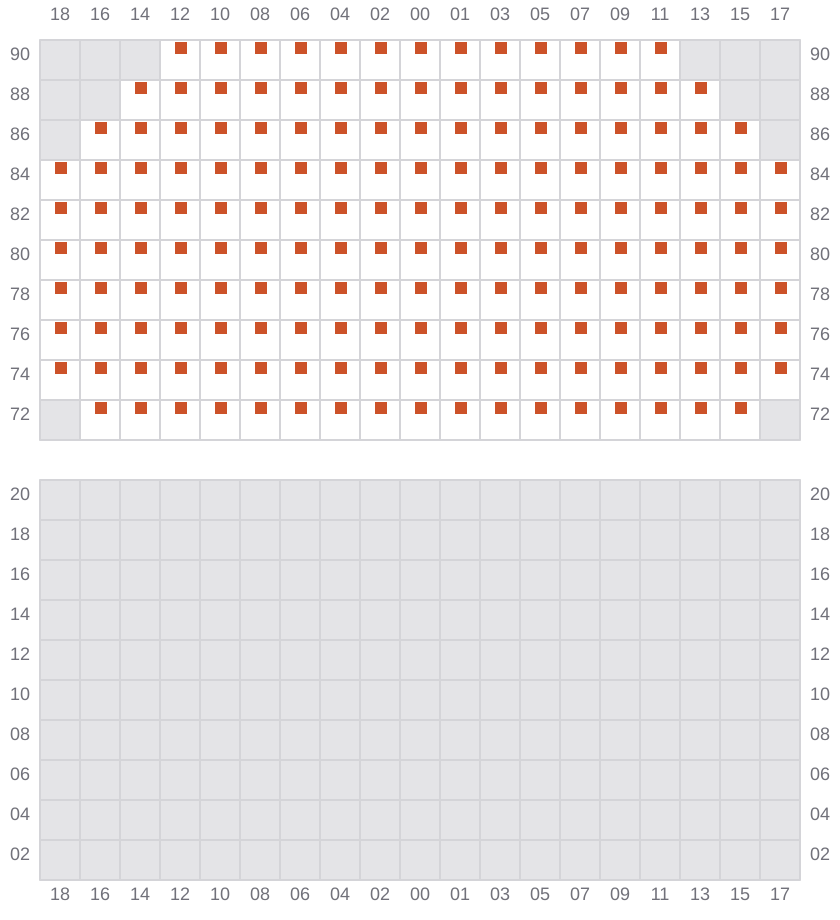

057
- → / ?
![Bay 057 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b057.png?v=1715112095208)

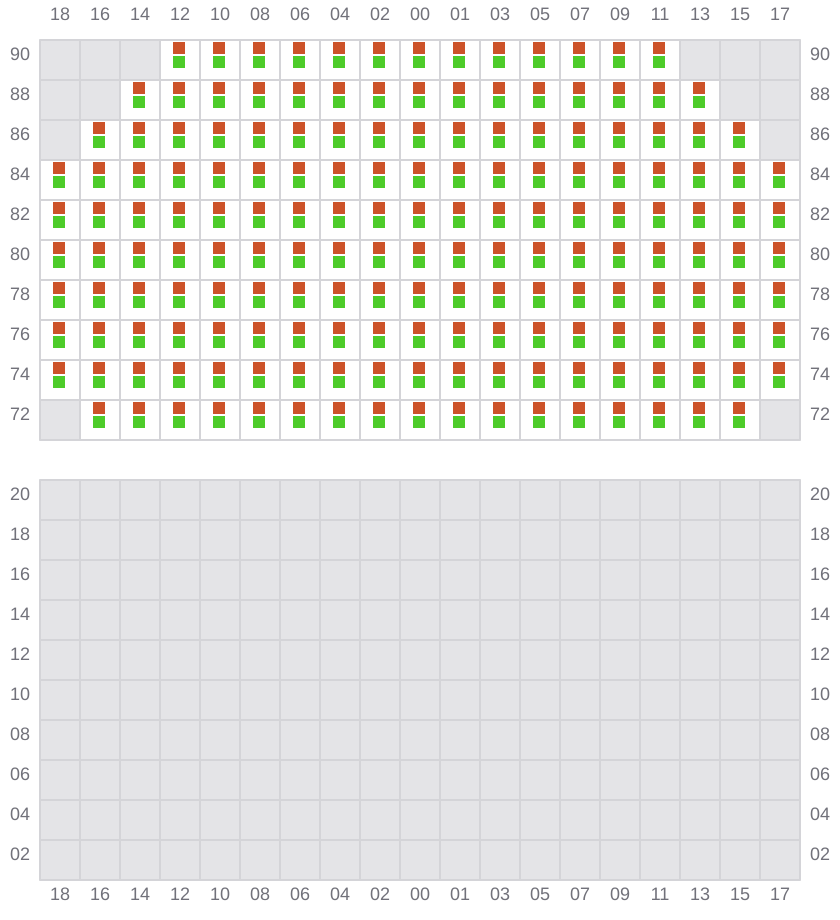

059 (058)
- ← / ?
![Bay 059 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b059.png?v=1715112095208)

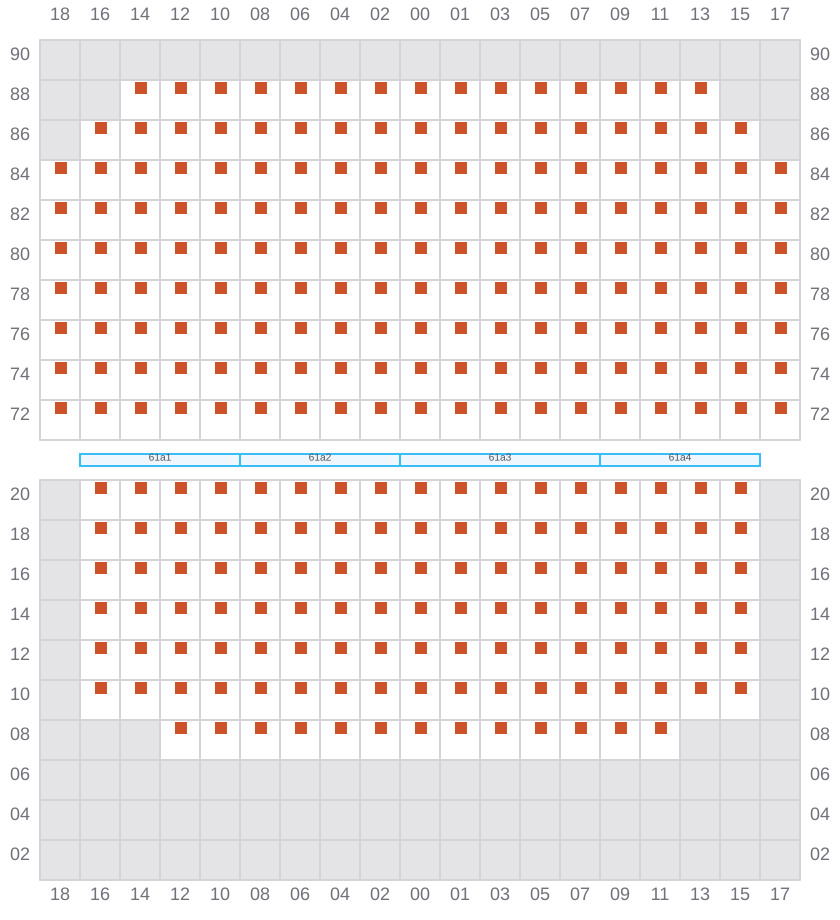

061
- →
![Bay 061 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b061.png?v=1715112095208)

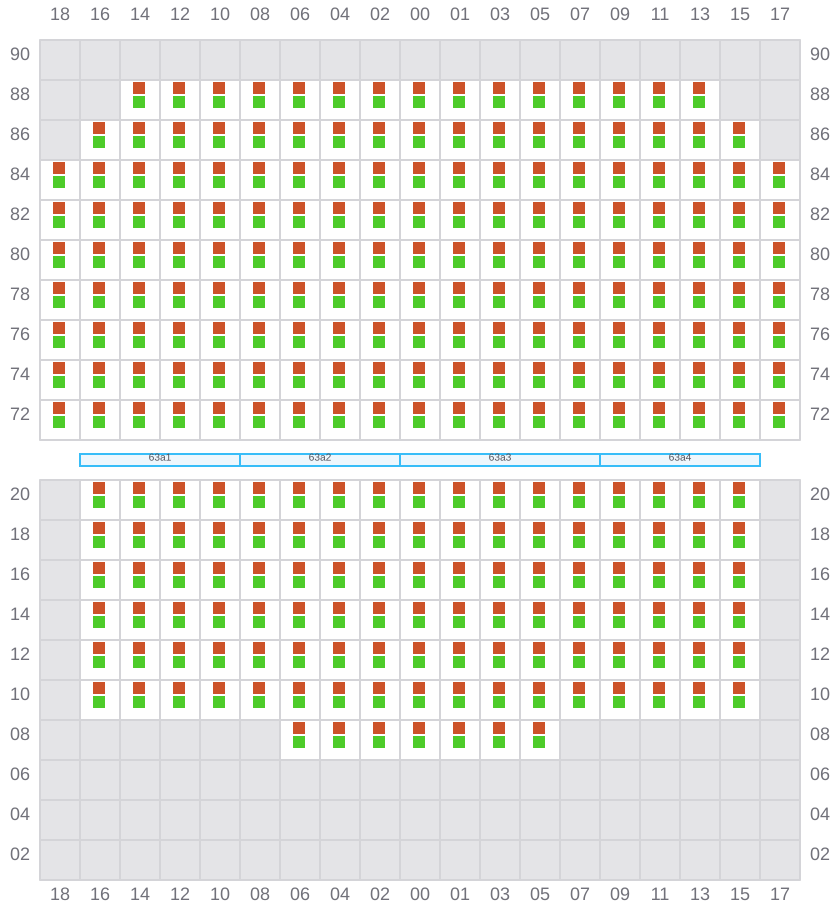

063 (062)
- ←
![Bay 063 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b063.png?v=1715112095208)

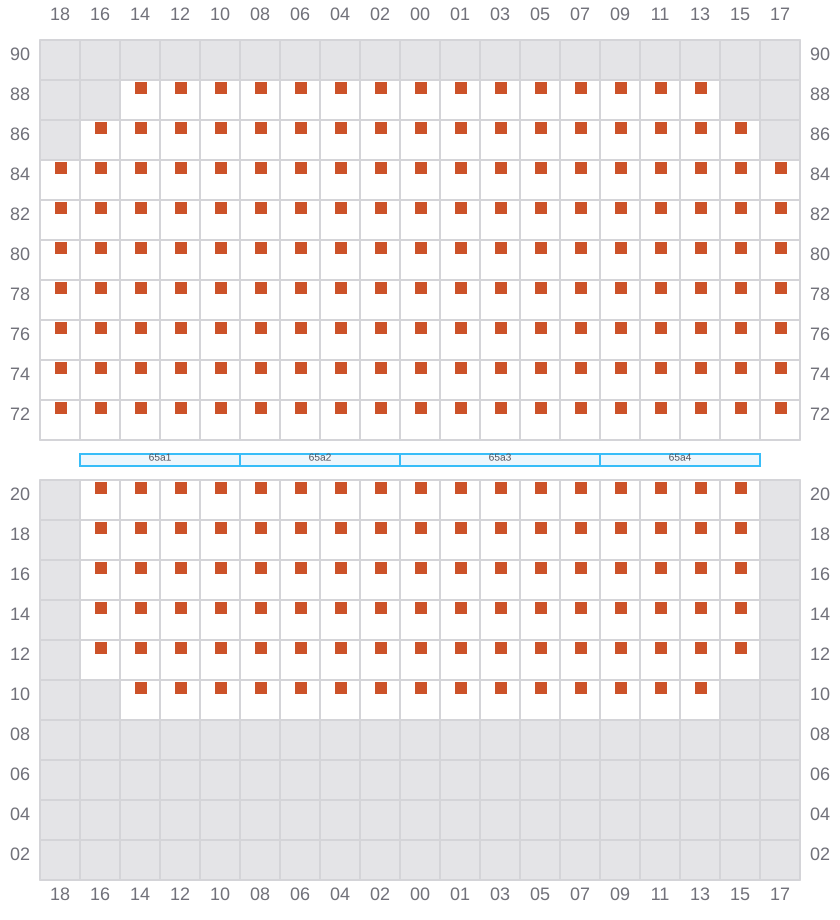

065
- →
![Bay 065 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b065.png?v=1715112095208)

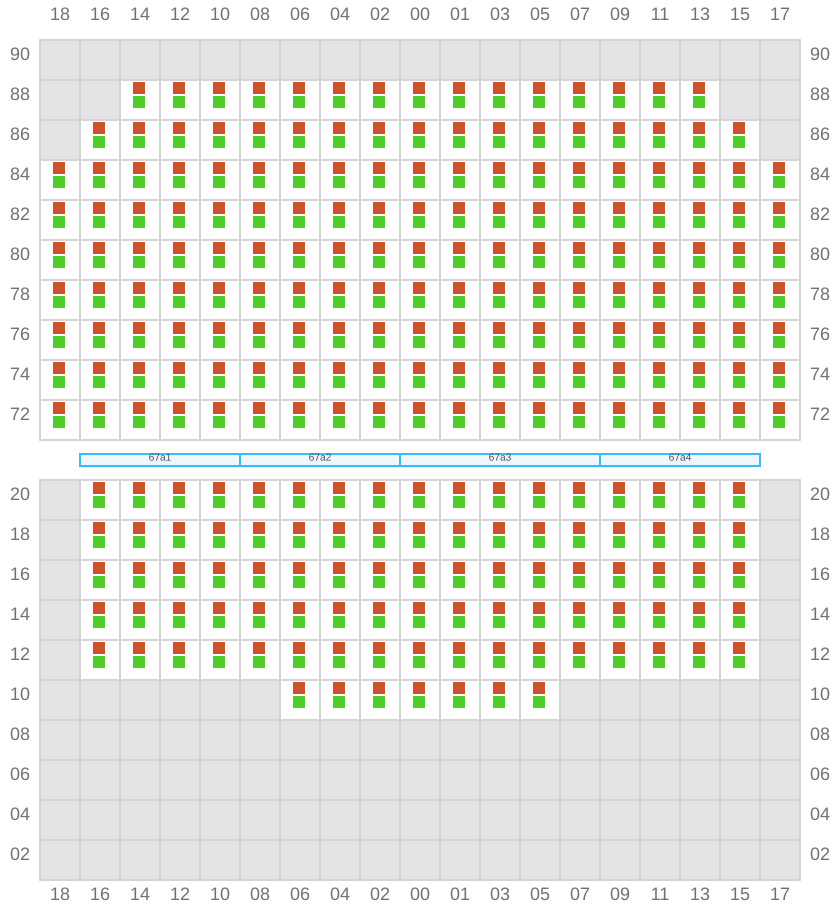

067 (066)
- ←
![Bay 067 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b067.png?v=1715112095208)
069
![Bay 069 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b069.png?v=1715112095208)

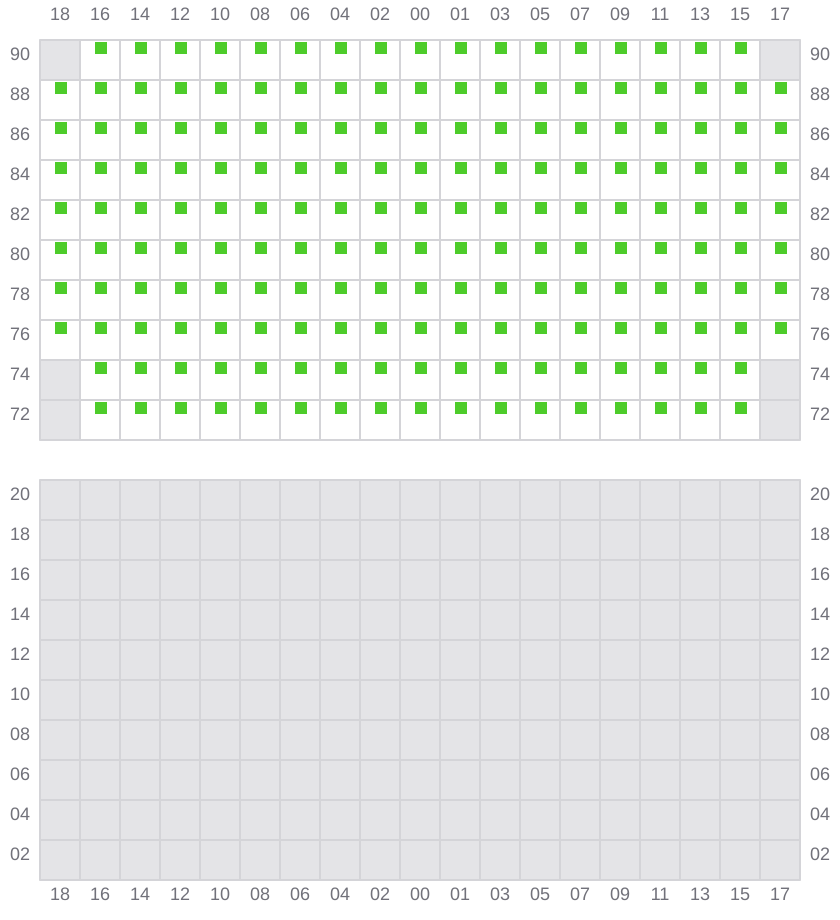

071 (070)
- ← / ?
![Bay 071 view and slots of CMA CGM MISSOURI](/vessel-images/7bcc1ad9-e173-46ab-9226-a677045ff6b6-b071.png?v=1715112095208)
