CMA CGM MOMBASA
9367815 | 9HA5588 | 9367815 by ********* Last update: Sat Mar 23 2024

General Info

Ship Name:CMA CGM MOMBASA
IMO Code:9367815
Call Sign:9HA5588
Line Operator:9367815
Class Name for Sister Ships:73C
Year Built:2008
Position Format:Bay, Tier, Row
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,564

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

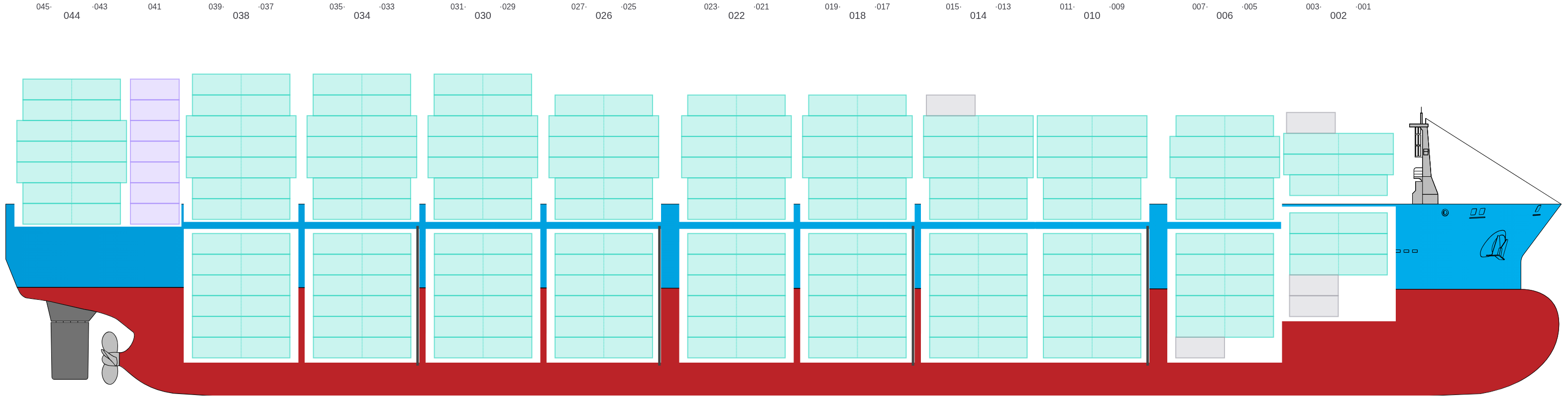

Side view of CMA CGM MOMBASA

Hatch-Covers View

Deck view of CMA CGM MOMBASA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

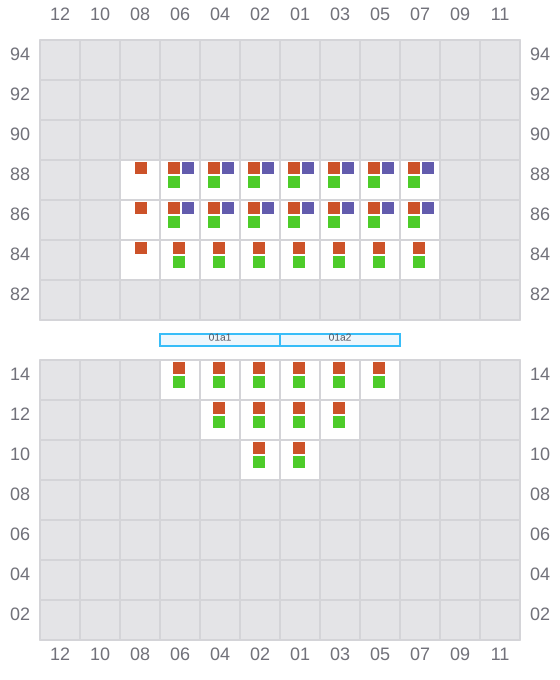

Bay 001 view and slots of CMA CGM MOMBASA

003

  • ←
  • → / ?

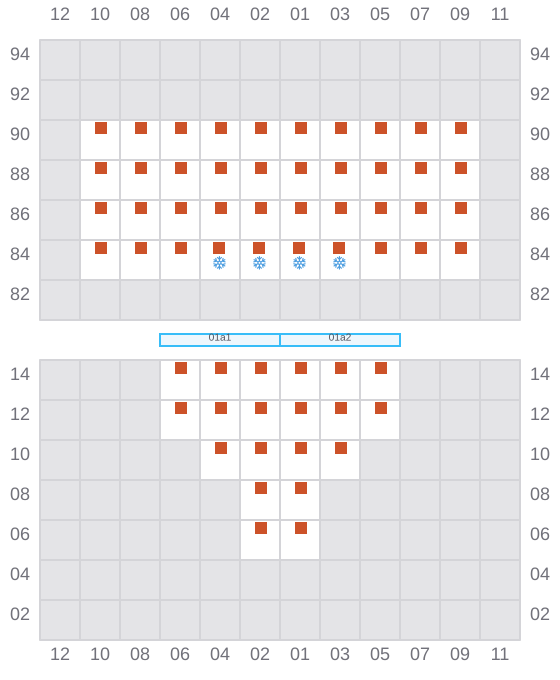

Bay 003 view and slots of CMA CGM MOMBASA

005 (006)

  • →

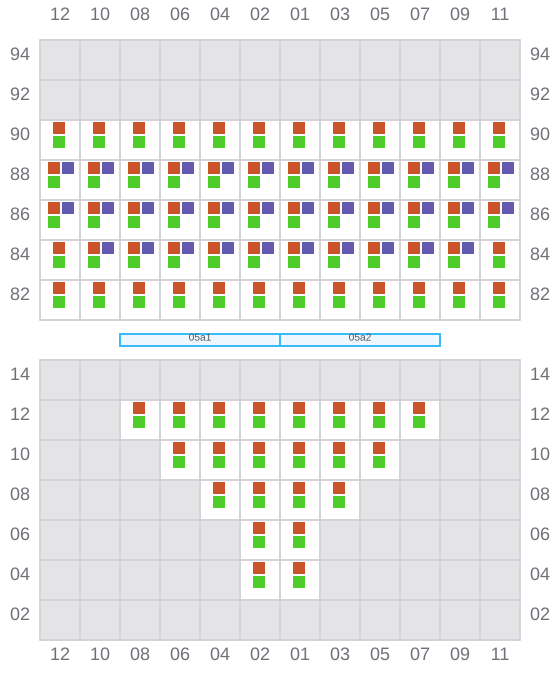

Bay 005 view and slots of CMA CGM MOMBASA

007

  • ←
  • → / ?

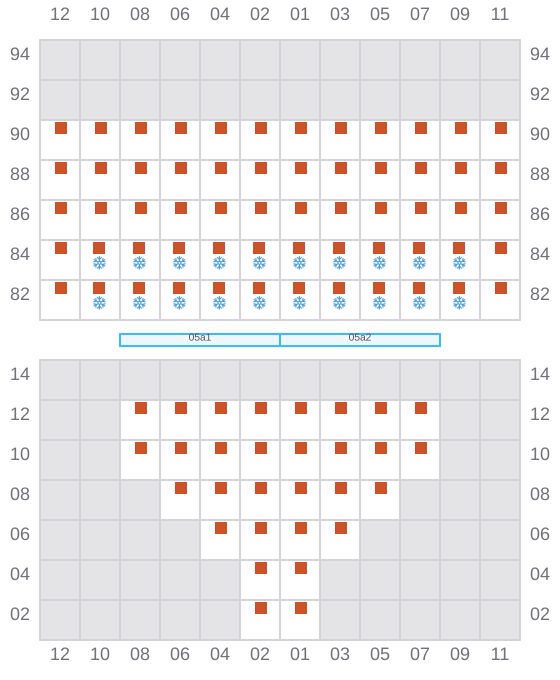

Bay 007 view and slots of CMA CGM MOMBASA

009 (010)

  • →

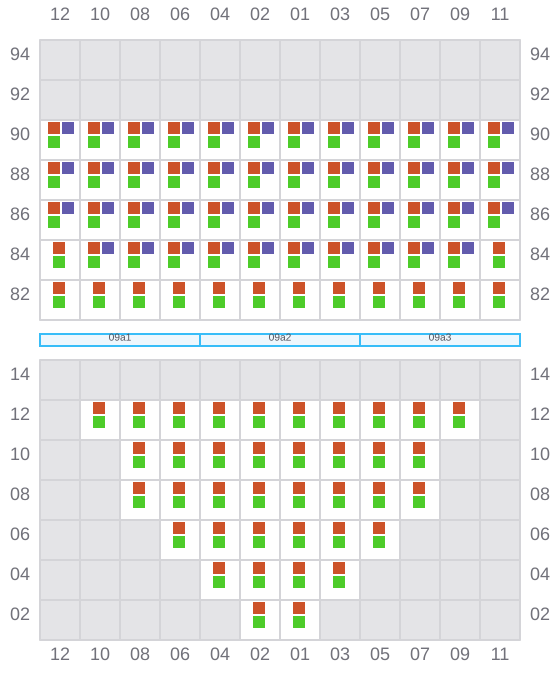

Bay 009 view and slots of CMA CGM MOMBASA

011

  • ←
  • → / ?

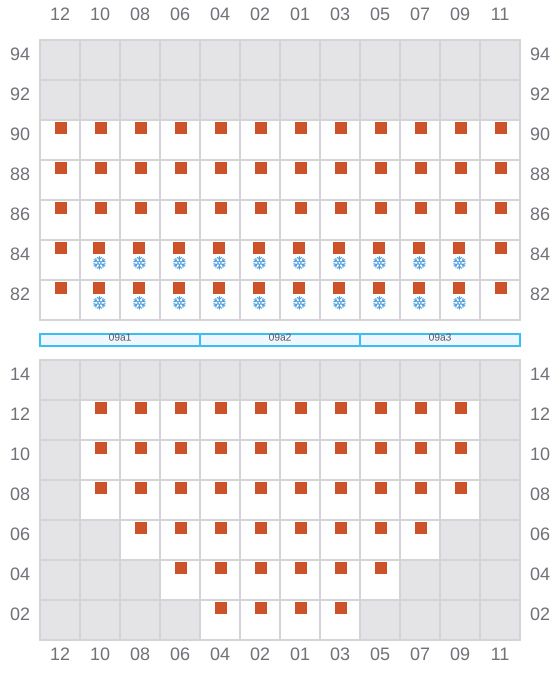

Bay 011 view and slots of CMA CGM MOMBASA

013 (014)

  • →

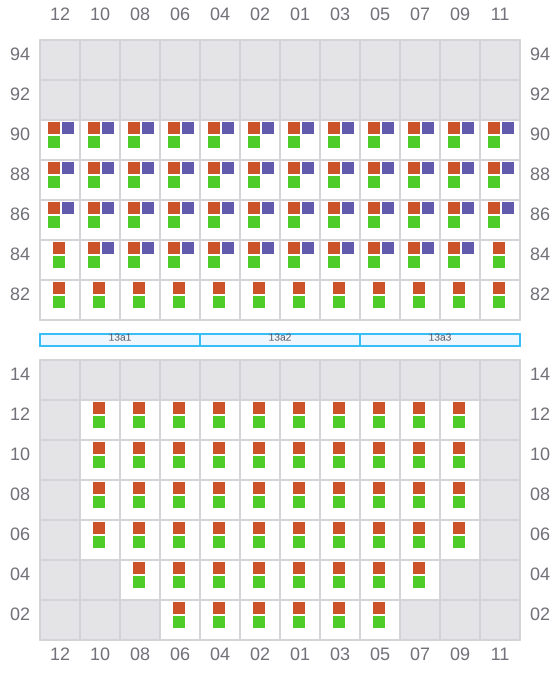

Bay 013 view and slots of CMA CGM MOMBASA

015

  • ←
  • → / ?

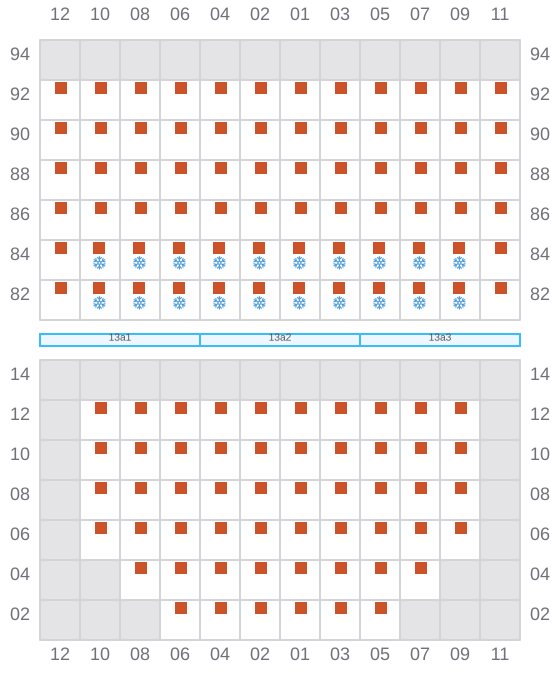

Bay 015 view and slots of CMA CGM MOMBASA

017 (018)

  • →

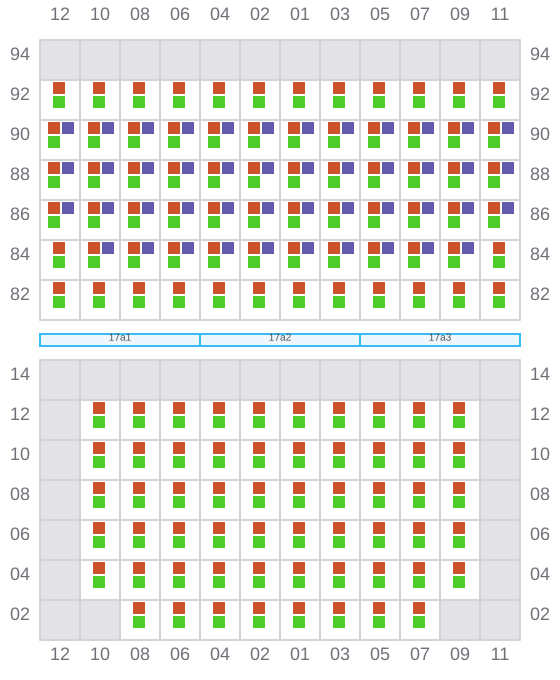

Bay 017 view and slots of CMA CGM MOMBASA

019

  • ←
  • → / ?
Bay 019 view and slots of CMA CGM MOMBASA

021 (022)

  • →
  • ? / ←

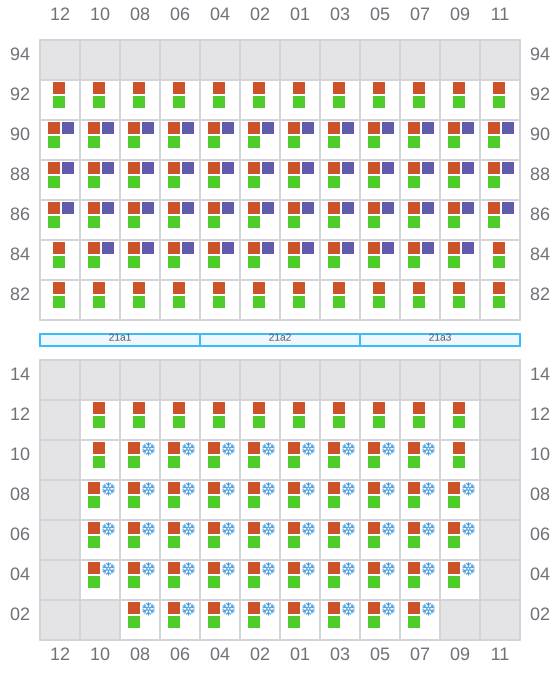

Bay 021 view and slots of CMA CGM MOMBASA

023

  • ←
  • → / ?

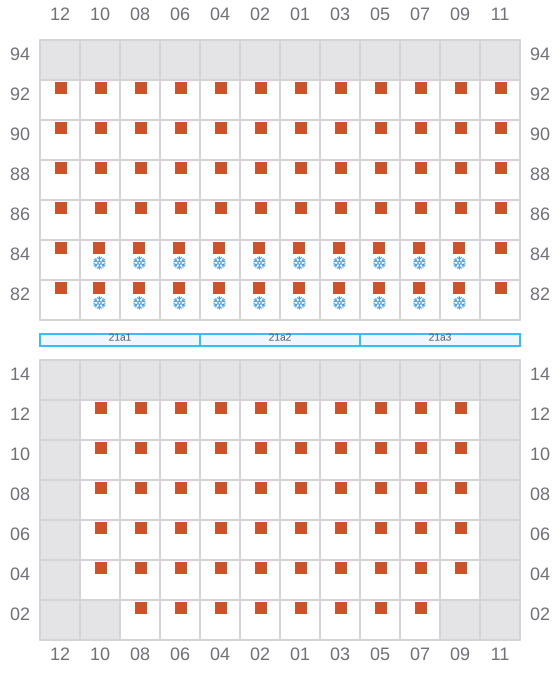

Bay 023 view and slots of CMA CGM MOMBASA

025 (026)

  • →

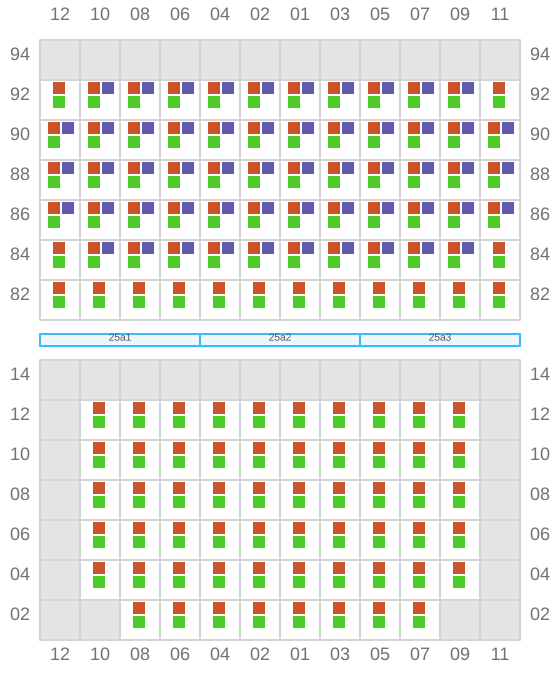

Bay 025 view and slots of CMA CGM MOMBASA

027

  • ←
  • → / ?

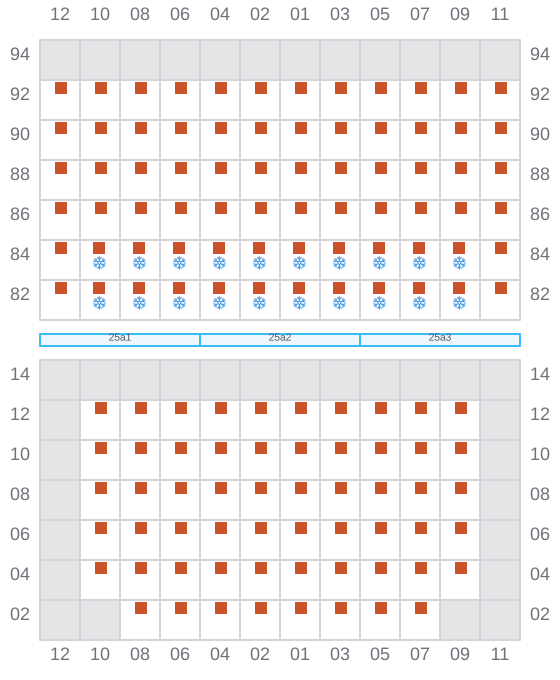

Bay 027 view and slots of CMA CGM MOMBASA

029 (030)

  • →
  • ? / ←

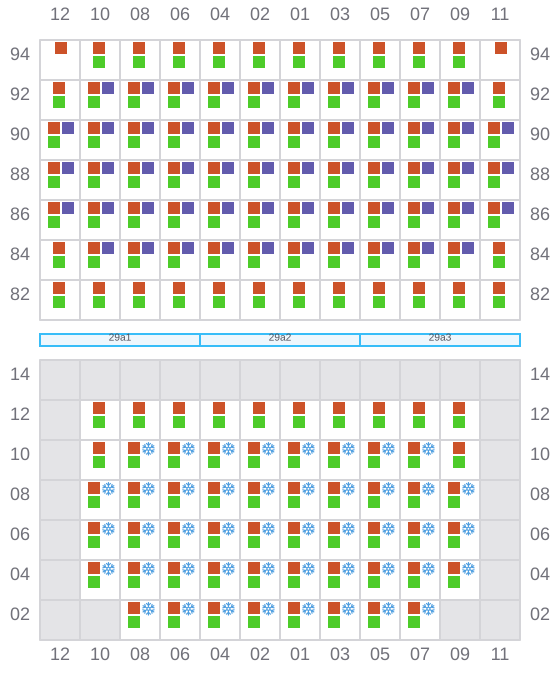

Bay 029 view and slots of CMA CGM MOMBASA

031

  • ←
  • → / ?

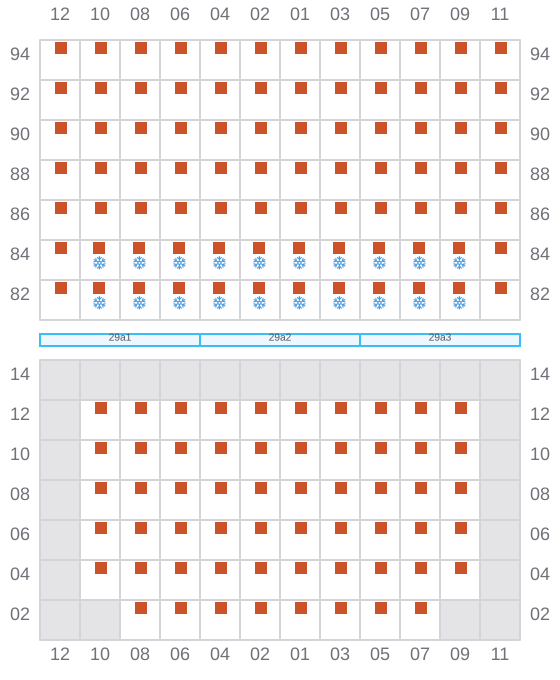

Bay 031 view and slots of CMA CGM MOMBASA

033 (034)

  • →

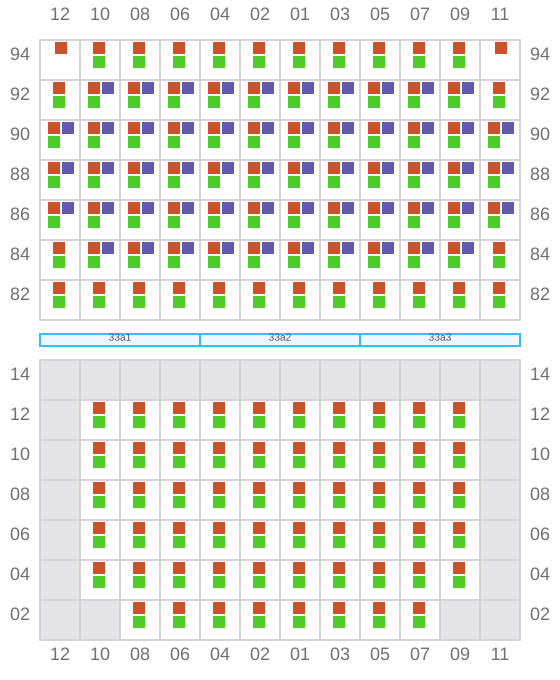

Bay 033 view and slots of CMA CGM MOMBASA

035

  • ←
  • →

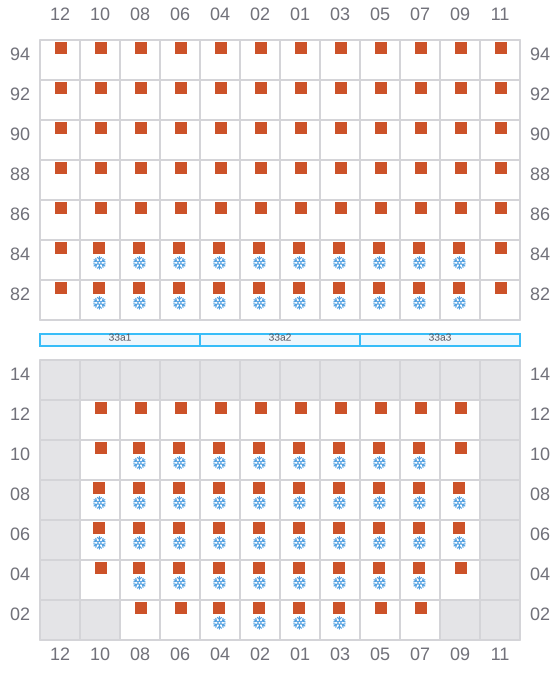

Bay 035 view and slots of CMA CGM MOMBASA

037 (038)

  • →
  • ? / ←

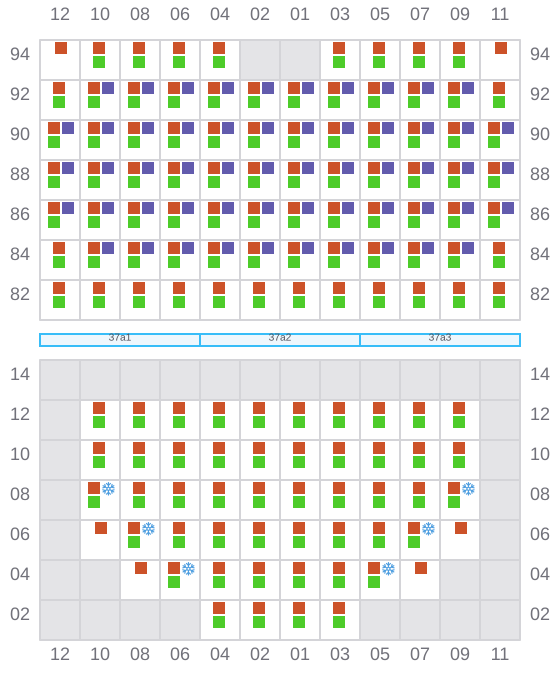

Bay 037 view and slots of CMA CGM MOMBASA

039

  • ←
  • → / ?

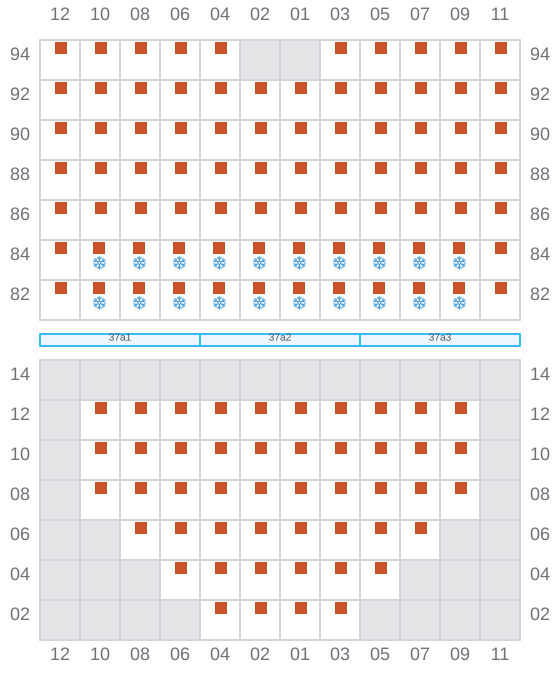

Bay 039 view and slots of CMA CGM MOMBASA

041

Bay 041 view and slots of CMA CGM MOMBASA

043 (044)

  • → / ?

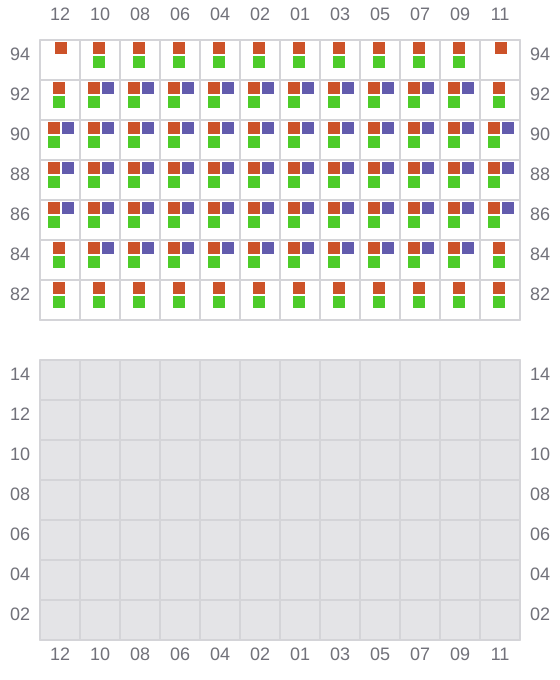

Bay 043 view and slots of CMA CGM MOMBASA

045

  • ← / ?
  • → / ?

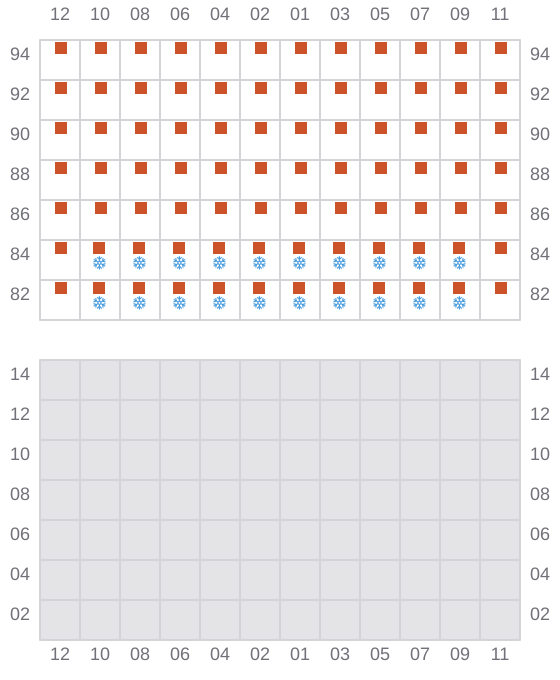

Bay 045 view and slots of CMA CGM MOMBASA
