CMA CGM MONTREAL
9363417 | 9HA5616 | 9363417 by ********* Last update: Wed May 01 2024

General Info

Ship Name:CMA CGM MONTREAL
IMO Code:9363417
Call Sign:9HA5616
Line Operator:9363417
Class Name for Sister Ships:HANJIN NINGBO
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,559

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

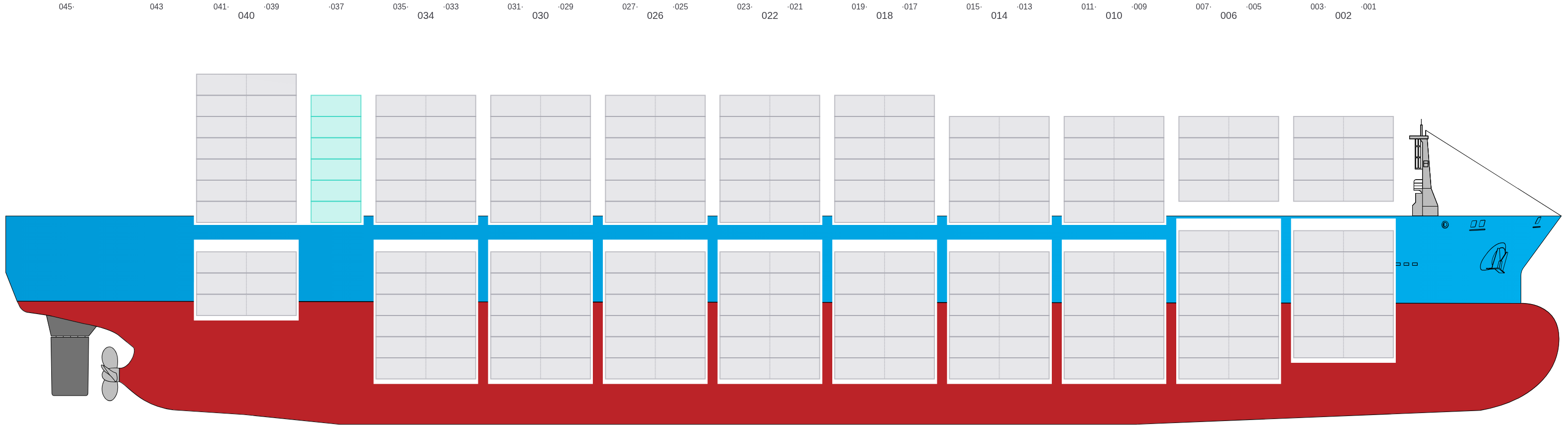

Side View

Side view of CMA CGM MONTREAL

Hatch-Covers View

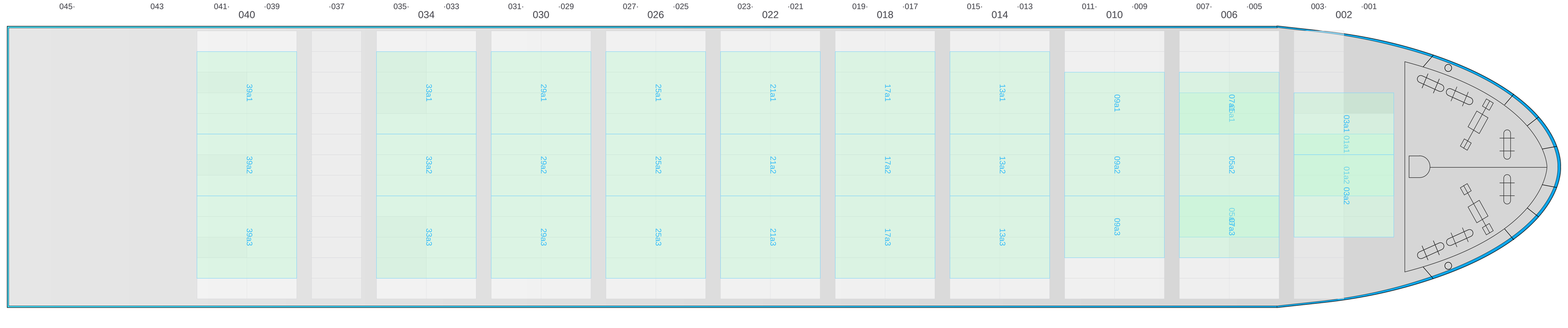

Deck view of CMA CGM MONTREAL

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

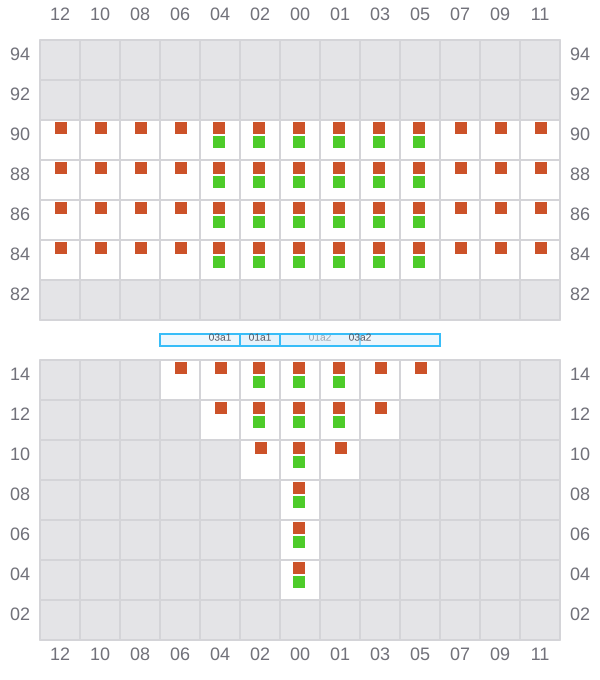

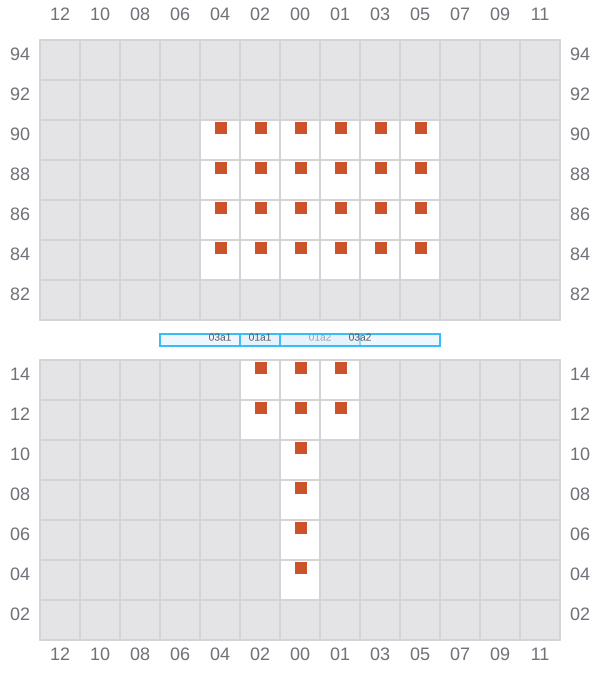

Bay 001 view and slots of CMA CGM MONTREAL

003 (002)

  • ←
Bay 003 view and slots of CMA CGM MONTREAL

005

  • →

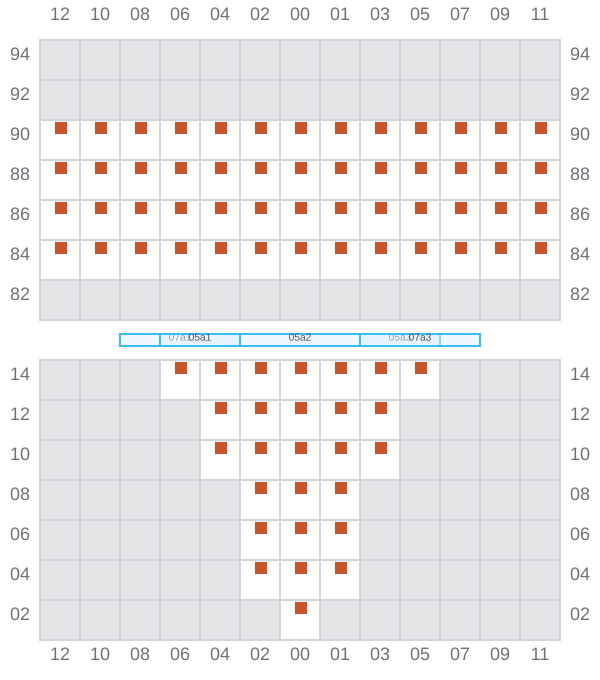

Bay 005 view and slots of CMA CGM MONTREAL

007 (006)

  • ←

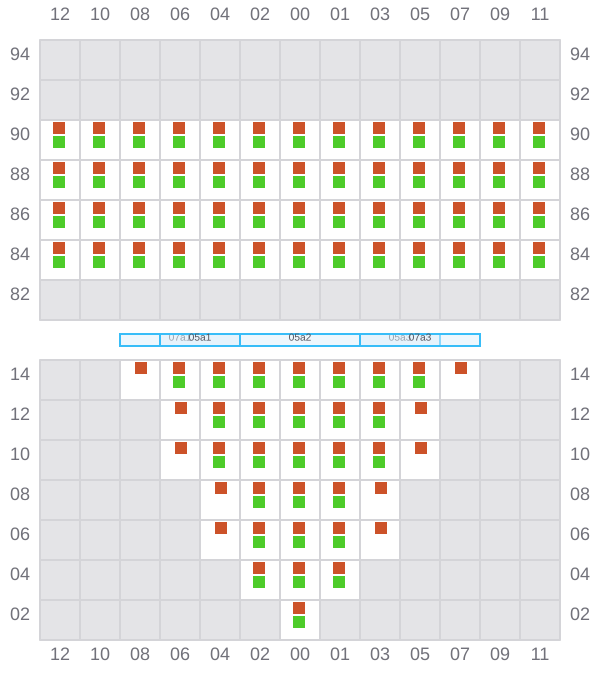

Bay 007 view and slots of CMA CGM MONTREAL

009

  • →

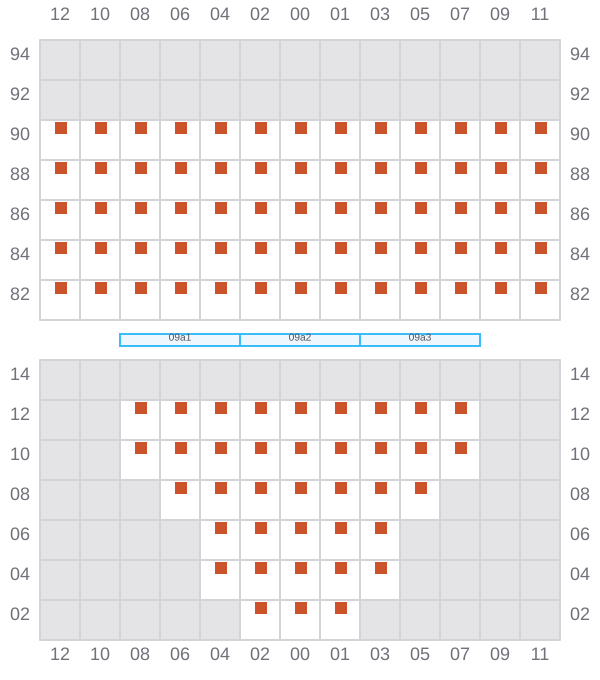

Bay 009 view and slots of CMA CGM MONTREAL

011 (010)

  • ←

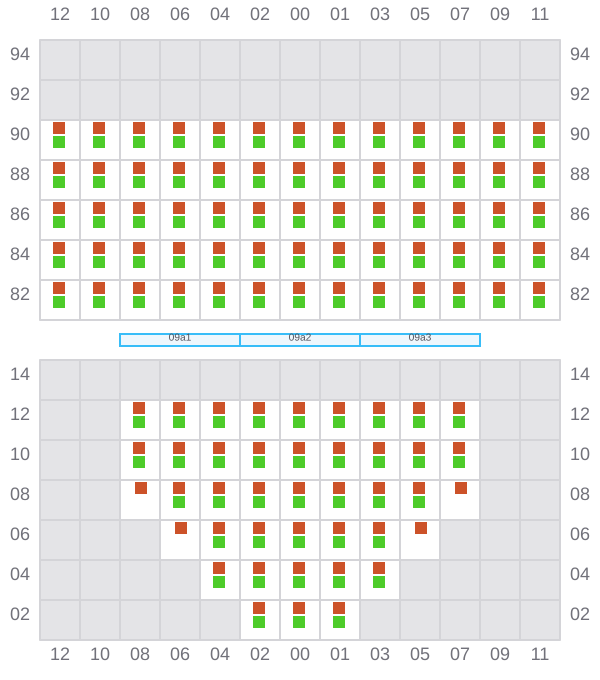

Bay 011 view and slots of CMA CGM MONTREAL

013

  • →

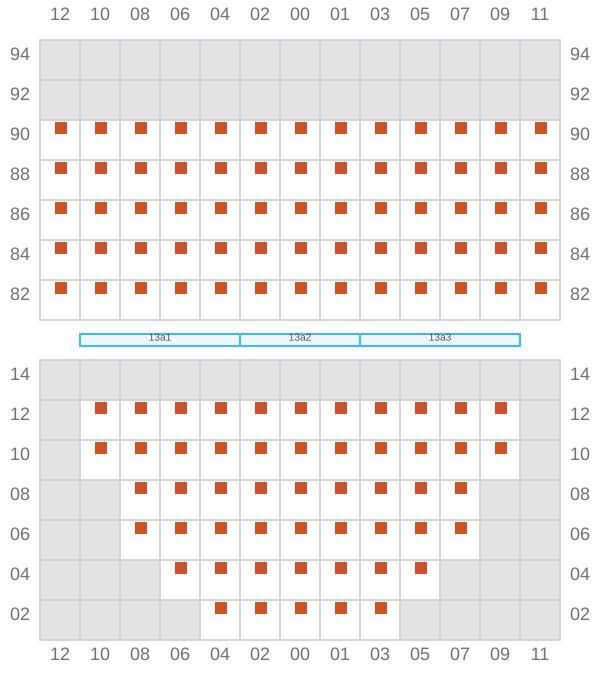

Bay 013 view and slots of CMA CGM MONTREAL

015 (014)

  • ←

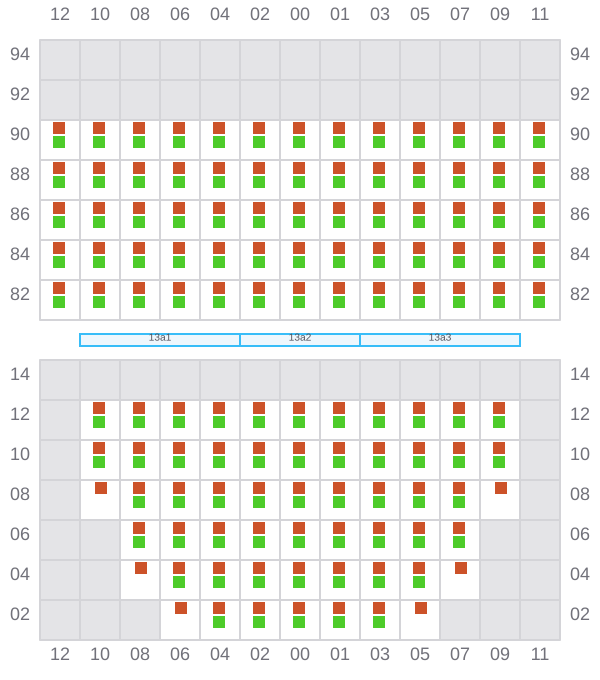

Bay 015 view and slots of CMA CGM MONTREAL

017

  • →

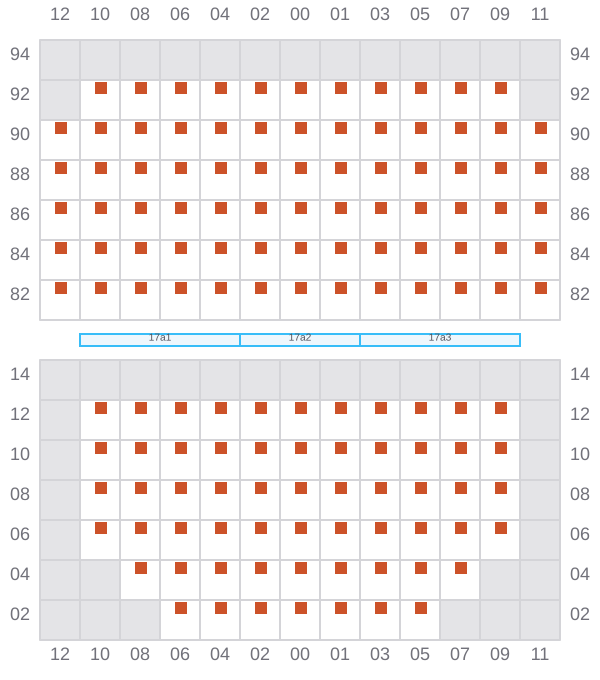

Bay 017 view and slots of CMA CGM MONTREAL

019 (018)

  • ←

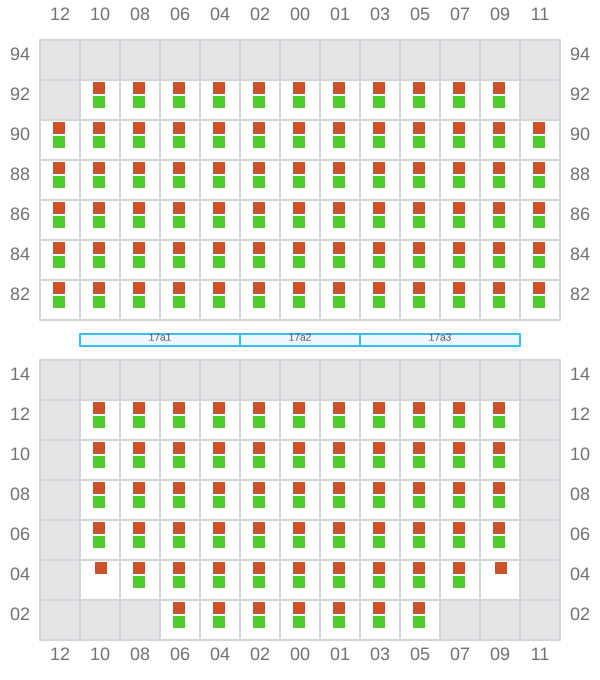

Bay 019 view and slots of CMA CGM MONTREAL

021

  • →

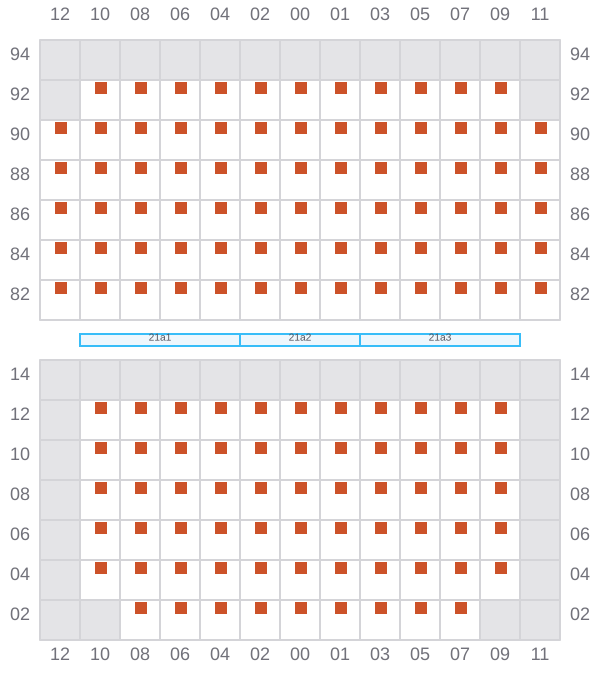

Bay 021 view and slots of CMA CGM MONTREAL

023 (022)

  • ←

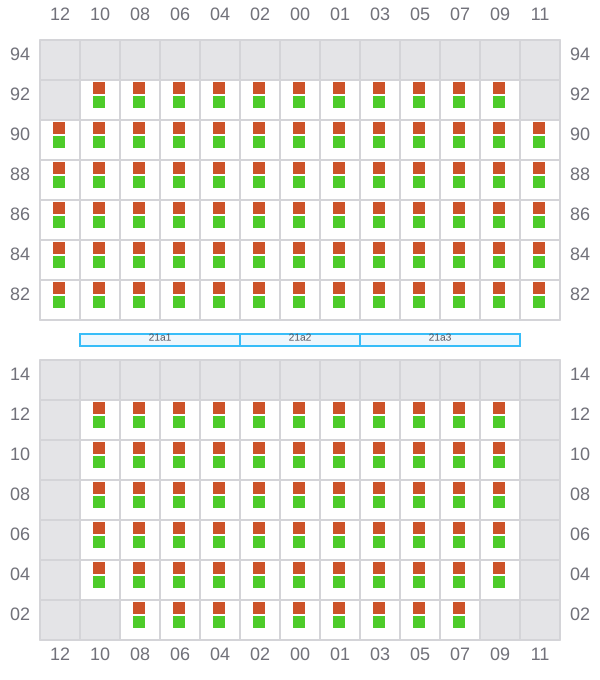

Bay 023 view and slots of CMA CGM MONTREAL

025

  • →
Bay 025 view and slots of CMA CGM MONTREAL

027 (026)

  • ←
Bay 027 view and slots of CMA CGM MONTREAL

029

  • →

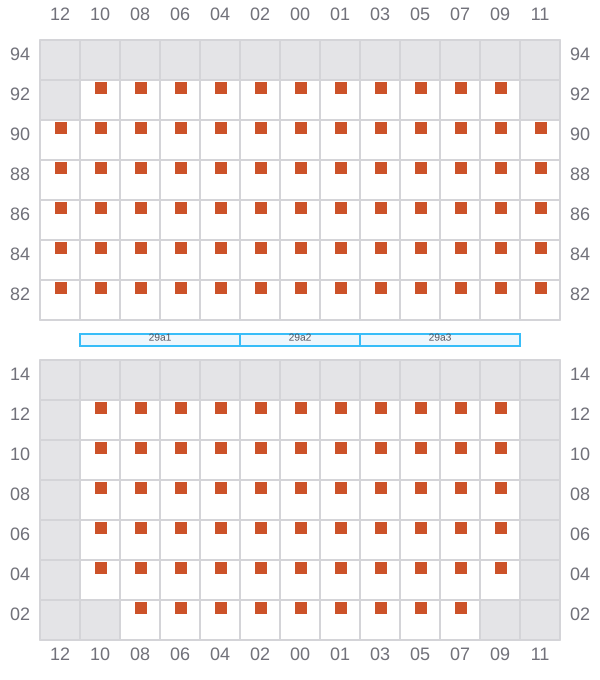

Bay 029 view and slots of CMA CGM MONTREAL

031 (030)

  • ←

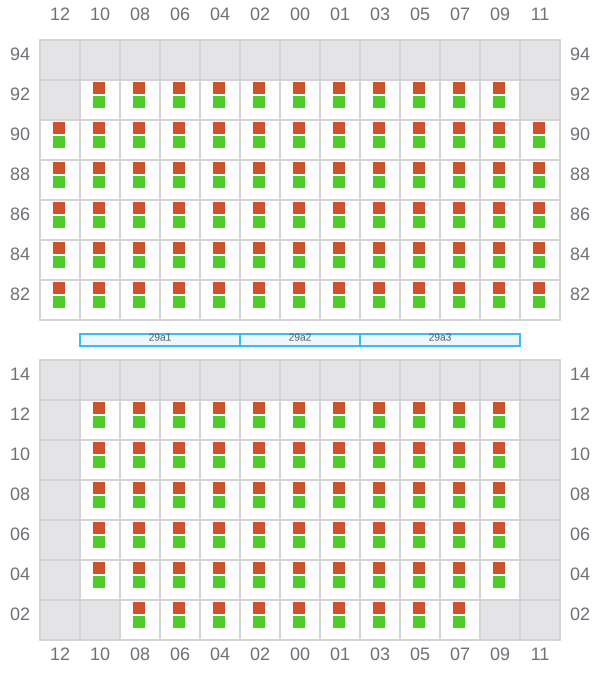

Bay 031 view and slots of CMA CGM MONTREAL

033

  • →
Bay 033 view and slots of CMA CGM MONTREAL

035 (034)

  • ←

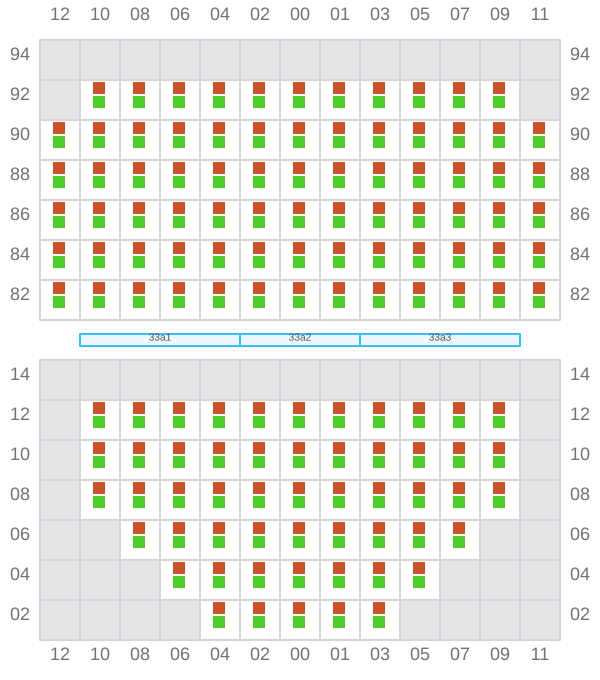

Bay 035 view and slots of CMA CGM MONTREAL

037

  • → / ?

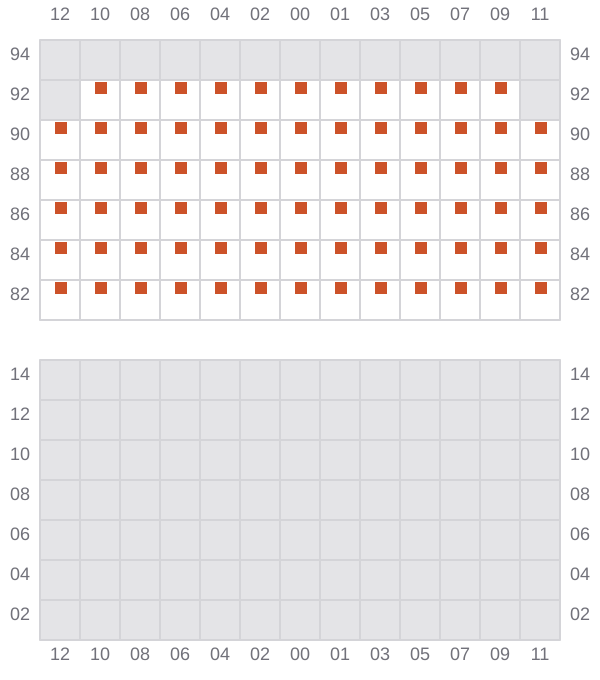

Bay 037 view and slots of CMA CGM MONTREAL

039

  • →

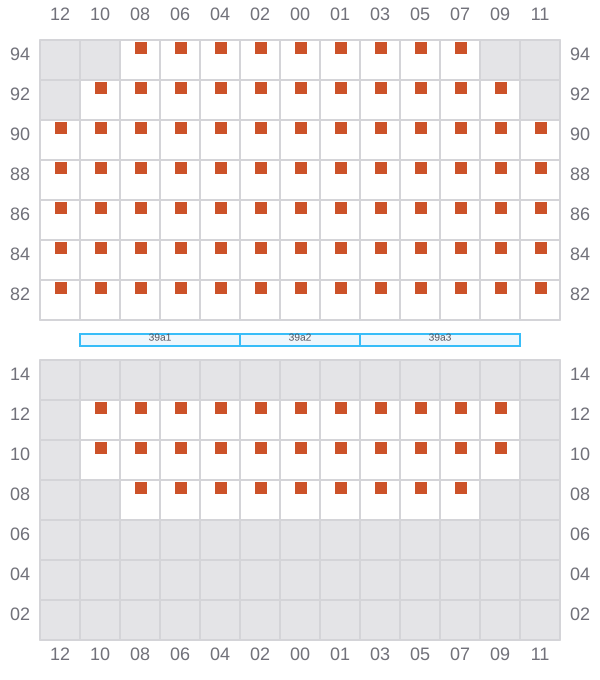

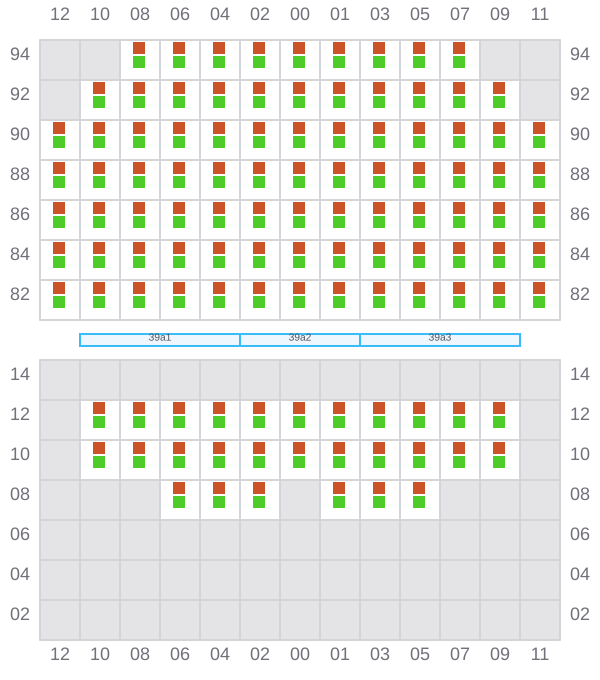

Bay 039 view and slots of CMA CGM MONTREAL

041 (040)

  • ←
Bay 041 view and slots of CMA CGM MONTREAL

043

Bay 043 view and slots of CMA CGM MONTREAL

045 (044)

  • ← / ?
Bay 045 view and slots of CMA CGM MONTREAL
