CMA CGM MOZART
9280615 | 9HA5345 | CMA by *********************** Last update: Fri Jan 17 2025

General Info

Ship Name:CMA CGM MOZART
IMO Code:9280615
Call Sign:9HA5345
Line Operator:CMA
Class Name for Sister Ships:CGMZ
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):260.00
LOA (Length Overall):277.28
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,202

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

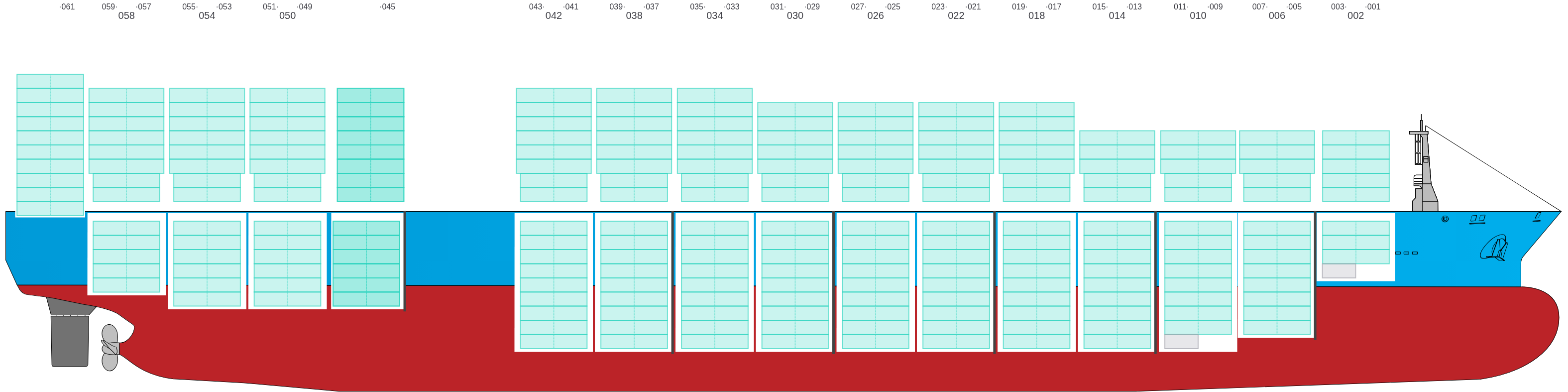

Side View

Side view of CMA CGM MOZART

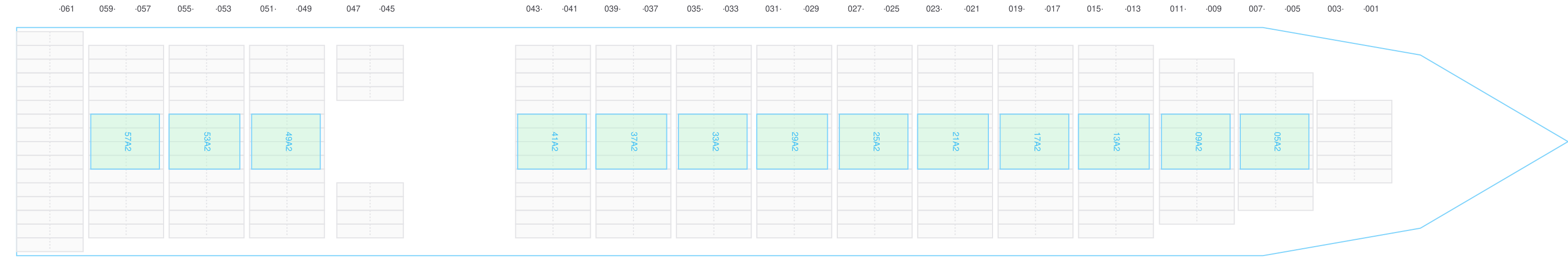

Hatch-Covers View

Deck view of CMA CGM MOZART

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • → / ?
  • → / ←

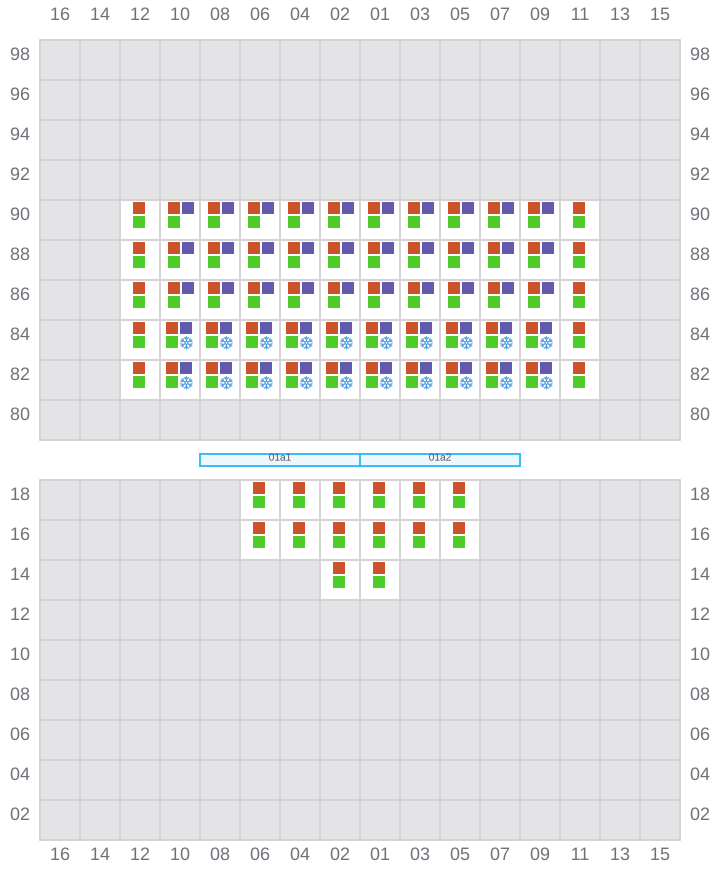

Bay 001 view and slots of CMA CGM MOZART

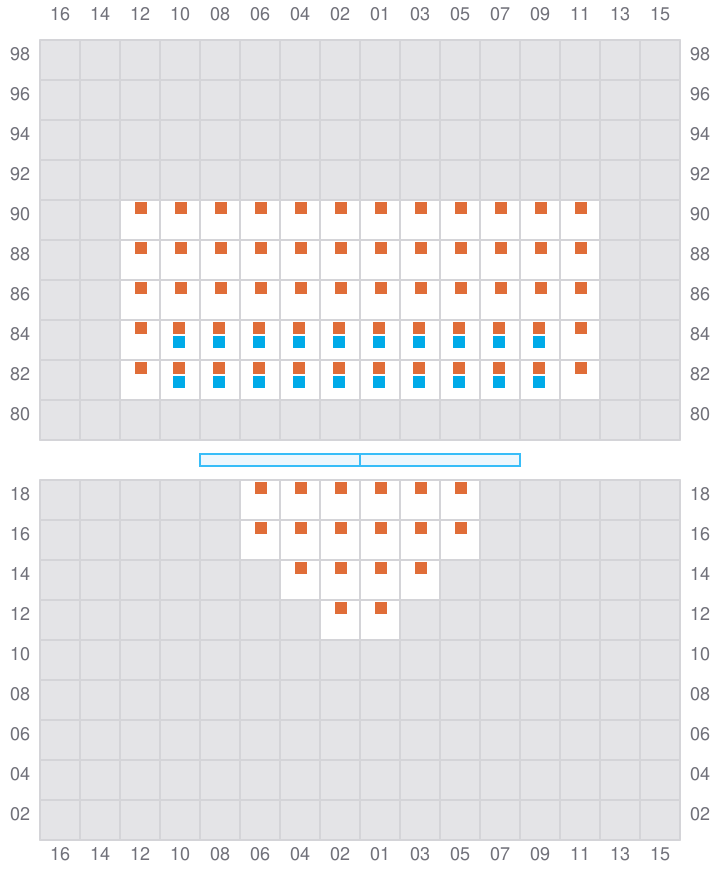

003

  • ←
  • → / ?
  • → / ←
Bay 003 view and slots of CMA CGM MOZART

005 (006)

  • →
  • → / ?
  • → / ←

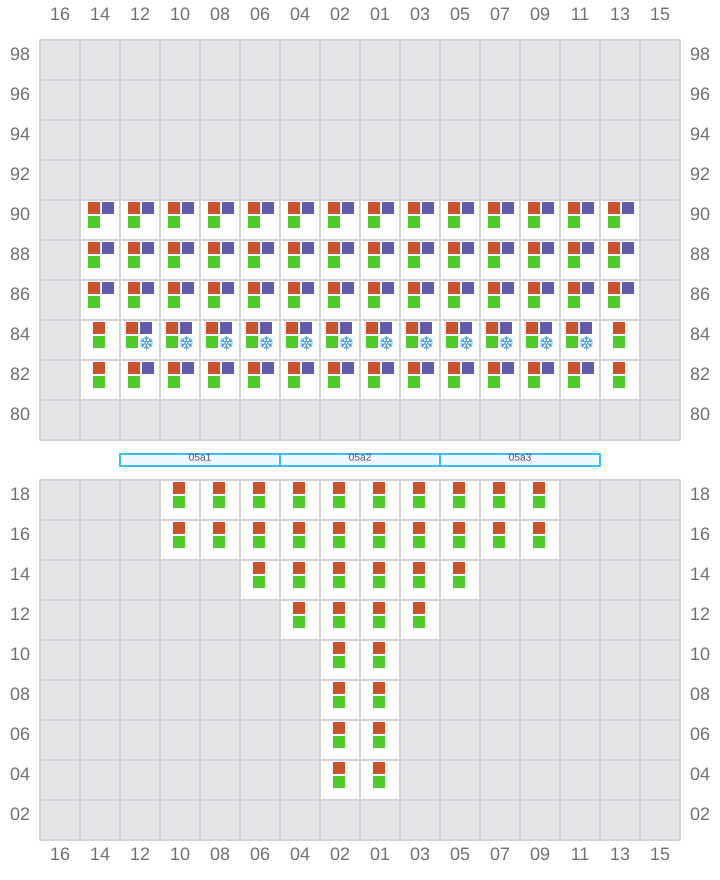

Bay 005 view and slots of CMA CGM MOZART

007

  • ←
  • → / ?
  • → / ←

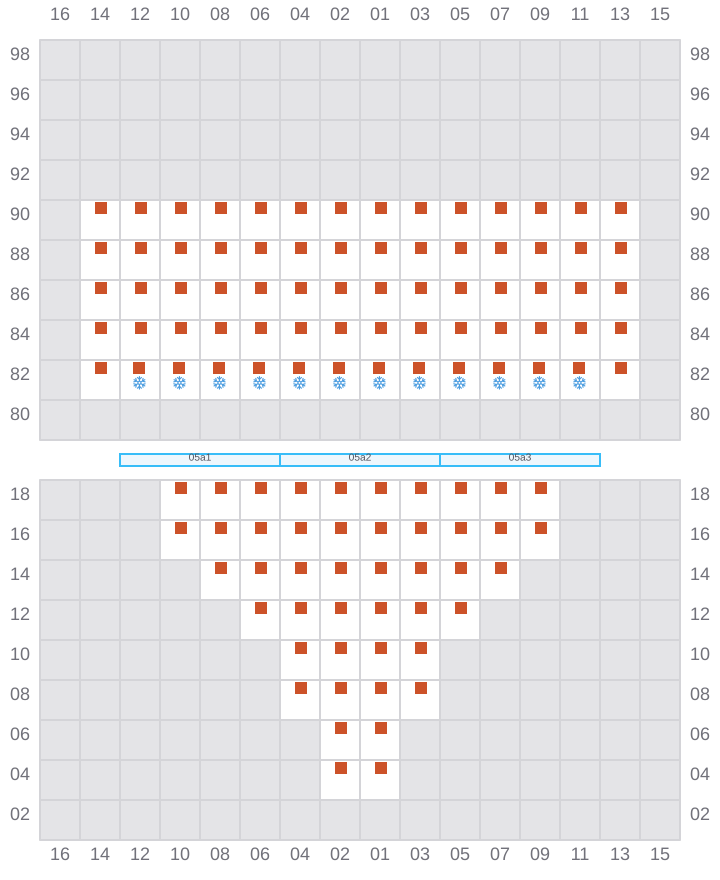

Bay 007 view and slots of CMA CGM MOZART

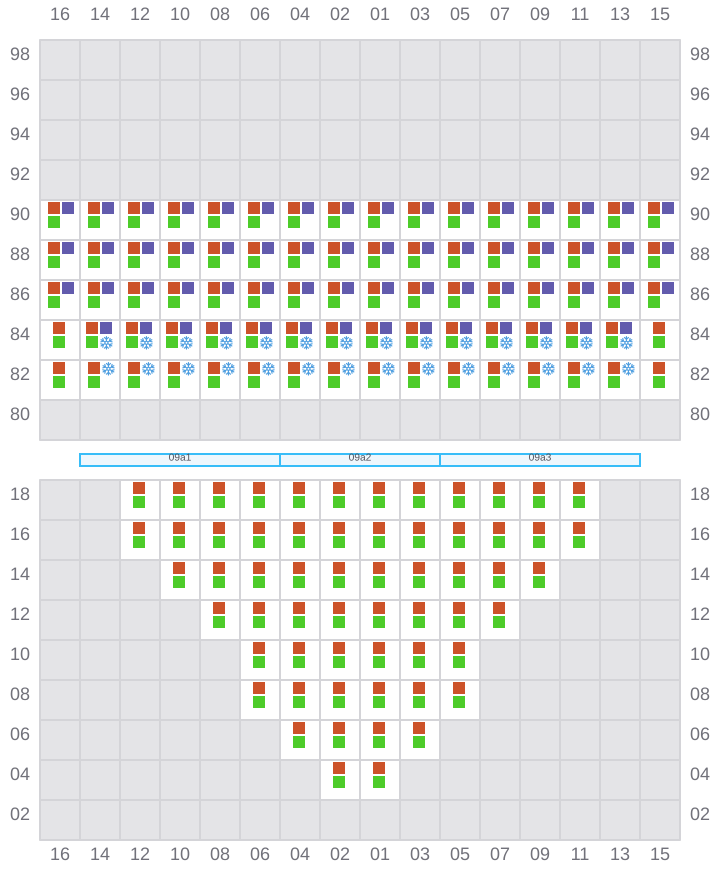

009 (010)

  • →
  • → / ?
  • → / ←
Bay 009 view and slots of CMA CGM MOZART

011

  • ←
  • → / ?
  • → / ←

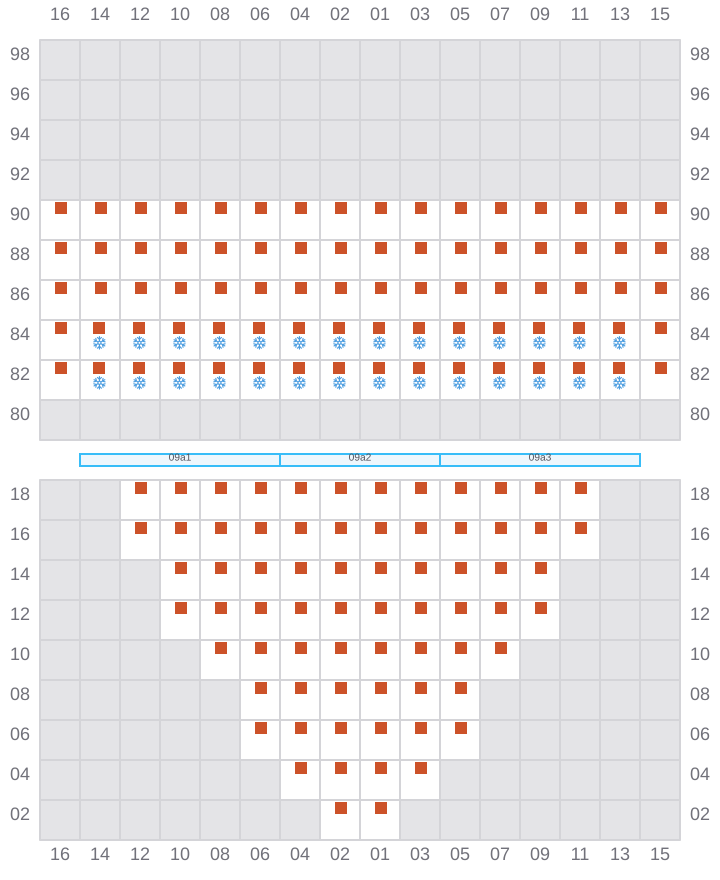

Bay 011 view and slots of CMA CGM MOZART

013 (014)

  • →
  • → / ?
  • → / ←

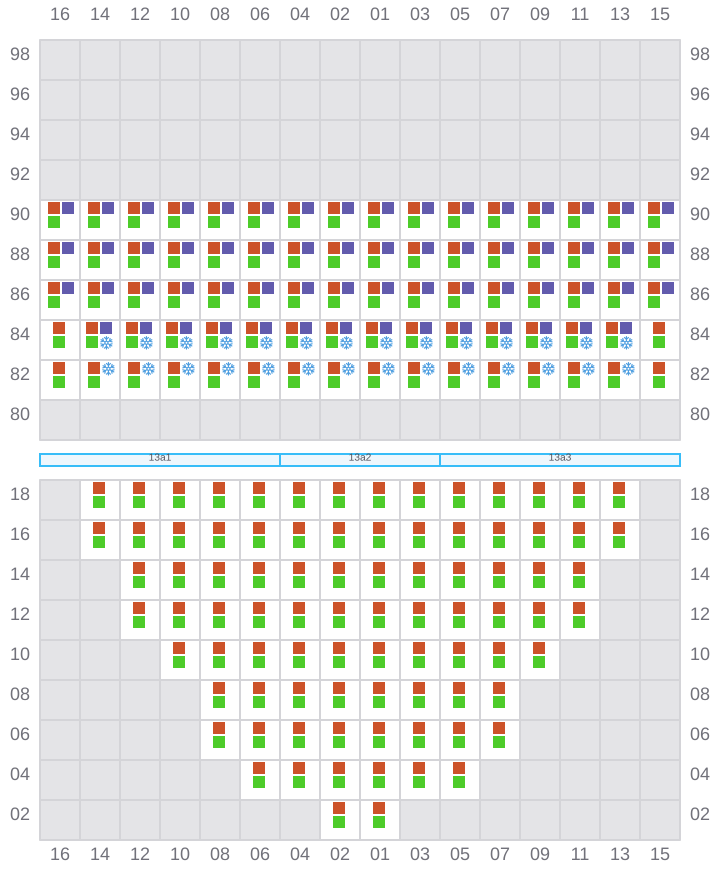

Bay 013 view and slots of CMA CGM MOZART

015

  • ←
  • → / ?
  • → / ←

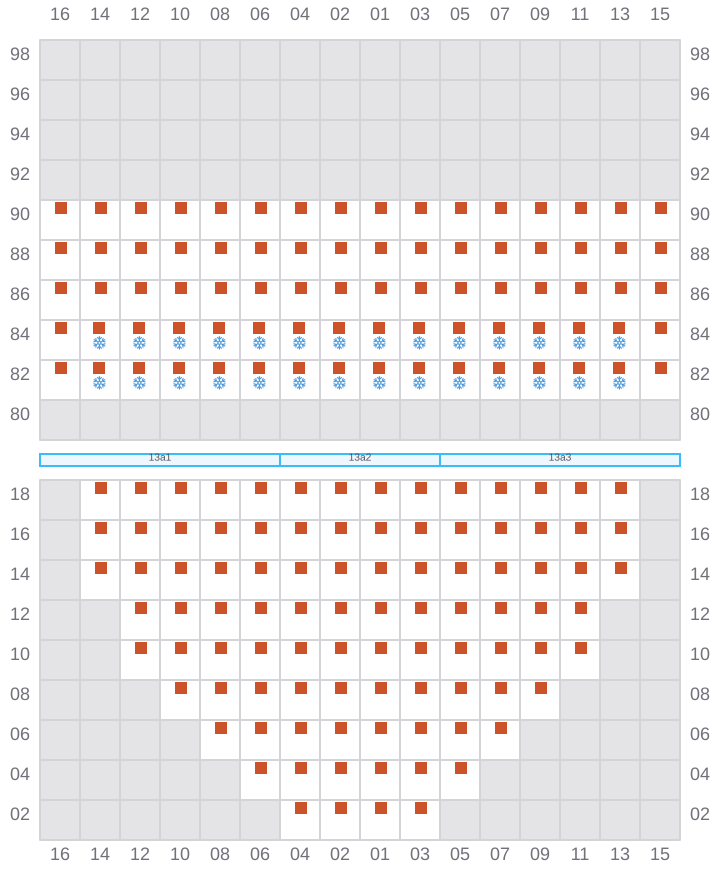

Bay 015 view and slots of CMA CGM MOZART

017 (018)

  • →
  • → / ?
  • → / ←

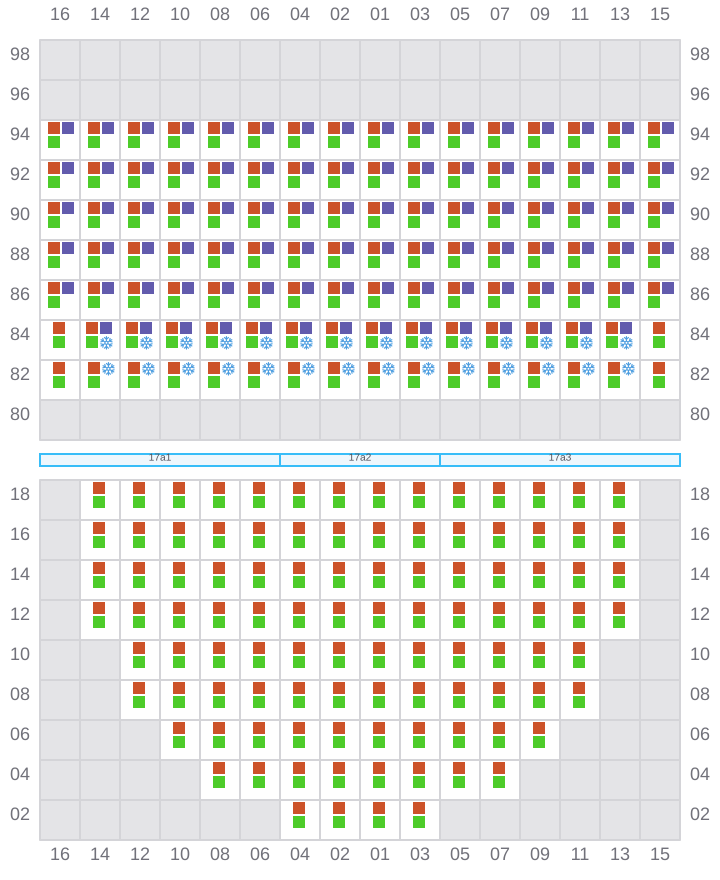

Bay 017 view and slots of CMA CGM MOZART

019

  • ←
  • → / ?
  • → / ←

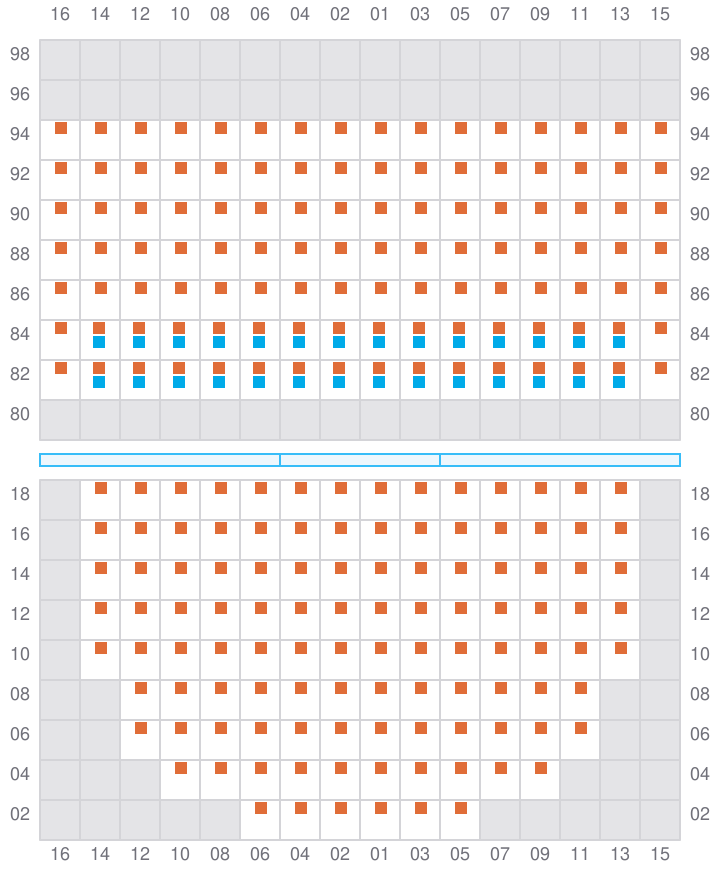

Bay 019 view and slots of CMA CGM MOZART

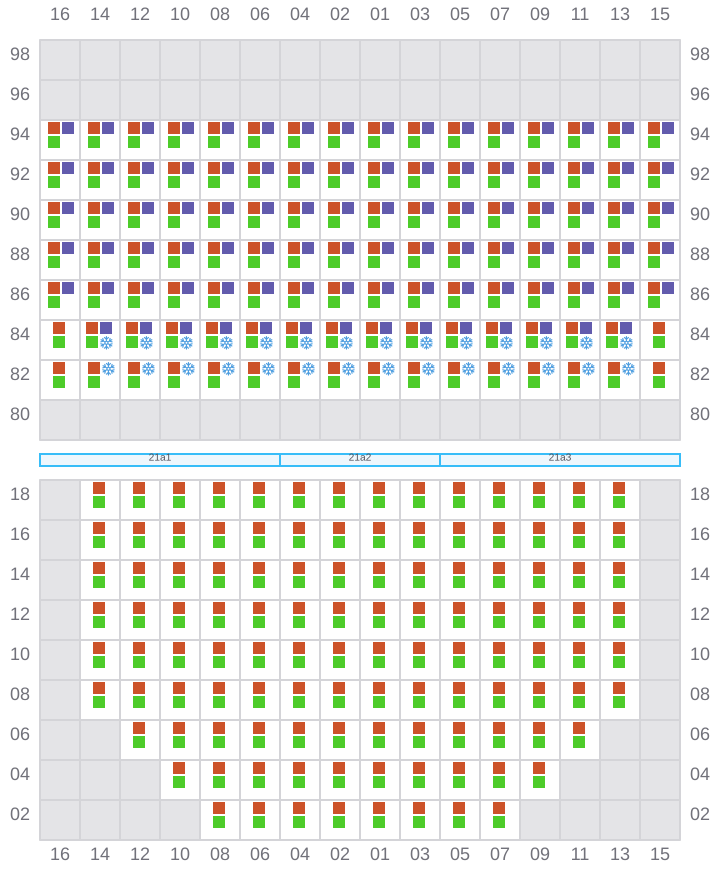

021 (022)

  • →
  • → / ?
  • → / ←
Bay 021 view and slots of CMA CGM MOZART

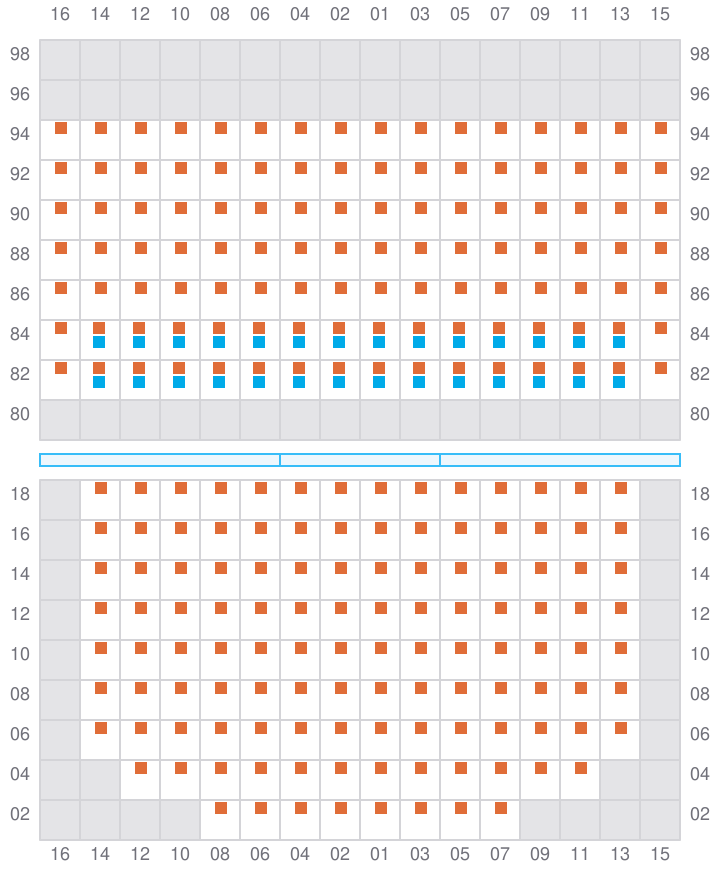

023

  • ←
  • → / ?
  • → / ←
Bay 023 view and slots of CMA CGM MOZART

025 (026)

  • →
  • → / ?
  • → / ←

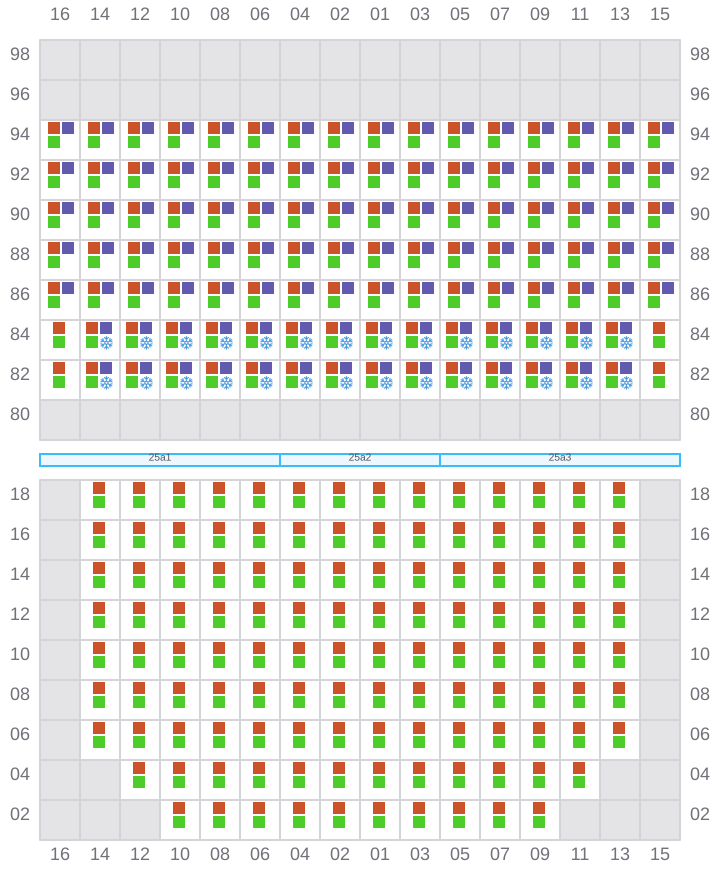

Bay 025 view and slots of CMA CGM MOZART

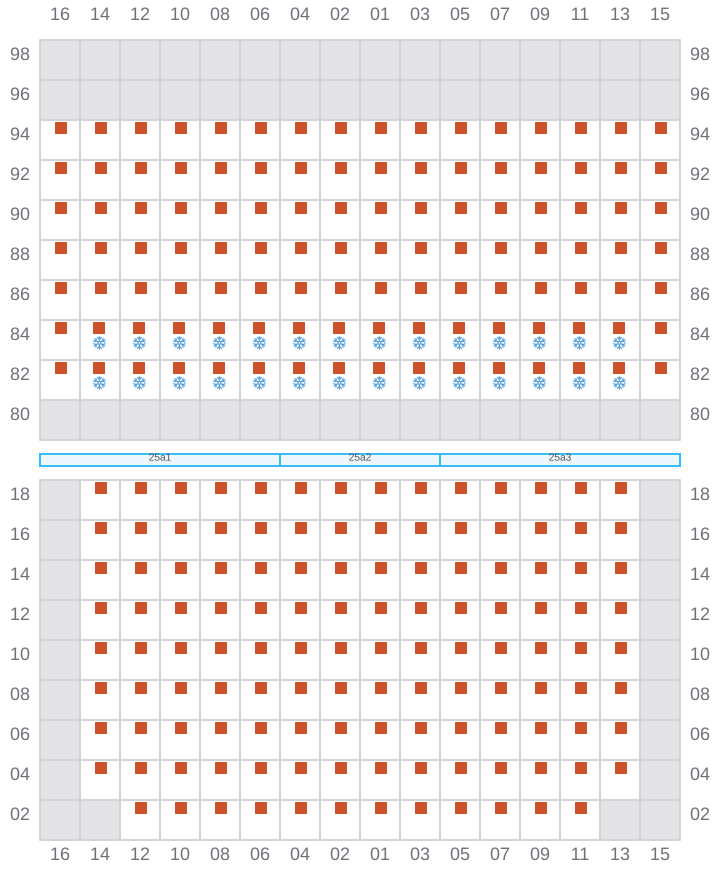

027

  • ←
  • → / ?
  • → / ←
Bay 027 view and slots of CMA CGM MOZART

029 (030)

  • →
  • → / ?
  • → / ←

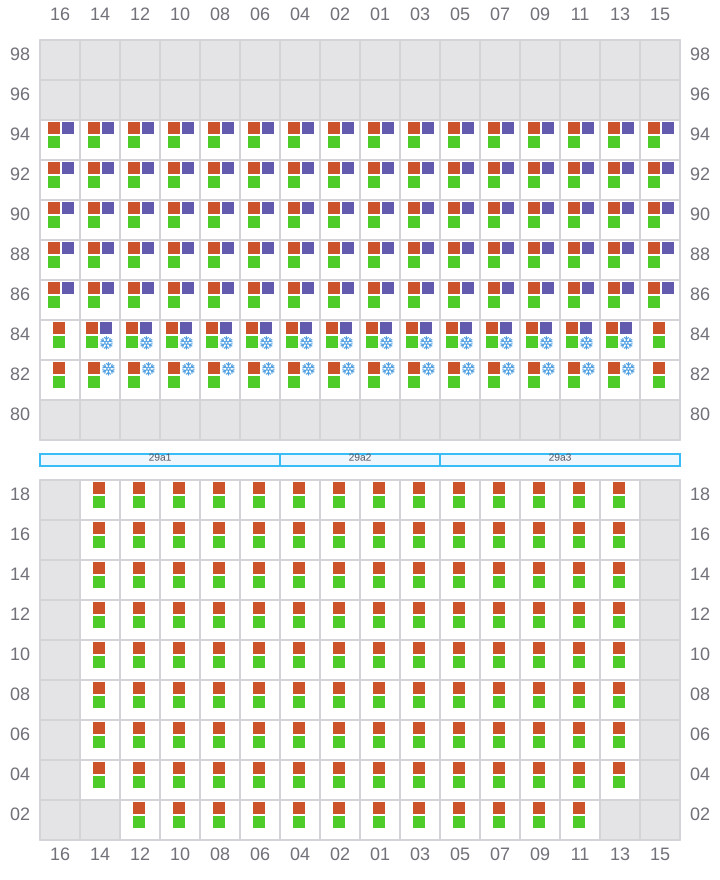

Bay 029 view and slots of CMA CGM MOZART

031

  • ←
  • → / ?
  • → / ←

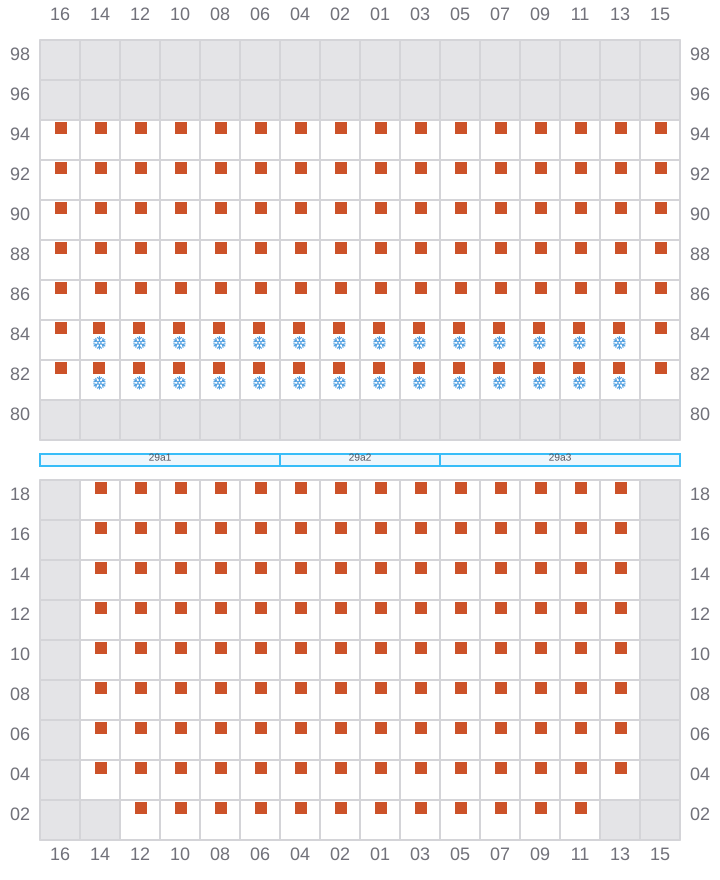

Bay 031 view and slots of CMA CGM MOZART

033 (034)

  • →
  • → / ?
  • → / ←

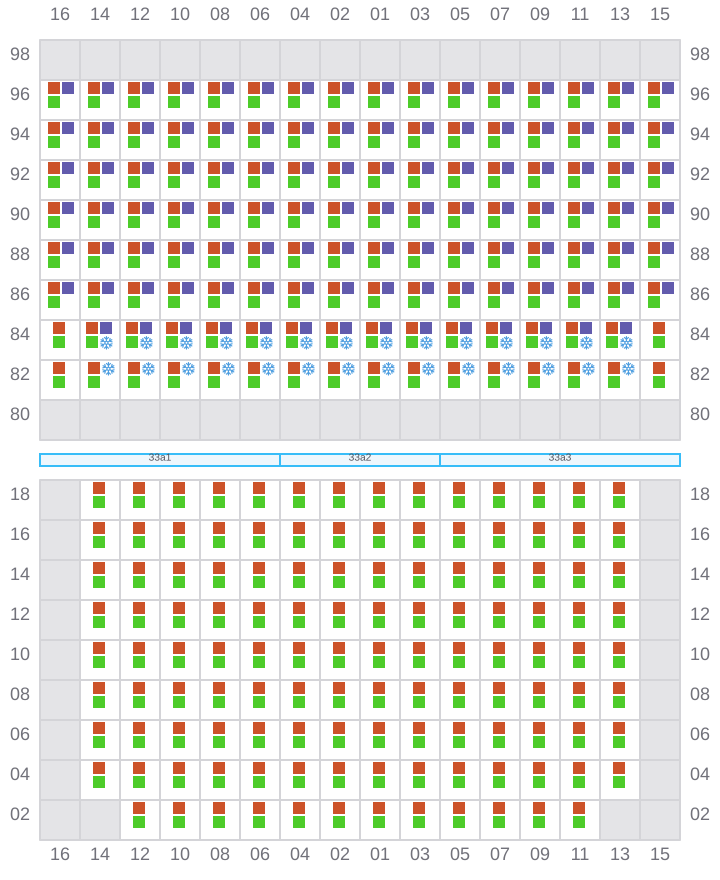

Bay 033 view and slots of CMA CGM MOZART

035

  • ←
  • → / ?
  • → / ←

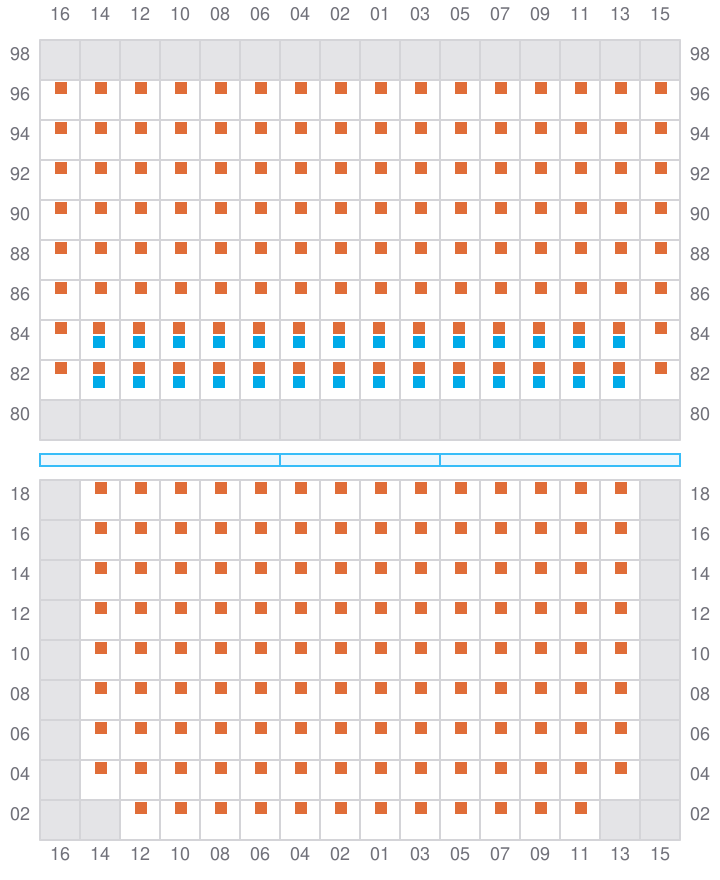

Bay 035 view and slots of CMA CGM MOZART

037 (038)

  • →
  • → / ?
  • → / ←
Bay 037 view and slots of CMA CGM MOZART

039

  • ←
  • → / ←
Bay 039 view and slots of CMA CGM MOZART

041 (042)

  • →
  • → / ?
  • → / ←

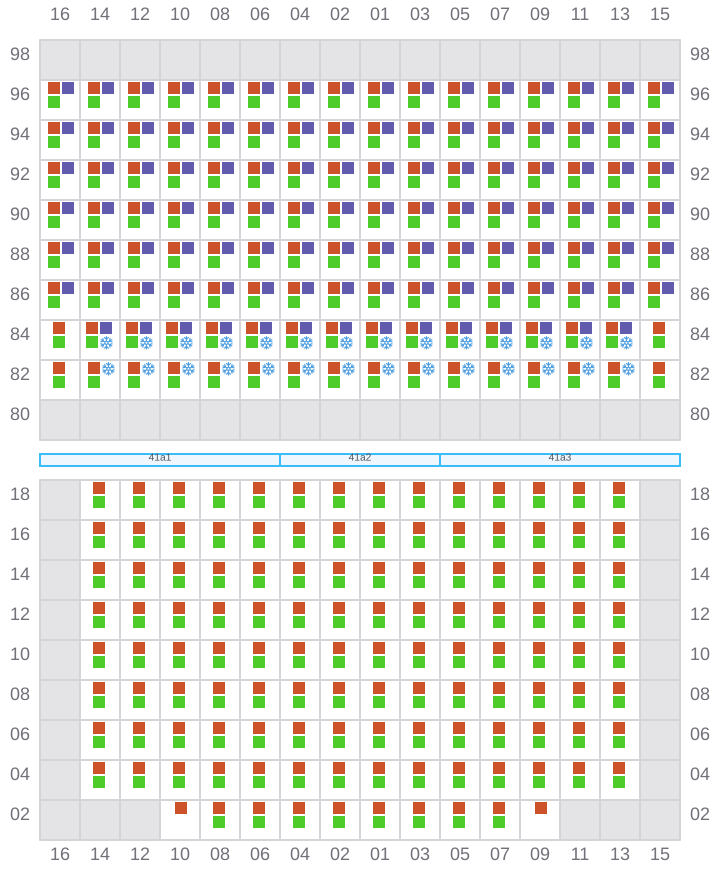

Bay 041 view and slots of CMA CGM MOZART

043

  • ←
  • → / ?
  • → / ←

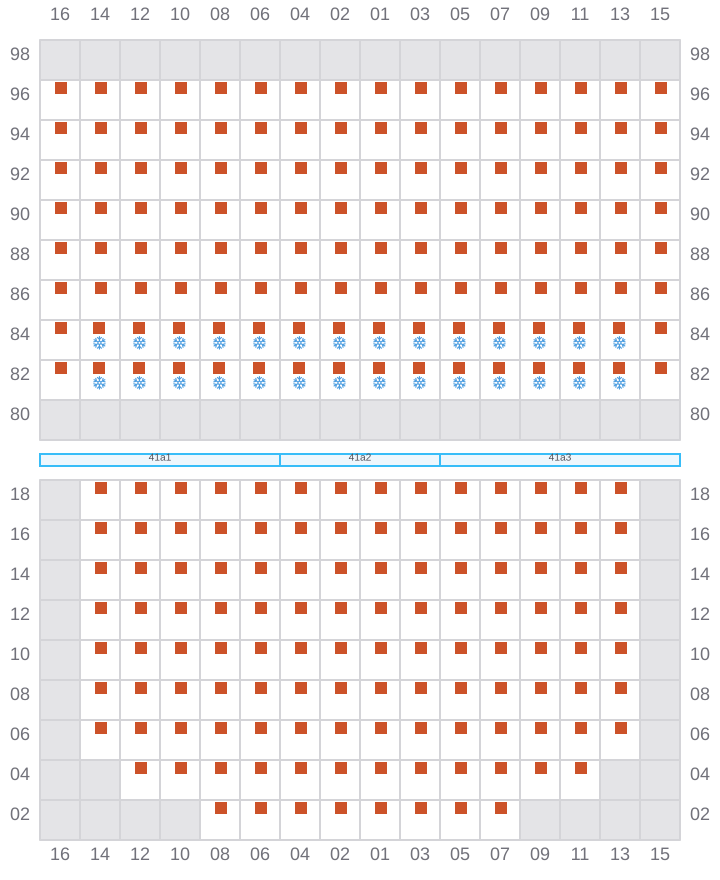

Bay 043 view and slots of CMA CGM MOZART

045 (046)

  • →
  • → / ←

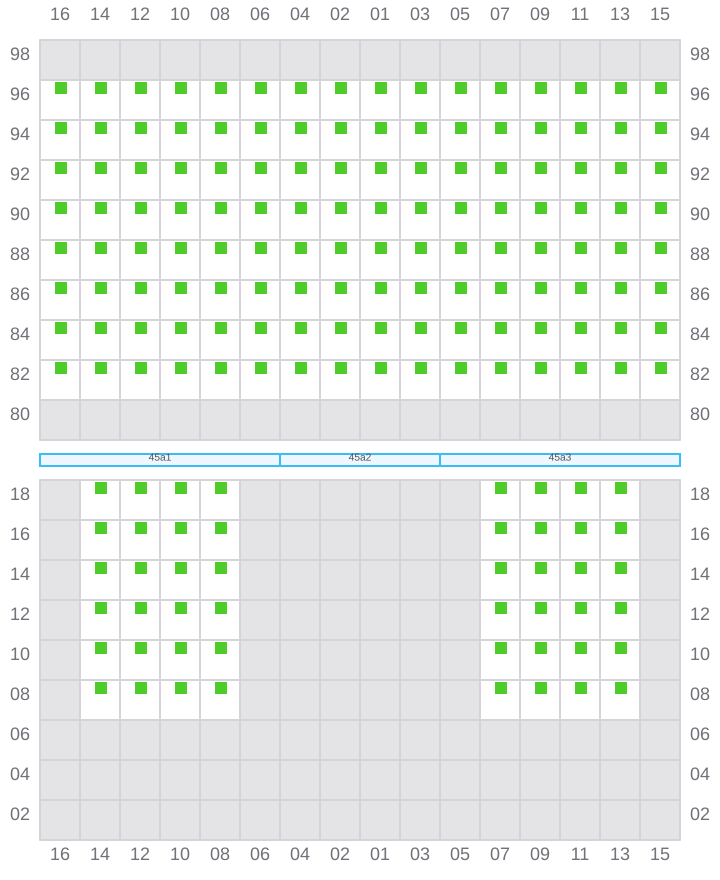

Bay 045 view and slots of CMA CGM MOZART

047

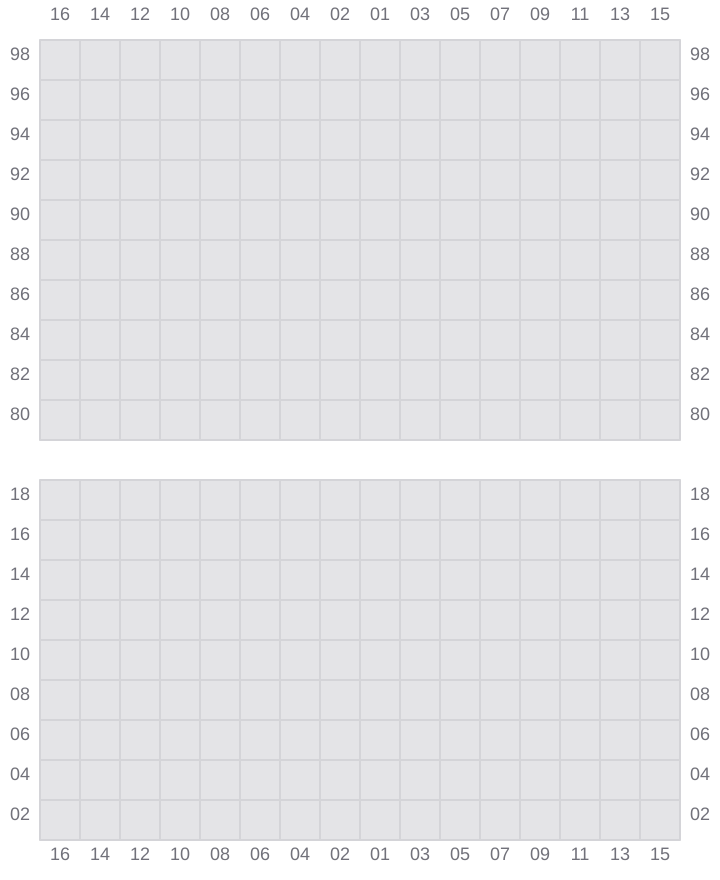

Bay 047 view and slots of CMA CGM MOZART

049 (050)

  • →
  • → / ?
  • → / ←
Bay 049 view and slots of CMA CGM MOZART

051

  • ←
  • → / ?
  • → / ←
Bay 051 view and slots of CMA CGM MOZART

053 (054)

  • →
  • → / ?
  • → / ←

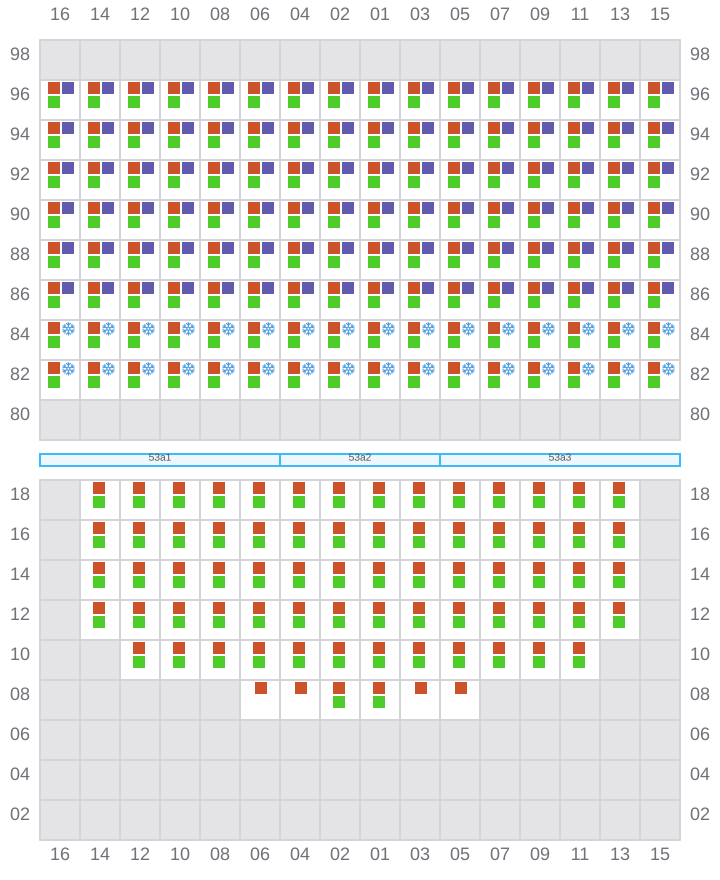

Bay 053 view and slots of CMA CGM MOZART

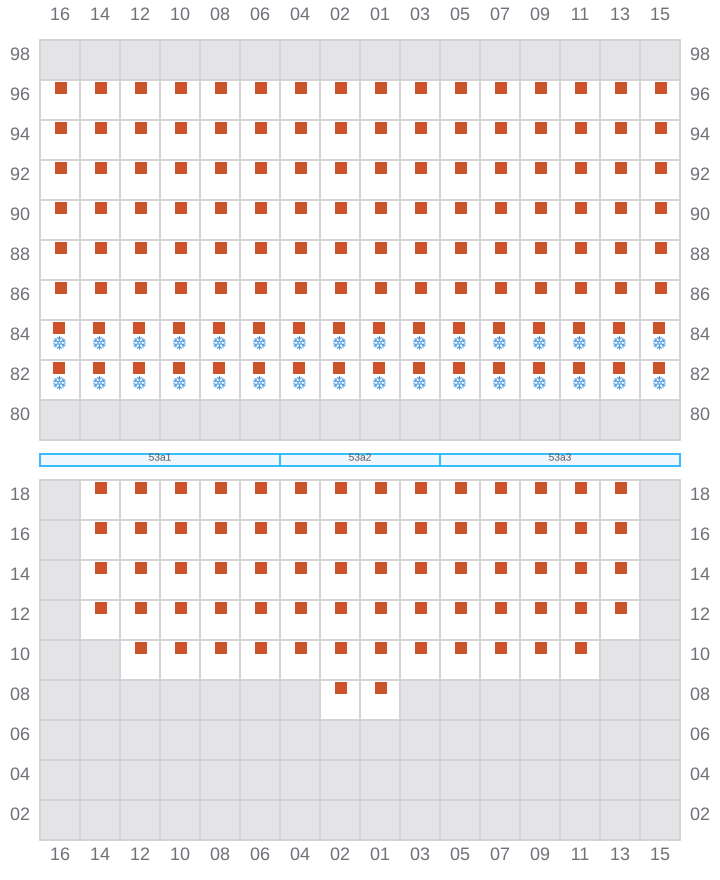

055

  • ←
  • → / ?
  • → / ←
Bay 055 view and slots of CMA CGM MOZART

057 (058)

  • →
  • → / ?
  • → / ←

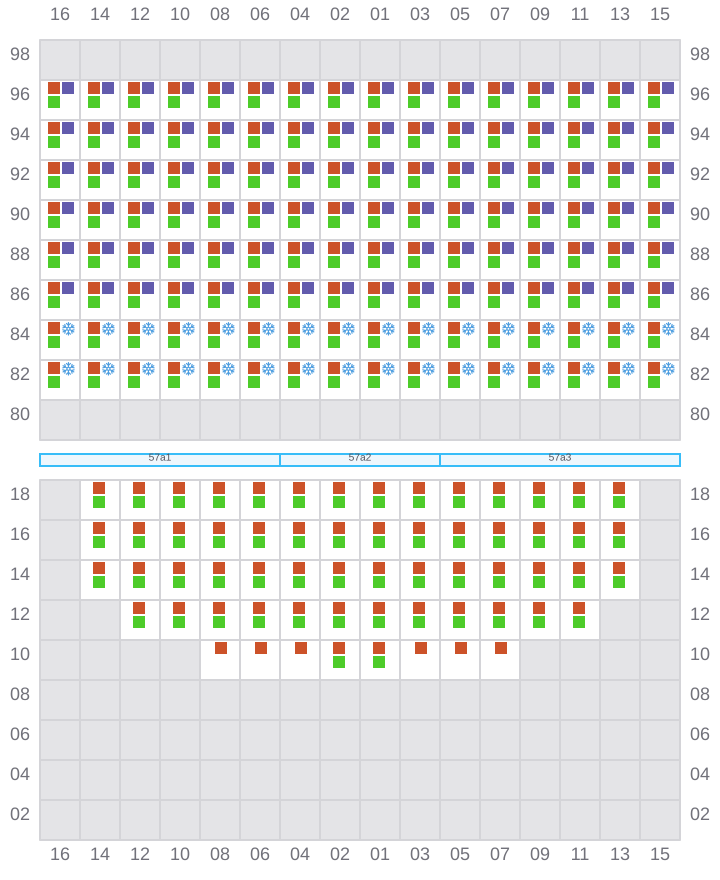

Bay 057 view and slots of CMA CGM MOZART

059

  • ←
  • → / ?
  • → / ←

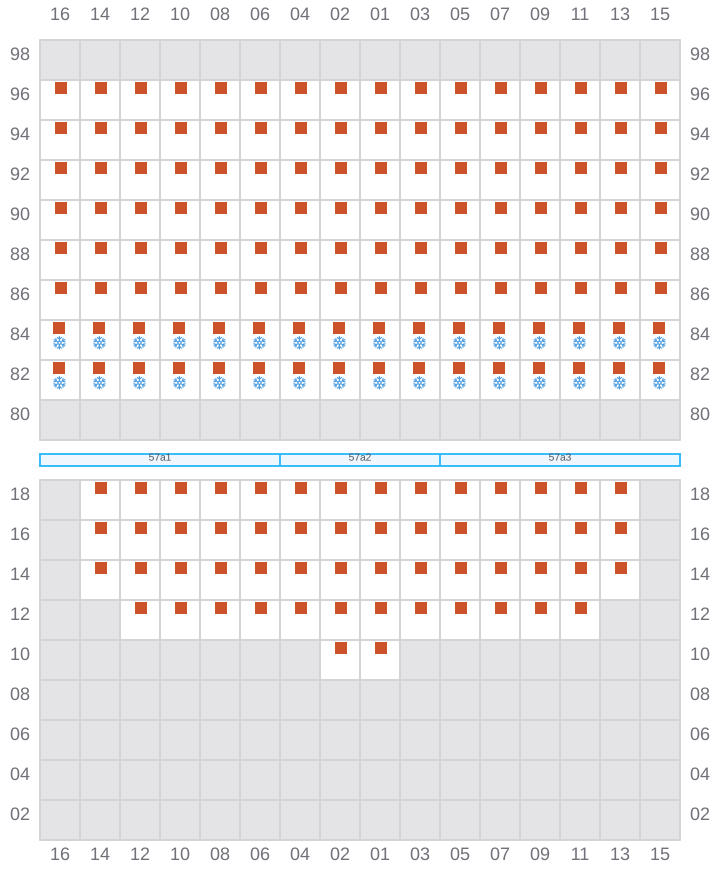

Bay 059 view and slots of CMA CGM MOZART

061 (062)

  • → / ?
  • → / ?
  • → / ?
Bay 061 view and slots of CMA CGM MOZART
