CMA CGM MUSSET
9406611 | 9HA2284 | 9406611 by ********* Last update: Thu May 02 2024
General Info
Ship Name:CMA CGM MUSSET
IMO Code:9406611
Call Sign:9HA2284
Line Operator:9406611
Class Name for Sister Ships:CMA CGM MUSSET
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,938
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

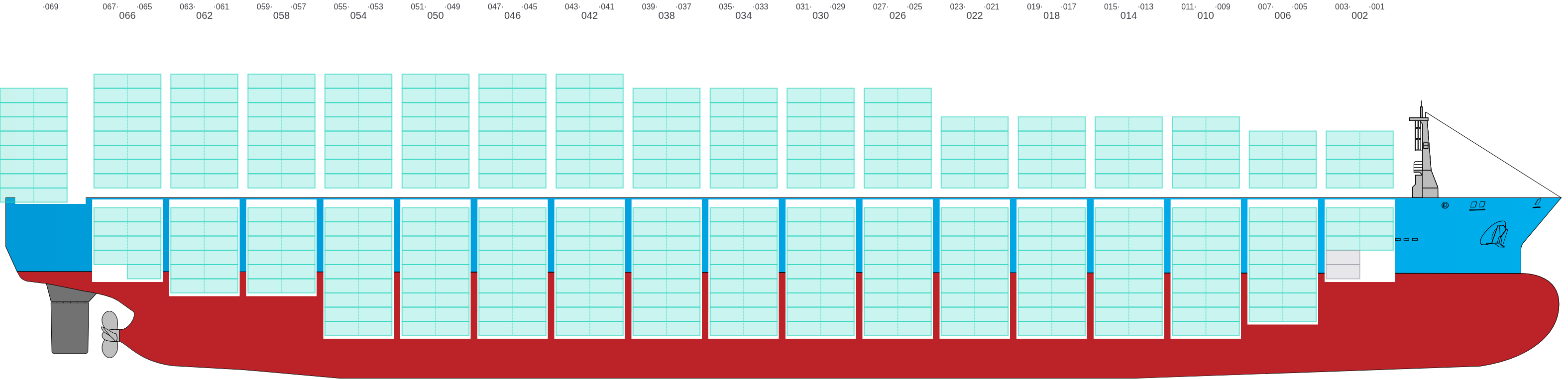

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

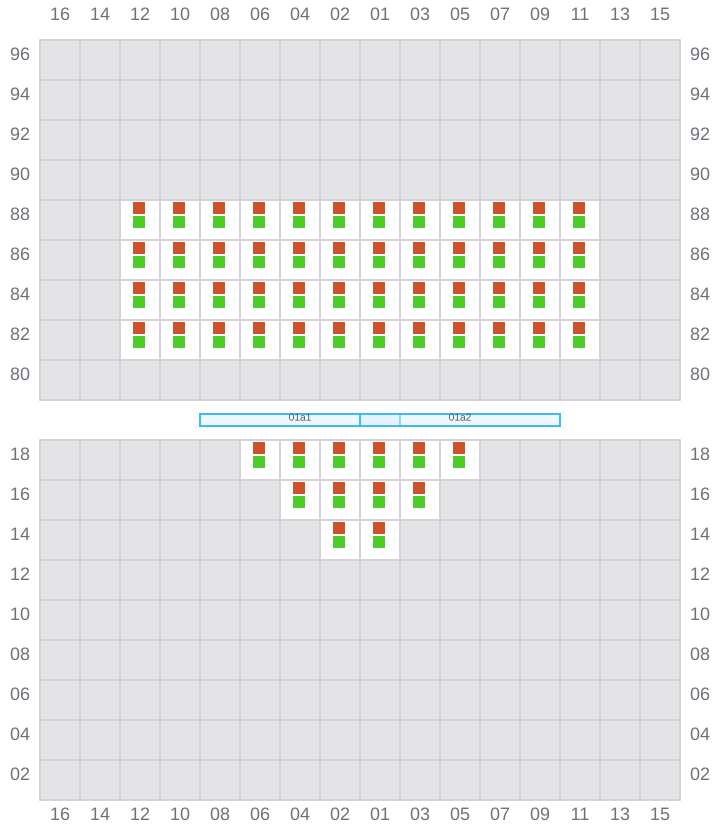

001 (002)
- →

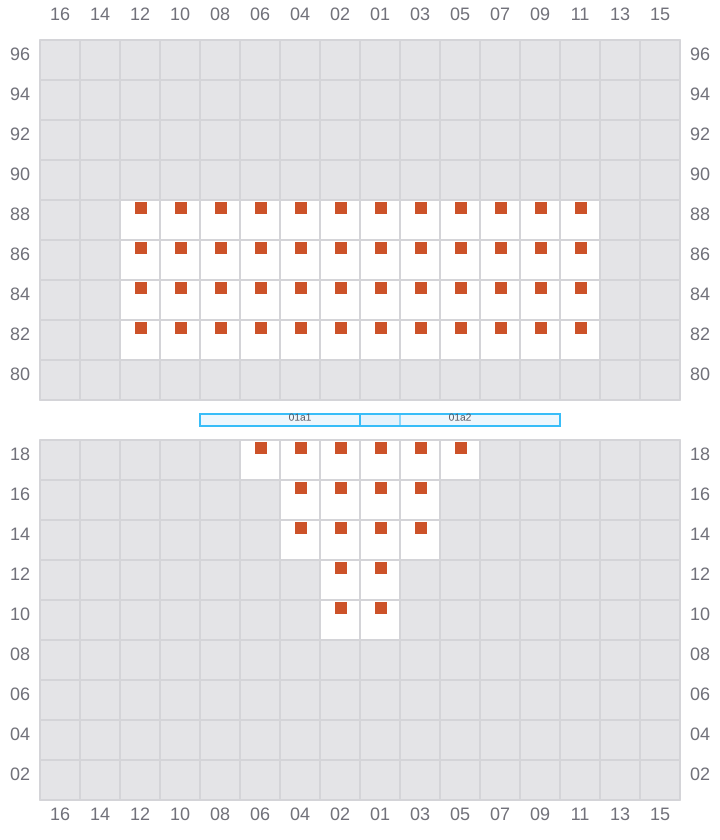

003
- ←

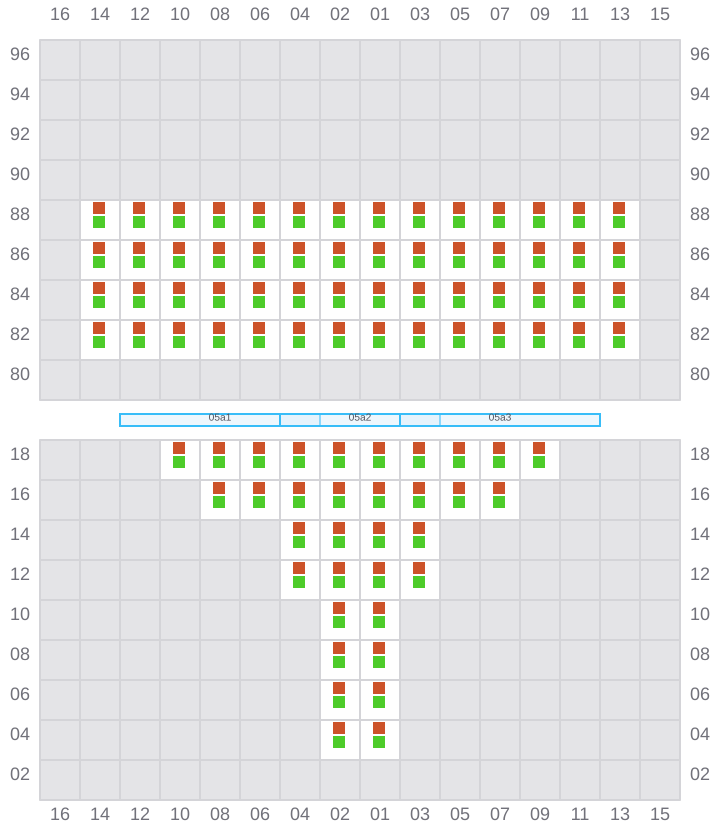

005 (006)
- →

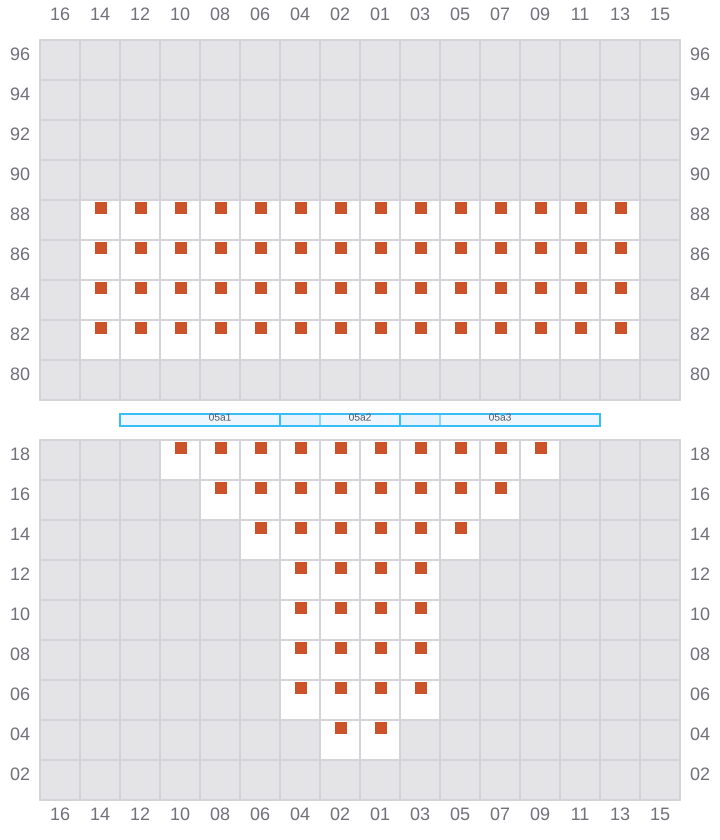

007
- ←

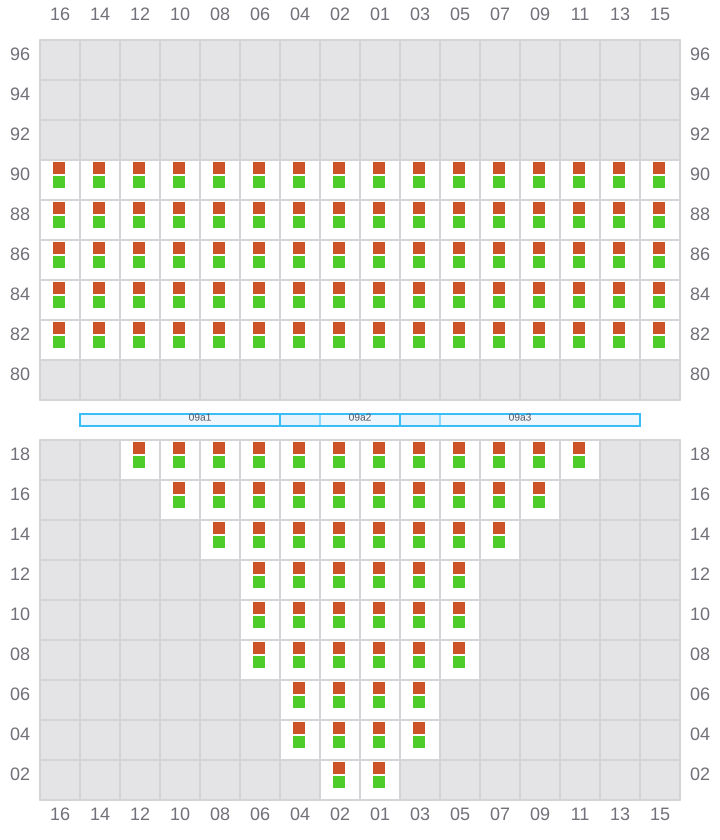

009 (010)
- →

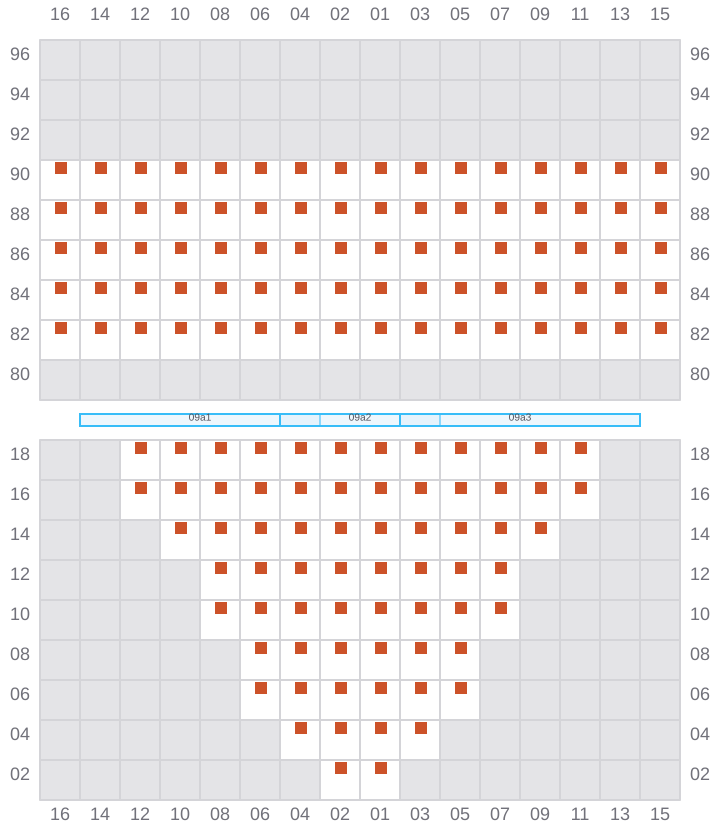

011
- ←

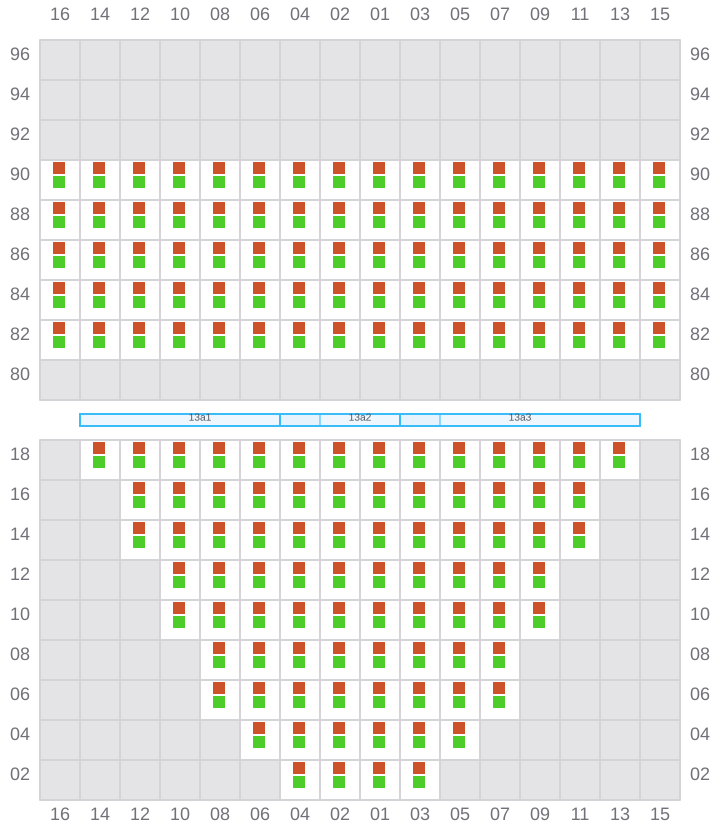

013 (014)
- →

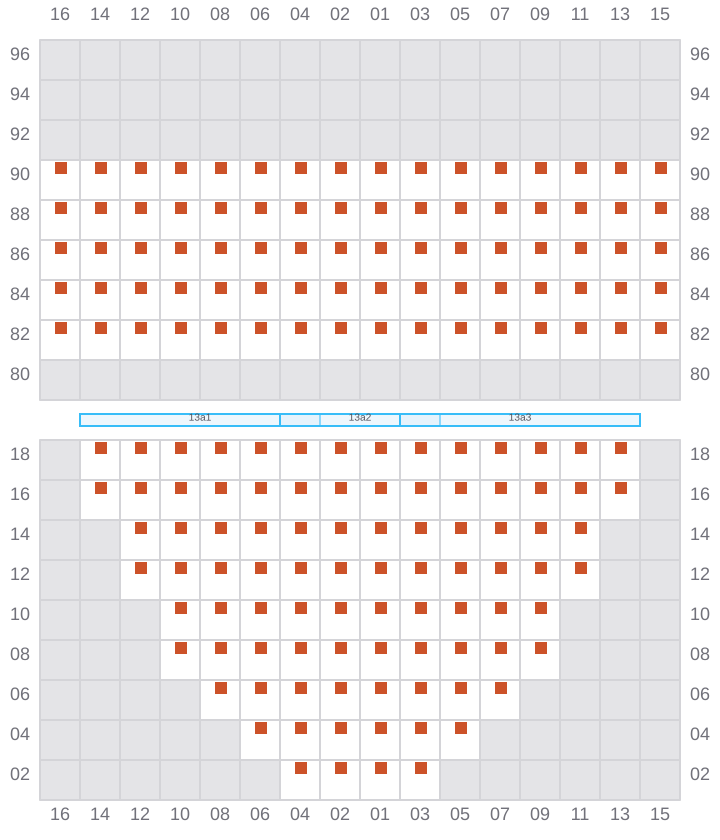

015
- ←

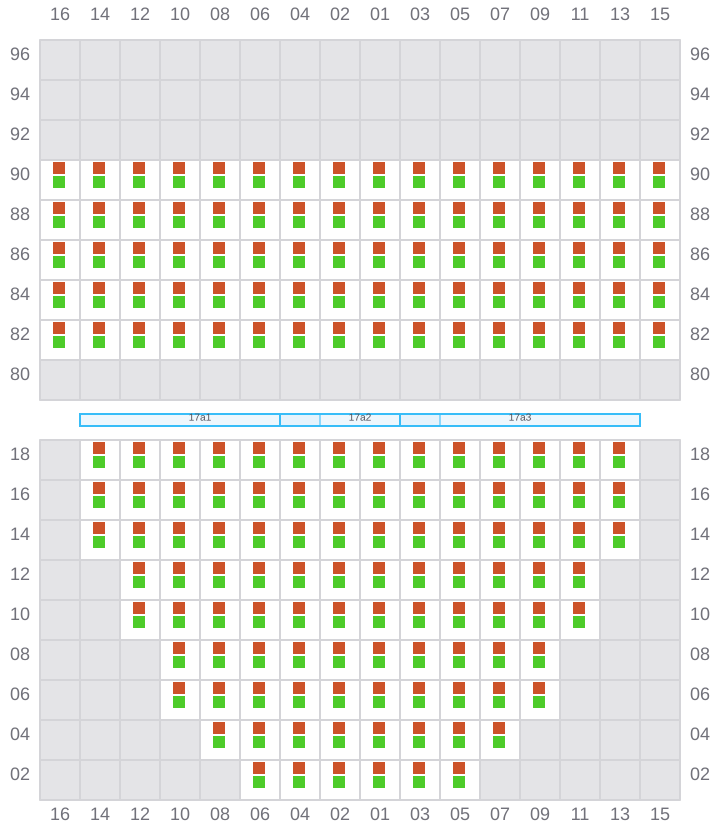

017 (018)
- →

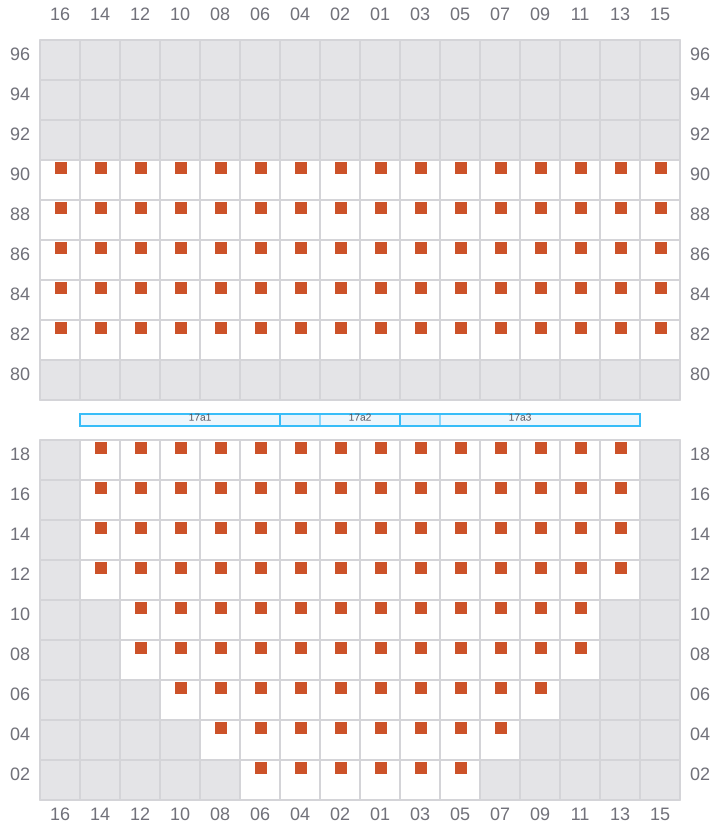

019
- ←

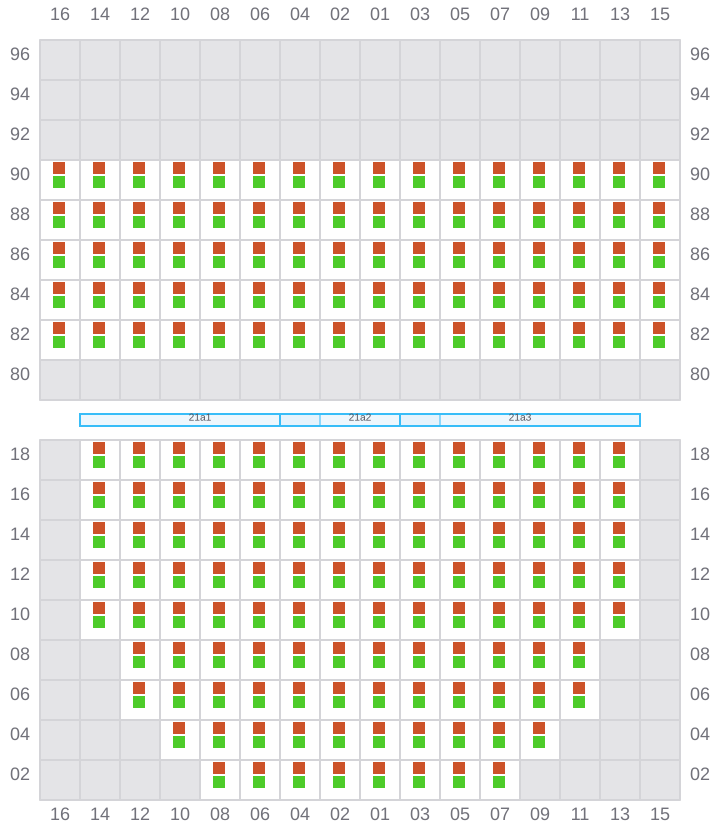

021 (022)
- →

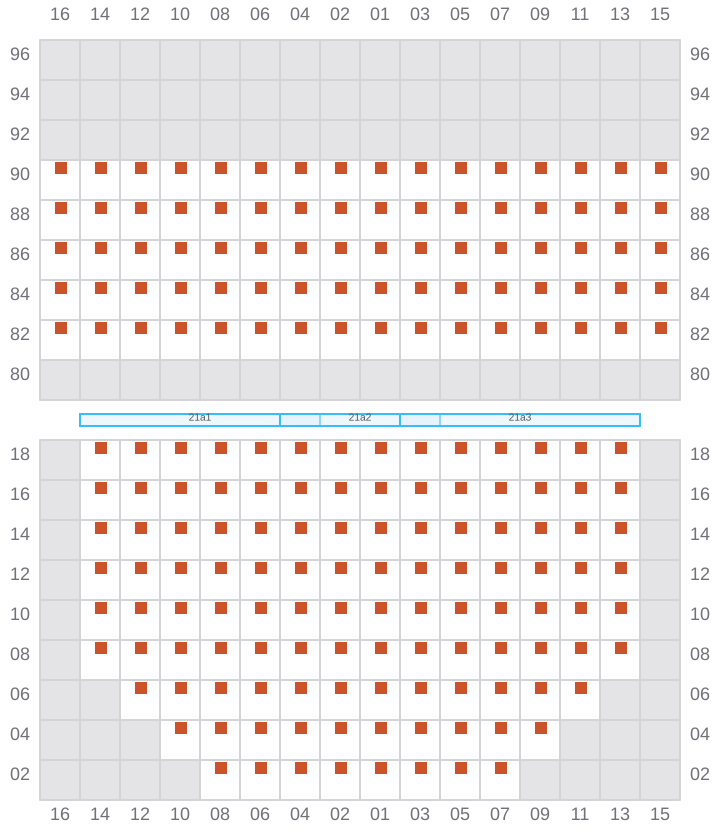

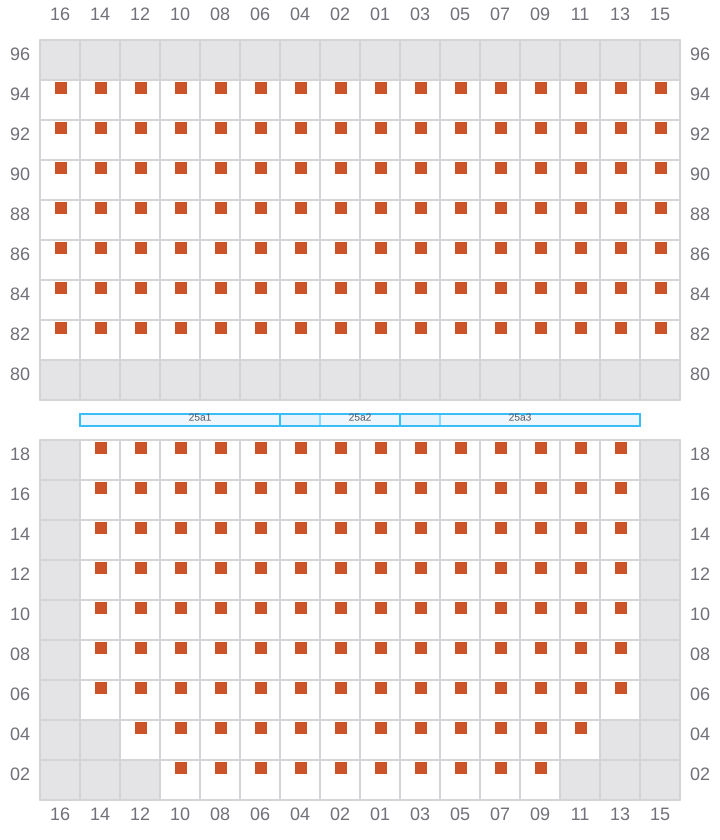

023
- ←

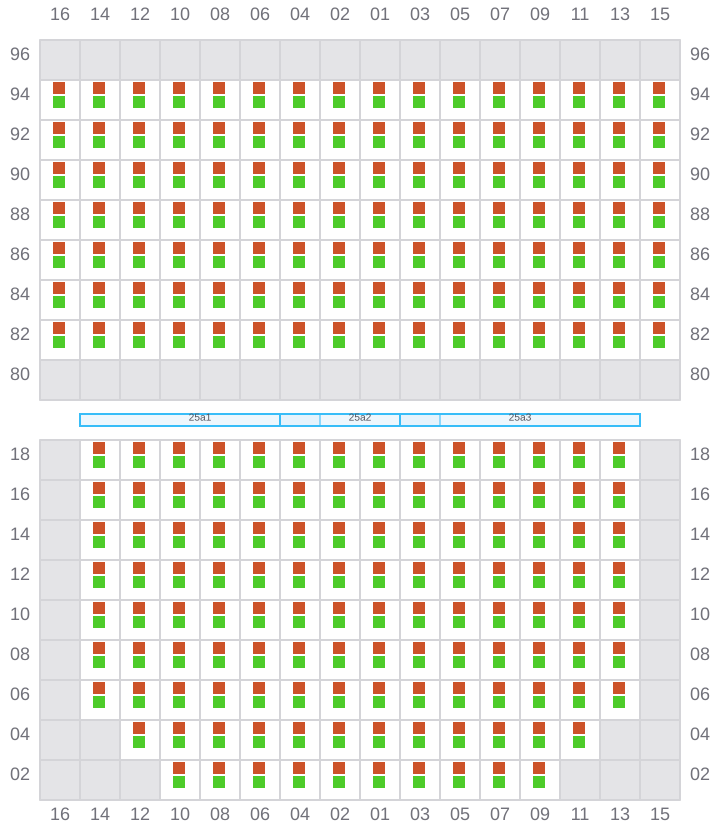

025 (026)
- →
027
- ←

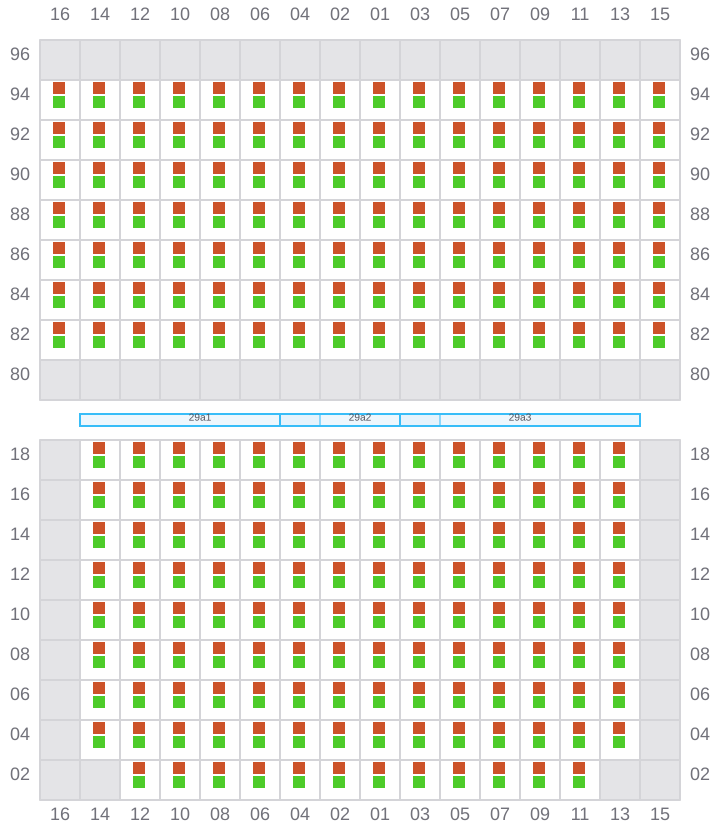

029 (030)
- →
031
- ←
033 (034)
- →

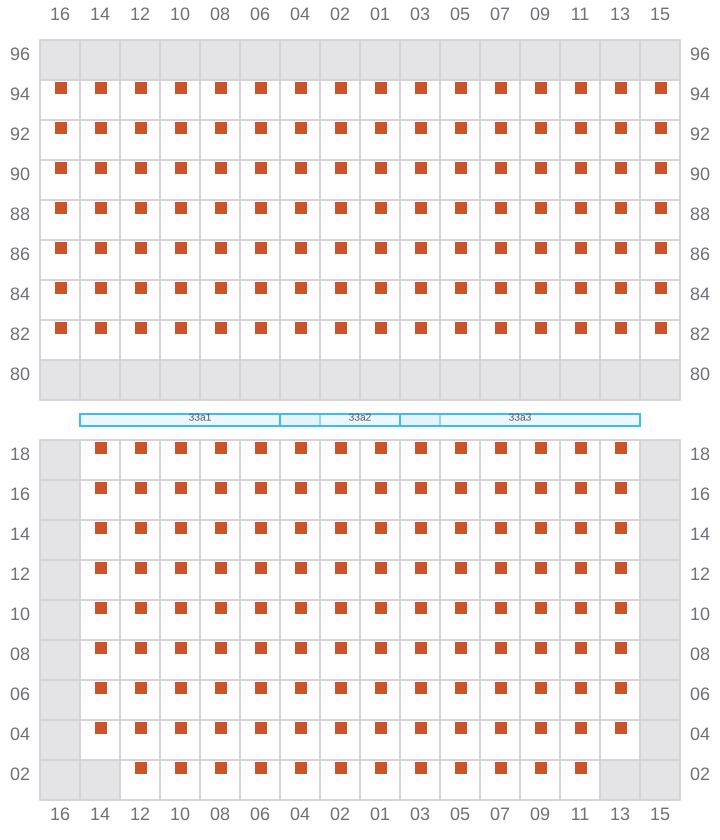

035
- ←

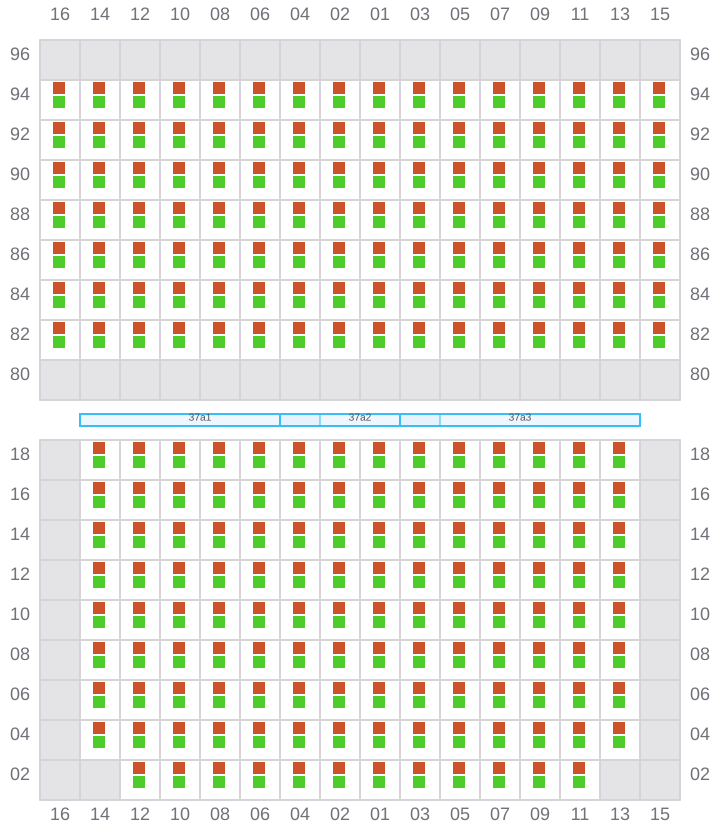

037 (038)
- →

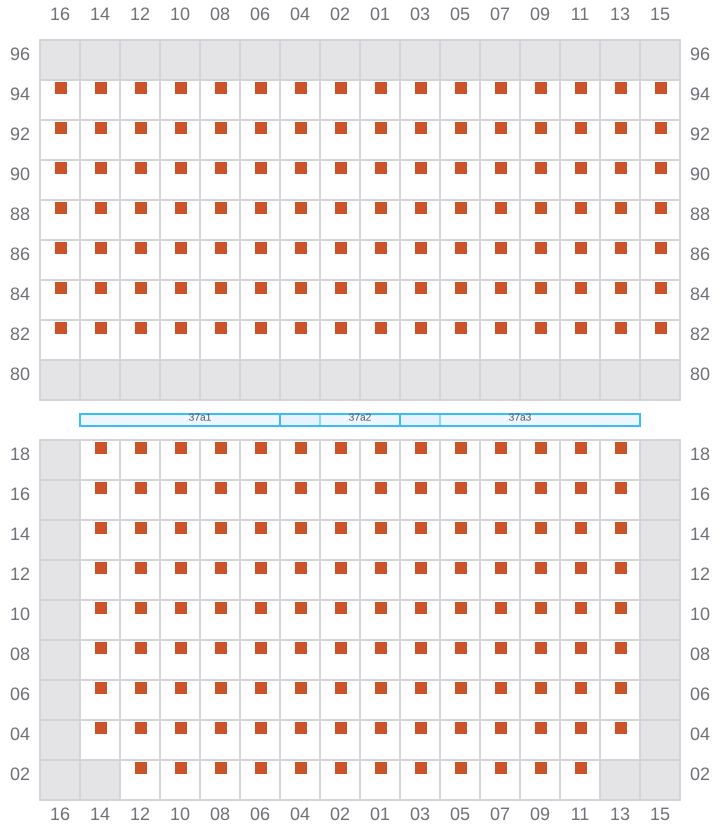

039
- ←

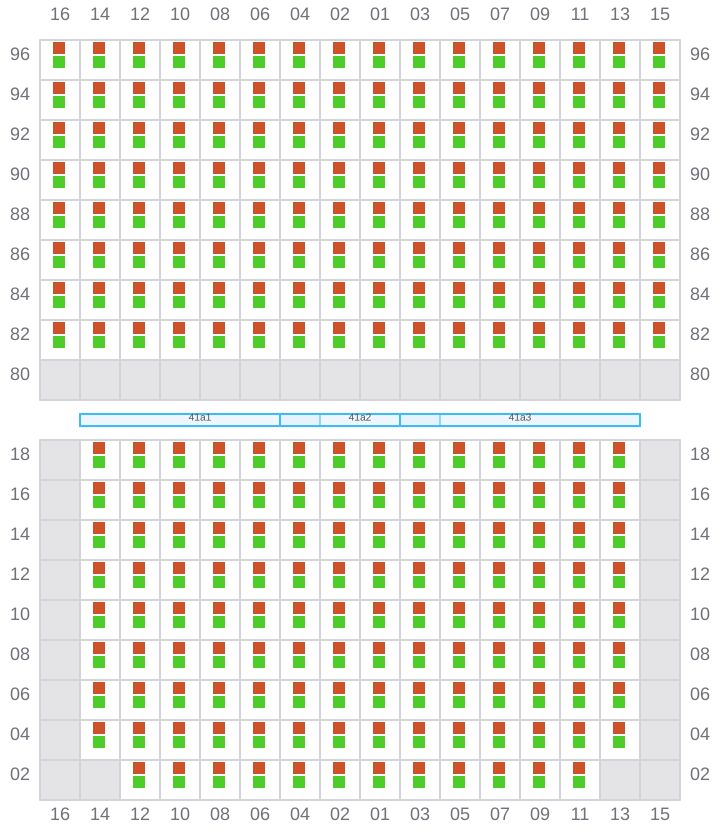

041 (042)
- →

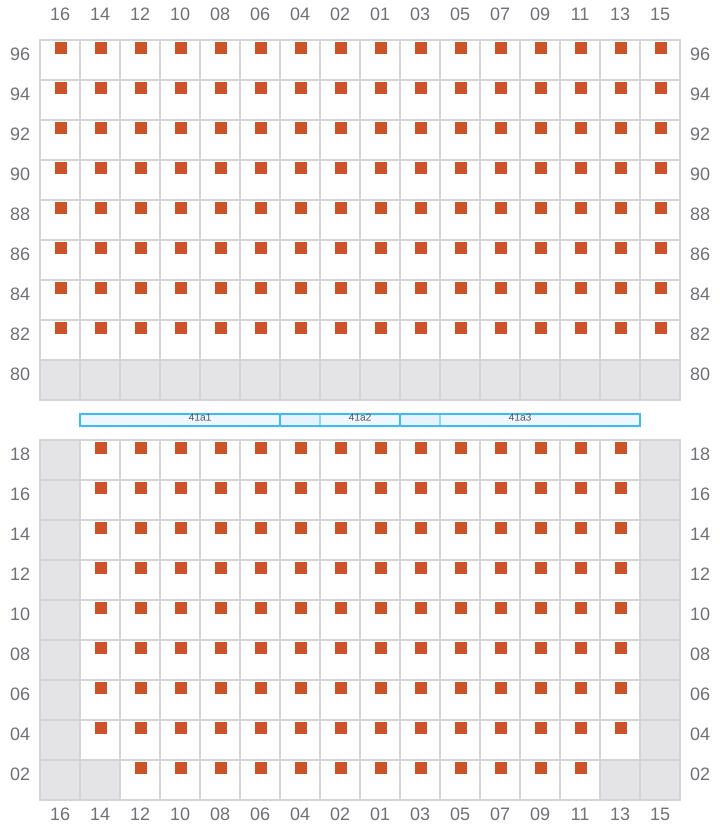

043
- ←

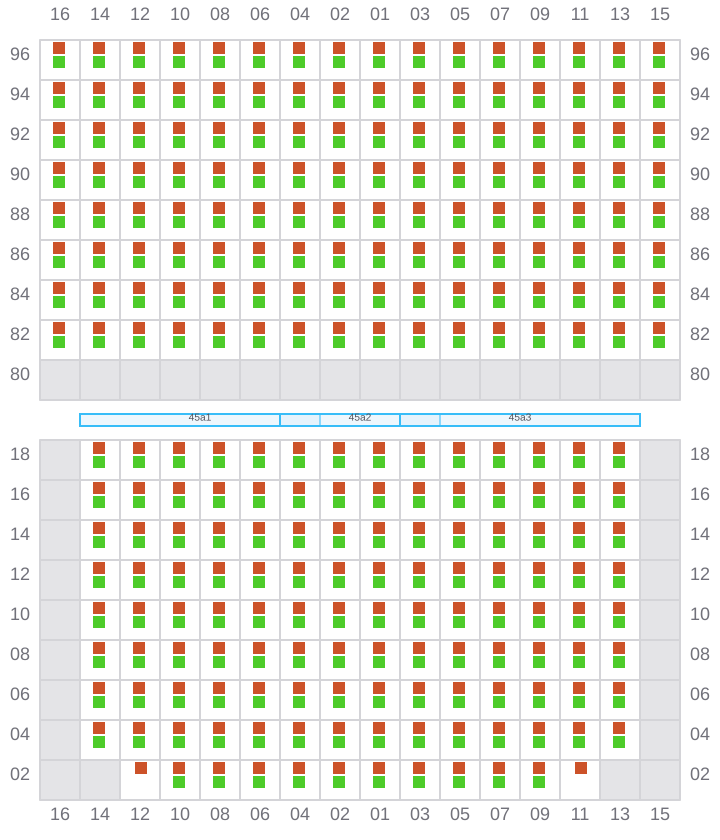

045 (046)
- →

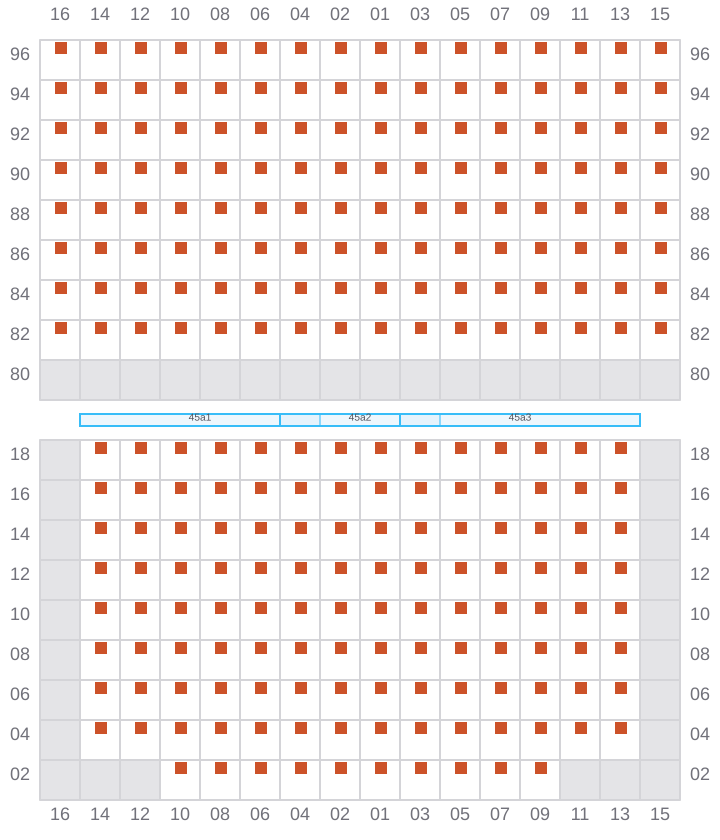

047
- ←

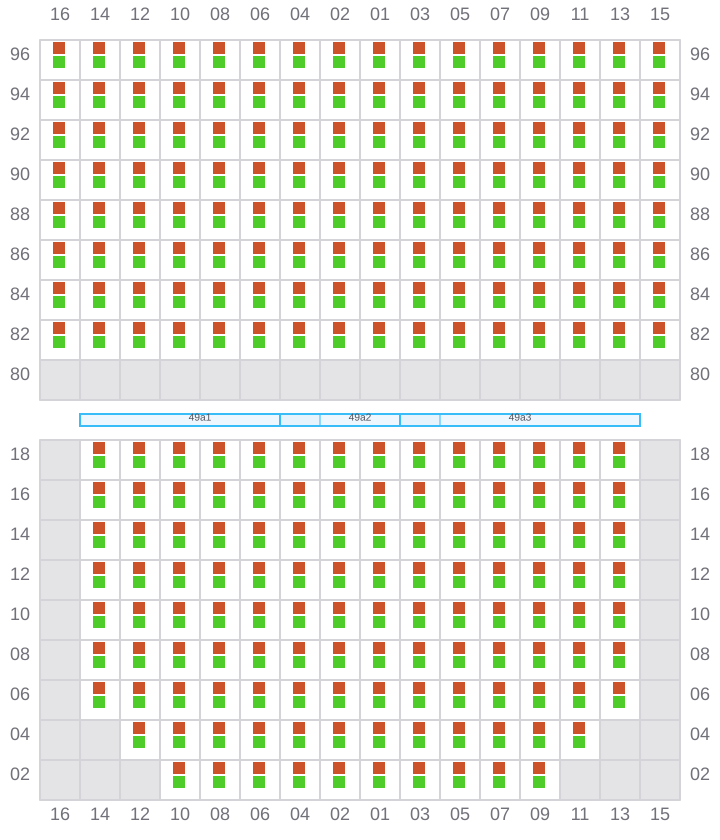

049 (050)
- →

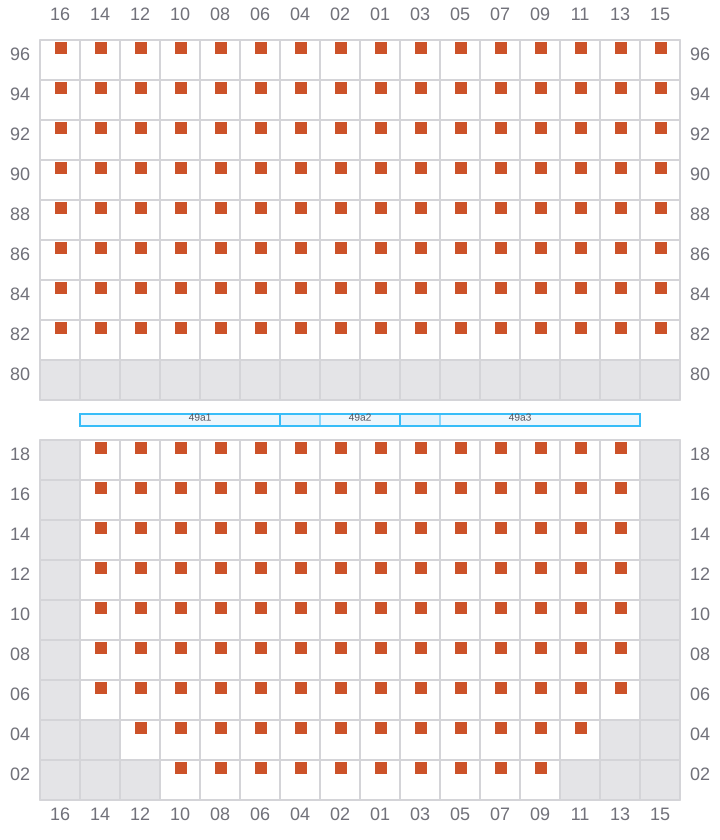

051
- ←

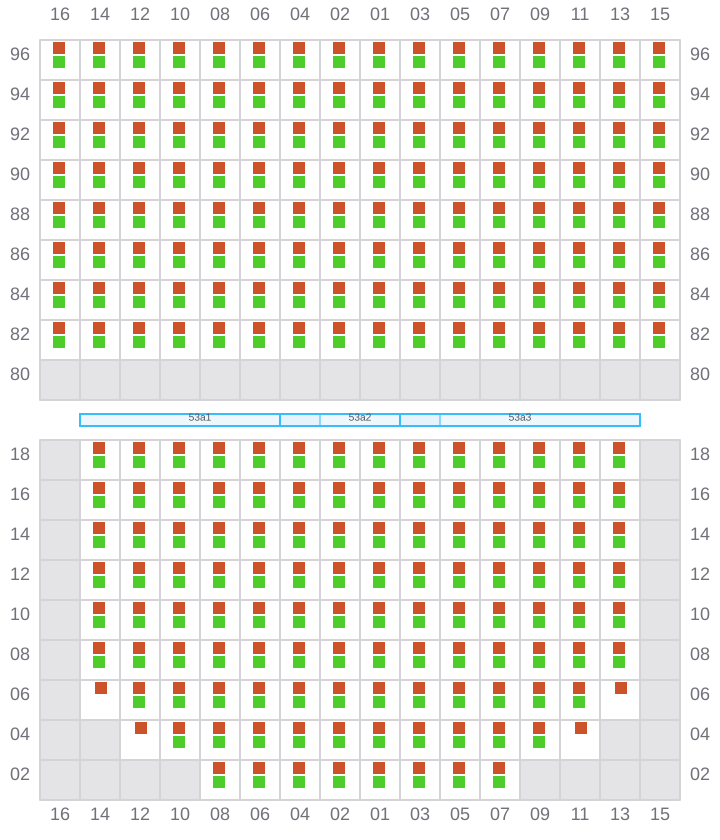

053 (054)
- →
055
- ←
057 (058)
- →

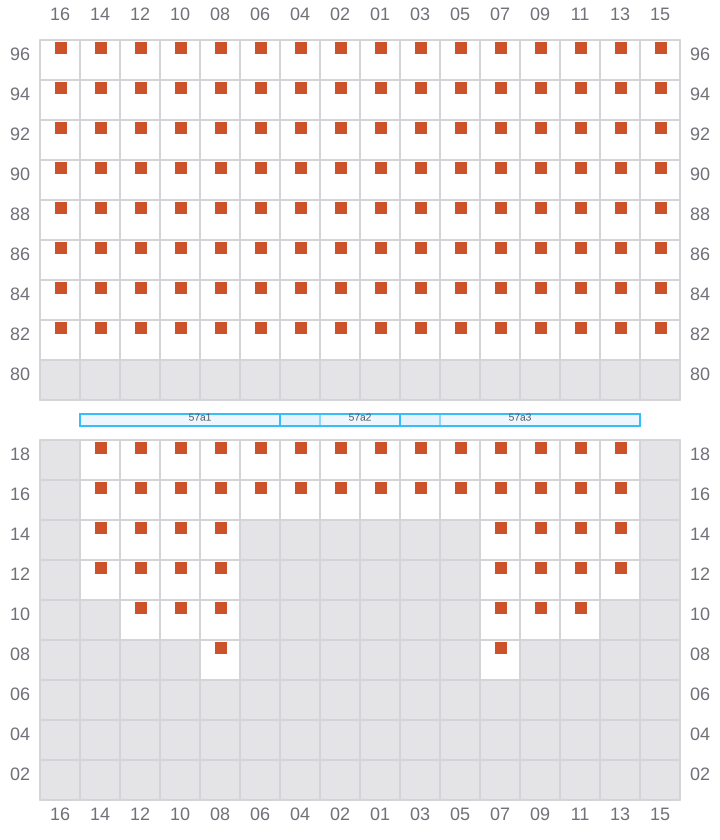

059
- ←

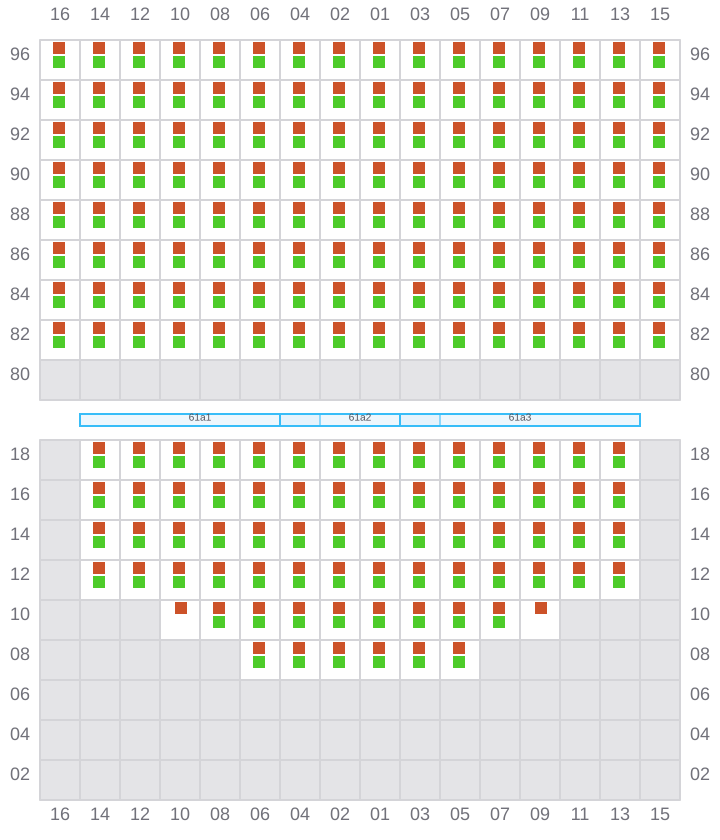

061 (062)
- →

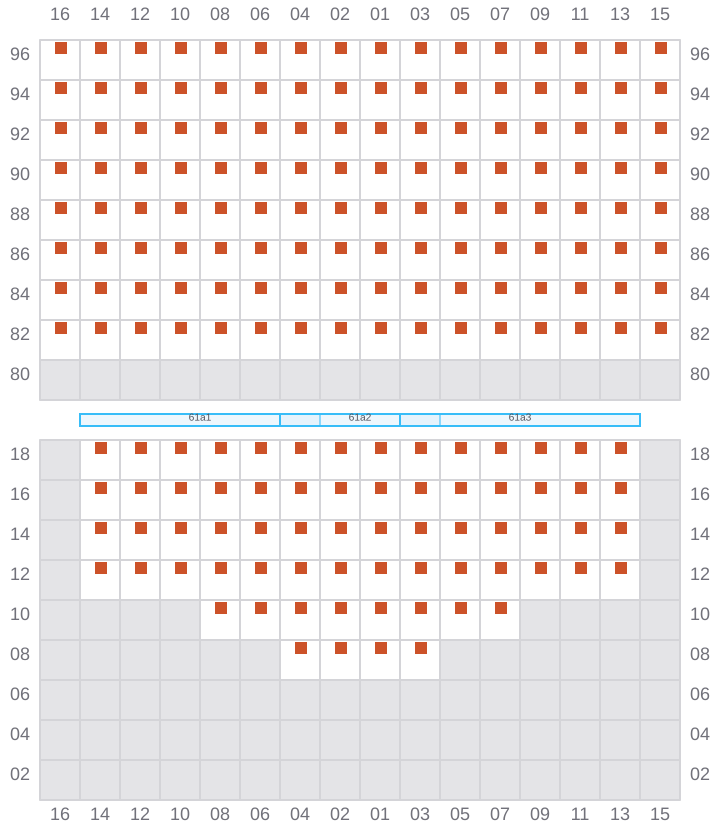

063
- ←

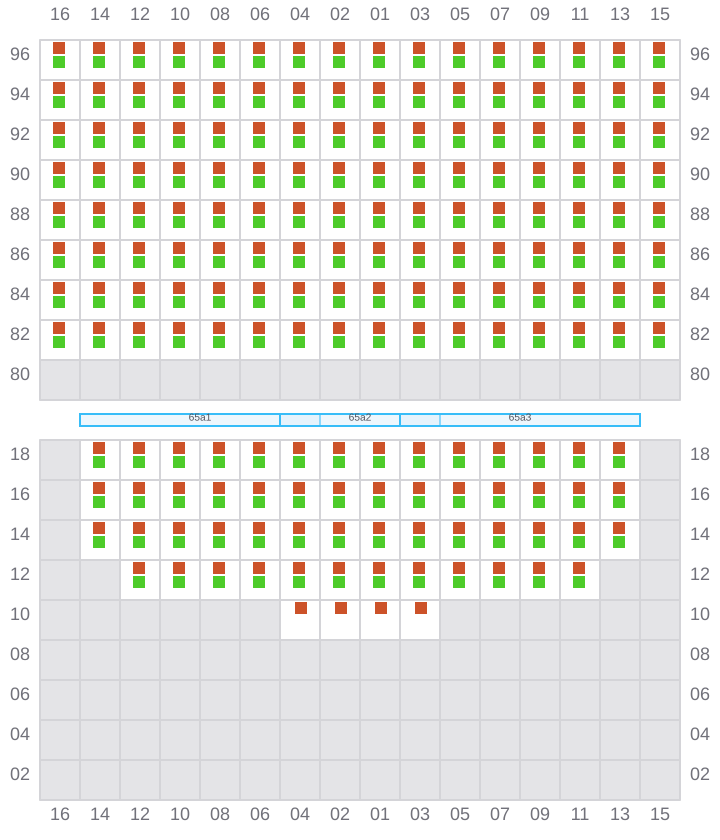

065 (066)
- →

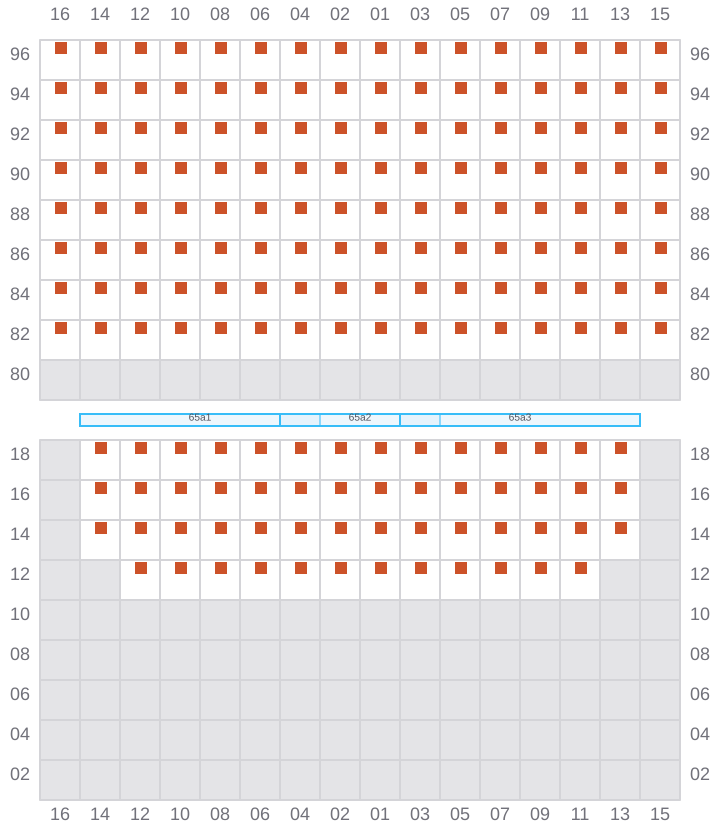

067
- ←

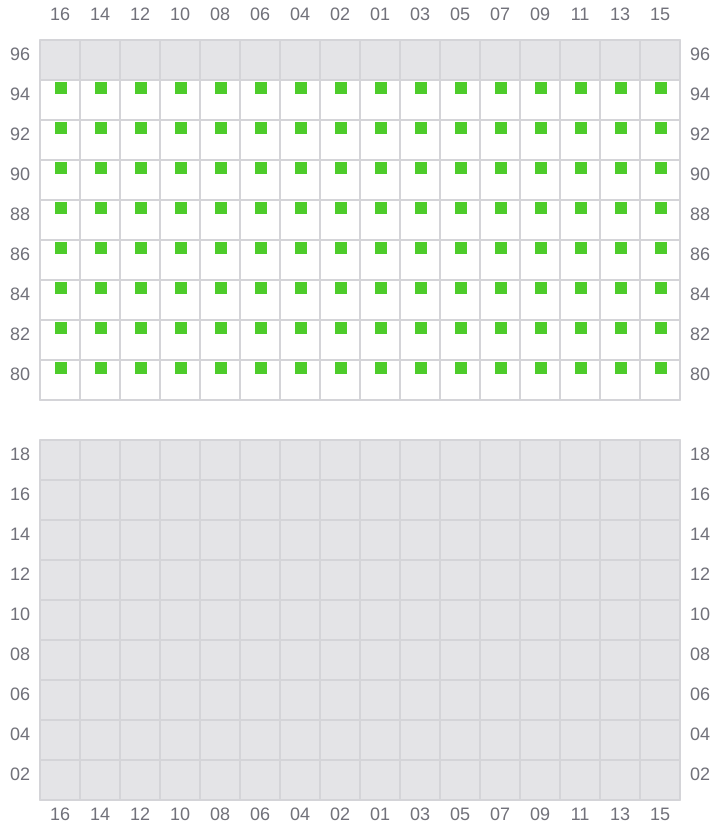

069 (070)
- → / ?
