CMA CGM NANTONG
9349629 | 9HA5635 | 9349629 by ********* Last update: Wed Jun 12 2024

General Info

Ship Name:CMA CGM NANTONG
IMO Code:9349629
Call Sign:9HA5635
Line Operator:9349629
Class Name for Sister Ships:EMC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,429

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

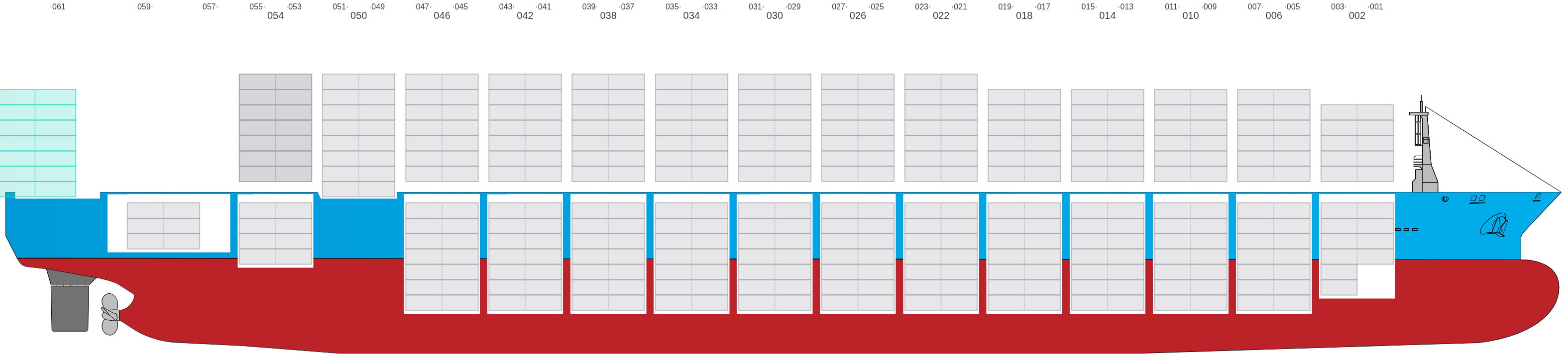

Side View

Side view of CMA CGM NANTONG

Hatch-Covers View

Deck view of CMA CGM NANTONG

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

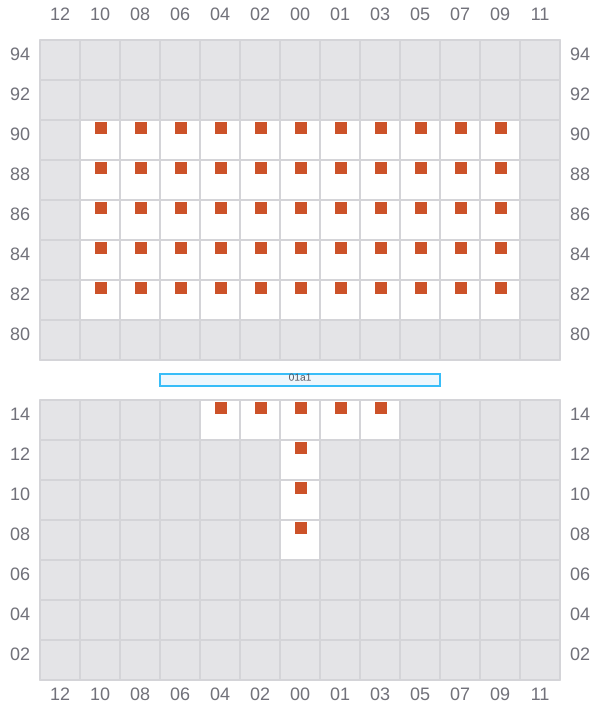

001

Bay 001 view and slots of CMA CGM NANTONG

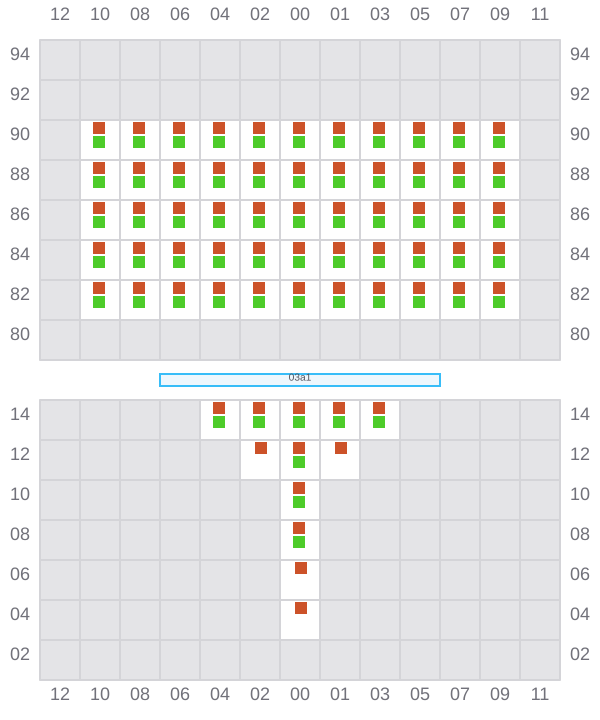

003 (002)

Bay 003 view and slots of CMA CGM NANTONG

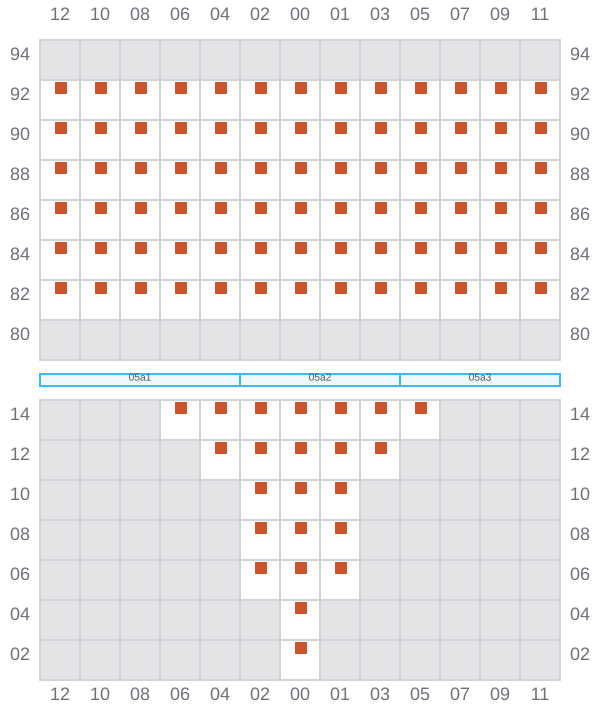

005

Bay 005 view and slots of CMA CGM NANTONG

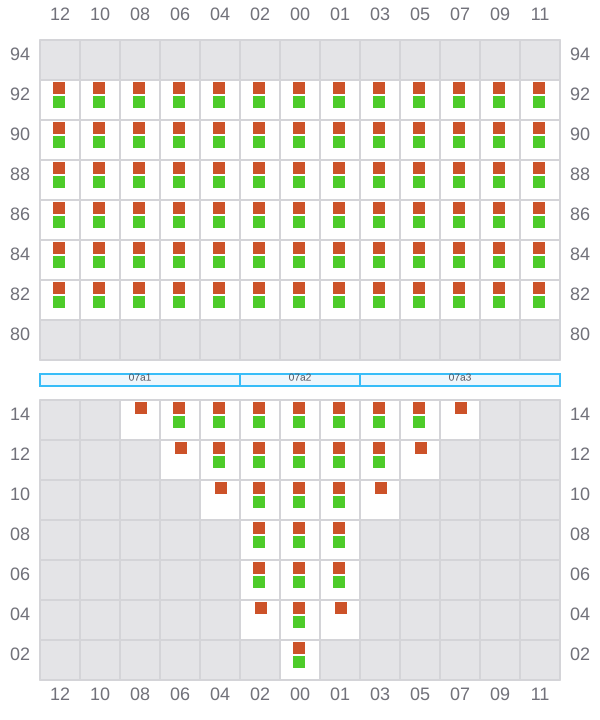

007 (006)

Bay 007 view and slots of CMA CGM NANTONG

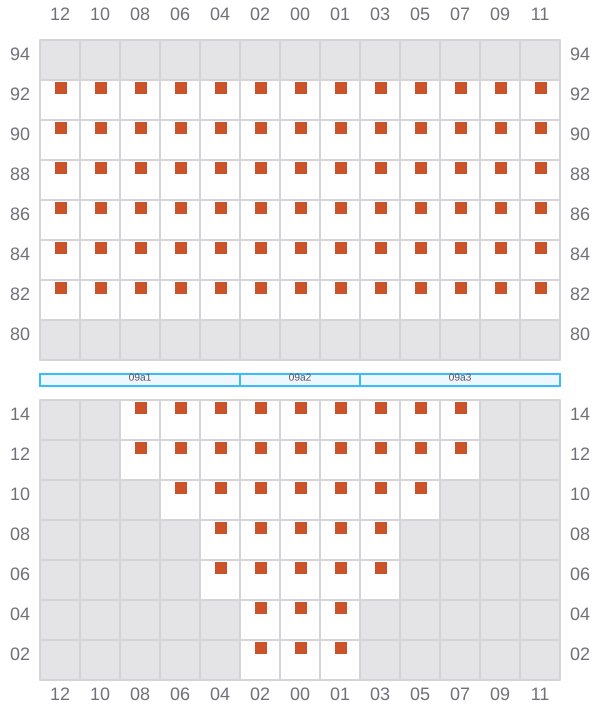

009

Bay 009 view and slots of CMA CGM NANTONG

011 (010)

Bay 011 view and slots of CMA CGM NANTONG

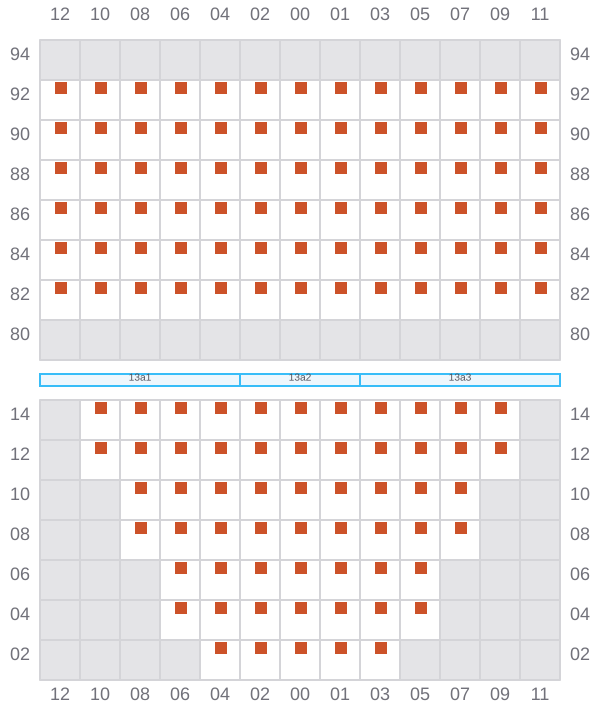

013

Bay 013 view and slots of CMA CGM NANTONG

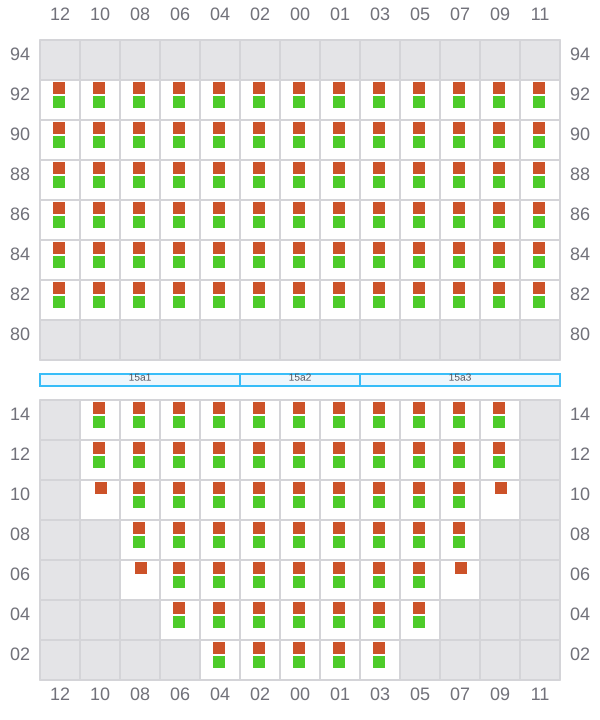

015 (014)

Bay 015 view and slots of CMA CGM NANTONG

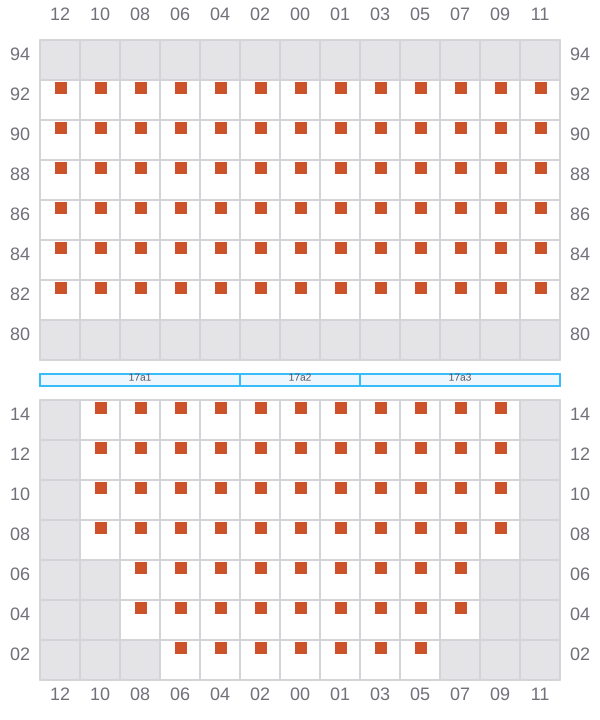

017

Bay 017 view and slots of CMA CGM NANTONG

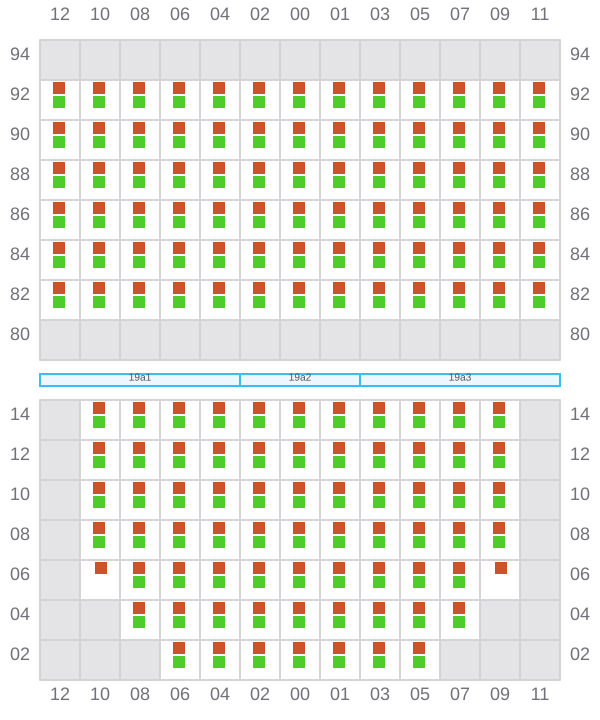

019 (018)

Bay 019 view and slots of CMA CGM NANTONG

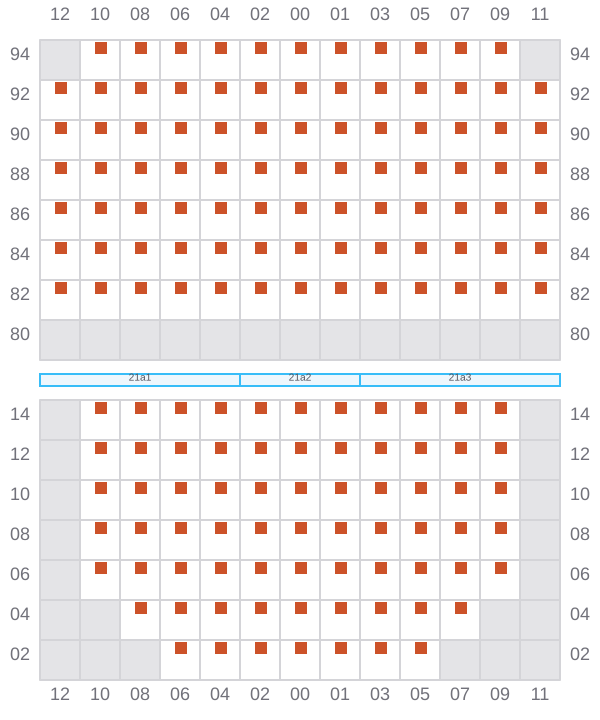

021

Bay 021 view and slots of CMA CGM NANTONG

023 (022)

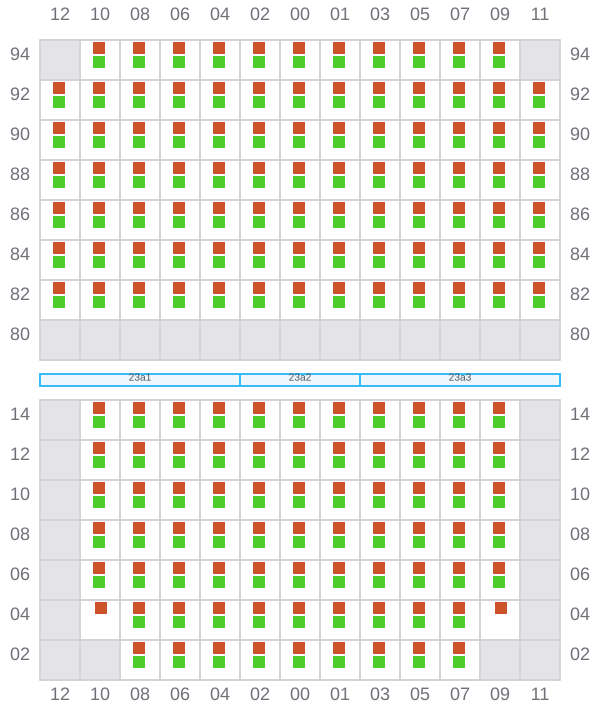

Bay 023 view and slots of CMA CGM NANTONG

025

Bay 025 view and slots of CMA CGM NANTONG

027 (026)

Bay 027 view and slots of CMA CGM NANTONG

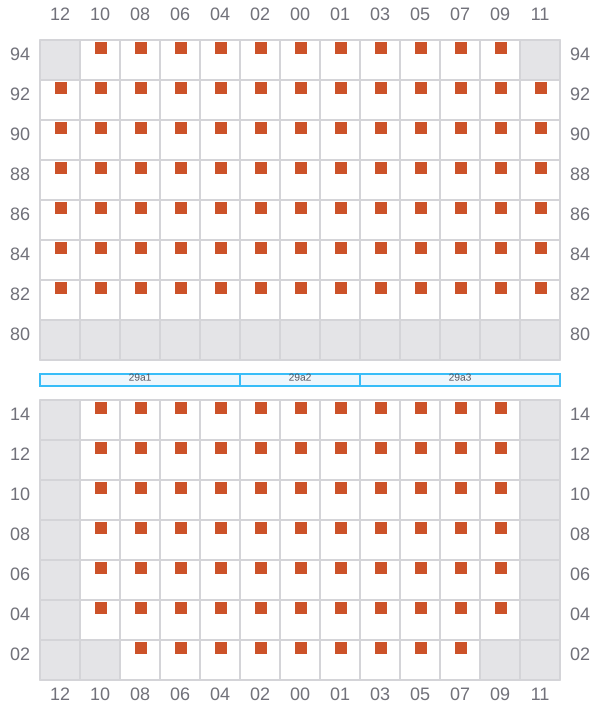

029

Bay 029 view and slots of CMA CGM NANTONG

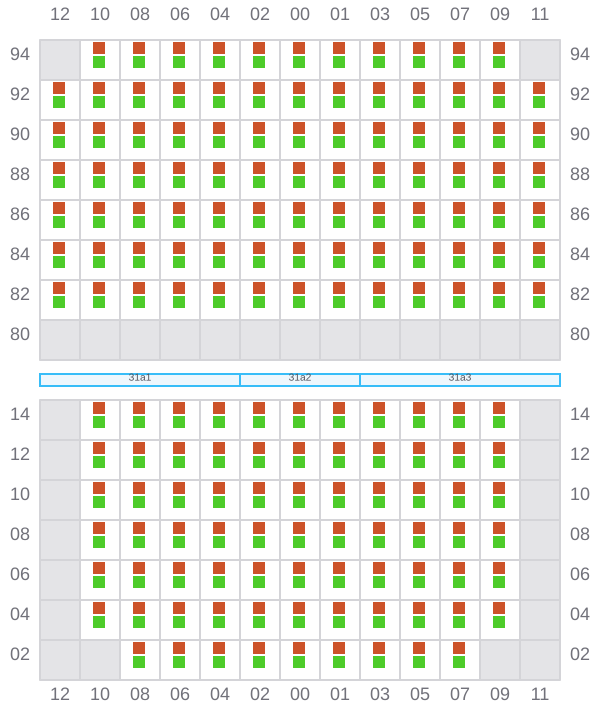

031 (030)

Bay 031 view and slots of CMA CGM NANTONG

033

Bay 033 view and slots of CMA CGM NANTONG

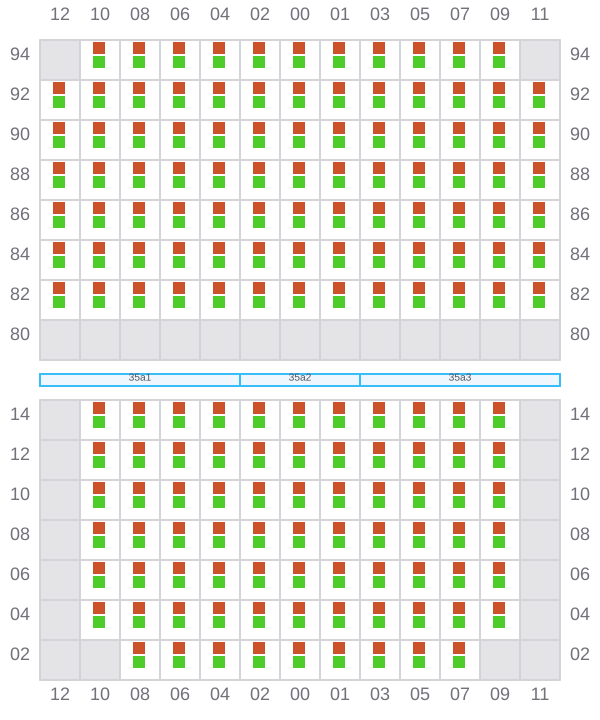

035 (034)

Bay 035 view and slots of CMA CGM NANTONG

037

Bay 037 view and slots of CMA CGM NANTONG

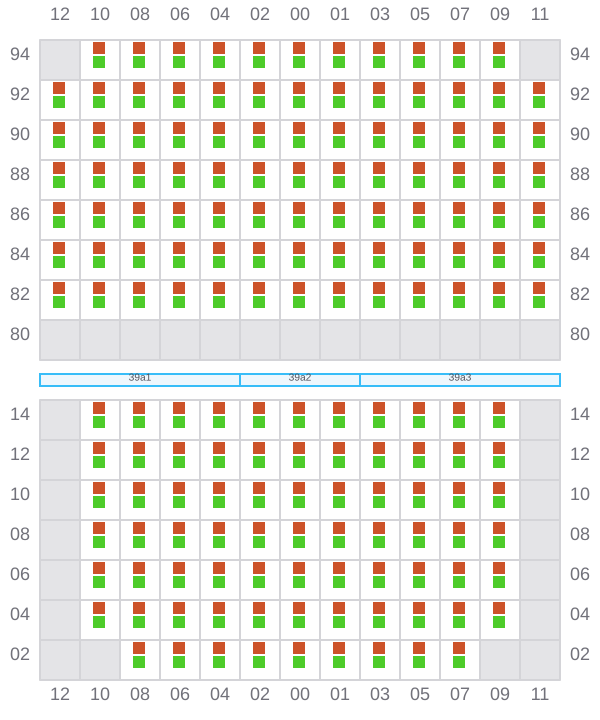

039 (038)

Bay 039 view and slots of CMA CGM NANTONG

041

Bay 041 view and slots of CMA CGM NANTONG

043 (042)

Bay 043 view and slots of CMA CGM NANTONG

045

Bay 045 view and slots of CMA CGM NANTONG

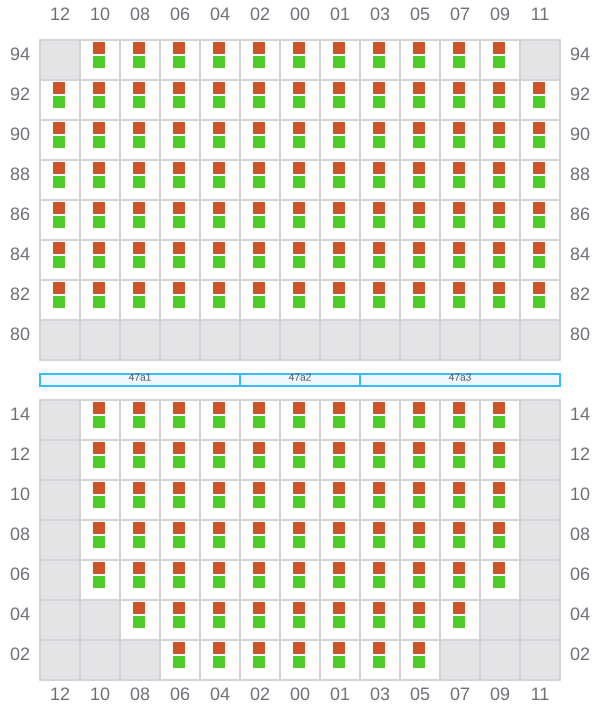

047 (046)

Bay 047 view and slots of CMA CGM NANTONG

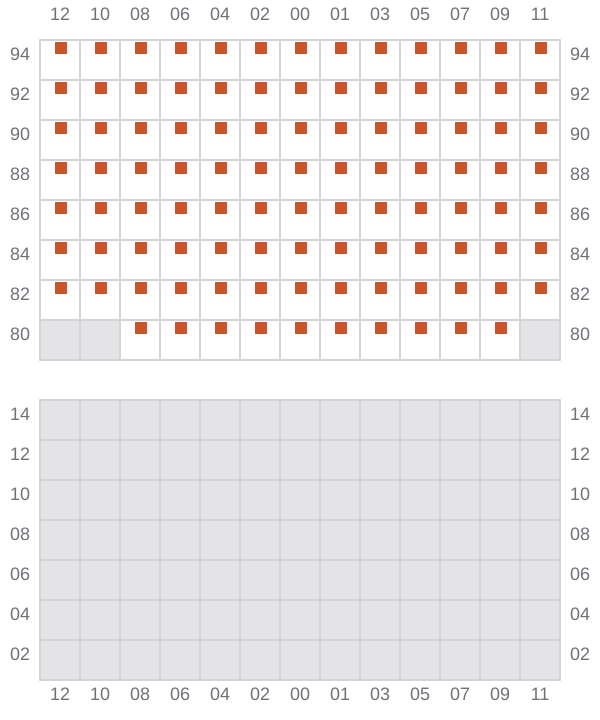

049

Bay 049 view and slots of CMA CGM NANTONG

051 (050)

Bay 051 view and slots of CMA CGM NANTONG

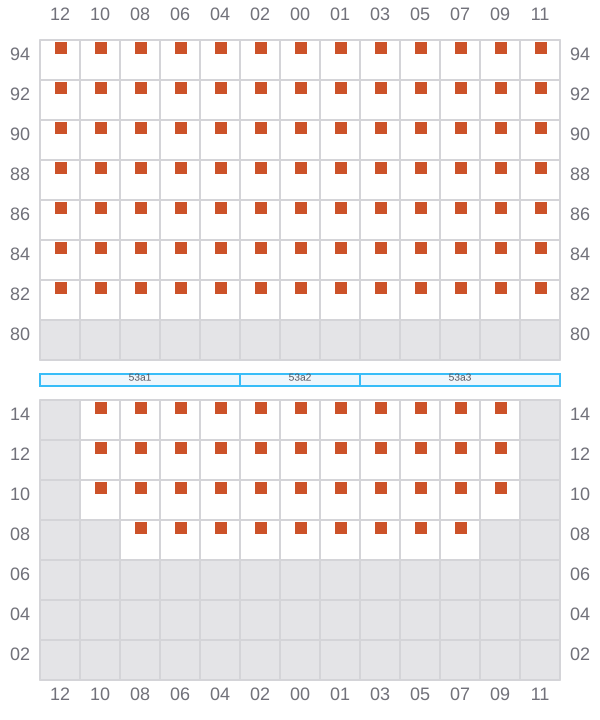

053

Bay 053 view and slots of CMA CGM NANTONG

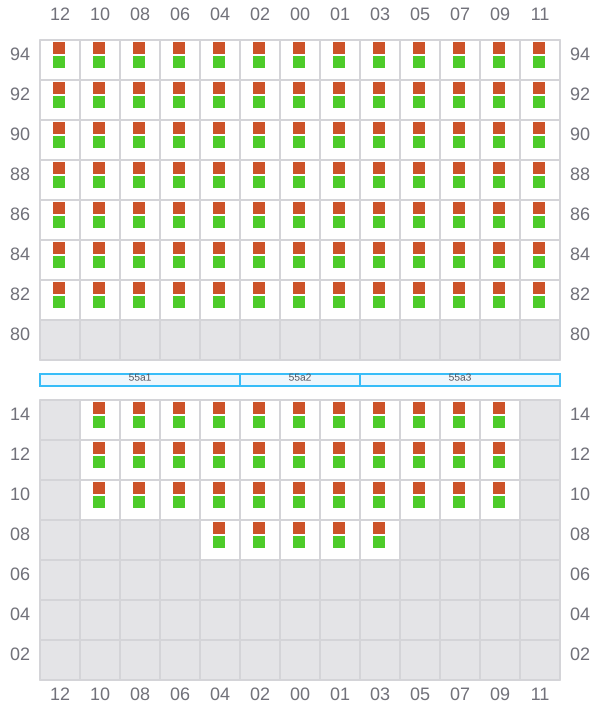

055 (054)

Bay 055 view and slots of CMA CGM NANTONG

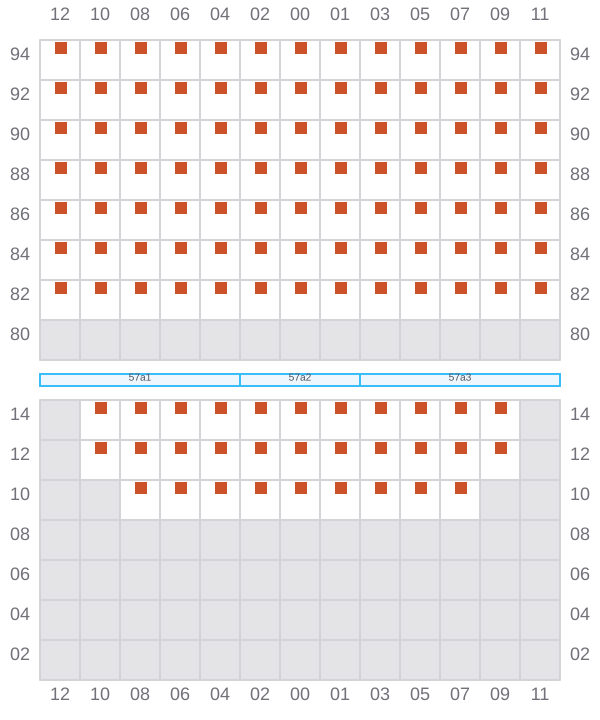

057

Bay 057 view and slots of CMA CGM NANTONG

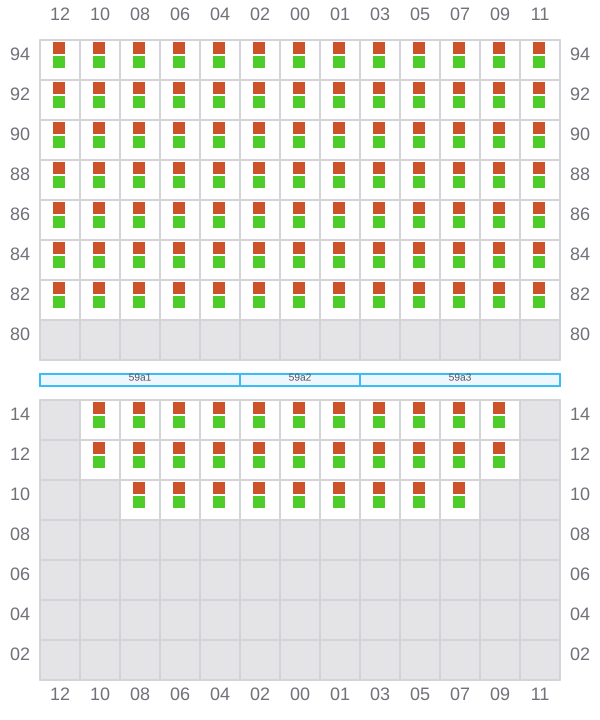

059 (058)

Bay 059 view and slots of CMA CGM NANTONG

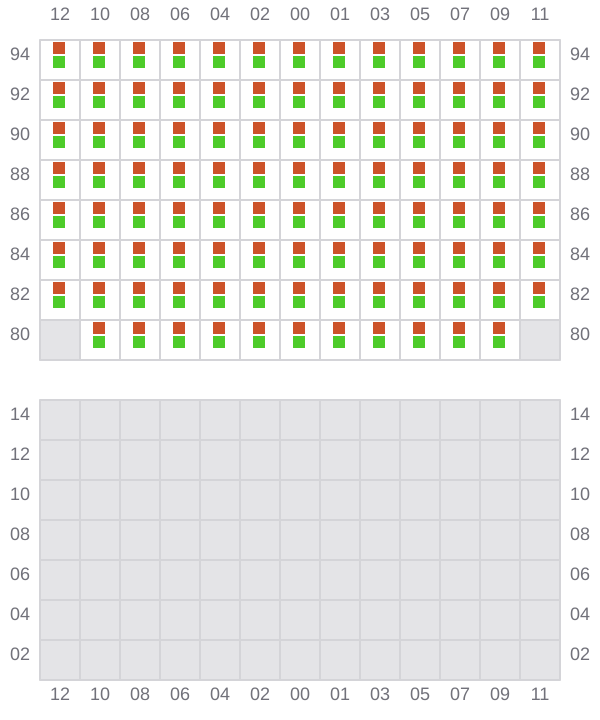

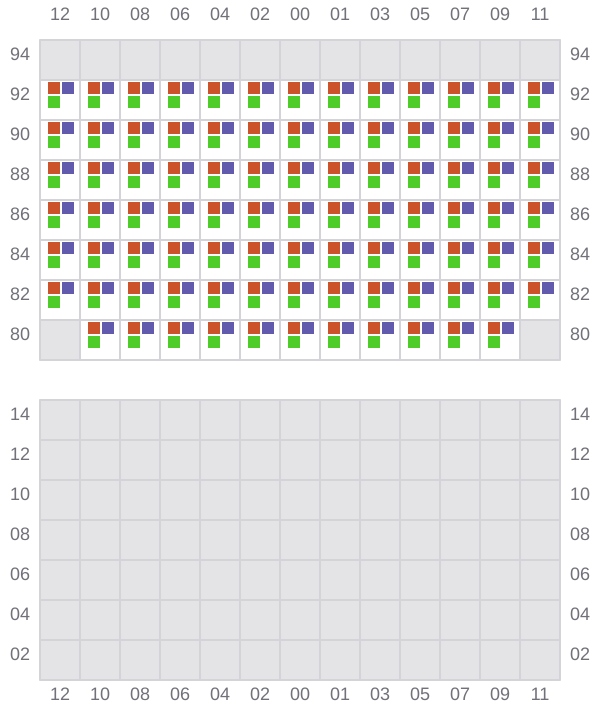

061 (062)

Bay 061 view and slots of CMA CGM NANTONG
