CMA CGM NAVEGANTES
9303780 | 9HA5712 | 9303780 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:CMA CGM NAVEGANTES
IMO Code:9303780
Call Sign:9HA5712
Line Operator:9303780
Class Name for Sister Ships:92C
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,822
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

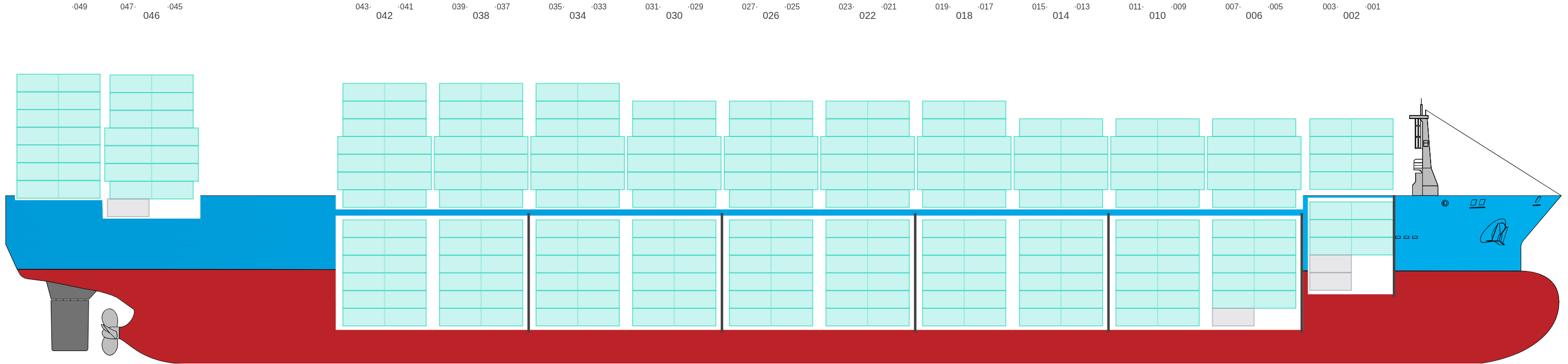

Side View
![Side view of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-sideView.png?v=1710788502332)
Hatch-Covers View
![Deck view of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-deckView.png?v=1710788502332)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

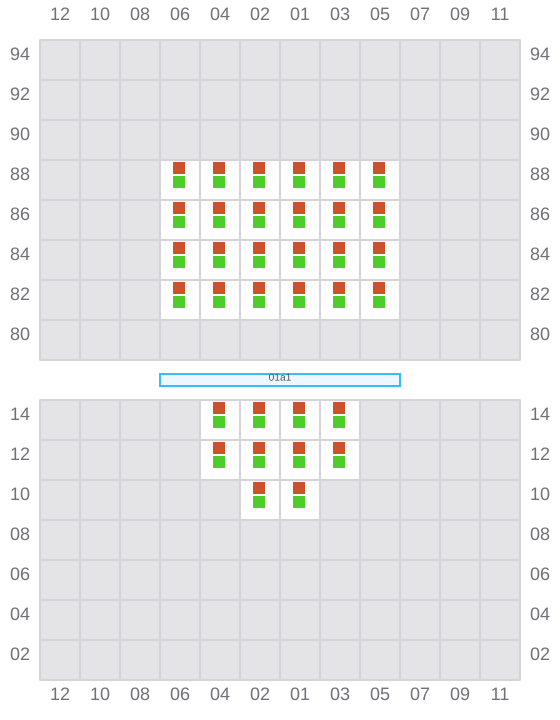

001 (002)
- →
![Bay 001 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b001.png?v=1710788502332)

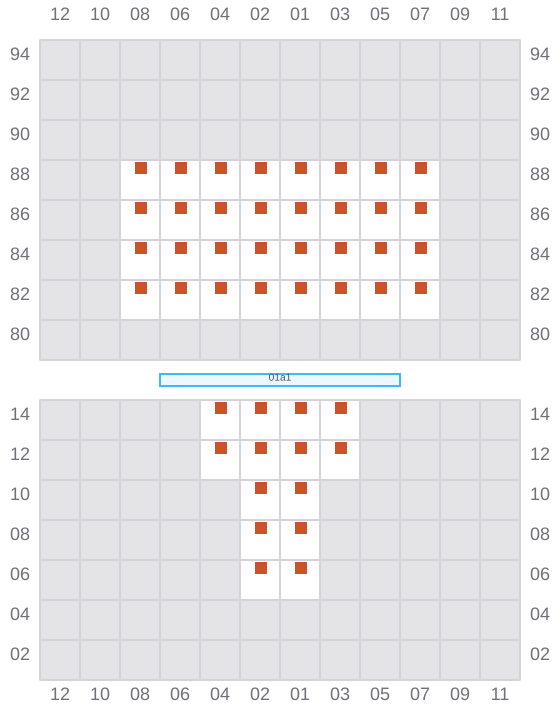

003
- ←
![Bay 003 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b003.png?v=1710788502332)

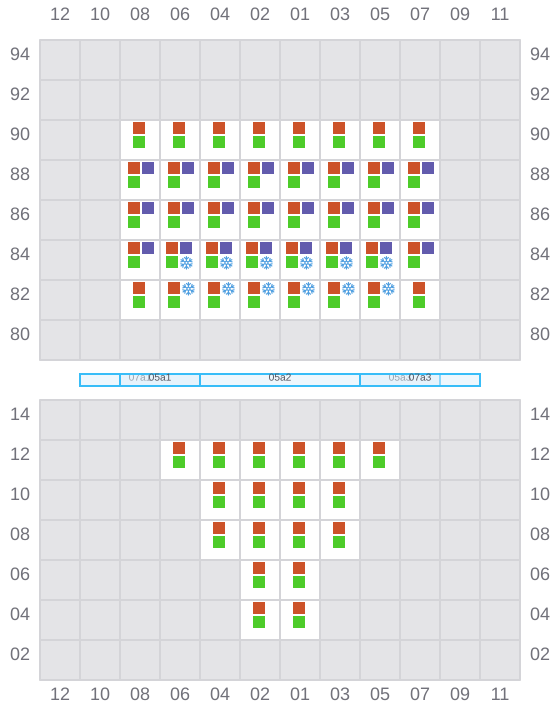

005 (006)
- →
- ← / ?
![Bay 005 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b005.png?v=1710788502332)

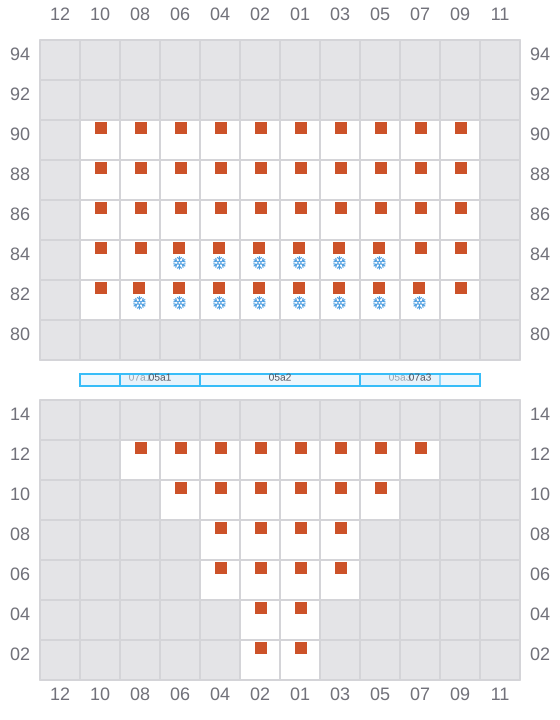

007
- ←
- → / ?
![Bay 007 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b007.png?v=1710788502332)
009 (010)
- →
- ← / ?
![Bay 009 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b009.png?v=1710788502332)

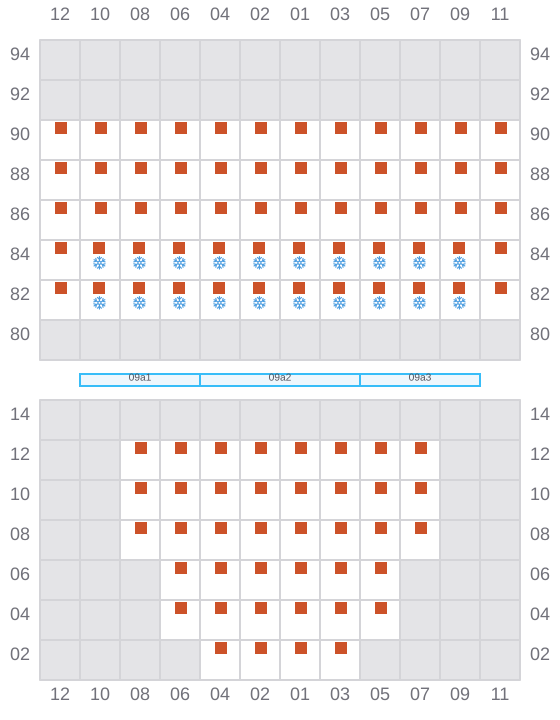

011
- ←
- → / ?
![Bay 011 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b011.png?v=1710788502332)

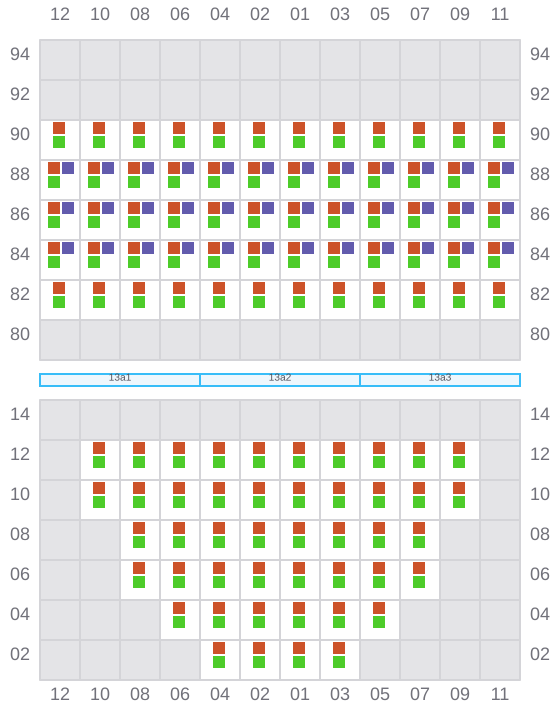

013 (014)
- →
- ← / ?
![Bay 013 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b013.png?v=1710788502332)

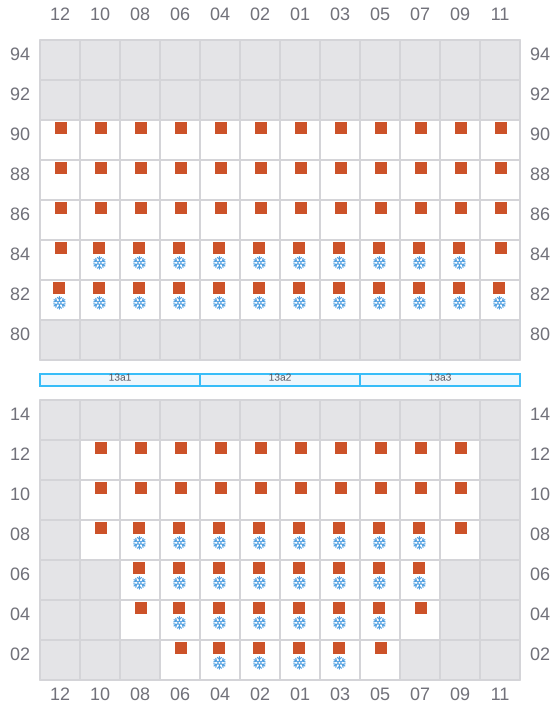

015
- ←
- →
![Bay 015 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b015.png?v=1710788502332)

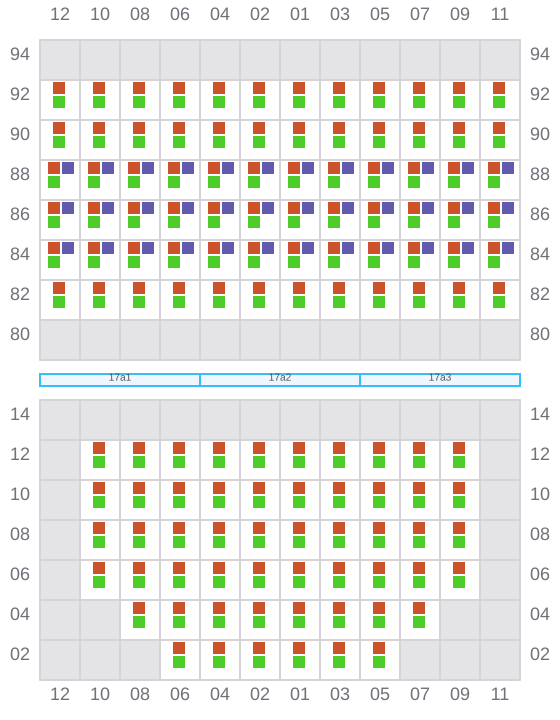

017 (018)
- →
- ← / ?
![Bay 017 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b017.png?v=1710788502332)

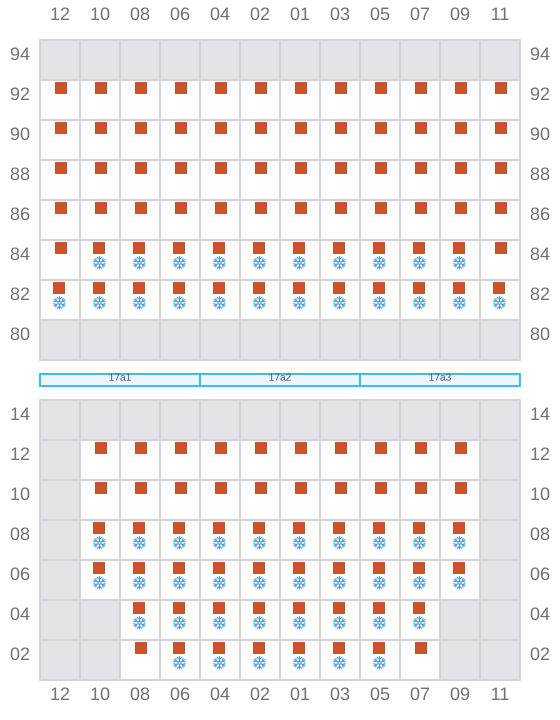

019
- ←
- →
![Bay 019 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b019.png?v=1710788502332)

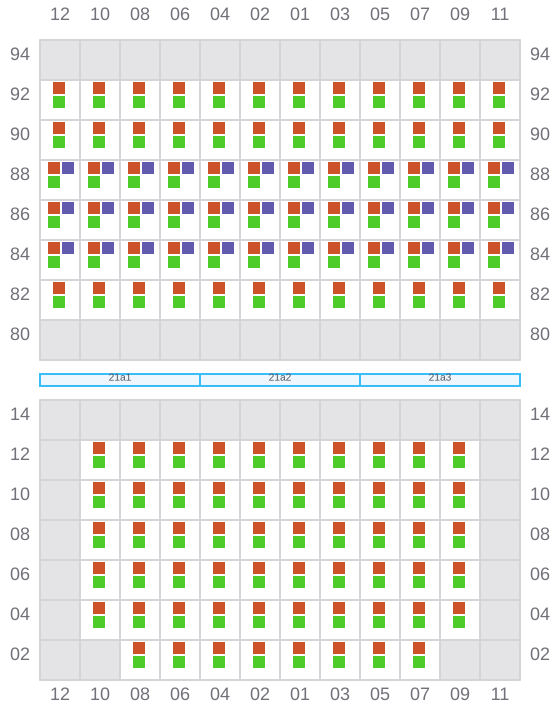

021 (022)
- →
- ← / ?
![Bay 021 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b021.png?v=1710788502332)

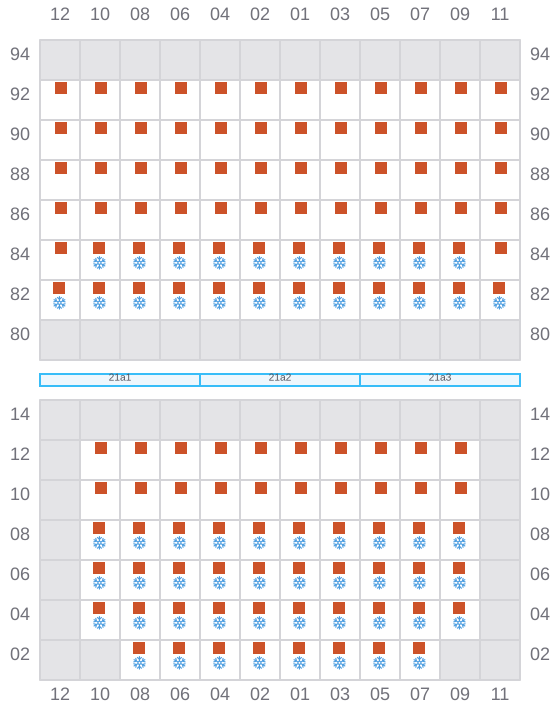

023
- ←
- →
![Bay 023 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b023.png?v=1710788502332)
025 (026)
- →
- ← / ?
![Bay 025 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b025.png?v=1710788502332)
027
- ←
- →
![Bay 027 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b027.png?v=1710788502332)

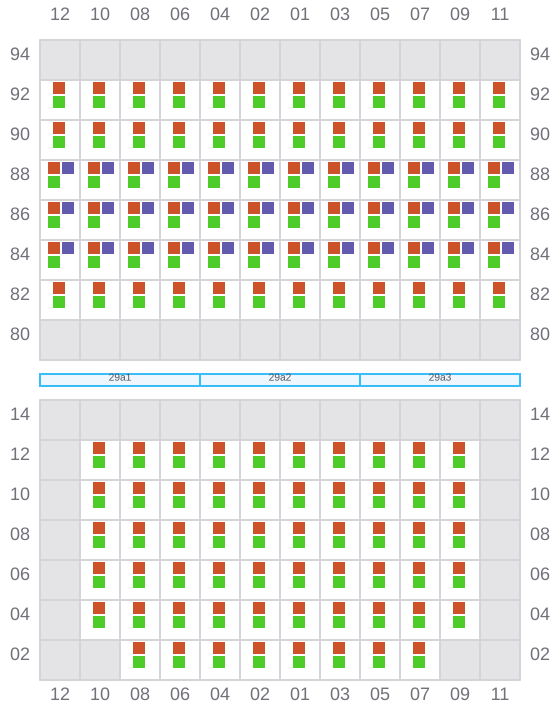

029 (030)
- →
- ← / ?
![Bay 029 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b029.png?v=1710788502332)

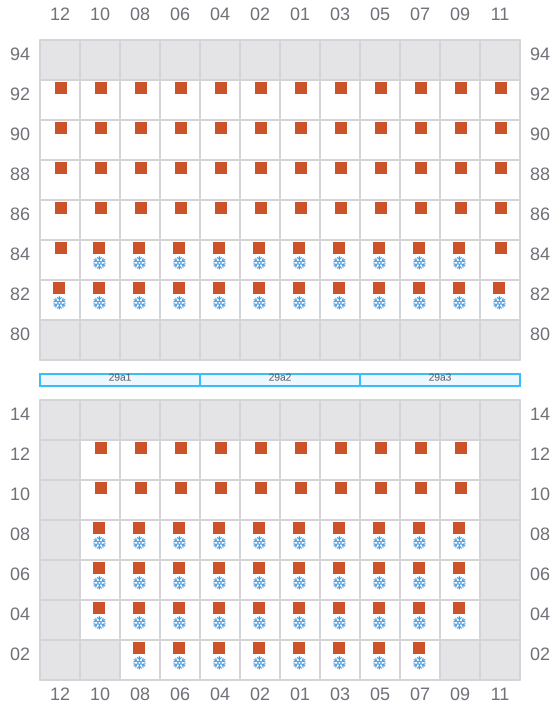

031
- ←
- →
![Bay 031 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b031.png?v=1710788502332)

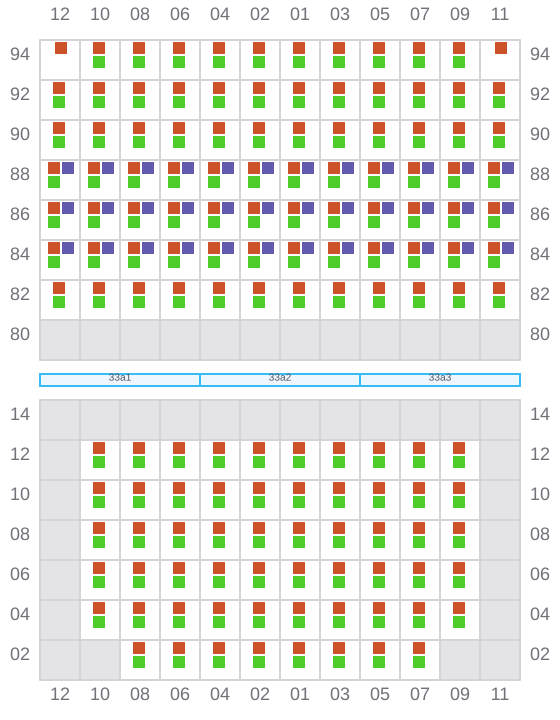

033 (034)
- →
- ← / ?
![Bay 033 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b033.png?v=1710788502332)

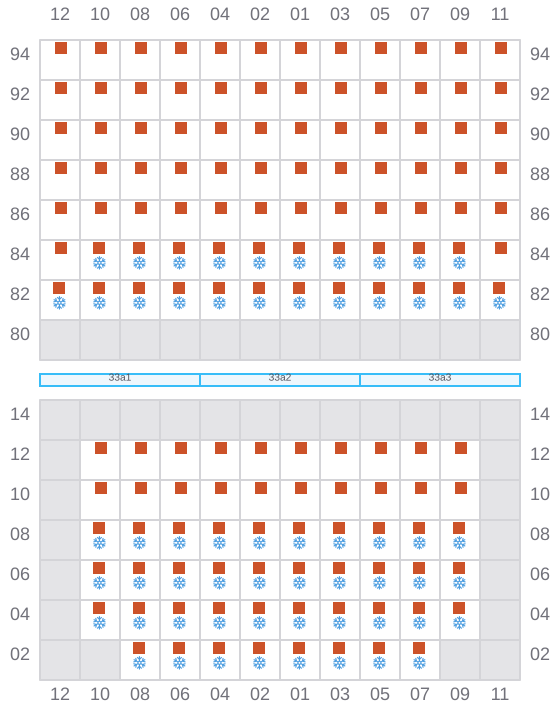

035
- ←
- → / ?
![Bay 035 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b035.png?v=1710788502332)

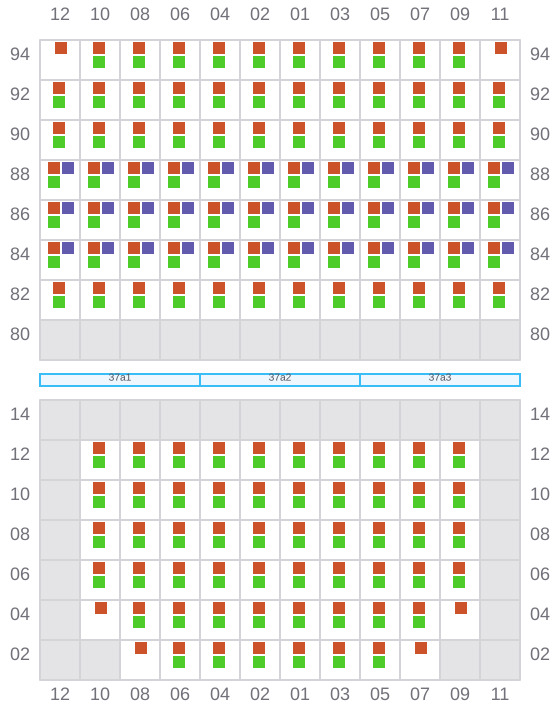

037 (038)
- →
- ← / ?
![Bay 037 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b037.png?v=1710788502332)
039
- ←
- →
![Bay 039 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b039.png?v=1710788502332)

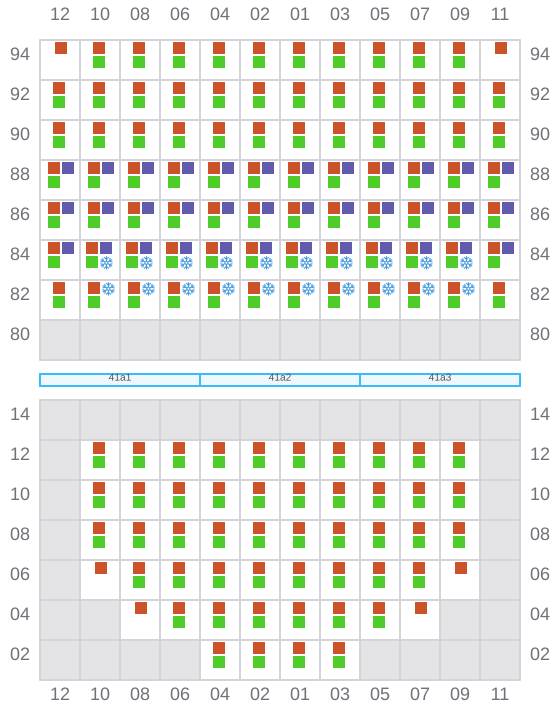

041 (042)
- →
- ← / ?
![Bay 041 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b041.png?v=1710788502332)

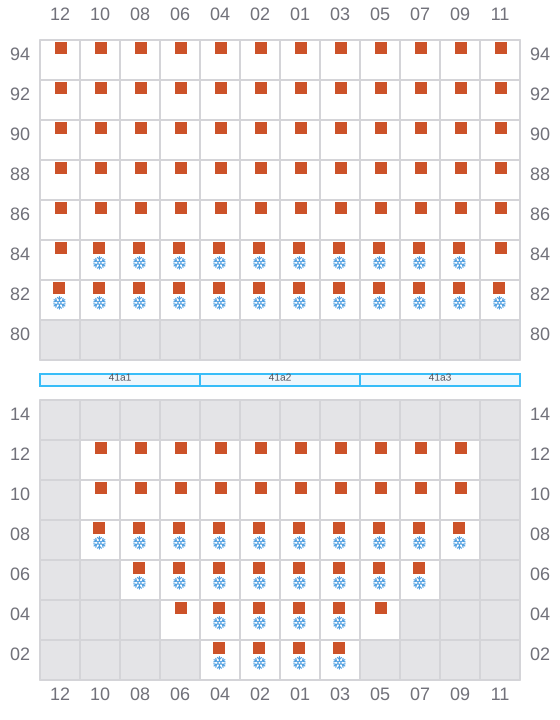

043
- ←
- →
![Bay 043 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b043.png?v=1710788502332)

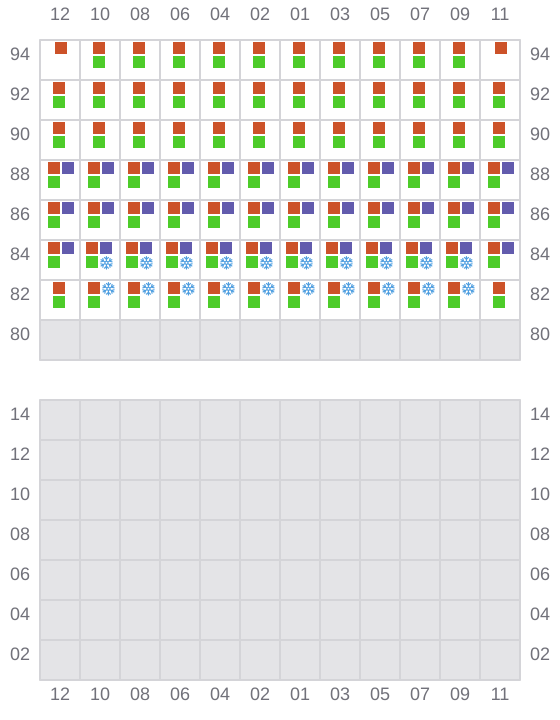

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b045.png?v=1710788502332)

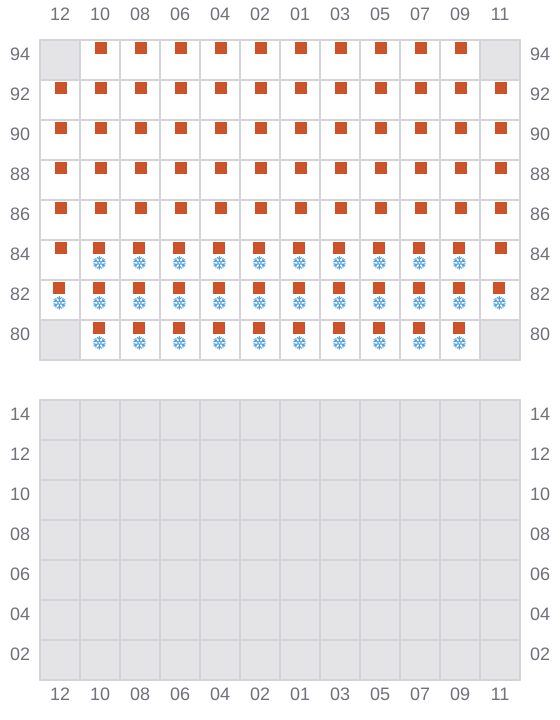

047
- ← / ?
- → / ?
![Bay 047 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b047.png?v=1710788502332)

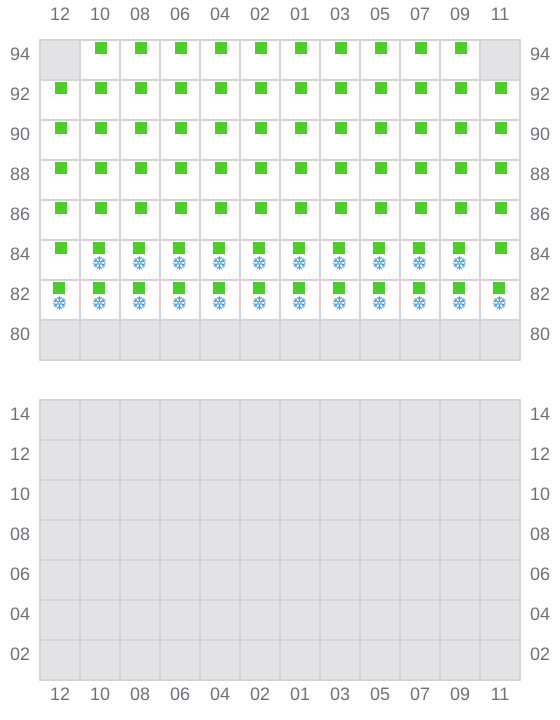

049 (050)
- → / ?
- ← / ?
![Bay 049 view and slots of CMA CGM NAVEGANTES](/vessel-images/54e34e7e-2a5a-4a8c-adee-0adcb568be45-b049.png?v=1710788502332)
