CMA CGM NEVADA
9471408 | 9HA3474 | CMA by *********************** Last update: Mon Feb 03 2025

General Info

Ship Name:CMA CGM NEVADA

IMO Code:9471408

Call Sign:9HA3474

Line Operator:CMA

Class Name for Sister Ships:MSC FABIOLA

Year Built:2011

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):350.85

LOA (Length Overall):366.08

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:085

Max ISO Row:18

Center Line Row:Yes

Max Above ISO Tier:98

Min Above ISO Tier:76

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:13,380

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

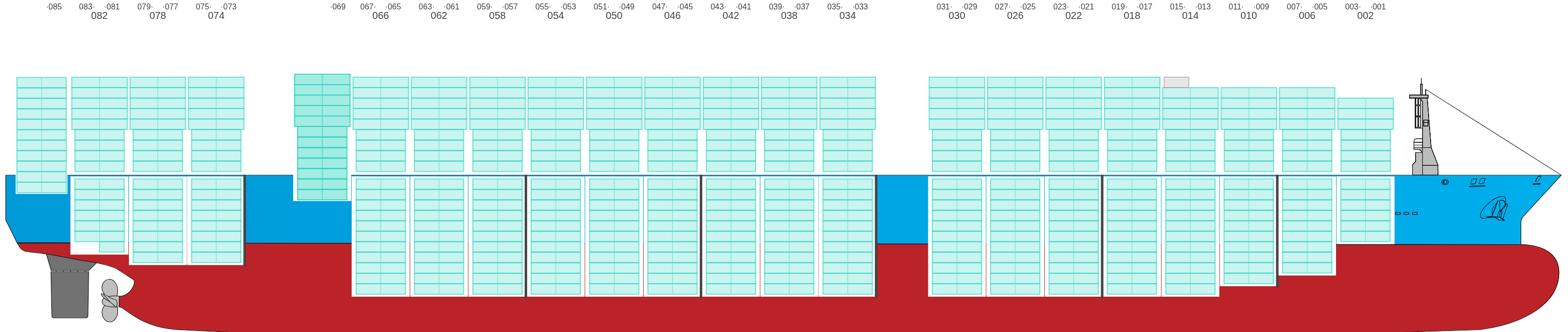

Side View

Side view of CMA CGM NEVADA

Hatch-Covers View

Deck view of CMA CGM NEVADA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

→
→

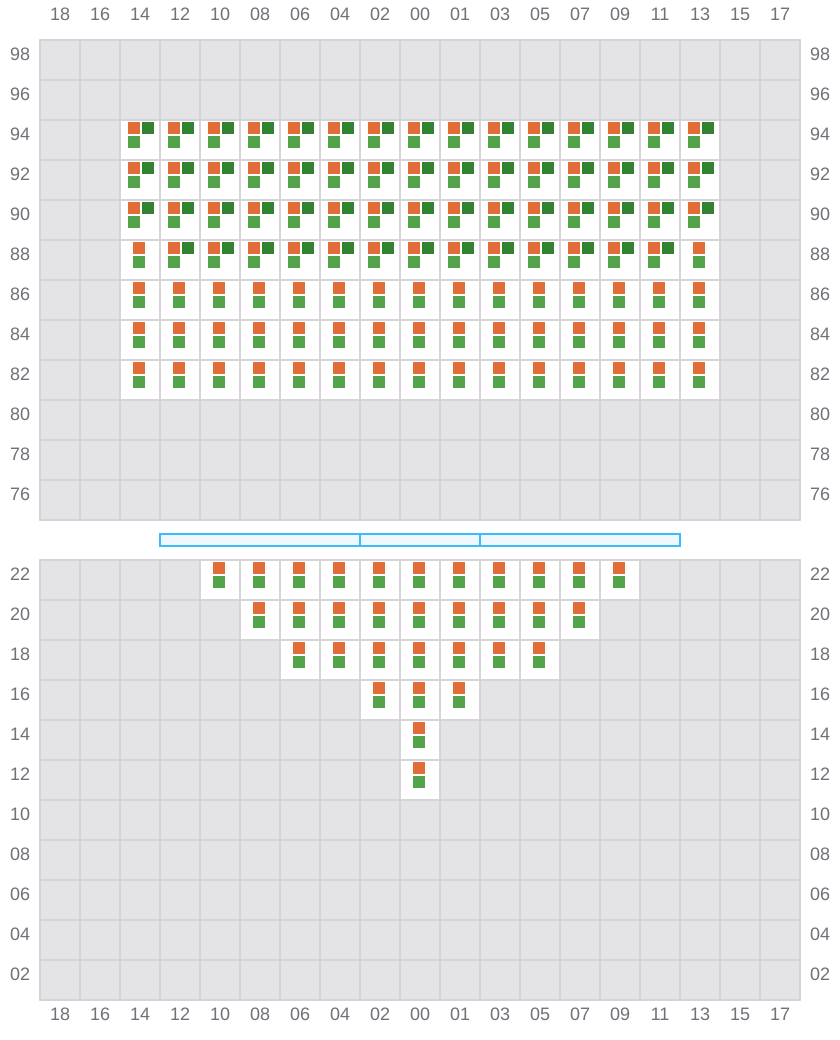

Bay 001 view and slots of CMA CGM NEVADA

003

←
→

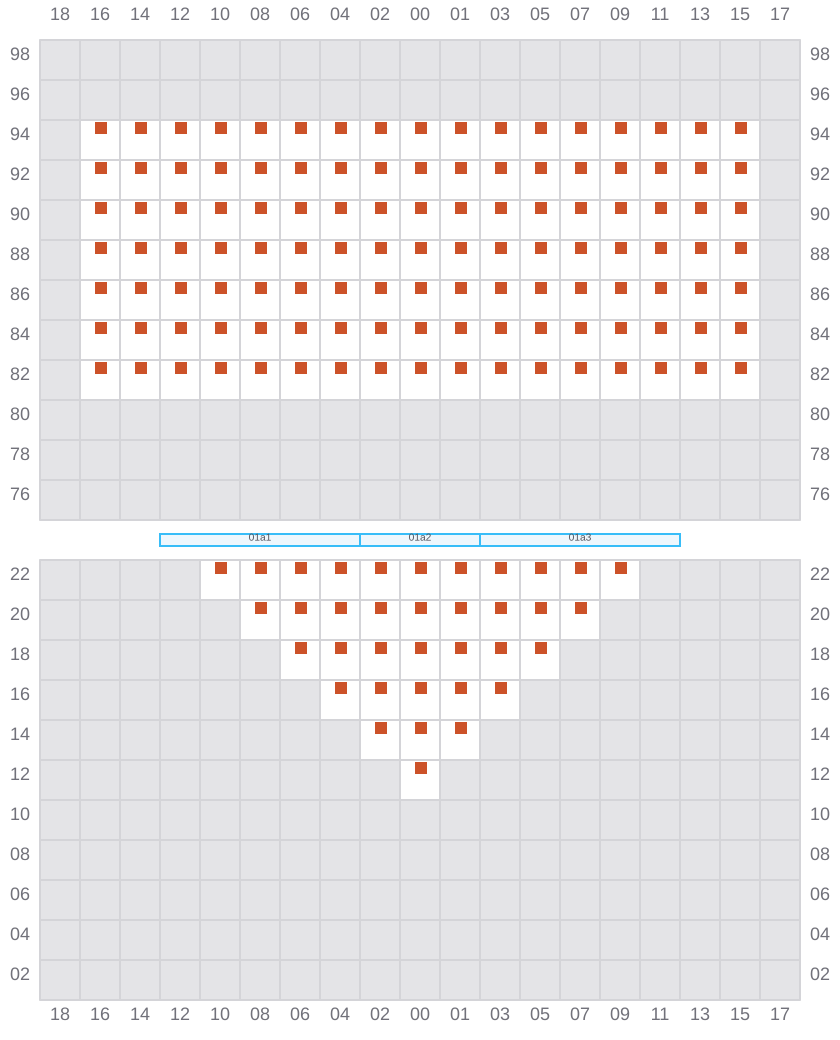

Bay 003 view and slots of CMA CGM NEVADA

005 (006)

→
→

Bay 005 view and slots of CMA CGM NEVADA

007

←
→

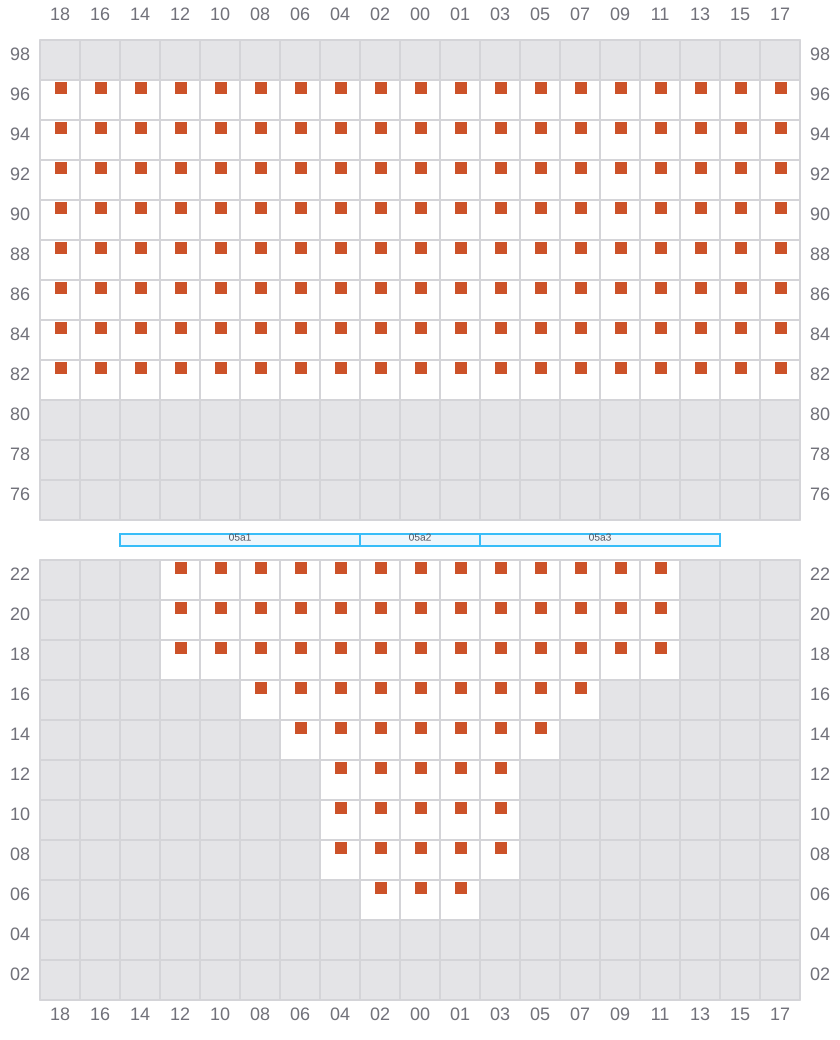

Bay 007 view and slots of CMA CGM NEVADA

009 (010)

→
→

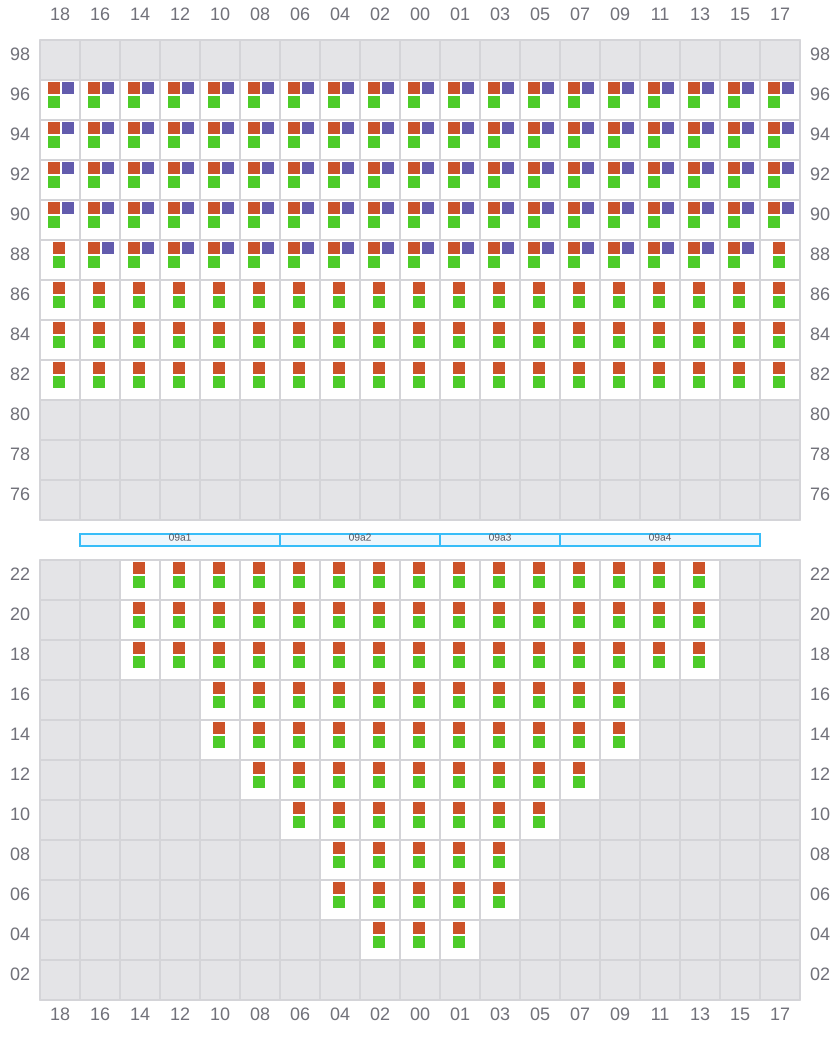

Bay 009 view and slots of CMA CGM NEVADA

011

←
^→ / _?
→

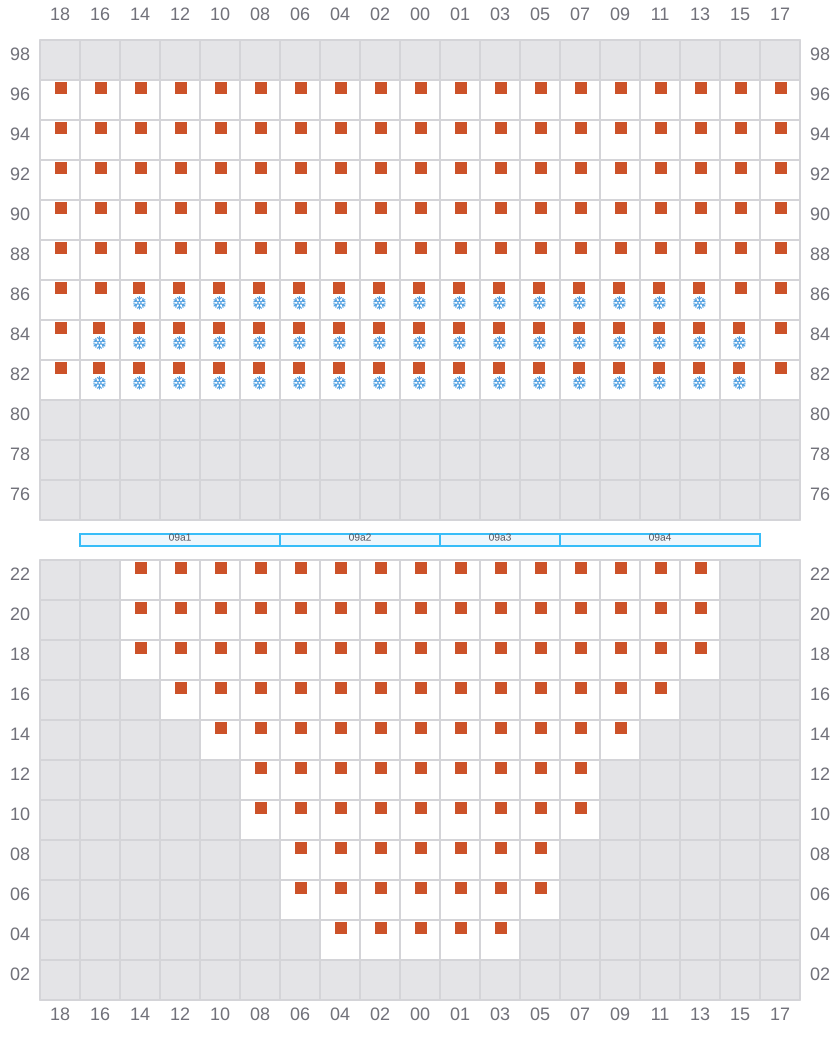

Bay 011 view and slots of CMA CGM NEVADA

013 (014)

→
→

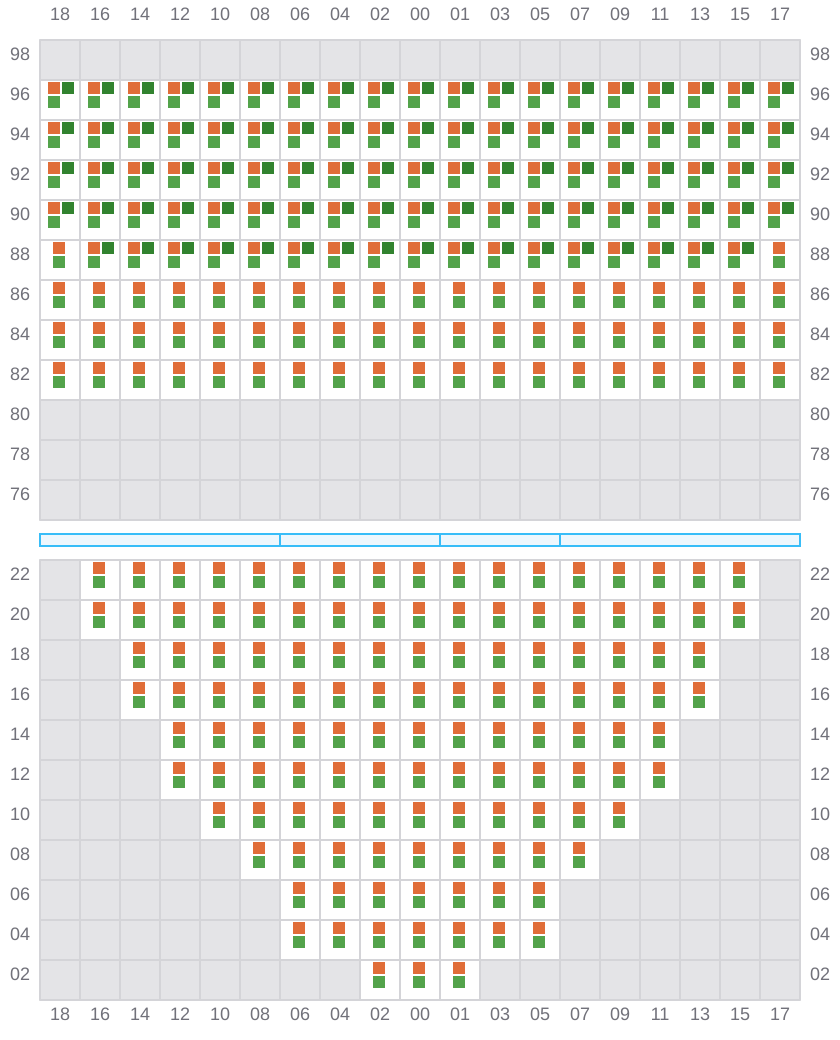

Bay 013 view and slots of CMA CGM NEVADA

015

←
^→ / _?
→

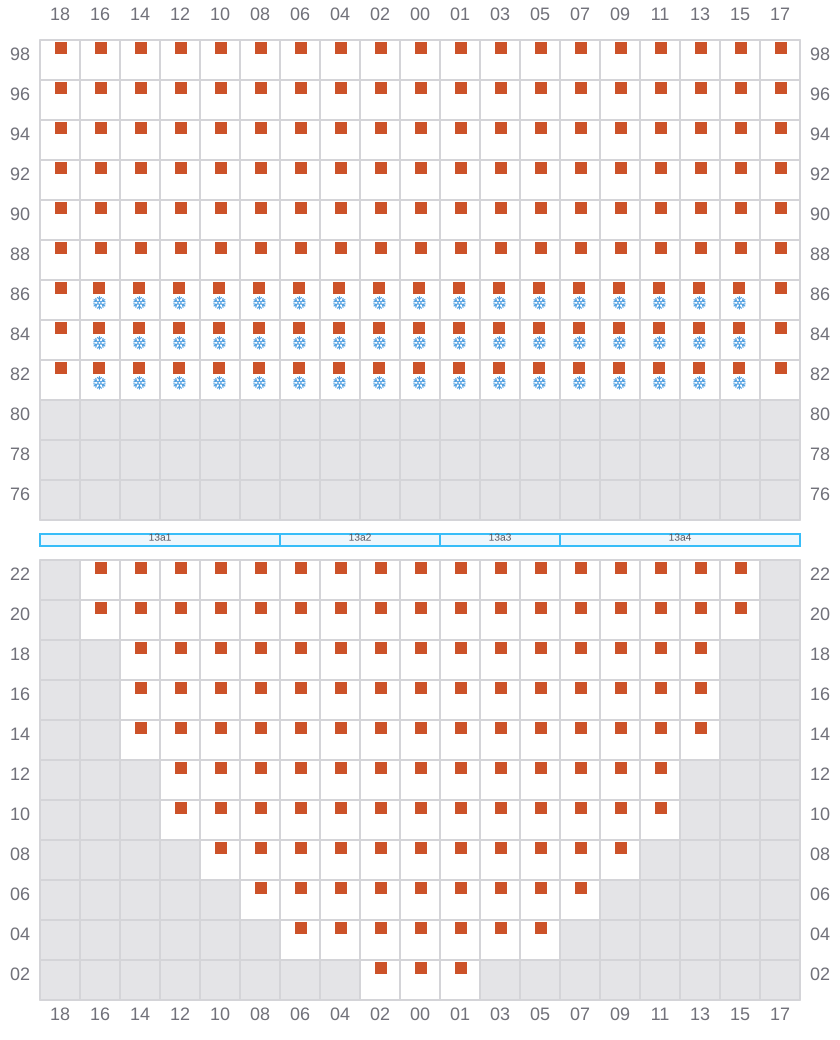

Bay 015 view and slots of CMA CGM NEVADA

017 (018)

→
→

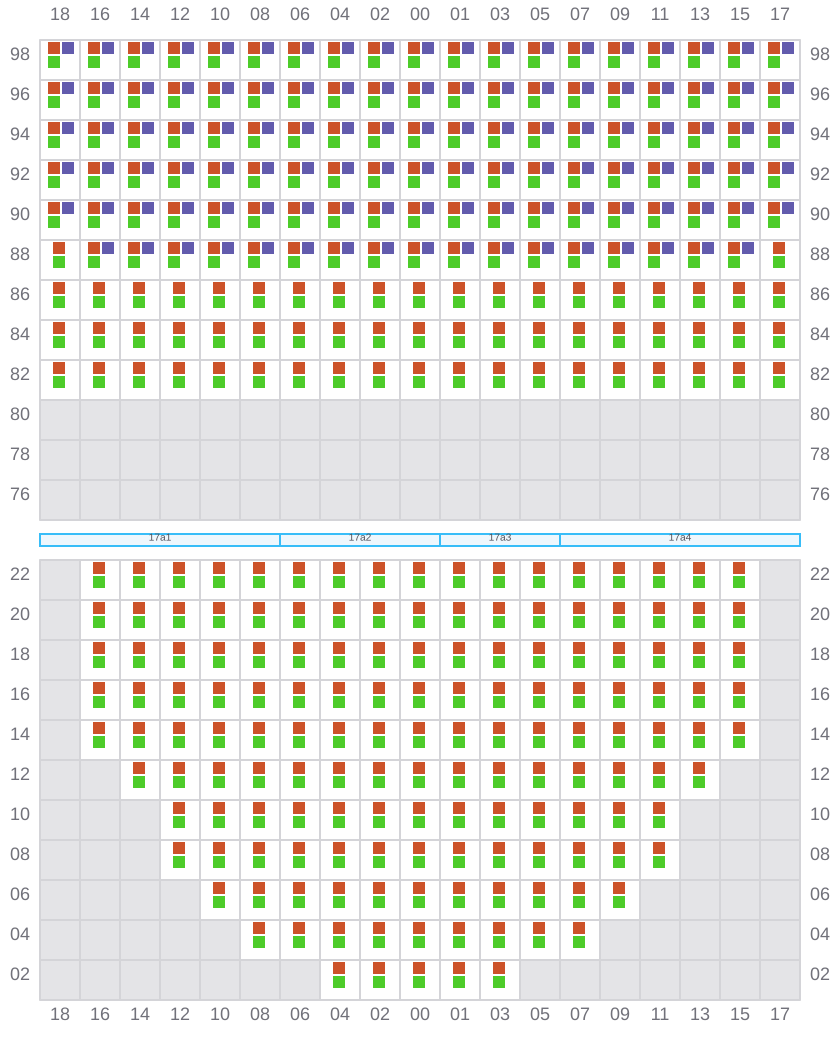

Bay 017 view and slots of CMA CGM NEVADA

019

←
^→ / _?
→

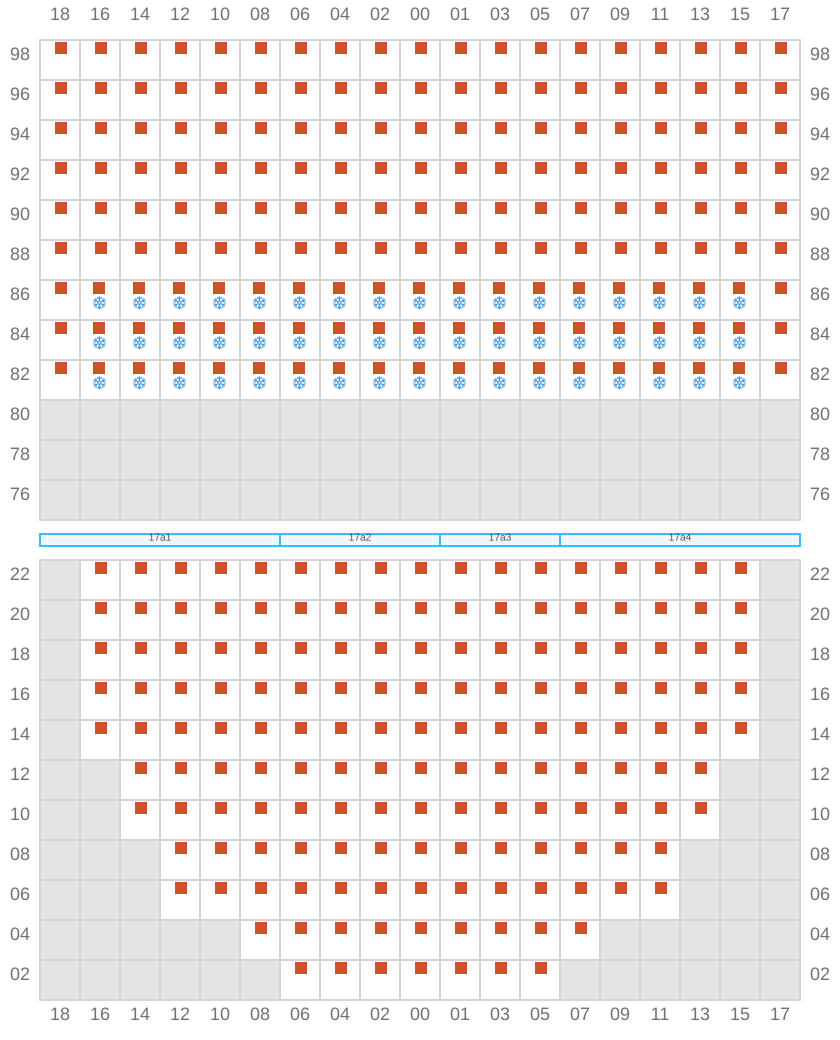

Bay 019 view and slots of CMA CGM NEVADA

021 (022)

→
→

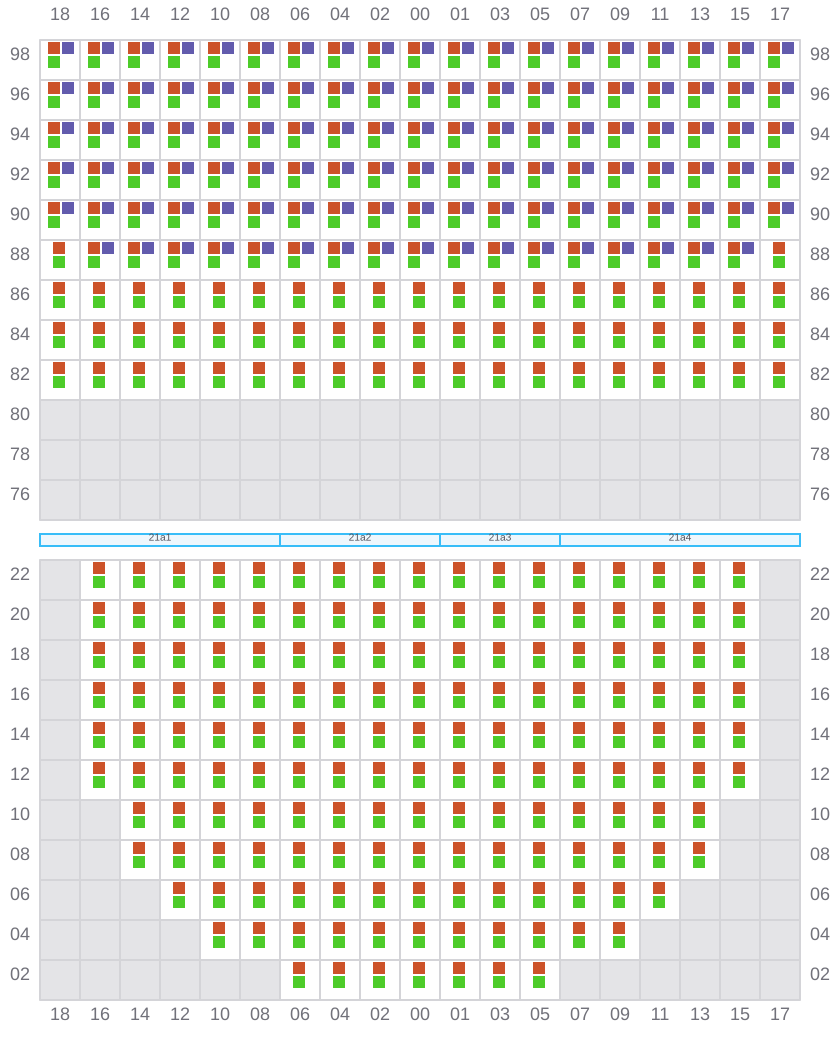

Bay 021 view and slots of CMA CGM NEVADA

023

←
^→ / _?
→

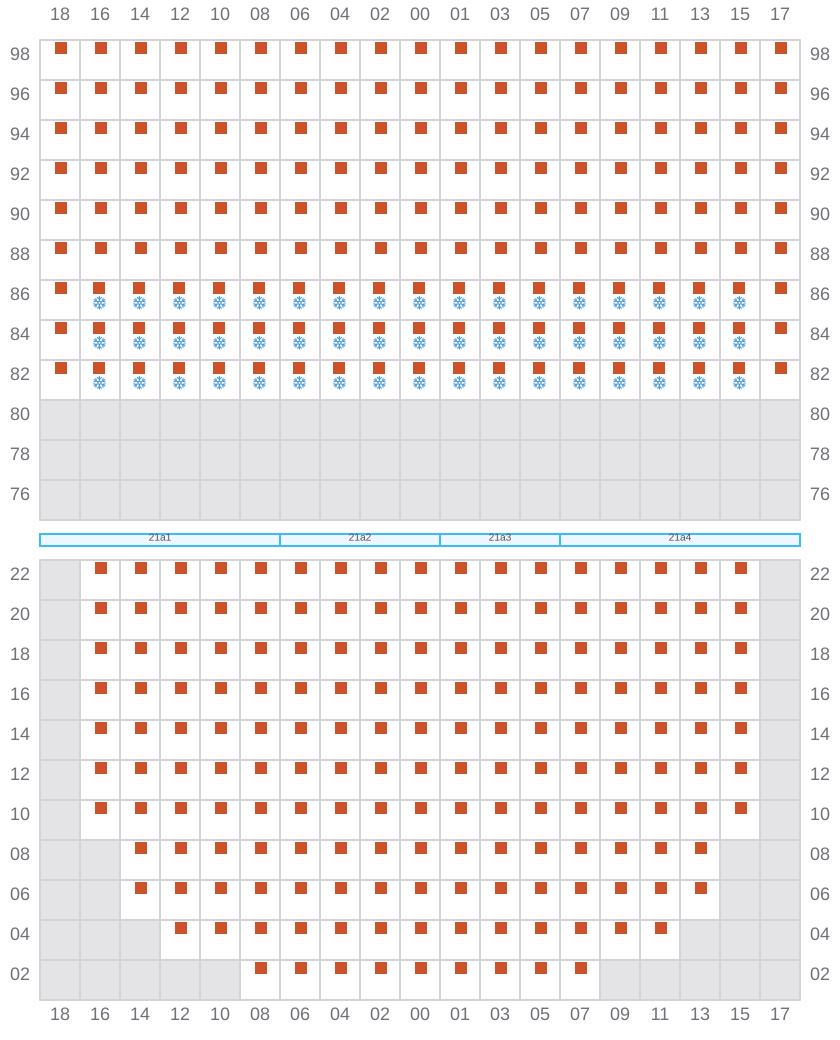

Bay 023 view and slots of CMA CGM NEVADA

025 (026)

→
→

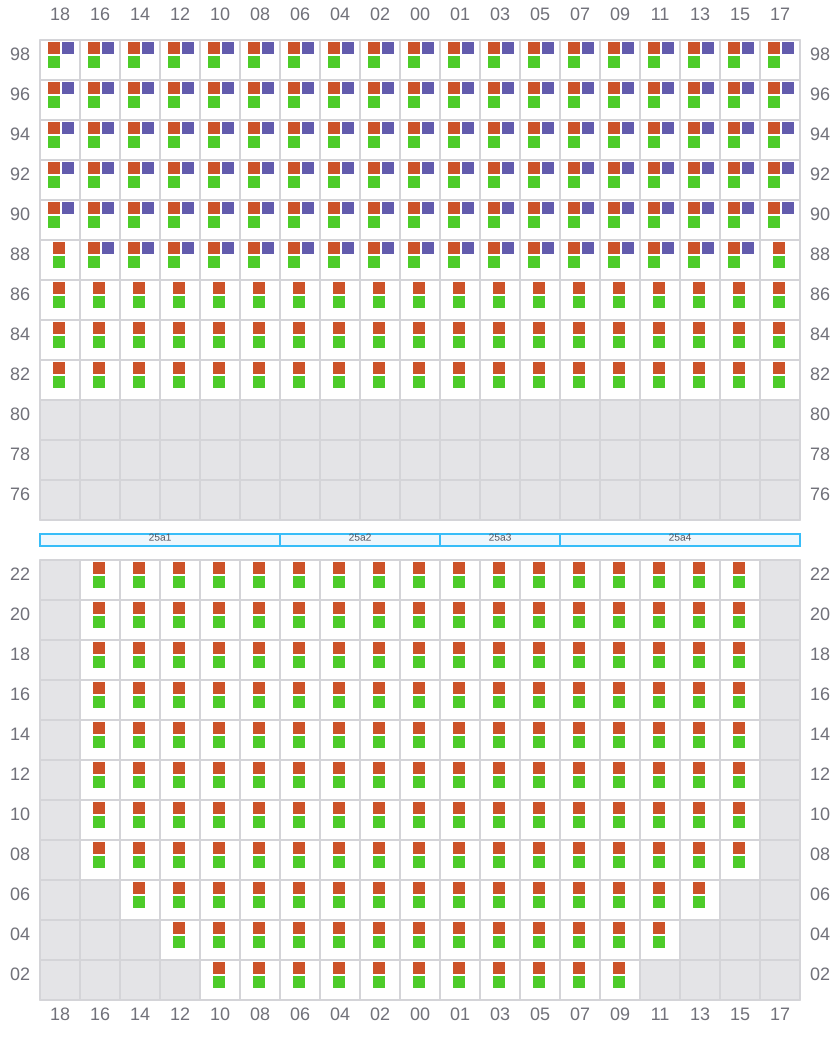

Bay 025 view and slots of CMA CGM NEVADA

027

←
^→ / _?
→

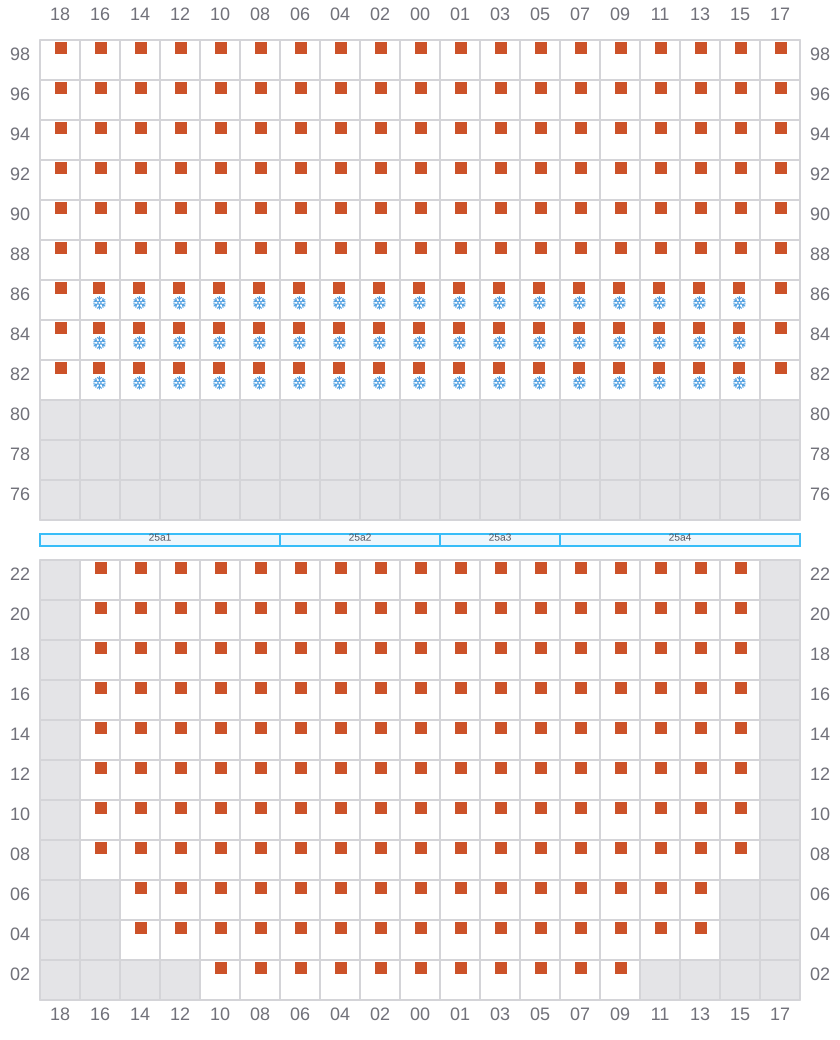

Bay 027 view and slots of CMA CGM NEVADA

029 (030)

→
→

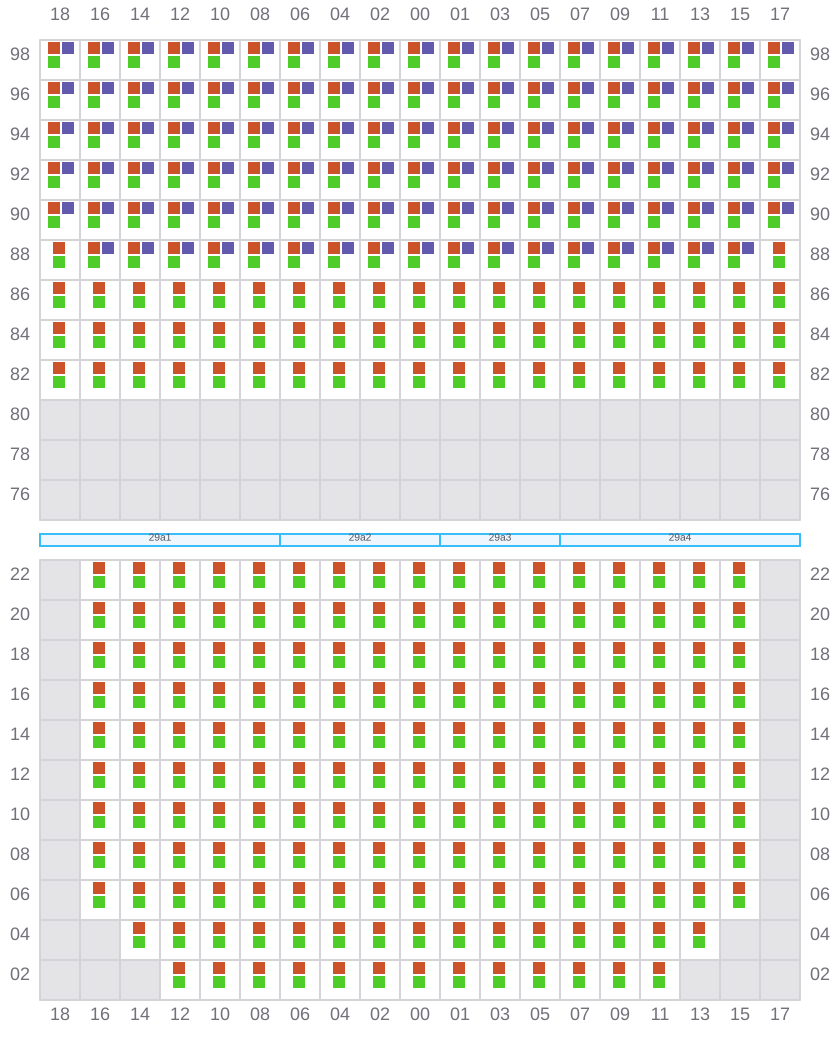

Bay 029 view and slots of CMA CGM NEVADA

031

←
^→ / _?
→

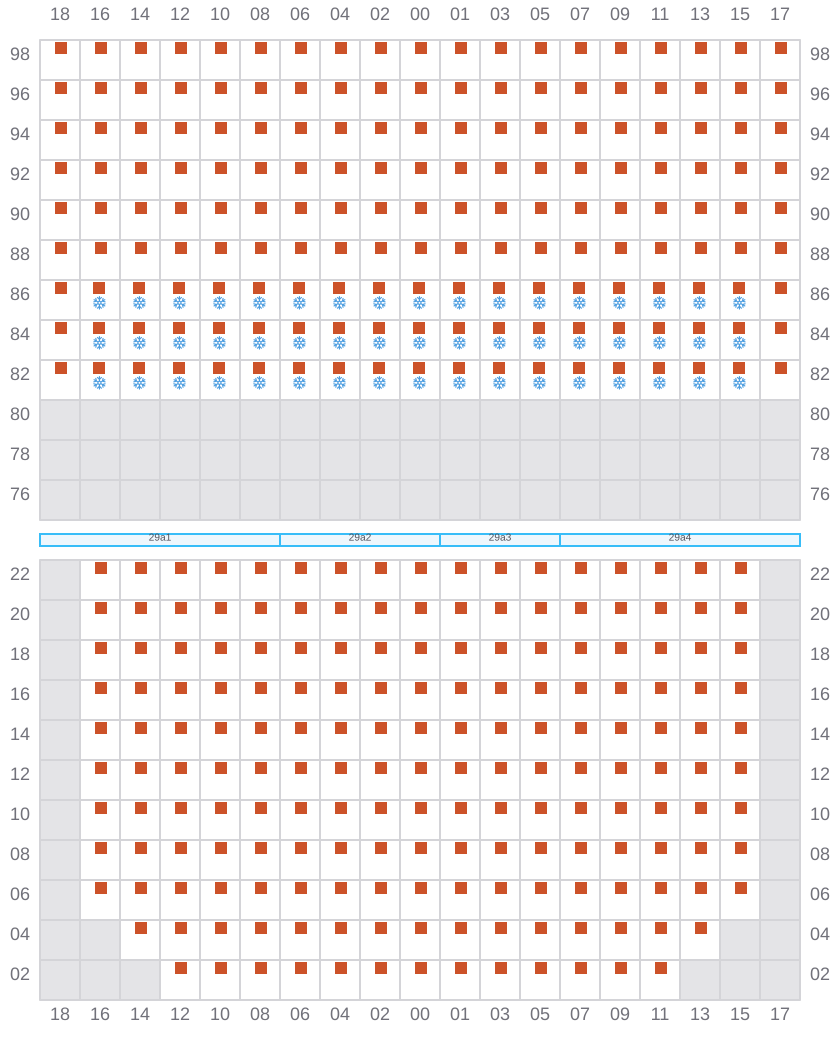

Bay 031 view and slots of CMA CGM NEVADA

033 (034)

→
→

Bay 033 view and slots of CMA CGM NEVADA

035

←
^→ / _?
→

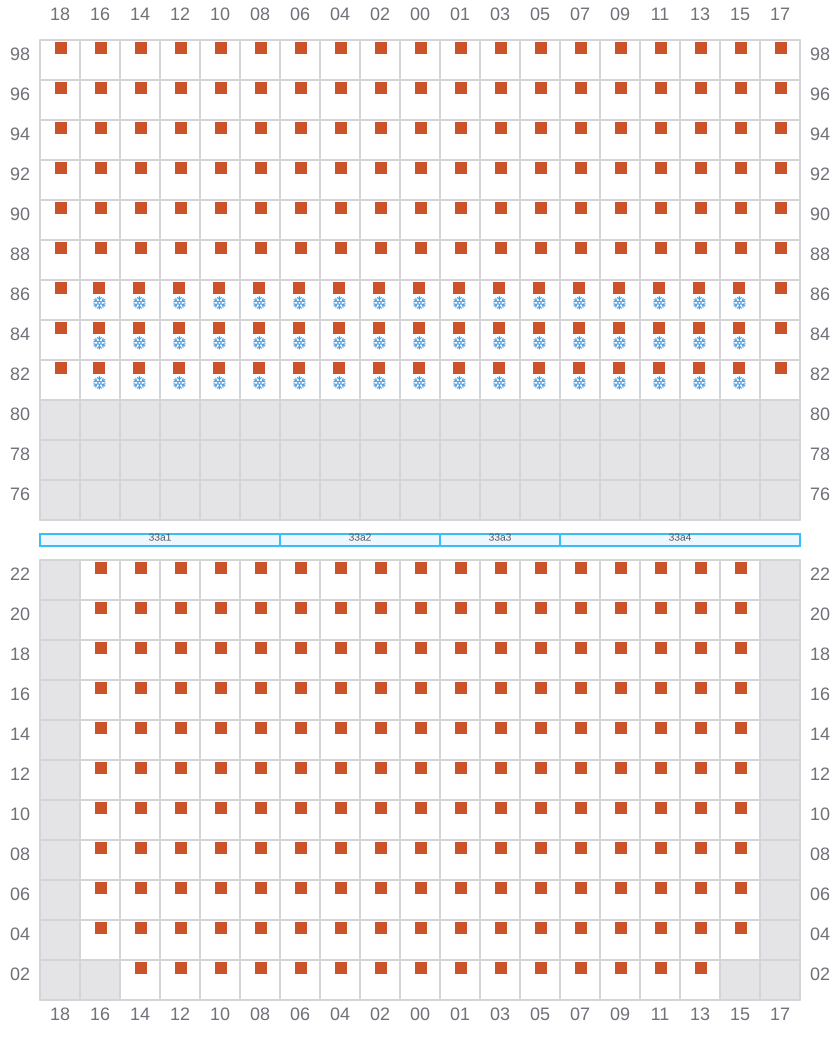

Bay 035 view and slots of CMA CGM NEVADA

037 (038)

→
→

Bay 037 view and slots of CMA CGM NEVADA

039

←
^→ / _?
→

Bay 039 view and slots of CMA CGM NEVADA

041 (042)

→
→

Bay 041 view and slots of CMA CGM NEVADA

043

←
^→ / _?
→

Bay 043 view and slots of CMA CGM NEVADA

045 (046)

→
→

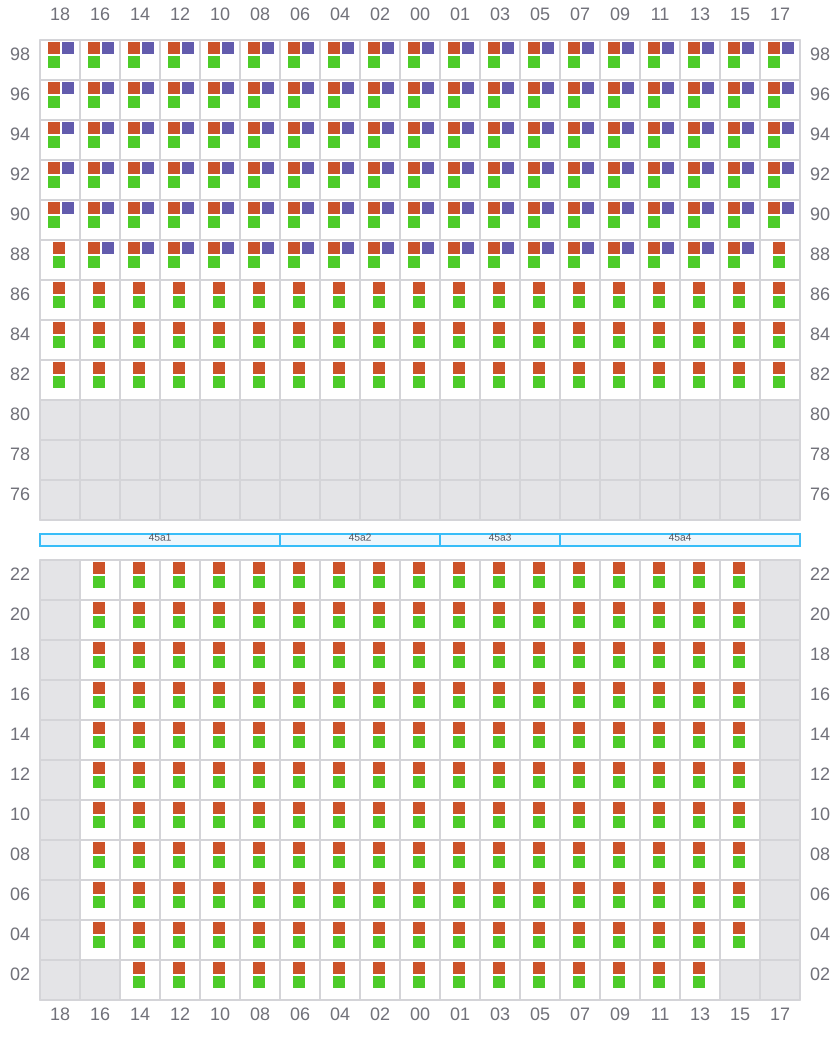

Bay 045 view and slots of CMA CGM NEVADA

047

←
^→ / _?
→

Bay 047 view and slots of CMA CGM NEVADA

049 (050)

→
→

Bay 049 view and slots of CMA CGM NEVADA

051

←
^→ / _?
→

Bay 051 view and slots of CMA CGM NEVADA

053 (054)

→
→

Bay 053 view and slots of CMA CGM NEVADA

055

←
^→ / _?
→

Bay 055 view and slots of CMA CGM NEVADA

057 (058)

→
→

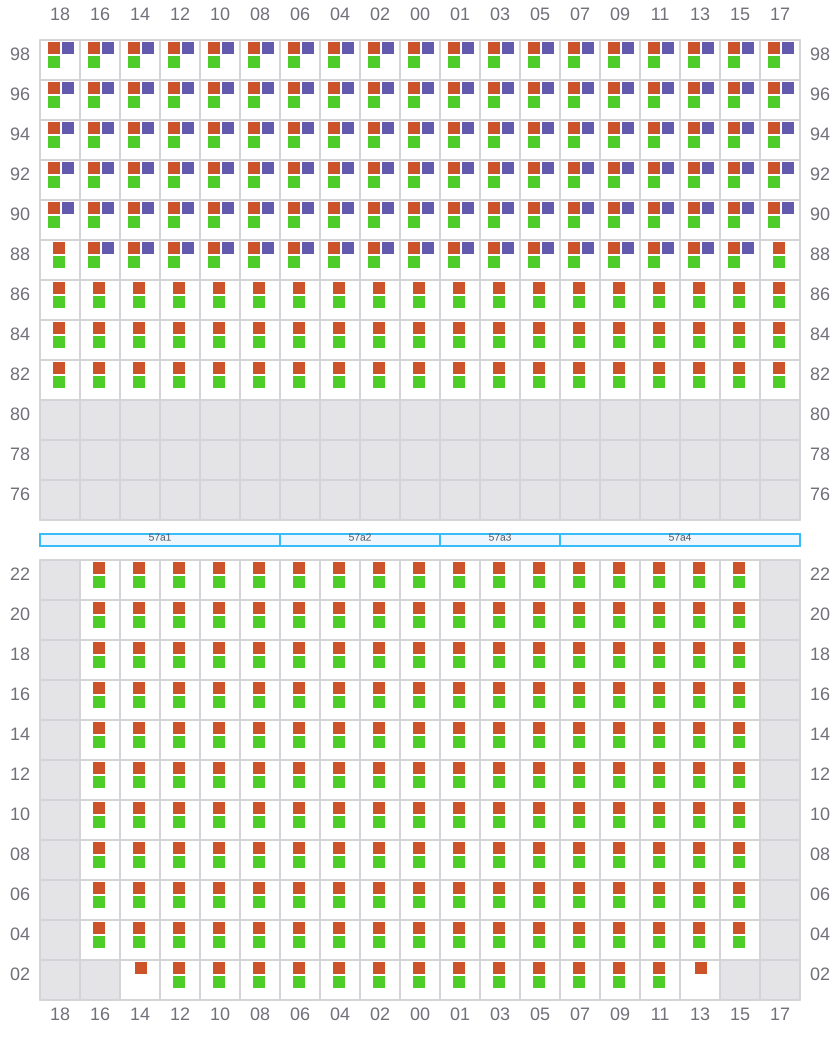

Bay 057 view and slots of CMA CGM NEVADA

059

←
^→ / _?
→

Bay 059 view and slots of CMA CGM NEVADA

061 (062)

→
→

Bay 061 view and slots of CMA CGM NEVADA

063

←
^→ / _?
→

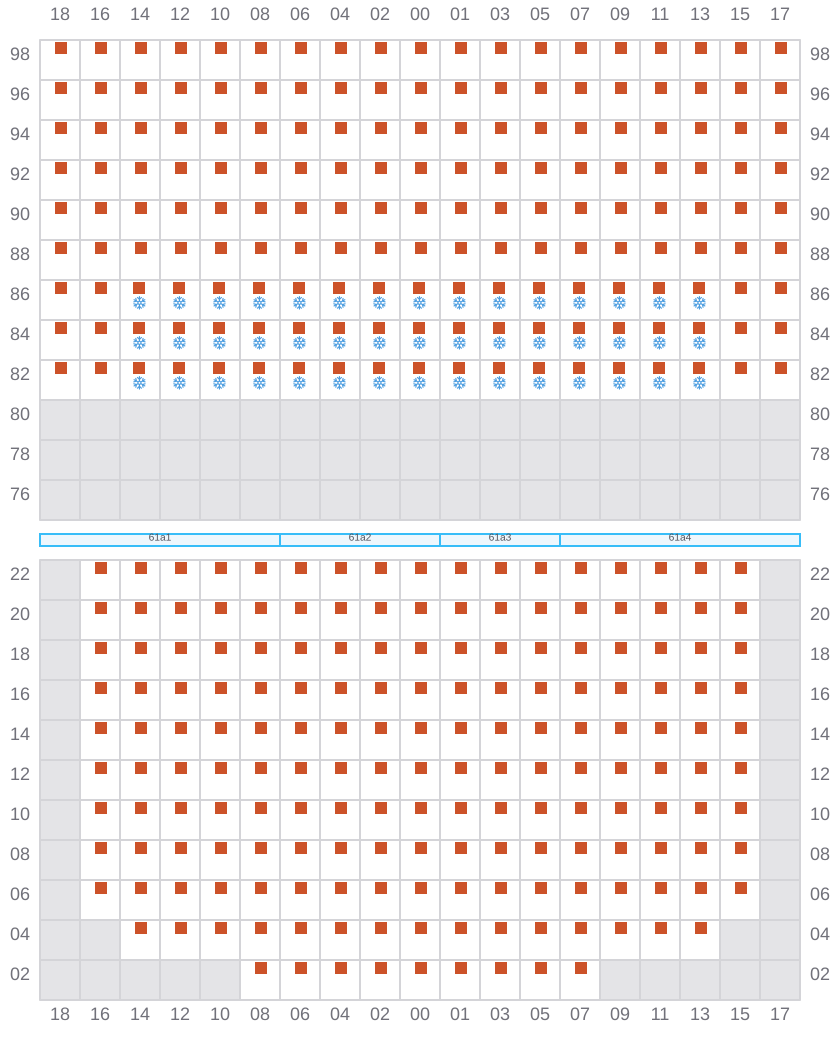

Bay 063 view and slots of CMA CGM NEVADA

065 (066)

→
→

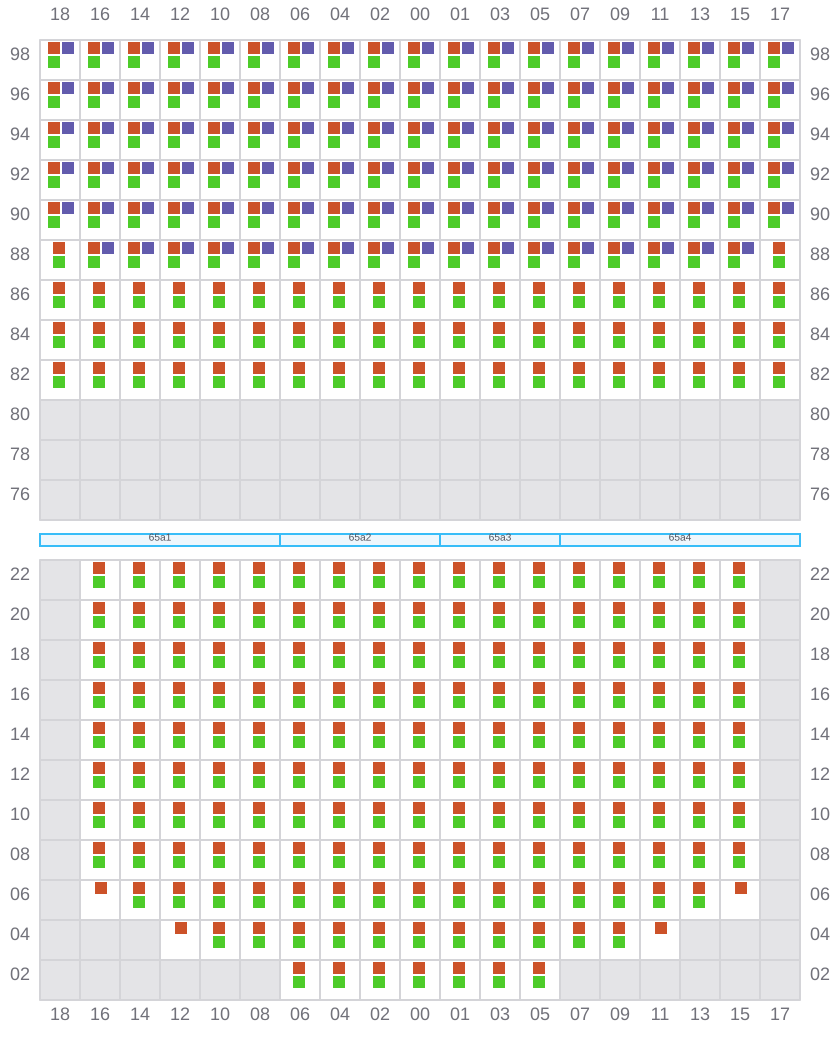

Bay 065 view and slots of CMA CGM NEVADA

067

←
^→ / _?
→

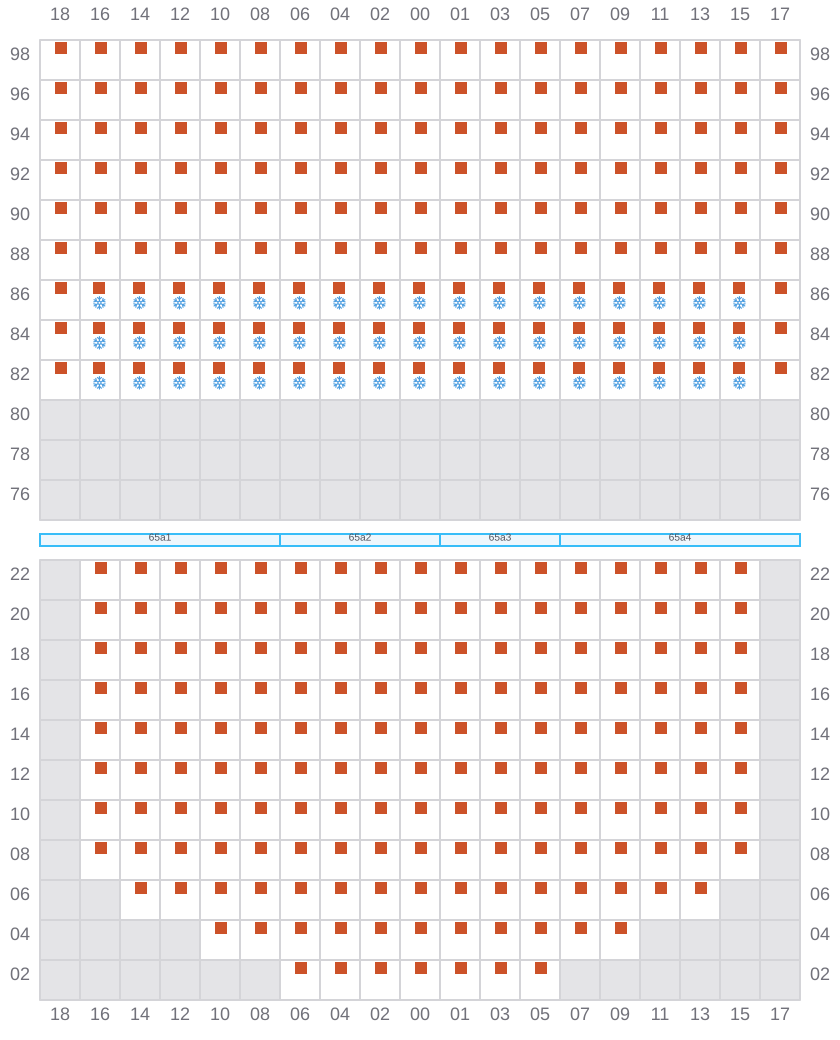

Bay 067 view and slots of CMA CGM NEVADA

069 (070)

^→ / _?
^→ / _?
^→ / _?

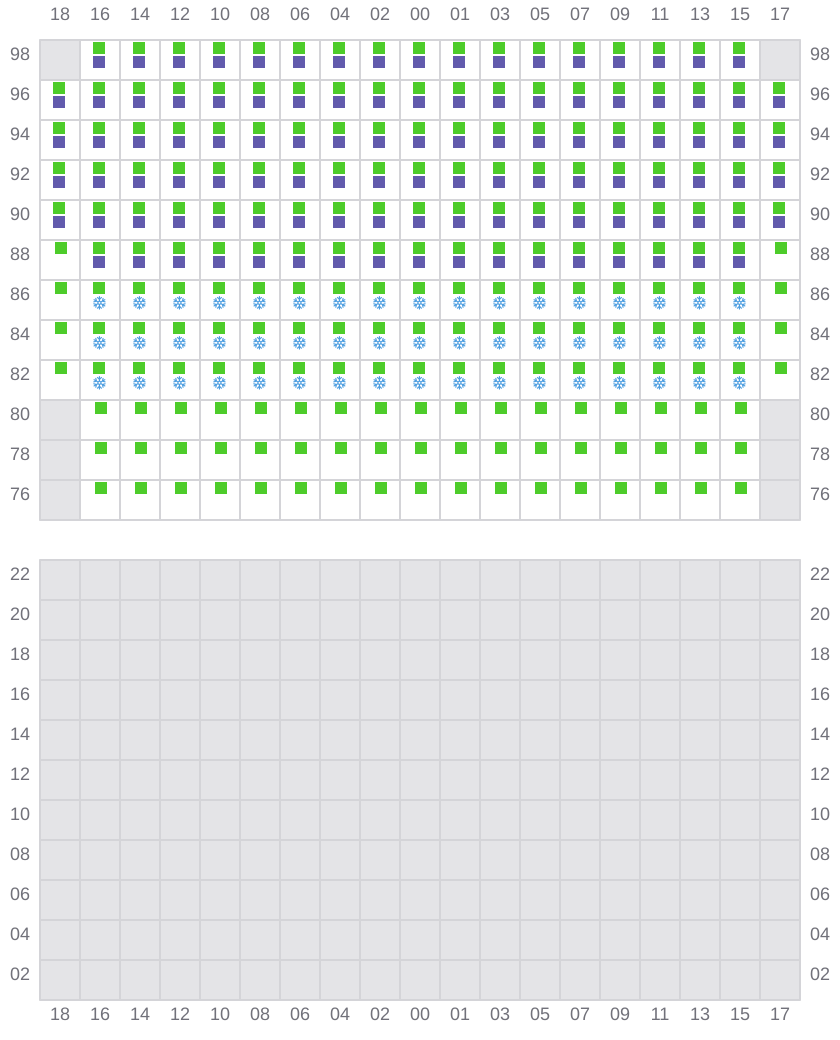

Bay 069 view and slots of CMA CGM NEVADA

071

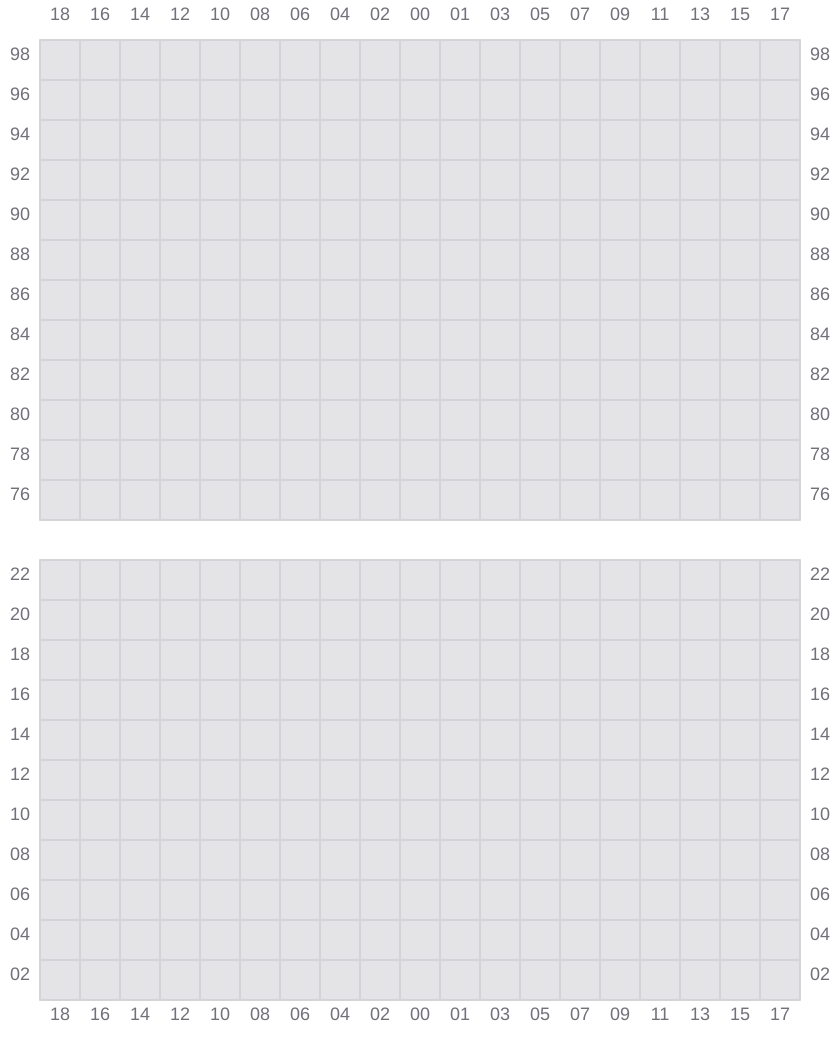

Bay 071 view and slots of CMA CGM NEVADA

073 (074)

→
→

Bay 073 view and slots of CMA CGM NEVADA

075

←
^← / _?
→

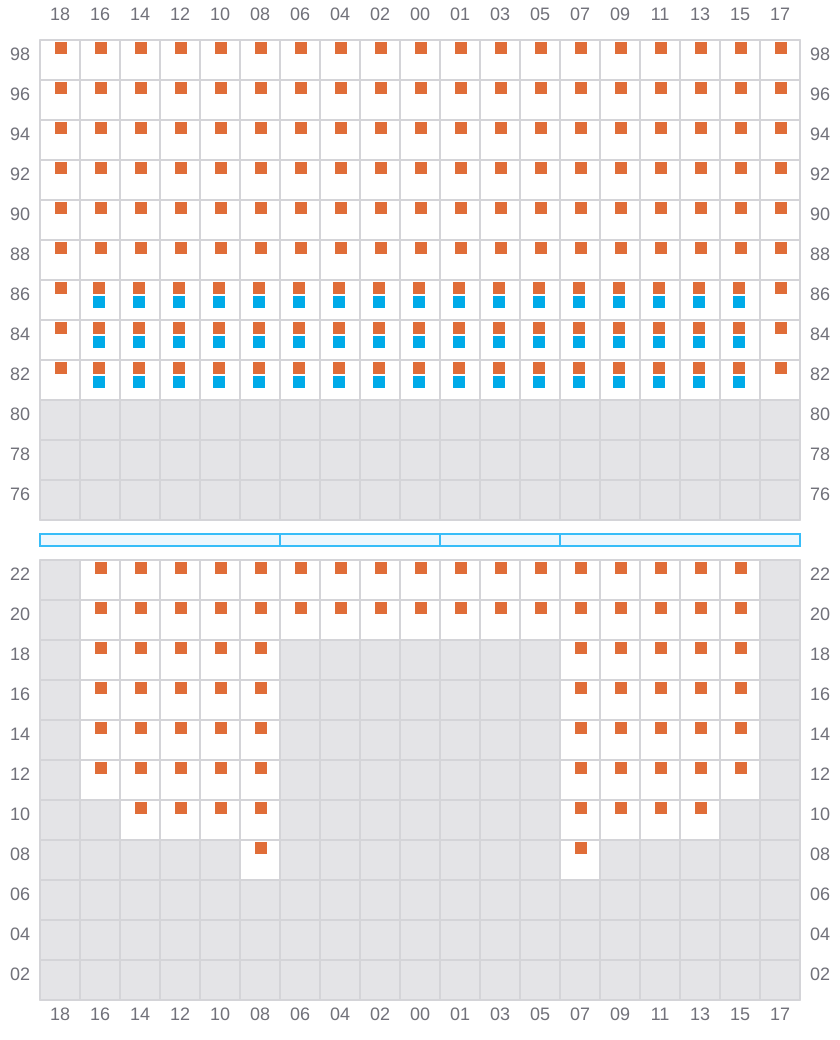

Bay 075 view and slots of CMA CGM NEVADA

077 (078)

→
→

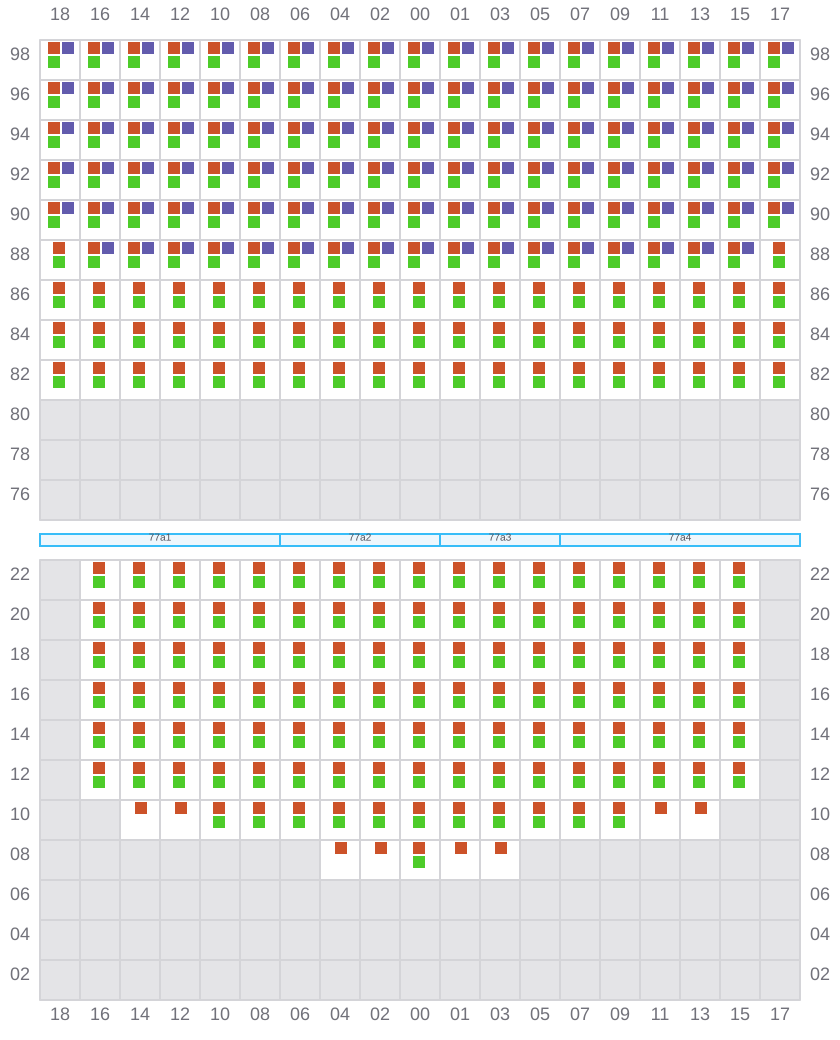

Bay 077 view and slots of CMA CGM NEVADA

079

←
^← / _?
→

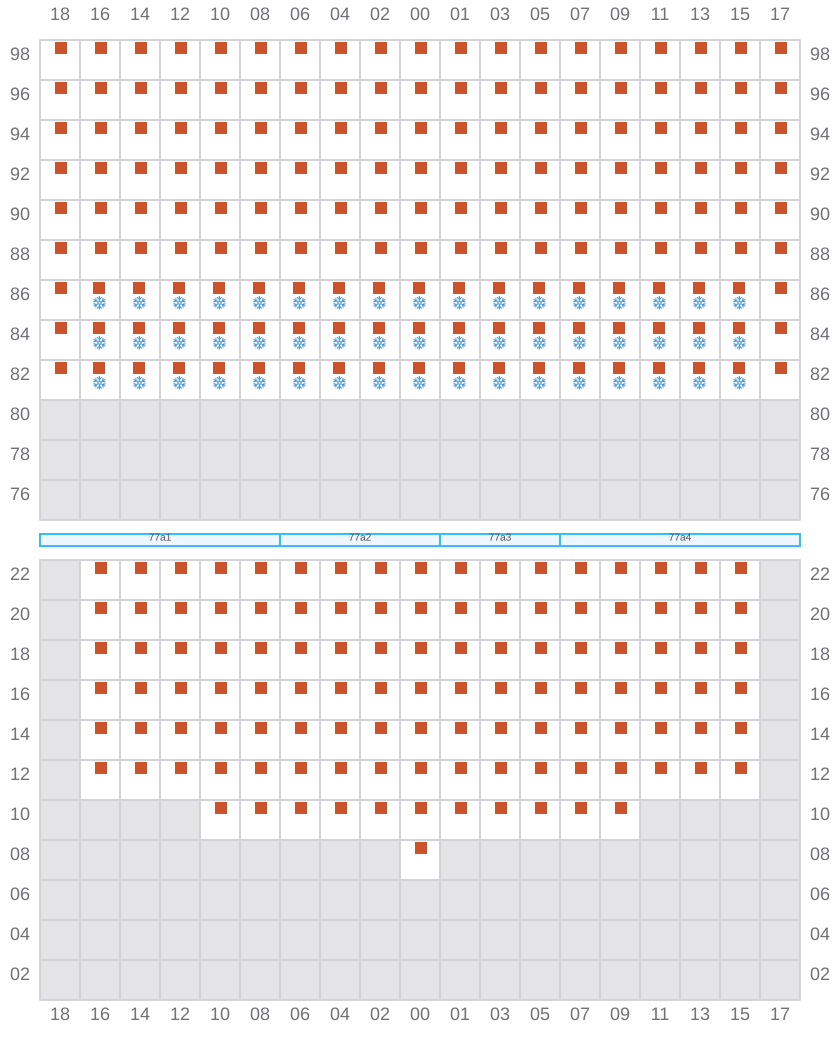

Bay 079 view and slots of CMA CGM NEVADA

081 (082)

→
→

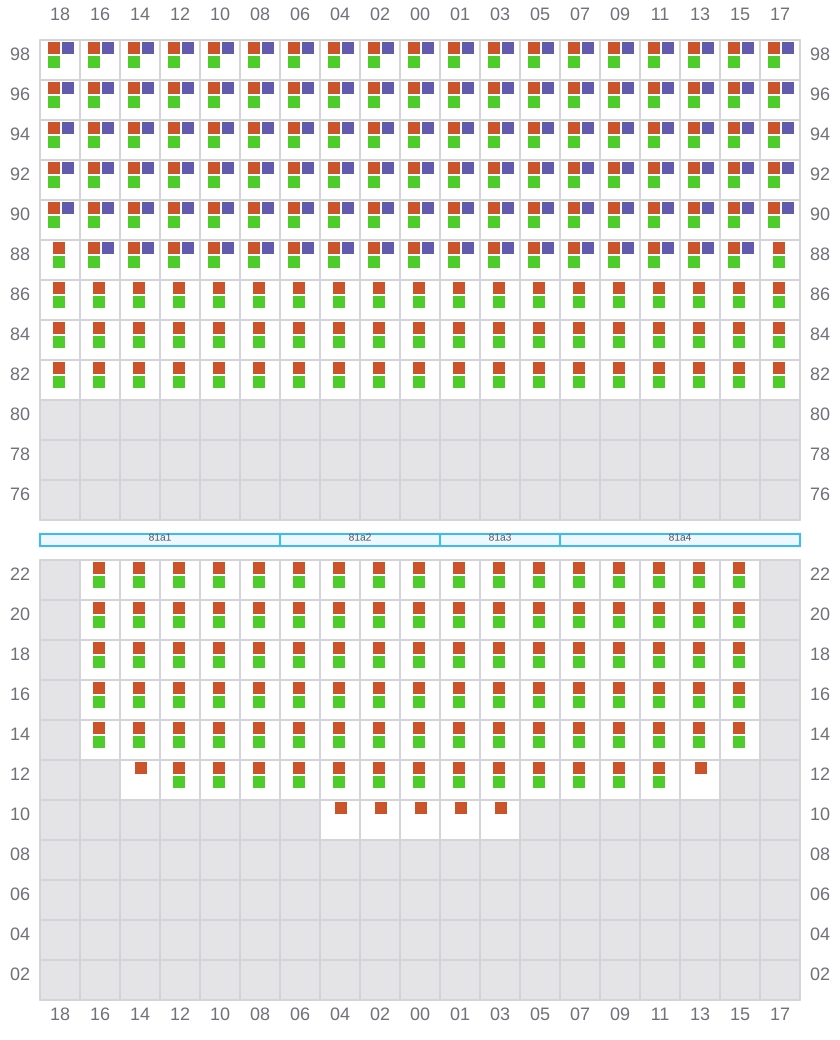

Bay 081 view and slots of CMA CGM NEVADA

083

←
^← / _?
→

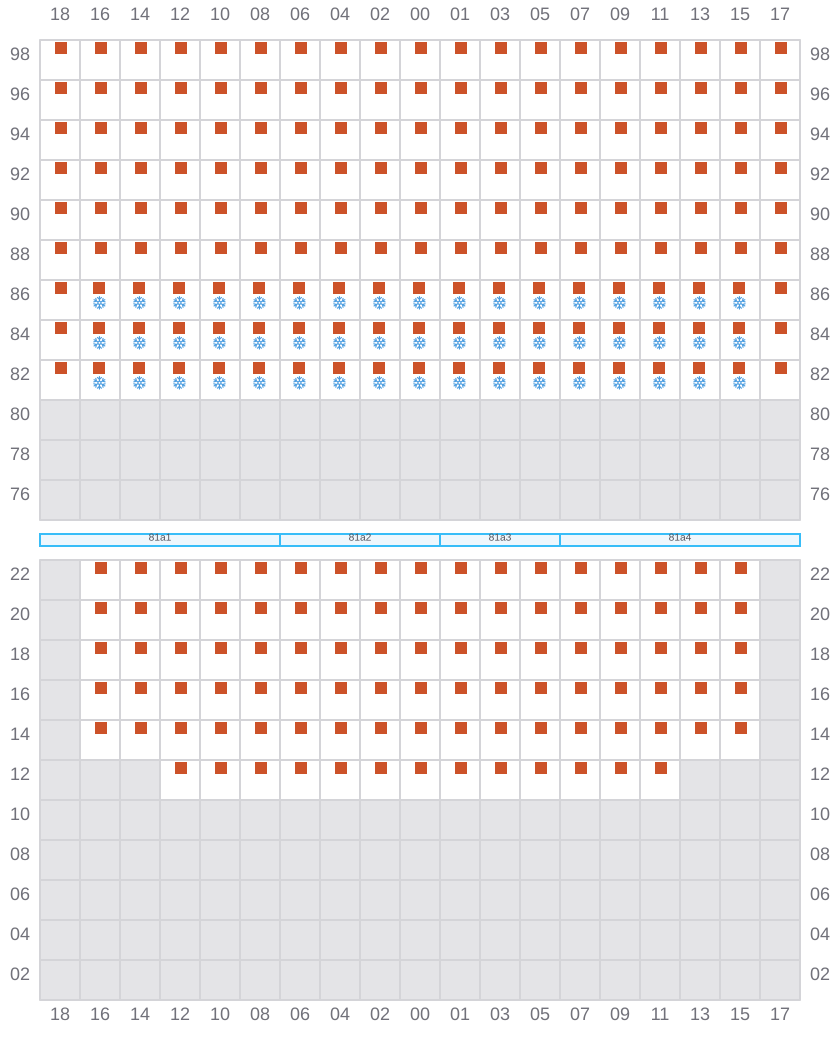

Bay 083 view and slots of CMA CGM NEVADA

085 (086)

^→ / _?
^← / _?
^→ / _?

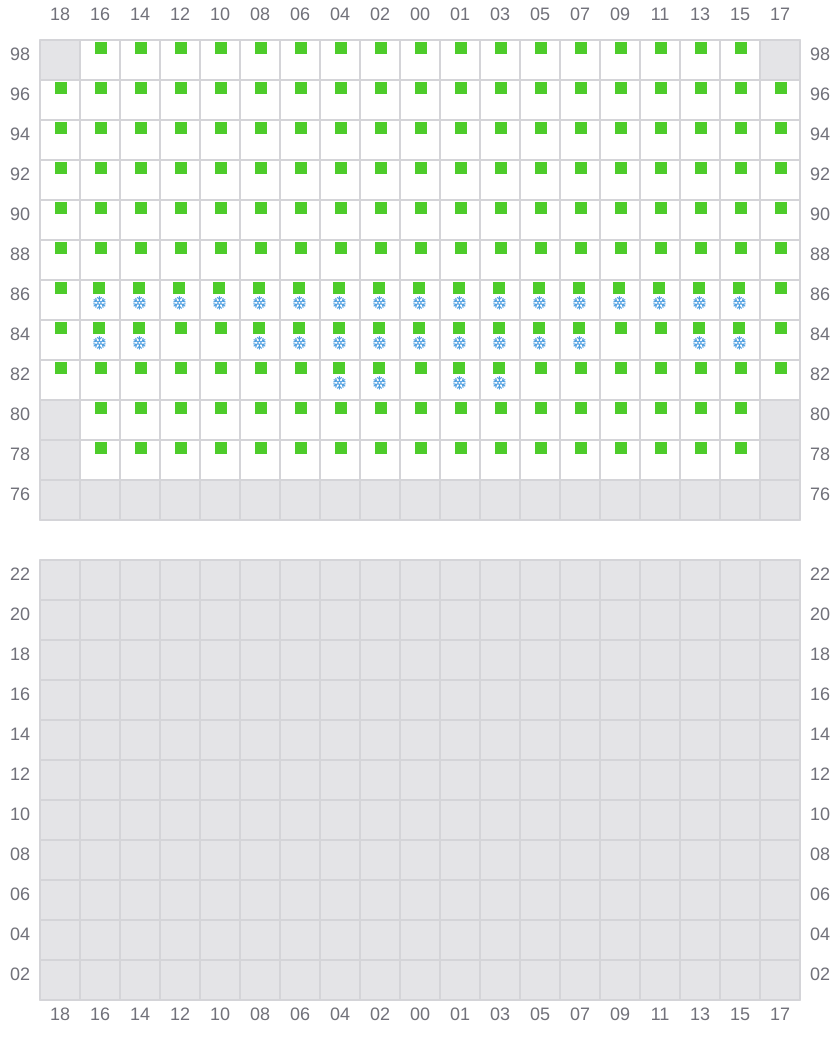

Bay 085 view and slots of CMA CGM NEVADA
