CMA CGM NILE
9732589 | 9HA5841 | 9732589 by ********* Last update: Mon Jul 22 2024
General Info
Ship Name:CMA CGM NILE
IMO Code:9732589
Call Sign:9HA5841
Line Operator:9732589
Class Name for Sister Ships:COS
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:067
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,476
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

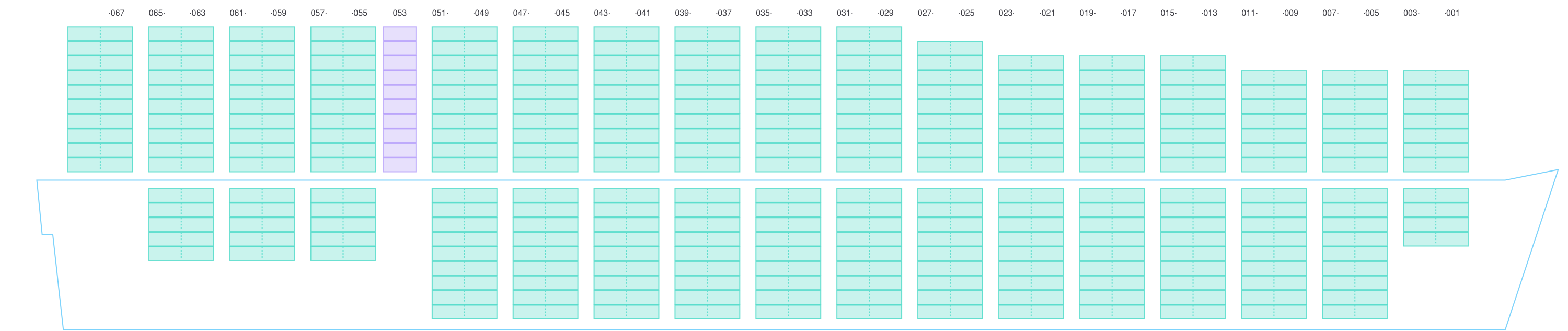

Side View

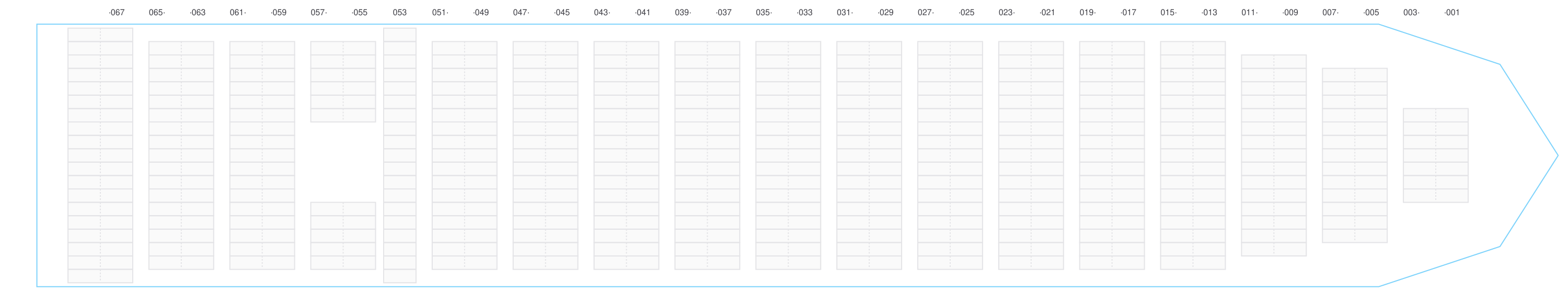

Hatch-Covers View

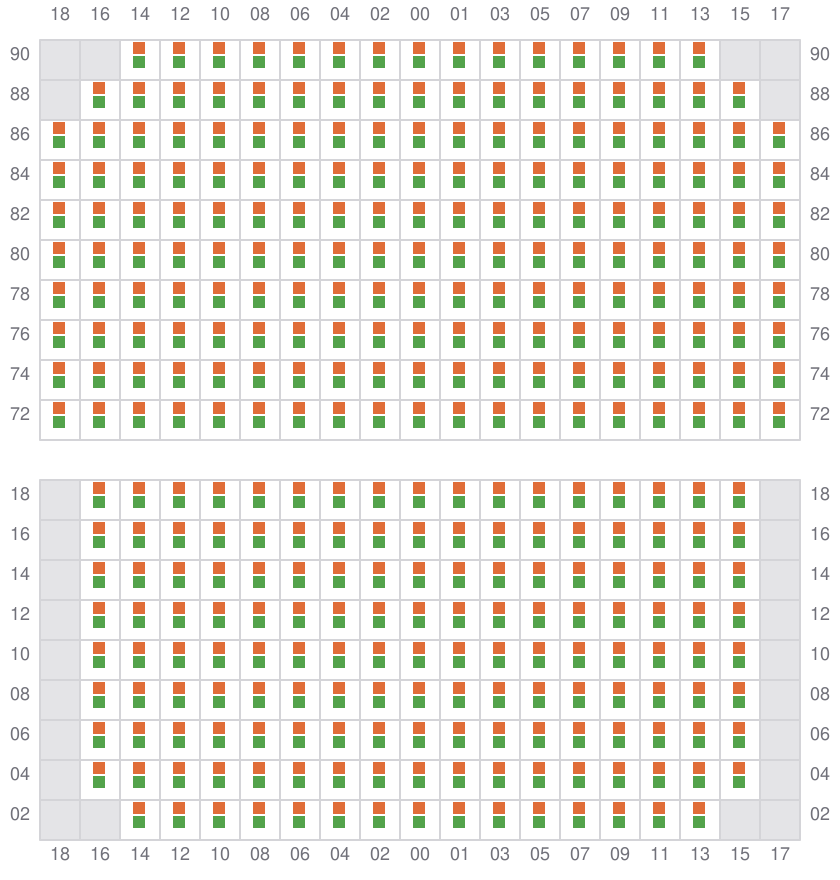

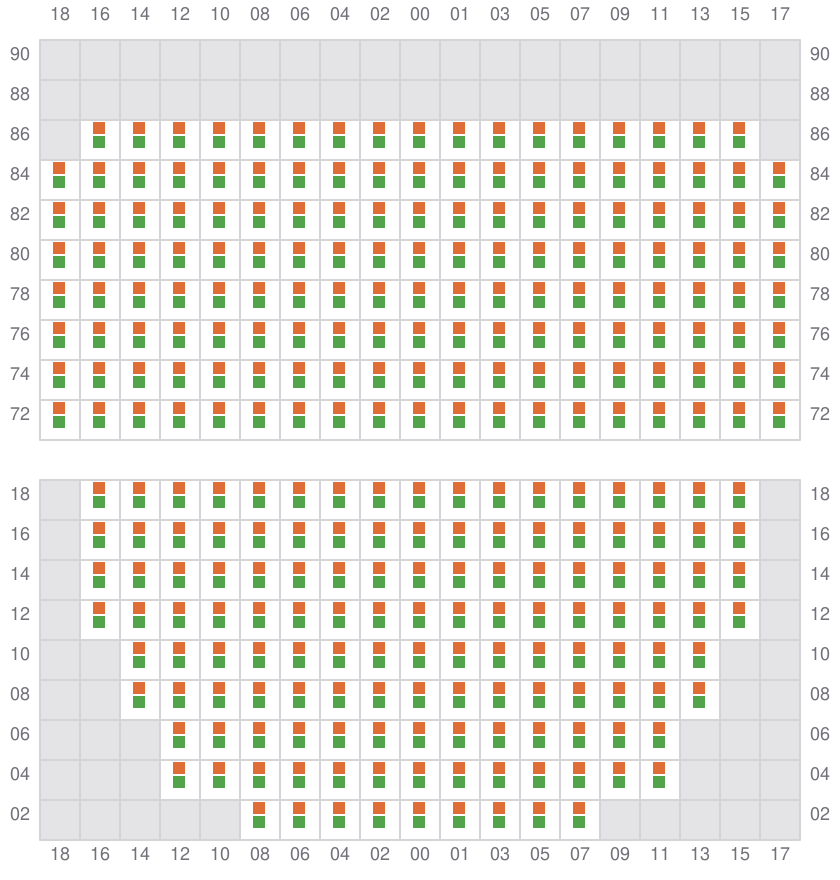

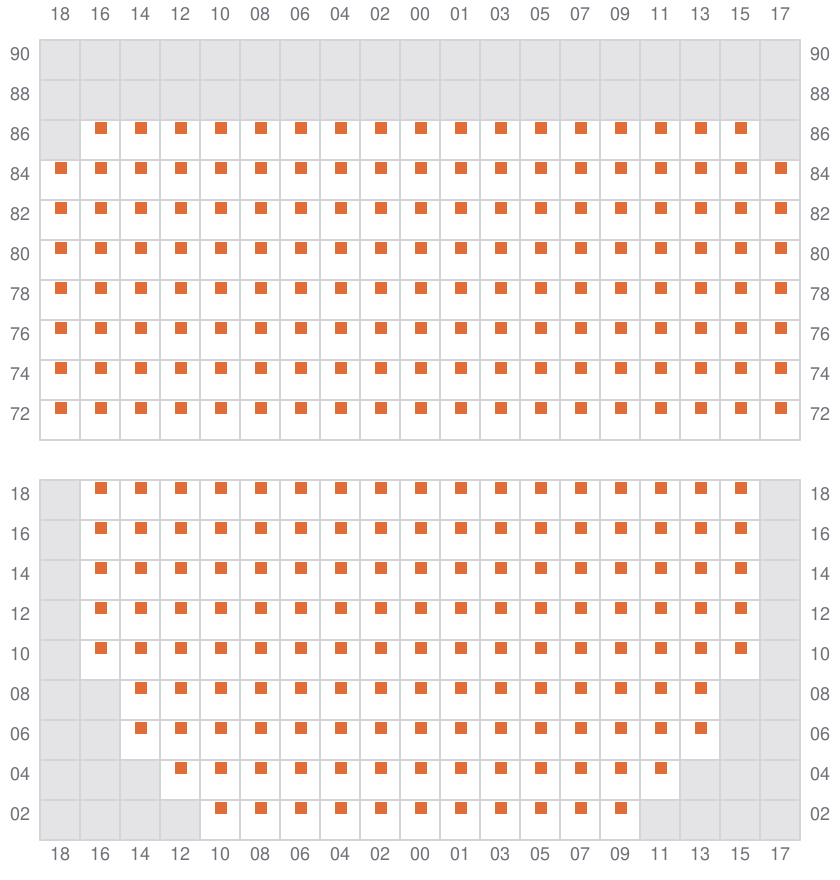

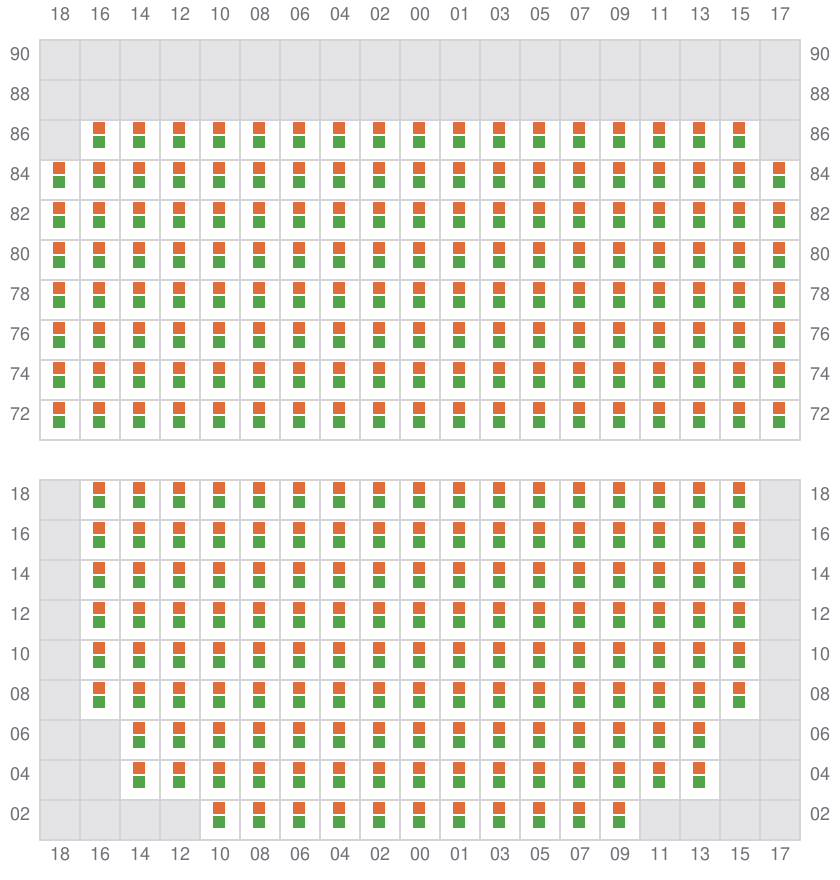

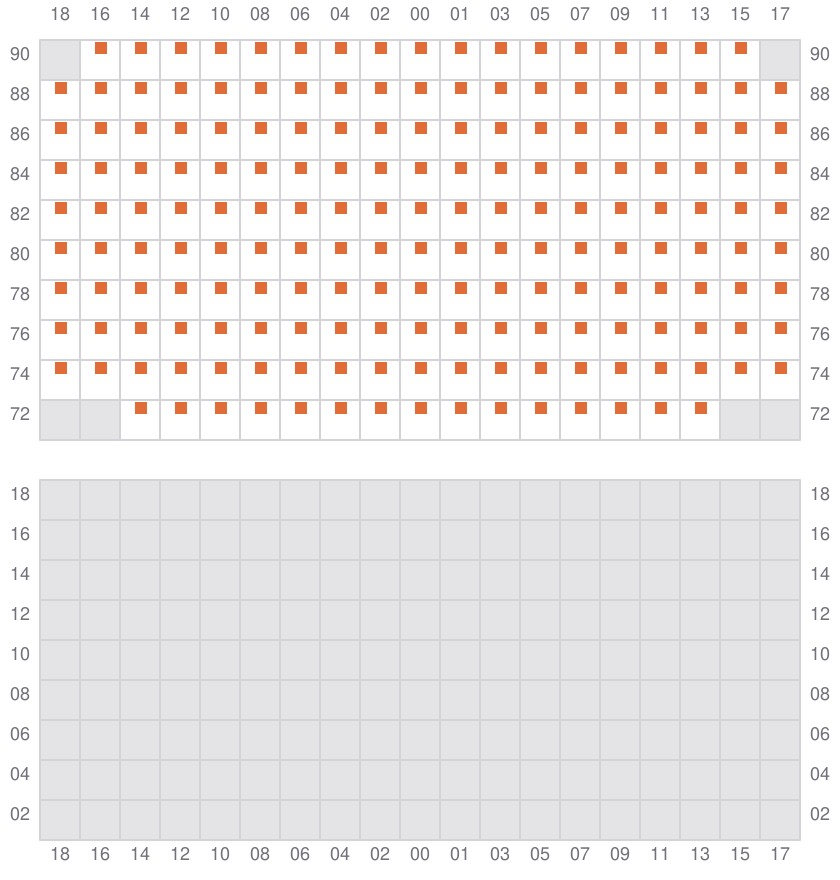

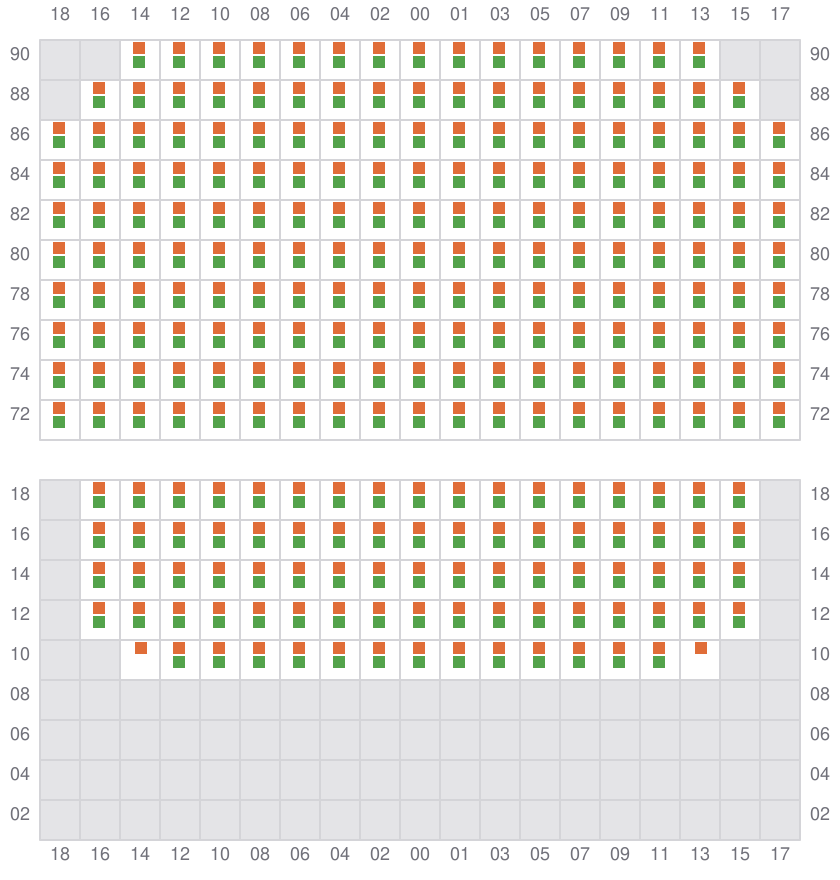

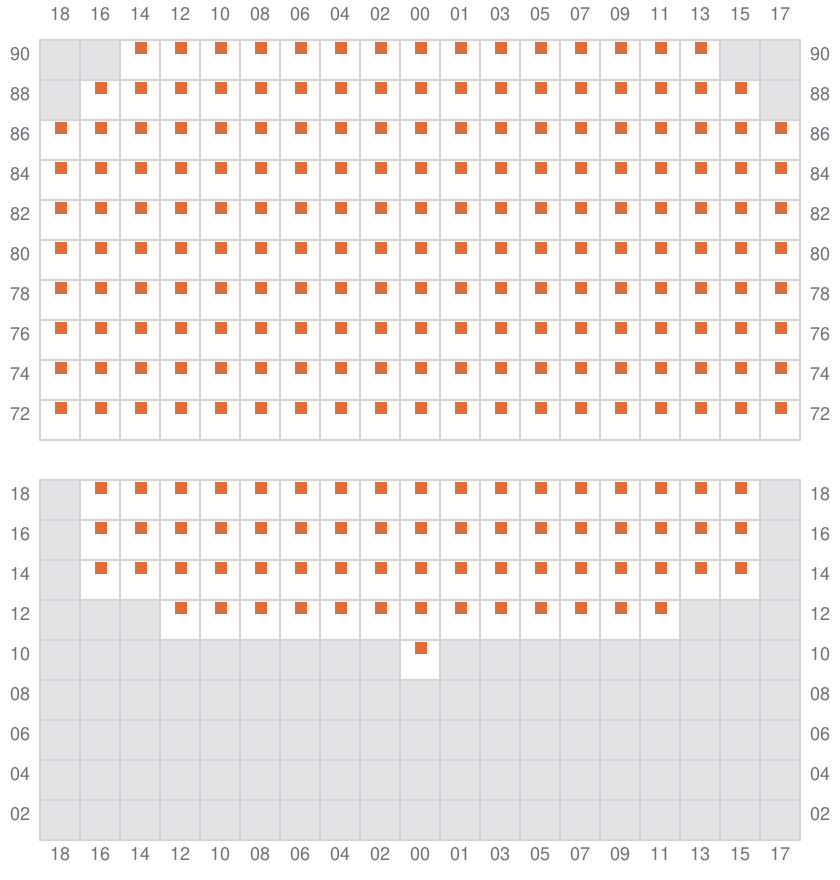

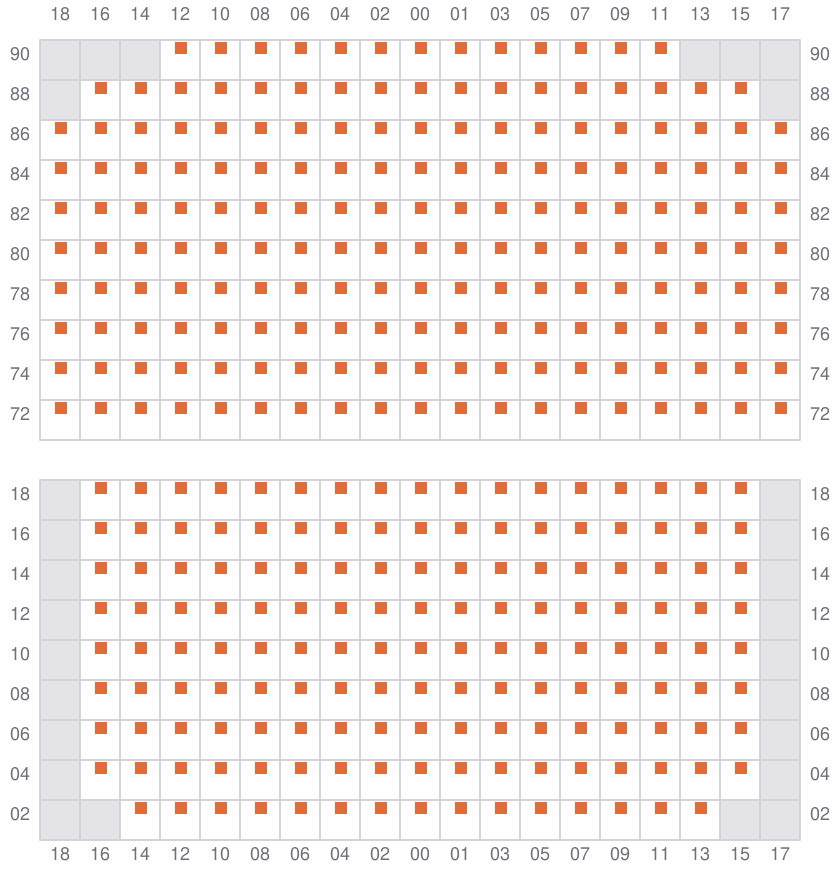

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
003
- ←

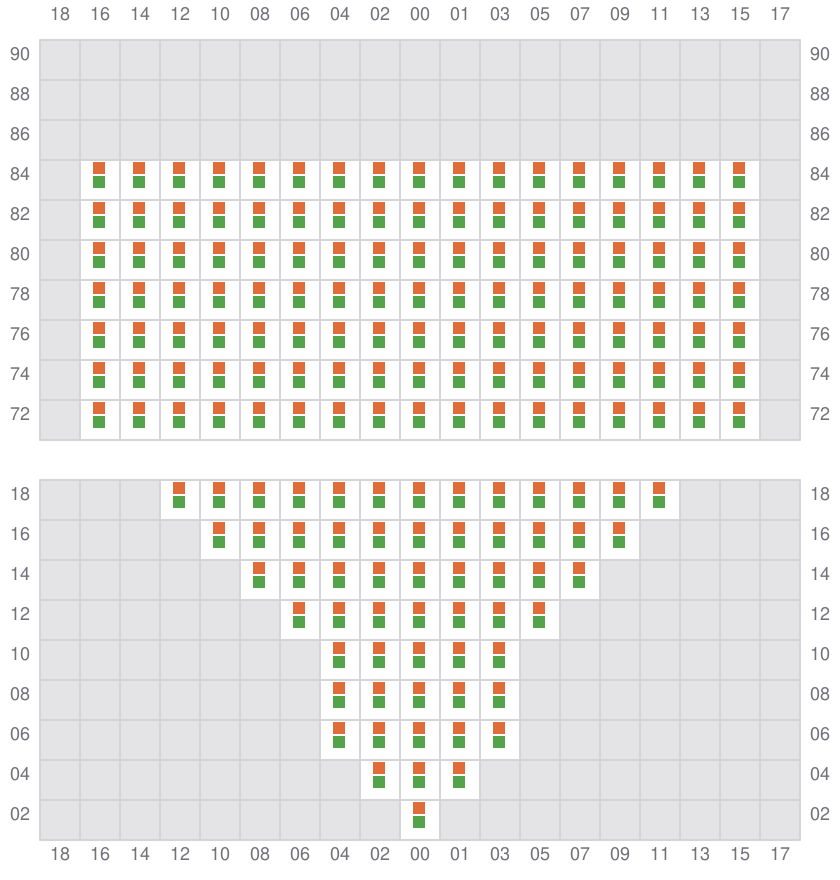

005 (006)
- →

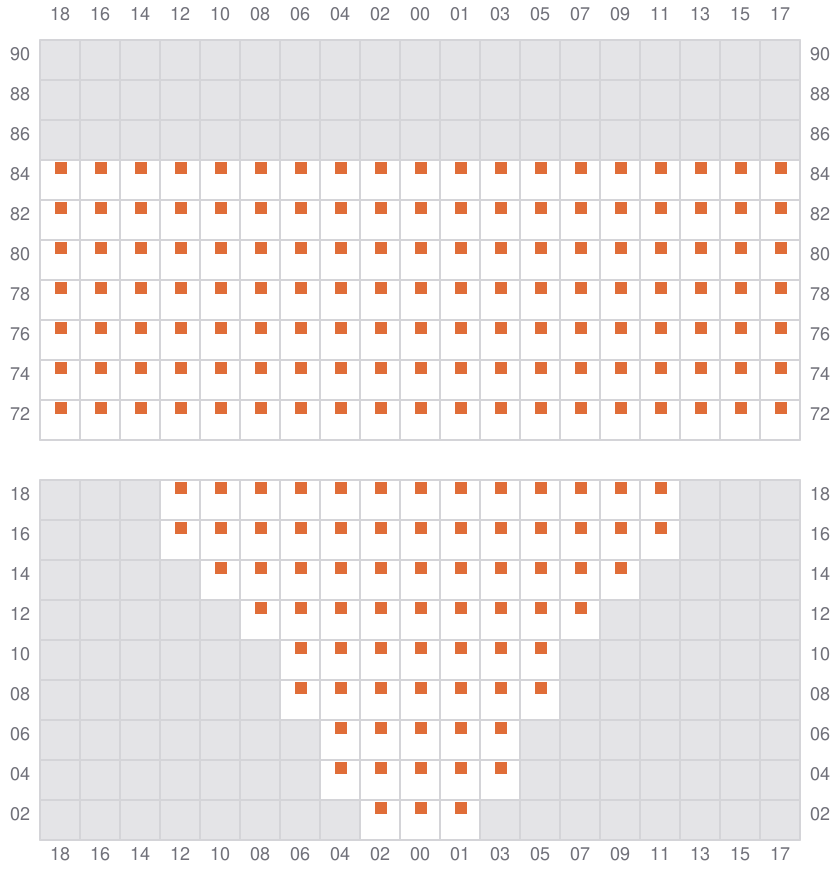

007
- ←

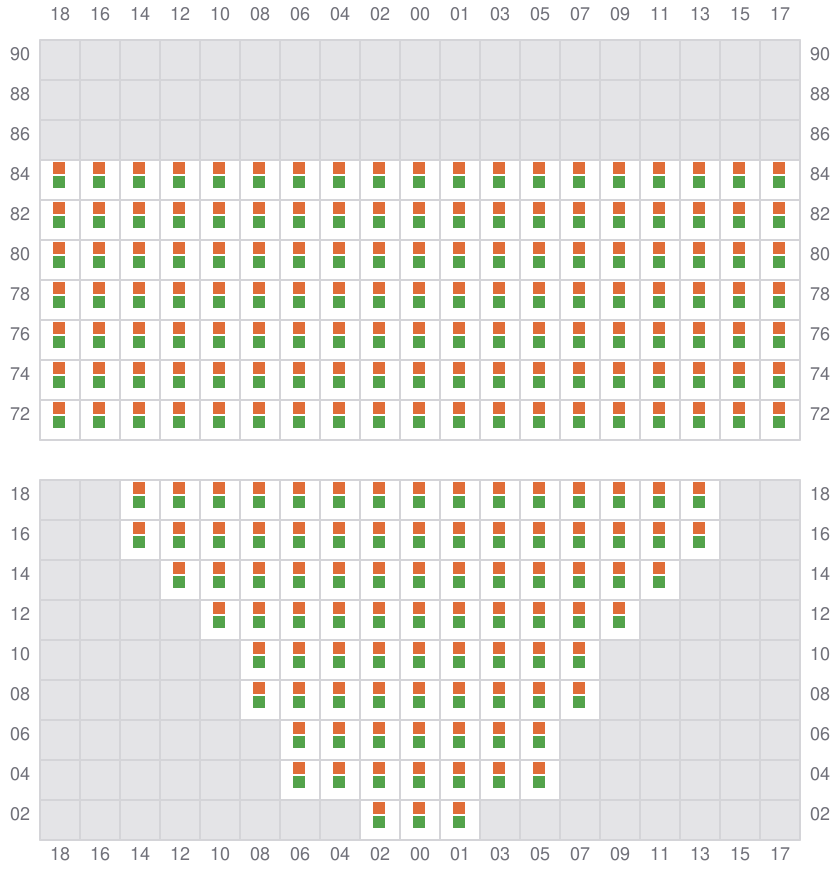

009 (010)
- →
011
- ←
013 (014)
- →
015
- ←

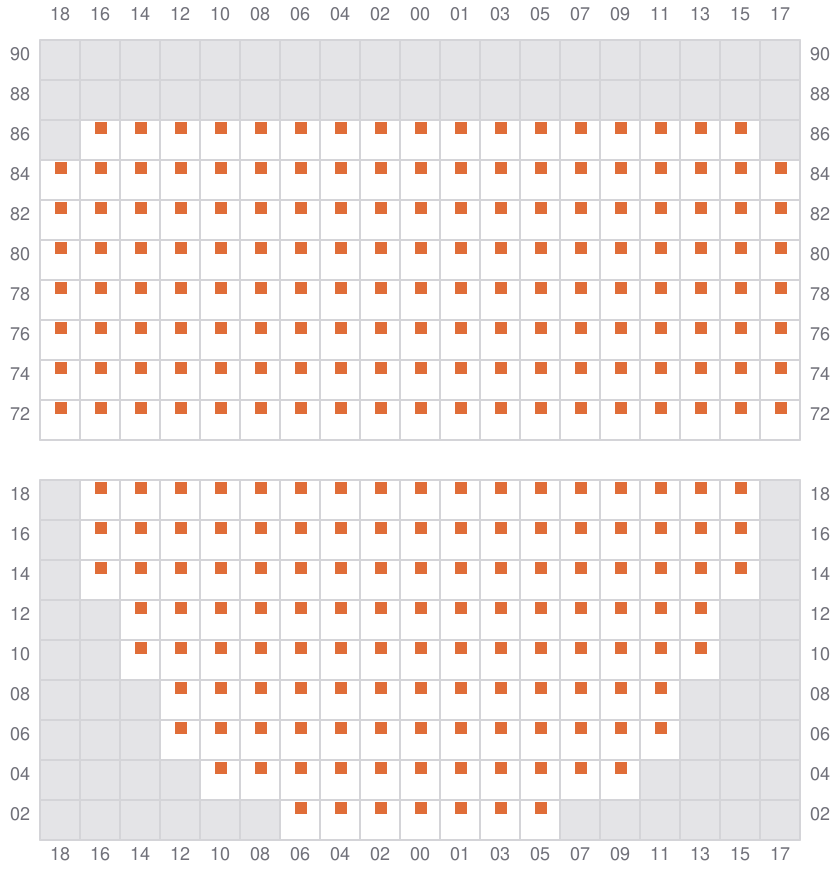

017 (018)
- →
019
- ←
021 (022)
- →
023
- ←

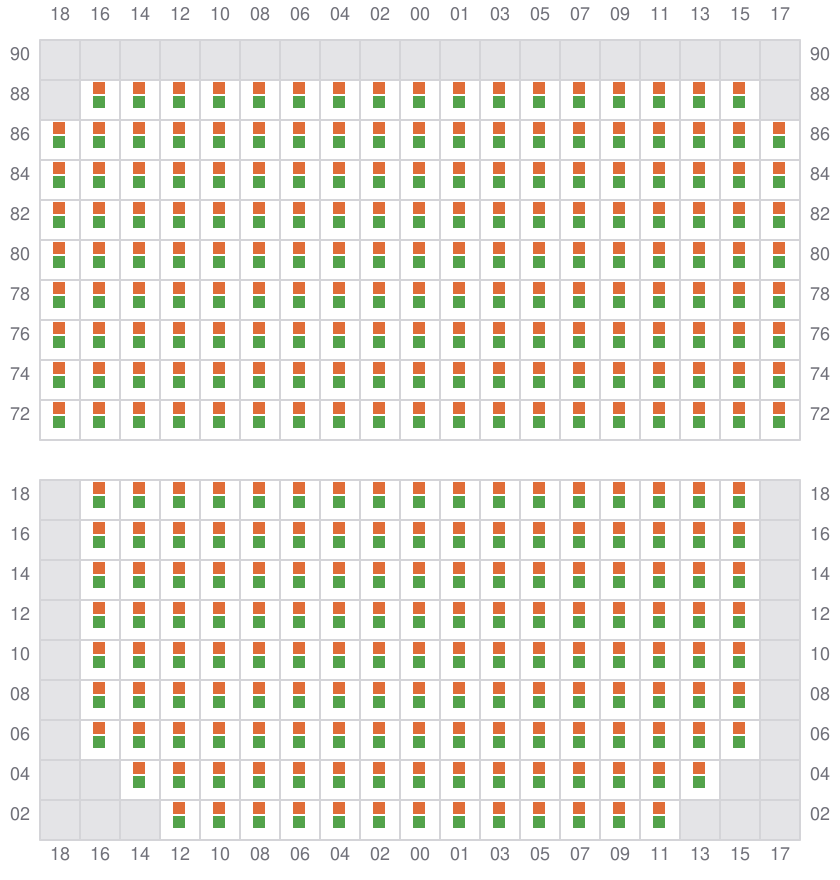

025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←

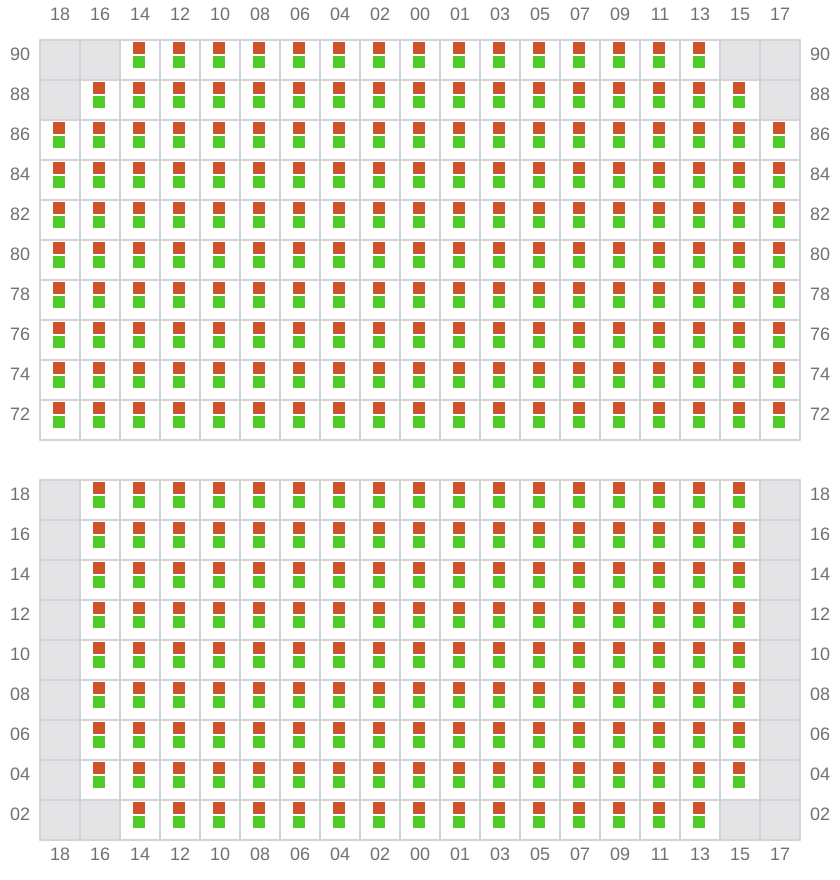

041 (042)
- →

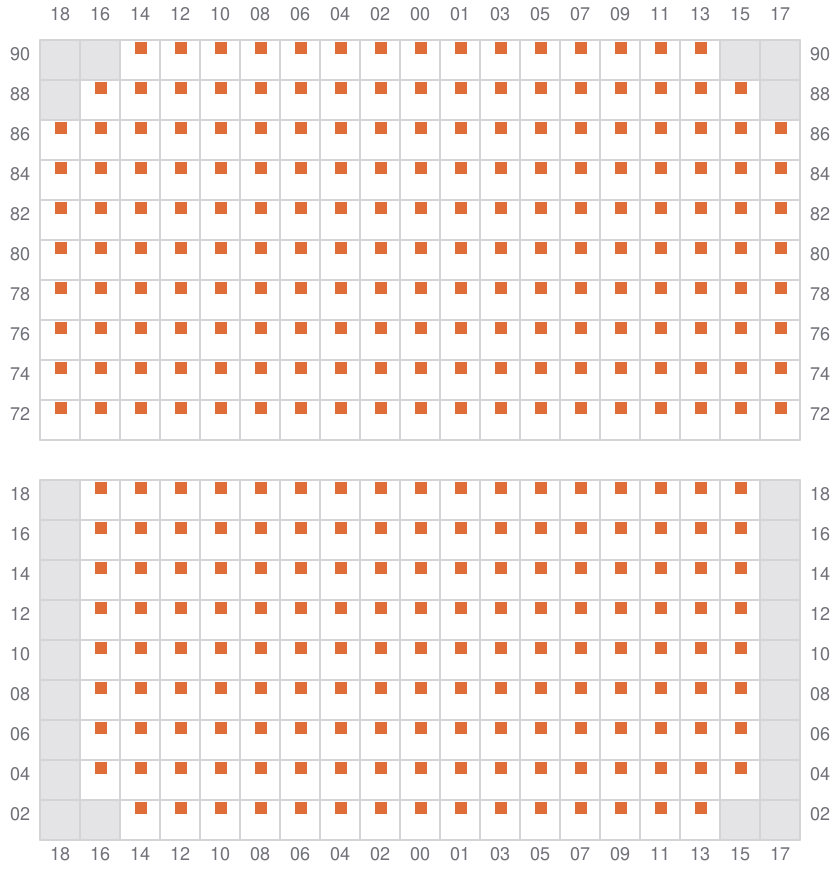

043
- ←
045 (046)
- →
047
- ←

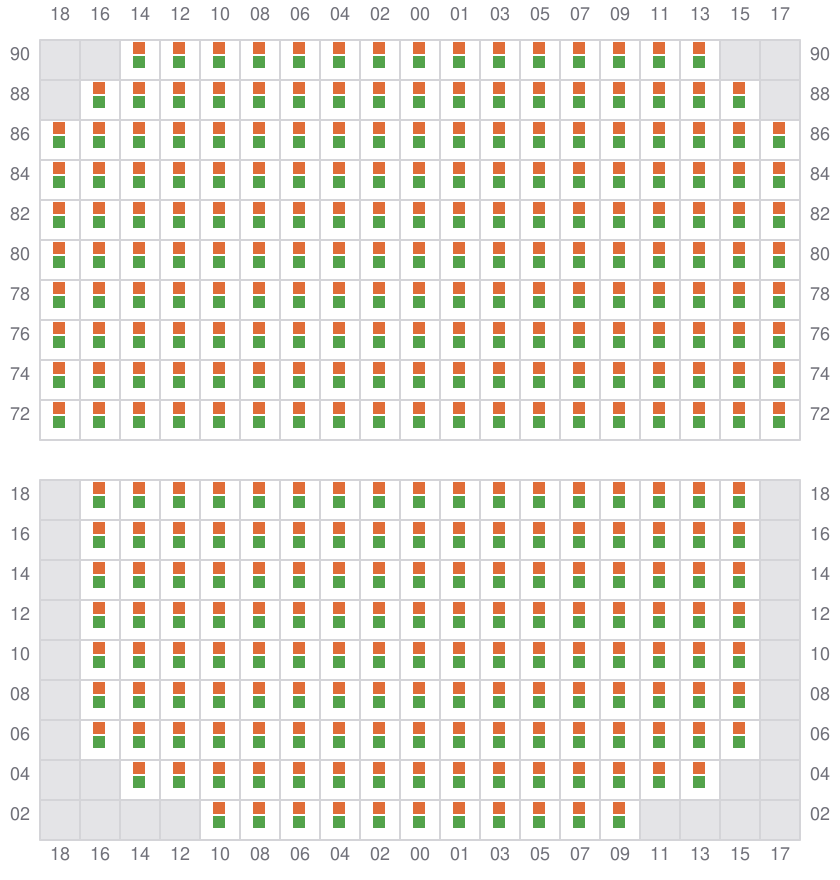

049 (050)
- →

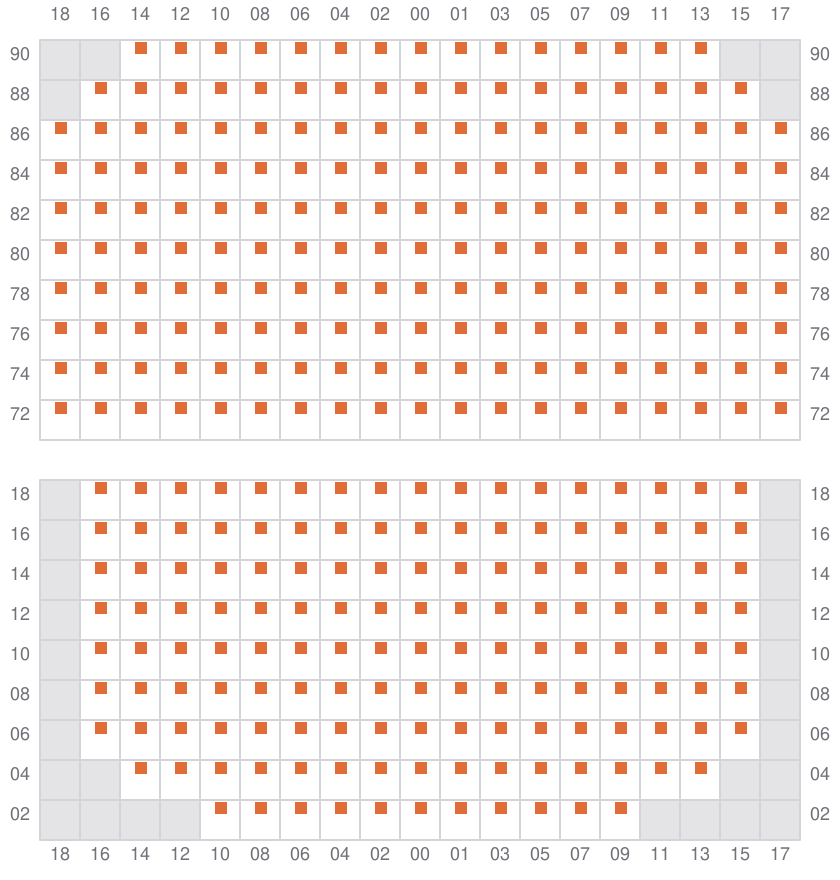

051
- ←
053

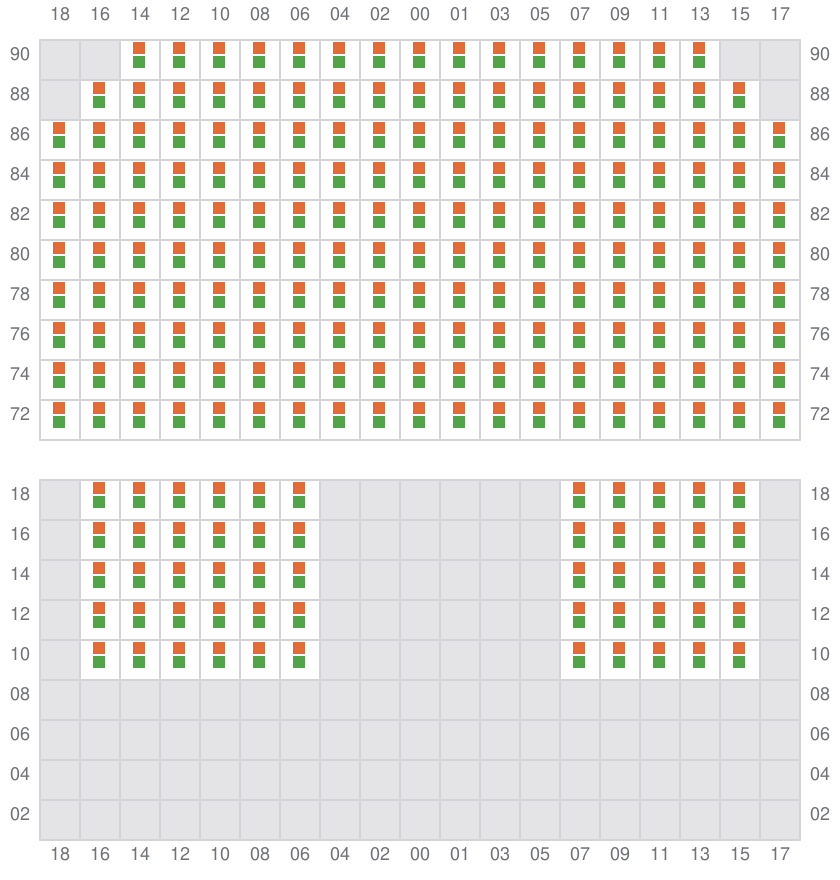

055 (056)
- →

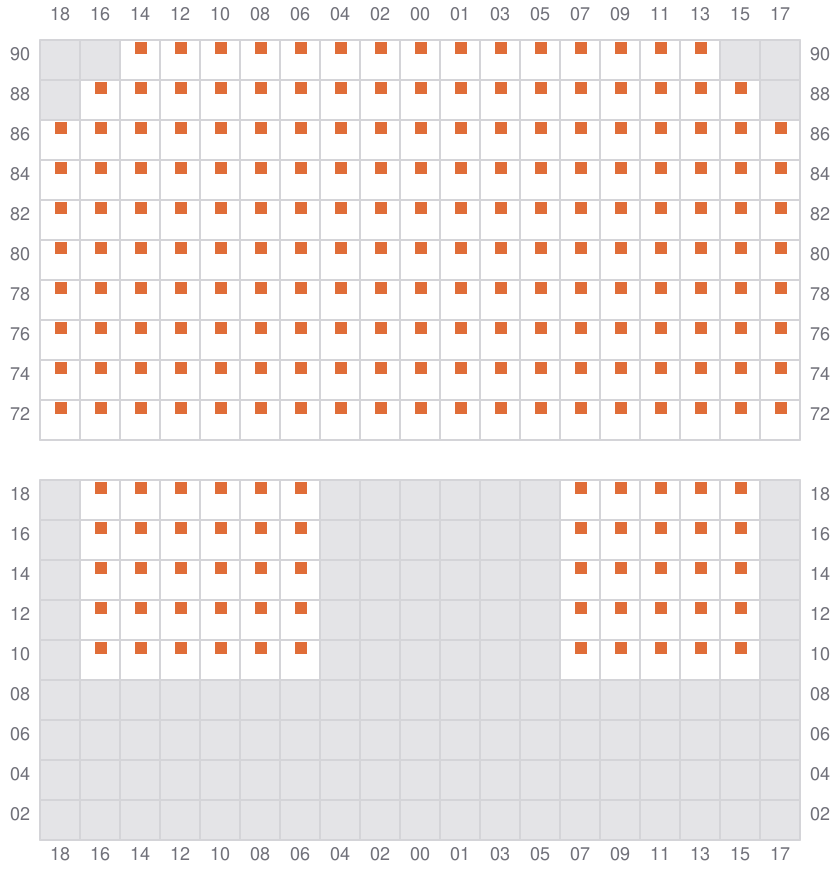

057
- ←
059 (060)
- →

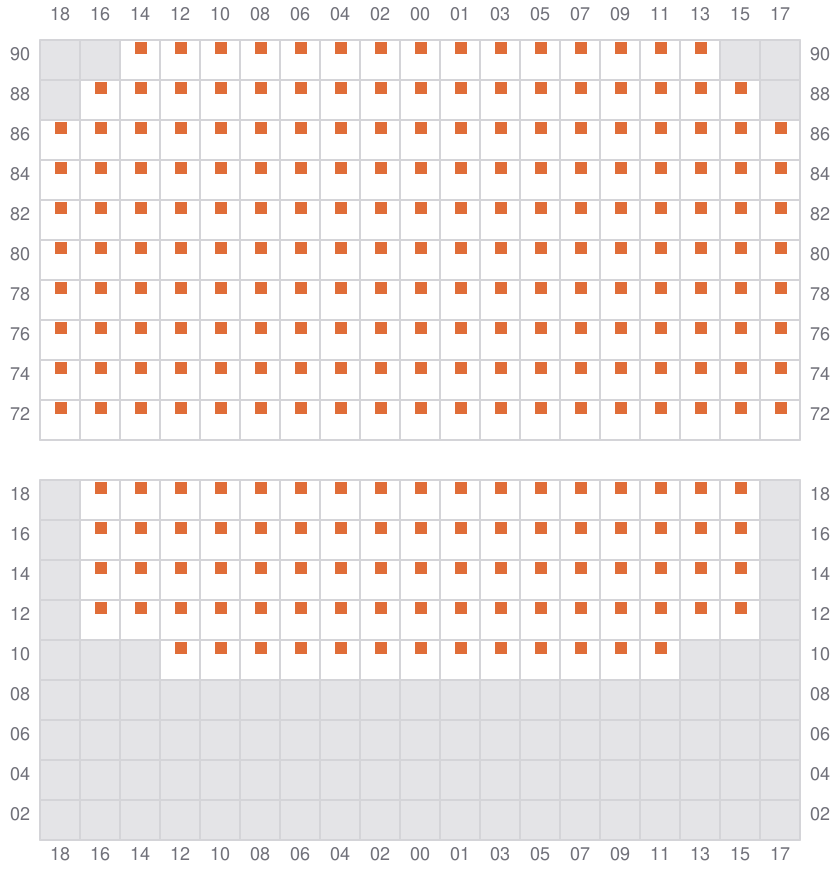

061
- ←

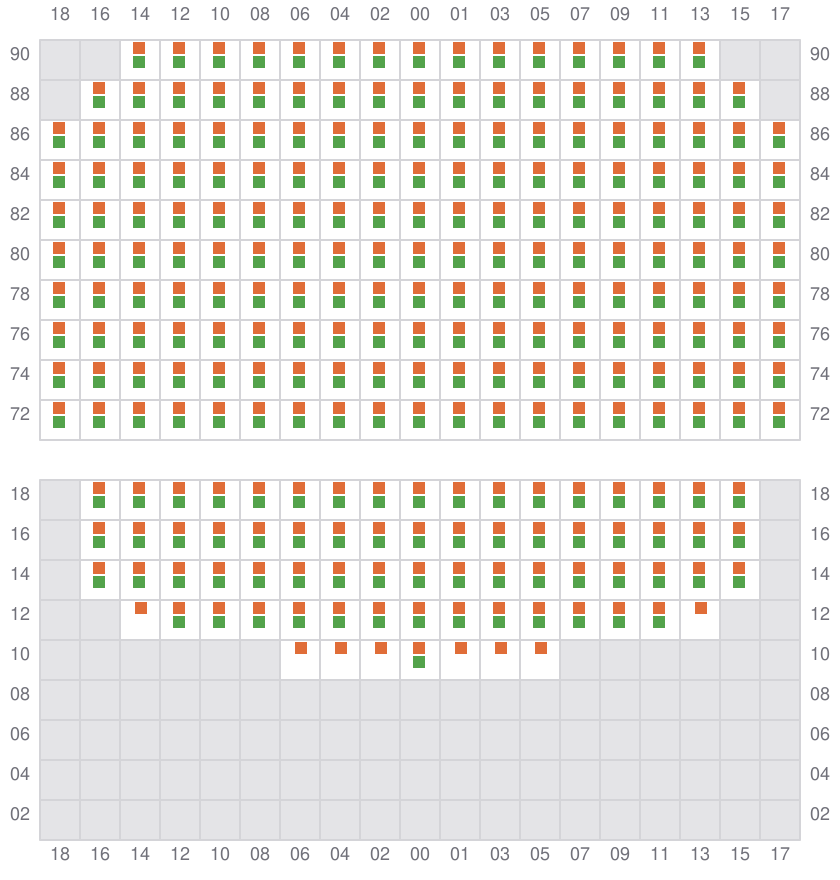

063 (064)
- →
065
- ←

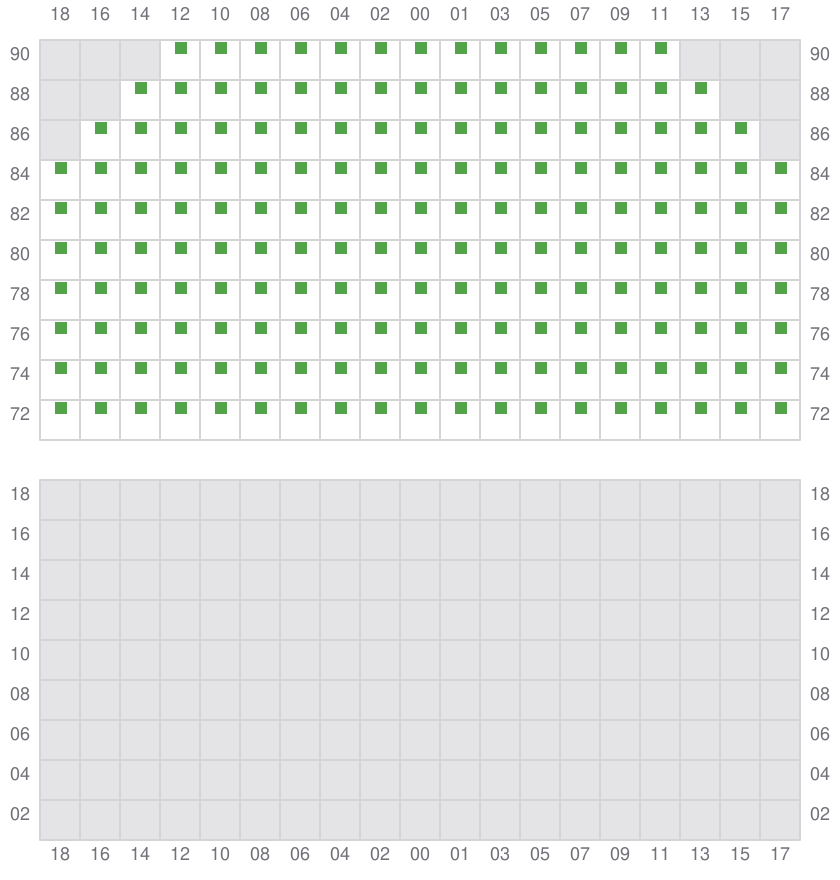

067 (068)
- → / ?
