CMA CGM NOTRE DAME
1028035 | FPBN | CMA by *********************** Last update: Thu Sep 10 2026
General Info
Ship Name:CMA CGM NOTRE DAME
IMO Code:1028035
Call Sign:FPBN
Line Operator:CMA
Class Name for Sister Ships:CGNM
Year Built:2026
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):390.82
LOA (Length Overall):400.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:099
Max ISO Row:24
Center Line Row:No
Max Above ISO Tier:106
Min Above ISO Tier:70
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:24,456
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:100%
TCG Values:Estimated
TCG Data:100%
Side View

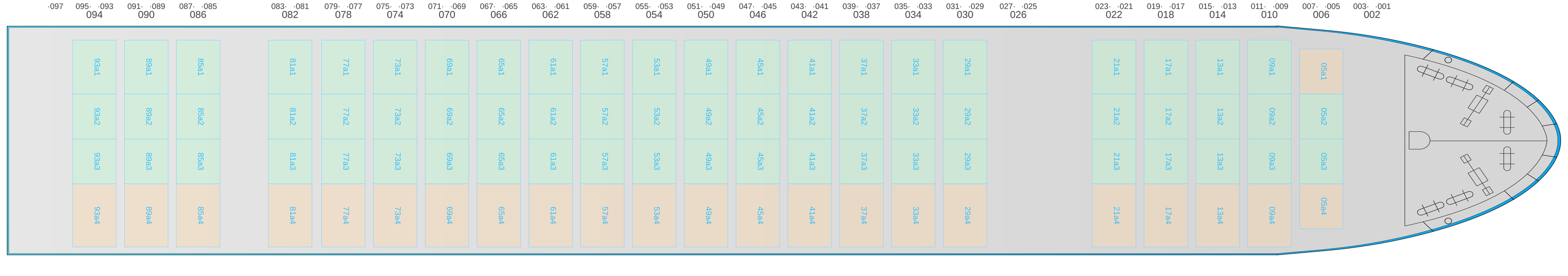

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

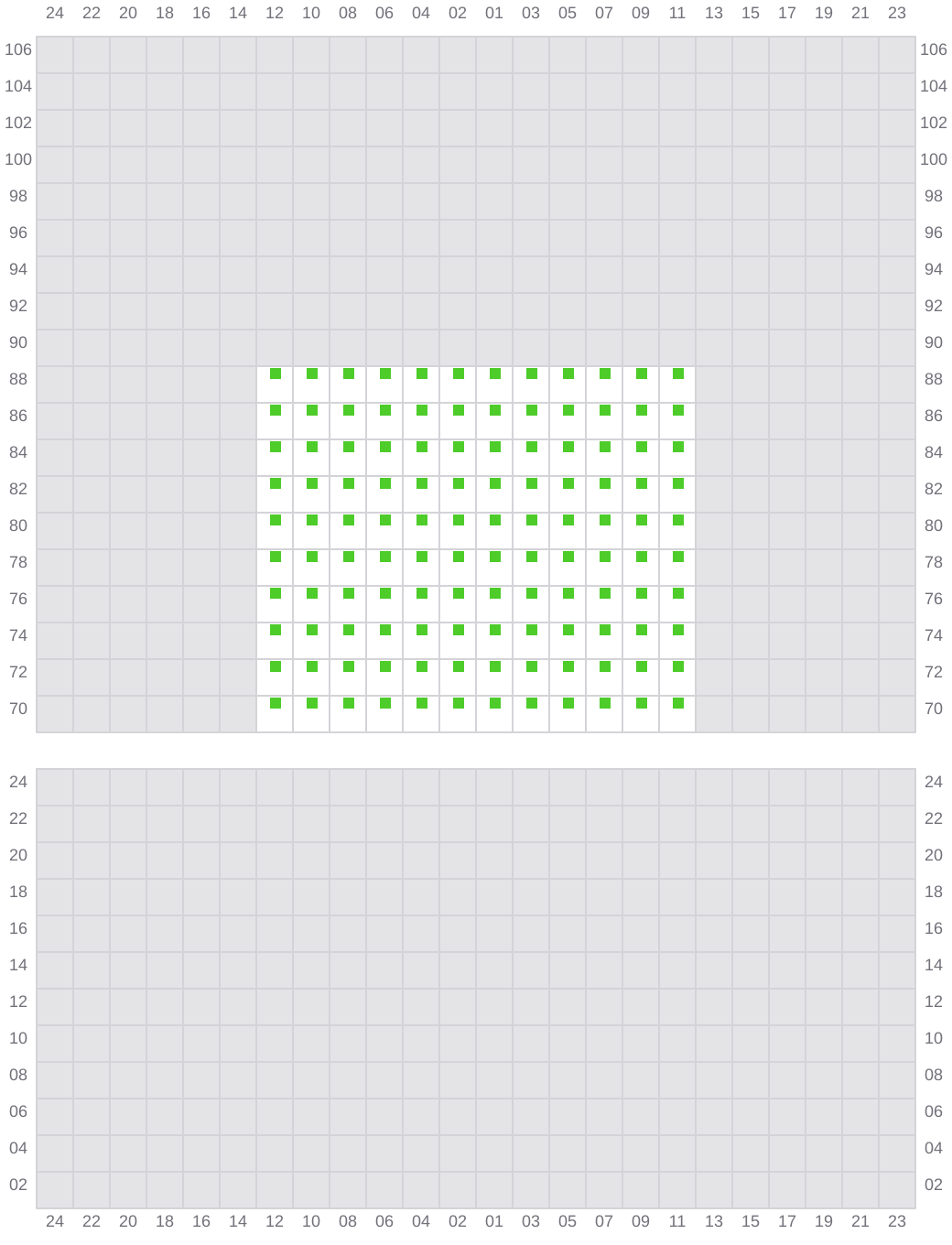

001 (002)
- →
- → / ?

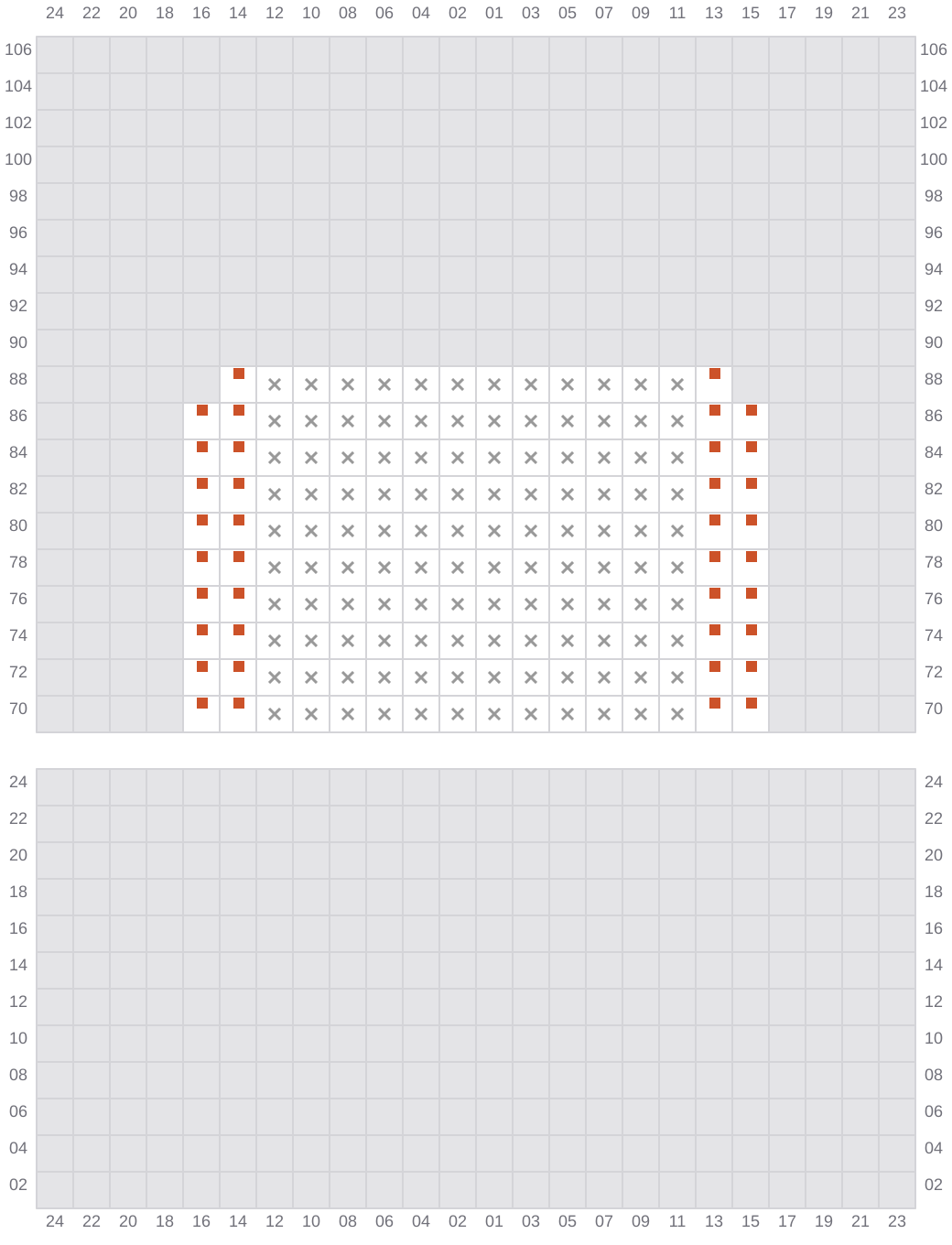

003
- ←
- → / ?

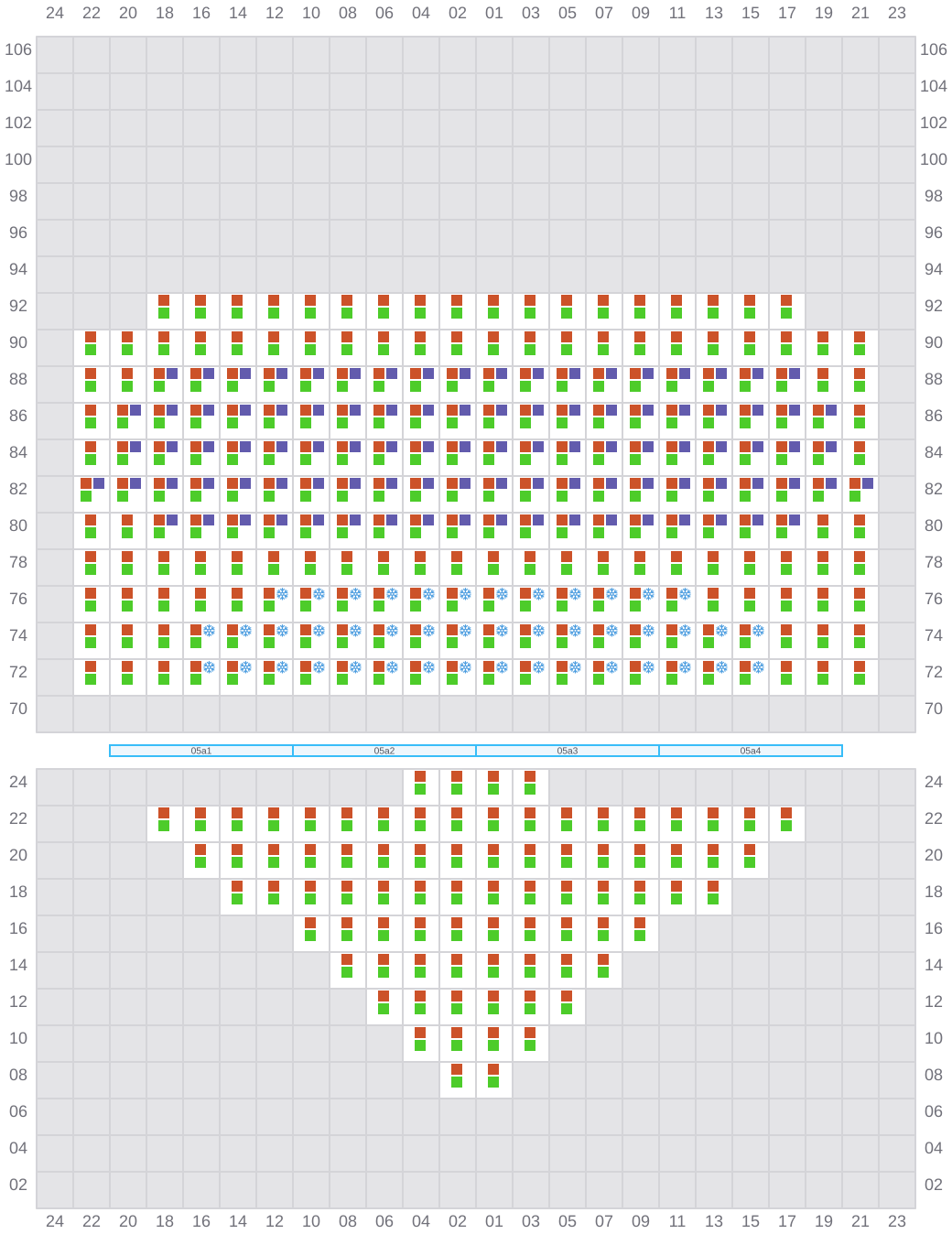

005 (006)
- →
- →

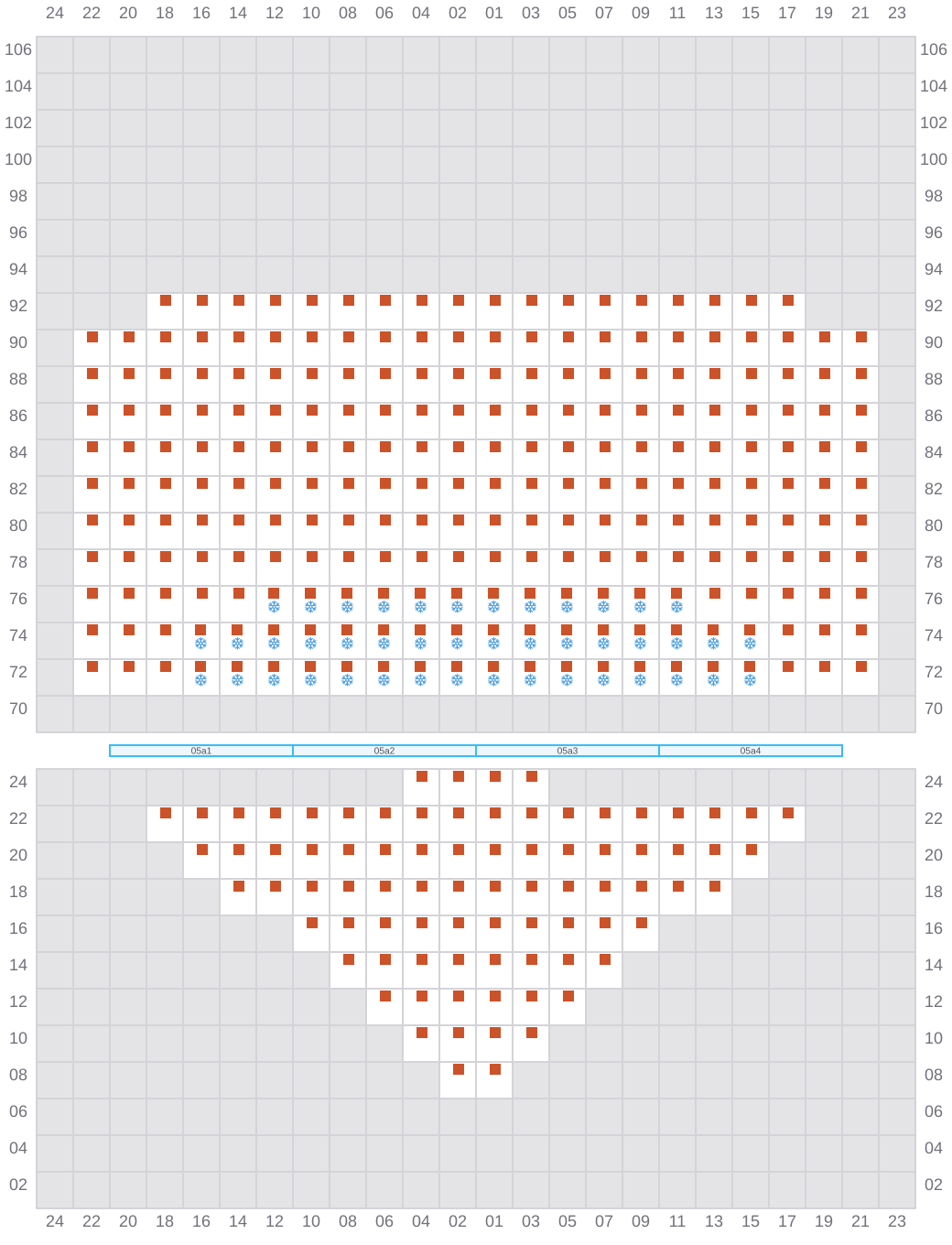

007
- ←
- →

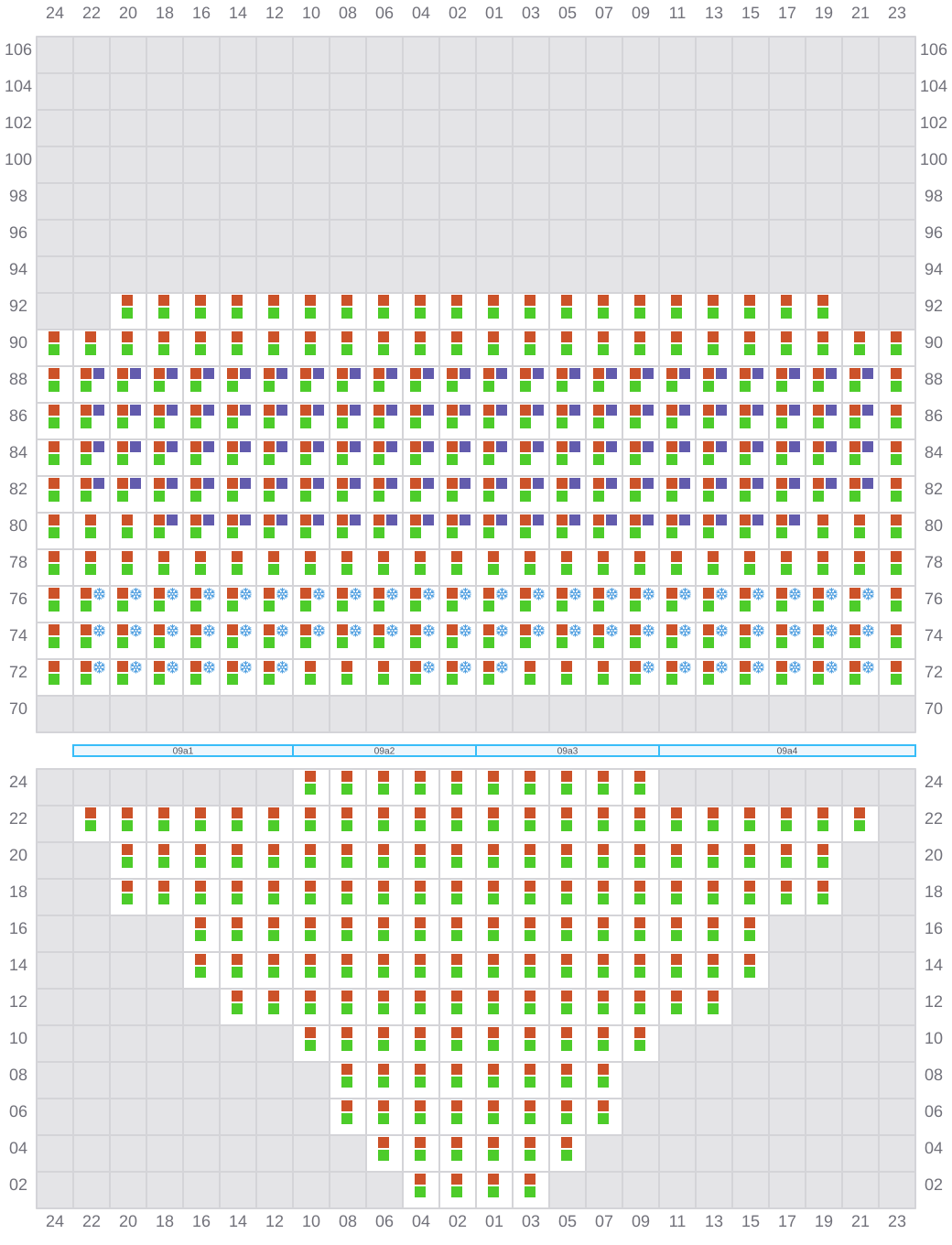

009 (010)
- →
- →

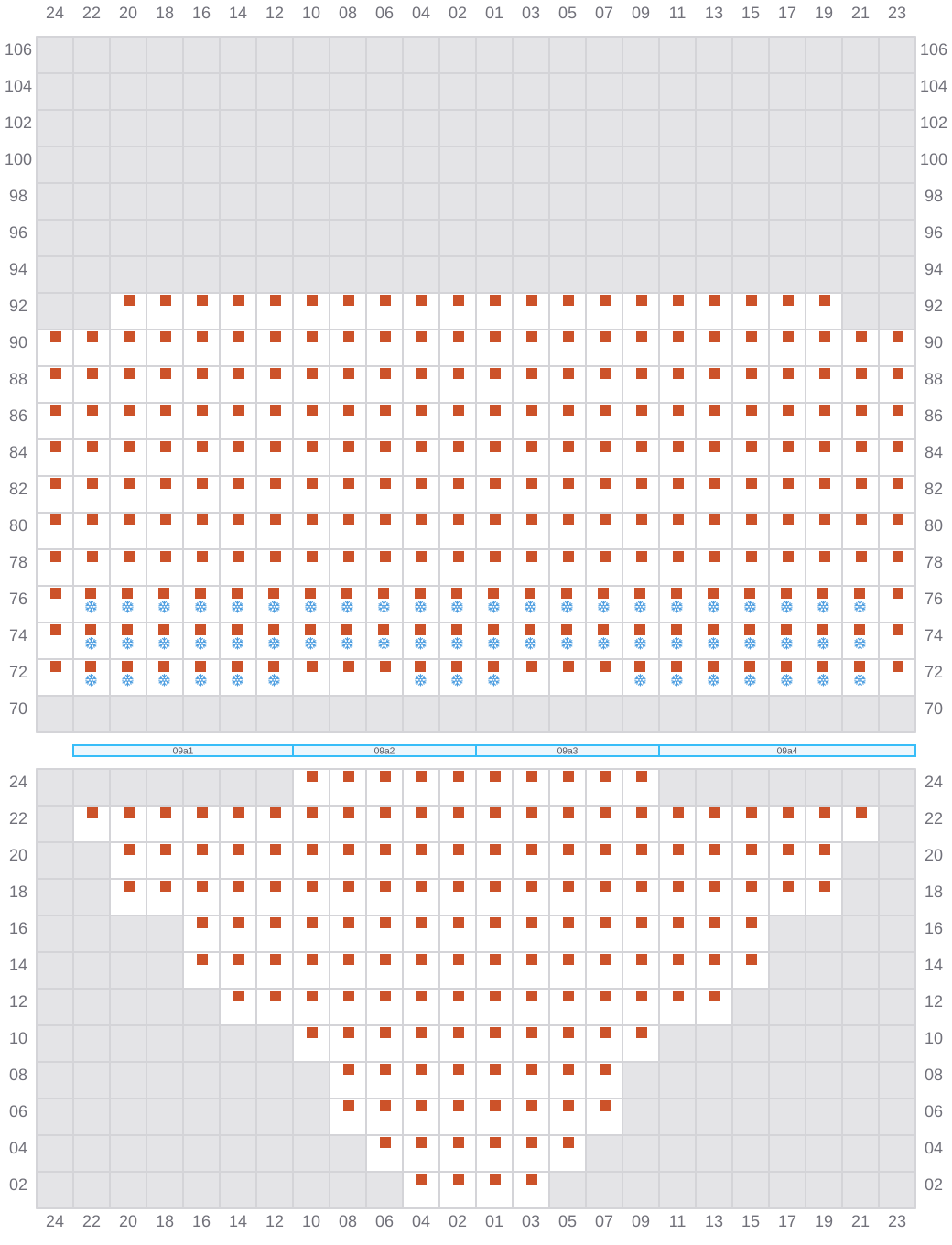

011
- ←
- →

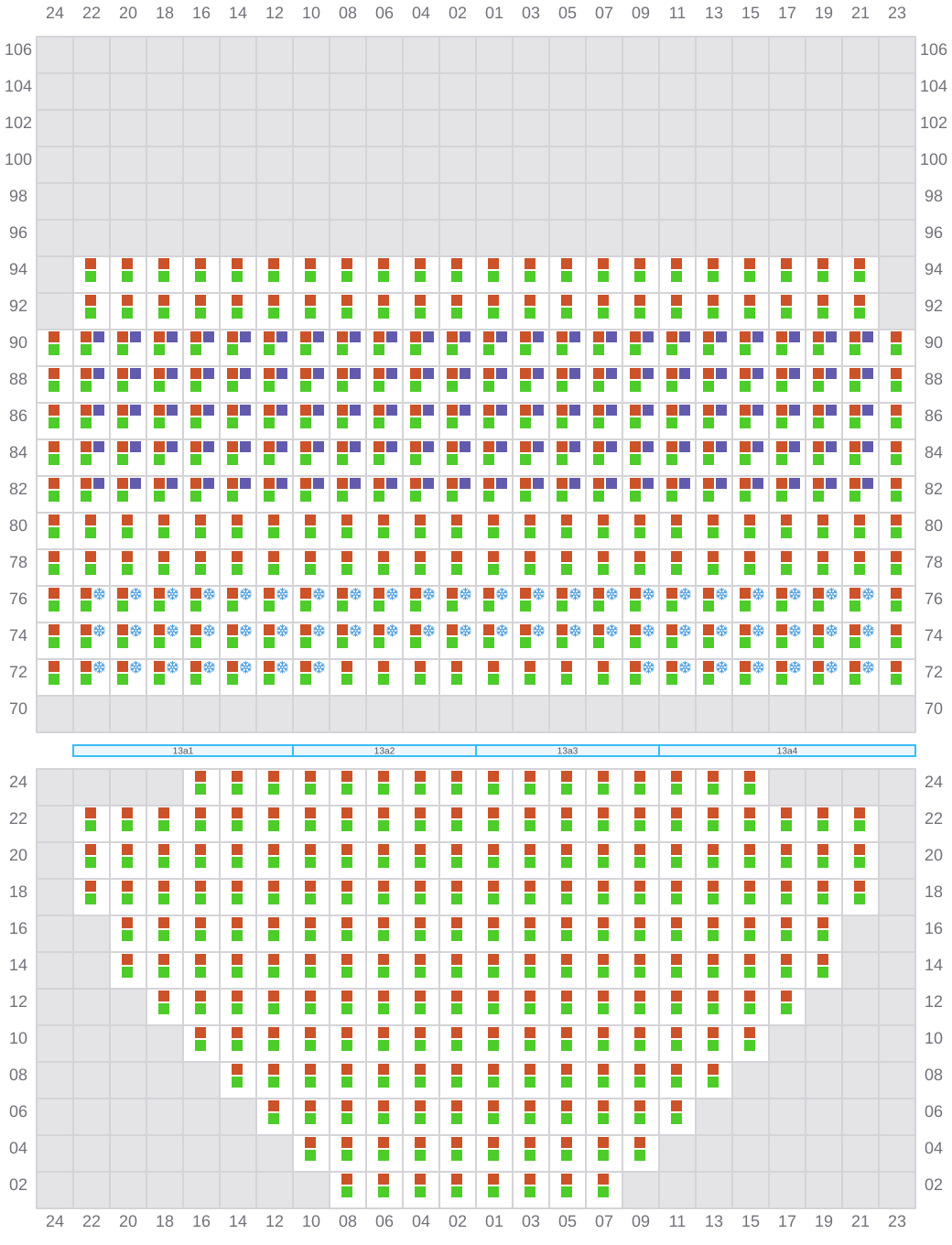

013 (014)
- →
- →

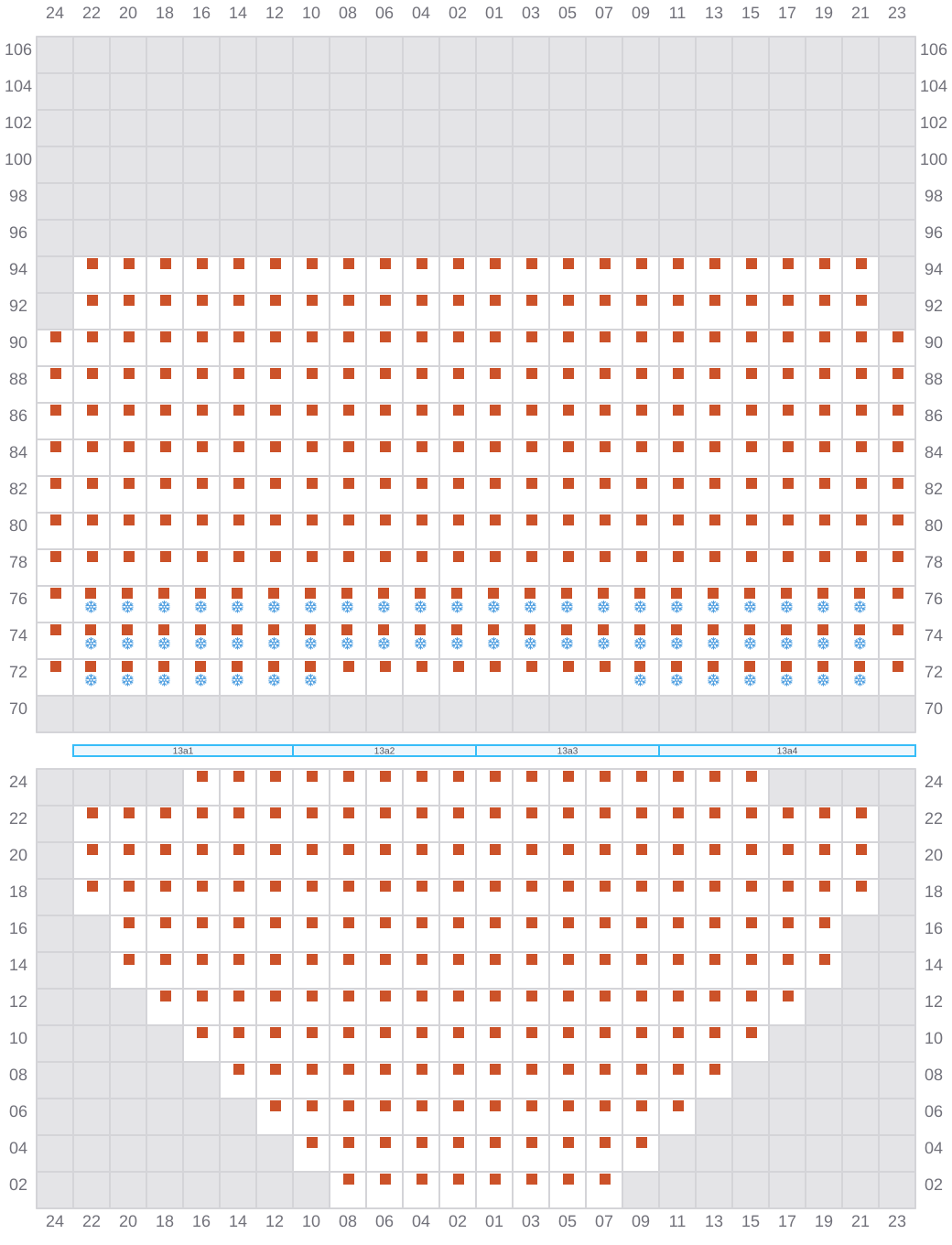

015
- ←
- →
017 (018)
- →
- →
019
- ←
- →
021 (022)
- →
- →
023
- ←
- →

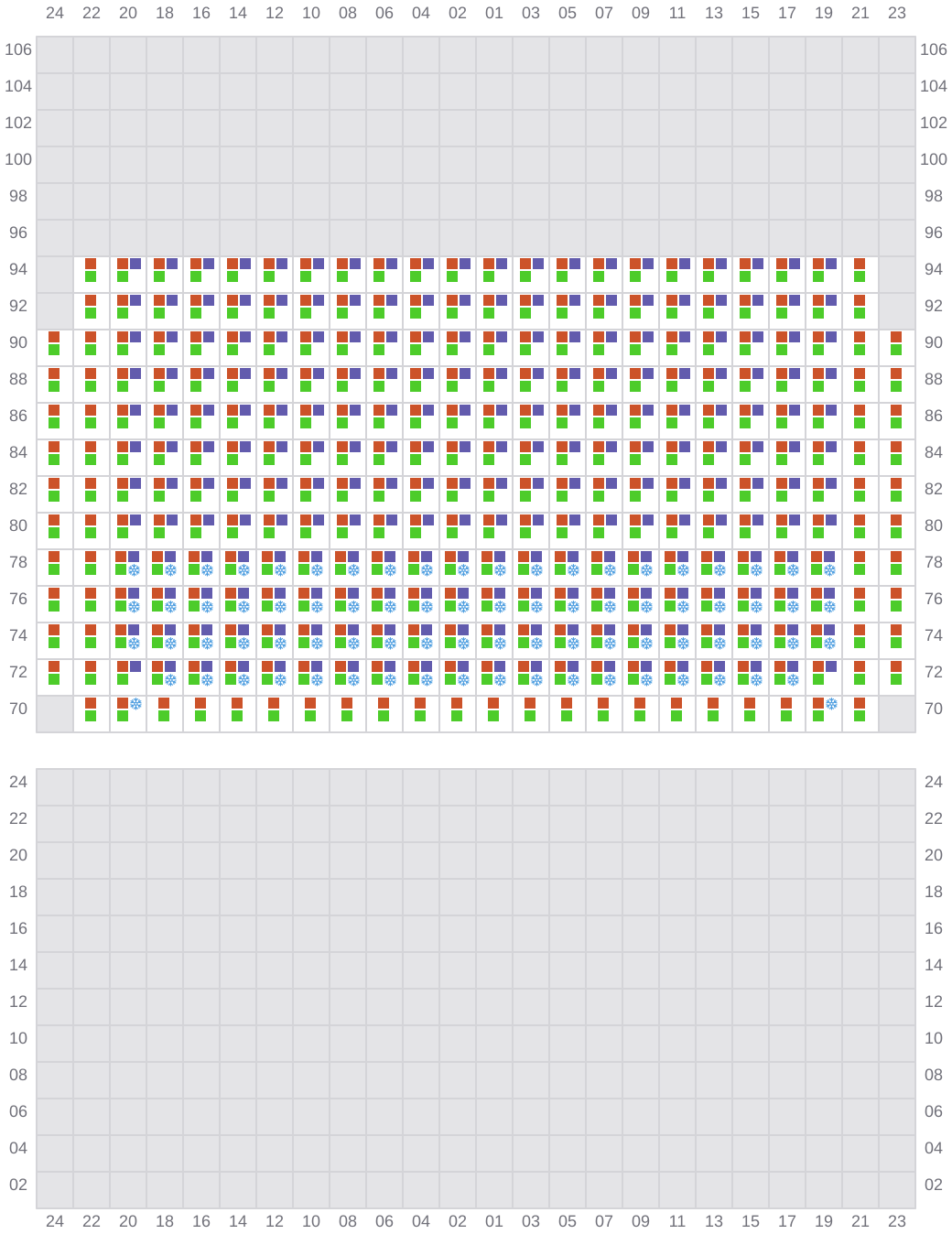

025 (026)
- →
- → / ?

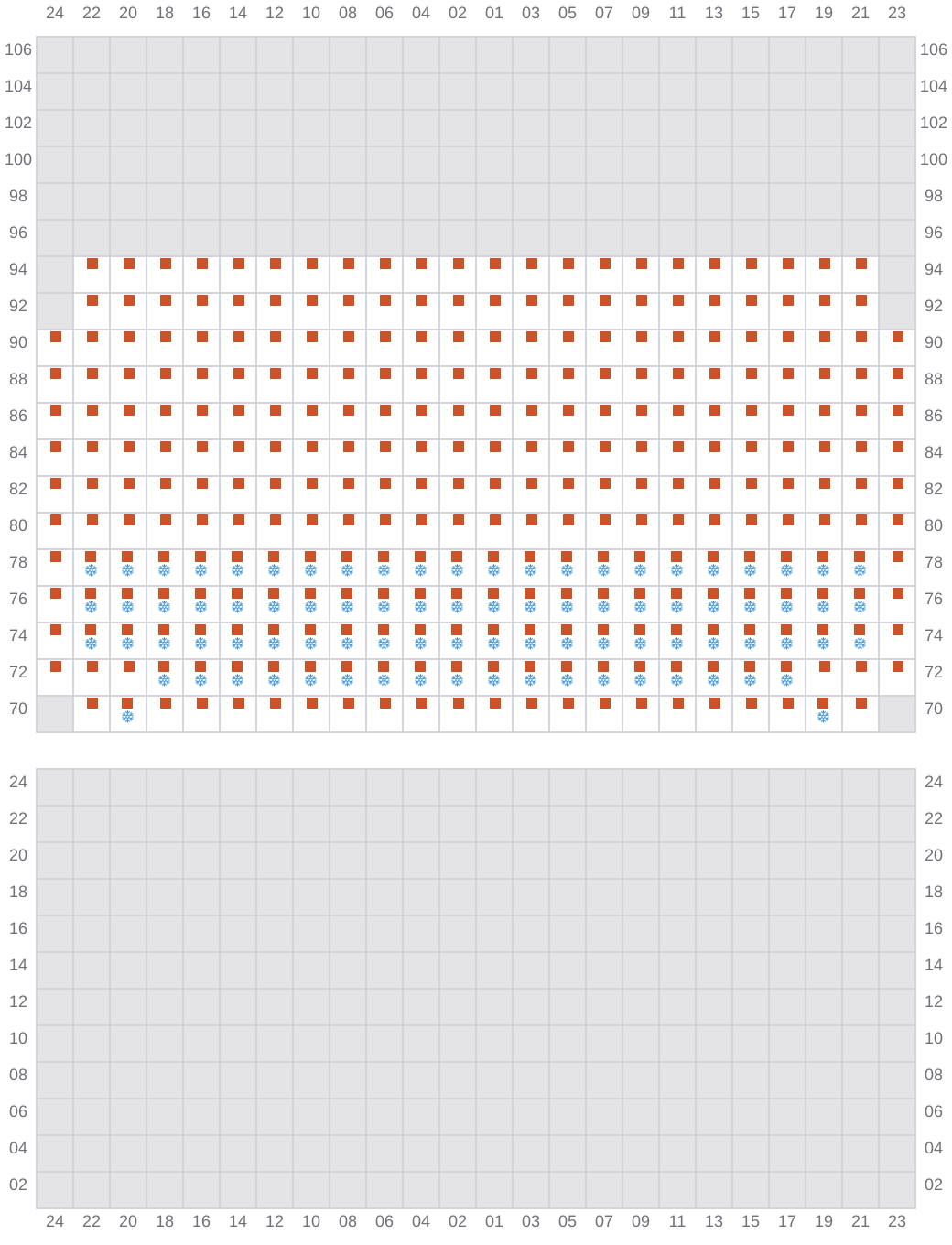

027
- ←
- → / ?

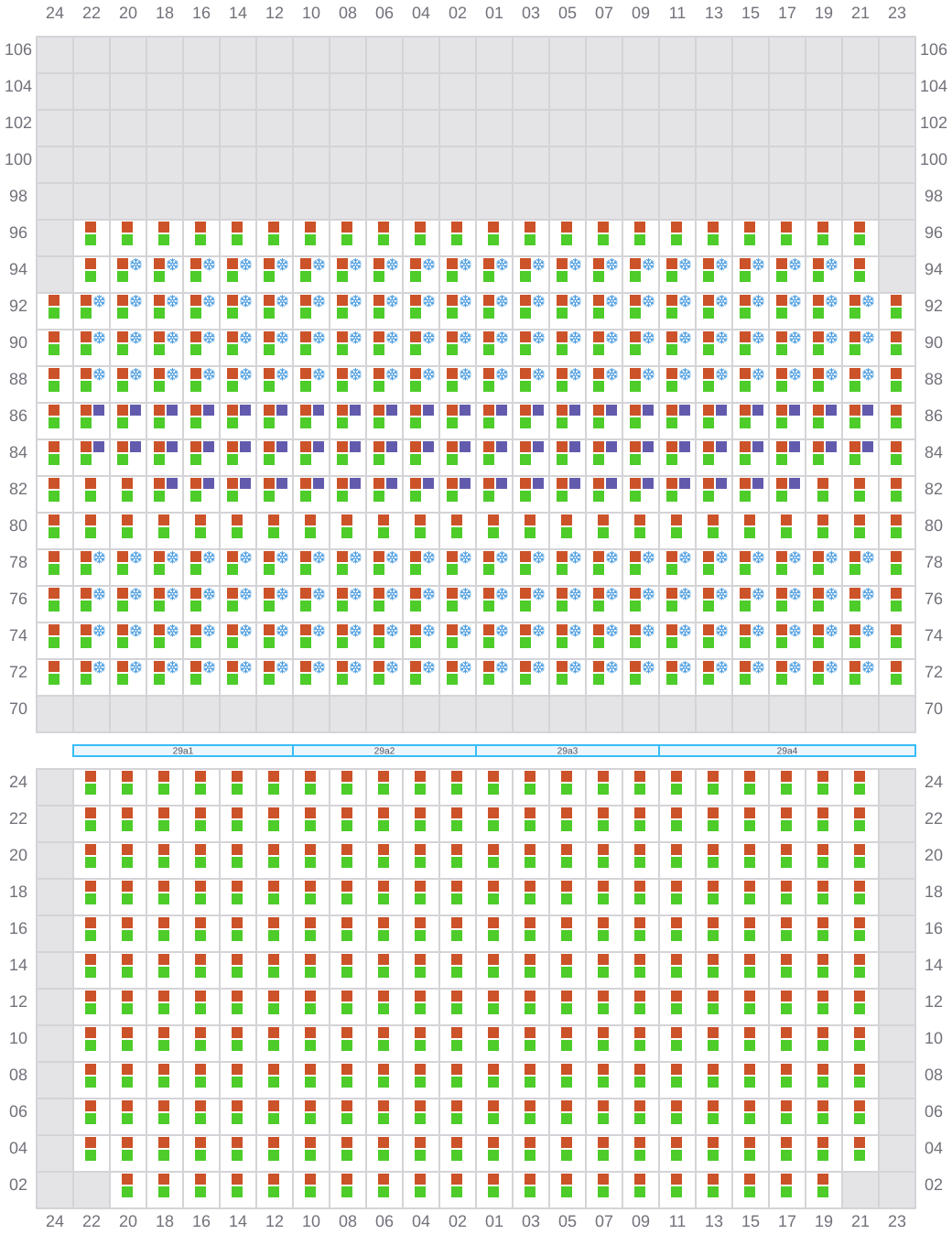

029 (030)
- →
- →
031
- ←
- →
033 (034)
- →
- →
035
- ←
- →
037 (038)
- →
- →
039
- ←
- →
041 (042)
- →
- →
043
- ←
- →
045 (046)
- →
- →
047
- ←
- →
049 (050)
- →
- →
051
- ←
- →

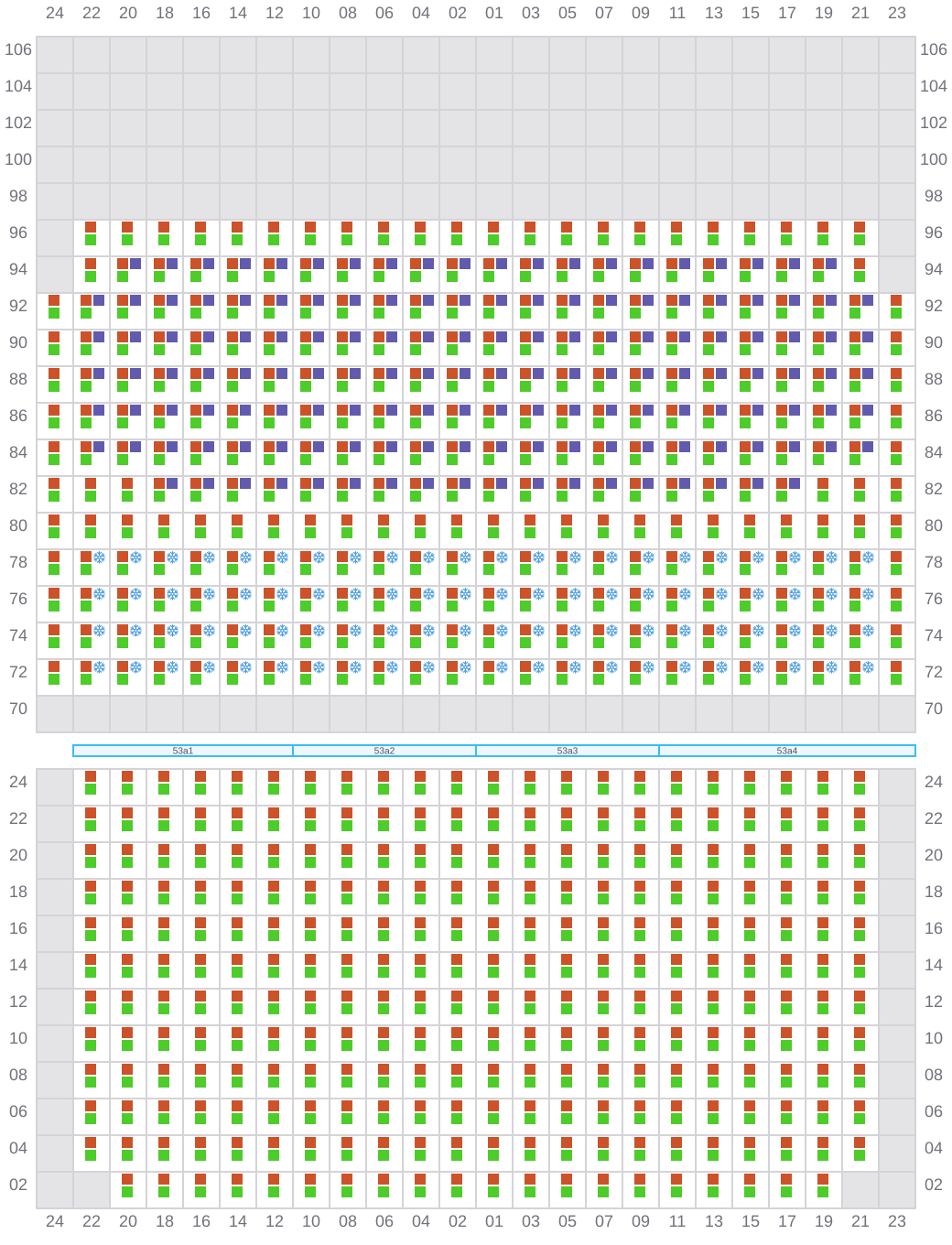

053 (054)
- →
- →
055
- ←
- →
057 (058)
- →
- →
059
- ←
- →
061 (062)
- →
- →
063
- ←
- →
065 (066)
- →
- →
067
- ←
- →
069 (070)
- →
- →
071
- ←
- →
073 (074)
- →
- →

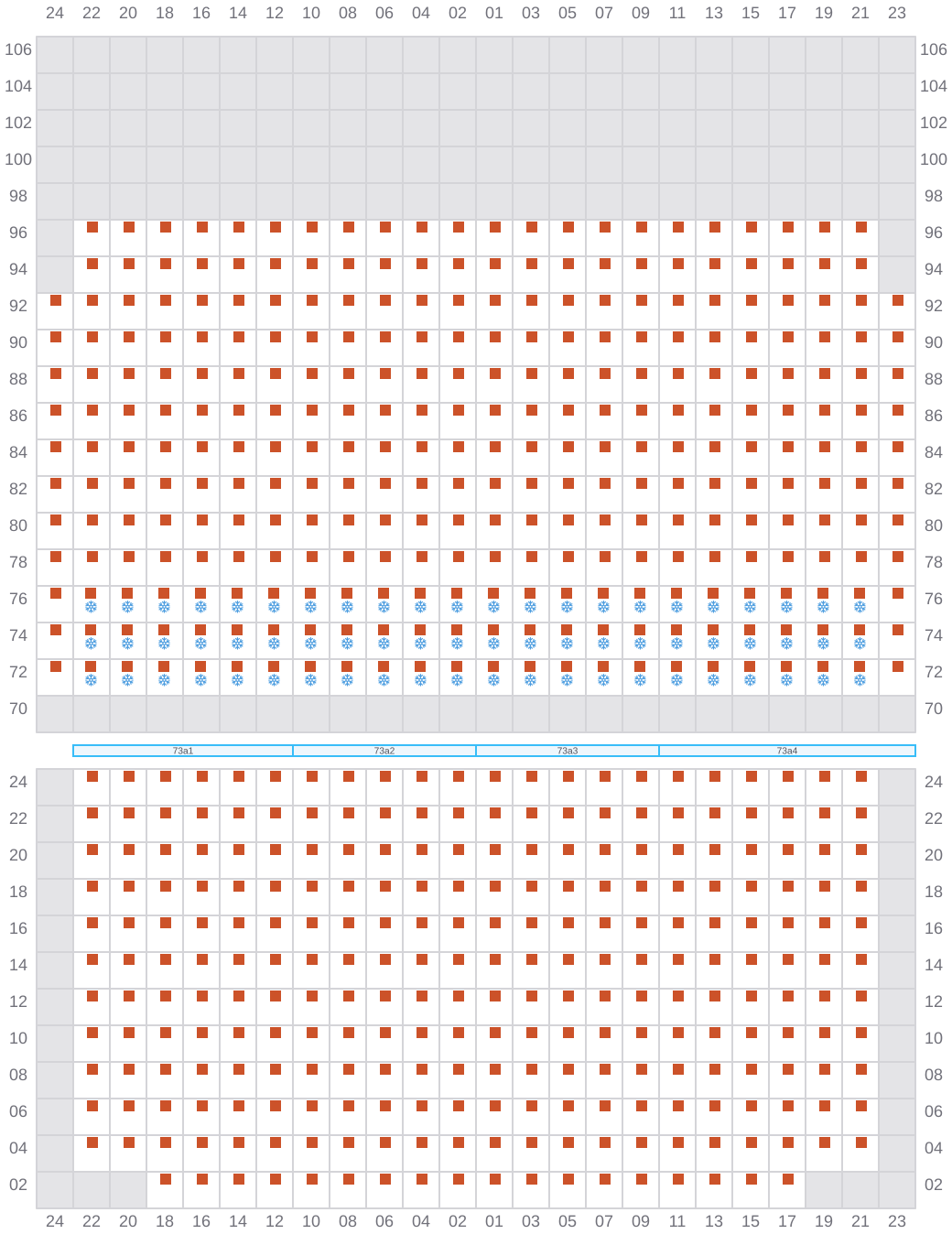

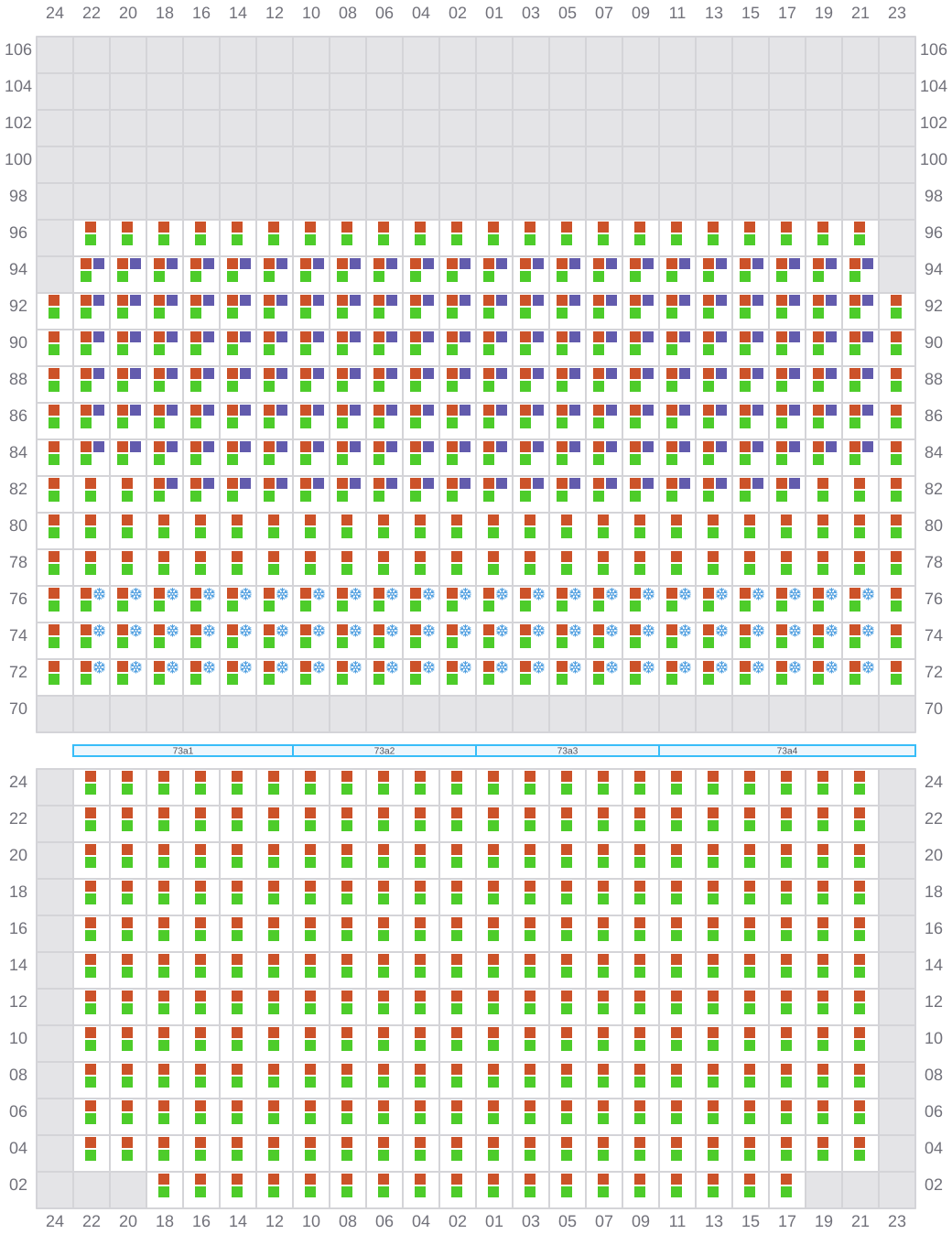

075
- ←
- →
077 (078)
- →
- →

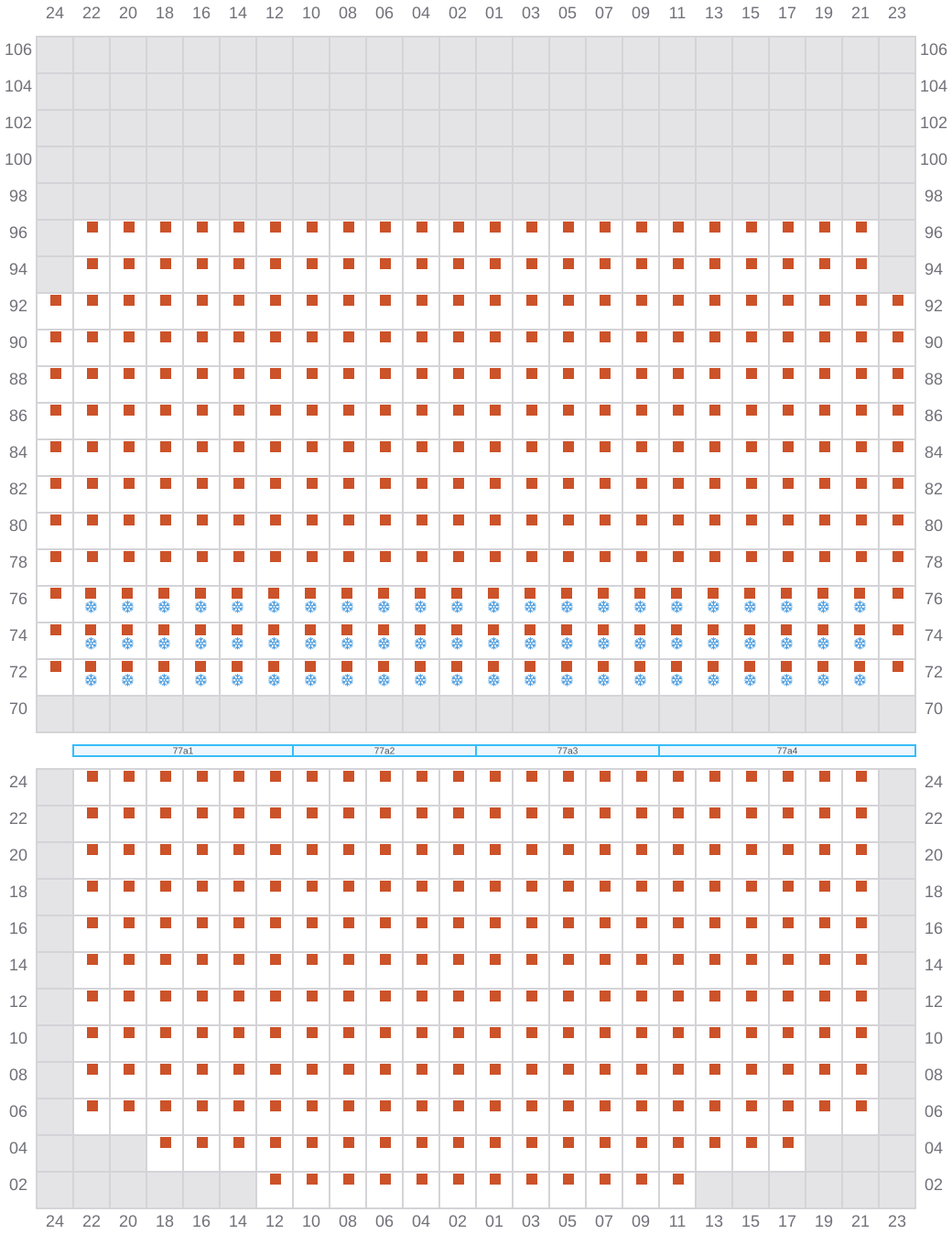

079
- ←
- →

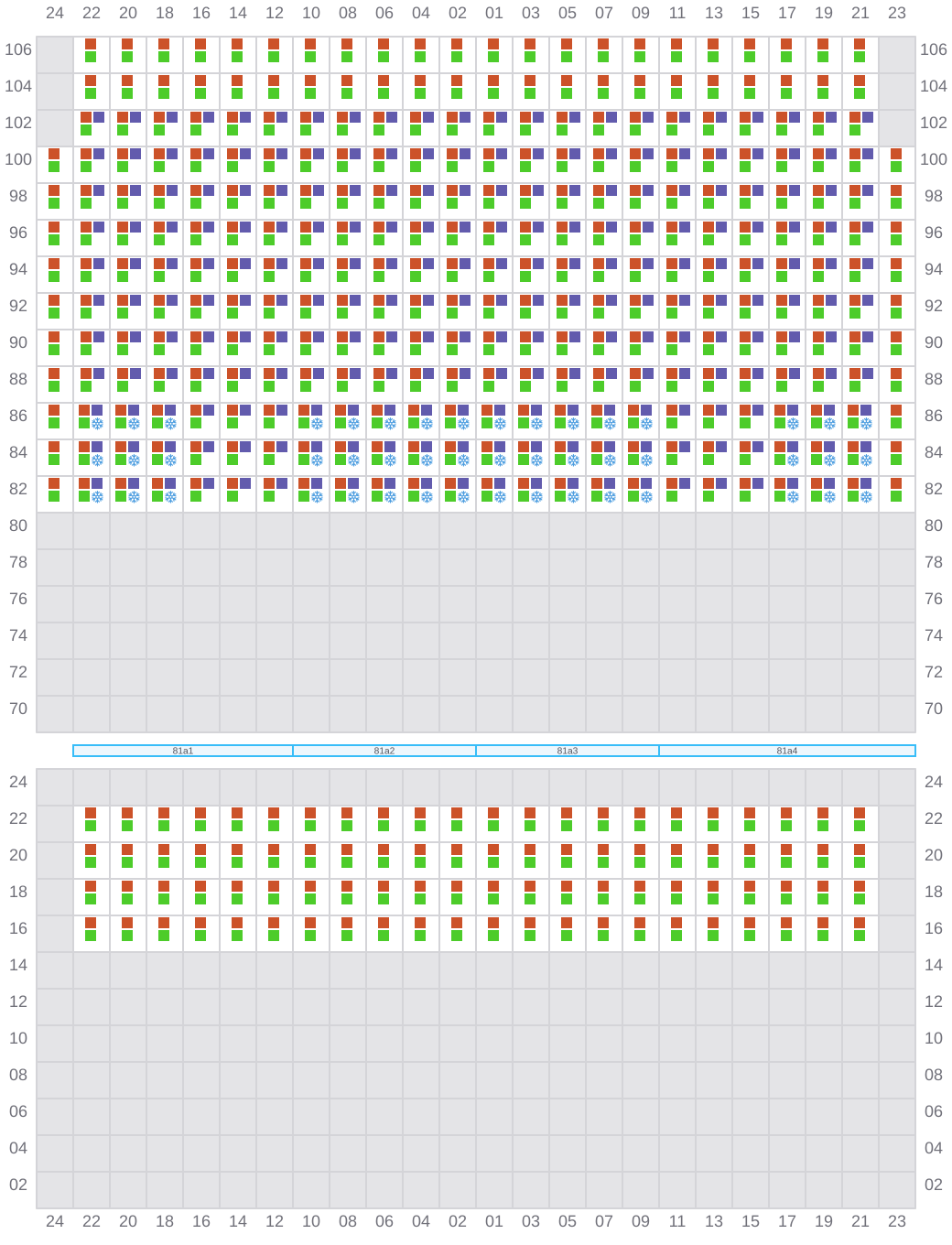

081 (082)
- →
- →

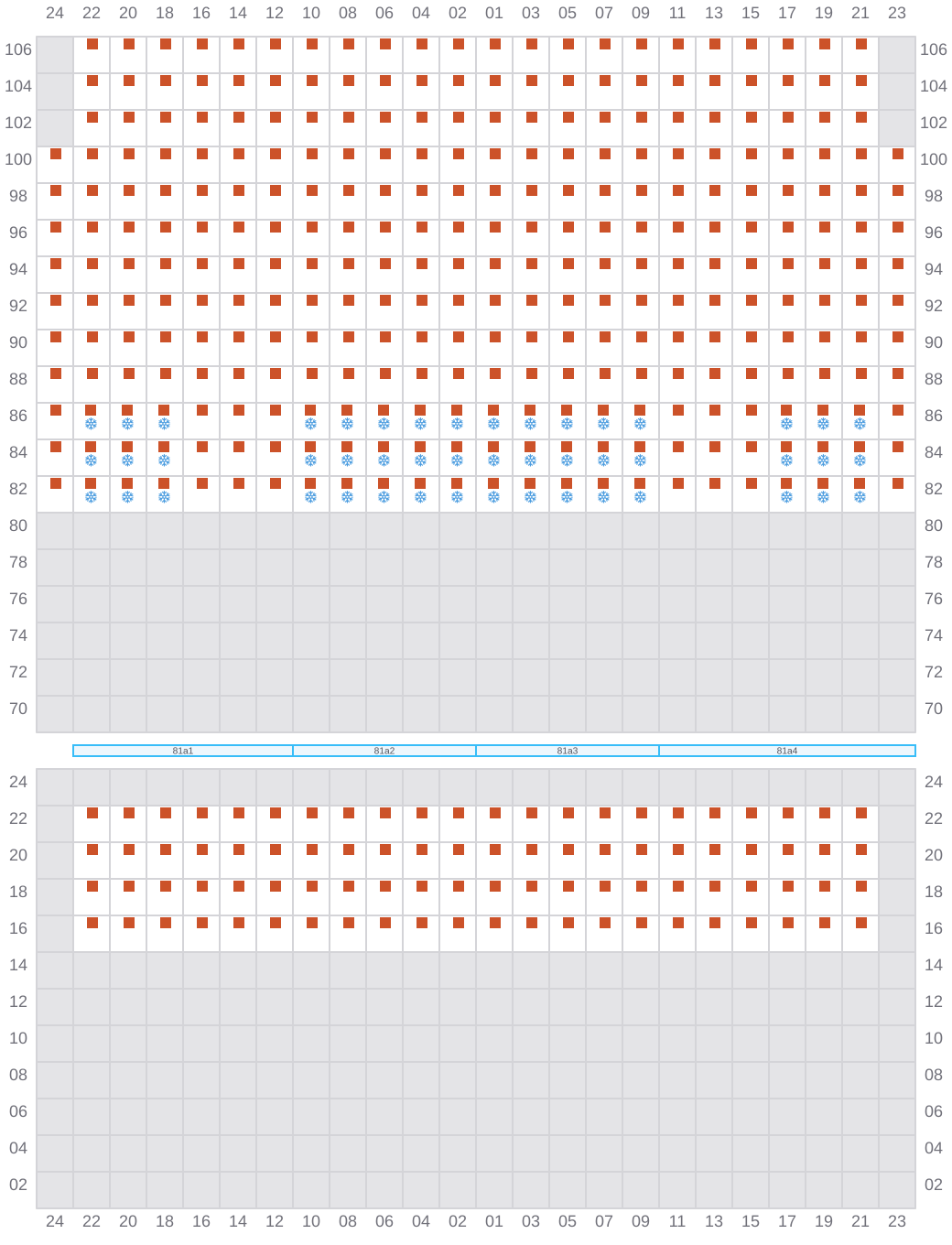

083
- ←
- →

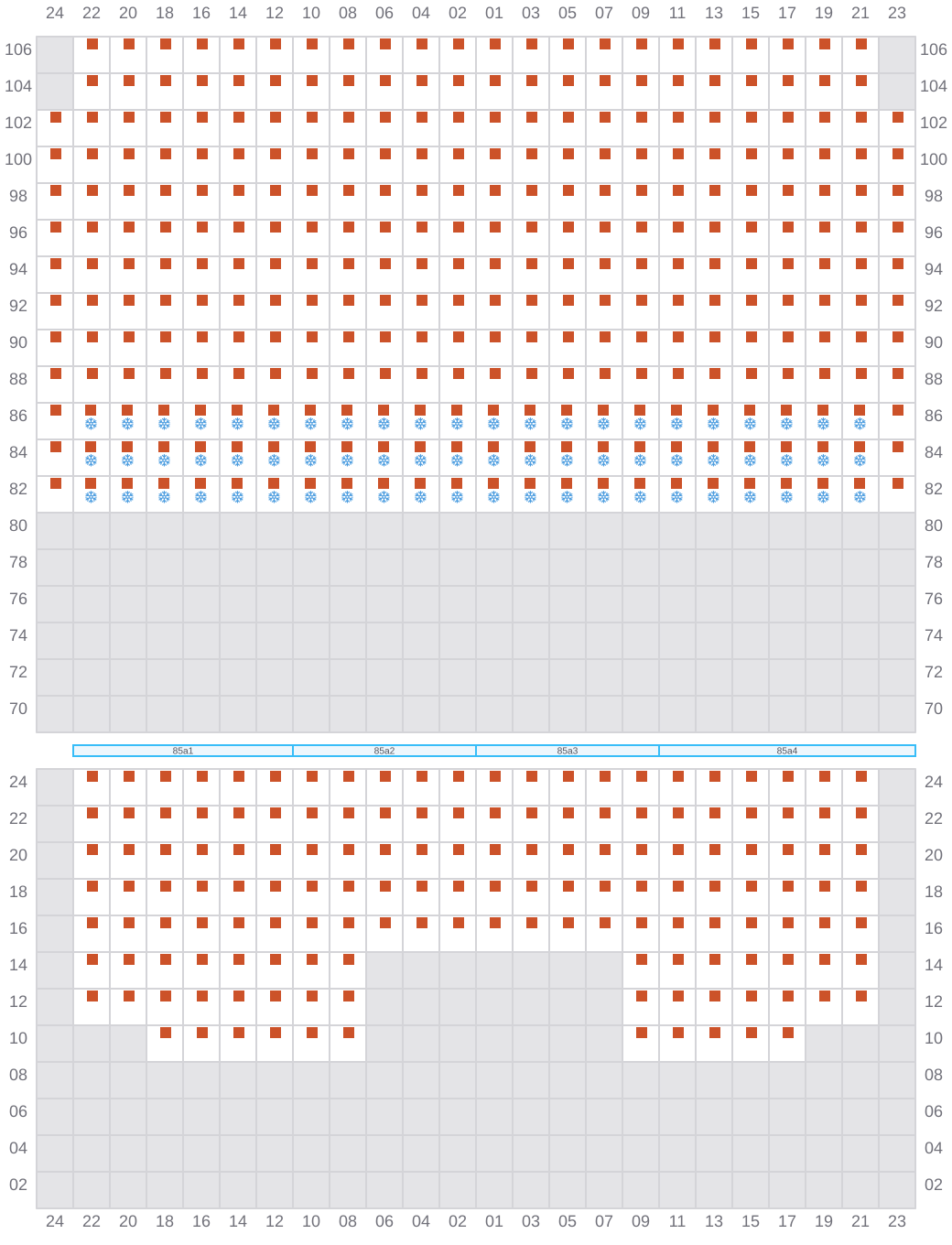

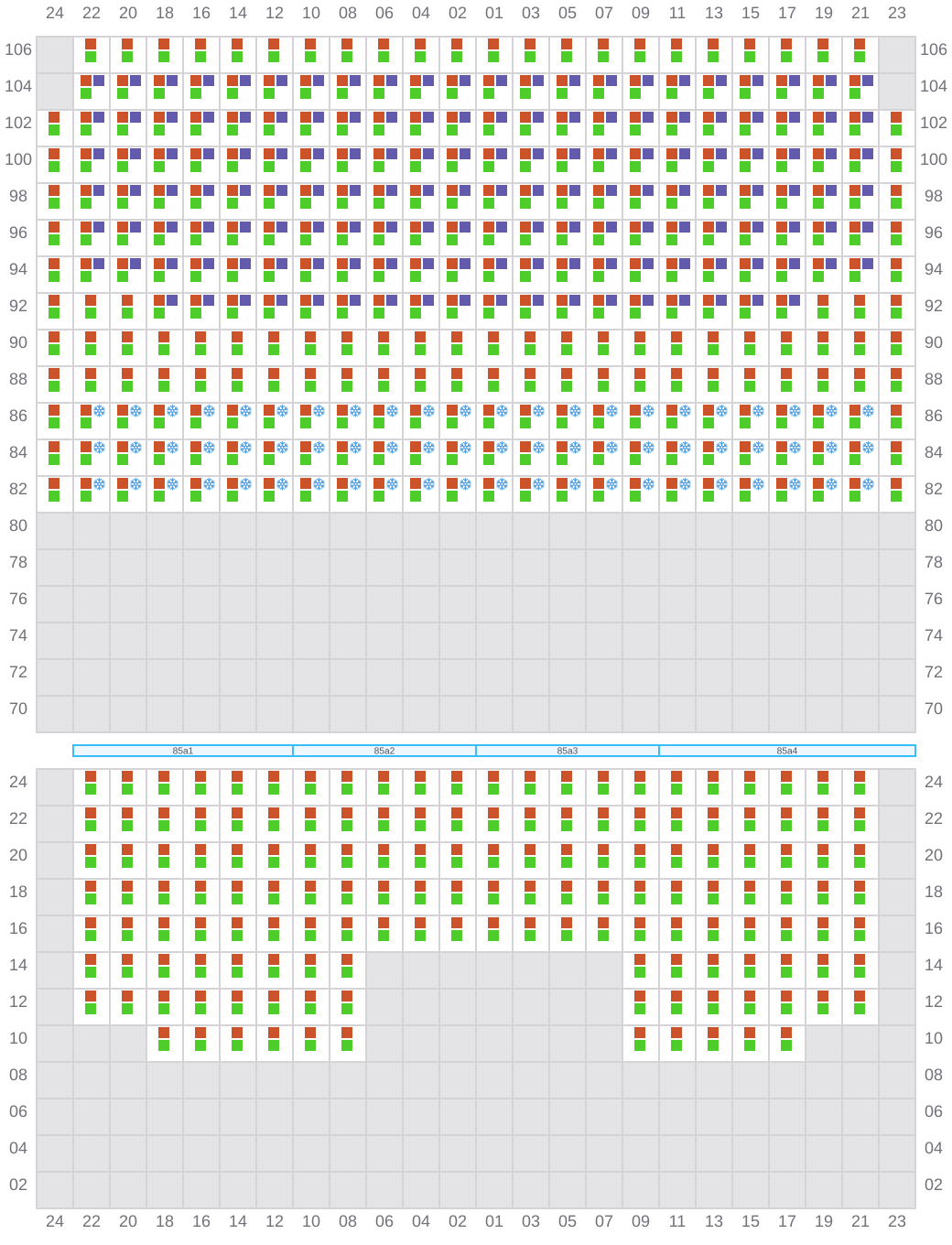

085 (086)
- →
- →
087
- ←
- →
089 (090)
- →
- →

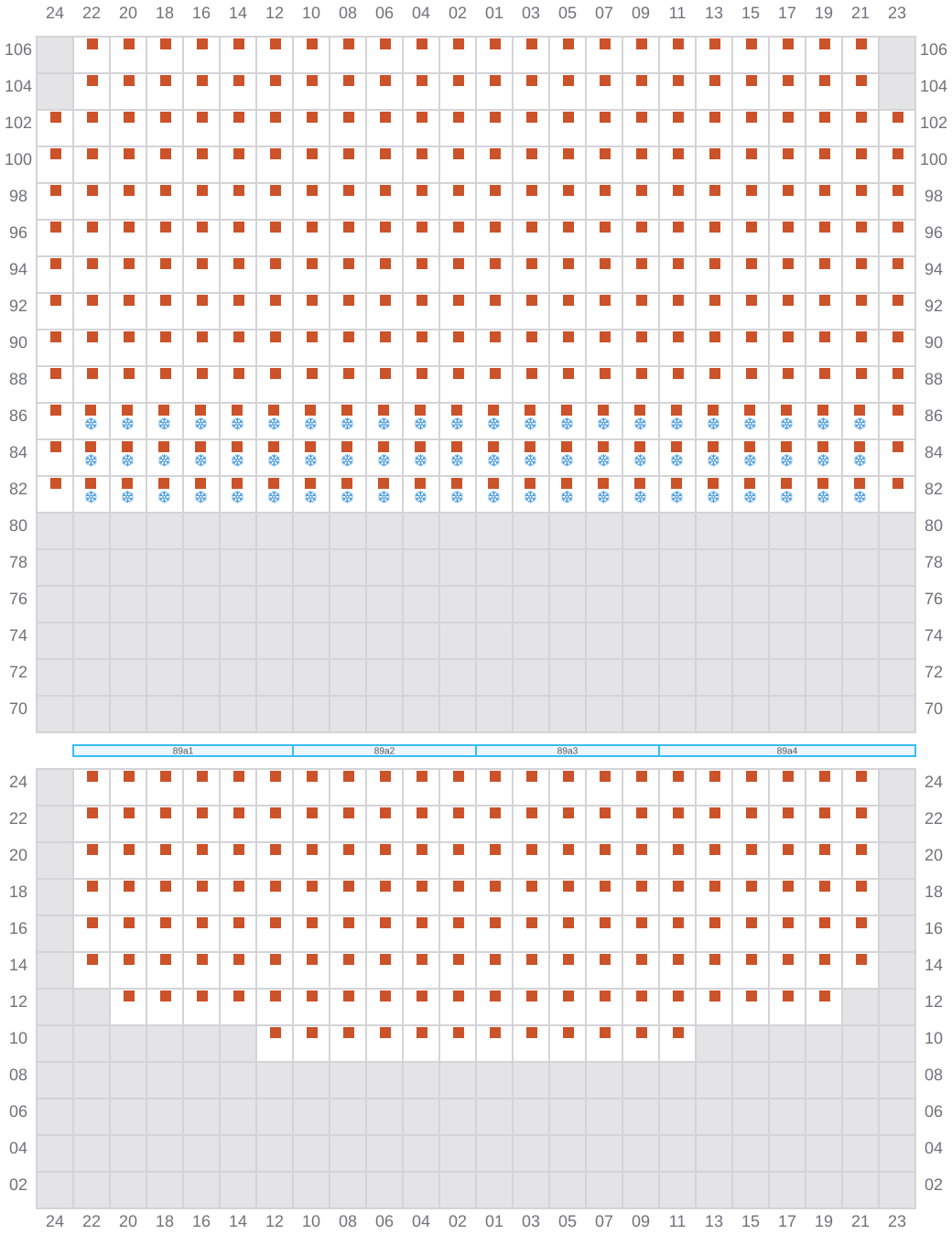

091
- ←
- →

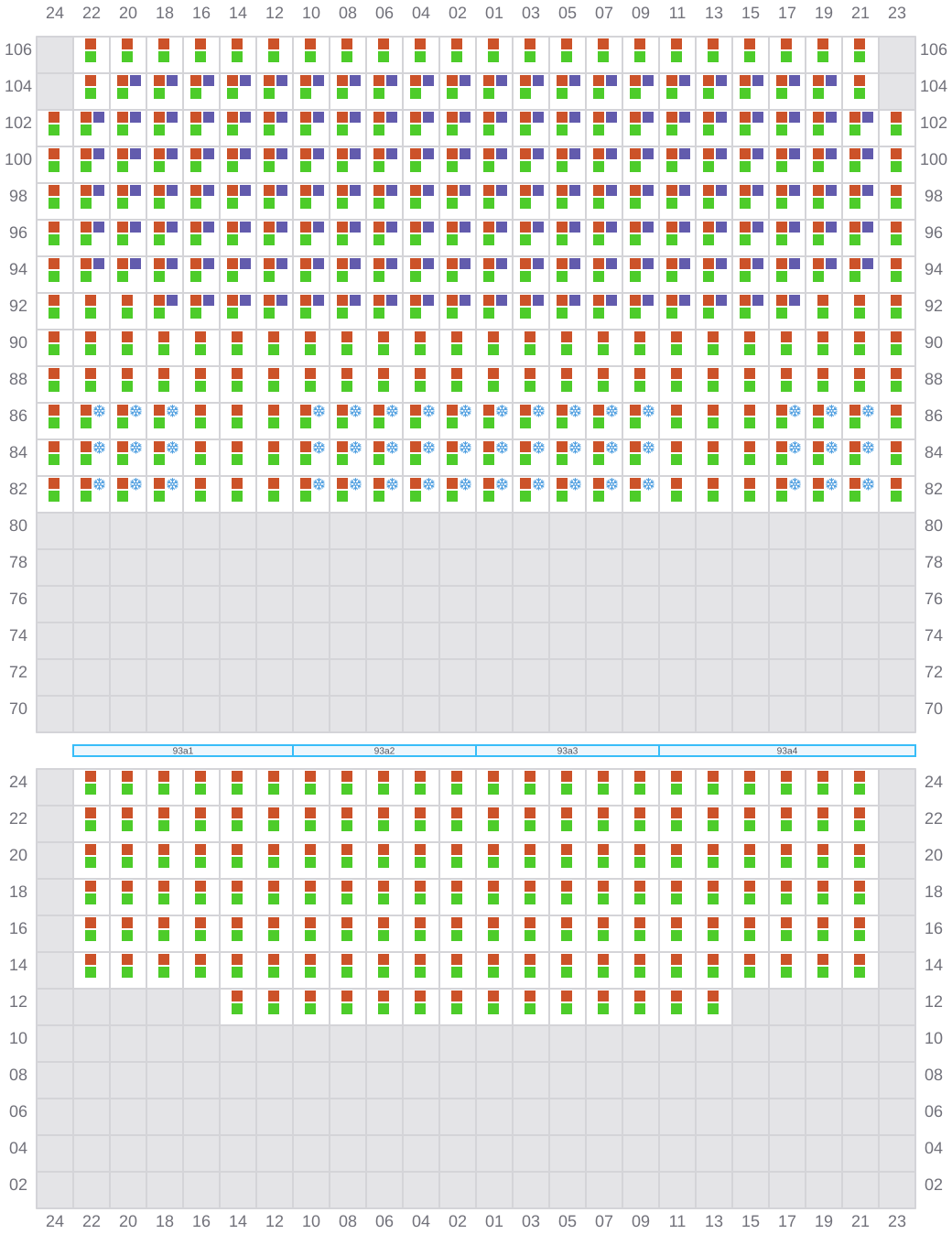

093 (094)
- →
- →

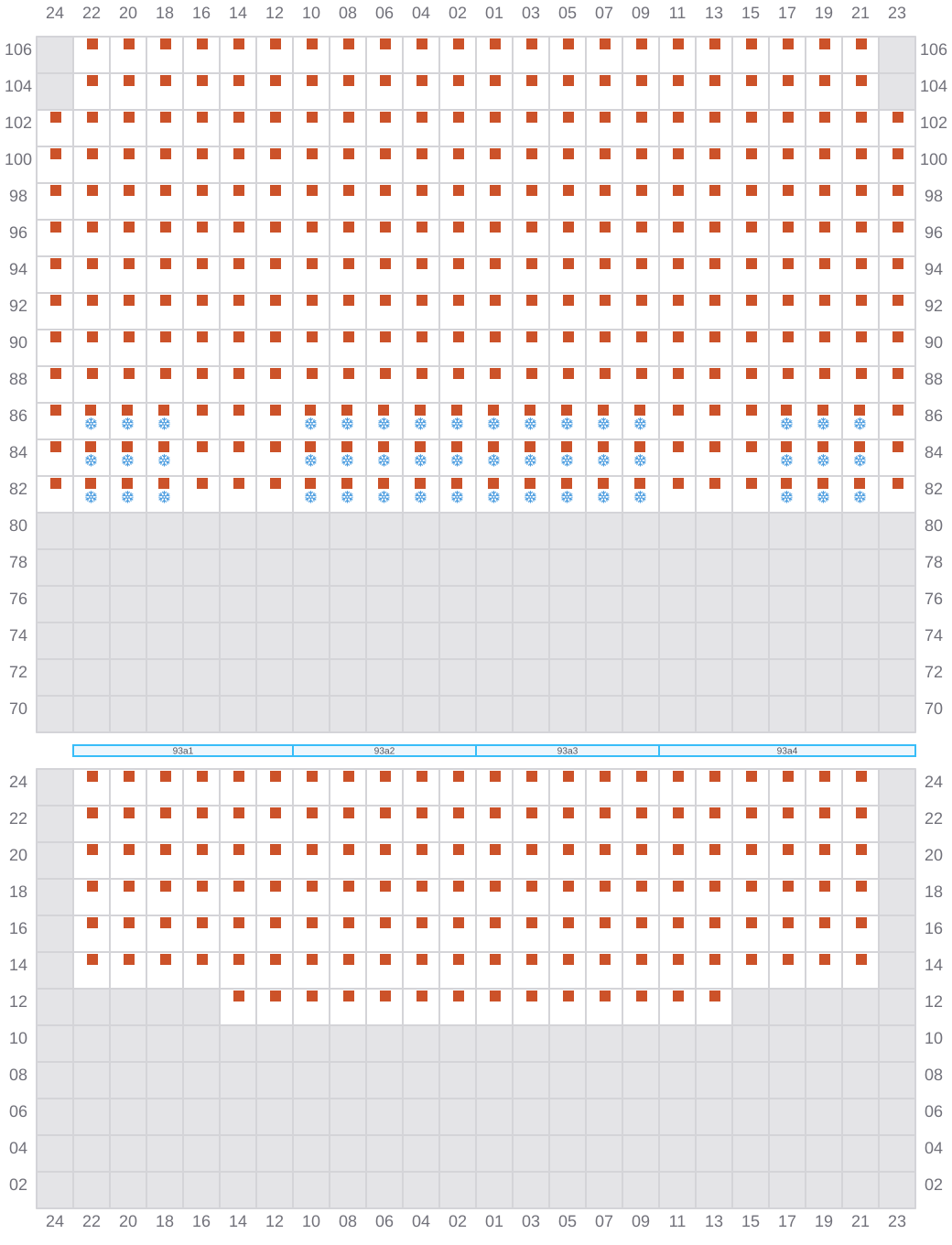

095
- ←
- →

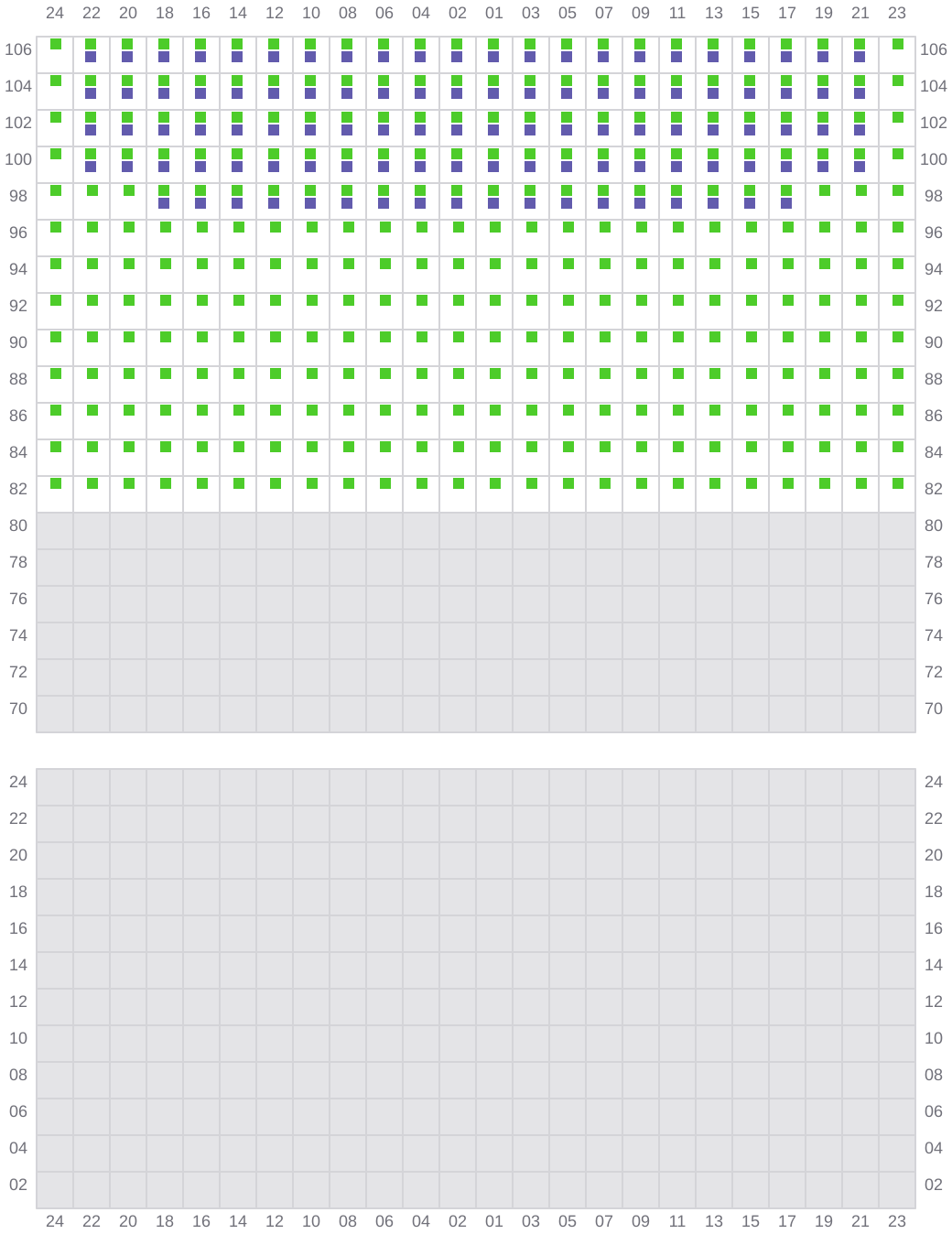

097 (098)
- →
- → / ?
099
- ←
