CMA CGM ORFEO
9364992 | DFPG2 | 9364992 by ********* Last update: Thu Apr 11 2024

General Info

Ship Name:CMA CGM ORFEO
IMO Code:9364992
Call Sign:DFPG2
Line Operator:9364992
Class Name for Sister Ships:CMA CGM ORFEO
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,706

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

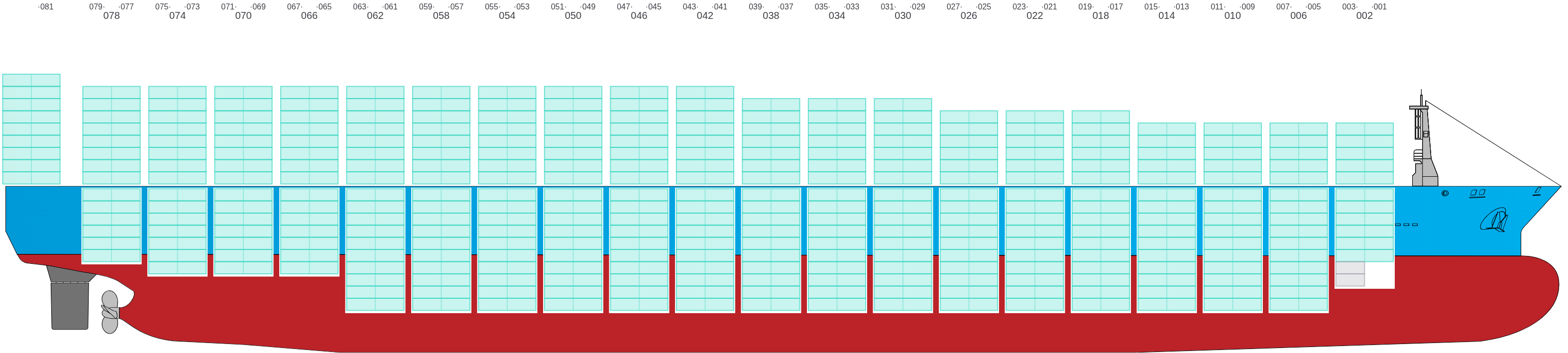

Side view of CMA CGM ORFEO

Hatch-Covers View

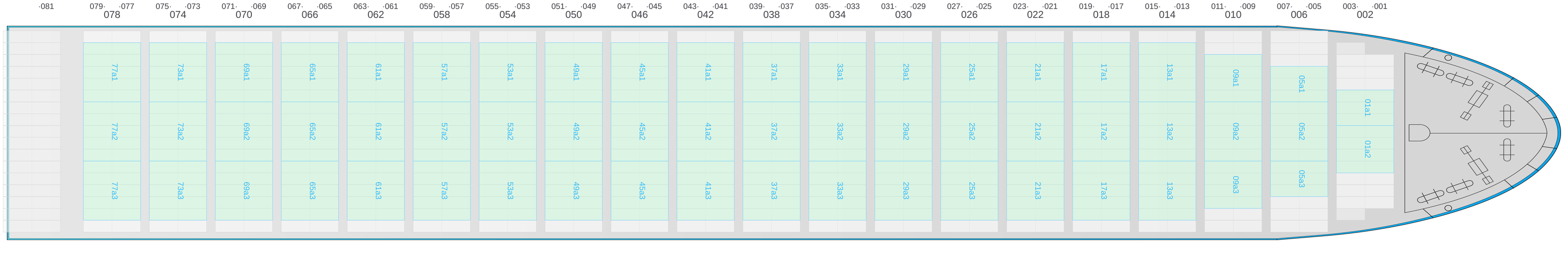

Deck view of CMA CGM ORFEO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

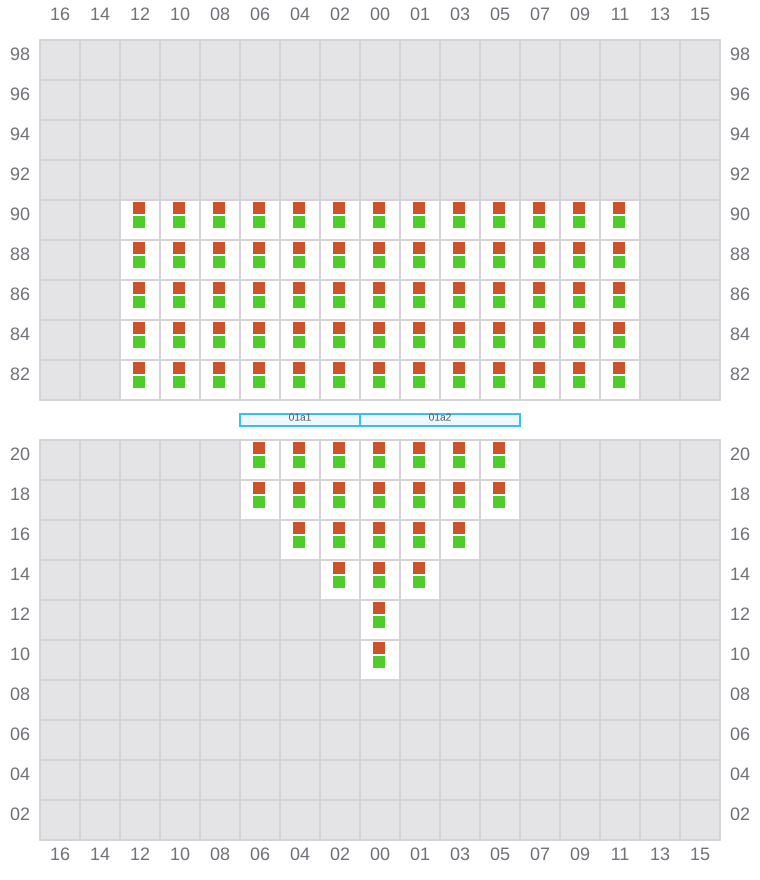

001 (002)

  • →
  • → / ?

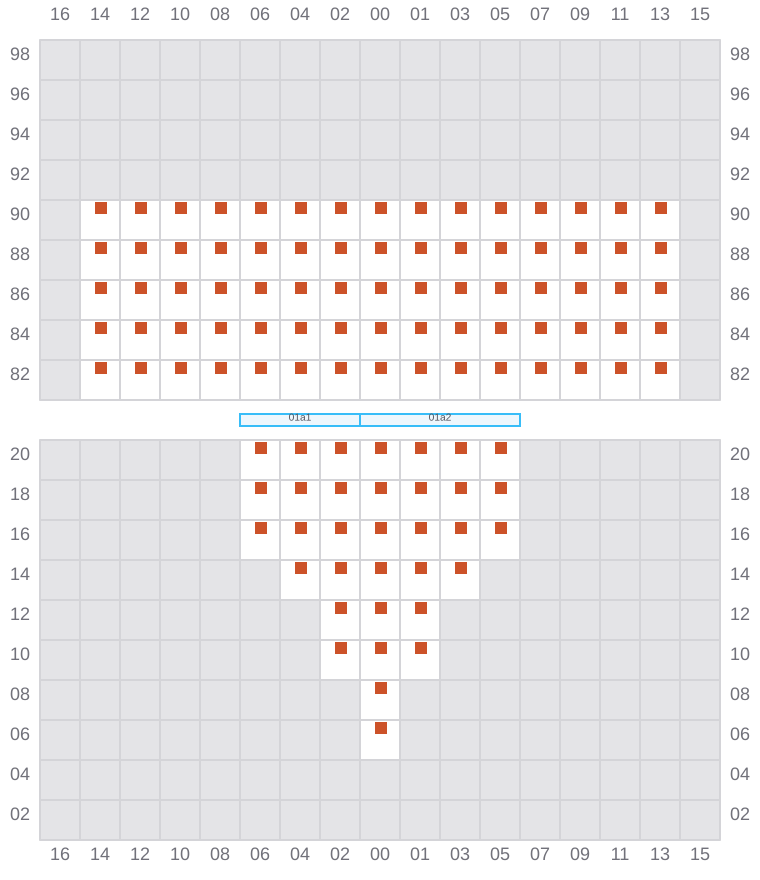

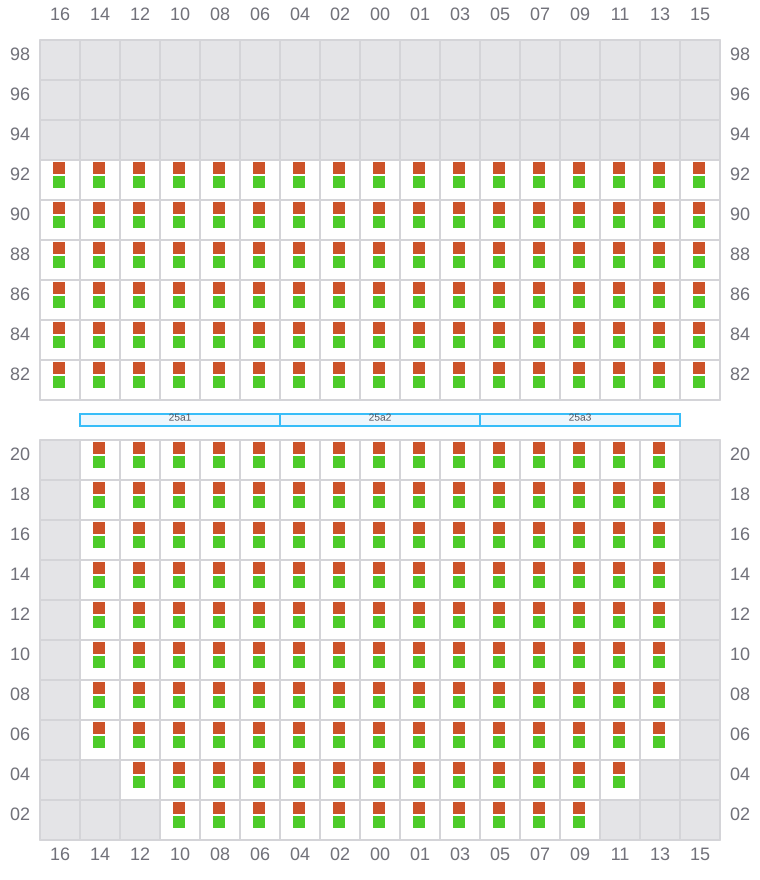

Bay 001 view and slots of CMA CGM ORFEO

003

  • ←
  • → / ?
Bay 003 view and slots of CMA CGM ORFEO

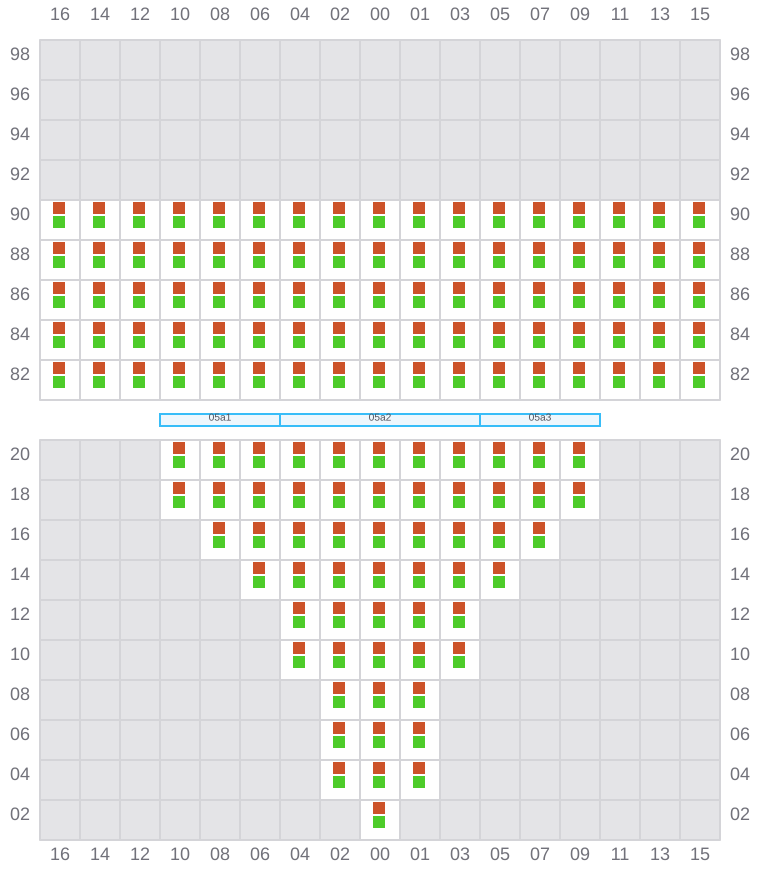

005 (006)

  • →
  • → / ?

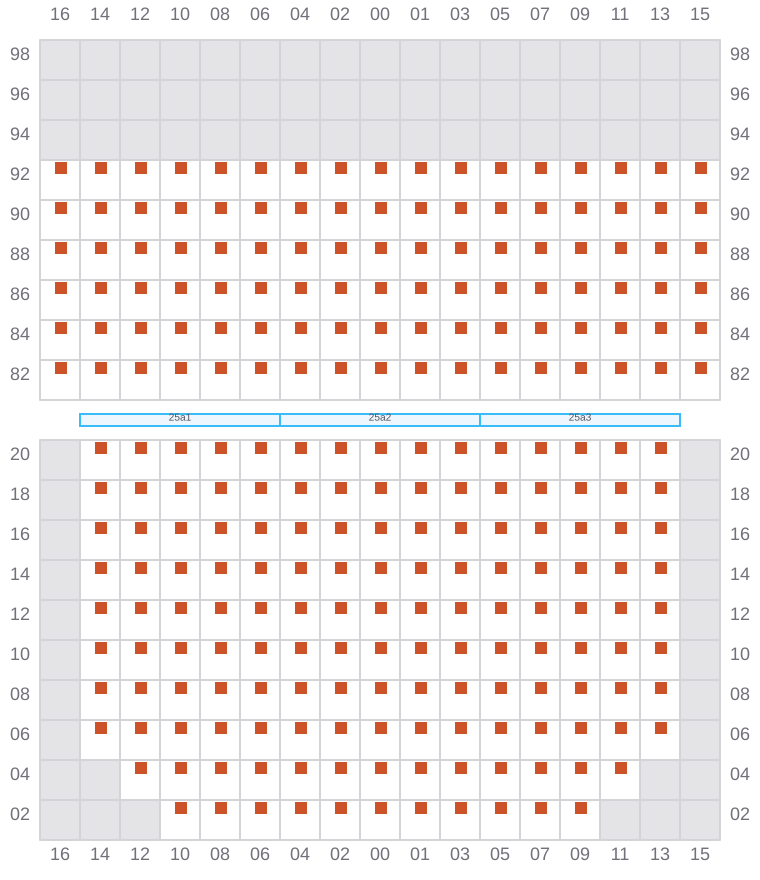

Bay 005 view and slots of CMA CGM ORFEO

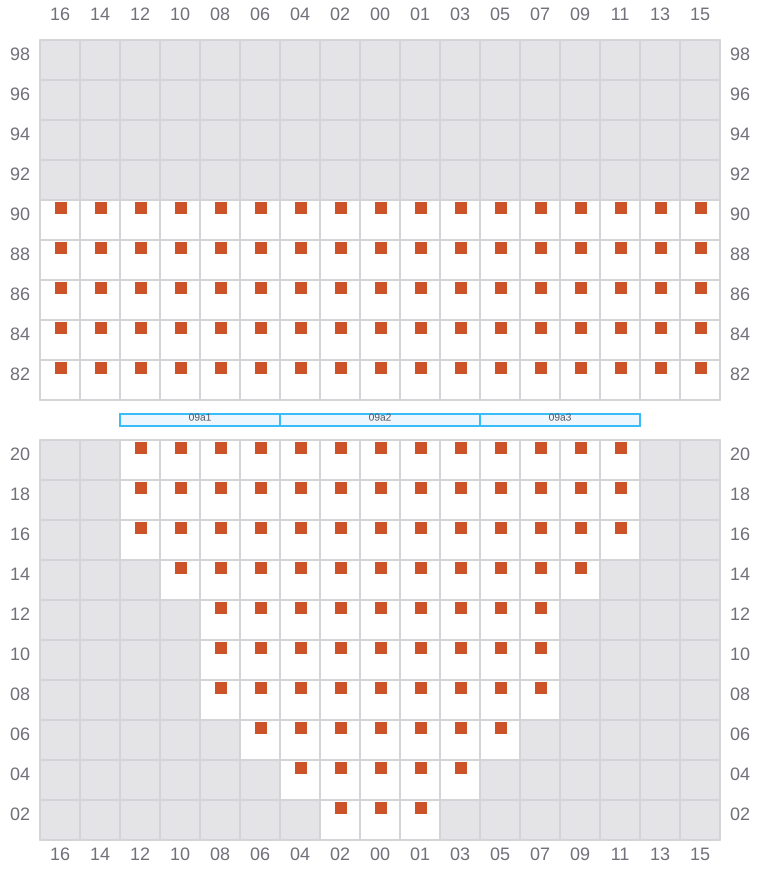

007

  • ←
  • → / ?

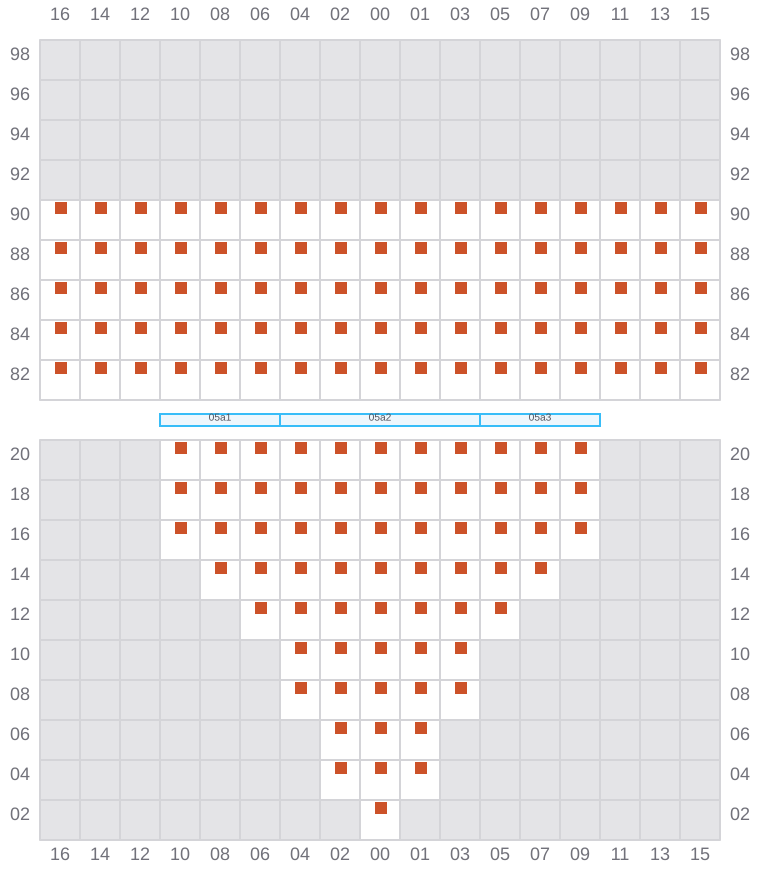

Bay 007 view and slots of CMA CGM ORFEO

009 (010)

  • →
  • → / ?

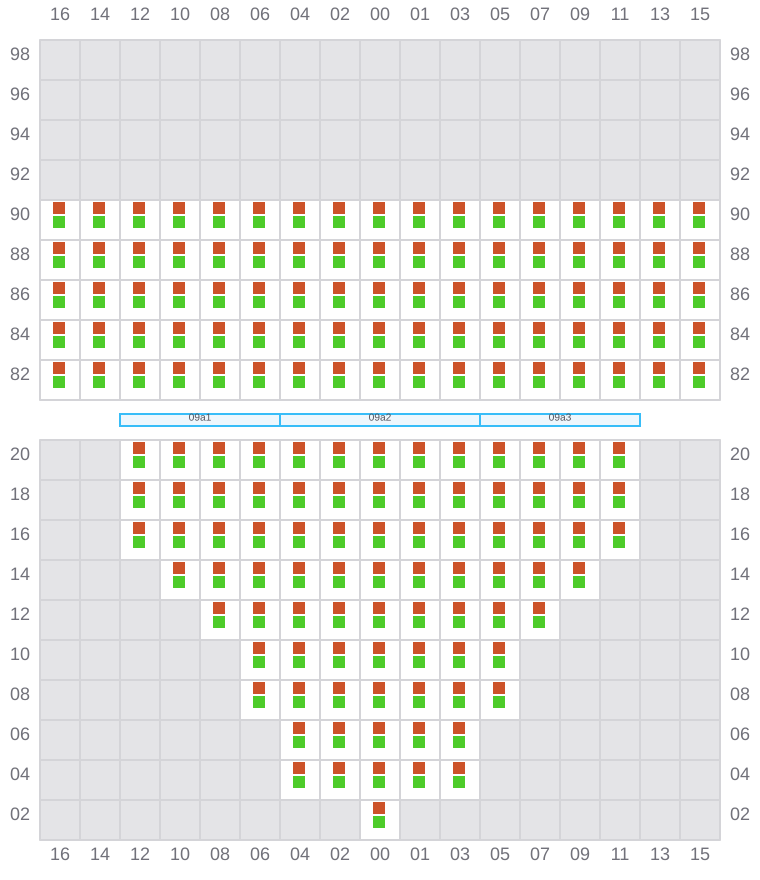

Bay 009 view and slots of CMA CGM ORFEO

011

  • ←
  • → / ?
Bay 011 view and slots of CMA CGM ORFEO

013 (014)

  • →
  • → / ?

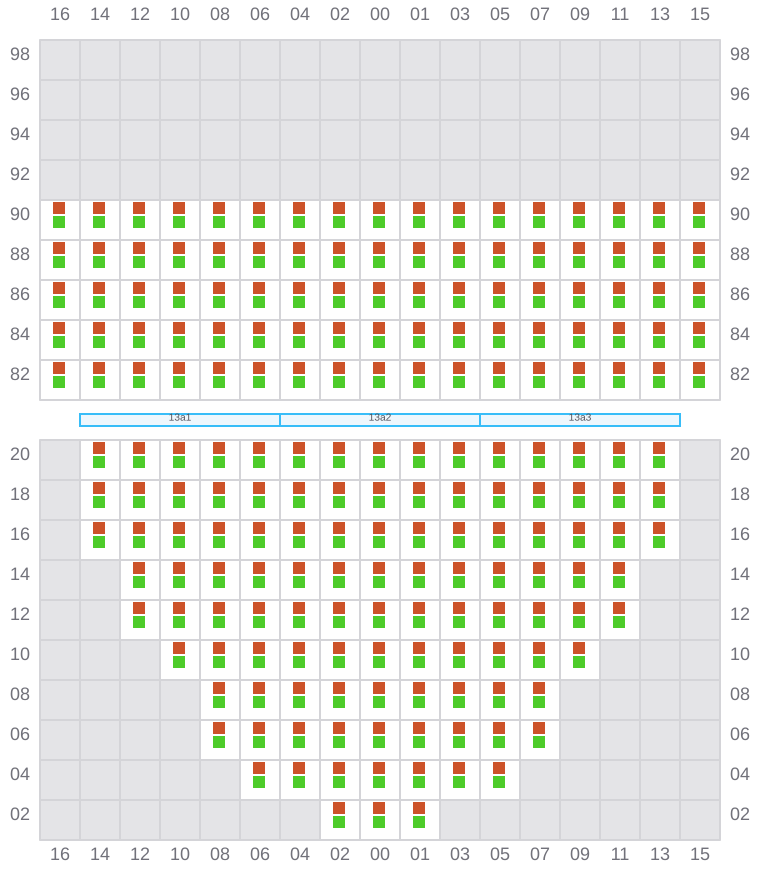

Bay 013 view and slots of CMA CGM ORFEO

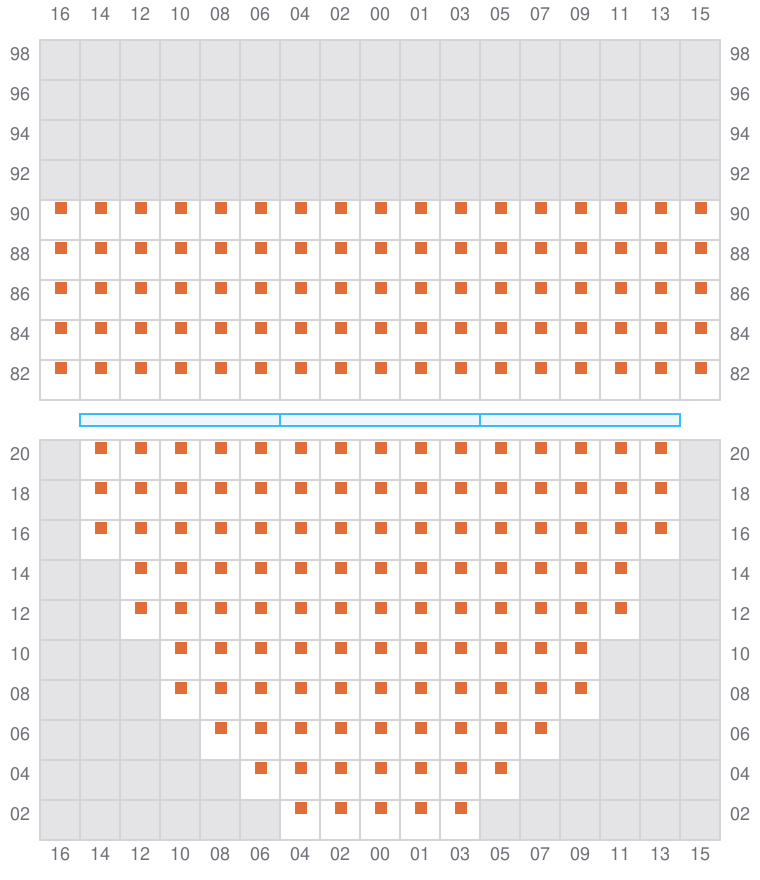

015

  • ←
  • → / ?
Bay 015 view and slots of CMA CGM ORFEO

017 (018)

  • →
  • → / ?

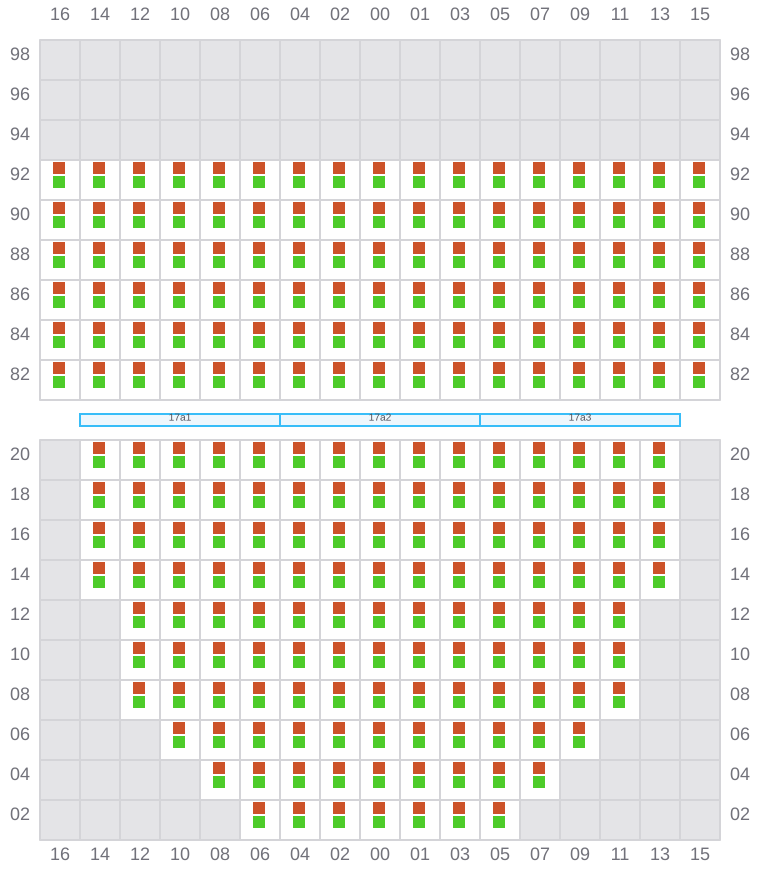

Bay 017 view and slots of CMA CGM ORFEO

019

  • ←
  • → / ?

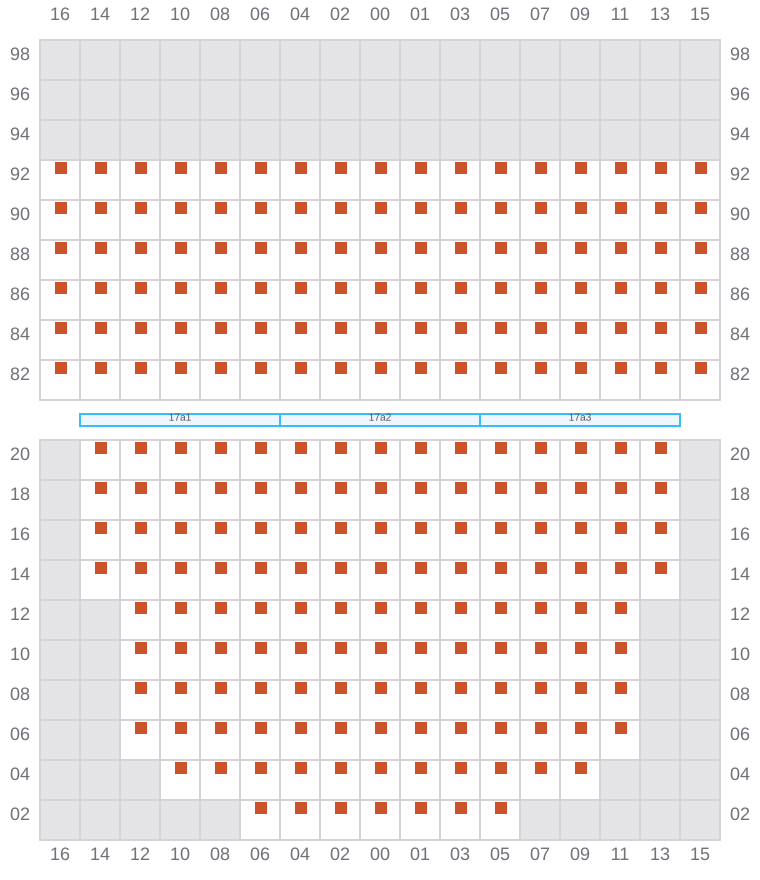

Bay 019 view and slots of CMA CGM ORFEO

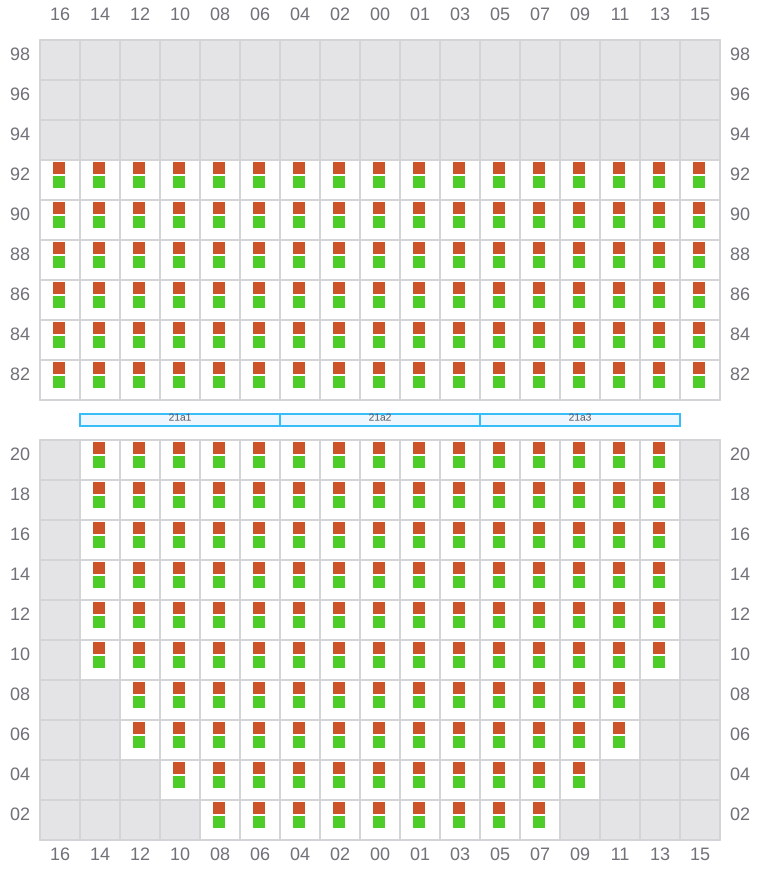

021 (022)

  • →
  • → / ?
Bay 021 view and slots of CMA CGM ORFEO

023

  • ←
  • → / ?

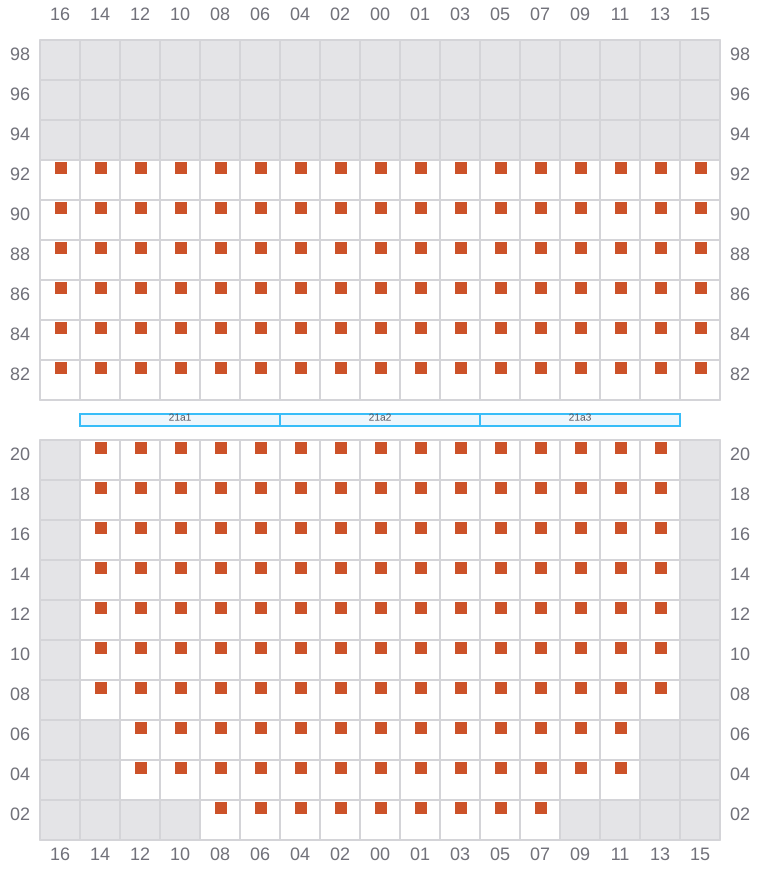

Bay 023 view and slots of CMA CGM ORFEO

025 (026)

  • →
  • → / ?
Bay 025 view and slots of CMA CGM ORFEO

027

  • ←
  • → / ?
Bay 027 view and slots of CMA CGM ORFEO

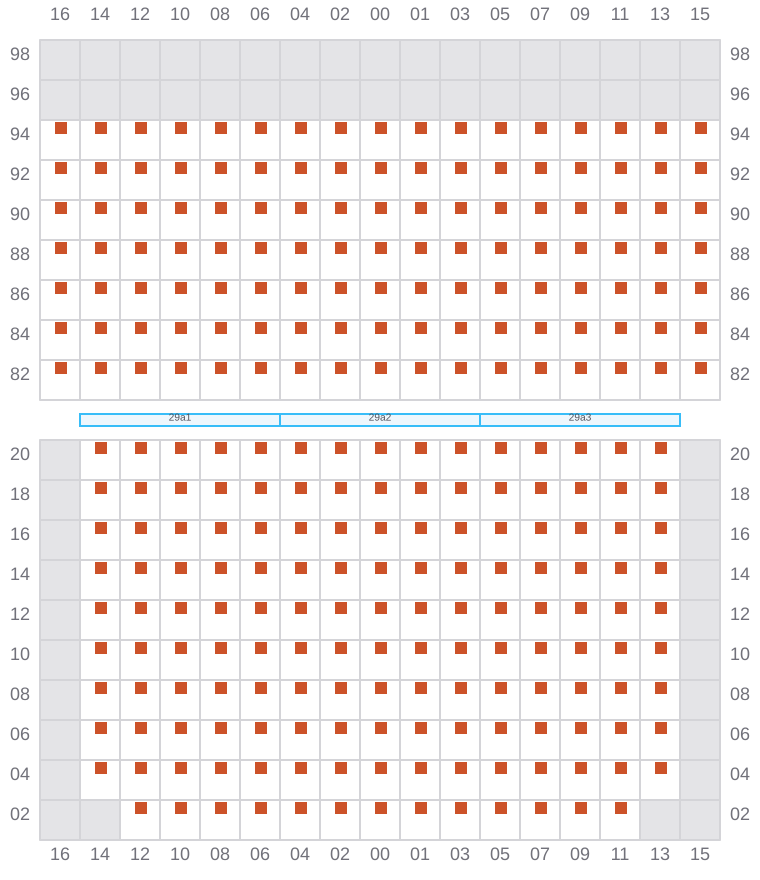

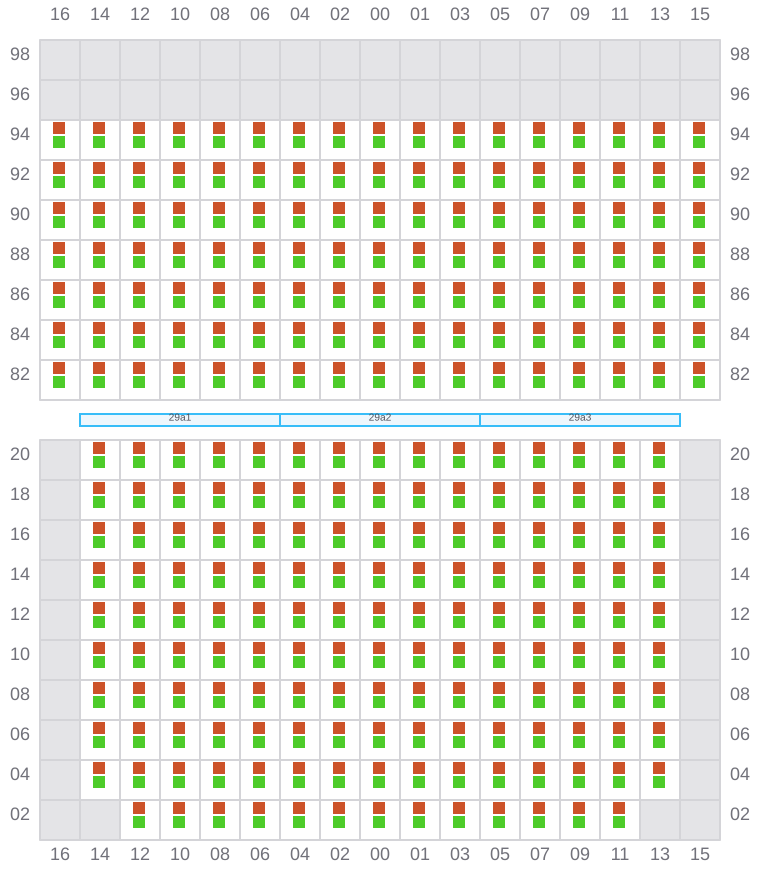

029 (030)

  • →
  • → / ?
Bay 029 view and slots of CMA CGM ORFEO

031

  • ←
  • → / ?
Bay 031 view and slots of CMA CGM ORFEO

033 (034)

  • →
  • → / ?
Bay 033 view and slots of CMA CGM ORFEO

035

  • ←
  • → / ?
Bay 035 view and slots of CMA CGM ORFEO

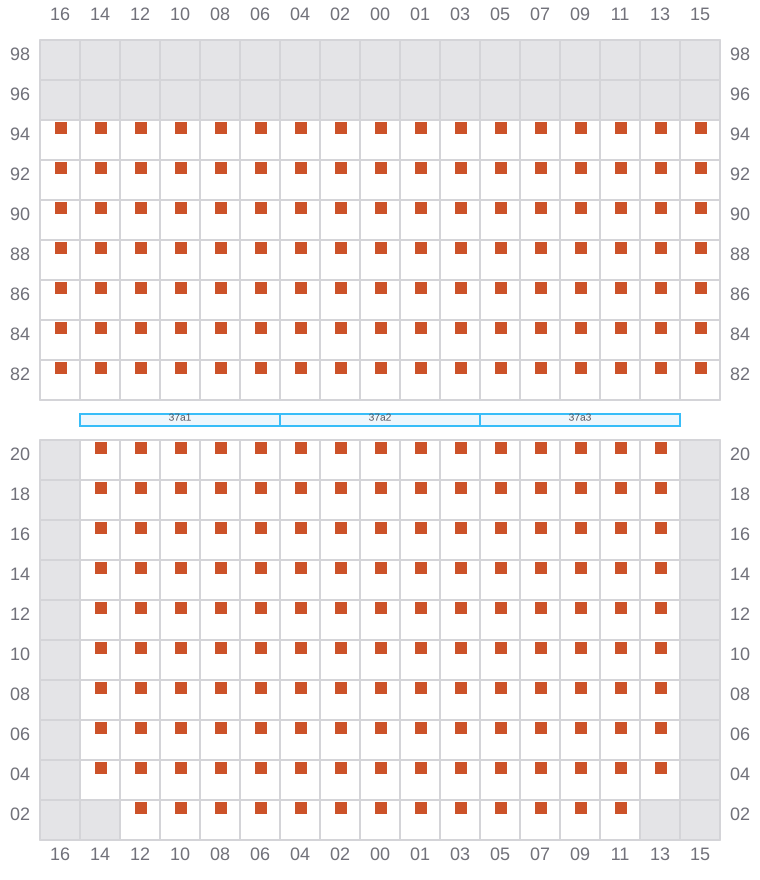

037 (038)

  • →
  • → / ?
Bay 037 view and slots of CMA CGM ORFEO

039

  • ←
  • → / ?
Bay 039 view and slots of CMA CGM ORFEO

041 (042)

  • →
  • → / ?
Bay 041 view and slots of CMA CGM ORFEO

043

  • ←
  • → / ?
Bay 043 view and slots of CMA CGM ORFEO

045 (046)

  • →
Bay 045 view and slots of CMA CGM ORFEO

047

  • ←
  • → / ?

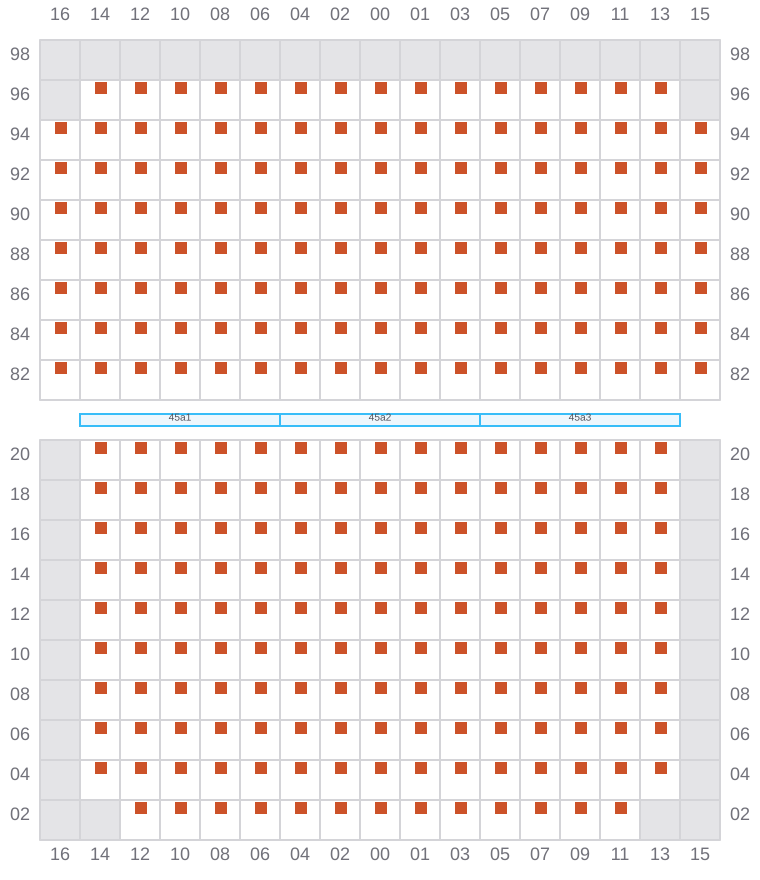

Bay 047 view and slots of CMA CGM ORFEO

049 (050)

  • →
  • → / ?
Bay 049 view and slots of CMA CGM ORFEO

051

  • ←
  • → / ?

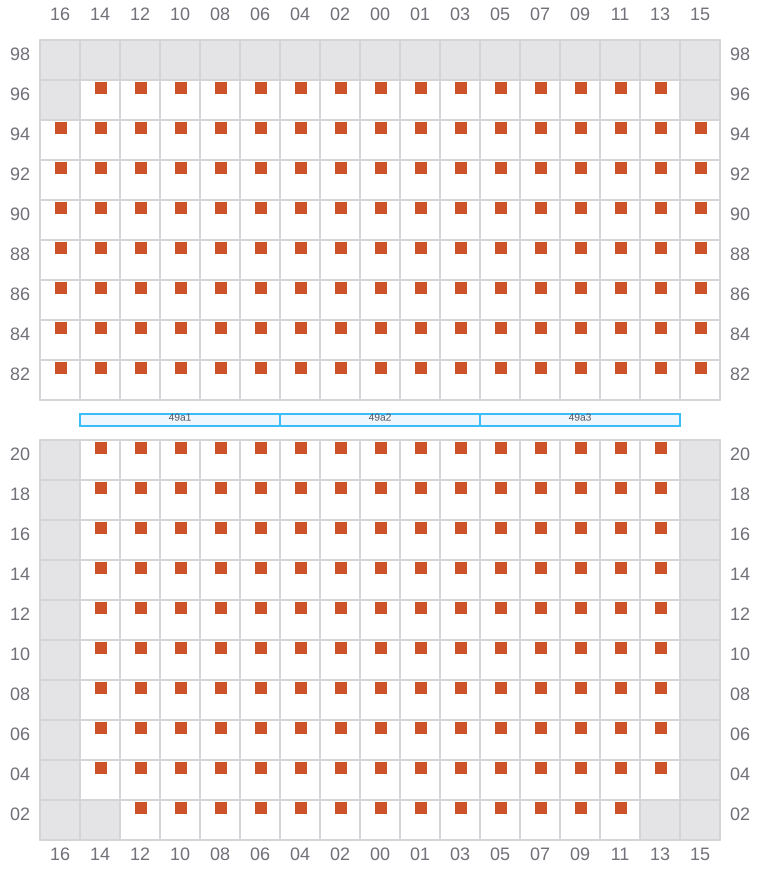

Bay 051 view and slots of CMA CGM ORFEO

053 (054)

  • →
  • → / ?
Bay 053 view and slots of CMA CGM ORFEO

055

  • ←
  • → / ?

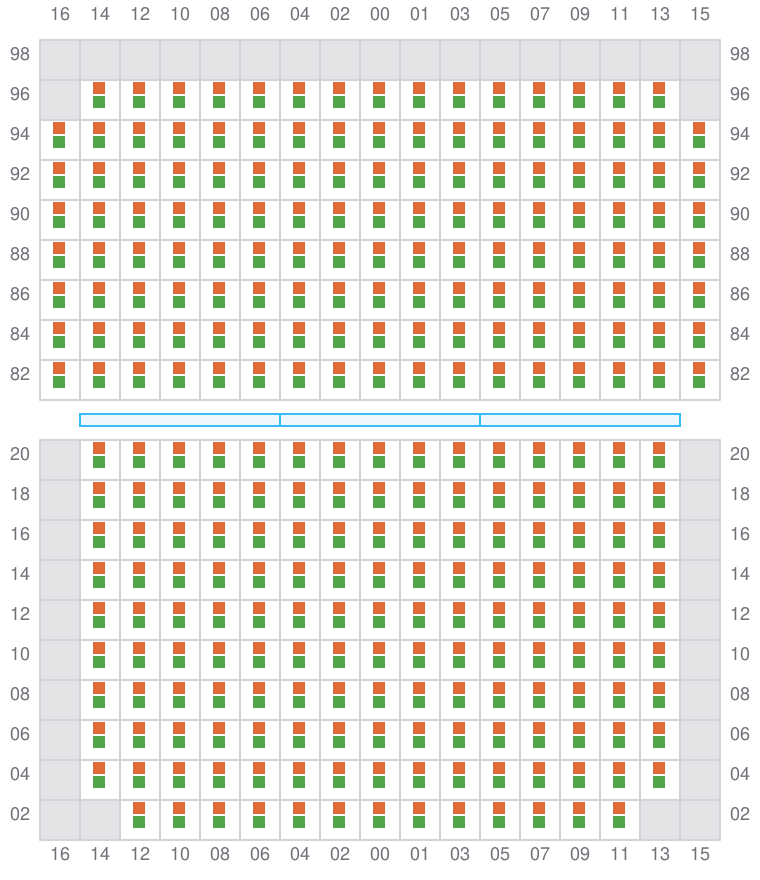

Bay 055 view and slots of CMA CGM ORFEO

057 (058)

  • →
  • → / ?

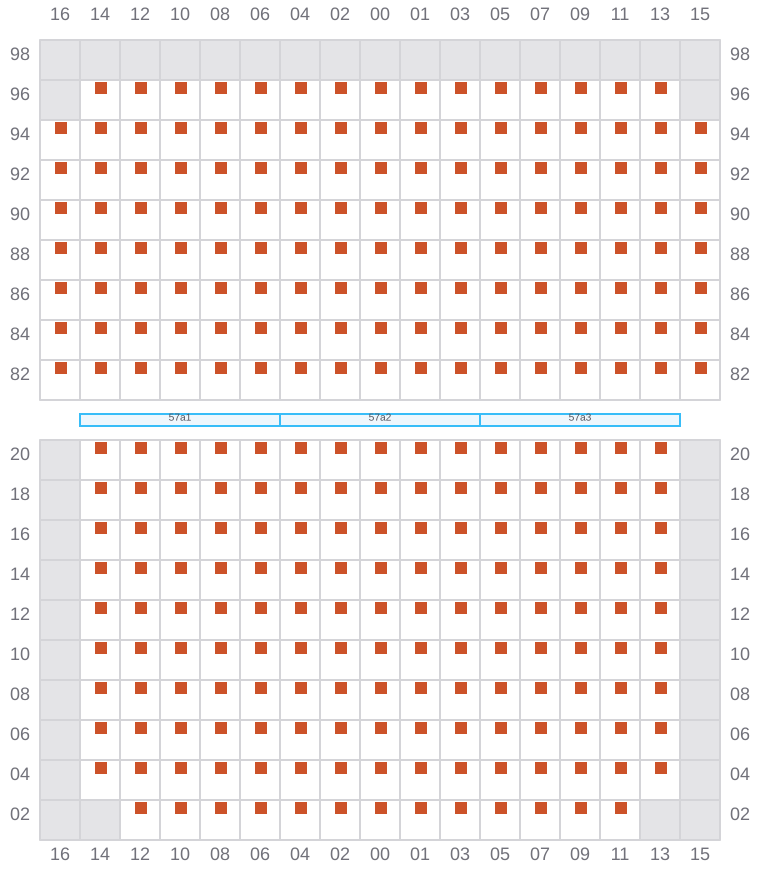

Bay 057 view and slots of CMA CGM ORFEO

059

  • ←
  • → / ?
Bay 059 view and slots of CMA CGM ORFEO

061 (062)

  • →
  • → / ?

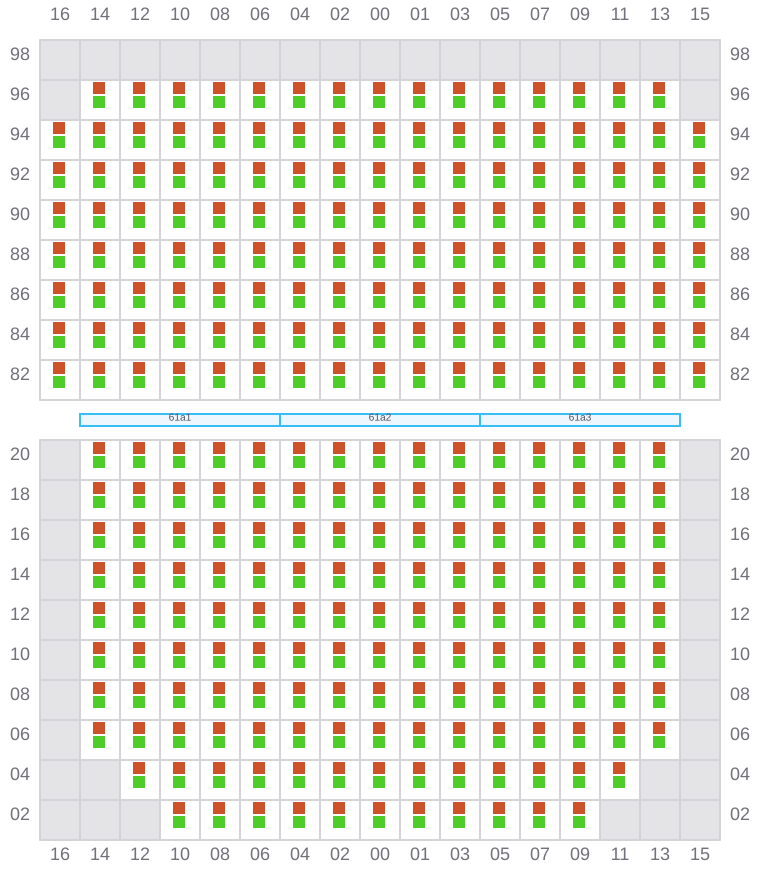

Bay 061 view and slots of CMA CGM ORFEO

063

  • ←
  • → / ?

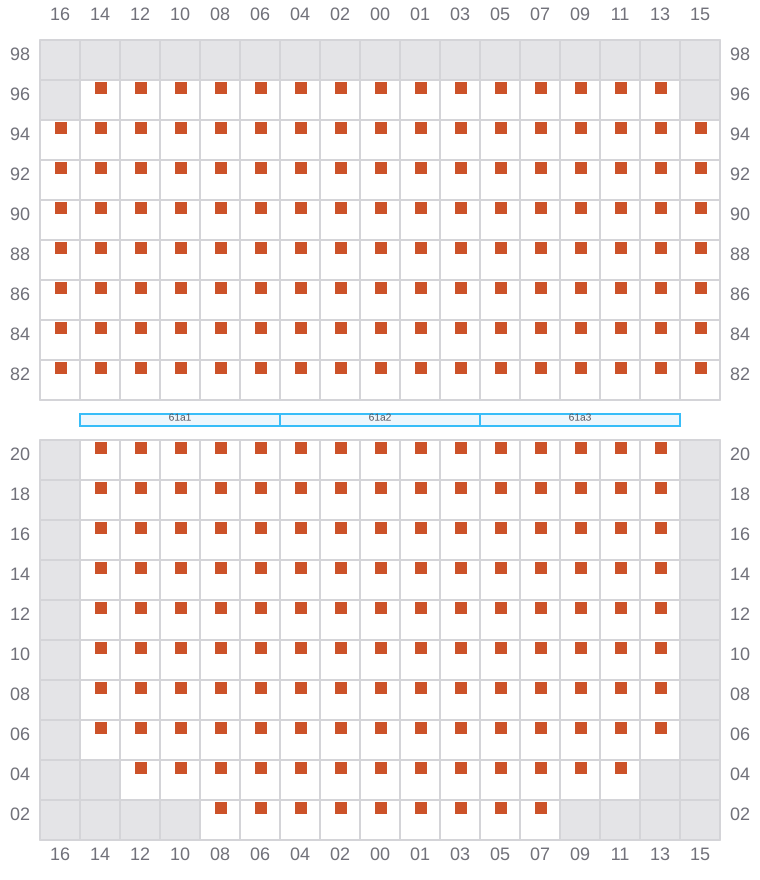

Bay 063 view and slots of CMA CGM ORFEO

065 (066)

  • →
  • → / ?

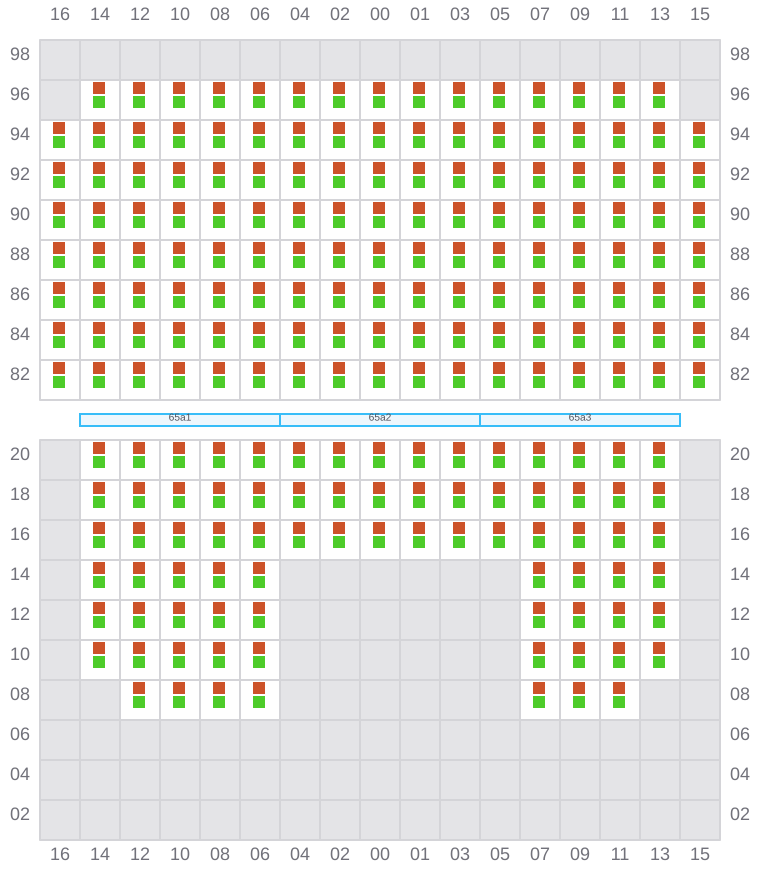

Bay 065 view and slots of CMA CGM ORFEO

067

  • ←
  • → / ?

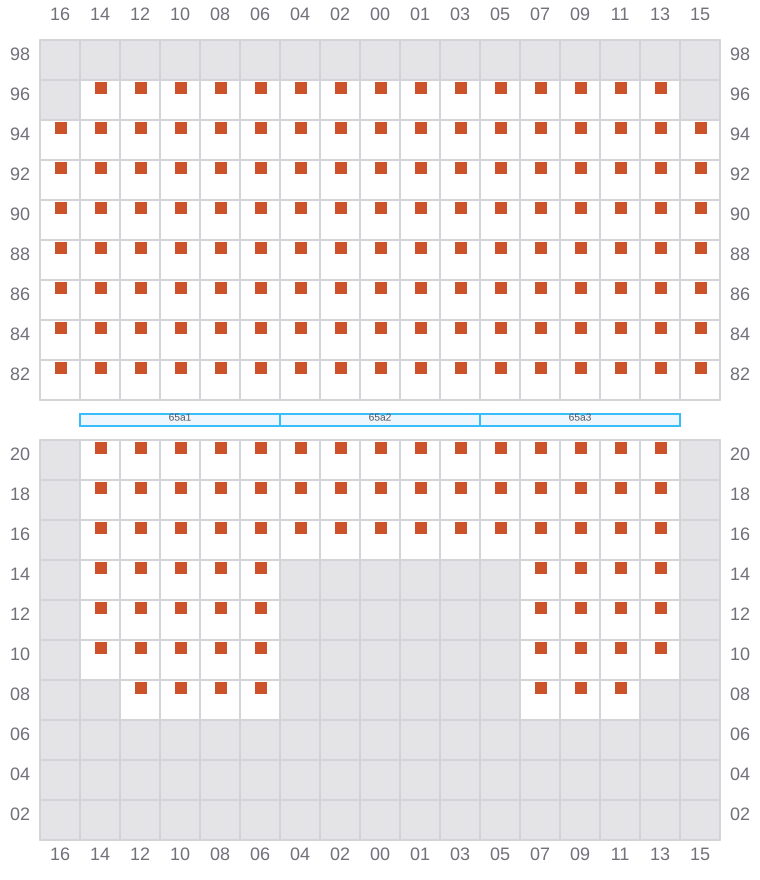

Bay 067 view and slots of CMA CGM ORFEO

069 (070)

  • →
  • → / ?

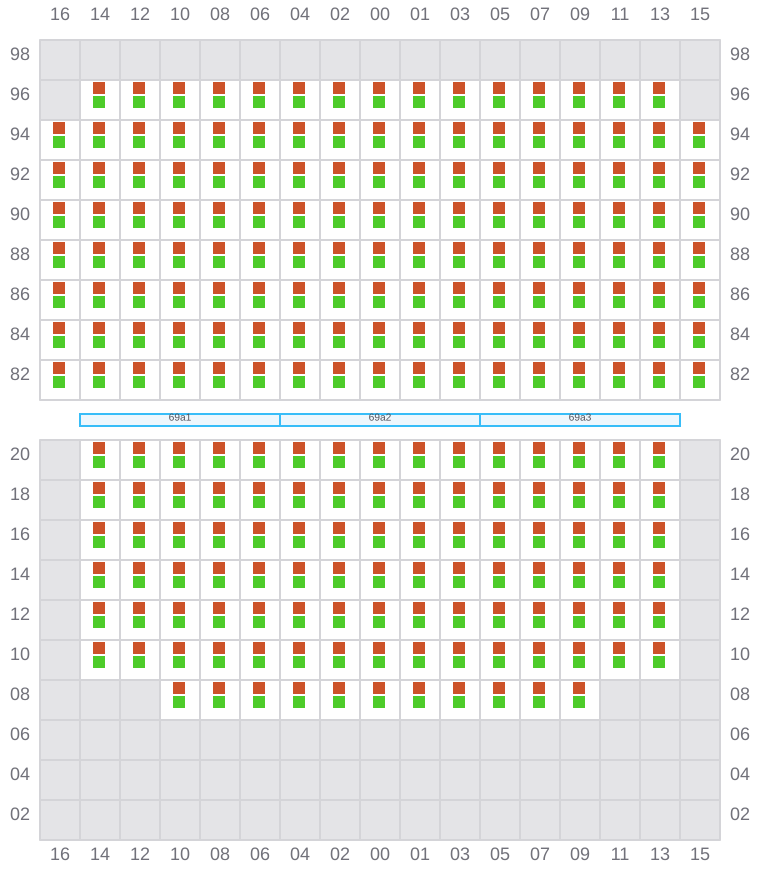

Bay 069 view and slots of CMA CGM ORFEO

071

  • ←
  • → / ?

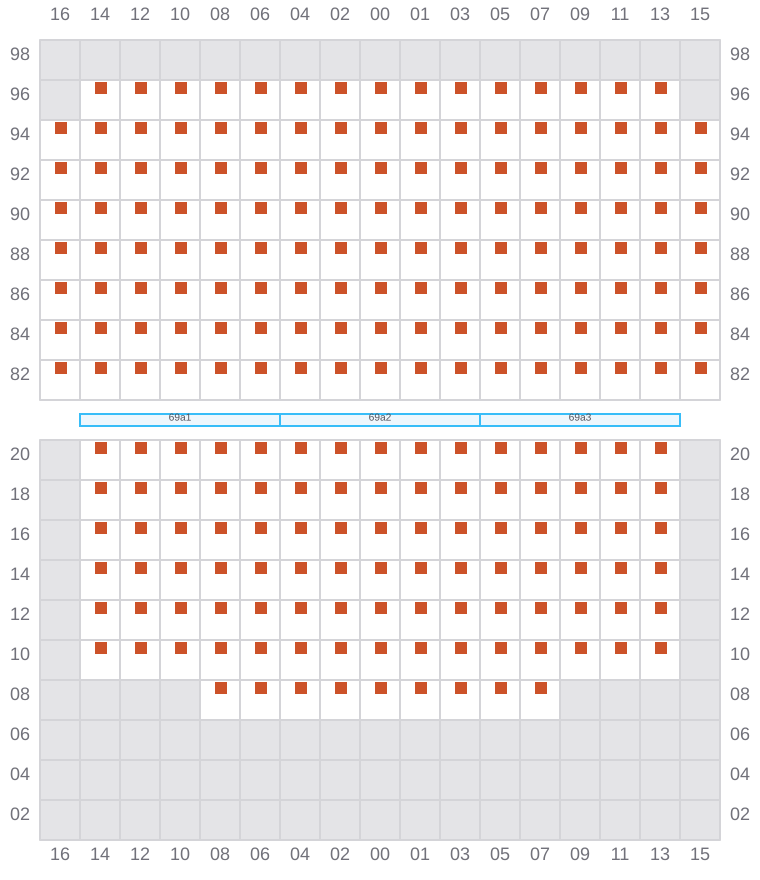

Bay 071 view and slots of CMA CGM ORFEO

073 (074)

  • →
  • → / ?
Bay 073 view and slots of CMA CGM ORFEO

075

  • ←
  • → / ?

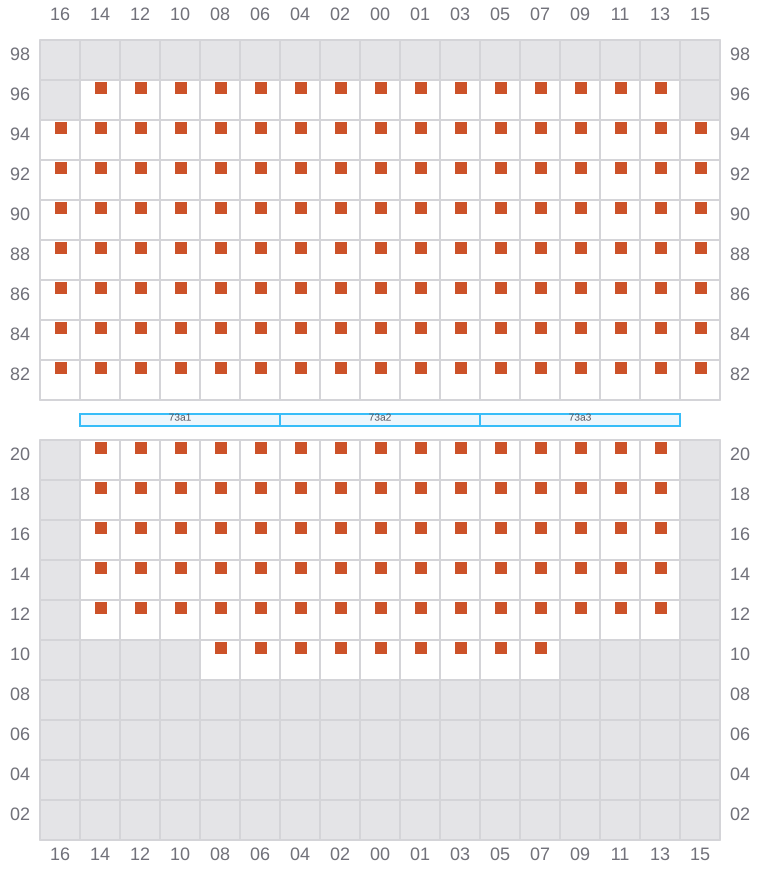

Bay 075 view and slots of CMA CGM ORFEO

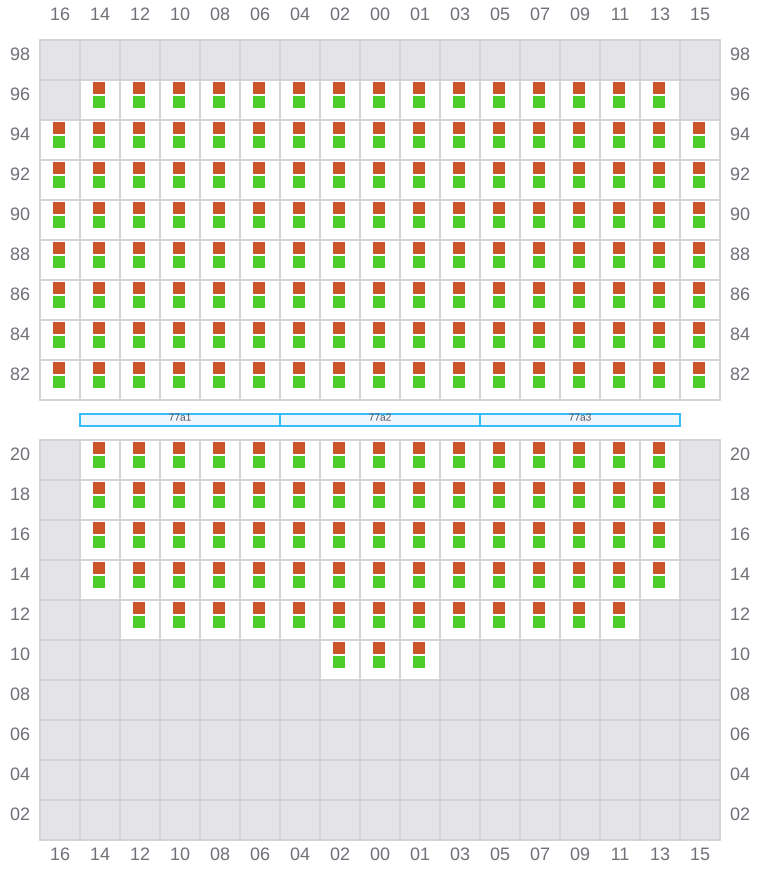

077 (078)

  • →
  • → / ?
Bay 077 view and slots of CMA CGM ORFEO

079

  • ←
  • → / ?

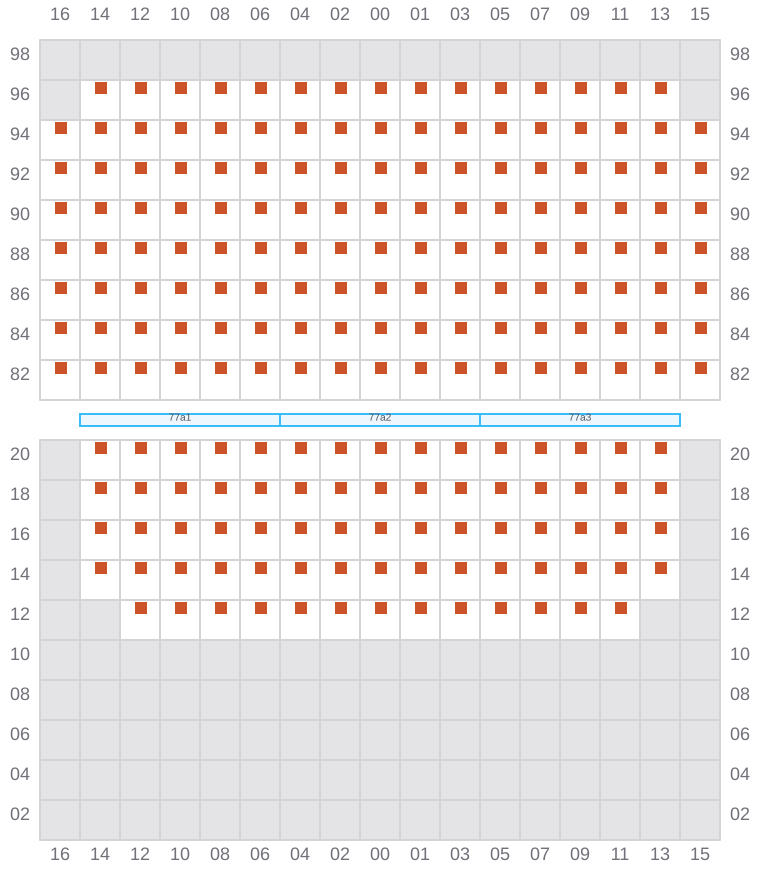

Bay 079 view and slots of CMA CGM ORFEO

081 (082)

  • → / ?
  • → / ?

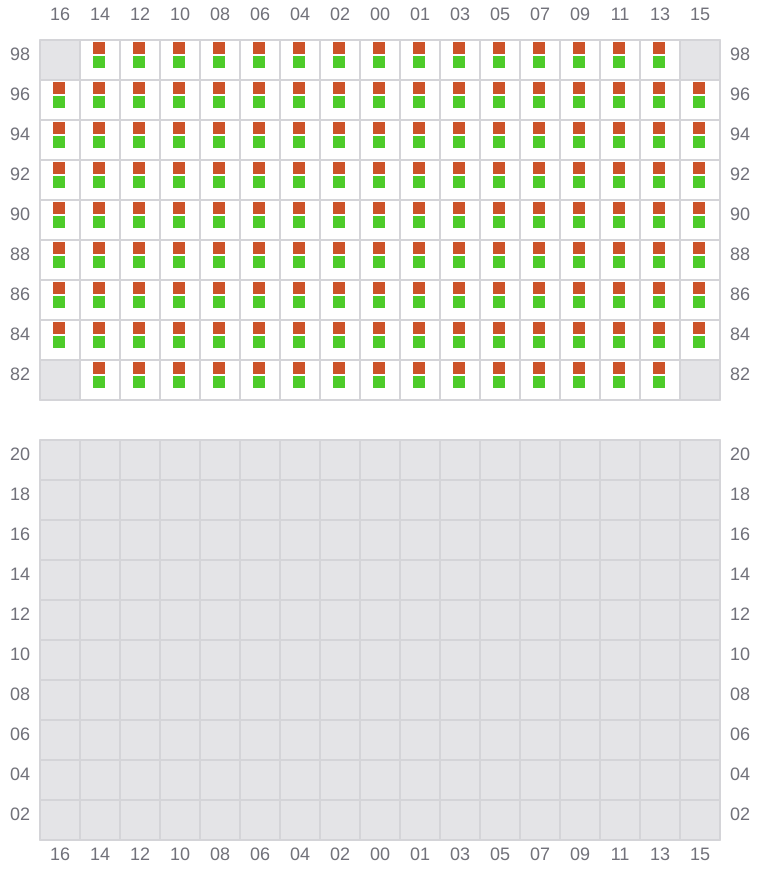

Bay 081 view and slots of CMA CGM ORFEO
