CMA CGM OSAKA
9400291 | 9HA5753 | CMA by *********************** Last update: Tue Jan 28 2025

General Info

Ship Name:CMA CGM OSAKA
IMO Code:9400291
Call Sign:9HA5753
Line Operator:CMA
Class Name for Sister Ships:CGOS
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,128

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

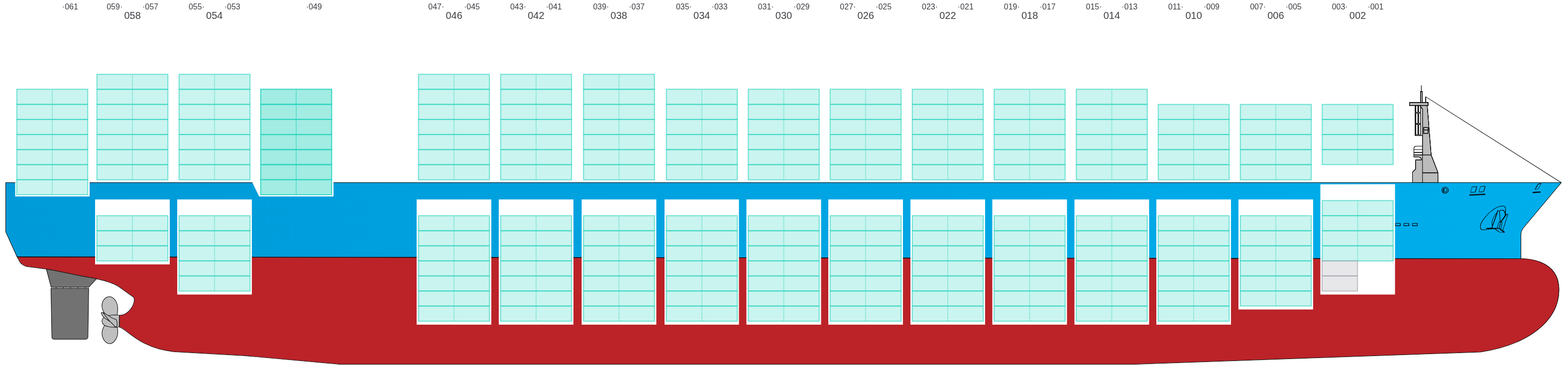

Side view of CMA CGM OSAKA

Hatch-Covers View

Deck view of CMA CGM OSAKA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

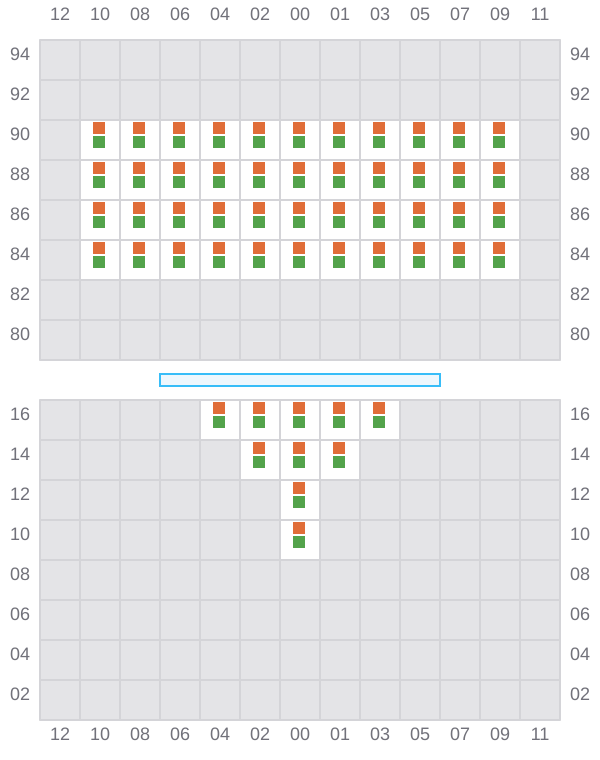

Bay 001 view and slots of CMA CGM OSAKA

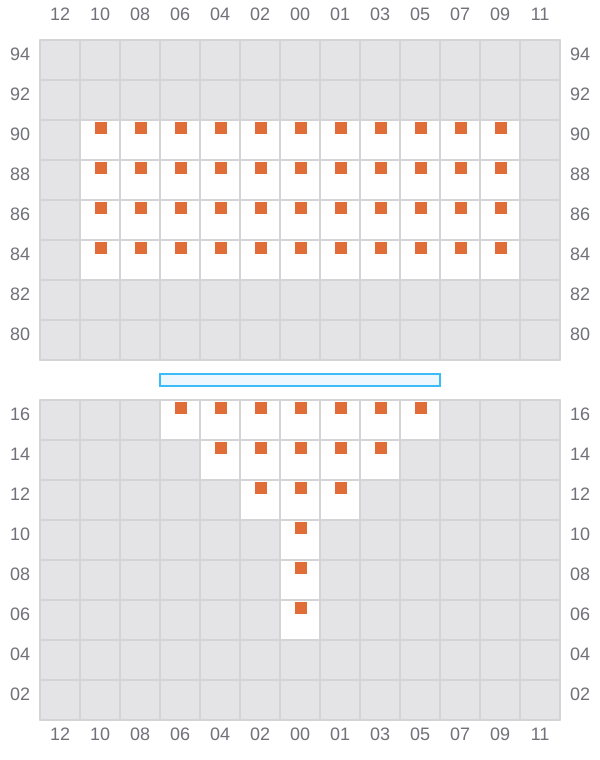

003

Bay 003 view and slots of CMA CGM OSAKA

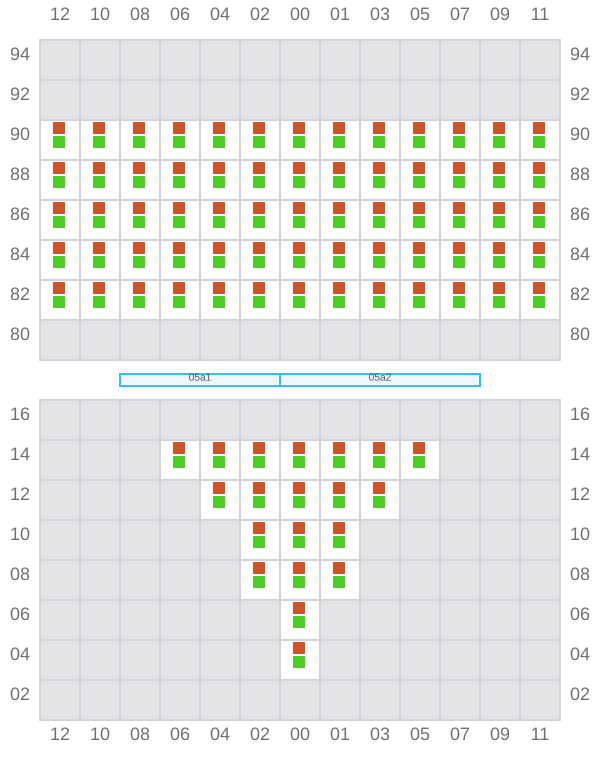

005 (006)

Bay 005 view and slots of CMA CGM OSAKA

007

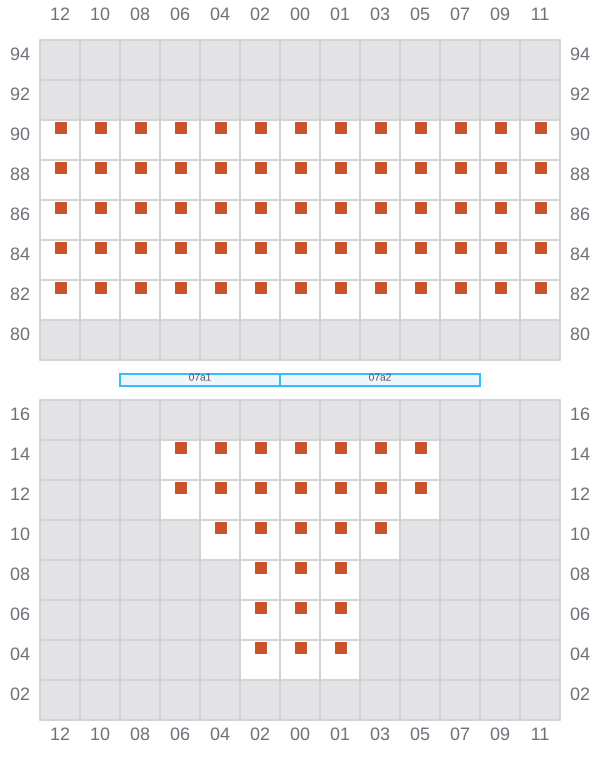

Bay 007 view and slots of CMA CGM OSAKA

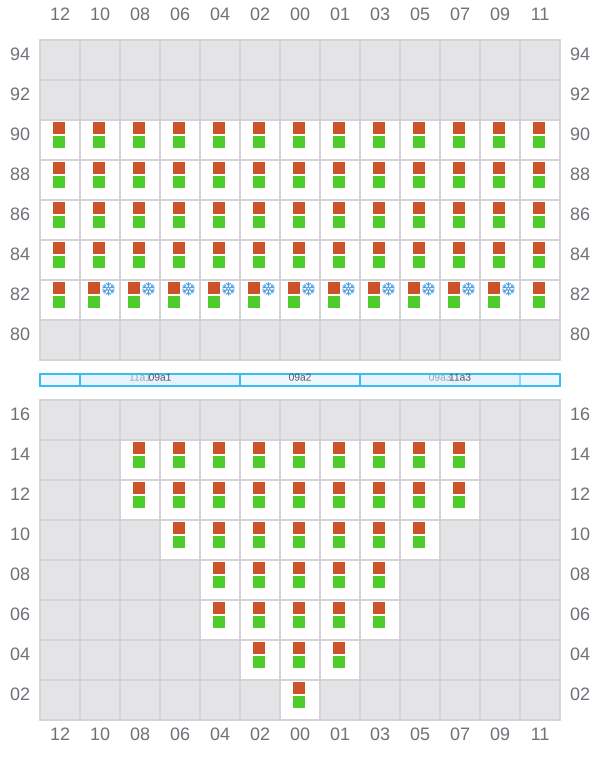

009 (010)

  • / ?
Bay 009 view and slots of CMA CGM OSAKA

011

  • / ?

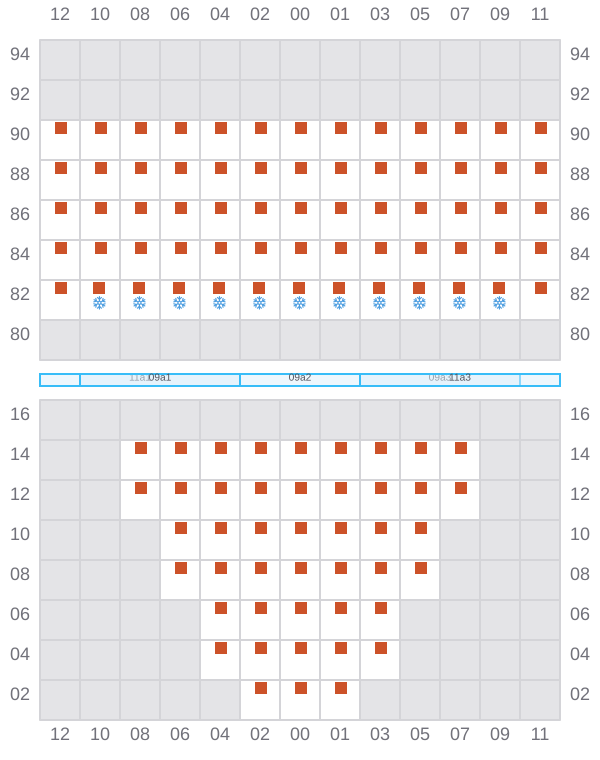

Bay 011 view and slots of CMA CGM OSAKA

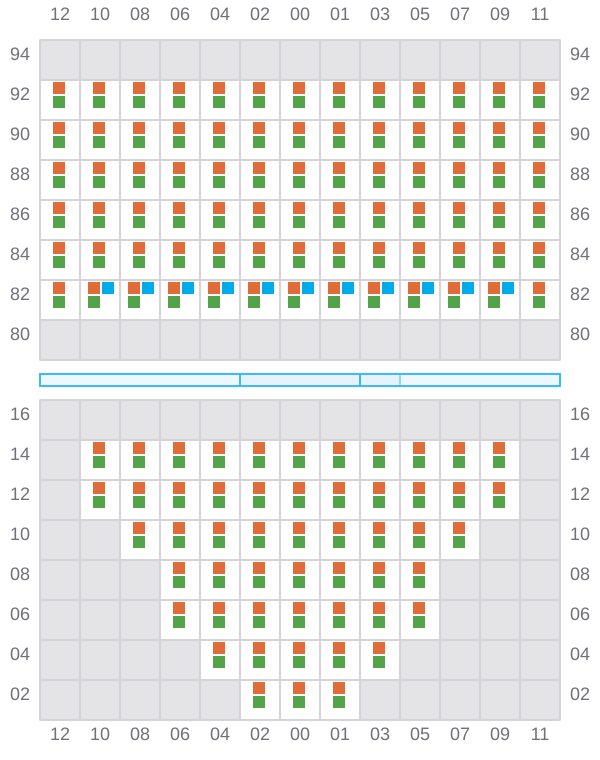

013 (014)

  • / ?
Bay 013 view and slots of CMA CGM OSAKA

015

  • / ?

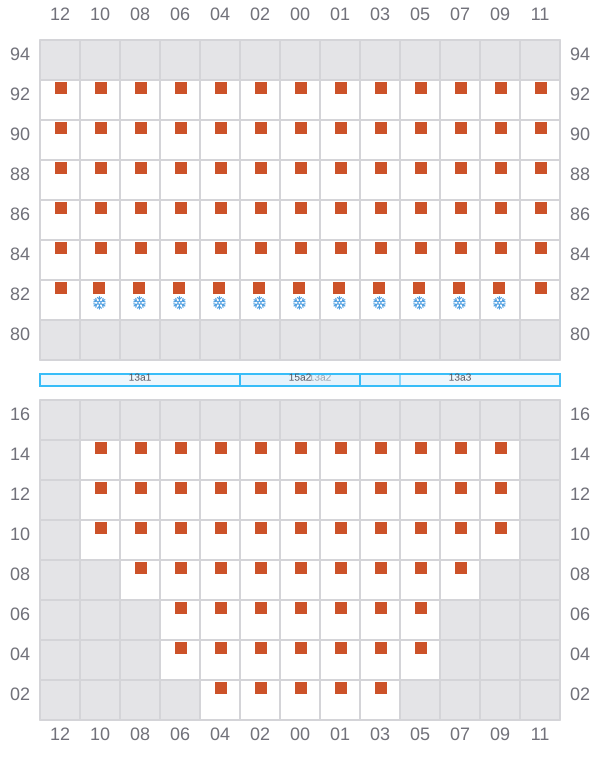

Bay 015 view and slots of CMA CGM OSAKA

017 (018)

  • / ?

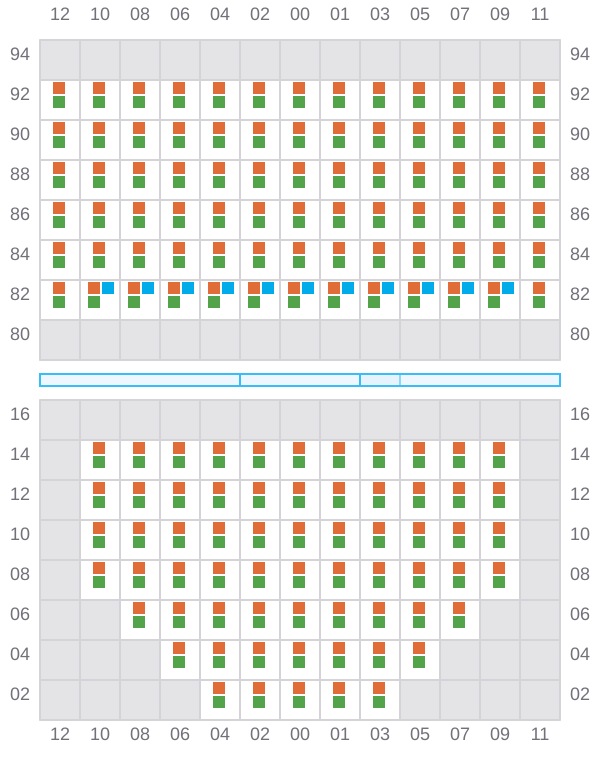

Bay 017 view and slots of CMA CGM OSAKA

019

  • / ?

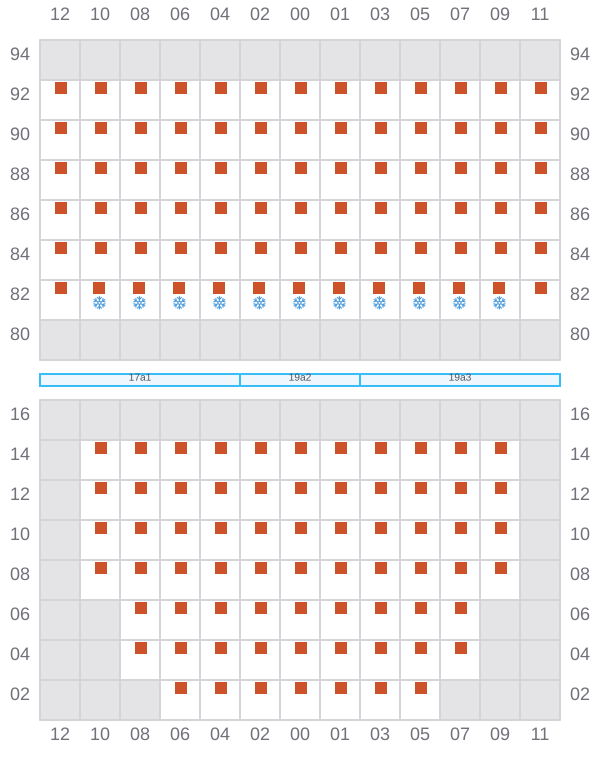

Bay 019 view and slots of CMA CGM OSAKA

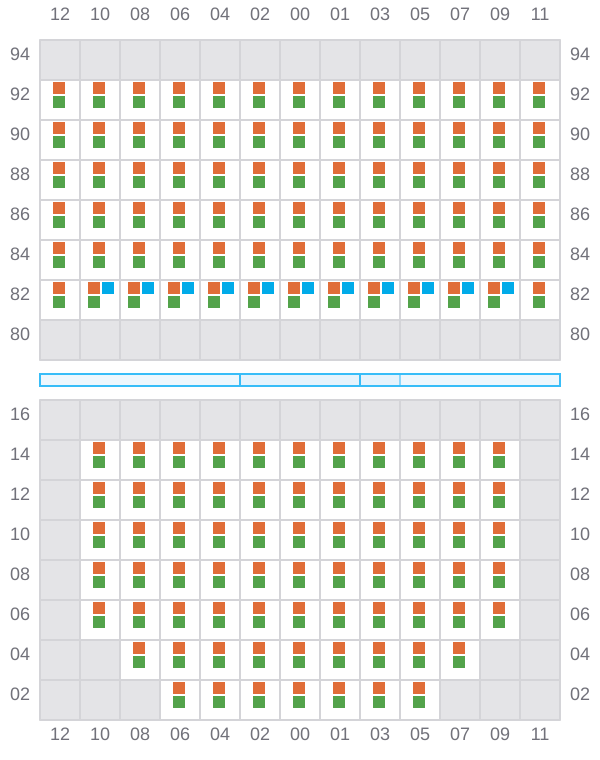

021 (022)

  • / ?
Bay 021 view and slots of CMA CGM OSAKA

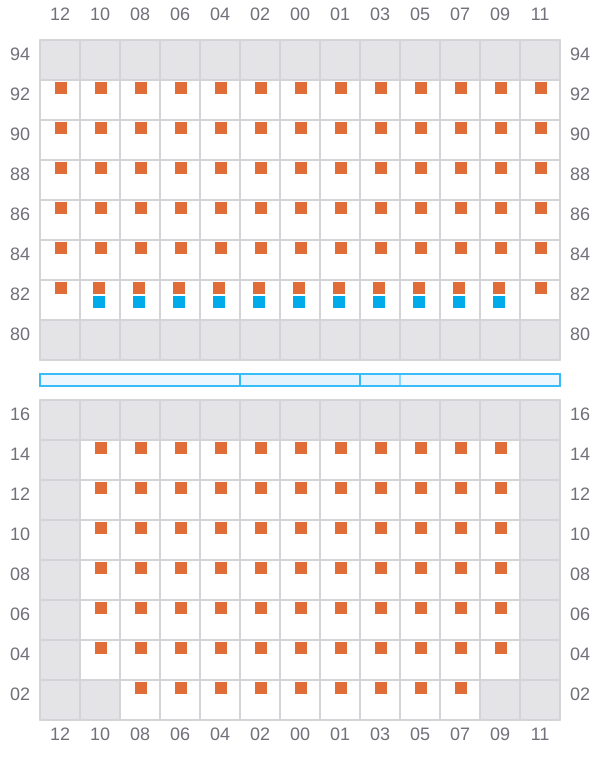

023

  • / ?
Bay 023 view and slots of CMA CGM OSAKA

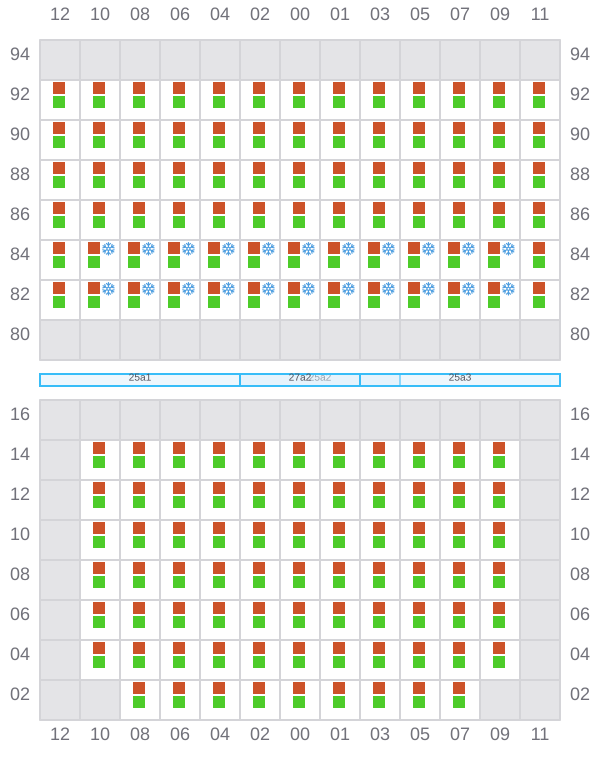

025 (026)

  • / ?
Bay 025 view and slots of CMA CGM OSAKA

027

  • / ?

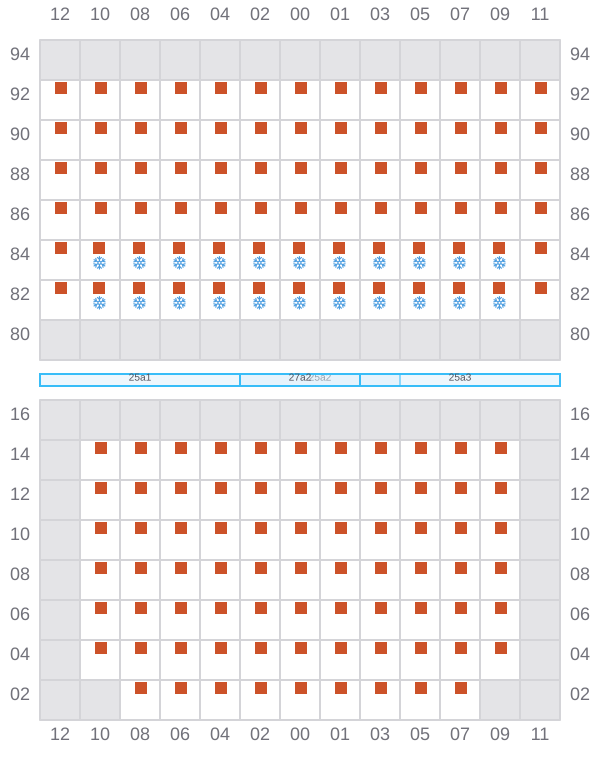

Bay 027 view and slots of CMA CGM OSAKA

029 (030)

  • / ?

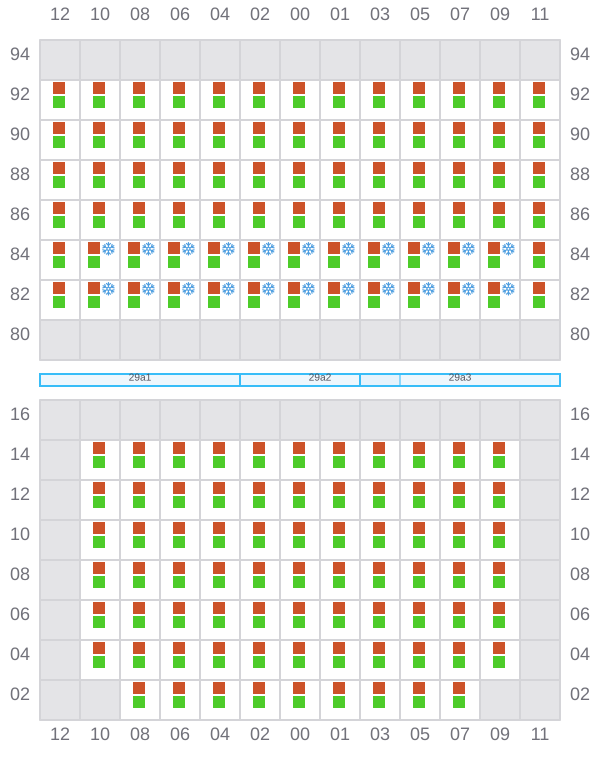

Bay 029 view and slots of CMA CGM OSAKA

031

  • / ?

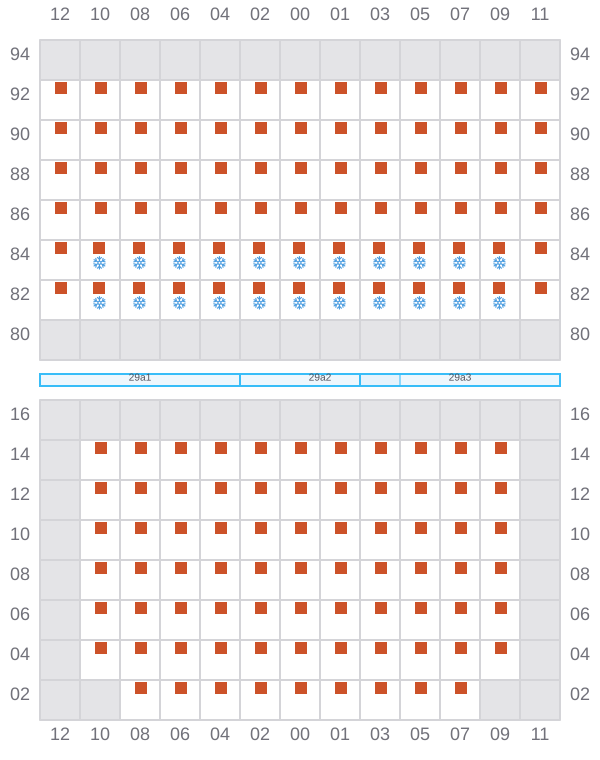

Bay 031 view and slots of CMA CGM OSAKA

033 (034)

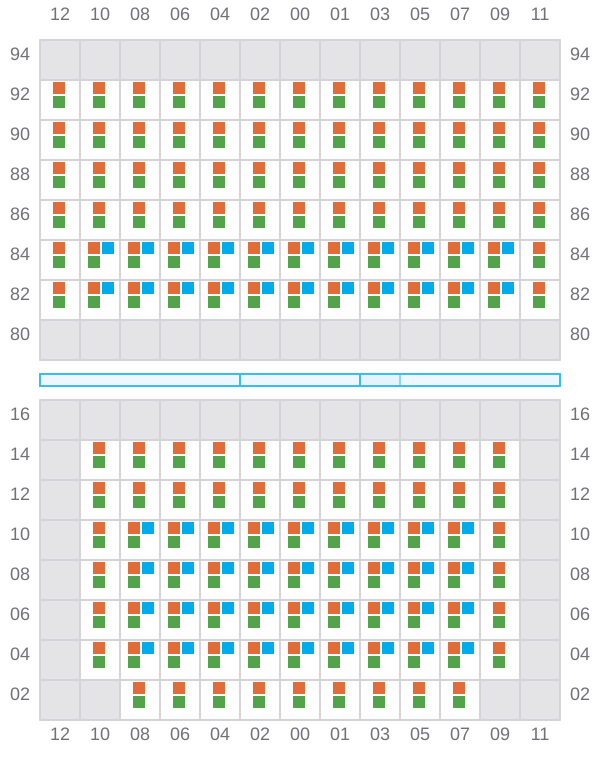

Bay 033 view and slots of CMA CGM OSAKA

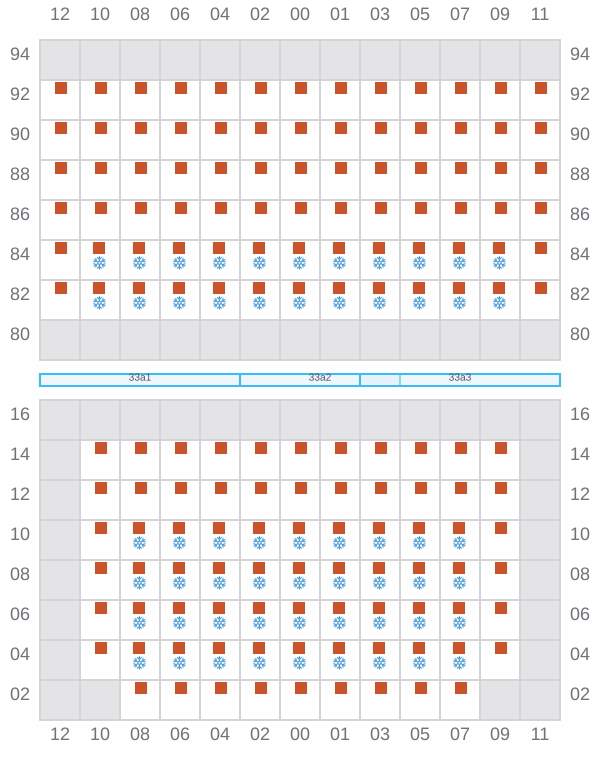

035

Bay 035 view and slots of CMA CGM OSAKA

037 (038)

Bay 037 view and slots of CMA CGM OSAKA

039

Bay 039 view and slots of CMA CGM OSAKA

041 (042)

  • / ?

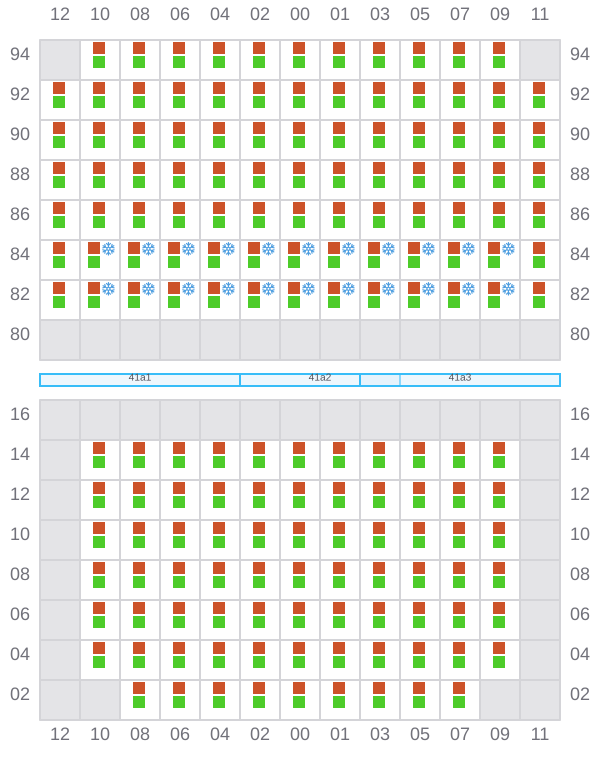

Bay 041 view and slots of CMA CGM OSAKA

043

  • / ?
Bay 043 view and slots of CMA CGM OSAKA

045 (046)

  • / ?

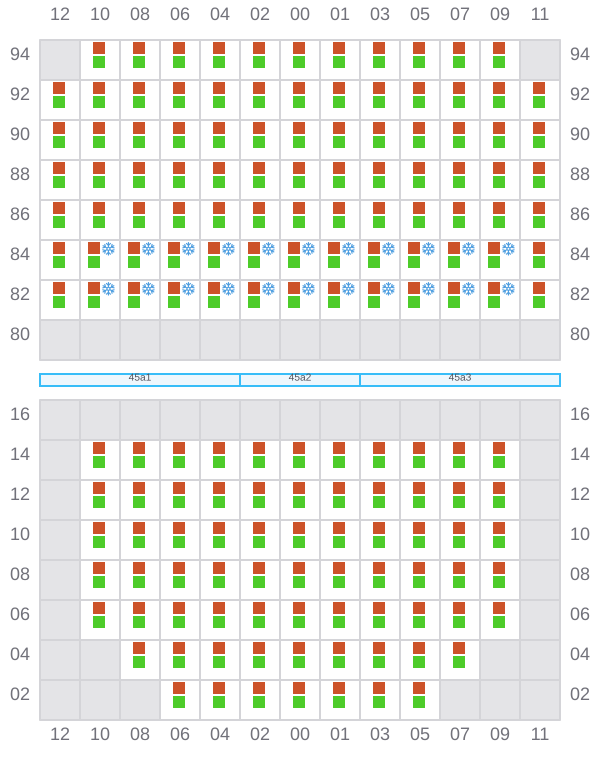

Bay 045 view and slots of CMA CGM OSAKA

047

  • / ?
Bay 047 view and slots of CMA CGM OSAKA

049 (050)

  • / ?
  • / ?
Bay 049 view and slots of CMA CGM OSAKA

051

Bay 051 view and slots of CMA CGM OSAKA

053 (054)

  • / ?

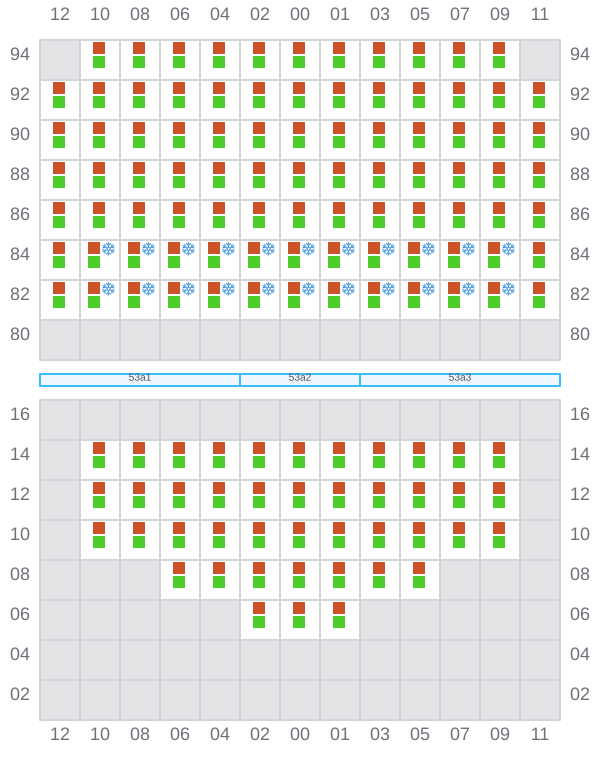

Bay 053 view and slots of CMA CGM OSAKA

055

  • / ?
Bay 055 view and slots of CMA CGM OSAKA

057 (058)

  • / ?
Bay 057 view and slots of CMA CGM OSAKA

059

  • / ?

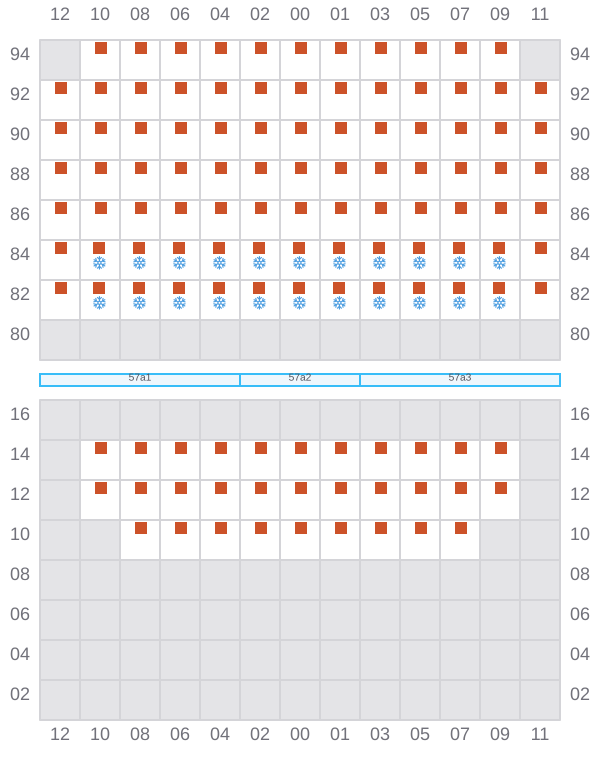

Bay 059 view and slots of CMA CGM OSAKA

061 (062)

  • / ?
  • / ?
Bay 061 view and slots of CMA CGM OSAKA
