CMA CGM OTELLO
9299628 | 9HA5979 | 9299628 by ********* Last update: Thu Apr 11 2024

General Info

Ship Name:CMA CGM OTELLO
IMO Code:9299628
Call Sign:9HA5979
Line Operator:9299628
Class Name for Sister Ships:CMA CGM OTELLO
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,601

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

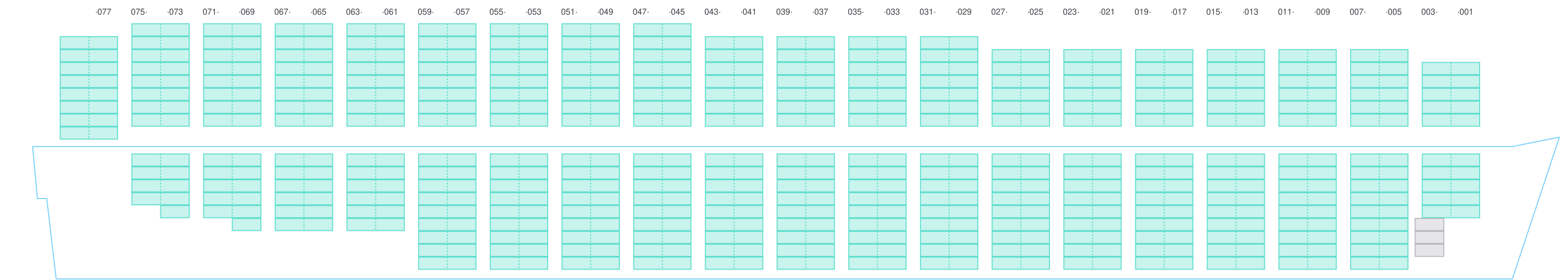

Side View

Side view of CMA CGM OTELLO

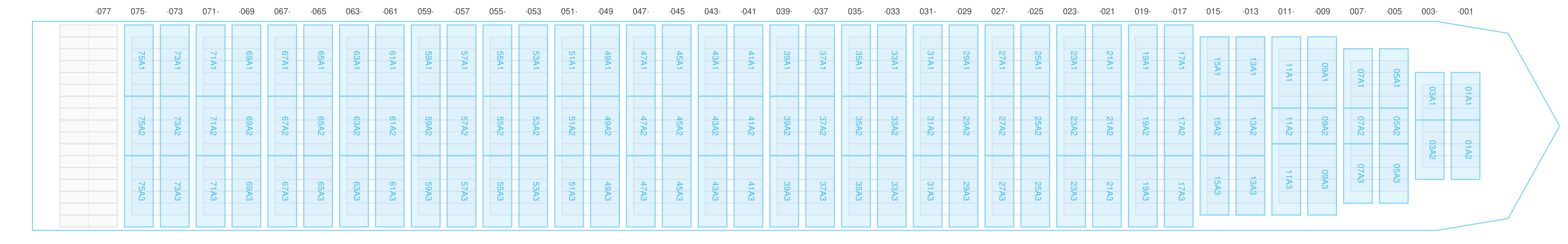

Hatch-Covers View

Deck view of CMA CGM OTELLO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

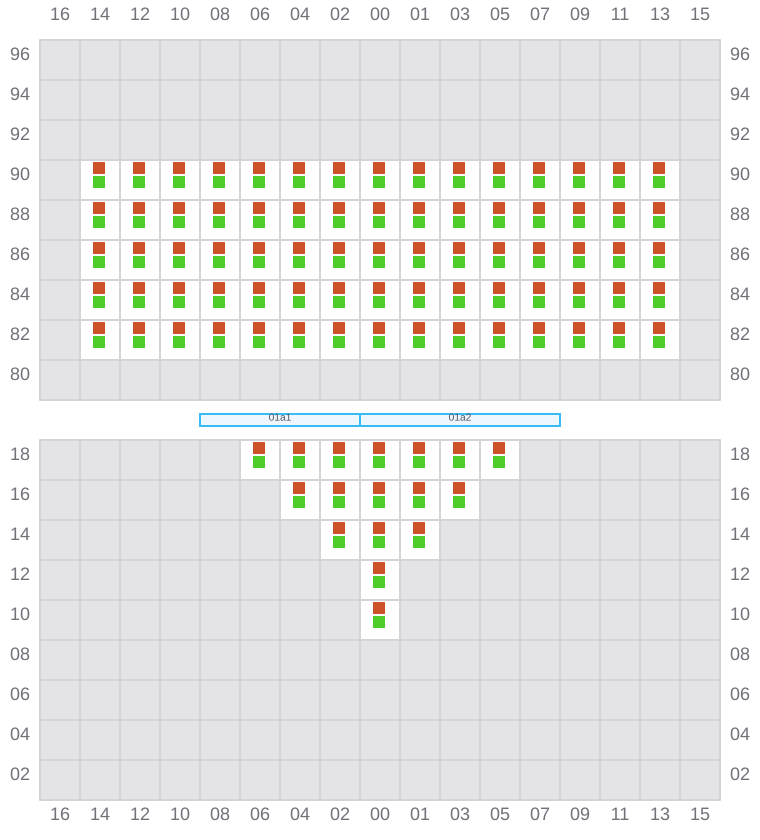

Bay 001 view and slots of CMA CGM OTELLO

003

  • ←
Bay 003 view and slots of CMA CGM OTELLO

005 (006)

  • →

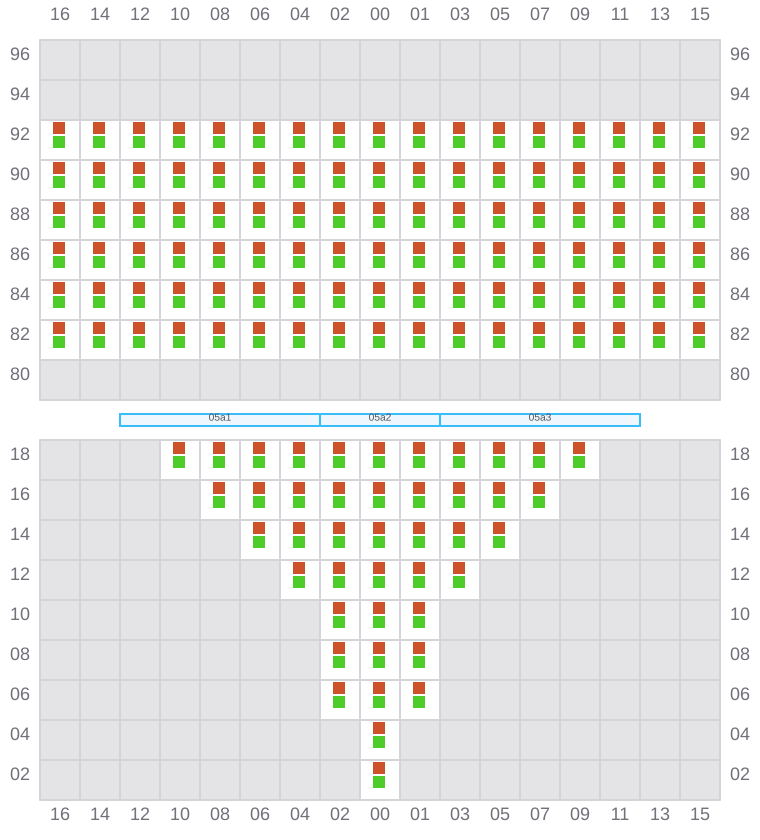

Bay 005 view and slots of CMA CGM OTELLO

007

  • ←

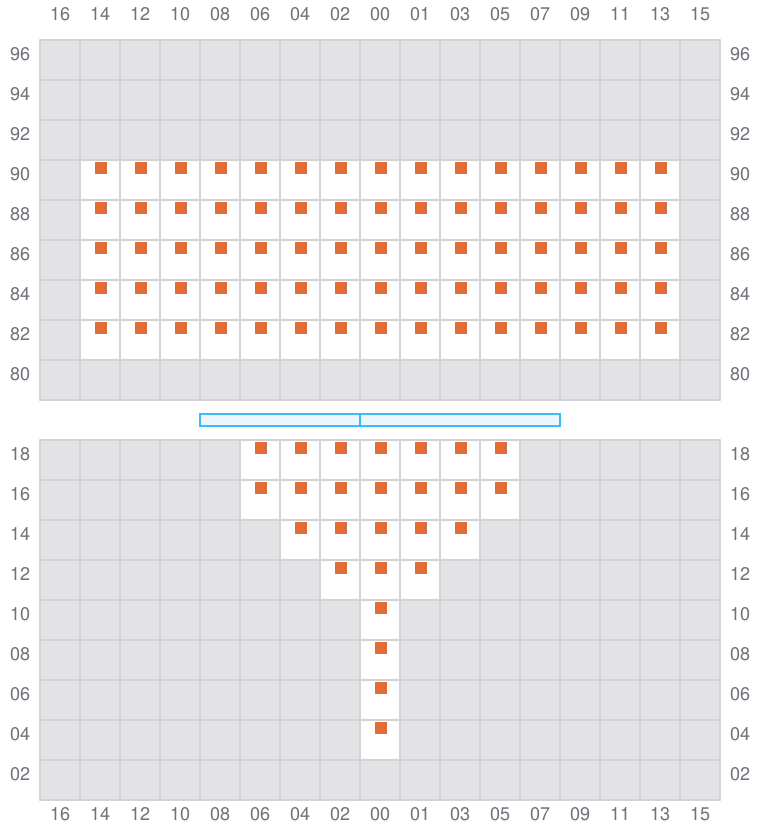

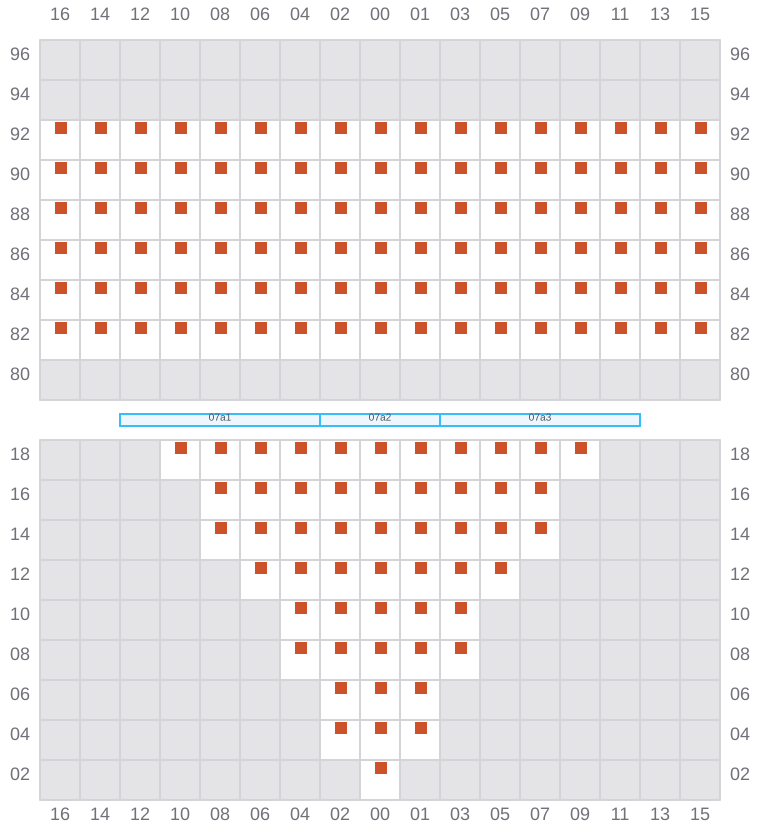

Bay 007 view and slots of CMA CGM OTELLO

009 (010)

  • →

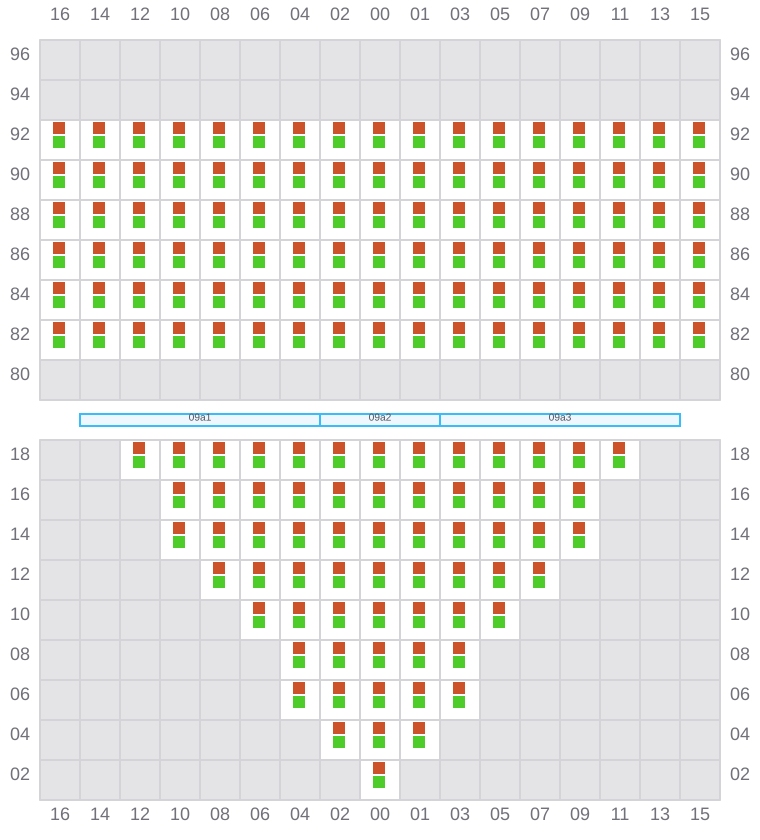

Bay 009 view and slots of CMA CGM OTELLO

011

  • ←

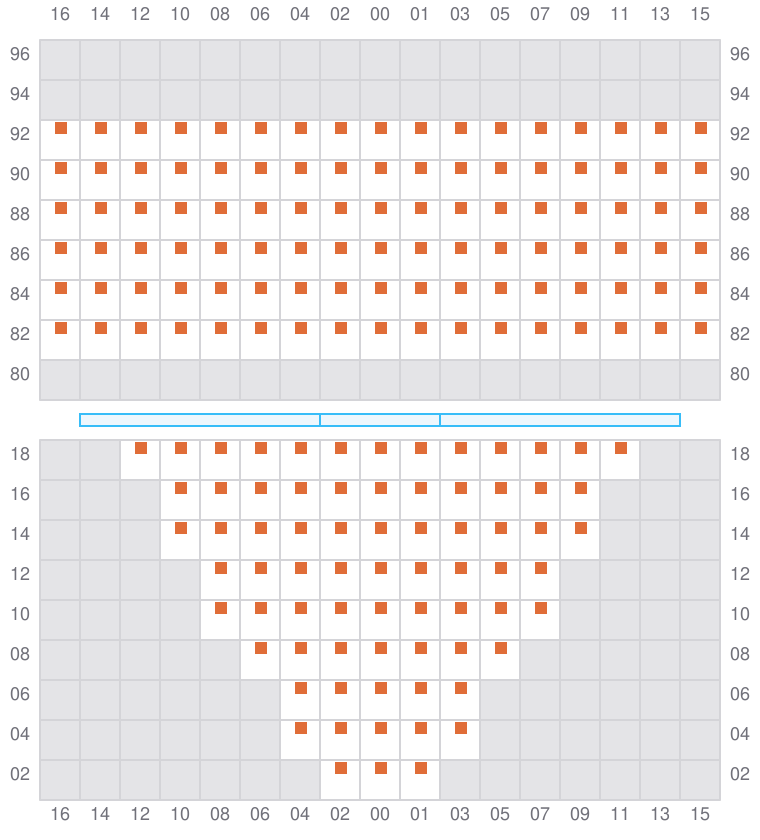

Bay 011 view and slots of CMA CGM OTELLO

013 (014)

  • →

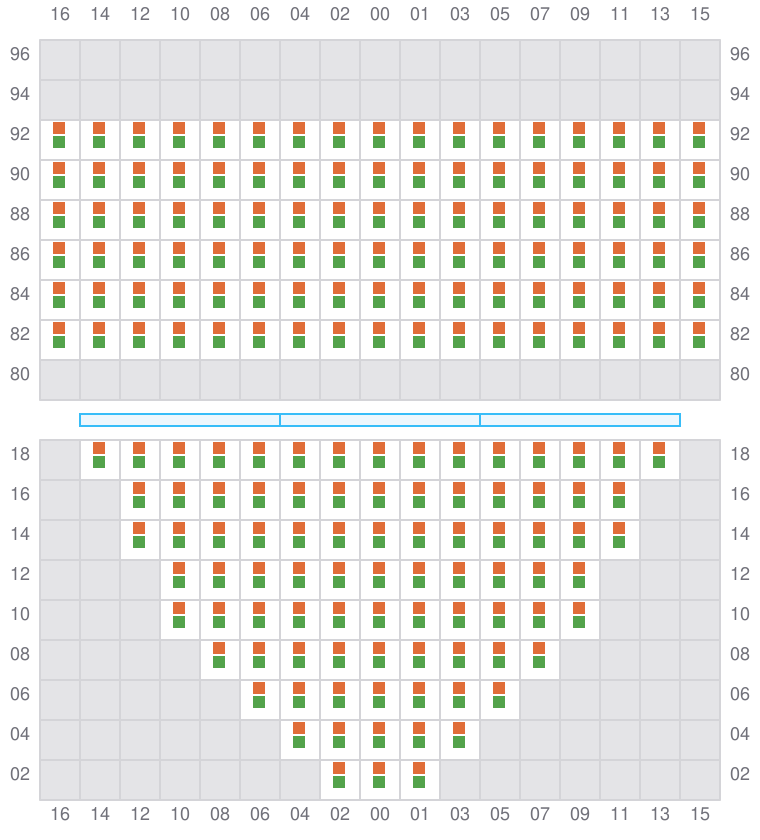

Bay 013 view and slots of CMA CGM OTELLO

015

  • ←

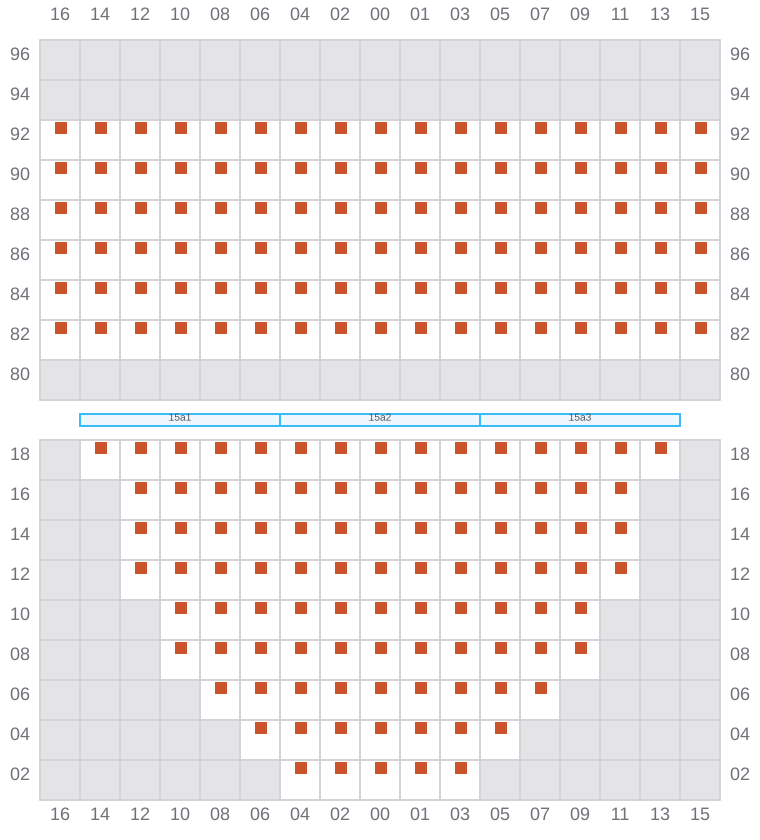

Bay 015 view and slots of CMA CGM OTELLO

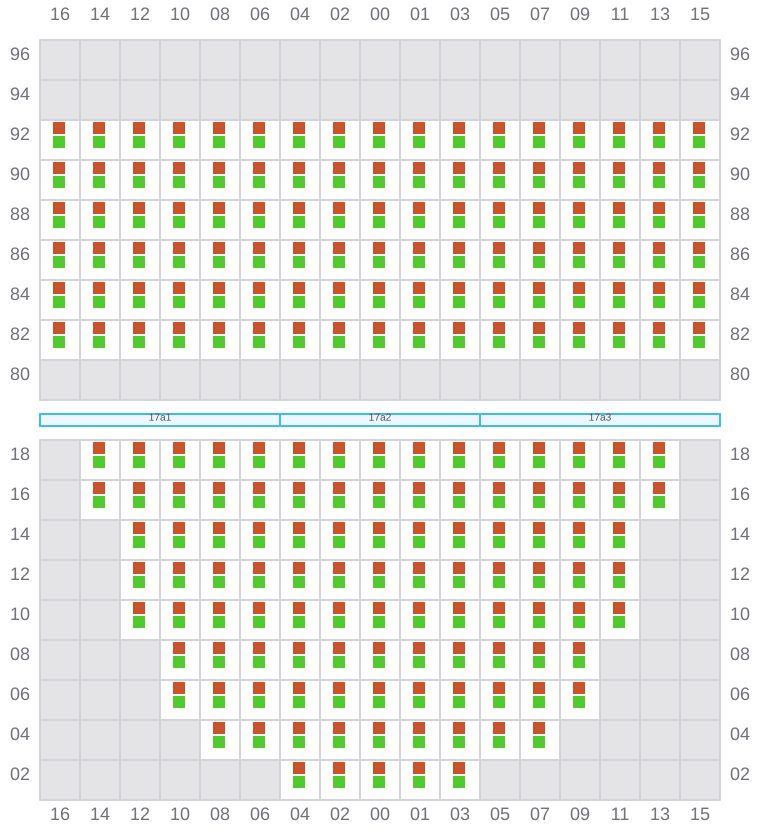

017 (018)

  • →
Bay 017 view and slots of CMA CGM OTELLO

019

  • ←

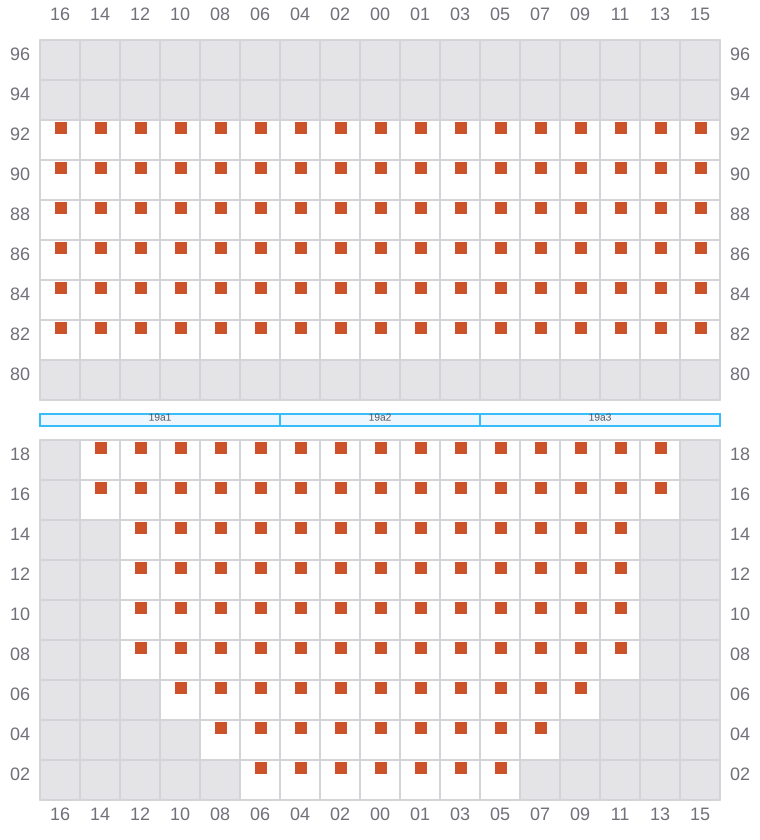

Bay 019 view and slots of CMA CGM OTELLO

021 (022)

  • →

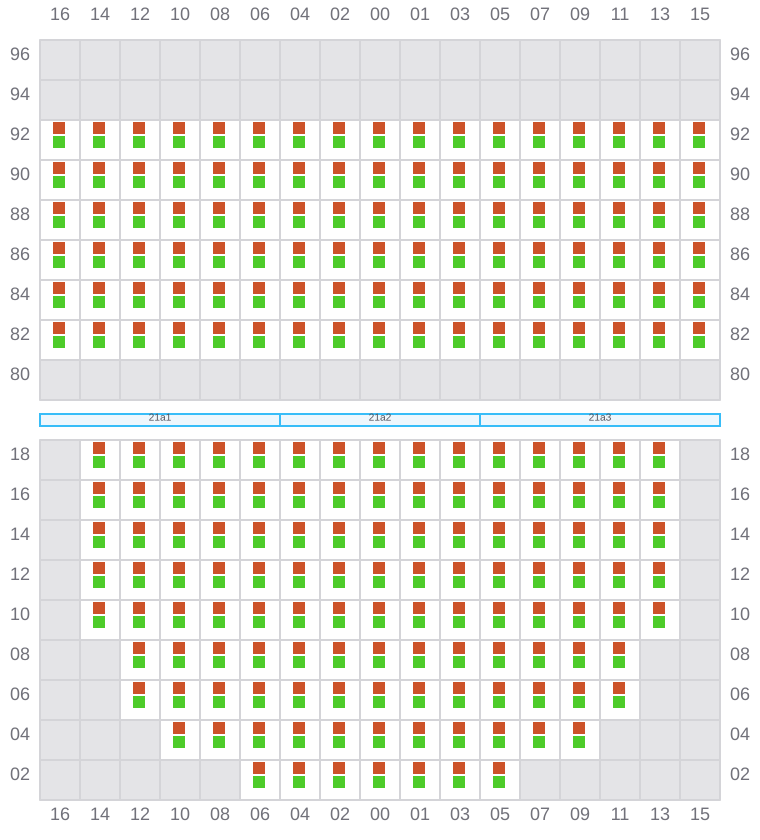

Bay 021 view and slots of CMA CGM OTELLO

023

  • ←

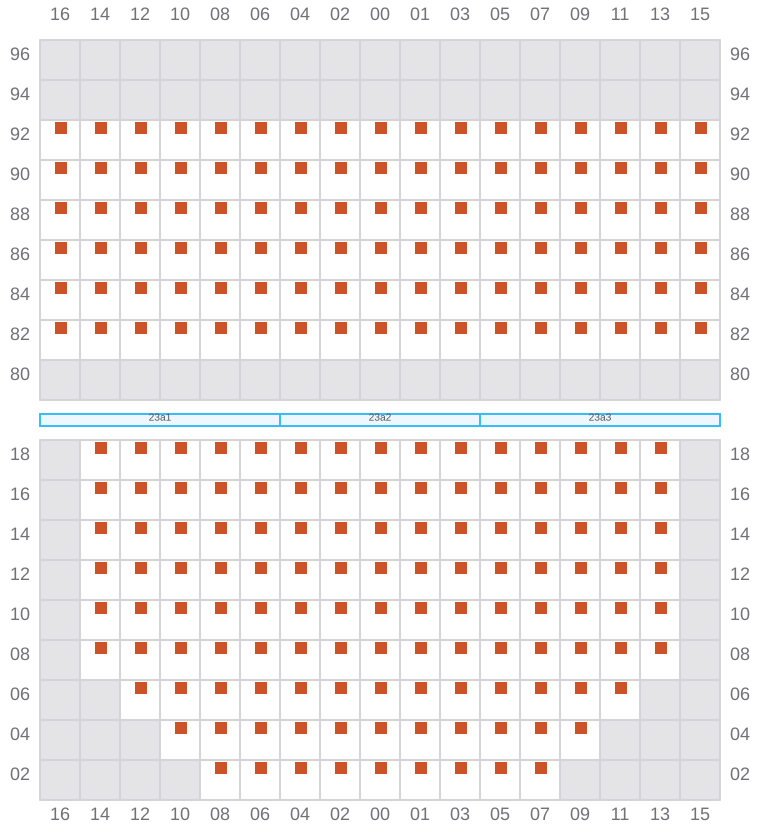

Bay 023 view and slots of CMA CGM OTELLO

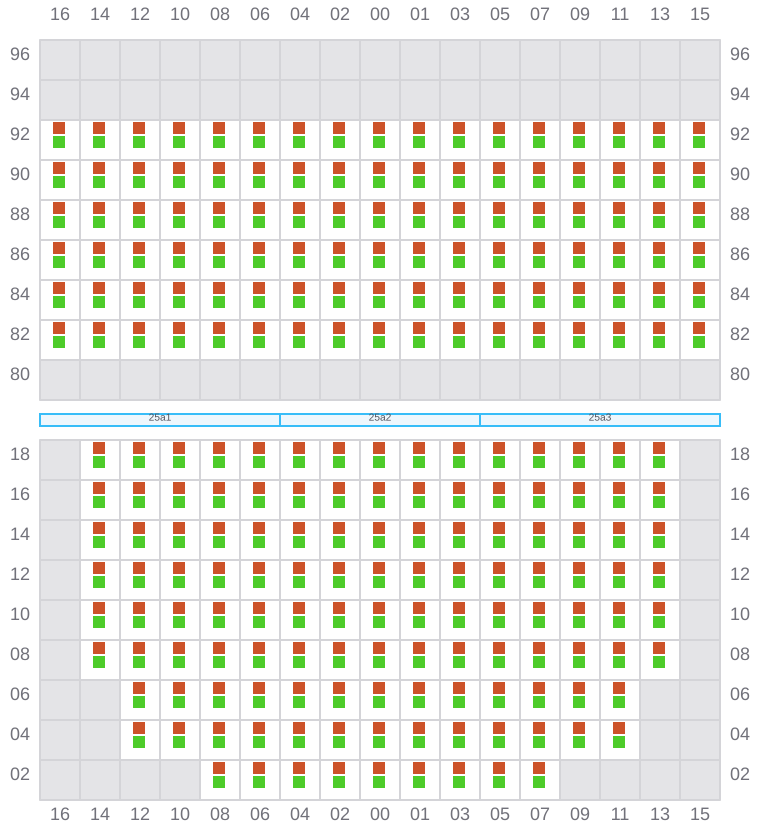

025 (026)

  • →
Bay 025 view and slots of CMA CGM OTELLO

027

  • ←
Bay 027 view and slots of CMA CGM OTELLO

029 (030)

  • →

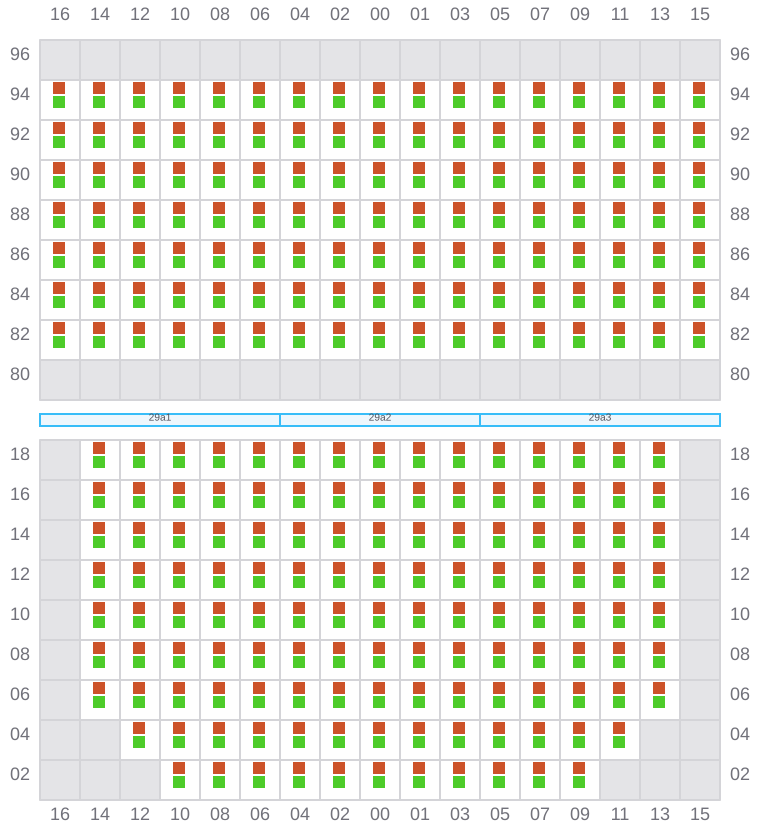

Bay 029 view and slots of CMA CGM OTELLO

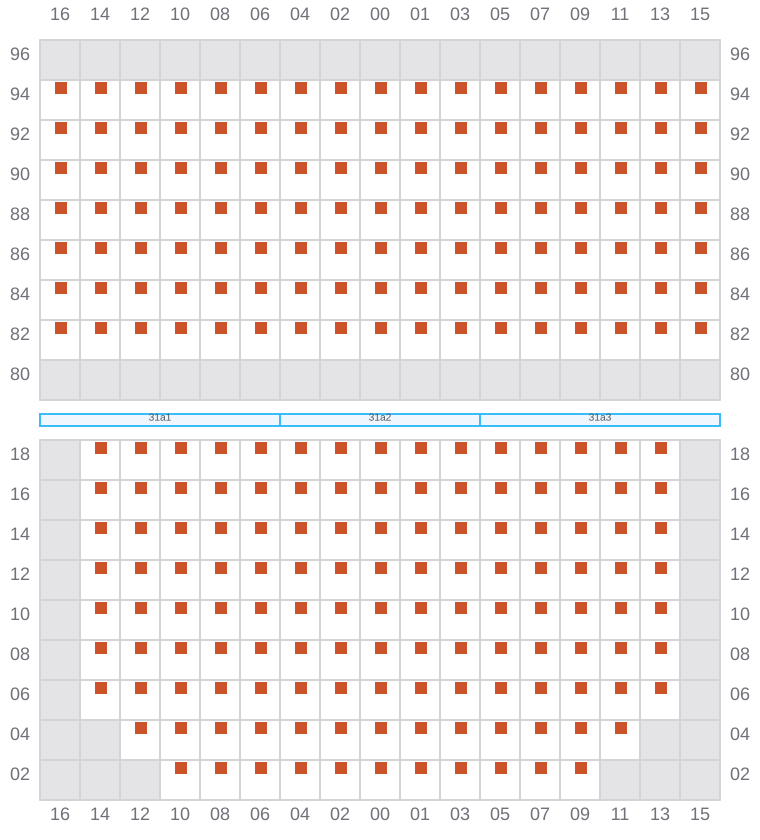

031

  • ←
Bay 031 view and slots of CMA CGM OTELLO

033 (034)

  • →

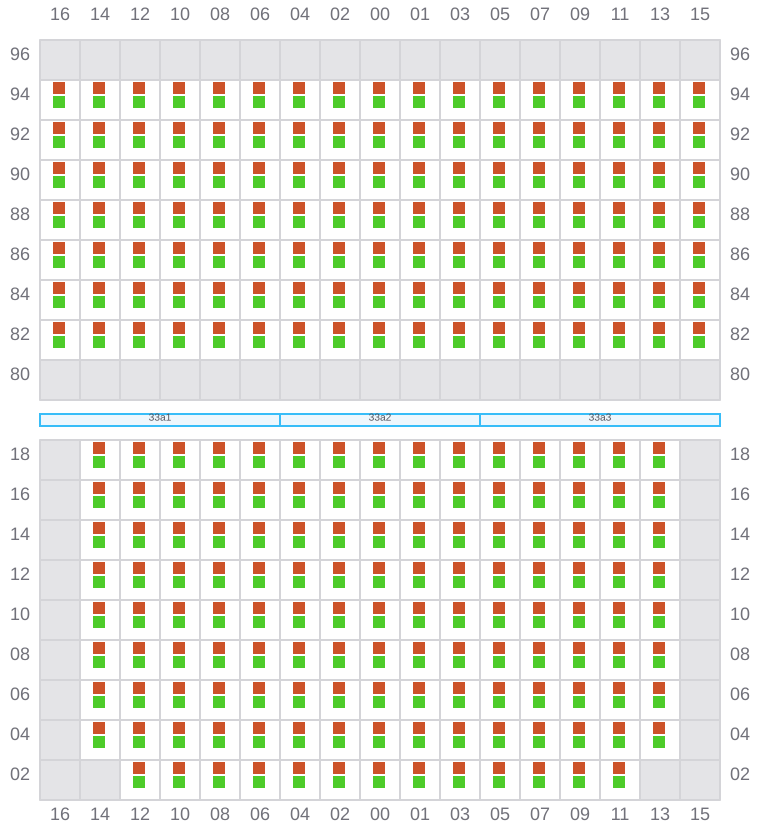

Bay 033 view and slots of CMA CGM OTELLO

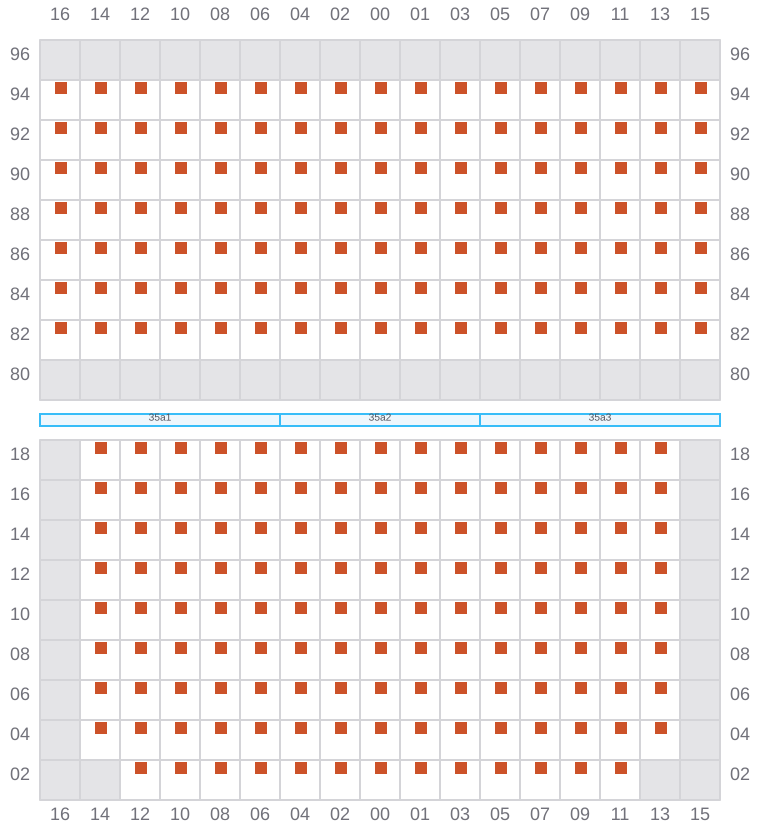

035

  • ←
Bay 035 view and slots of CMA CGM OTELLO

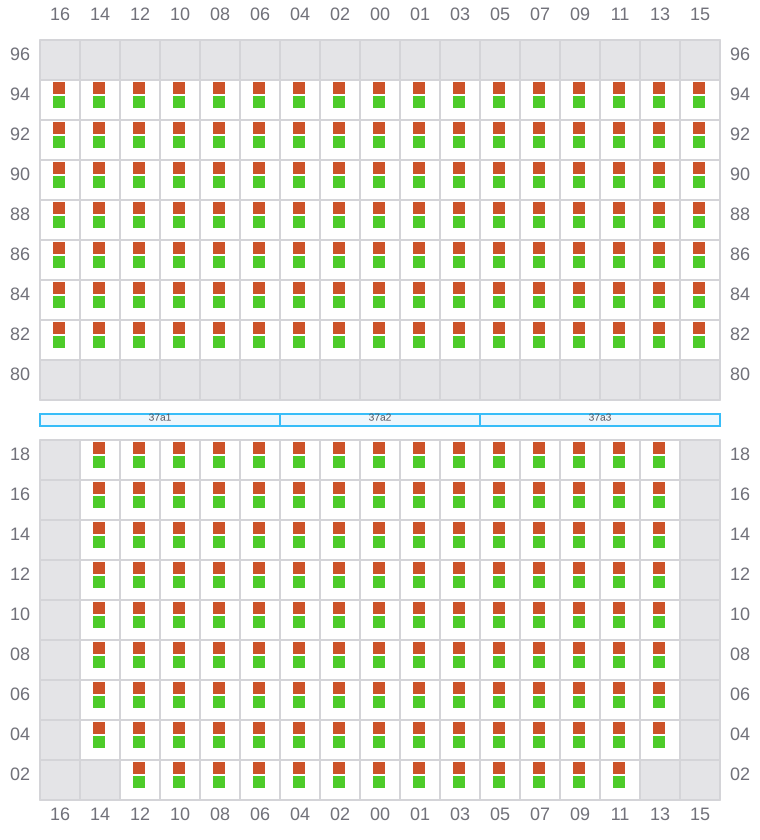

037 (038)

  • →
Bay 037 view and slots of CMA CGM OTELLO

039

  • ←
Bay 039 view and slots of CMA CGM OTELLO

041 (042)

  • →
Bay 041 view and slots of CMA CGM OTELLO

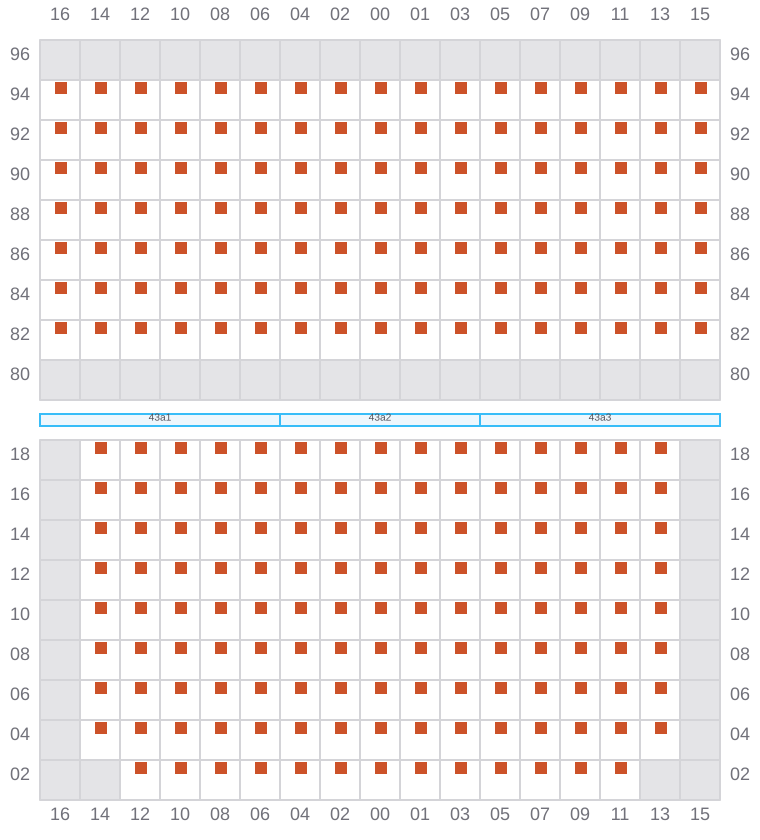

043

  • ←
Bay 043 view and slots of CMA CGM OTELLO

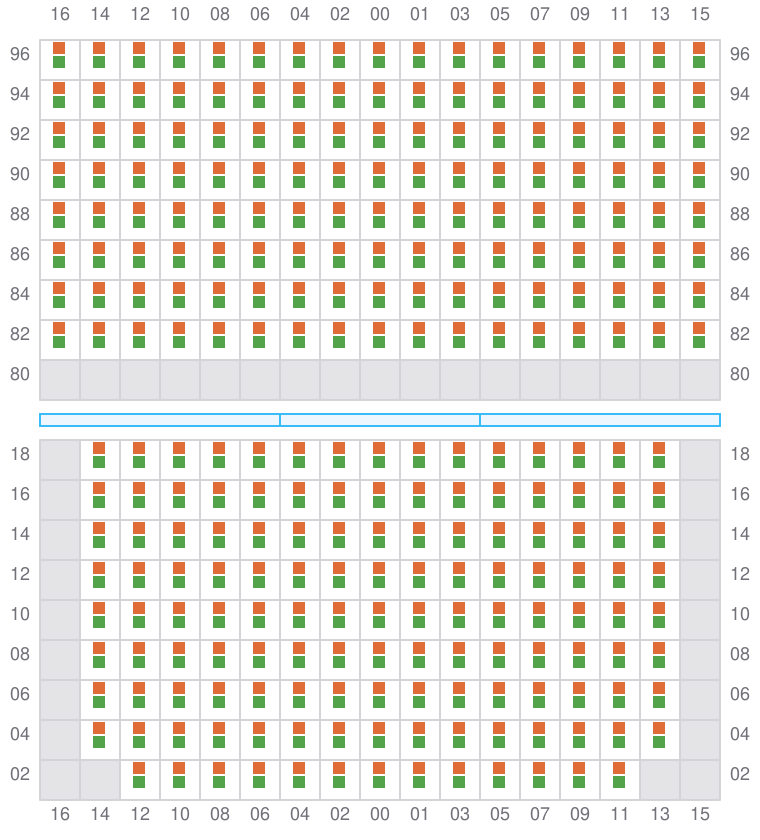

045 (046)

  • →
  • → / ?
Bay 045 view and slots of CMA CGM OTELLO

047

  • ←

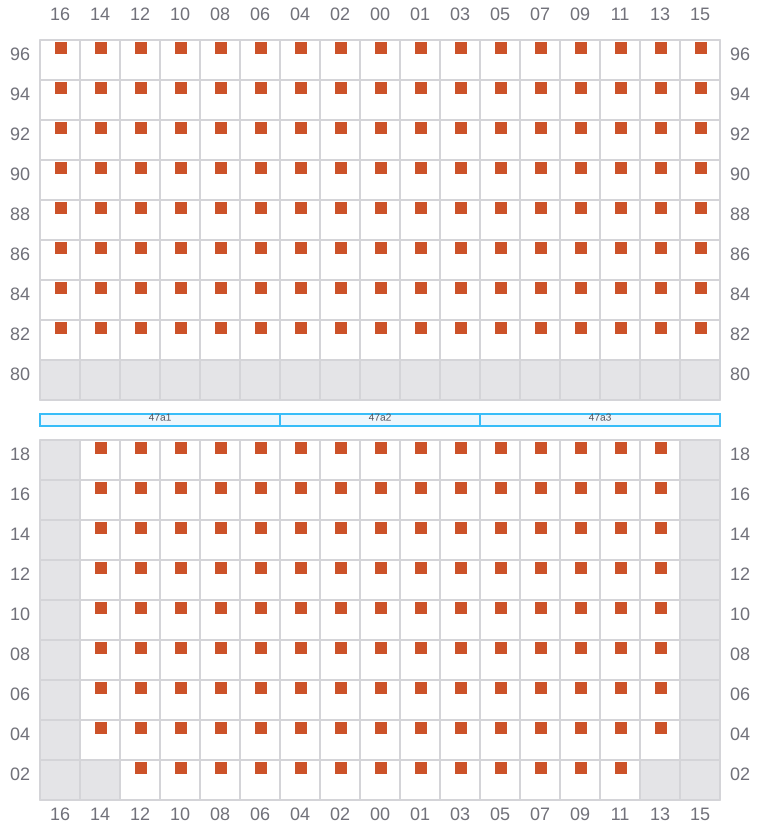

Bay 047 view and slots of CMA CGM OTELLO

049 (050)

  • →
  • → / ?

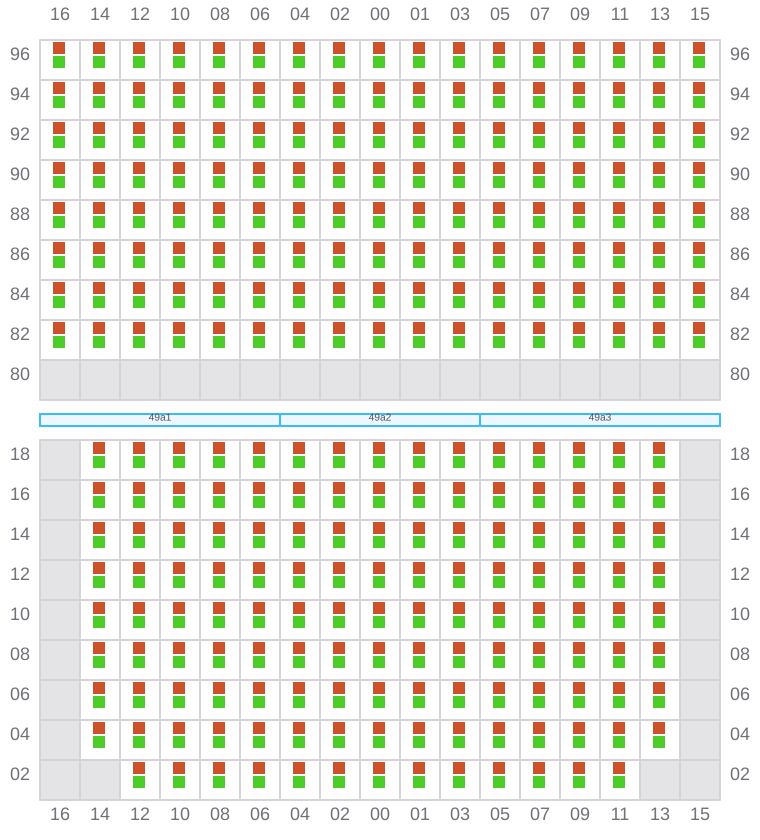

Bay 049 view and slots of CMA CGM OTELLO

051

  • ←

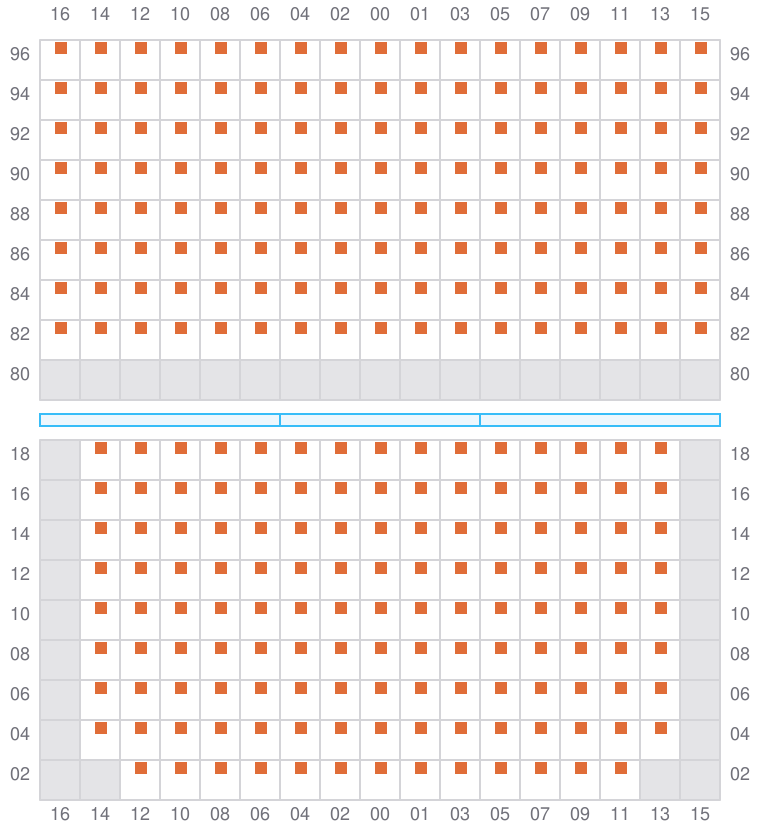

Bay 051 view and slots of CMA CGM OTELLO

053 (054)

  • →
  • → / ?

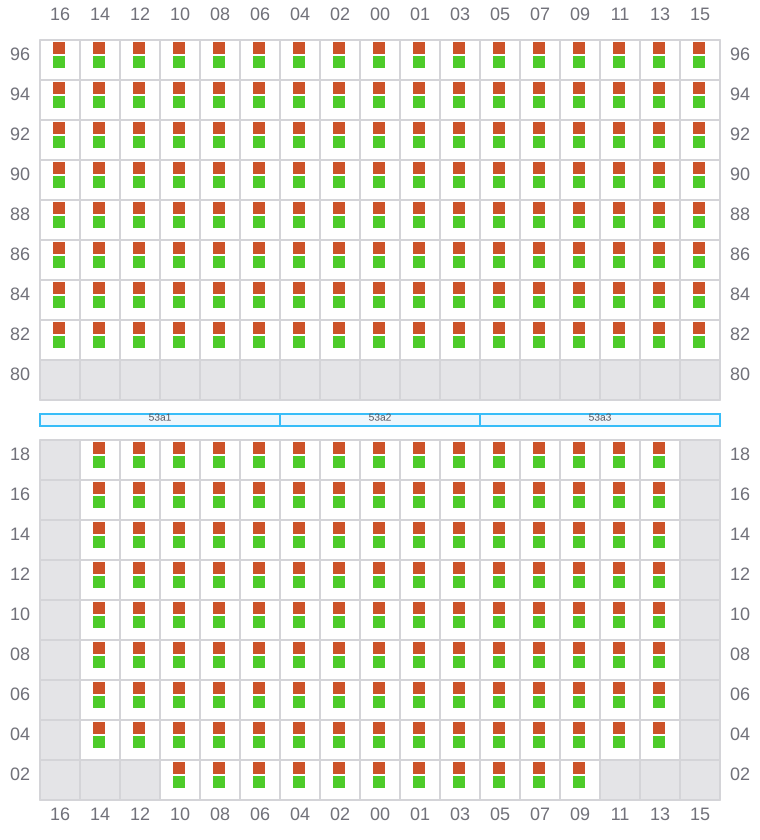

Bay 053 view and slots of CMA CGM OTELLO

055

  • ←

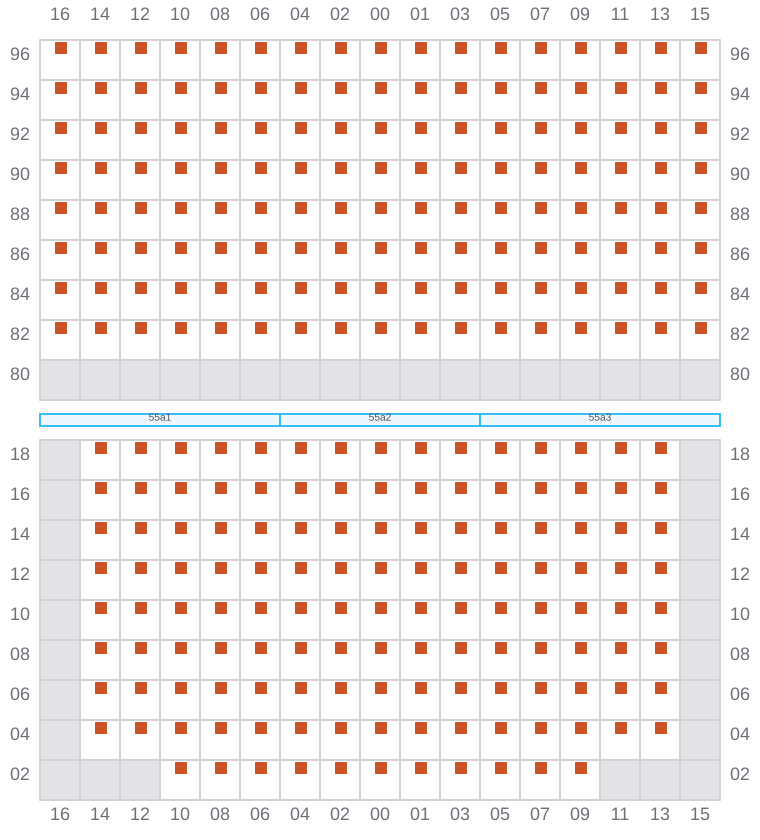

Bay 055 view and slots of CMA CGM OTELLO

057 (058)

  • →
  • → / ?

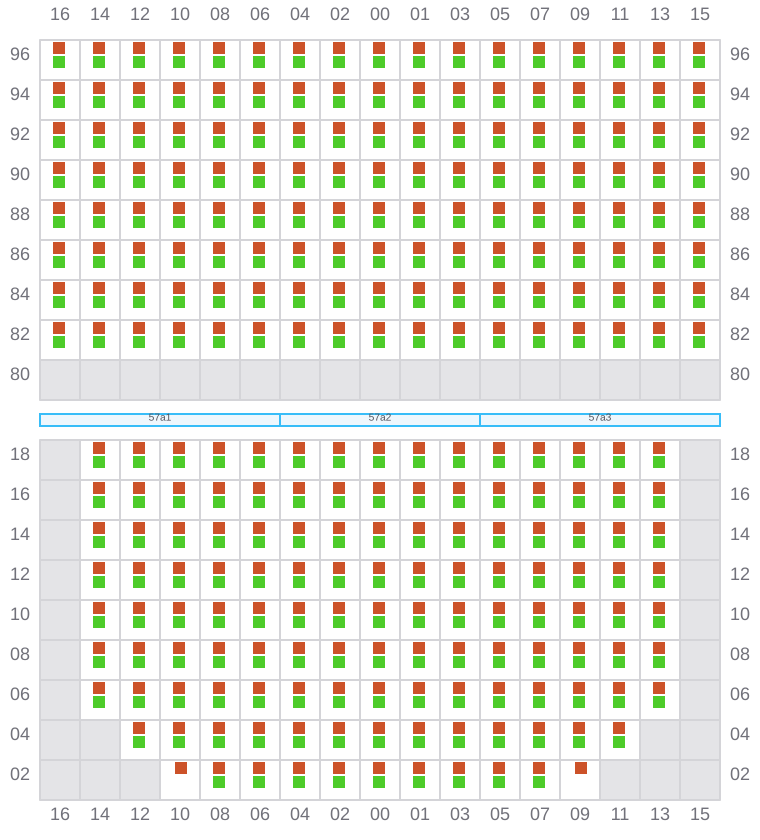

Bay 057 view and slots of CMA CGM OTELLO

059

  • ←
Bay 059 view and slots of CMA CGM OTELLO

061 (062)

  • →
  • → / ?
Bay 061 view and slots of CMA CGM OTELLO

063

  • ←
Bay 063 view and slots of CMA CGM OTELLO

065 (066)

  • →
  • → / ?

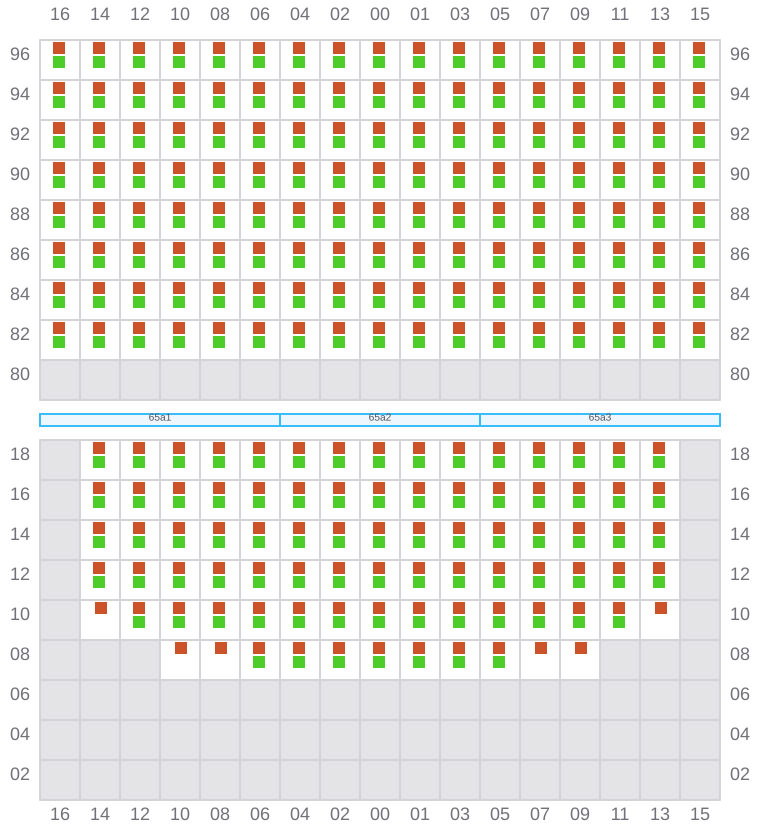

Bay 065 view and slots of CMA CGM OTELLO

067

  • ←

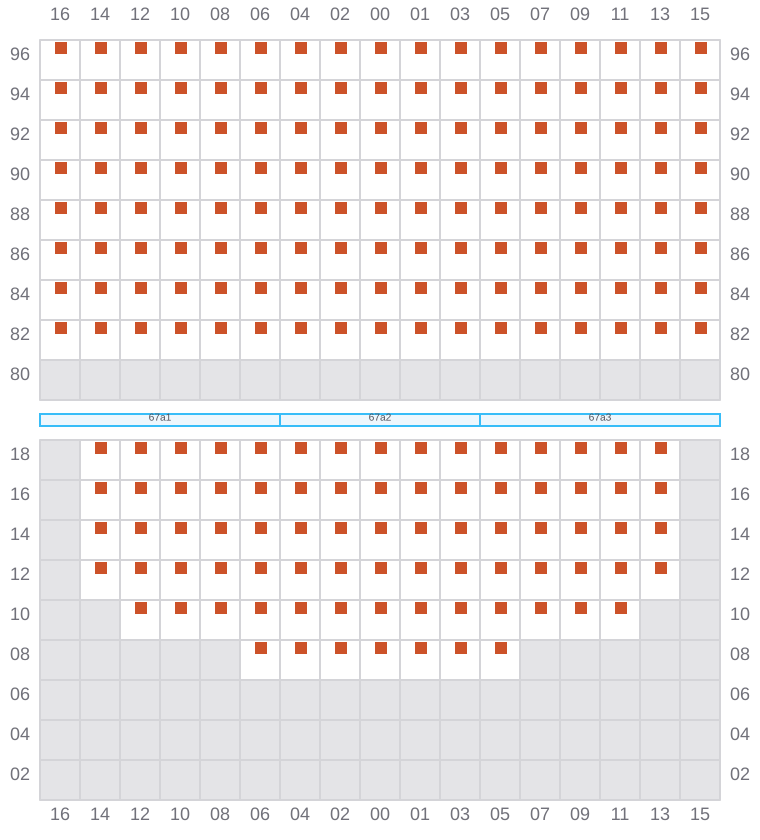

Bay 067 view and slots of CMA CGM OTELLO

069 (070)

  • →
  • → / ?

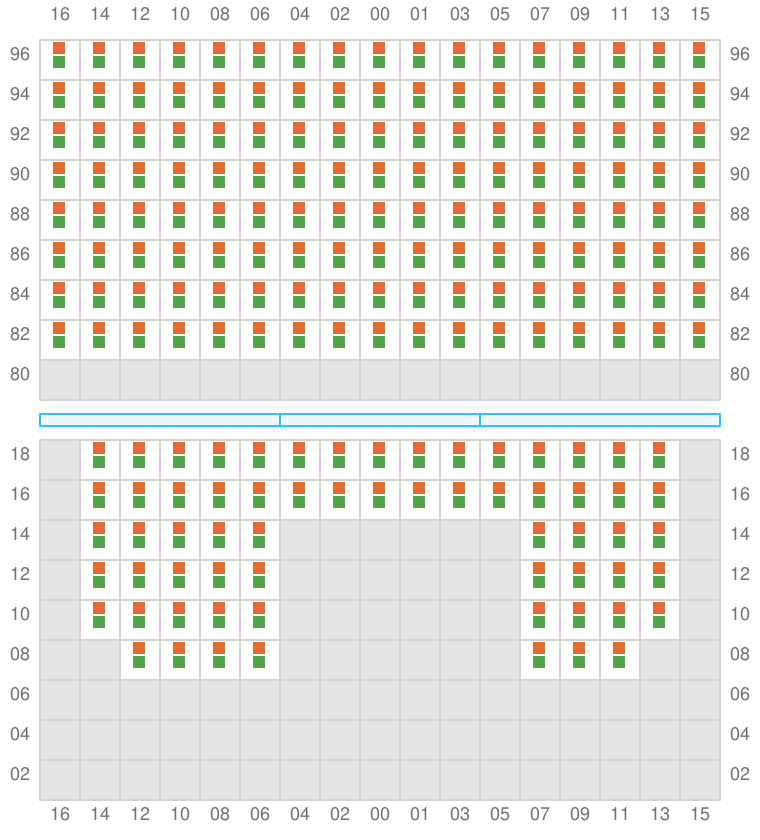

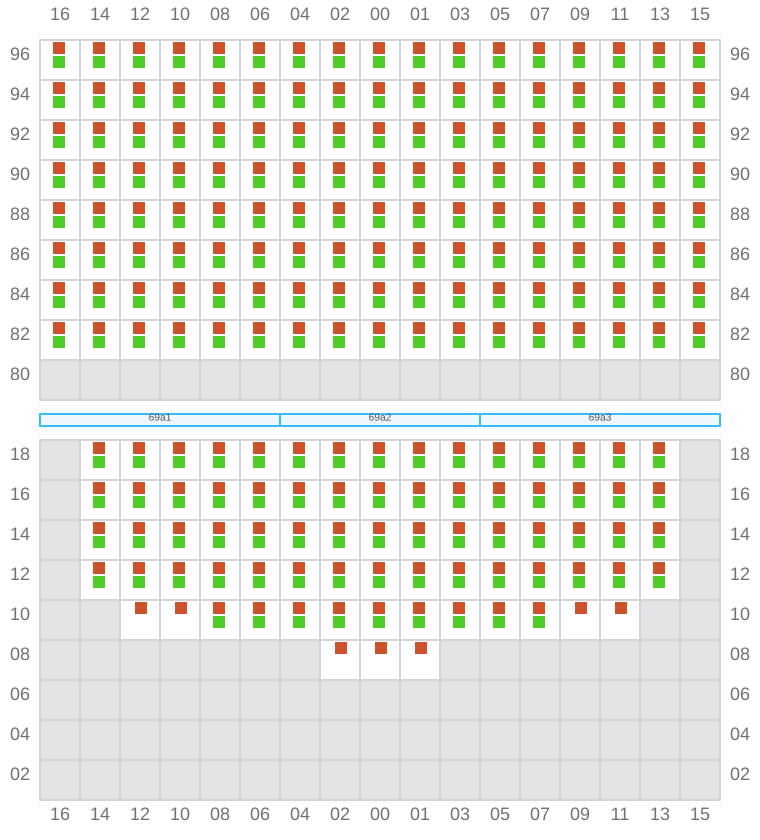

Bay 069 view and slots of CMA CGM OTELLO

071

  • ←

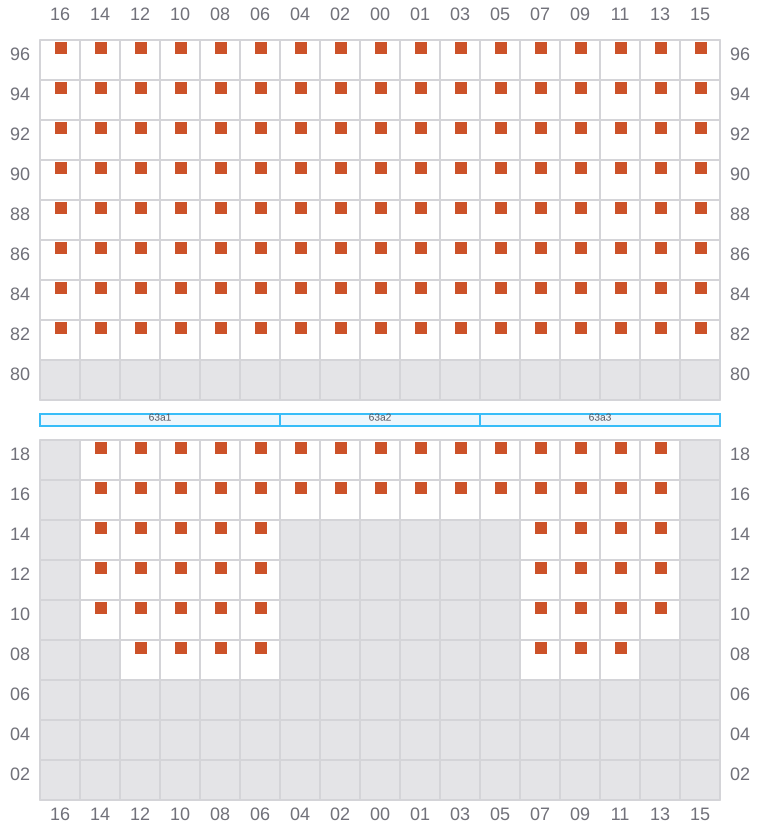

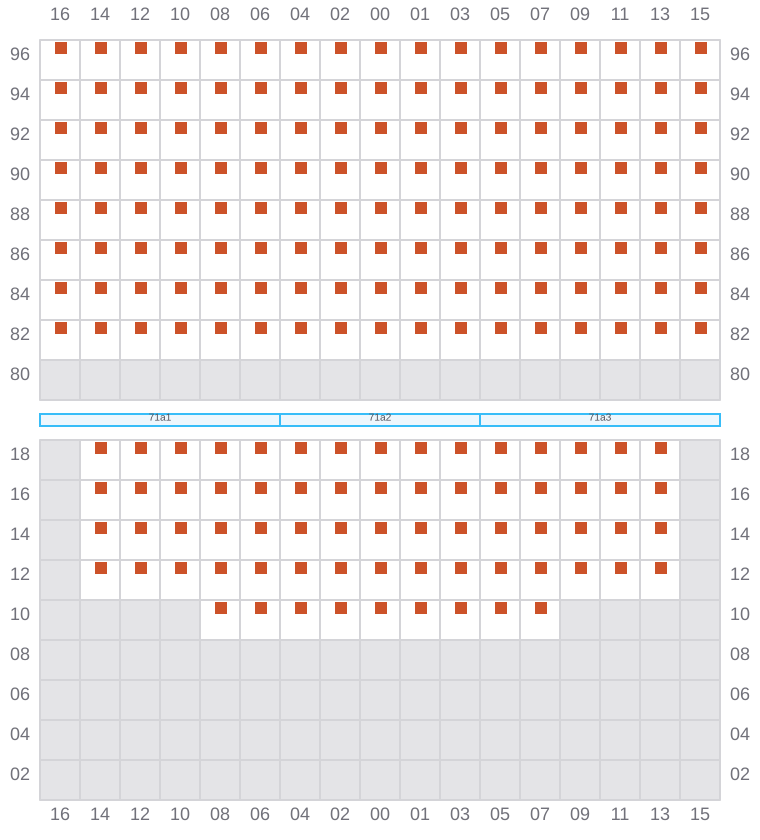

Bay 071 view and slots of CMA CGM OTELLO

073 (074)

  • →
  • → / ?
Bay 073 view and slots of CMA CGM OTELLO

075

  • ←

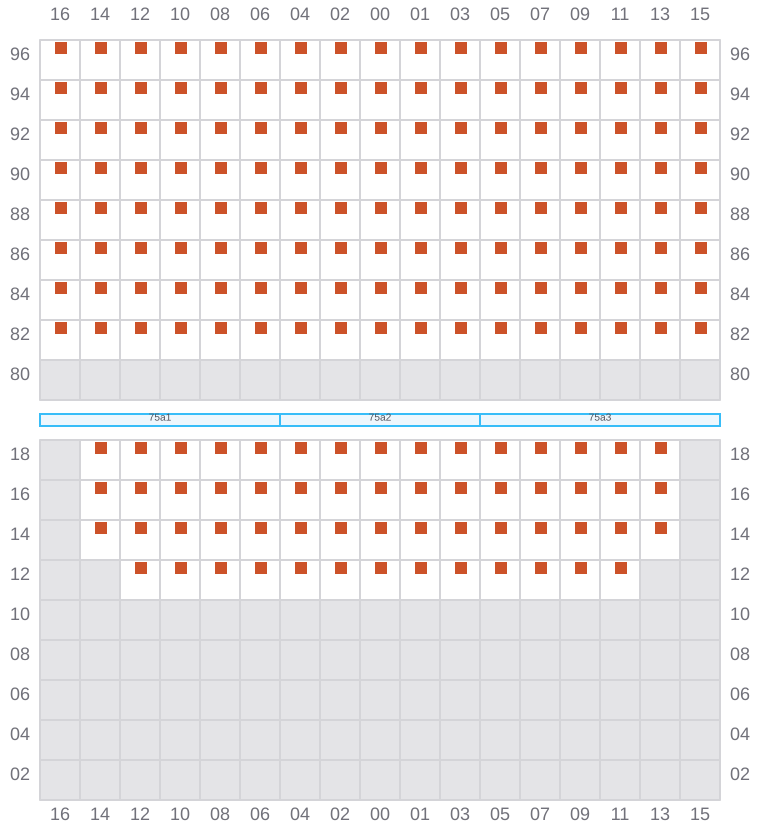

Bay 075 view and slots of CMA CGM OTELLO

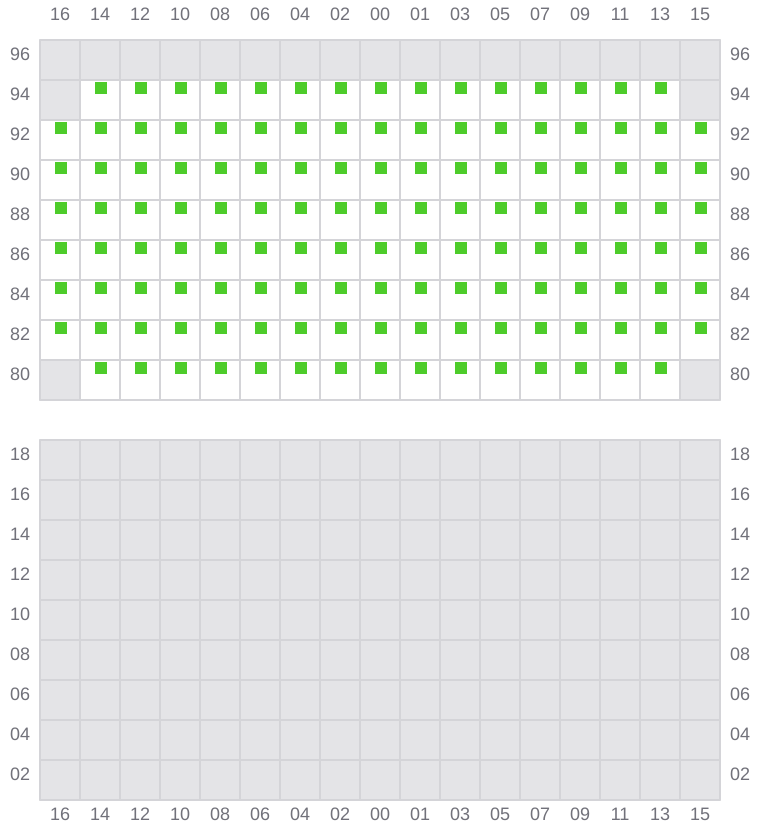

077 (078)

  • → / ?
Bay 077 view and slots of CMA CGM OTELLO
