CMA CGM OTELLO
9299628 | 9HA5979 | CMA by *********************** Last update: Tue Jan 21 2025

General Info

Ship Name:CMA CGM OTELLO
IMO Code:9299628
Call Sign:9HA5979
Line Operator:CMA
Class Name for Sister Ships:CGOT
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,506

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

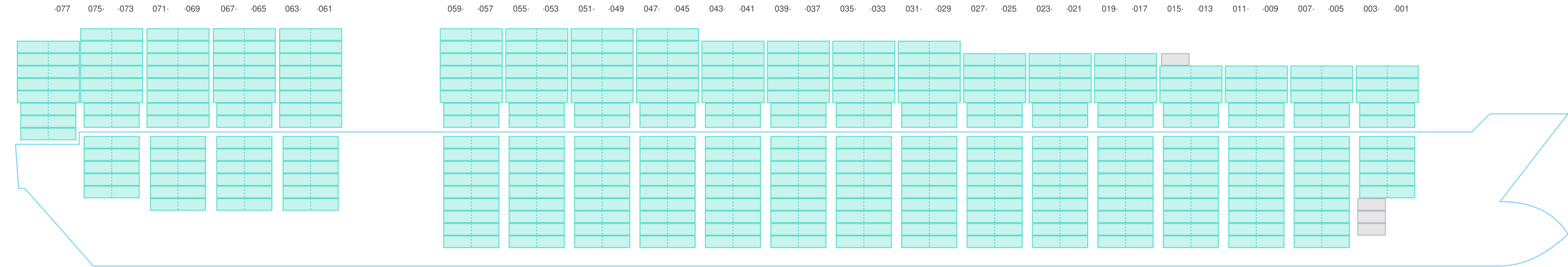

Side view of CMA CGM OTELLO

Hatch-Covers View

Deck view of CMA CGM OTELLO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

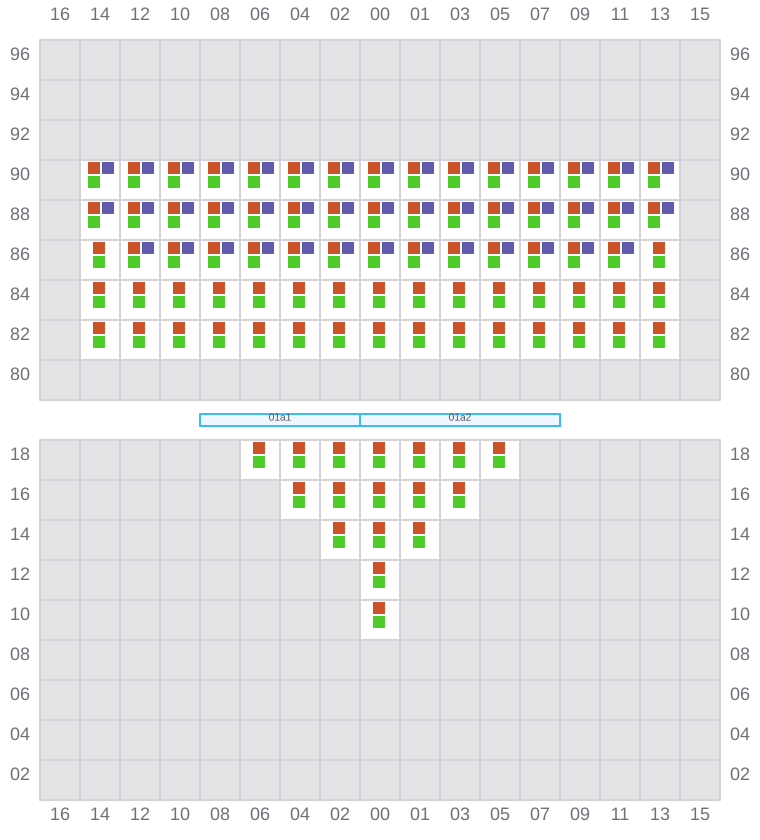

Bay 001 view and slots of CMA CGM OTELLO

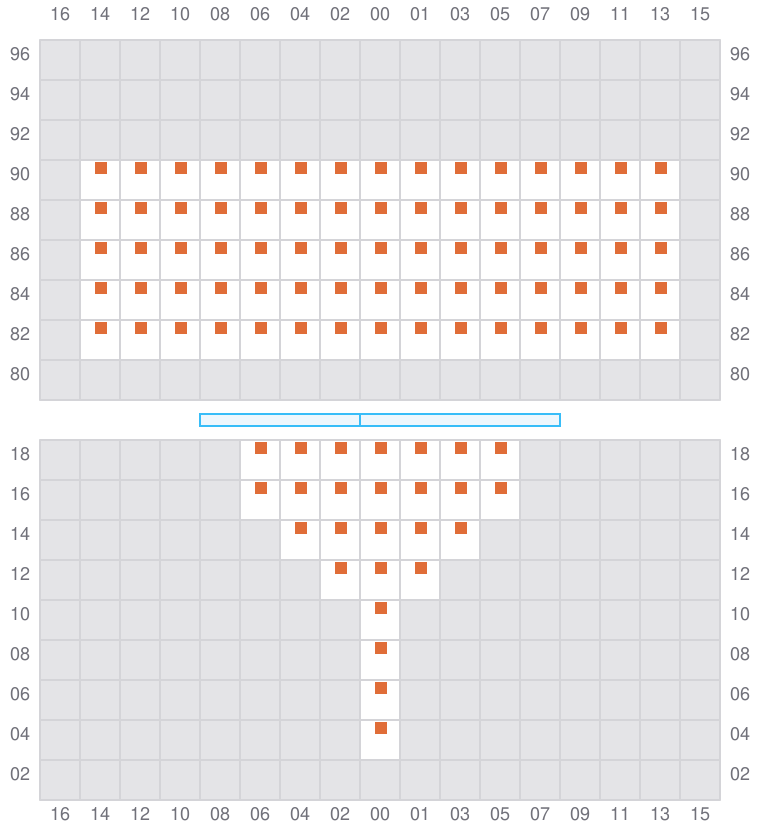

003

Bay 003 view and slots of CMA CGM OTELLO

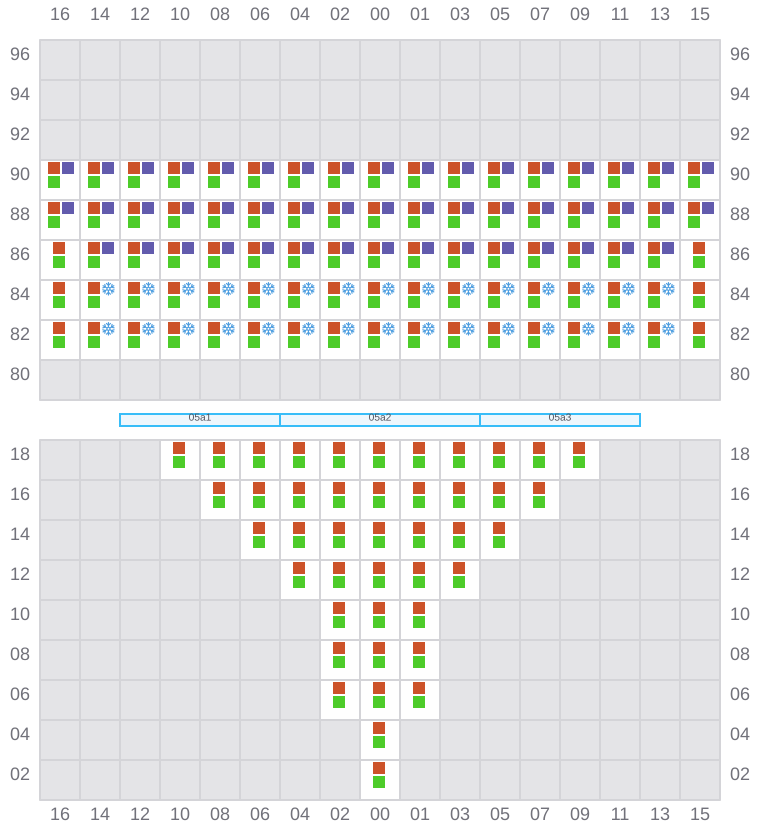

005 (006)

  • / ?
Bay 005 view and slots of CMA CGM OTELLO

007

  • / ?

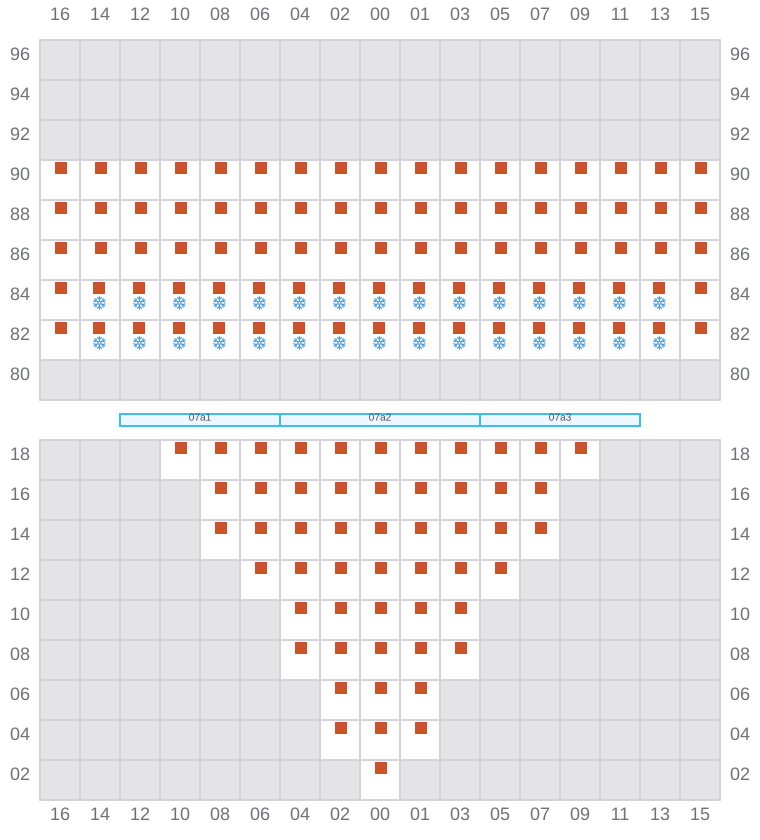

Bay 007 view and slots of CMA CGM OTELLO

009 (010)

  • / ?

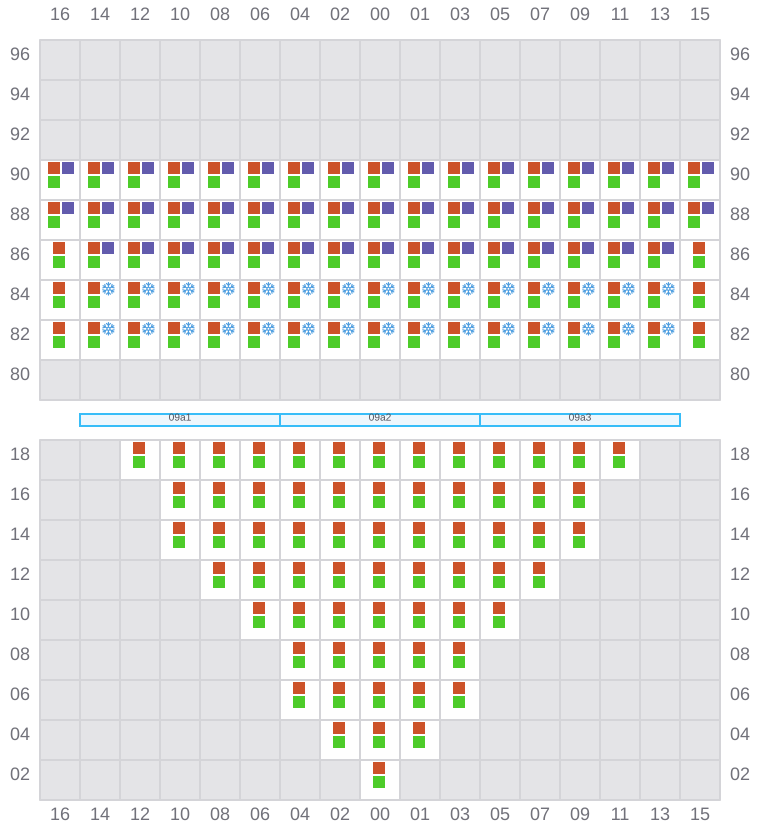

Bay 009 view and slots of CMA CGM OTELLO

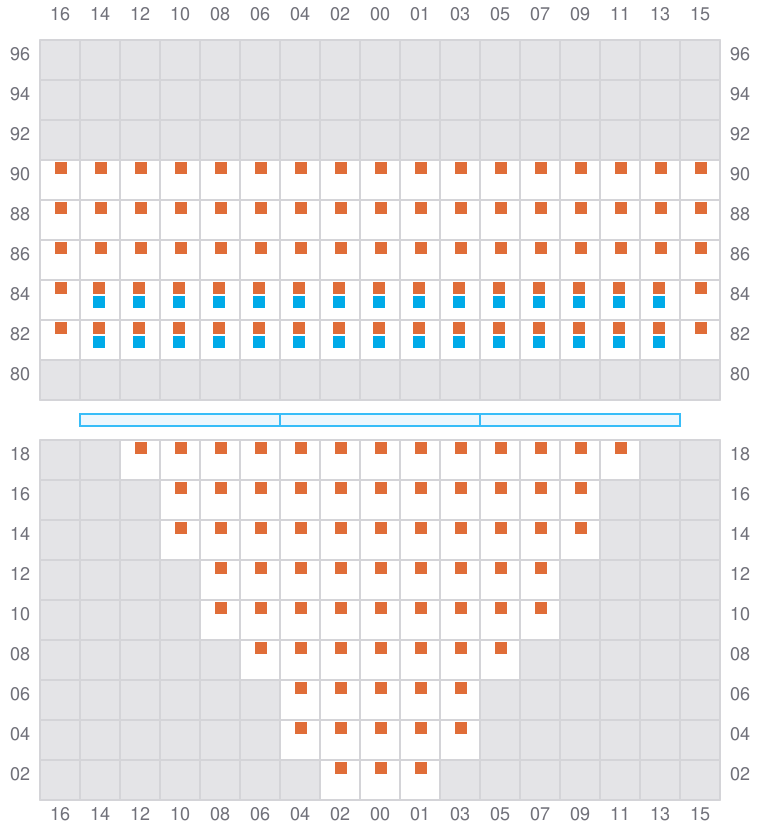

011

  • / ?
Bay 011 view and slots of CMA CGM OTELLO

013 (014)

  • / ?

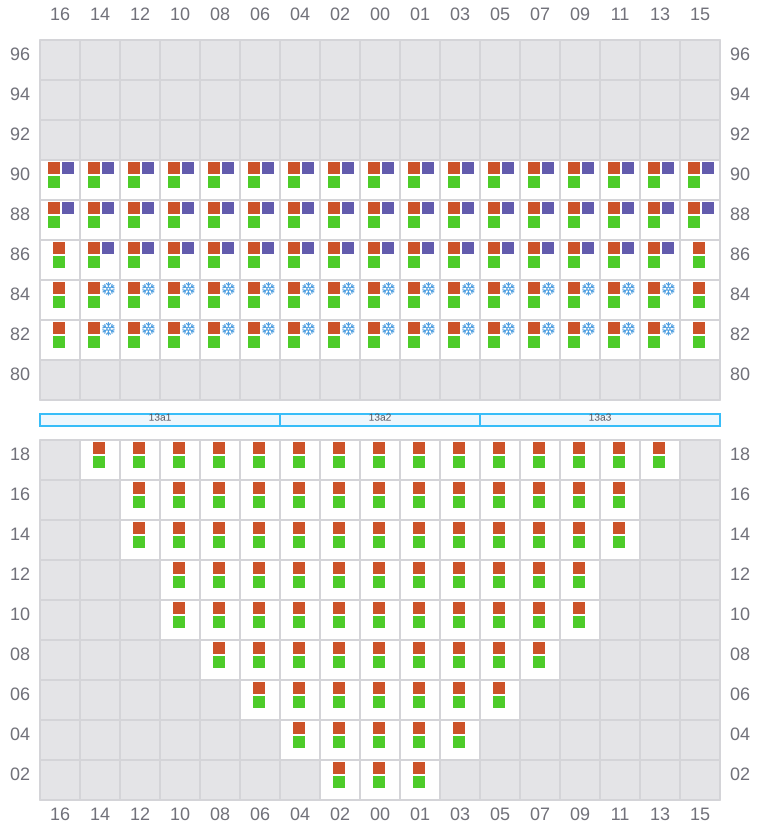

Bay 013 view and slots of CMA CGM OTELLO

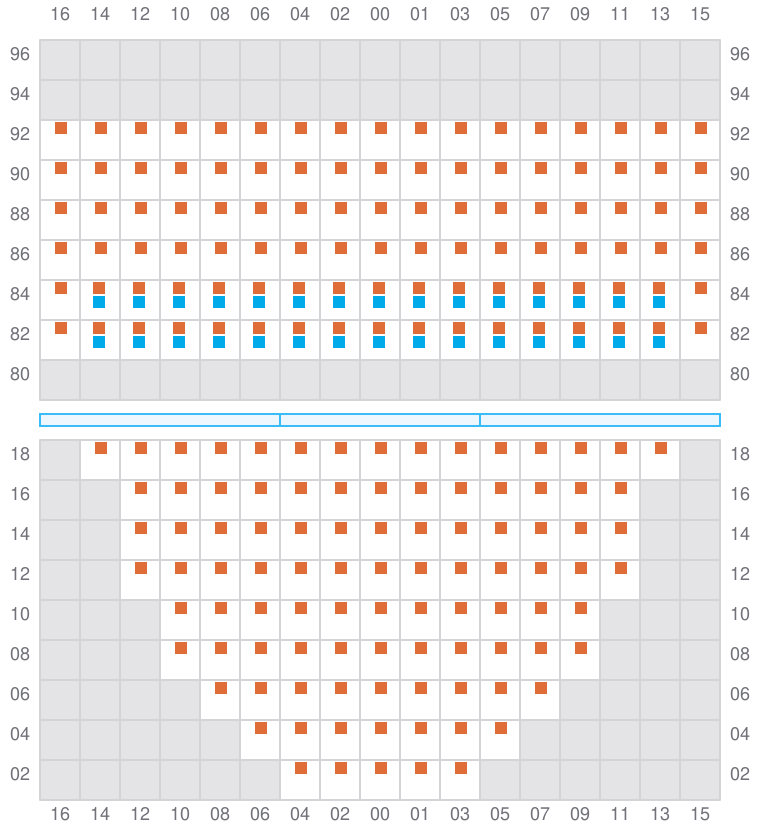

015

  • / ?
Bay 015 view and slots of CMA CGM OTELLO

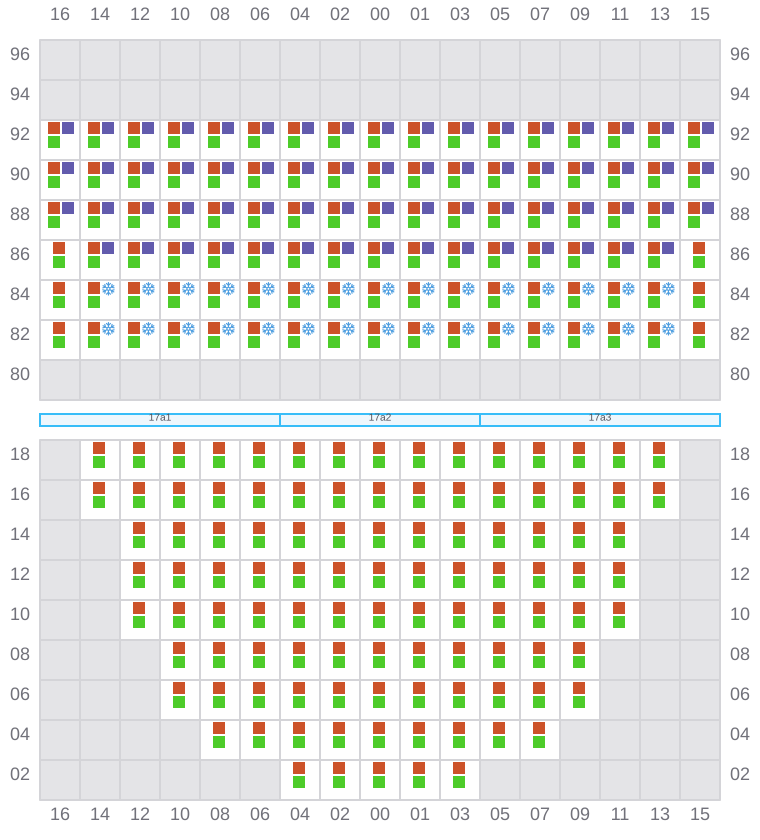

017 (018)

  • / ?
Bay 017 view and slots of CMA CGM OTELLO

019

  • / ?

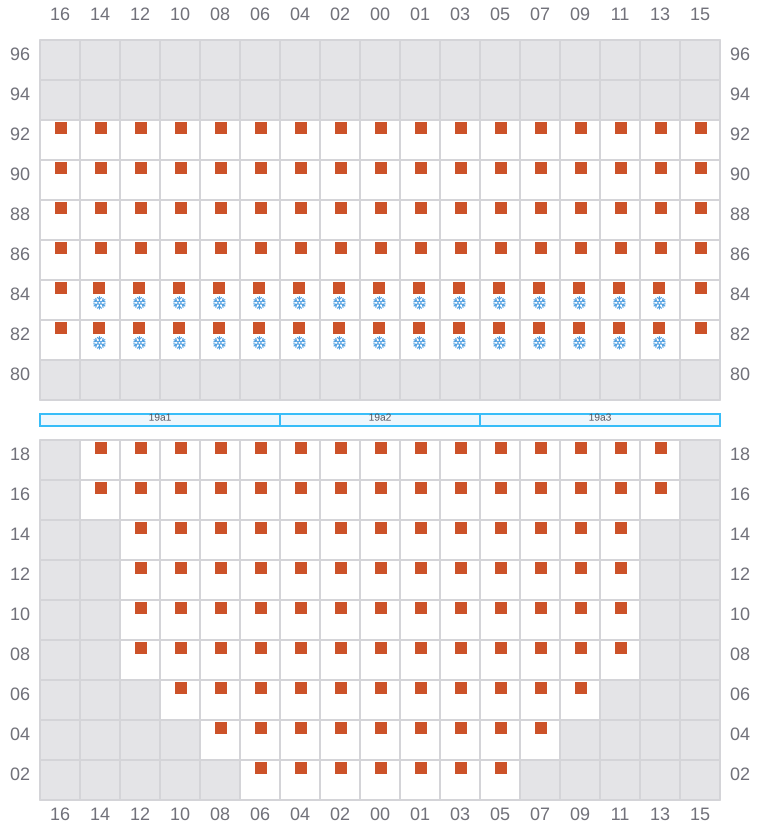

Bay 019 view and slots of CMA CGM OTELLO

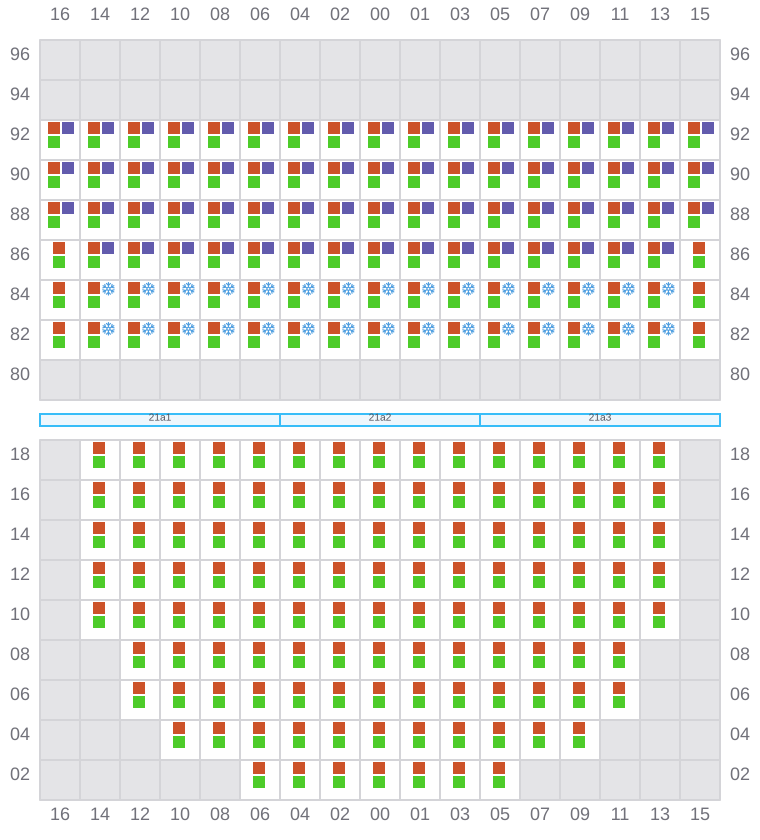

021 (022)

  • / ?
Bay 021 view and slots of CMA CGM OTELLO

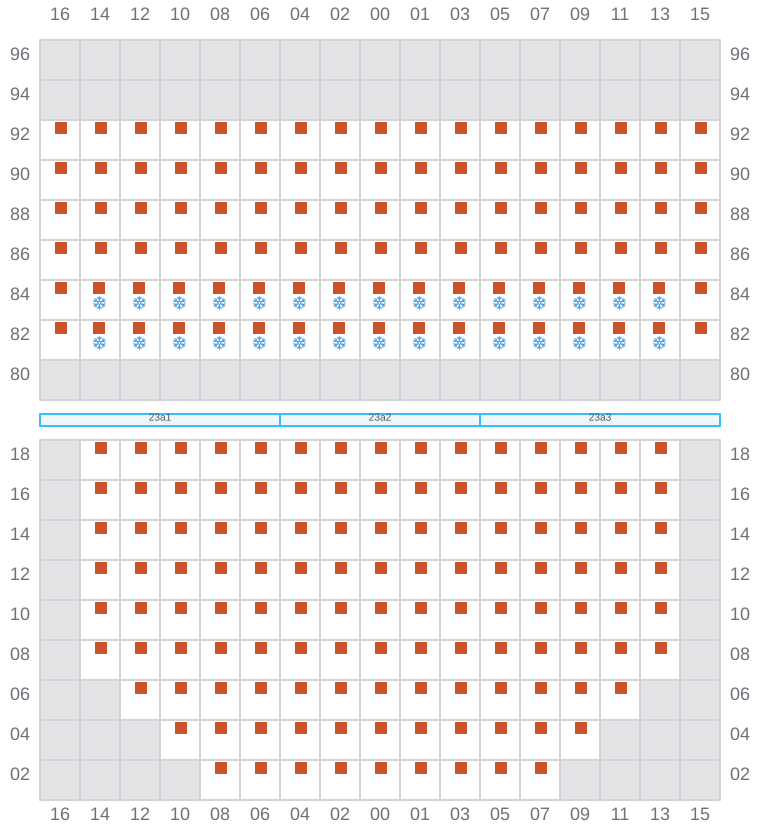

023

  • / ?
Bay 023 view and slots of CMA CGM OTELLO

025 (026)

  • / ?

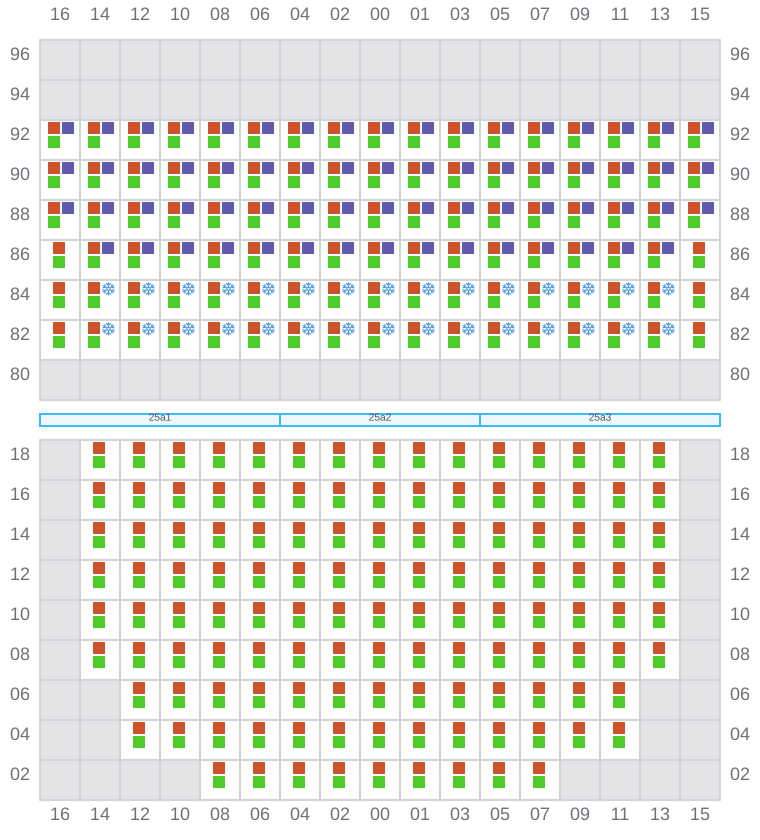

Bay 025 view and slots of CMA CGM OTELLO

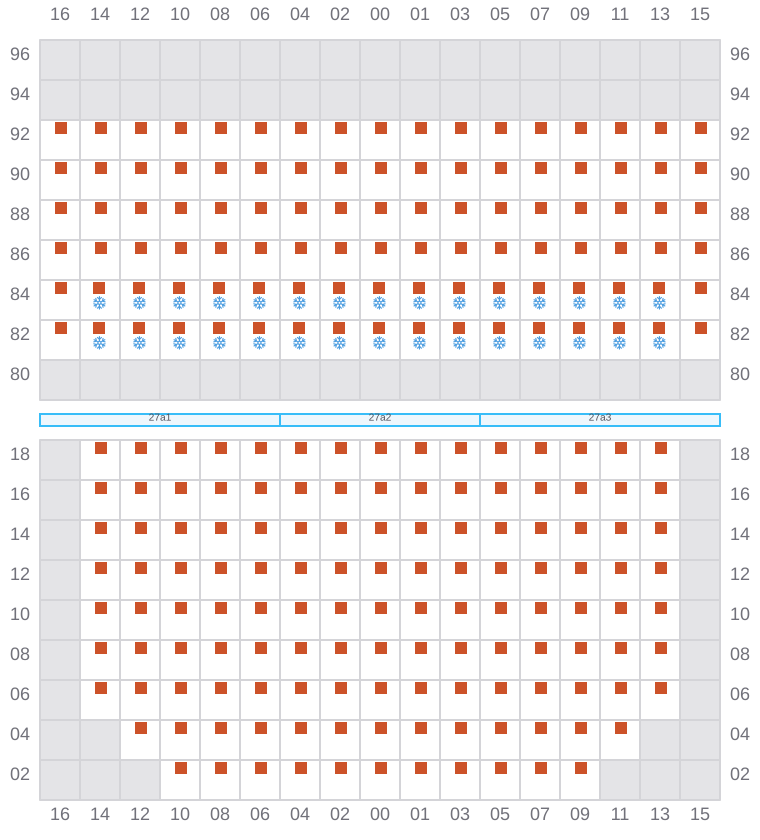

027

  • / ?
Bay 027 view and slots of CMA CGM OTELLO

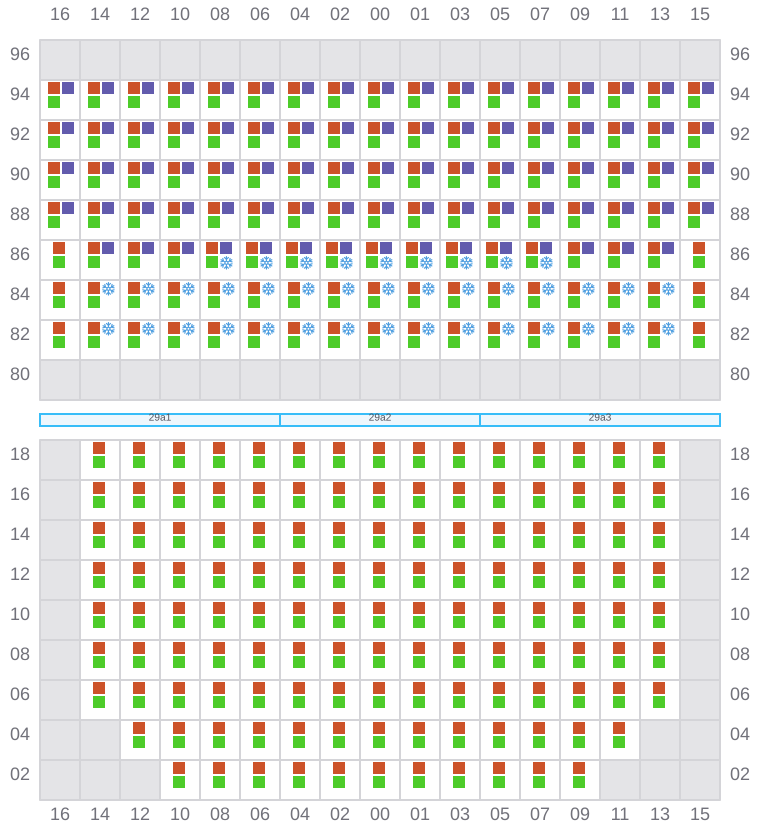

029 (030)

  • / ?
Bay 029 view and slots of CMA CGM OTELLO

031

  • / ?
Bay 031 view and slots of CMA CGM OTELLO

033 (034)

  • / ?
Bay 033 view and slots of CMA CGM OTELLO

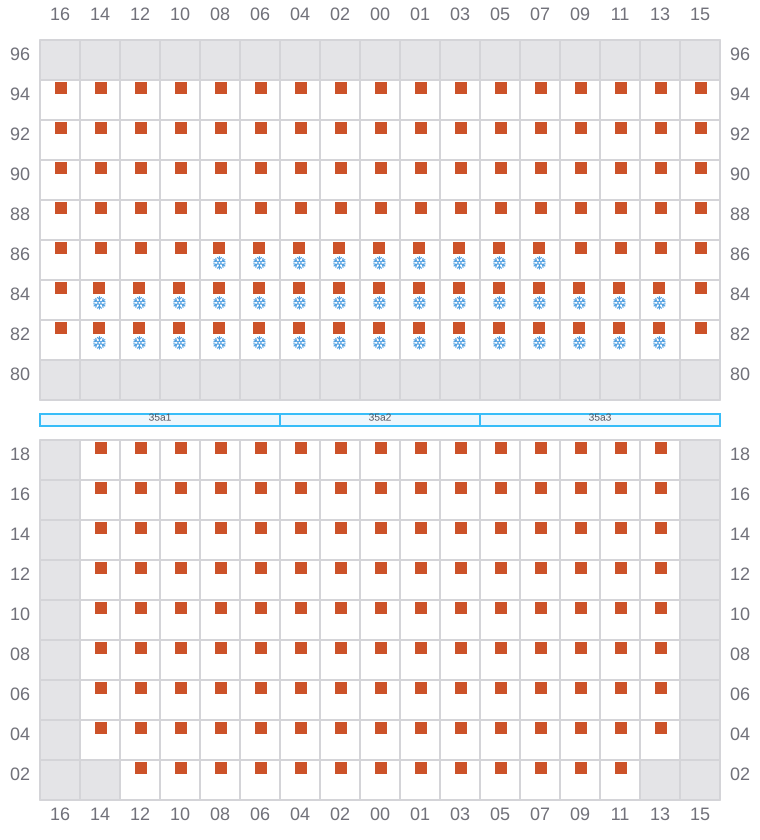

035

  • / ?
Bay 035 view and slots of CMA CGM OTELLO

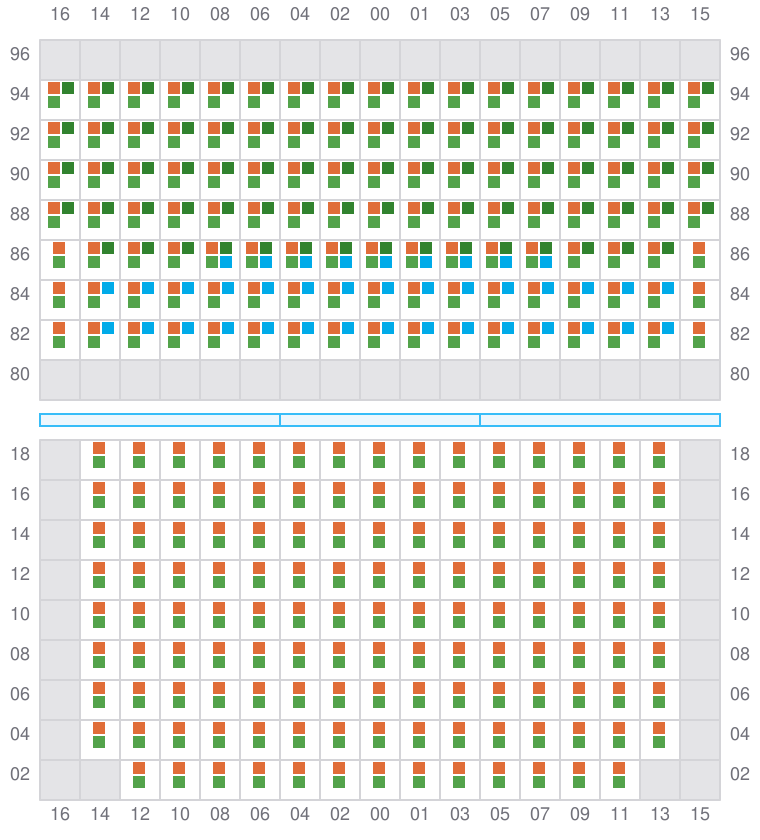

037 (038)

  • / ?
Bay 037 view and slots of CMA CGM OTELLO

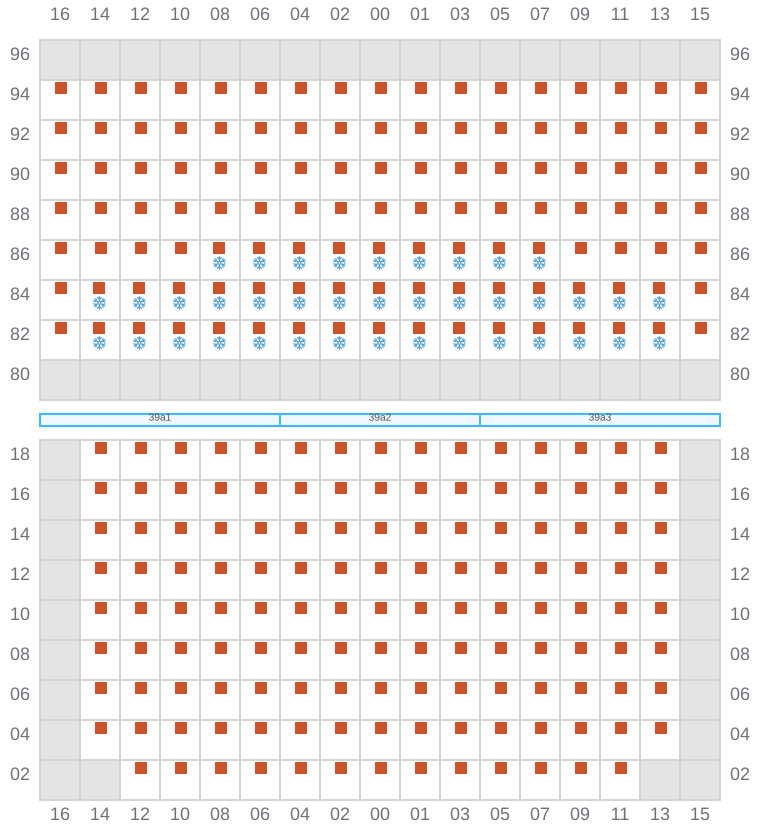

039

  • / ?
Bay 039 view and slots of CMA CGM OTELLO

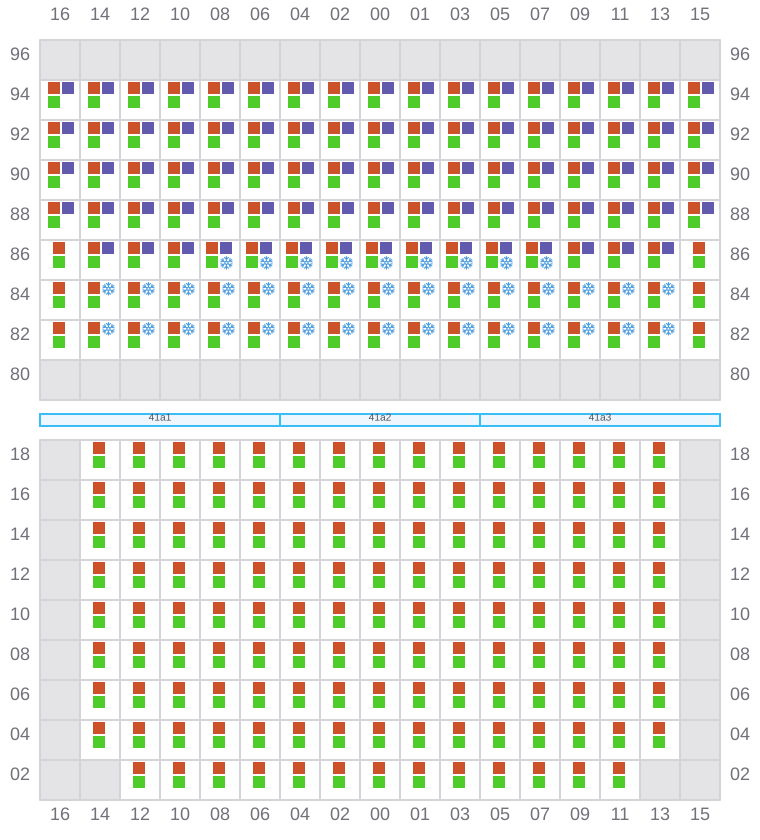

041 (042)

  • / ?
Bay 041 view and slots of CMA CGM OTELLO

043

  • / ?
Bay 043 view and slots of CMA CGM OTELLO

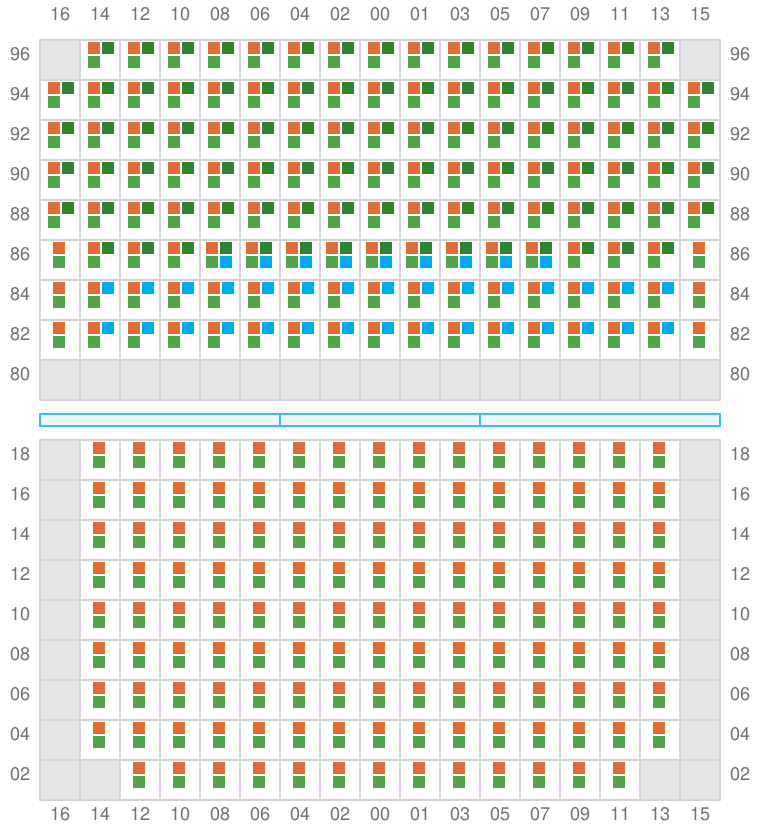

045 (046)

  • / ?
Bay 045 view and slots of CMA CGM OTELLO

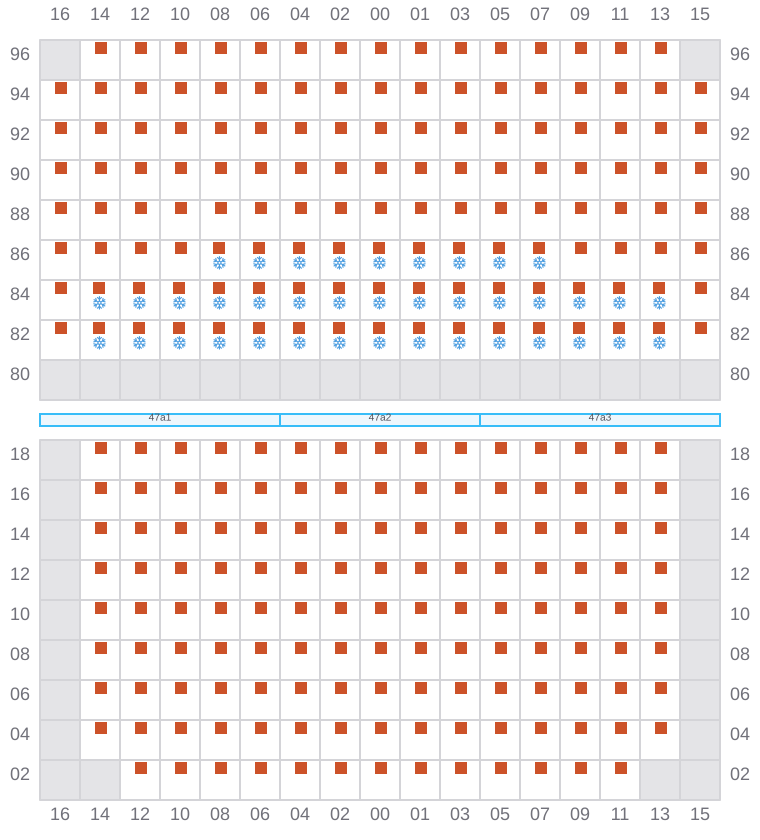

047

  • / ?
Bay 047 view and slots of CMA CGM OTELLO

049 (050)

  • / ?
Bay 049 view and slots of CMA CGM OTELLO

051

  • / ?

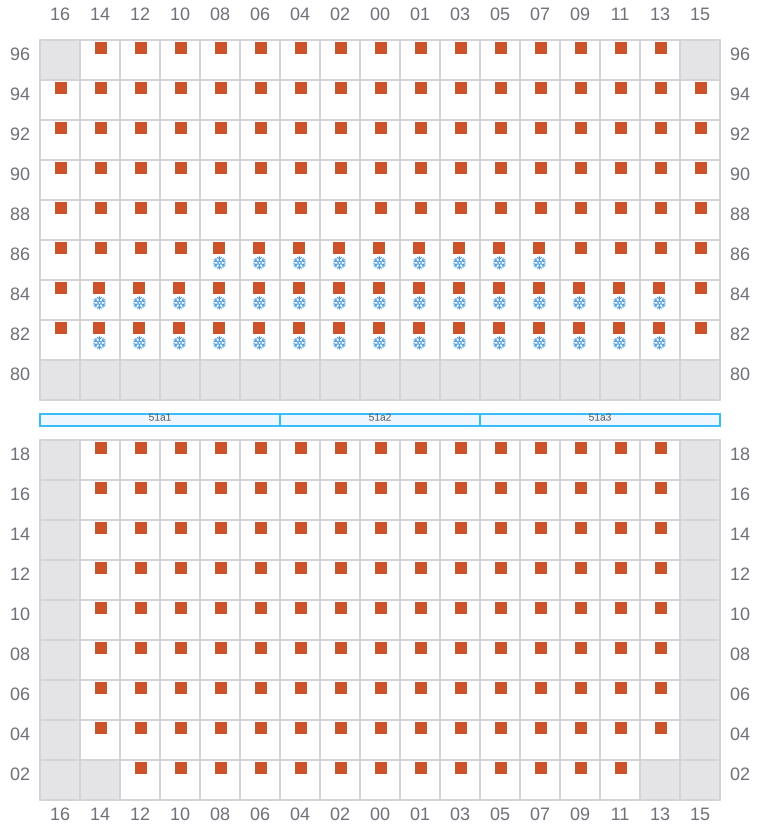

Bay 051 view and slots of CMA CGM OTELLO

053 (054)

  • / ?

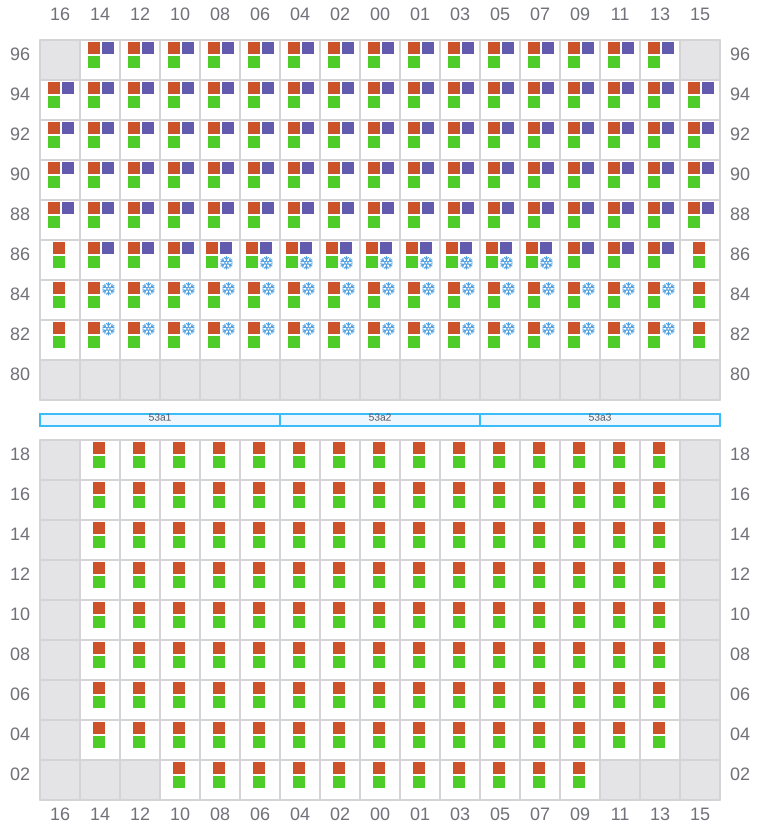

Bay 053 view and slots of CMA CGM OTELLO

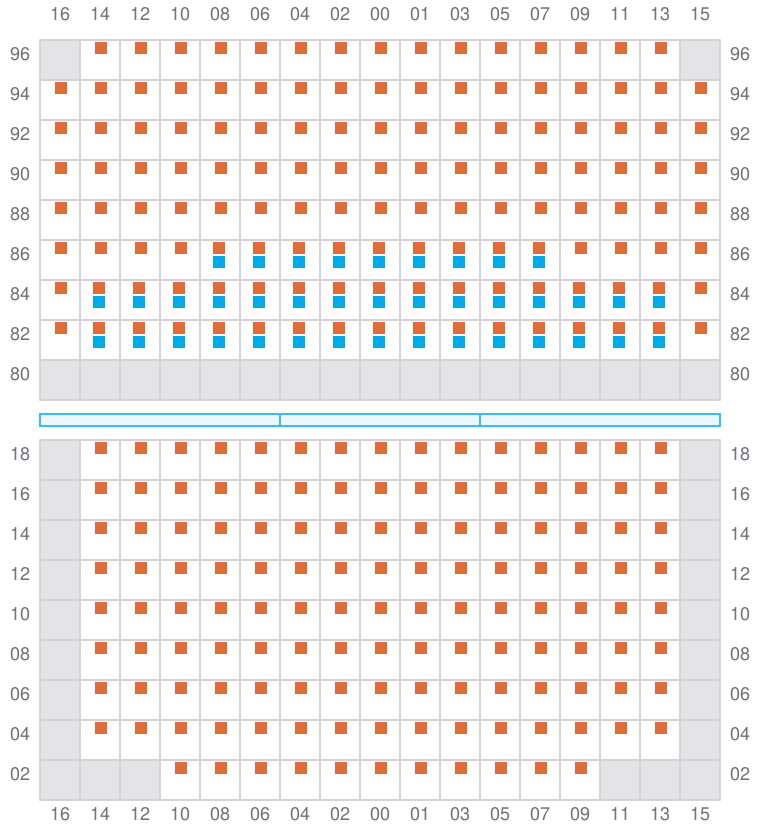

055

  • / ?
Bay 055 view and slots of CMA CGM OTELLO

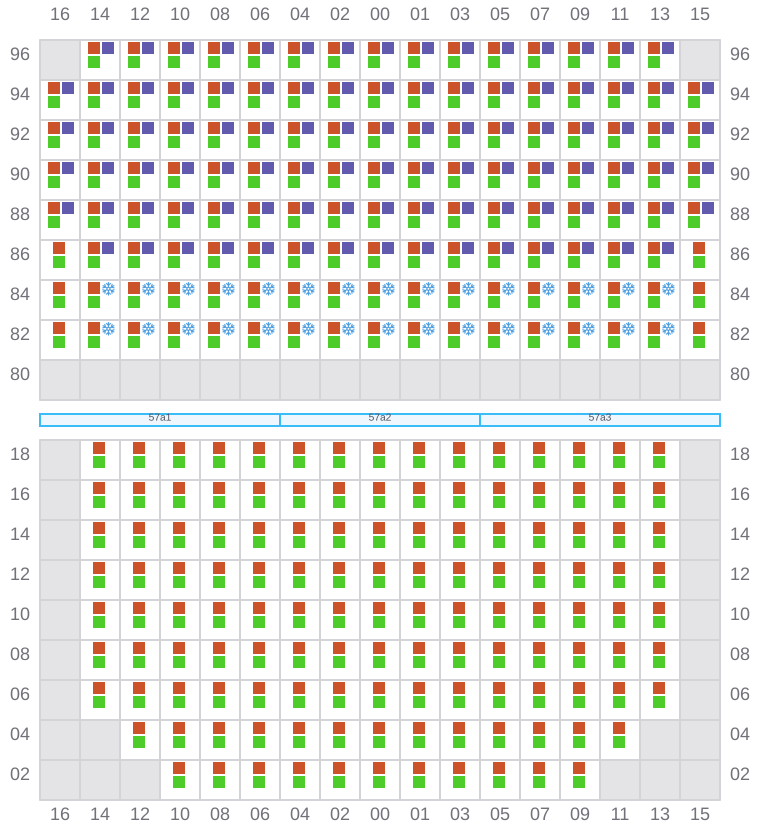

057 (058)

  • / ?
Bay 057 view and slots of CMA CGM OTELLO

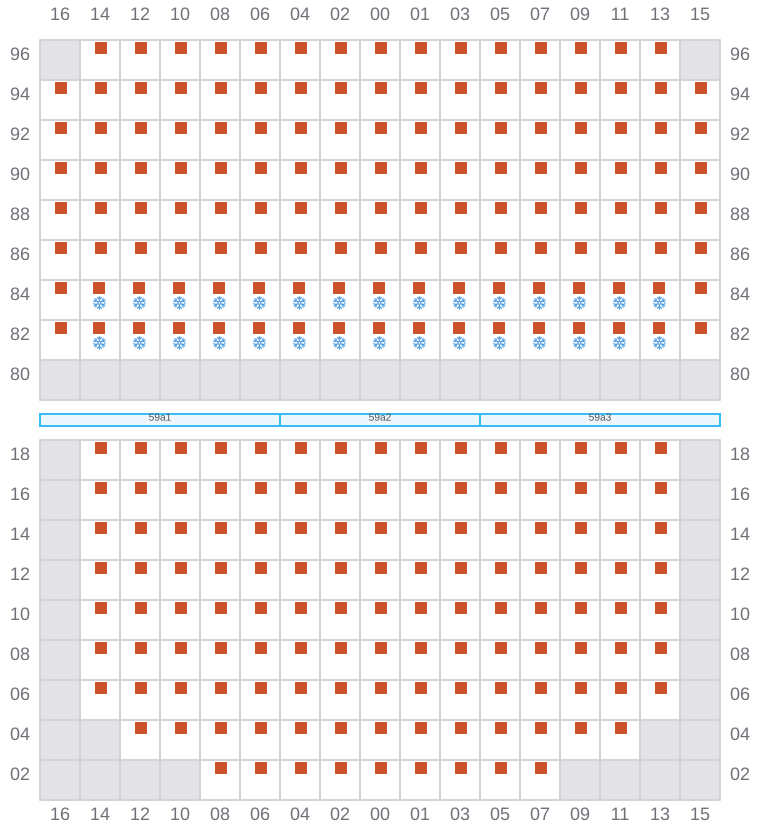

059

  • / ?
Bay 059 view and slots of CMA CGM OTELLO

061 (062)

  • / ?

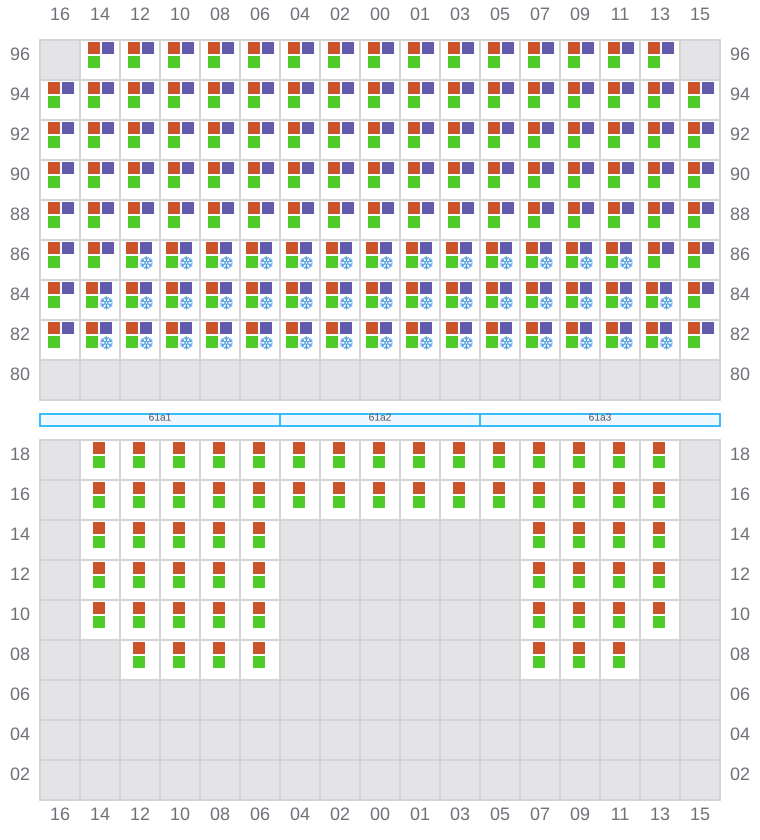

Bay 061 view and slots of CMA CGM OTELLO

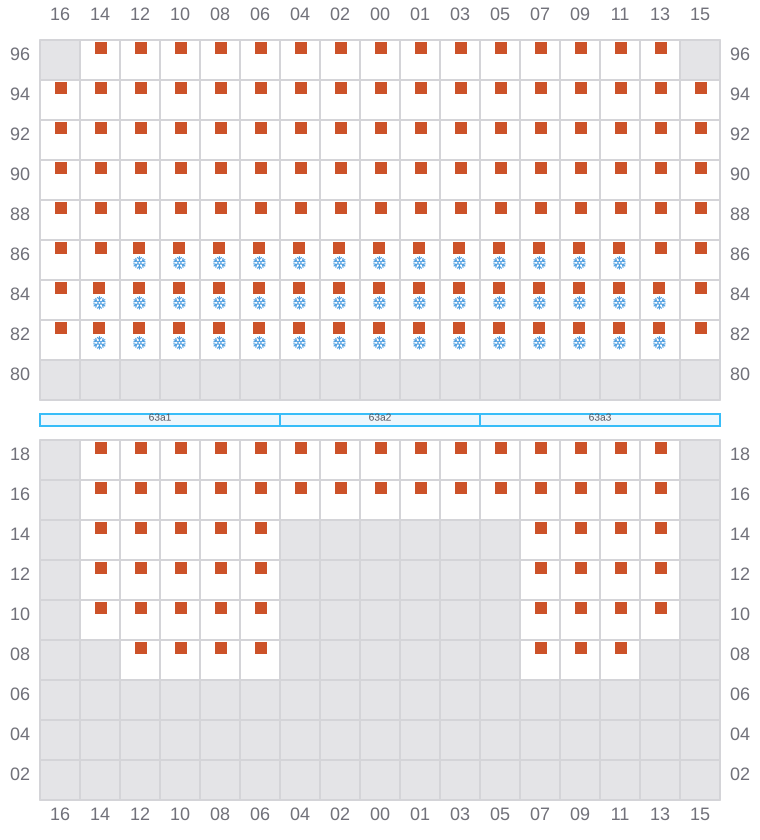

063

  • / ?
Bay 063 view and slots of CMA CGM OTELLO

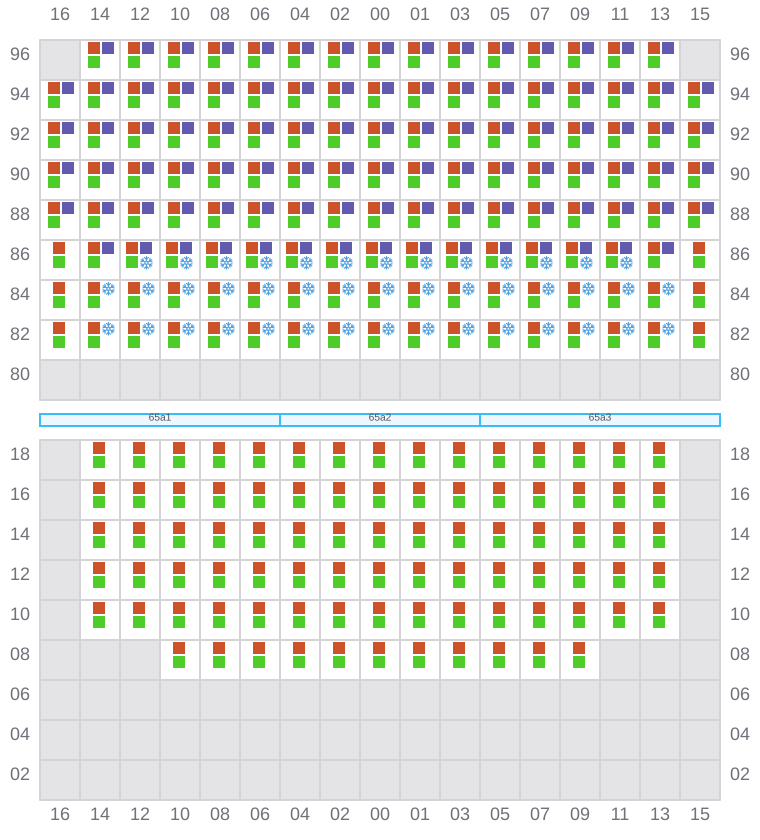

065 (066)

  • / ?
Bay 065 view and slots of CMA CGM OTELLO

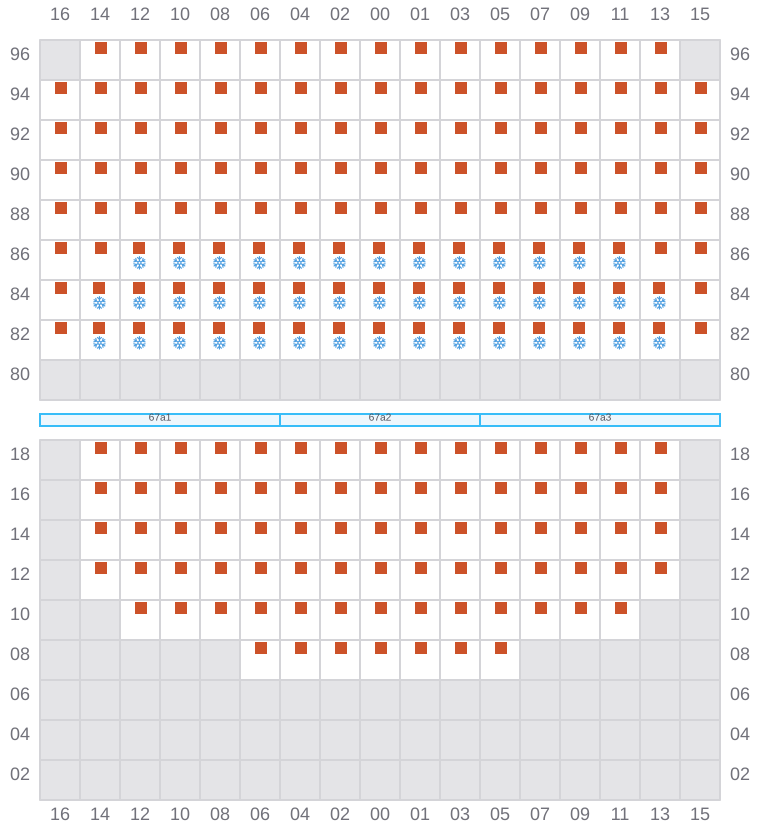

067

  • / ?
Bay 067 view and slots of CMA CGM OTELLO

069 (070)

  • / ?

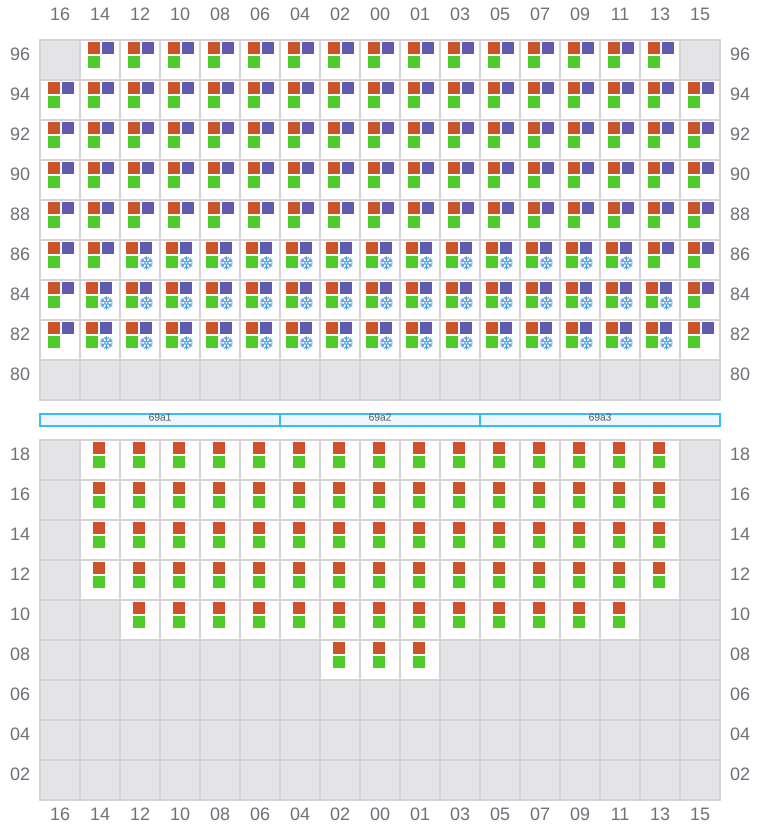

Bay 069 view and slots of CMA CGM OTELLO

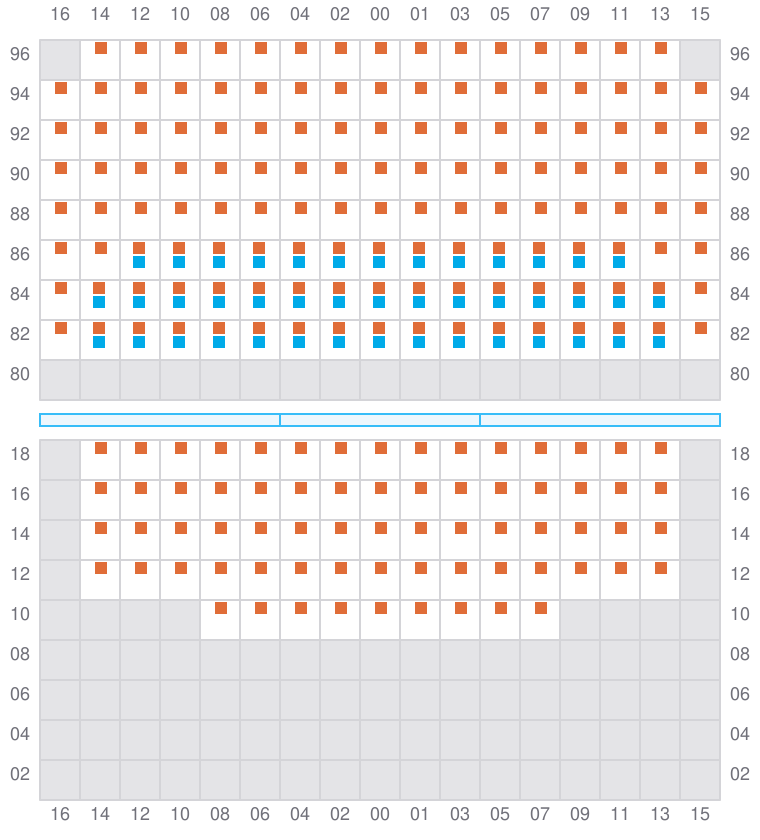

071

  • / ?
Bay 071 view and slots of CMA CGM OTELLO

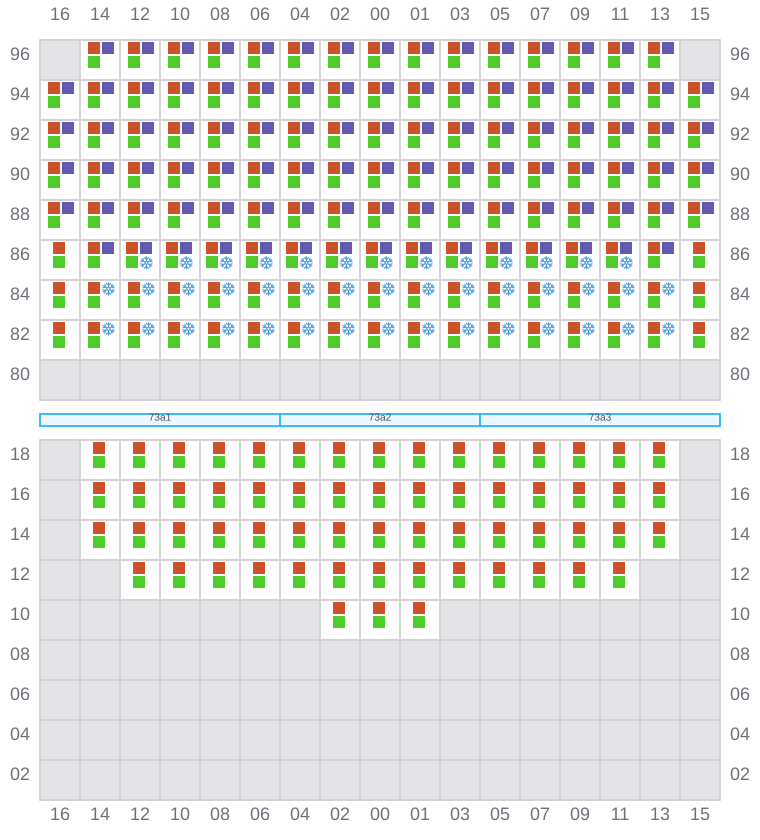

073 (074)

  • / ?
Bay 073 view and slots of CMA CGM OTELLO

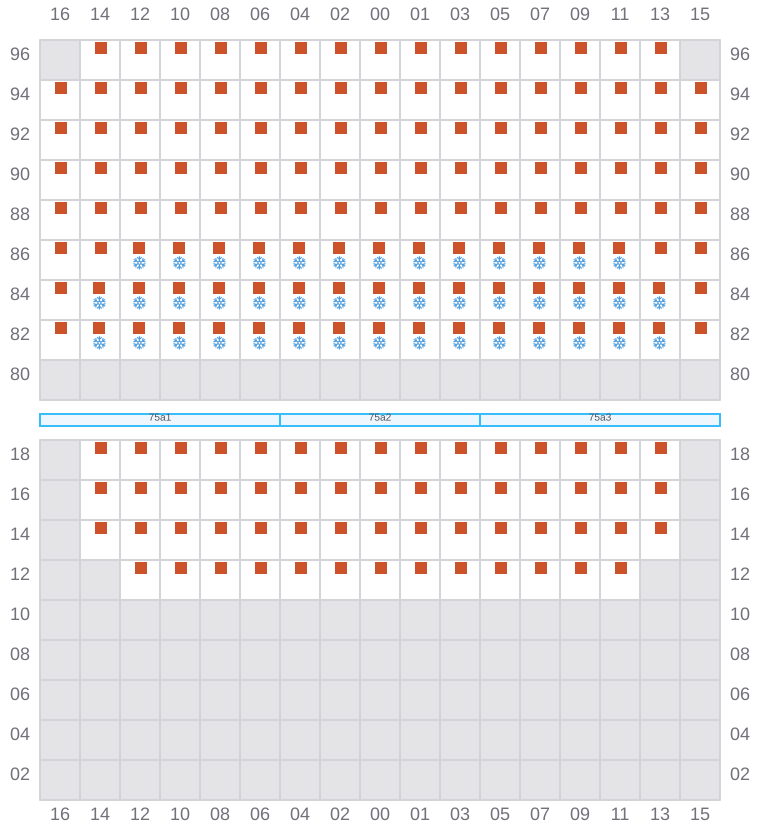

075

  • / ?
Bay 075 view and slots of CMA CGM OTELLO

077 (078)

  • / ?
  • / ?

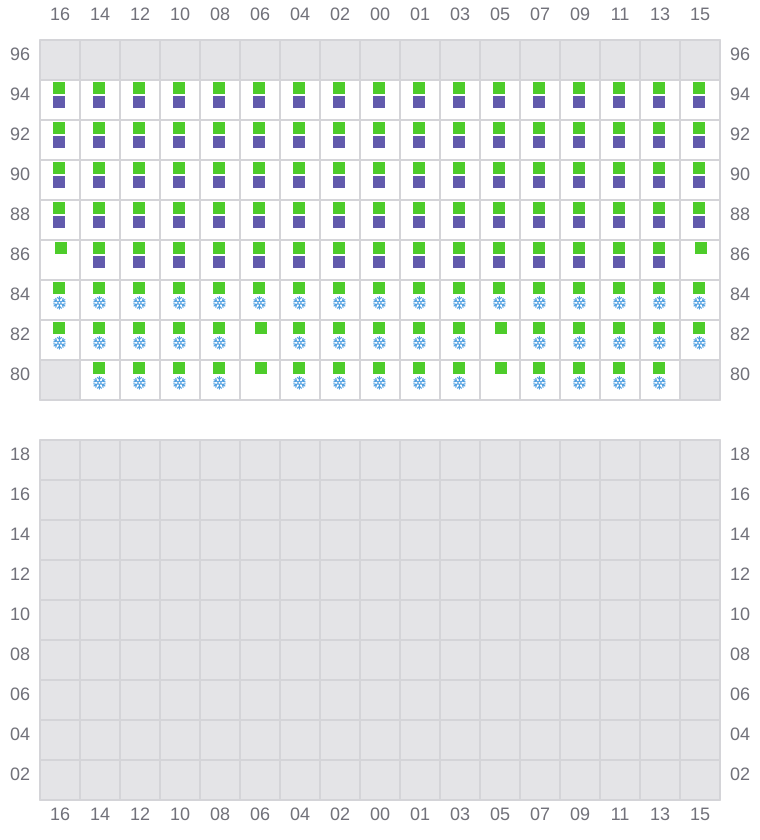

Bay 077 view and slots of CMA CGM OTELLO
