CMA CGM PERTH
9477787 | 9HA5584 | 9477787 by ********* Last update: Tue Jun 18 2024
General Info
Ship Name:CMA CGM PERTH
IMO Code:9477787
Call Sign:9HA5584
Line Operator:9477787
Class Name for Sister Ships:SLA
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,275
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

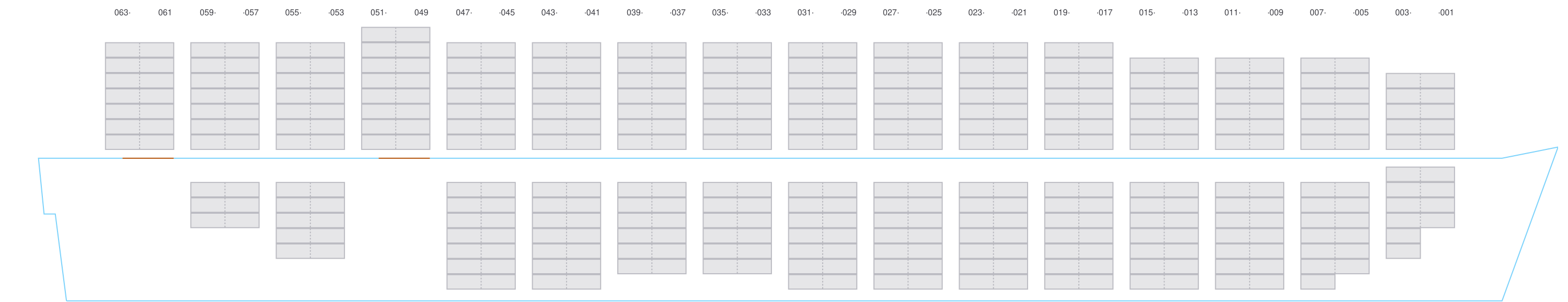

Side View

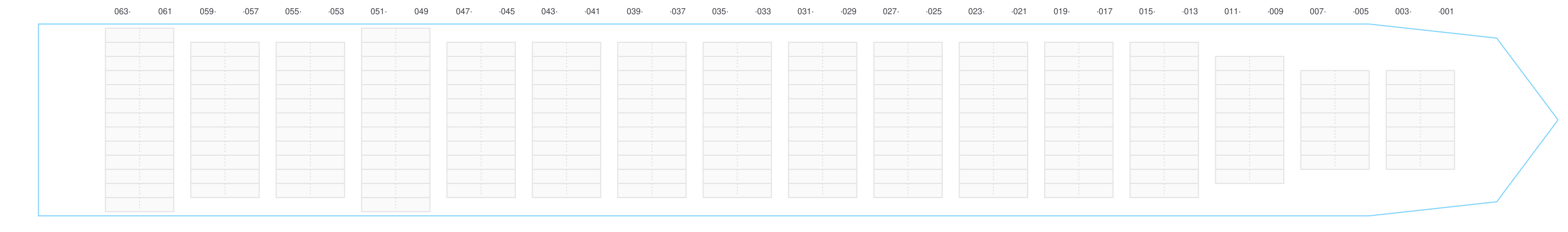

Hatch-Covers View

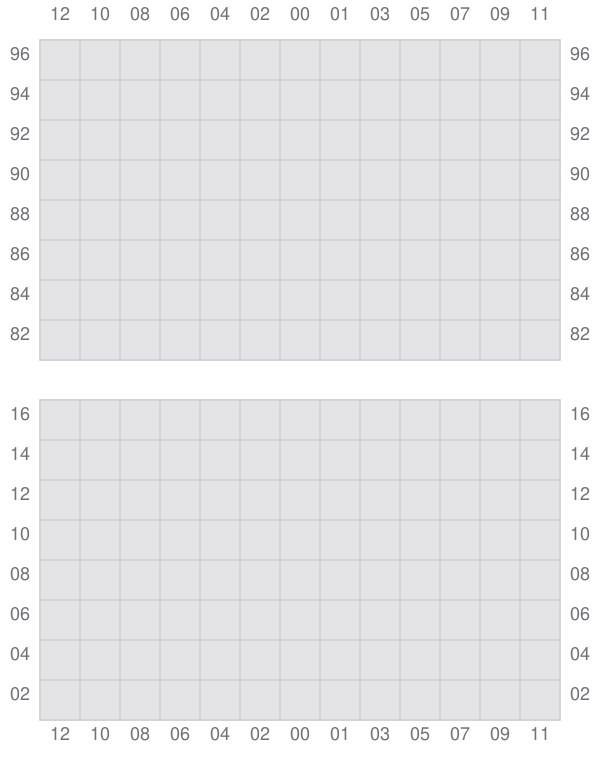

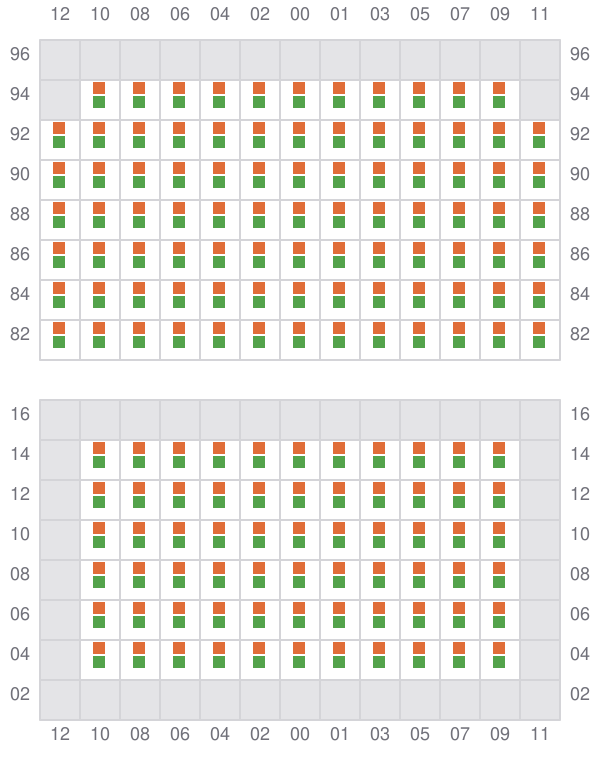

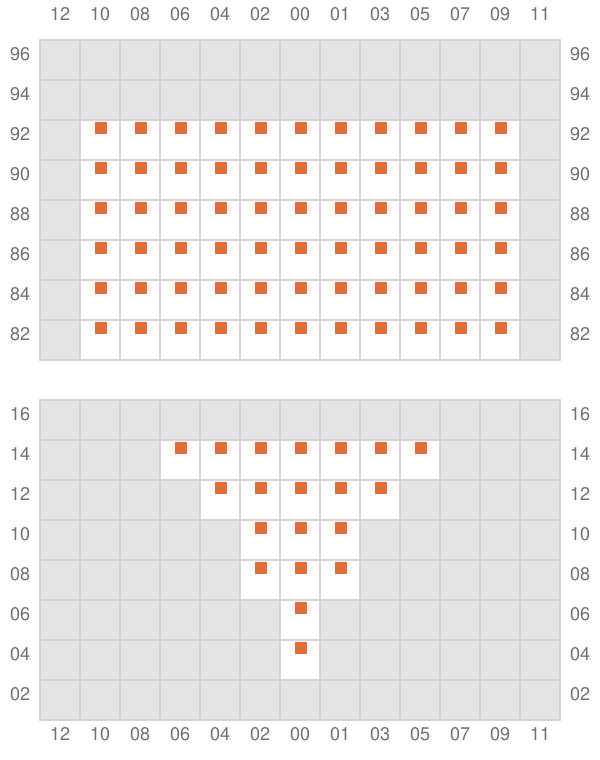

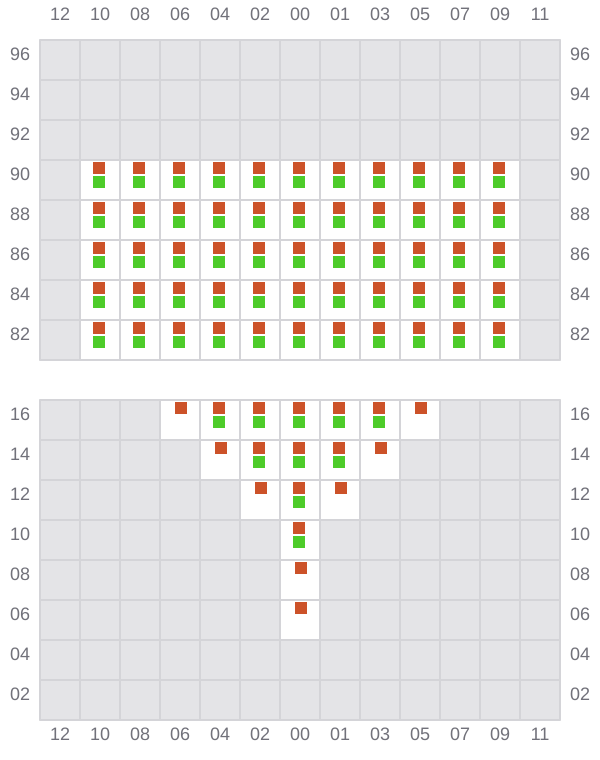

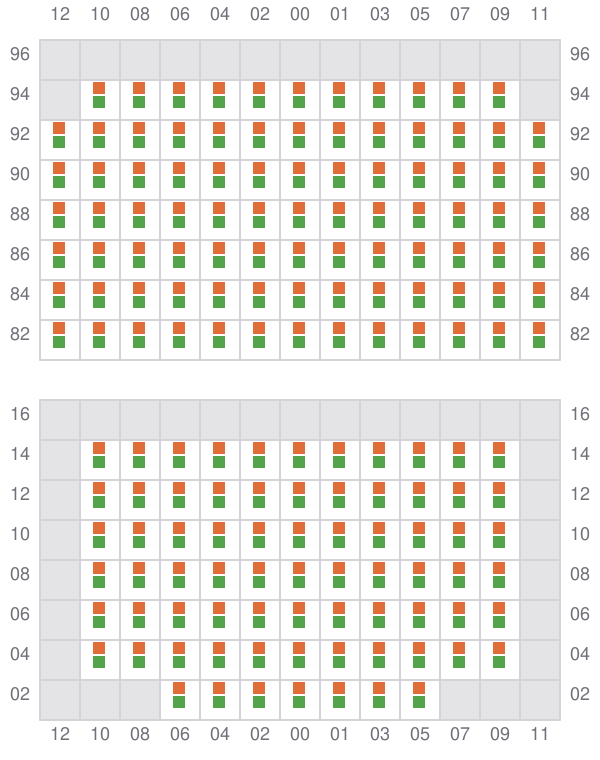

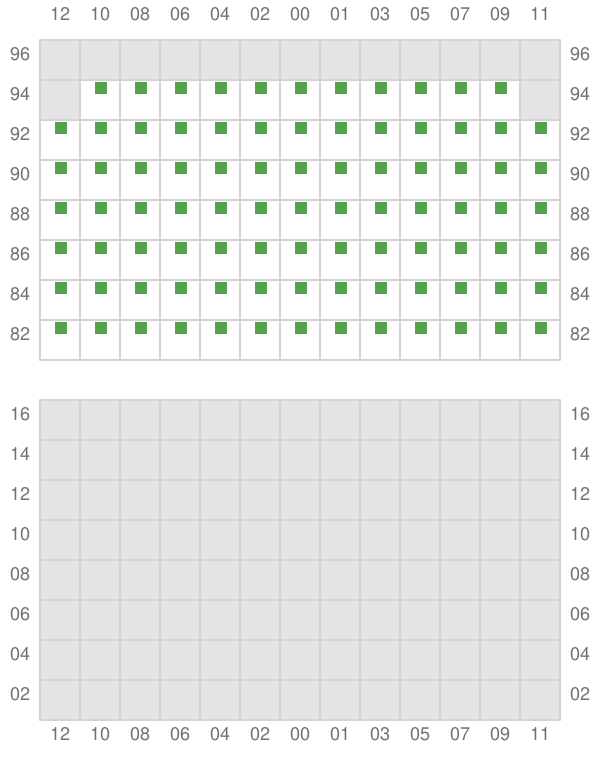

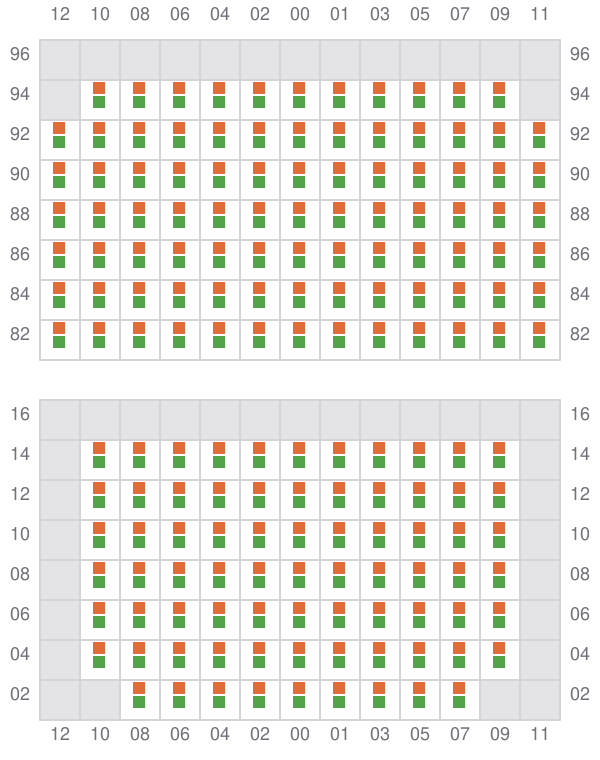

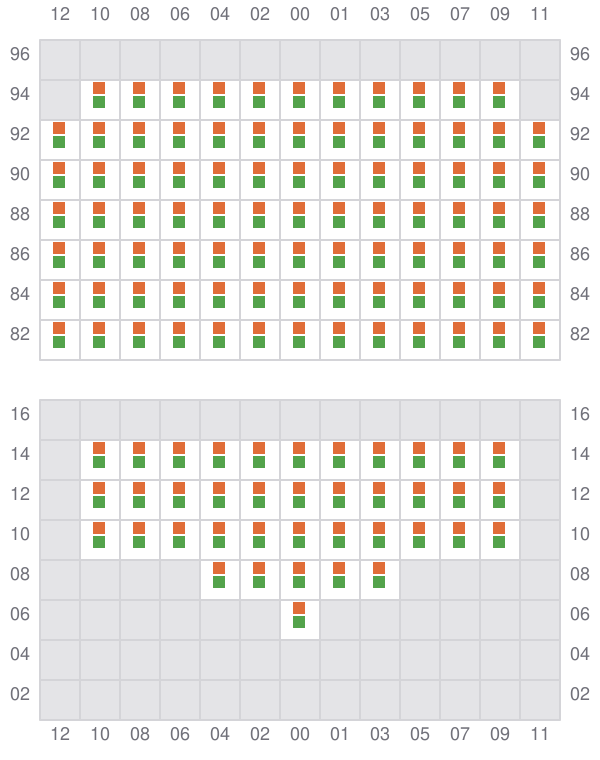

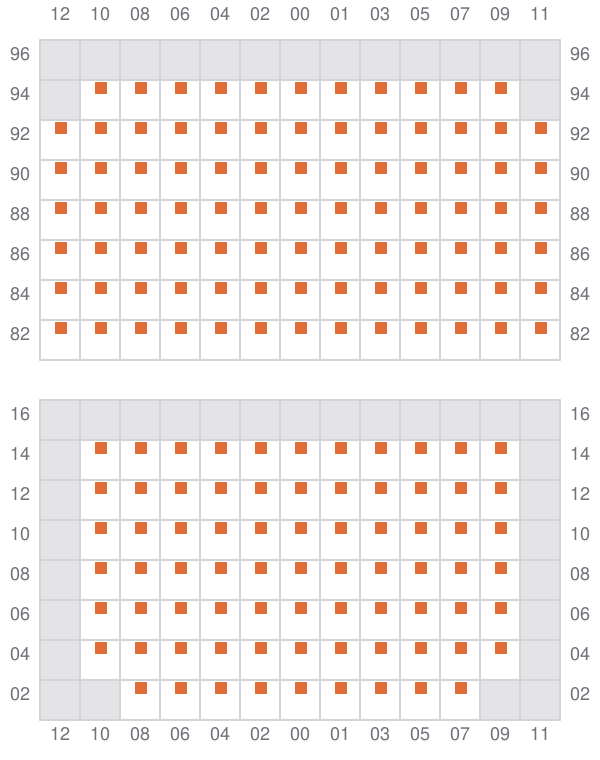

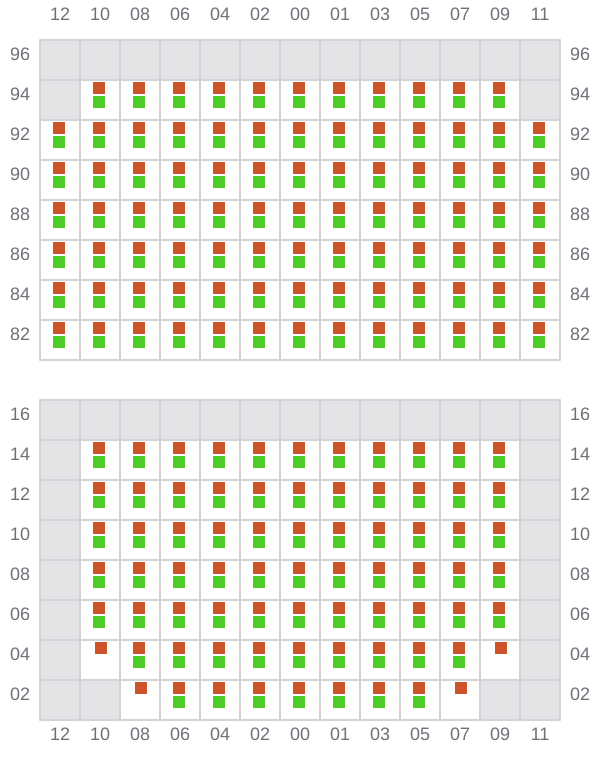

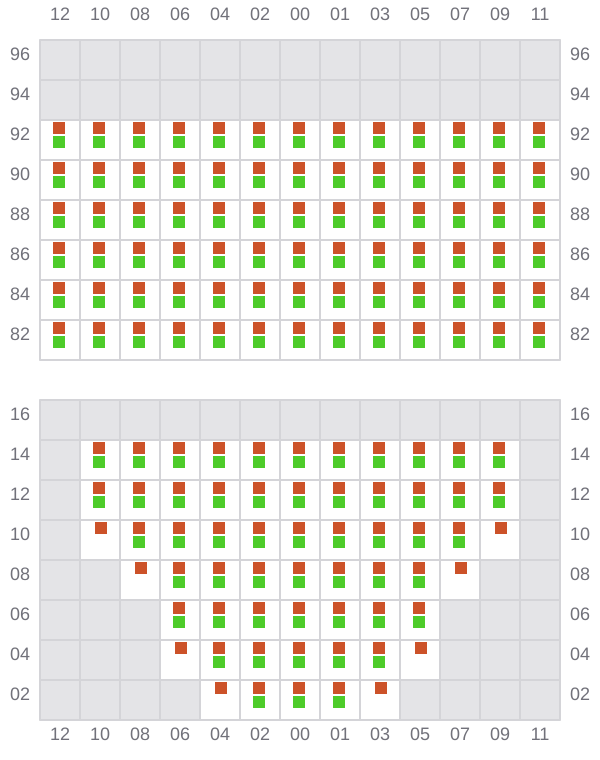

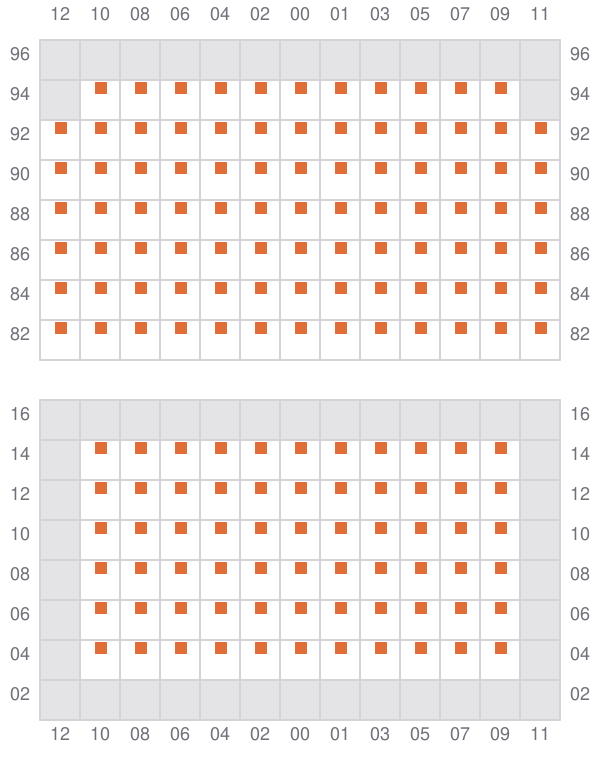

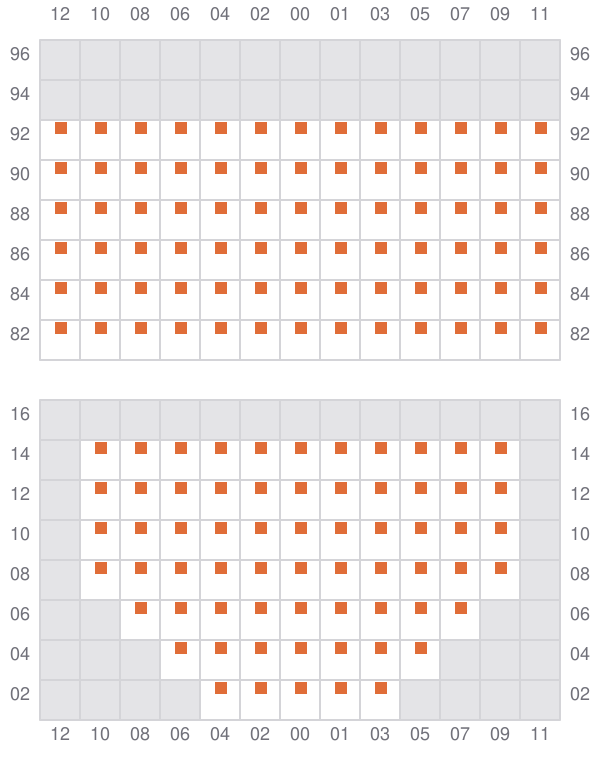

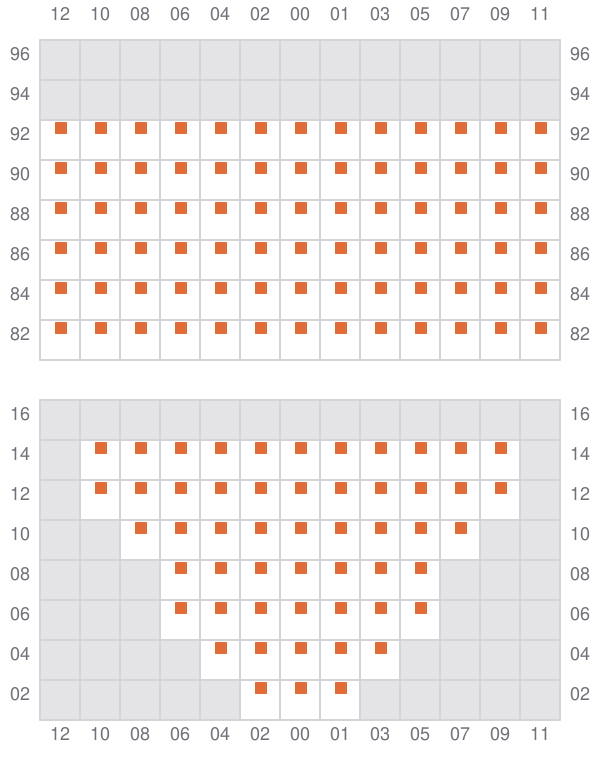

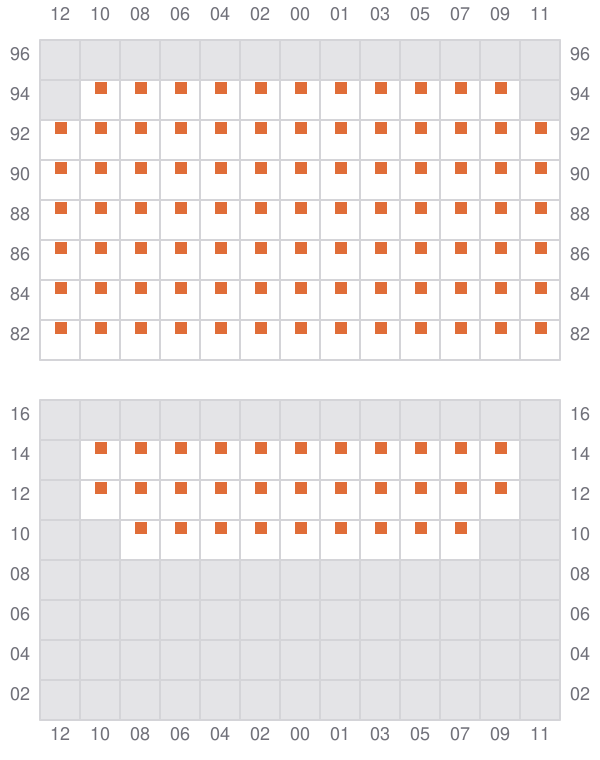

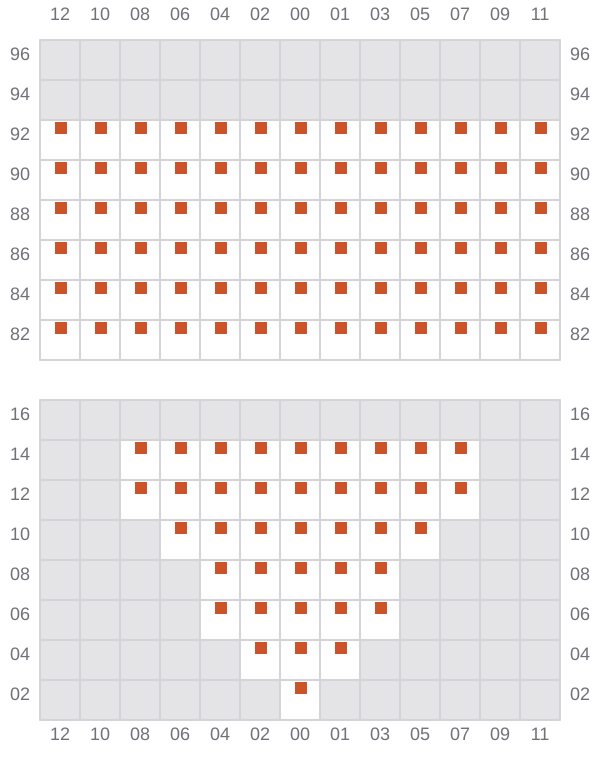

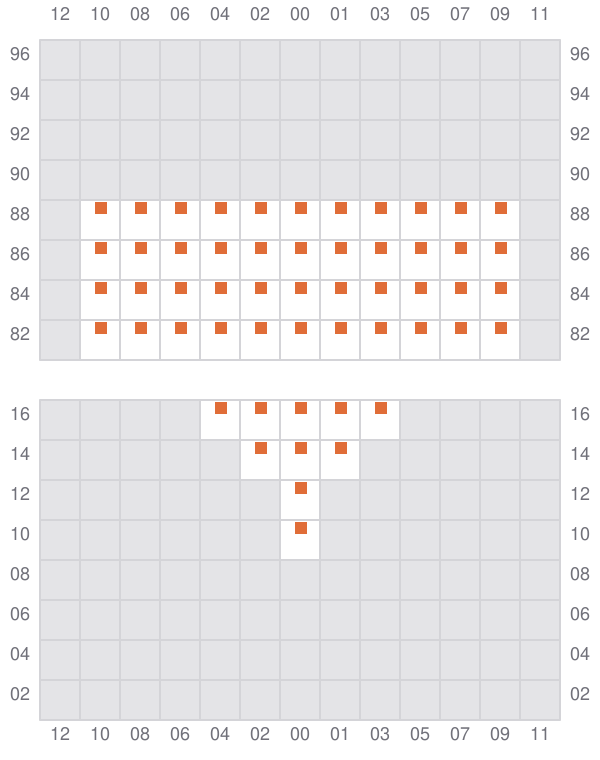

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
003 (002)
- ←
005
- →

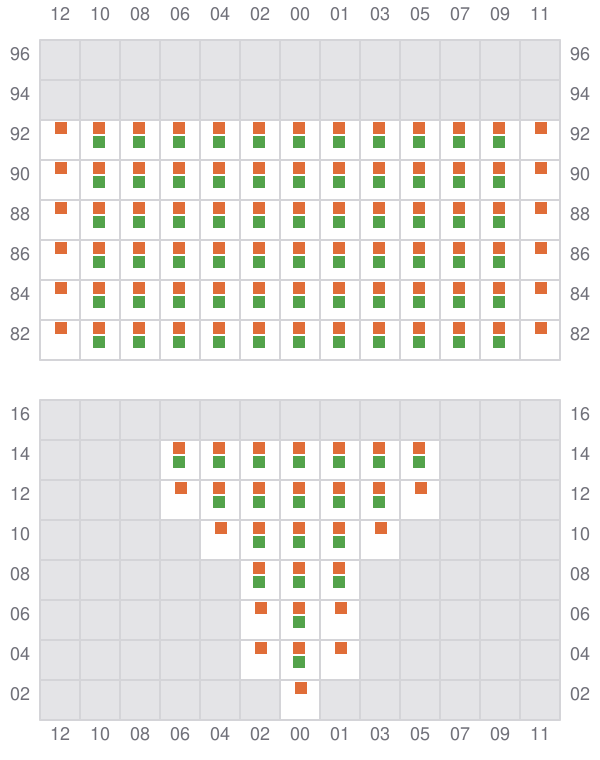

007 (006)
- ←
009
- →

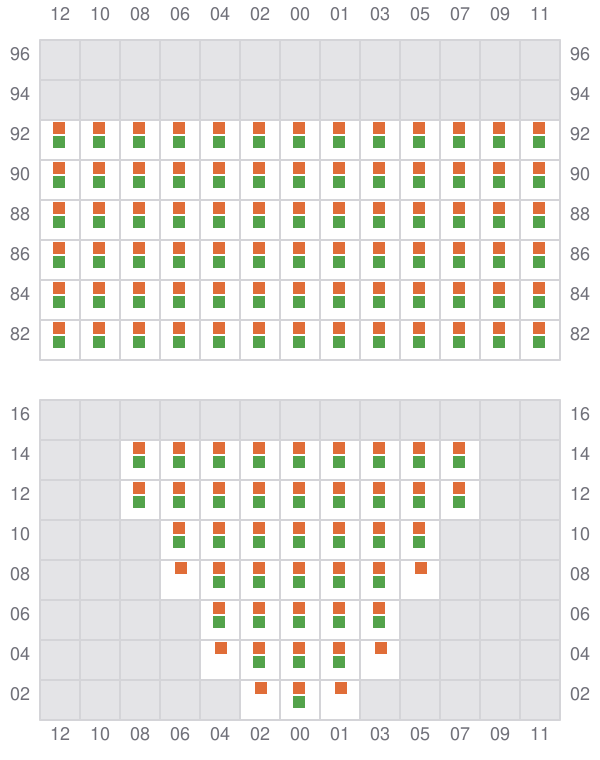

011 (010)
- ←
013
- →
015 (014)
- ←
017
- →

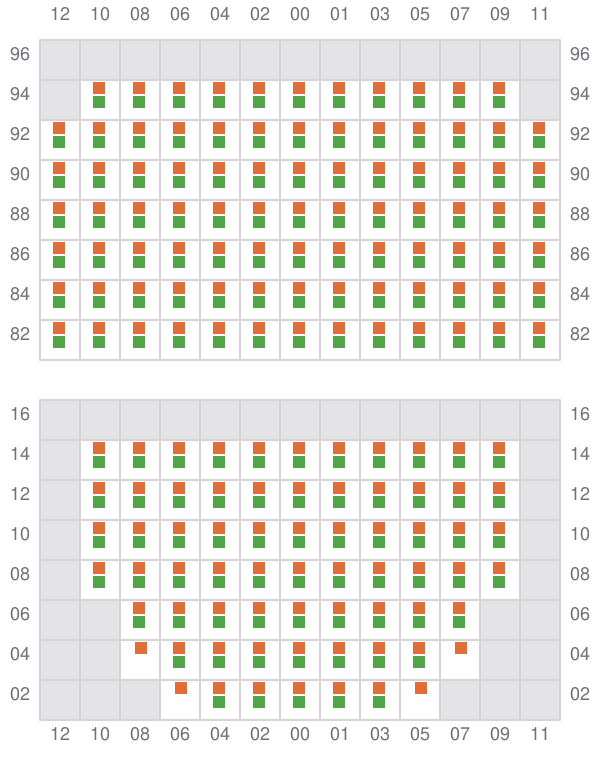

019 (018)
- ←
021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←

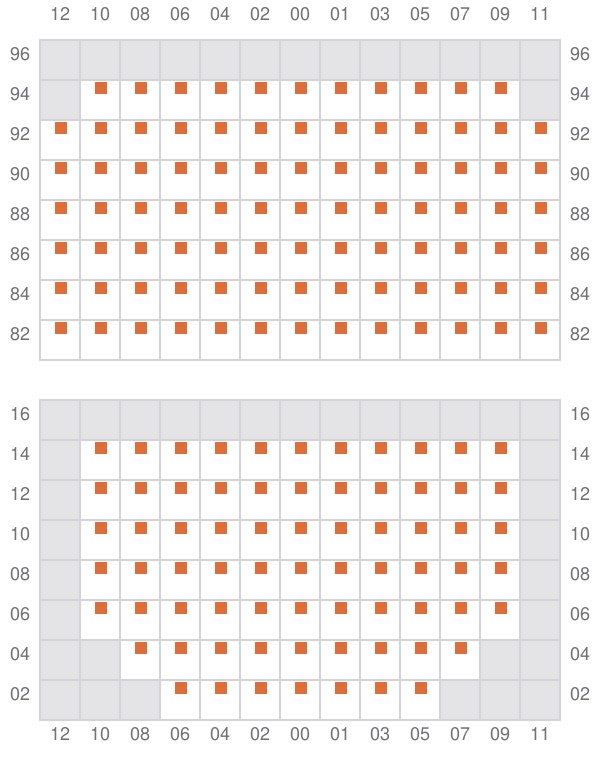

045
- →

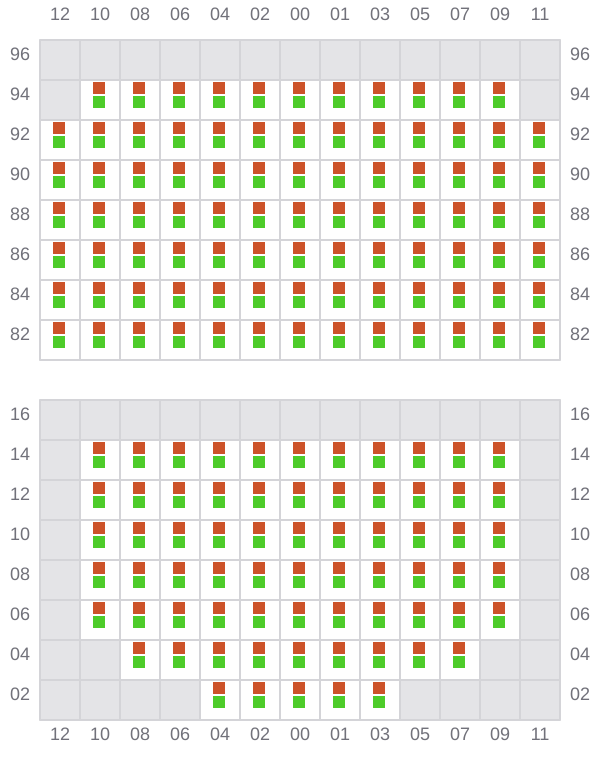

047 (046)
- ←
049
051 (050)
- ← / ?

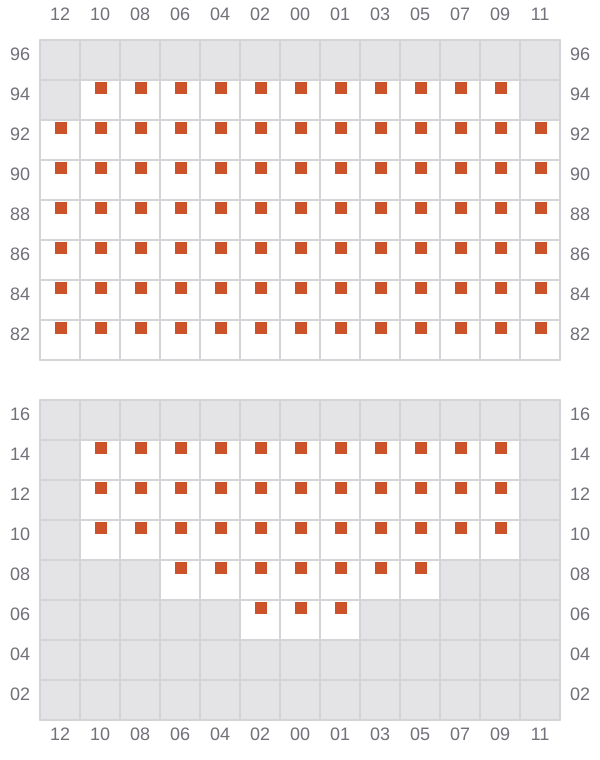

053
- →
055 (054)
- ←
057
- →

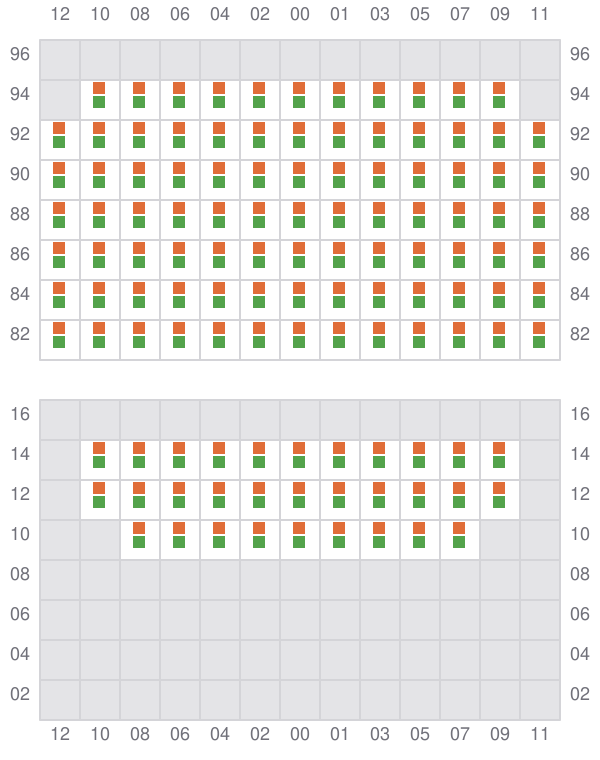

059 (058)
- ←
061
063 (062)
- ← / ?
