CMA CGM PUERTO ANTIOQUIA
9275050 | C6GD7 | MSK by ************************** Last update: Sun Jun 25 2023

General Info

Ship Name:CMA CGM PUERTO ANTIOQUIA
IMO Code:9275050
Call Sign:C6GD7
Line Operator:MSK
Class Name for Sister Ships:NTG
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):210.06
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,556

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of CMA CGM PUERTO ANTIOQUIA

Hatch-Covers View

Deck view of CMA CGM PUERTO ANTIOQUIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

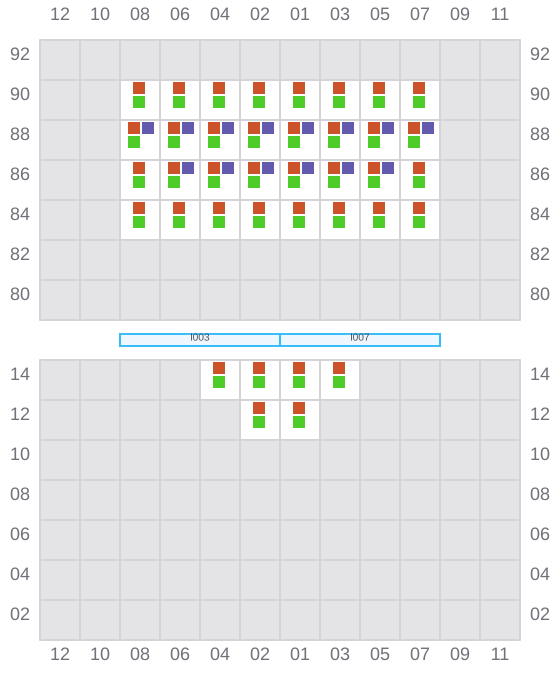

Bay 001 view and slots of CMA CGM PUERTO ANTIOQUIA

003

  • ←
  • → / ?

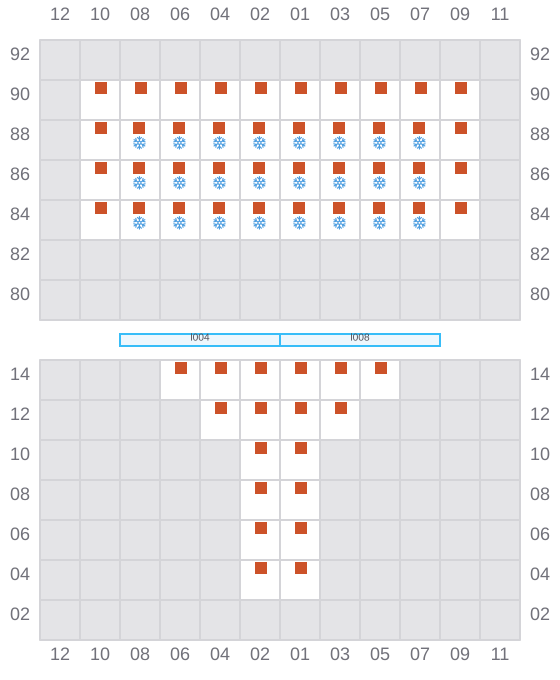

Bay 003 view and slots of CMA CGM PUERTO ANTIOQUIA

005 (006)

  • →

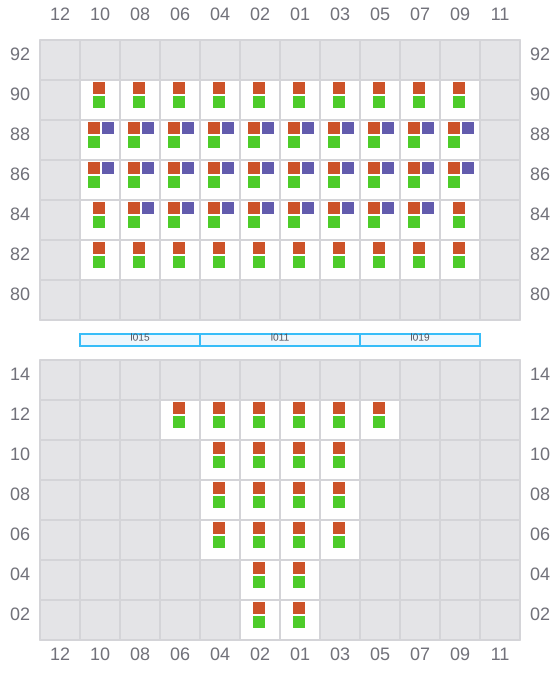

Bay 005 view and slots of CMA CGM PUERTO ANTIOQUIA

007

  • ←
  • →

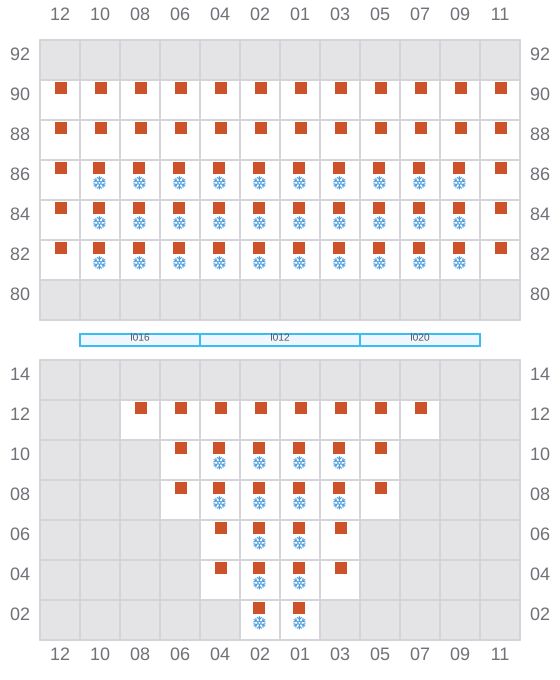

Bay 007 view and slots of CMA CGM PUERTO ANTIOQUIA

009 (010)

  • →

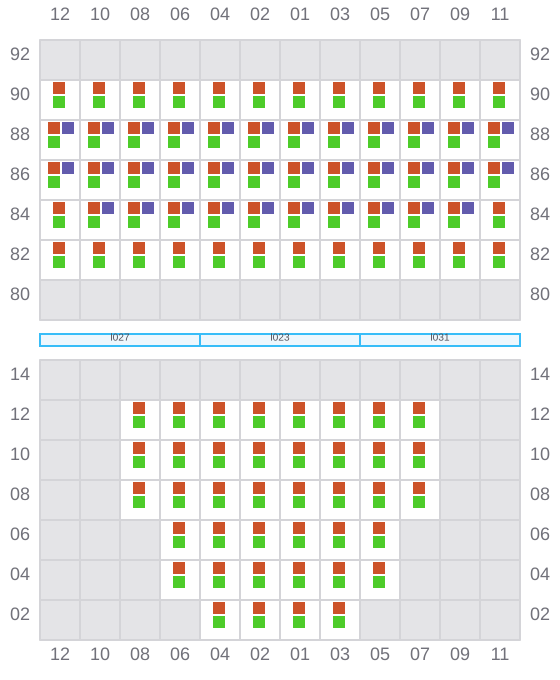

Bay 009 view and slots of CMA CGM PUERTO ANTIOQUIA

011

  • ←
  • →

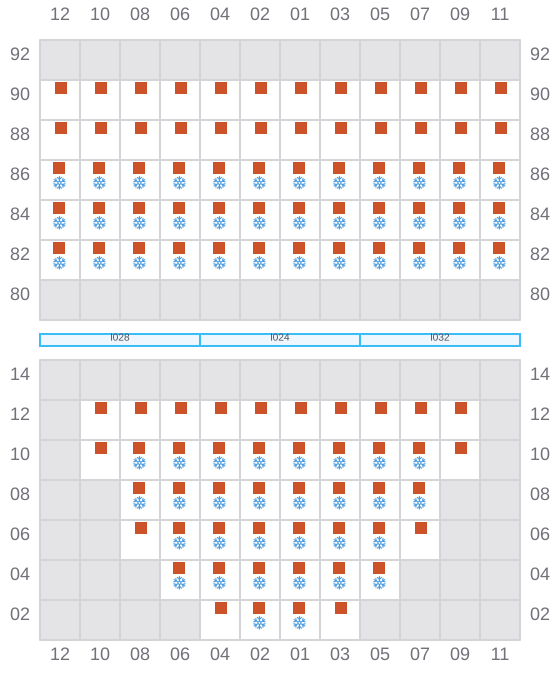

Bay 011 view and slots of CMA CGM PUERTO ANTIOQUIA

013 (014)

  • →

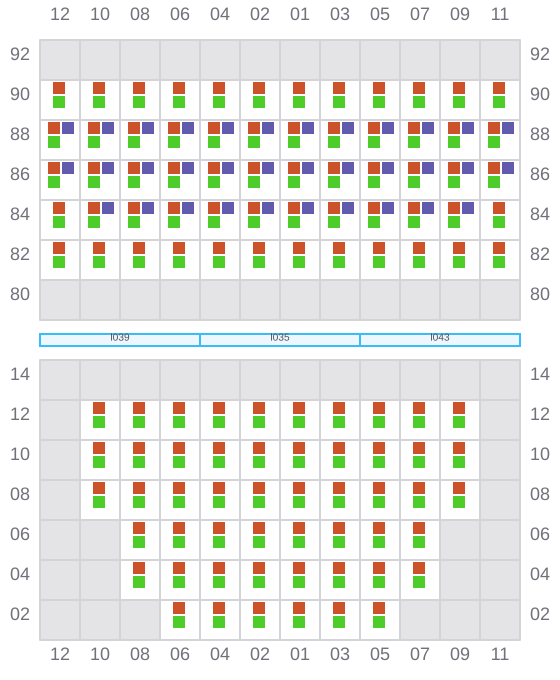

Bay 013 view and slots of CMA CGM PUERTO ANTIOQUIA

015

  • ←
  • →

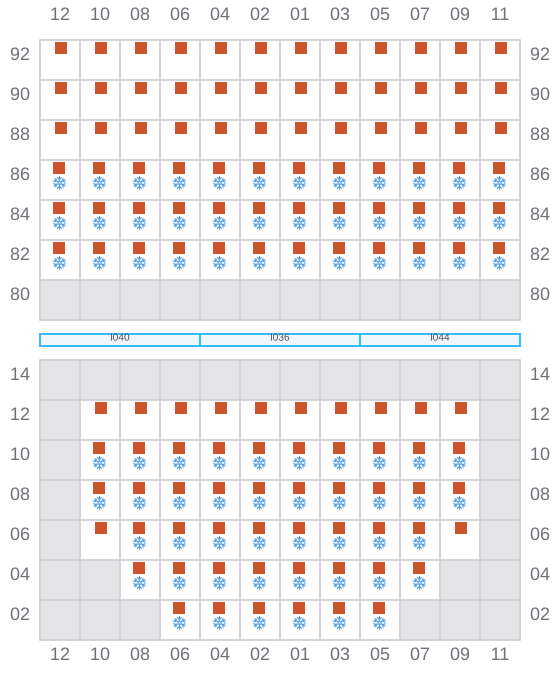

Bay 015 view and slots of CMA CGM PUERTO ANTIOQUIA

017 (018)

  • →

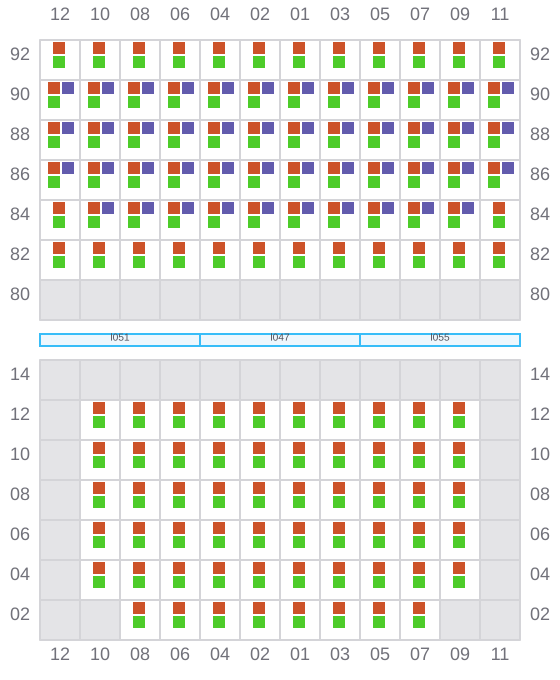

Bay 017 view and slots of CMA CGM PUERTO ANTIOQUIA

019

  • ←
  • →

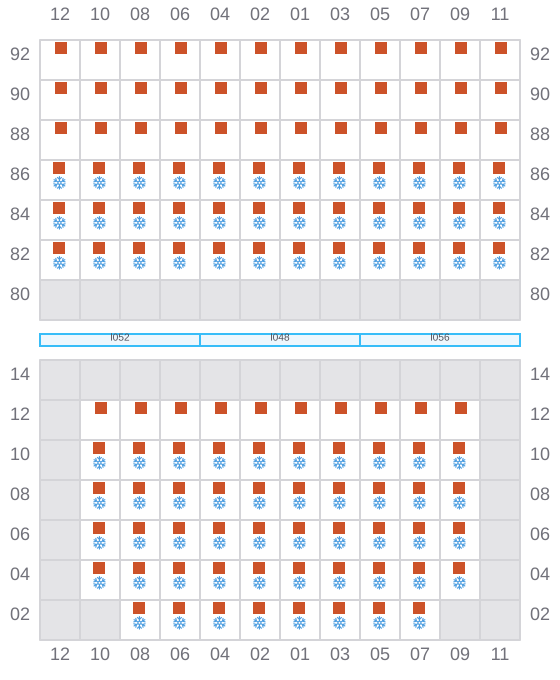

Bay 019 view and slots of CMA CGM PUERTO ANTIOQUIA

021 (022)

  • →
  • ← / ?

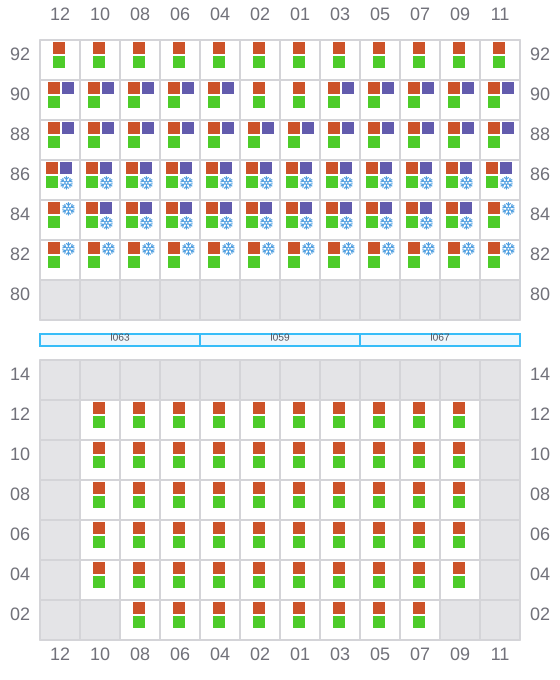

Bay 021 view and slots of CMA CGM PUERTO ANTIOQUIA

023

  • ←
  • →

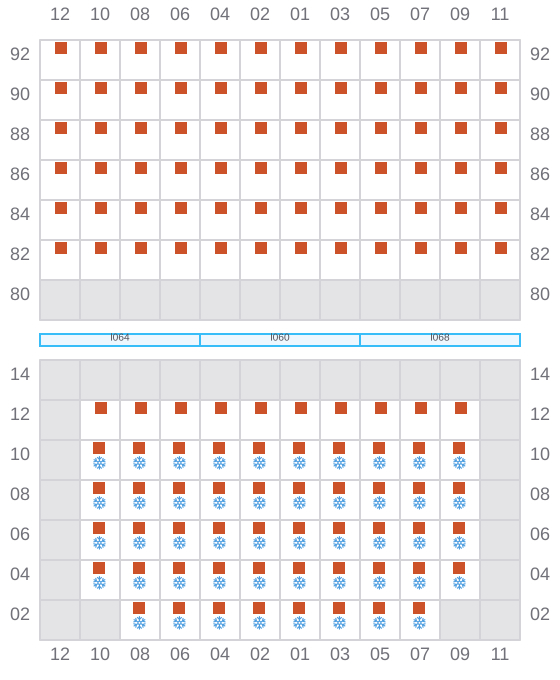

Bay 023 view and slots of CMA CGM PUERTO ANTIOQUIA

025 (026)

  • →

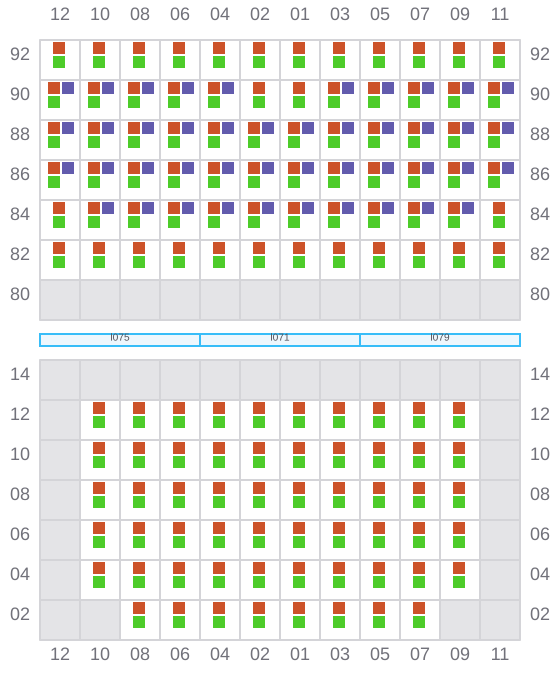

Bay 025 view and slots of CMA CGM PUERTO ANTIOQUIA

027

  • ←
  • →

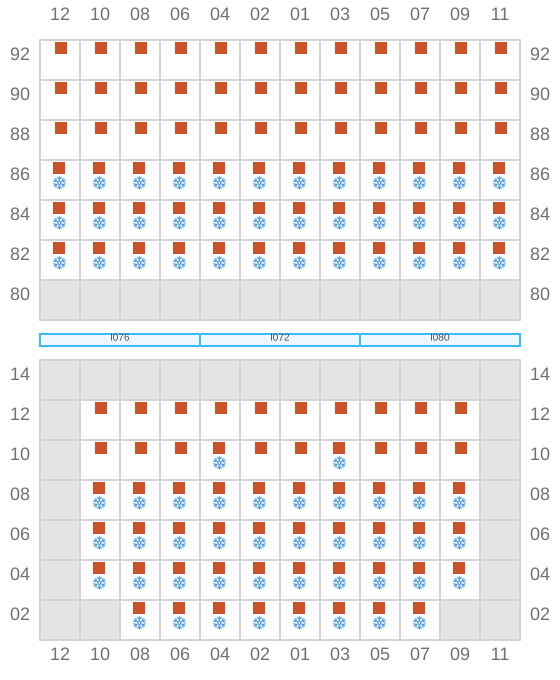

Bay 027 view and slots of CMA CGM PUERTO ANTIOQUIA

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of CMA CGM PUERTO ANTIOQUIA

031

  • ←
  • →

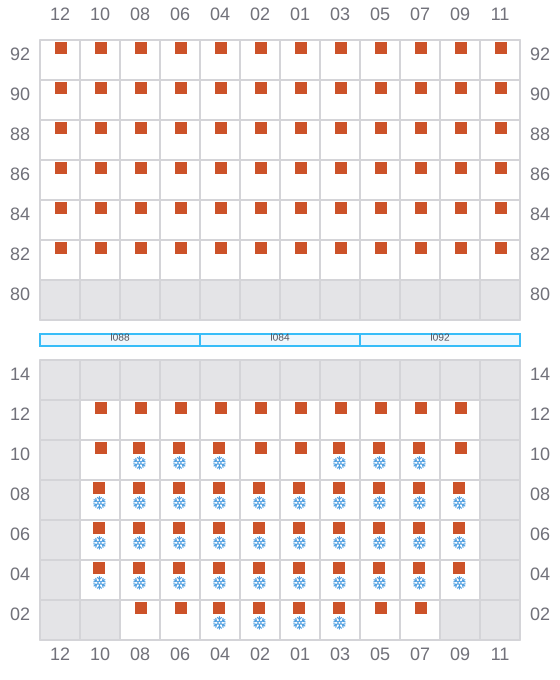

Bay 031 view and slots of CMA CGM PUERTO ANTIOQUIA

033 (034)

  • →

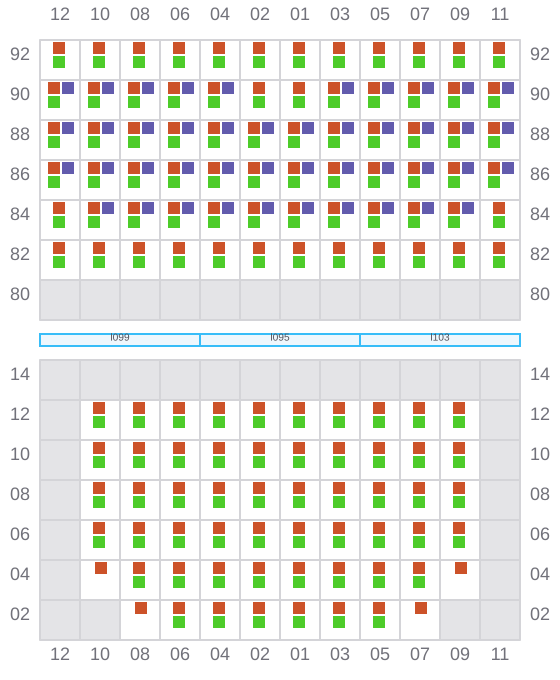

Bay 033 view and slots of CMA CGM PUERTO ANTIOQUIA

035

  • ←
  • →

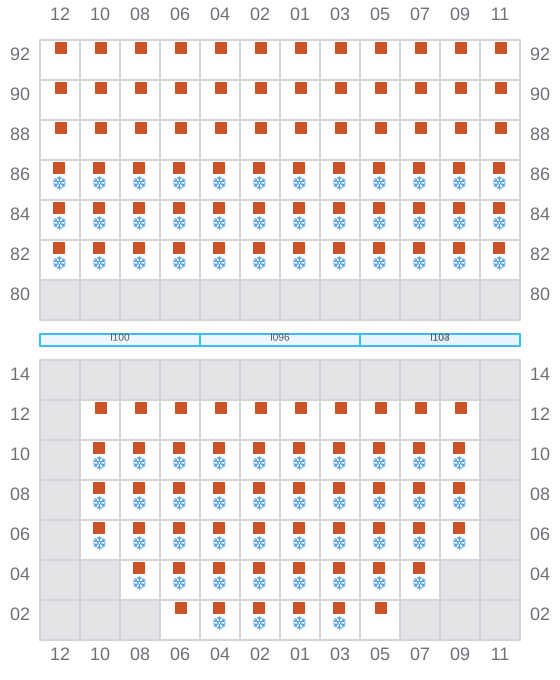

Bay 035 view and slots of CMA CGM PUERTO ANTIOQUIA

037 (038)

  • →
  • ← / ?

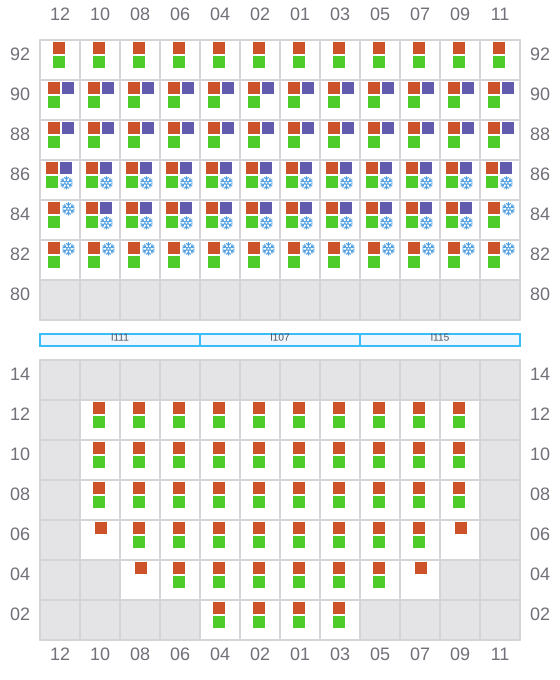

Bay 037 view and slots of CMA CGM PUERTO ANTIOQUIA

039

  • ←
  • →

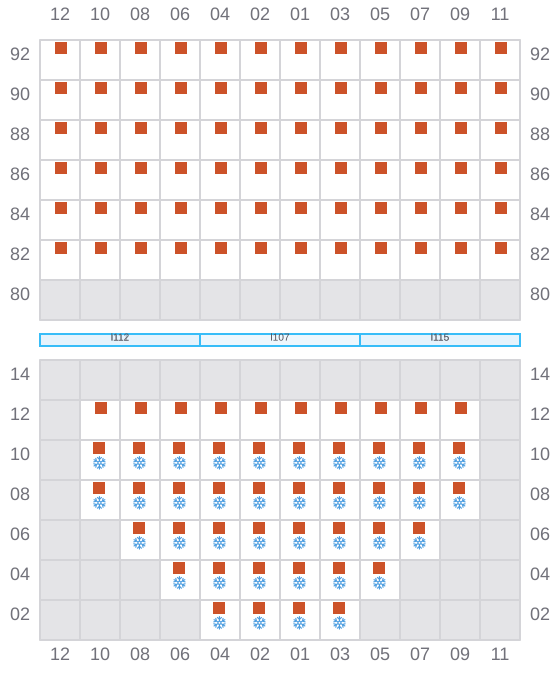

Bay 039 view and slots of CMA CGM PUERTO ANTIOQUIA

041 (042)

  • → / ?

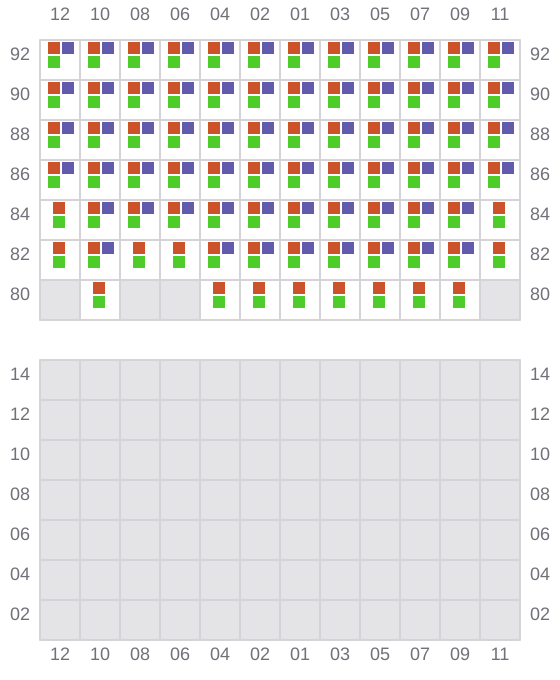

Bay 041 view and slots of CMA CGM PUERTO ANTIOQUIA

043

  • ← / ?
  • → / ?

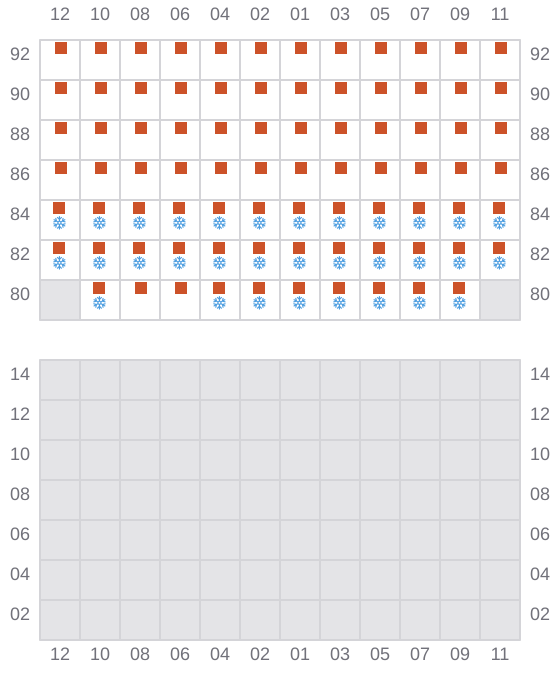

Bay 043 view and slots of CMA CGM PUERTO ANTIOQUIA

045 (046)

  • → / ?
  • ← / ?

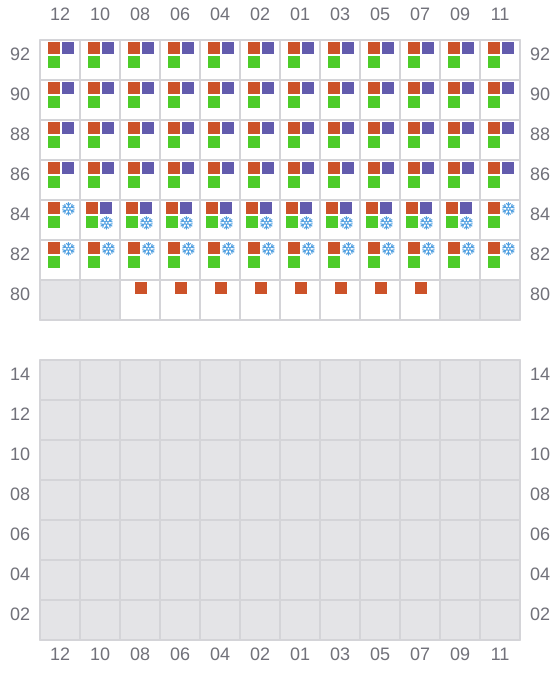

Bay 045 view and slots of CMA CGM PUERTO ANTIOQUIA

047

  • ← / ?

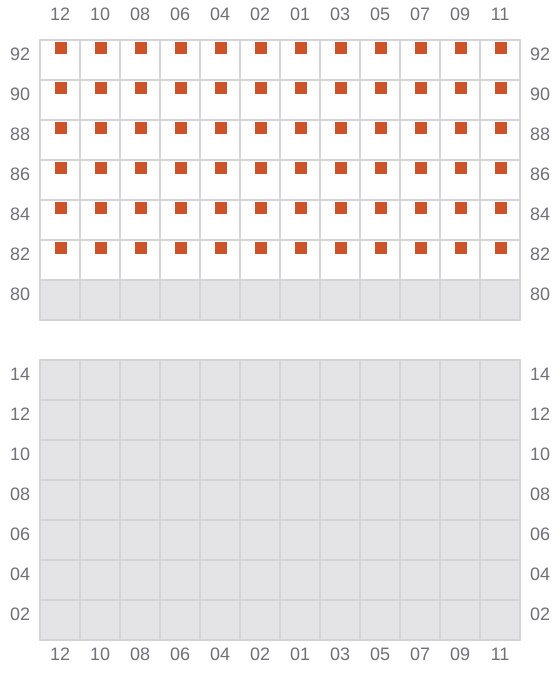

Bay 047 view and slots of CMA CGM PUERTO ANTIOQUIA
