CMA CGM PUERTO ANTIOQUIA
9275050 | C6GD7 | CMA by *********************** Last update: Thu Jan 16 2025

General Info

Ship Name:CMA CGM PUERTO ANTIOQUIA
IMO Code:9275050
Call Sign:C6GD7
Line Operator:CMA
Class Name for Sister Ships:CGBR
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):210.06
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,564

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

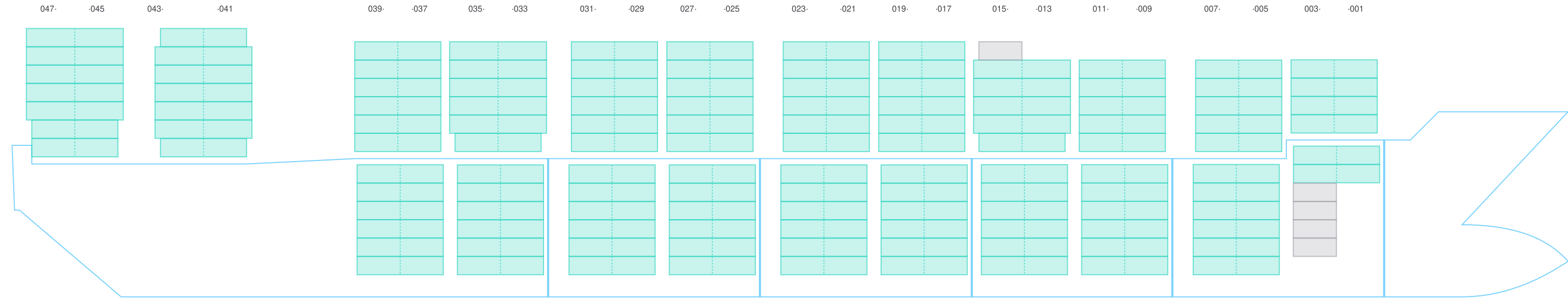

Side View

Side view of CMA CGM PUERTO ANTIOQUIA

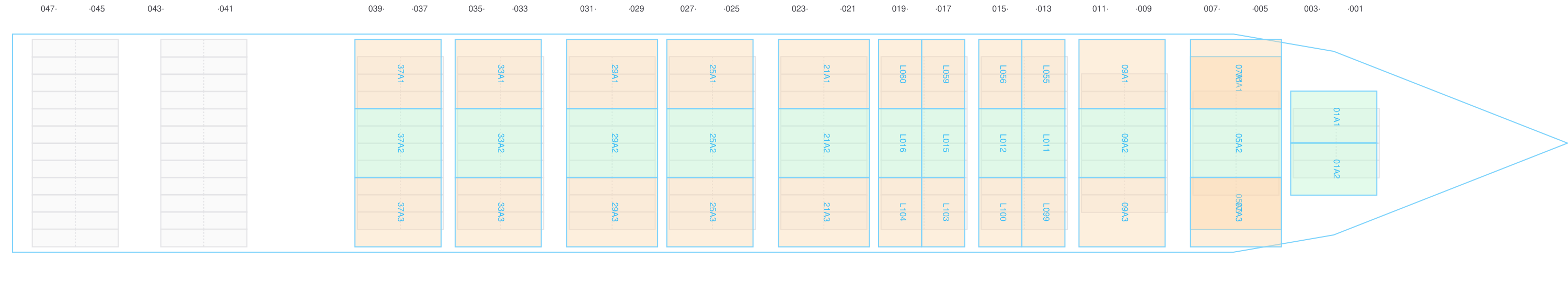

Hatch-Covers View

Deck view of CMA CGM PUERTO ANTIOQUIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

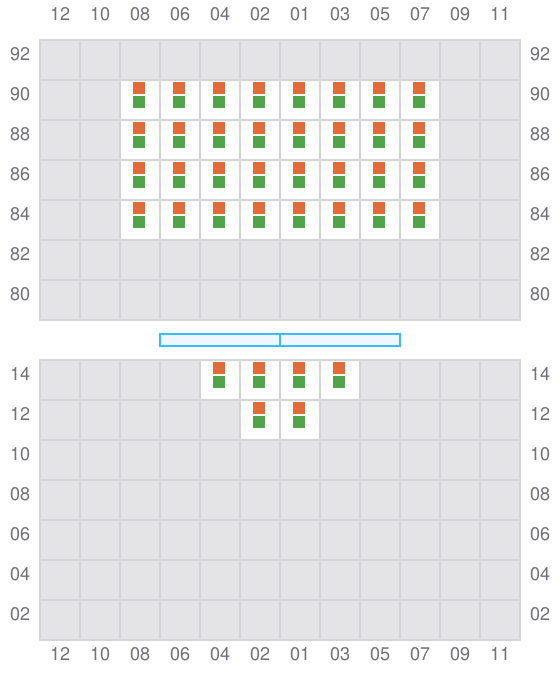

Bay 001 view and slots of CMA CGM PUERTO ANTIOQUIA

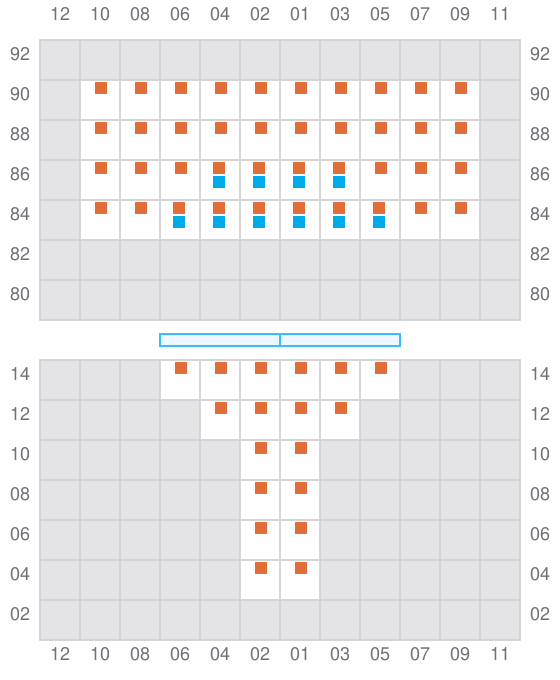

003

  • / ?
Bay 003 view and slots of CMA CGM PUERTO ANTIOQUIA

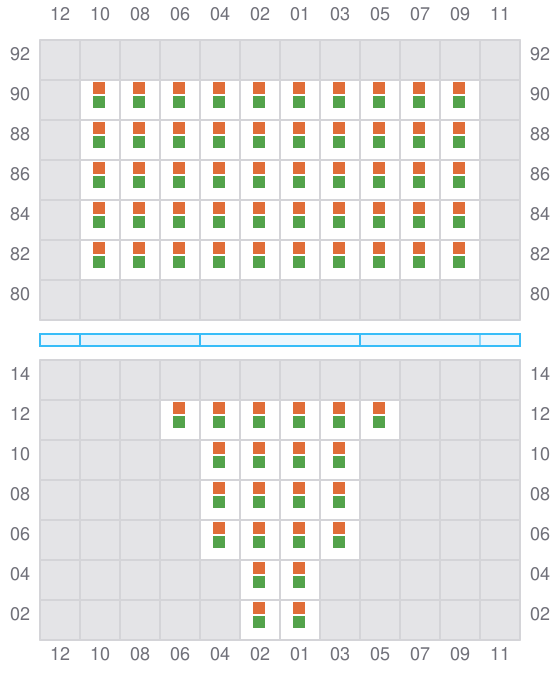

005 (006)

  • / ?
Bay 005 view and slots of CMA CGM PUERTO ANTIOQUIA

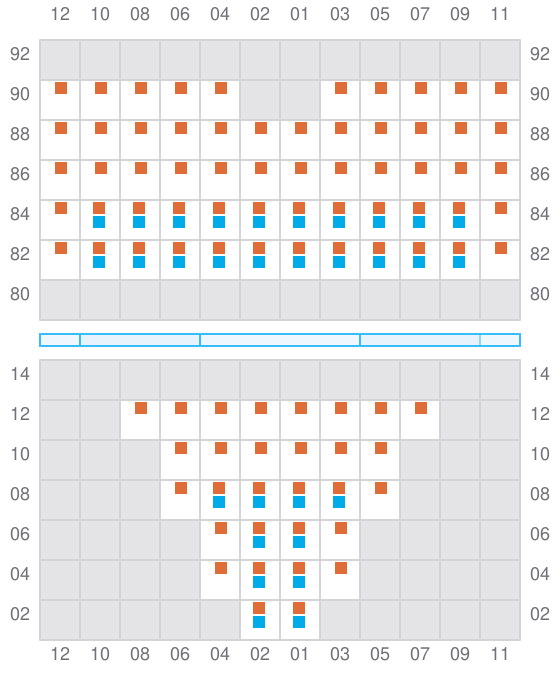

007

Bay 007 view and slots of CMA CGM PUERTO ANTIOQUIA

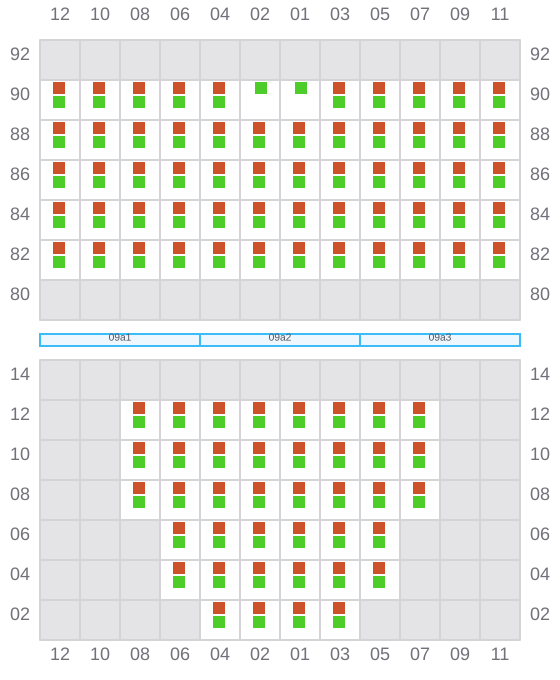

009 (010)

Bay 009 view and slots of CMA CGM PUERTO ANTIOQUIA

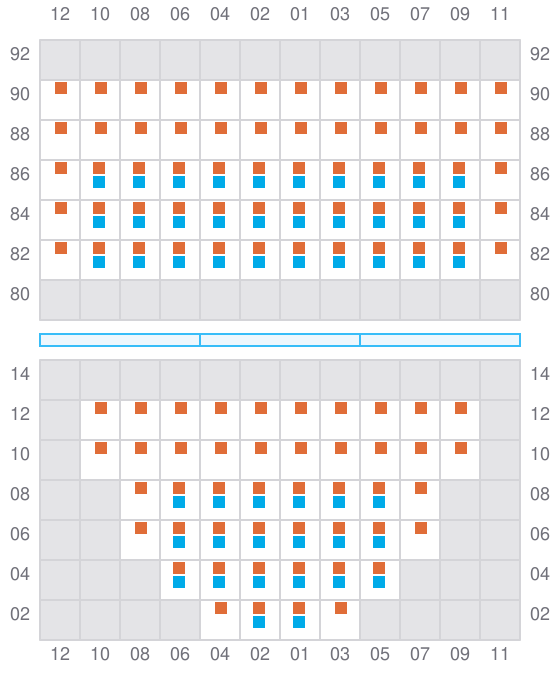

011

Bay 011 view and slots of CMA CGM PUERTO ANTIOQUIA

013 (014)

  • / ?

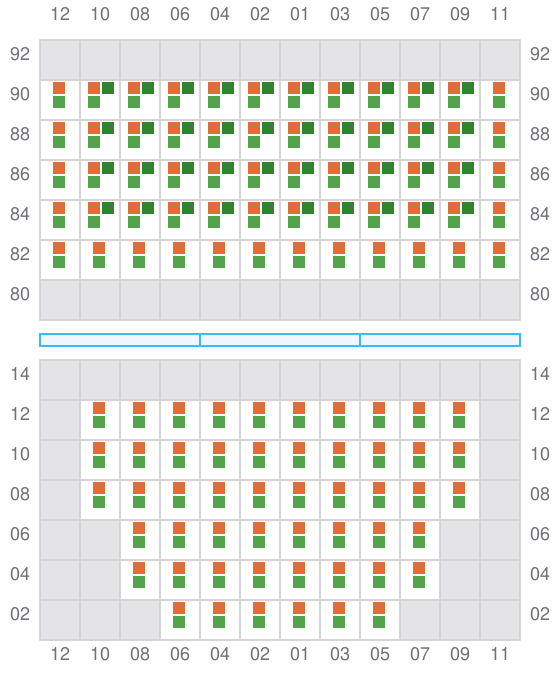

Bay 013 view and slots of CMA CGM PUERTO ANTIOQUIA

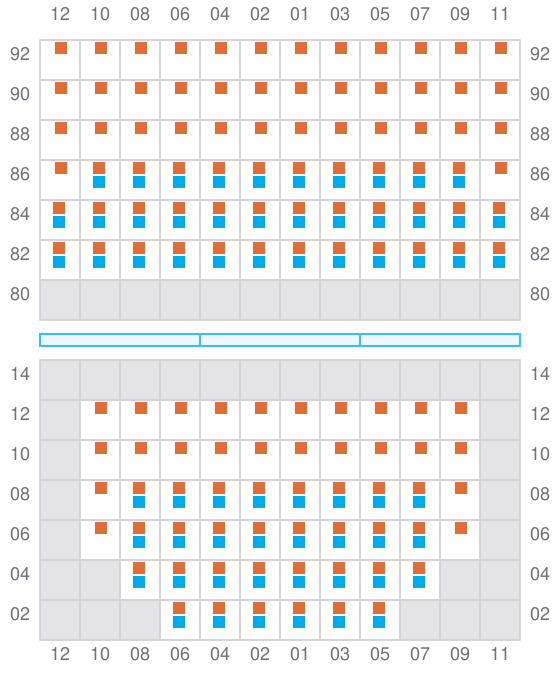

015

Bay 015 view and slots of CMA CGM PUERTO ANTIOQUIA

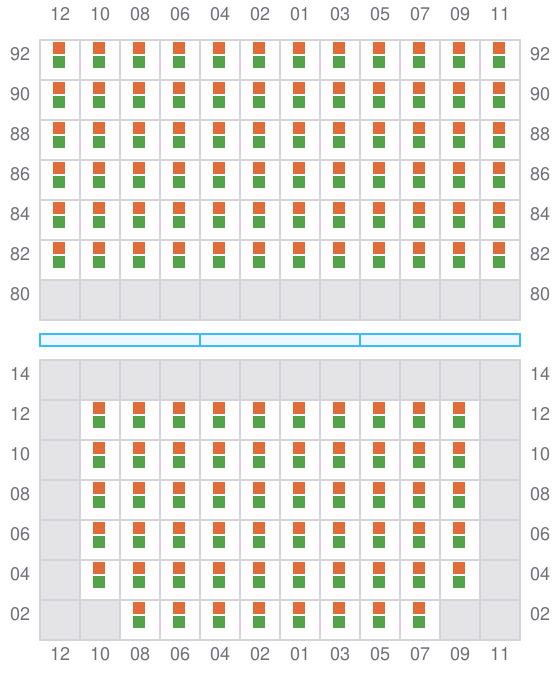

017 (018)

  • ? /
Bay 017 view and slots of CMA CGM PUERTO ANTIOQUIA

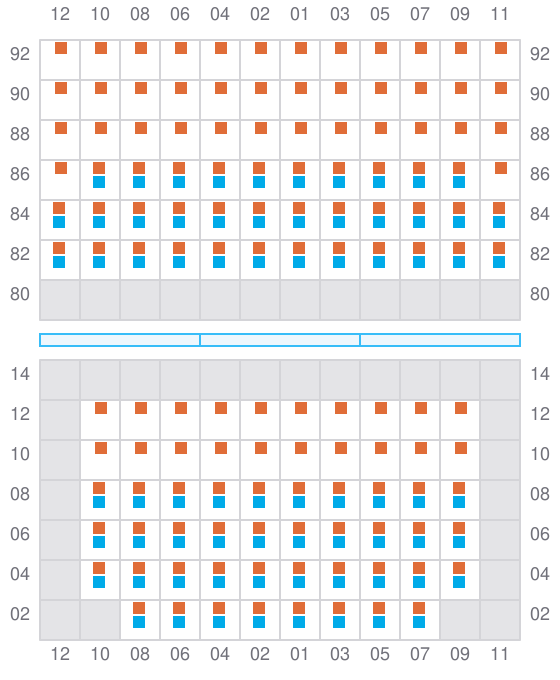

019

Bay 019 view and slots of CMA CGM PUERTO ANTIOQUIA

021 (022)

Bay 021 view and slots of CMA CGM PUERTO ANTIOQUIA

023

  • ? /

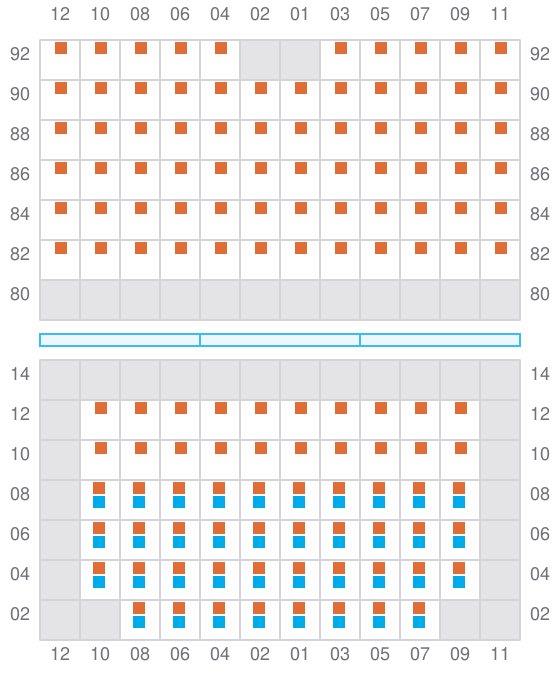

Bay 023 view and slots of CMA CGM PUERTO ANTIOQUIA

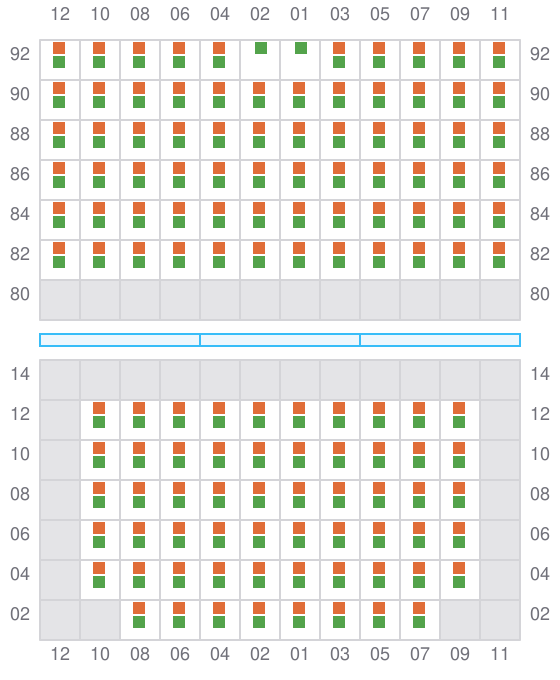

025 (026)

  • ? /
Bay 025 view and slots of CMA CGM PUERTO ANTIOQUIA

027

Bay 027 view and slots of CMA CGM PUERTO ANTIOQUIA

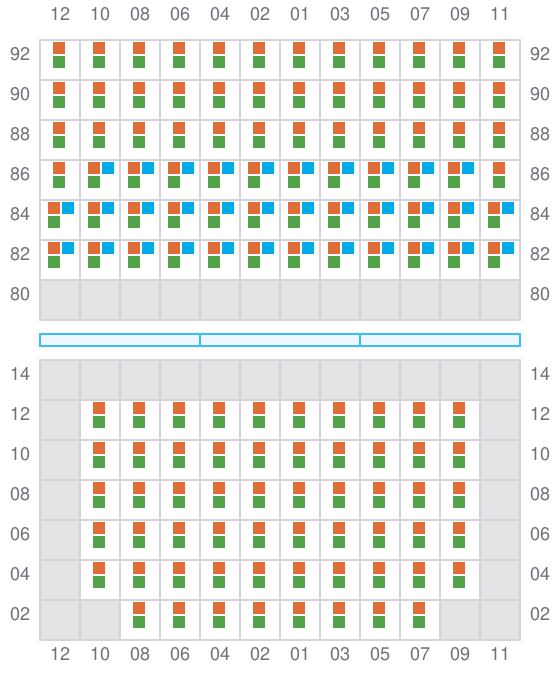

029 (030)

Bay 029 view and slots of CMA CGM PUERTO ANTIOQUIA

031

  • ? /

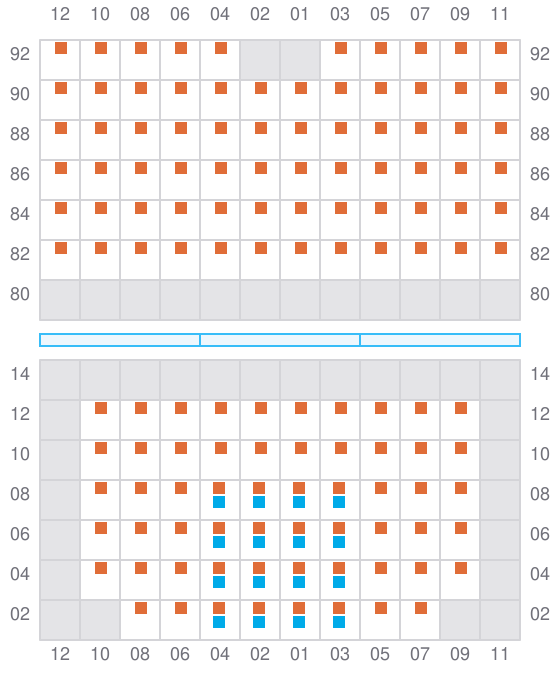

Bay 031 view and slots of CMA CGM PUERTO ANTIOQUIA

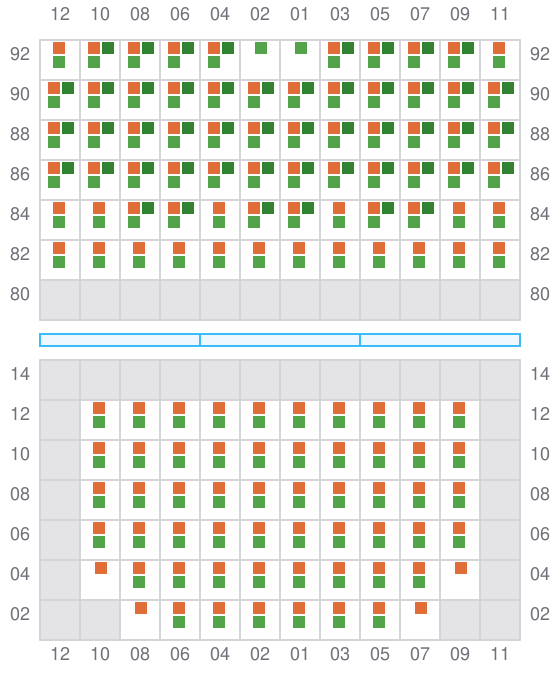

033 (034)

  • ? /
Bay 033 view and slots of CMA CGM PUERTO ANTIOQUIA

035

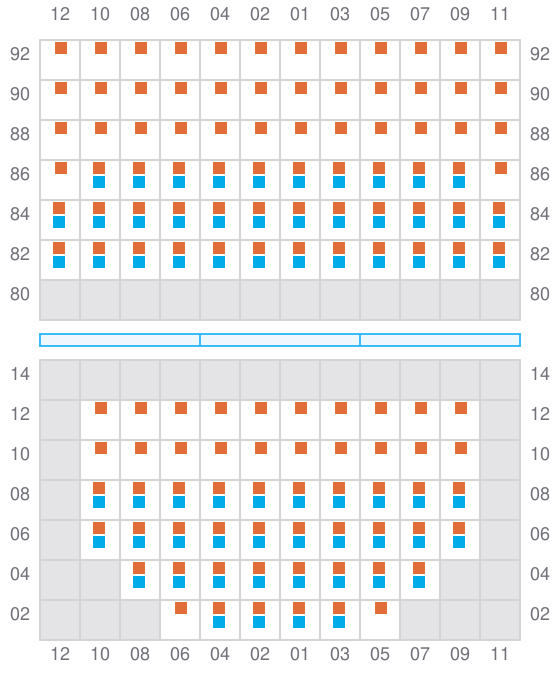

Bay 035 view and slots of CMA CGM PUERTO ANTIOQUIA

037 (038)

Bay 037 view and slots of CMA CGM PUERTO ANTIOQUIA

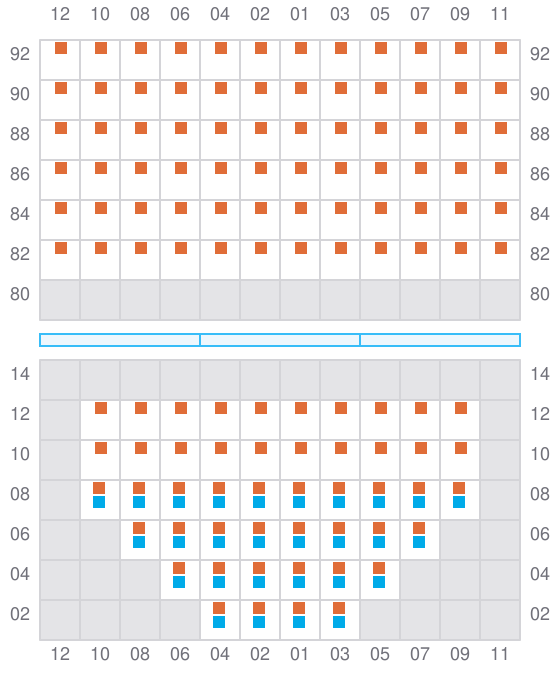

039

Bay 039 view and slots of CMA CGM PUERTO ANTIOQUIA

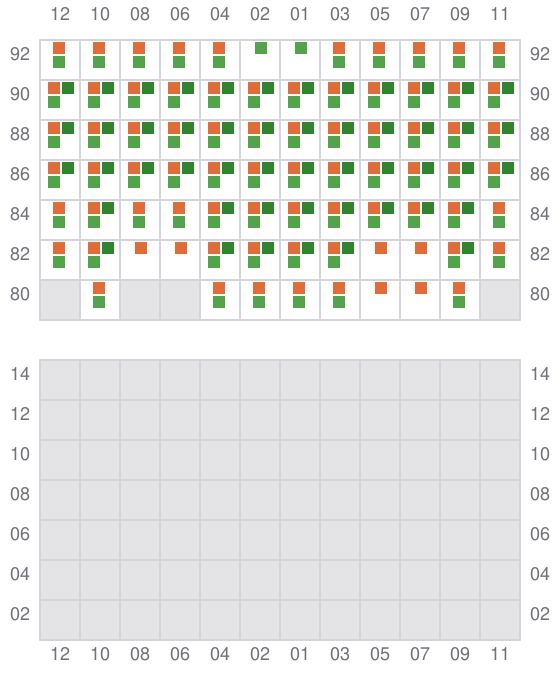

041 (042)

  • / ?
Bay 041 view and slots of CMA CGM PUERTO ANTIOQUIA

043

  • / ?
  • / ?

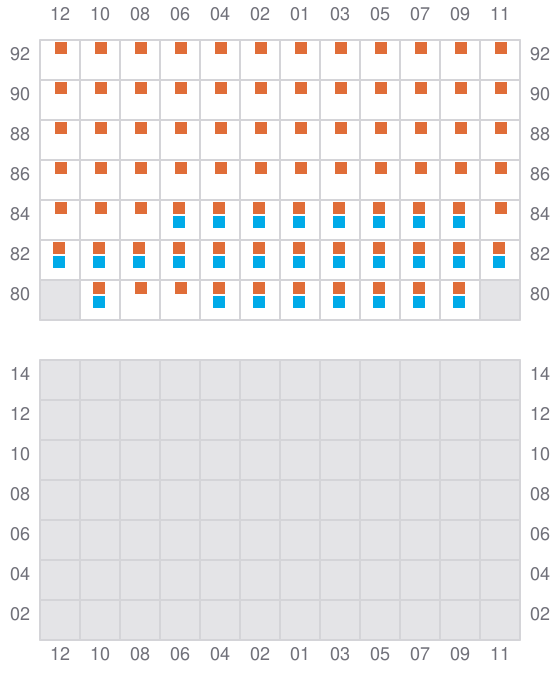

Bay 043 view and slots of CMA CGM PUERTO ANTIOQUIA

045 (046)

  • / ?
  • / ?

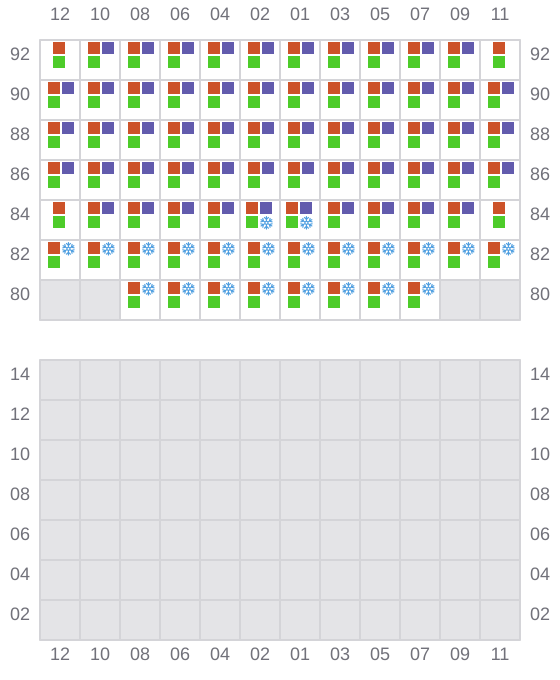

Bay 045 view and slots of CMA CGM PUERTO ANTIOQUIA

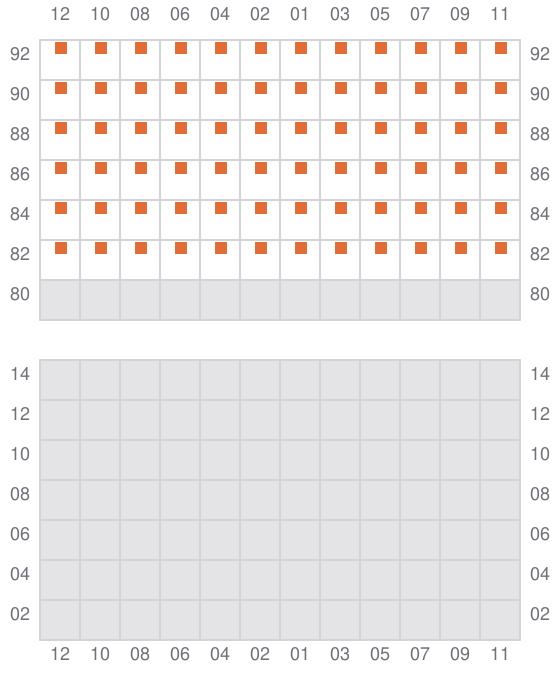

047

  • / ?
Bay 047 view and slots of CMA CGM PUERTO ANTIOQUIA
