CMA CGM RABELAIS
9406635 | 9HA2360 | 9406635 by ********* Last update: Thu Apr 11 2024
General Info
Ship Name:CMA CGM RABELAIS
IMO Code:9406635
Call Sign:9HA2360
Line Operator:9406635
Class Name for Sister Ships:CMA CGM RABELAIS
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,906
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

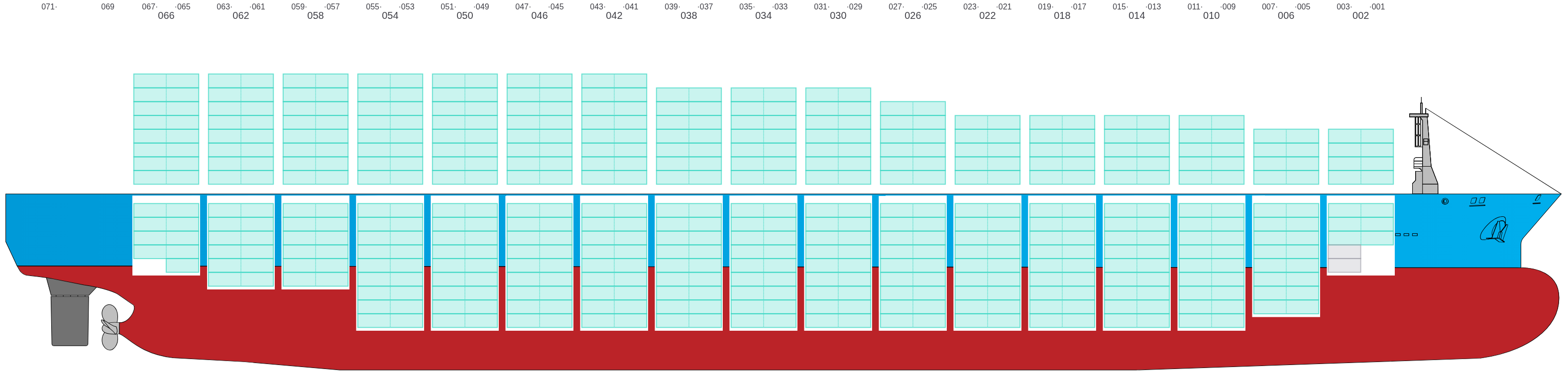

Side View
Hatch-Covers View

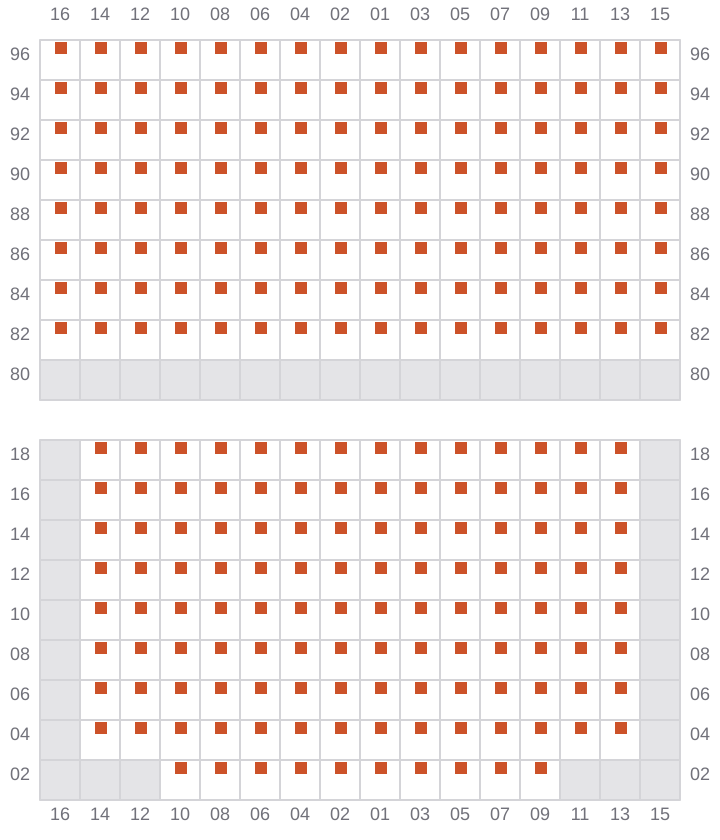

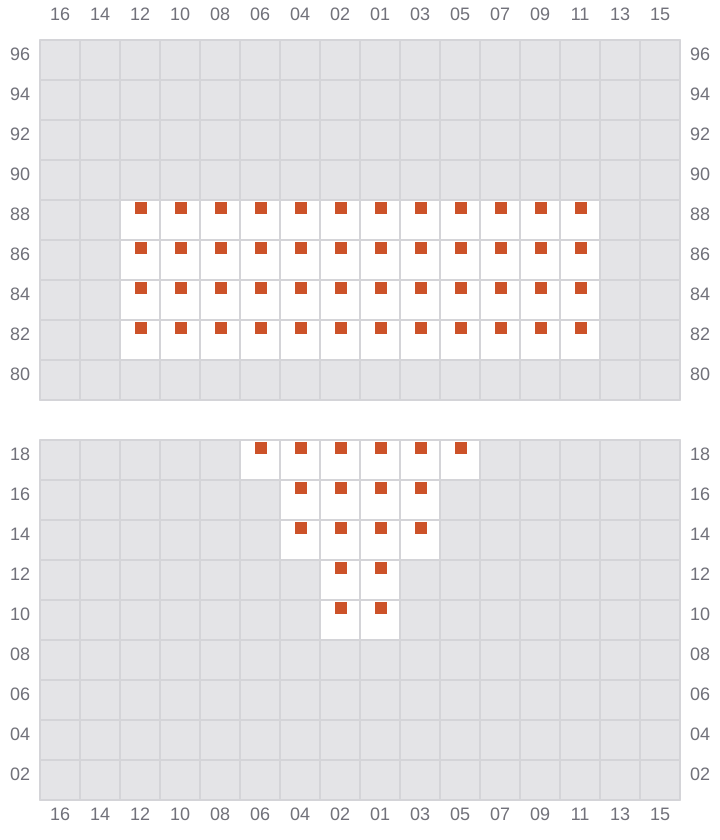

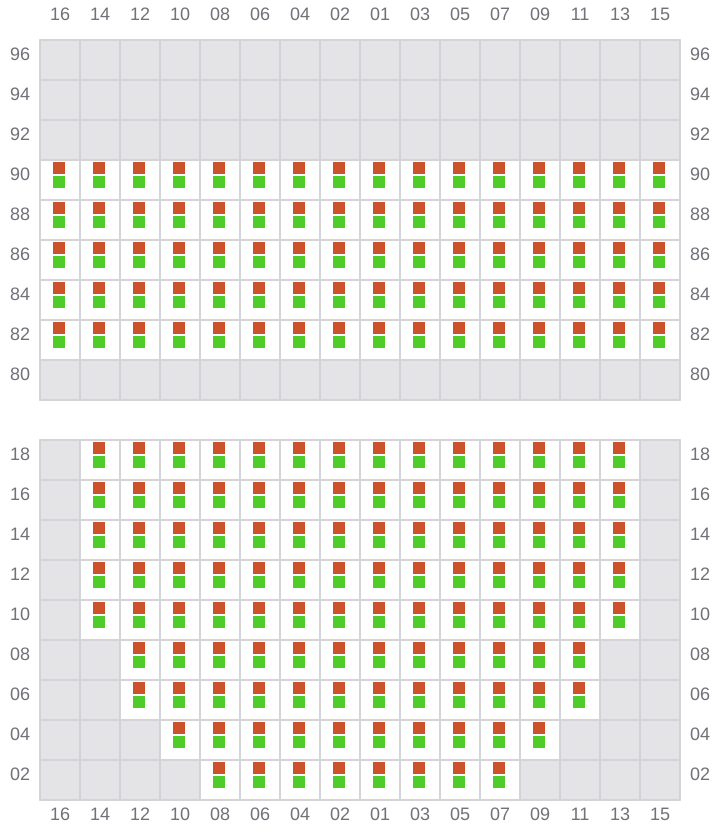

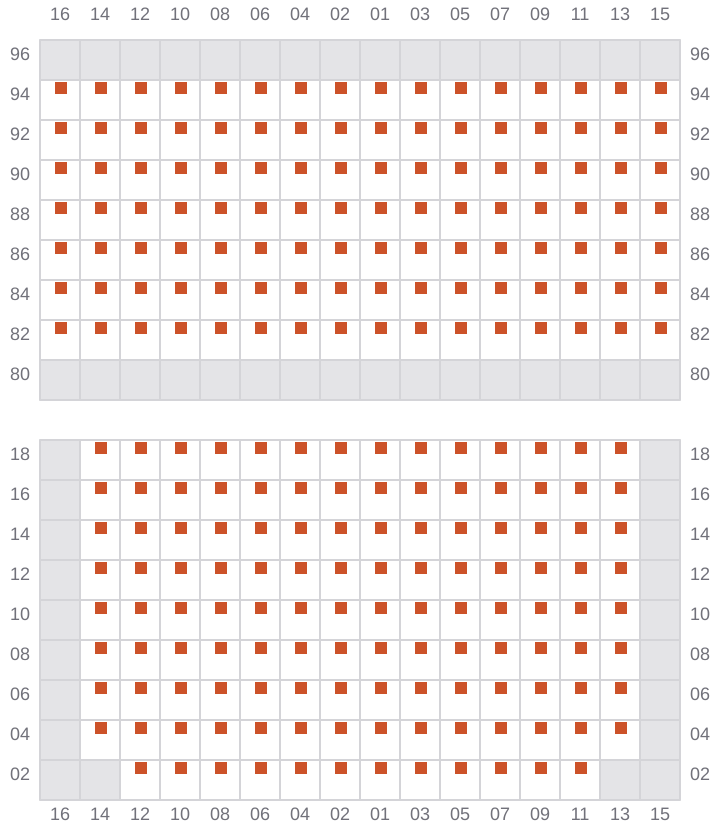

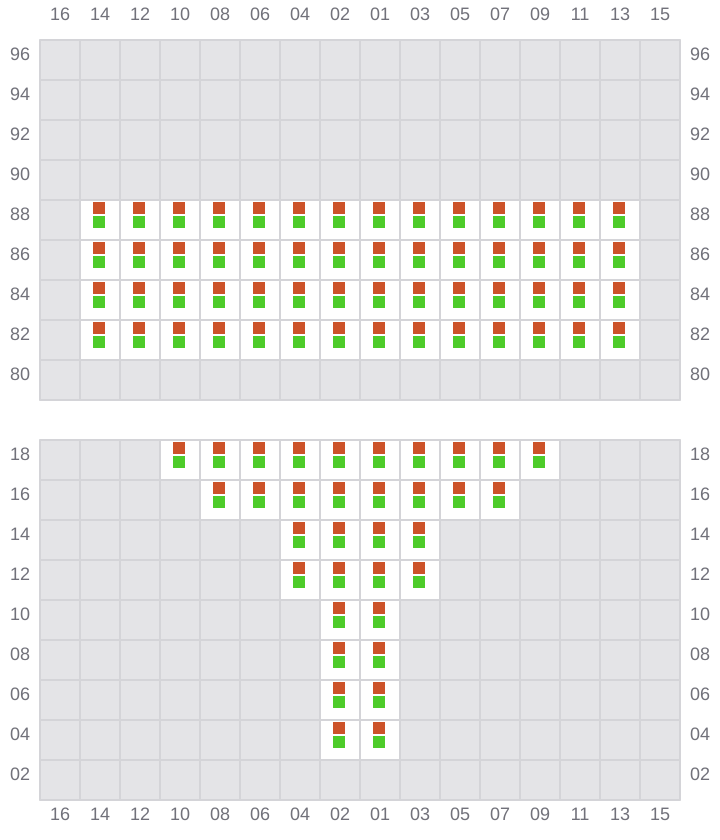

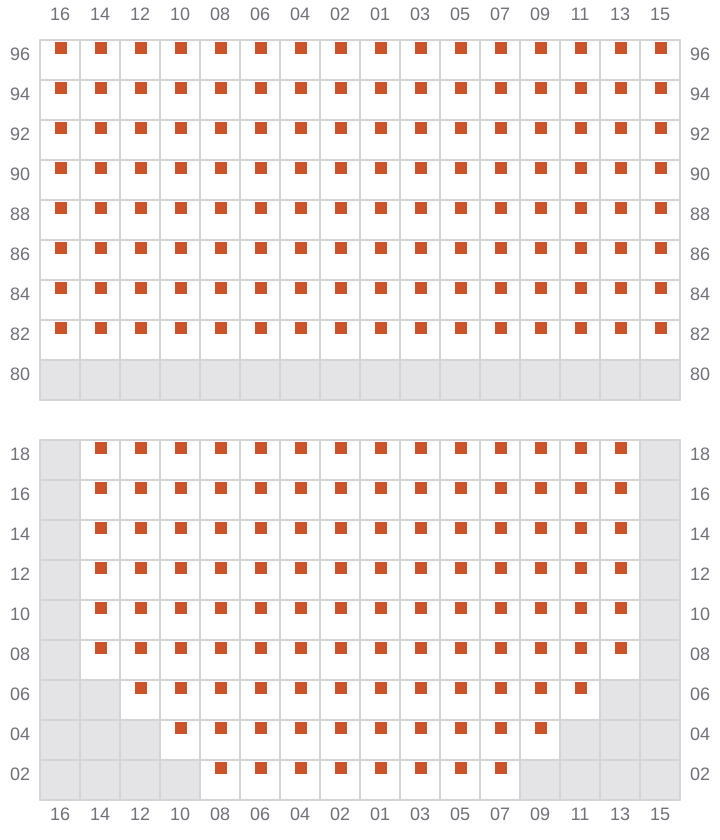

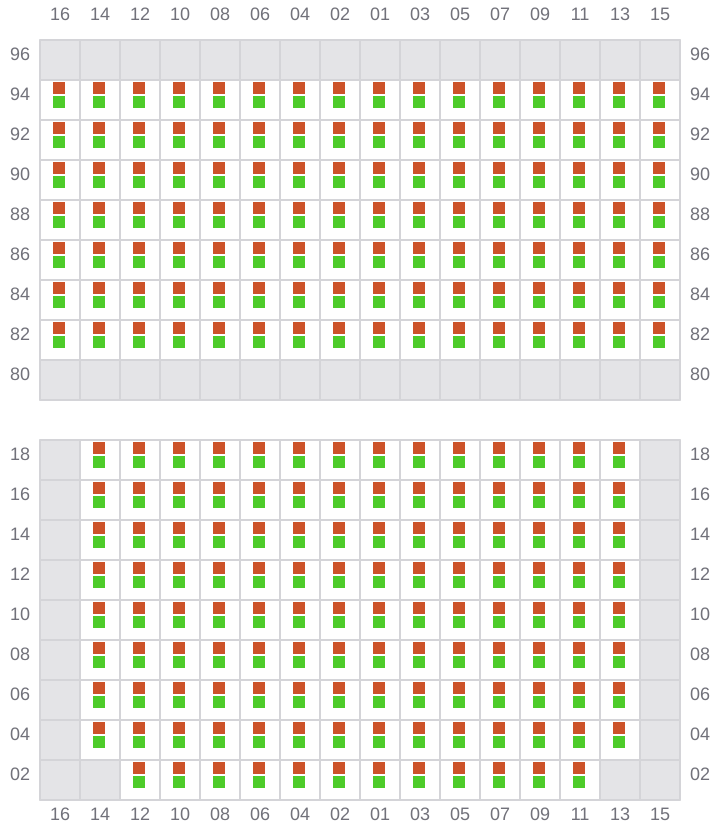

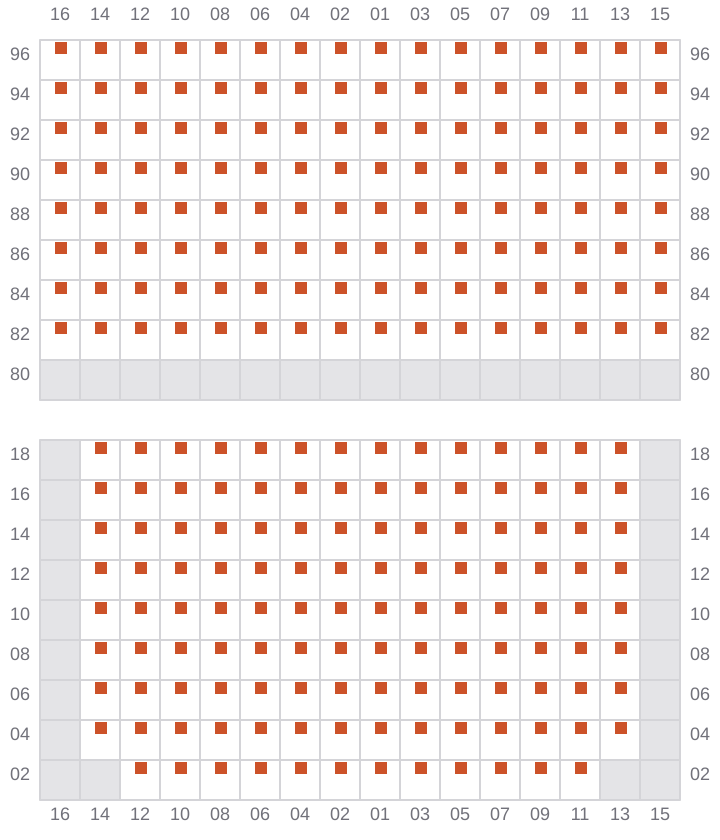

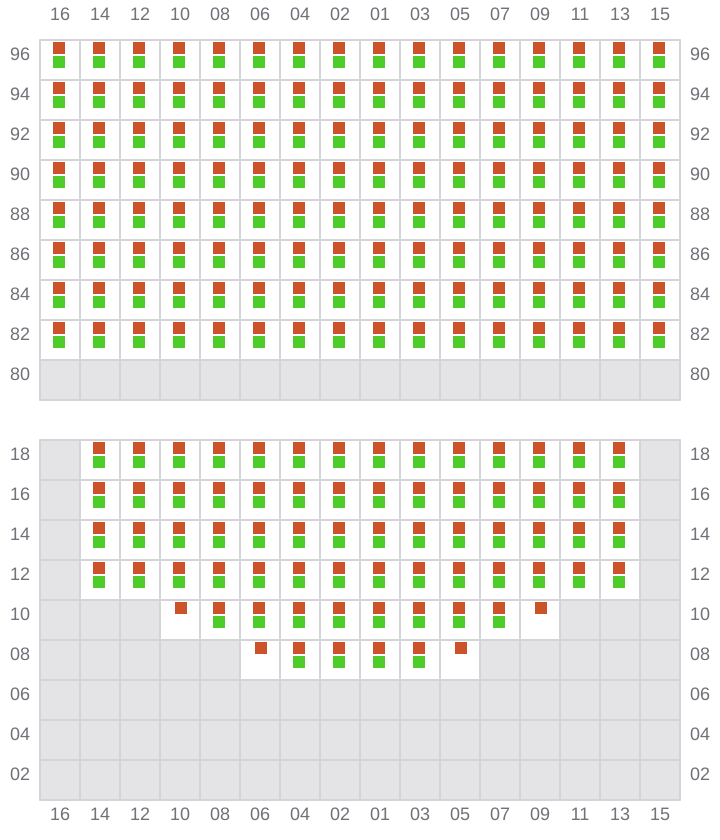

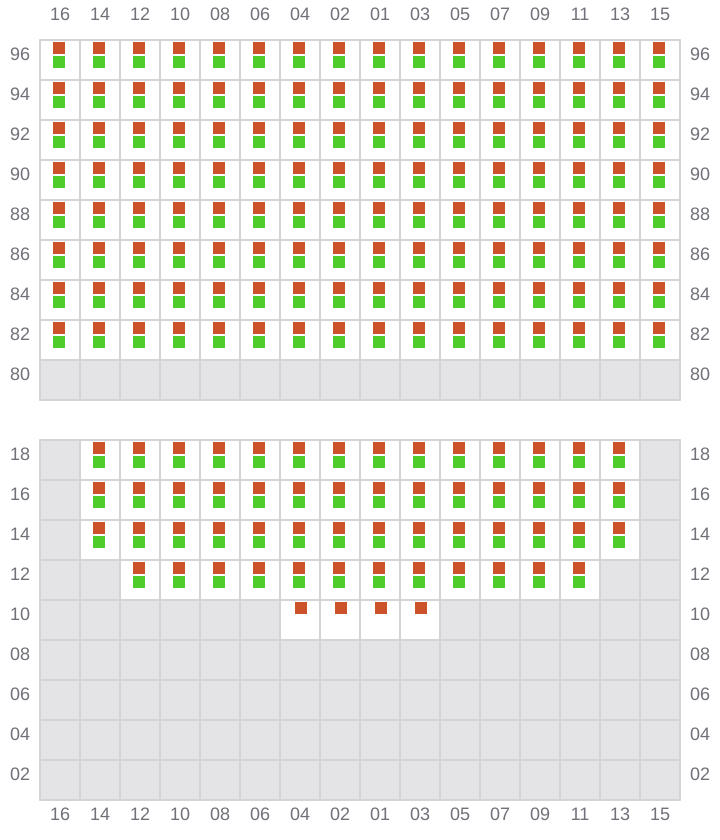

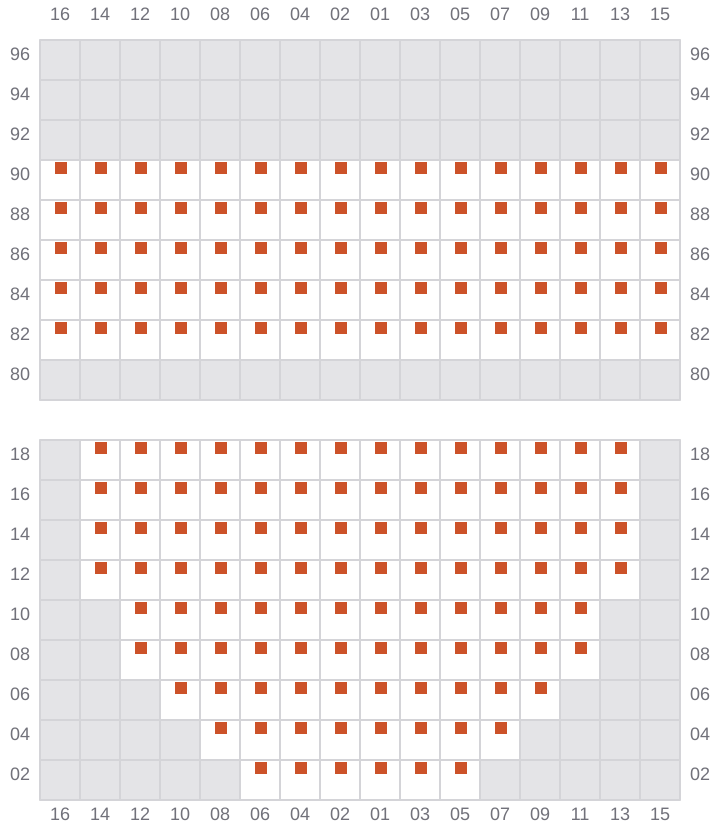

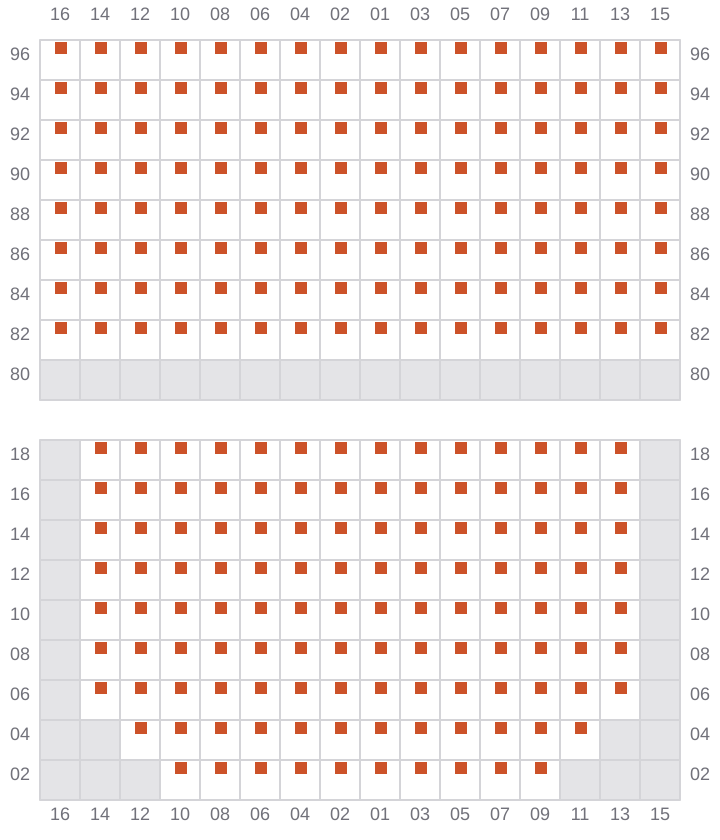

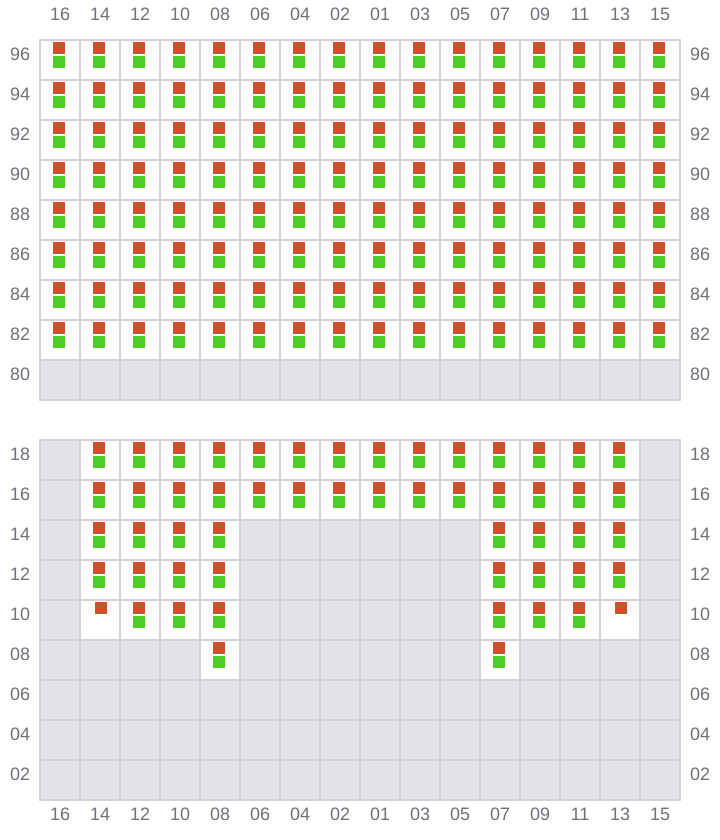

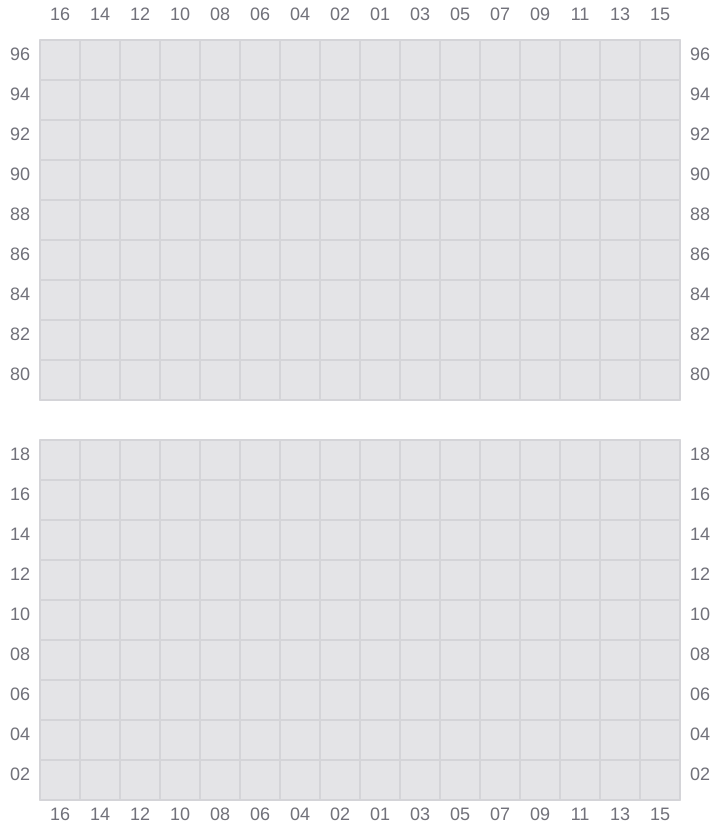

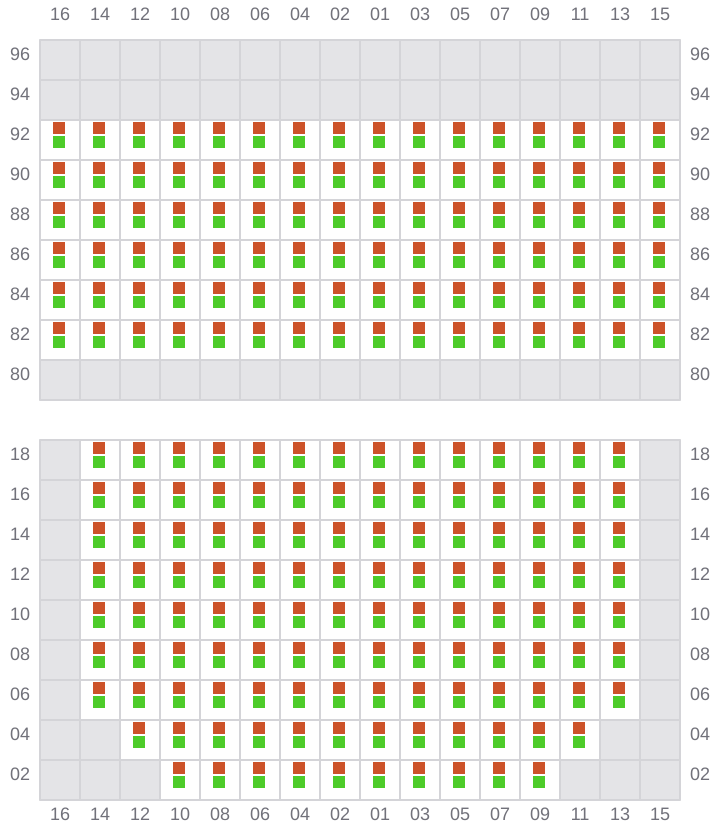

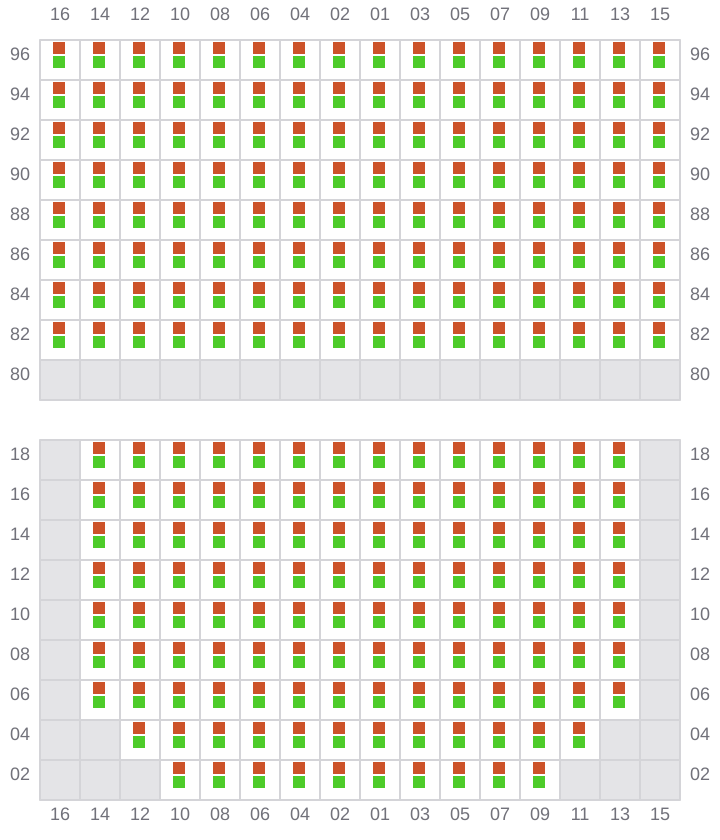

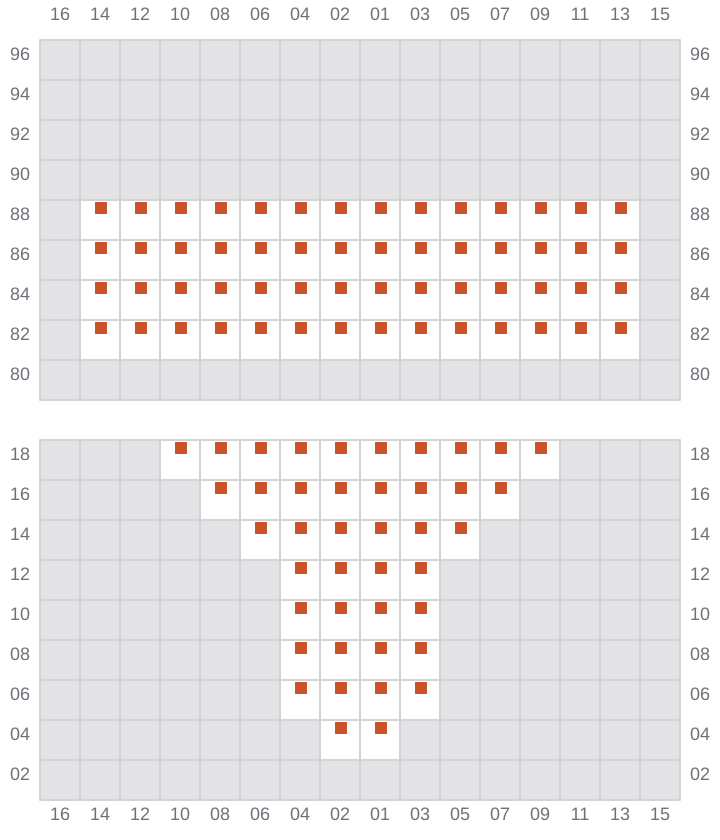

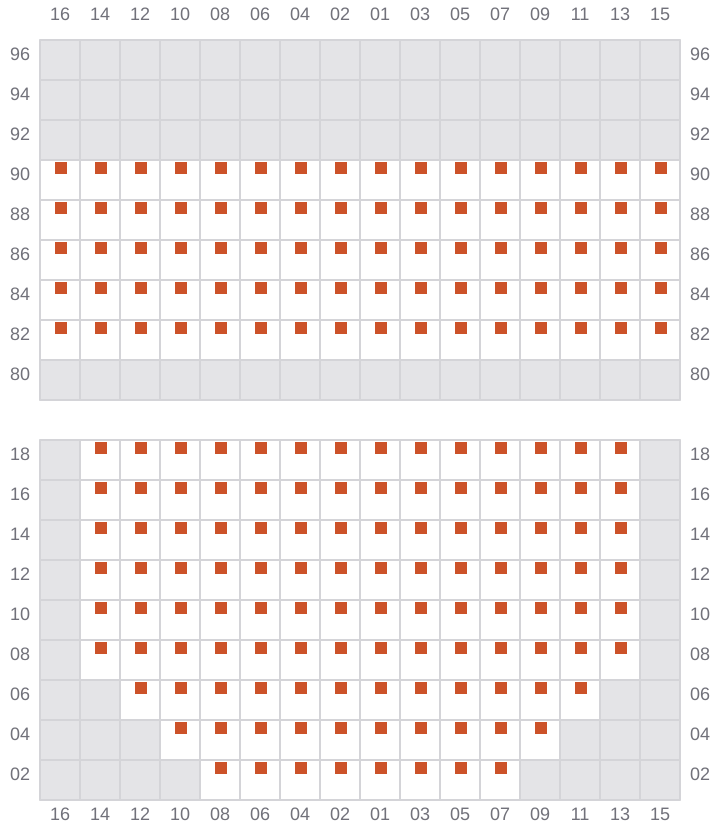

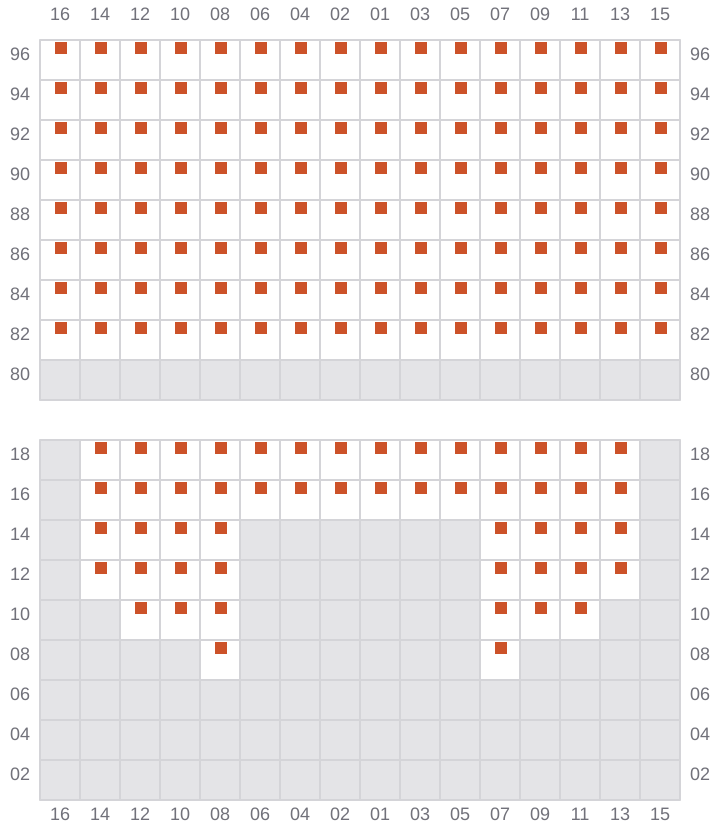

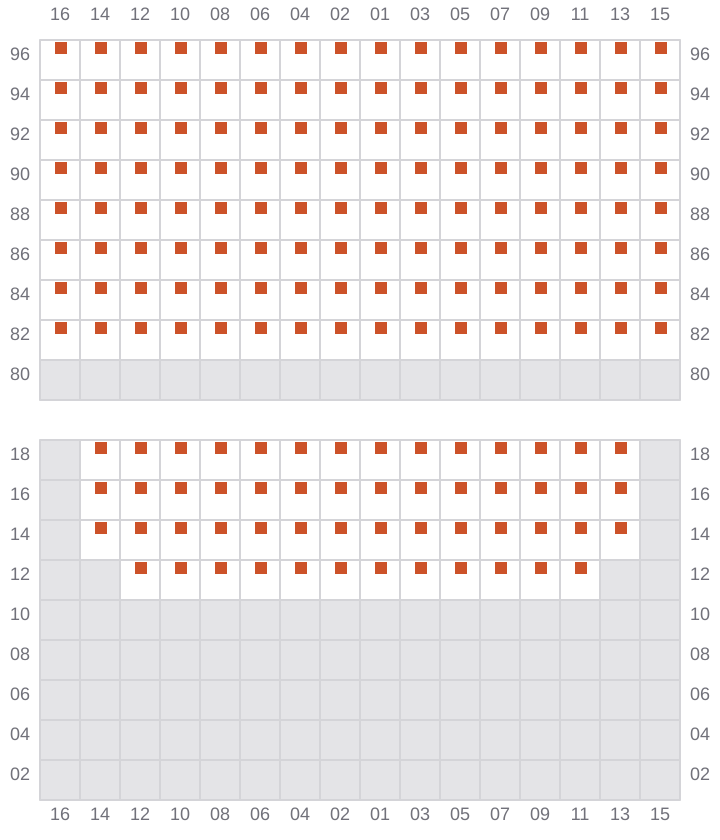

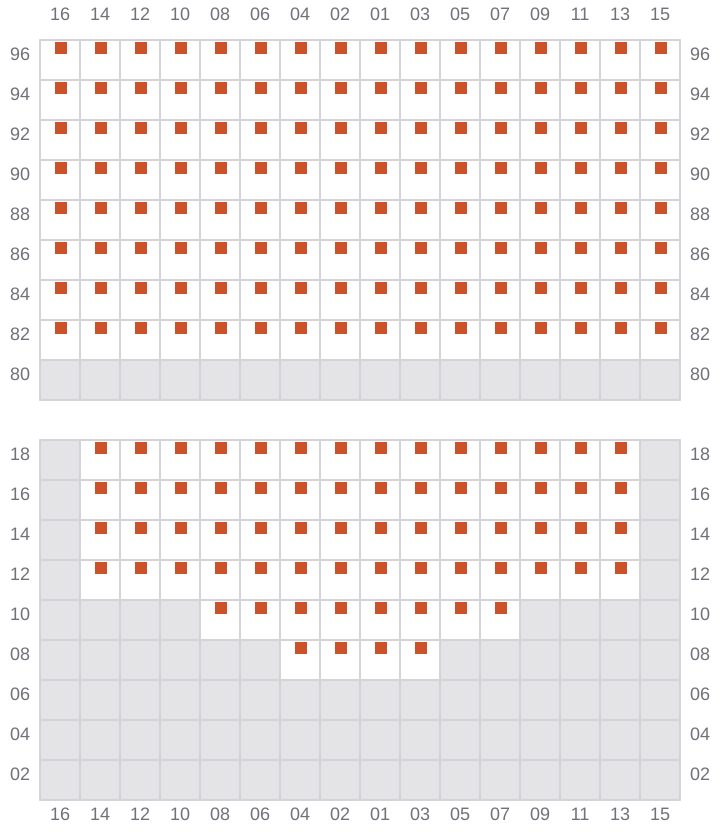

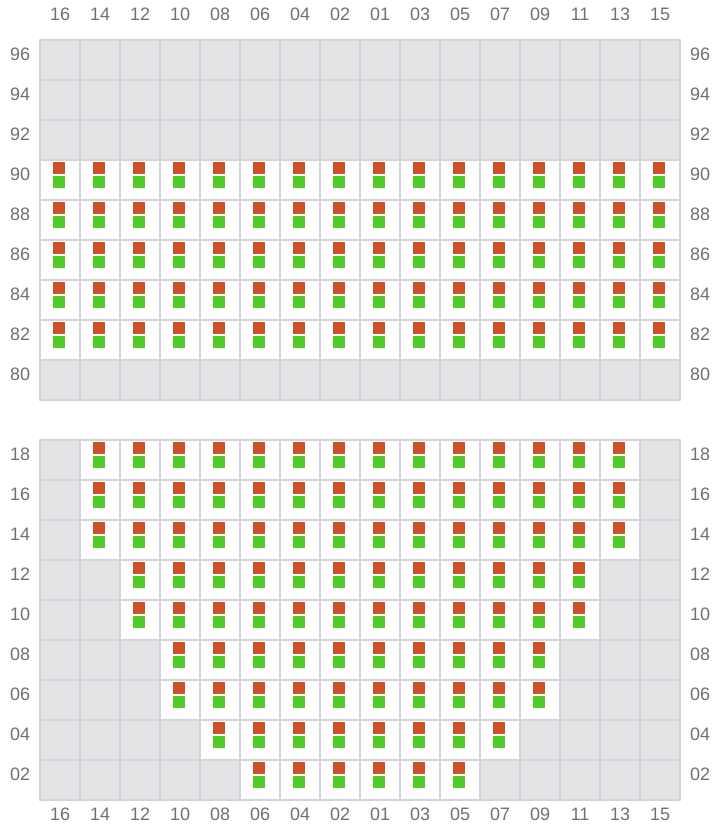

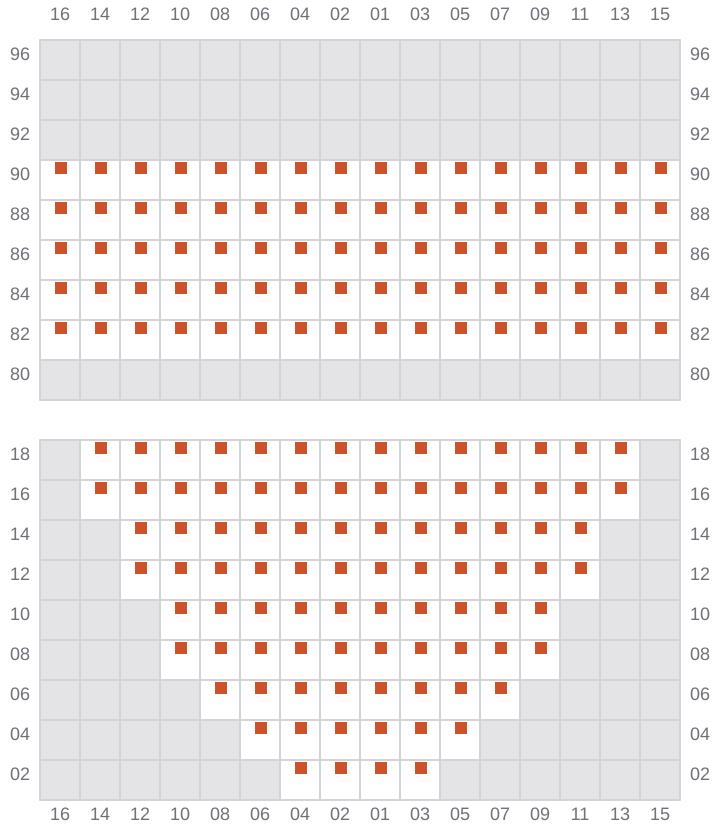

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

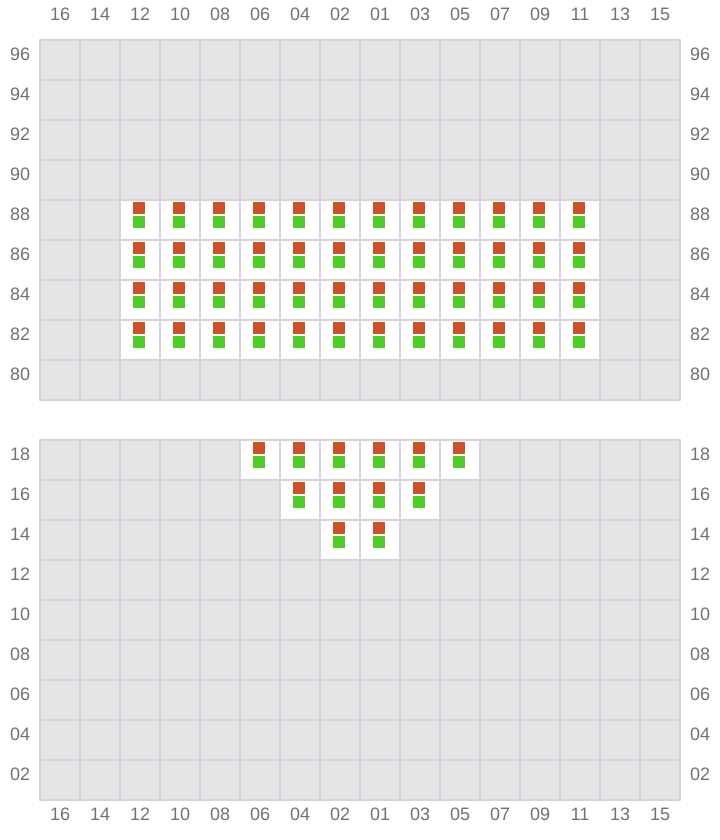

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←

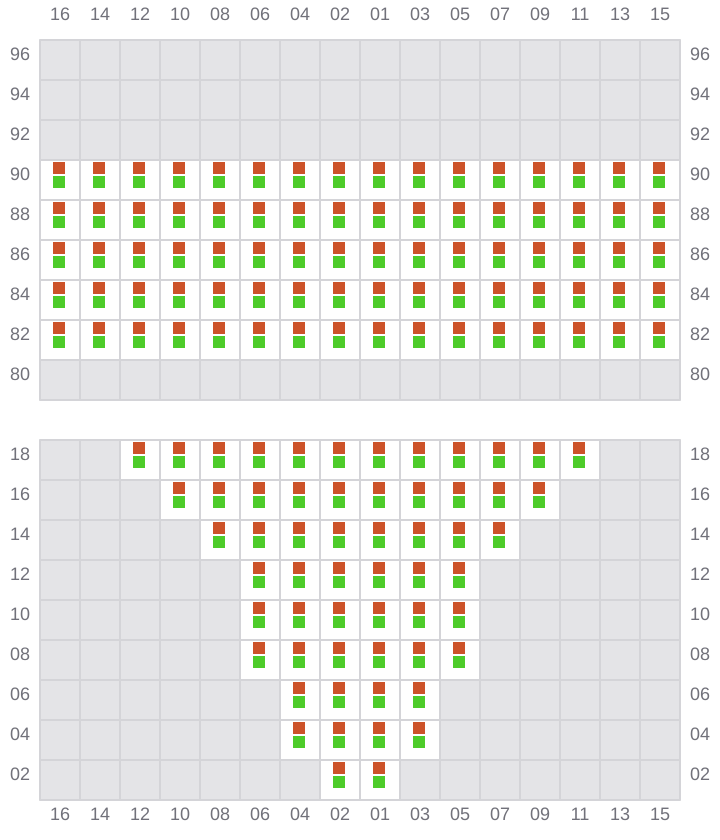

009 (010)
- →

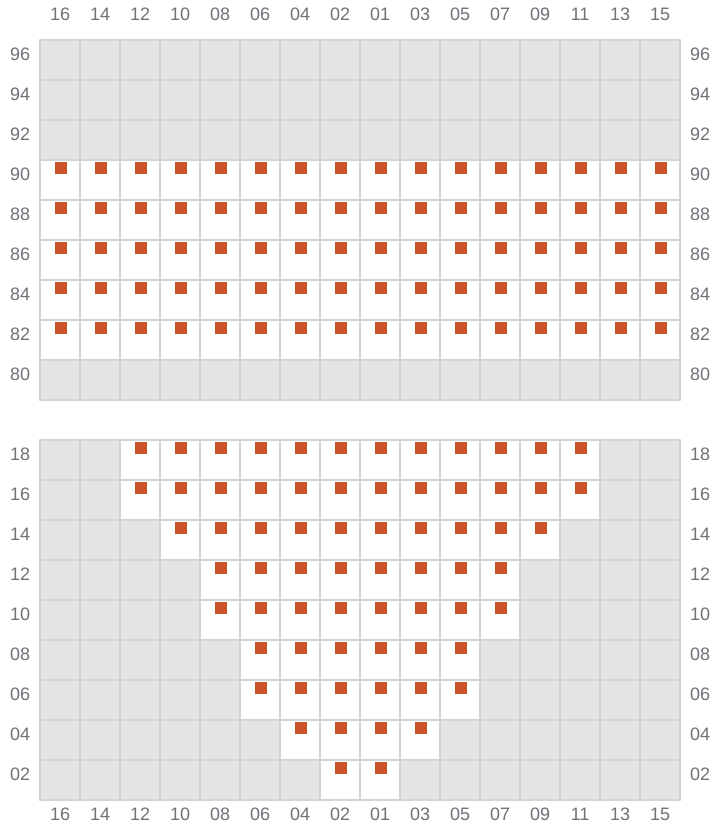

011
- ←

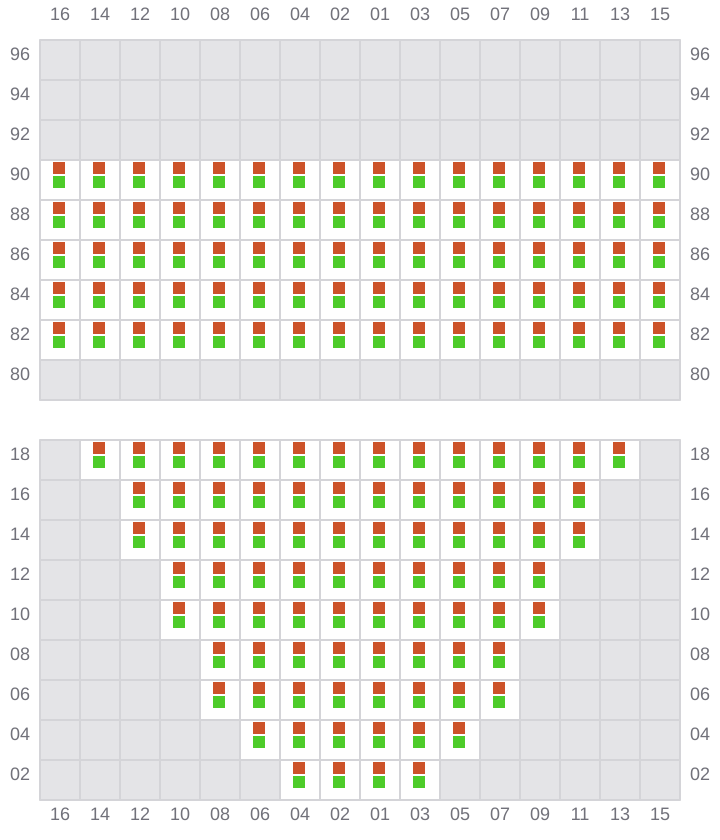

013 (014)
- →
015
- ←
017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →

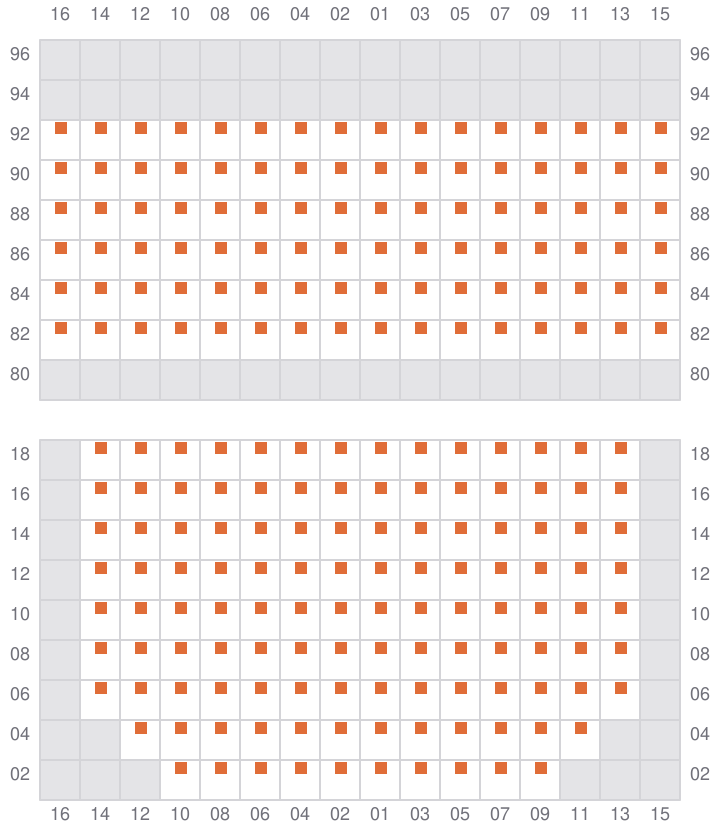

027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←

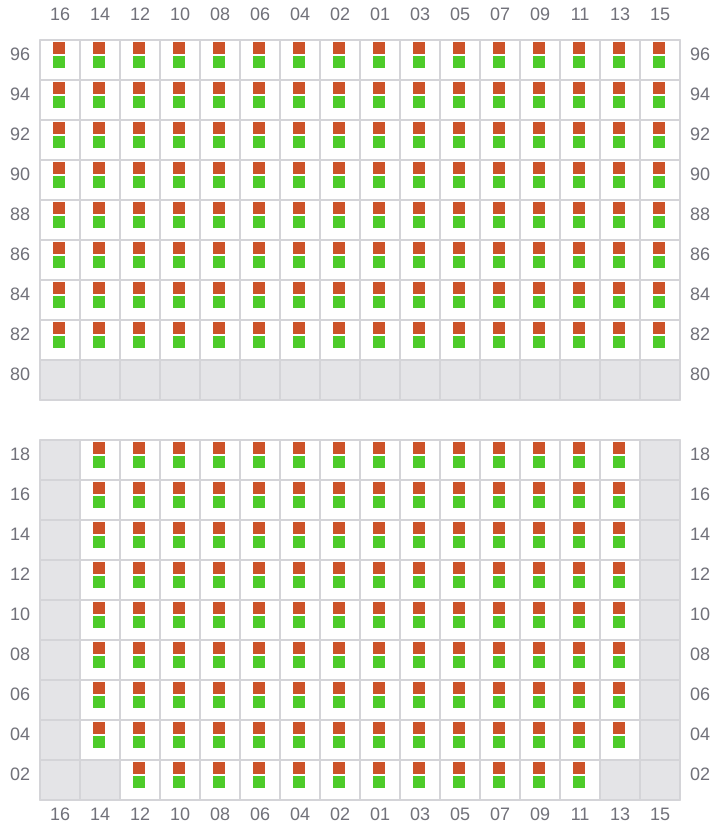

041 (042)
- →
043
- ←
045 (046)
- →
047
- ←
049 (050)
- →
051
- ←

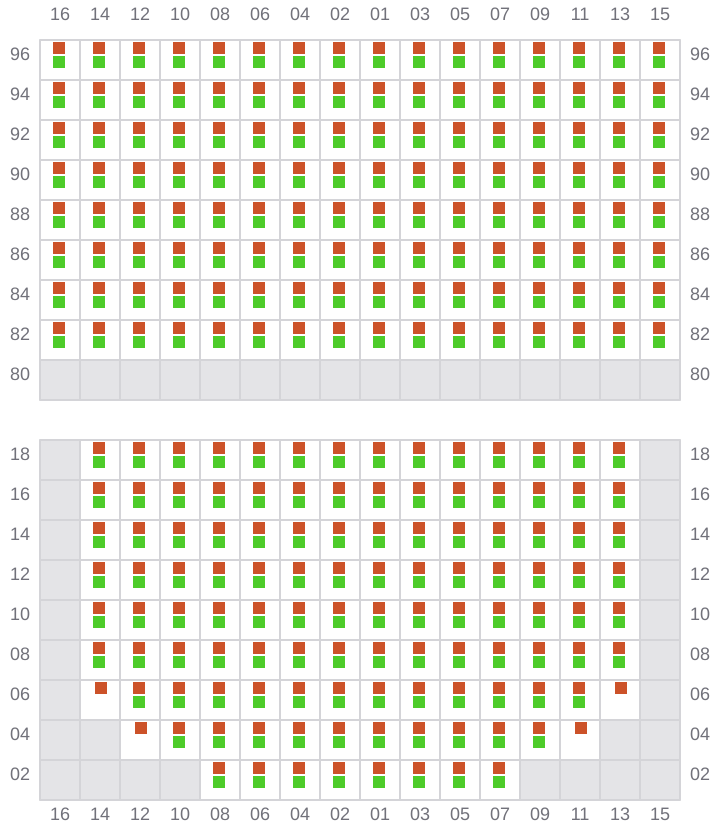

053 (054)
- →
055
- ←
057 (058)
- →
059
- ←
061 (062)
- →
063
- ←
065 (066)
- →
067
- ←
069

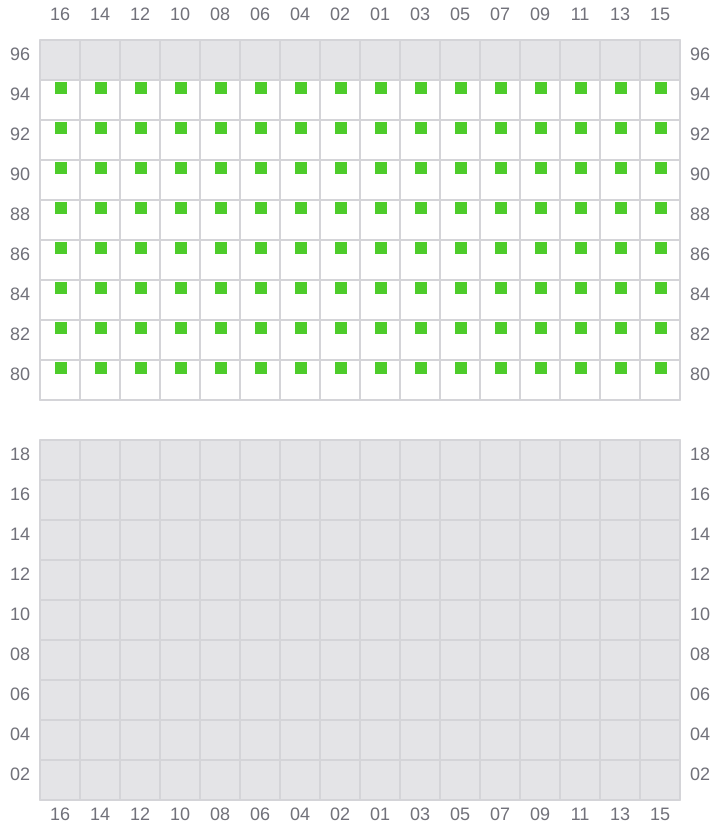

071 (070)
- ← / ?
