CMA CGM RIGOLETTO
9299654 | FMHR | 9299654 by ********* Last update: Wed May 08 2024

General Info

Ship Name:CMA CGM RIGOLETTO
IMO Code:9299654
Call Sign:FMHR
Line Operator:9299654
Class Name for Sister Ships:CMA CGM RIGOLE
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,438

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

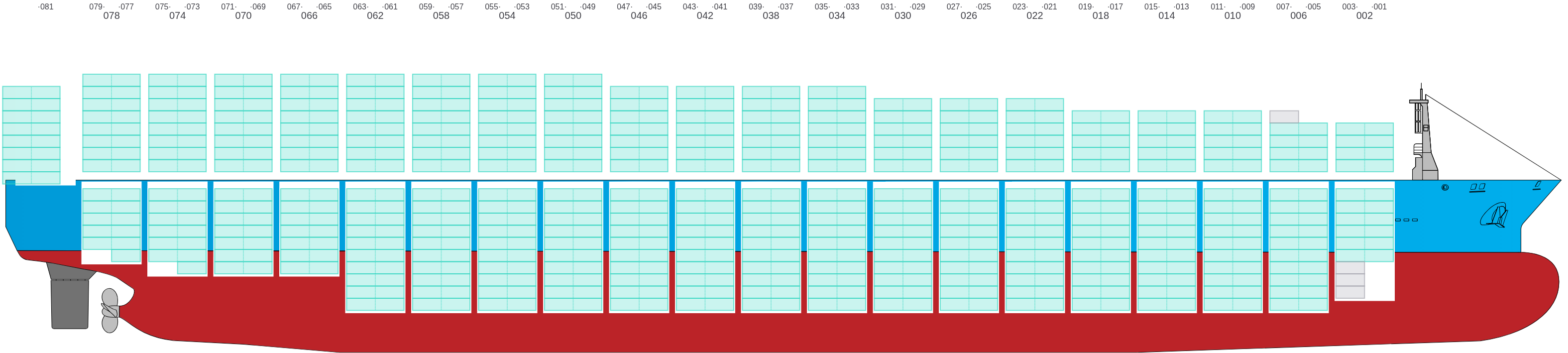

Side View

Side view of CMA CGM RIGOLETTO

Hatch-Covers View

Deck view of CMA CGM RIGOLETTO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

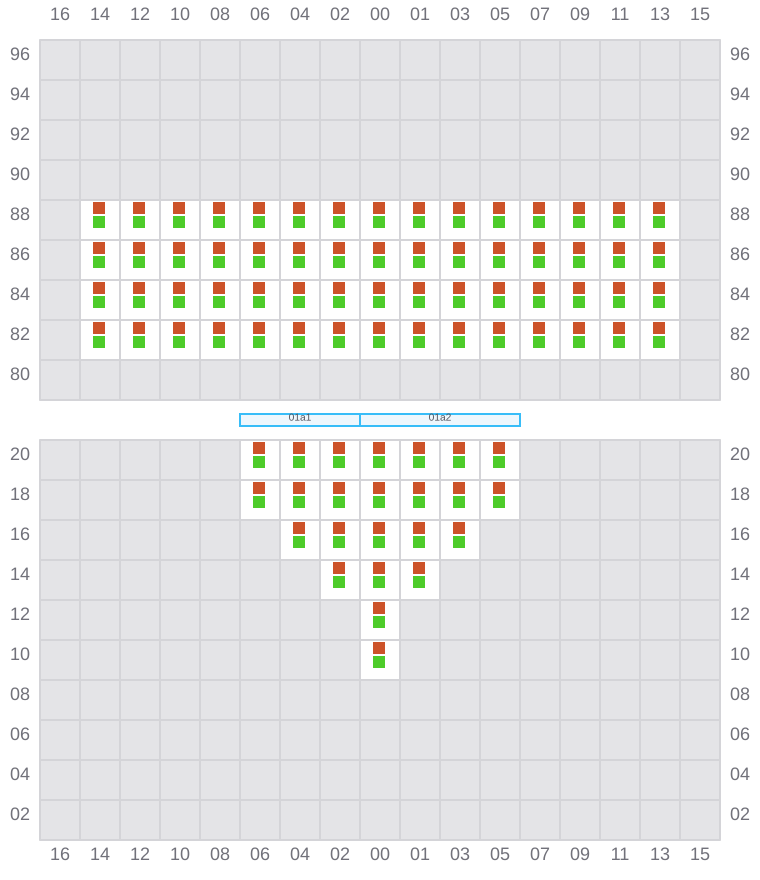

Bay 001 view and slots of CMA CGM RIGOLETTO

003

  • ←

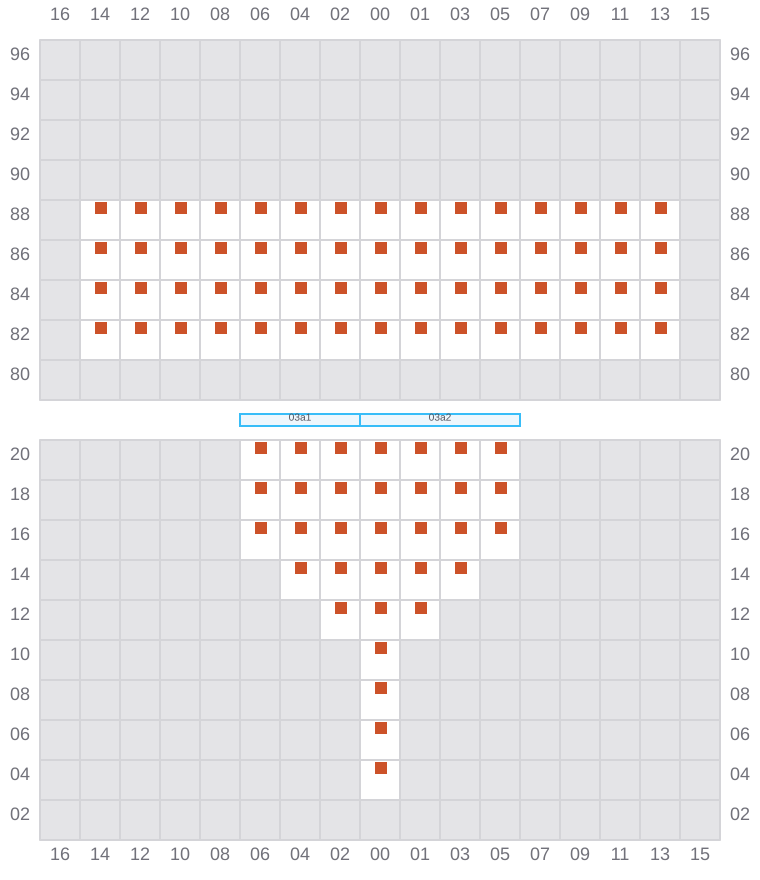

Bay 003 view and slots of CMA CGM RIGOLETTO

005 (006)

  • →

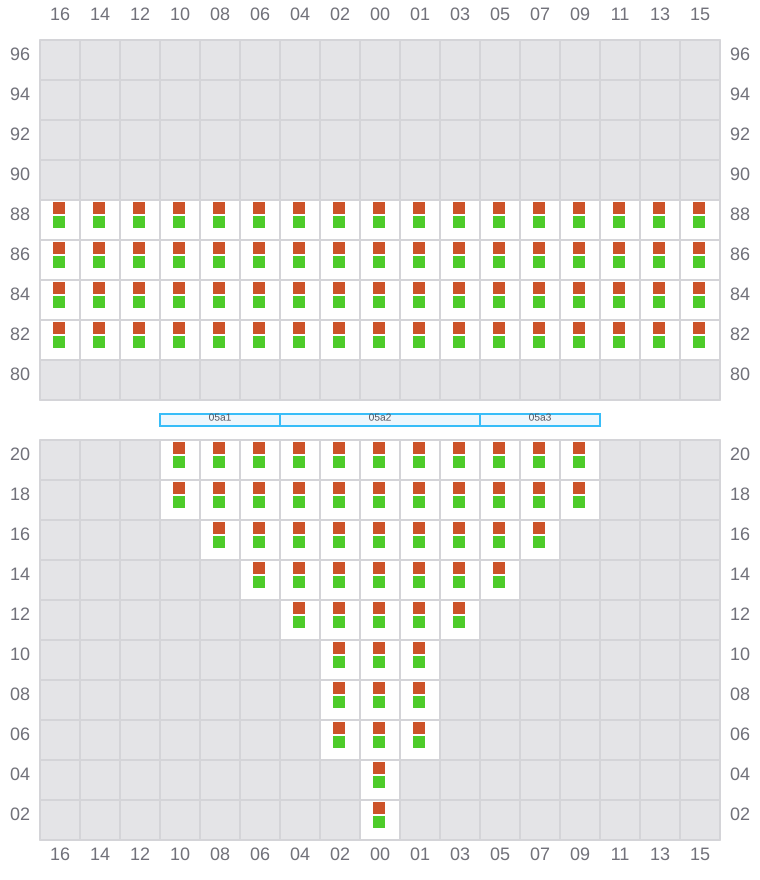

Bay 005 view and slots of CMA CGM RIGOLETTO

007

  • ←

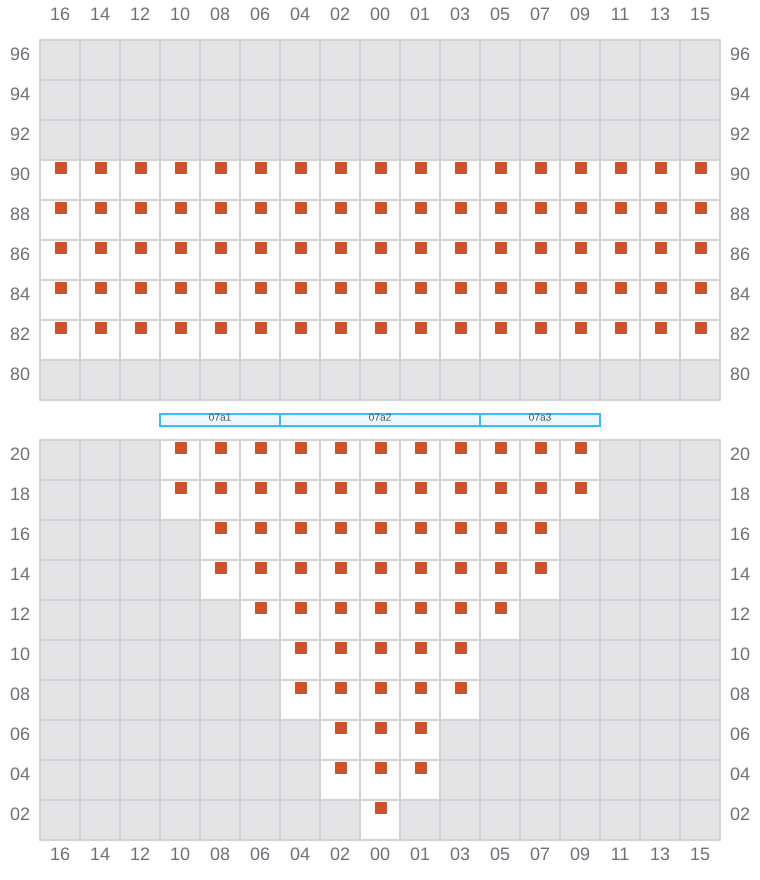

Bay 007 view and slots of CMA CGM RIGOLETTO

009 (010)

  • →
Bay 009 view and slots of CMA CGM RIGOLETTO

011

  • ←

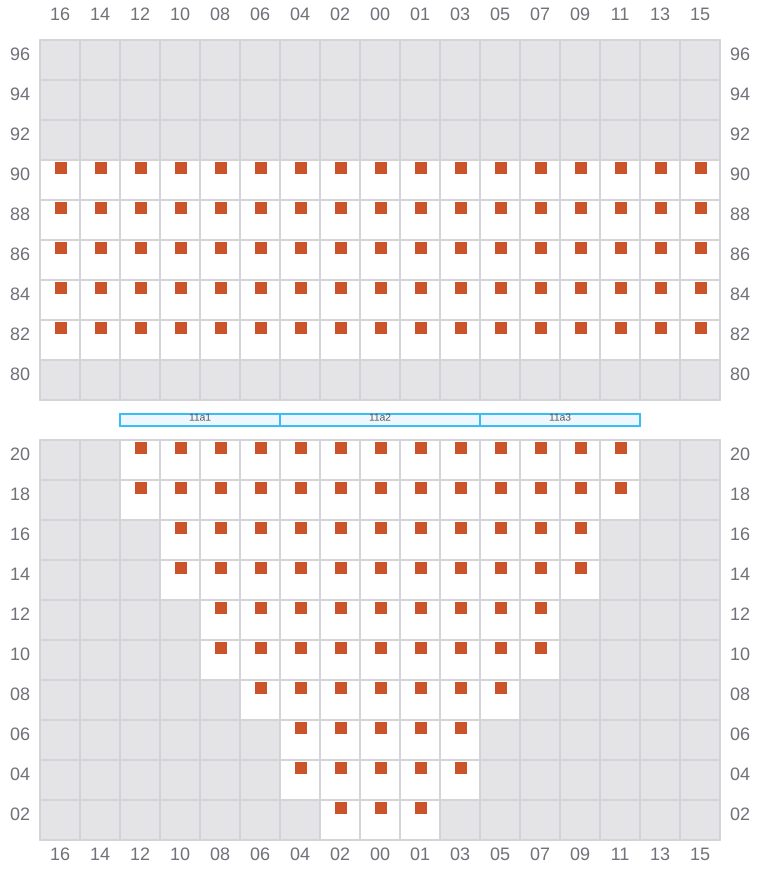

Bay 011 view and slots of CMA CGM RIGOLETTO

013 (014)

  • →

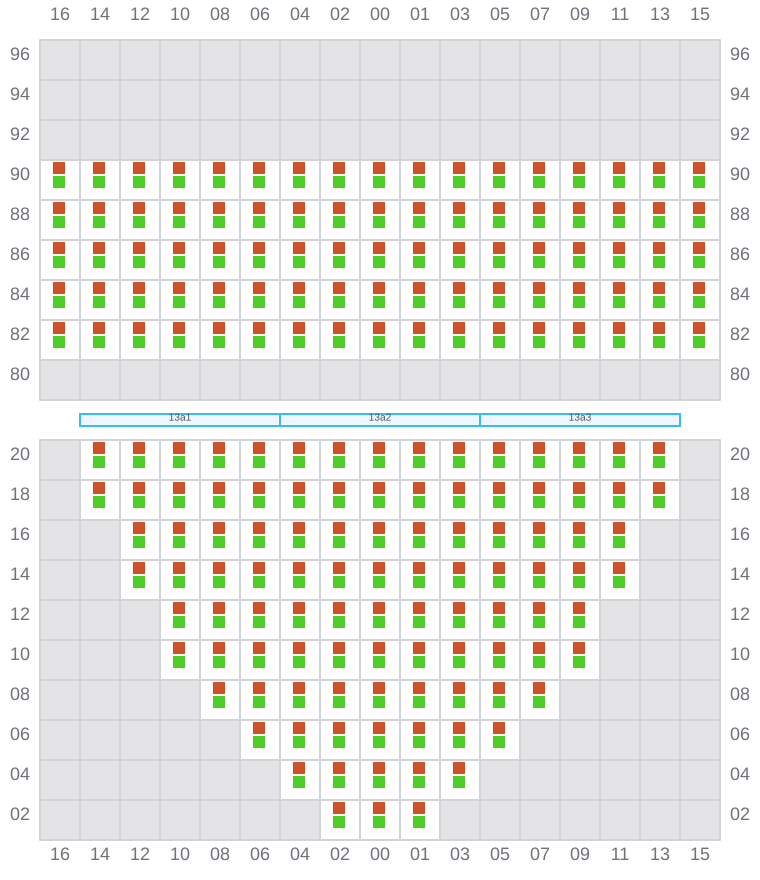

Bay 013 view and slots of CMA CGM RIGOLETTO

015

  • ←

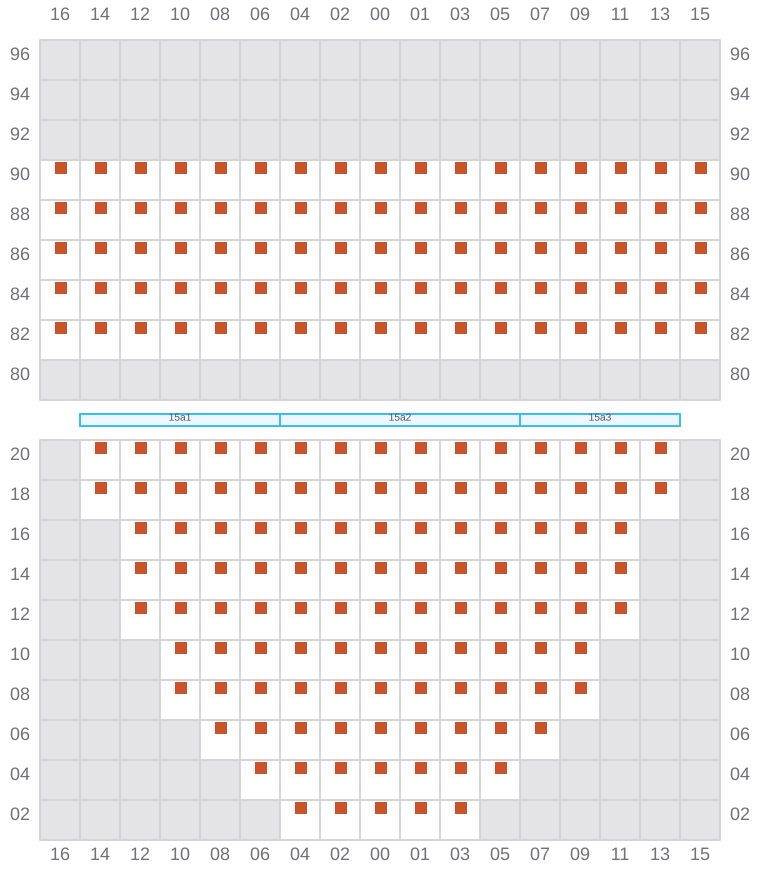

Bay 015 view and slots of CMA CGM RIGOLETTO

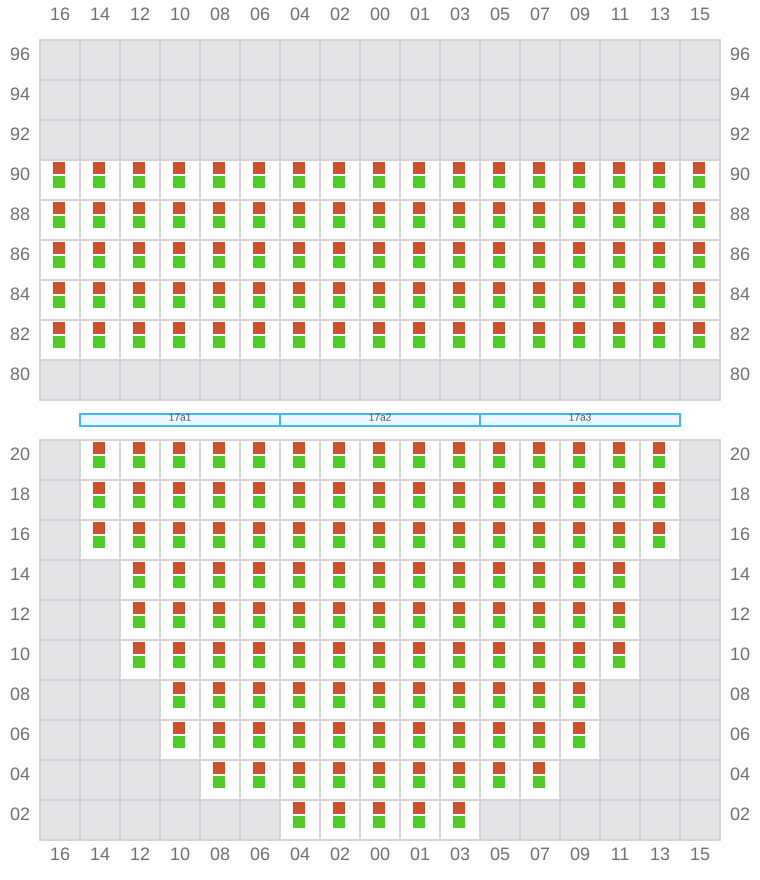

017 (018)

  • →
Bay 017 view and slots of CMA CGM RIGOLETTO

019

  • ←

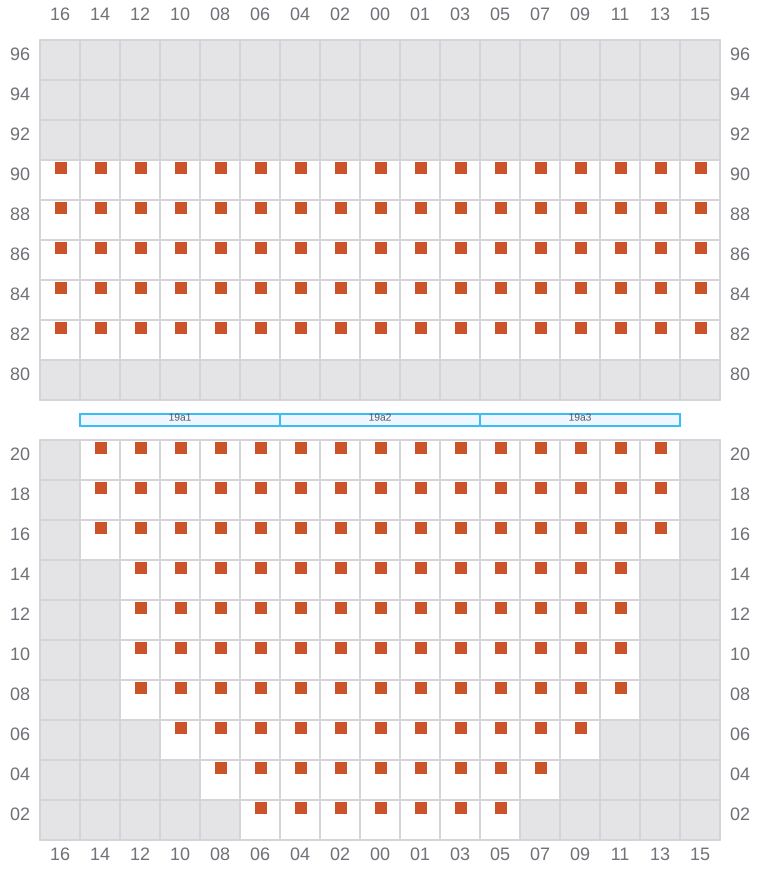

Bay 019 view and slots of CMA CGM RIGOLETTO

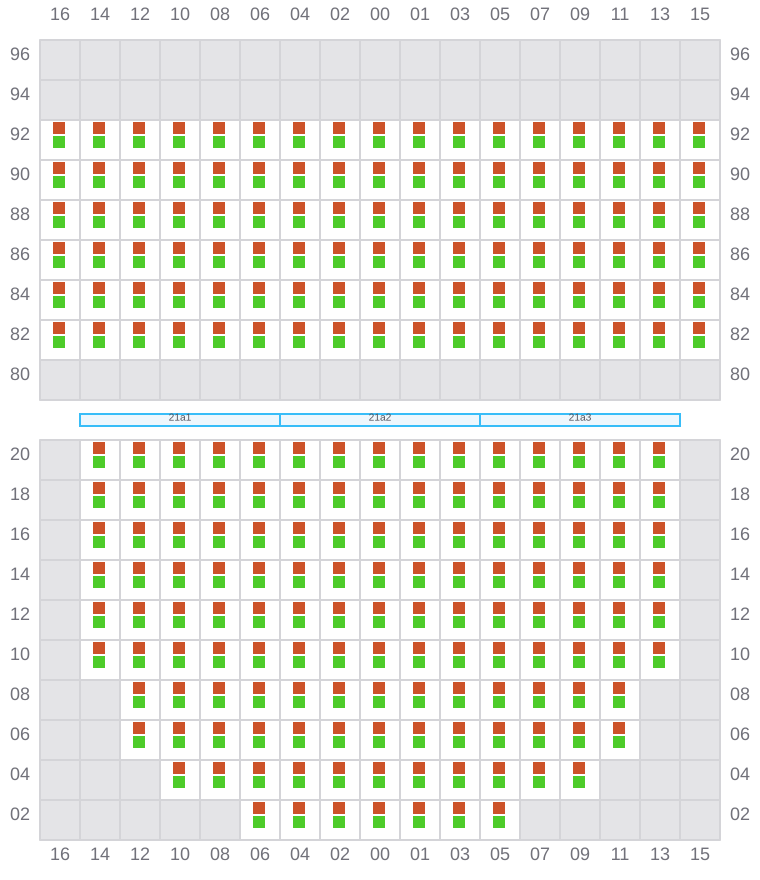

021 (022)

  • →
Bay 021 view and slots of CMA CGM RIGOLETTO

023

  • ←

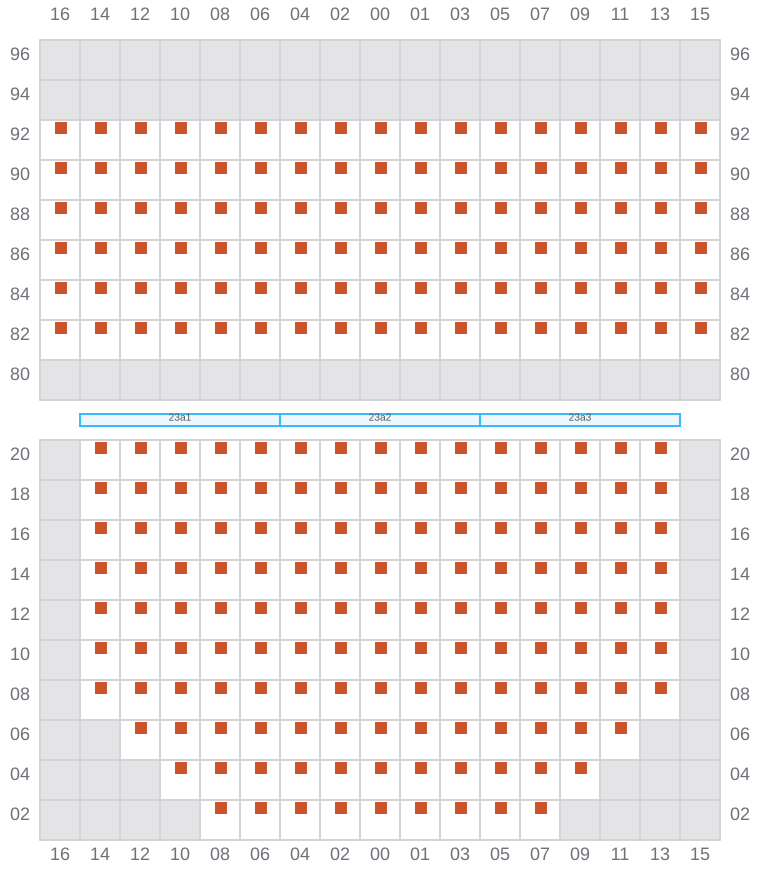

Bay 023 view and slots of CMA CGM RIGOLETTO

025 (026)

  • →

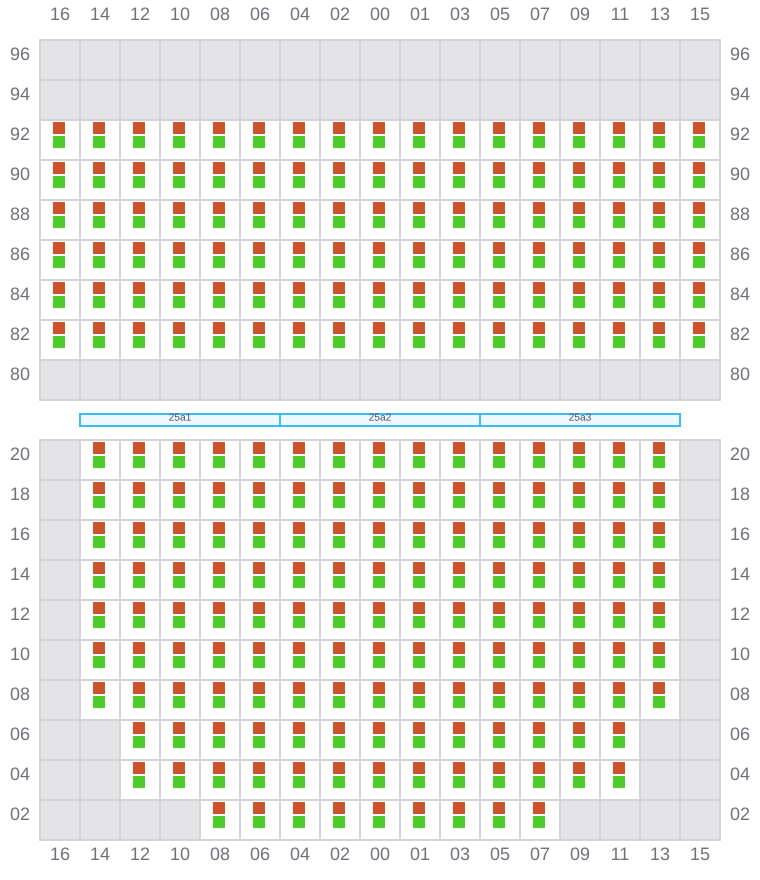

Bay 025 view and slots of CMA CGM RIGOLETTO

027

  • ←
Bay 027 view and slots of CMA CGM RIGOLETTO

029 (030)

  • →

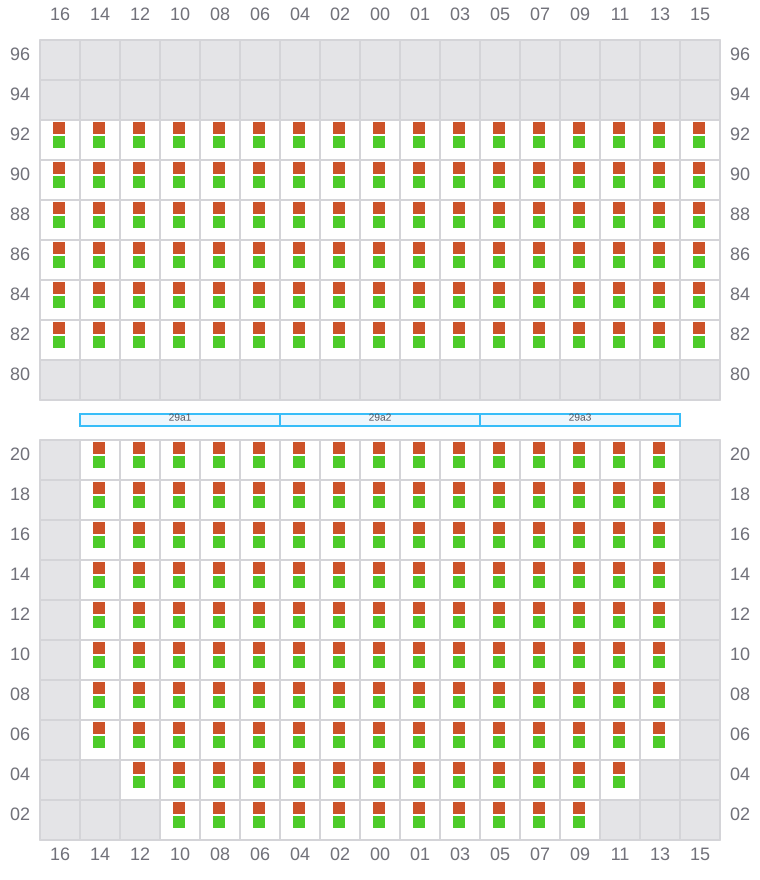

Bay 029 view and slots of CMA CGM RIGOLETTO

031

  • ←

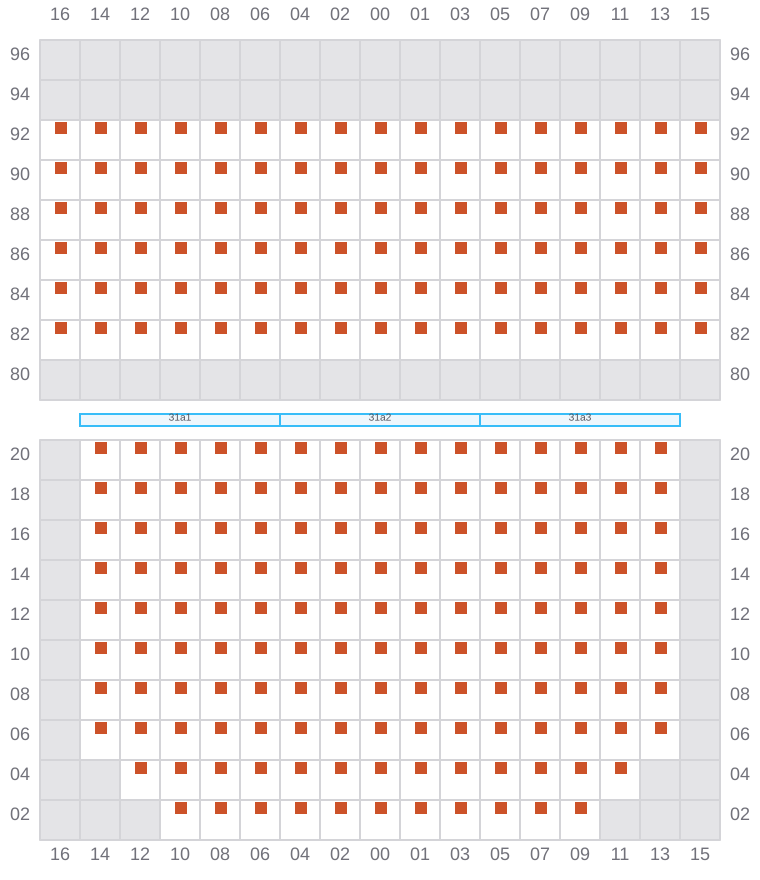

Bay 031 view and slots of CMA CGM RIGOLETTO

033 (034)

  • →
Bay 033 view and slots of CMA CGM RIGOLETTO

035

  • ←
Bay 035 view and slots of CMA CGM RIGOLETTO

037 (038)

  • →

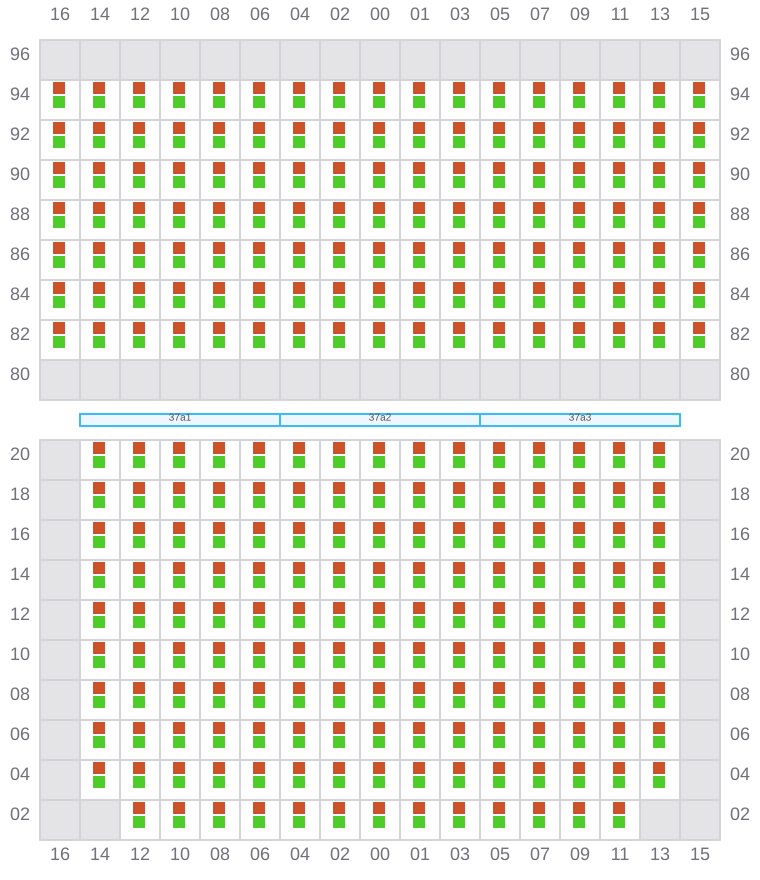

Bay 037 view and slots of CMA CGM RIGOLETTO

039

  • ←
Bay 039 view and slots of CMA CGM RIGOLETTO

041 (042)

  • →
Bay 041 view and slots of CMA CGM RIGOLETTO

043

  • ←
Bay 043 view and slots of CMA CGM RIGOLETTO

045 (046)

  • →
Bay 045 view and slots of CMA CGM RIGOLETTO

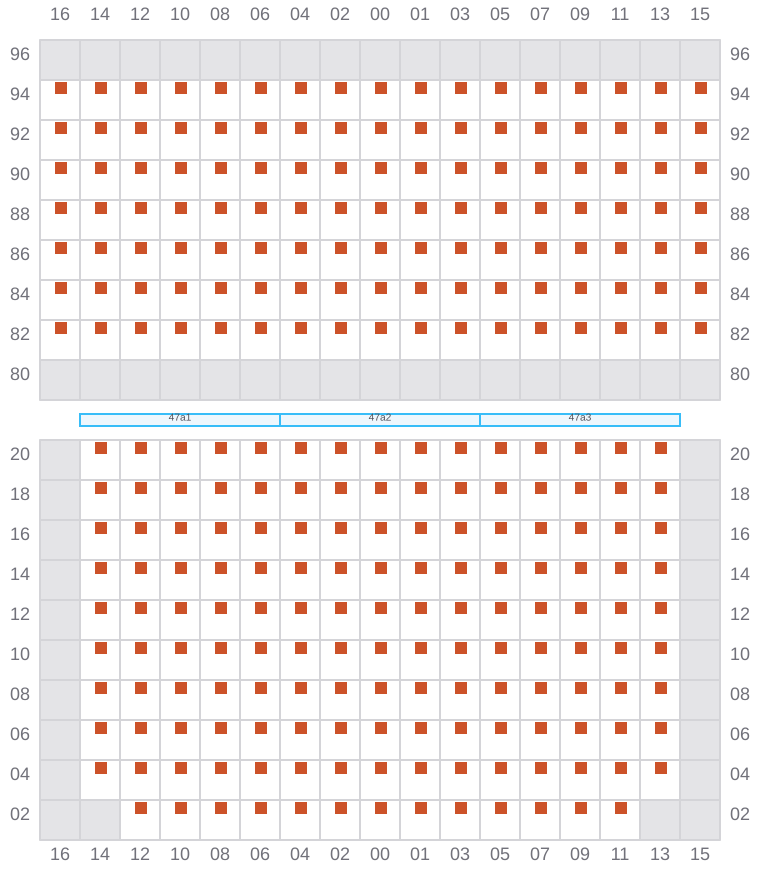

047

  • ←
Bay 047 view and slots of CMA CGM RIGOLETTO

049 (050)

  • →
Bay 049 view and slots of CMA CGM RIGOLETTO

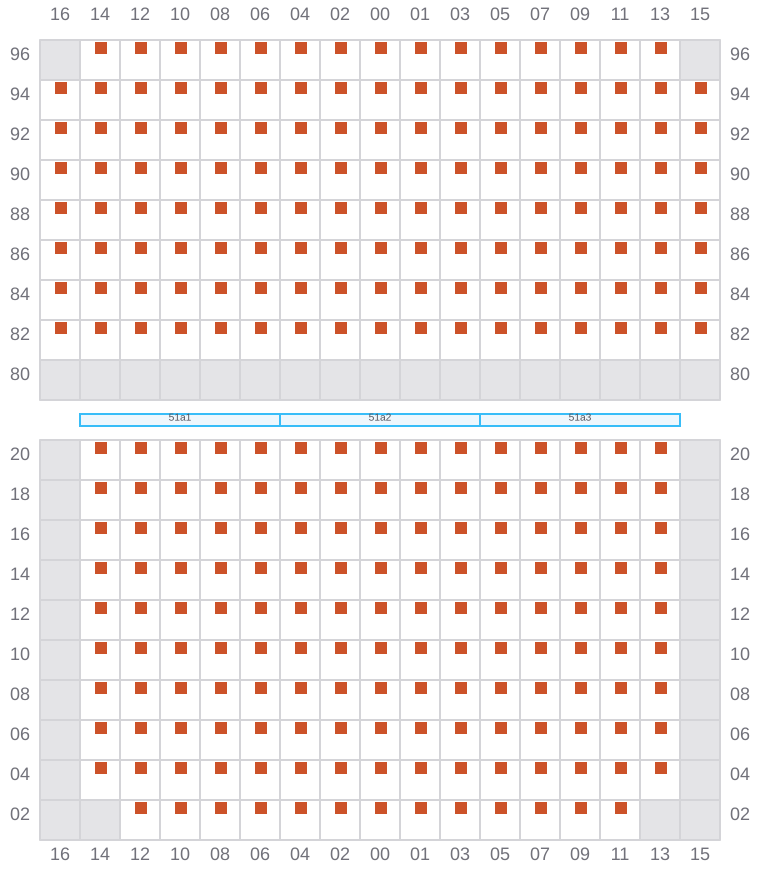

051

  • ←
Bay 051 view and slots of CMA CGM RIGOLETTO

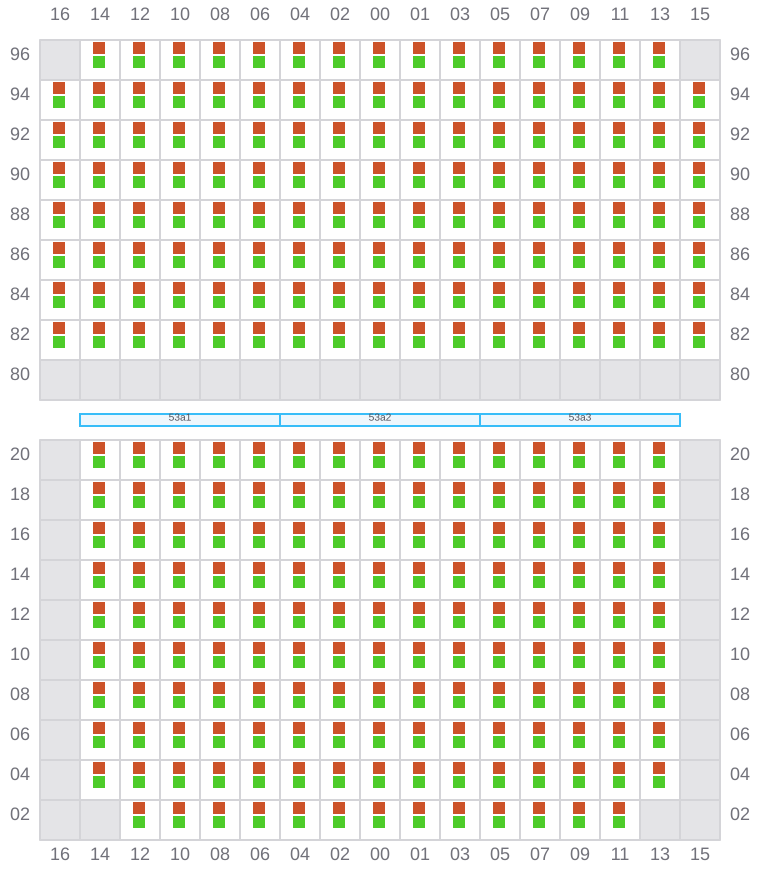

053 (054)

  • →
Bay 053 view and slots of CMA CGM RIGOLETTO

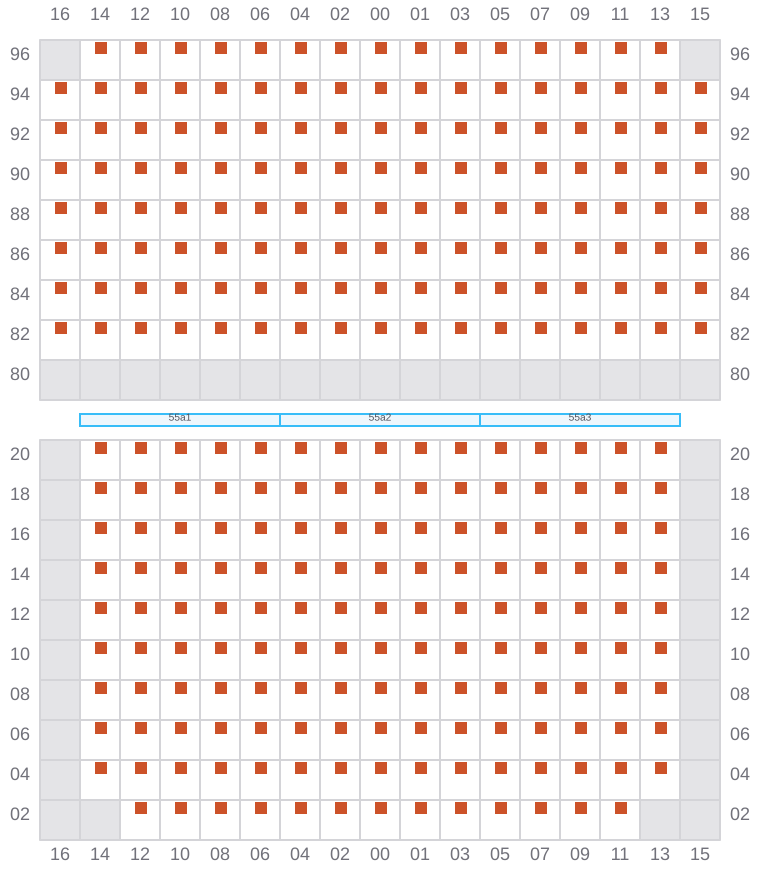

055

  • ←
Bay 055 view and slots of CMA CGM RIGOLETTO

057 (058)

  • →
Bay 057 view and slots of CMA CGM RIGOLETTO

059

  • ←
Bay 059 view and slots of CMA CGM RIGOLETTO

061 (062)

  • →

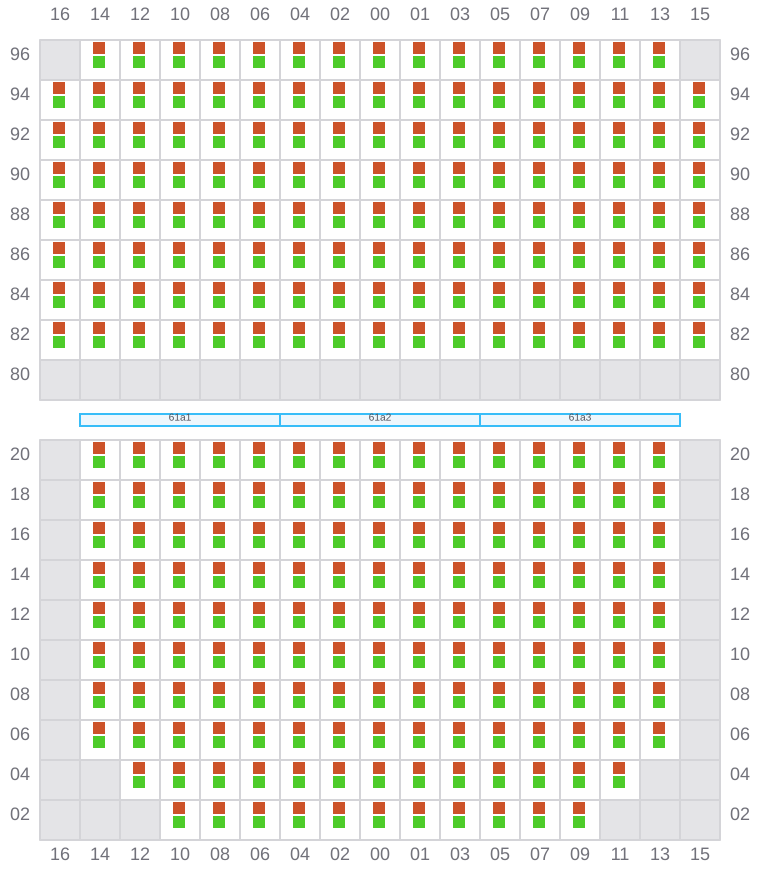

Bay 061 view and slots of CMA CGM RIGOLETTO

063

  • ←

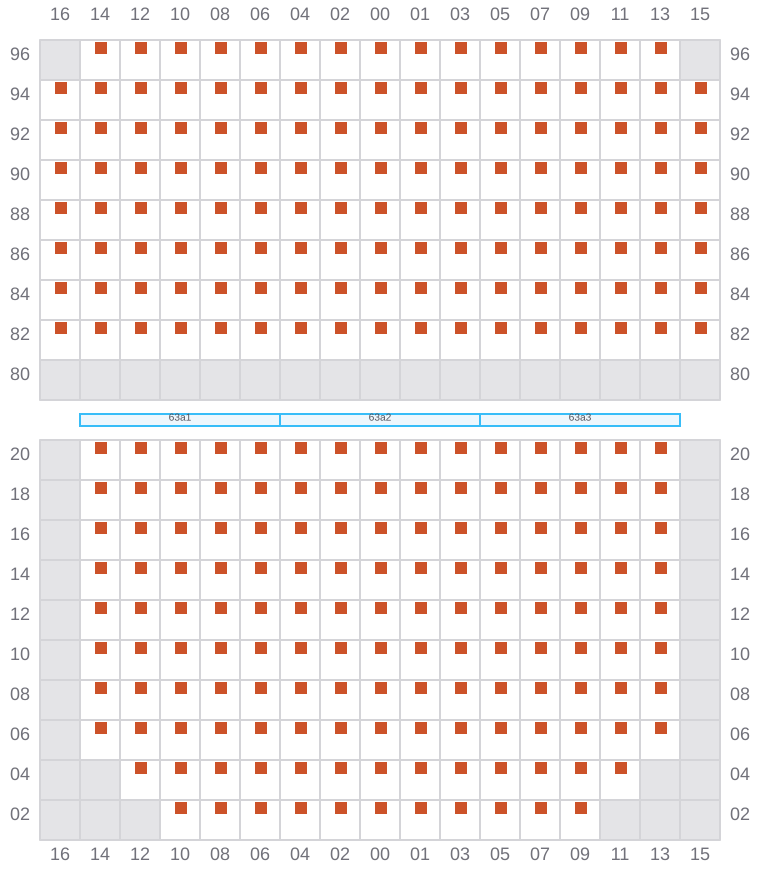

Bay 063 view and slots of CMA CGM RIGOLETTO

065 (066)

  • →

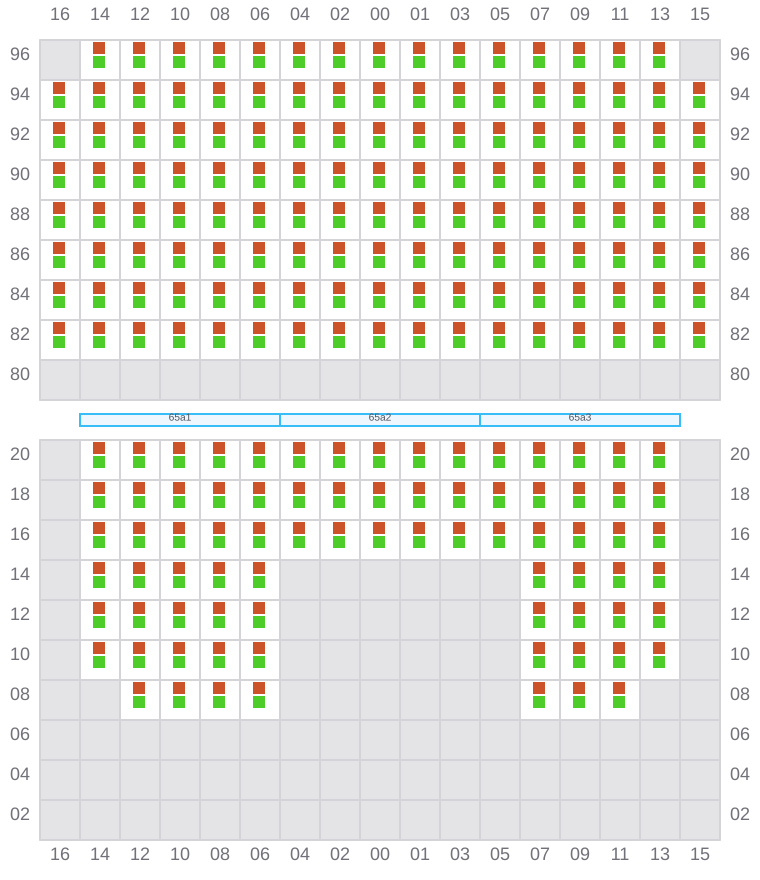

Bay 065 view and slots of CMA CGM RIGOLETTO

067

  • ←

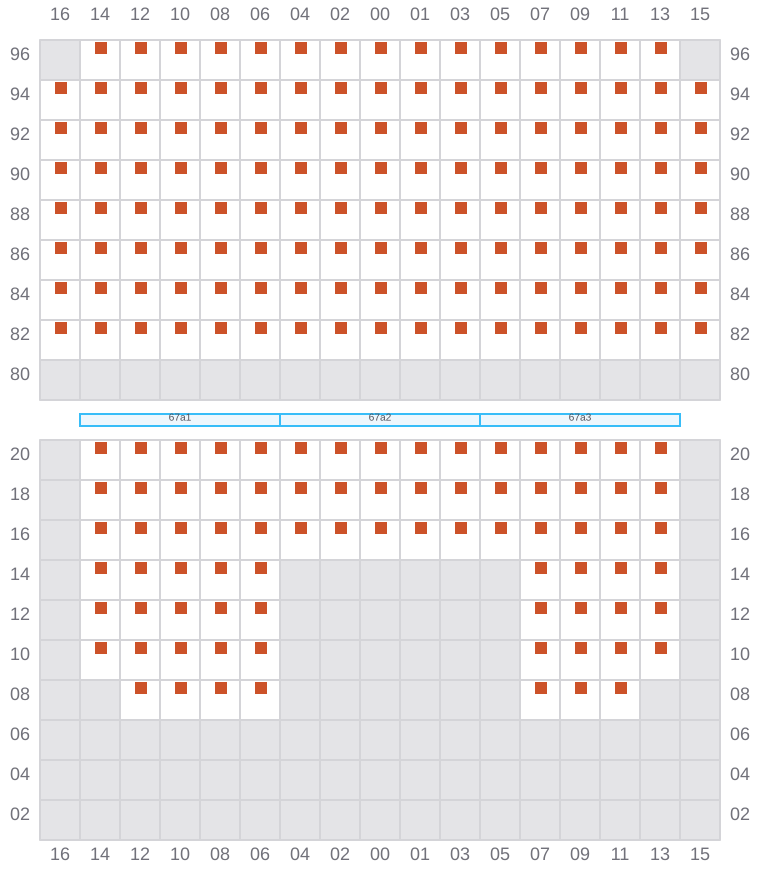

Bay 067 view and slots of CMA CGM RIGOLETTO

069 (070)

  • →

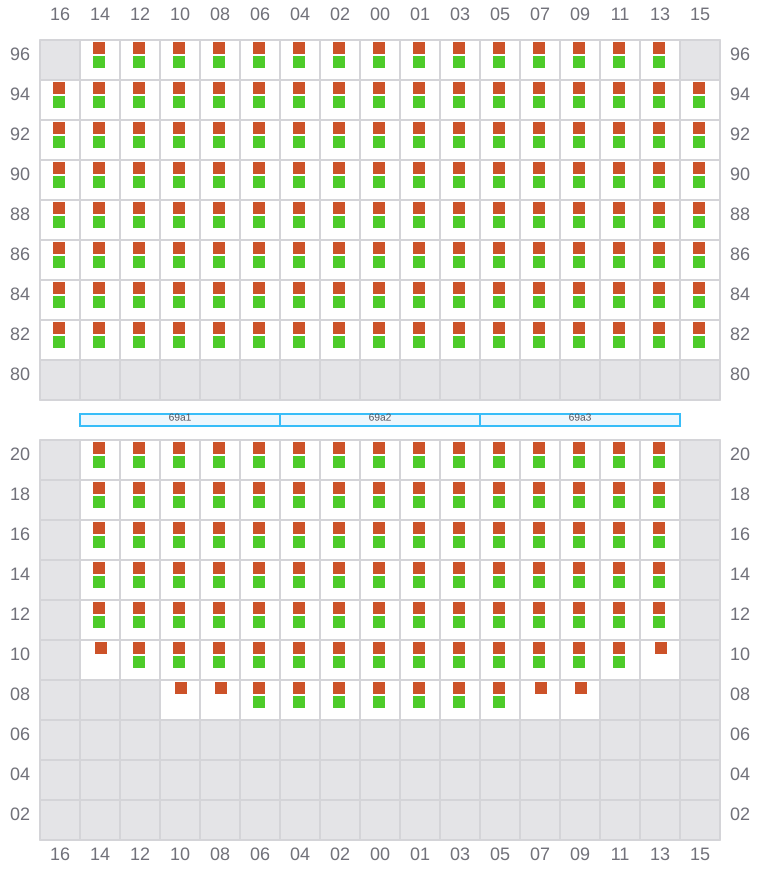

Bay 069 view and slots of CMA CGM RIGOLETTO

071

  • ←

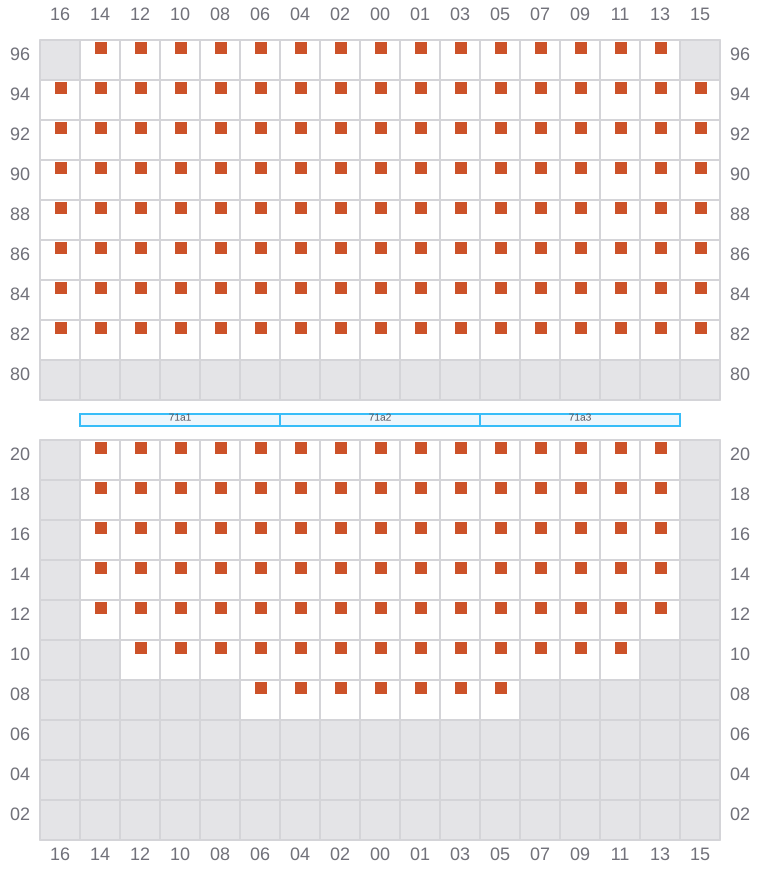

Bay 071 view and slots of CMA CGM RIGOLETTO

073 (074)

  • →

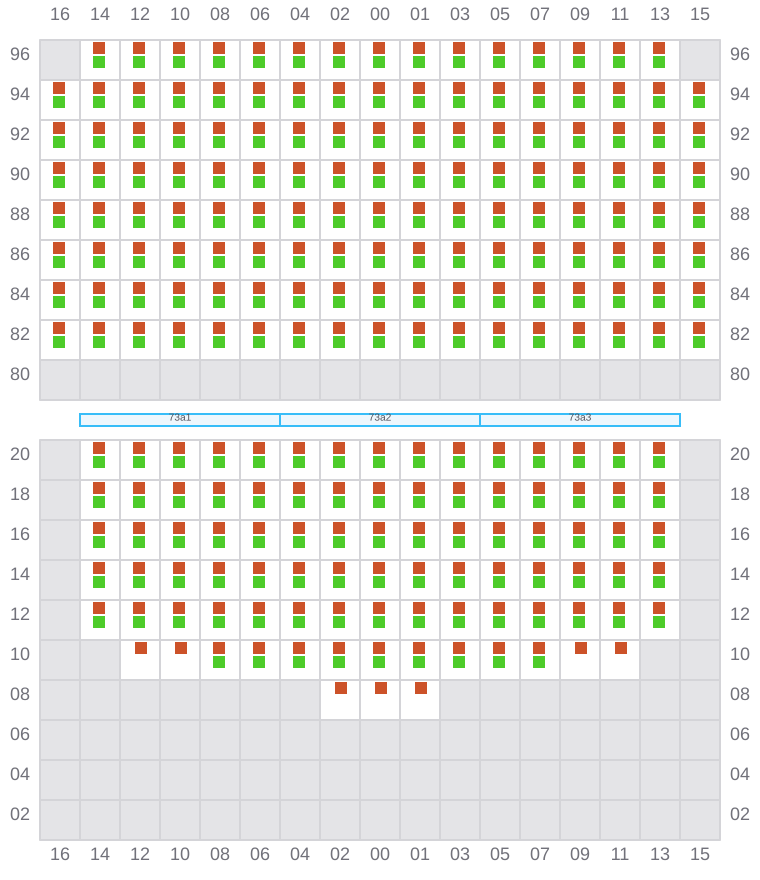

Bay 073 view and slots of CMA CGM RIGOLETTO

075

  • ←

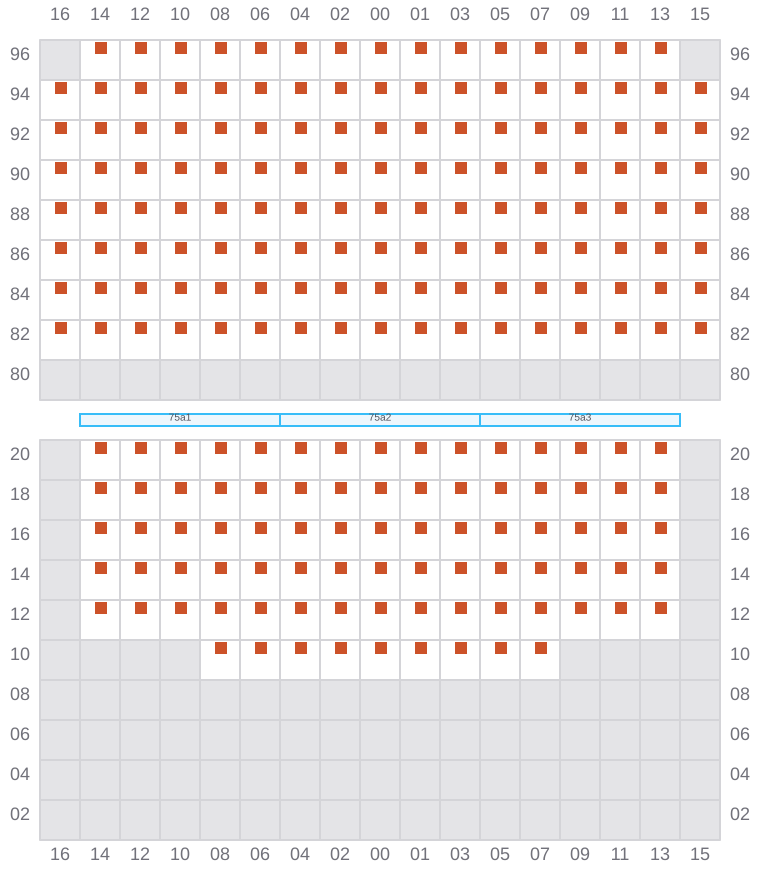

Bay 075 view and slots of CMA CGM RIGOLETTO

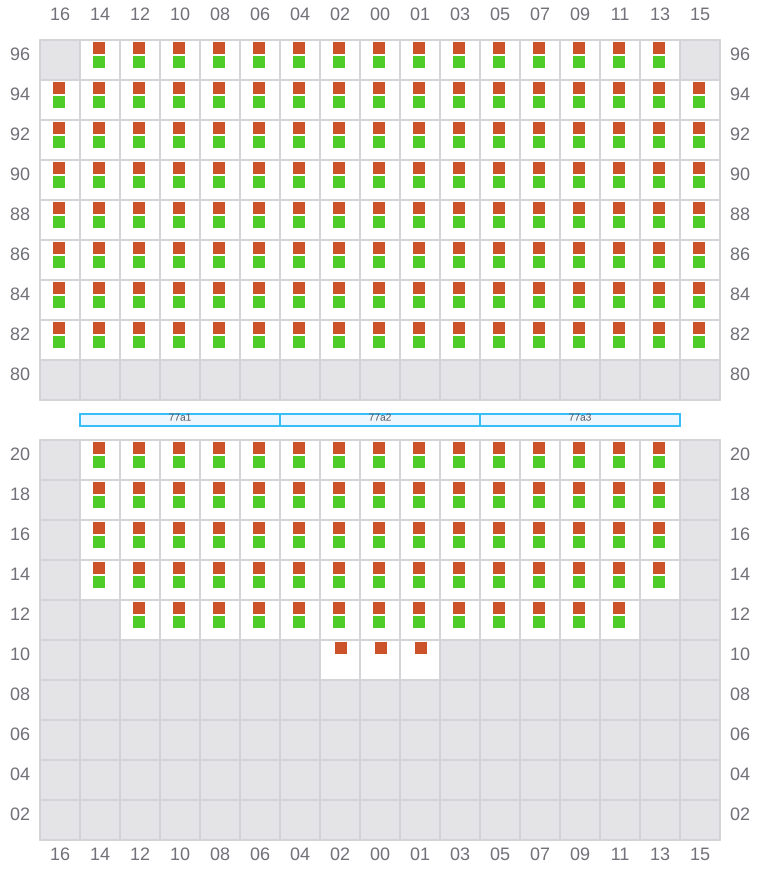

077 (078)

  • →
Bay 077 view and slots of CMA CGM RIGOLETTO

079

  • ←

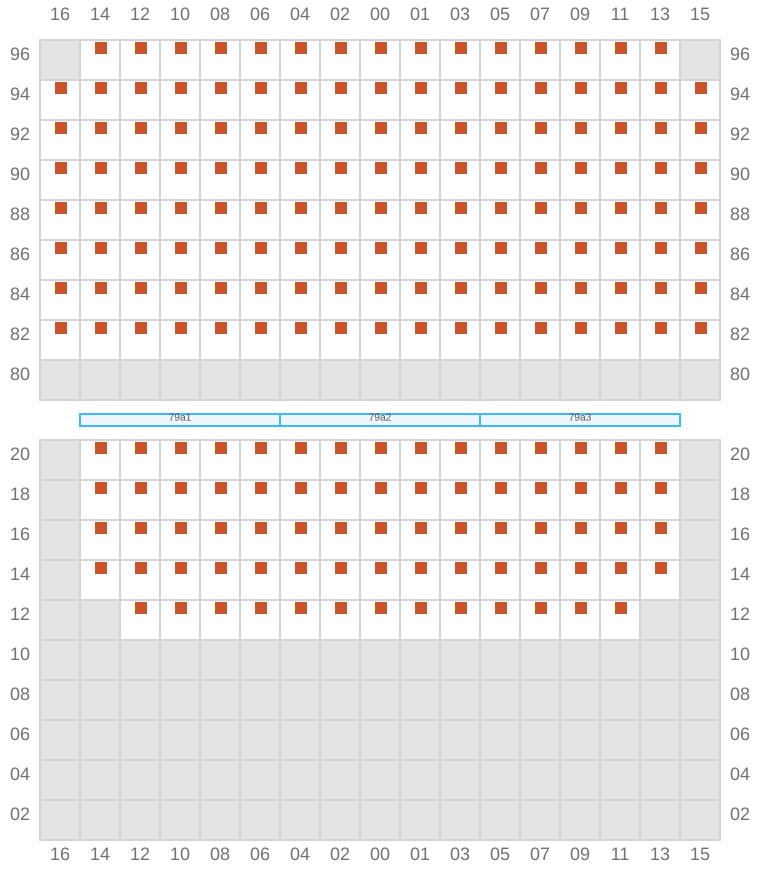

Bay 079 view and slots of CMA CGM RIGOLETTO

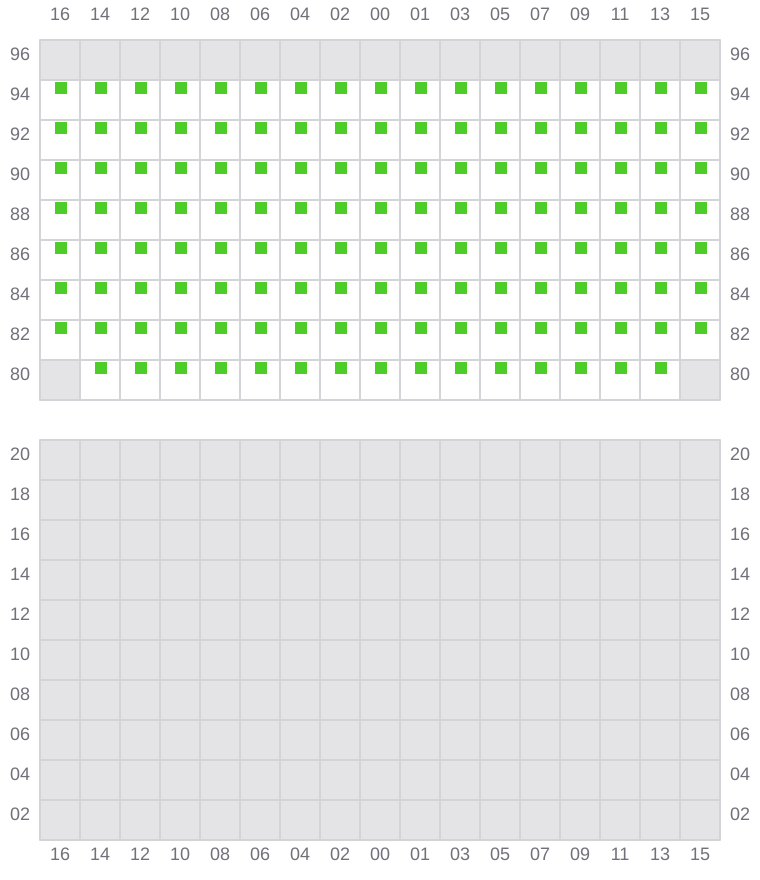

081 (082)

  • → / ?
Bay 081 view and slots of CMA CGM RIGOLETTO
