CMA CGM RIMBAUD
9635640 | 9HA5860 | 9635640 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:CMA CGM RIMBAUD
IMO Code:9635640
Call Sign:9HA5860
Line Operator:9635640
Class Name for Sister Ships:52U
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,921
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

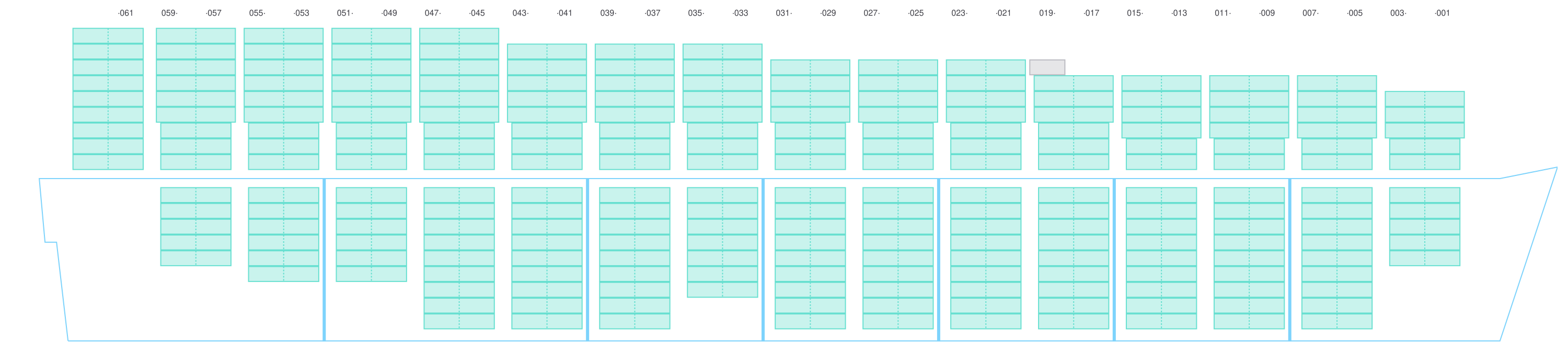

Side View
![Side view of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-sideView.png?v=1711662900487)

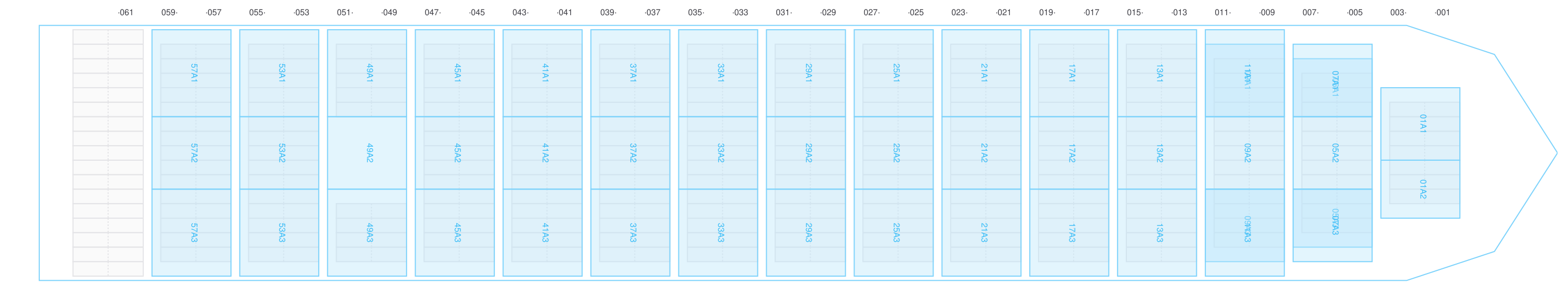

Hatch-Covers View
![Deck view of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-deckView.png?v=1711662900487)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

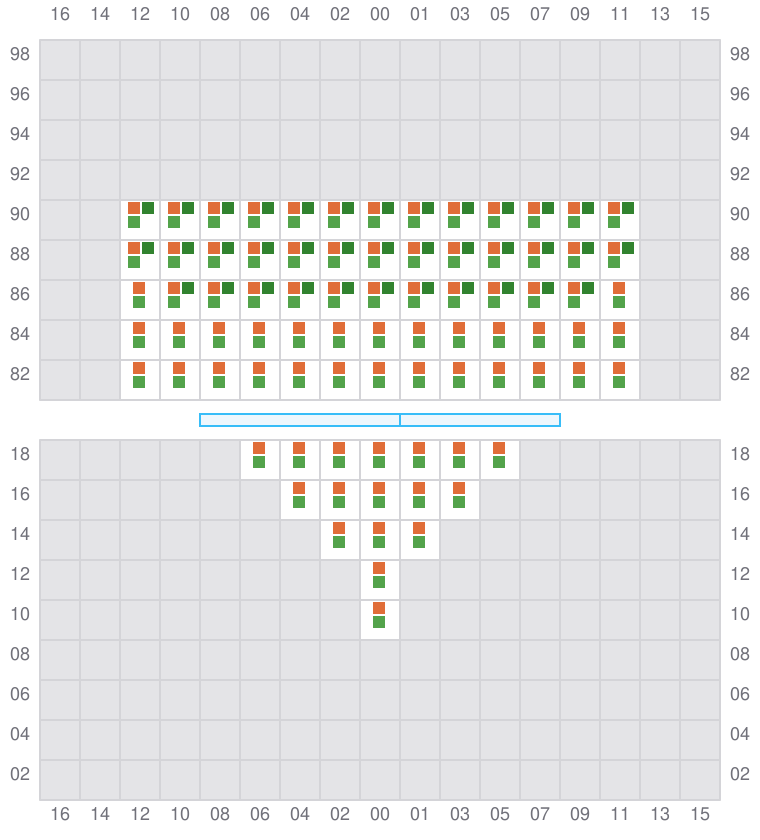

001 (002)
- →
![Bay 001 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b001.png?v=1711662900487)

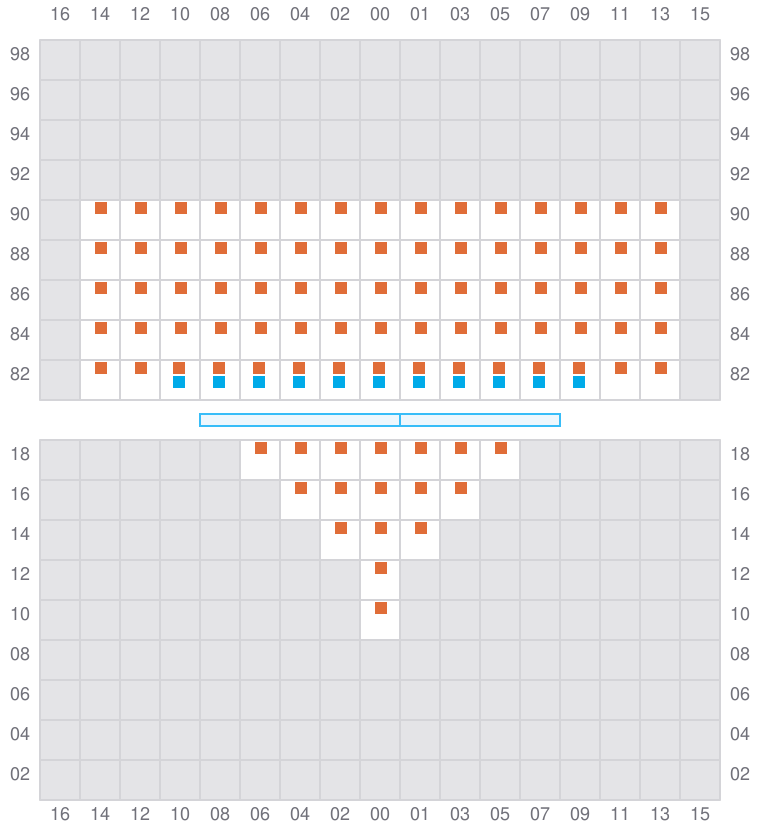

003
- ←
![Bay 003 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b003.png?v=1711662900487)

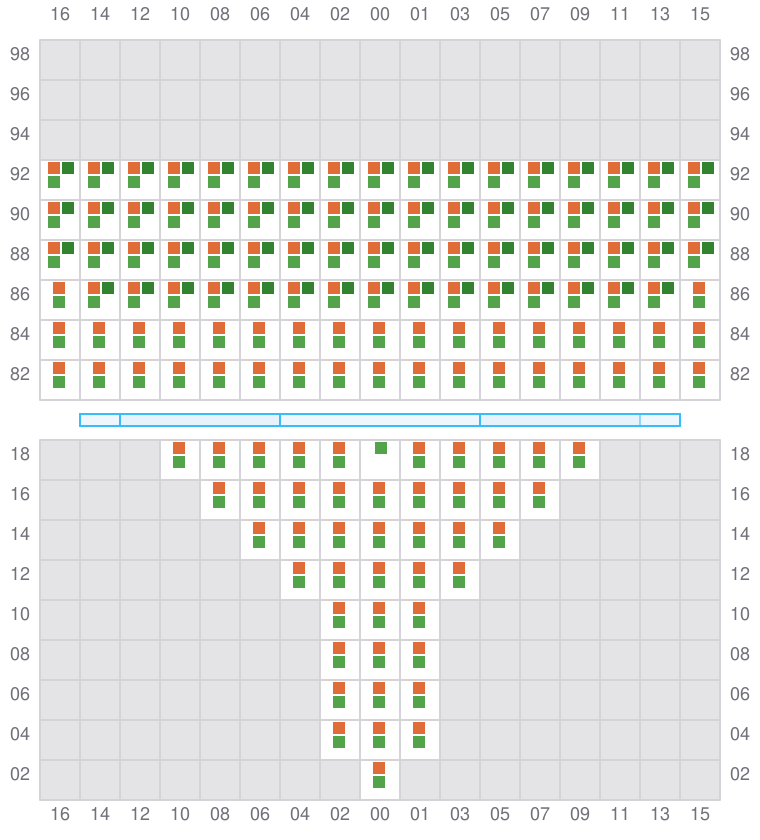

005 (006)
- →
![Bay 005 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b005.png?v=1711662900487)

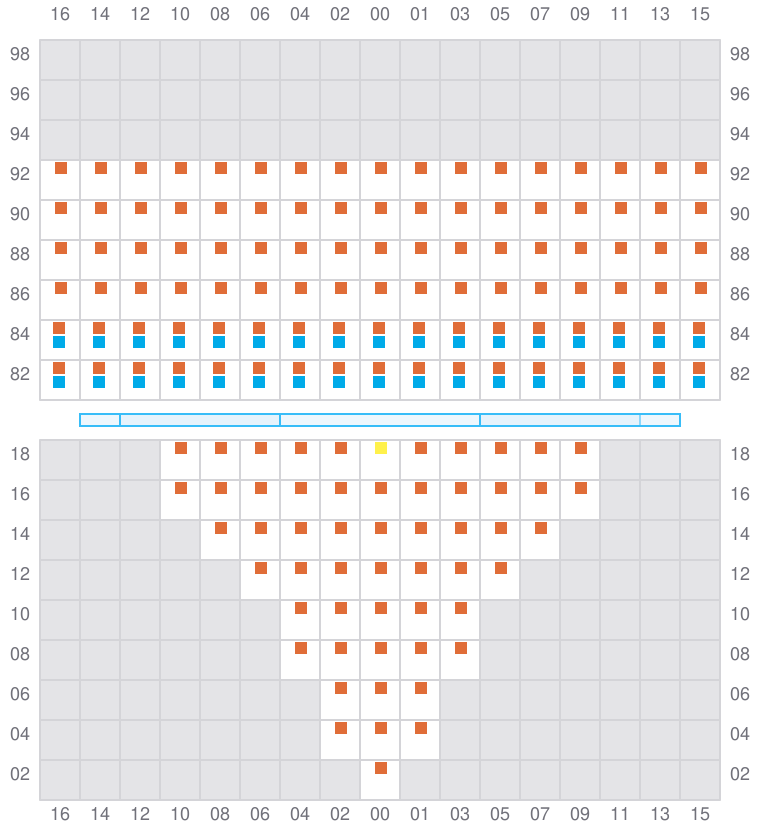

007
- ←
![Bay 007 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b007.png?v=1711662900487)

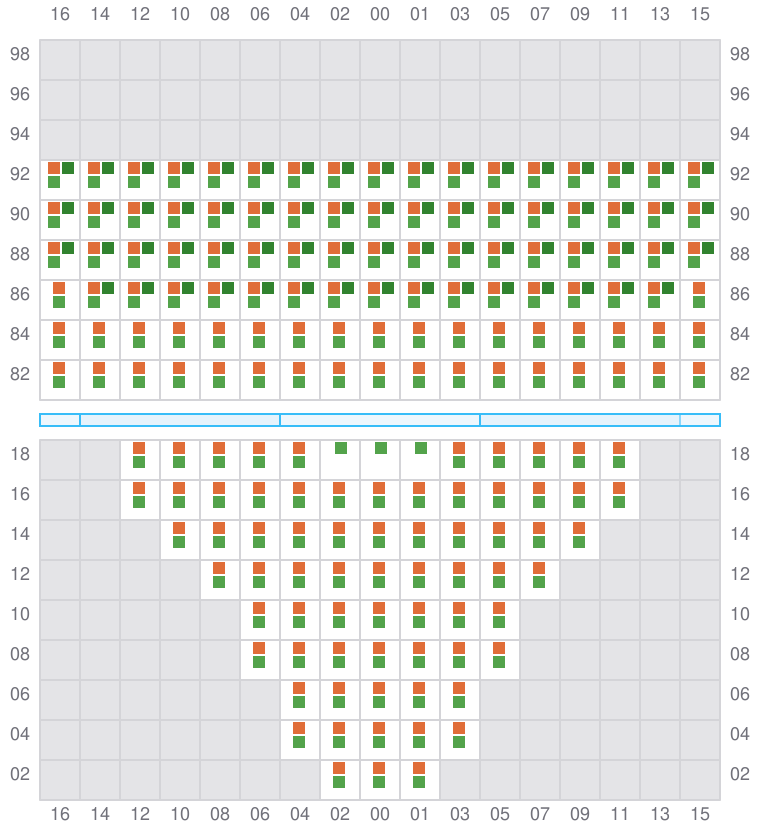

009 (010)
- →
![Bay 009 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b009.png?v=1711662900487)

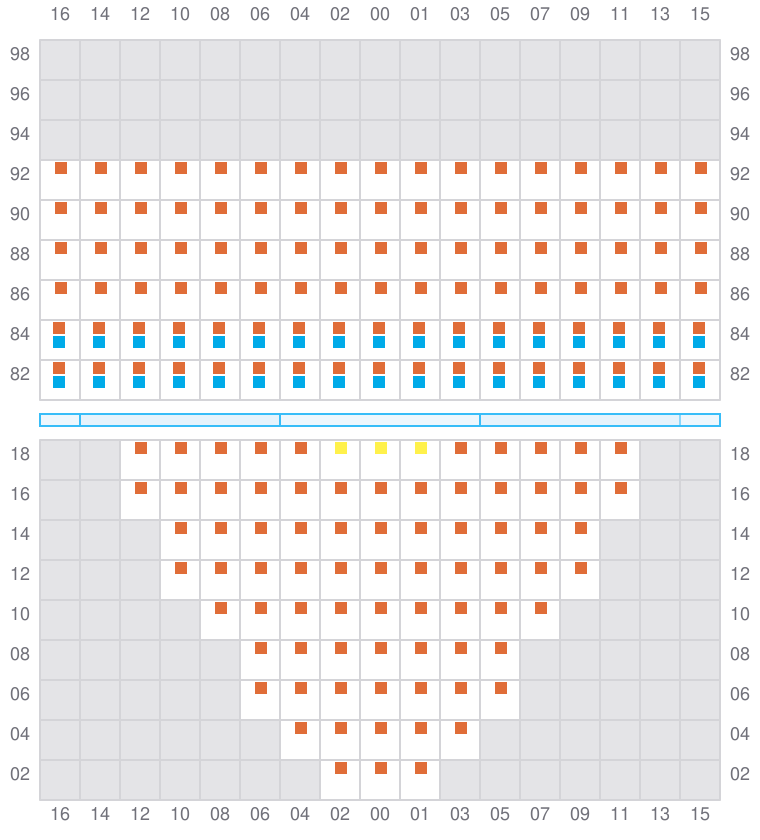

011
- ←
![Bay 011 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b011.png?v=1711662900487)

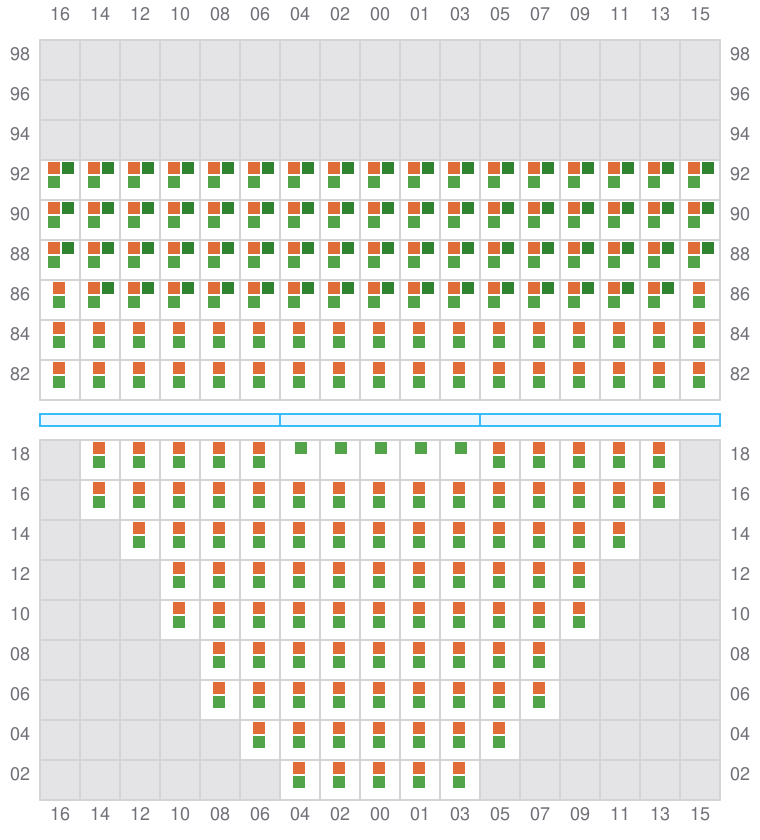

013 (014)
- →
![Bay 013 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b013.png?v=1711662900487)

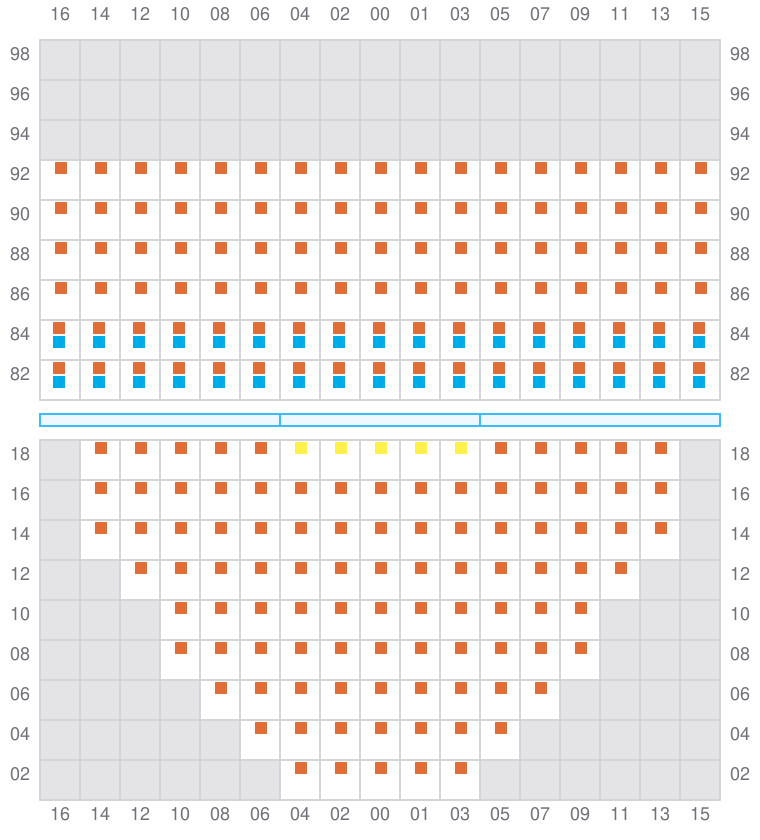

015
- ←
![Bay 015 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b015.png?v=1711662900487)

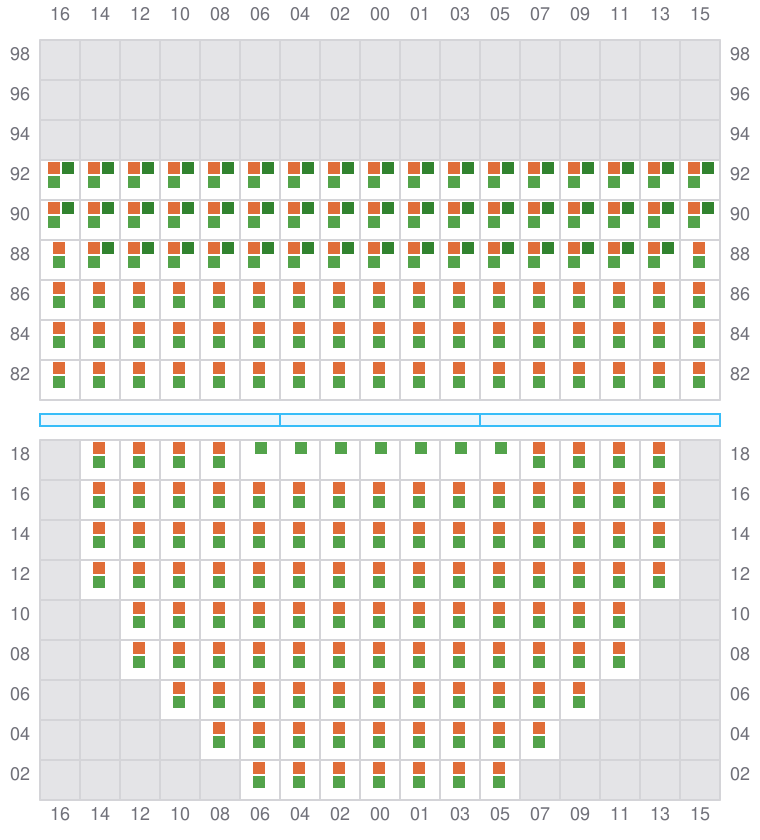

017 (018)
- →
![Bay 017 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b017.png?v=1711662900487)

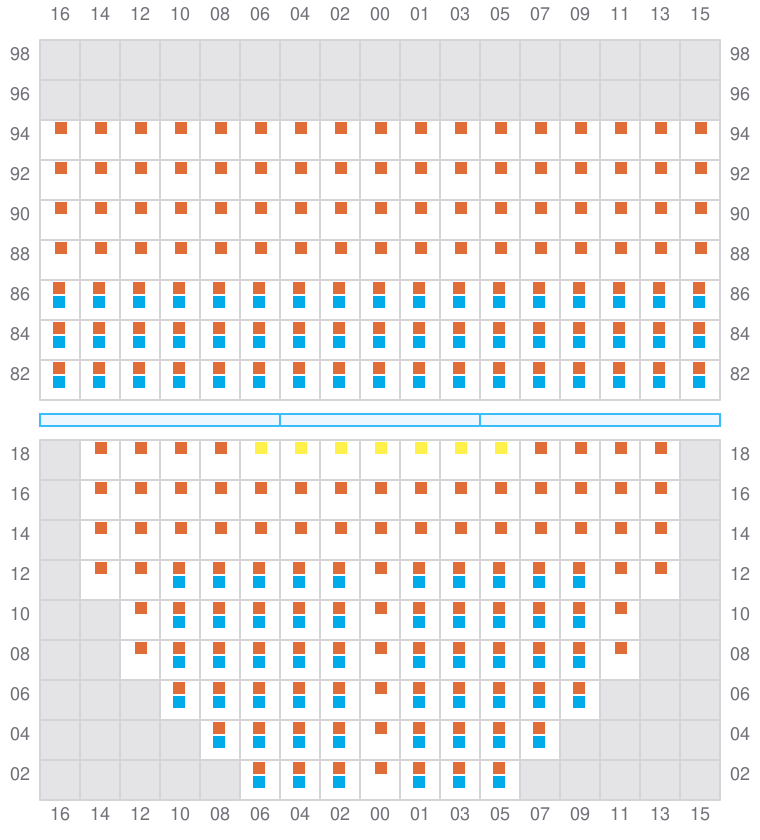

019
- ←
![Bay 019 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b019.png?v=1711662900487)

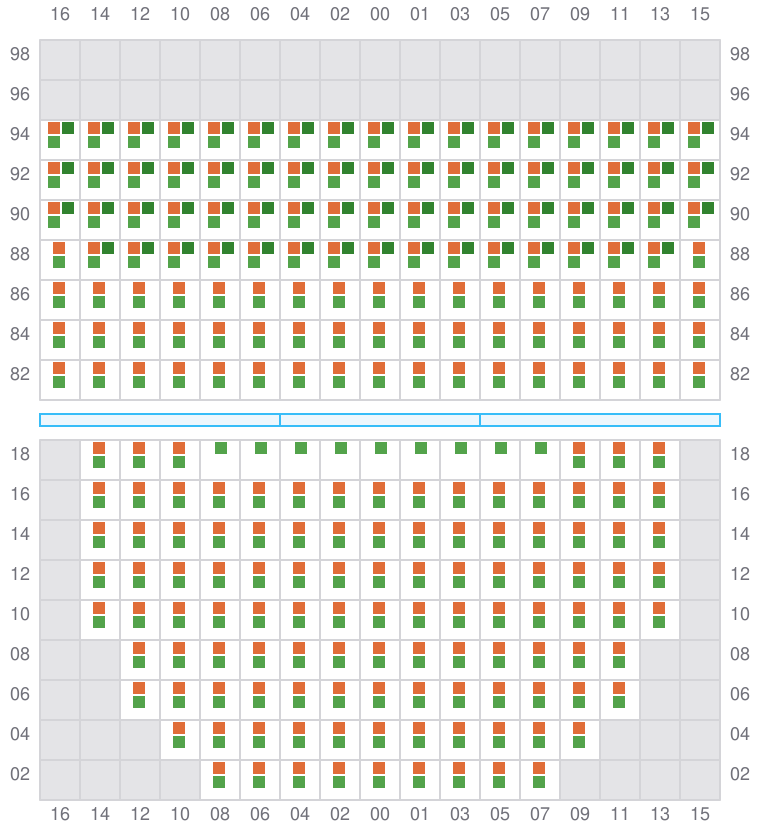

021 (022)
- →
![Bay 021 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b021.png?v=1711662900487)

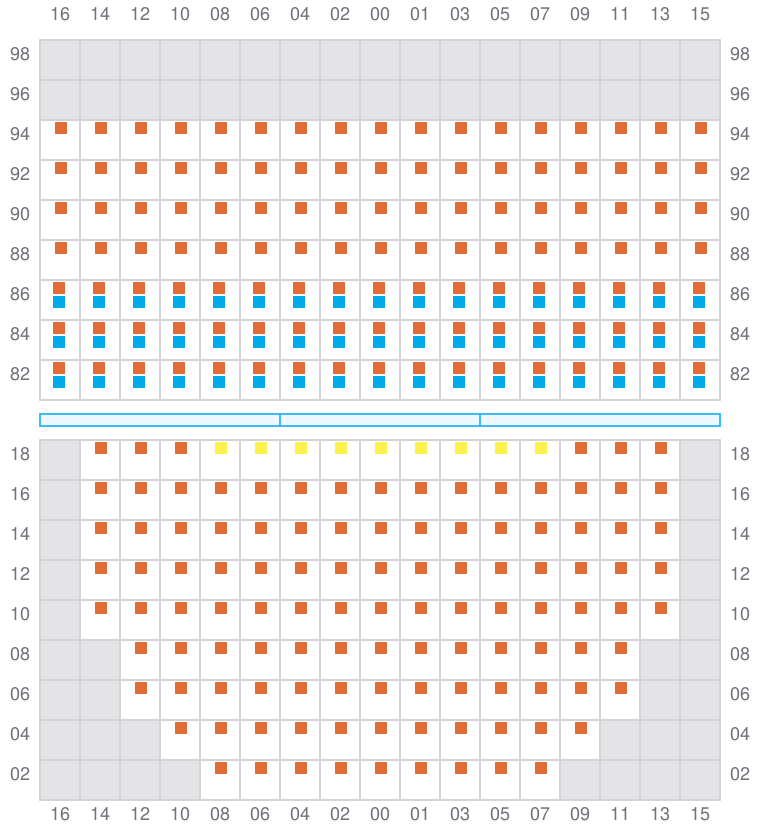

023
- ←
![Bay 023 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b023.png?v=1711662900487)

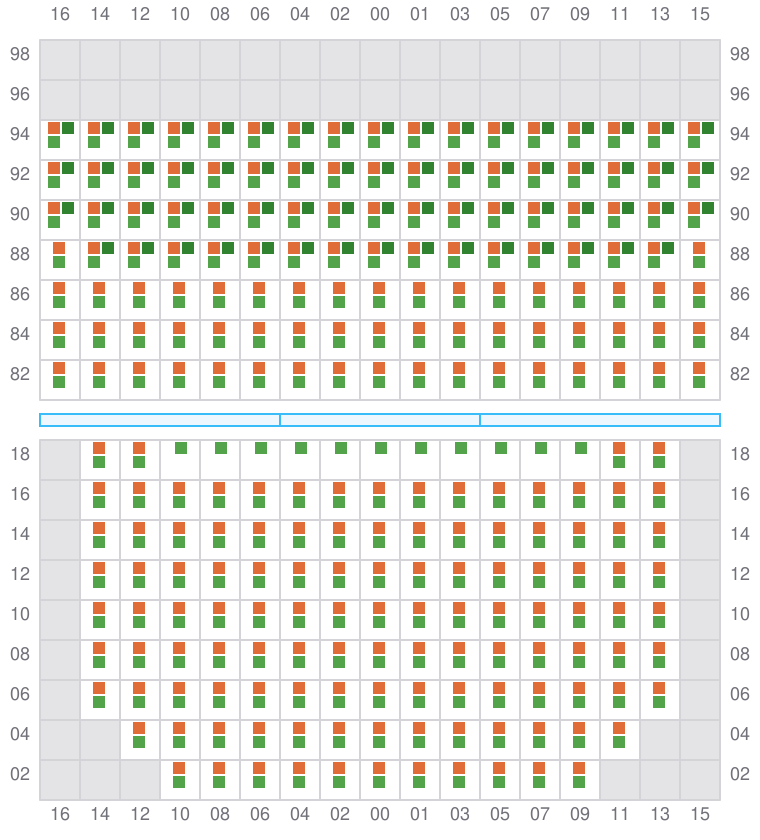

025 (026)
- →
![Bay 025 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b025.png?v=1711662900487)

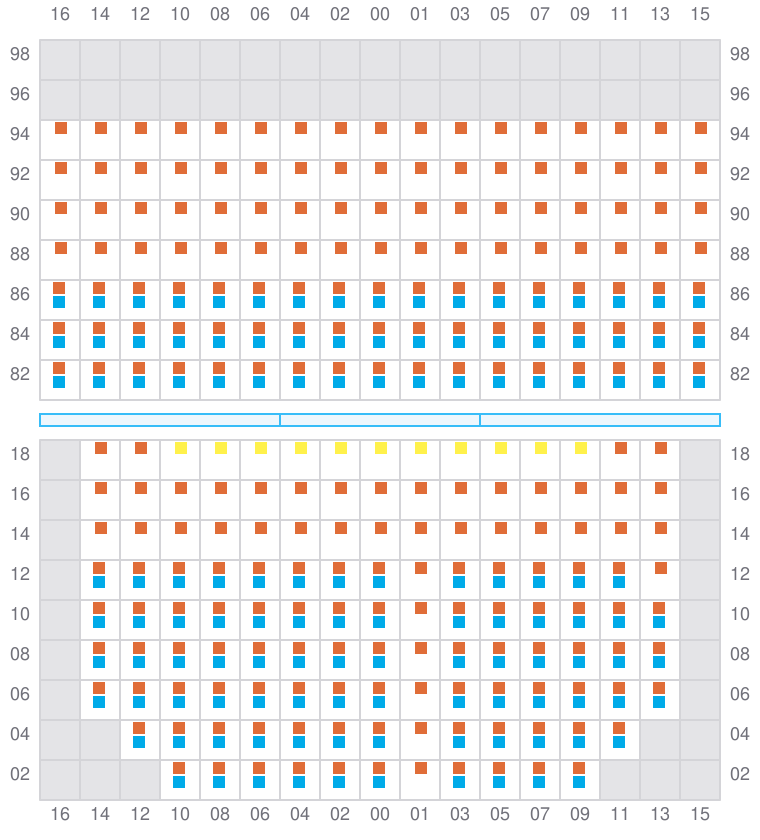

027
- ←
![Bay 027 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b027.png?v=1711662900487)

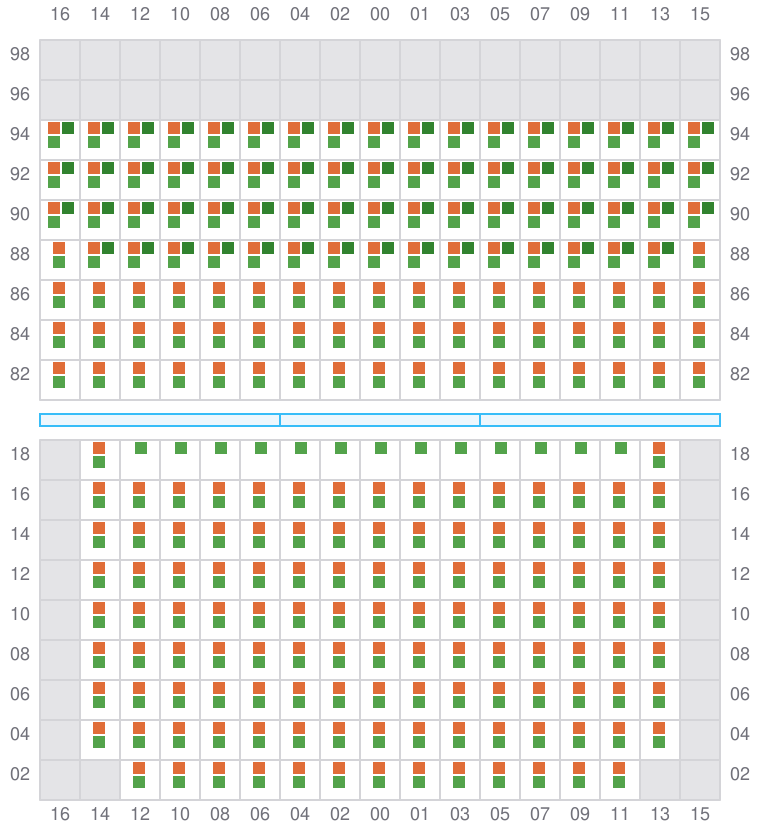

029 (030)
- →
![Bay 029 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b029.png?v=1711662900487)

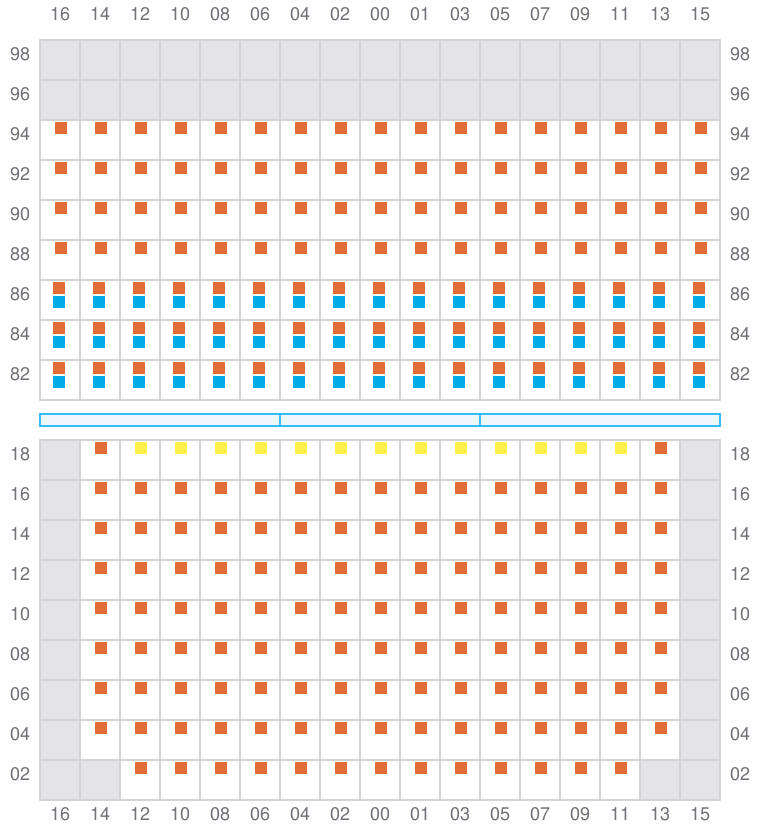

031
- ←
![Bay 031 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b031.png?v=1711662900487)

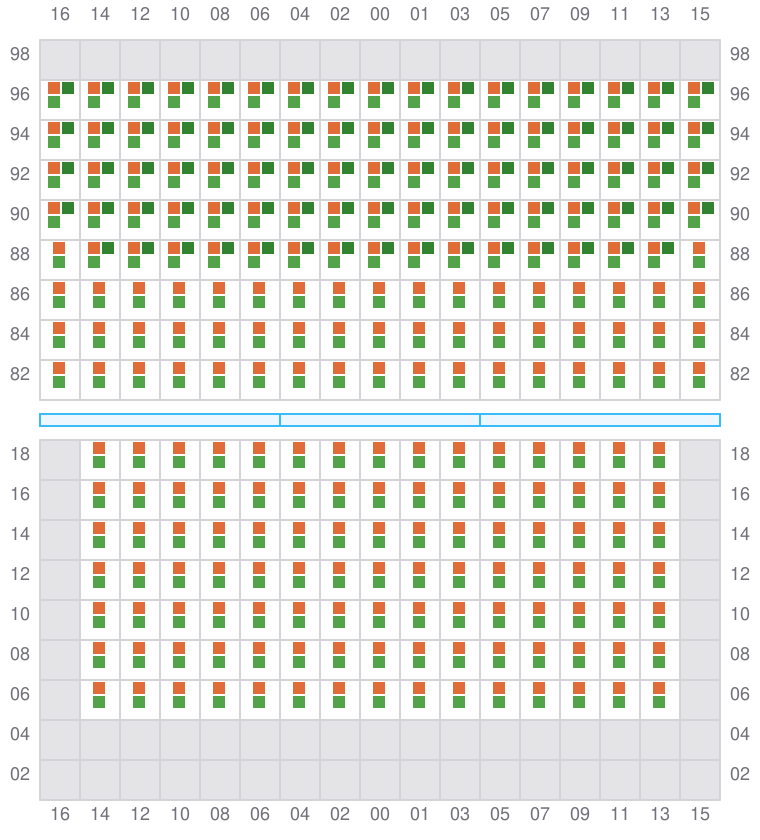

033 (034)
- →
![Bay 033 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b033.png?v=1711662900487)

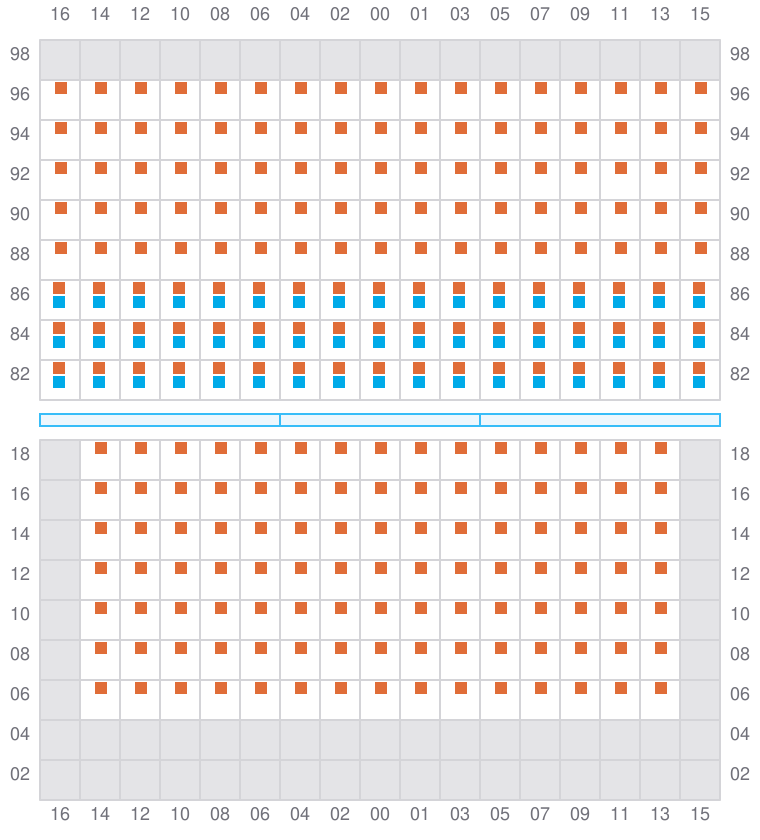

035
- ←
![Bay 035 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b035.png?v=1711662900487)

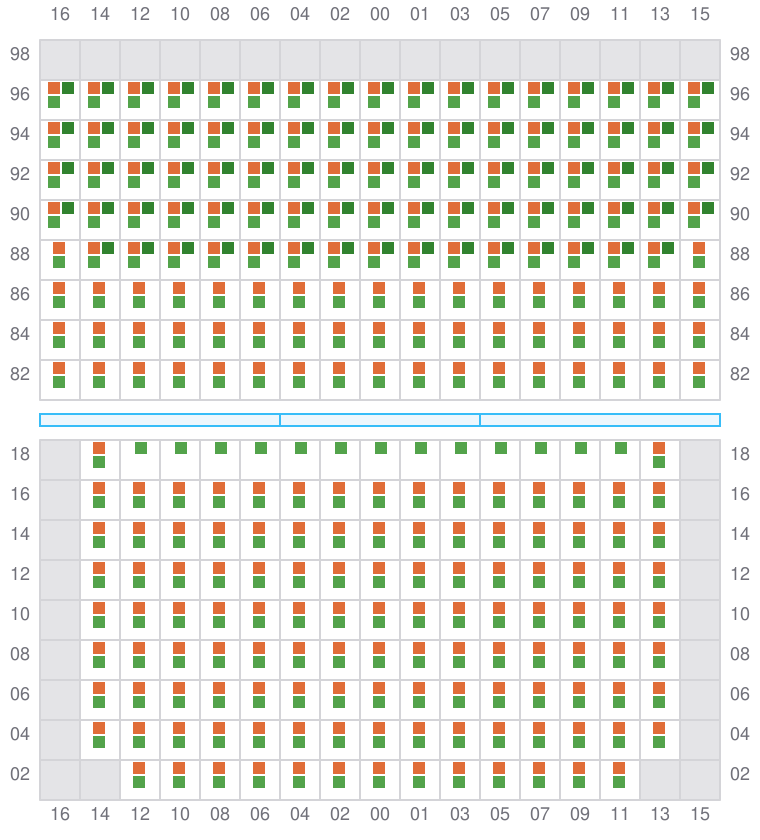

037 (038)
- →
![Bay 037 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b037.png?v=1711662900487)

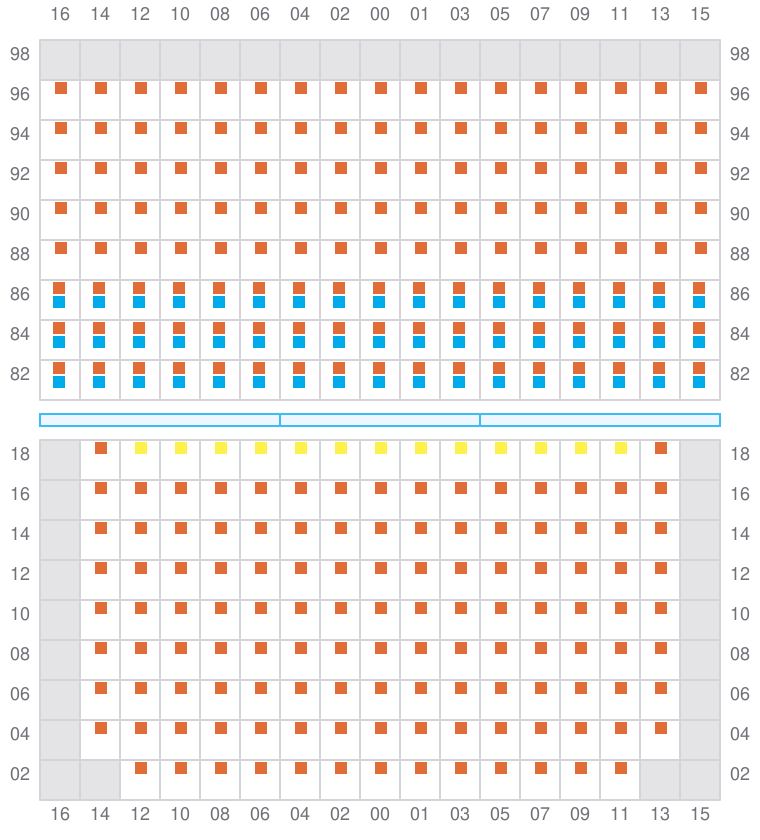

039
- ←
![Bay 039 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b039.png?v=1711662900487)

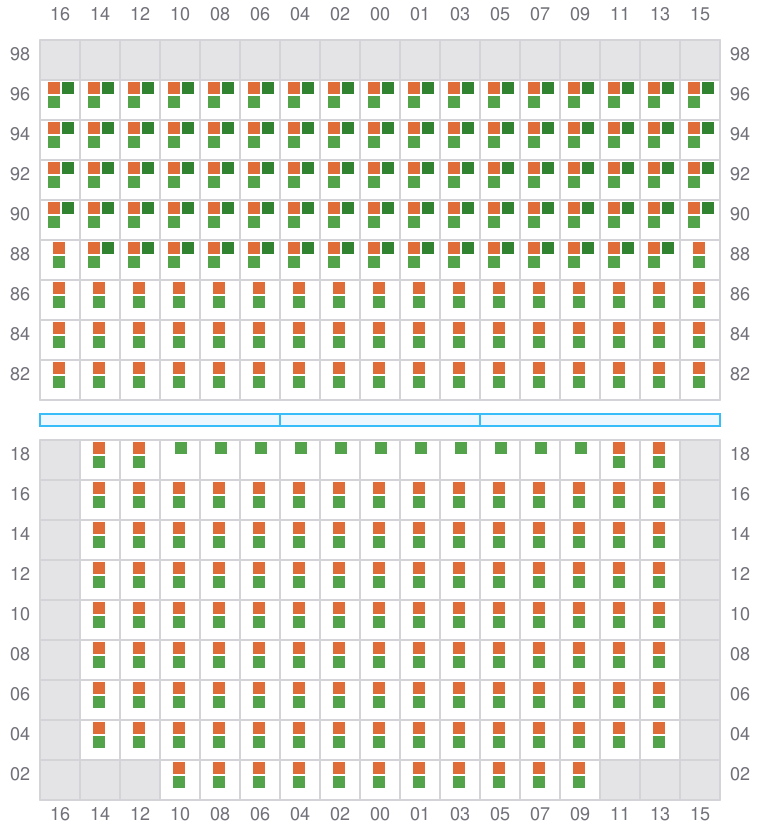

041 (042)
- →
![Bay 041 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b041.png?v=1711662900487)

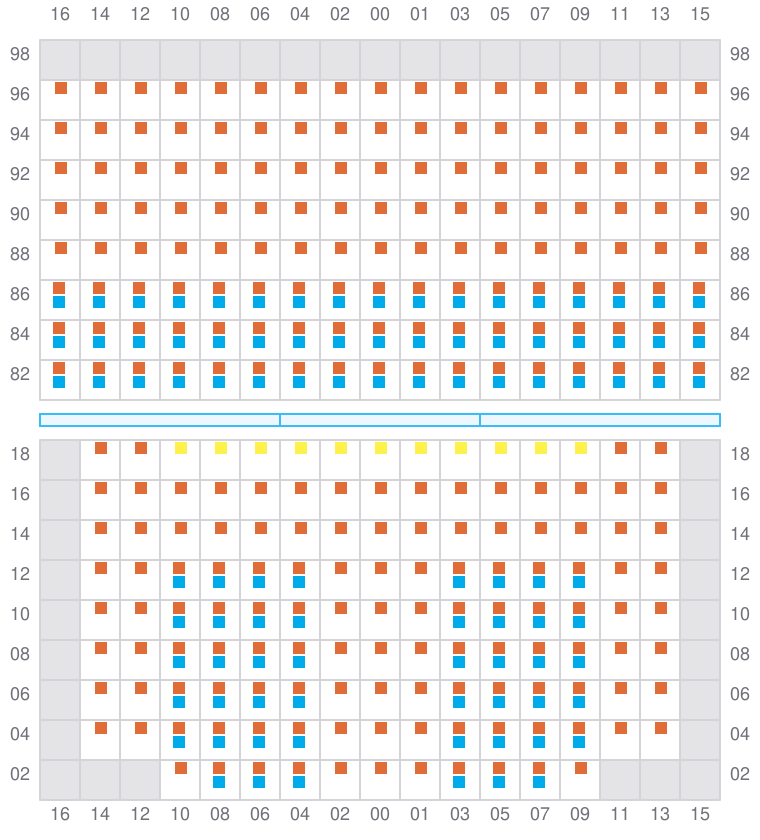

043
- ←
![Bay 043 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b043.png?v=1711662900487)

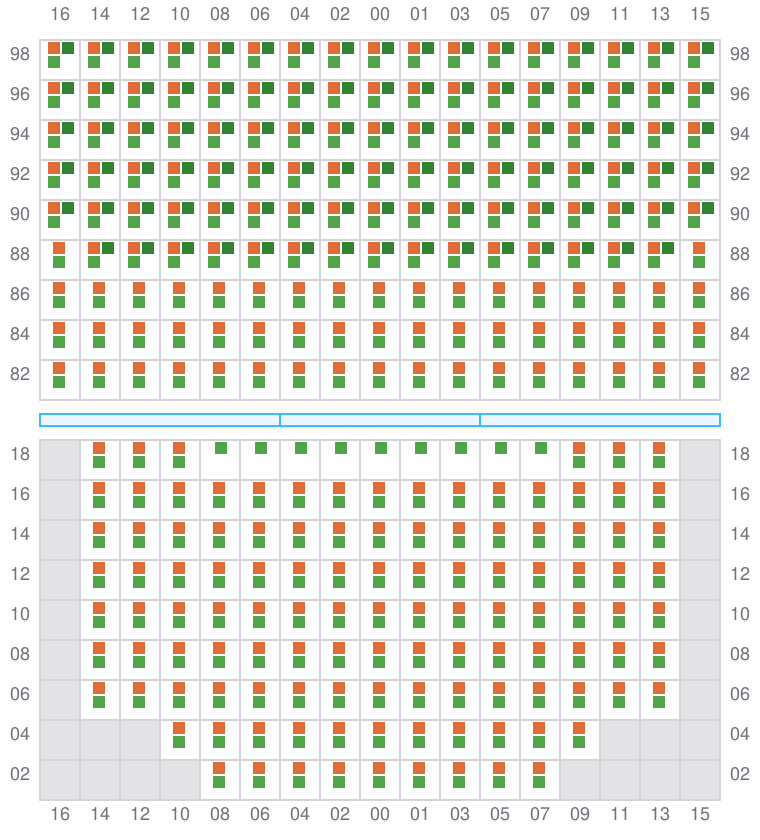

045 (046)
- →
![Bay 045 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b045.png?v=1711662900487)

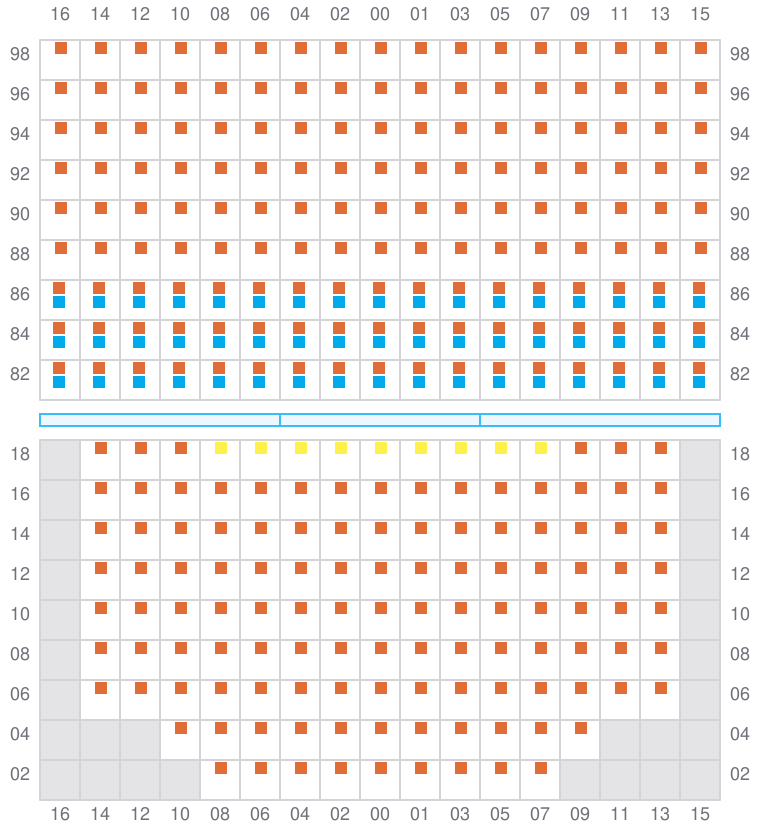

047
- ←
![Bay 047 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b047.png?v=1711662900487)
049 (050)
- →
![Bay 049 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b049.png?v=1711662900487)

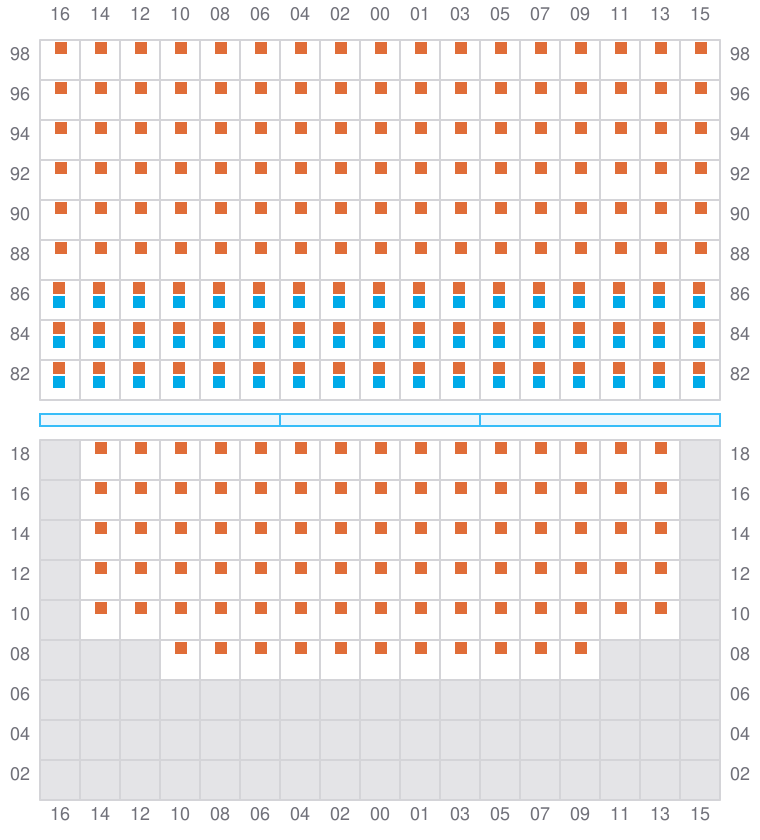

051
- ←
![Bay 051 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b051.png?v=1711662900487)

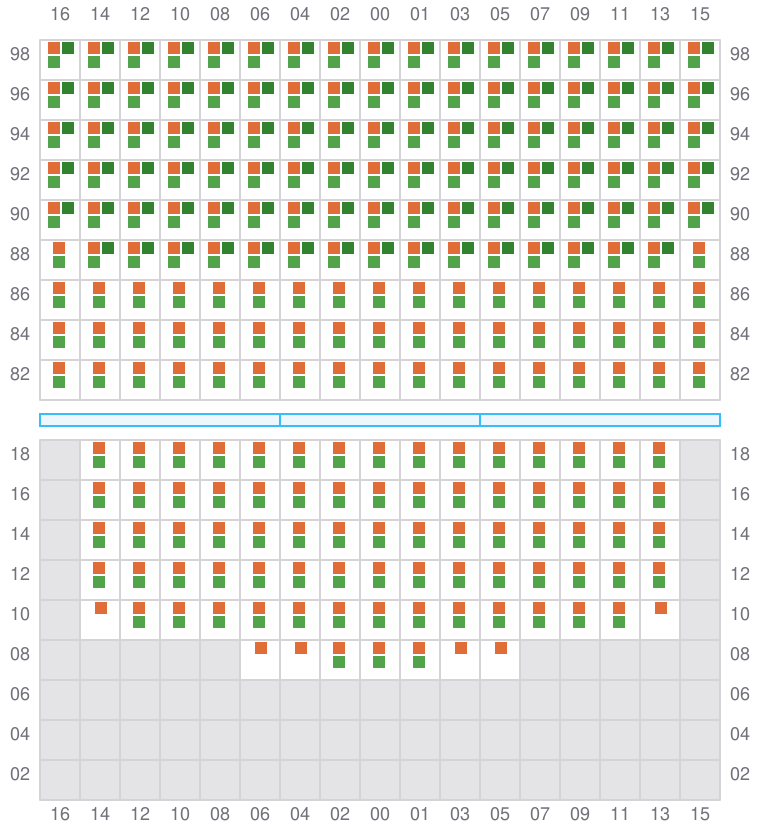

053 (054)
- →
![Bay 053 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b053.png?v=1711662900487)

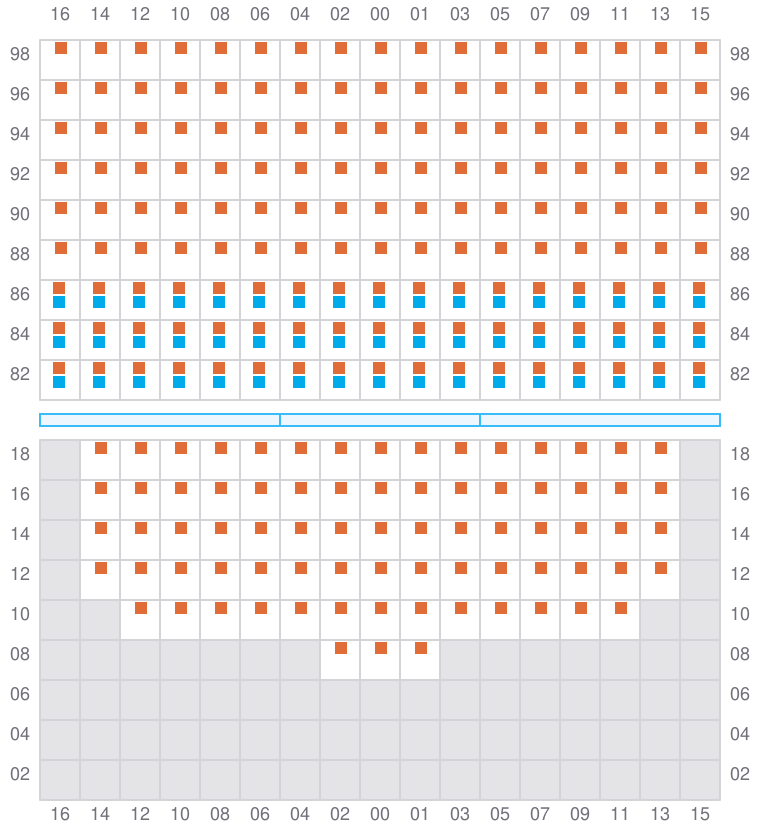

055
- ←
![Bay 055 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b055.png?v=1711662900487)

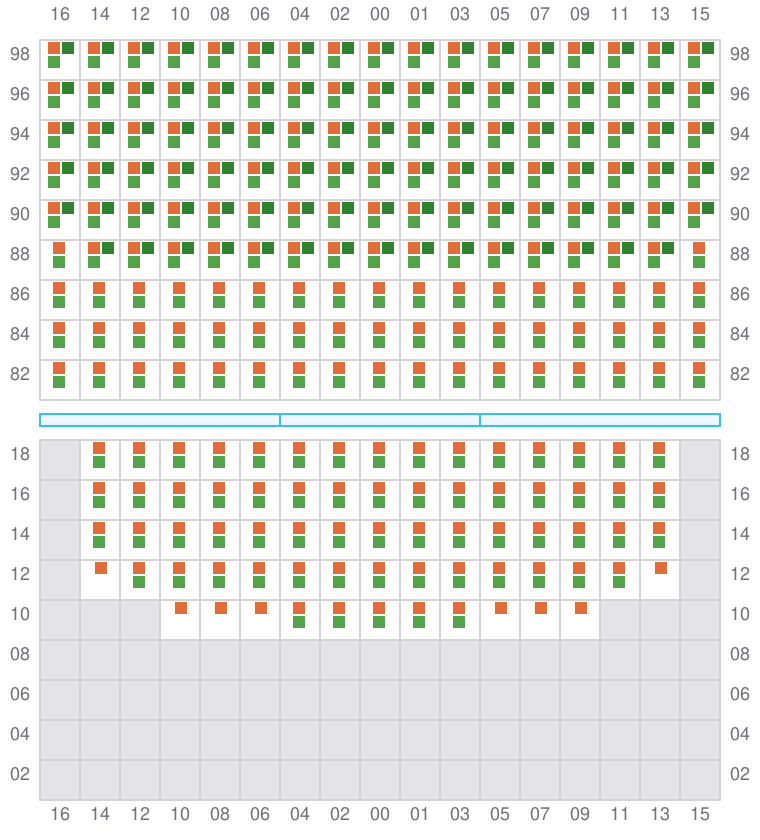

057 (058)
- →
![Bay 057 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b057.png?v=1711662900487)

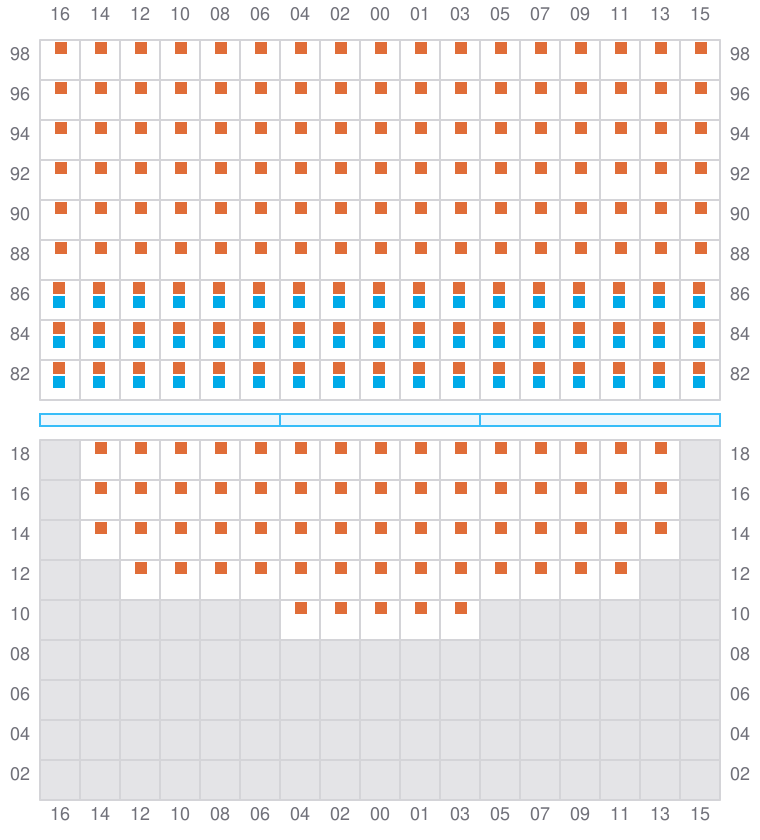

059
- ←
![Bay 059 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b059.png?v=1711662900487)

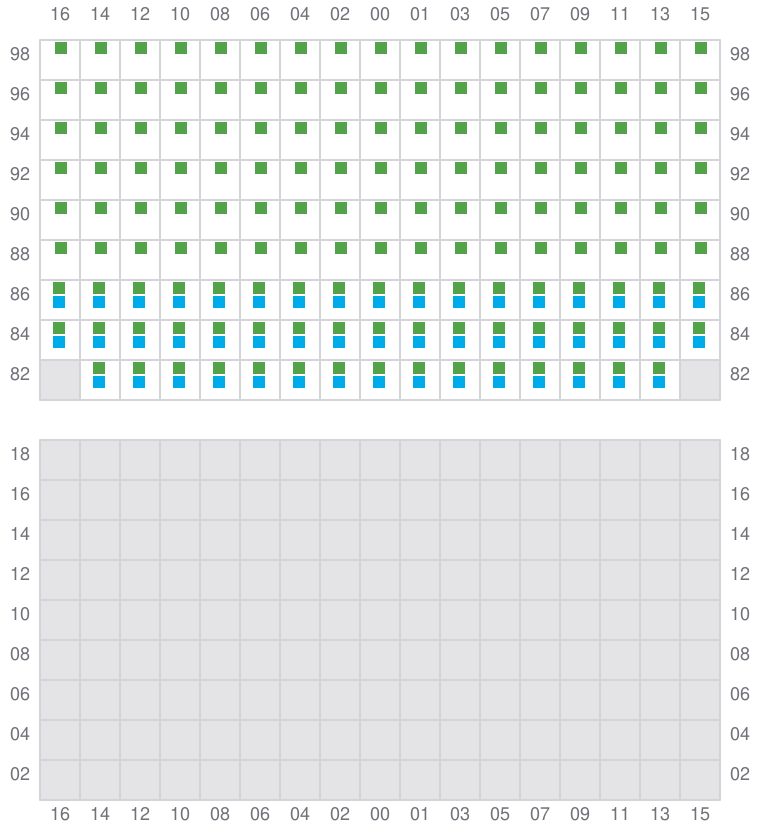

061 (062)
- → / ?
![Bay 061 view and slots of CMA CGM RIMBAUD](/vessel-images/ba2e157c-edc2-4a30-8f34-b3aa673656a9-b061.png?v=1711662900487)
