CMA CGM RIO GRANDE
9722699 | 9HA4134 | 9722699 by ********* Last update: Mon Apr 08 2024
General Info
Ship Name:CMA CGM RIO GRANDE
IMO Code:9722699
Call Sign:9HA4134
Line Operator:9722699
Class Name for Sister Ships:CMA CGM RIO GRANDE
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:043
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,856
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

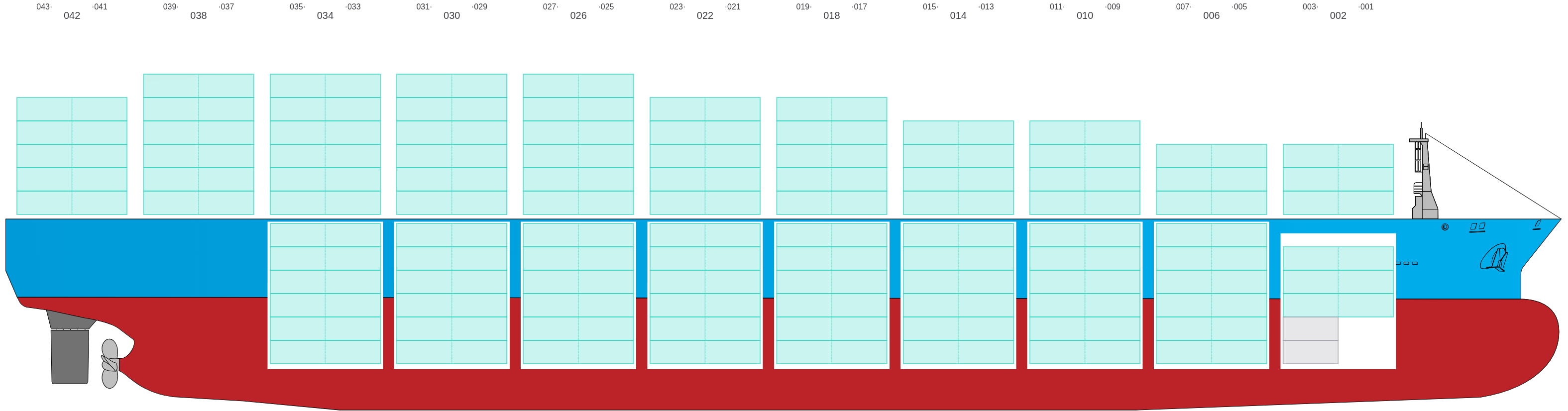

Side View
![Side view of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-sideView.png?v=1712597299390)

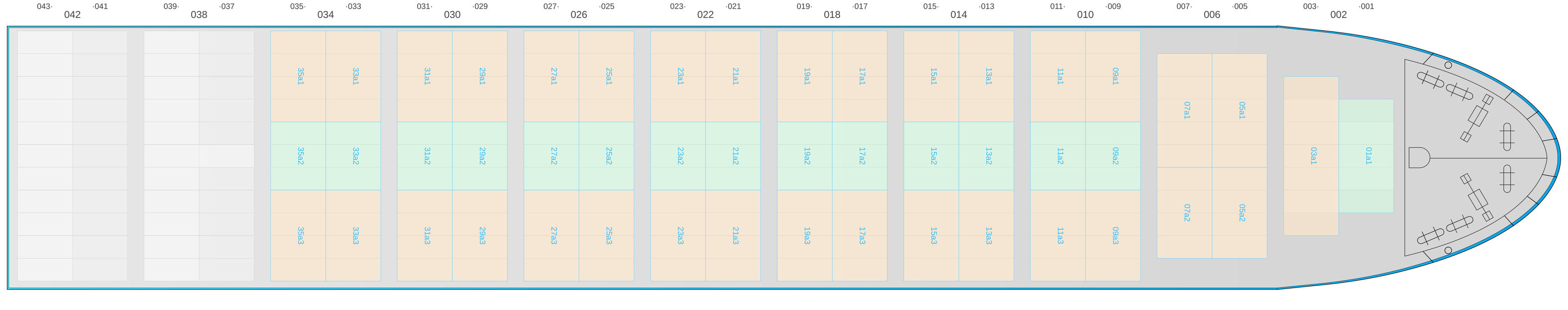

Hatch-Covers View
![Deck view of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-deckView.png?v=1712597299390)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

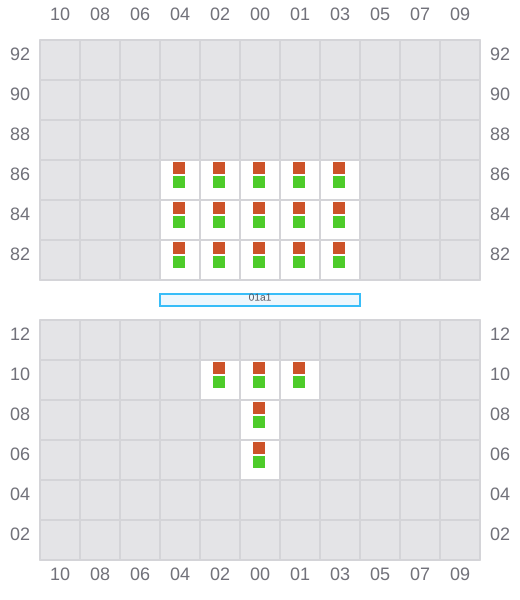

001 (002)
- →
![Bay 001 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b001.png?v=1712597299390)
003
- ←
![Bay 003 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b003.png?v=1712597299390)

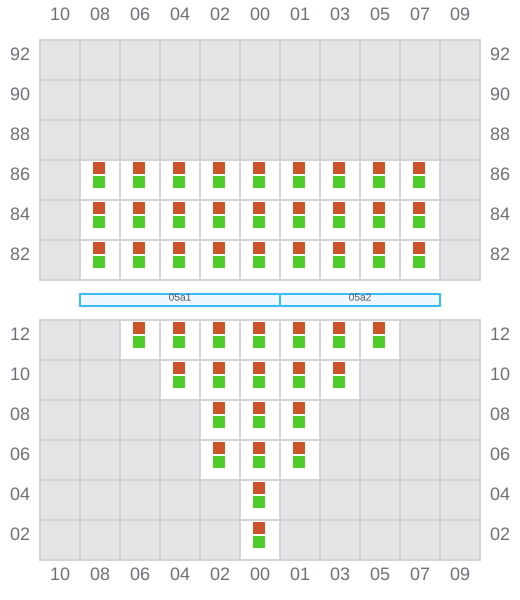

005 (006)
- →
![Bay 005 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b005.png?v=1712597299390)
007
- ←
![Bay 007 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b007.png?v=1712597299390)

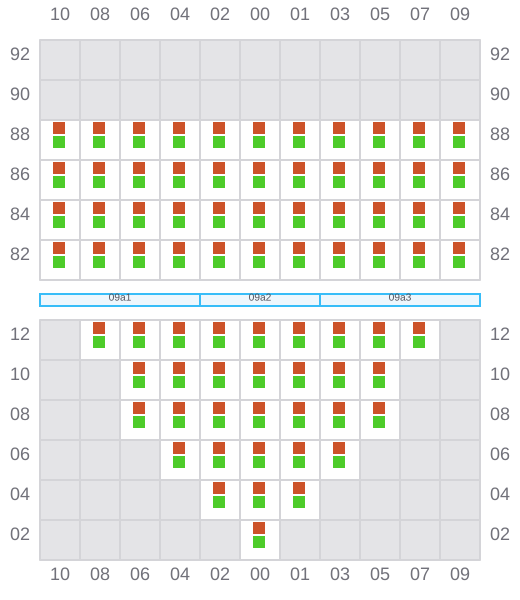

009 (010)
- →
![Bay 009 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b009.png?v=1712597299390)
011
- ←
![Bay 011 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b011.png?v=1712597299390)

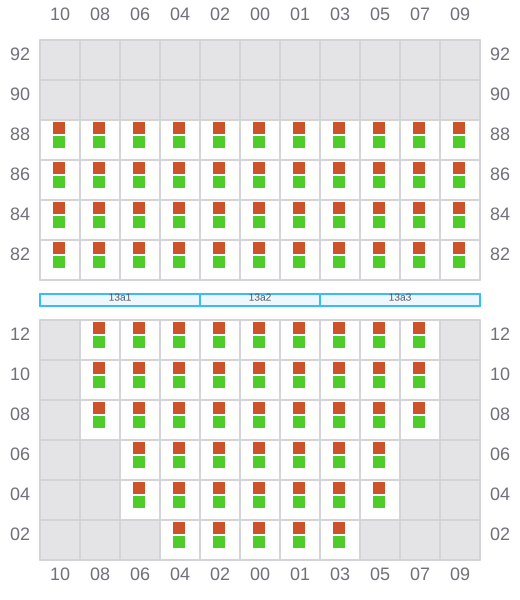

013 (014)
- →
![Bay 013 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b013.png?v=1712597299390)
015
- ←
![Bay 015 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b015.png?v=1712597299390)

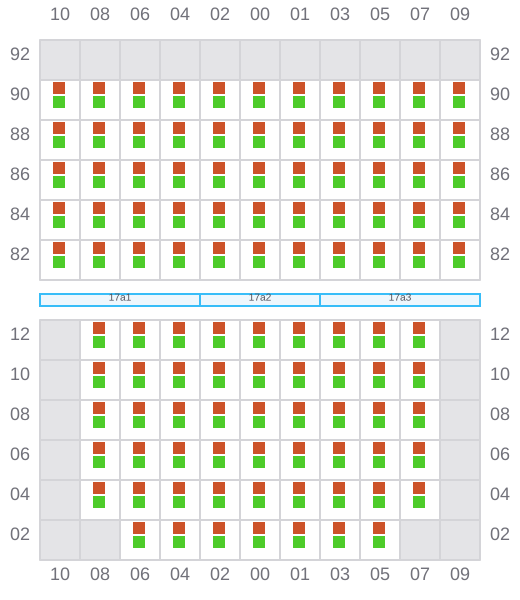

017 (018)
- →
![Bay 017 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b017.png?v=1712597299390)

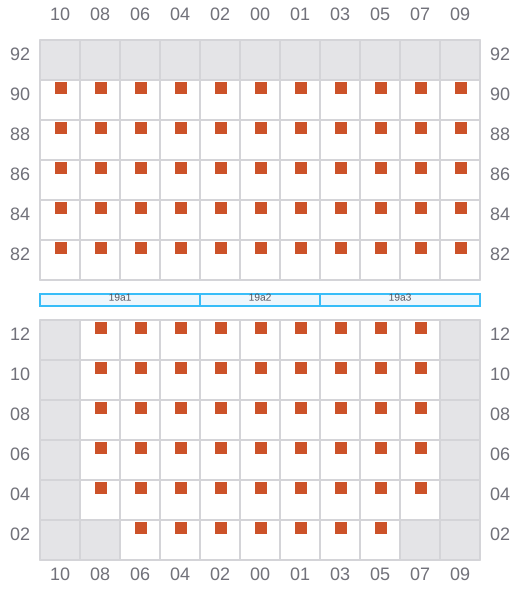

019
- ←
![Bay 019 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b019.png?v=1712597299390)

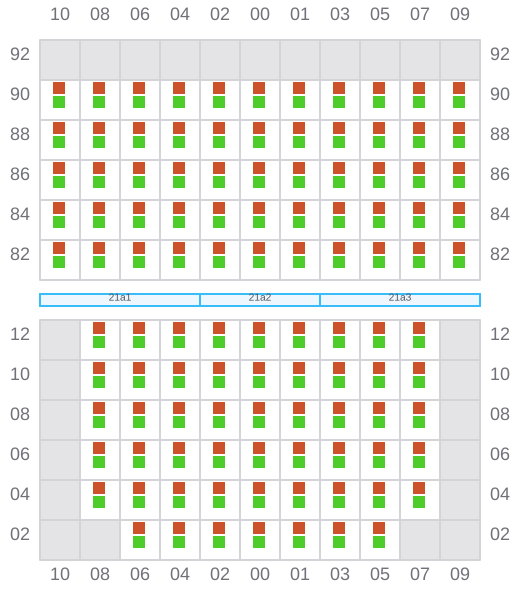

021 (022)
- →
![Bay 021 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b021.png?v=1712597299390)
023
- ←
![Bay 023 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b023.png?v=1712597299390)

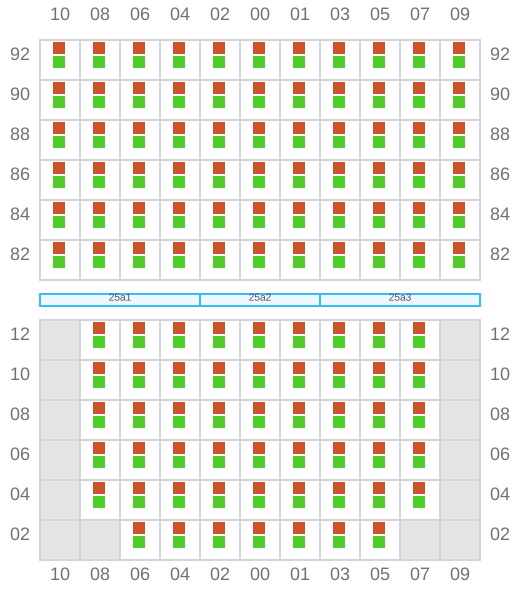

025 (026)
- →
![Bay 025 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b025.png?v=1712597299390)
027
- ←
![Bay 027 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b027.png?v=1712597299390)

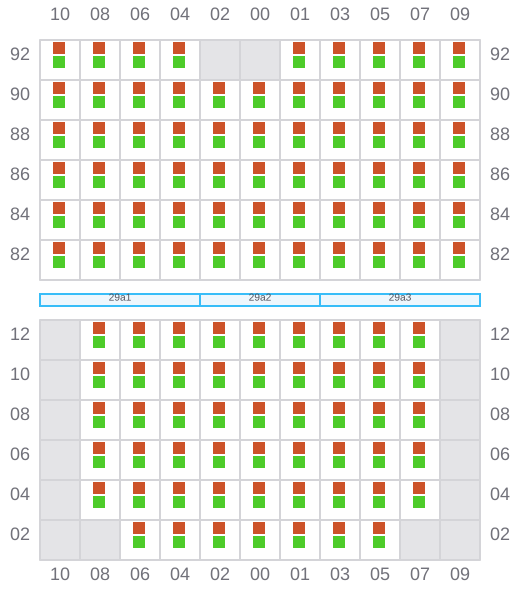

029 (030)
- →
![Bay 029 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b029.png?v=1712597299390)
031
- ←
![Bay 031 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b031.png?v=1712597299390)

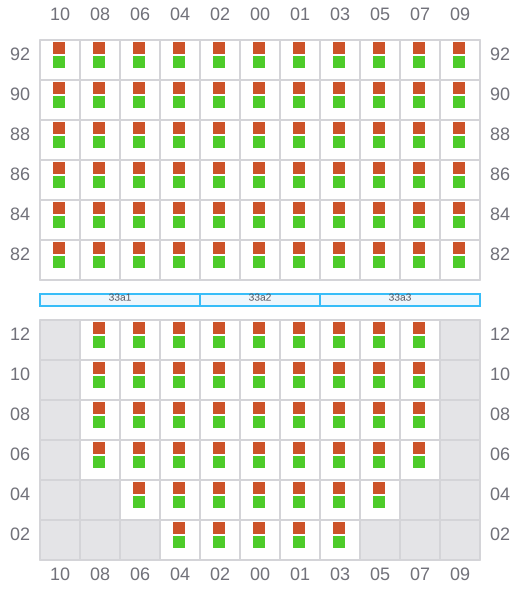

033 (034)
- →
![Bay 033 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b033.png?v=1712597299390)
035
- ←
![Bay 035 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b035.png?v=1712597299390)

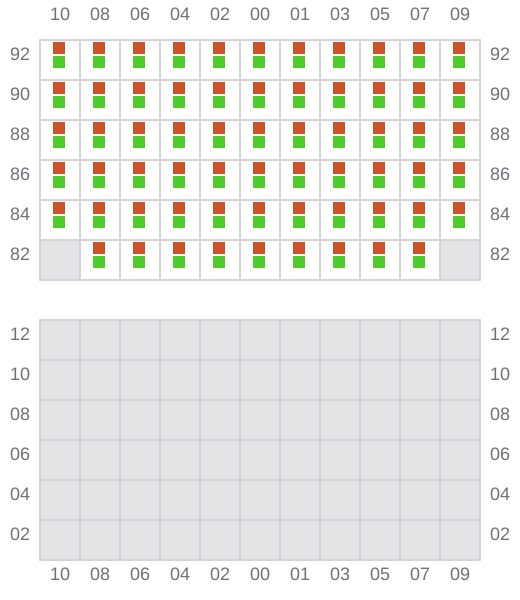

037 (038)
- → / ?
![Bay 037 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b037.png?v=1712597299390)
039
- ← / ?
![Bay 039 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b039.png?v=1712597299390)
041 (042)
- → / ?
![Bay 041 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b041.png?v=1712597299390)
043
- ← / ?
![Bay 043 view and slots of CMA CGM RIO GRANDE](/vessel-images/9ba5b55f-23c2-4b28-a988-03a60dcb88ab-b043.png?v=1712597299390)
