CMA CGM ROSSINI
9280639 | 9HA5347 | CMA by ************************** Last update: Thu Jun 15 2023
General Info
Ship Name:CMA CGM ROSSINI
IMO Code:9280639
Call Sign:9HA5347
Line Operator:CMA
Class Name for Sister Ships:RNI
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,500
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

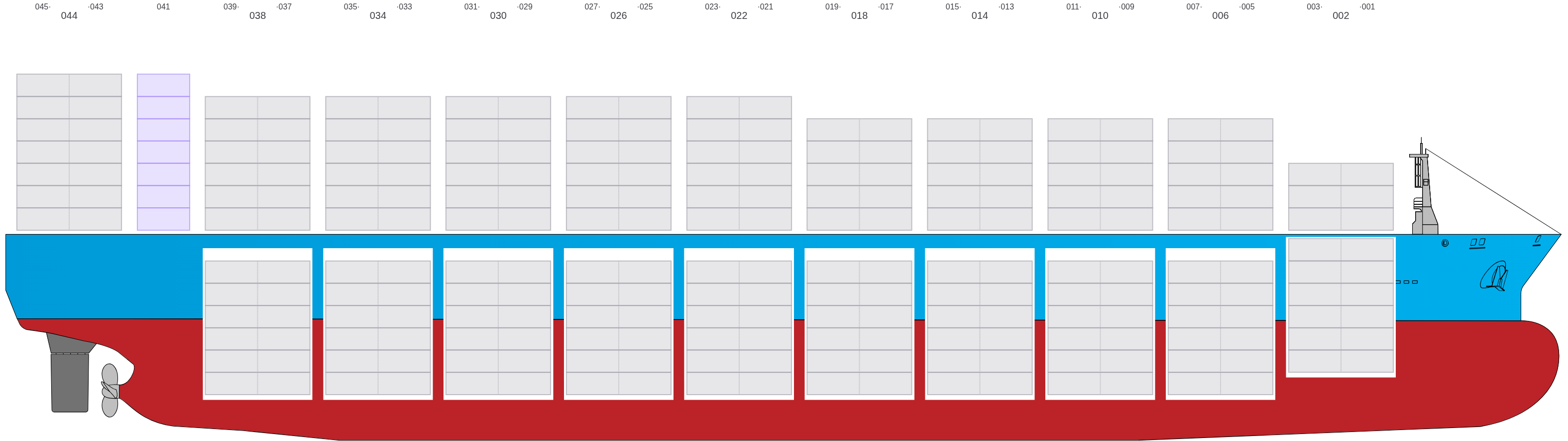

Side View
Hatch-Covers View

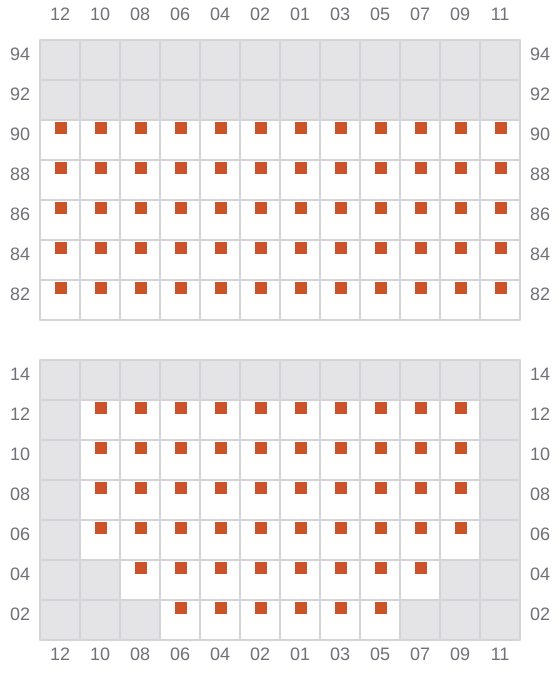

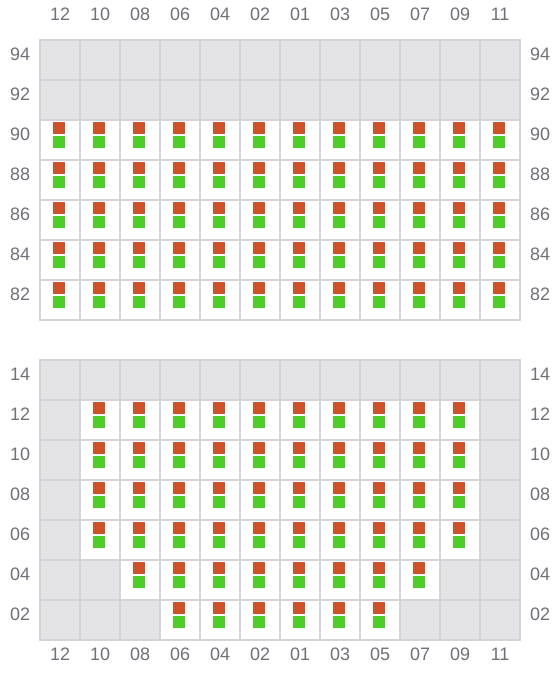

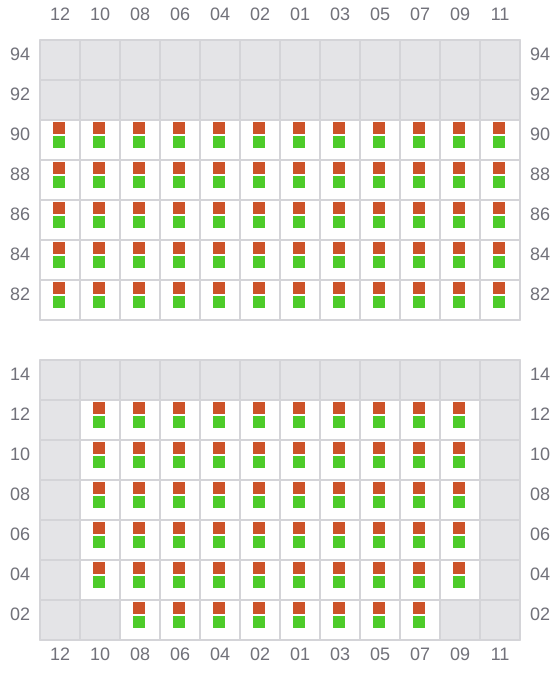

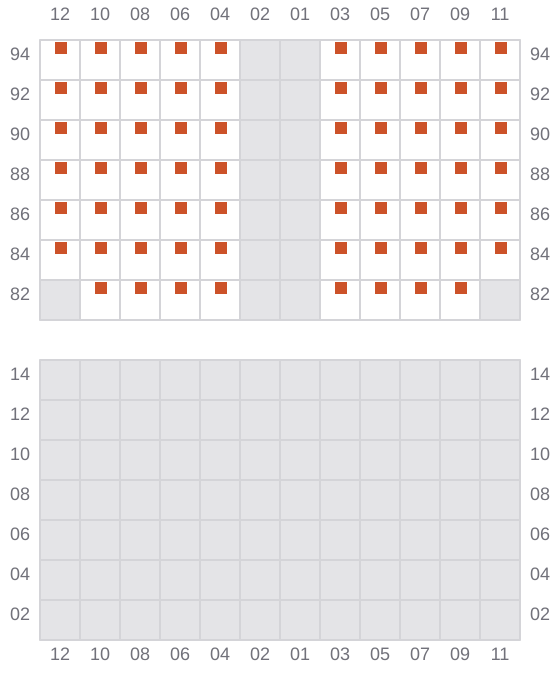

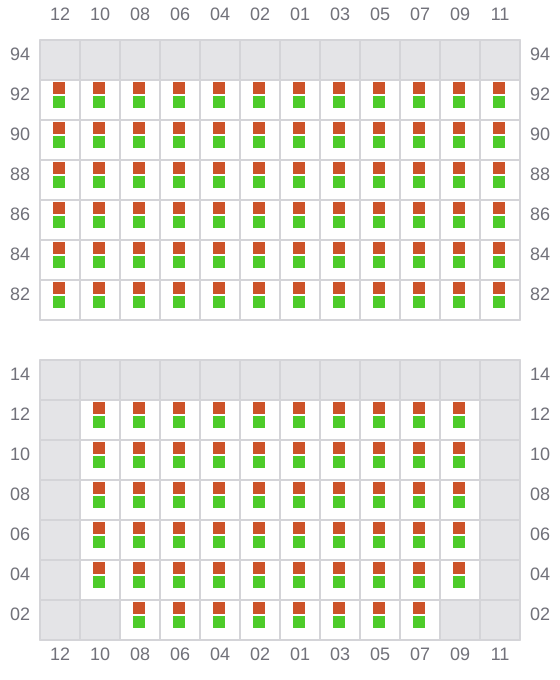

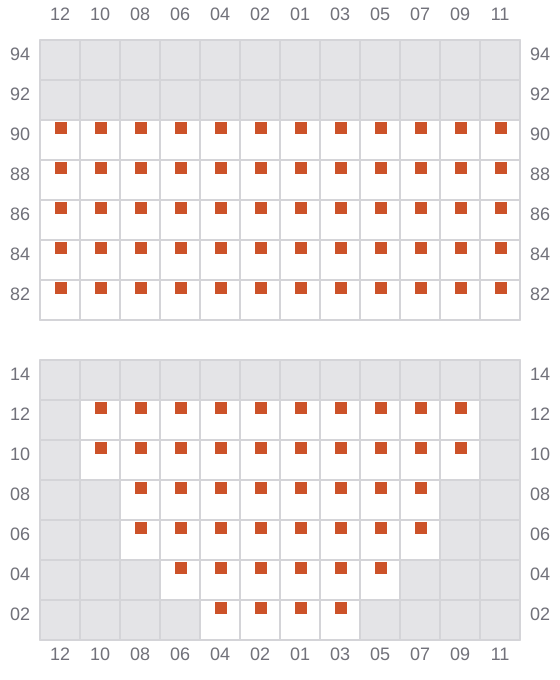

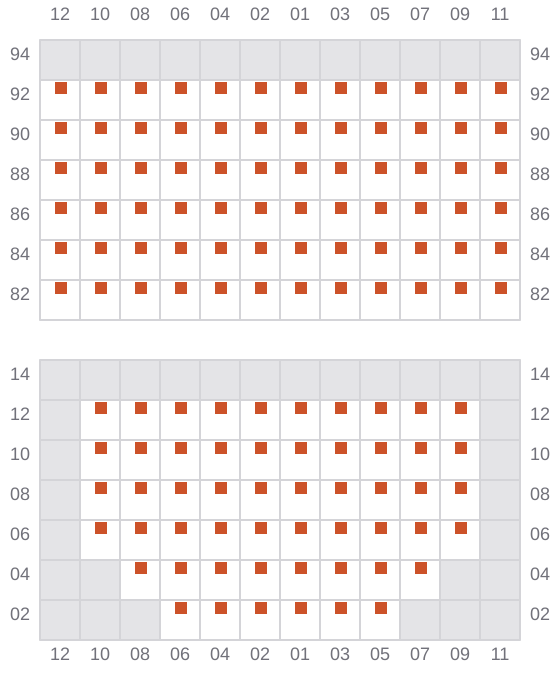

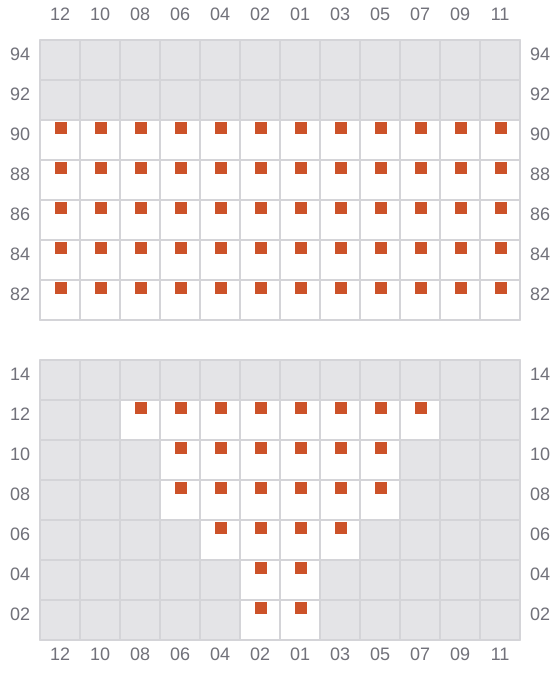

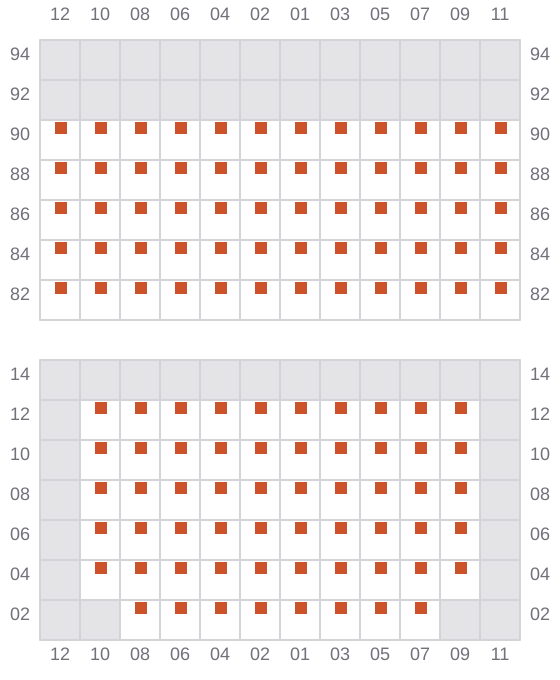

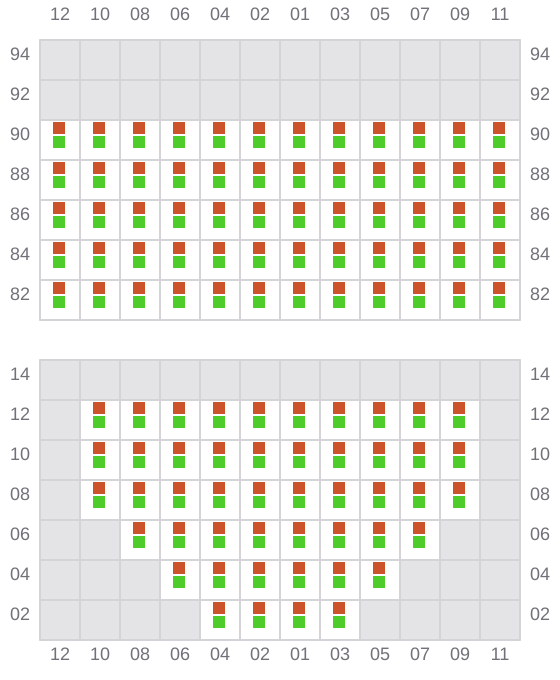

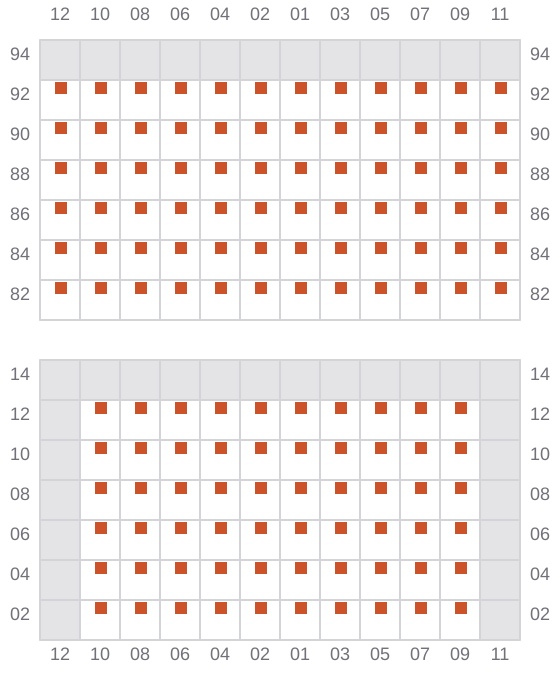

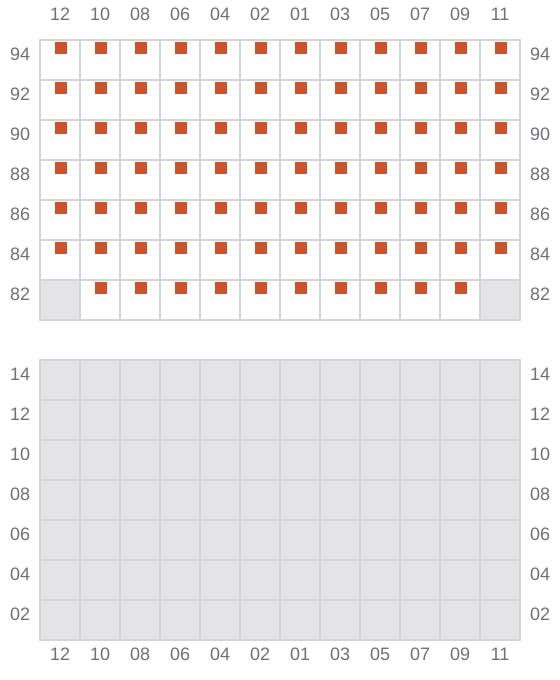

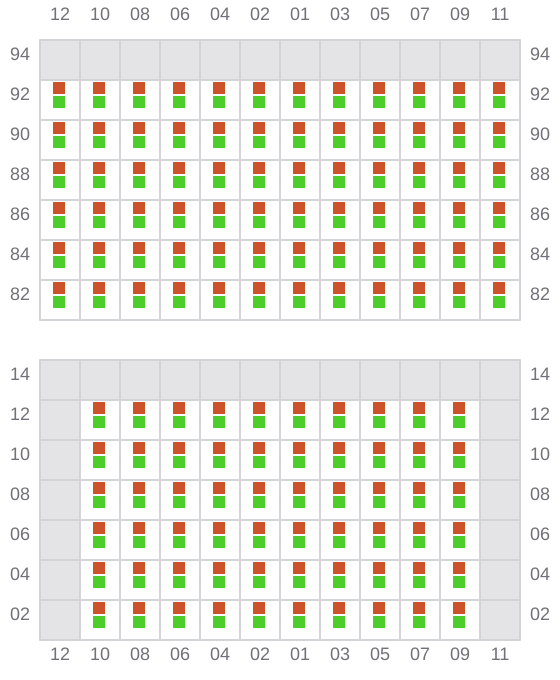

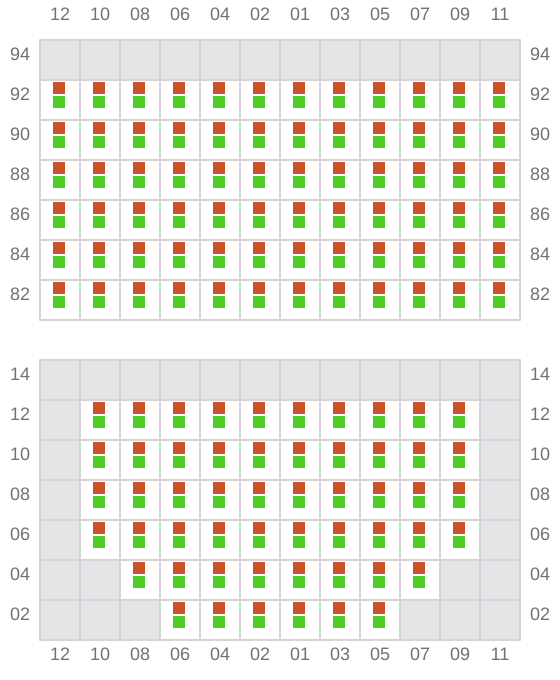

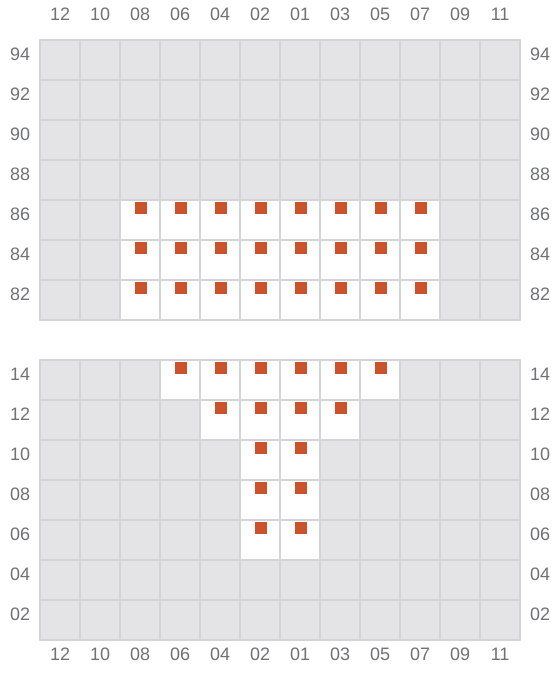

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →

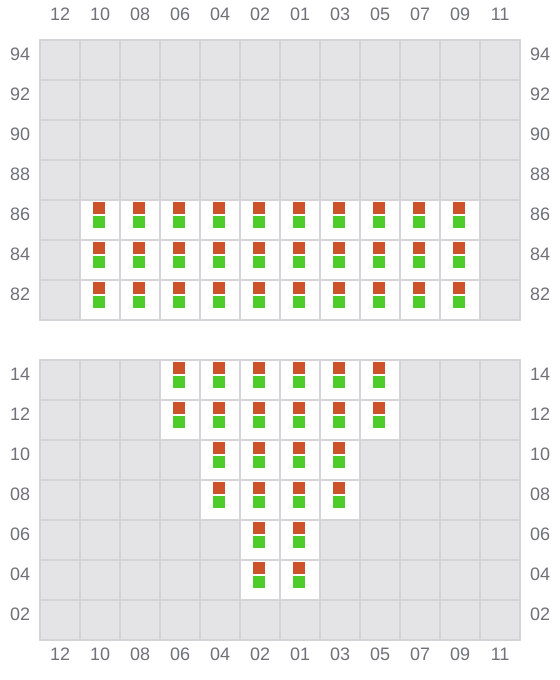

003 (002)
- ←
005
- →

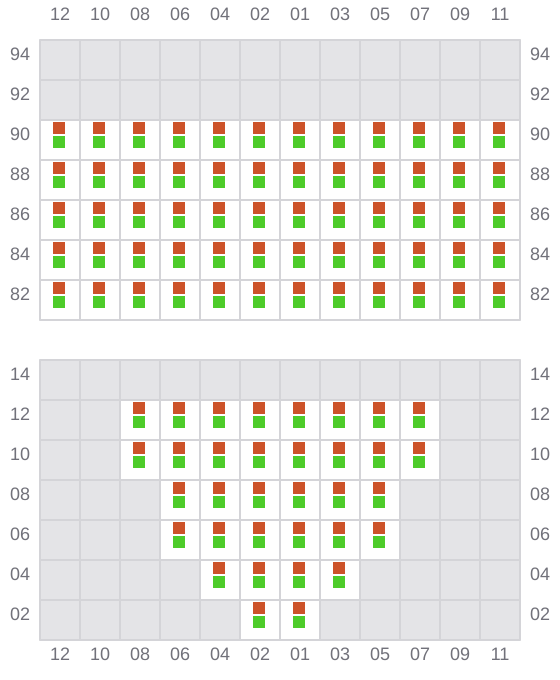

007 (006)
- ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←
017
- →
019 (018)
- ←
021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←

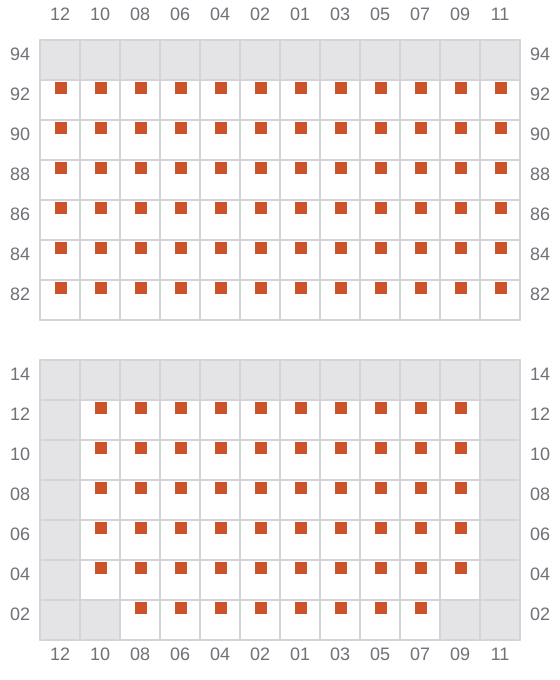

033
- →
035 (034)
- ←
037
- →

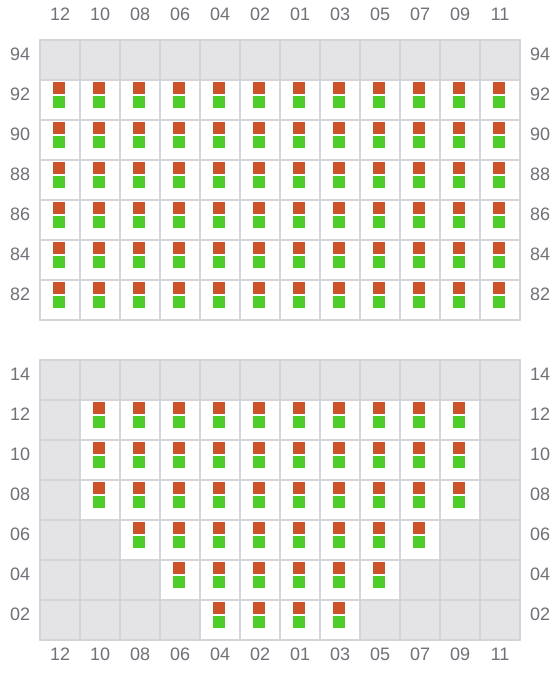

039 (038)
- ←
041
043
- → / ?

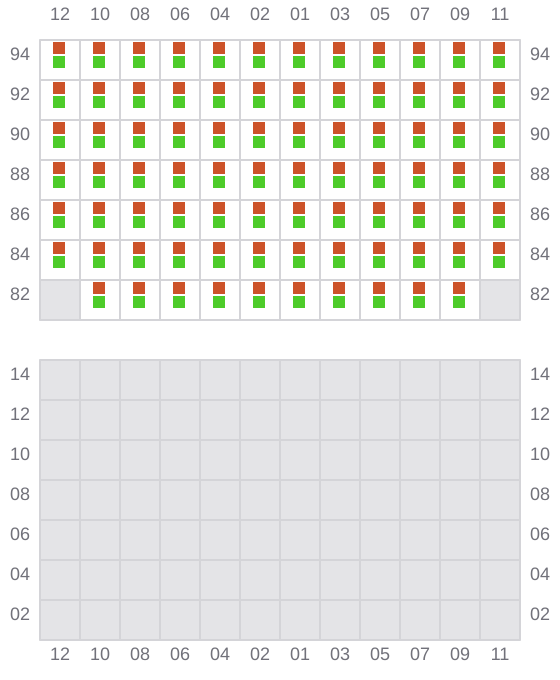

045 (044)
- ← / ?
