CMA CGM SAIGON
9357547 | 9HA5512 | 9357547 by ********* Last update: Tue Jun 18 2024

General Info

Ship Name:CMA CGM SAIGON

IMO Code:9357547

Call Sign:9HA5512

Line Operator:9357547

Class Name for Sister Ships:MCC

Year Built:2008

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:033

Max ISO Row:10

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:10

Min Below ISO Tier:02

Total TEU:1,714

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

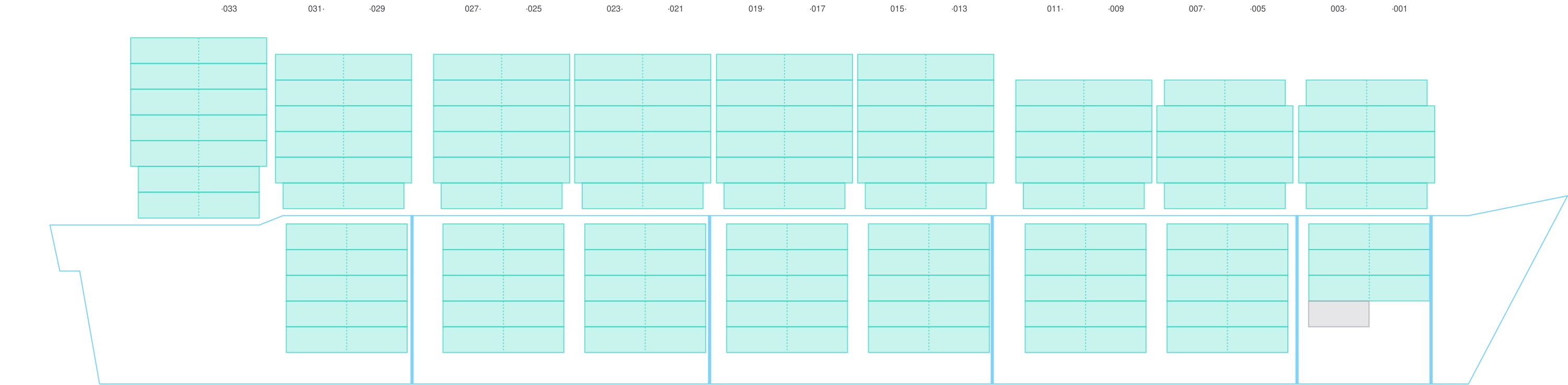

Side View

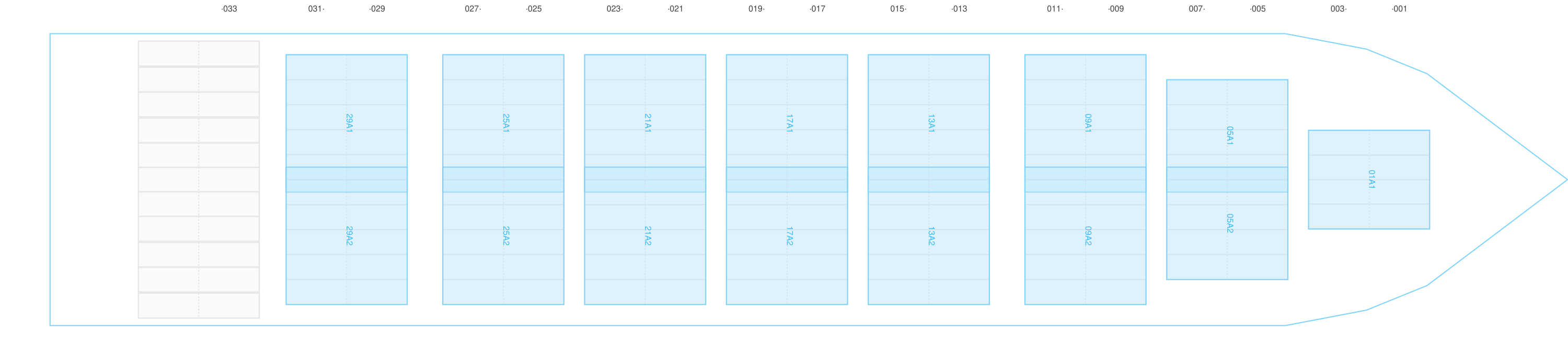

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

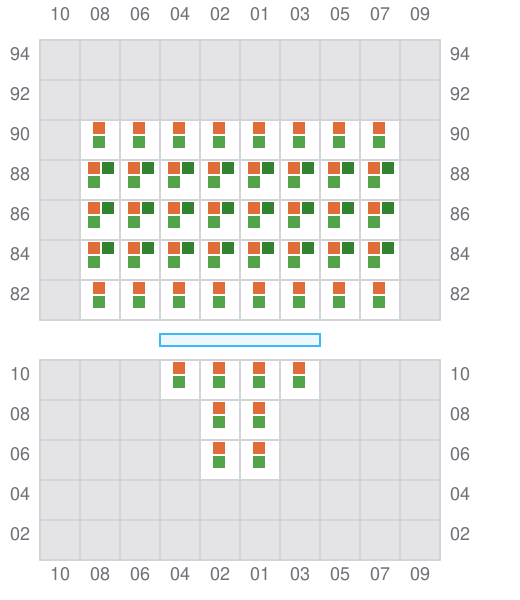

Bay 001 view and slots of CMA CGM SAIGON

003

←
^→ / _?

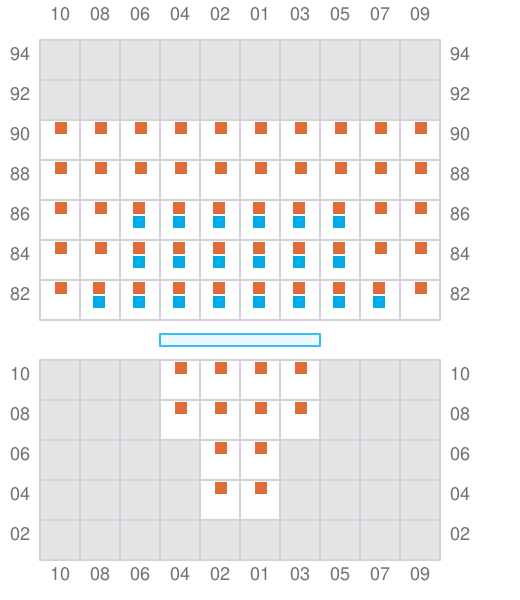

Bay 003 view and slots of CMA CGM SAIGON

005 (006)

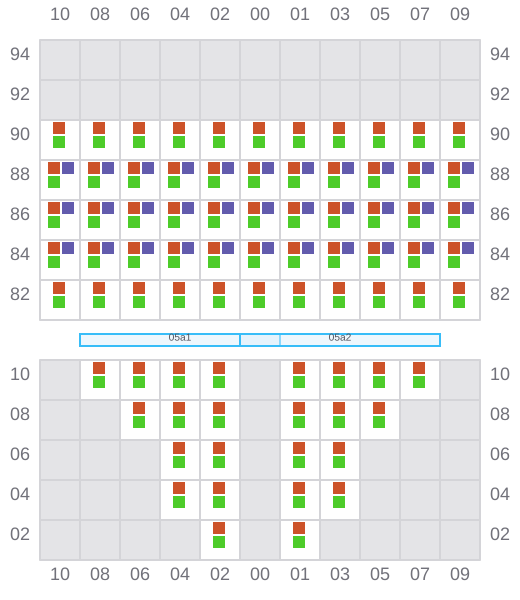

Bay 005 view and slots of CMA CGM SAIGON

007

←
^→ / _?

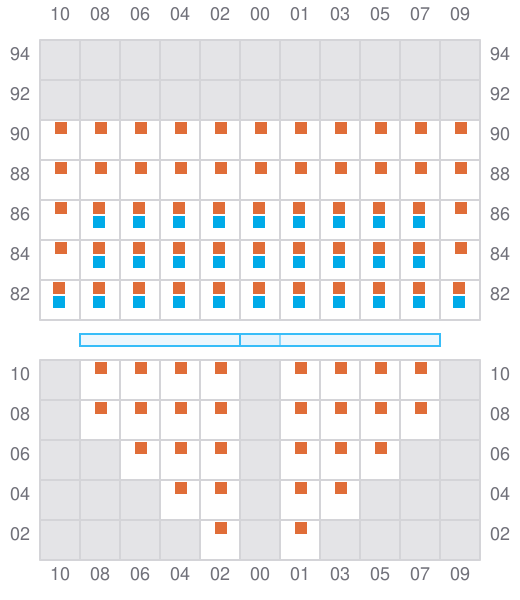

Bay 007 view and slots of CMA CGM SAIGON

009 (010)

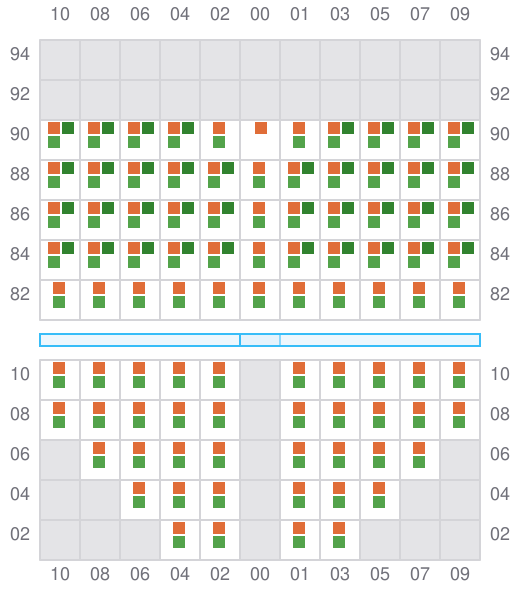

Bay 009 view and slots of CMA CGM SAIGON

011

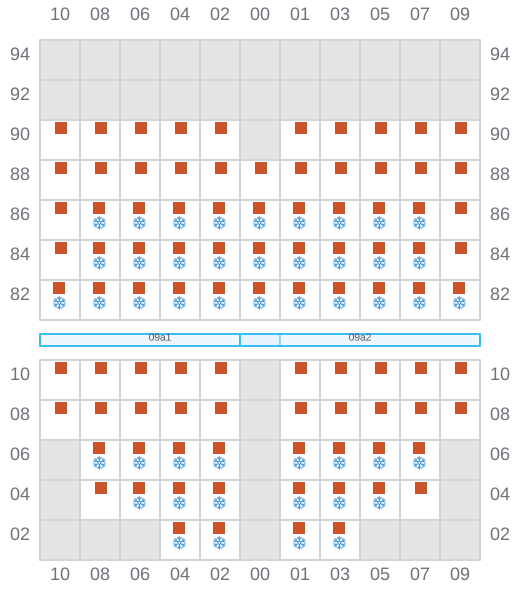

Bay 011 view and slots of CMA CGM SAIGON

013 (014)

→
^← / _?

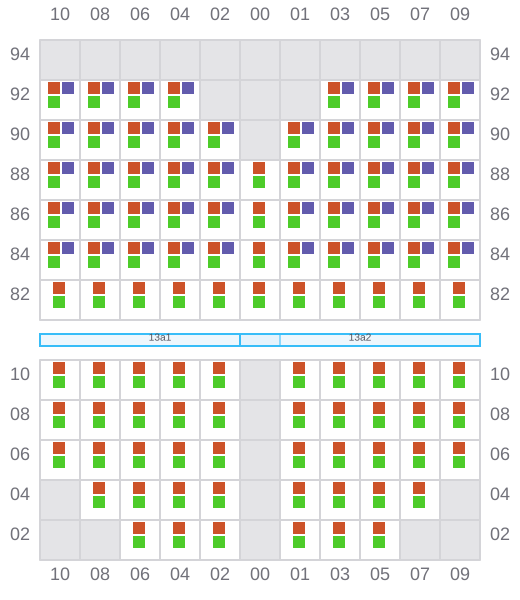

Bay 013 view and slots of CMA CGM SAIGON

015

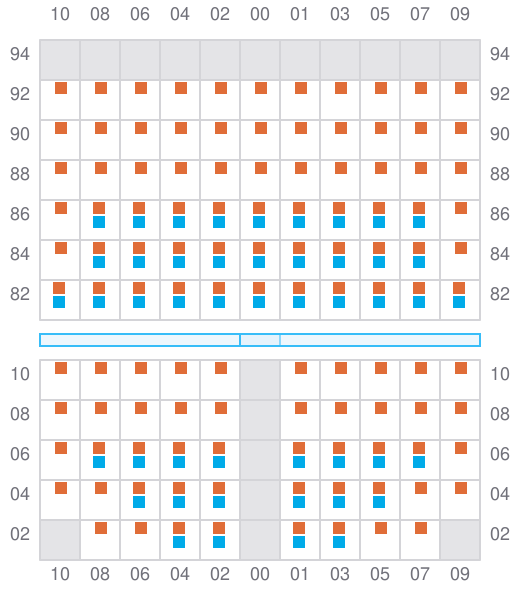

Bay 015 view and slots of CMA CGM SAIGON

017 (018)

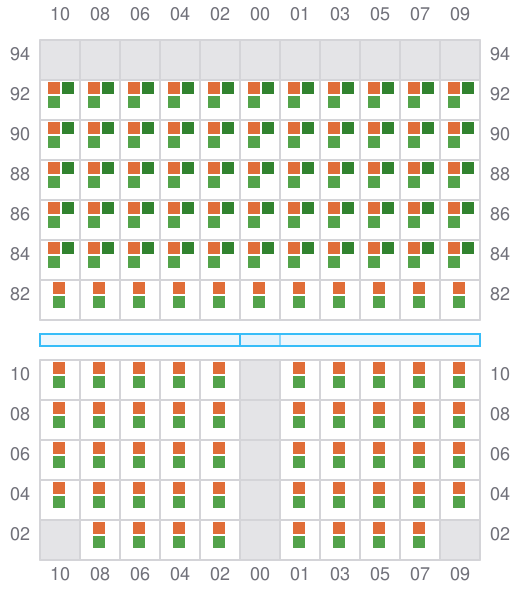

Bay 017 view and slots of CMA CGM SAIGON

019

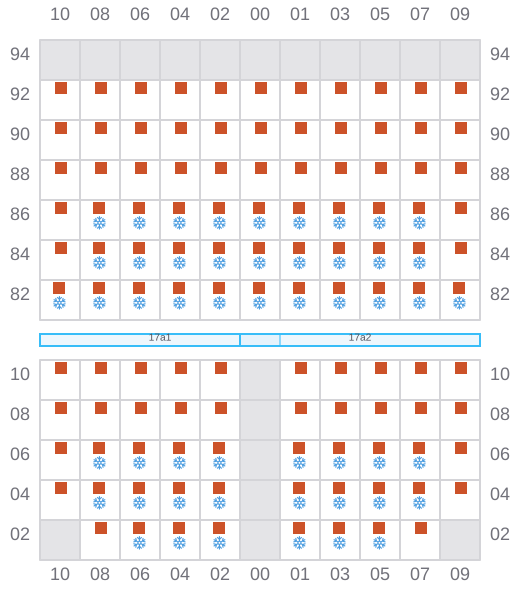

Bay 019 view and slots of CMA CGM SAIGON

021 (022)

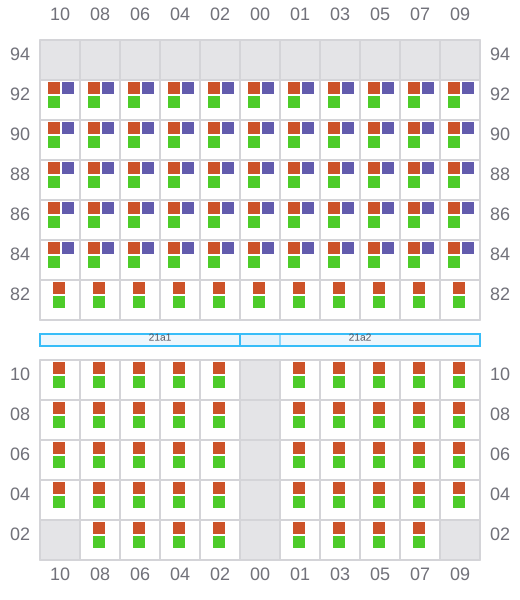

Bay 021 view and slots of CMA CGM SAIGON

023

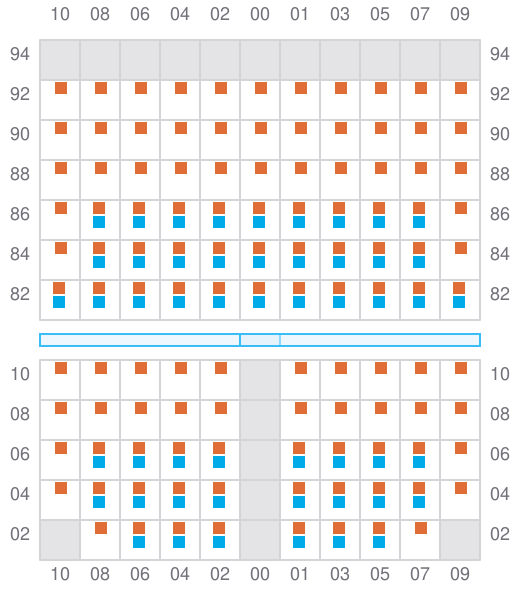

Bay 023 view and slots of CMA CGM SAIGON

025 (026)

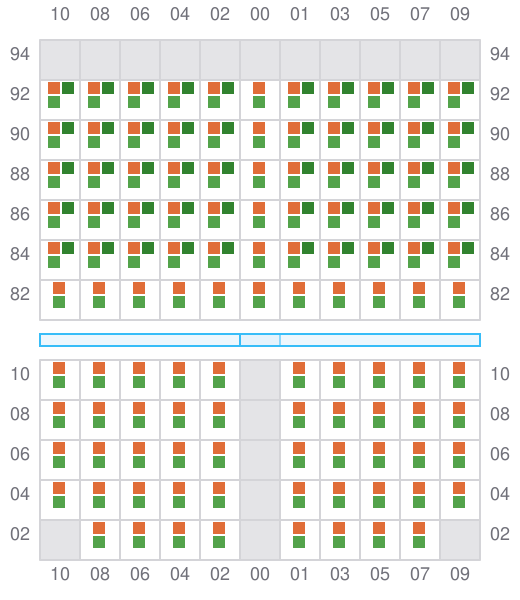

Bay 025 view and slots of CMA CGM SAIGON

027

←
^→ / _?

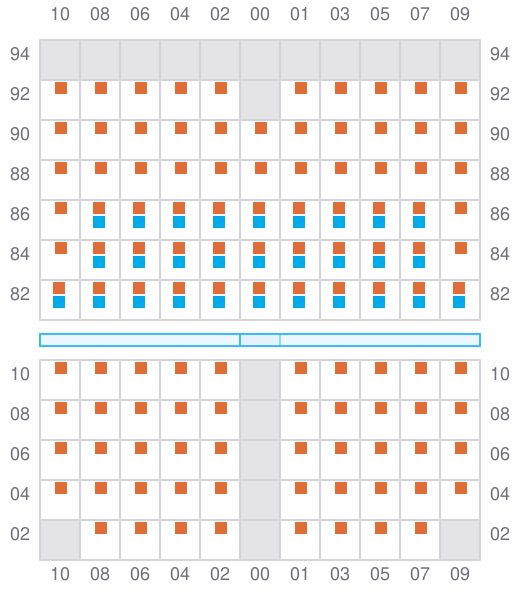

Bay 027 view and slots of CMA CGM SAIGON

029 (030)

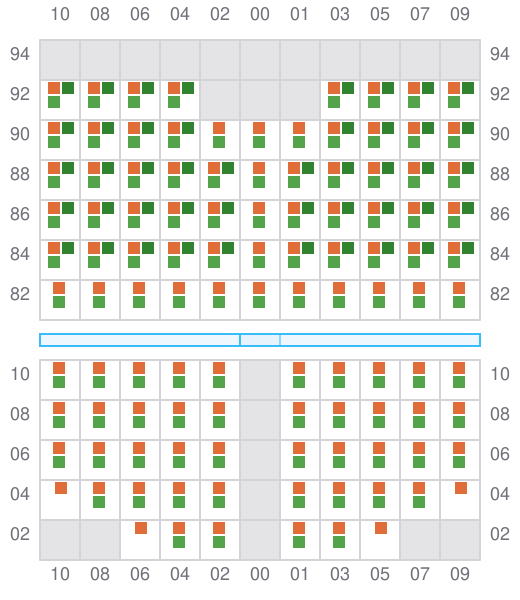

Bay 029 view and slots of CMA CGM SAIGON

031

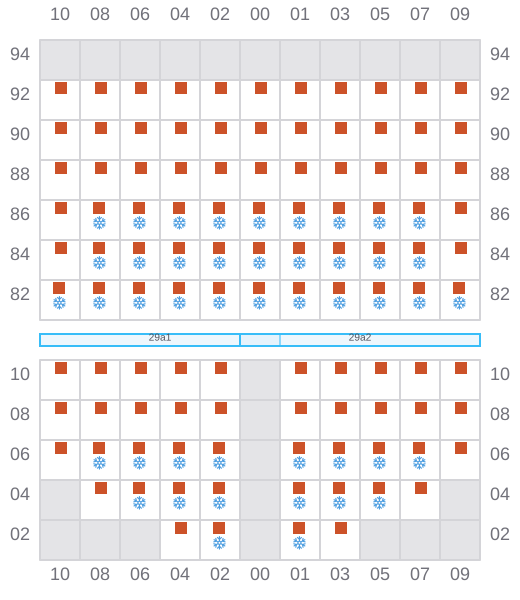

Bay 031 view and slots of CMA CGM SAIGON

033 (034)

^→ / _?

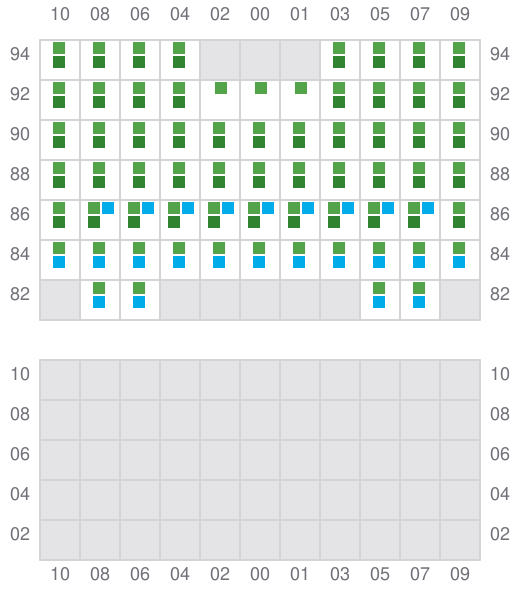

Bay 033 view and slots of CMA CGM SAIGON
