CMA CGM SCANDOLA
9859129 | 9HA5325 | CMA by *********************** Last update: Wed Feb 12 2025

General Info

Ship Name:CMA CGM SCANDOLA
IMO Code:9859129
Call Sign:9HA5325
Line Operator:CMA
Class Name for Sister Ships:CGSC
Year Built:2020
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):366.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,974

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

Side view of CMA CGM SCANDOLA

Hatch-Covers View

Deck view of CMA CGM SCANDOLA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →

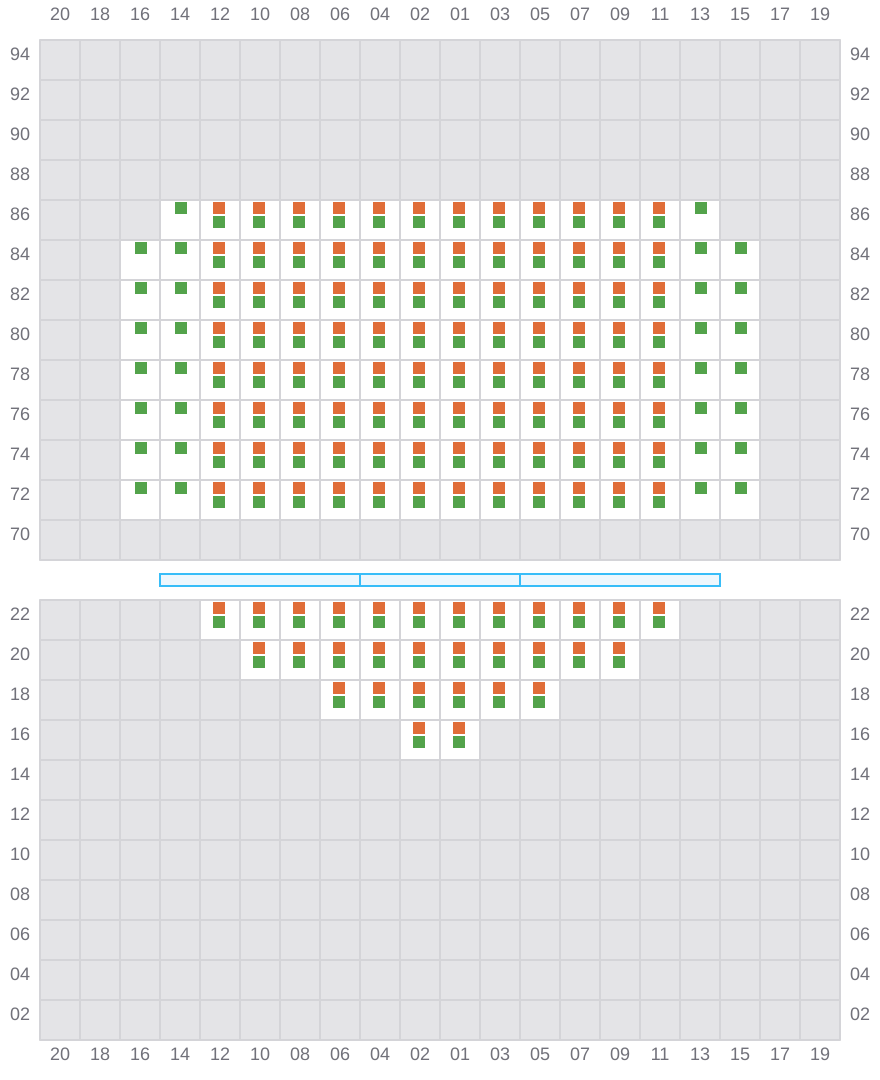

Bay 001 view and slots of CMA CGM SCANDOLA

003

  • ←
  • →

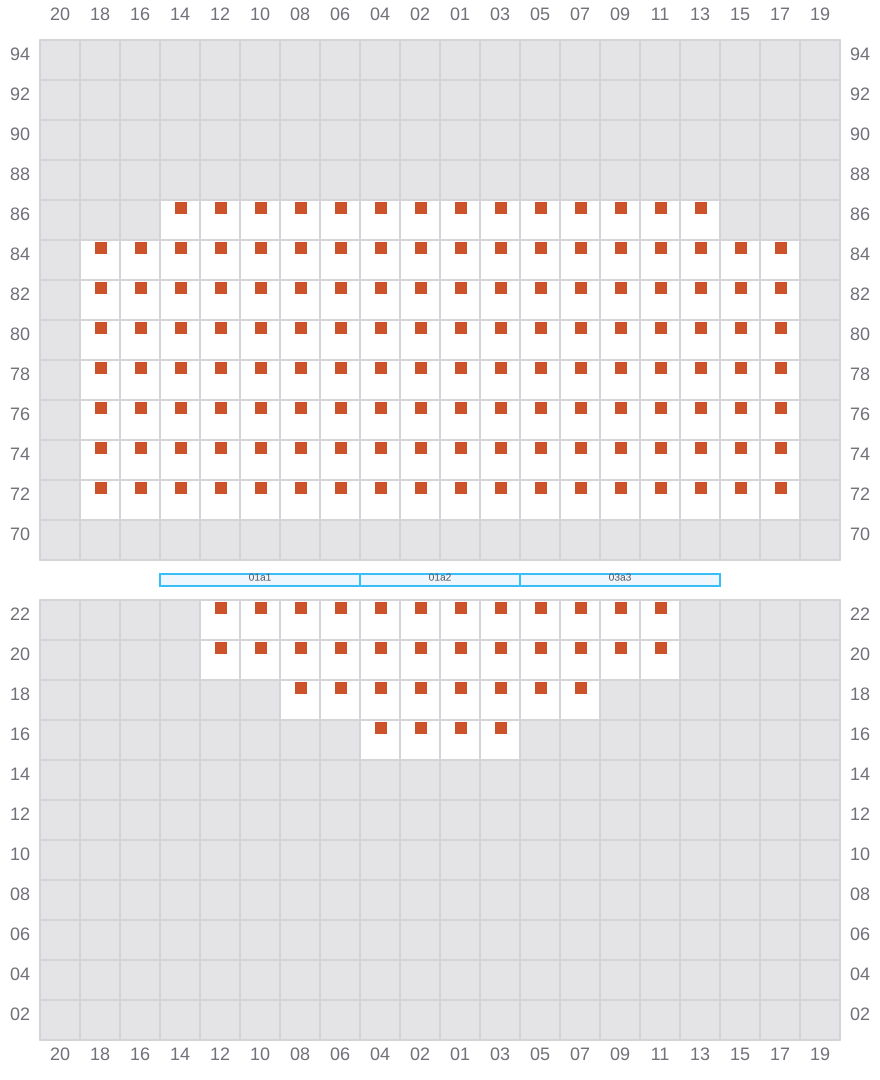

Bay 003 view and slots of CMA CGM SCANDOLA

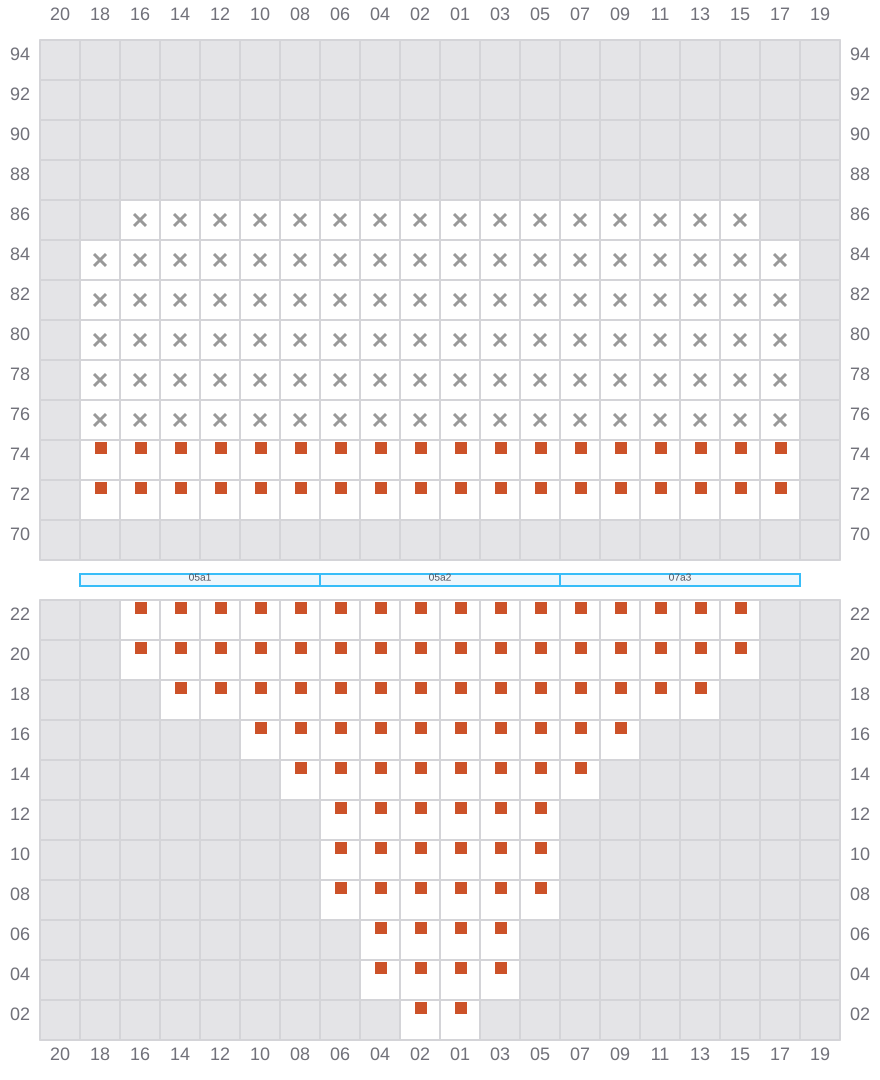

005 (006)

  • →
  • →

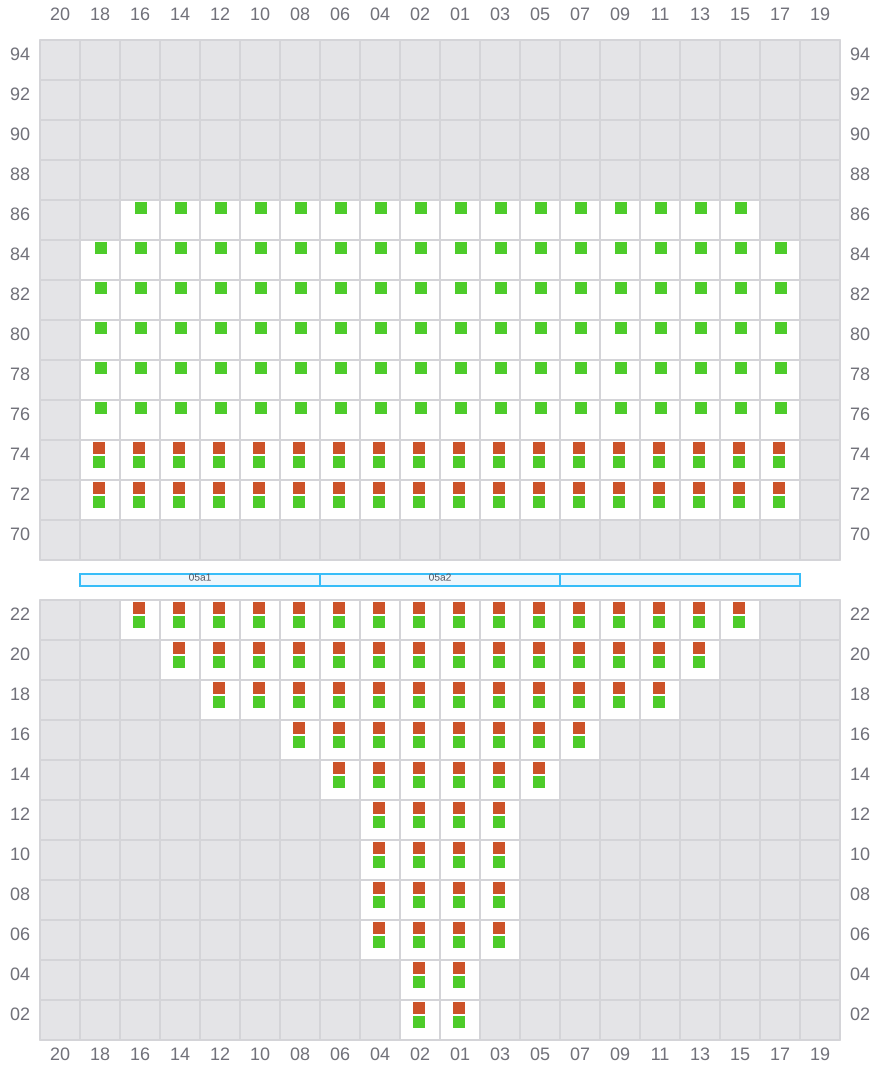

Bay 005 view and slots of CMA CGM SCANDOLA

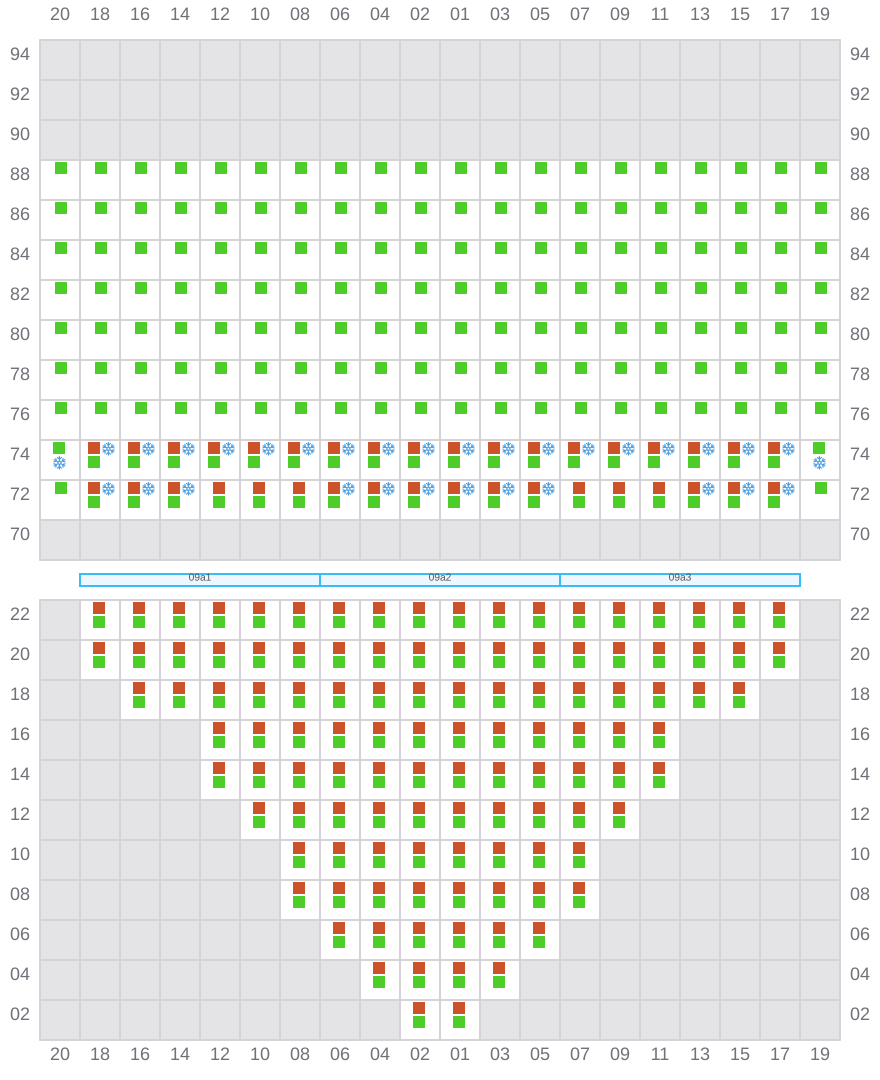

007

  • ←
  • →
Bay 007 view and slots of CMA CGM SCANDOLA

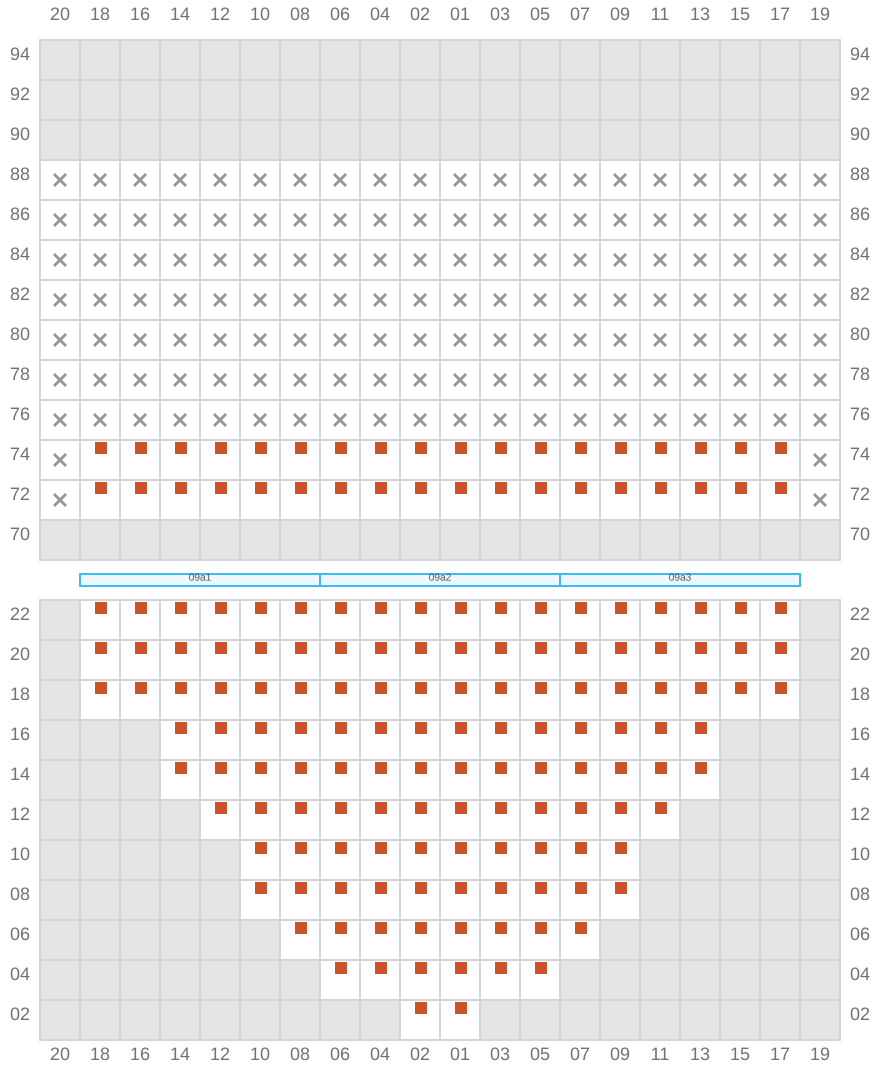

009 (010)

  • →
  • → / ?
  • →
Bay 009 view and slots of CMA CGM SCANDOLA

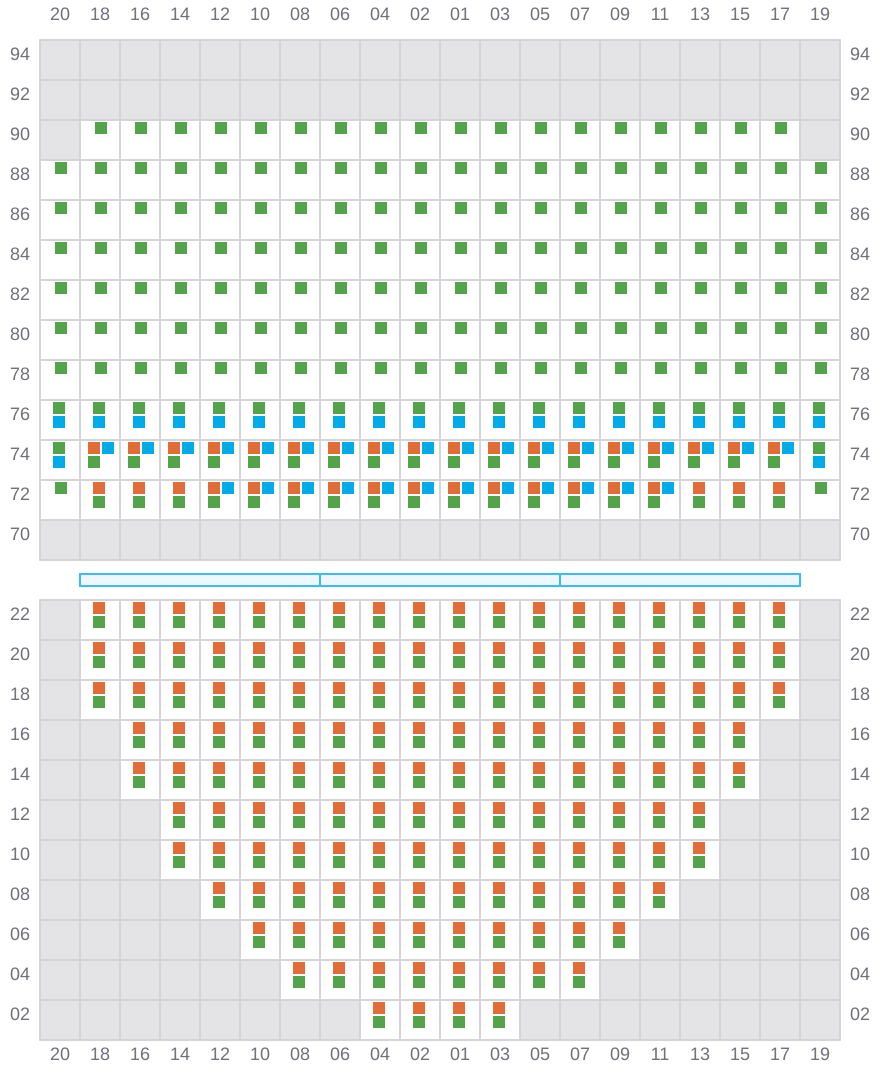

011

  • ←
  • →
Bay 011 view and slots of CMA CGM SCANDOLA

013 (014)

  • →
  • → / ?
  • →
Bay 013 view and slots of CMA CGM SCANDOLA

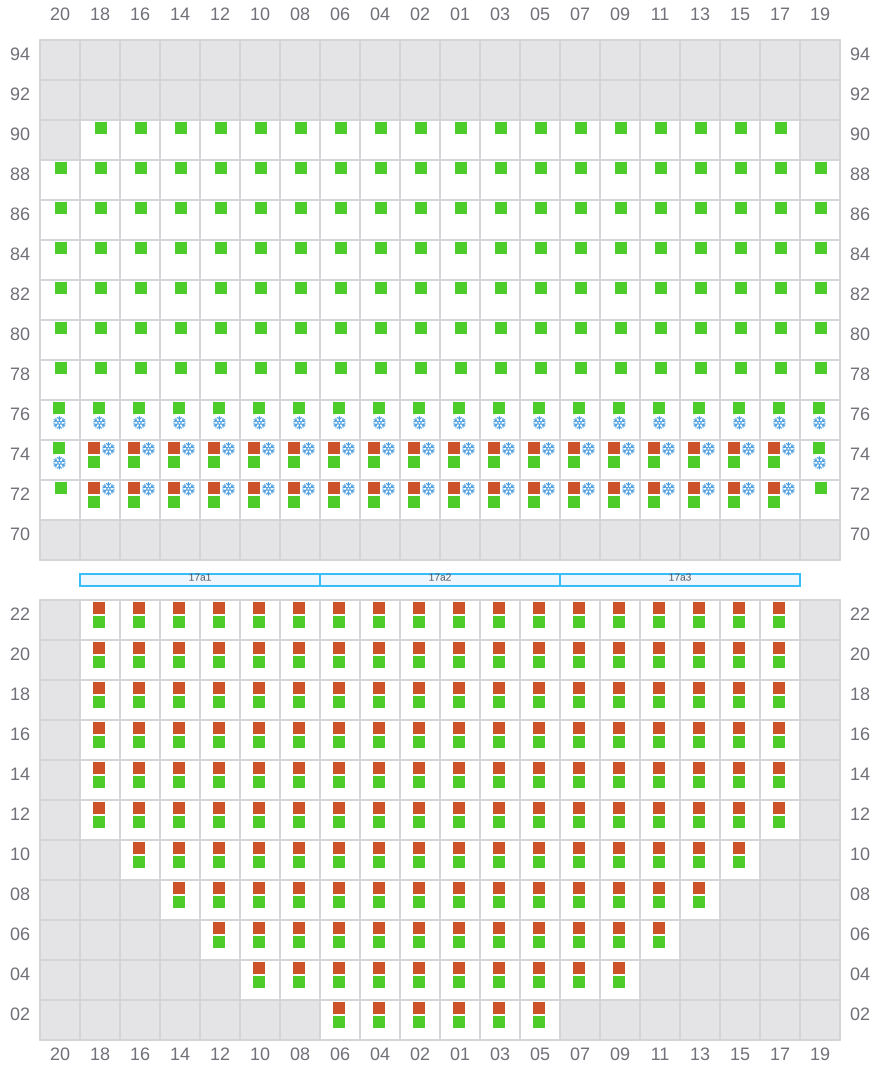

015

  • ←
  • →

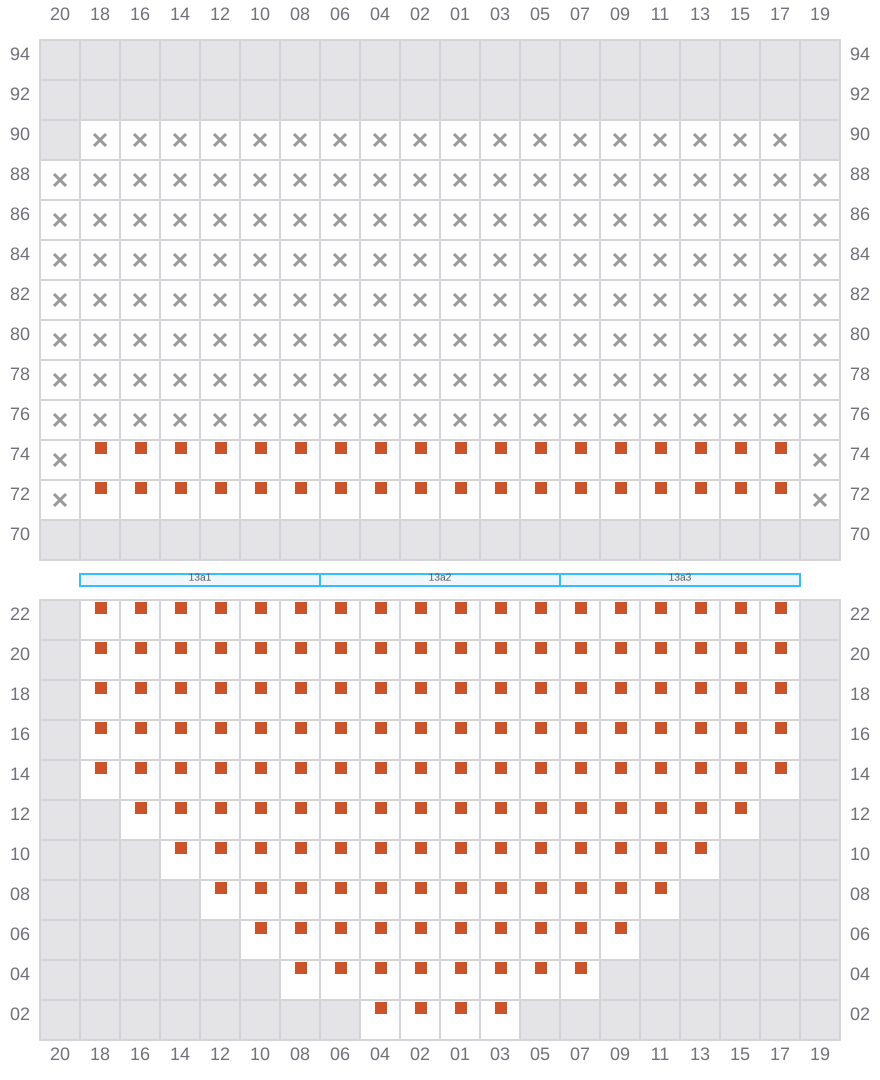

Bay 015 view and slots of CMA CGM SCANDOLA

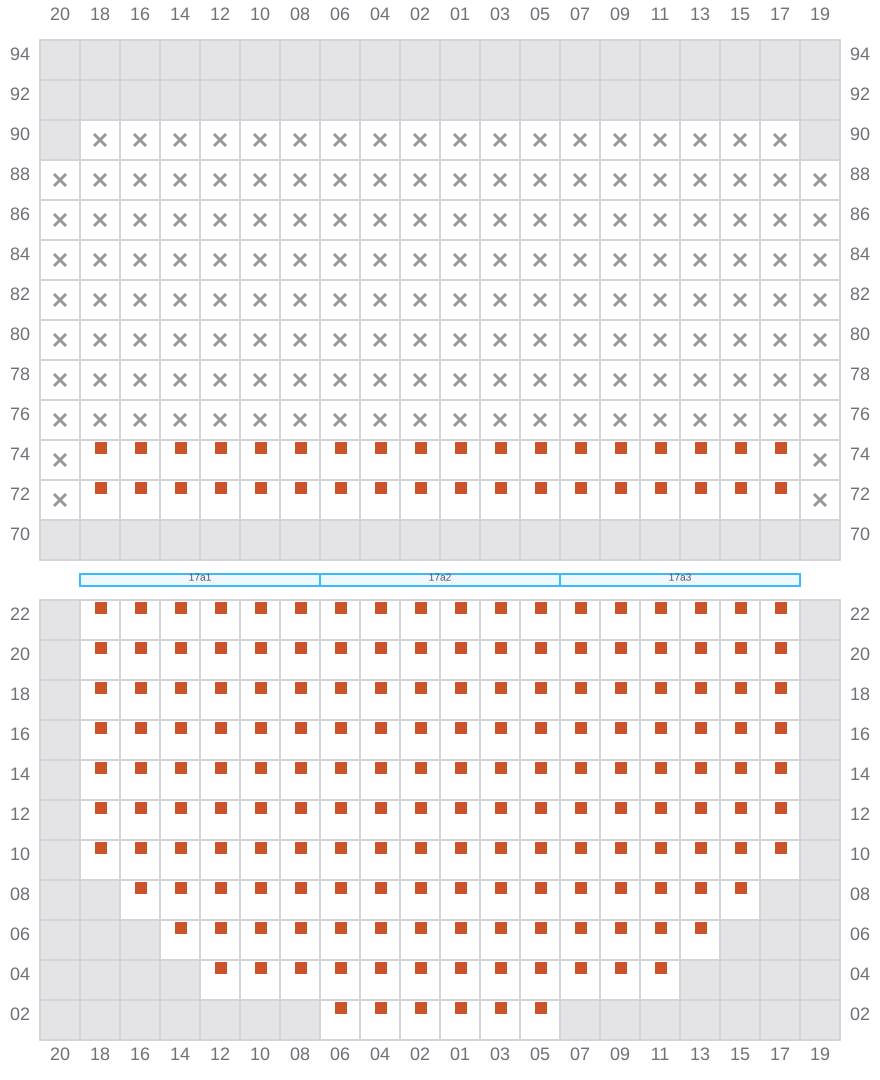

017 (018)

  • →
  • → / ?
  • →
Bay 017 view and slots of CMA CGM SCANDOLA

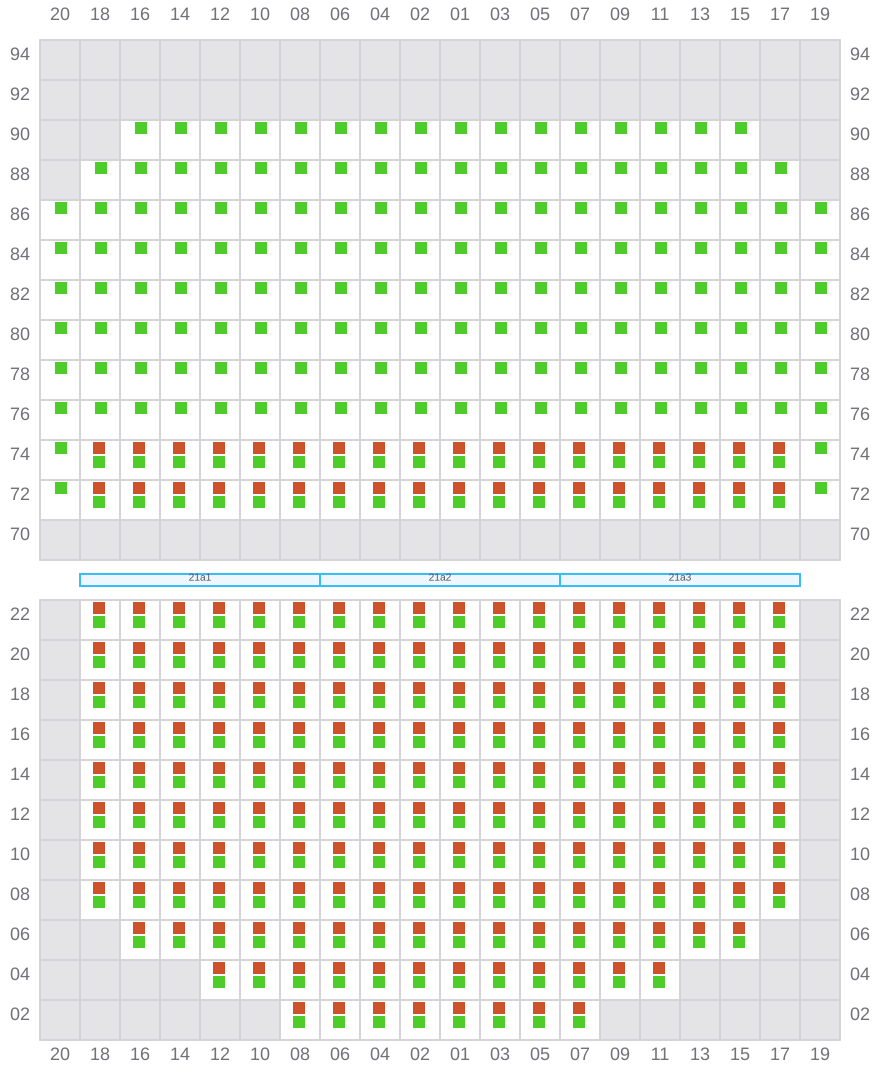

019

  • ←
  • →
Bay 019 view and slots of CMA CGM SCANDOLA

021 (022)

  • →
  • →
Bay 021 view and slots of CMA CGM SCANDOLA

023

  • ←
  • →

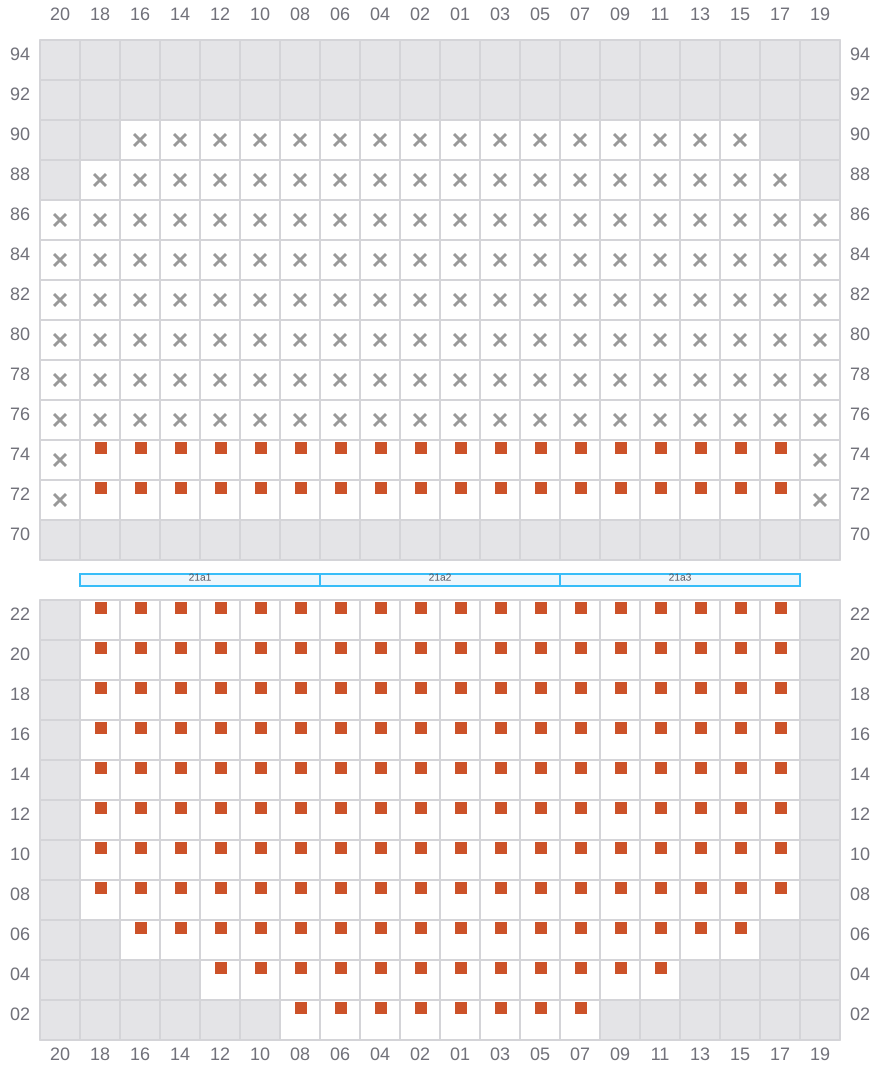

Bay 023 view and slots of CMA CGM SCANDOLA

025 (026)

  • → / ?
  • → / ?
Bay 025 view and slots of CMA CGM SCANDOLA

027

  • ← / ?
  • → / ?

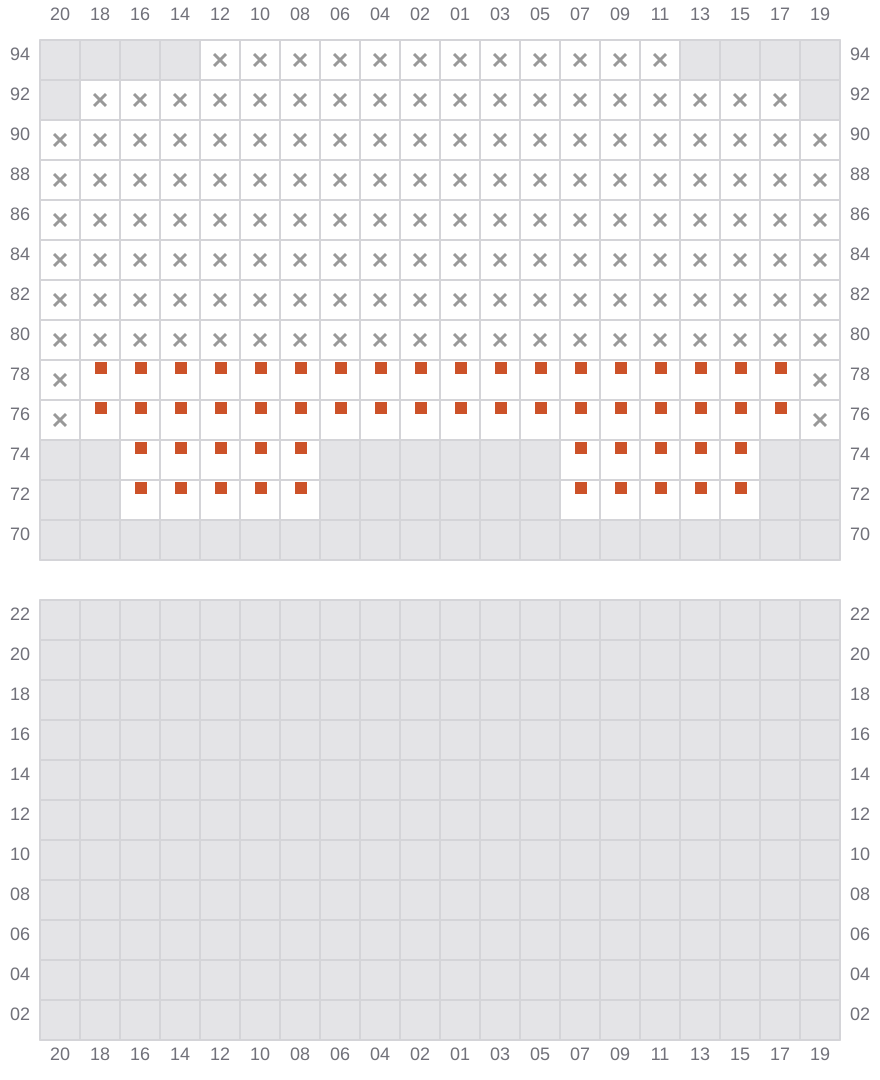

Bay 027 view and slots of CMA CGM SCANDOLA

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of CMA CGM SCANDOLA

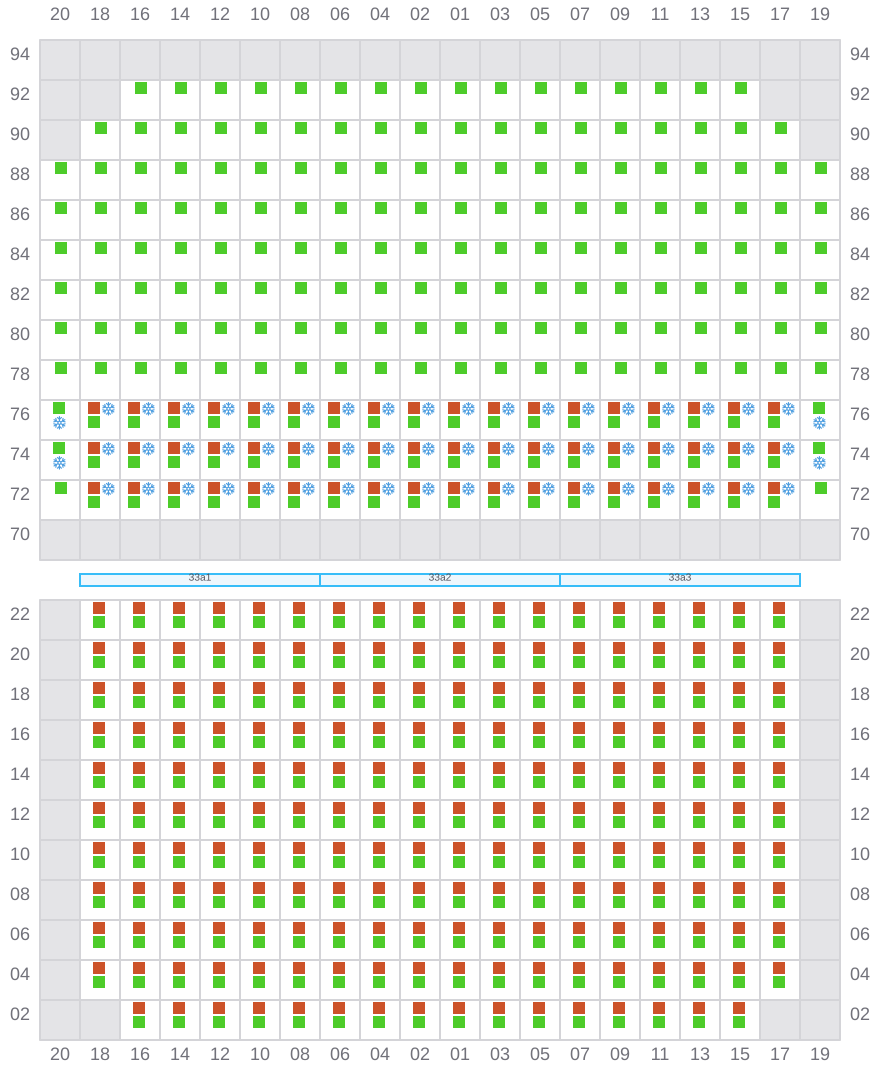

031

  • ←
  • →

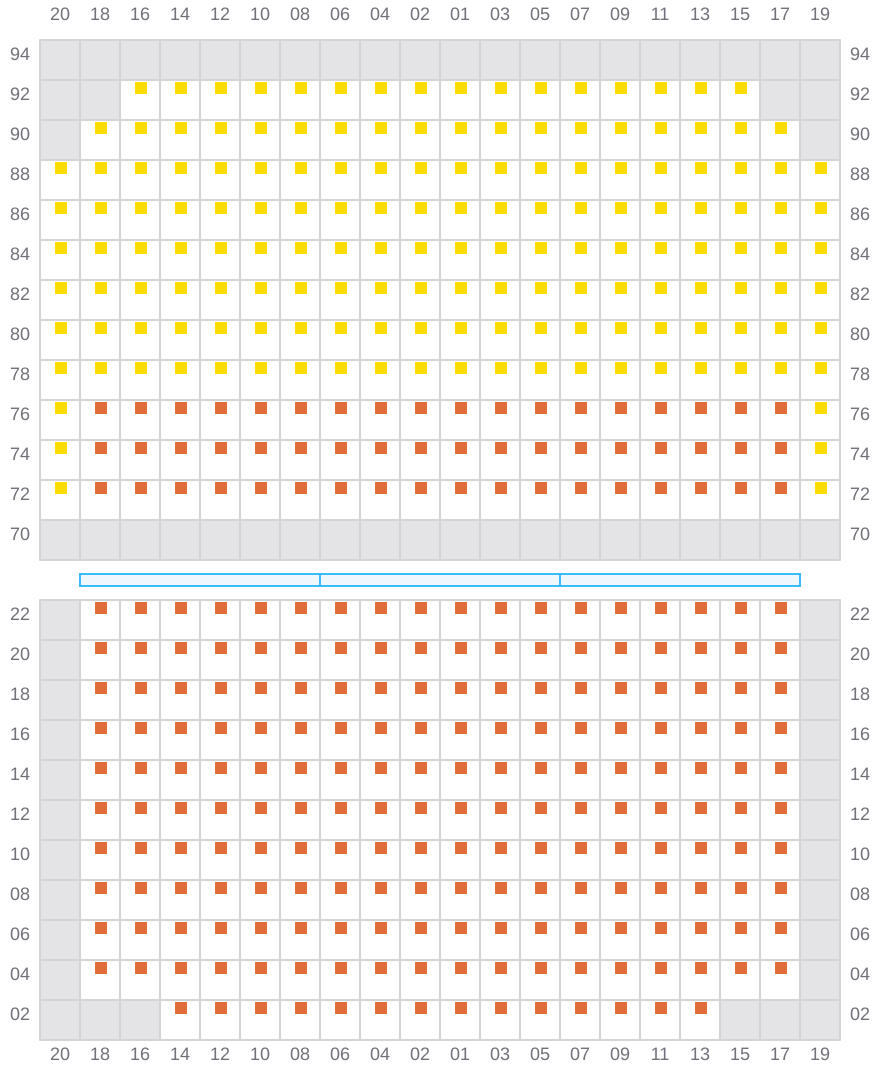

Bay 031 view and slots of CMA CGM SCANDOLA

033 (034)

  • →
  • → / ?
  • →

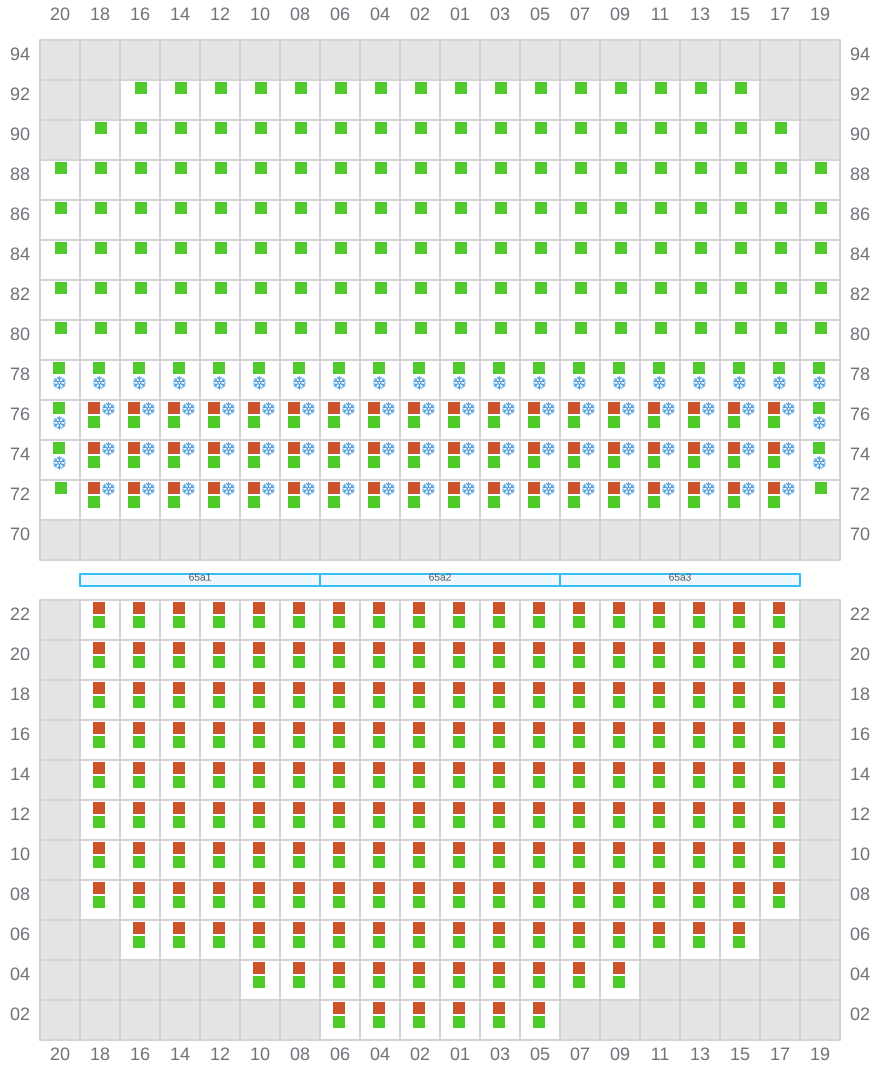

Bay 033 view and slots of CMA CGM SCANDOLA

035

  • ←
  • →
Bay 035 view and slots of CMA CGM SCANDOLA

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of CMA CGM SCANDOLA

039

  • ←
  • →
Bay 039 view and slots of CMA CGM SCANDOLA

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of CMA CGM SCANDOLA

043

  • ←
  • →

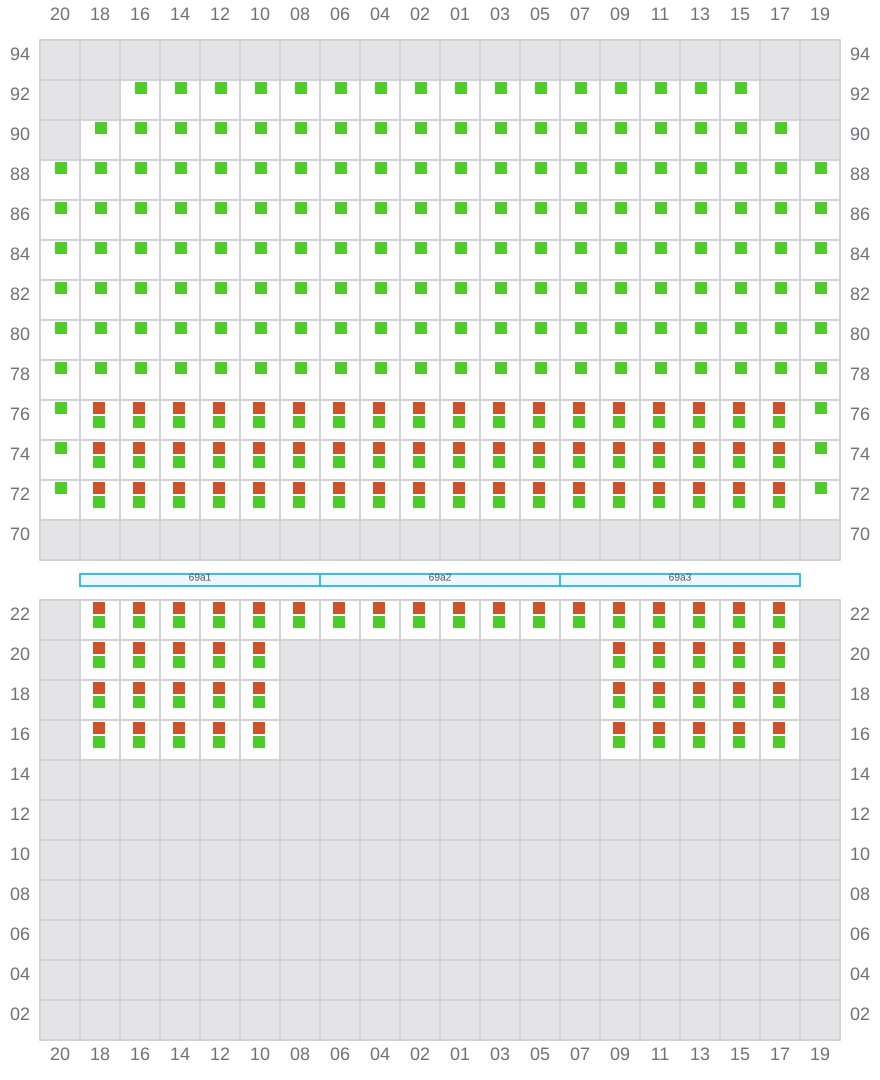

Bay 043 view and slots of CMA CGM SCANDOLA

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of CMA CGM SCANDOLA

047

  • ←
  • →

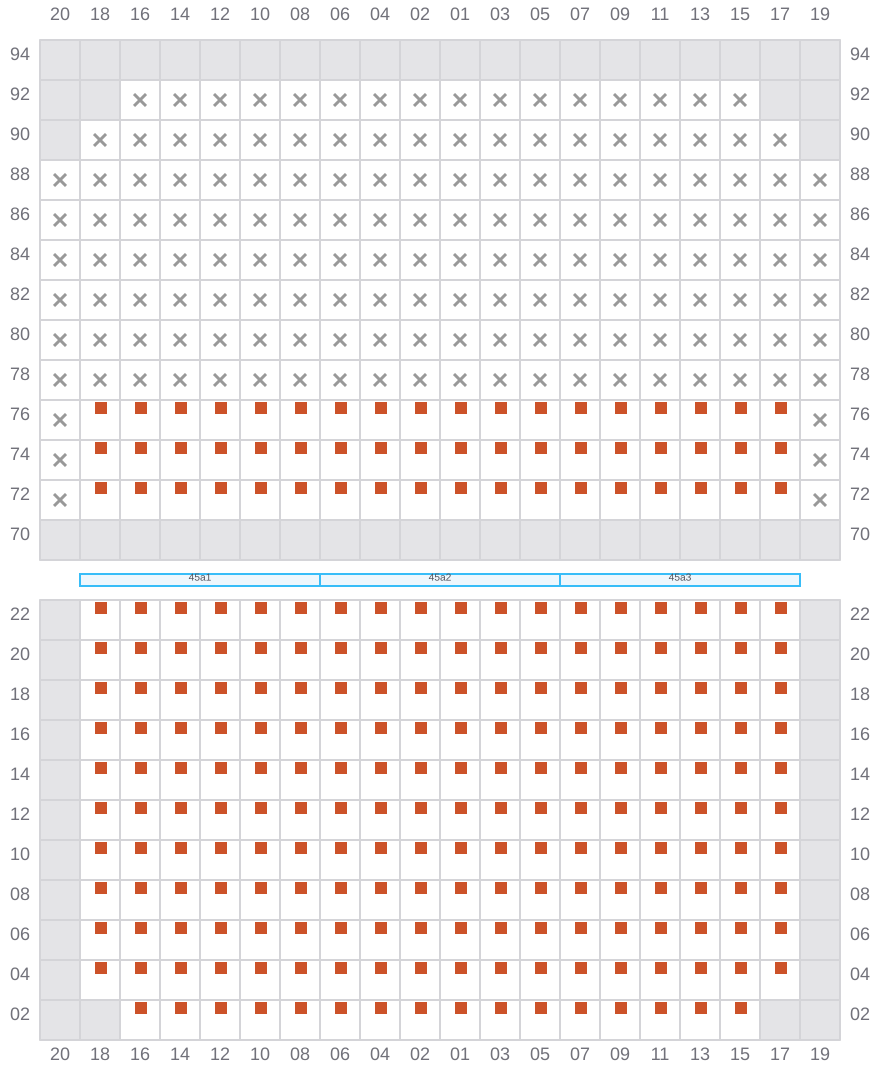

Bay 047 view and slots of CMA CGM SCANDOLA

049 (050)

  • →
  • → / ?
  • →

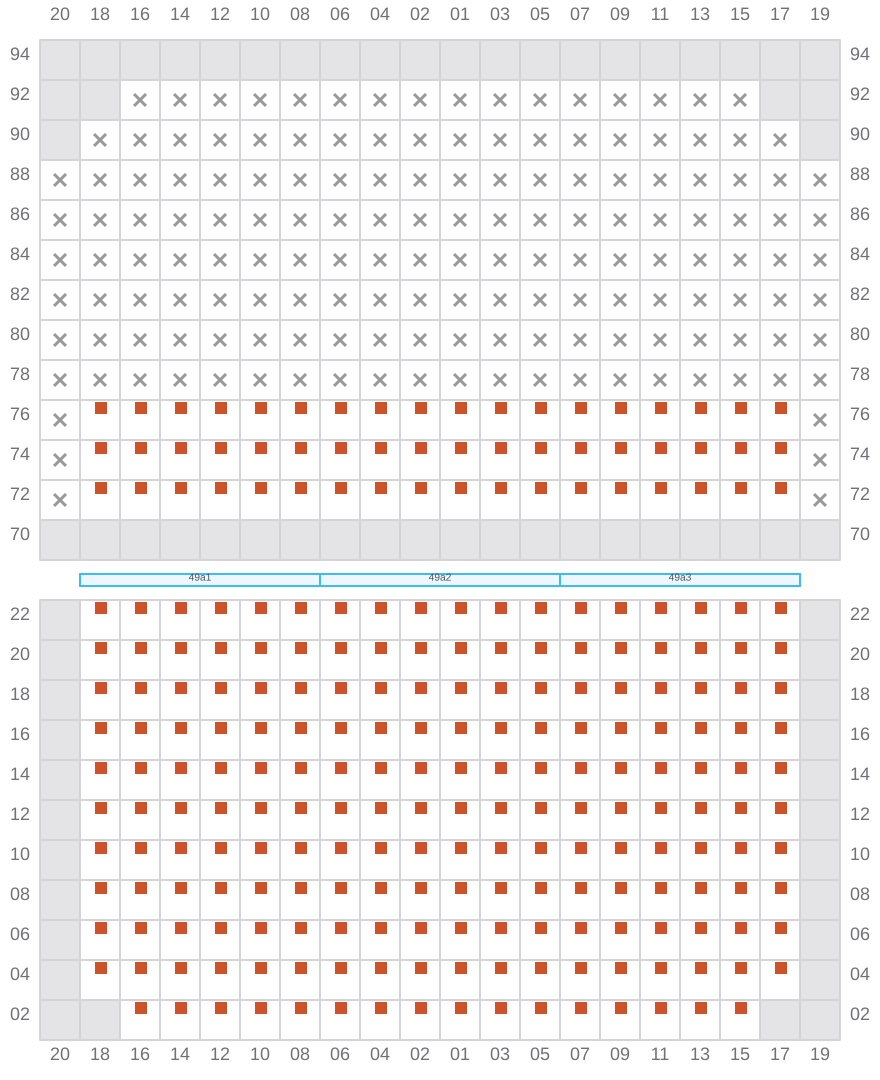

Bay 049 view and slots of CMA CGM SCANDOLA

051

  • ←
  • →
Bay 051 view and slots of CMA CGM SCANDOLA

053 (054)

  • →
  • → / ?
  • →

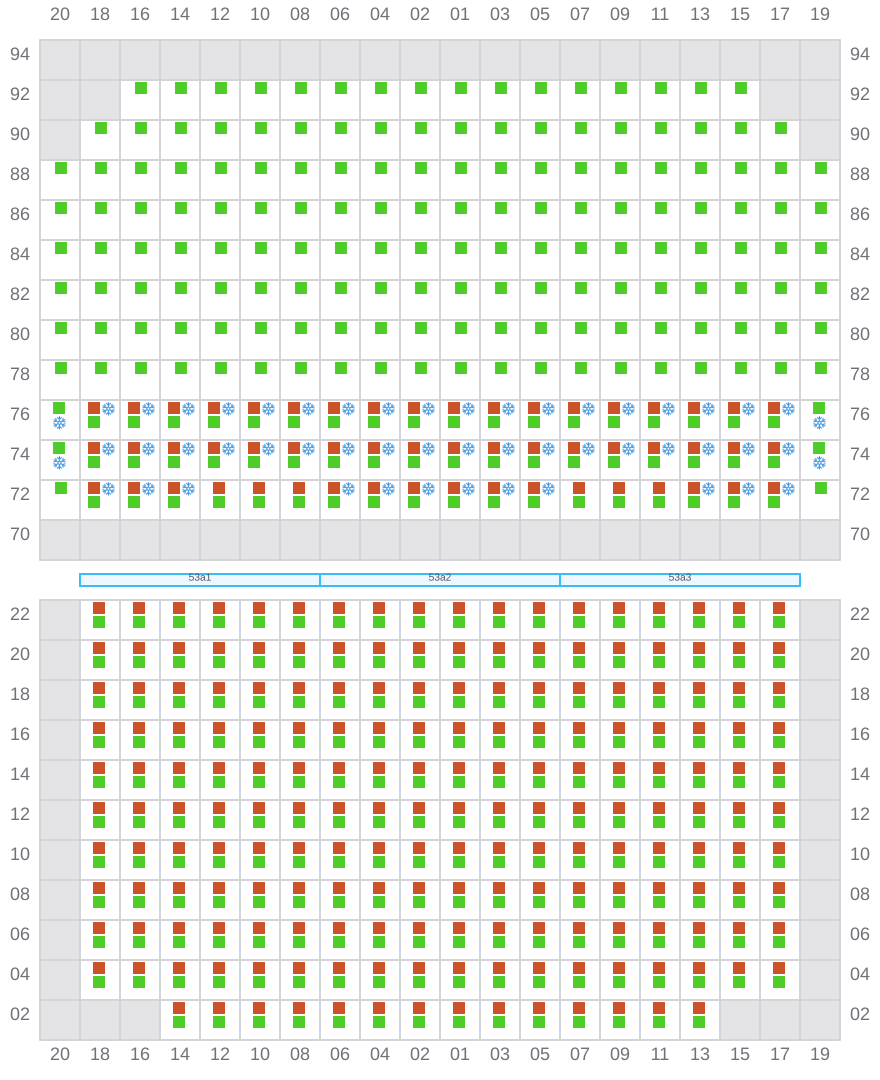

Bay 053 view and slots of CMA CGM SCANDOLA

055

  • ←
  • →

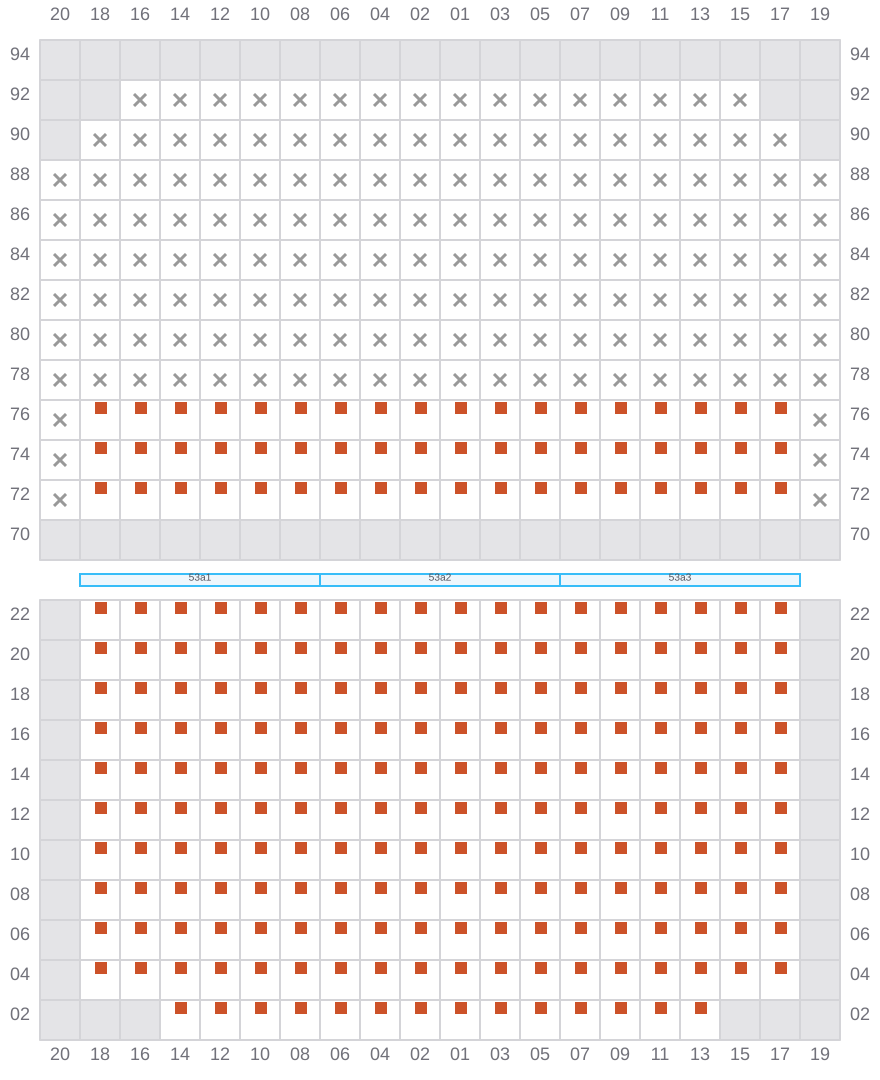

Bay 055 view and slots of CMA CGM SCANDOLA

057 (058)

  • →
  • → / ?
  • →

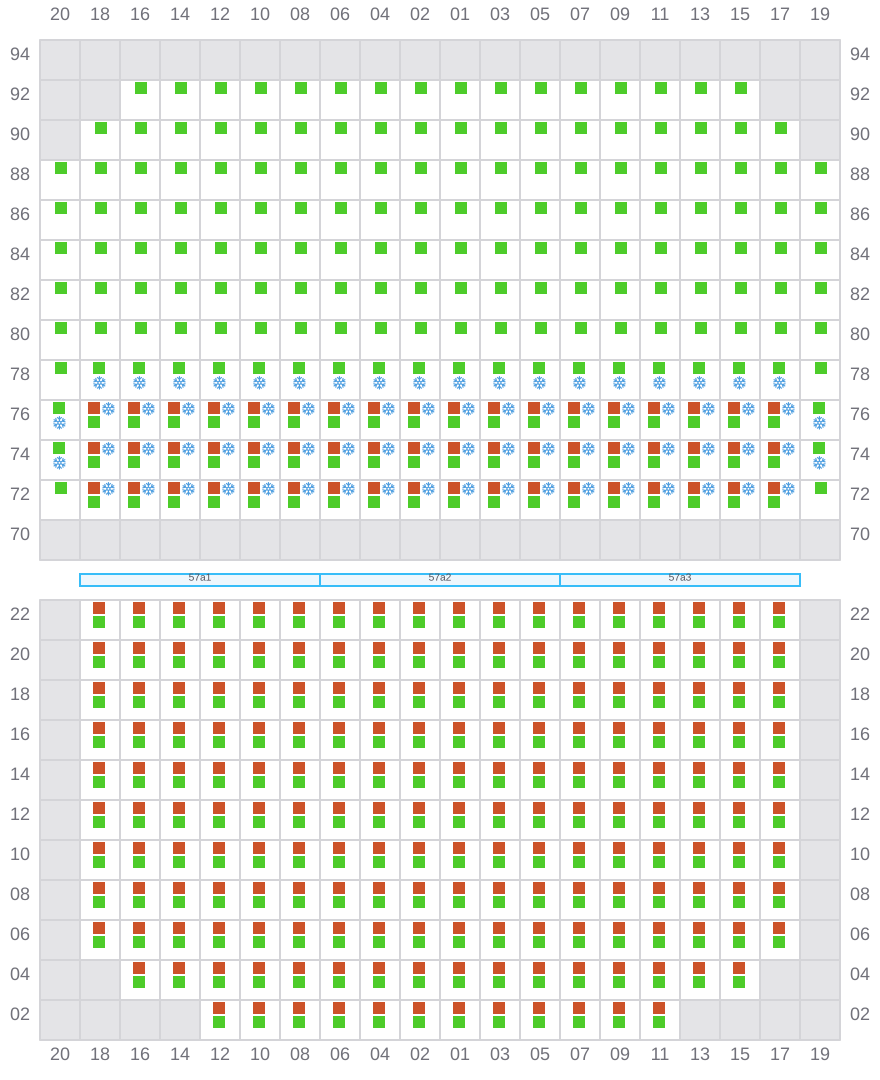

Bay 057 view and slots of CMA CGM SCANDOLA

059

  • ←
  • →

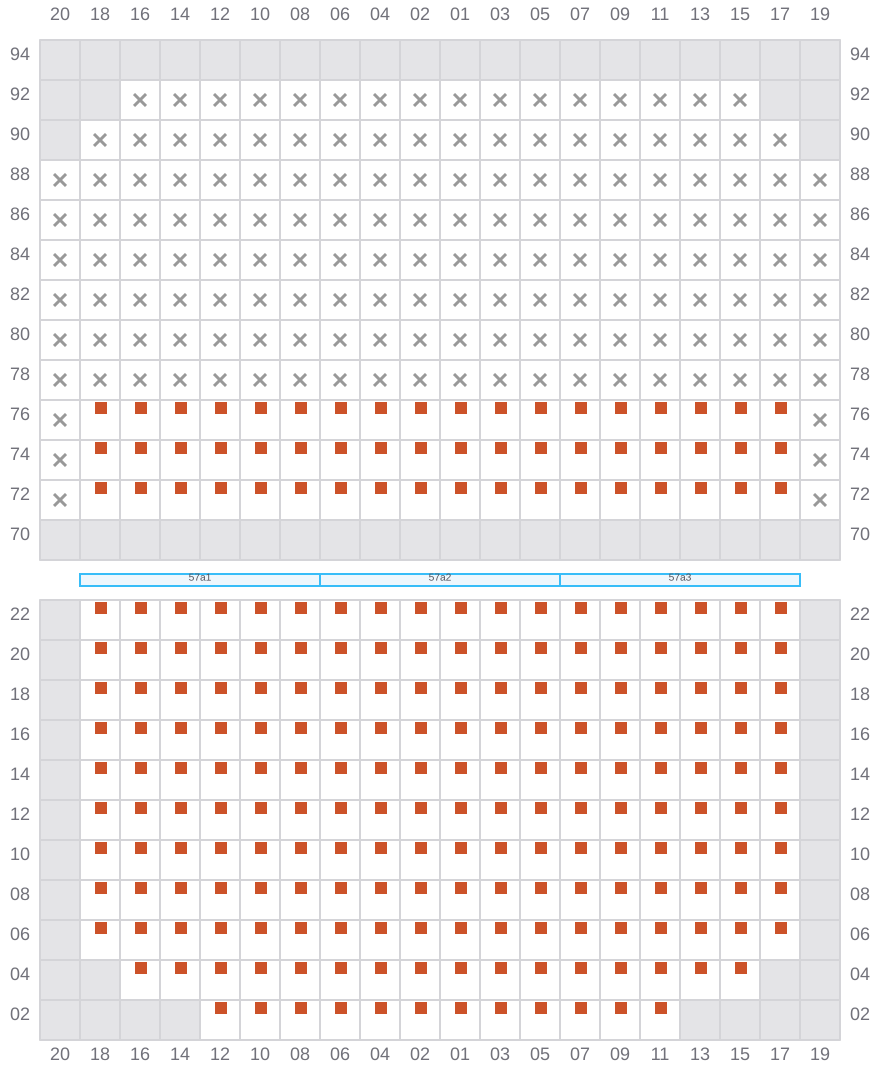

Bay 059 view and slots of CMA CGM SCANDOLA

061 (062)

  • →
  • → / ?
  • →

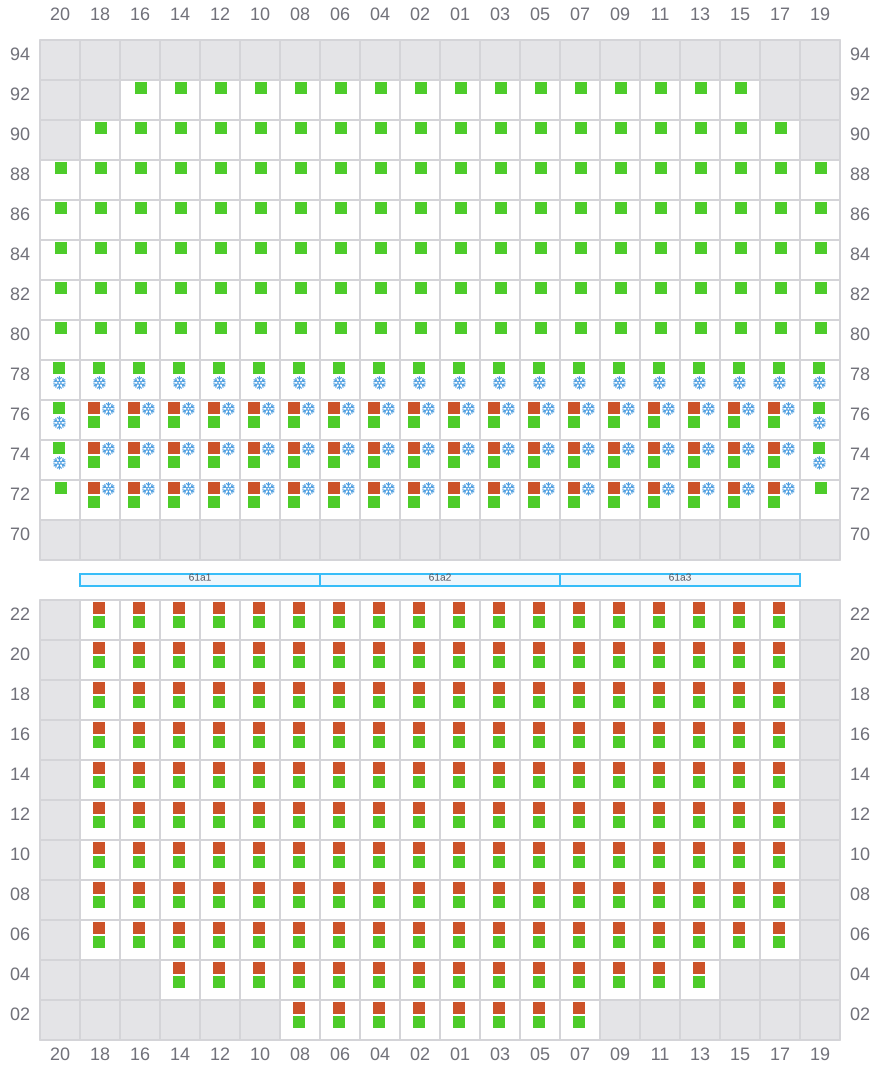

Bay 061 view and slots of CMA CGM SCANDOLA

063

  • ←
  • →

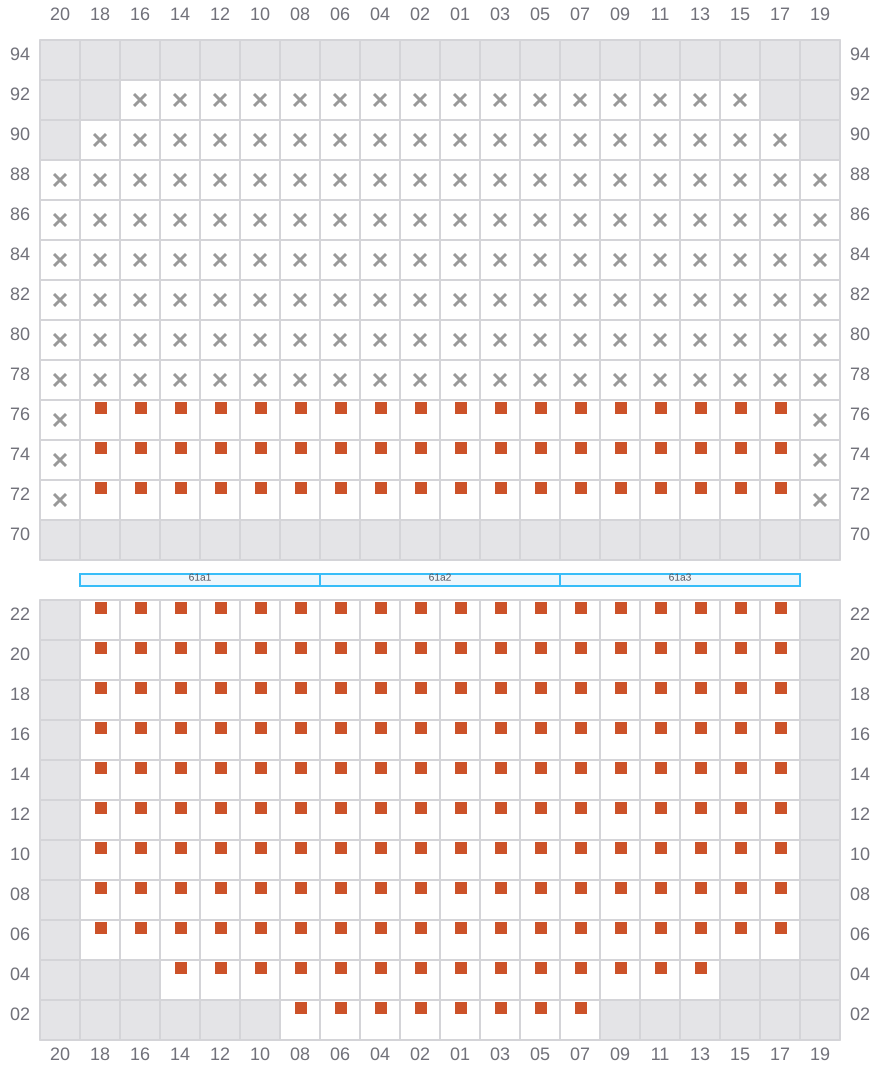

Bay 063 view and slots of CMA CGM SCANDOLA

065 (066)

  • →
  • → / ?
  • →
Bay 065 view and slots of CMA CGM SCANDOLA

067

  • ←
  • →

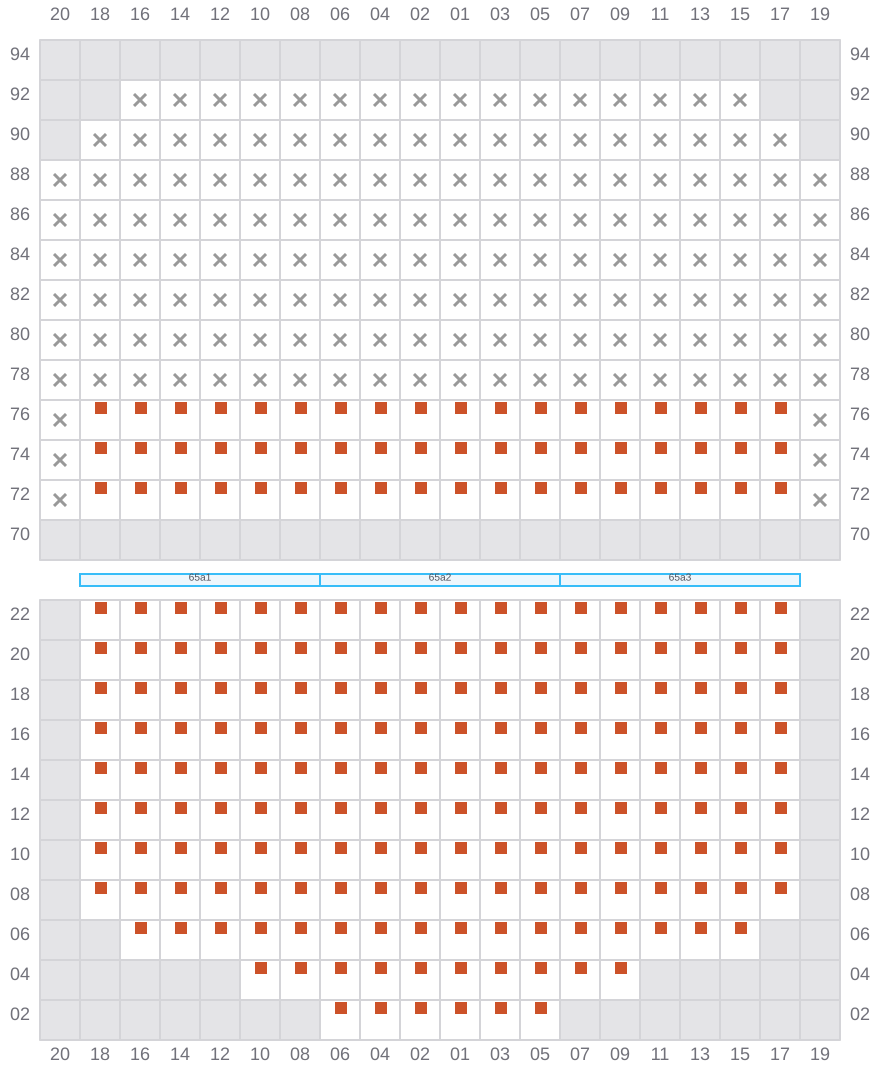

Bay 067 view and slots of CMA CGM SCANDOLA

069 (070)

  • →
  • →
Bay 069 view and slots of CMA CGM SCANDOLA

071

  • ←
  • →
Bay 071 view and slots of CMA CGM SCANDOLA

073 (074)

  • →
  • ← / ?
  • →

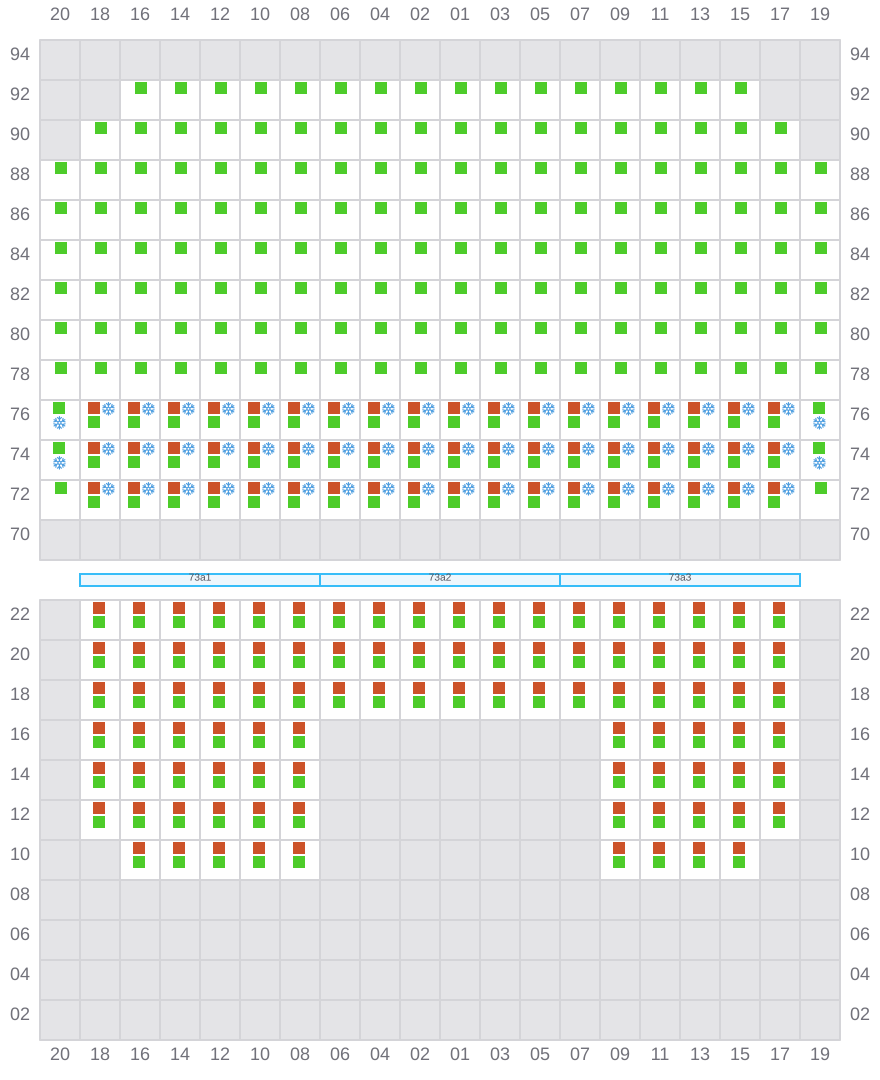

Bay 073 view and slots of CMA CGM SCANDOLA

075

  • ←
  • →

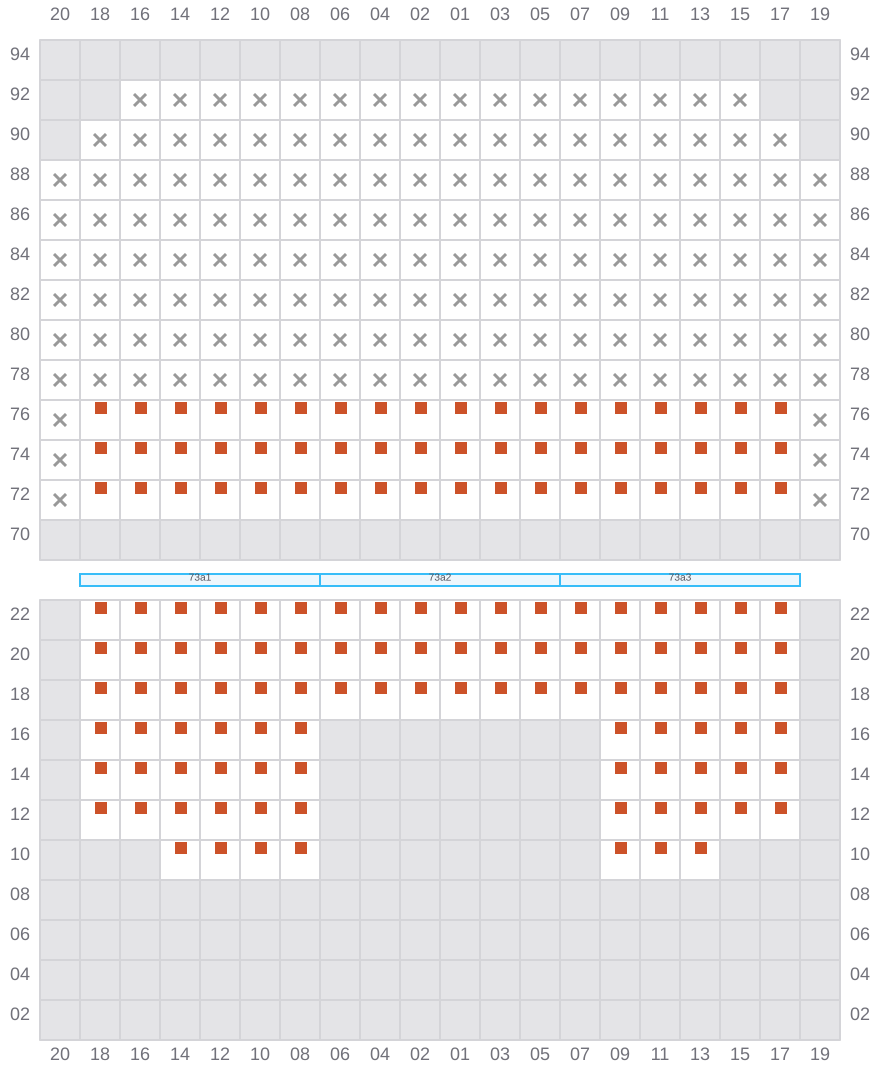

Bay 075 view and slots of CMA CGM SCANDOLA

077 (078)

  • →
  • ← / ?
  • →
Bay 077 view and slots of CMA CGM SCANDOLA

079

  • ←
  • →

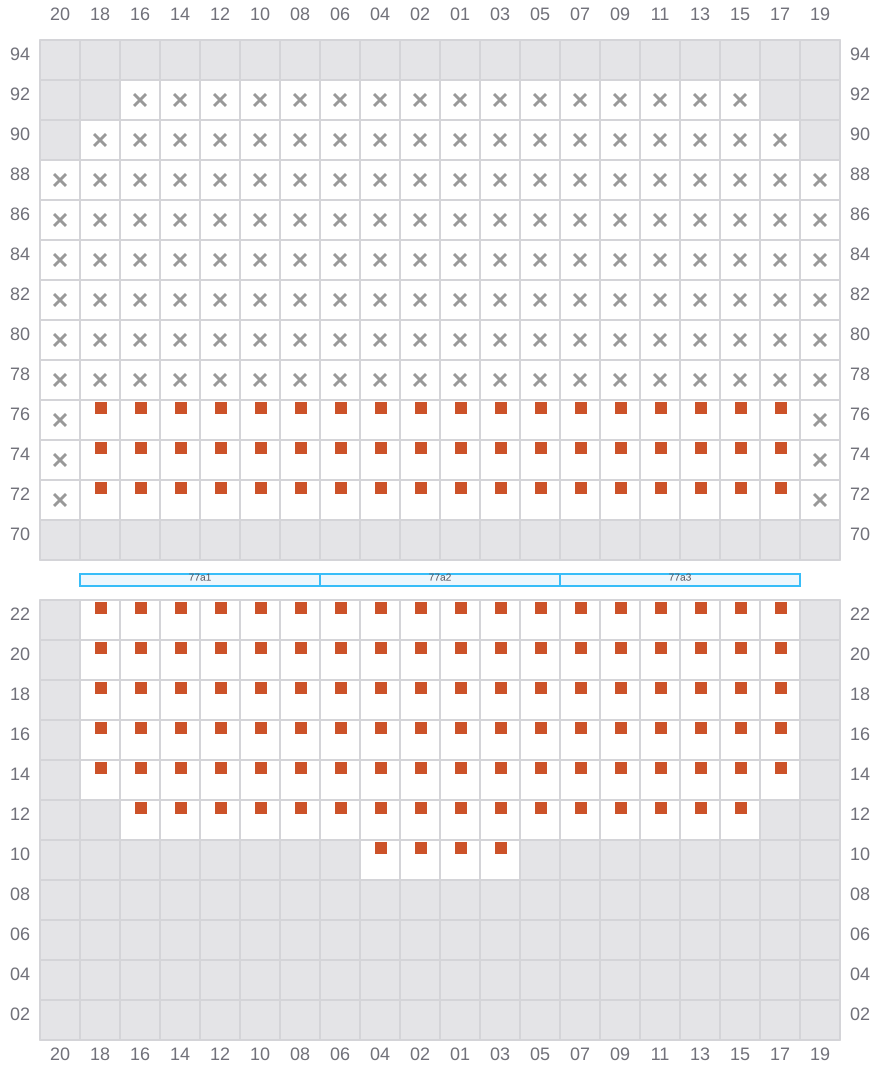

Bay 079 view and slots of CMA CGM SCANDOLA

081 (082)

  • →
  • ← / ?
  • →

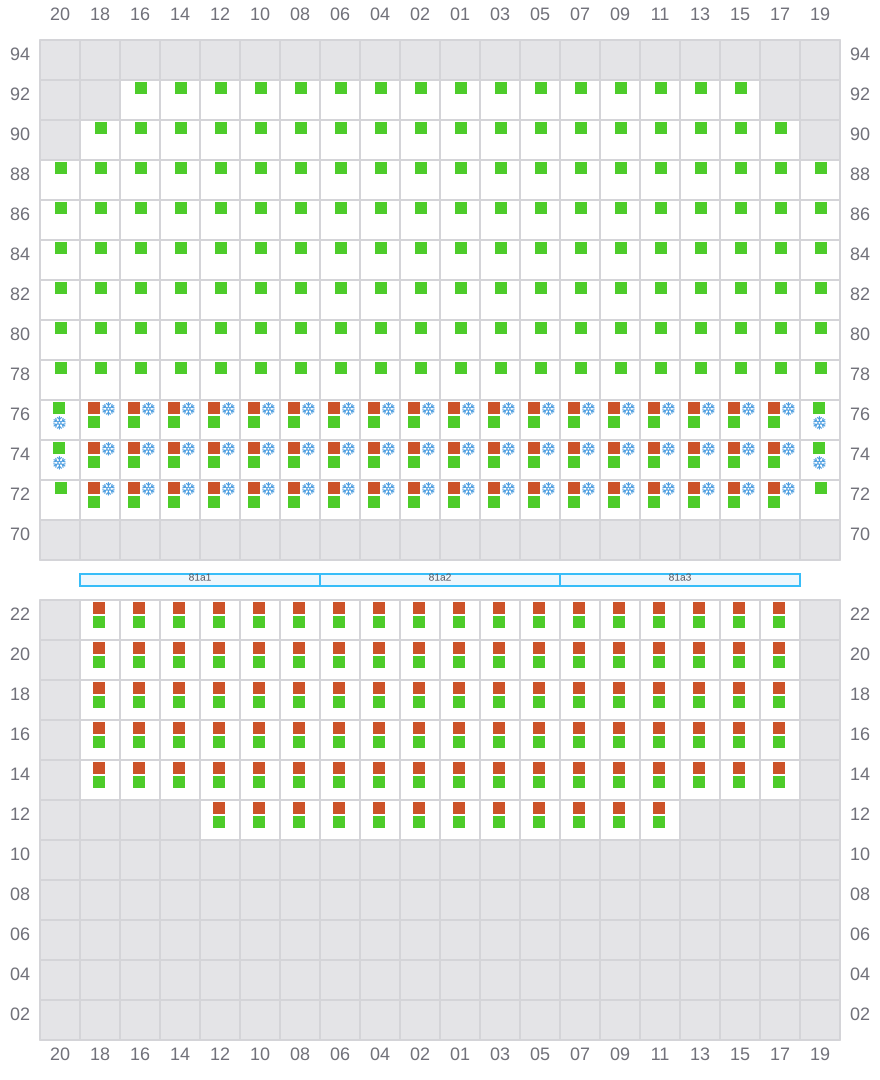

Bay 081 view and slots of CMA CGM SCANDOLA

083

  • ←
  • →

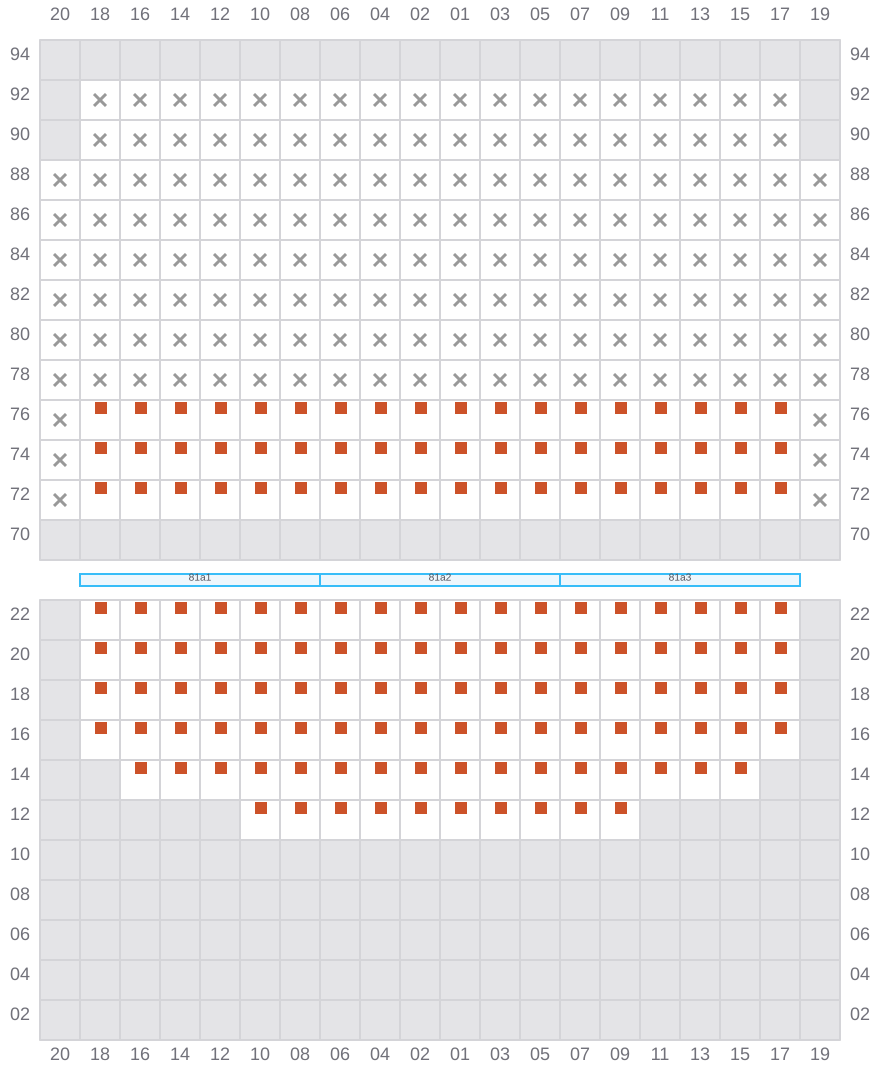

Bay 083 view and slots of CMA CGM SCANDOLA

085 (086)

  • → / ?
  • ← / ?
  • → / ?

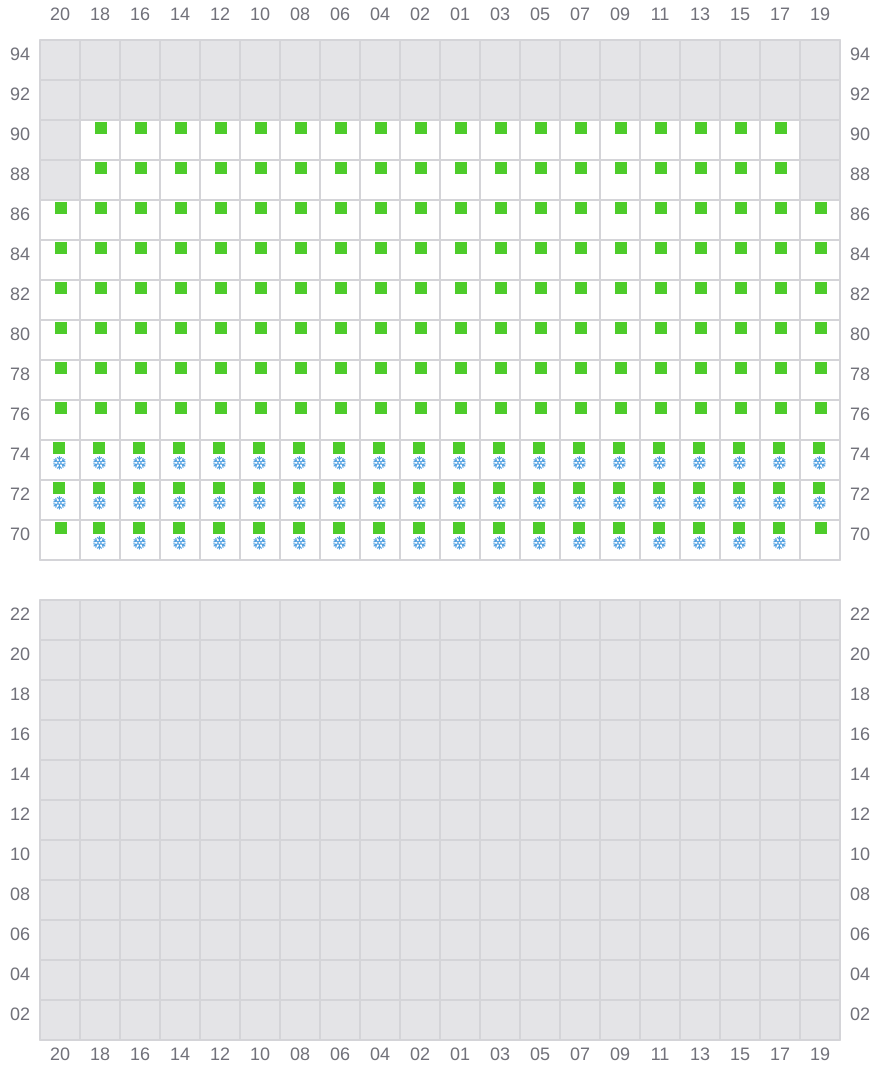

Bay 085 view and slots of CMA CGM SCANDOLA
