CMA CGM SUEZ
9312652 | 9HA4587 | 9312652 by ********* Last update: Tue Jul 09 2024
General Info
Ship Name:CMA CGM SUEZ
IMO Code:9312652
Call Sign:9HA4587
Line Operator:9312652
Class Name for Sister Ships:HSD
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):165.00
LOA (Length Overall):175.52
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,740
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

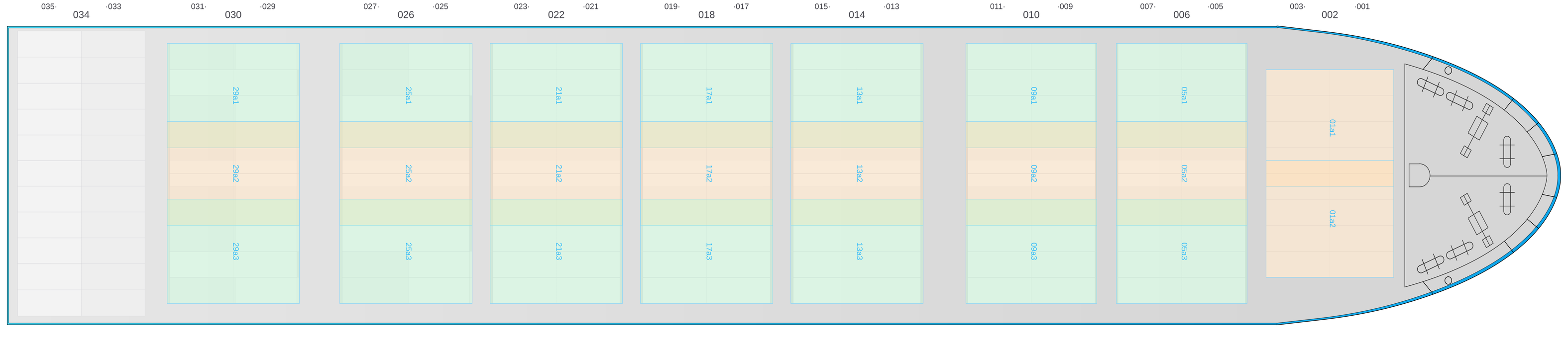

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

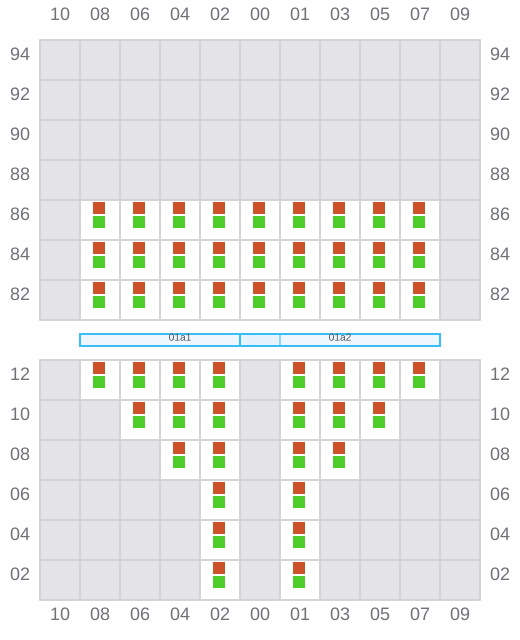

001 (002)
- →
003
- ←
- → / ?

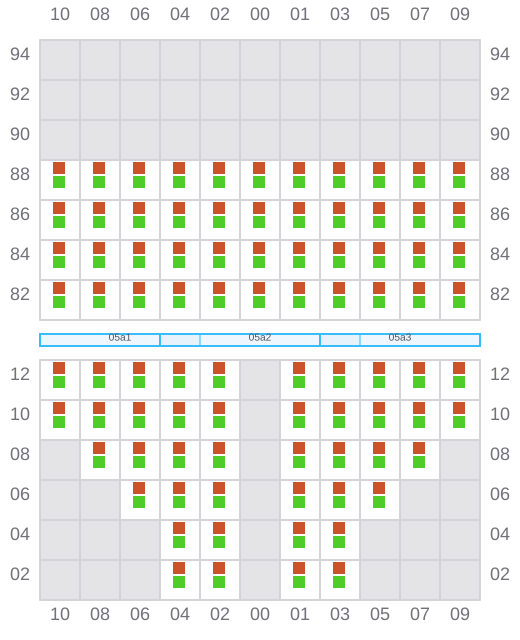

005 (006)
- →
007
- ←

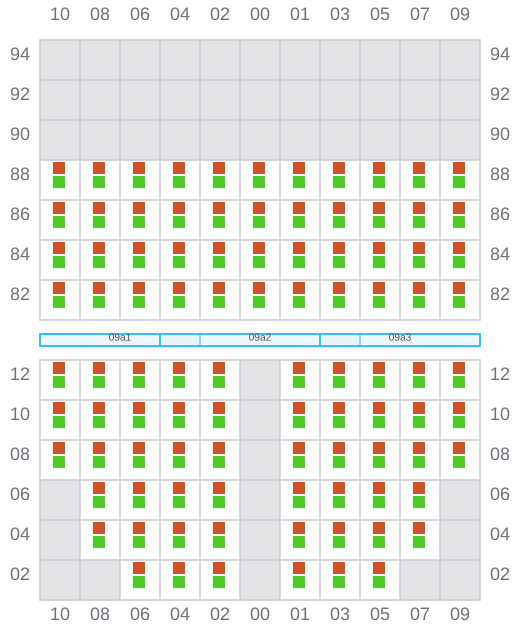

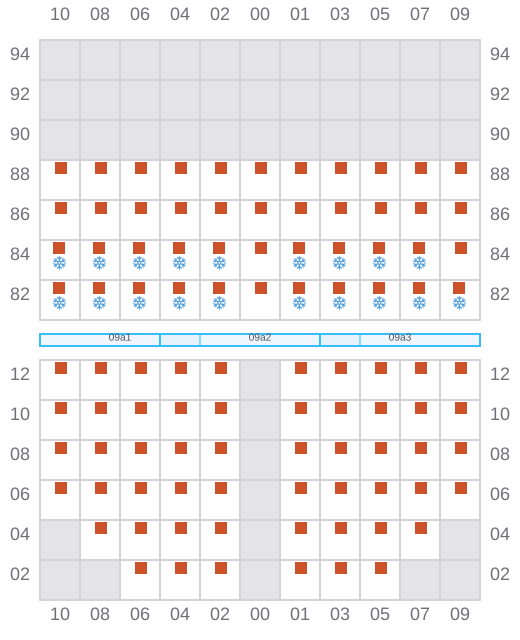

009 (010)
- →
011
- ←
- → / ?

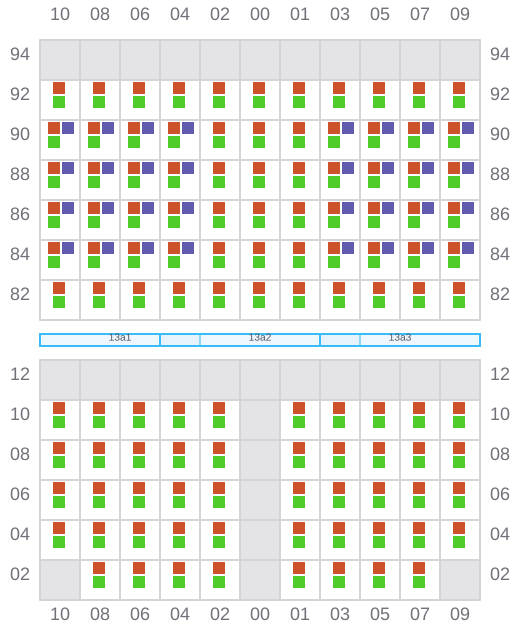

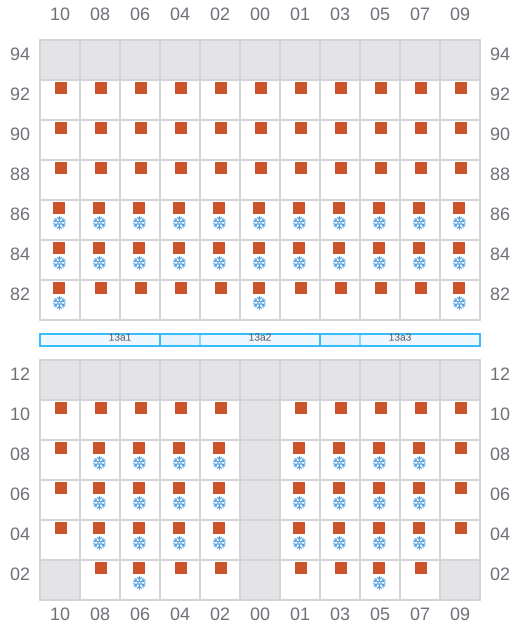

013 (014)
- →
015
- ←
- →
017 (018)
- →
- ? / ←

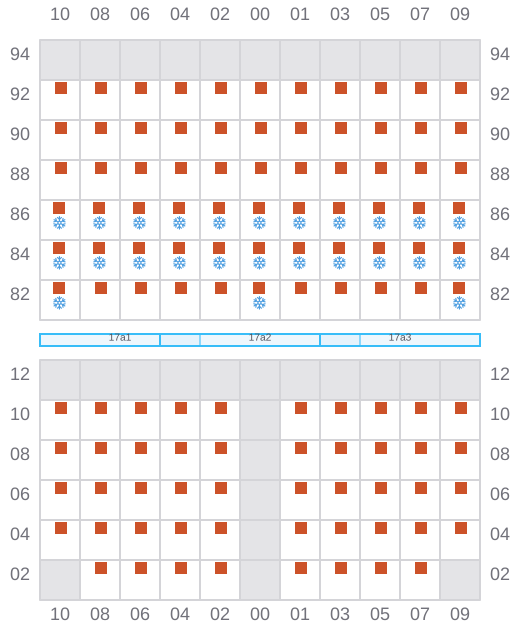

019
- ←

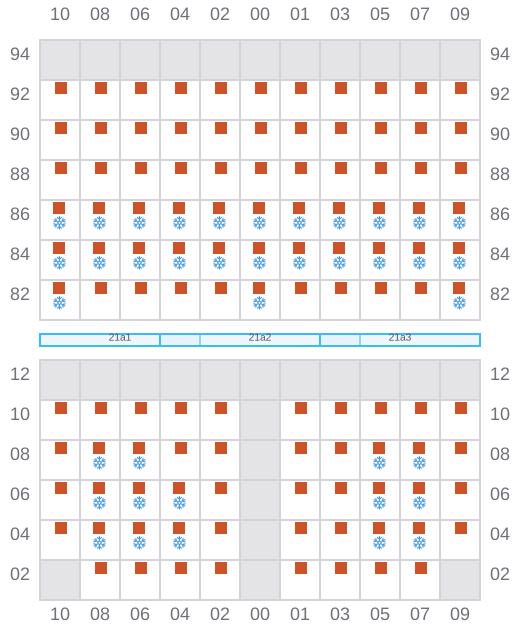

021 (022)
- →
023
- ←
- ? / →

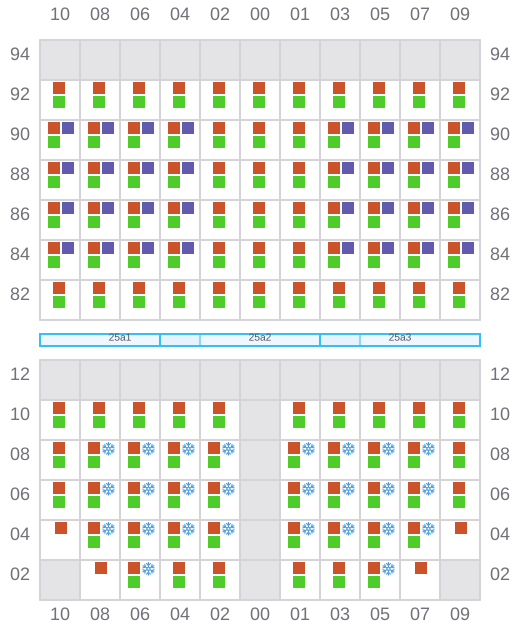

025 (026)
- →
- ? / ←
027
- ←
- → / ?

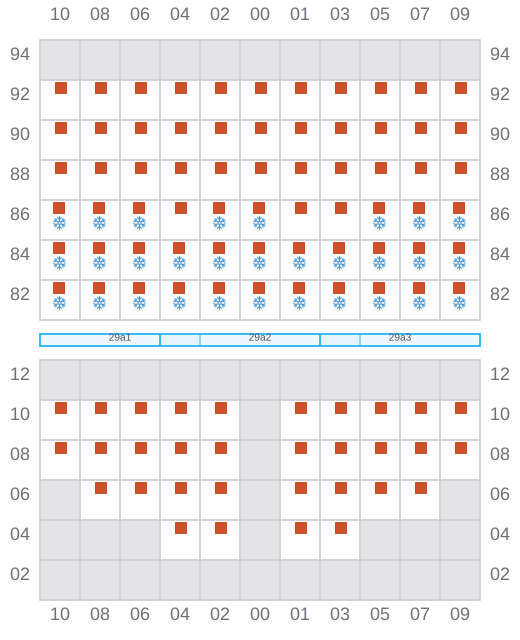

029 (030)
- →
031
- ←
- → / ?
033 (034)
- → / ?
035
- ← / ?
- → / ?
