CMA CGM SURABAYA
9412830 | 9HA5723 | SAF by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:CMA CGM SURABAYA
IMO Code:9412830
Call Sign:9HA5723
Line Operator:SAF
Class Name for Sister Ships:BDM
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):160.00
LOA (Length Overall):171.99
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,577
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

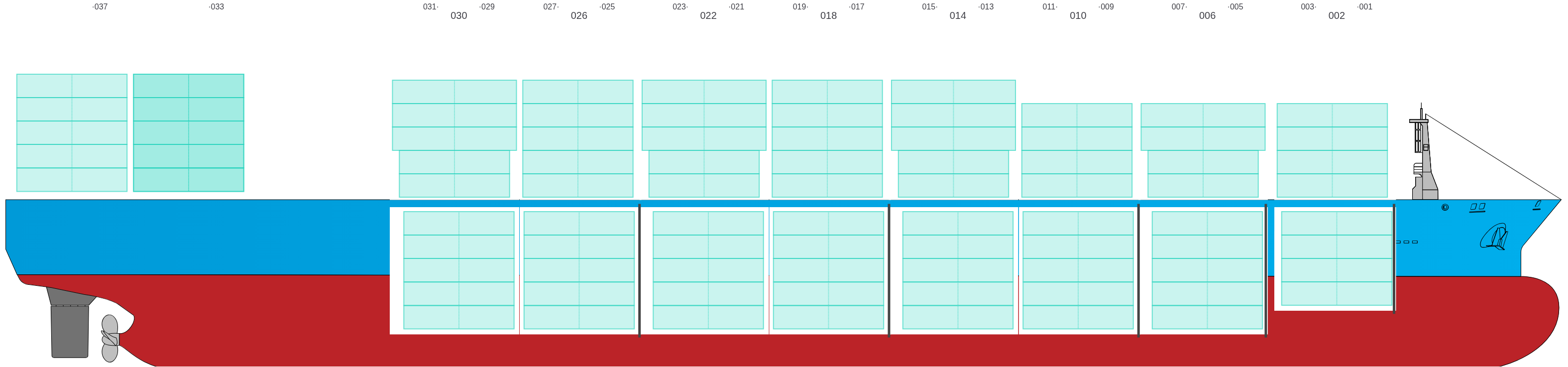

Side View
![Side view of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-sideView.png?v=1688066163994)

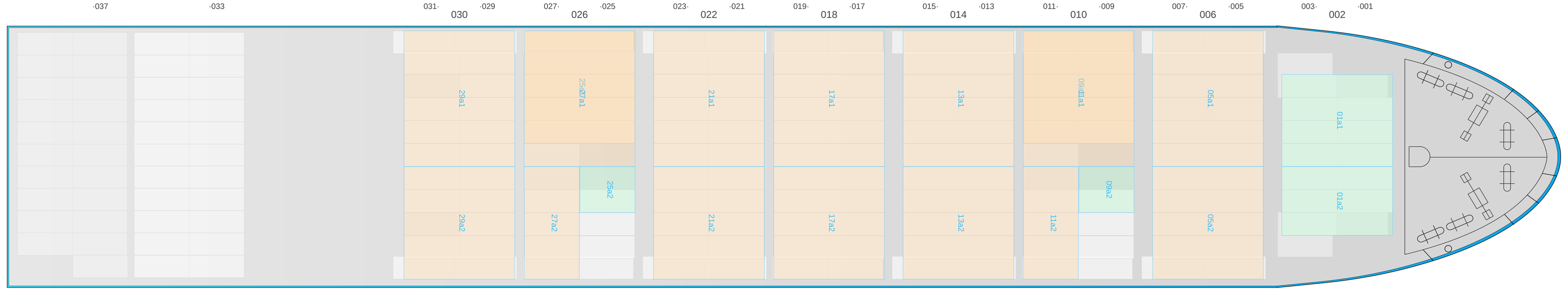

Hatch-Covers View
![Deck view of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-deckView.png?v=1688066163994)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

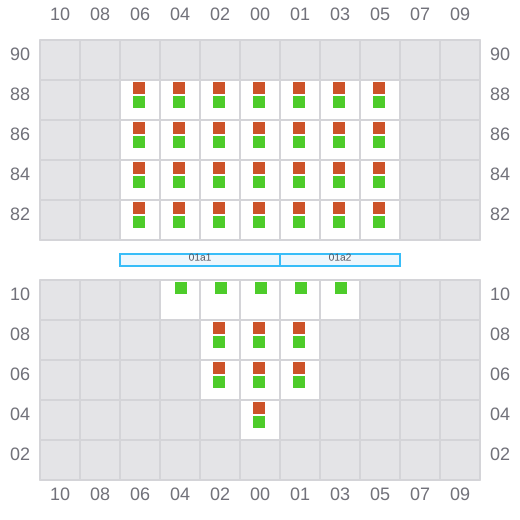

001 (002)
- →
![Bay 001 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b001.png?v=1688066163994)

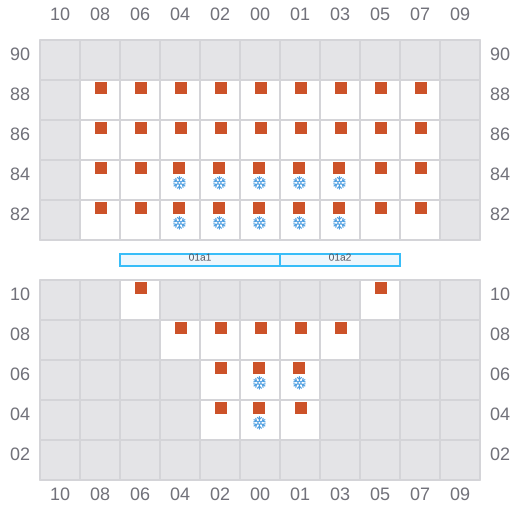

003
- ←
- →
![Bay 003 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b003.png?v=1688066163994)

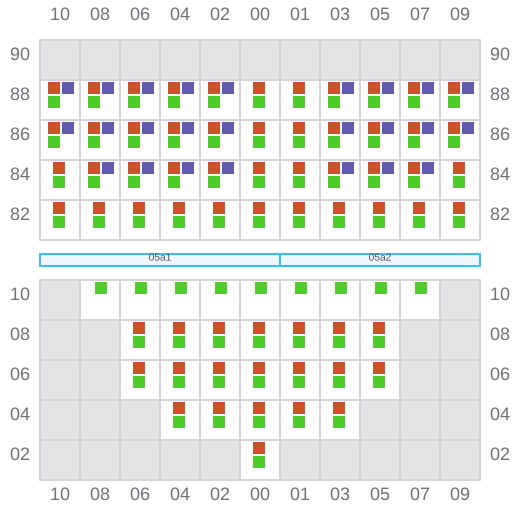

005 (006)
- →
- ← / ?
![Bay 005 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b005.png?v=1688066163994)

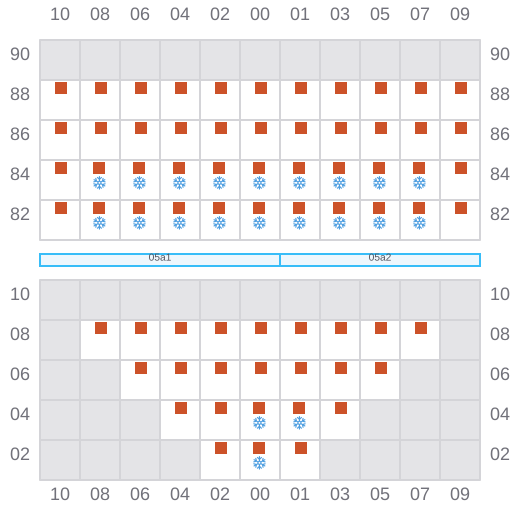

007
- ←
- →
![Bay 007 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b007.png?v=1688066163994)

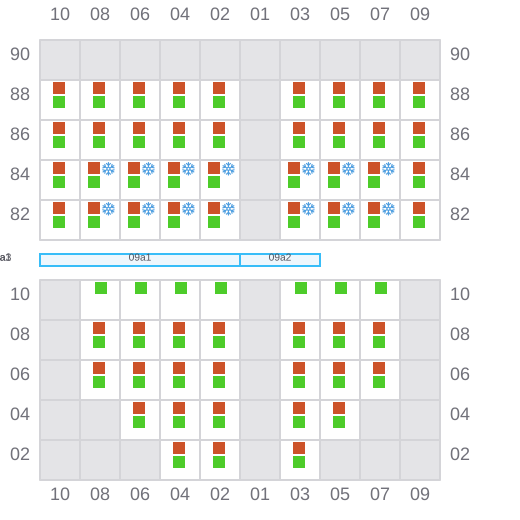

009 (010)
- →
- ← / ?
![Bay 009 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b009.png?v=1688066163994)

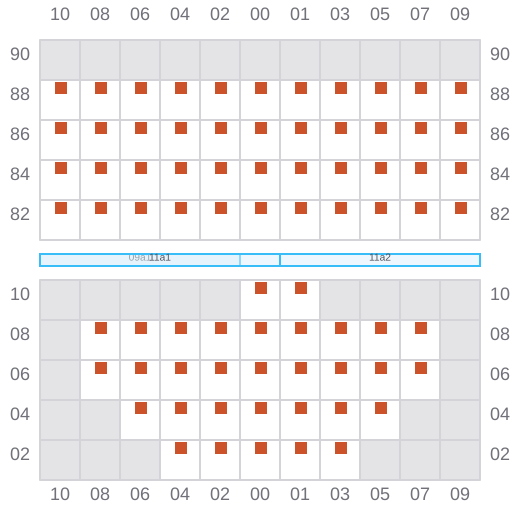

011
- ←
- → / ?
![Bay 011 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b011.png?v=1688066163994)

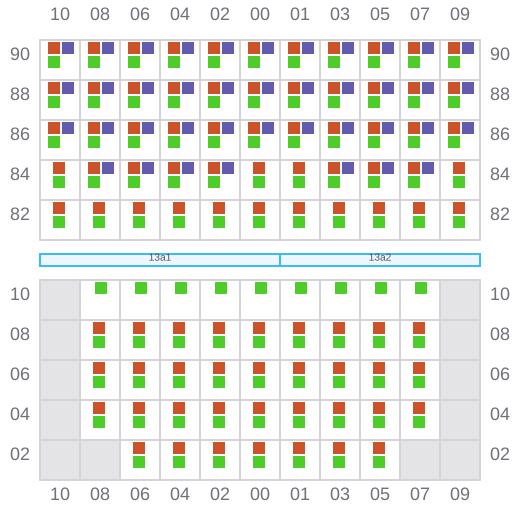

013 (014)
- →
- ← / ?
![Bay 013 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b013.png?v=1688066163994)

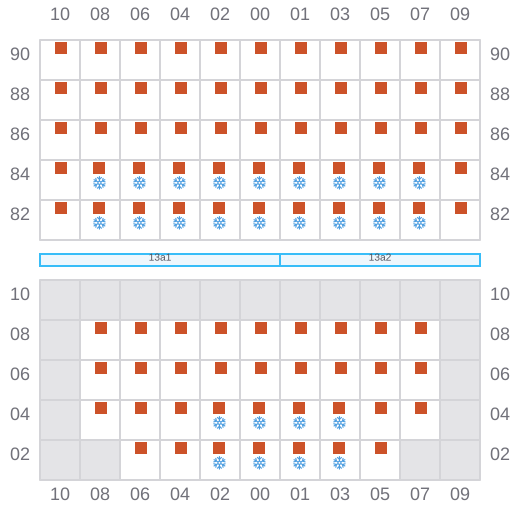

015
- ←
- →
![Bay 015 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b015.png?v=1688066163994)

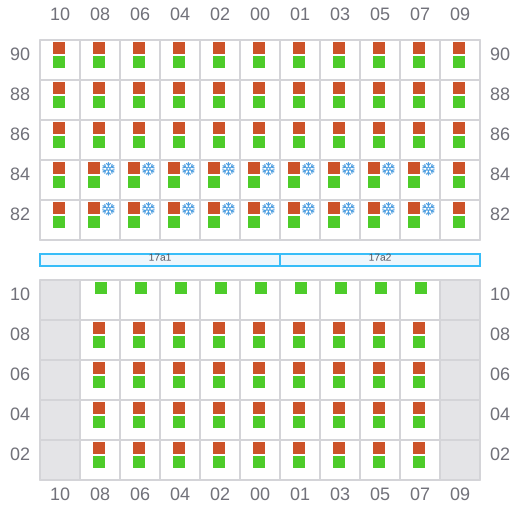

017 (018)
- →
- ← / ?
![Bay 017 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b017.png?v=1688066163994)

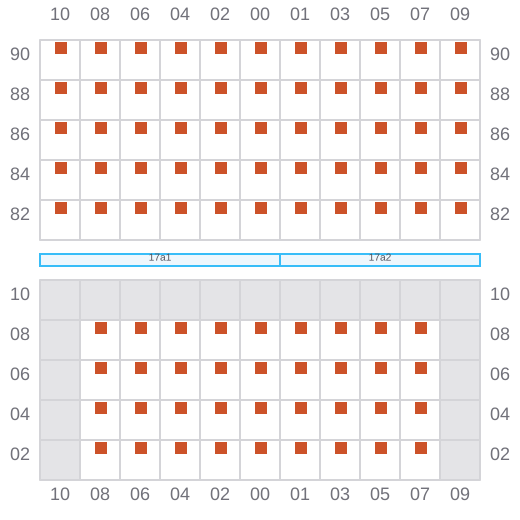

019
- ←
- → / ?
![Bay 019 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b019.png?v=1688066163994)

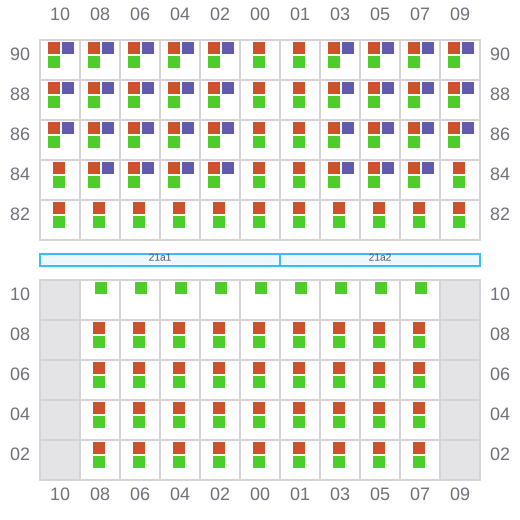

021 (022)
- →
- ← / ?
![Bay 021 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b021.png?v=1688066163994)

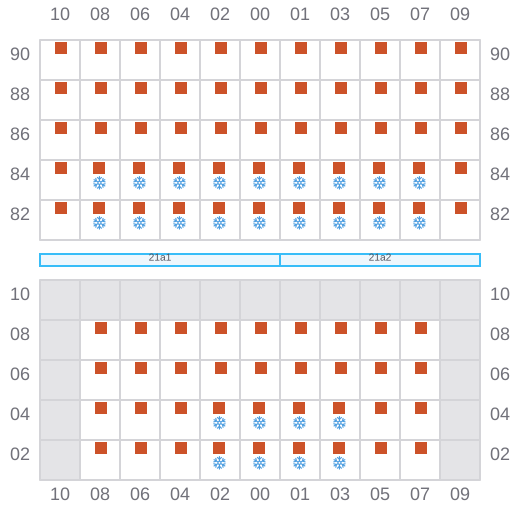

023
- ←
- →
![Bay 023 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b023.png?v=1688066163994)

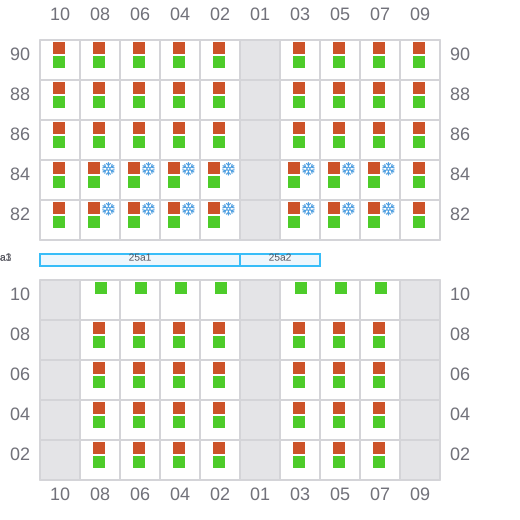

025 (026)
- →
- ← / ?
![Bay 025 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b025.png?v=1688066163994)

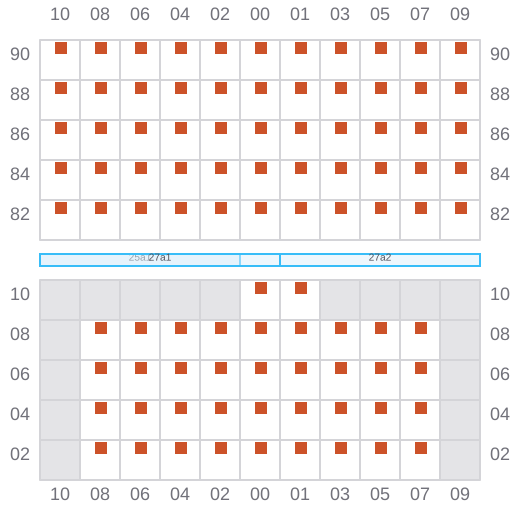

027
- ←
- → / ?
![Bay 027 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b027.png?v=1688066163994)
029 (030)
- →
- ← / ?
![Bay 029 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b029.png?v=1688066163994)

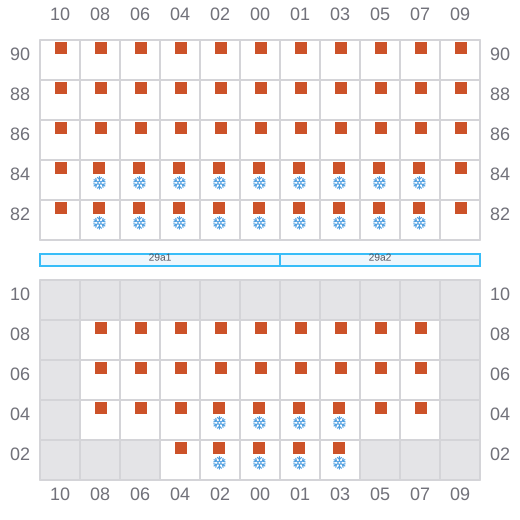

031
- ←
- →
![Bay 031 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b031.png?v=1688066163994)

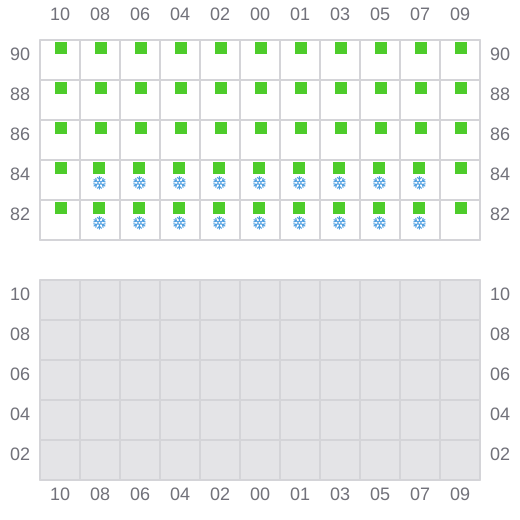

033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b033.png?v=1688066163994)

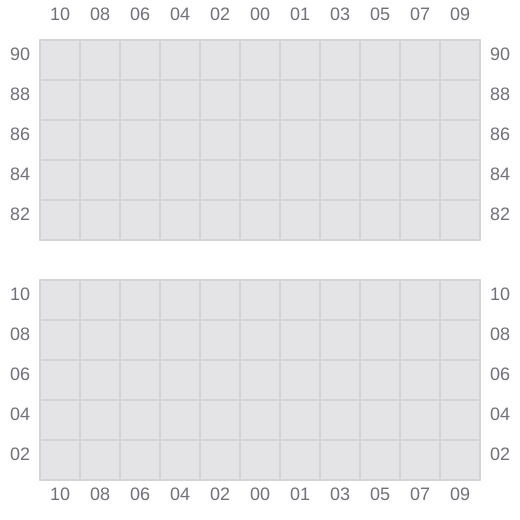

035
![Bay 035 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b035.png?v=1688066163994)

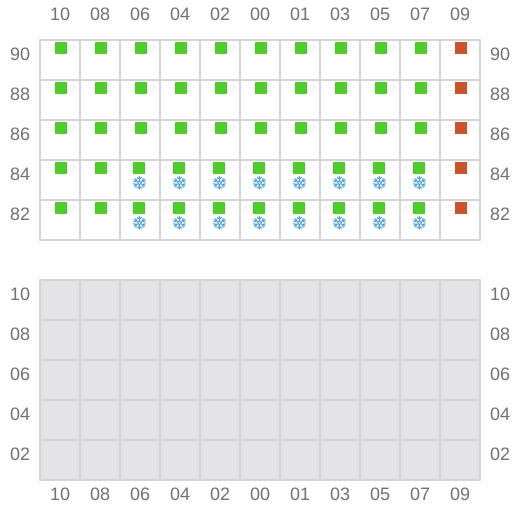

037 (038)
- → / ?
- ← / ?
![Bay 037 view and slots of CMA CGM SURABAYA](/vessel-images/57a1875a-b053-428e-9036-c824cceaf0b3-b037.png?v=1688066163994)
