CMA CGM TANYA
9722704 | 9HA4199 | 9722704 by ********* Last update: Thu Jun 27 2024

General Info

Ship Name:CMA CGM TANYA
IMO Code:9722704
Call Sign:9HA4199
Line Operator:9722704
Class Name for Sister Ships:CMA
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:10,376

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

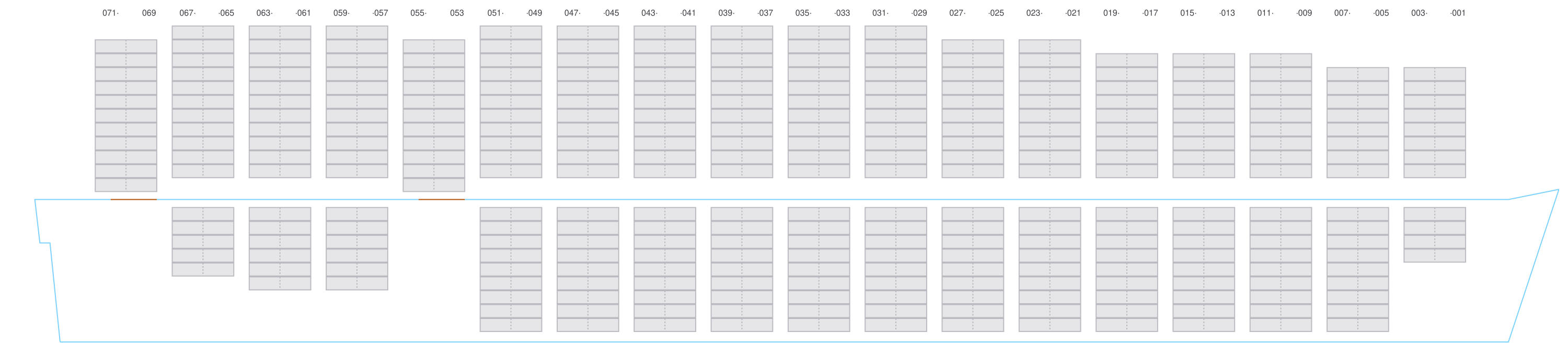

Side View

Side view of CMA CGM TANYA

Hatch-Covers View

Deck view of CMA CGM TANYA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

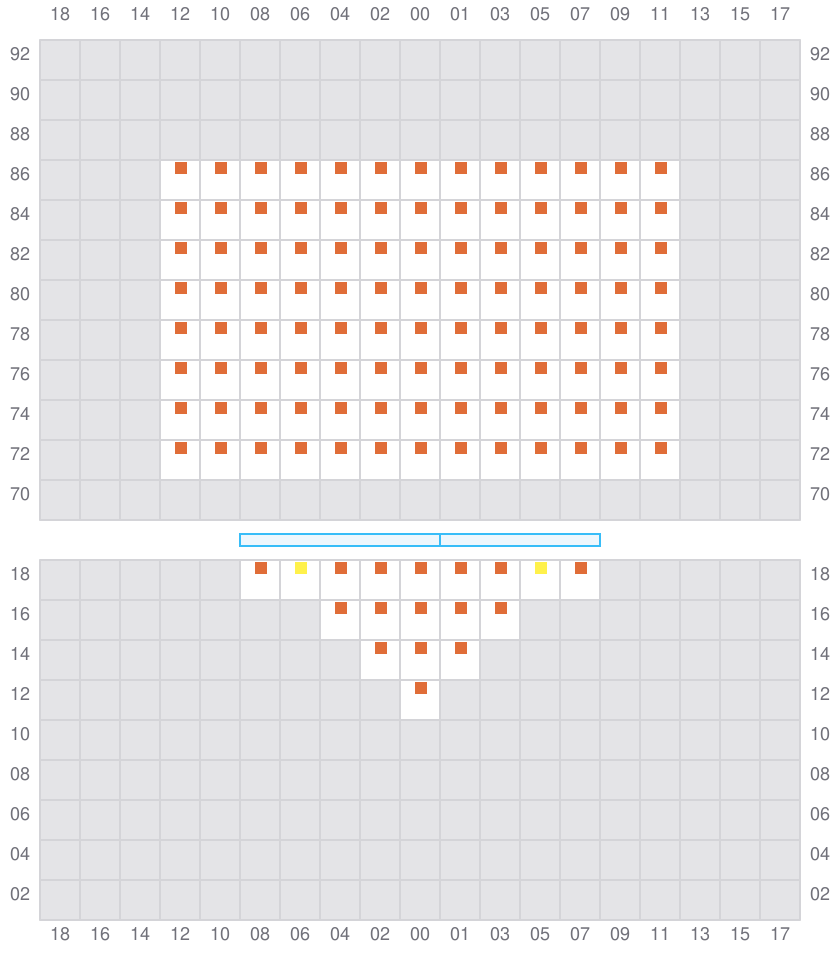

Bay 001 view and slots of CMA CGM TANYA

003 (002)

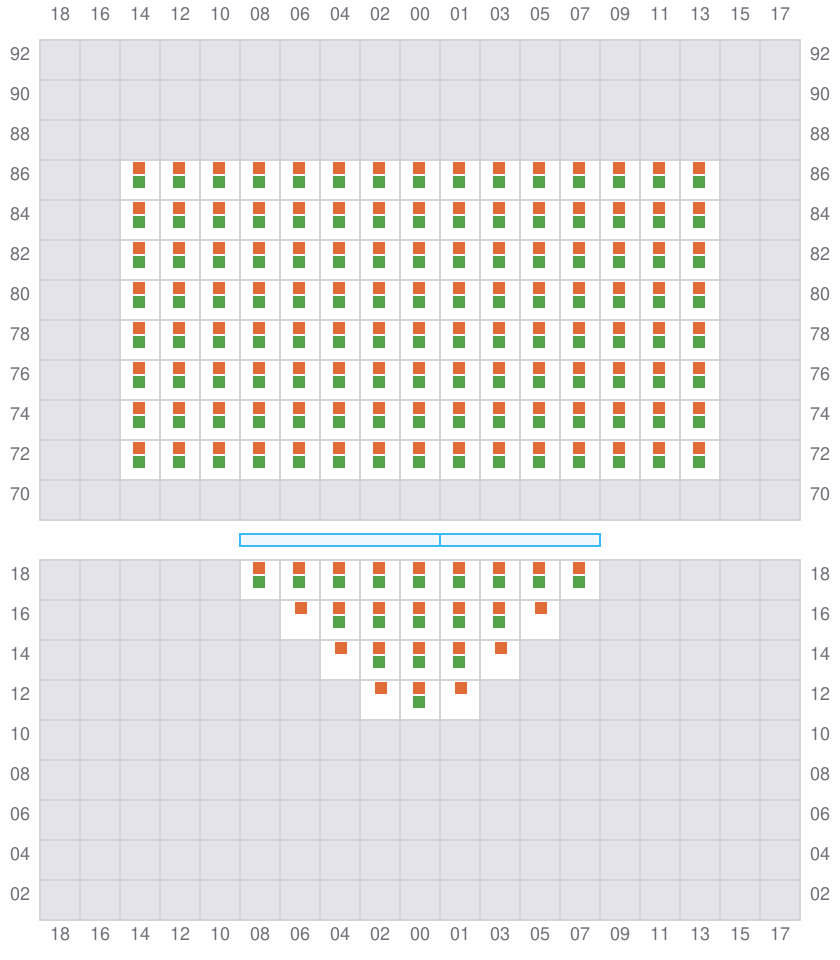

Bay 003 view and slots of CMA CGM TANYA

005

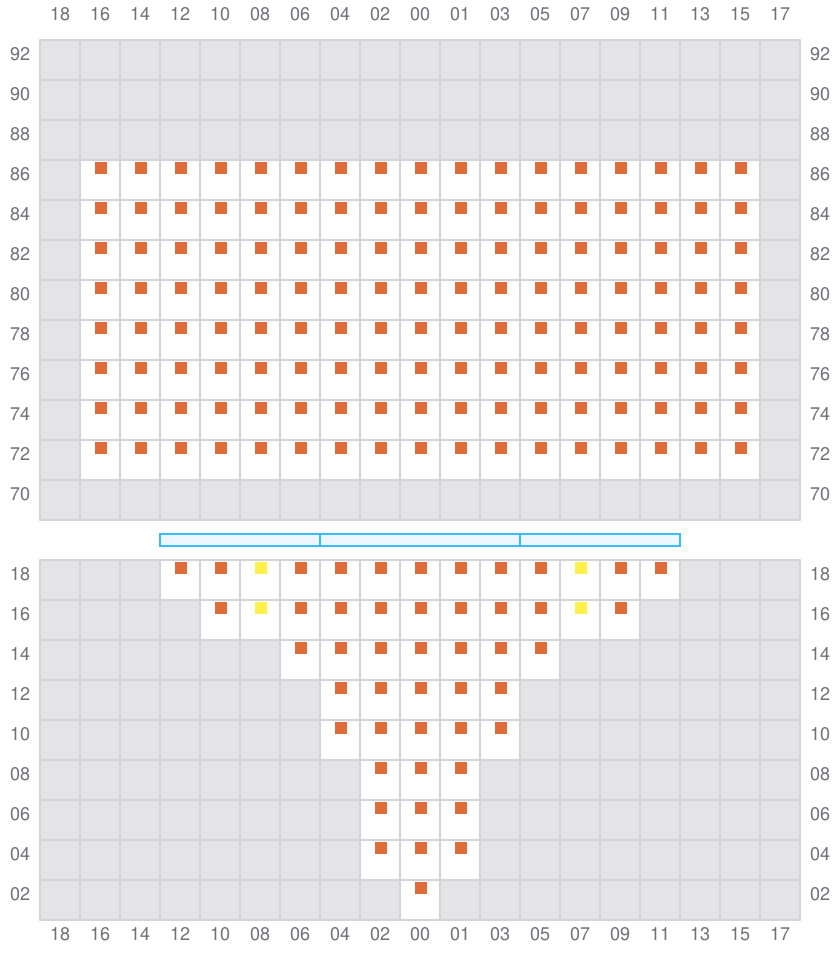

Bay 005 view and slots of CMA CGM TANYA

007 (006)

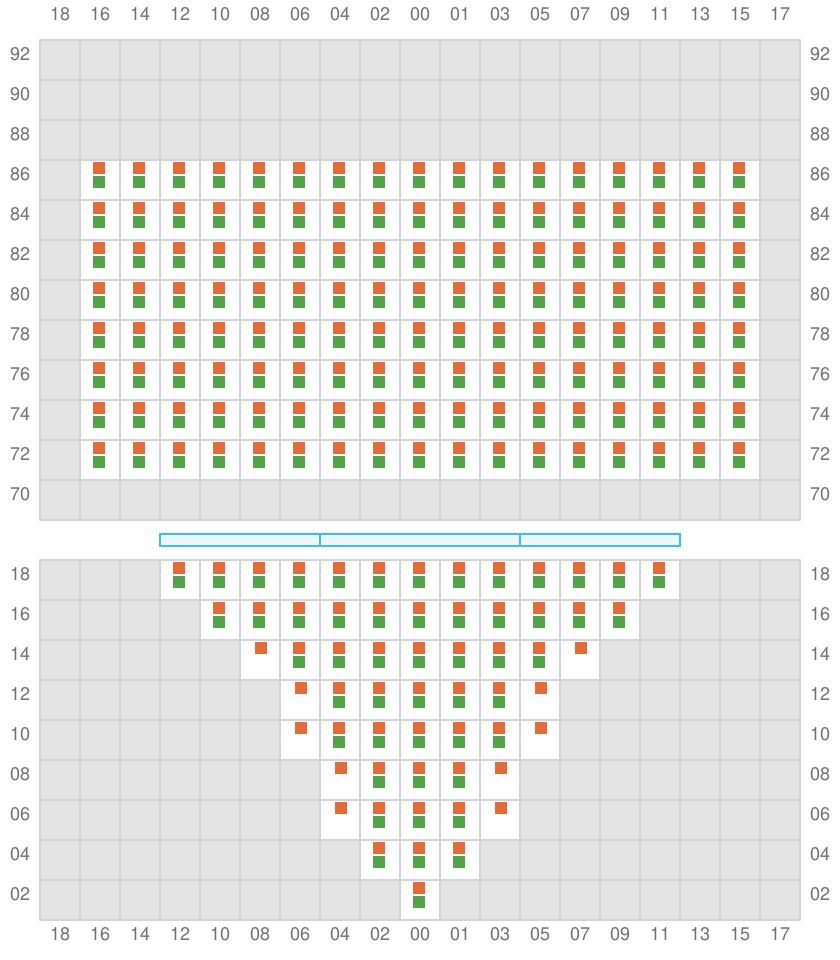

Bay 007 view and slots of CMA CGM TANYA

009

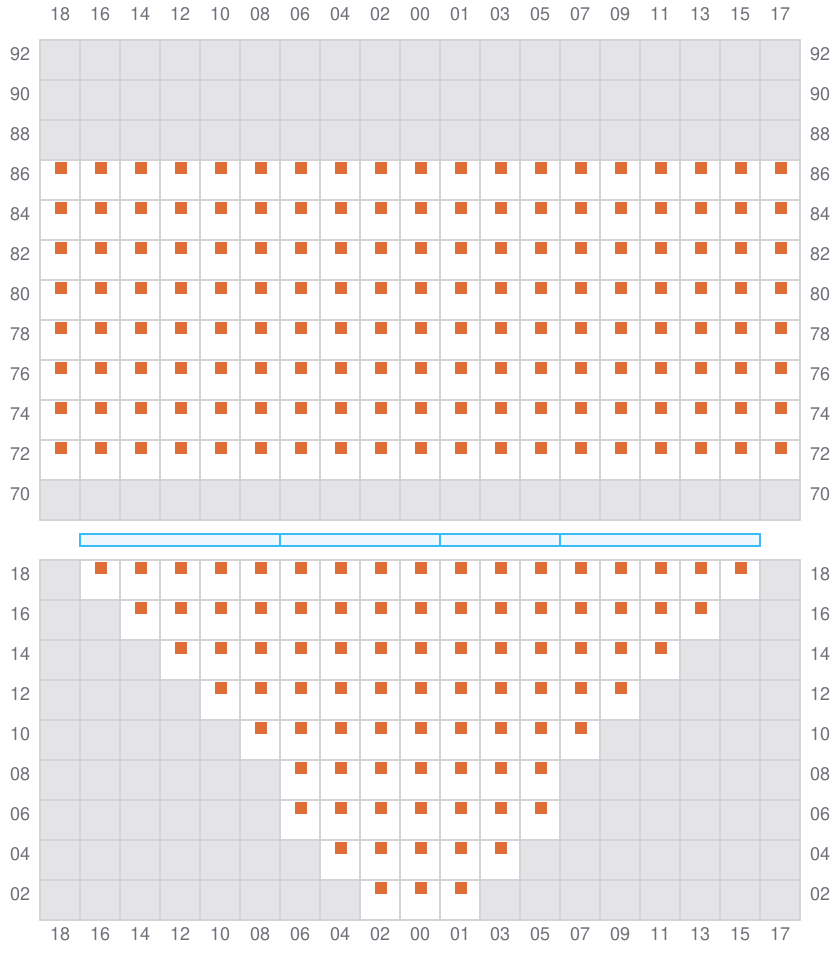

Bay 009 view and slots of CMA CGM TANYA

011 (010)

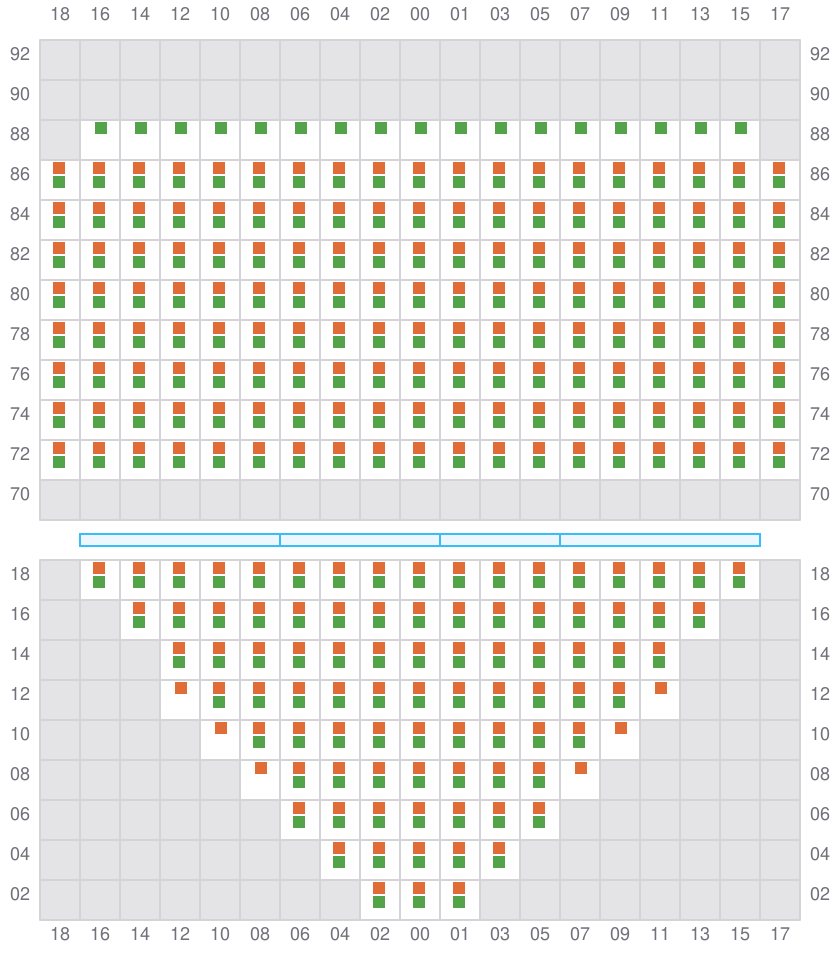

Bay 011 view and slots of CMA CGM TANYA

013

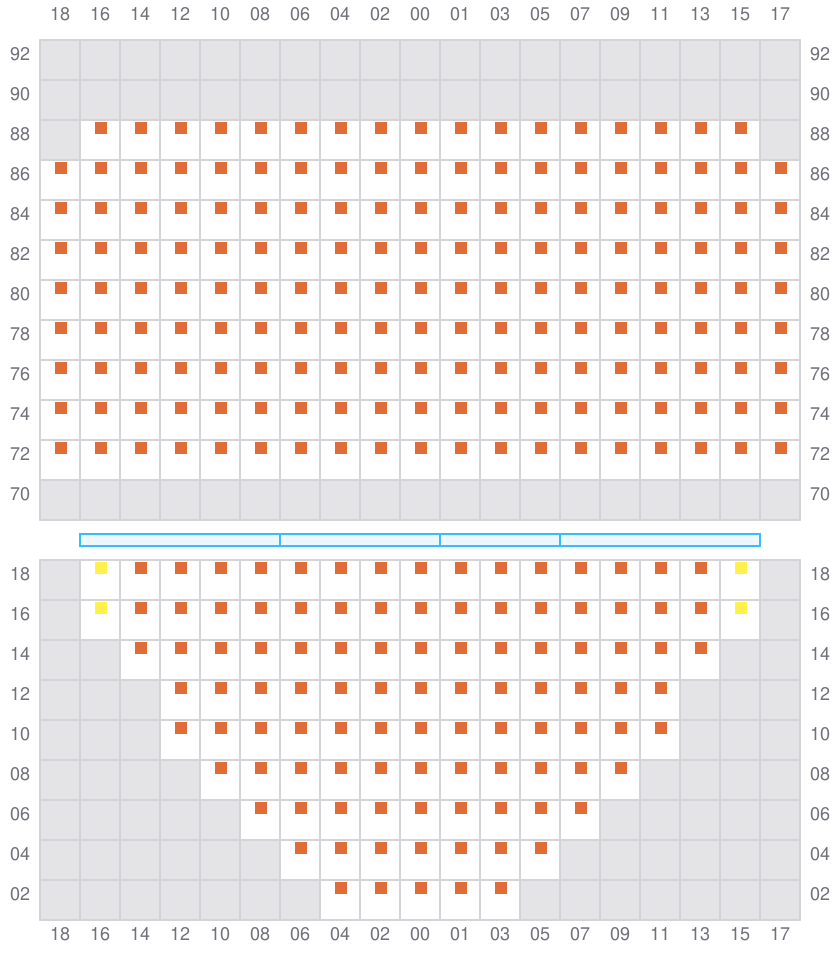

Bay 013 view and slots of CMA CGM TANYA

015 (014)

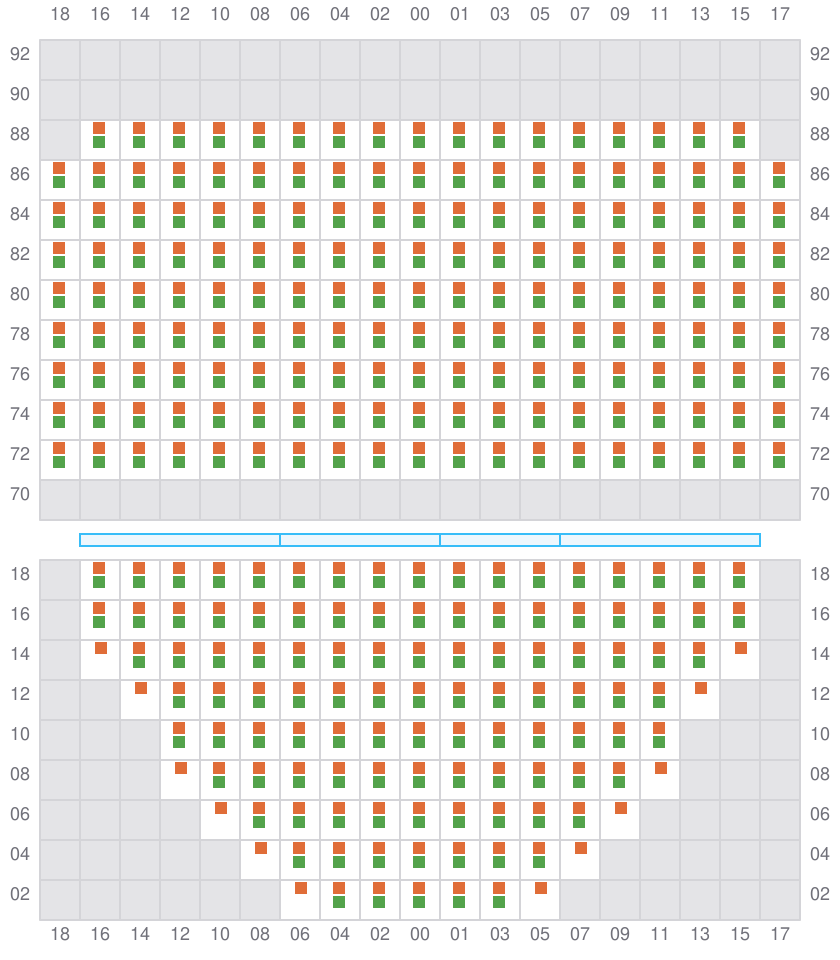

Bay 015 view and slots of CMA CGM TANYA

017

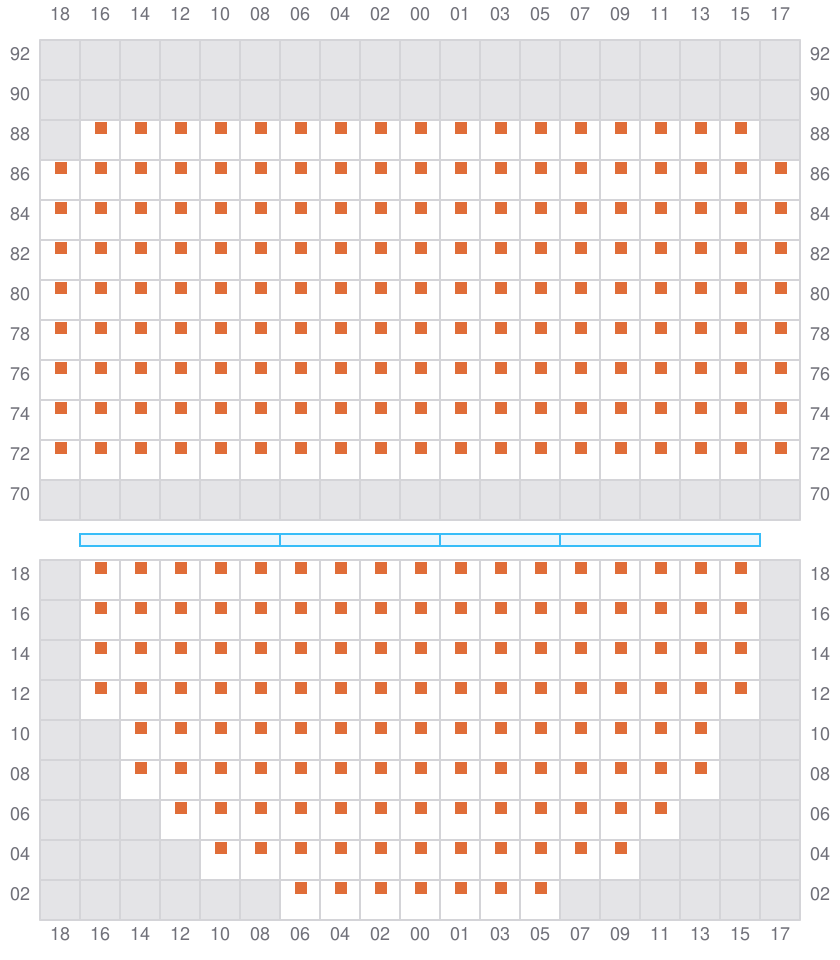

Bay 017 view and slots of CMA CGM TANYA

019 (018)

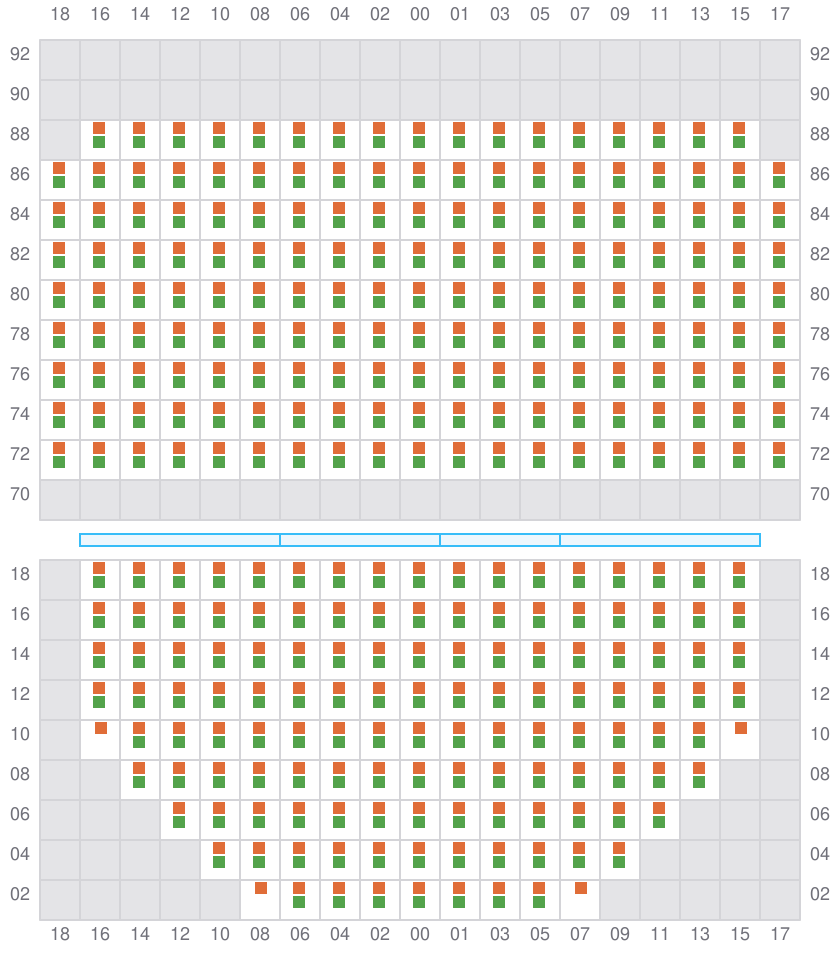

Bay 019 view and slots of CMA CGM TANYA

021

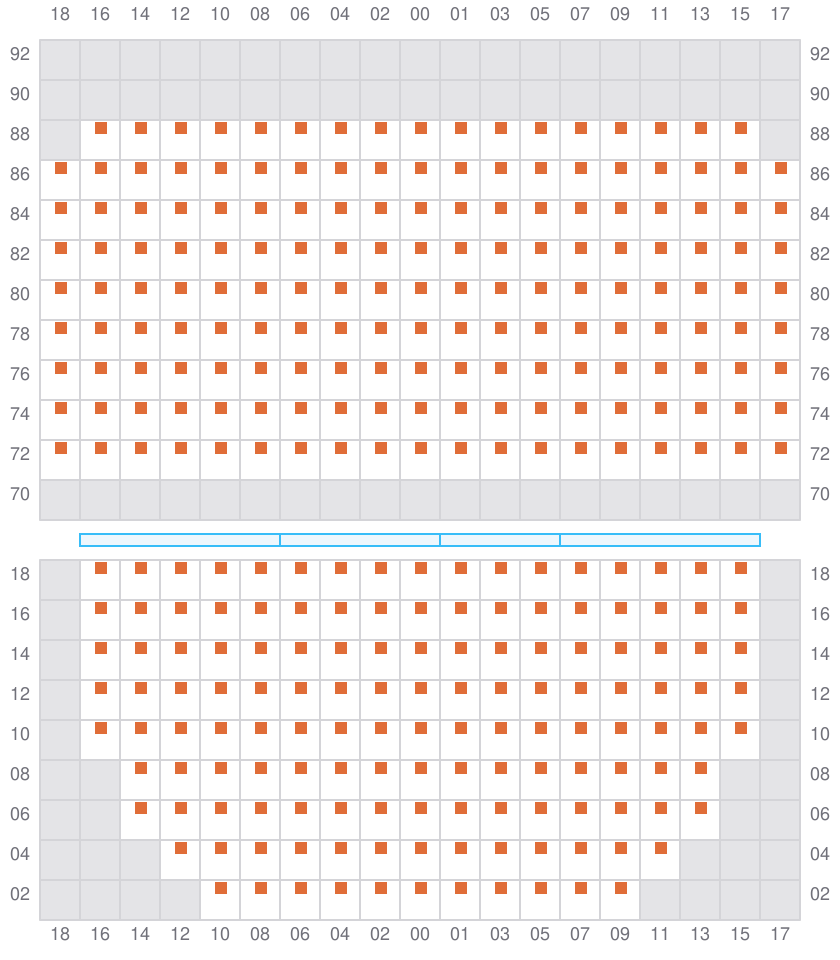

Bay 021 view and slots of CMA CGM TANYA

023 (022)

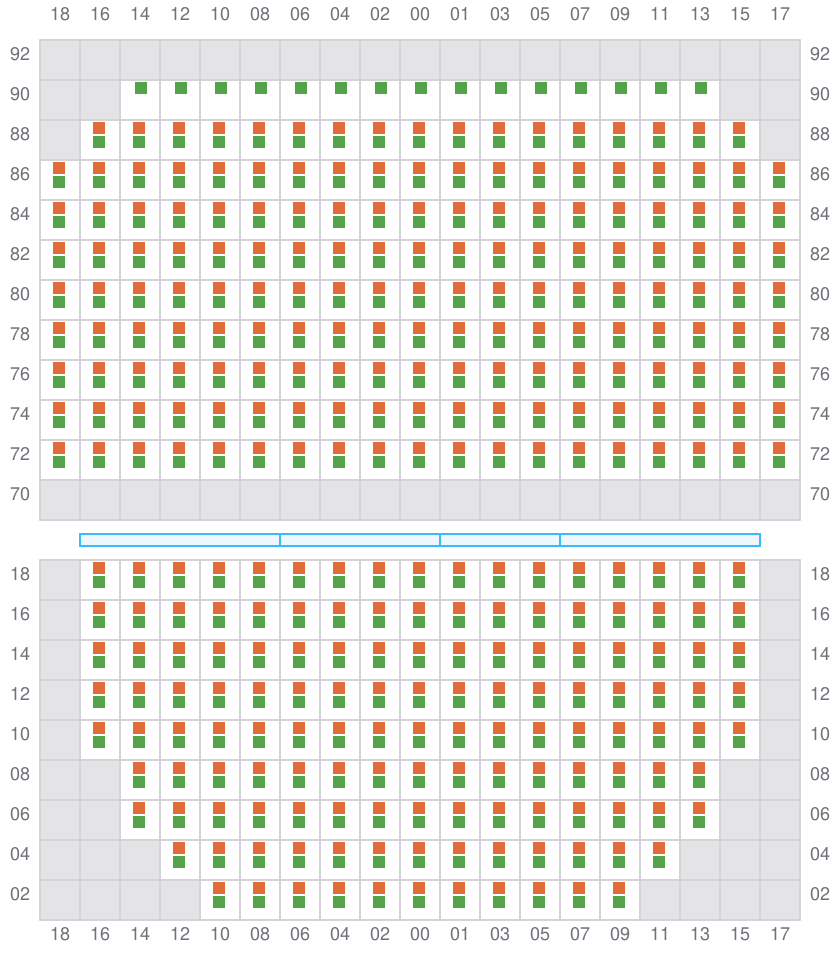

Bay 023 view and slots of CMA CGM TANYA

025

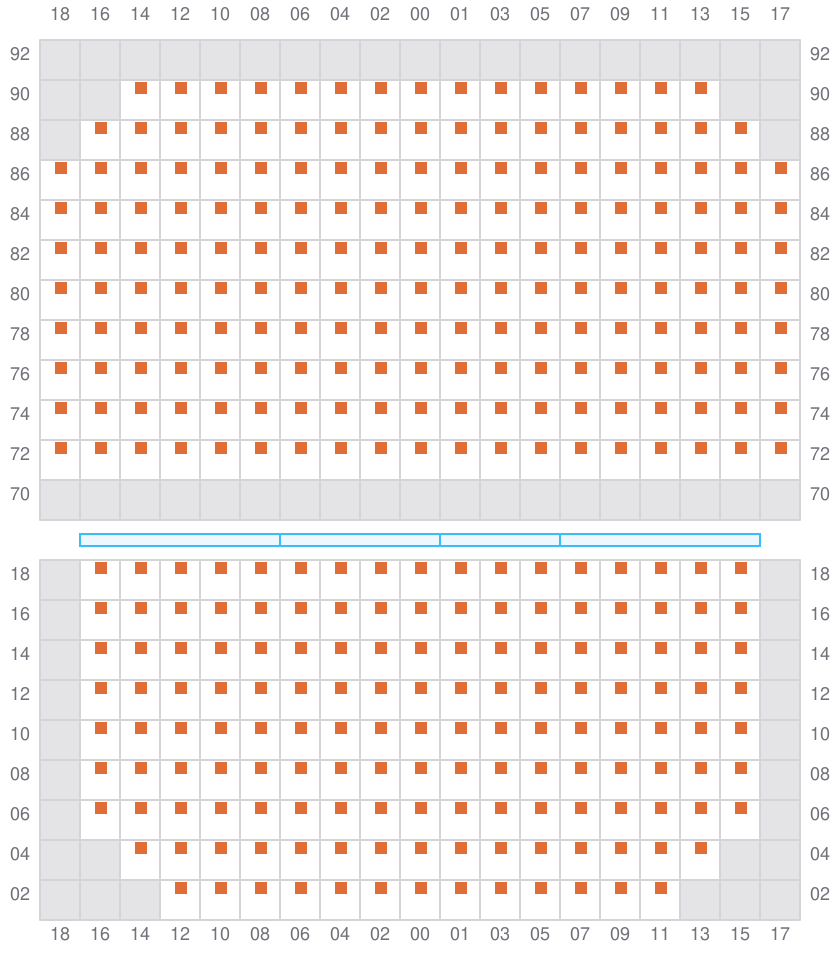

Bay 025 view and slots of CMA CGM TANYA

027 (026)

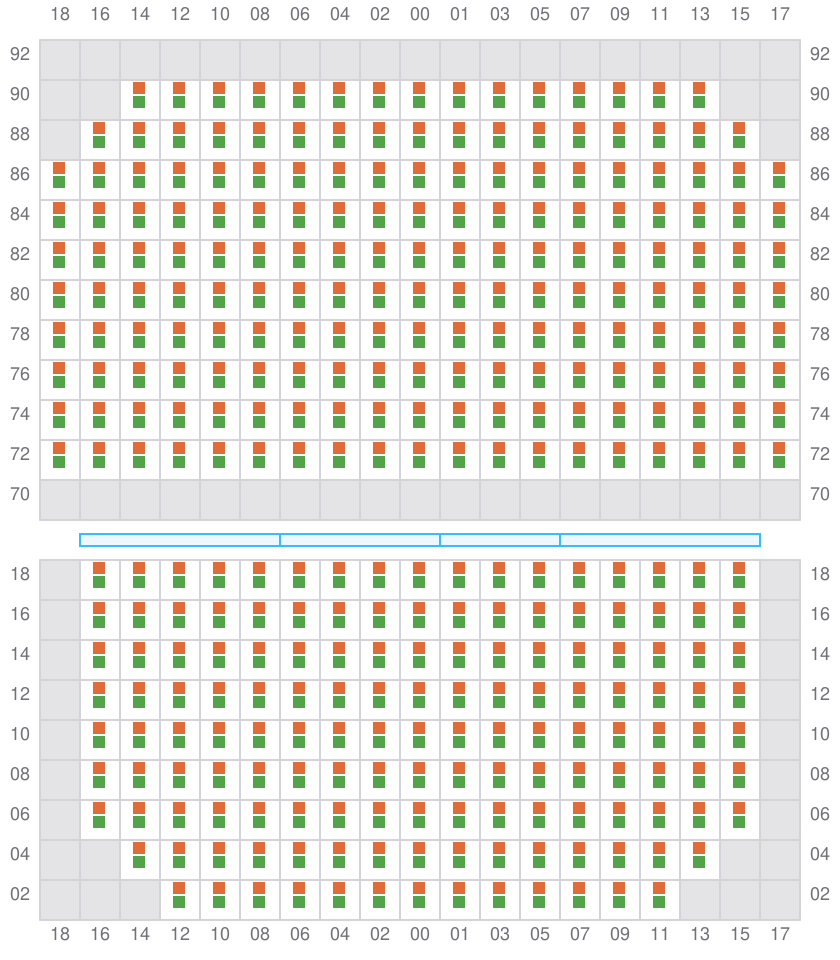

Bay 027 view and slots of CMA CGM TANYA

029

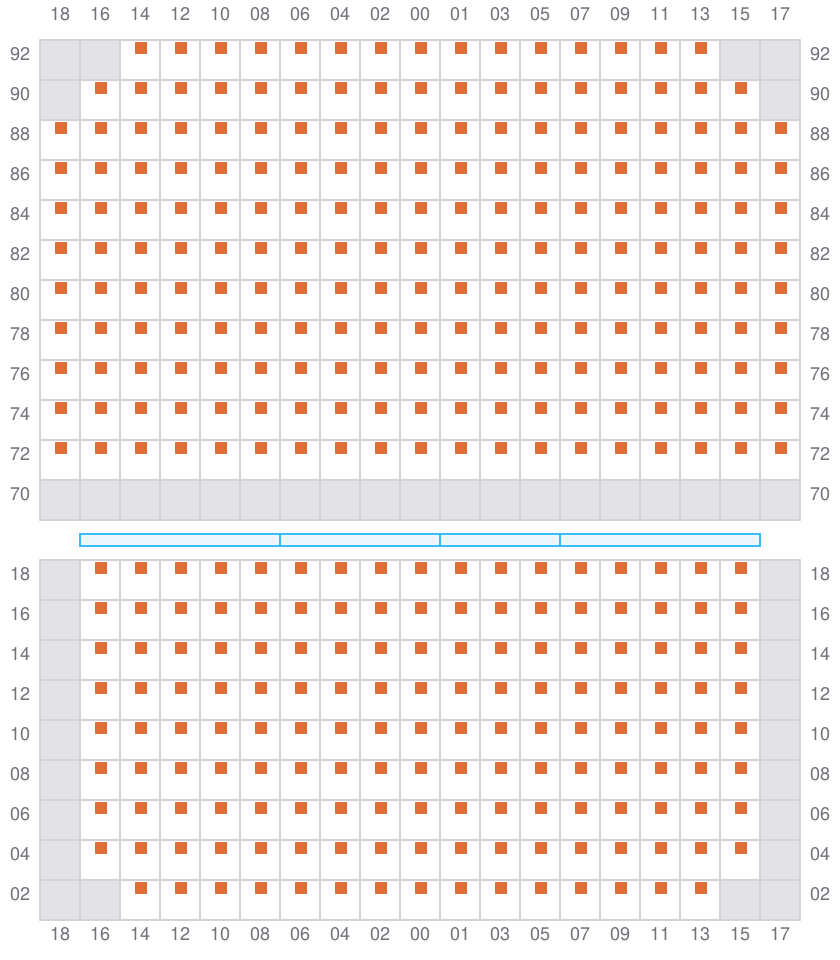

Bay 029 view and slots of CMA CGM TANYA

031 (030)

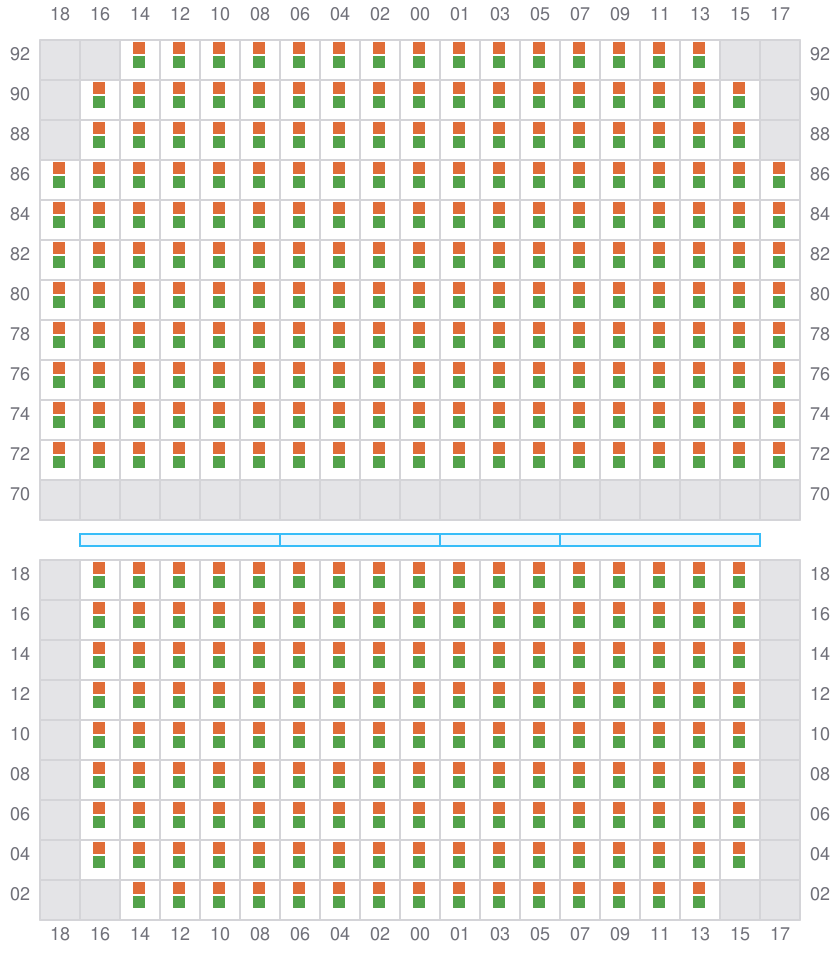

Bay 031 view and slots of CMA CGM TANYA

033

Bay 033 view and slots of CMA CGM TANYA

035 (034)

Bay 035 view and slots of CMA CGM TANYA

037

Bay 037 view and slots of CMA CGM TANYA

039 (038)

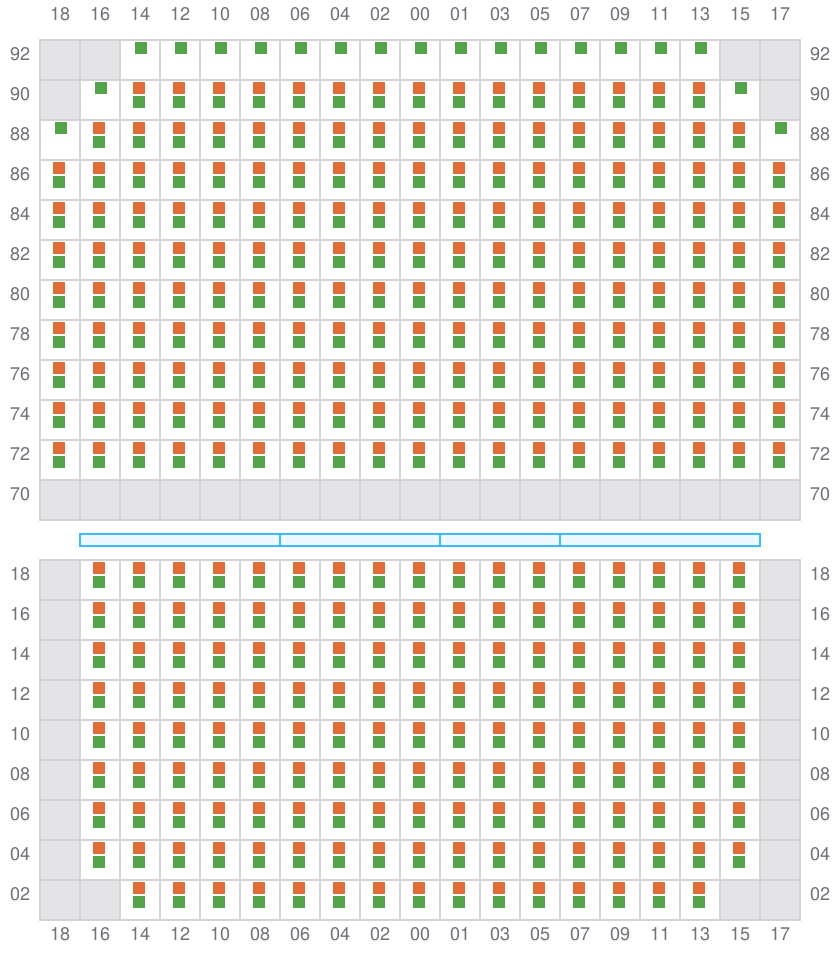

Bay 039 view and slots of CMA CGM TANYA

041

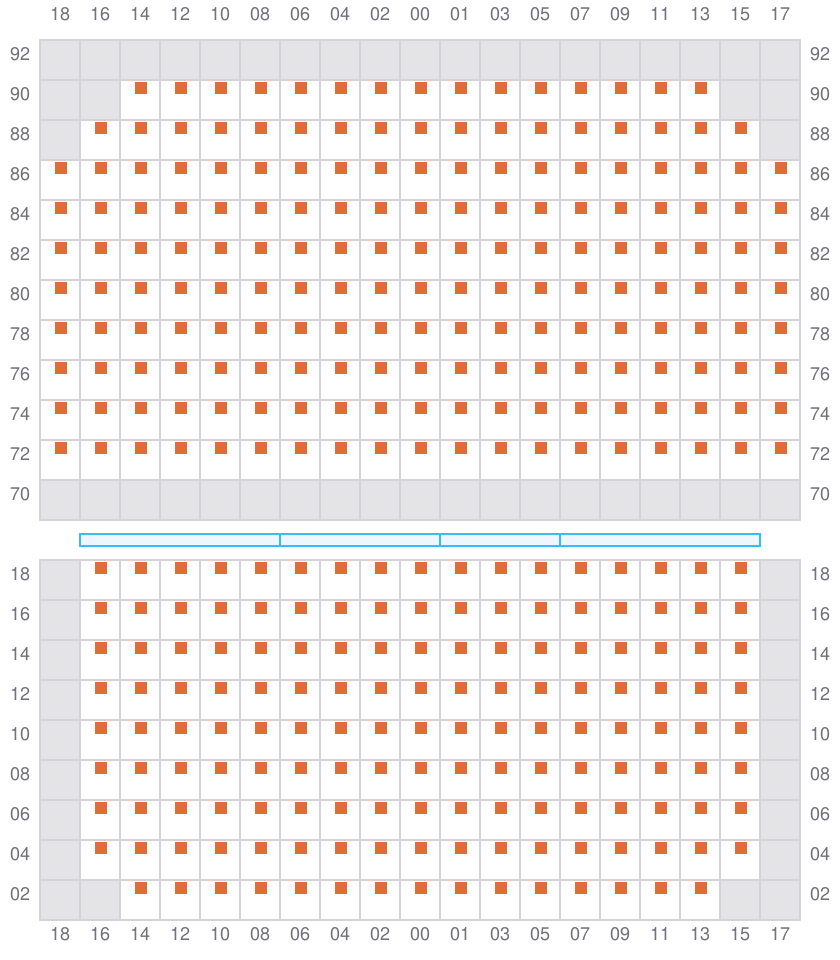

Bay 041 view and slots of CMA CGM TANYA

043 (042)

Bay 043 view and slots of CMA CGM TANYA

045

Bay 045 view and slots of CMA CGM TANYA

047 (046)

Bay 047 view and slots of CMA CGM TANYA

049

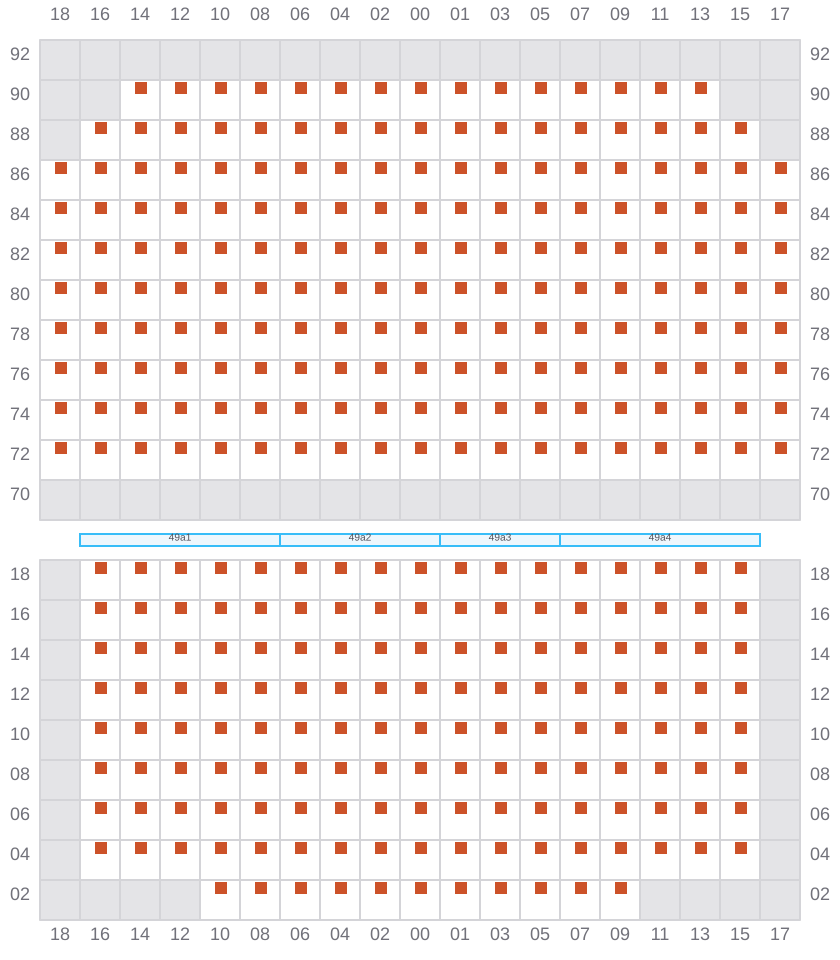

Bay 049 view and slots of CMA CGM TANYA

051 (050)

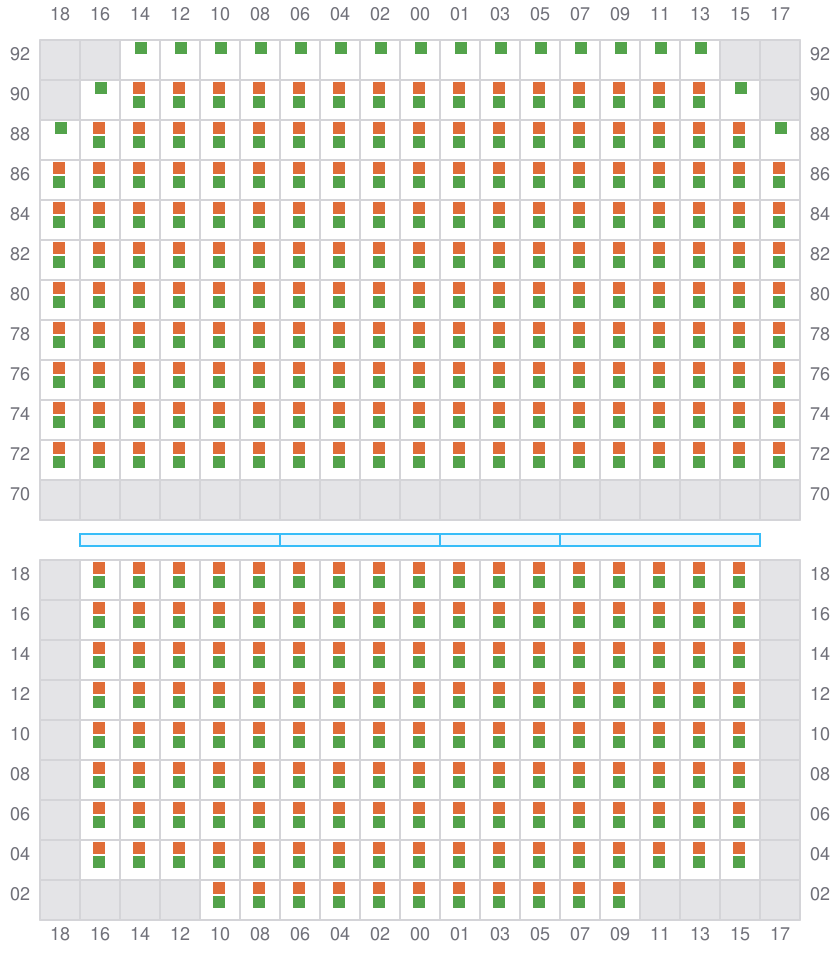

Bay 051 view and slots of CMA CGM TANYA

053

Bay 053 view and slots of CMA CGM TANYA

055 (054)

Bay 055 view and slots of CMA CGM TANYA

057

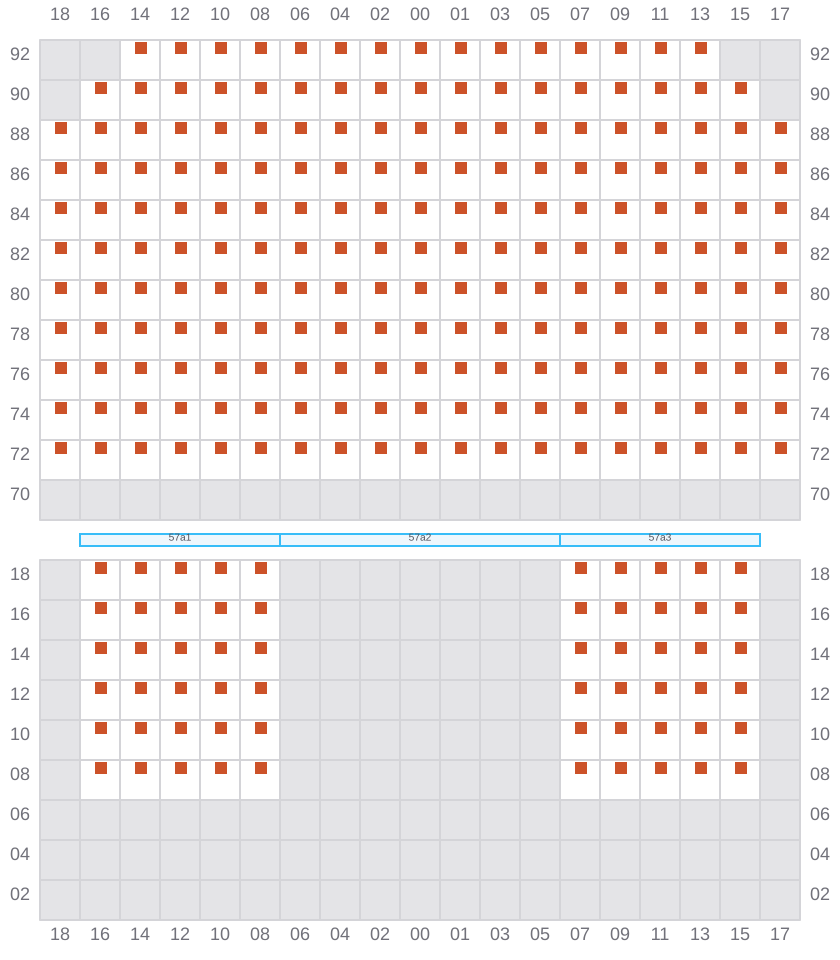

Bay 057 view and slots of CMA CGM TANYA

059 (058)

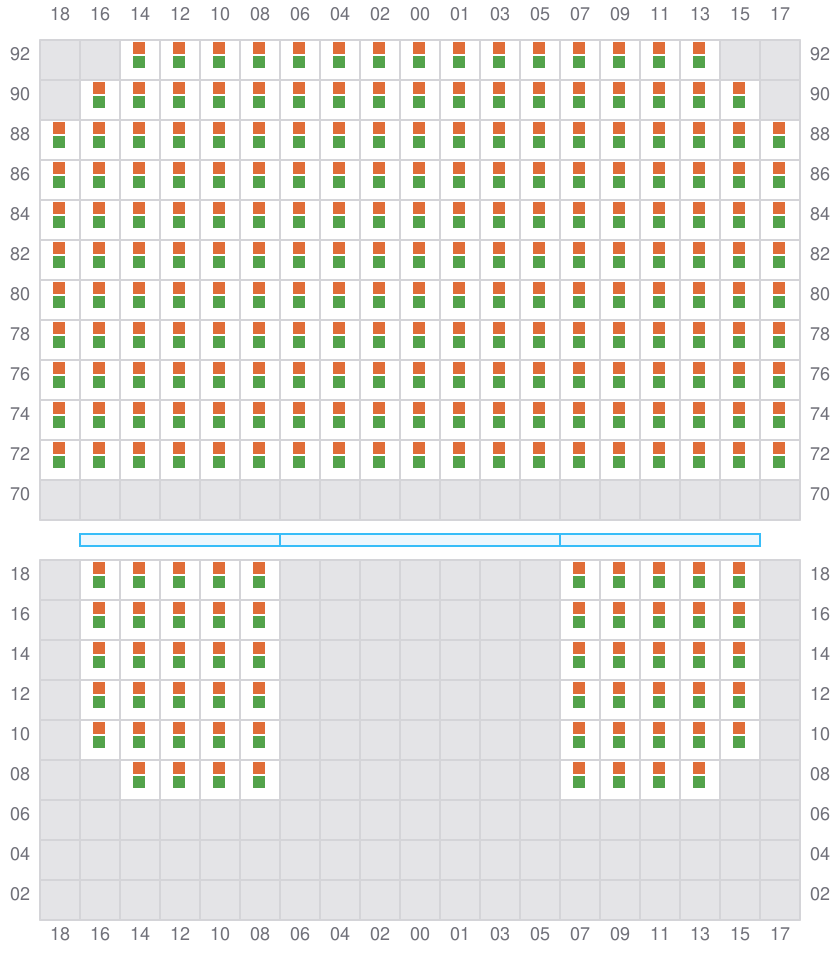

Bay 059 view and slots of CMA CGM TANYA

061

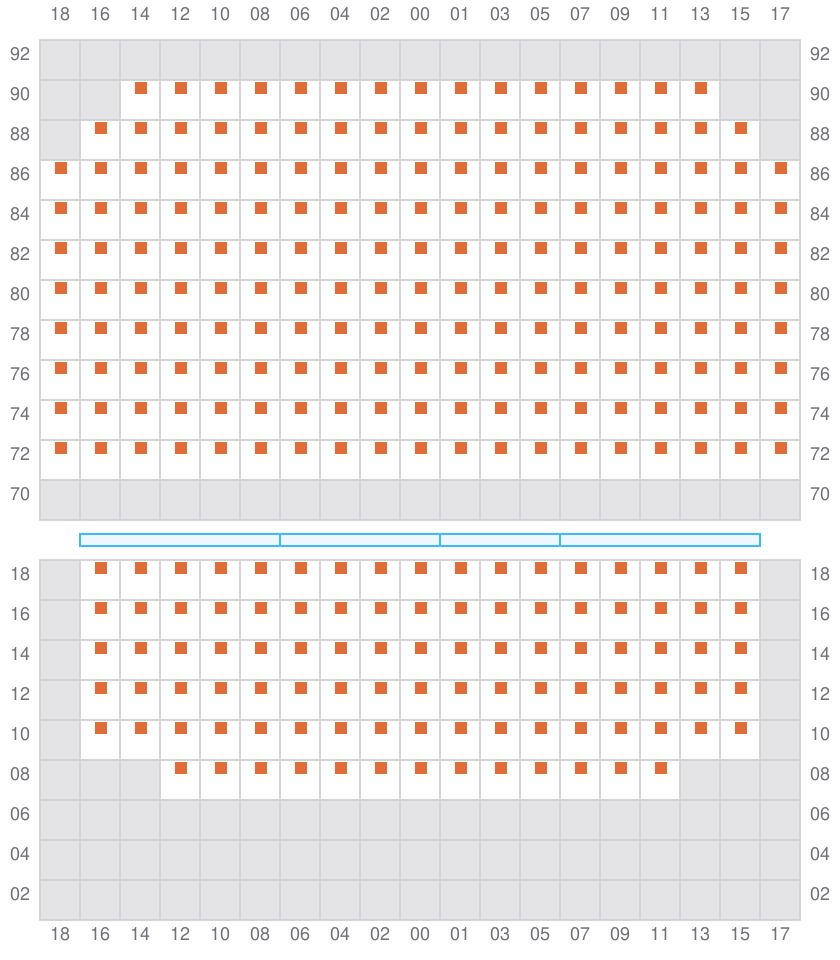

Bay 061 view and slots of CMA CGM TANYA

063 (062)

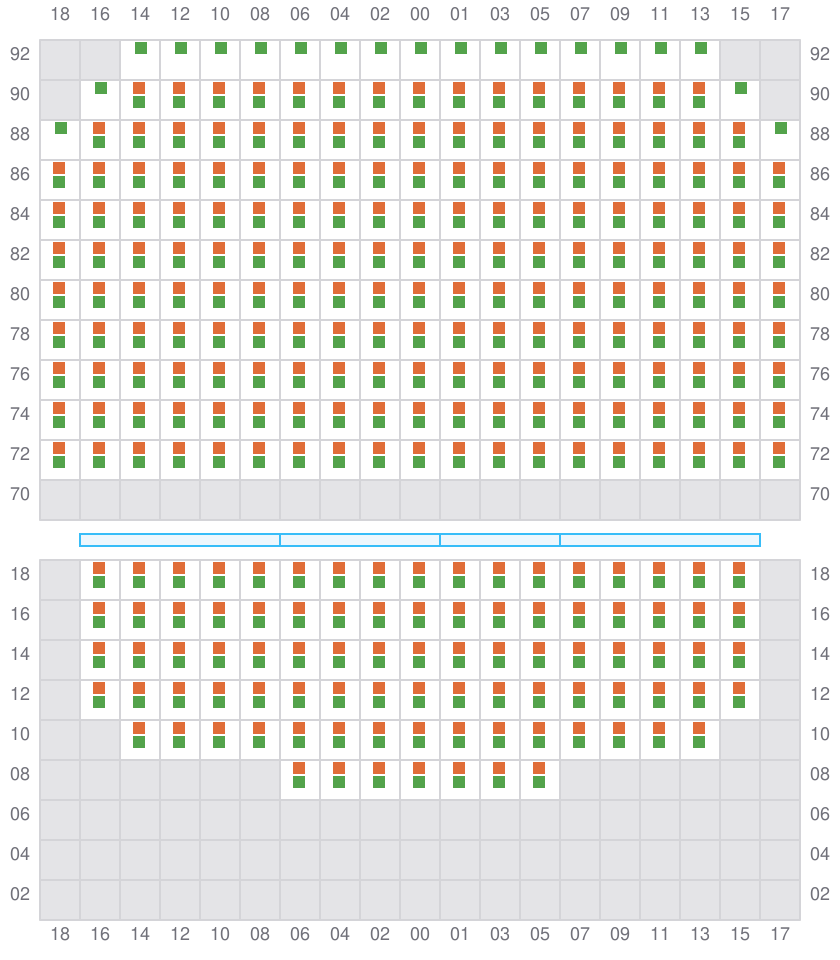

Bay 063 view and slots of CMA CGM TANYA

065

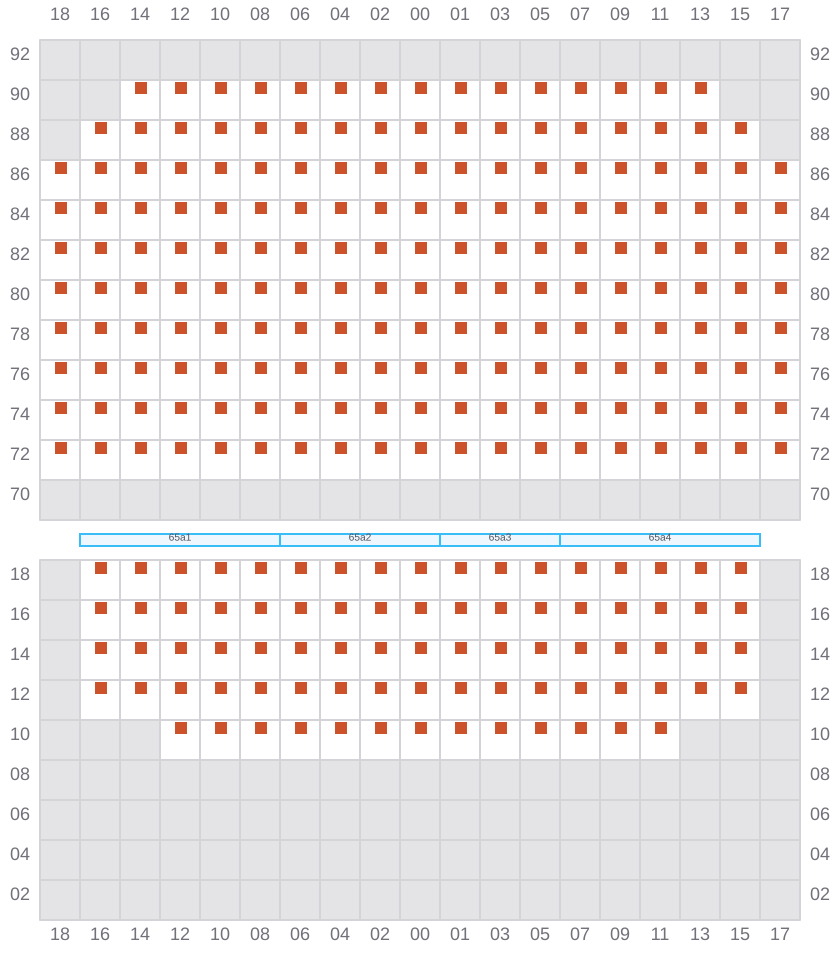

Bay 065 view and slots of CMA CGM TANYA

067 (066)

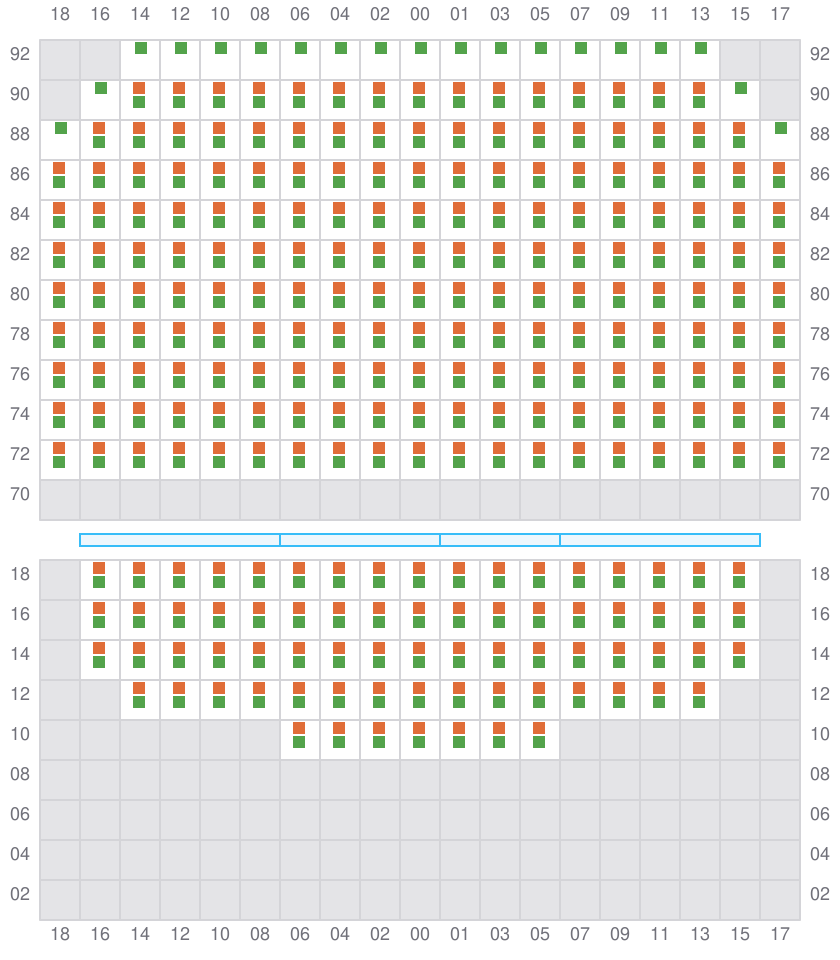

Bay 067 view and slots of CMA CGM TANYA

069

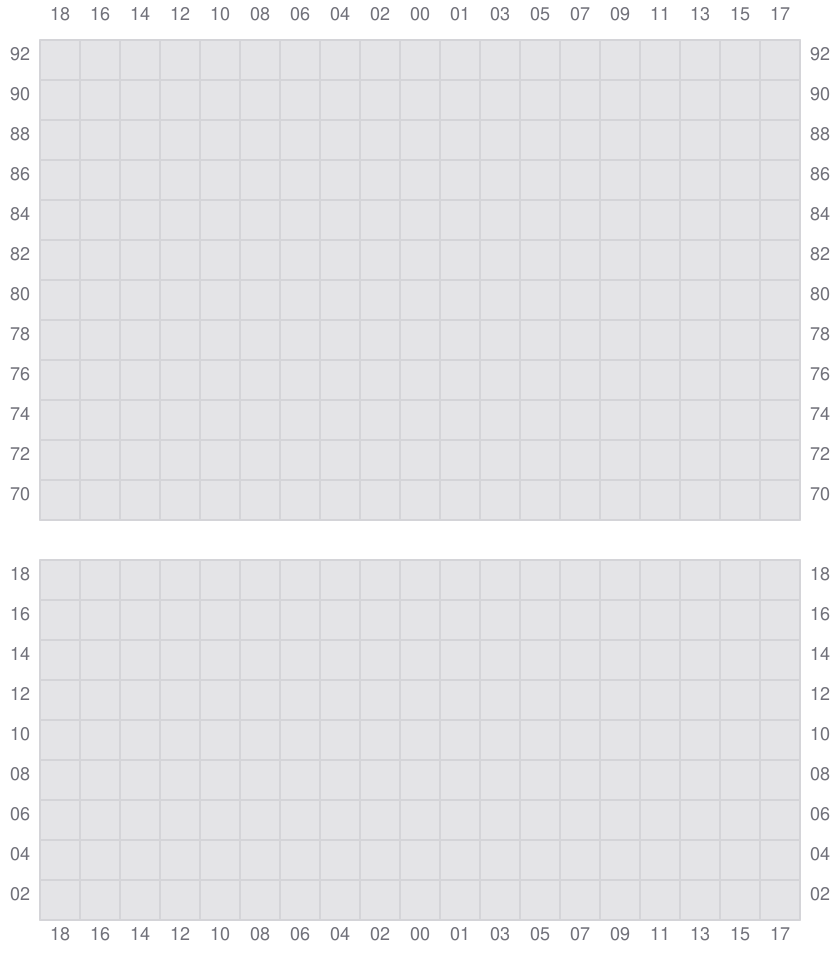

Bay 069 view and slots of CMA CGM TANYA

071 (070)

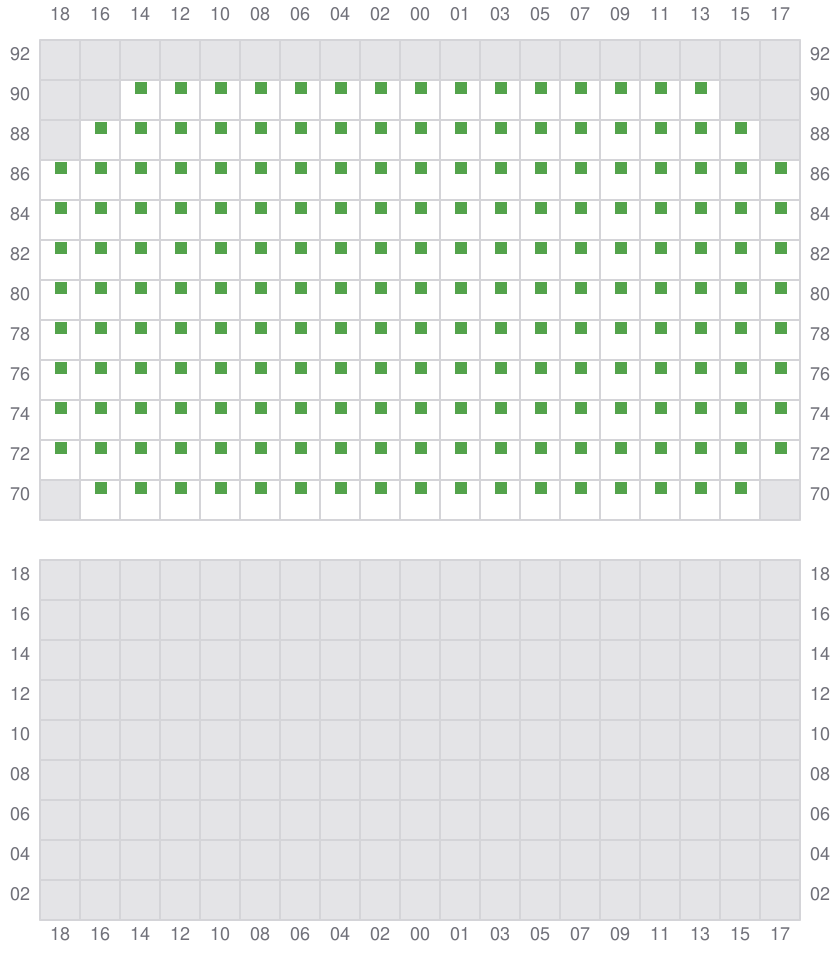

Bay 071 view and slots of CMA CGM TANYA
