CMA CGM TARRAGONA
9471214 | 9HA5743 | 9471214 by ********* Last update: Fri May 03 2024
General Info
Ship Name:CMA CGM TARRAGONA
IMO Code:9471214
Call Sign:9HA5743
Line Operator:9471214
Class Name for Sister Ships:ZIM TARRAGONA
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,112
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-sideView.png?v=1714763776257)
Hatch-Covers View
![Deck view of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-deckView.png?v=1714763776257)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

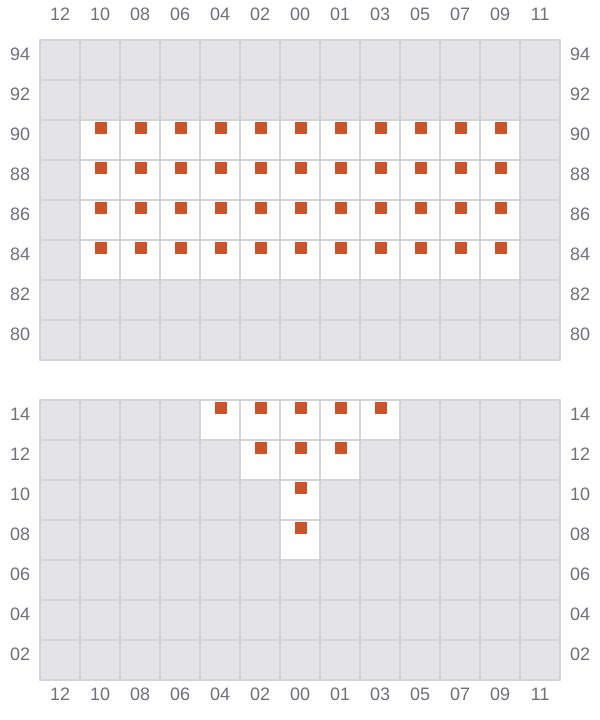

001
- →
![Bay 001 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b001.png?v=1714763776257)

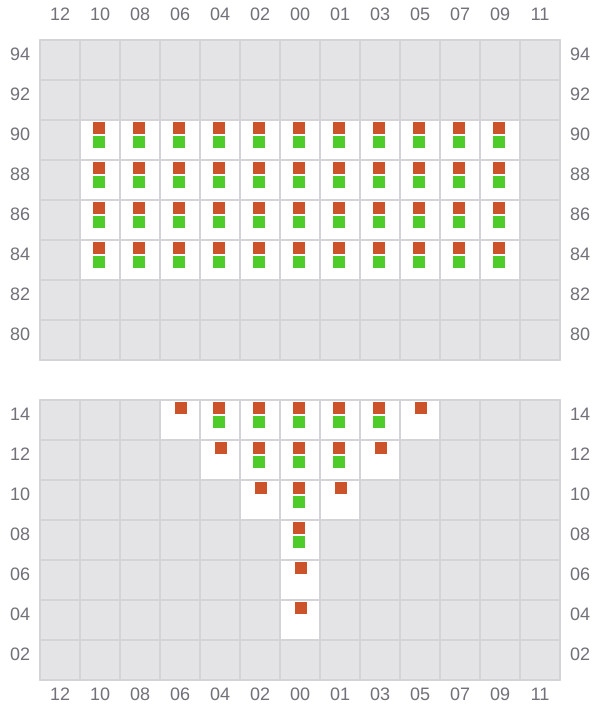

003 (002)
- ←
![Bay 003 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b003.png?v=1714763776257)

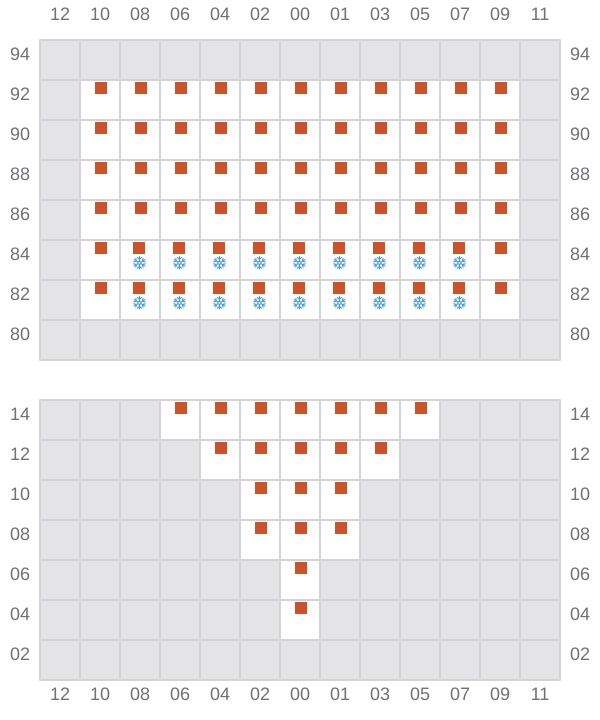

005
- →
![Bay 005 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b005.png?v=1714763776257)

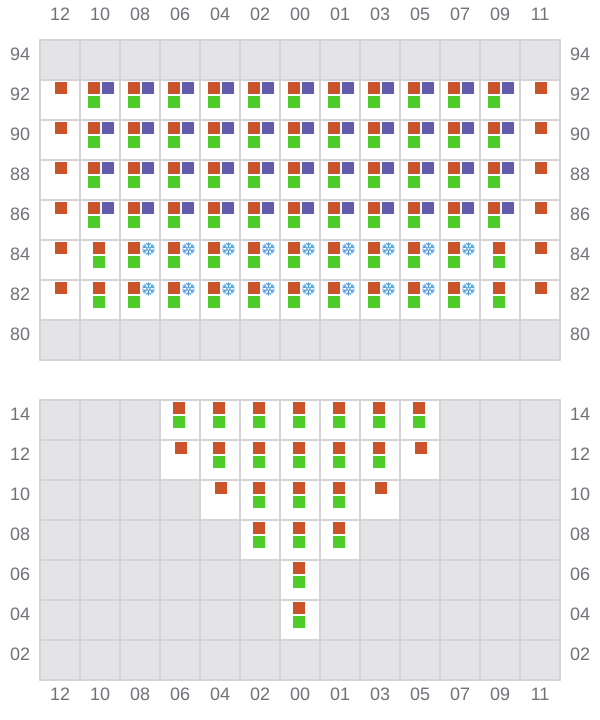

007 (006)
- ←
![Bay 007 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b007.png?v=1714763776257)

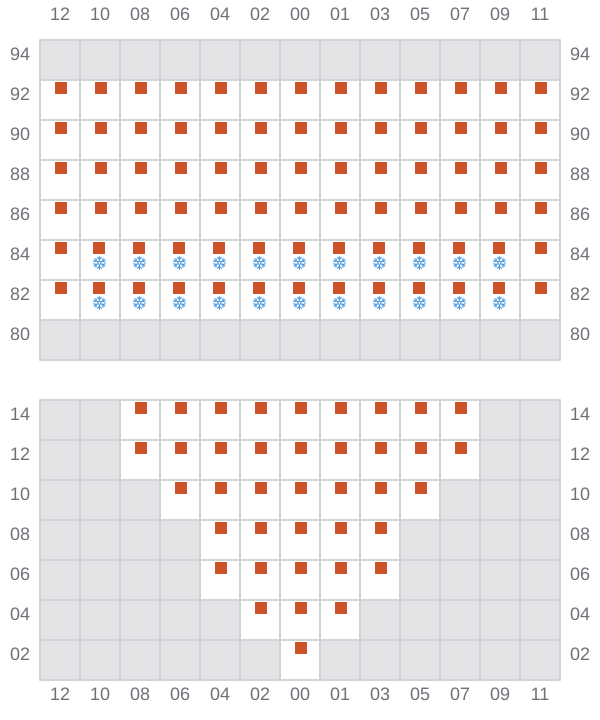

009
- →
![Bay 009 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b009.png?v=1714763776257)

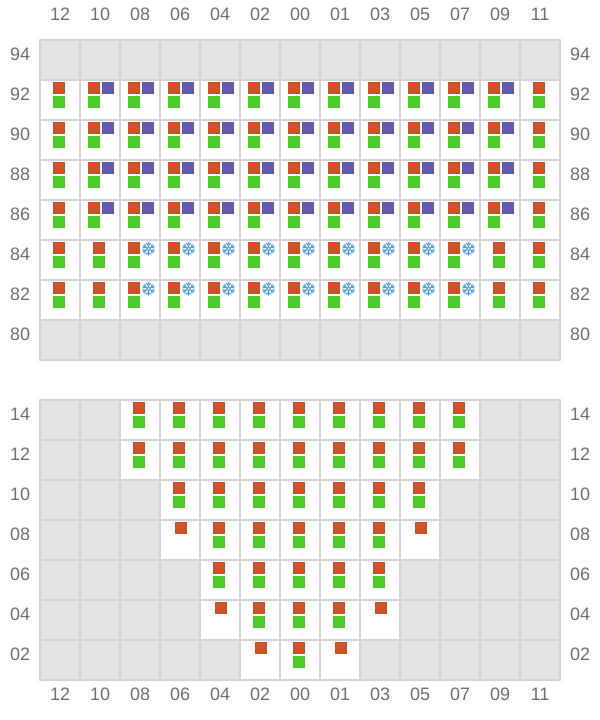

011 (010)
- ←
![Bay 011 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b011.png?v=1714763776257)
013
- →
![Bay 013 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b013.png?v=1714763776257)

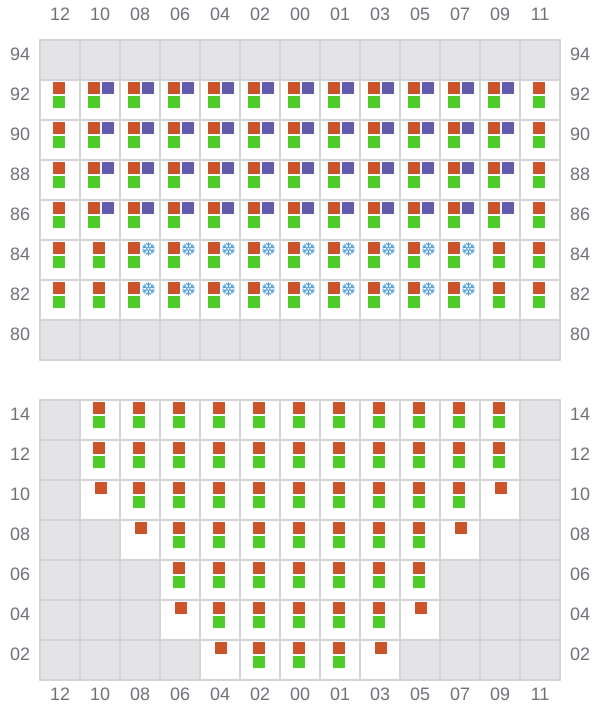

015 (014)
- ←
![Bay 015 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b015.png?v=1714763776257)

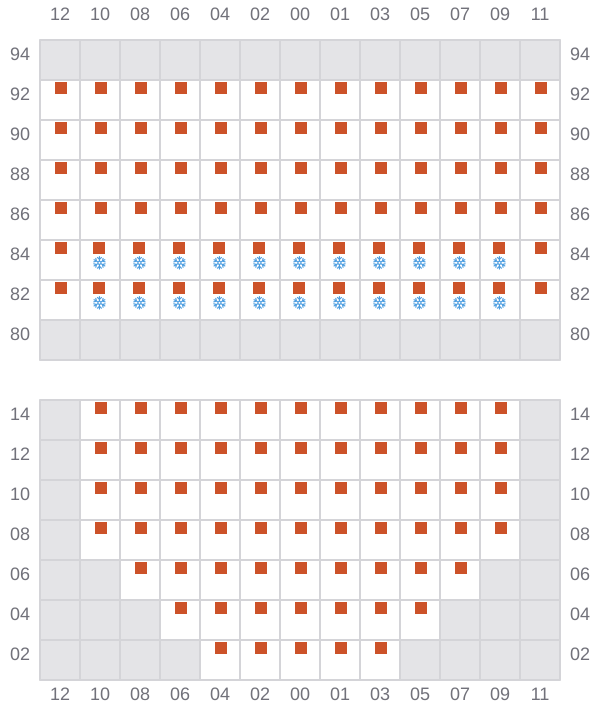

017
- →
![Bay 017 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b017.png?v=1714763776257)

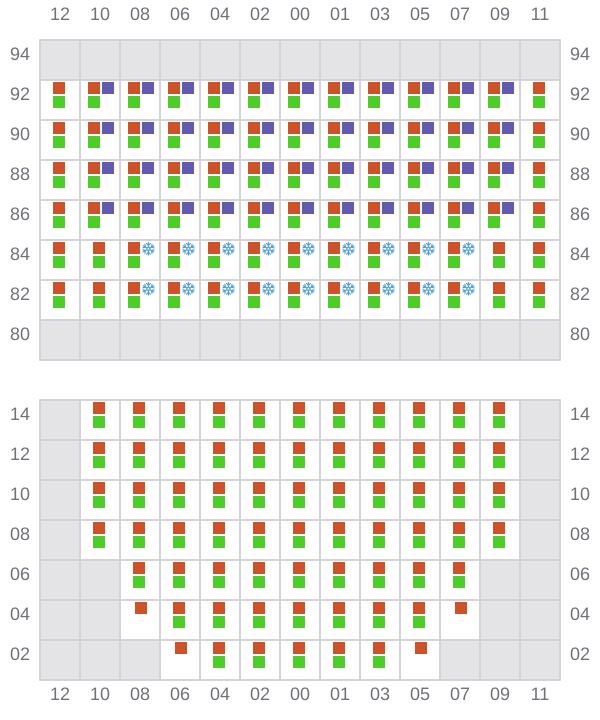

019 (018)
- ←
![Bay 019 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b019.png?v=1714763776257)
021
- →
![Bay 021 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b021.png?v=1714763776257)

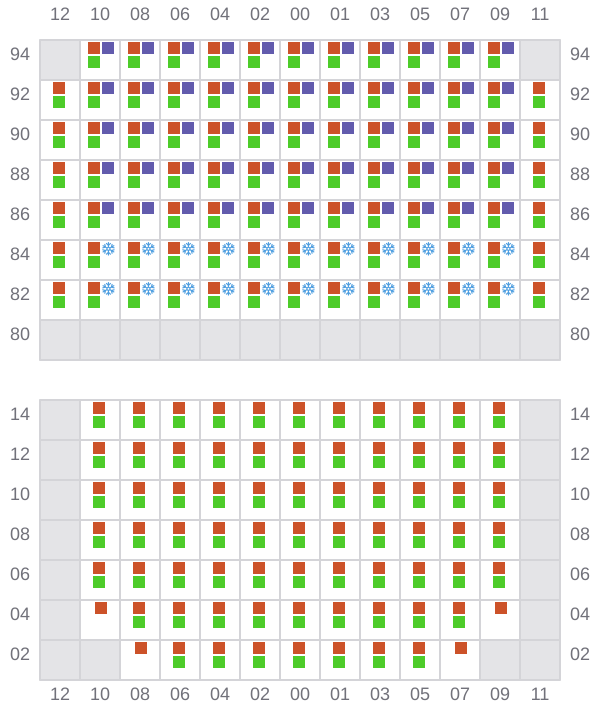

023 (022)
- ←
![Bay 023 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b023.png?v=1714763776257)
025
- →
![Bay 025 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b025.png?v=1714763776257)
027 (026)
- ←
![Bay 027 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b027.png?v=1714763776257)

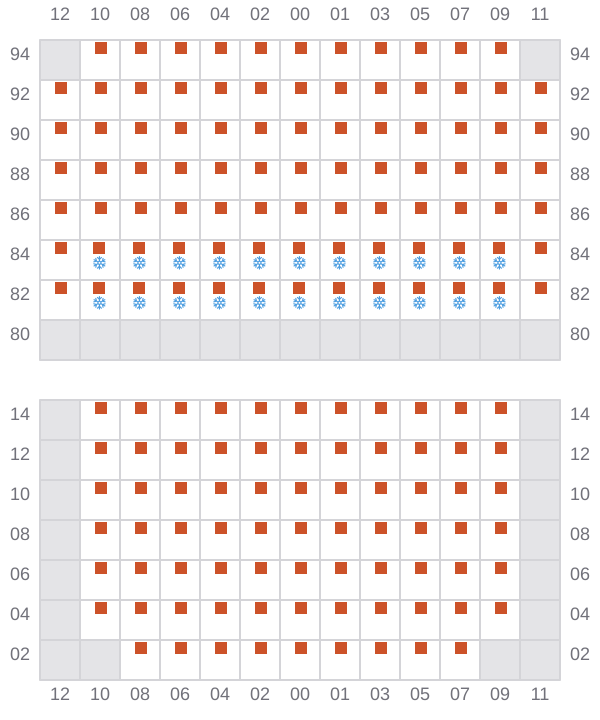

029
- →
![Bay 029 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b029.png?v=1714763776257)

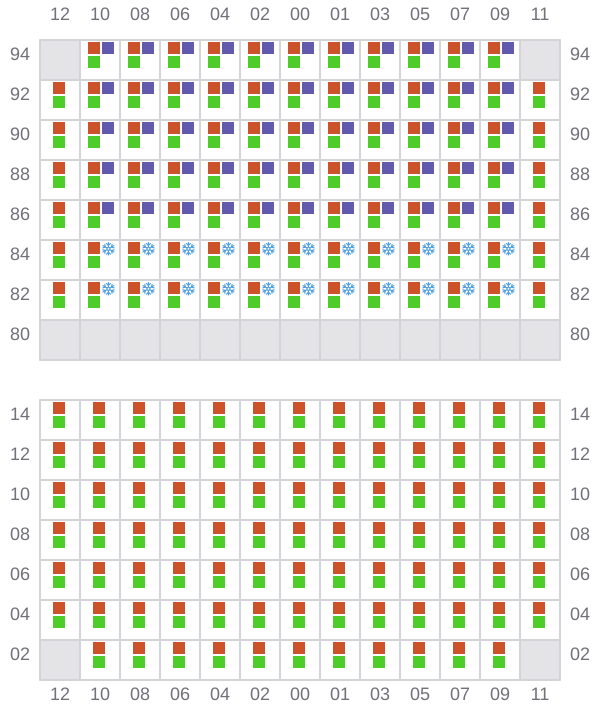

031 (030)
- ←
![Bay 031 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b031.png?v=1714763776257)

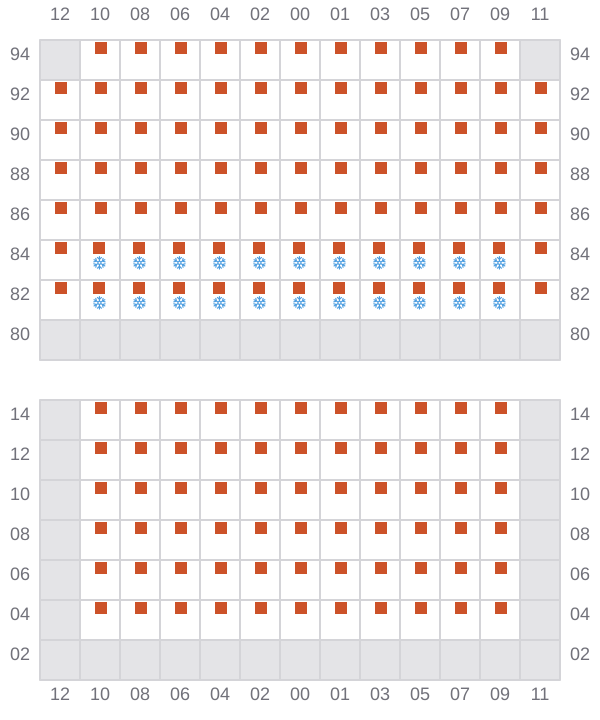

033
- →
![Bay 033 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b033.png?v=1714763776257)

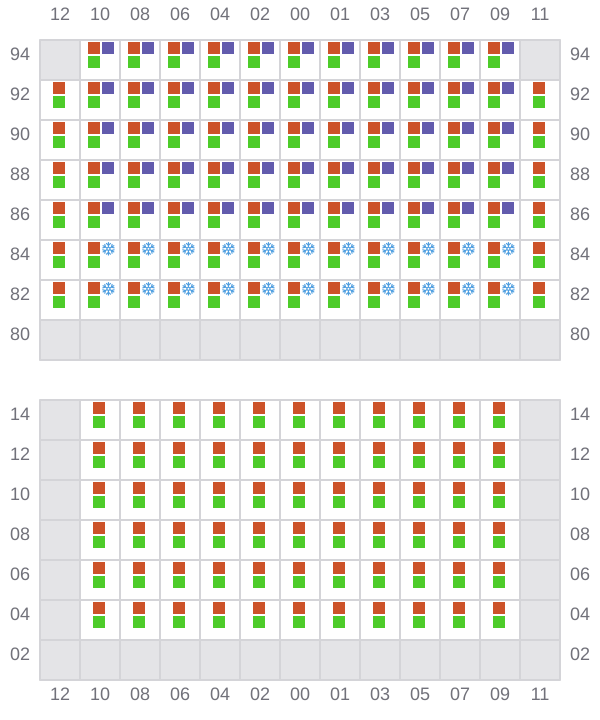

035 (034)
- ←
![Bay 035 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b035.png?v=1714763776257)
037
- →
![Bay 037 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b037.png?v=1714763776257)
039 (038)
- ←
![Bay 039 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b039.png?v=1714763776257)
041
- →
![Bay 041 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b041.png?v=1714763776257)
043 (042)
- ←
![Bay 043 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b043.png?v=1714763776257)

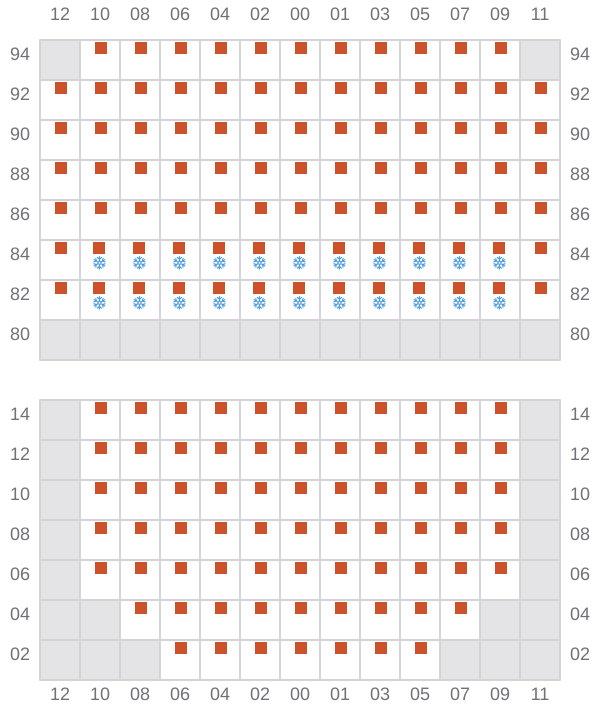

045
- →
![Bay 045 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b045.png?v=1714763776257)
047 (046)
- ←
![Bay 047 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b047.png?v=1714763776257)
049
![Bay 049 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b049.png?v=1714763776257)

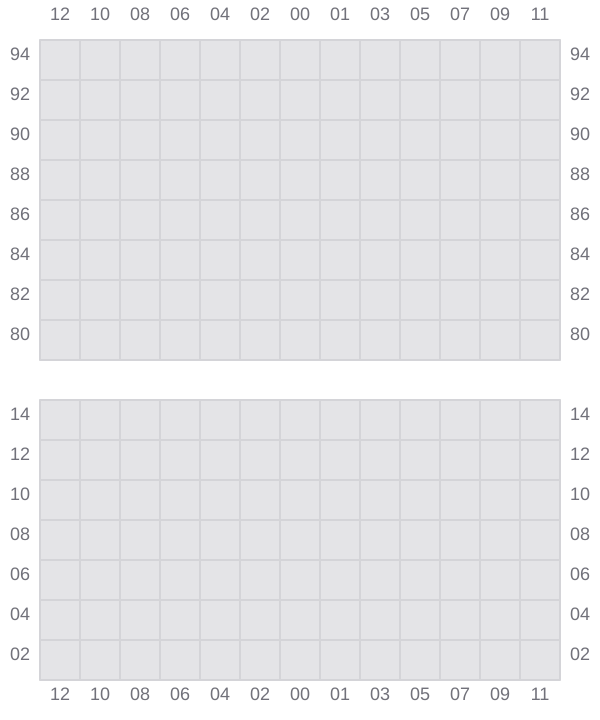

051
![Bay 051 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b051.png?v=1714763776257)

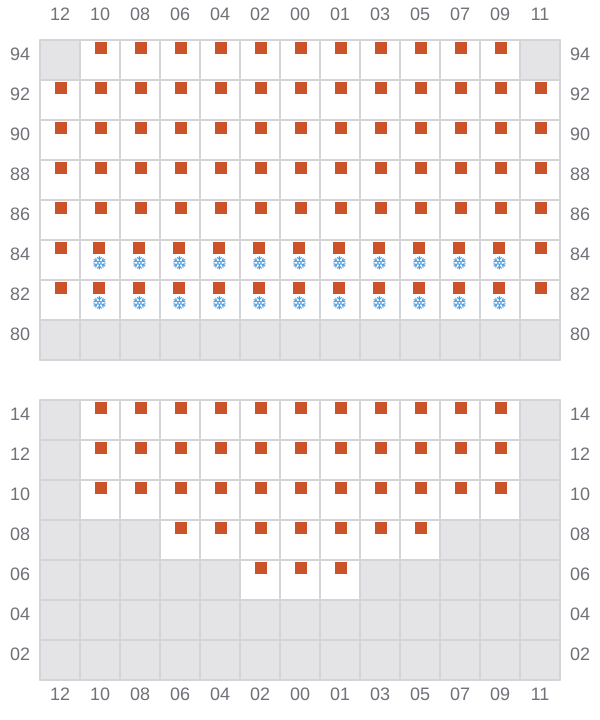

053
- →
![Bay 053 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b053.png?v=1714763776257)

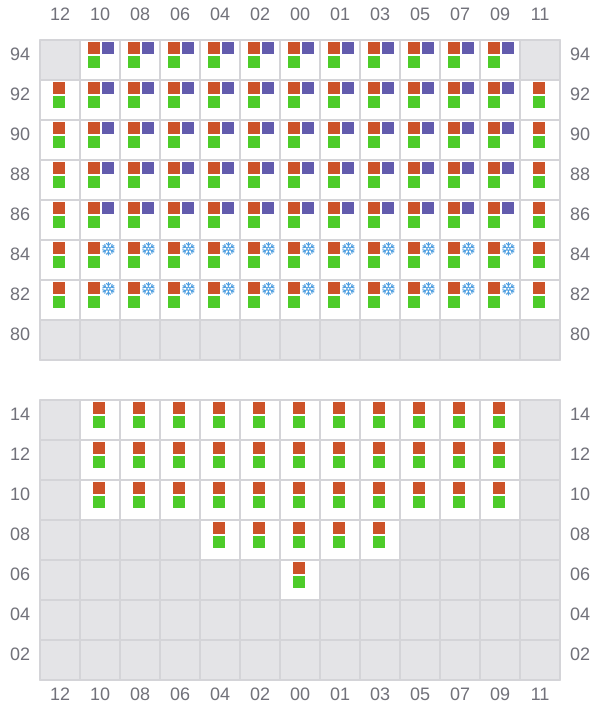

055 (054)
- ←
![Bay 055 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b055.png?v=1714763776257)

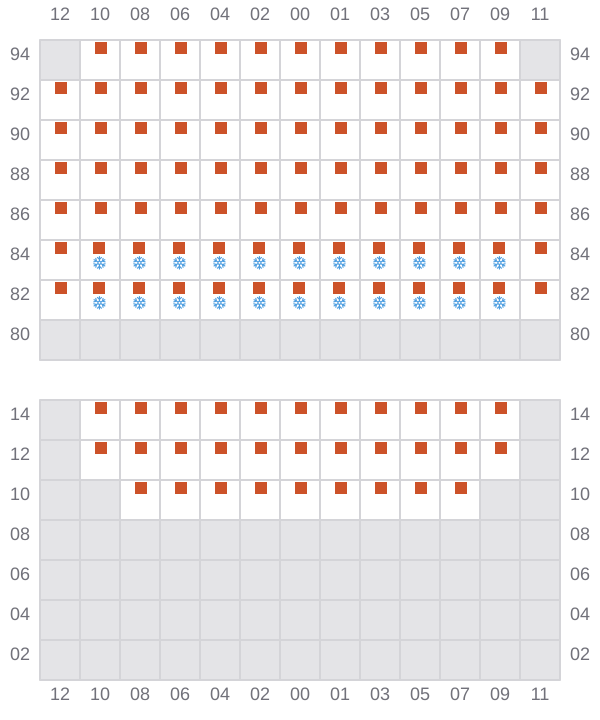

057
- →
![Bay 057 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b057.png?v=1714763776257)
059 (058)
- ←
![Bay 059 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b059.png?v=1714763776257)

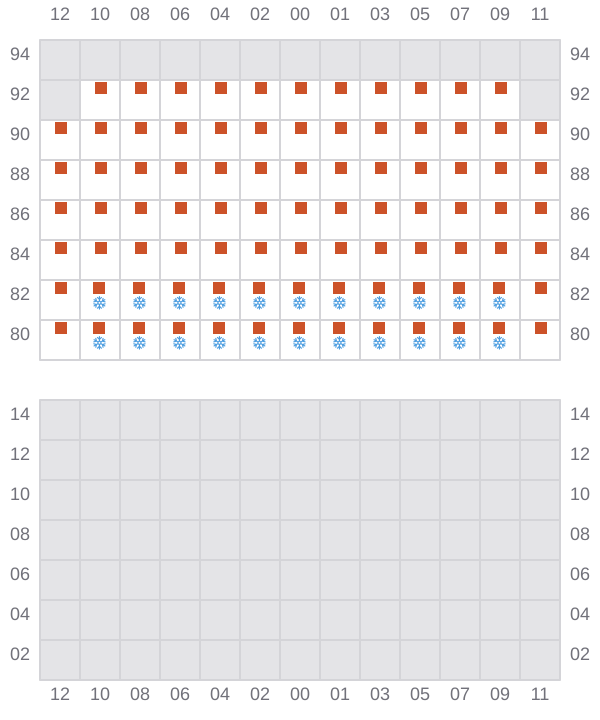

061
- → / ?
![Bay 061 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b061.png?v=1714763776257)

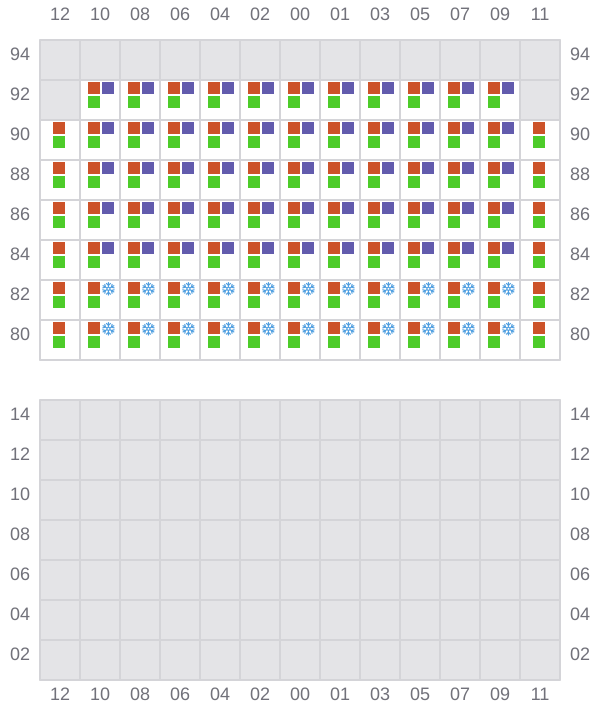

063 (062)
- ← / ?
![Bay 063 view and slots of CMA CGM TARRAGONA](/vessel-images/710dc507-74a1-477f-b500-93cd749ca3e2-b063.png?v=1714763776257)
