CMA CGM THAMES
9674567 | 9HA3851 | CMA by *********************** Last update: Wed Feb 05 2025

General Info

Ship Name:CMA CGM THAMES
IMO Code:9674567
Call Sign:9HA3851
Line Operator:CMA
Class Name for Sister Ships:CGTH
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,433

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

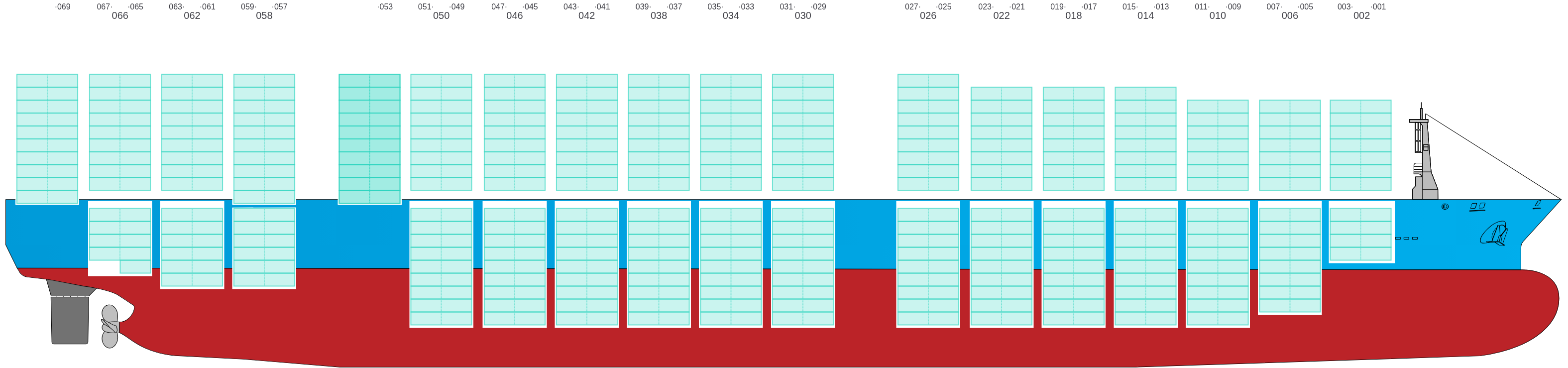

Side View

Side view of CMA CGM THAMES

Hatch-Covers View

Deck view of CMA CGM THAMES

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

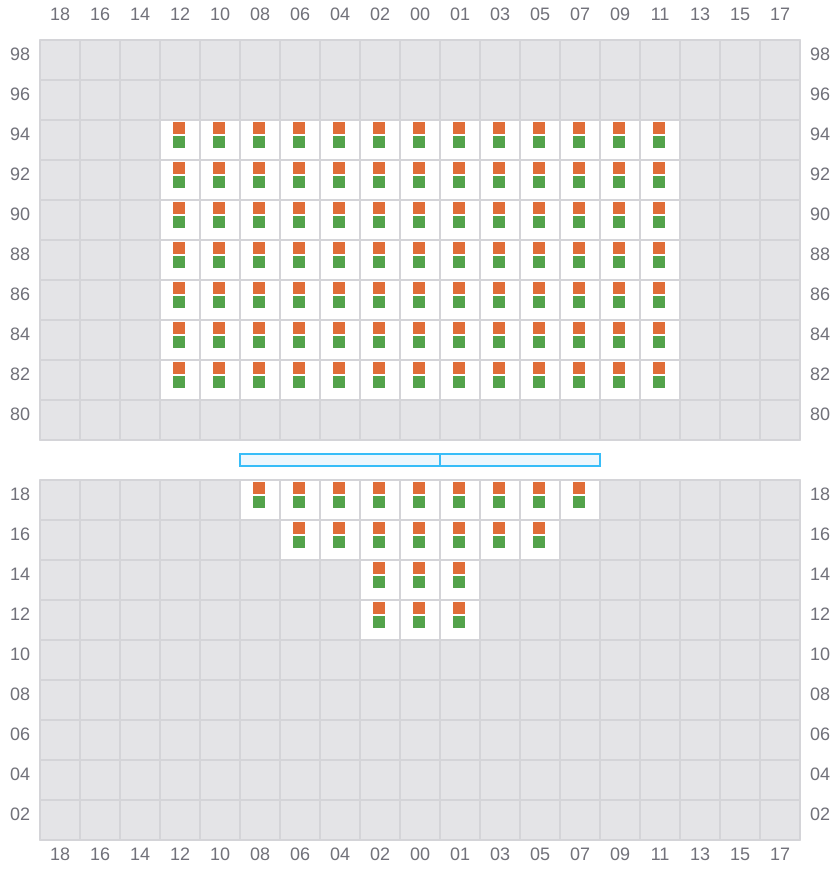

001 (002)

  • →
  • →
Bay 001 view and slots of CMA CGM THAMES

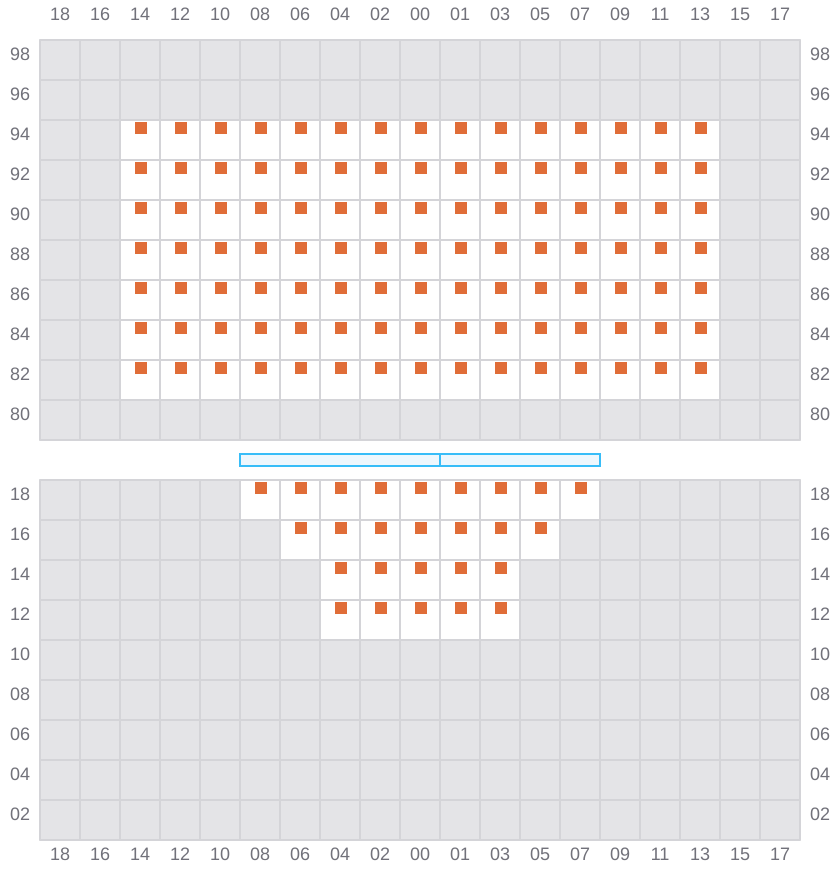

003

  • ←
  • →
Bay 003 view and slots of CMA CGM THAMES

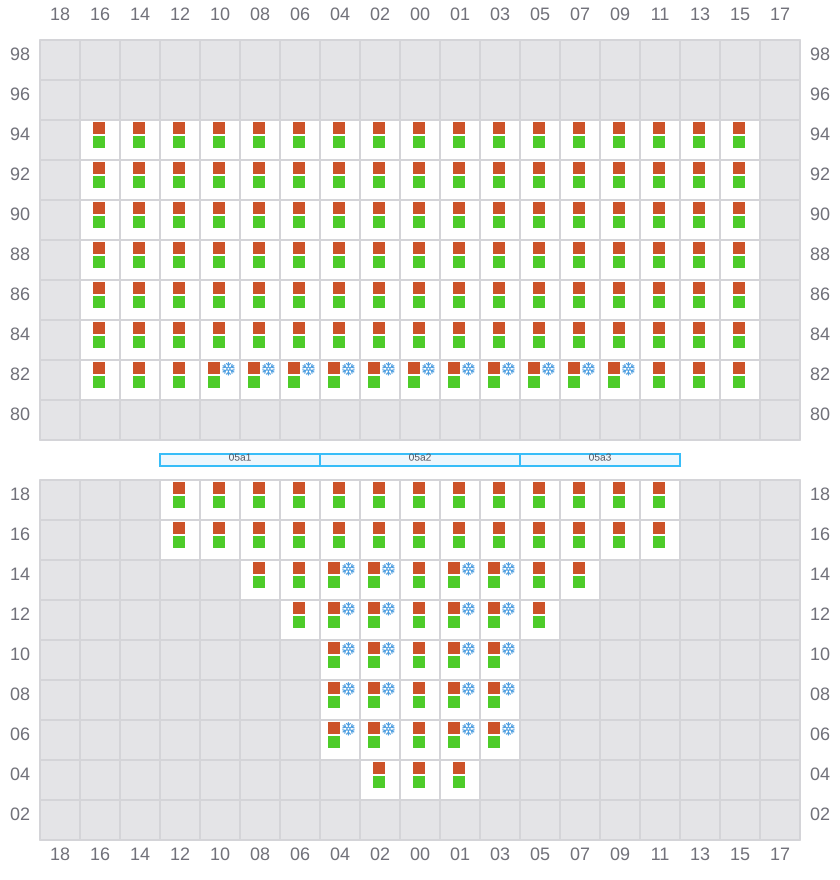

005 (006)

  • →
  • →
  • →

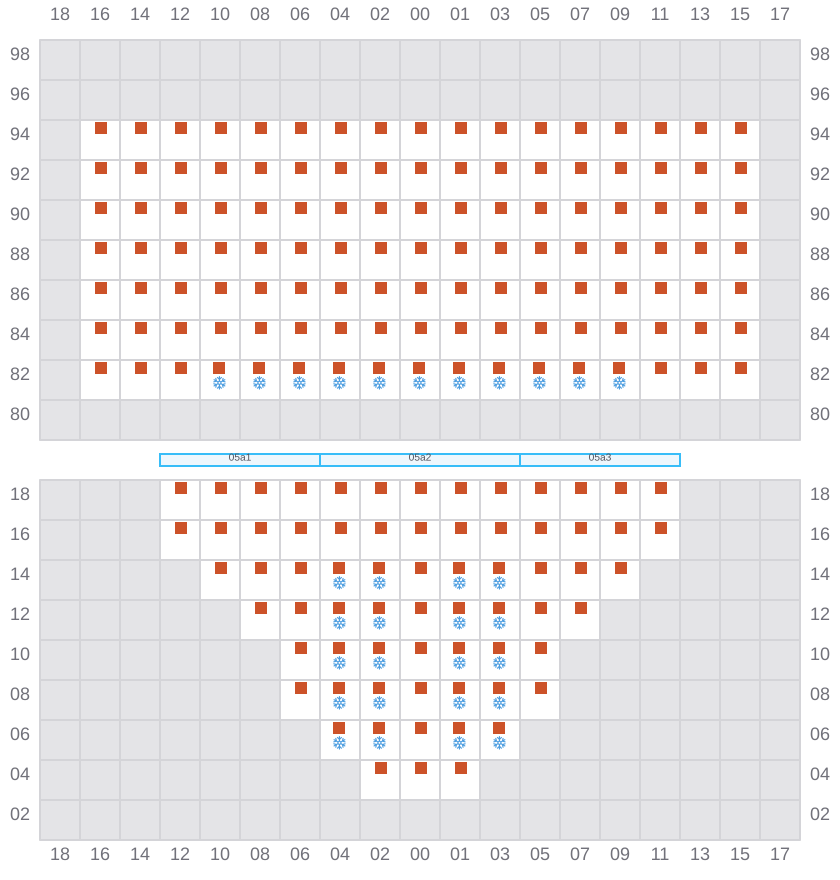

Bay 005 view and slots of CMA CGM THAMES

007

  • ←
  • →
  • →
Bay 007 view and slots of CMA CGM THAMES

009 (010)

  • →
  • →
  • →

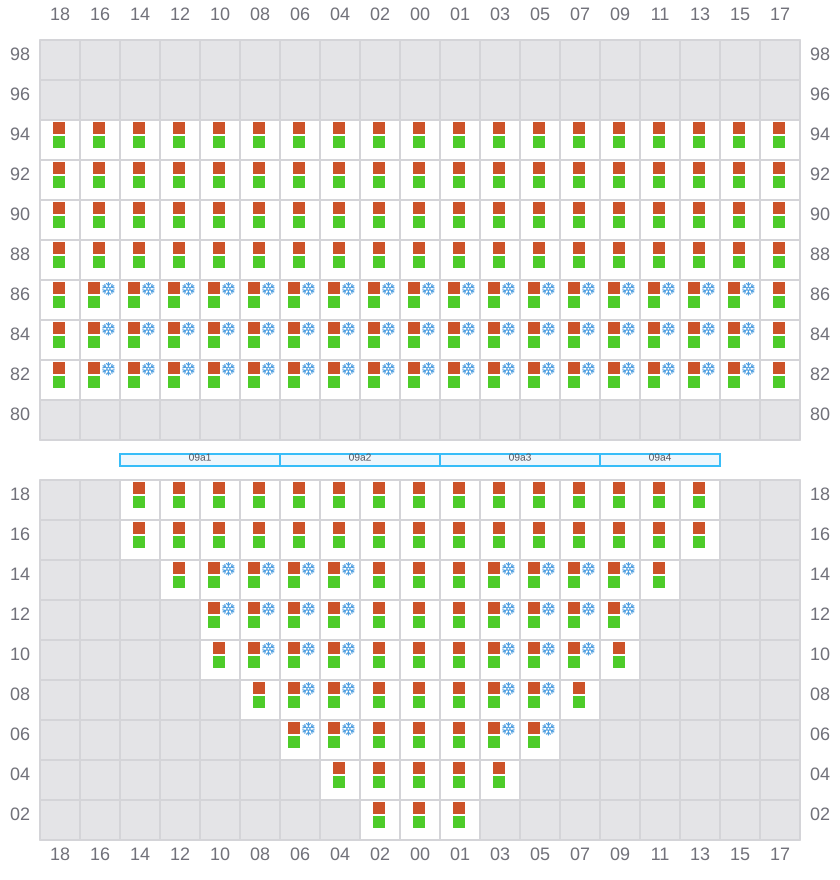

Bay 009 view and slots of CMA CGM THAMES

011

  • ←
  • →
  • →

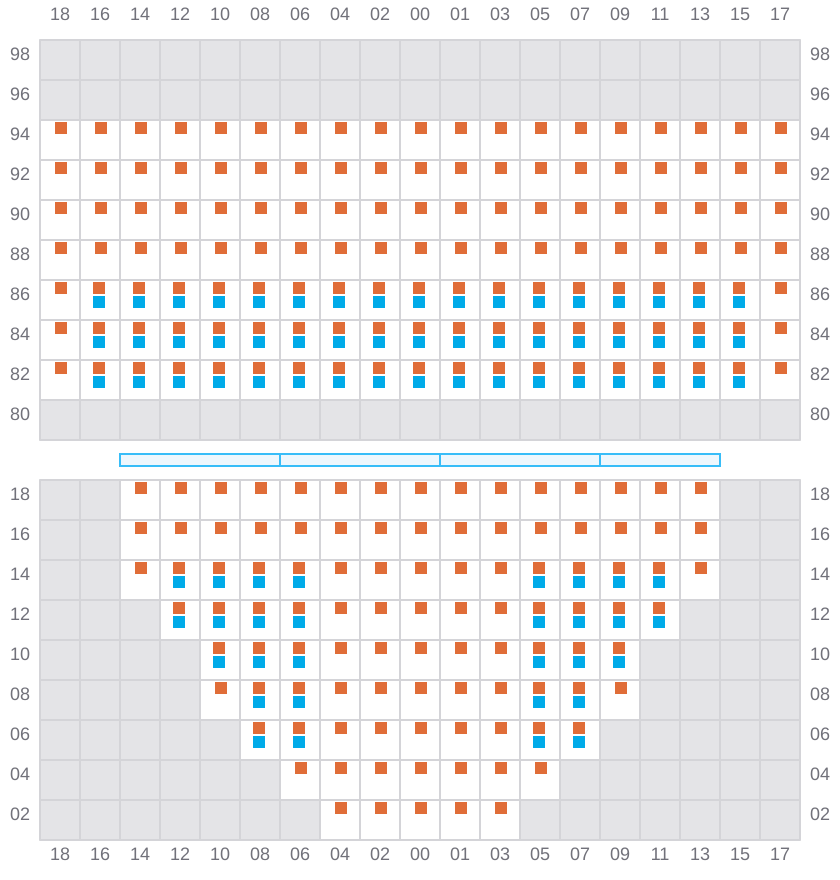

Bay 011 view and slots of CMA CGM THAMES

013 (014)

  • →
  • →
  • →

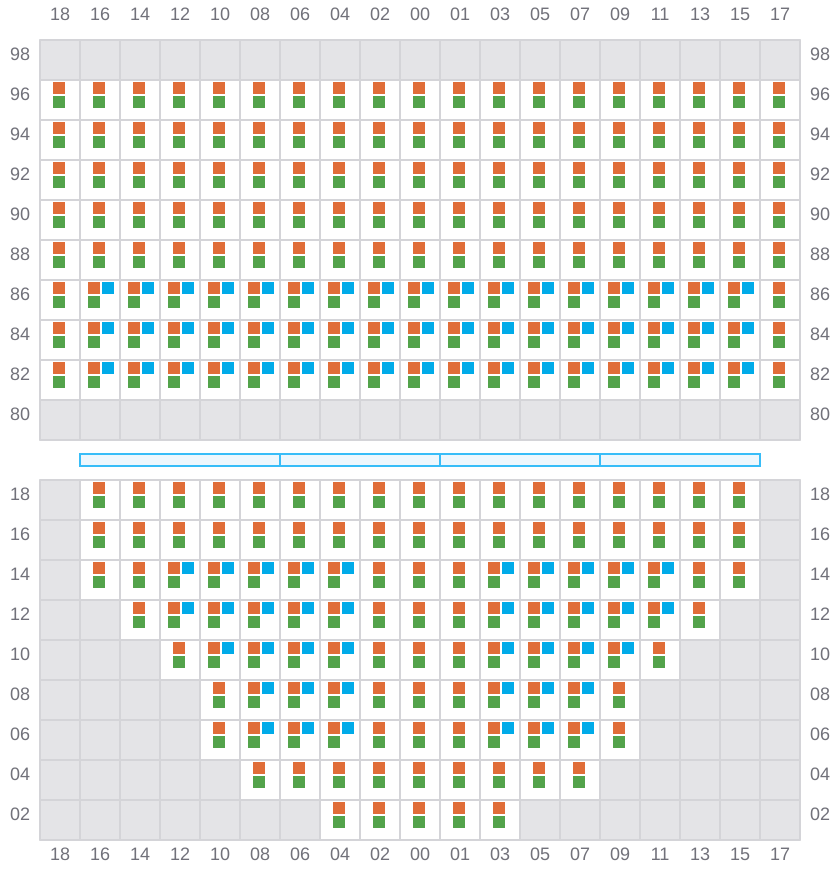

Bay 013 view and slots of CMA CGM THAMES

015

  • ←
  • →
  • →

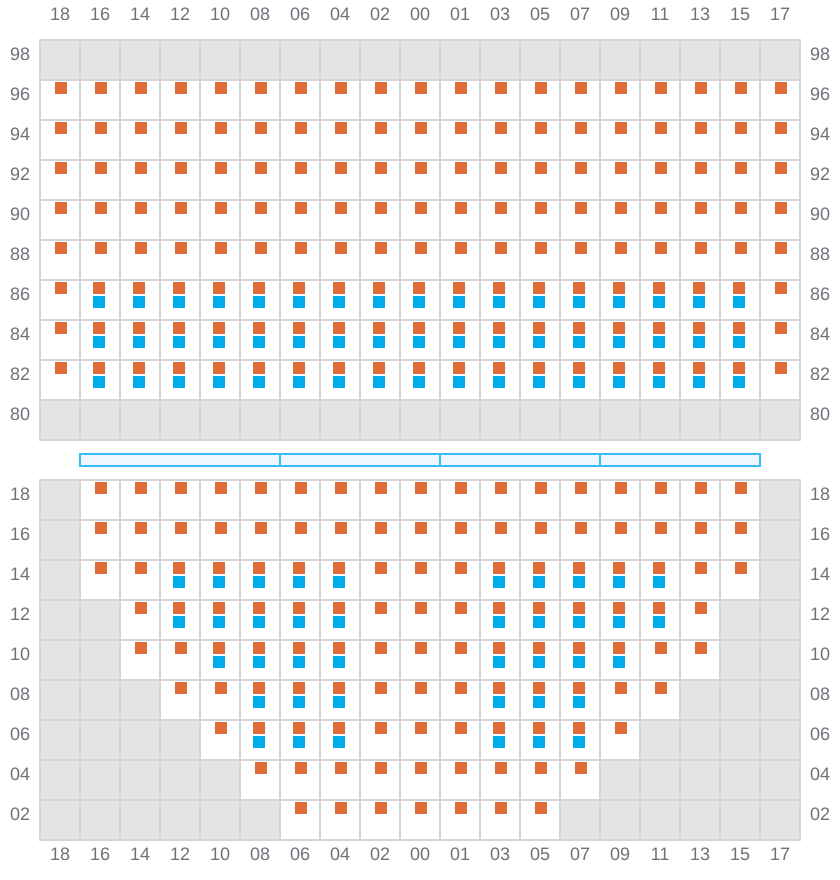

Bay 015 view and slots of CMA CGM THAMES

017 (018)

  • →
  • →
  • →

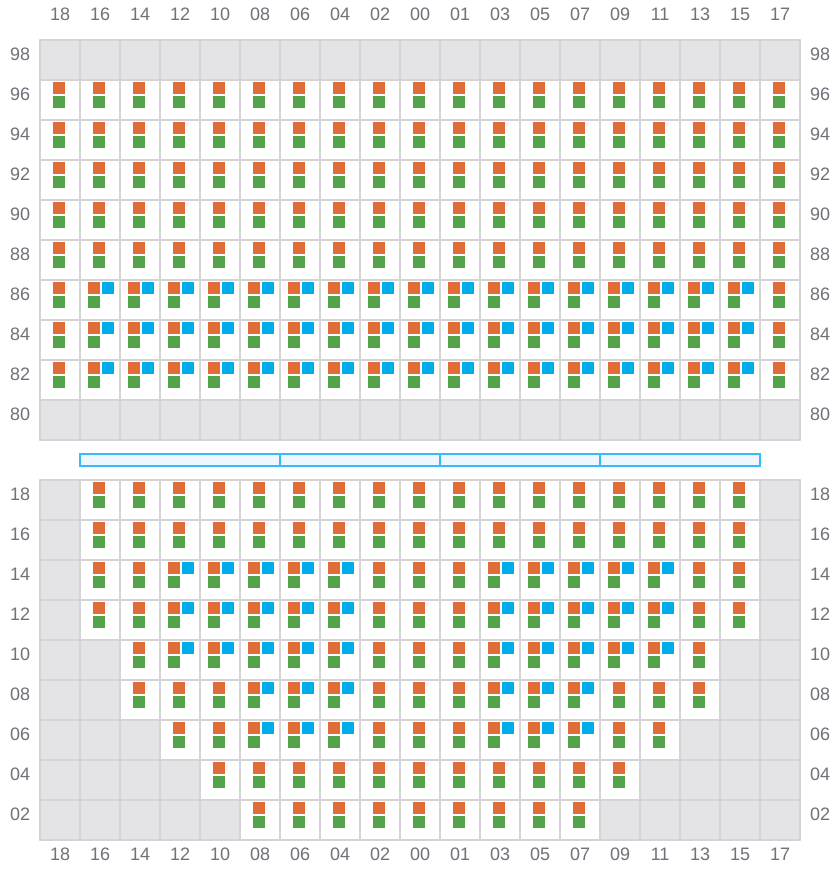

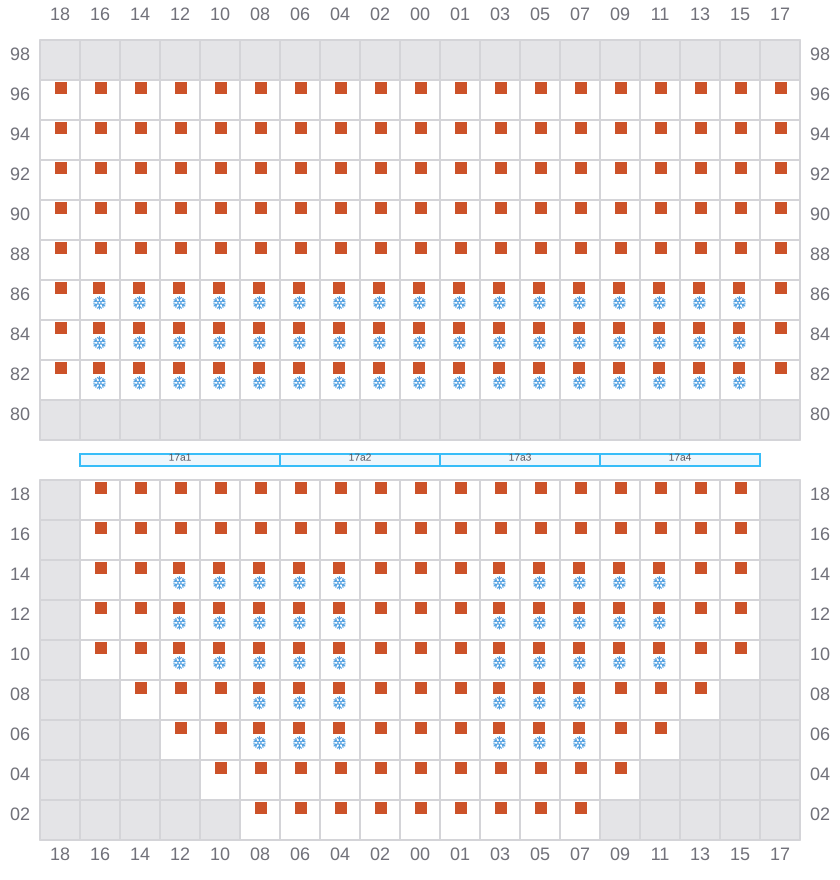

Bay 017 view and slots of CMA CGM THAMES

019

  • ←
  • →
  • →
Bay 019 view and slots of CMA CGM THAMES

021 (022)

  • →
  • →
  • →

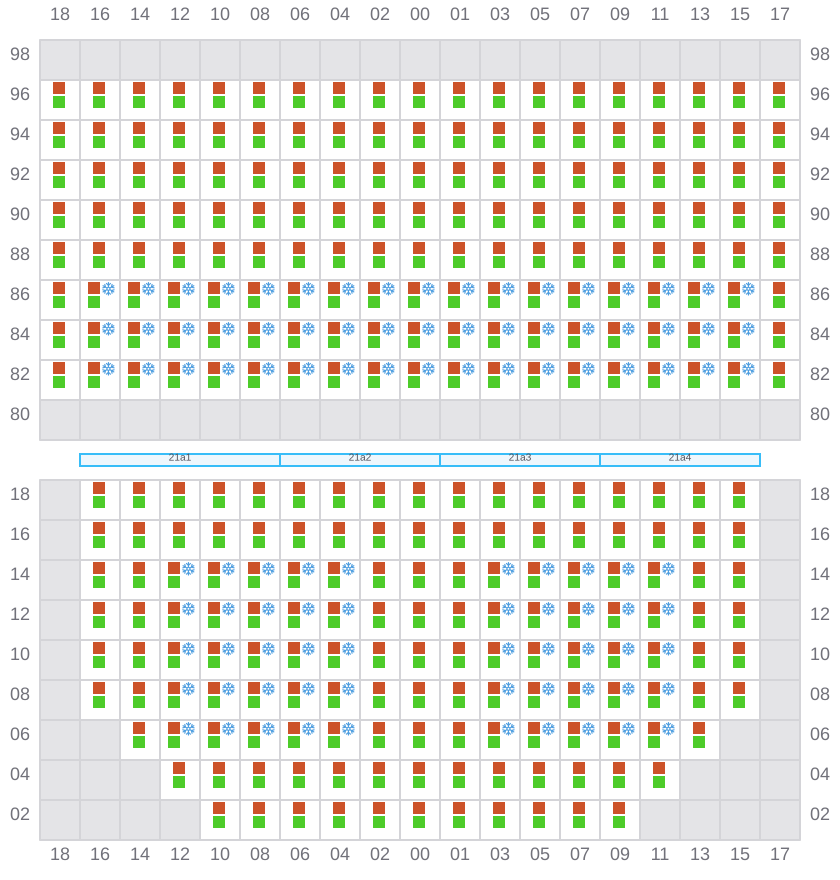

Bay 021 view and slots of CMA CGM THAMES

023

  • ←
  • →
  • →

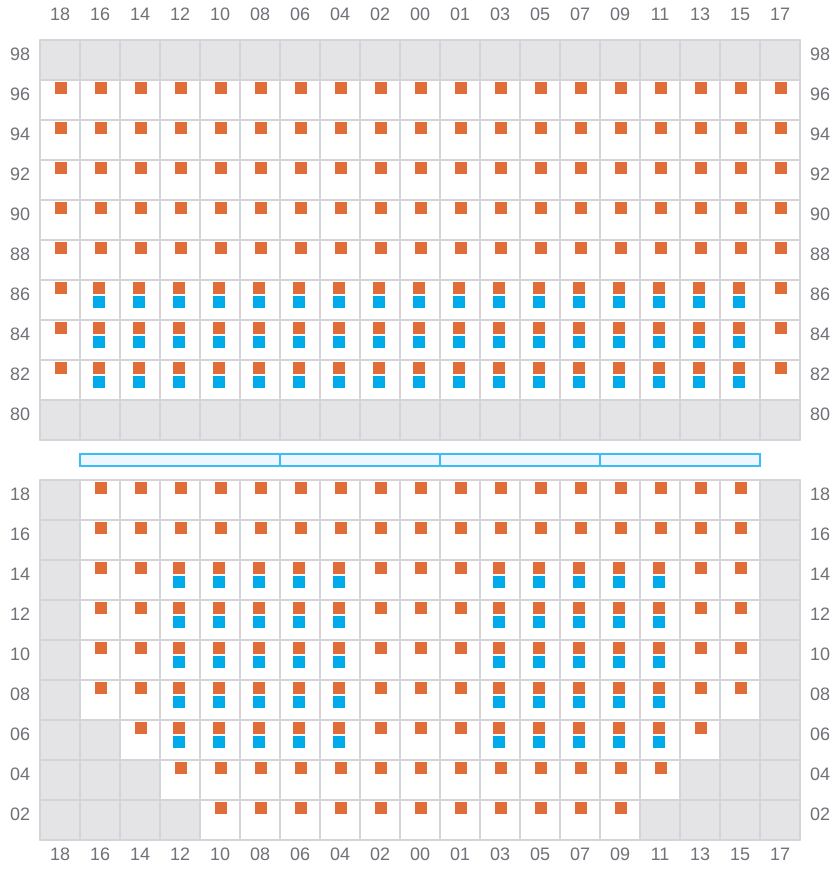

Bay 023 view and slots of CMA CGM THAMES

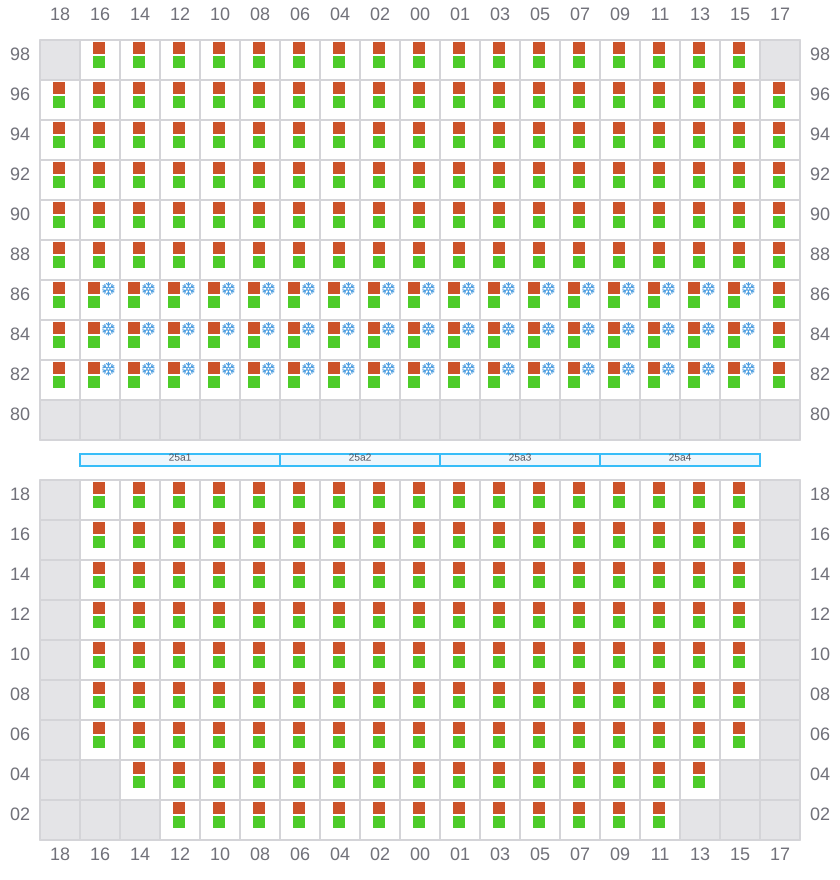

025 (026)

  • →
  • → / ?
  • →
Bay 025 view and slots of CMA CGM THAMES

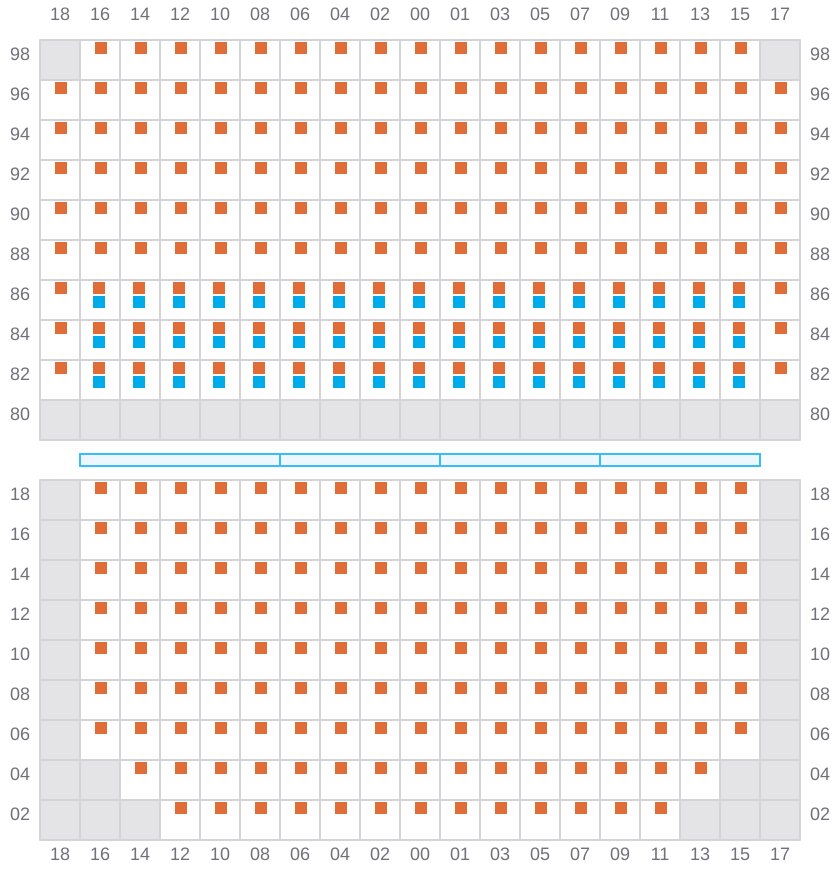

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of CMA CGM THAMES

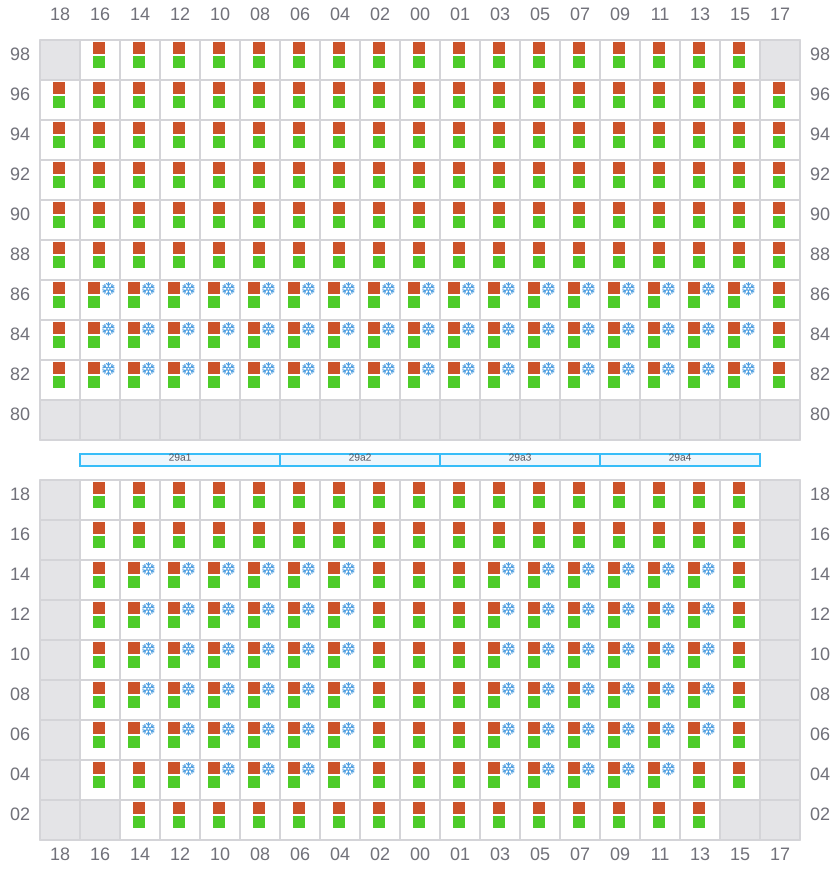

029 (030)

  • →
  • →
  • →
Bay 029 view and slots of CMA CGM THAMES

031

  • ←
  • →
  • →

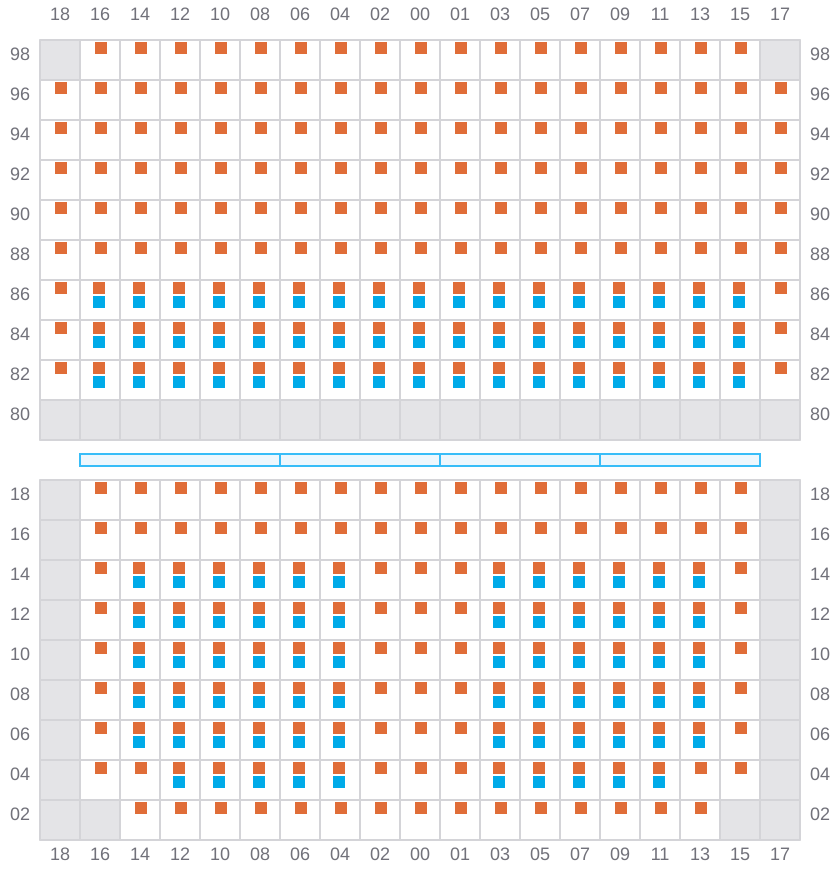

Bay 031 view and slots of CMA CGM THAMES

033 (034)

  • →
  • →
  • →

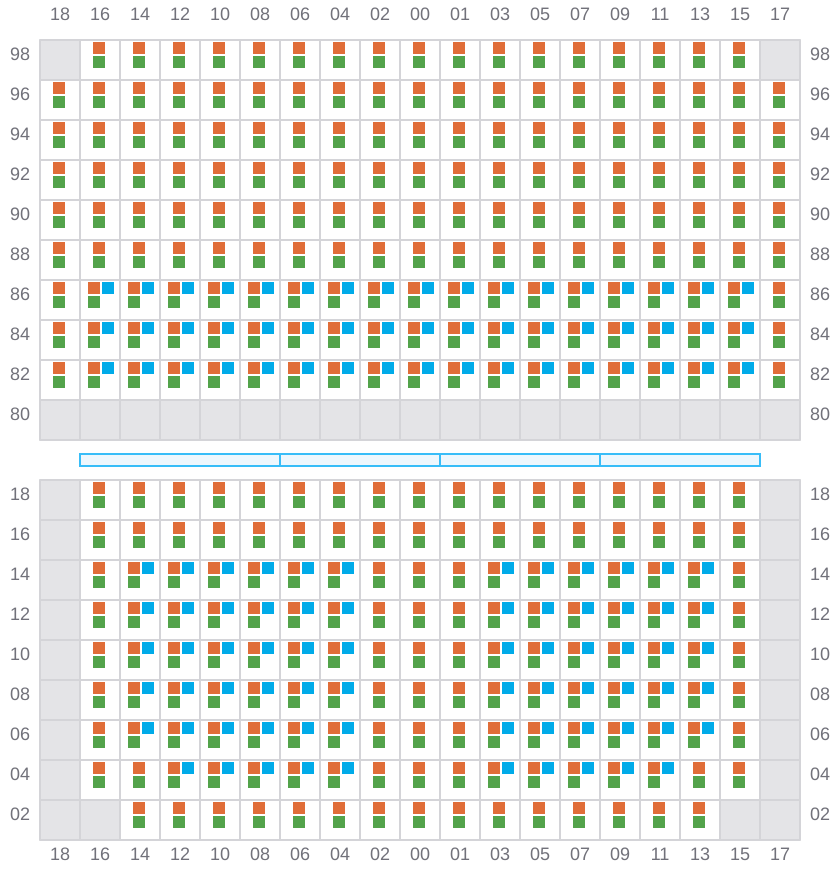

Bay 033 view and slots of CMA CGM THAMES

035

  • ←
  • →
  • →
Bay 035 view and slots of CMA CGM THAMES

037 (038)

  • →
  • →
  • →
Bay 037 view and slots of CMA CGM THAMES

039

  • ←
  • →
  • →
Bay 039 view and slots of CMA CGM THAMES

041 (042)

  • →
  • →
  • →
Bay 041 view and slots of CMA CGM THAMES

043

  • ←
  • →
  • →
Bay 043 view and slots of CMA CGM THAMES

045 (046)

  • →
  • →
  • →
Bay 045 view and slots of CMA CGM THAMES

047

  • ←
  • →
  • →
Bay 047 view and slots of CMA CGM THAMES

049 (050)

  • →
  • → / ←
  • →

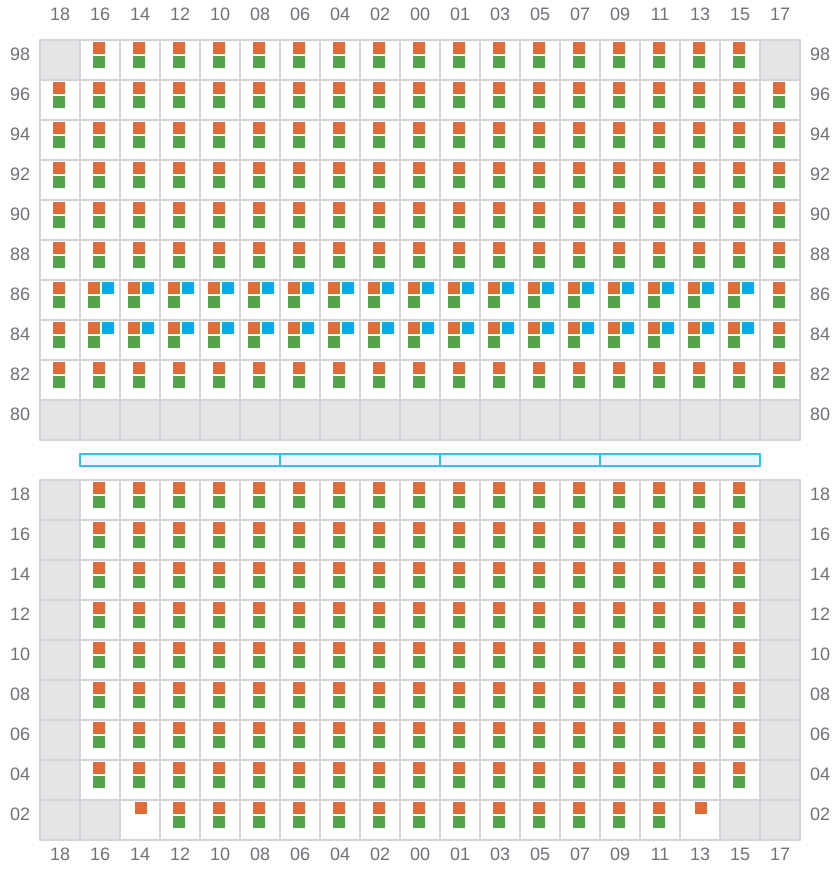

Bay 049 view and slots of CMA CGM THAMES

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of CMA CGM THAMES

053 (054)

  • → / ?
  • ← / ?
  • → / ?

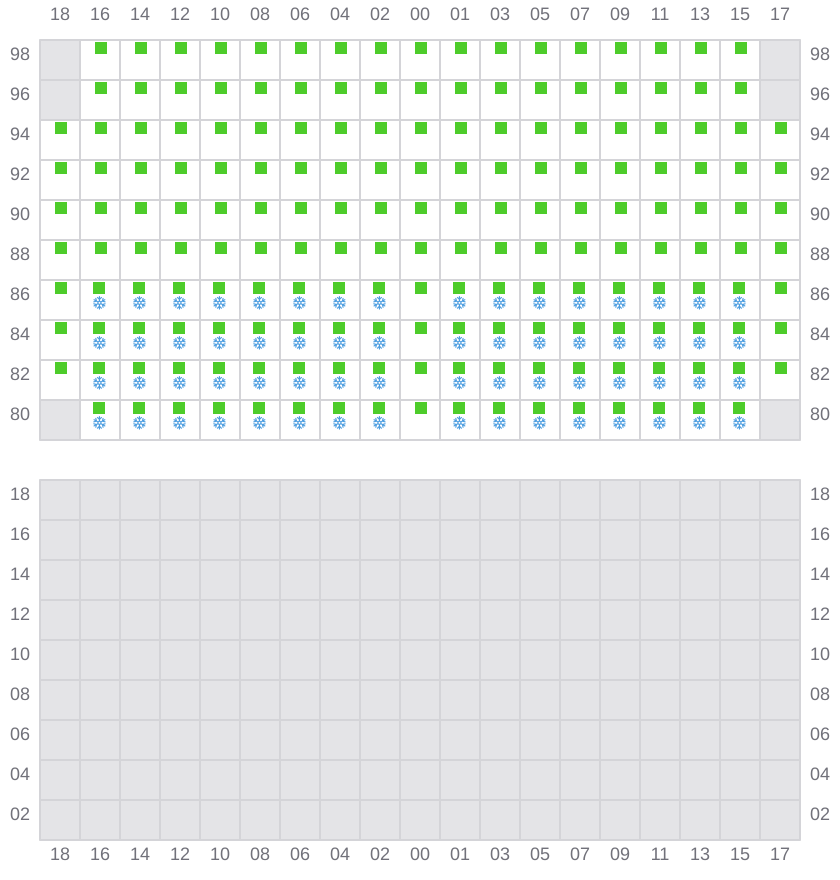

Bay 053 view and slots of CMA CGM THAMES

055

Bay 055 view and slots of CMA CGM THAMES

057 (058)

  • →
  • →
  • →

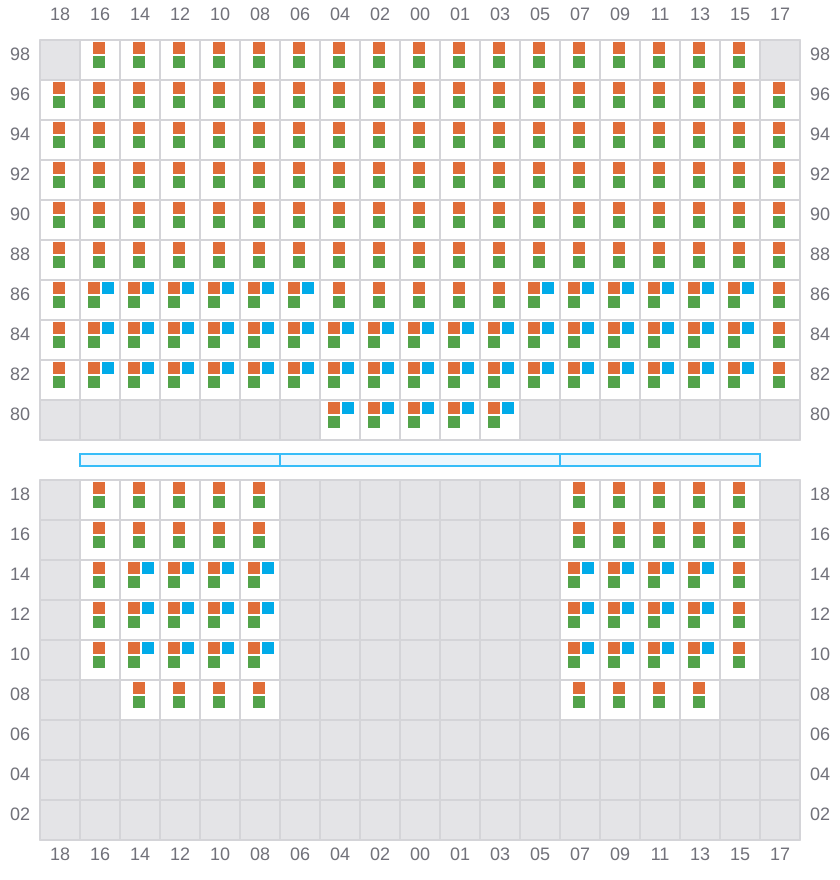

Bay 057 view and slots of CMA CGM THAMES

059

  • ←
  • →
  • →
Bay 059 view and slots of CMA CGM THAMES

061 (062)

  • →
  • → / ←
  • →

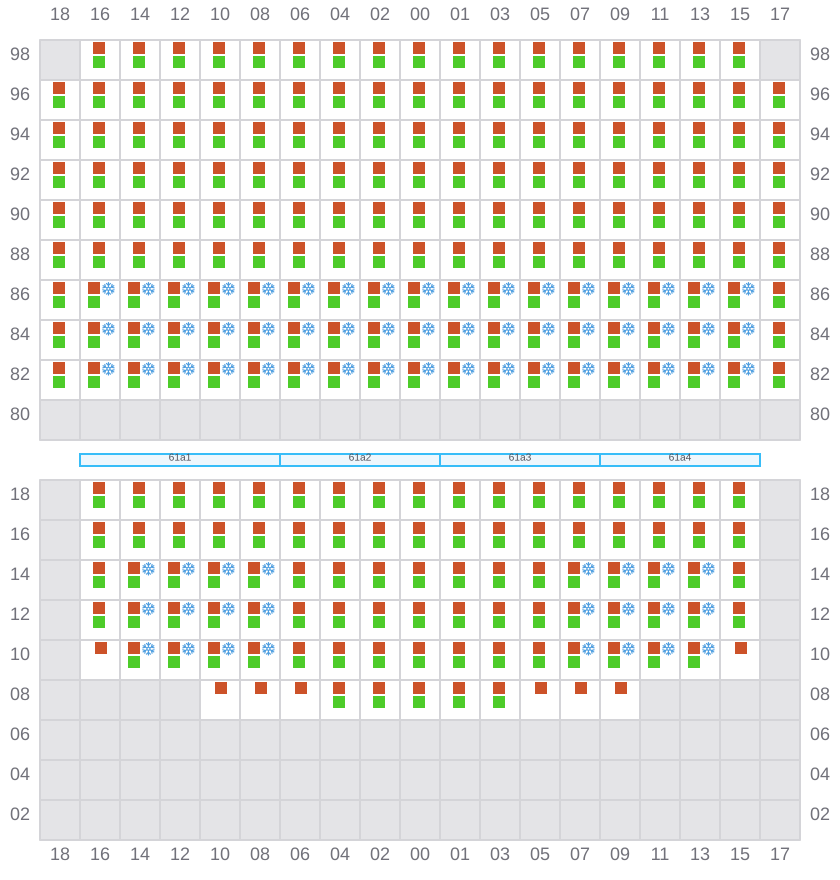

Bay 061 view and slots of CMA CGM THAMES

063

  • ←
  • →
  • →

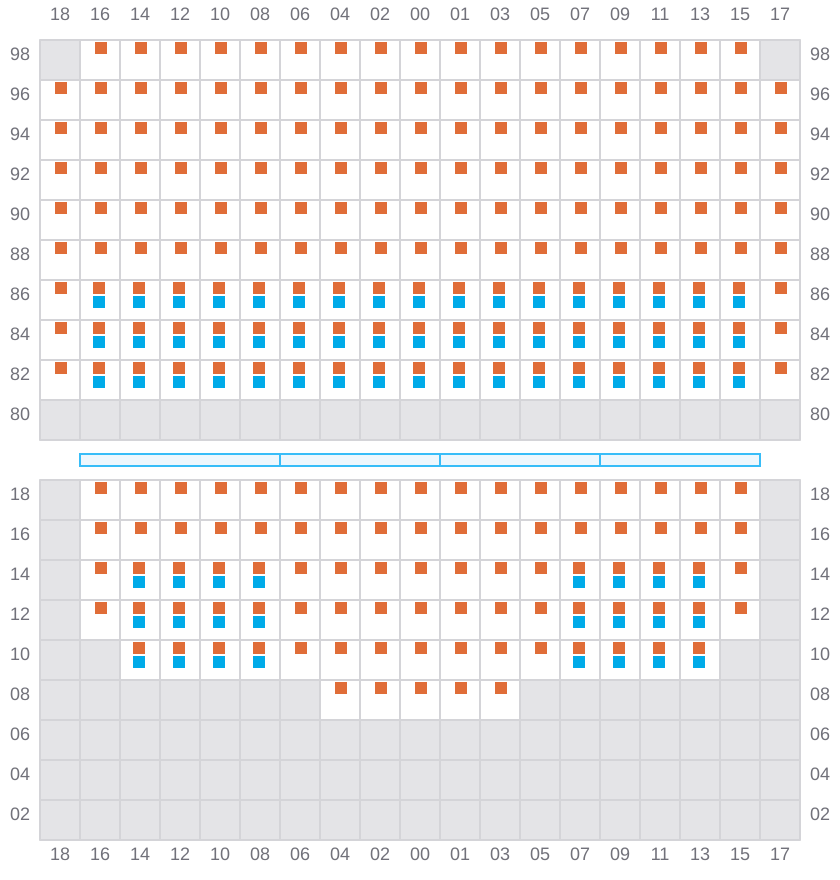

Bay 063 view and slots of CMA CGM THAMES

065 (066)

  • →
  • → / ←
  • →

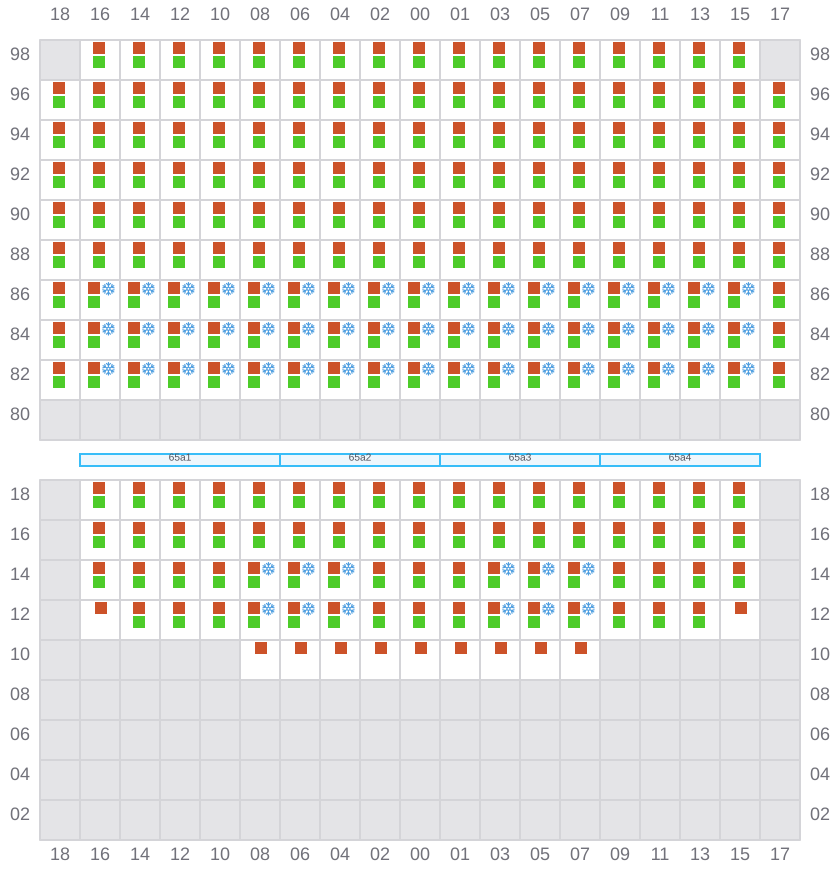

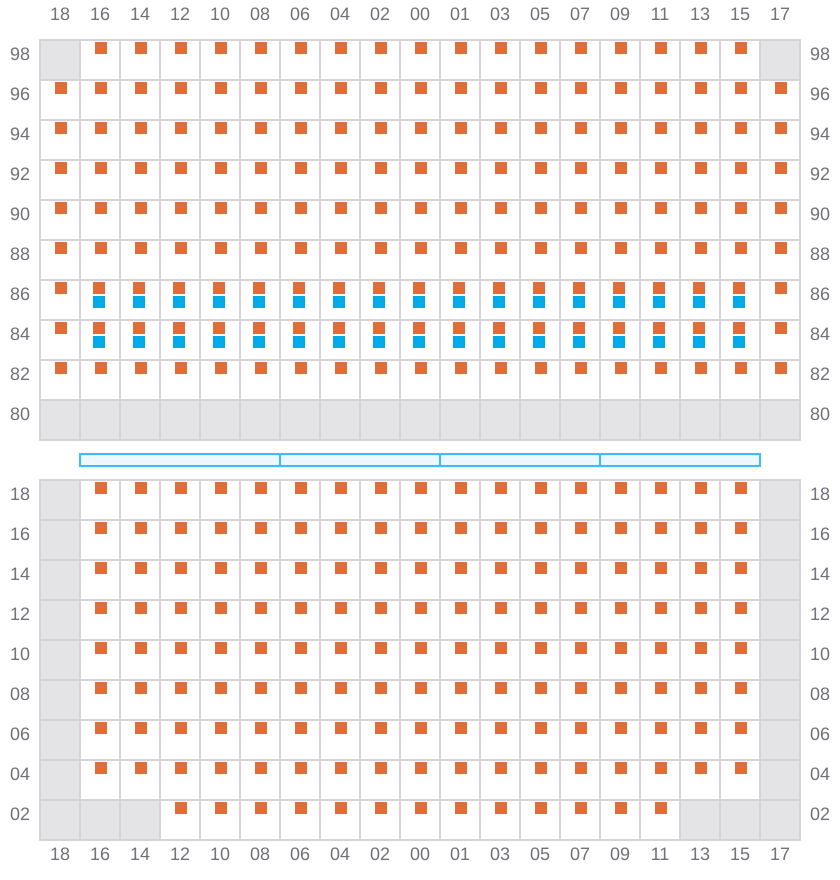

Bay 065 view and slots of CMA CGM THAMES

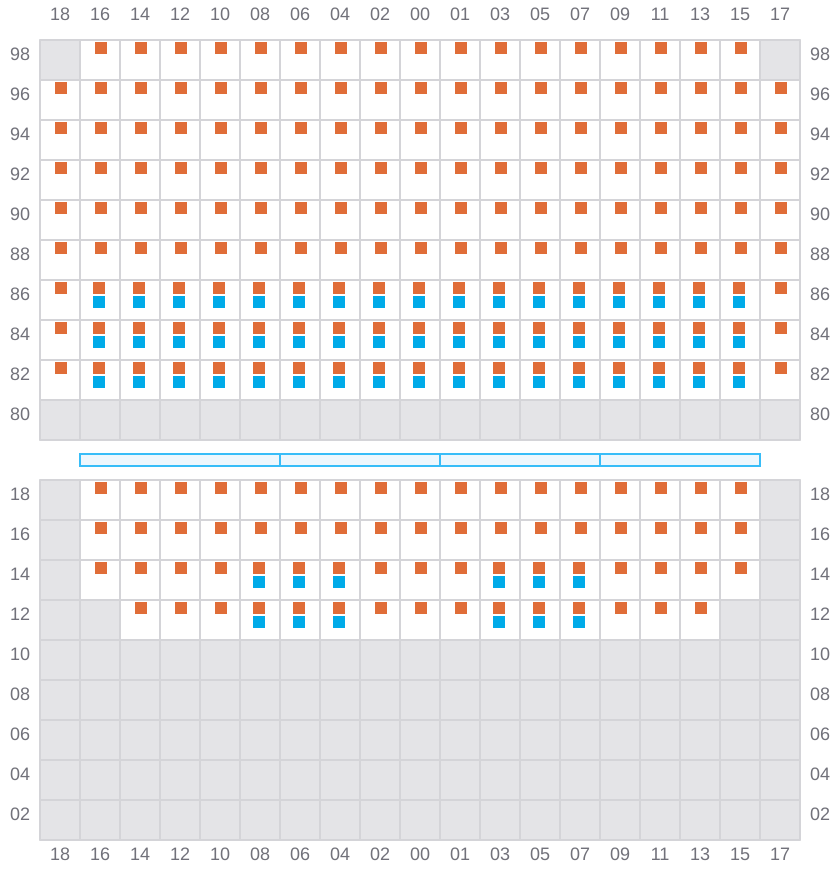

067

  • ←
  • →
  • →
Bay 067 view and slots of CMA CGM THAMES

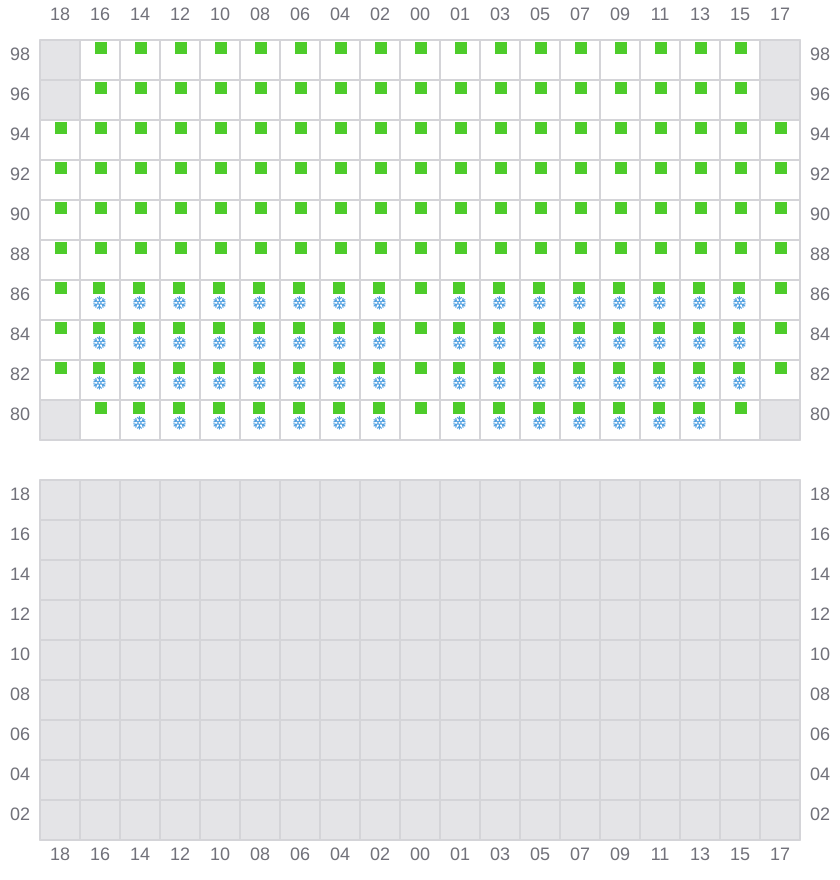

069 (070)

  • → / ?
  • ← / ?
  • → / ?
Bay 069 view and slots of CMA CGM THAMES
